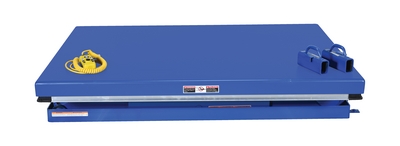

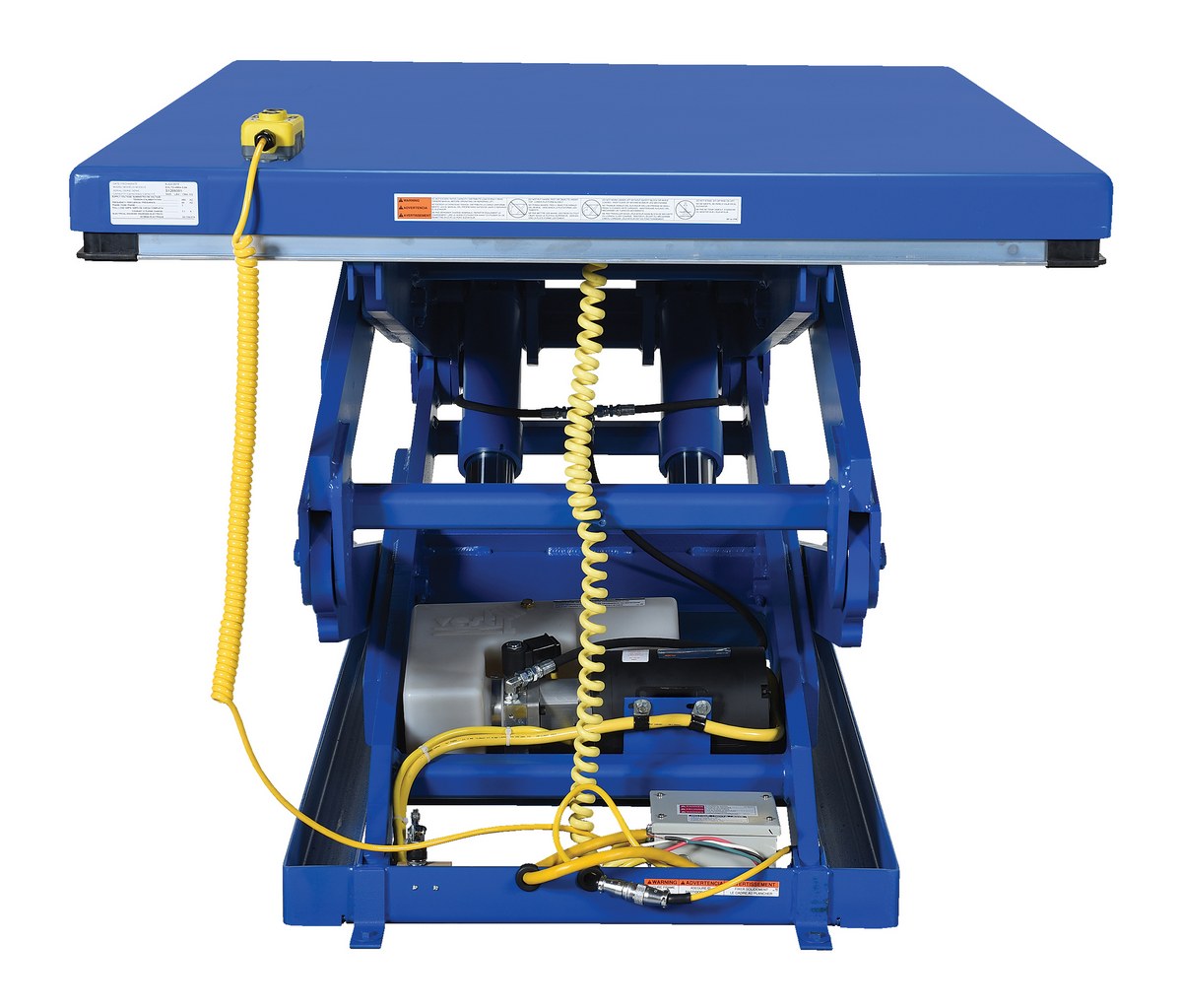

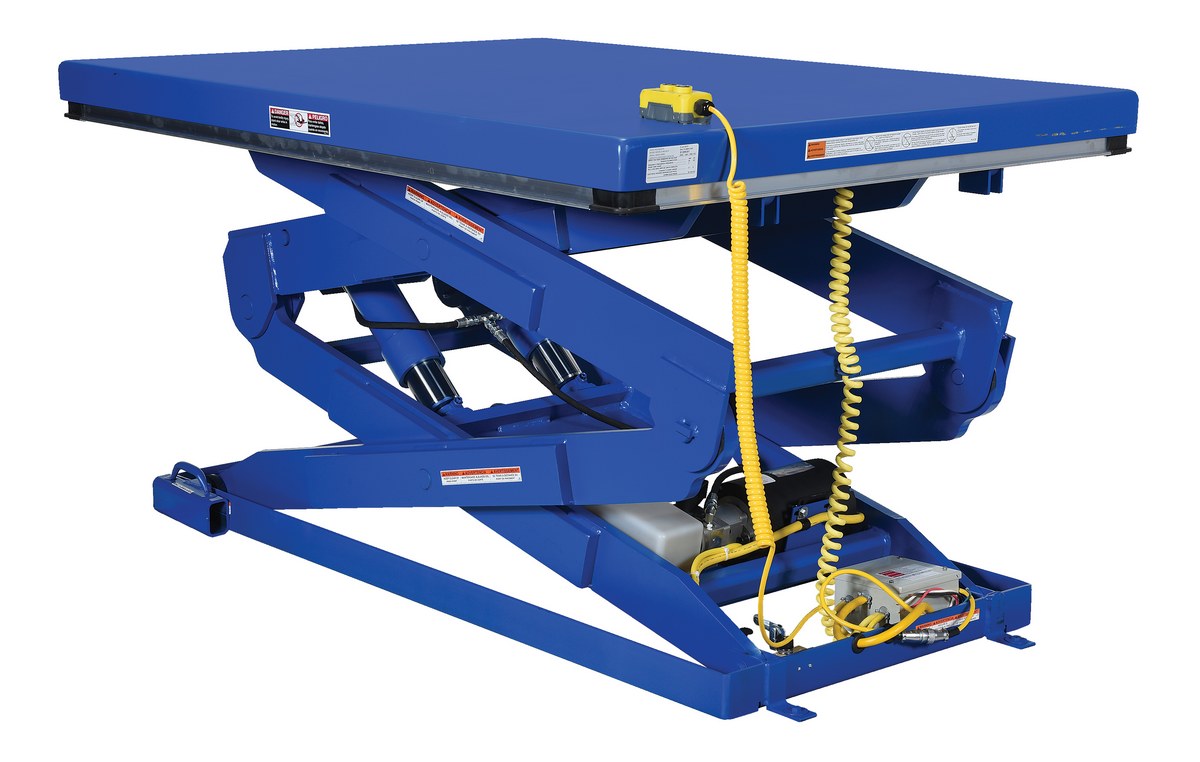

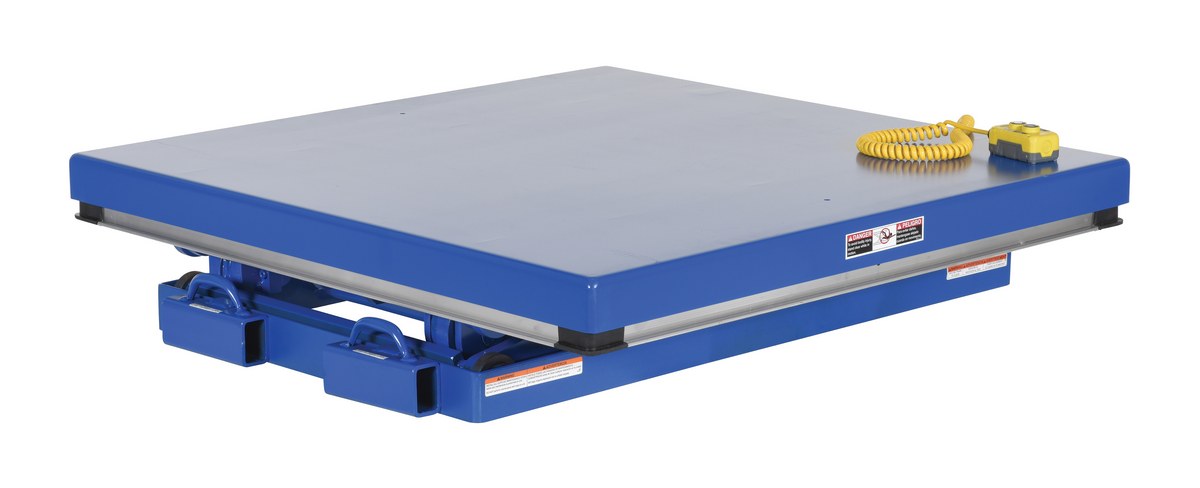

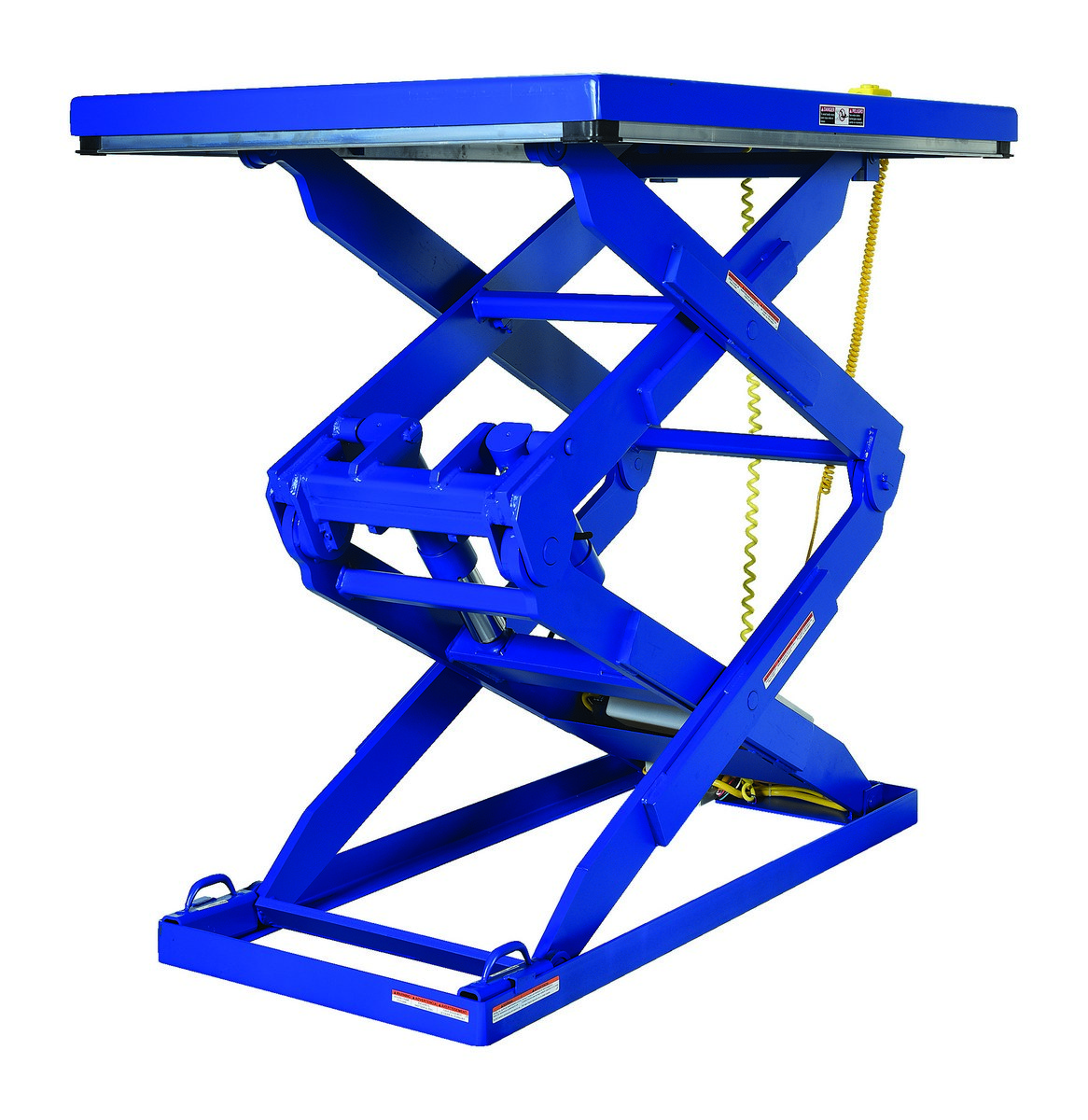

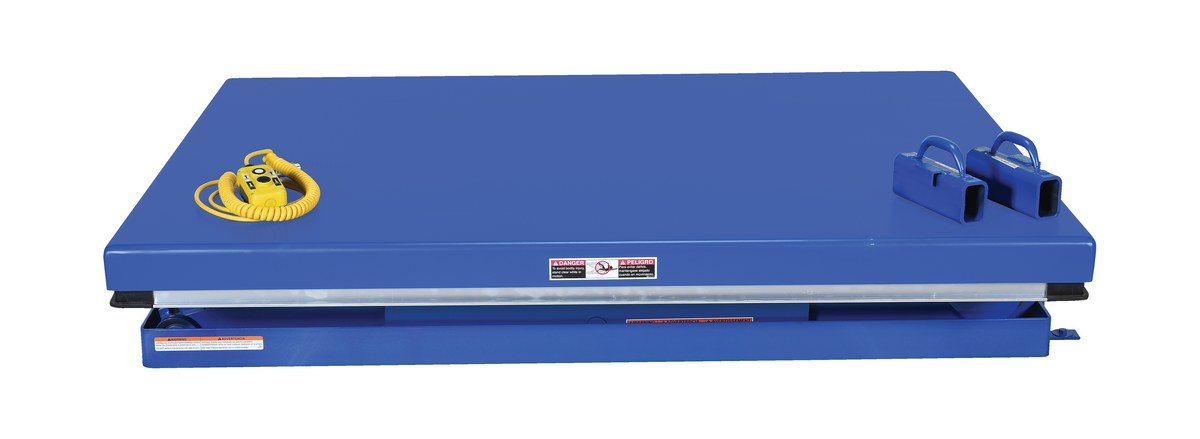

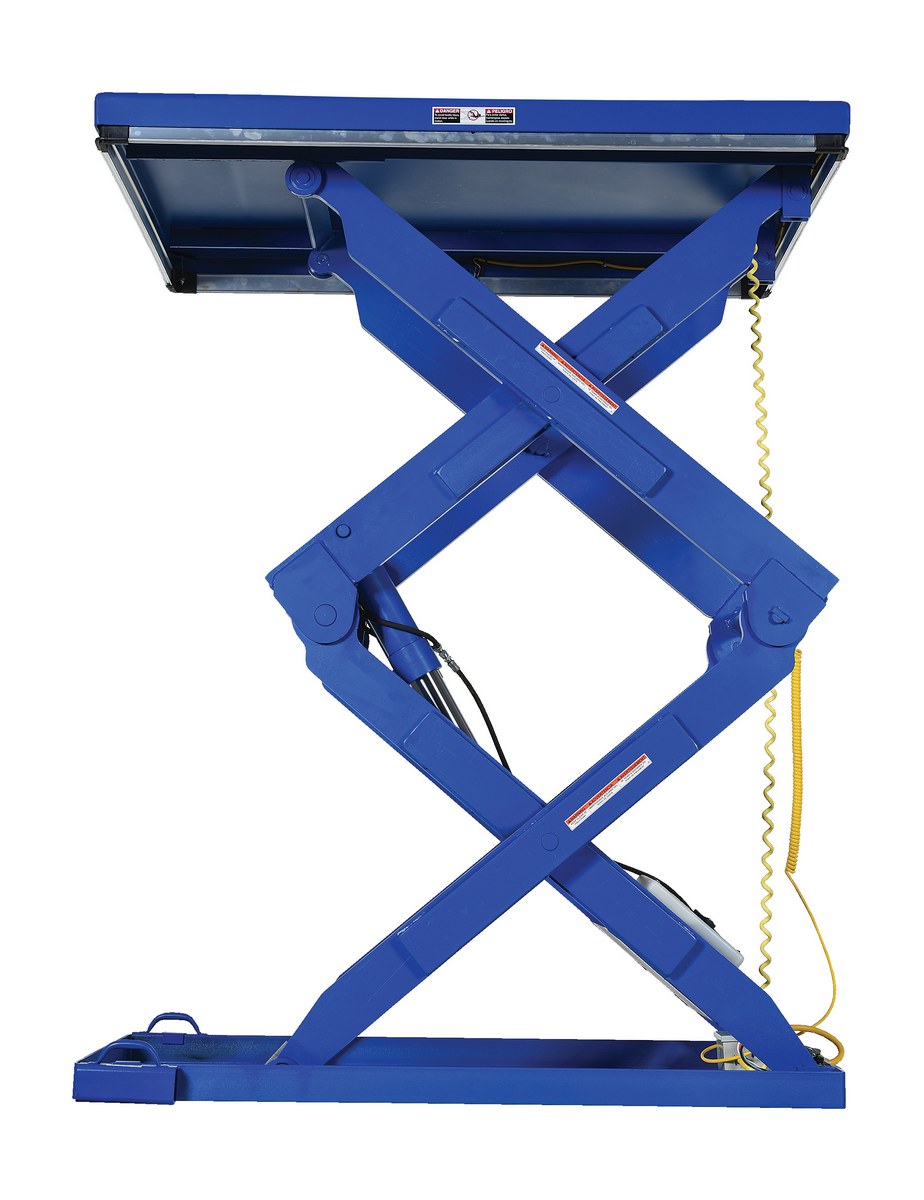

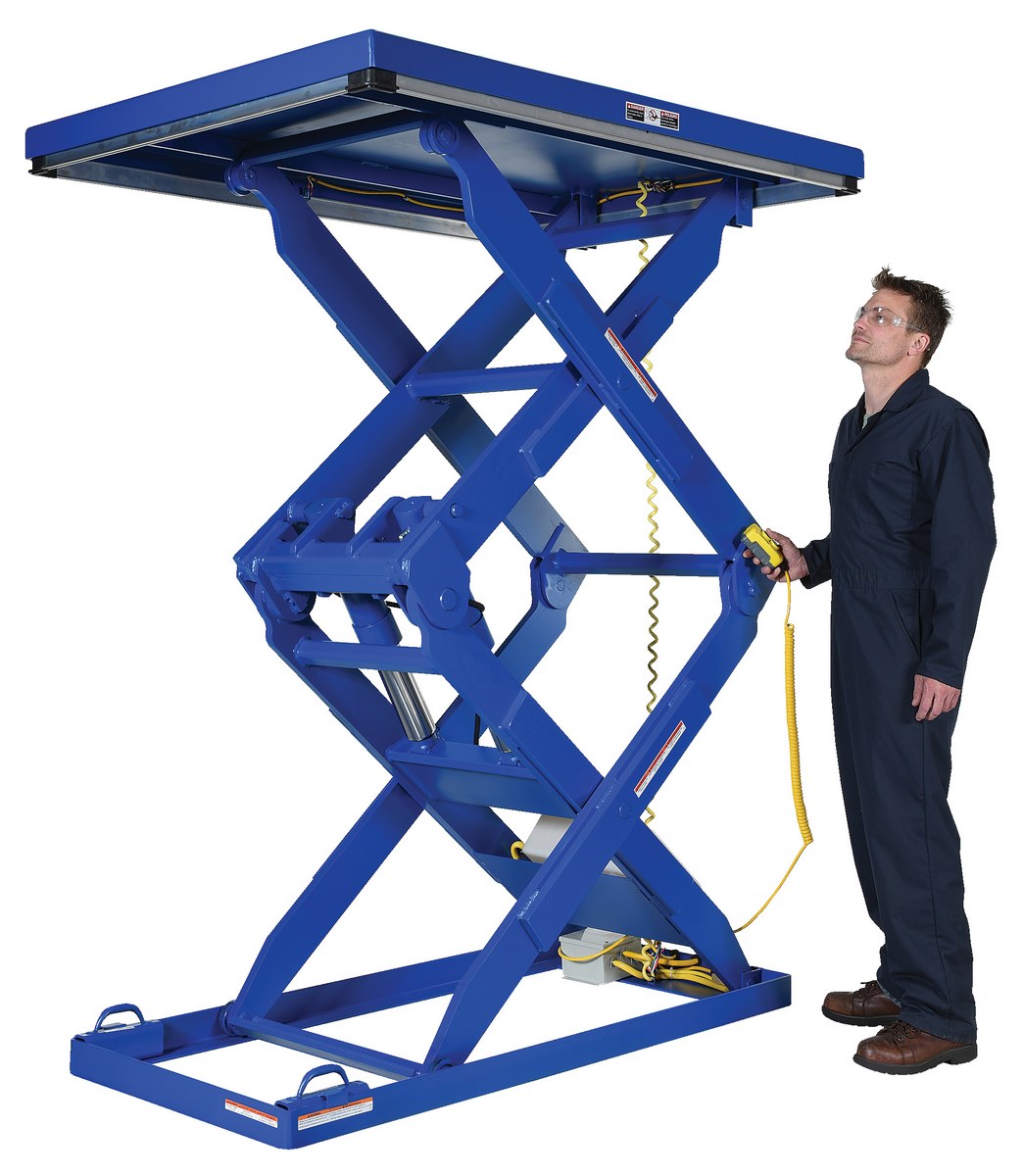

Double Scissor Lift TablesThe double scissor lift table can achieve the extra reach you're looking for. The full featured electric scissor table is used by all types of manufacturing and warehouse facilities. The safety features include an electric toe guard to protect pinch points during lowering of the table, brass safety velocity fuse to maintain platform height in the event of a hose or fitting failure, maintenance prop, and upper travel limit switch to stop the table at maximum height and reduce motor wear. The motor is totally enclosed with additional voltage options available. 3000 psi hydraulic component rating.
- Four-sided electric toe-guard meets OSHA pinch point specification
- Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
- Displacement-style hydraulic cylinders offer maximum strength
- Welded steel construction provides reliable heavy-duty use
Lift & Tilt Workstation Tables
Hinge & Sliding Tilt Tables
Portable Electric Hydraulic Lift Table
Lift & Tilt Scissor Tables
| Double Scissor Lift Table | ||||||||
| Model Number Format | ||||||||
|
EHLTD-(width)(length) - capacity - raised height |
||||||||
| PDF's | Vertical Travel |
Platform Width |
Platform Length |
Capacity (lbs) | Raised Height | Lowered Height | Travel Time (sec) | Wt. (lbs) |
 |
60" | 34"-48" | 48"-72" | 1,000 | 70" | 10" | 11 | 1157 |
|
60" | 34"-48" | 48"-72" | 2,000 | 70" | 10" | 16 | 1250 |
|
60" | 34"-48" | 48"-72" | 3,000 | 70" | 10" | 22 | 1343 |
|
60" | 34"-48" | 48"-72" | 4,000 | 70" | 10" | 32 | 1436 |
|
60" | 34"-48" | 48"-72" | 5,000 | 70" | 10" | 34 | 1529 |
|
72" | 34"-48" | 64"-88" | 1,000 | 84" | 12" | 16 | 1576 |
|
72" | 34"-48" | 64"-88" | 2,000 | 84" | 12" | 32 | 1669 |
|
72" | 34"-48" | 64"-88" | 3,000 | 84" | 12" | 48 | 1762 |
|
72" | 34"-48" | 64"-88" | 4,000 | 84" | 12" | 48 | 1855 |
|
72" | 34"-48" | 64"-88" | 5,000 | 84" | 12" | 48 | 1948 |
| Travel time based on 460V Three-Phase power | ||||||||
  EHLTD-4864-1-84 |
EHLTD-4864-2-84 |
EHLTD-4864-3-84 |
EHLTD-4864-4-84 |
EHLTD-4864-5-84 |
EHLTD-4848-1-70 |
EHLTD-4848-2-70 |
EHLTD-4848-3-70 |
EHLTD-4848-4-70 |
EHLTD-4848-5-70 |
KEY:
= Approval Drawing --
= Warranty --
= Testing Certificate
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Travel Time (sec.): 16
Uniform Capacity (lb.): 2000
Travel Time (sec.): 16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Travel Time (sec.): 16
Uniform Capacity (lb.): 2000
Travel Time (sec.): 16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 1,000
Uniform Capacity (lbs.): 1,000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 1,000
Uniform Capacity (lbs.): 1,000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Uniform Capacity (lbs.): 2,000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Uniform Capacity (lbs.): 2,000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 3,000
Uniform Capacity (lbs.): 3,000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 3,000
Uniform Capacity (lbs.): 3,000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000
Uniform Capacity (lbs.): 4,000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000
Uniform Capacity (lbs.): 4,000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 5,000
Uniform Capacity (lbs.): 5,000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 5,000
Uniform Capacity (lbs.): 5,000
For More Details of the Option Click the Red Model Button
|
Options For Electric Hydraulic Equipment Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section. |
|||||||
| Model | Description | ||||||
| HCP-2642 |  |
Optional Hand Control Pedestal | |||||
| Integeral Scale for Scissor Tables | Scales for lift tables | ||||||
| Radio Remote Control Option | 2 and 4 button hand controllers | ||||||
| Programmable Height Option | Multiple working heights at the touch of a button | ||||||
| Manual Built-In Carousel Option | Manual carousel (factory installed on new units only) | ||||||
| Safety Accordion Skirt | Keep people and debris from getting under the lift. Customer Installed. Contact factory. | ||||||
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: EHLTD-4848-2-70
Hydraulic Oil SDS Sheet for: EHLTD-4884-3-104
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the standard voltage and phase? Can the voltage and phase be changed?
A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.
