Work Station Electric Hydraulic Scissor Tables

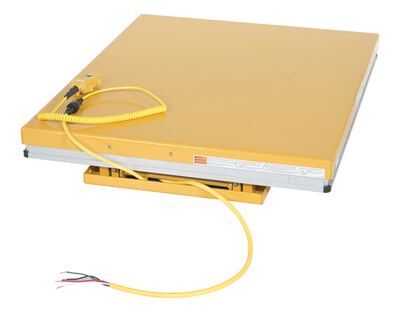

model: EHLT-WSI-4048-1.5-36

EHLT-WSI-4048-1.5-36_A.jpg EHLT-WSI-4048-1.5-36_B.jpg EHLT-WSI-4048-1.5-36_C.jpg EHLT-WSI-4048-1.5-36_D.jpg EHLT-WSI-4048-1.5-36_E.jpg EHLT-WSI-4048-1.5-36_F.jpg EHLT-WSI-4048-1.5-36_G.jpg EHLT-WSI-4048-1.5-36_H.jpg More Images +
Work Station Electric Hydraulic Scissor Tables
SERIES: EHLT-WS / EHLT-WSI

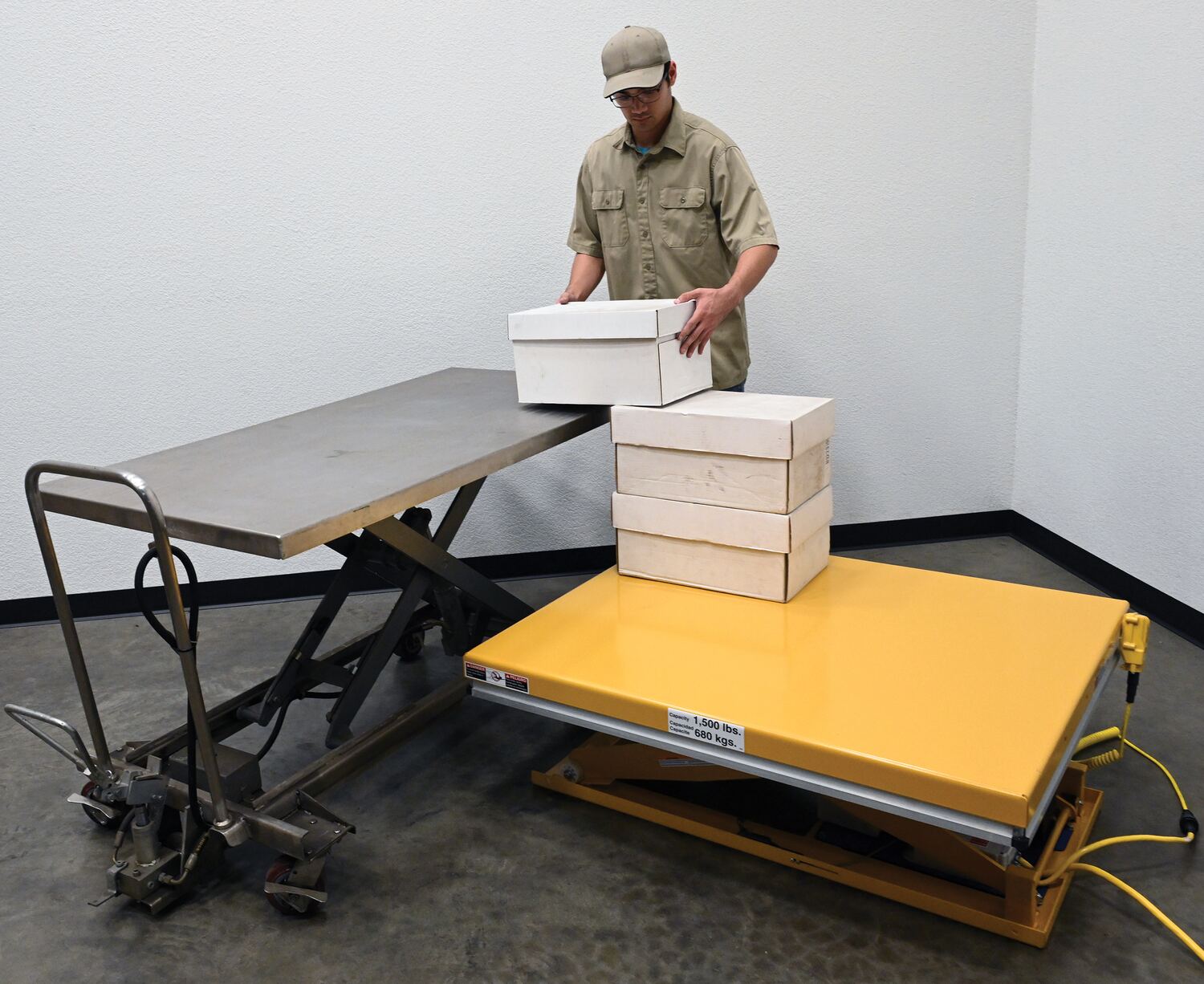

Work station electric hydraulic scissor tables are designed to raise products up to an ergonomic working height. They maximizes safety with minimum space requirements and are ideal for all types of manufacturing and warehouse facilities. An electric toe guard also comes standard with the unit. External power unit models and internal power unit models both have a 13 Second travel time (based on 3 phase motor)

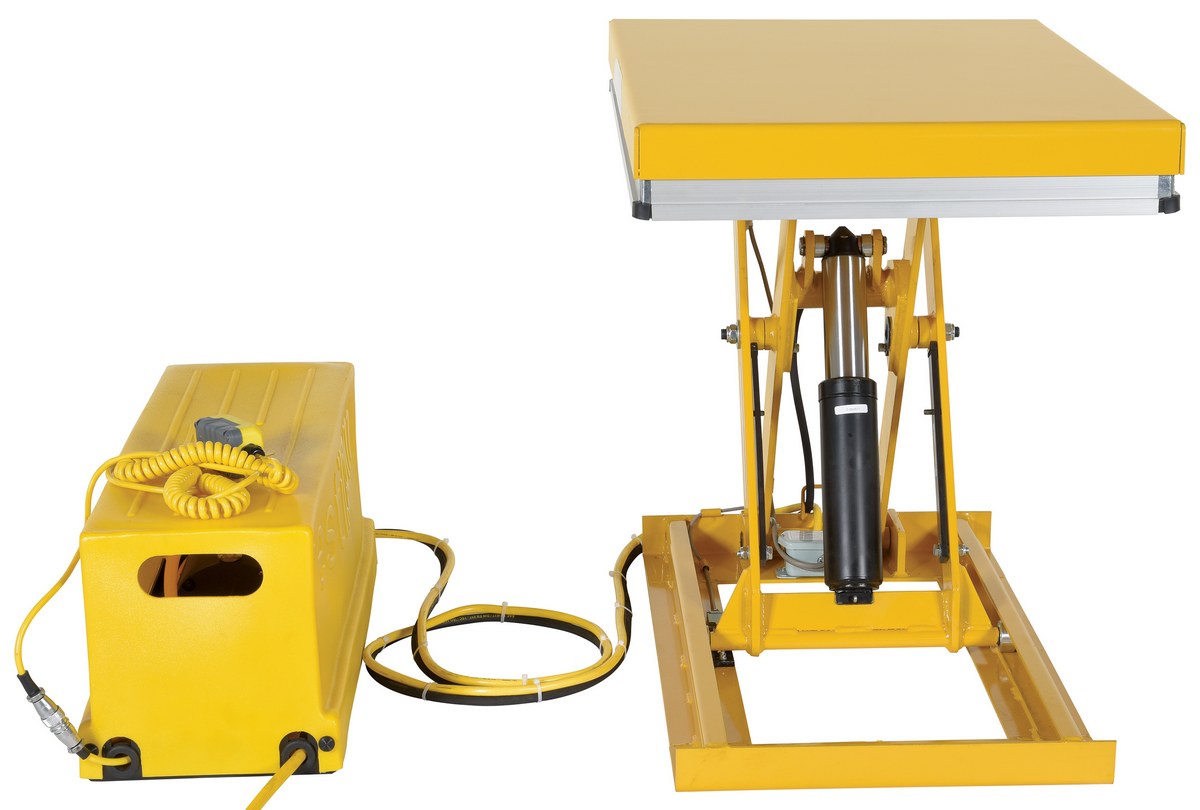

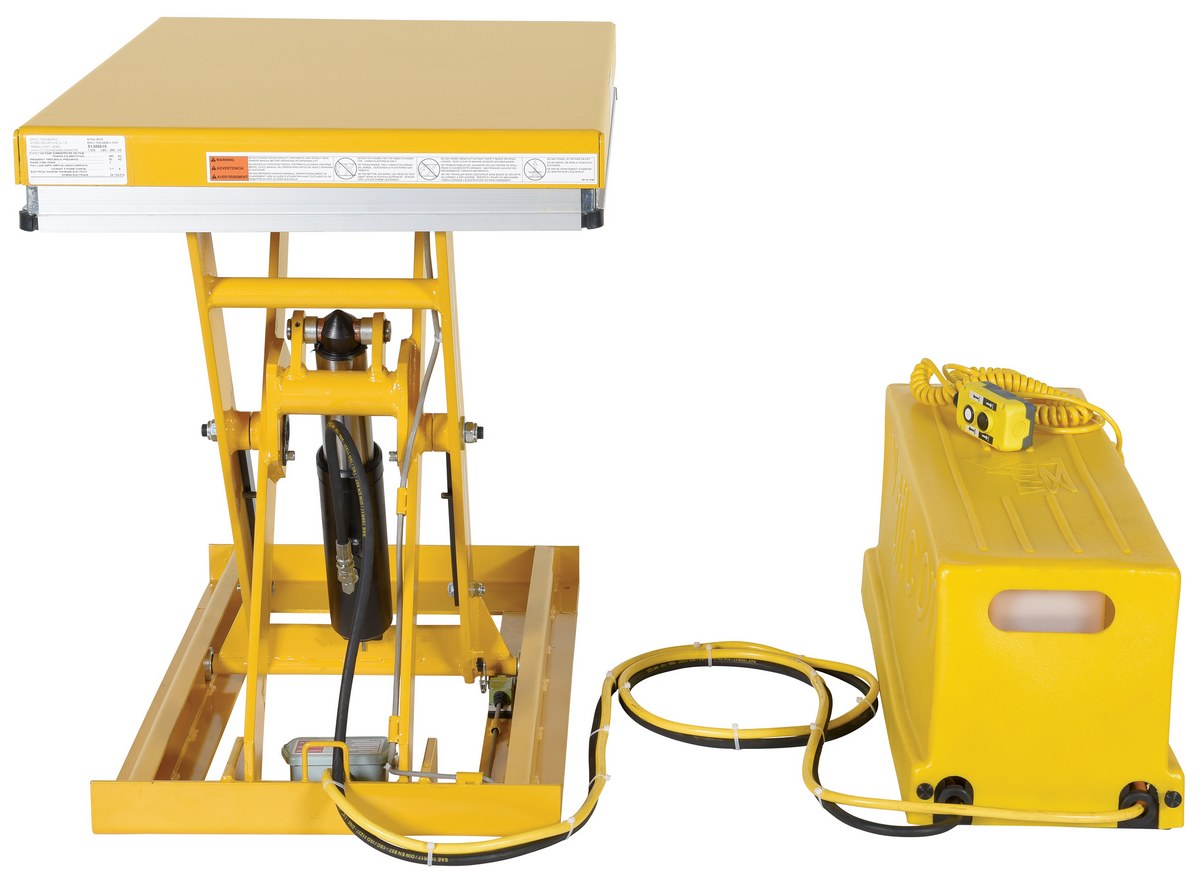

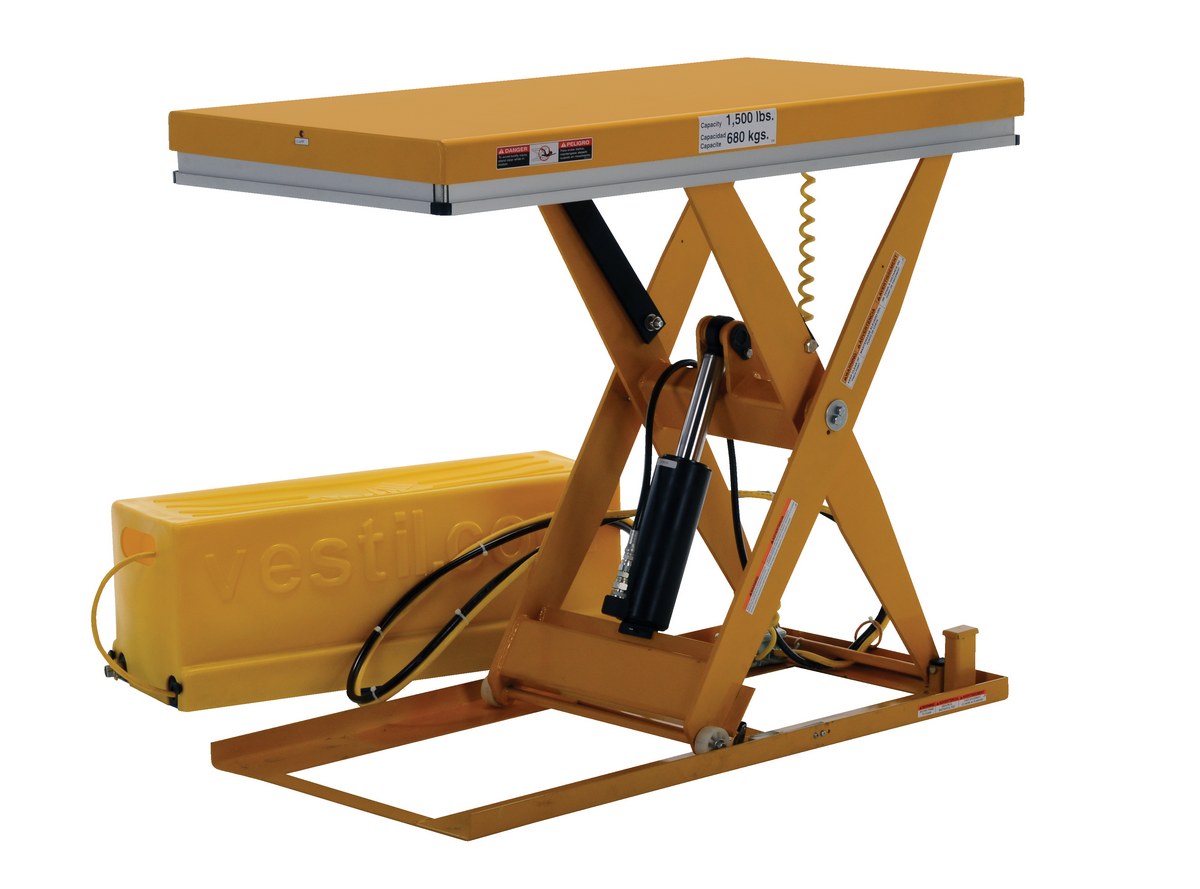

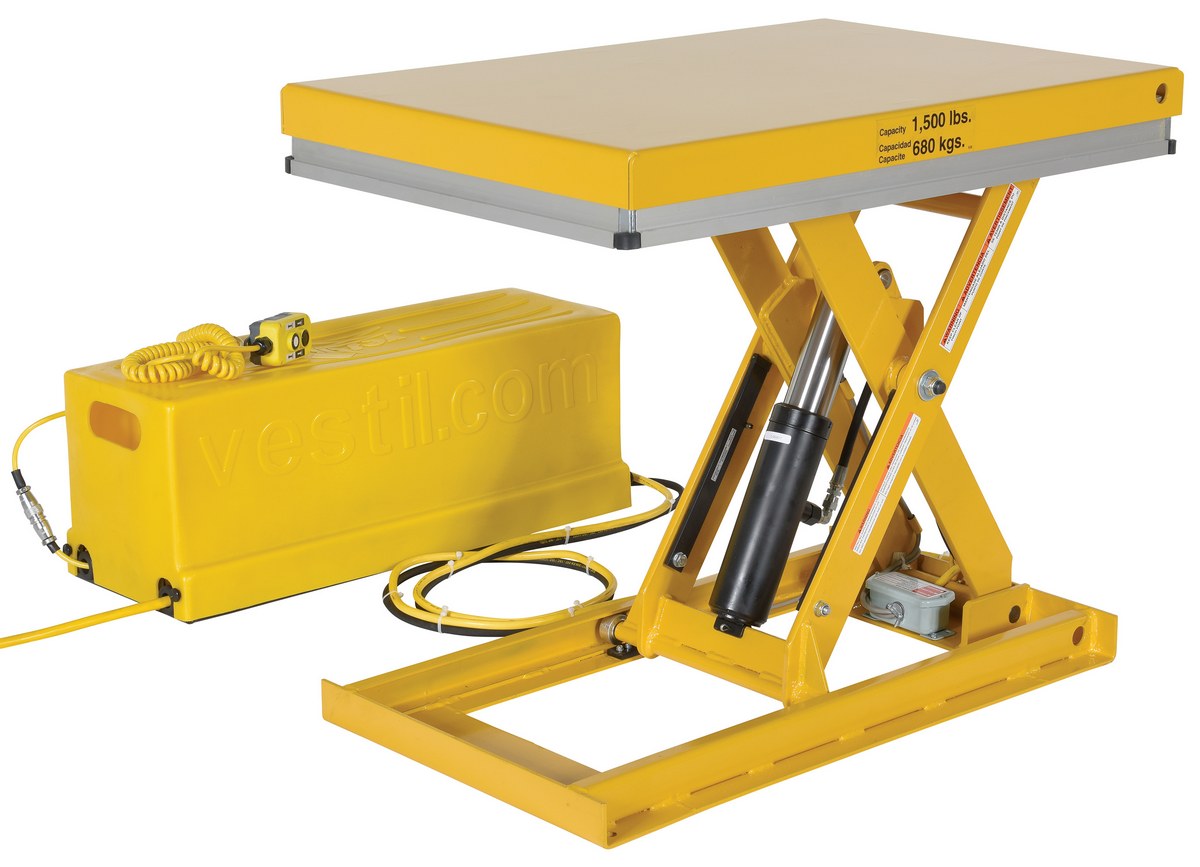

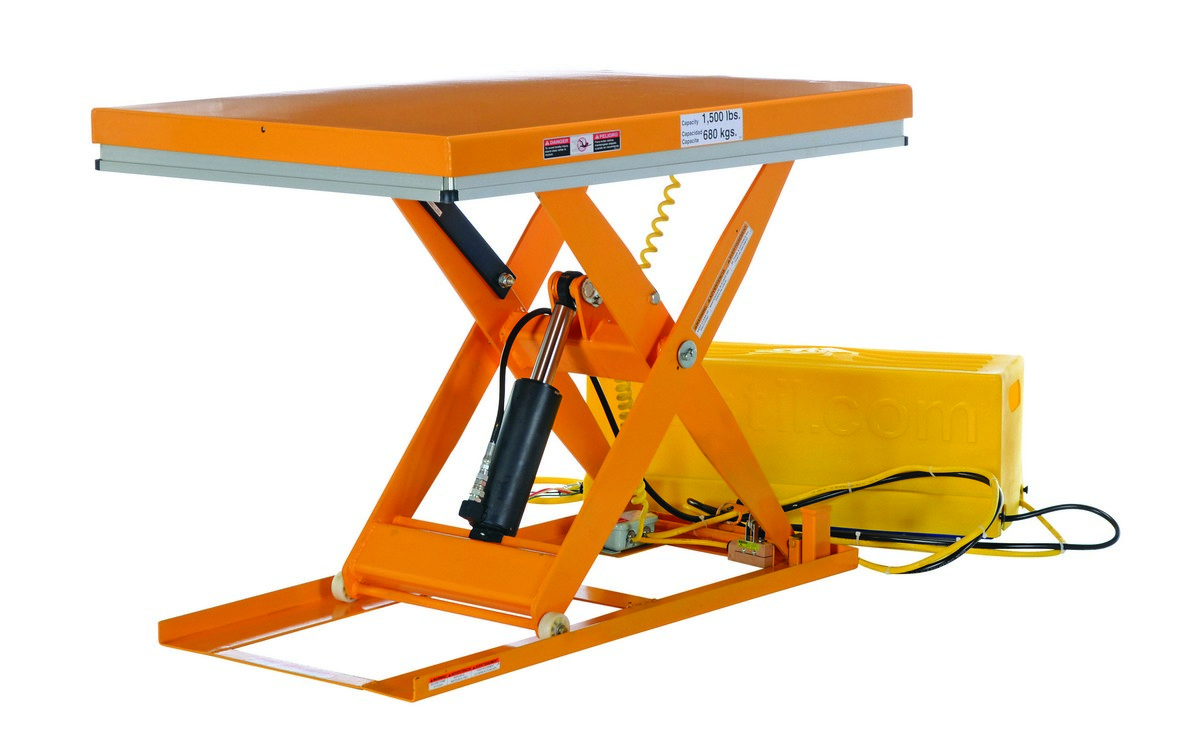

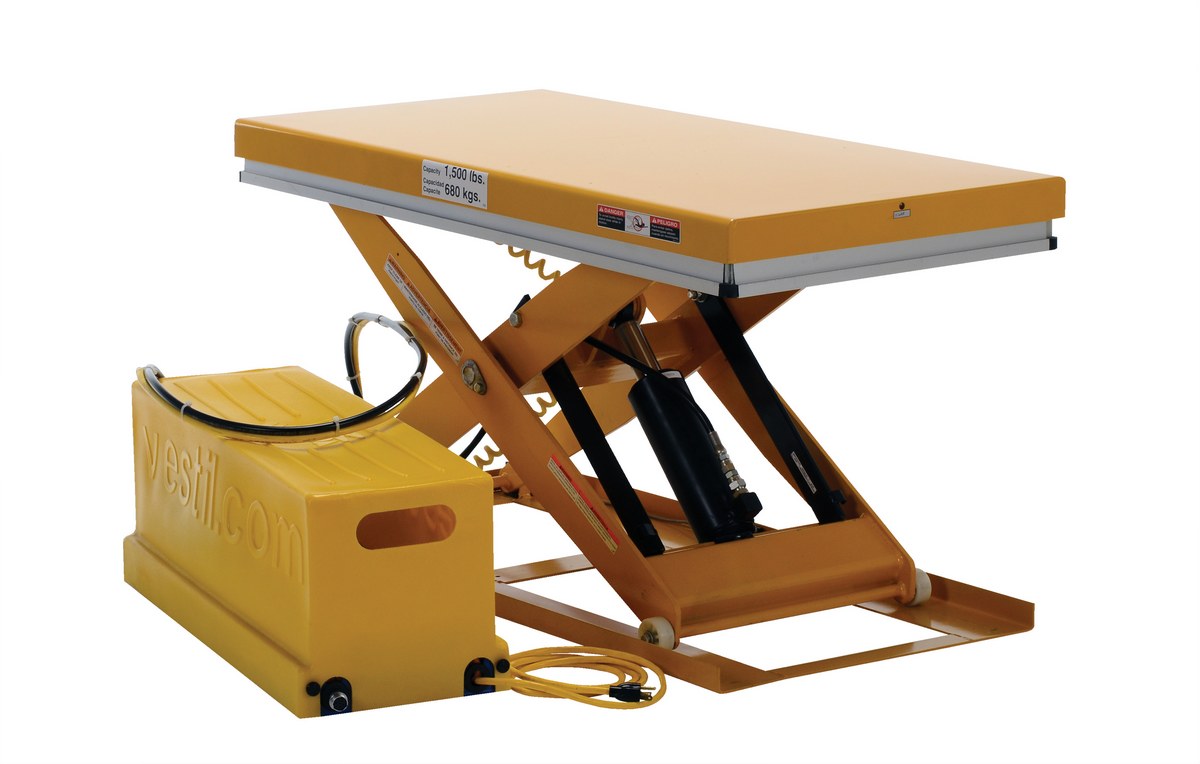

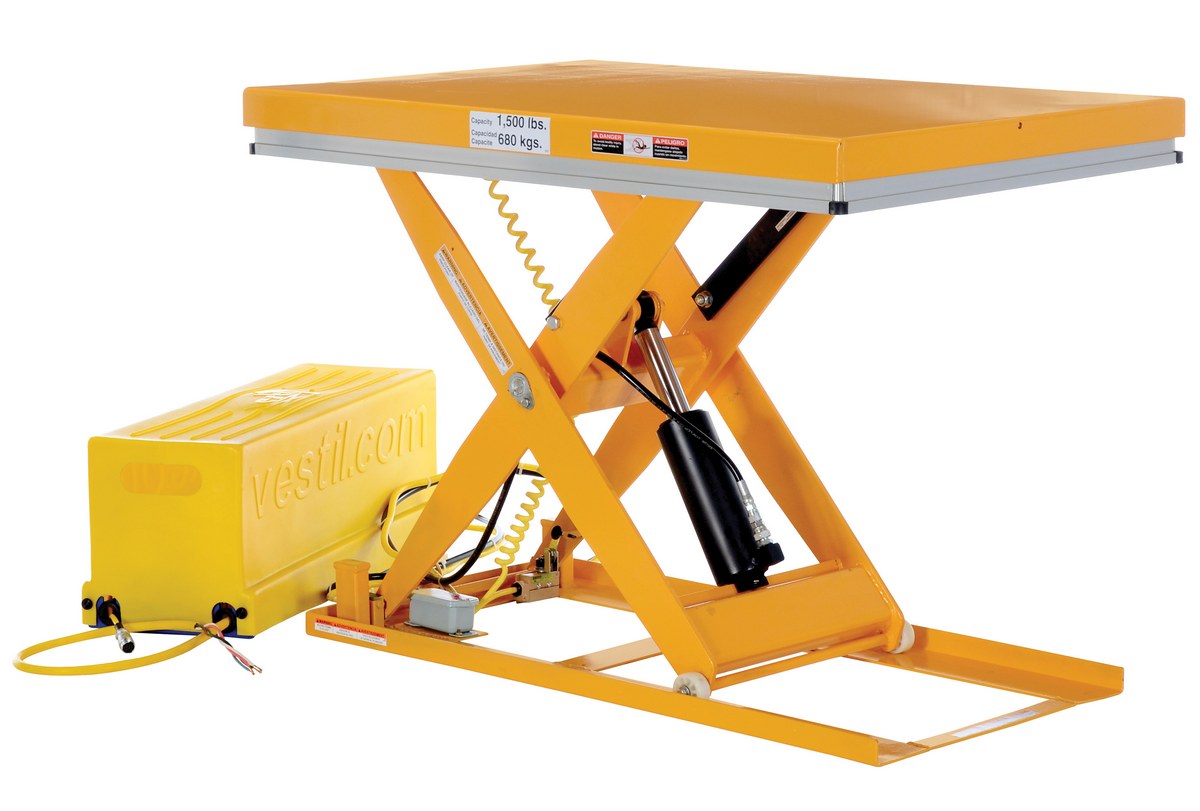

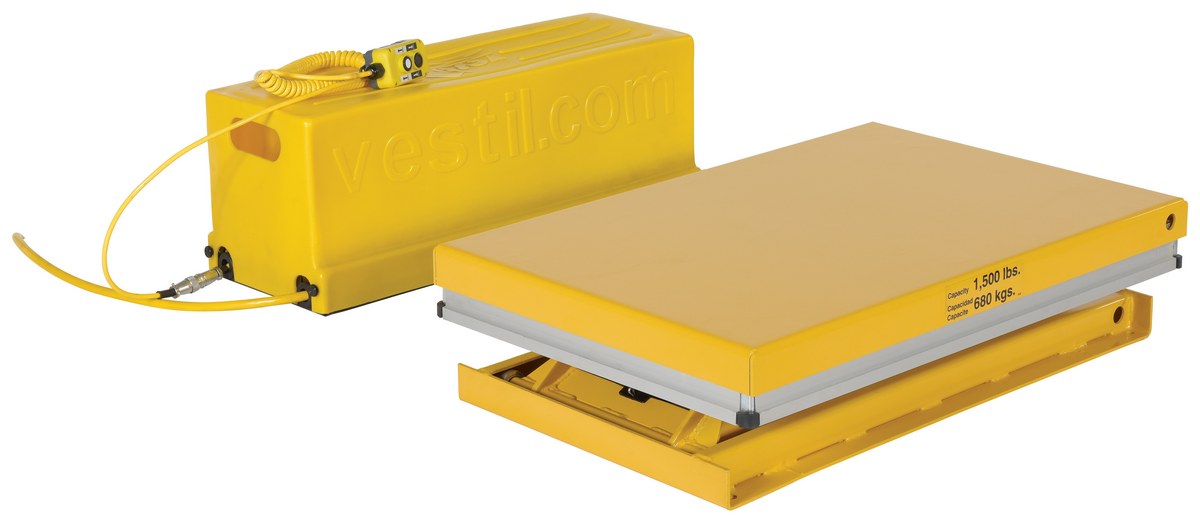

EHLT-WS-2436-1.5-31_E.jpgEHLT-WS (External Power Unit)

  • The 460V 3-Phase external power unit can be located eight (8) feet away from the unit
  • Steel & Partialy Stainless Steel Models available
  • Comes with a standard hand control

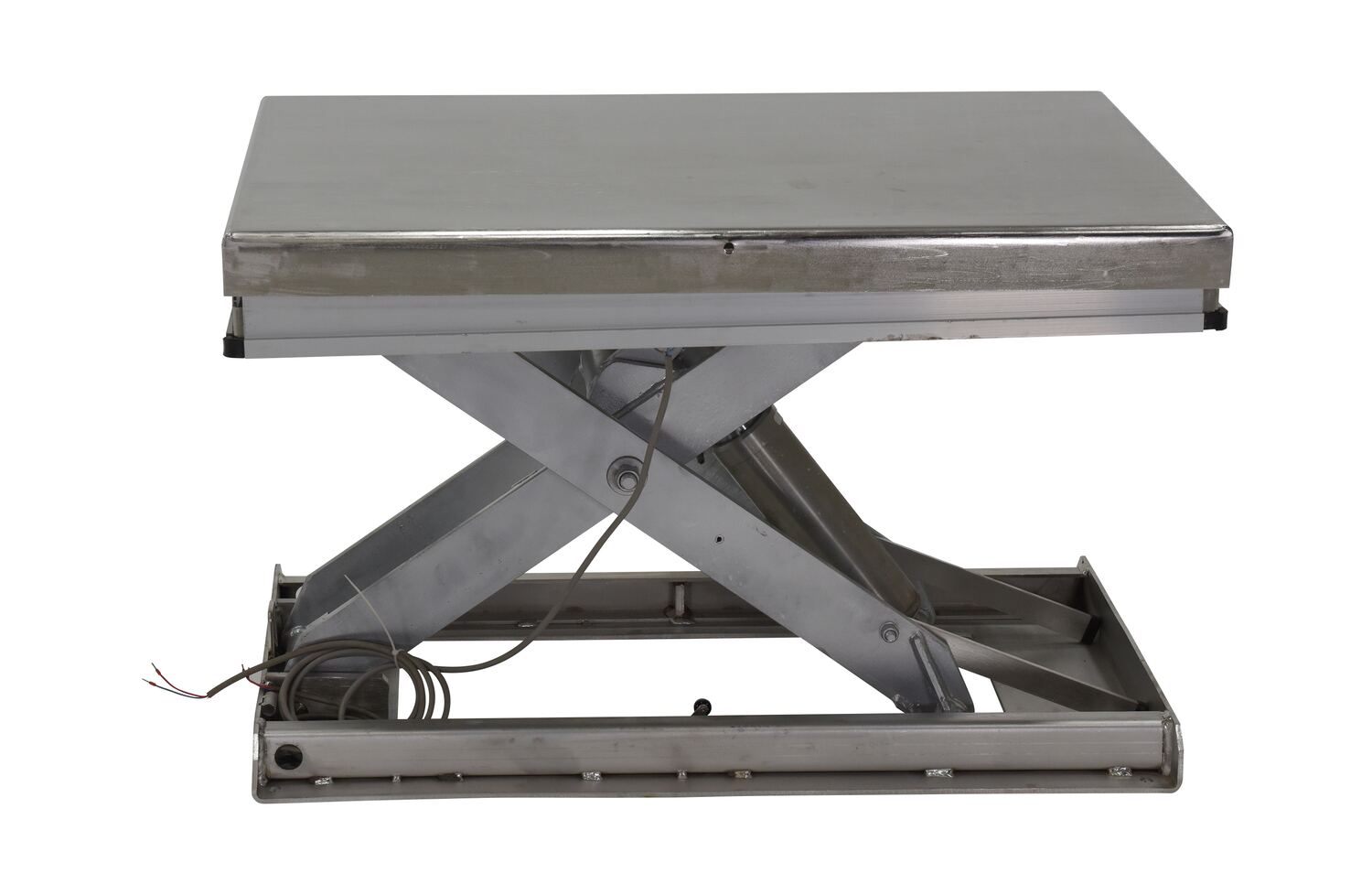

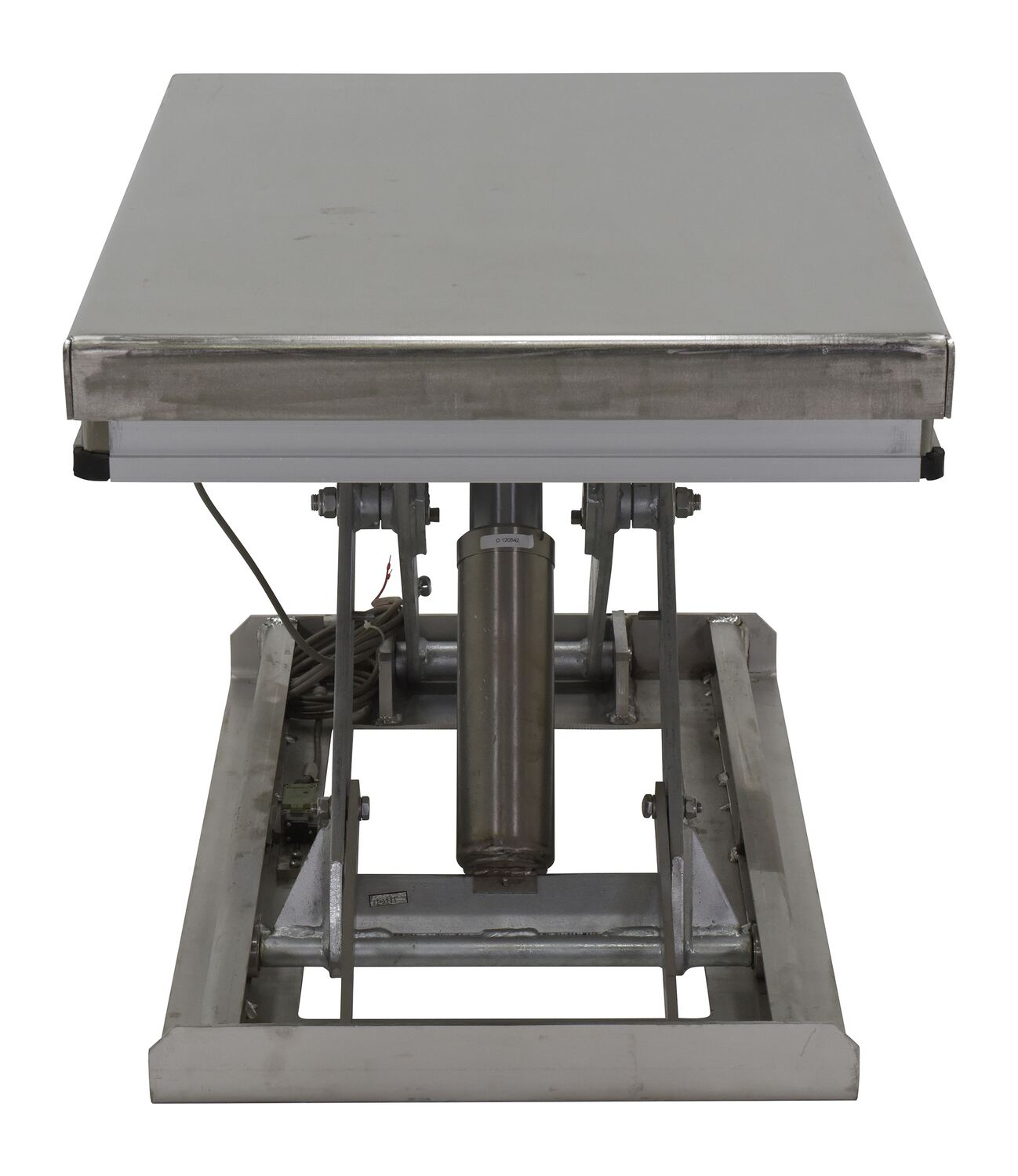

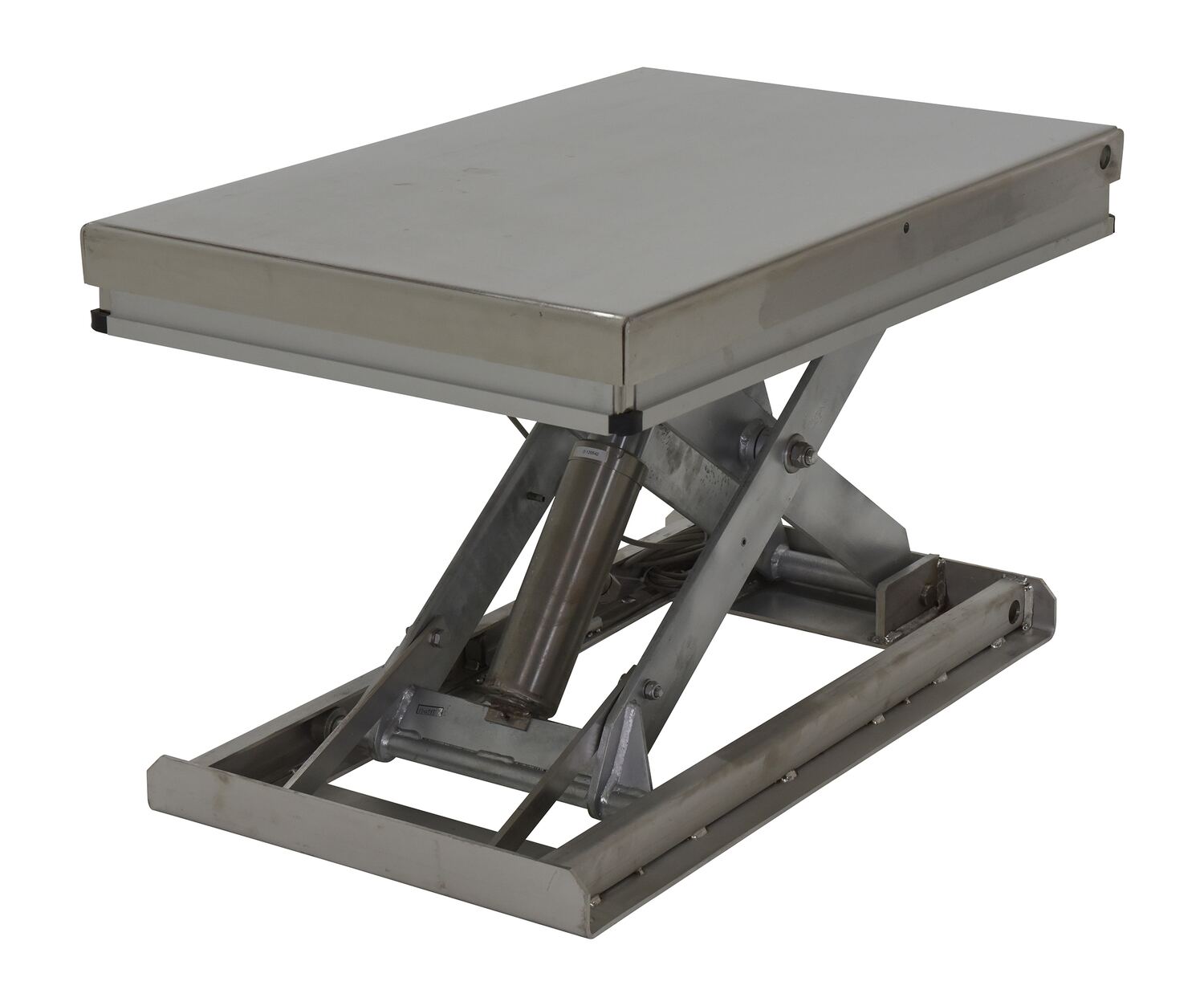

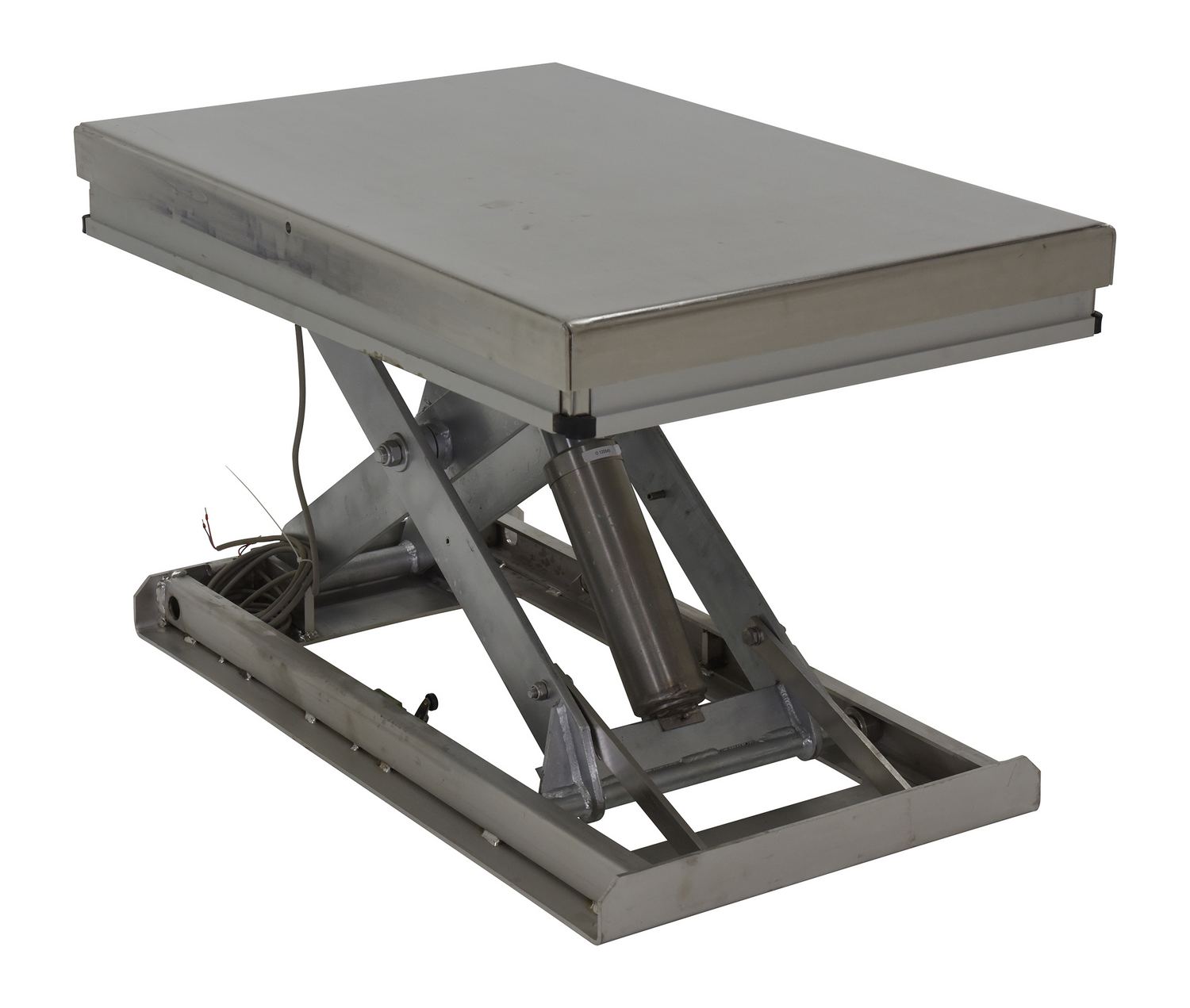

Partially Stainless Steel Models Available!
(See Chart Below)

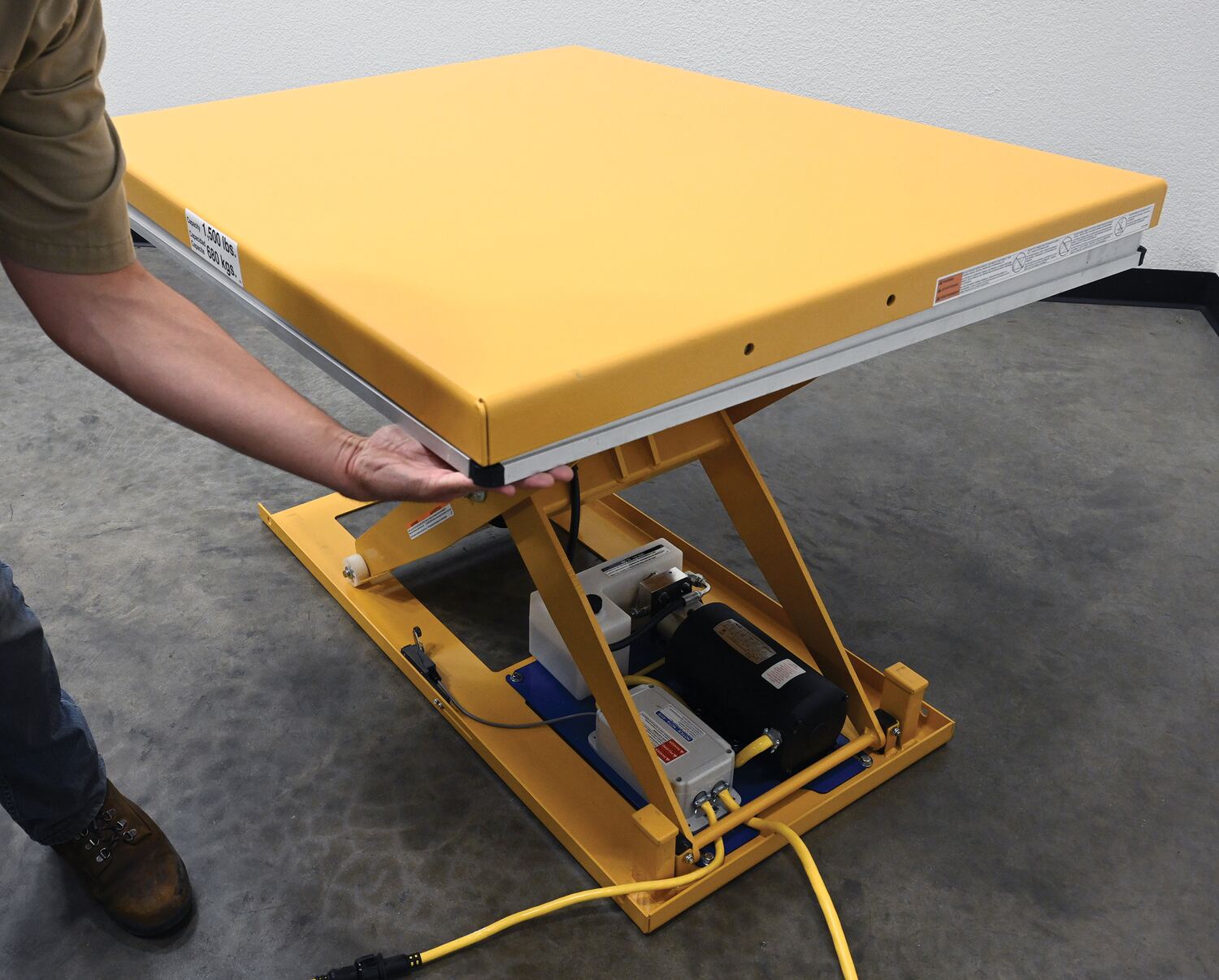

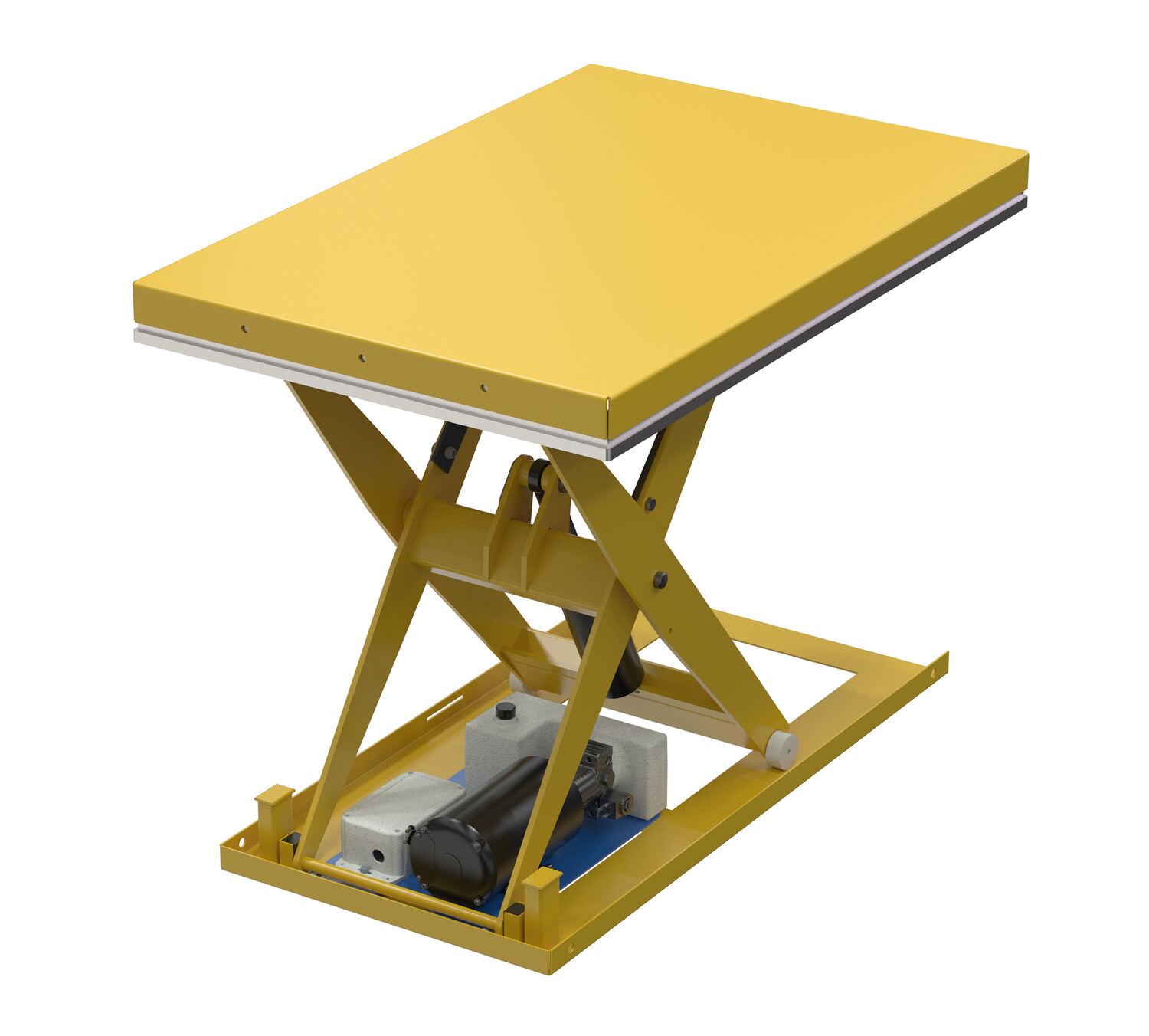

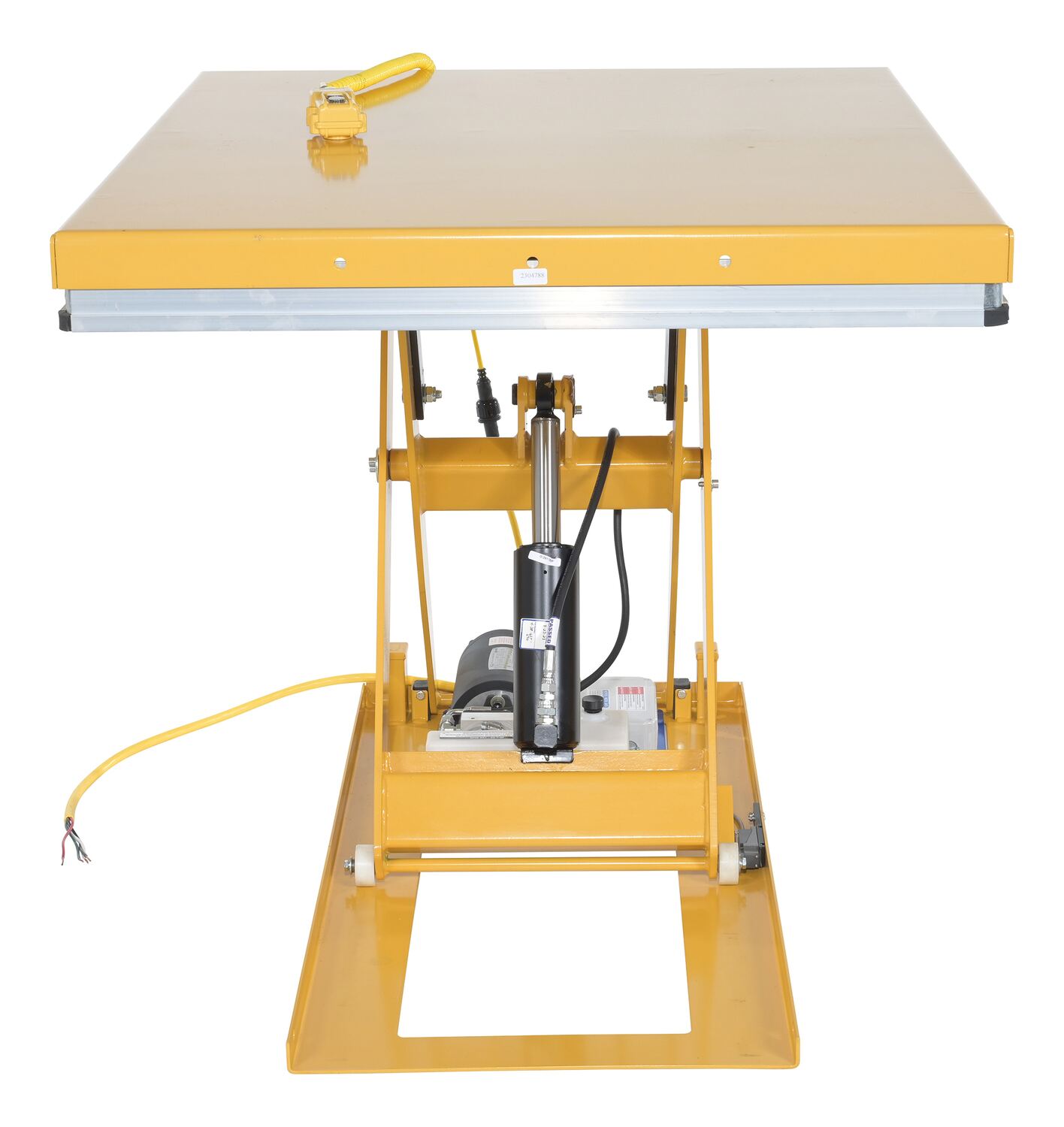

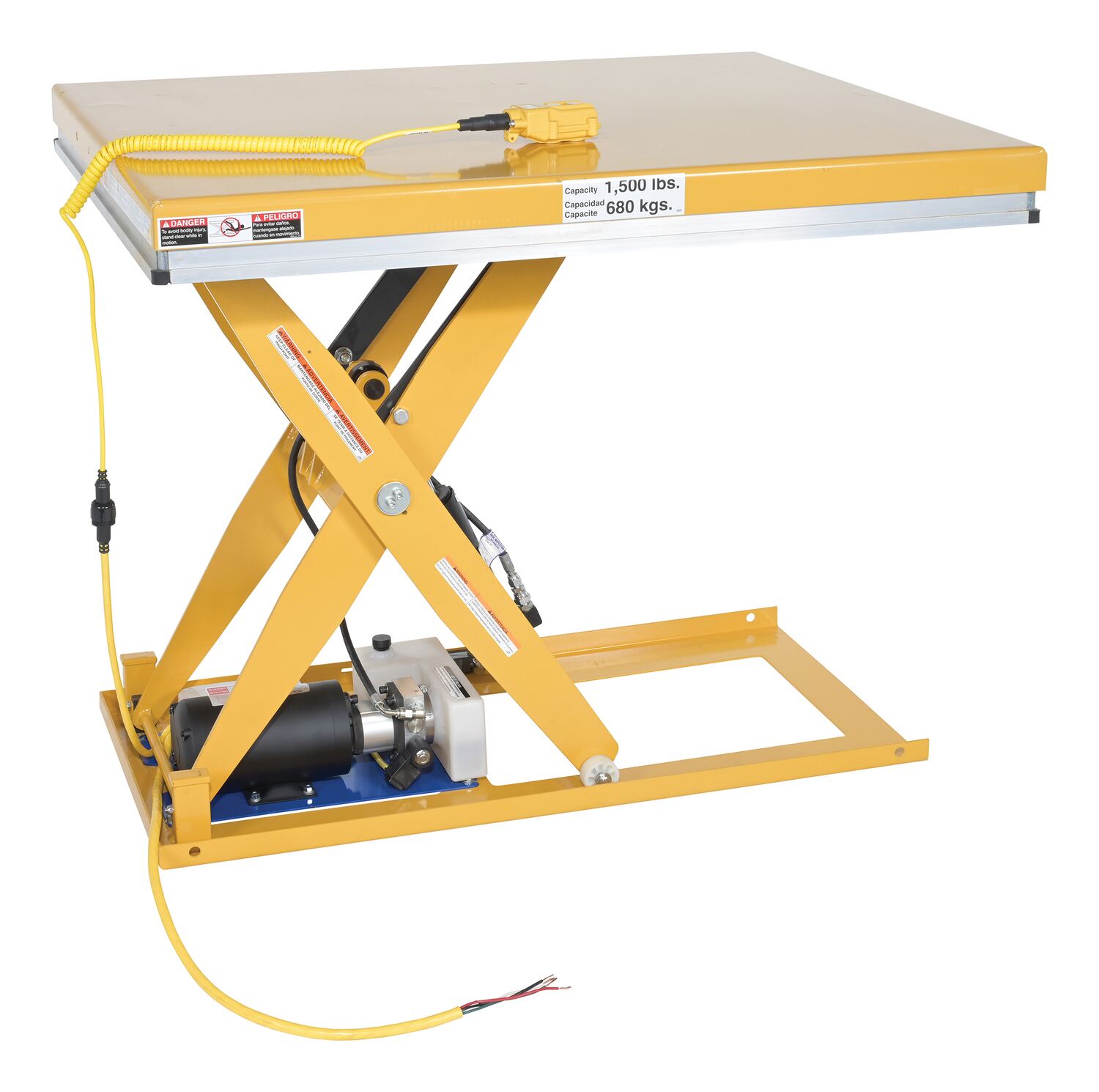

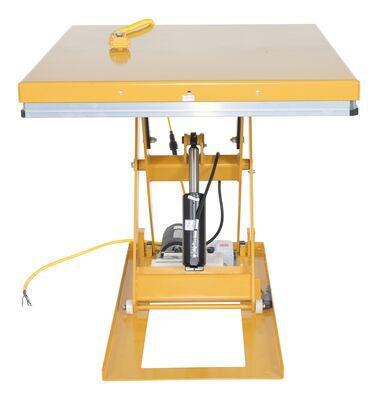

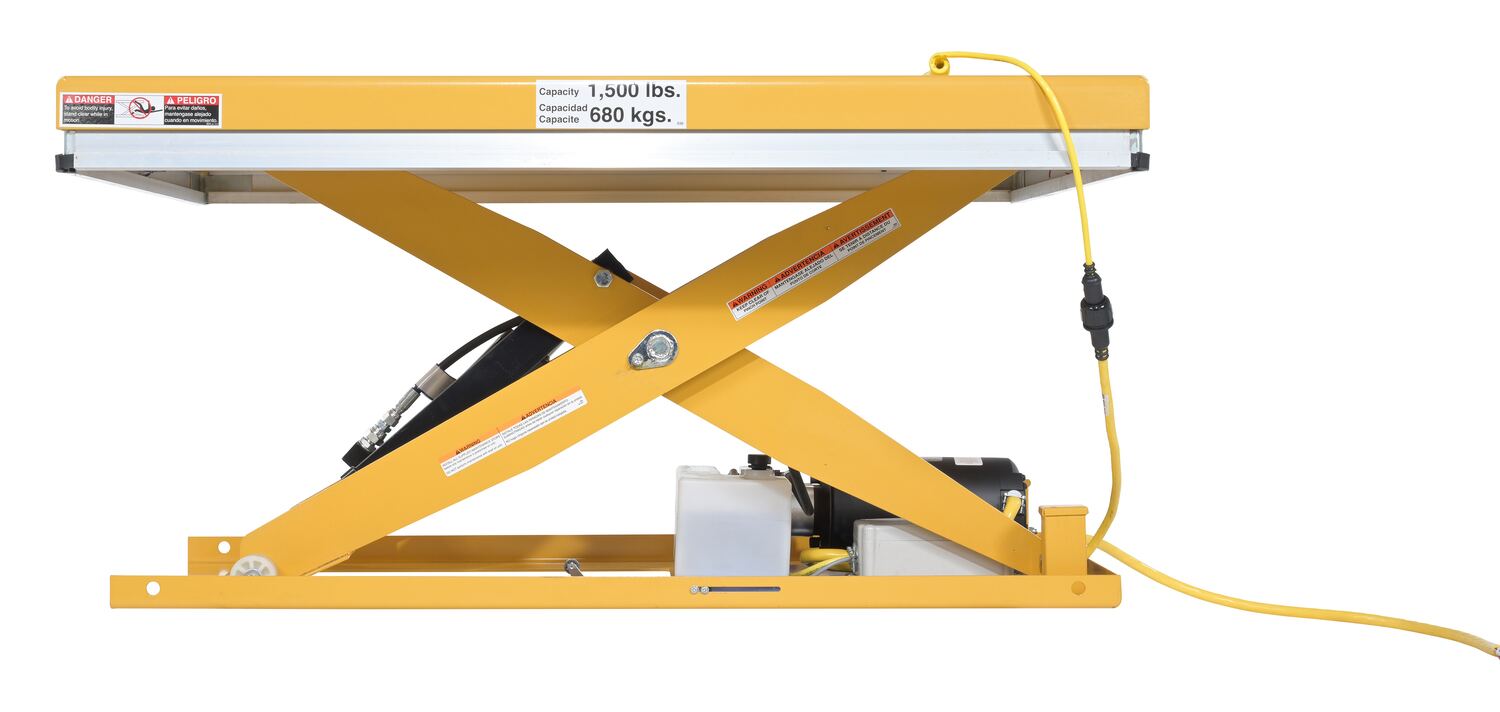

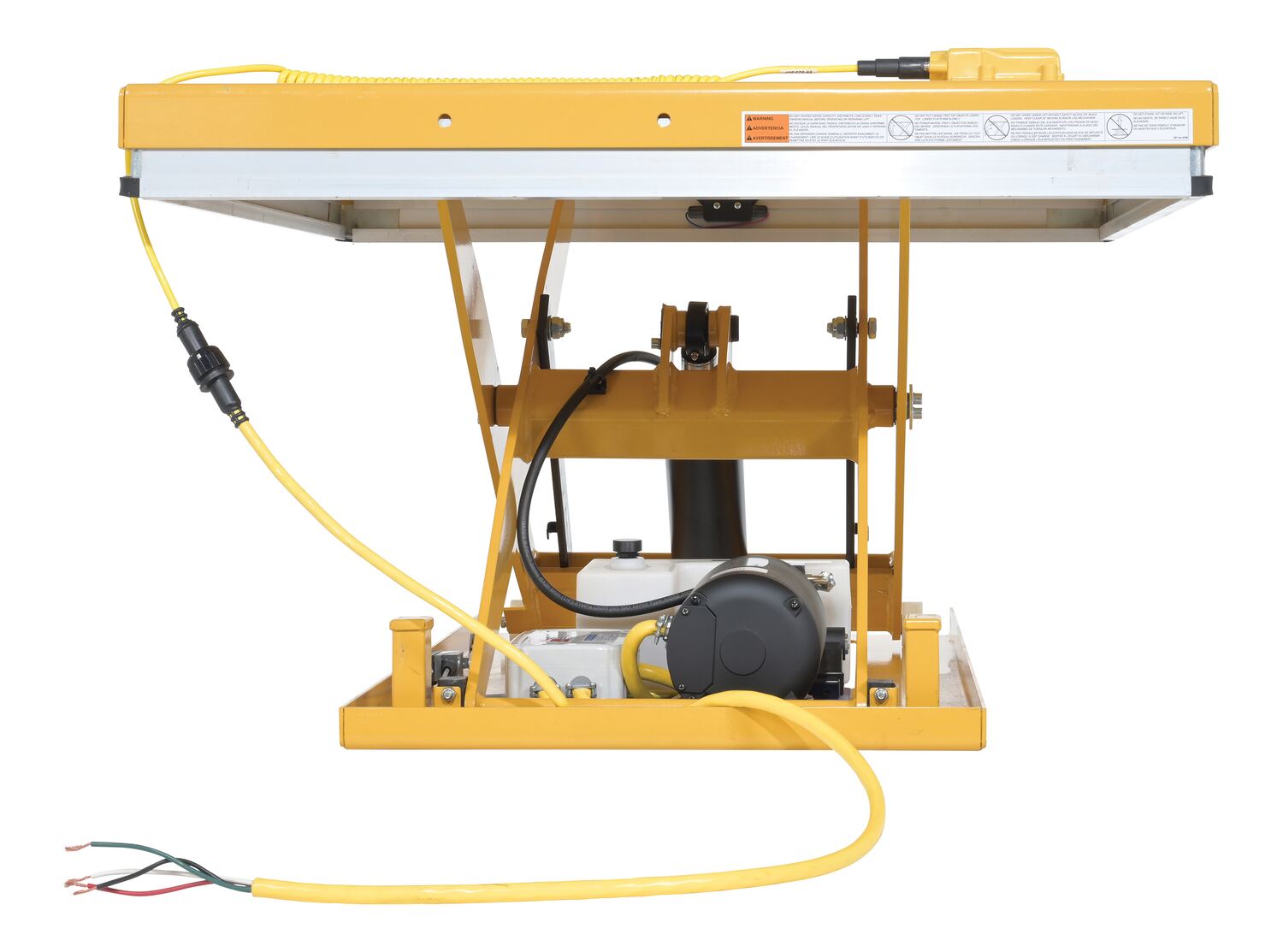

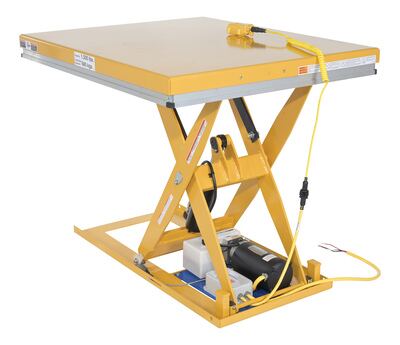

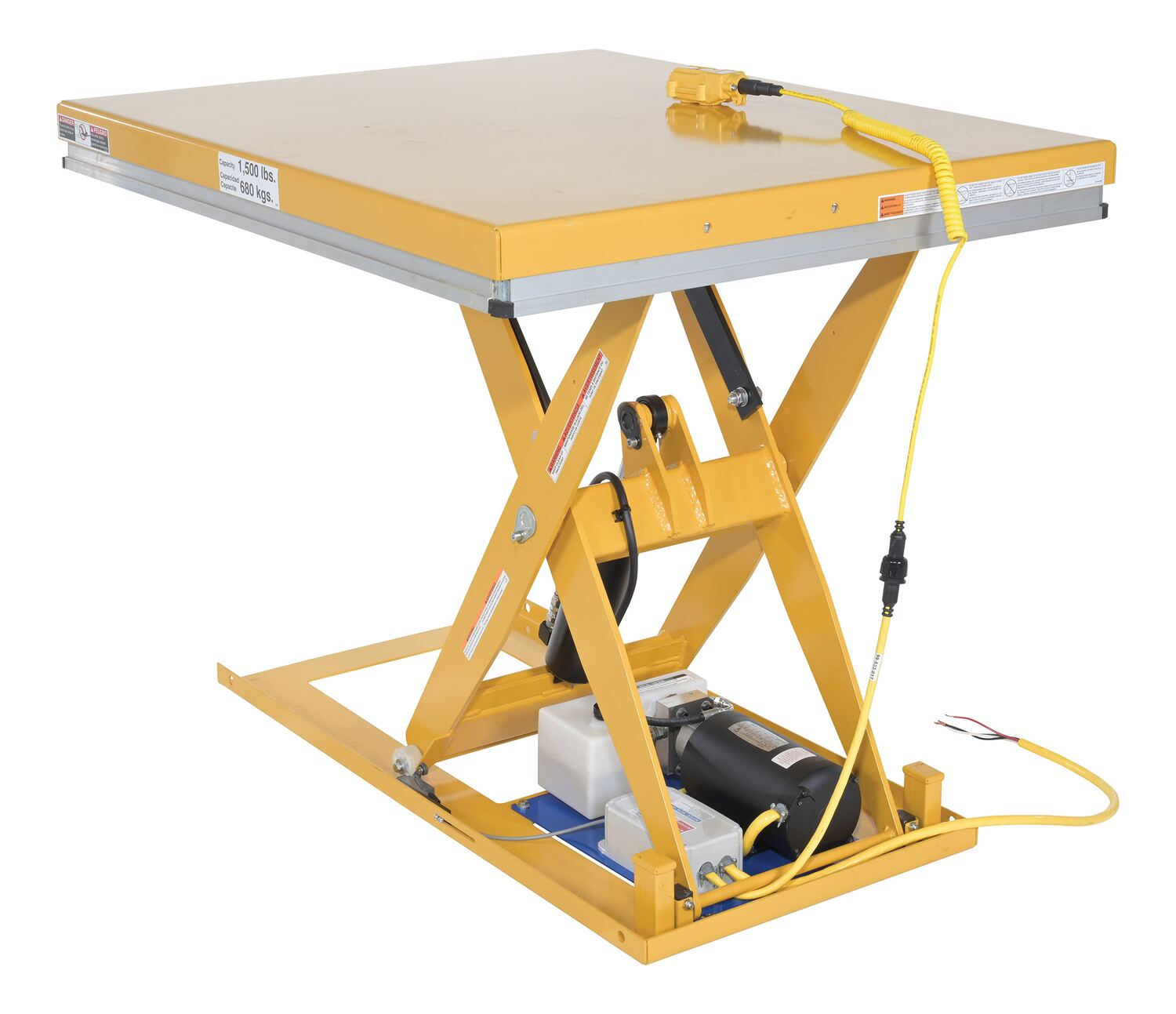

EHLT-WSI-4048-1.5-36_I.jpgEHLT-WSI (Internal Power Unit) New!

  • The 460V 3-phase internal power unit comes with a standard hand control
  • Open design, functional from all four sides
  • Emergency safety-stop hydraulic fuses

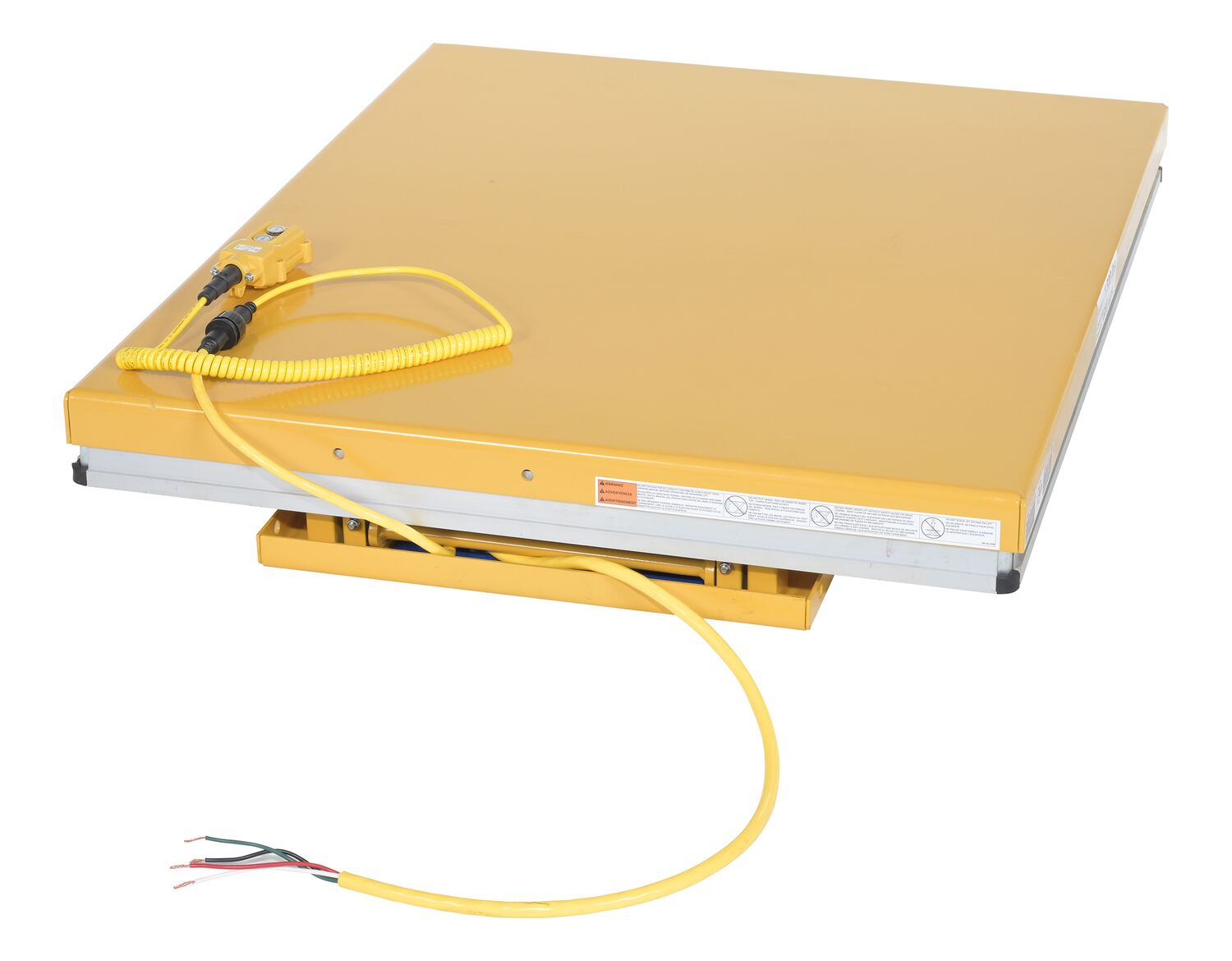

  • Lengthy 8' hand pendant cord


Check out Vestil's Economical Powered Lift Table

Work Station Electric Hydraulic Scissor Tables

model: EHLT-WSI-4048-1.5-36

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
EHLT-WS-2436-1.5-31
EHLT-WS-2436-PSS
EHLT-WS-2448-1.5-36
EHLT-WS-2448-PSS
EHLT-WS-3248-1.5-36
EHLT-WS-4048-1.5-36
EHLT-WS-4048-PSS
EHLT-WSI-2448-1.5-36
EHLT-WSI-3248-1.5-36
EHLT-WSI-4048-1.5-36
For More Details of the Option Click the Red Model Button
No options available for this product.
Model Image Details Icons Wt.
Model Image Description
HCP-2642 HCP-2642 Optional Hand Control Pedestal
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

EHLT-WSI

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

EHLT-WS-2436-1.5-31

EHLT-WS-2436-PSS

EHLT-WS-2448-1.5-36

EHLT-WS-3248-1.5-36

EHLT-WS-4048-1.5-36

EHLT-WSI-2448-1.5-36

EHLT-WSI-3248-1.5-36

EHLT-WSI-4048-1.5-36

EHLT-WS-2448-PSS

Testing Certificates

EHLT-WS-2436-1.5-31

EHLT-WS-2436-PSS

EHLT-WS-2448-1.5-36

EHLT-WS-2448-PSS

EHLT-WS-3248-1.5-36

EHLT-WS-4048-1.5-36

EHLT-WS-4048-PSS

EHLT-WSI-2448-1.5-36

EHLT-WSI-3248-1.5-36

EHLT-WSI-4048-1.5-36

SDS Sheets


Hydraulic Oil
EHLT-WS-2436-1.5-31 SDS


Hydraulic Oil
EHLT-WS-2436-PSS SDS


Hydraulic Oil
EHLT-WS-2448-1.5-36 SDS


Hydraulic Oil
EHLT-WS-2448-PSS SDS


Hydraulic Oil
EHLT-WS-3248-1.5-36 SDS


Hydraulic Oil
EHLT-WS-4048-1.5-36 SDS


Hydraulic Oil
EHLT-WS-4048-PSS SDS


Hydraulic Oil
EHLT-WSI-2448-1.5-36 SDS


Hydraulic Oil
EHLT-WSI-3248-1.5-36 SDS


Hydraulic Oil
EHLT-WSI-4048-1.5-36 SDS

Other PDFs


Work Station Electric Hydraulic Scissor Table Mailing Brochure







Visit Our Youtube Channel For All Available Videos For All Products

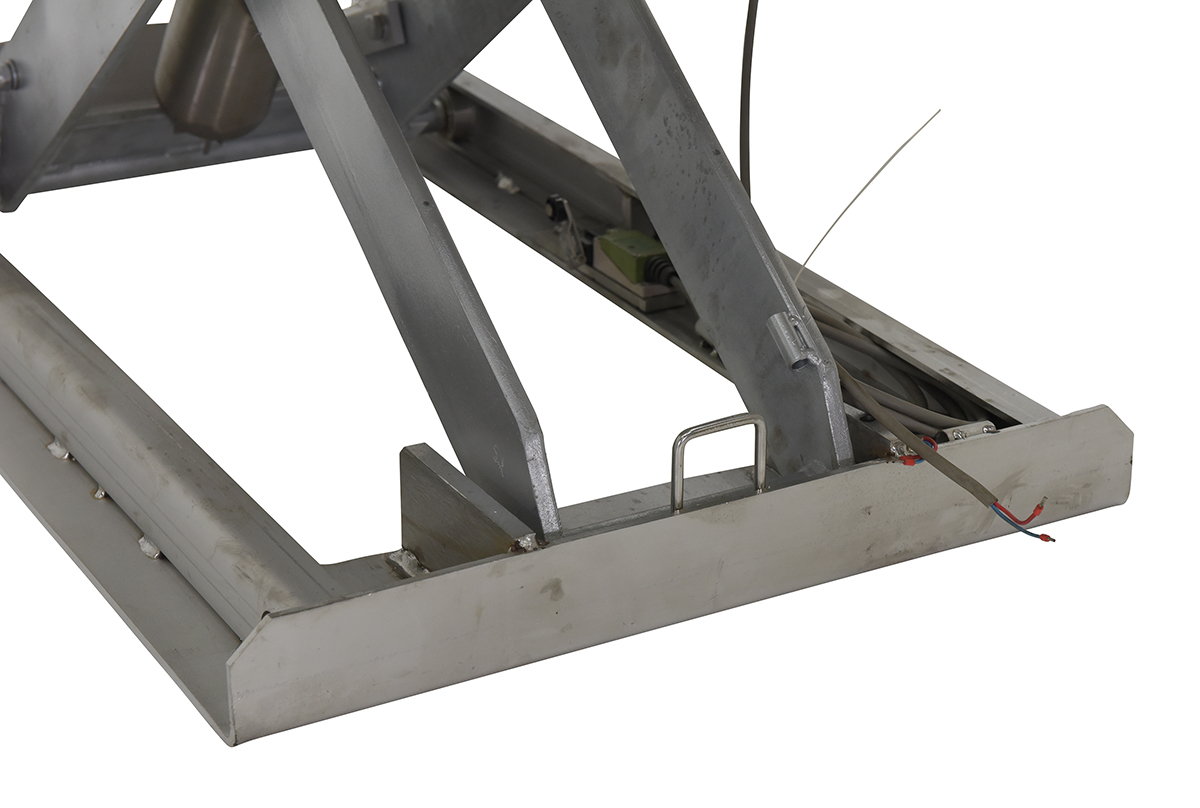

On series EHLT-WS-XXXX-PSS, what parts are not stainless steel?
All parts are stainless steel except the scissor legs (galvanized) and toe guards (aluminum/rubber)

Related or Similar Products:

More From Lift & Tilt Tables





Work Station Electric Hydrauli...




Work station electric hydraulic scissor tables are designed to raise products up to an ergonomic working height. They maximizes safety with minimum space requirements and are ideal for all types of manufacturing and warehouse facilities. An electric toe guard also comes standard with the unit. External power unit models and internal power unit models both have a 13 Second travel time (based on 3 phase motor)

EHLT-WS-2436-1.5-31_E.jpgEHLT-WS (External Power Unit)

  • The 460V 3-Phase external power unit can be located eight (8) feet away from the unit
  • Steel & Partialy Stainless Steel Models available
  • Comes with a standard hand control

Partially Stainless Steel Models Available!
(See Chart Below)

EHLT-WSI-4048-1.5-36_I.jpgEHLT-WSI (Internal Power Unit) New!

  • The 460V 3-phase internal power unit comes with a standard hand control
  • Open design, functional from all four sides
  • Emergency safety-stop hydraulic fuses
  • Lengthy 8' hand pendant cord


Check out Vestil's Economical Powered Lift Table


Model # Description Attributes Net Wt.
(lbs)
EHLT-WS-2436-1.5-31 EHLT-WS-2436-1.5-31Steel Work Station Electric Hydraulic Scissor Table 24 In. x 36 In. 1500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Lower/Raised Height (in.): 8-5/8 to 31		385
EHLT-WS-2436-PSS EHLT-WS-2436-PSSPartially Stainless Steel Work Station Electric Hydraulic Scissor Table 24 In. x 36 In. 1500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36		407
EHLT-WS-2448-1.5-36 EHLT-WS-2448-1.5-36Steel Work Station Electric Hydraulic Scissor Table 24 In. x 48 In. 1500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36		404
EHLT-WS-2448-PSS EHLT-WS-2448-PSSPartially Stainless Steel Work Station Electric Hydraulic Scissor Table 24 In. x 48 In. 1500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36		404
EHLT-WS-3248-1.5-36 EHLT-WS-3248-1.5-36Steel Work Station Electric Hydraulic Scissor Table 32 In. x 48 In. 1500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36		430
EHLT-WS-4048-1.5-36 EHLT-WS-4048-1.5-36Steel Work Station Electric Hydraulic Scissor Table 40 In. x 48 In. 1500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36		457
EHLT-WS-4048-PSS EHLT-WS-4048-PSSPartially Stainless Steel Work Station Electric Hydraulic Scissor Table 40 In. x 48 In. 1500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36		457

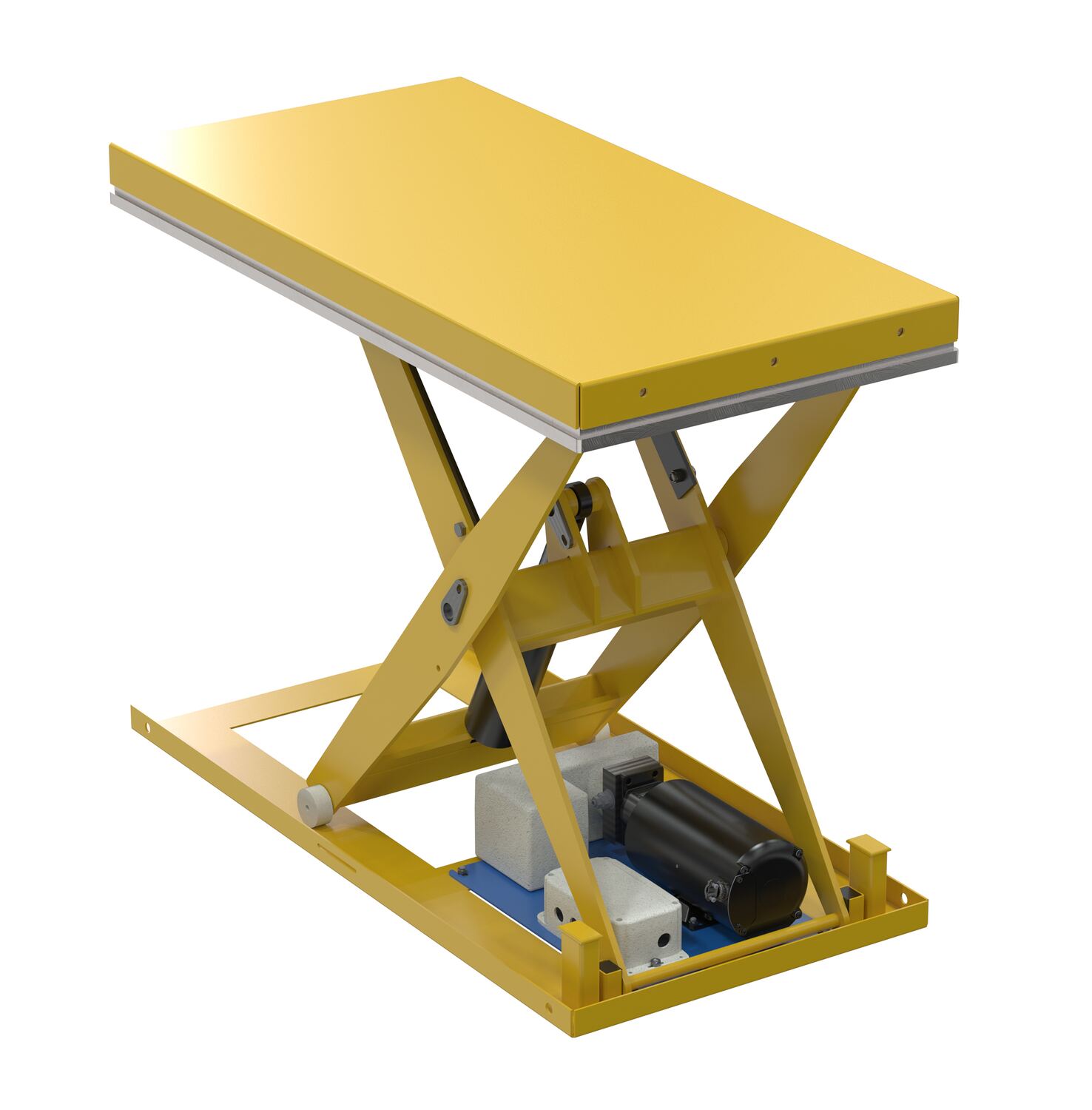

EHLT-WSI-2448-1.5-36 EHLT-WSI-2448-1.5-36Steel Electric Hydraulic Scissor Table 24"x48" With Internal Power Unit 1,500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36		331
EHLT-WSI-3248-1.5-36 EHLT-WSI-3248-1.5-36Steel Electric Hydraulic Scissor Table 32"x48" With Internal Power Unit 1,500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36		356
EHLT-WSI-4048-1.5-36 EHLT-WSI-4048-1.5-36Steel Electric Hydraulic Scissor Table 40"x48" With Internal Power Unit 1,500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36		381

Options


Model Image Description
HCP-2642 HCP-2642 Optional Hand Control Pedestal
