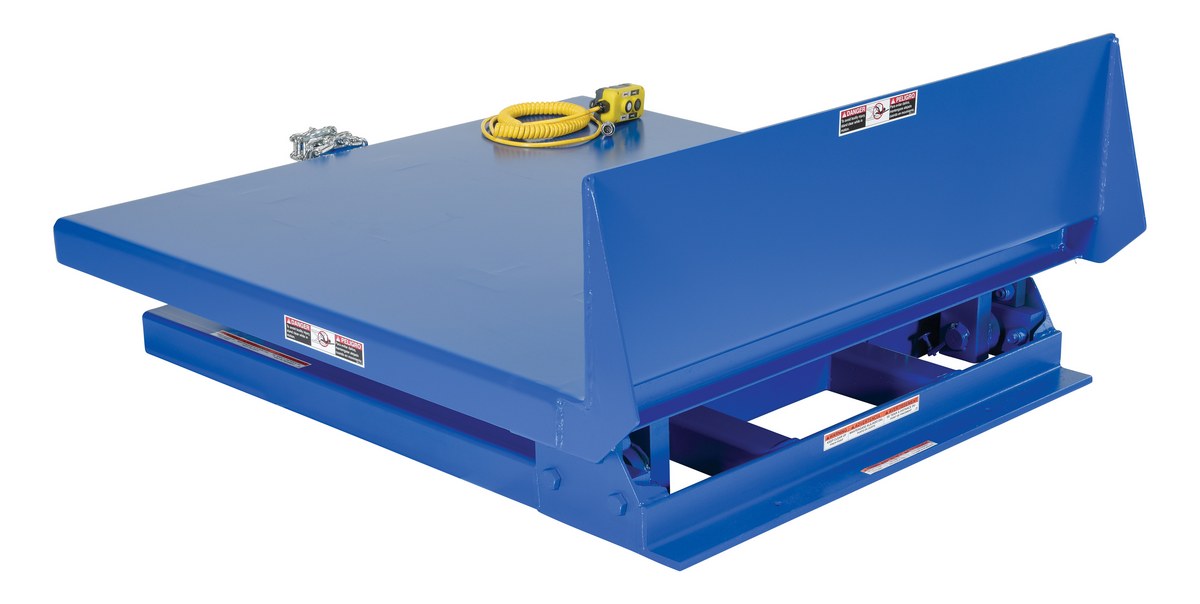

Hinge & Sliding Tilt TablesHinge Tilt Model: EHTT

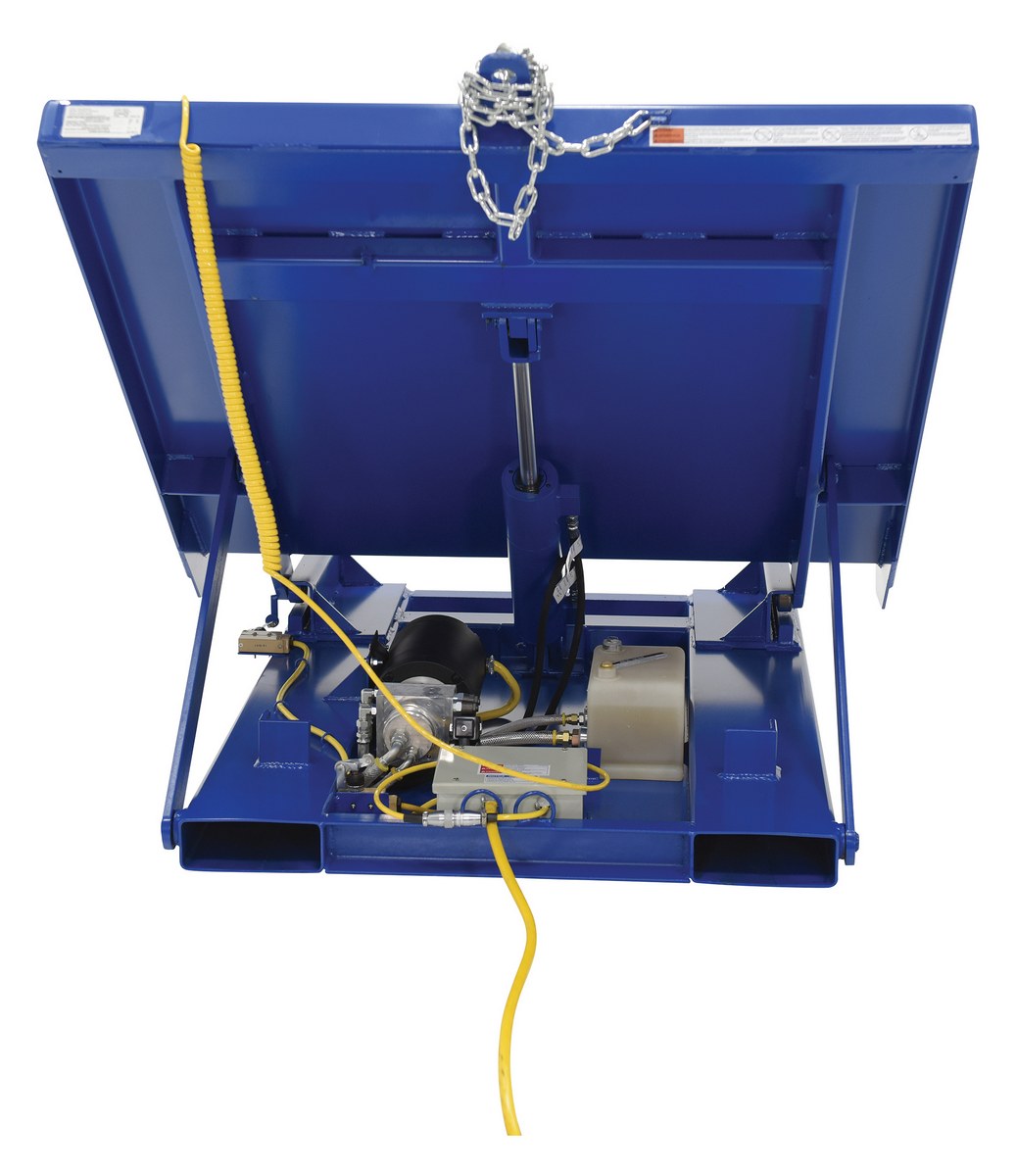

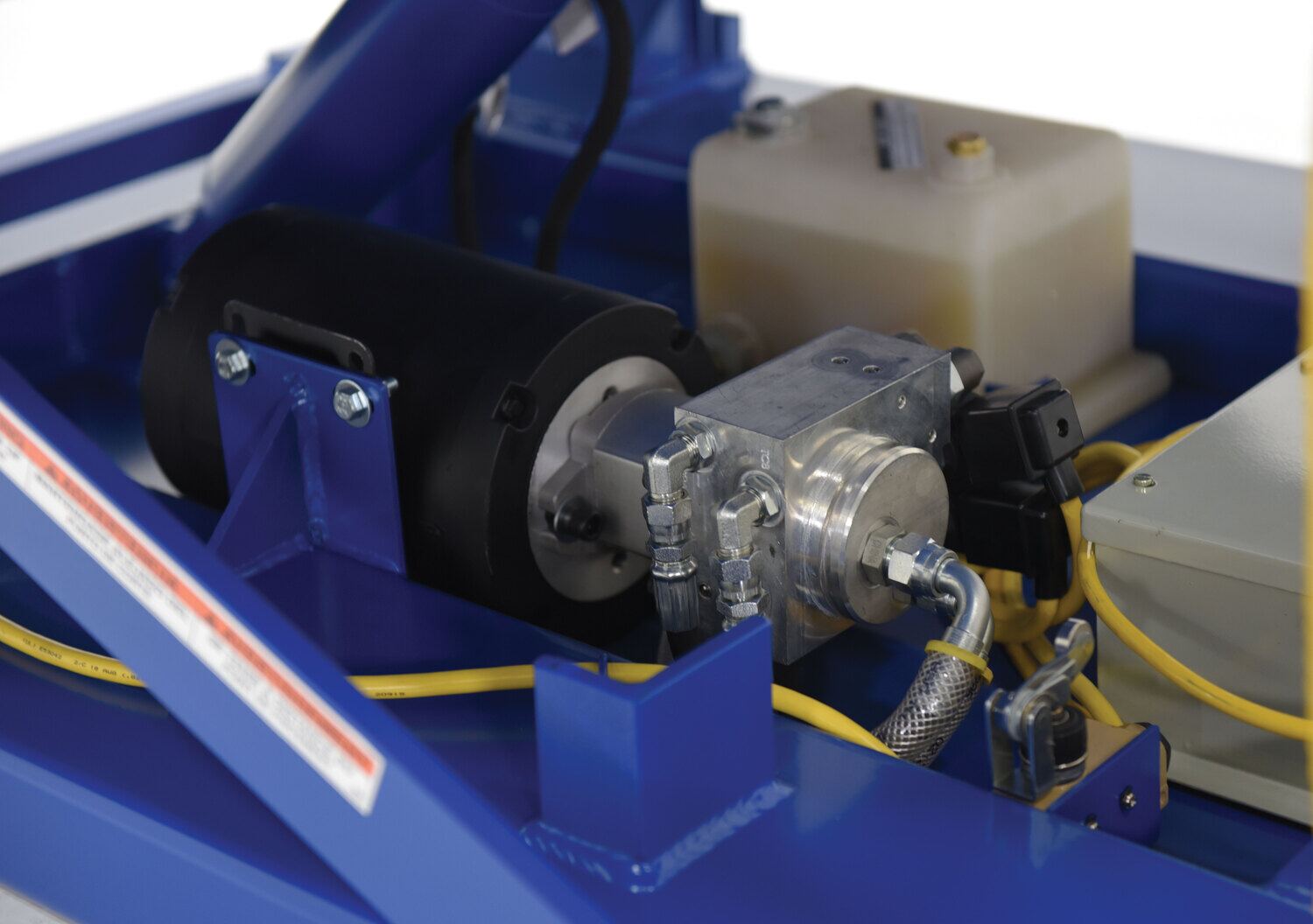

The hinge tilt table offers the rugged durability of the standard efficiency master line of tilters, plus they offer an extra platform height. The lip is without side gussets allowing for loading and unloading on three sides. This tilt table has a two-button handheld pendent control with additional voltage options available. The pressure plated pump is coupled to an application specific manifold that features counterbalanced valves and modulated flow control for maximum efficiency.

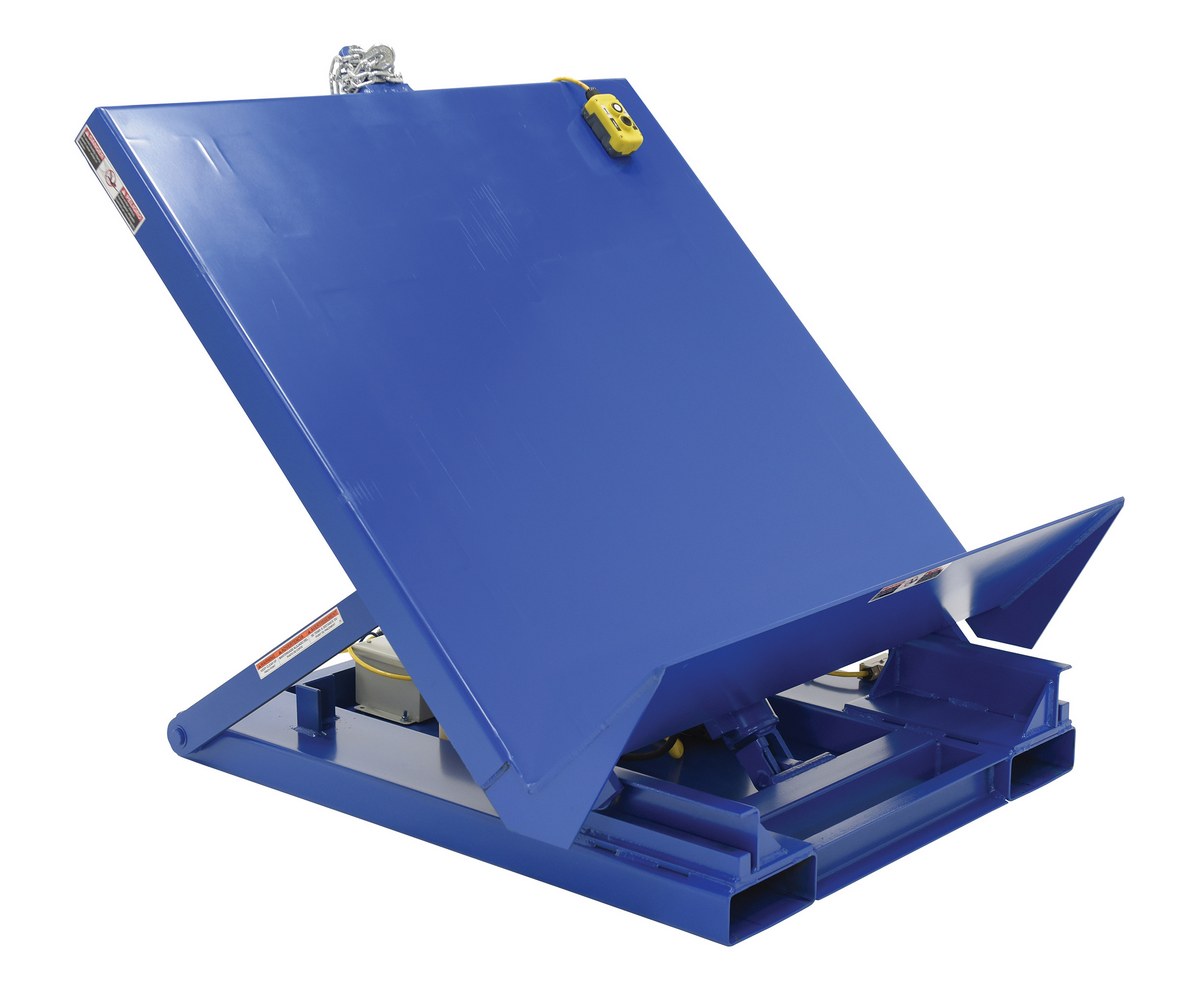

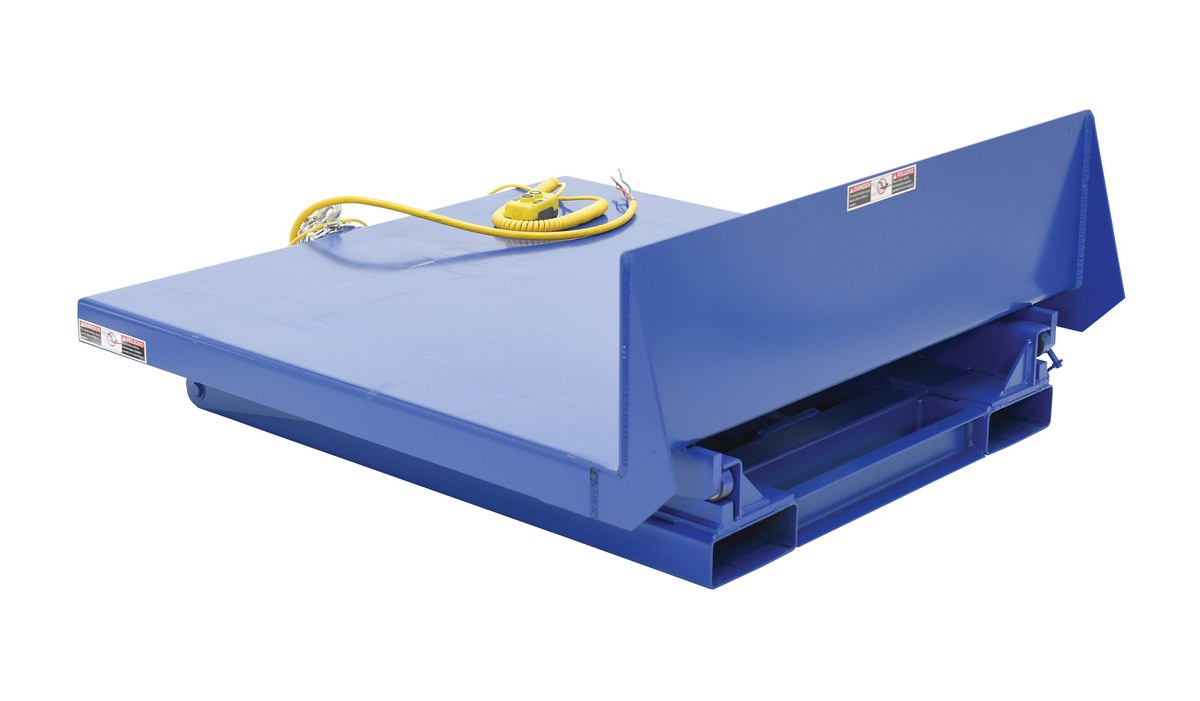

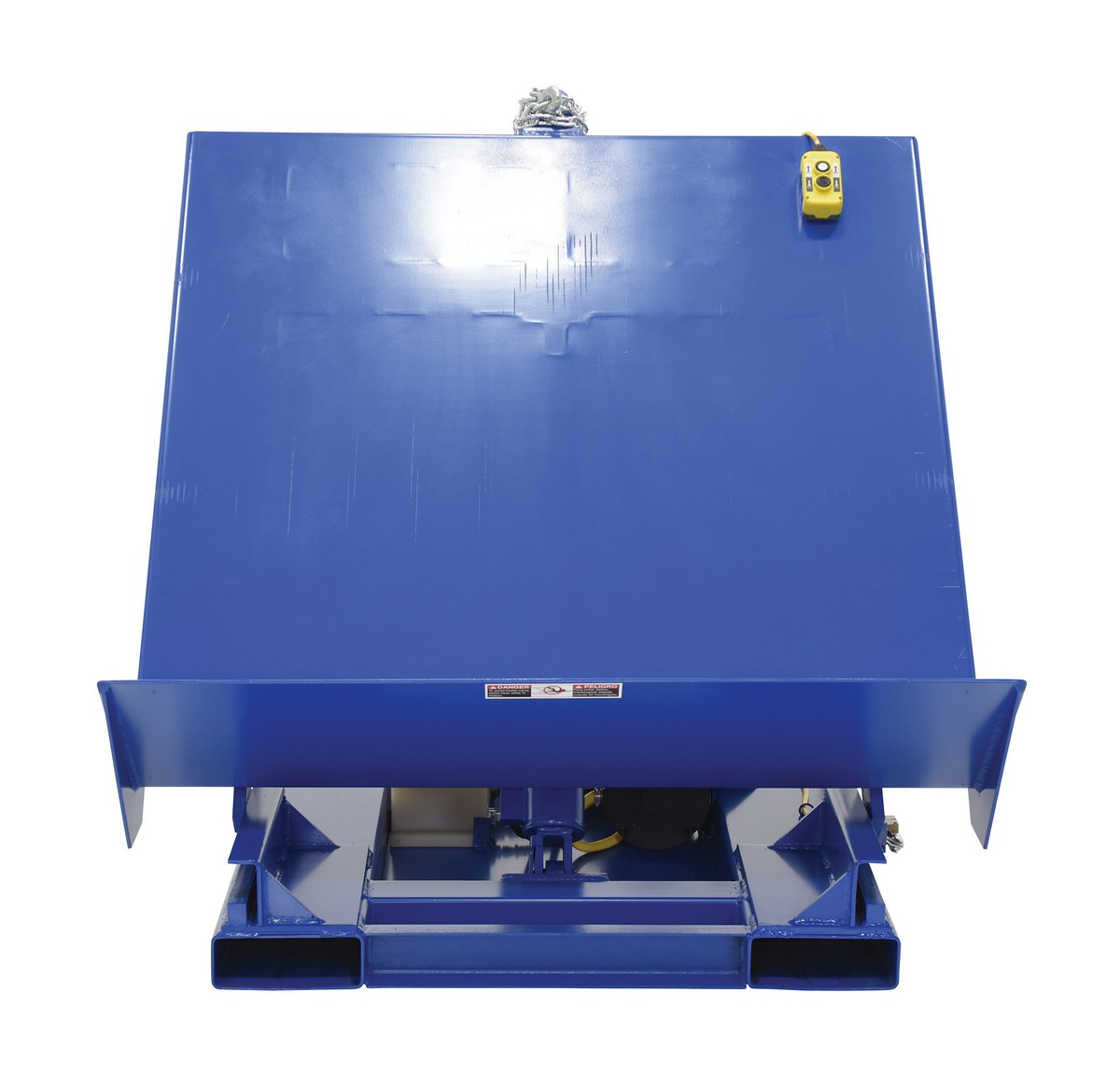

Sliding Tilt Model: EHTT-L
The sliding tilt table offers the rugged durability of the standard efficiency master line of tilters, plus they offer an extra platform height. The lip is without side gussets allowing for loading and unloading on three sides. The sliding tilt table incorporates a patented sliding link-tilt design for maximum stability while occupying minimum space. As the table is tilted, the front edge of the container moves away from the operator. Side gussets are required when ordering optional accordion skirt.
EHTT - Stationary with four (4) lag down points.
EHTT-L - Base includes 7-1/2" W x 2-1/2" H usable fork pockets on 28" centers for portability.
- Offers rugged durability of the standard master line plus extra platform height
- Features counterbalanced valves and modulated flow control for maximum efficiency
- Patented sliding link-tilt design for maximum stability while occupying minimum space
- Center-of-gravity of load remains closer to the center of the frame
Lift & Tilt Scissor Tables
Air Bag Scissor Lift Tables
Narrow Scissor Lift Tables
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| EHTT | POPULAR |  | 1 Year Limited Warranty | Steel Hinge Tilt Table 48 In. x 47.25 In. 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Platform Width (in.): 48 | 772 | |
| EHTT-L | |  | 1 Year Limited Warranty | Steel Sliding Tilt Table 48 In. x 47.25 In. 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Platform Width (in.): 48 | 770 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
For More Details of the Option Click the Red Model Button
| HCP-2642 |  |
Optional Hand Control Pedestal |
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: EHTT
Hydraulic Oil SDS Sheet for: EHTT-L
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the standard voltage and phase? Can the voltage and phase be changed?
A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.
 |
|||||||||||||||||
