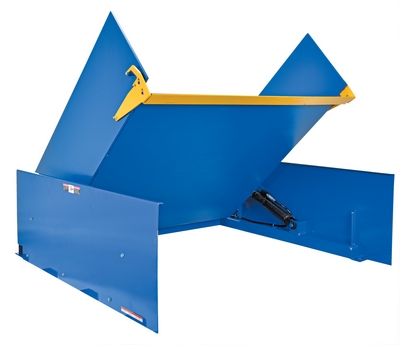

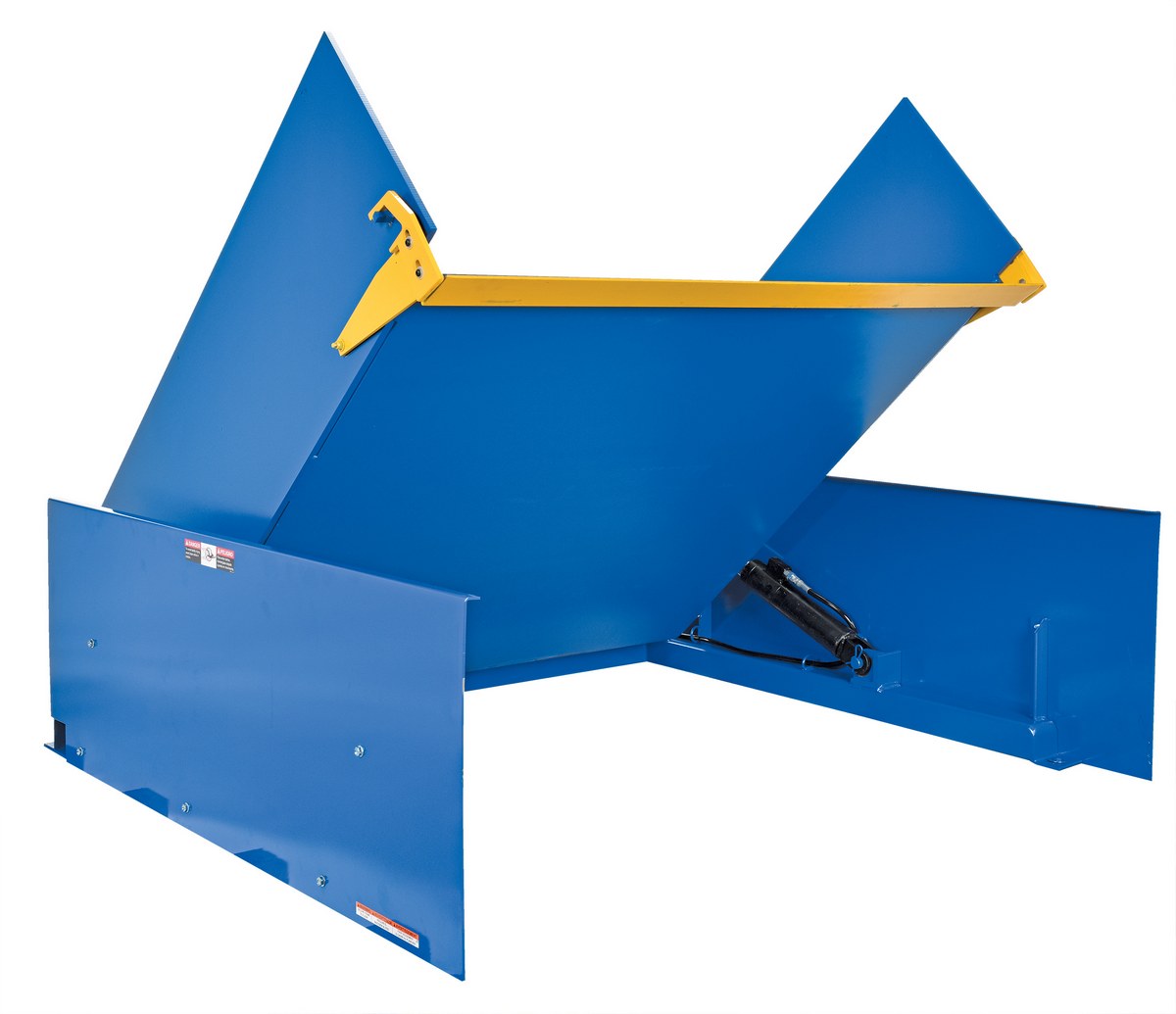

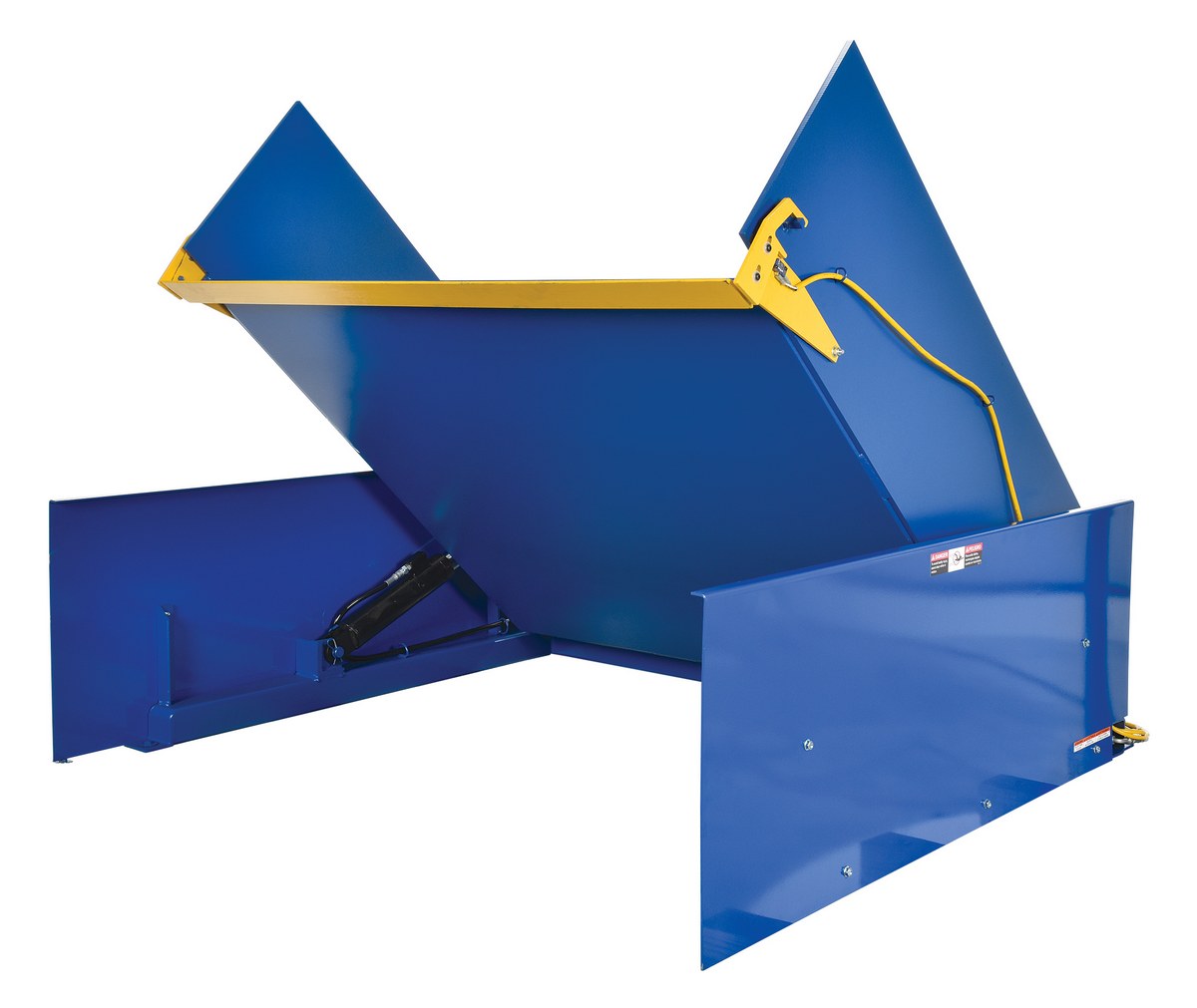

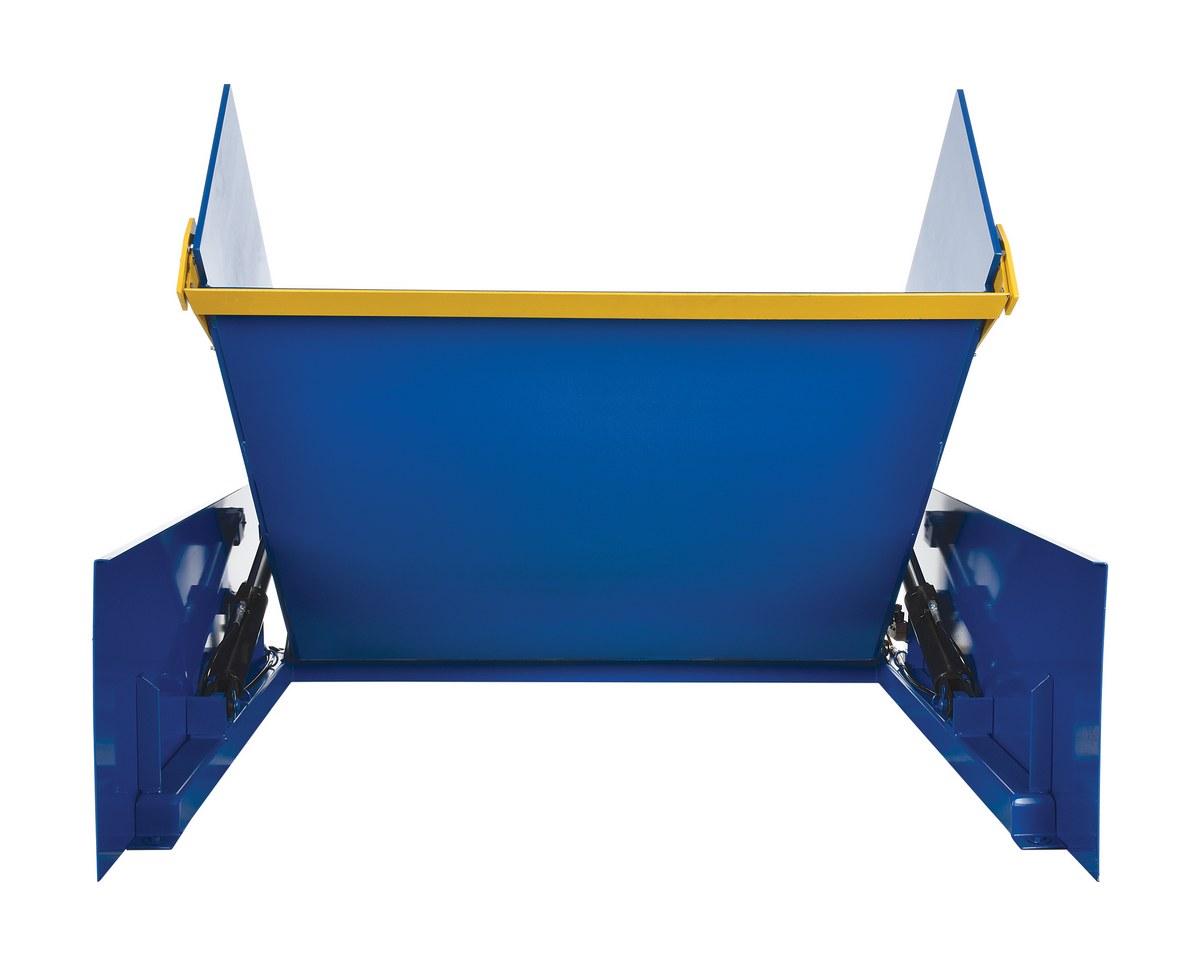

Ground TilterThe Ground Tilter, model GLT-4000, is the best product for tilting applications which require the use of a pallet truck for loading and unloading. Rotate containers up to 45 degrees from floor level to provide better access to parts in containers. Platform includes a 17-1/2" high lip on tilt side. A removable positioning bar is provided for use with smaller containers. Designed with worker safety in mind, pinch point guards are provided on loading side of the unit. 2HP 460V, 3-phase motor standard, other voltages available. Remote power unit with a protective cover measures 12"W x 32-1/2"L x 12-1/2"H. Hand pendant control standard. Optional foot control available model FC-2.
- Rotate containers from floor level to provide better access to containers

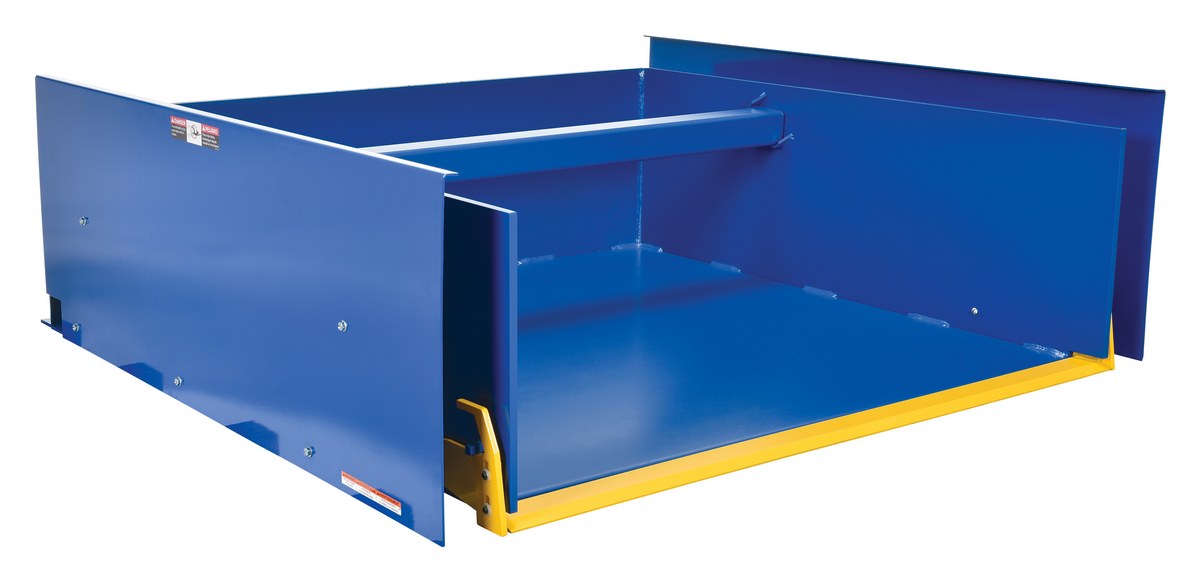

- Includes high lip and removable positioning bar used for smaller containers
- Pinch point guards are provided on loading side for worker safety

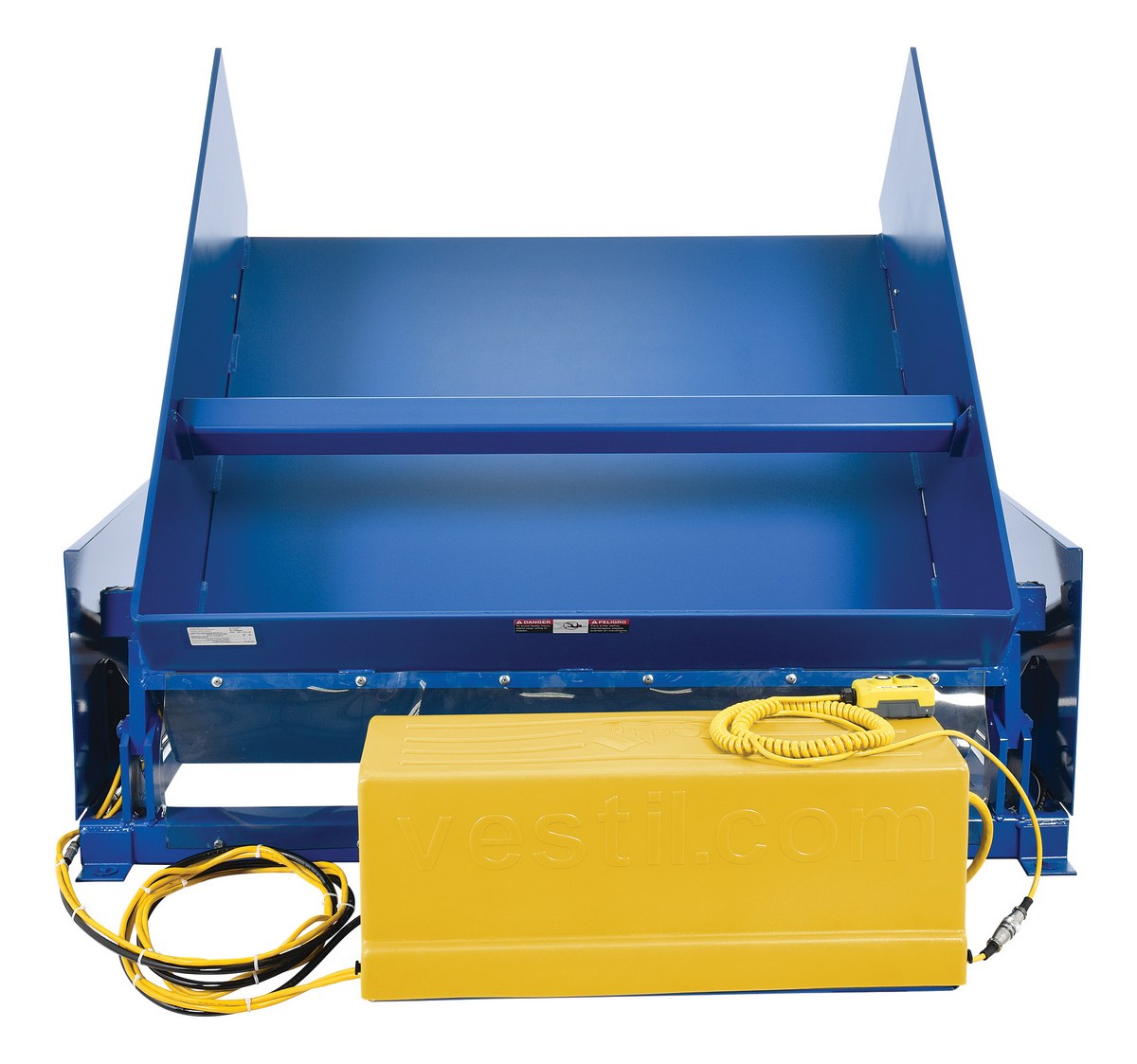

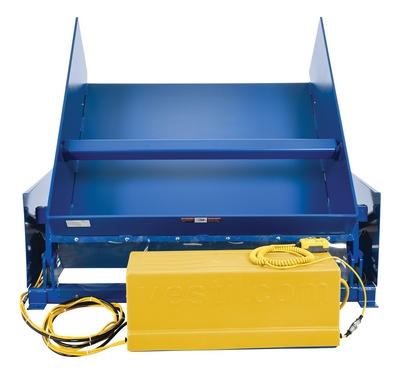

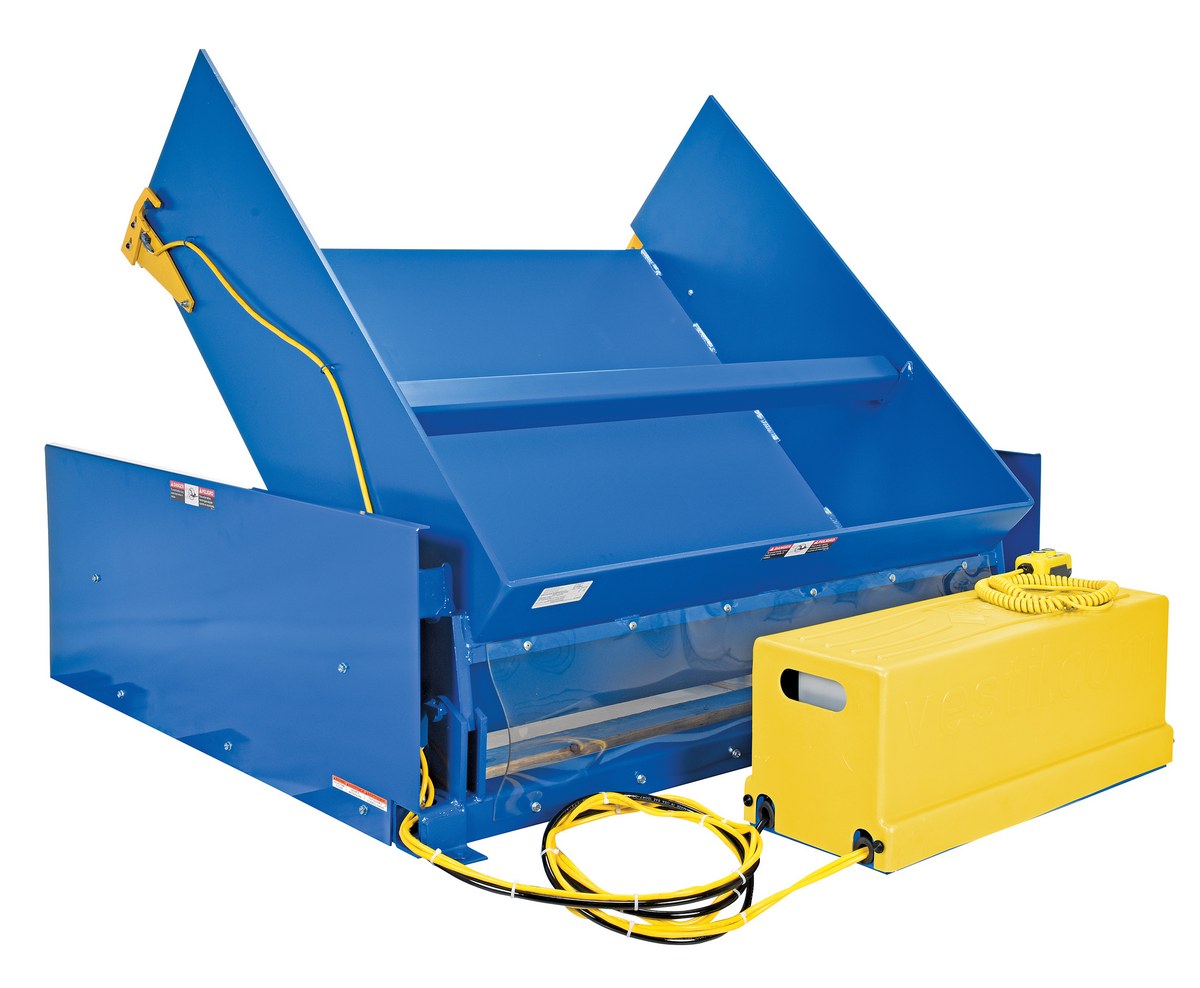

- Remote power unit comes with protective cover and hand pendant control
Hand Control Pedestal
Electric Linear Actuated Table Top Scissor Lift Table
Double Scissor Lift Tables
Portable Electric Hydraulic Lift Table w/ Attached Hoist
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| GLT-4000 | |  | 1 Year Limited Warranty | Steel Ground Lift Tilter 59-1/4 In. x 64-1/2 In. x 20-5/8 In. 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Platform Width (in.): 50 | 1342 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
For More Details of the Option Click the Red Model Button
| Model | Description | Wt. (lbs) | |
| HCP-2642 |  |
Optional Hand Control Pedestal | |
| FC-2 | Optional 2-Pedal Foot Control w/ 8ft Cord | 10 | |
| ADDL-HH-25-10 | Synthetic Rubber 1/4 In. 10 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black | ||
| ADDL-HH-25-20 | Synthetic Rubber 1/4 In. 20 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black |
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the standard voltage and phase? Can the voltage and phase be changed?
A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.
 |
||||||||||||||||||||||
Ground Tilter |
||||||||||||||||||||||
 |
||||||||||||||||||||||
The Ground Tilter, model GLT-4000, is the best product for tilting applications which require the use of a pallet truck for loading and unloading. Rotate containers up to 45 degrees from floor level to provide better access to parts in containers. Platform includes a 17-1/2" high lip on tilt side. A removable positioning bar is provided for use with smaller containers. Designed with worker safety in mind, pinch point guards are provided on loading side of the unit. 2HP 460V, 3-phase motor standard, other voltages available. Remote power unit with a protective cover measures 12"W x 32-1/2"L x 12-1/2"H. Hand pendant control standard. Optional foot control available model FC-2.
|
||||||||||||||||||||||
 |
||||||||||||||||||||||
|
||||||||||||||||||||||
