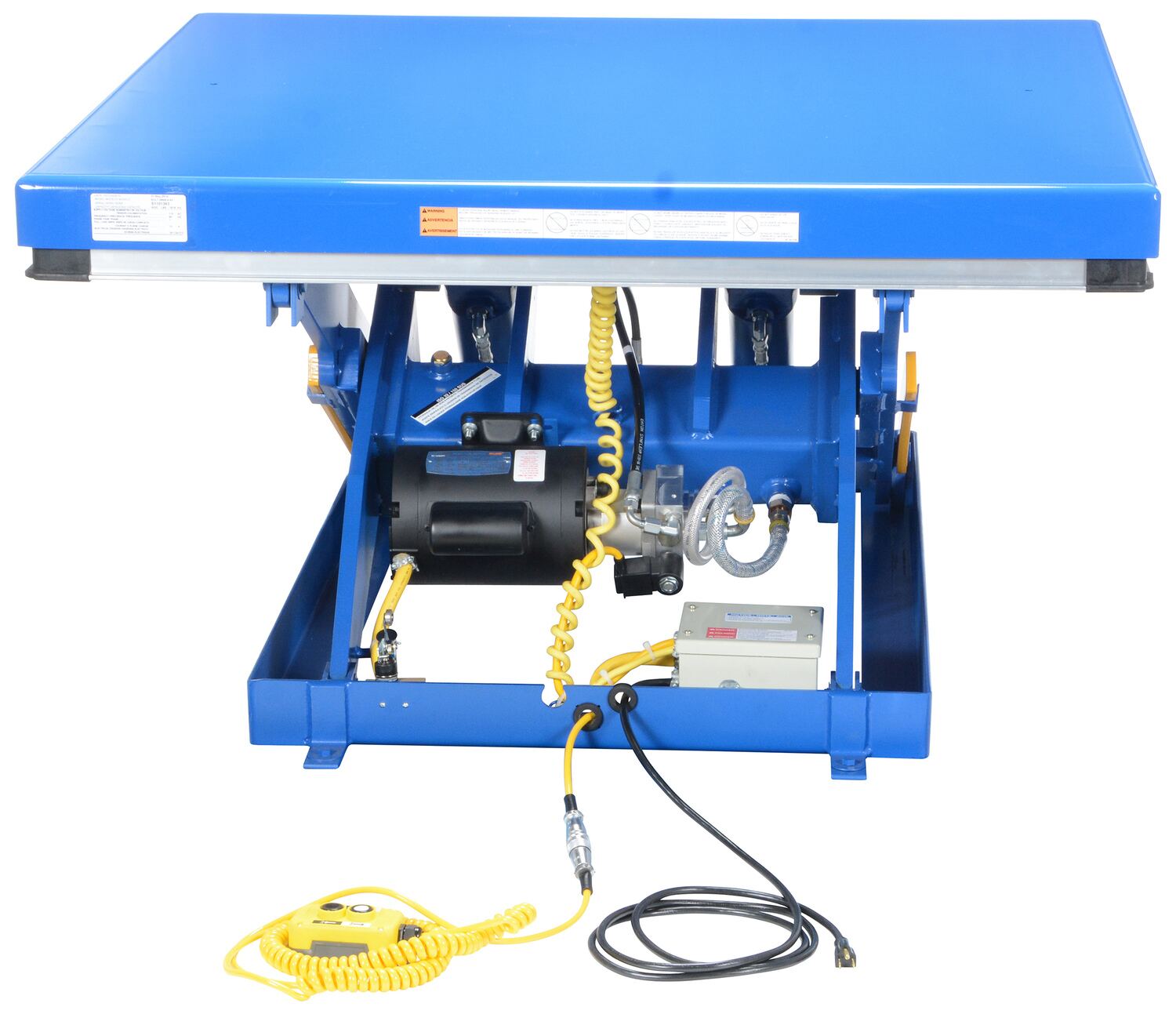

Electric Hydraulic Scissor Lift Tables
Full featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities. Safety features include: electric toe guard to protect pinch points during lowering of the table, internal safety velocity fuse to maintain platform height in event of hose or fitting failure, 24V AC push button hand control, maintenance prop, and upper travel limit switch to stop table at maximum height. 2HP, 460V, 3 phase, 60 Hz totally enclosed motor standard, other voltages available. 3000 psi hydraulic component rating.
Hydraulic Motorcycle Lift
Powered Lift Table With Manual Rotation
Ground Lift Scissor Tables
Programmable Height For Lift TablesAdditional Models In This Family

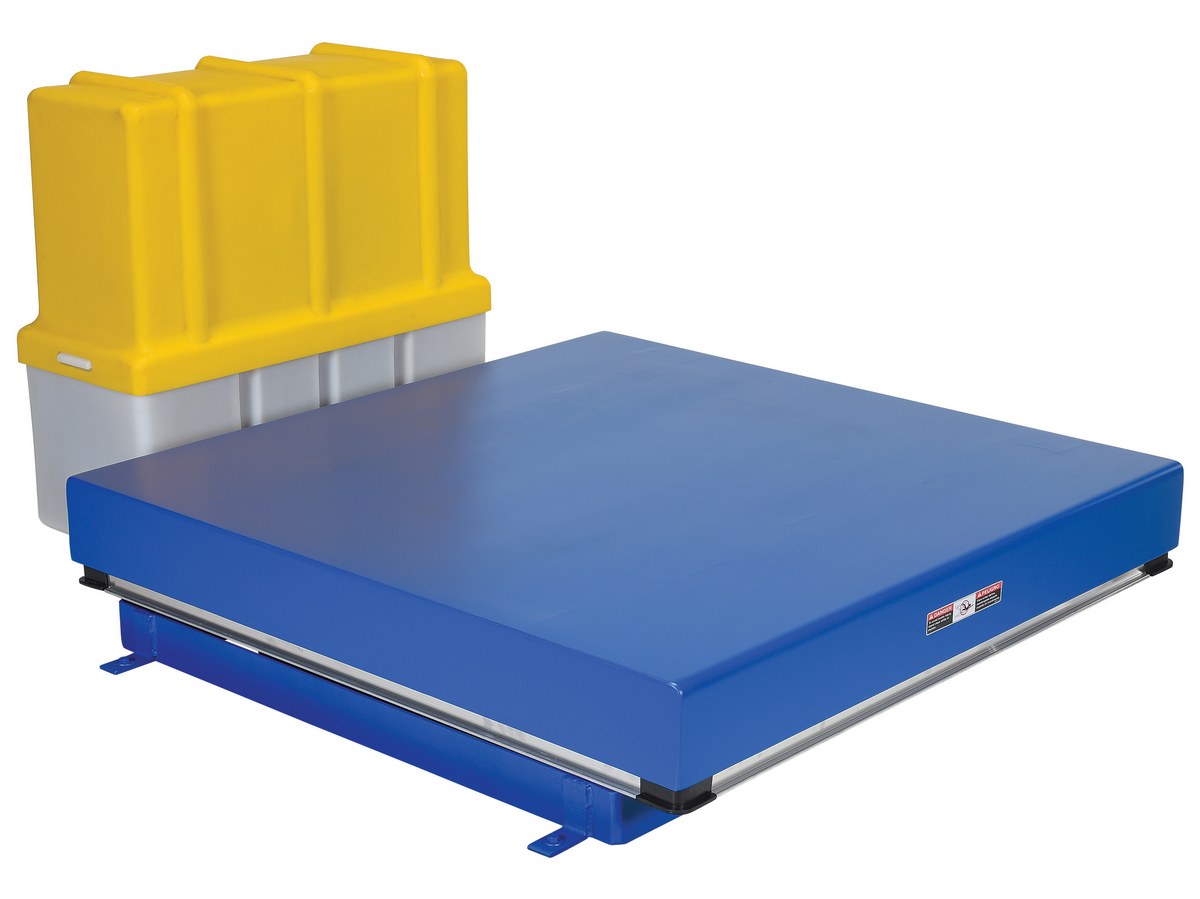

EHLT-4848-10-43

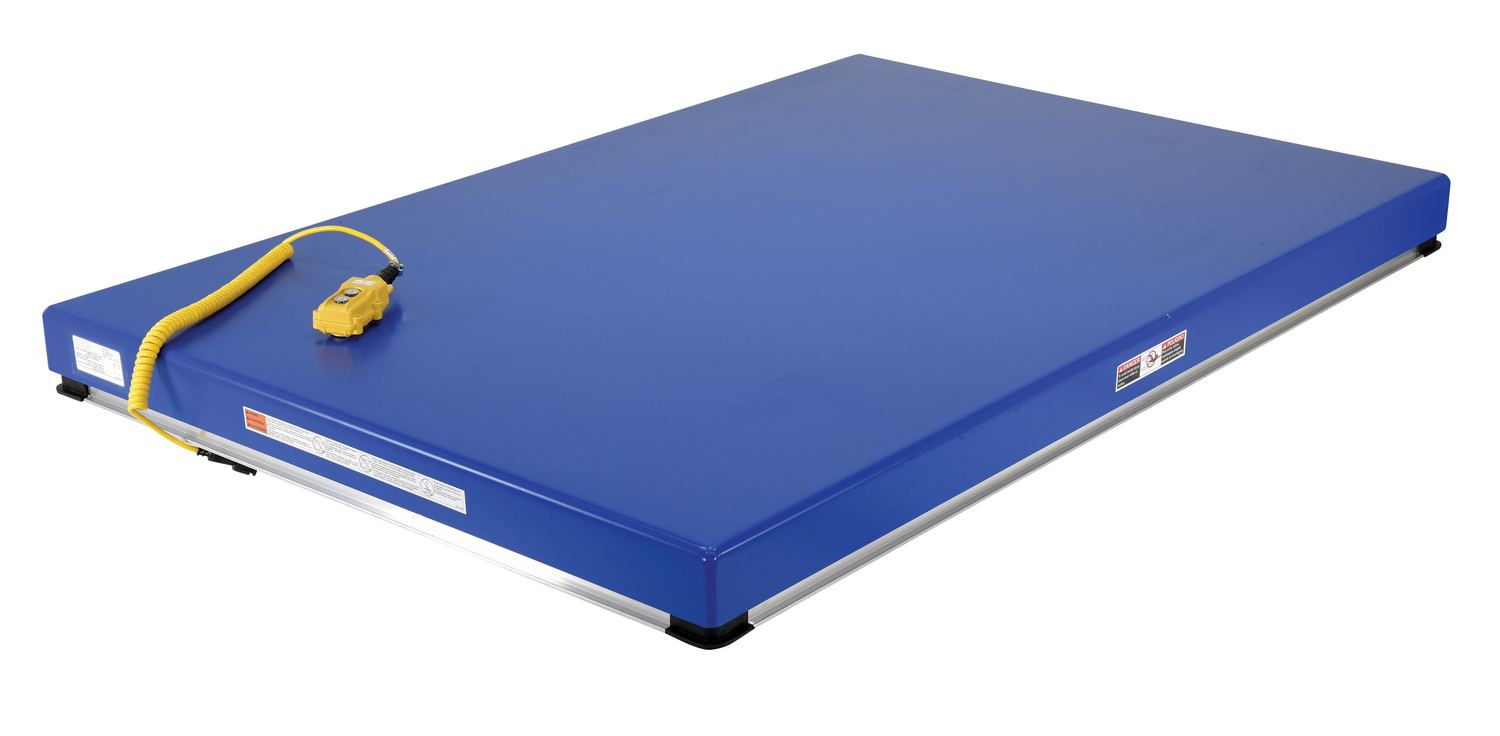

EHLT-3684-4-56

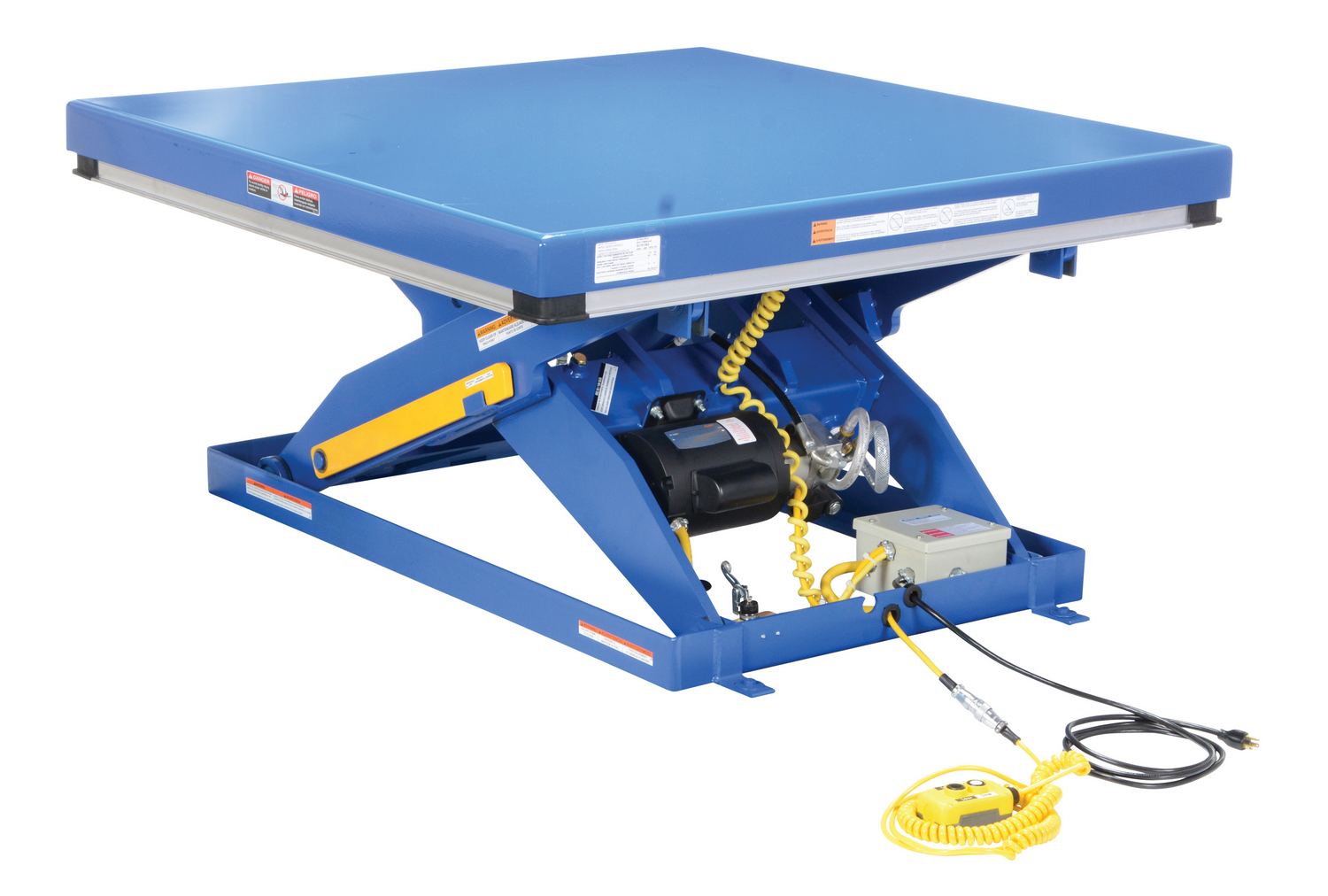

EHLT-4848-5-44

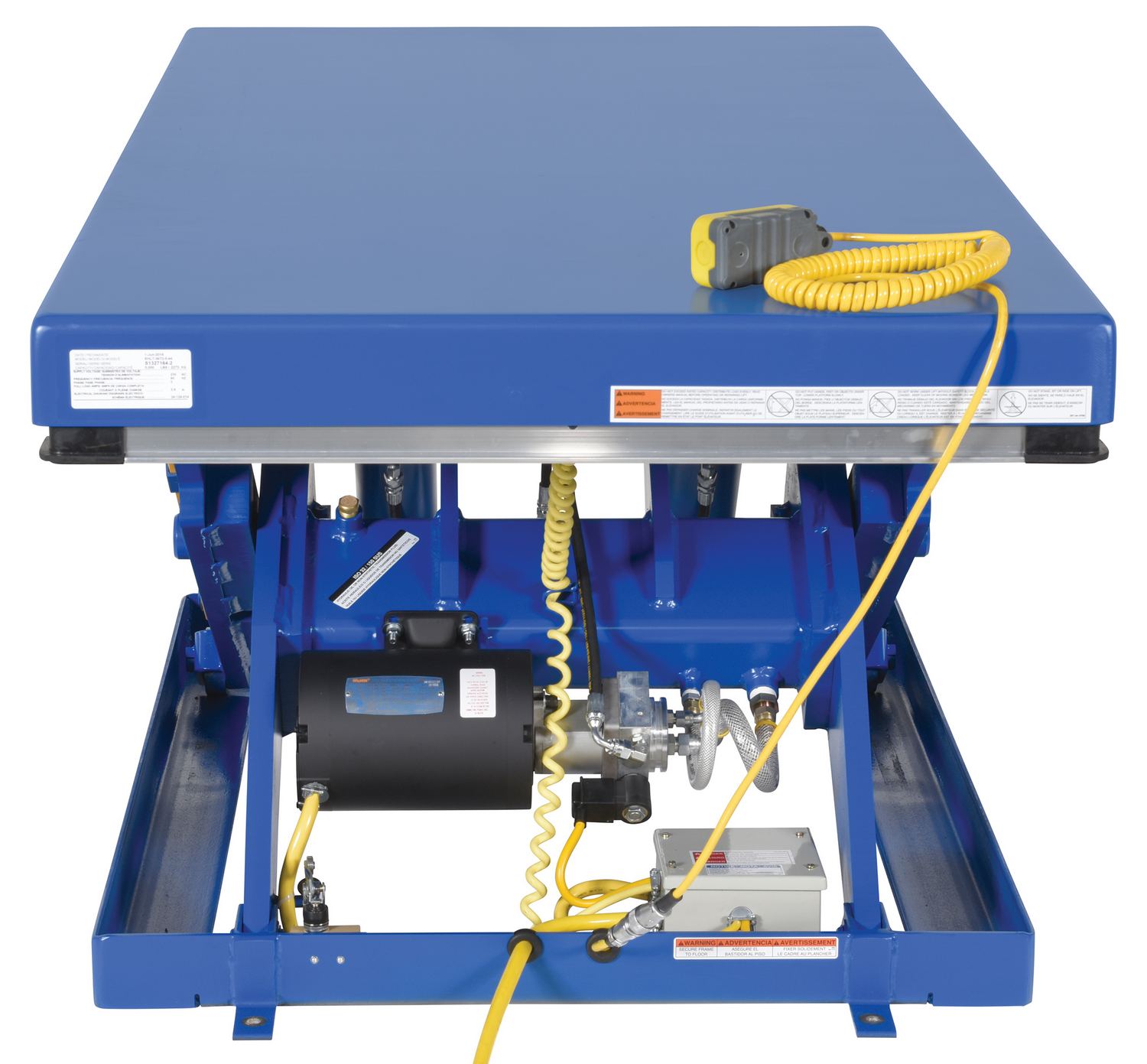

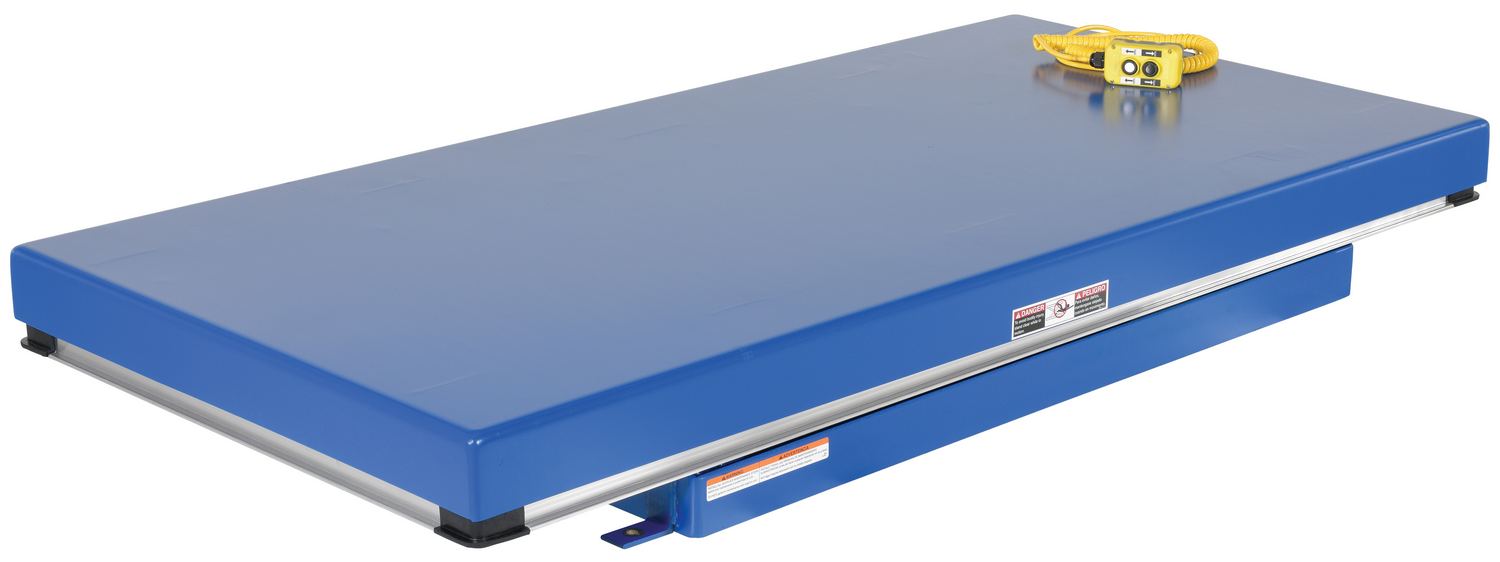

EHLT-3672-6-44

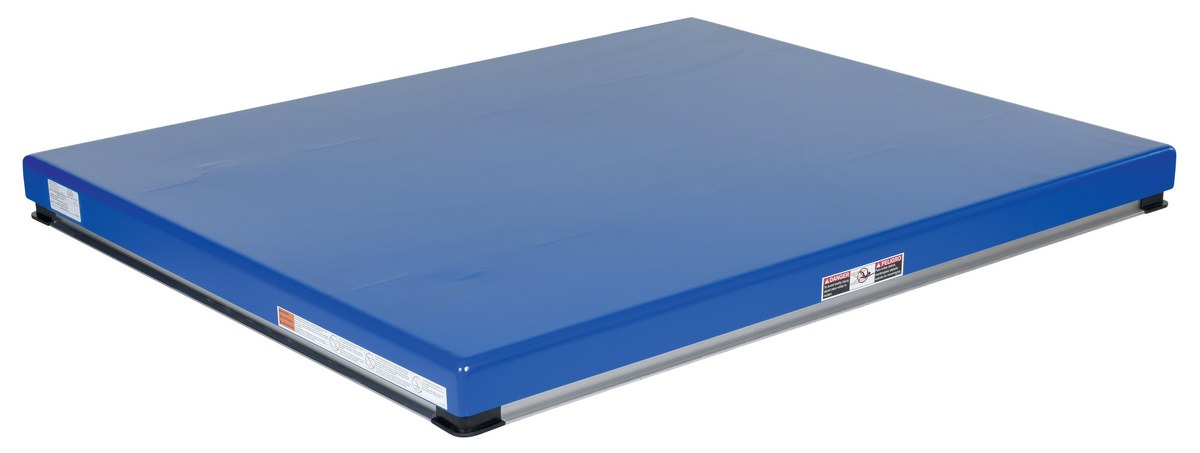

EHLT-4860-4-43

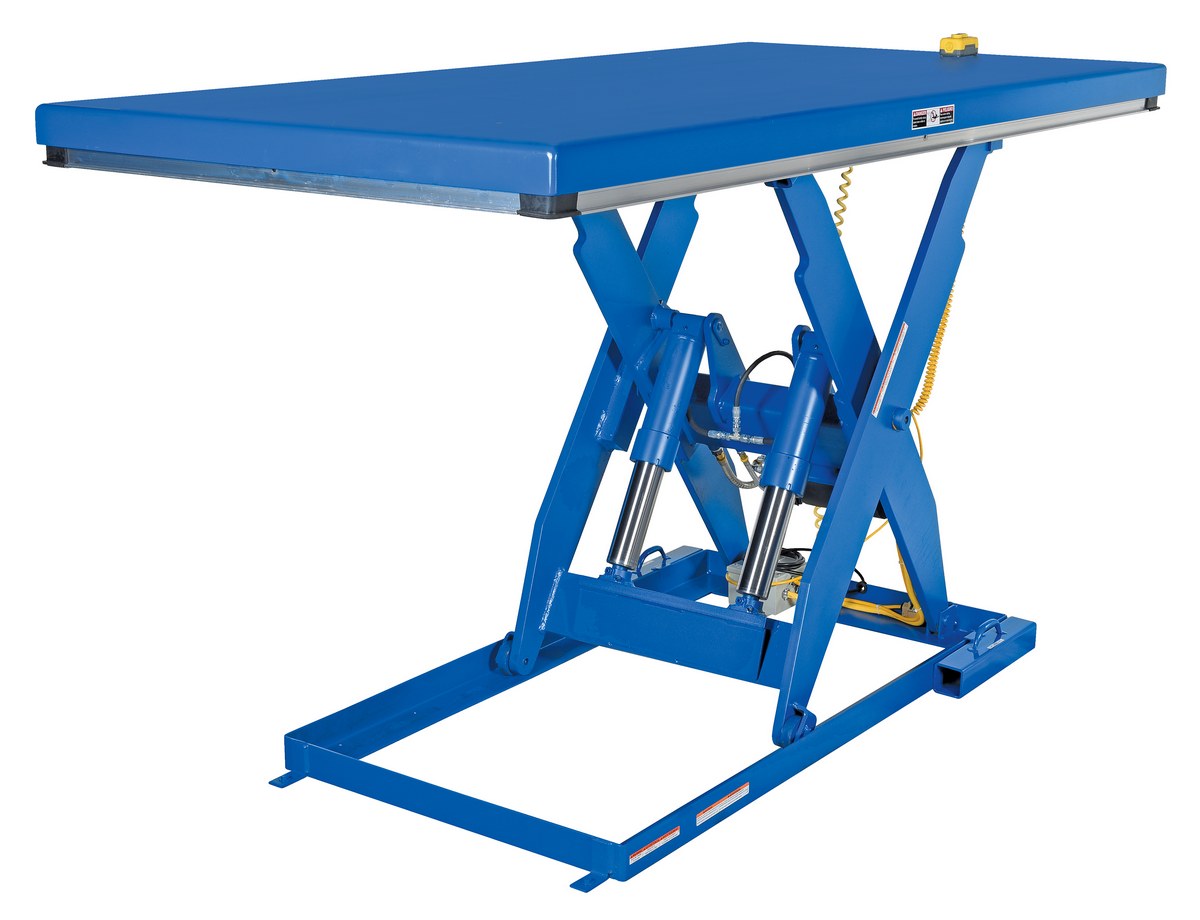

EHLT-4896-4-56

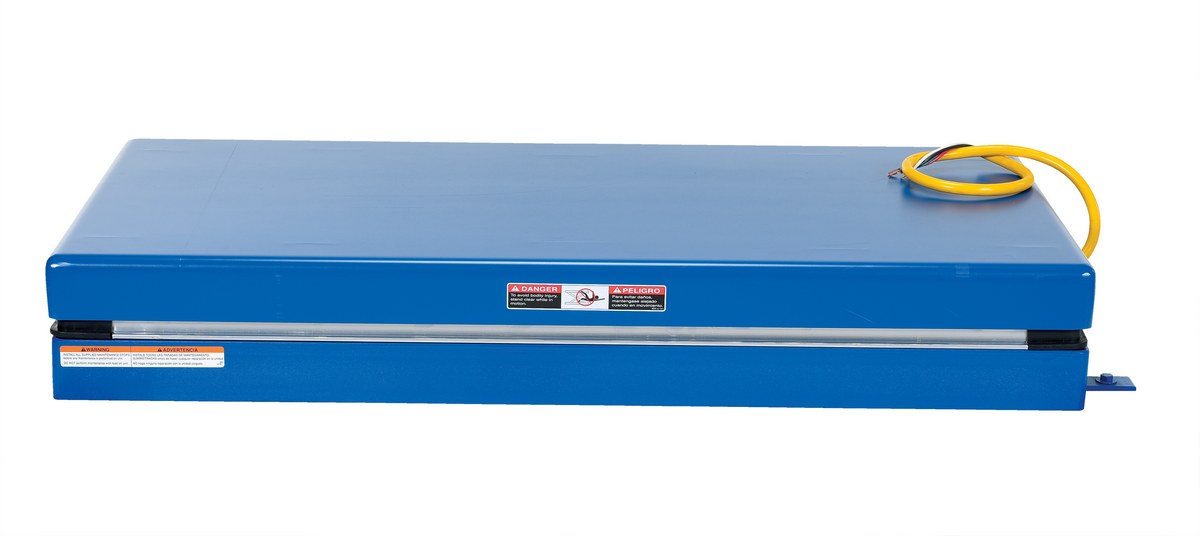

EHLT-2448-3-43
EHLT-3060-4-43

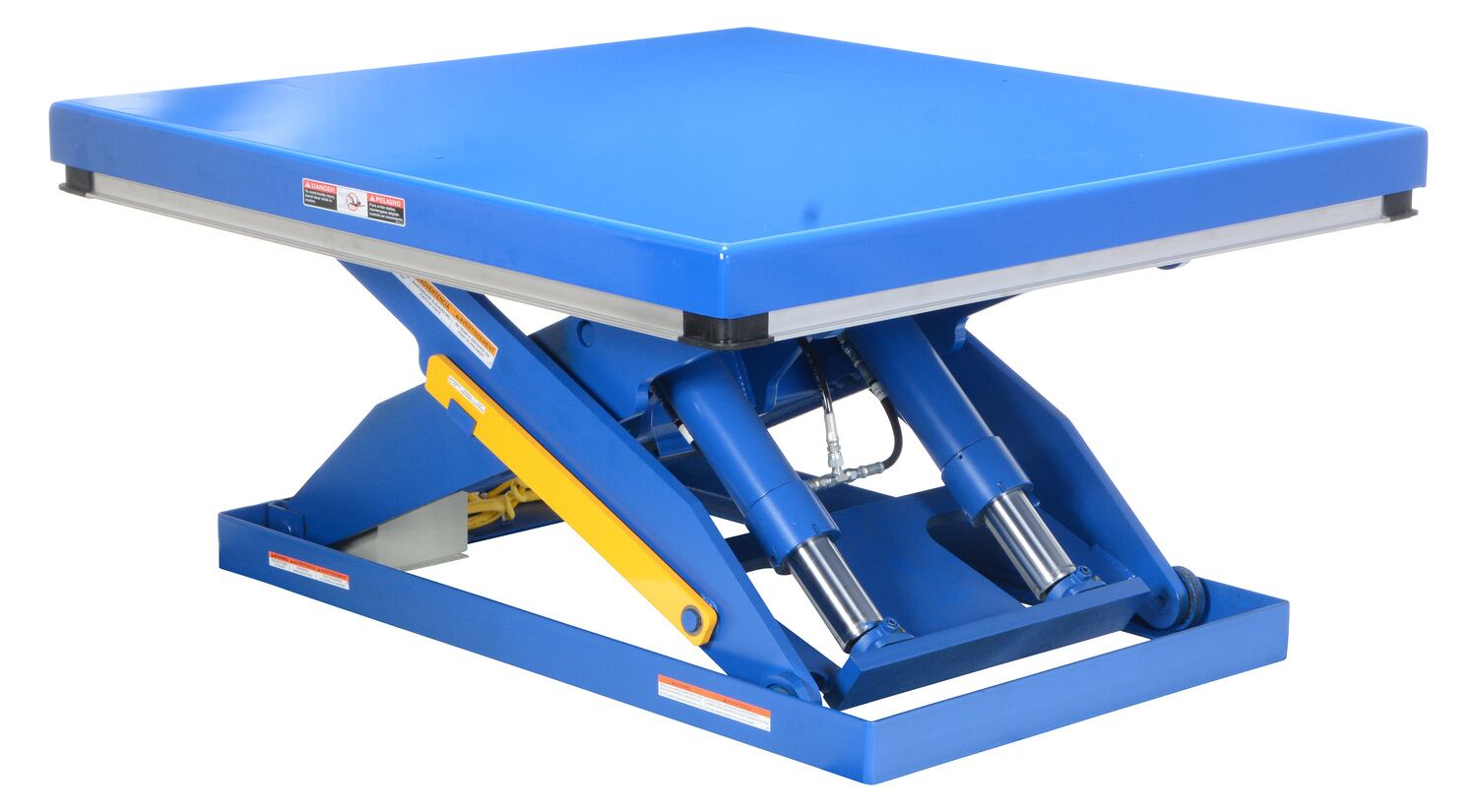

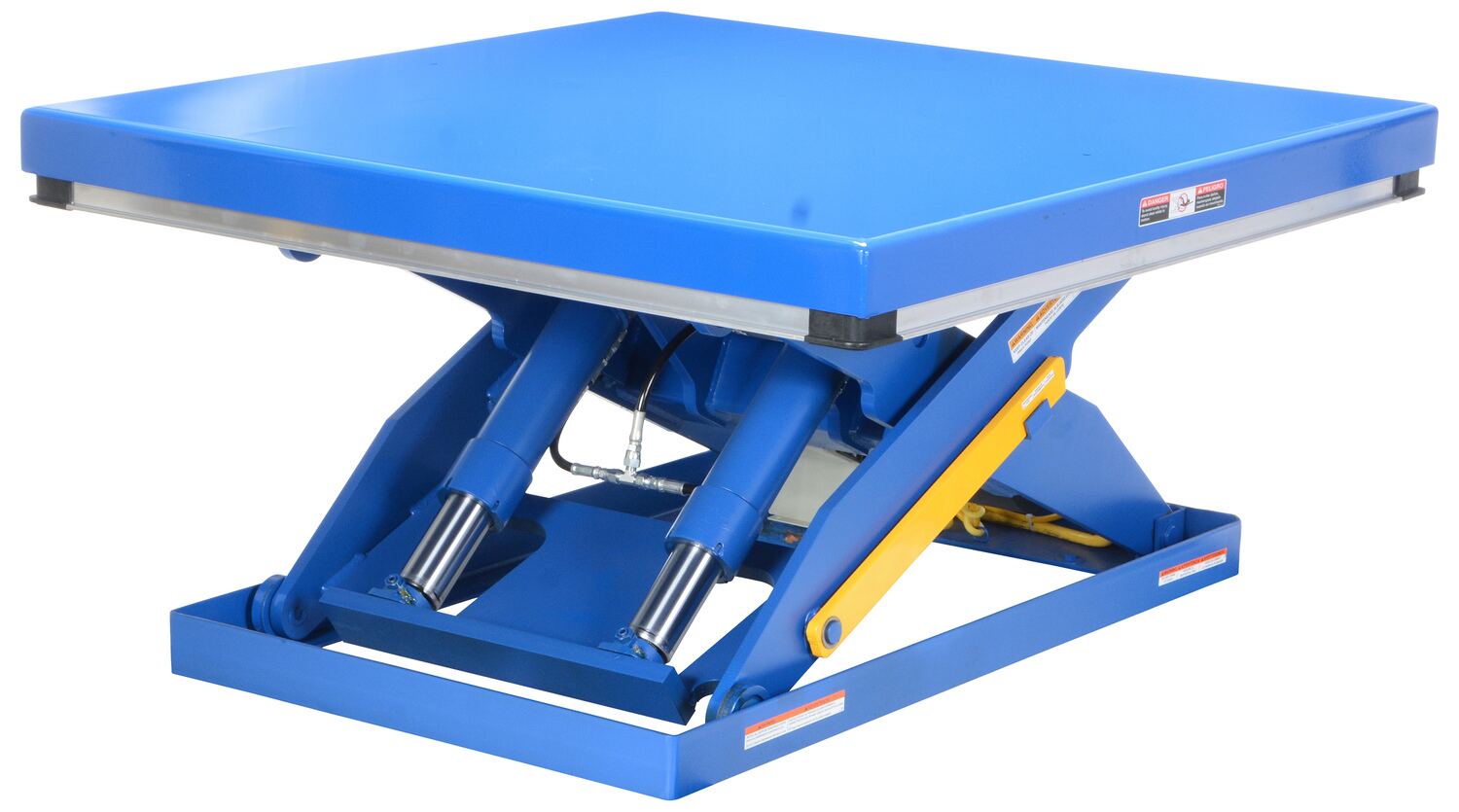

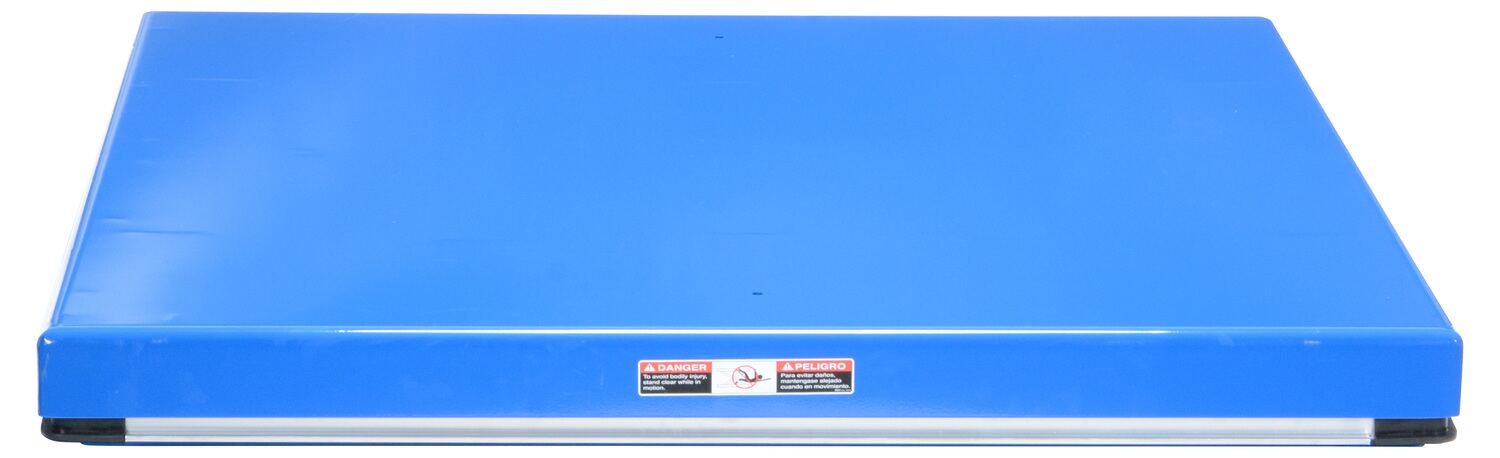

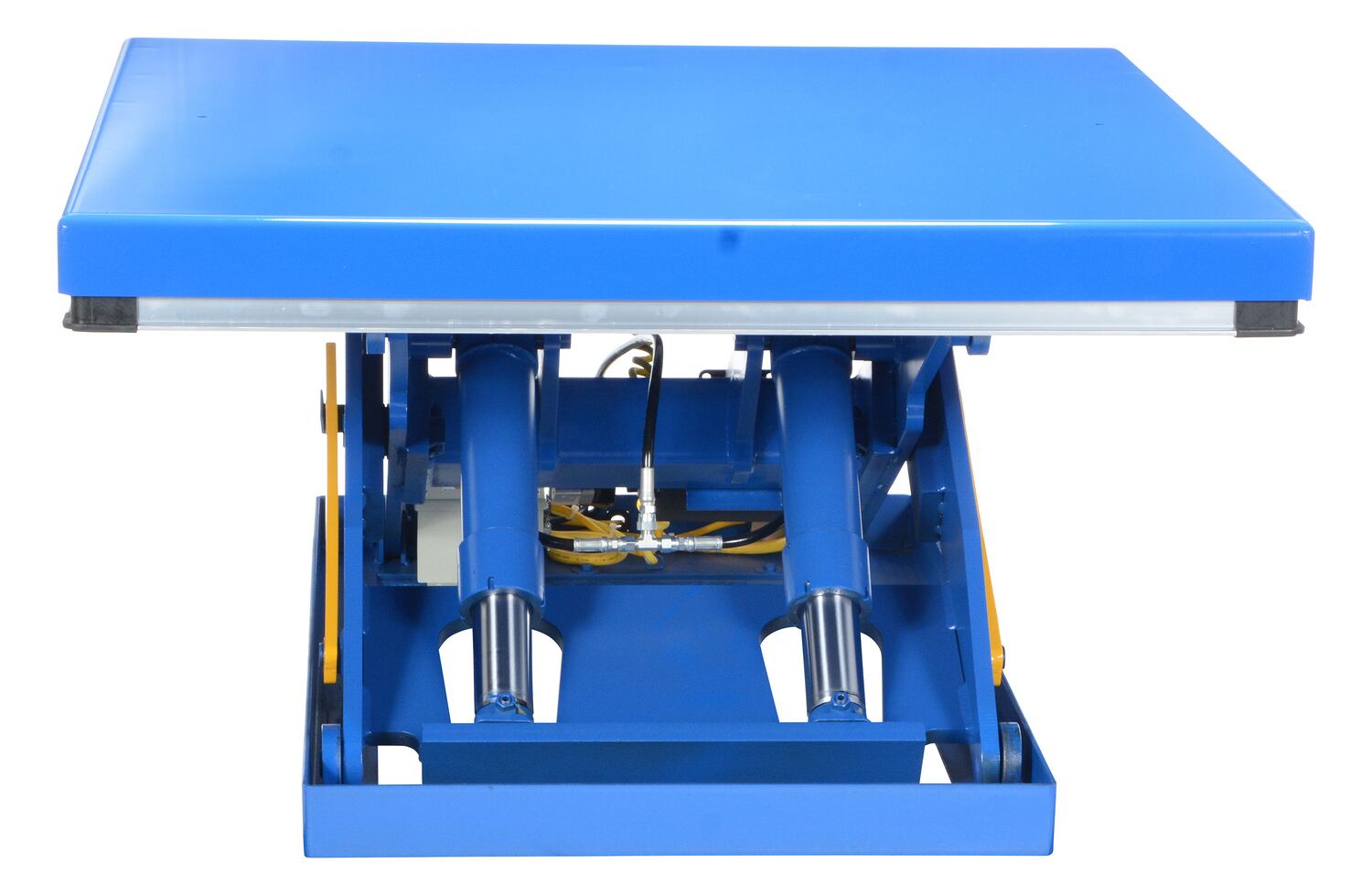

EHLT-4848-4-43
EHLT-4848-12-43

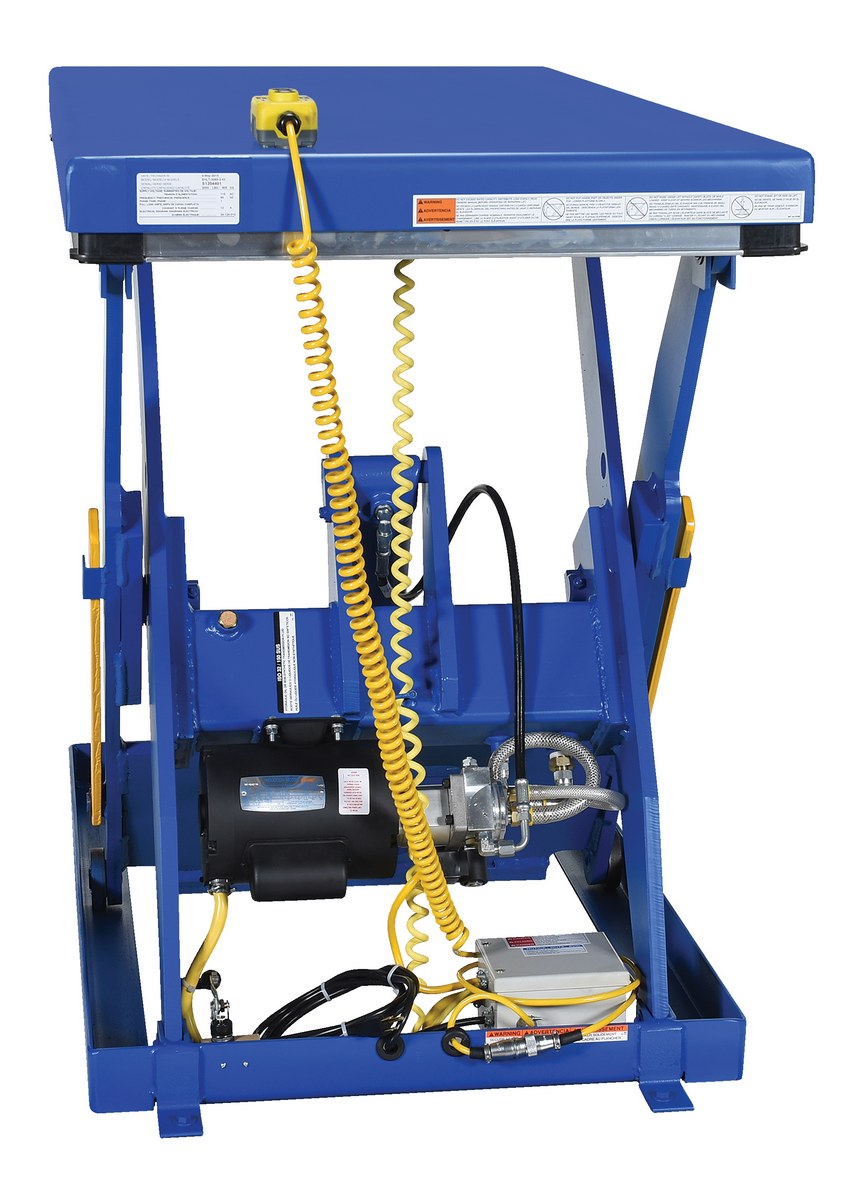

EHLT-3060-2-43

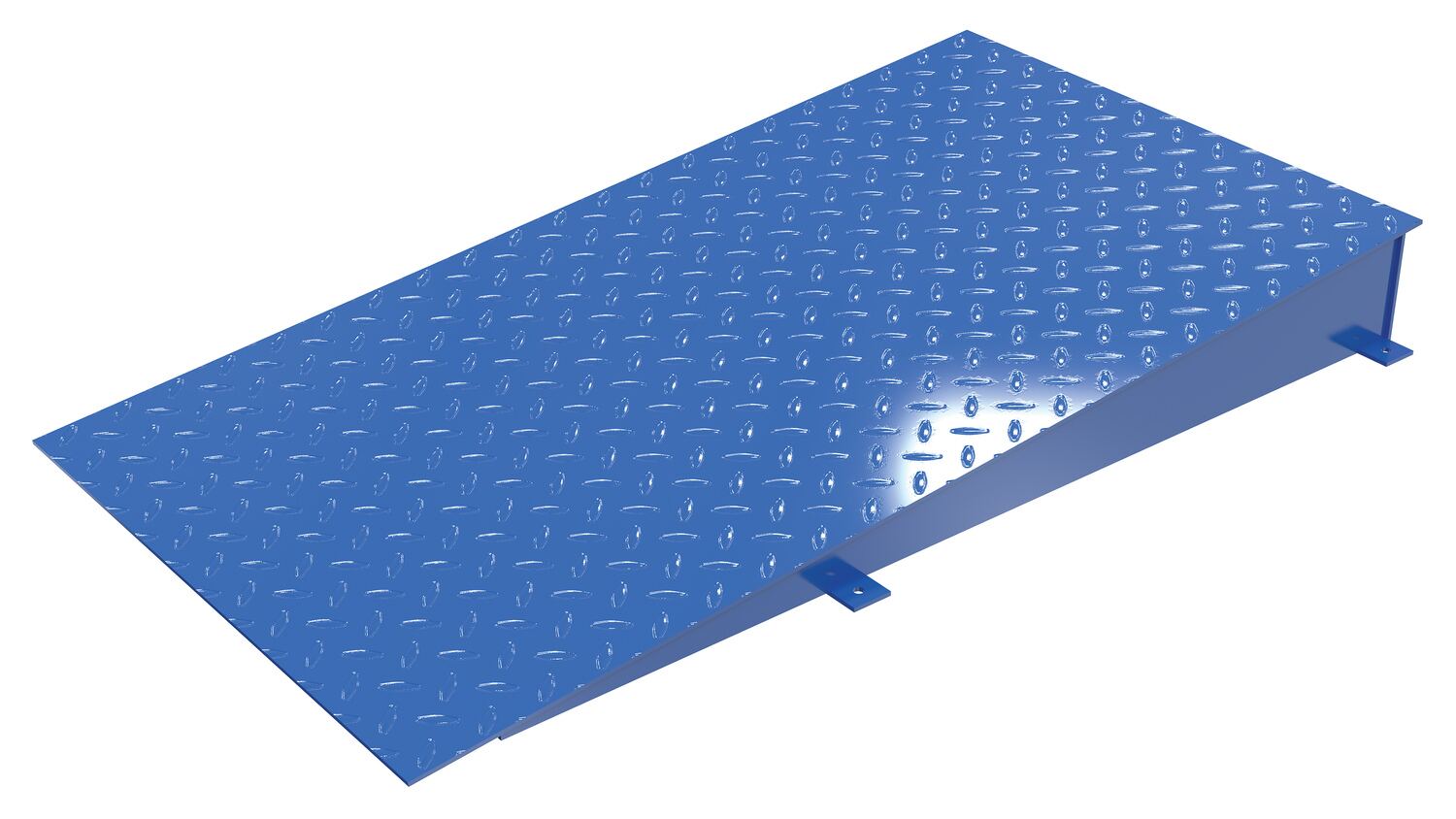

EHLT-AR-3665-7
EHLT-3648-5-44
EHLT-2448-3-43
EHLT-3672-2-43
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Model Number Format
EHLT - (width)(length) - capacity - raised height
| Vertical Travel |
Platform Width |
Platform Length |
Capacity (lbs.) |
Raised Height |
Lowered Height |
Travel Time (sec.) |
Wt. (lbs.) |
| 36" | 24"-48" | 48"-72" | 1,000 | 43" | 7" | 7 | 638 |
| 36" | 24"-48" | 48"-72" | 2,000 | 43" | 7" | 11 | 738 |
| 36" | 24"-48" | 48"-72" | 3,000 | 43" | 7" | 16 | 950 |
| 36" | 24"-48" | 48"-72" | 4,000 | 43" | 7" | 22 | 980 |
| 36" | 36"-48" | 48"-72" | 5,000 | 44" | 8" | 32 | 1029 |
| 36" | 36"-48" | 48"-72" | 6,000 | 44" | 8" | 32 | 1108 |
| 36" | 36"-48" | 48"-72" | *8,000 | 44" | 8" | 15 | 1281 |
| 33" | 40"-60" | 48"-72" | *10,000 | 43" | 10" | 15 | 1438 |
| 33" | 40"-60" | 48"-72" | *12,000 | 43" | 10" | 15 | 1596 |
| 48" | 24"-48" | 64"-90" | 1,000 | 55" | 7" | 11 | 755 |
| 48" | 24"-48" | 64"-90" | 2,000 | 55" | 7" | 16 | 1176 |
| 48" | 24"-48" | 64"-90" | 3,000 | 55" | 7" | 22 | 1250 |
| 48" | 36"-48" | 64"-96" | 4,000 | 56" | 8" | 32 | 1271 |
| 48" | 36"-48" | 64"-96" | 5,000 | 56" | 8" | 32 | 1339 |
| 48" | 36"-48" | 64"-96" | 6,000 | 56" | 8" | 48 | 1420 |
| 48" | 36"-48" | 64"-96" | *8,000 | 56" | 8" | 15 | 1574 |
| 45" | 40"-60" | 64"-96" | *10,000 | 55" | 10" | 15 | 1659 |
| 45" | 40"-60" | 64"-96" | *12,000 | 55" | 10" | 20 | 1816 |
| 60" | 24"-48" | 84"-108" | 1,000 | 67" | 7" | 16 | 1303 |
| 60" | 24"-48" | 84"-108" | 2,000 | 67" | 7" | 14 | 1313 |
| 60" | 24"-48" | 84"-108" | 3,000 | 67" | 7" | 16 | 1456 |
| 60" | 48"-72" | 96"-120" | *4,000 | 68" | 8" | 26 | 1848 |
| 60" | 48"-72" | 96"-120" | *5,000 | 68" | 8" | 26 | 1869 |
| 60" | 48"-72" | 96"-120" | *6,000 | 70" | 10" | 30 | 1890 |
| 60" | 62"-72" | 96"-120" | *8,000 | 70" | 10" | 30 | 3000 |
| 58" | 62"-72" | 96"-120" | *10,000 | 72" | 14" | 30 | 3498 |
| 58" | 62"-72" | 96"-120" | *12,000 | 72" | 14" | 30 | 3510 |
| 72" | 24"-48" | 102"-120" | 1,000 | 79" | 7" | 12 | 2047 |
| 72" | 24"-48" | 102"-120" | 2,000 | 79" | 7" | 16 | 2060 |
| 71" | 48"-72" | 120"-144" | *3,000 | 82" | 11" | 16 | 2089 |
| 71" | 48"-72" | 120"-144" | *4,000 | 82" | 11" | 26 | 3217 |
| 71" | 48"-72" | 120"-144" | *5,000 | 82" | 11" | 26 | 3675 |
| 70" | 62"-72" | 120"-144" | *6,000 | 82" | 12" | 30 | 3773 |
| 70" | 62"-72" | 120"-144" | *8,000 | 82" | 12" | 30 | 4007 |

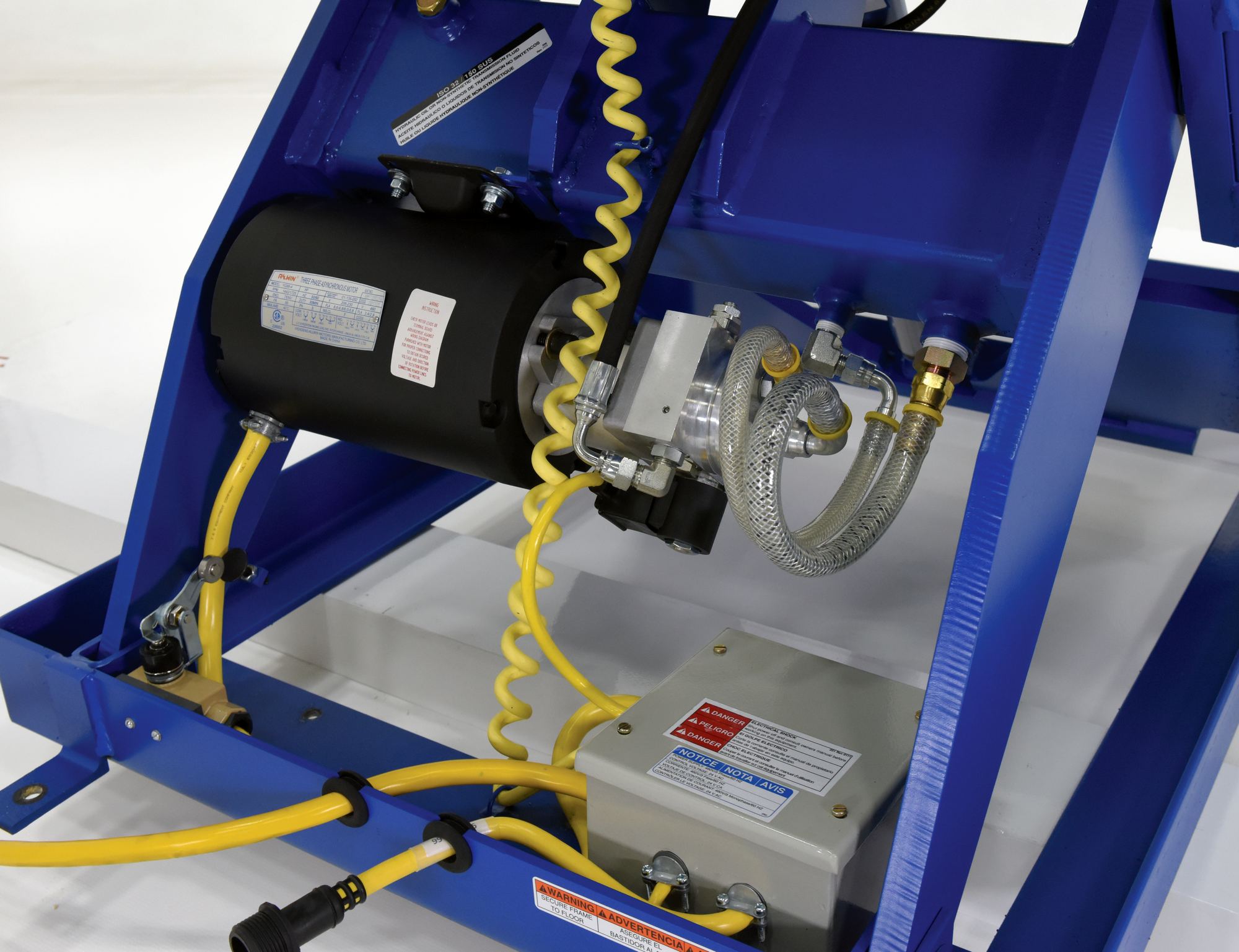

* DENOTES 6.5 HP 460V 3-PHASE (EXTERNALLY MOUNTED) OTHER Voltages AVAILABLE
| Quickship Scissor Lift Tables (460V 3 Phase Standard) | ||||||||
| Model | Image | PDF's | Platform Size (WxL) |
Capacity (lbs) |
Raised Height |
Lowered Height |
Voltage/ Phase |
Wt. (lbs) |

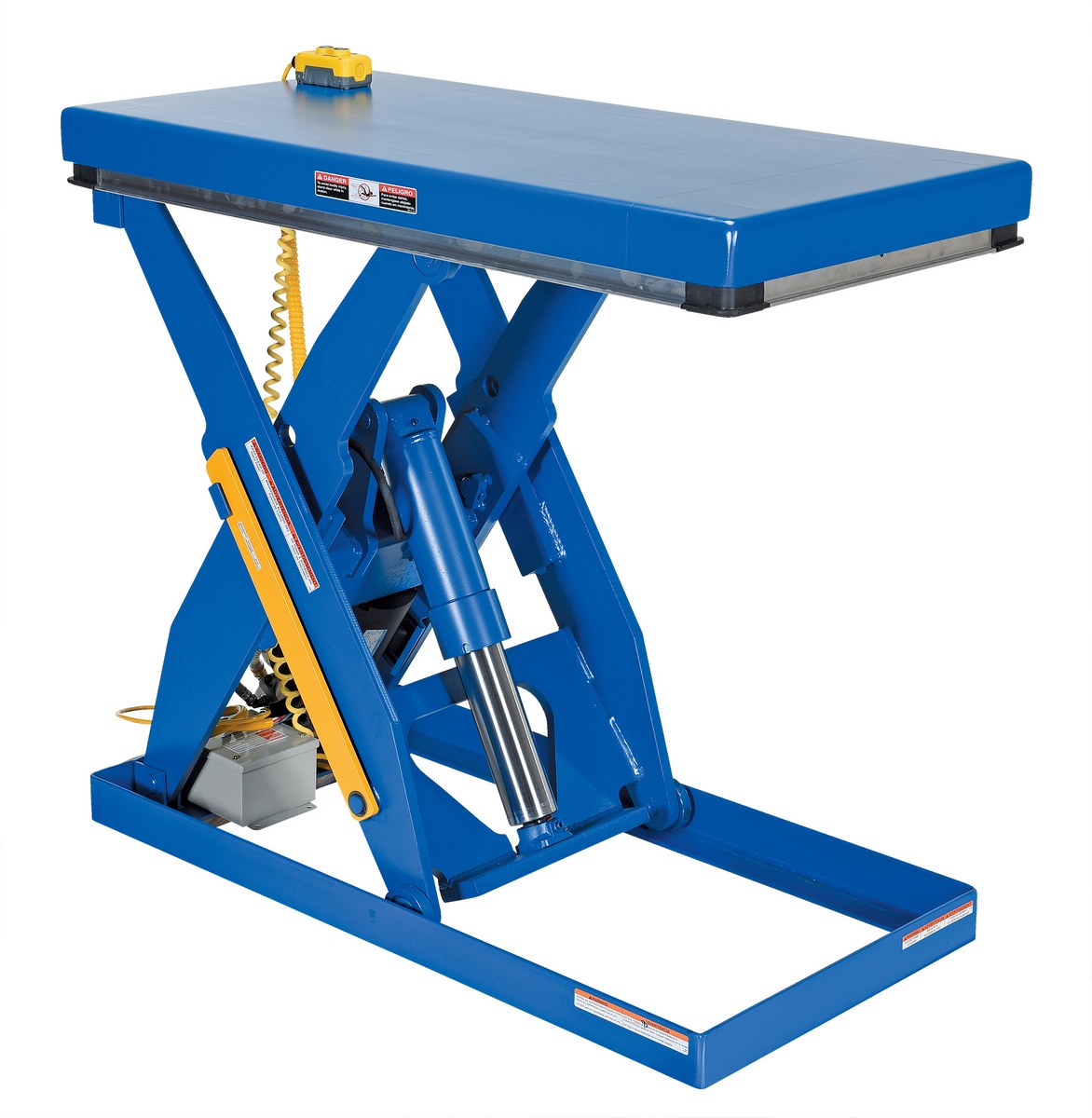

| EHLT-2448-3-43-QS |  |
   |
24"x48" | 3,000 | 43" | 7" | 460/3 | 694 |

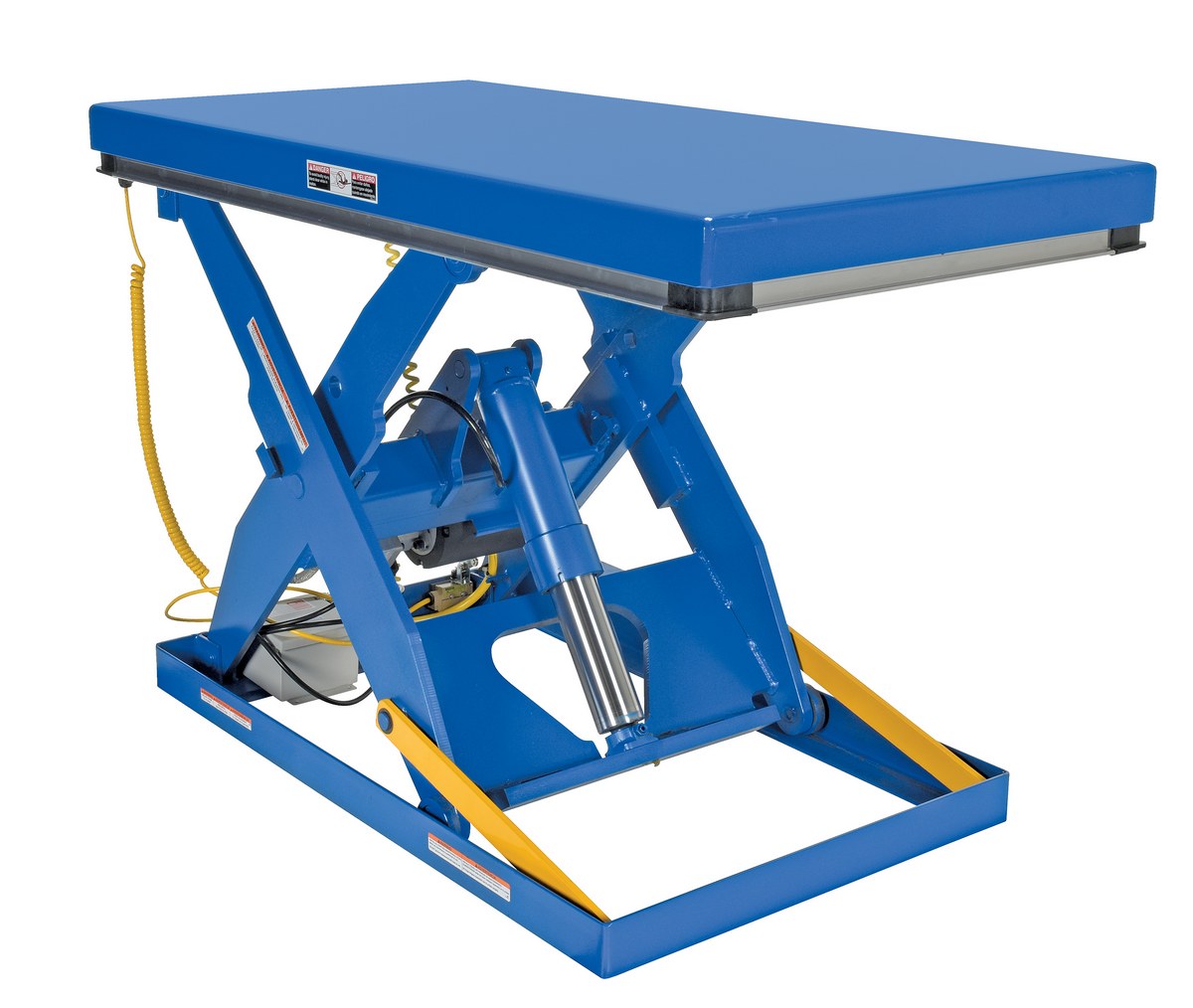

| EHLT-3060-3-43-QS |  |
|
30"x60" | 3,000 | 43" | 7" | 460/3 | 823 |

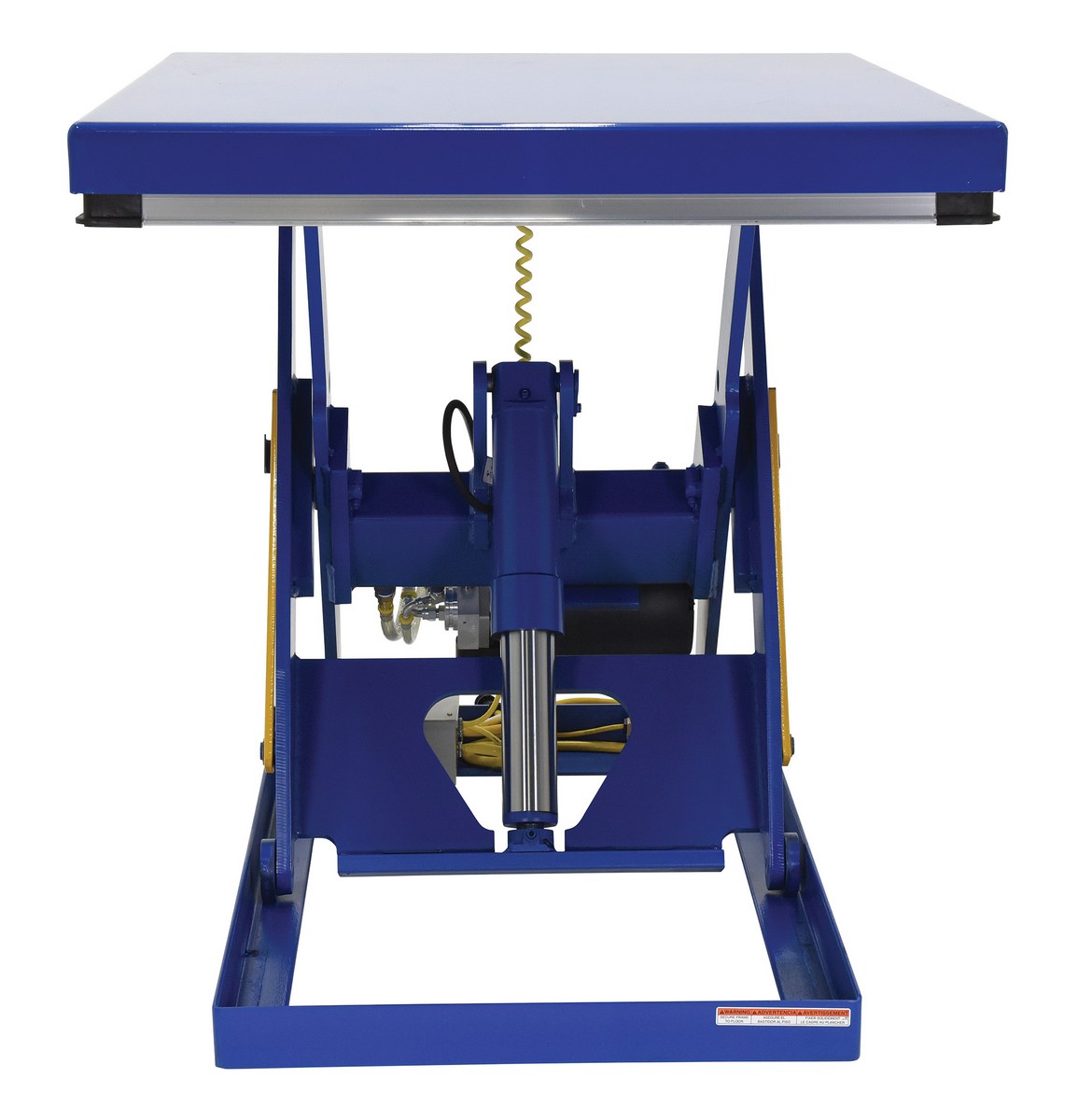

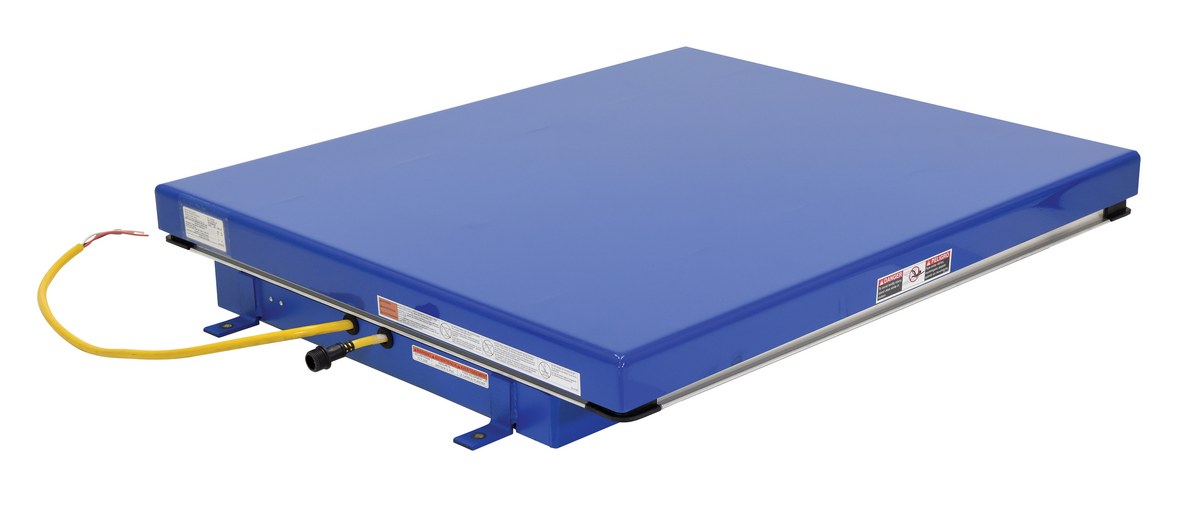

| EHLT-4048-3-43-QS |  |
|
40"x48" | 3,000 | 43" | 7" | 460/3 | 807 |
| EHLT-4848-3-43-QS |  |
|
48"x48" | 3,000 | 43" | 7" | 460/3 | 841 |

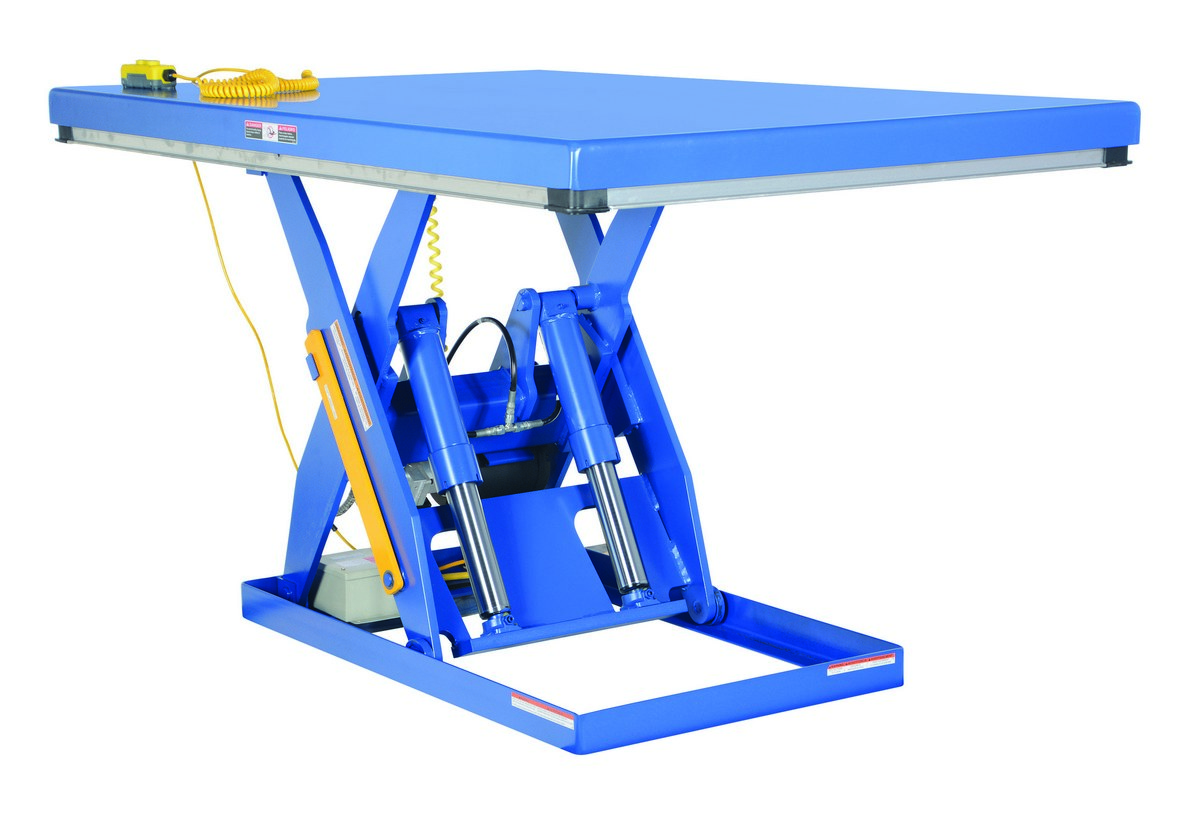

| EHLT-4872-3-43-QS |  |
|
48"x72" | 3,000 | 43" | 7" | 460/3 | 946 |

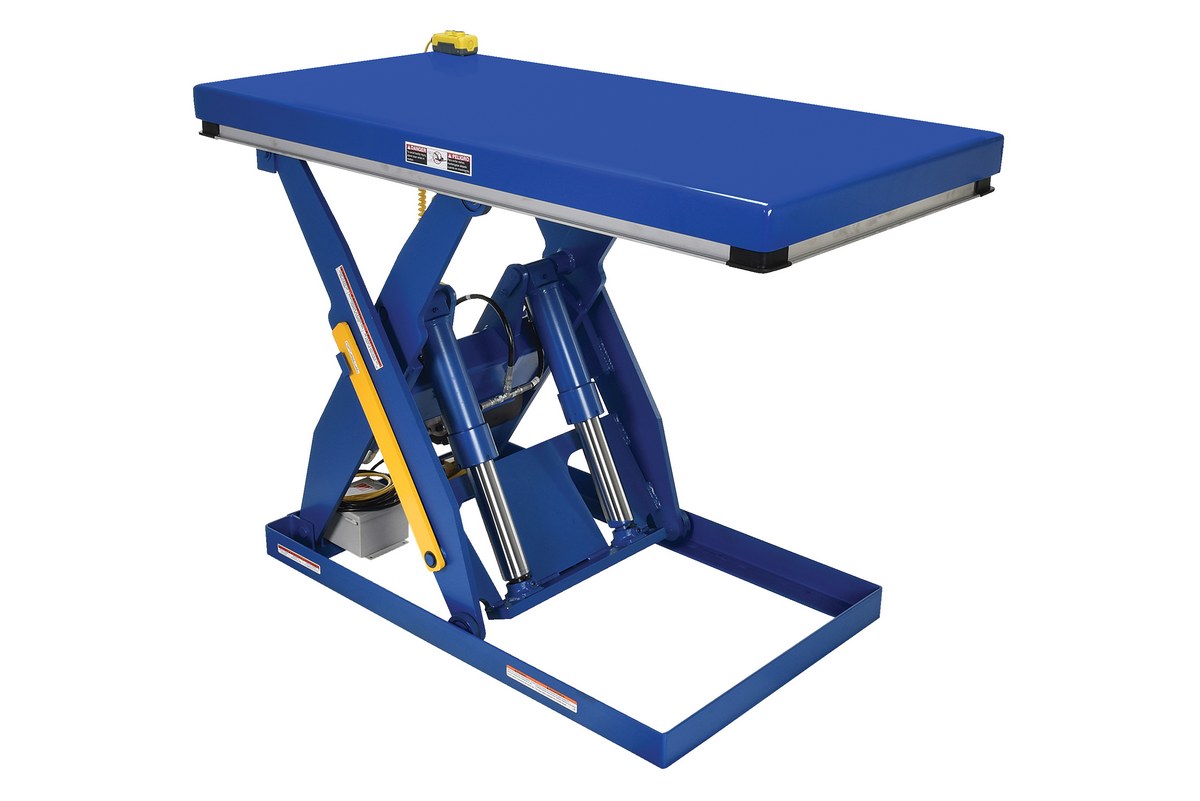

| EHLT-3060-4-43-QS |  |
|
30"x60" | 4,000 | 43" | 7" | 460/3 | 827 |

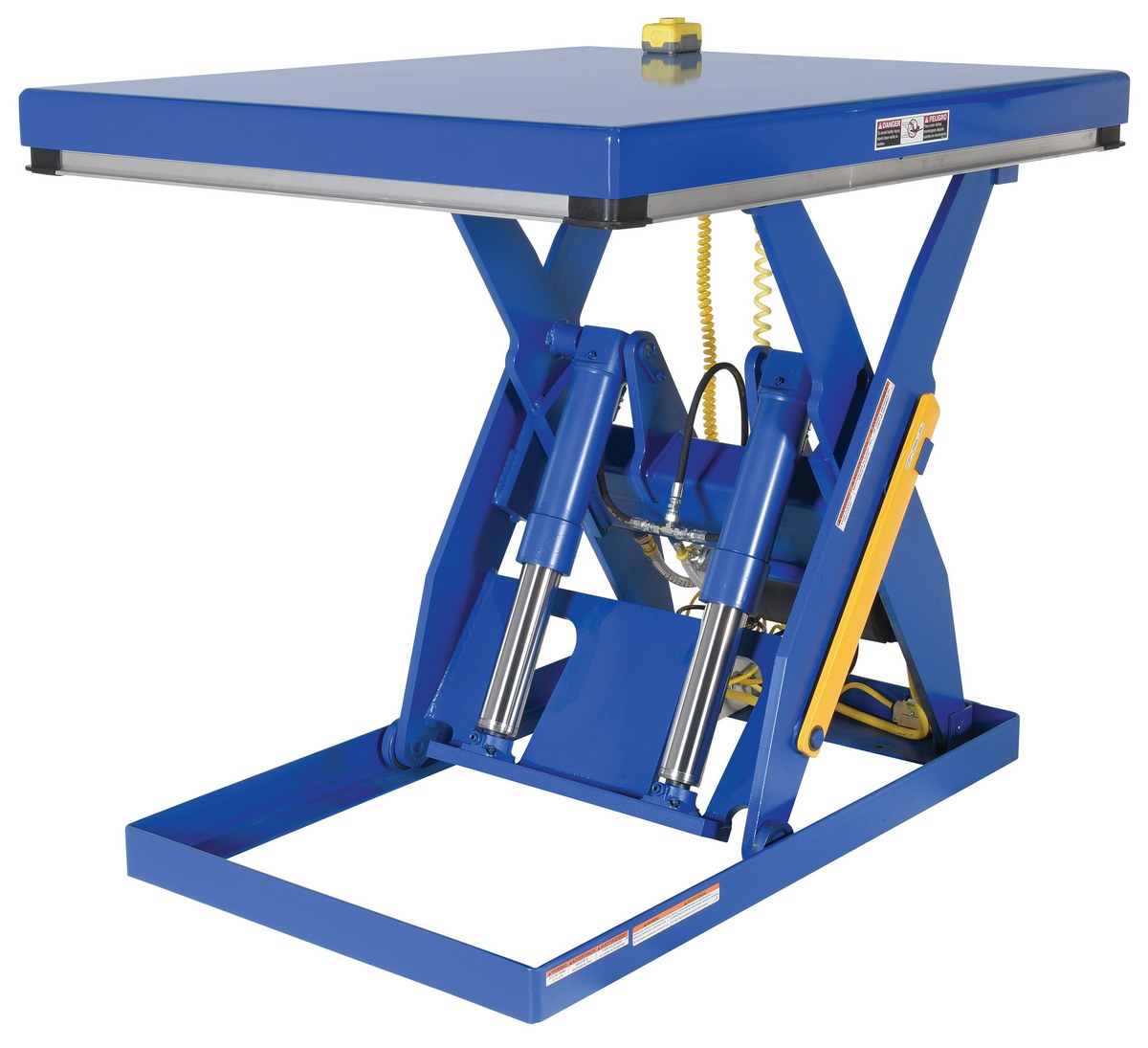

| EHLT-4048-4-43-QS |  |
|
40"x48" | 4,000 | 43" | 7" | 460/3 | 878 |
| EHLT-4848-4-43-QS |  |
|
48"x48" | 4,000 | 43" | 7" | 460/3 | 918 |

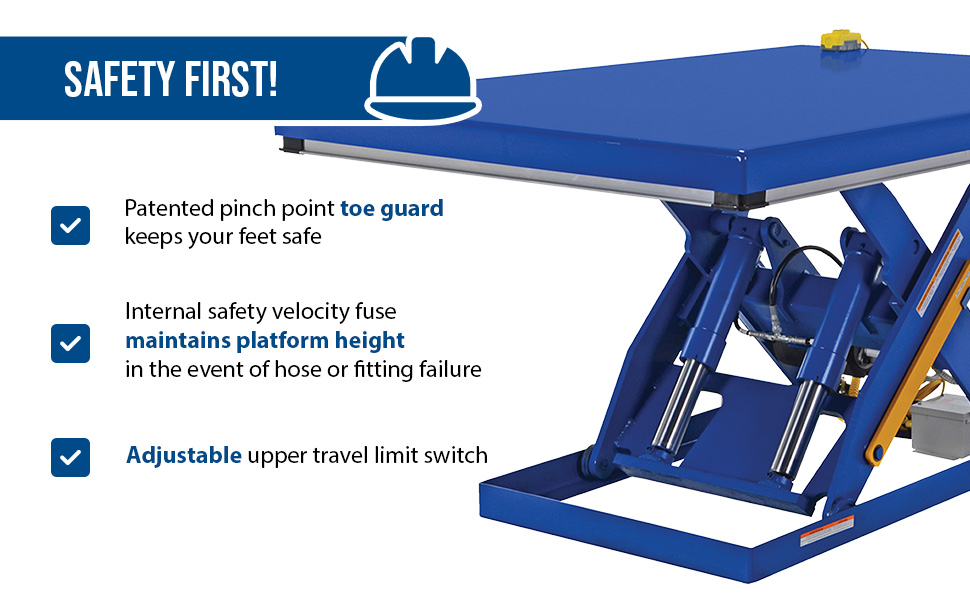

| EHLT-4872-4-43-QS |  |
|
48"x72" | 4,000 | 43" | 7" | 460/3 | 963 |

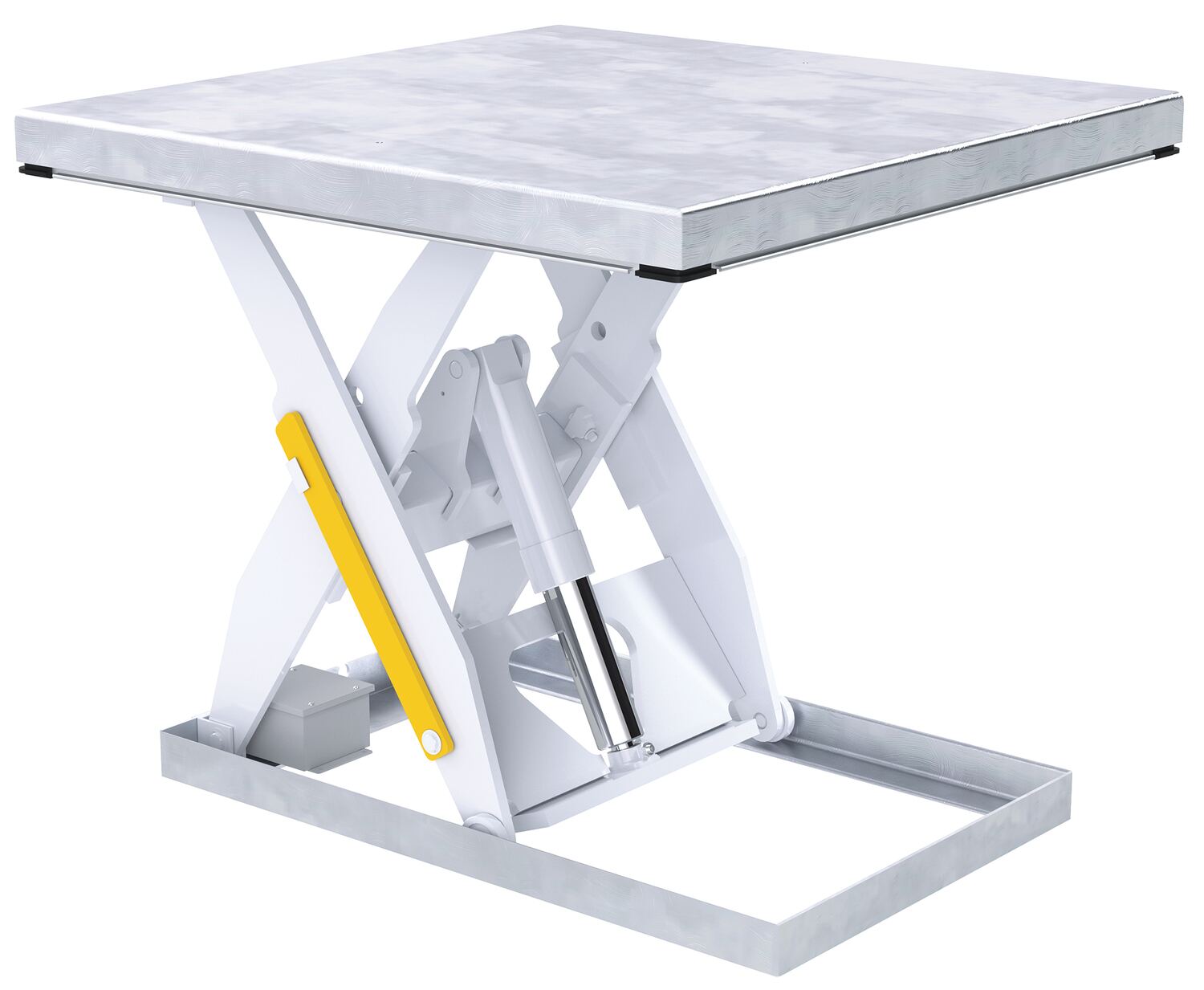

| Partially Stainless Steel Scissor Lift Tables (460V 3 Phase Standard) | ||||||||
| Model | Image | PDF's | Platform Size (WxL) |
Lowered Height |
Raised Height |
Capacity (lbs) |
Voltage/ Phase |
Wt. (lbs) |

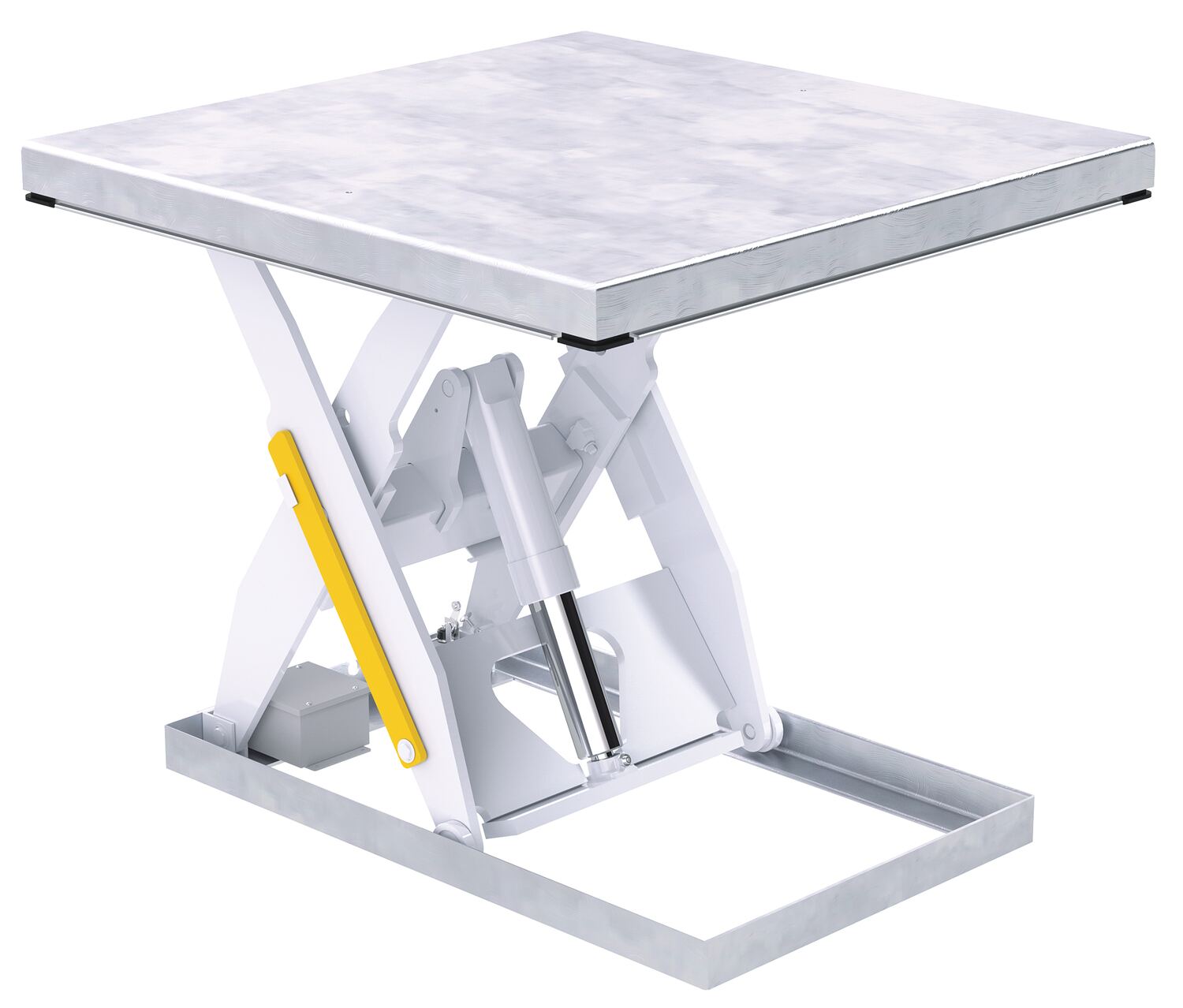

| EHLT-4848-1-43-PSS | - | |
48"x48" | 7" | 43" | 1,000 | 460/3 | 719 |

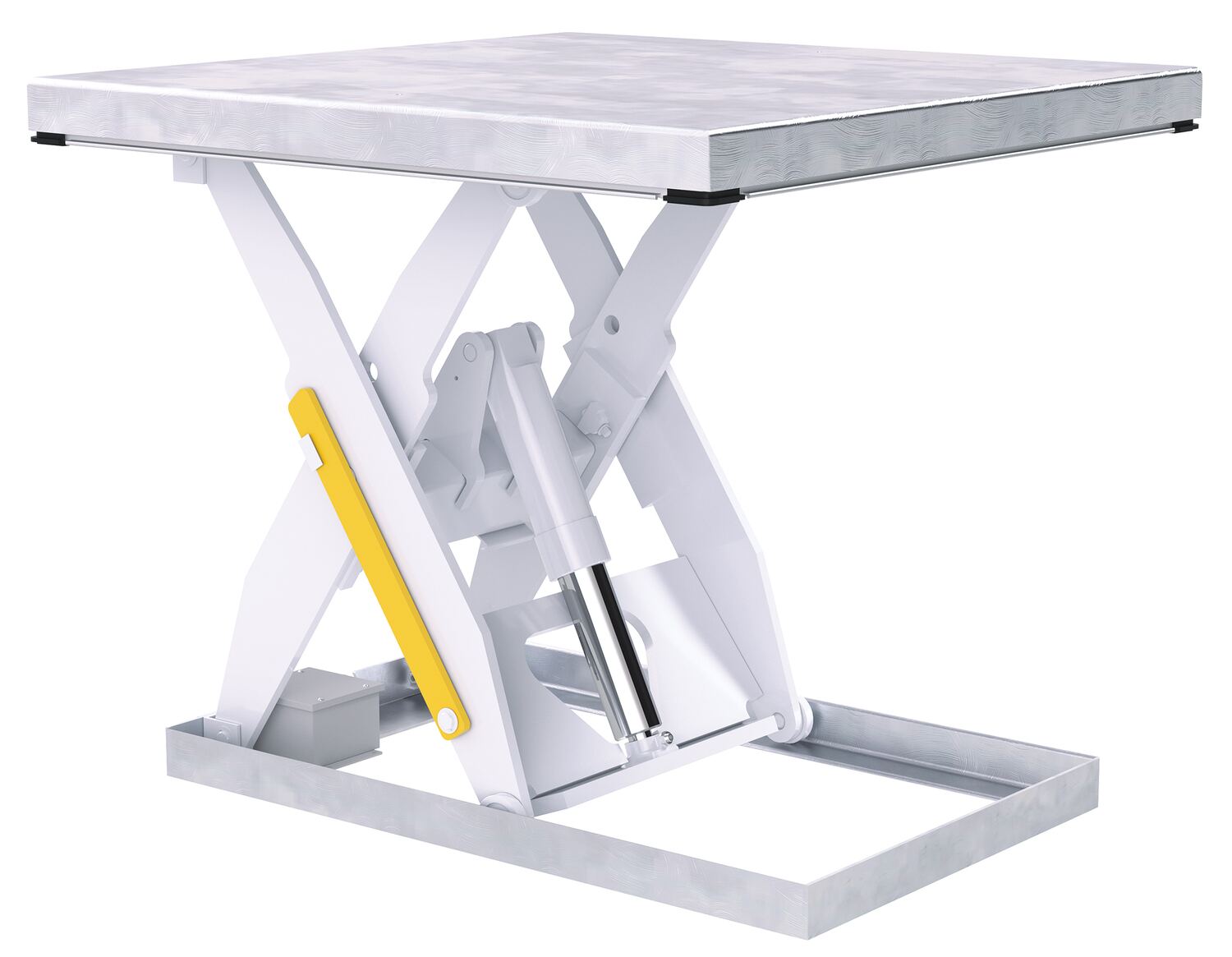

| EHLT-4848-2-43-PSS | - | |
48"x48" | 7" | 43" | 2,000 | 460/3 | 727 |
| EHLT-4848-3-43-PSS | - | |
48"x48" | 7" | 43" | 3,000 | 460/3 | 737 |

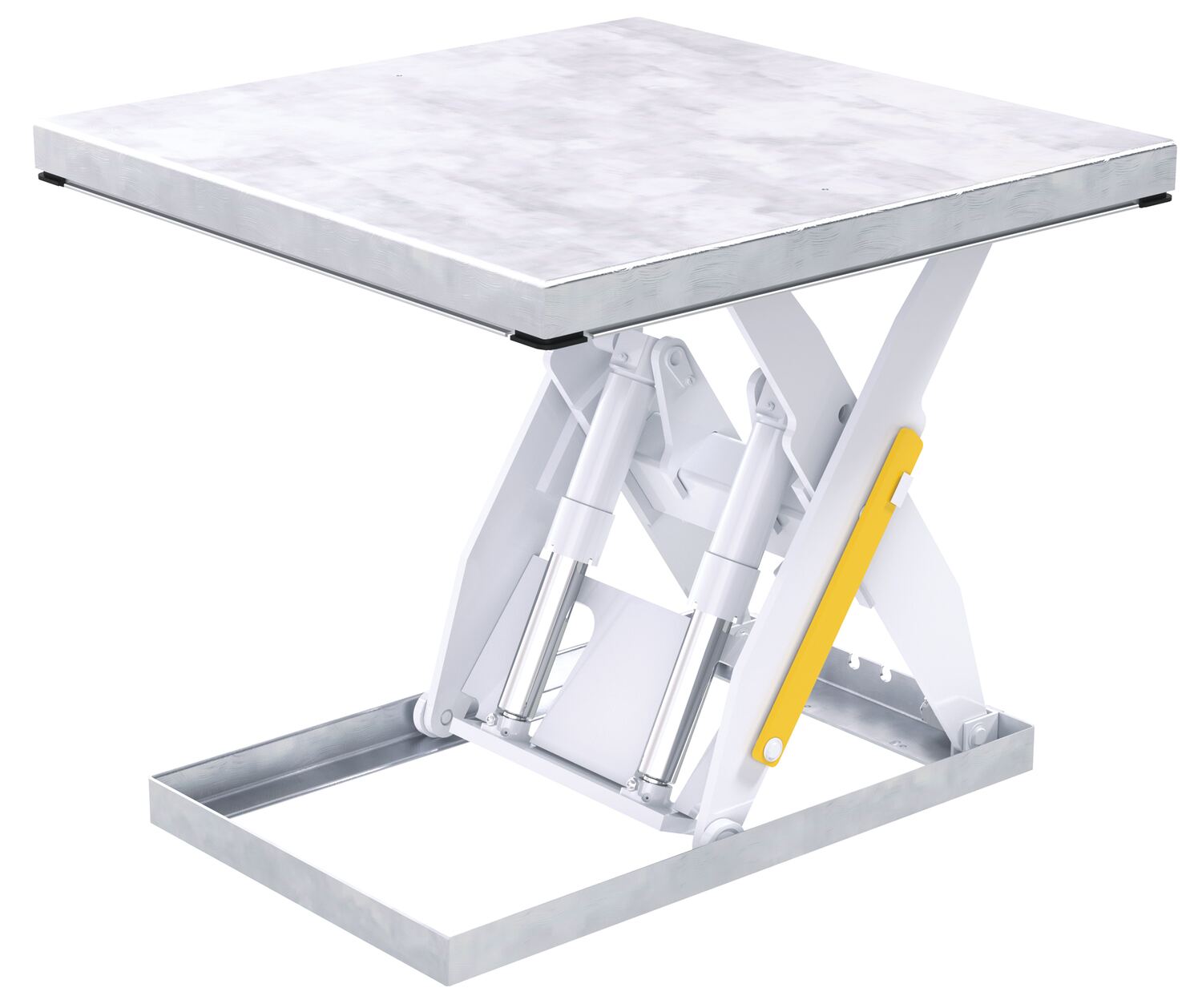

| EHLT-4848-4-43-PSS | - | |
48"x48" | 7" | 43" | 4,000 | 460/3 | 765 |
KEY:
= Approval Drawing --
= Warranty --
= Testing Certificate
If you did not find an expected Model or SKU # in the table, try the Options Section Below
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 11
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Travel Time (sec.): 32
Uniform Capacity (lb.): 5000
Travel Time (sec.): 32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Travel Time (sec.): 32
Uniform Capacity (lb.): 6000
Travel Time (sec.): 32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 22
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Travel Time (sec.): 7
Uniform Capacity (lb.): 1,000
Travel Time (sec.): 7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Travel Time (sec.): 11
Uniform Capacity (lb.): 2000
Travel Time (sec.): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 11
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Travel Time (sec.): 32
Uniform Capacity (lb.): 5000
Travel Time (sec.): 32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Travel Time (sec.): 32
Uniform Capacity (lb.): 6000
Travel Time (sec.): 32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Travel Time (sec.): 15
Uniform Capacity (lb.): 10000
Travel Time (sec.): 15
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 12000
Travel Time (sec.): 15
Uniform Capacity (lb.): 12000
Travel Time (sec.): 15
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Travel Time (sec.): 32
Uniform Capacity (lb.): 5000
Travel Time (sec.): 32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Travel Time (sec.): 32
Uniform Capacity (lb.): 6000
Travel Time (sec.): 32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Travel Time (sec.): 14
Uniform Capacity (lb.): 2000
Travel Time (sec.): 14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Travel Time (sec.): 32
Uniform Capacity (lb.): 4000
Travel Time (sec.): 32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Travel Time (sec.): 16
Uniform Capacity (lb.): 2000
Travel Time (sec.): 16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Travel Time (sec.): 16
Uniform Capacity (lb.): 2000
Travel Time (sec.): 16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 11
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Travel Time (sec.): 11
Uniform Capacity (lb.): 2000
Travel Time (sec.): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3000
Travel Time (sec.): 16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4000
Travel Time (sec.): 22
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Travel Time (sec.): 32
Uniform Capacity (lb.): 5,000
Travel Time (sec.): 32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Travel Time (sec.): 32
Uniform Capacity (lb.): 6,000
Travel Time (sec.): 32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8,000
Travel Time (sec.): 15
Uniform Capacity (lb.): 8,000
Travel Time (sec.): 15
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Travel Time (sec.): 32
Uniform Capacity (lb.): 4000
Travel Time (sec.): 32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Travel Time (sec.): 7
Uniform Capacity (lb.): 1000
Travel Time (sec.): 7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Travel Time (sec.): 11
Uniform Capacity (lb.): 2000
Travel Time (sec.): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4000
Travel Time (sec.): 22
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Travel Time (sec.): 11
Uniform Capacity (lb.): 2000
Travel Time (sec.): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 11
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 11
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 11
For More Details of the Option Click the Red Model Button
| EHLT-AR-3665-7 | | 1 Year Limited Warranty | Steel EHLT Approach Ramp 36 In. x 64 In. x 7 In. 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Incline Degree: 5.9 | 328 | |
| EHLT-AR-RS-3642-7 |  | 1 Year Limited Warranty | Steel EHLT Approach Ramp Spacer 7 In. Height Blue | Uniform Capacity (lb.): 4000 Usable Width (in.): 36 | 286 |
|
Options For Electric Hydraulic Equipment Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section. |
|||||||
| Model | Description | ||||||
| HCP-2642 | Optional Hand Control Pedestal | ||||||
| Integeral Scale for Scissor Tables | Scales for lift tables | ||||||
| Radio Remote Control Option | 2 and 4 button hand controllers | ||||||
| Programmable Height Option | Multiple working heights at the touch of a button | ||||||
| Manual Built-In Carousel Option | Manual carousel (factory installed on new units only) | ||||||
| Safety Accordion Skirt | Keep people and debris from getting under the lift. Customer Installed. Contact factory. | ||||||
| Options Available For Quick Ship Units | |||||||
| Model | Description | ||||||
| VCC-115-1 | VOLTAGE CHANGE TO 115V 1-PHASE AC POWER | ||||||
| VCC-208/230-1 | VOLTAGE CHANGE TO 208-230V 1-PHASE AC POWER | ||||||
| VCC-208/230-3 | VOLTAGE CHANGE TO 208-230V 3-PHASE AC POWER | ||||||
| FC-2 | OPTIONAL TWO PEDAL FOOT CONTROL ON 8' CORD | ||||||
| ADDL-FC-2 | Additional OPTIONAL TWO PEDAL FOOT CONTROL ON 8' Cord (when purchased with a standard hand control) | ||||||
| Safety Accordion Skirt | Keep people and debris from getting under the lift. Customer Installed. Contact factory. | ||||||
| Manual Built-In Carousel Option | Manual carousel (factory installed on new units only) | ||||||
| ADDL-HH-25-10 | Synthetic Rubber 1/4 In. 10 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black | ||||||
| ADDL-HH-25-20 | Synthetic Rubber 1/4 In. 20 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black | ||||||
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Electric Hydraulic Scissor Lift Tables PDF's will open in a new window when clicked.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets

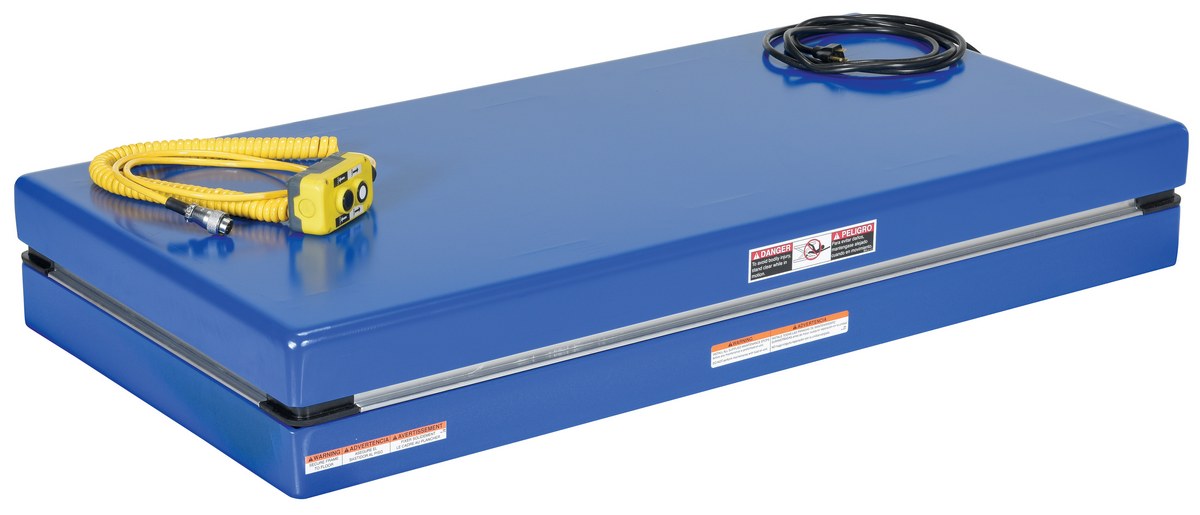

Hydraulic Oil SDS Sheet for: EHLT-2448-2-43
Hydraulic Oil SDS Sheet for: EHLT2448-2-43FC
Hydraulic Oil SDS Sheet for: EHLT-2448-3-43

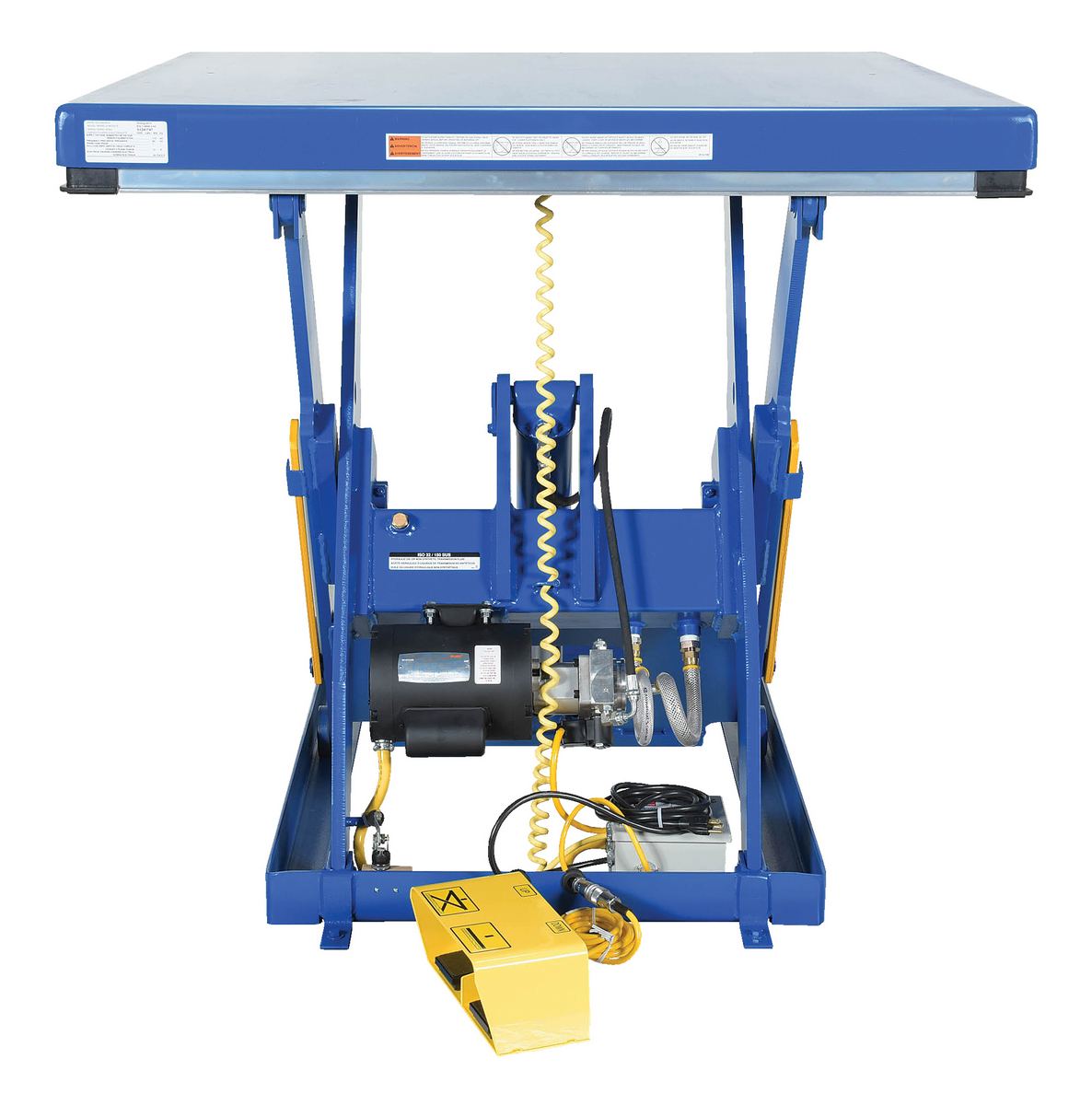

Hydraulic Oil SDS Sheet for: EHLT2448-3-43FC
Hydraulic Oil SDS Sheet for: EHLT-2448-3-43-QS
Hydraulic Oil SDS Sheet for: EHLT-2448-4-43

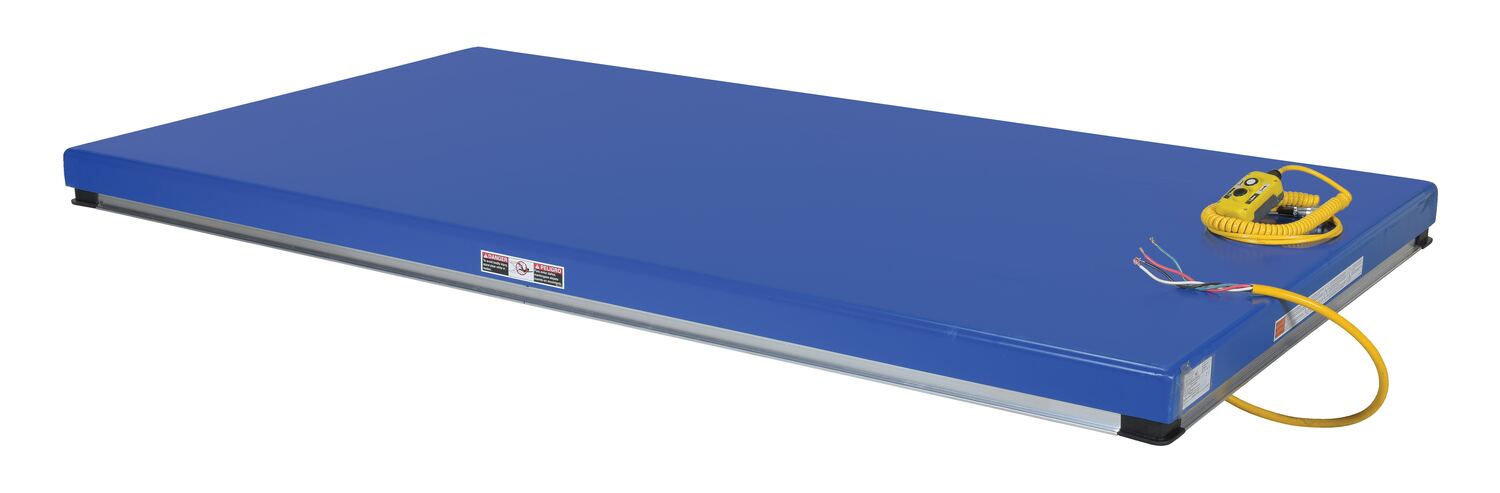

Hydraulic Oil SDS Sheet for: EHLT-2466-2-55
Hydraulic Oil SDS Sheet for: EHLT-3060-2-43
Hydraulic Oil SDS Sheet for: EHLT-3060-3-43
Hydraulic Oil SDS Sheet for: EHLT-3060-3-43-QS
Hydraulic Oil SDS Sheet for: EHLT-3060-4-43
Hydraulic Oil SDS Sheet for: EHLT-3060-4-43-QS
Hydraulic Oil SDS Sheet for: EHLT-3072-2-43
Hydraulic Oil SDS Sheet for: EHLT-3072-3-43
Hydraulic Oil SDS Sheet for: EHLT-3072-4-43
Hydraulic Oil SDS Sheet for: EHLT-3648-5-44
Hydraulic Oil SDS Sheet for: EHLT-3648-6-44
Hydraulic Oil SDS Sheet for: EHLT-3672-2-43
Hydraulic Oil SDS Sheet for: EHLT-3672-3-43
Hydraulic Oil SDS Sheet for: EHLT-3672-4-43
Hydraulic Oil SDS Sheet for: EHLT-3672-5-44
Hydraulic Oil SDS Sheet for: EHLT-3672-6-44
Hydraulic Oil SDS Sheet for: EHLT-3672-8-44
Hydraulic Oil SDS Sheet for: EHLT-3684-4-56

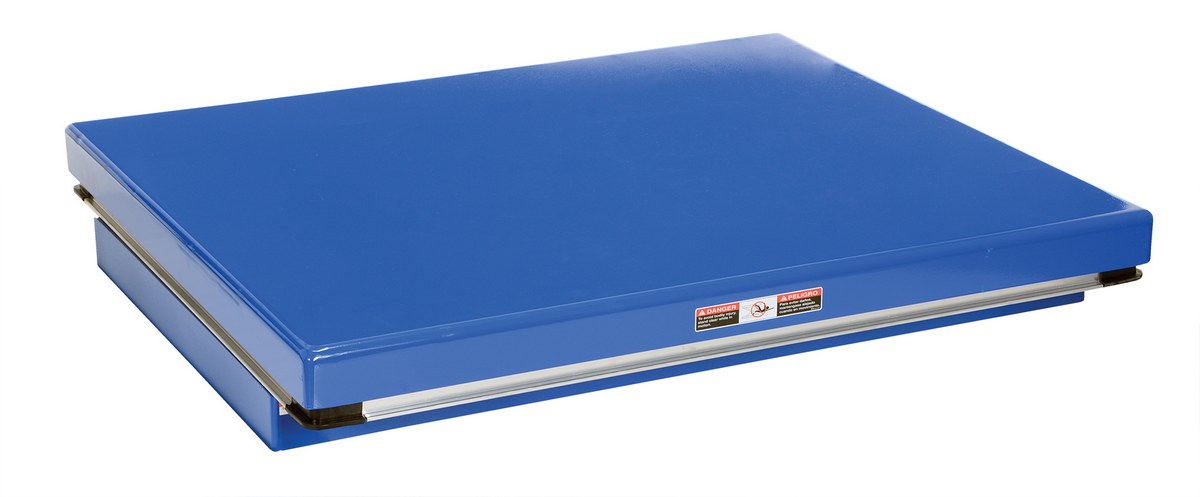

Hydraulic Oil SDS Sheet for: EHLT-4048-3-43
Hydraulic Oil SDS Sheet for: EHLT-4048-3-43-QS
Hydraulic Oil SDS Sheet for: EHLT-4048-4-43
Hydraulic Oil SDS Sheet for: EHLT-4048-4-43-QS
Hydraulic Oil SDS Sheet for: EHLT-4848-10-43
Hydraulic Oil SDS Sheet for: EHLT-4848-12-43
Hydraulic Oil SDS Sheet for: EHLT-4848-1-43
Hydraulic Oil SDS Sheet for: EHLT-4848-1-43-PSS
Hydraulic Oil SDS Sheet for: EHLT-4848-2-43
Hydraulic Oil SDS Sheet for: EHLT4848-2-43FC
Hydraulic Oil SDS Sheet for: EHLT-4848-2-43-PSS

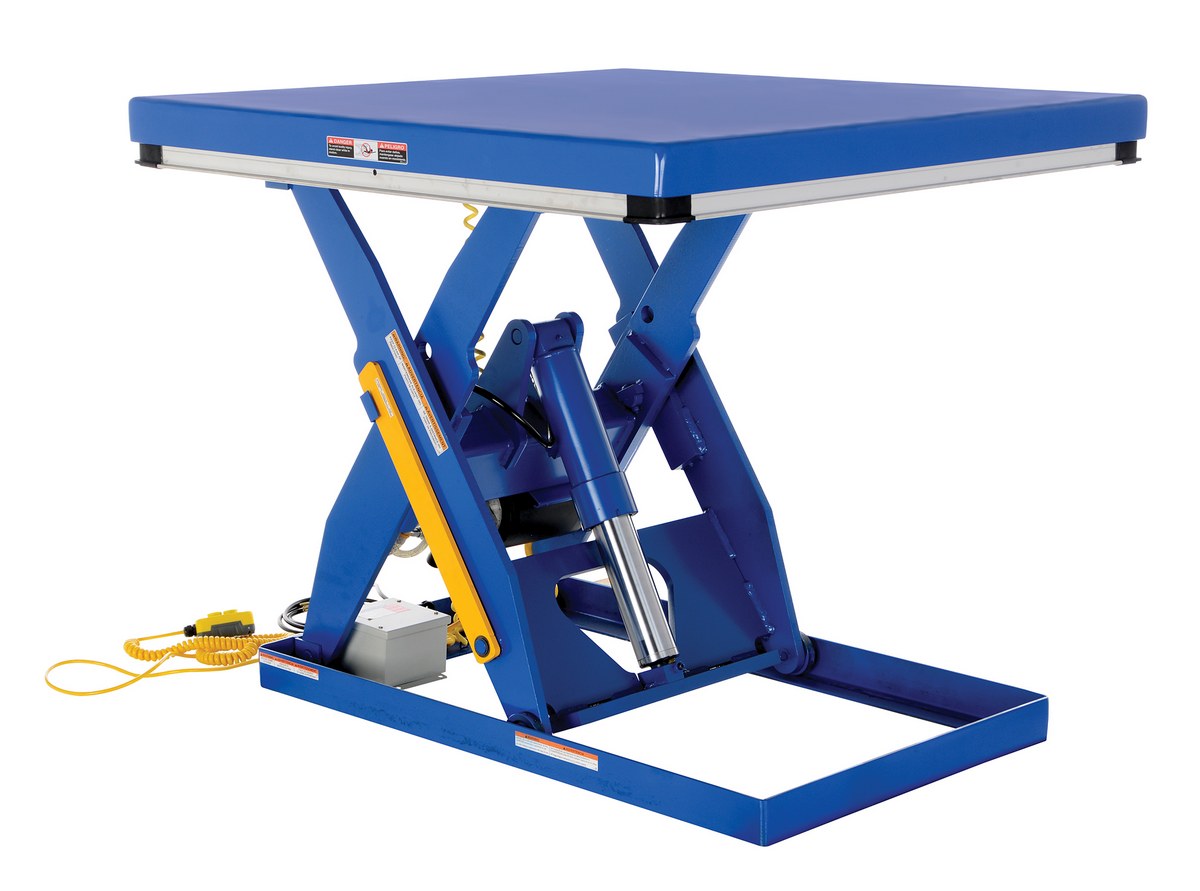

Hydraulic Oil SDS Sheet for: EHLT-4848-3-43
Hydraulic Oil SDS Sheet for: EHLT-4848-3-43-PSS
Hydraulic Oil SDS Sheet for: EHLT-4848-3-43-QS
Hydraulic Oil SDS Sheet for: EHLT-4848-4-43
Hydraulic Oil SDS Sheet for: EHLT-4848-4-43-PSS
Hydraulic Oil SDS Sheet for: EHLT-4848-4-43-QS
Hydraulic Oil SDS Sheet for: EHLT-4848-5-44
Hydraulic Oil SDS Sheet for: EHLT-4848-6-44

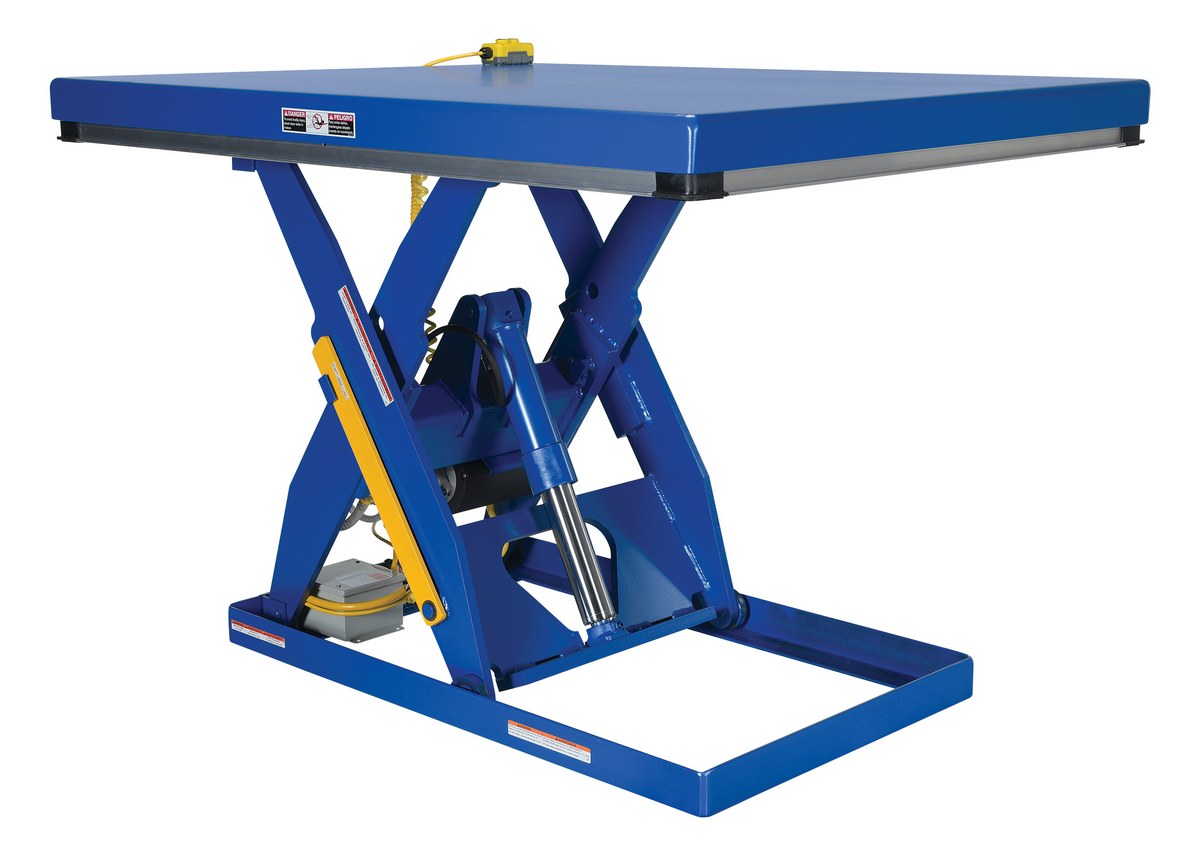

Hydraulic Oil SDS Sheet for: EHLT-4860-2-43
Hydraulic Oil SDS Sheet for: EHLT-4860-4-43
Hydraulic Oil SDS Sheet for: EHLT-4872-2-43
Hydraulic Oil SDS Sheet for: EHLT-4872-3-43
Hydraulic Oil SDS Sheet for: EHLT-4872-3-43-QS
Hydraulic Oil SDS Sheet for: EHLT-4872-4-43
Hydraulic Oil SDS Sheet for: EHLT-4872-4-43-QS
Hydraulic Oil SDS Sheet for: EHLT-4872-5-44
Hydraulic Oil SDS Sheet for: EHLT-4872-6-44
Hydraulic Oil SDS Sheet for: EHLT-4884-2-67
Hydraulic Oil SDS Sheet for: EHLT-4896-2-55
Hydraulic Oil SDS Sheet for: EHLT-4896-4-56
Other PDF's
Directory Links Of Available PDF's For All Products

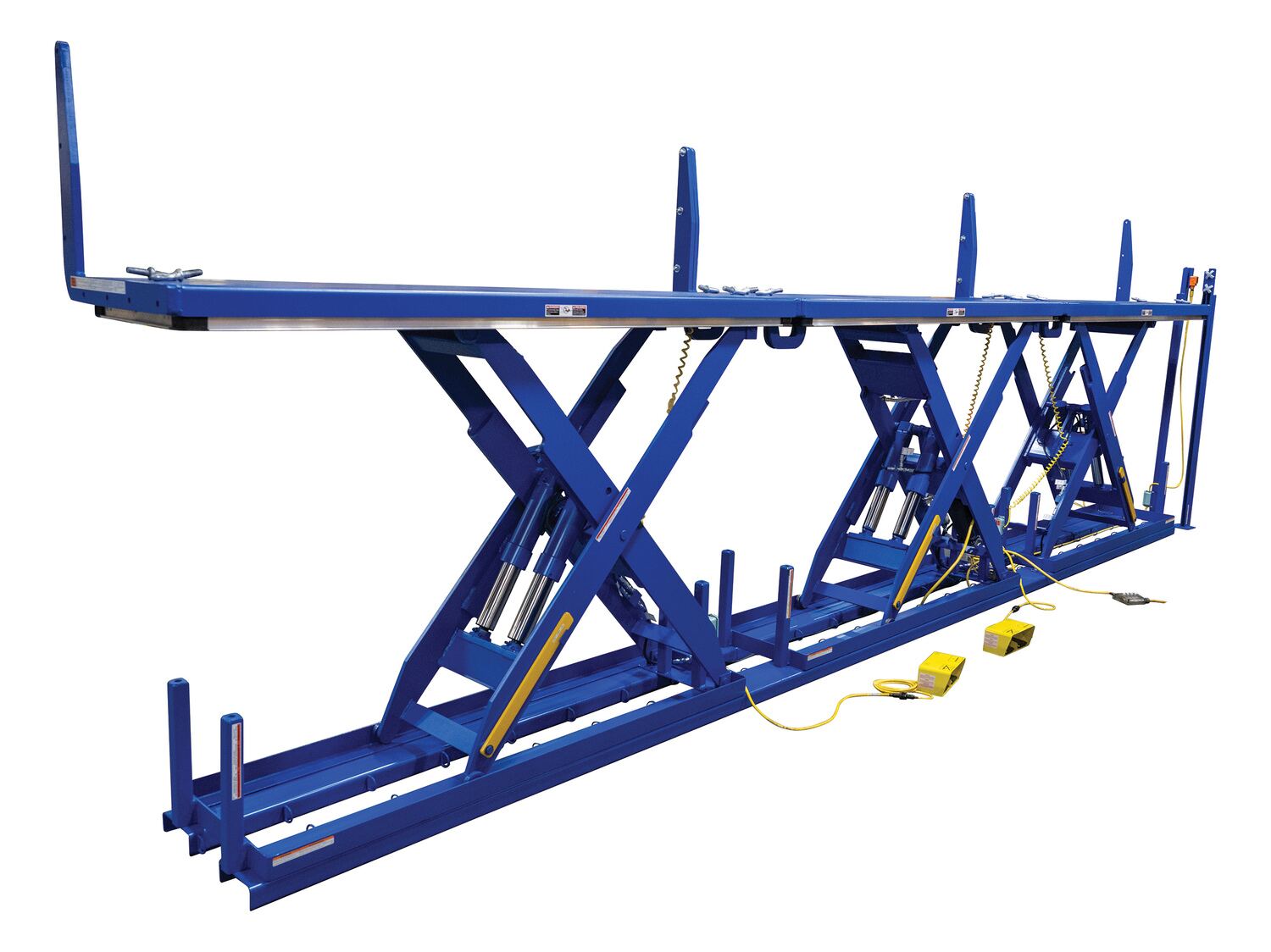

For more Specialty Designs similar to these... Click Here
Q: What is the thickness of the top of the table?
A: The top plate on the EHLT is 1/4" thick.
Q: We are interested in the EHLT 1,000 lb. capacity lift table with a table top of 48 x 48. We want to change the voltage to 115 single phase. What is the travel time to the raised height.
A: For the EHLT-4848-1-43 with a 115 voltage, the raised time to 43" is 15 seconds. 16 seconds to the lowered height of 7".
Q: Are the EHLT scissor lift tables powder coated?
A: The Quick Ship (QS) tables have a powder coated deck. Some small bolt-on brackets are powder coated as well. The majority of the table is liquid painted.
Q: We are mounting the EHLT in a pit. Are there lifting eyes to lower the table?
A: Lifting eyes are bolted through the top platform to lower the EHLT into a pit from overhead. Please contact a sales associate for details.
Q: What is the standard voltage and phase? Can the voltage and phase be changed?
A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.
Q: I need a 50hz 3p/400 motor for my scissor lift table. Is this available as an option?
A: Our standard 60 Hz 3 Phase 460 VAC motor will cover 50Hz 3 Phase 400 VAC.
Q: Are our scissor lift tables power up/ gravity down?
A: Yes they are.
Q: Can this table be used continuously?
A: The suggested use is 12 cycles per hour.
Q: What is the ambient temperature recommended for standard EHLT models?
A: The recommended ambient temperature operating range is -5°C (23°F) to 40°C (104°F).
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electric Hydraulic Scissor Lif... |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Options
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Our Customer Service Associates Are Here To Assist You! |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
