Shorty Scissor Lift TablesBuilt with the same quality as all our lift tables, the EHLTS and EHLTSD maximize safety and durability. Designed to raise products up to an ergonomic working height. When tight spaces are what you have, consider a Shorty Scissor Table. Available in both a single and double leg styles these tables offer smaller deck sizes customized to your space requirements. Design features includes full perimeter pinch point guard and emergency internal safety velocity fuse. 460V 3-Phase external power unit and hand control is standard.

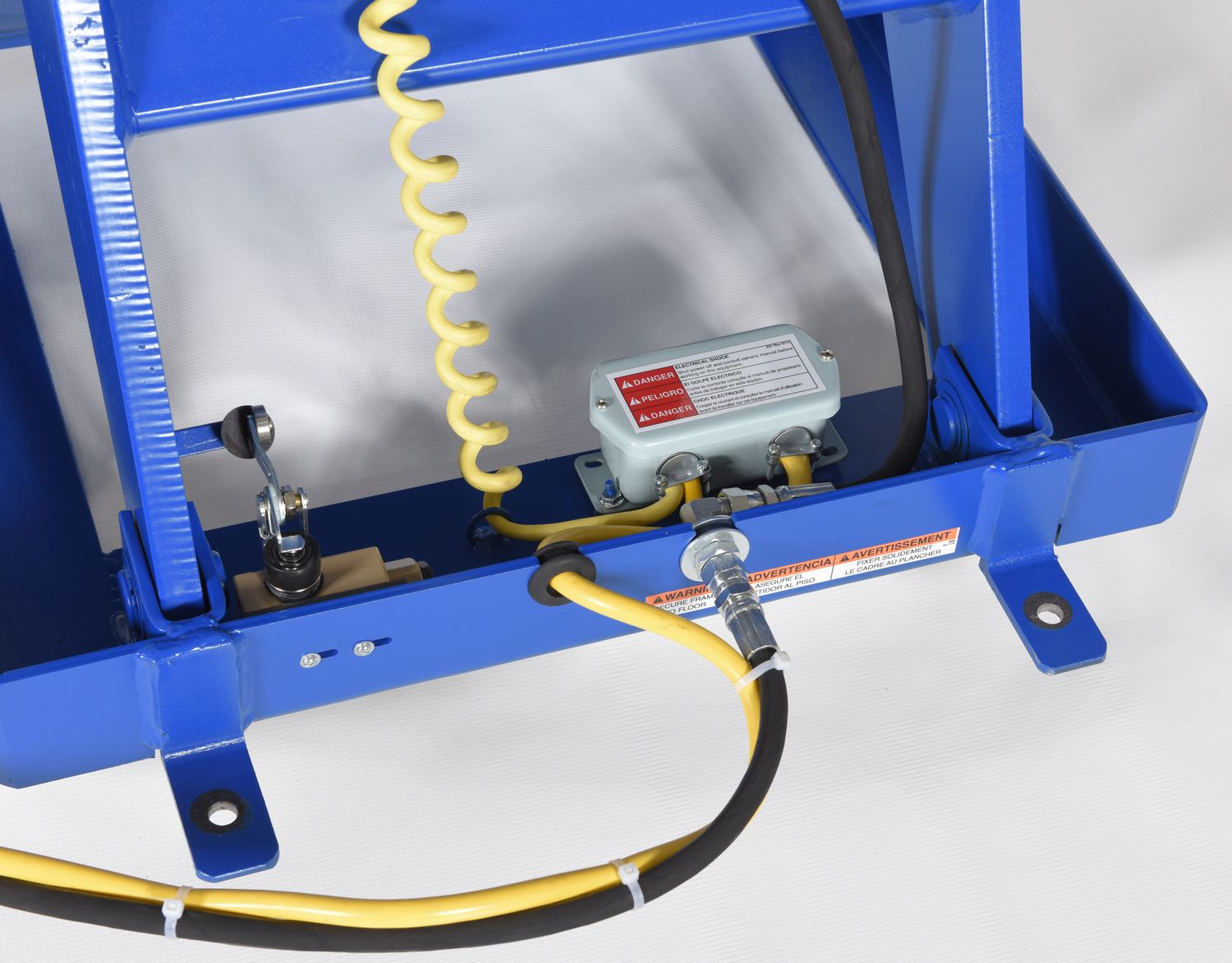

- Four-sided electric toe-guard meets OSHA pinch point specification
- Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
- Displacement-style hydraulic cylinders offer maximum strength
- Welded steel construction provides reliable heavy-duty use
- Utilizes small areas effectively
Hand Control Pedestal
Ground Lift Scissor Tables
Single Scissor Lift & Tilt Tables
Ground Lift Scissor Tables with Handrails
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
| Shorty Scissor Lift Tables | |||||||
| Model Number Format EHLTS - (width)(length) - capacity - raised height |
|||||||
| Single Leg Set | |||||||
| Vertical Travel |
Platform Width |
Platform Length |
Capacity (lbs.) |
Raised Height |
Lowered Height |
Travel Time (sec.) |
Wt. (lbs.) |
| 24" | 24"-48" | 36"-48" | 1,000 | 31" | 7" | 12 | 689 |
| 24" | 24"-48" | 36"-48" | 2,000 | 31" | 7" | 12 | 769 |
| 24" | 24"-48" | 36"-48" | 3,000 | 31" | 7" | 12 | 788 |
| 24" | 24"-48" | 36"-48" | 4,000 | 31" | 7" | 23 | 850 |
| 23" | 36"-48" | 36"-48" | 5,000 | 31" | 8" | 23 | 937 |
|
Travel Time Based on 3 Phase Power |
|||||||
| Double Shorty Narrow Scissor Lift Tables | ||||||||
| Model | Image | Platform Size (WxL) |
Lowered Height |
Raised Height |
Capacity (lbs.) |
Voltage/ Phase |
Wt. (lbs.) |
|

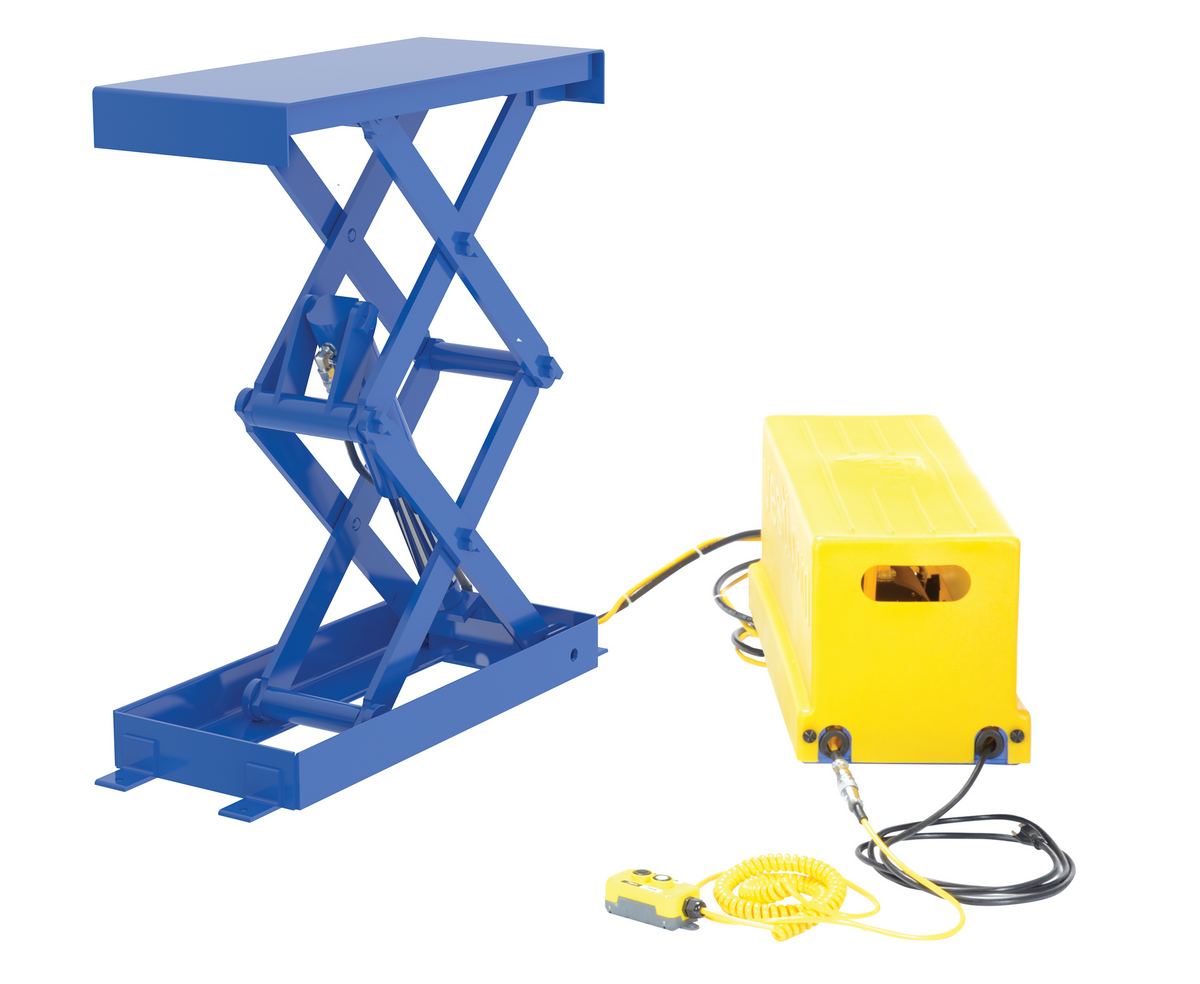

| EHLTSD-1228-05-35 |  |
   |
12"x28" | 7" | 35" | 500 | 460/3 | 300 |
| EHLTSD-1228-1-35 |  |
|
12"x28" | 7" | 35" | 1,000 | 460/3 | 300 |

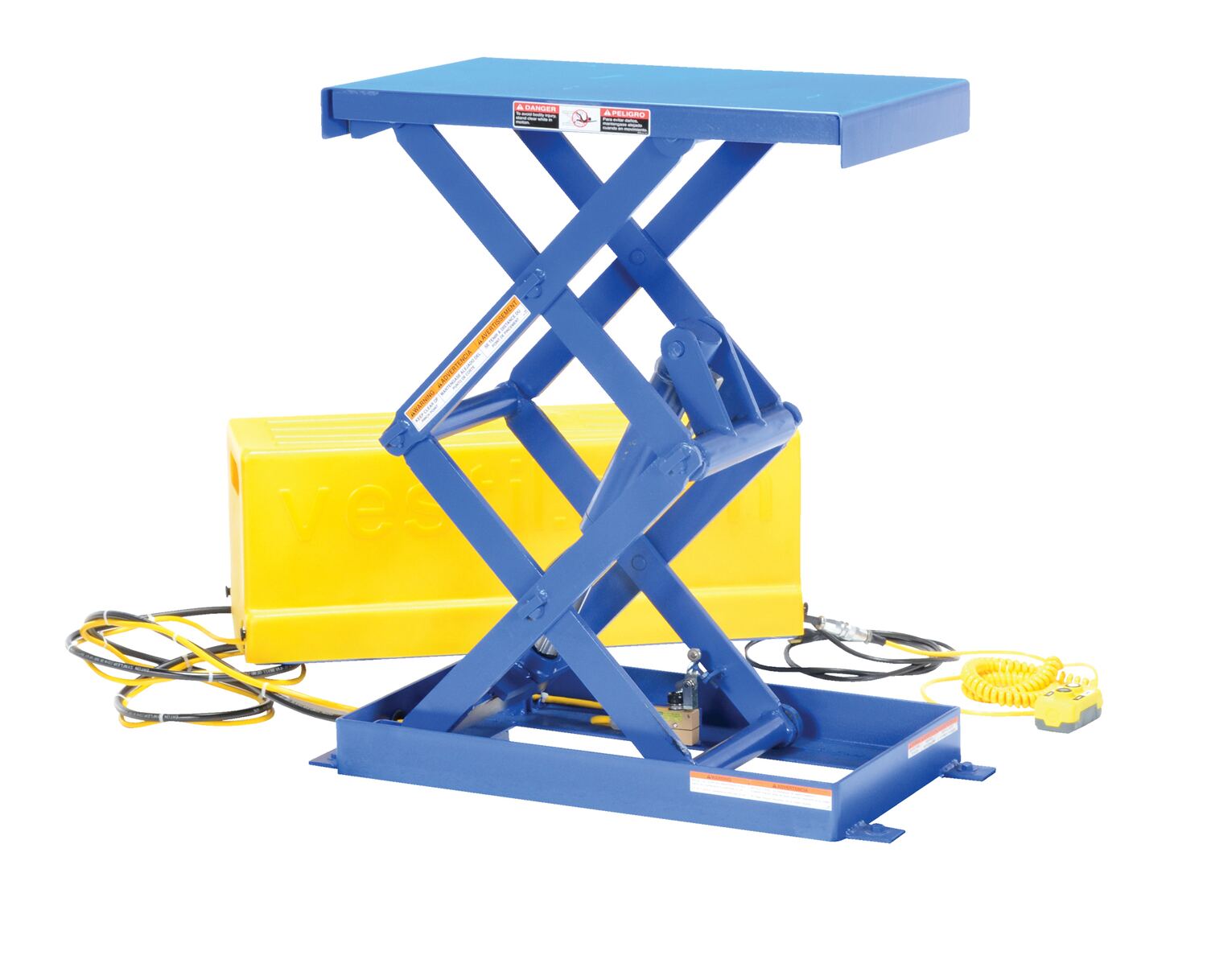

| EHLTSD-1628-1-35 |  |
|
16"x28" | 7" | 35" | 1,000 | 460/3 | 350 |

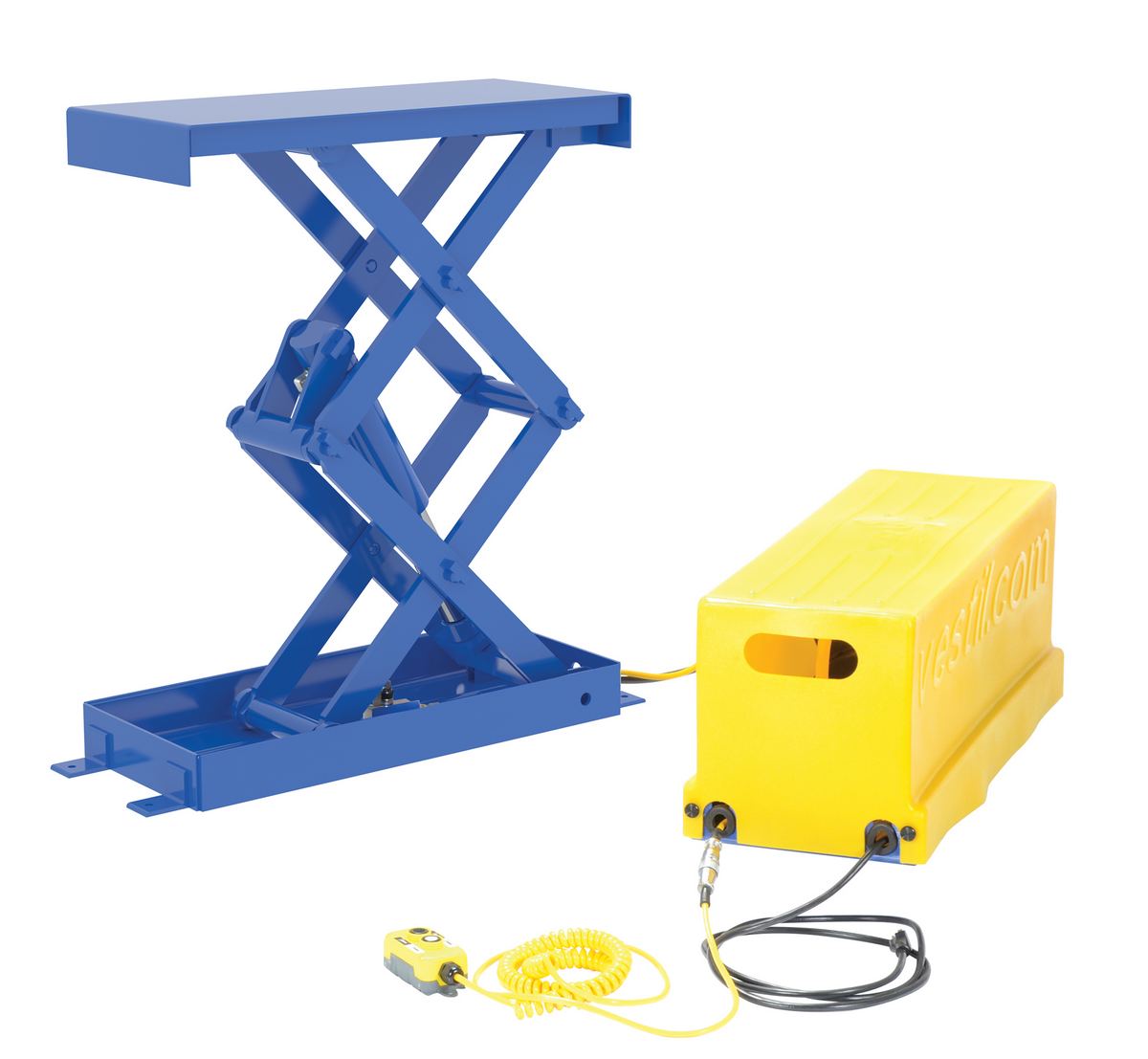

| EHLTSD-2436-1-35 |  |
|
24"x36" | 7" | 35" | 1,000 | 460/3 | 400 |
| Double Shorty Scissor Lift Tables | ||||||||
| Model Number Format EHLTSD - (width)(length) - capacity - raised height |
||||||||
| Double Leg Set | ||||||||
| Vertical Travel | Image | Platform Width | Platform Length | Capacity (lbs.) |
Raised Height |
Lowered Height | Travel Time (sec.) | Wt. (lbs.) |
| 41" | - | 34"-48" | 36"-48" | 1,000 | 51" | 10" | 16 | 882 |
| 41" | - | 34"-48" | 36"-48" | 2,000 | 51" | 10" | 23 | 892 |
| 41" | - | 34"-48" | 36"-48" | 3,000 | 51" | 10" | 32 | 903 |
| 41" | - | 34"-48" | 36"-48" | 4,000 | 51" | 10" | 32 | 955 |
| 41" | - | 34"-48" | 36"-48" | 5,000 | 51" | 10" | 48 | 966 |
| Travel Time Based on 3 Phase Power | ||||||||
EHLTS-3636-4-31 |
EHLTS-3636-5-31 |
EHLTS-4848-2-31 |
EHLTS-4848-4-31 |
EHLTS-4848-5-31 |

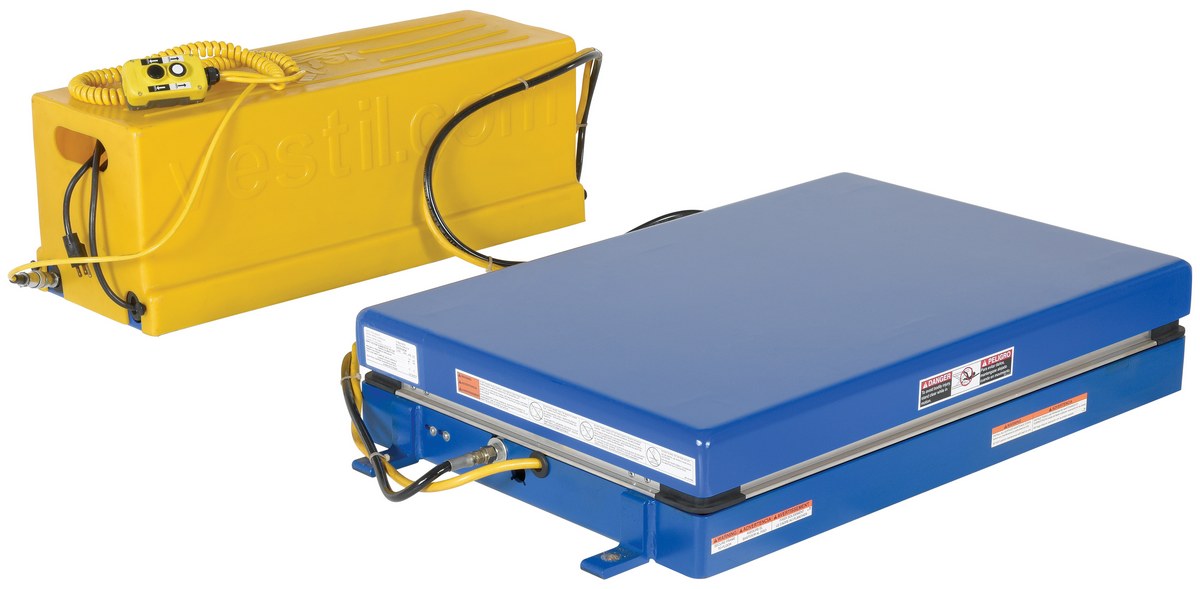

EHLTS-2436-2-31 |

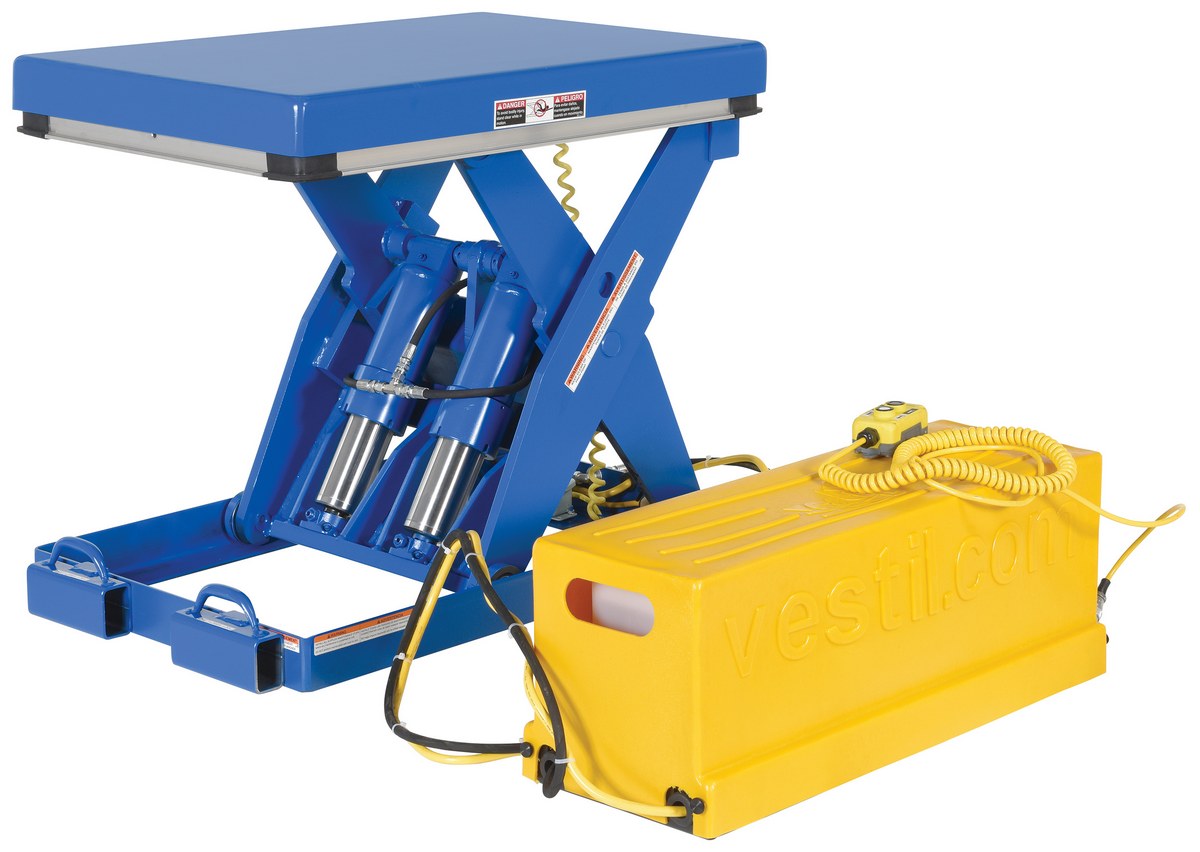

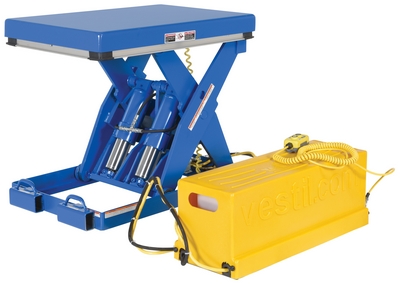

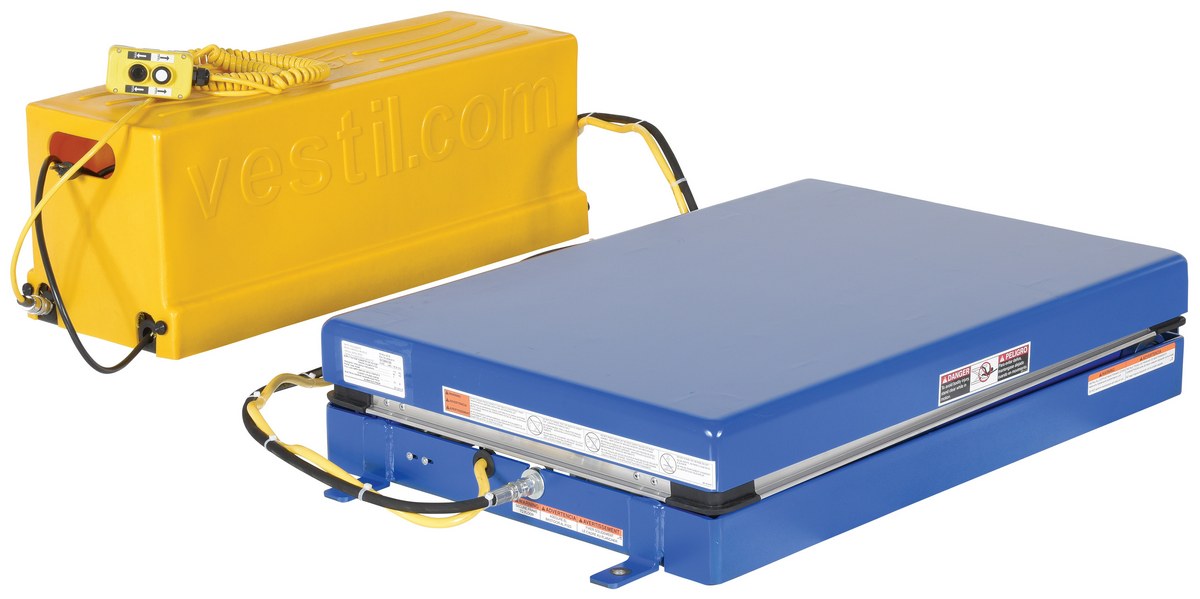

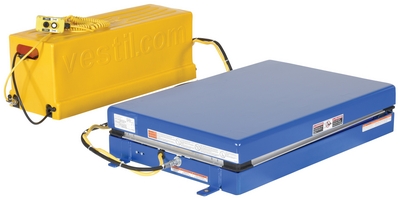

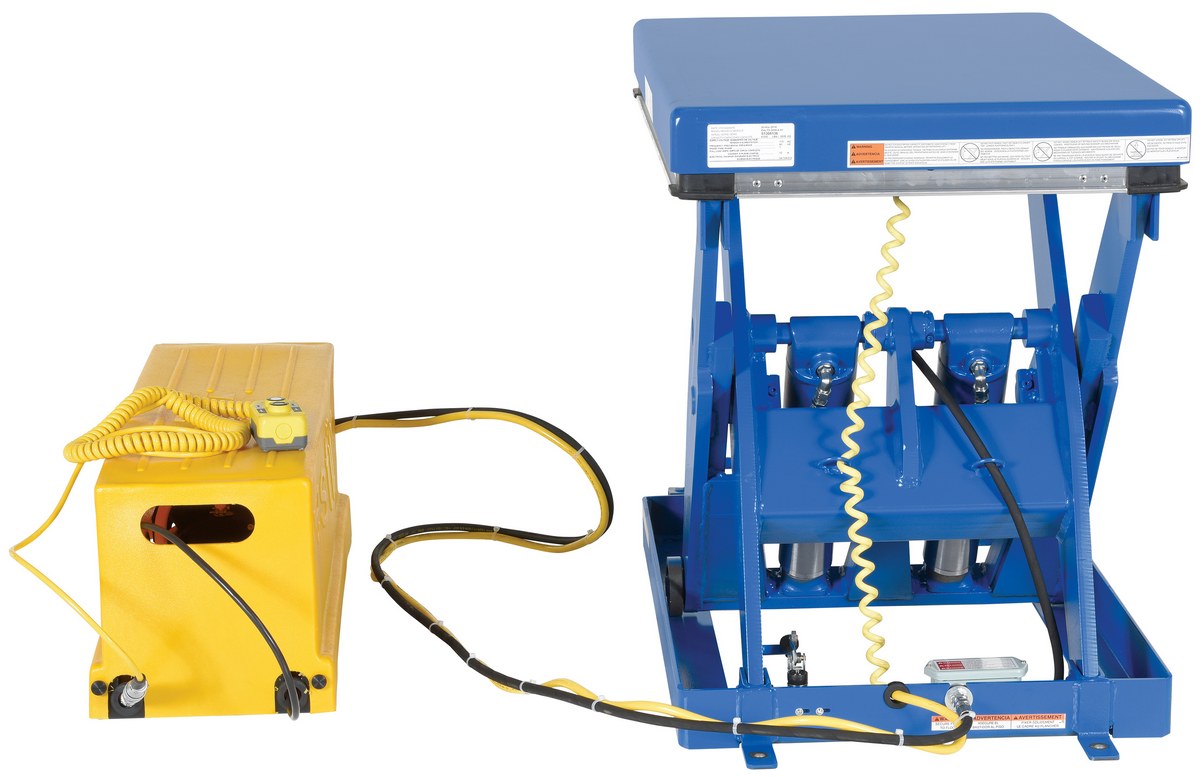

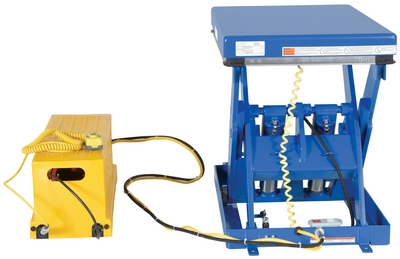

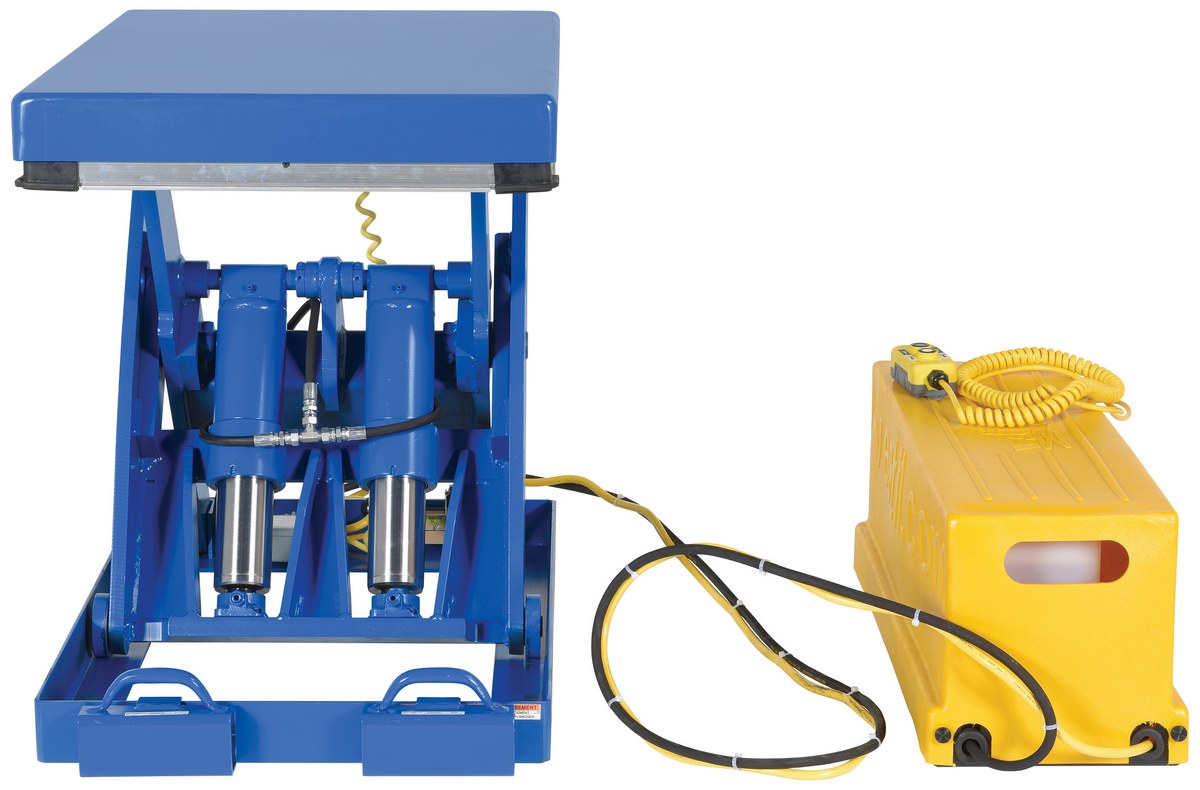

EHLTS-2436-4-31 |
EHLTS-2436-5-31 |
EHLTS-3436-2-31 |
EHLTS-3436-4-31 |
EHLTS-3436-5-31 |
EHLTS-3636-2-31 |
KEY:
= Approval Drawing --
= Warranty --
= Testing Certificate
If you did not find an expected Model or SKU # in the table, try the Options Section Below
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Raised Height (in.): 31
Uniform Capacity (lb.): 2000
Raised Height (in.): 31
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Raised Height (in.): 31
Uniform Capacity (lb.): 4000
Raised Height (in.): 31
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Lowered Height (in.): 7
Uniform Capacity (lb.): 500
Lowered Height (in.): 7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Lowered Height (in.): 7
Uniform Capacity (lb.): 1000
Lowered Height (in.): 7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Lowered Height (in.): 7
Uniform Capacity (lb.): 1000
Lowered Height (in.): 7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Lowered Height (in.): 7
Uniform Capacity (lb.): 1000
Lowered Height (in.): 7
For More Details of the Option Click the Red Model Button
|
Options For Electric Hydraulic Equipment Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section. |
|||||||
| Model | Description | ||||||
| HCP-2642 |  |
Optional Hand Control Pedestal | |||||
| Integeral Scale for Scissor Tables | Scales for lift tables | ||||||
| Radio Remote Control Option | 2 and 4 button hand controllers | ||||||
| Programmable Height Option | Multiple working heights at the touch of a button | ||||||
| Manual Built-In Carousel Option | Manual carousel (factory installed on new units only) | ||||||
| Safety Accordion Skirt | Keep people and debris from getting under the lift. Customer Installed. Contact factory. | ||||||
| ADDL-HH-25-10 | Synthetic Rubber 1/4 In. 10 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black | ||||||
| ADDL-HH-25-20 | Synthetic Rubber 1/4 In. 20 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black | ||||||
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Shorty Scissor Lift Tables PDF's will open in a new window when clicked.
Manuals
No Owners Manuals For This Product
Survey Sheets
No Survey Sheets For This Product
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: EHLTS-2436-2-31
Hydraulic Oil SDS Sheet for: EHLTS-2436-4-31
Hydraulic Oil SDS Sheet for: EHLTSD-1228-05-35
Hydraulic Oil SDS Sheet for: EHLTSD-1228-1-35
Hydraulic Oil SDS Sheet for: EHLTSD-1628-1-35
Hydraulic Oil SDS Sheet for: EHLTSD-2436-1-35
Hydraulic Oil SDS Sheet for: EHLTSD-2448-1-35
Other PDF's
No "Other PDFs" For This Product...
Directory Links Of Available PDF's For All Products
Q: What is the standard voltage and phase? Can the voltage and phase be changed?
A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.
