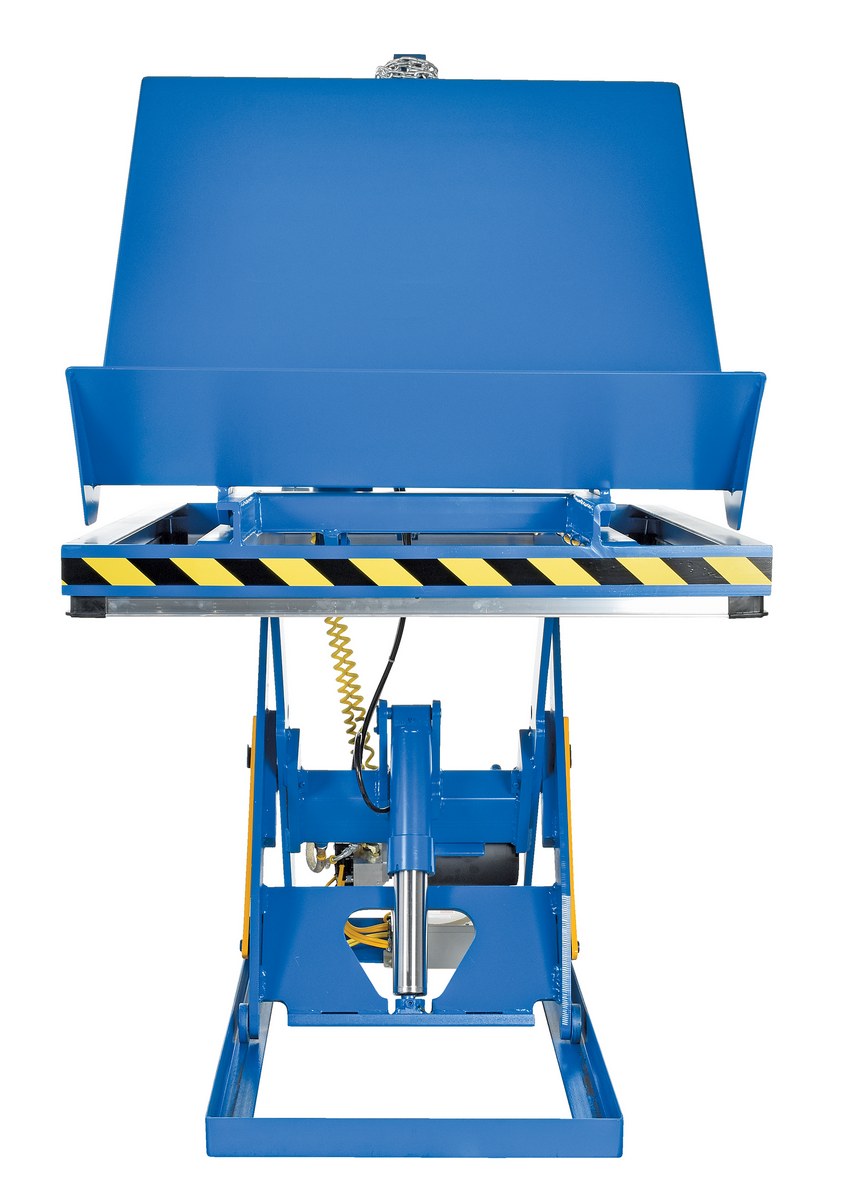

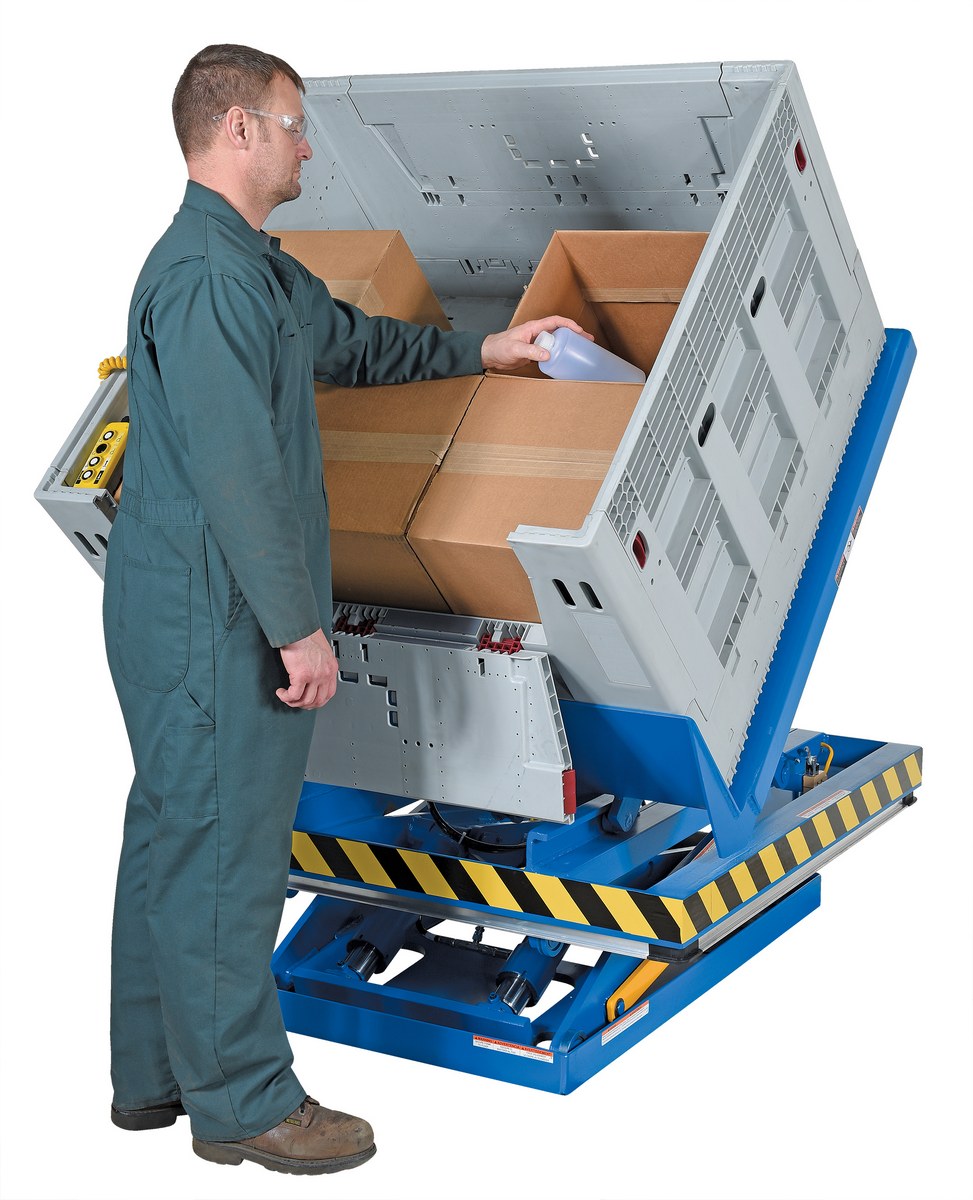

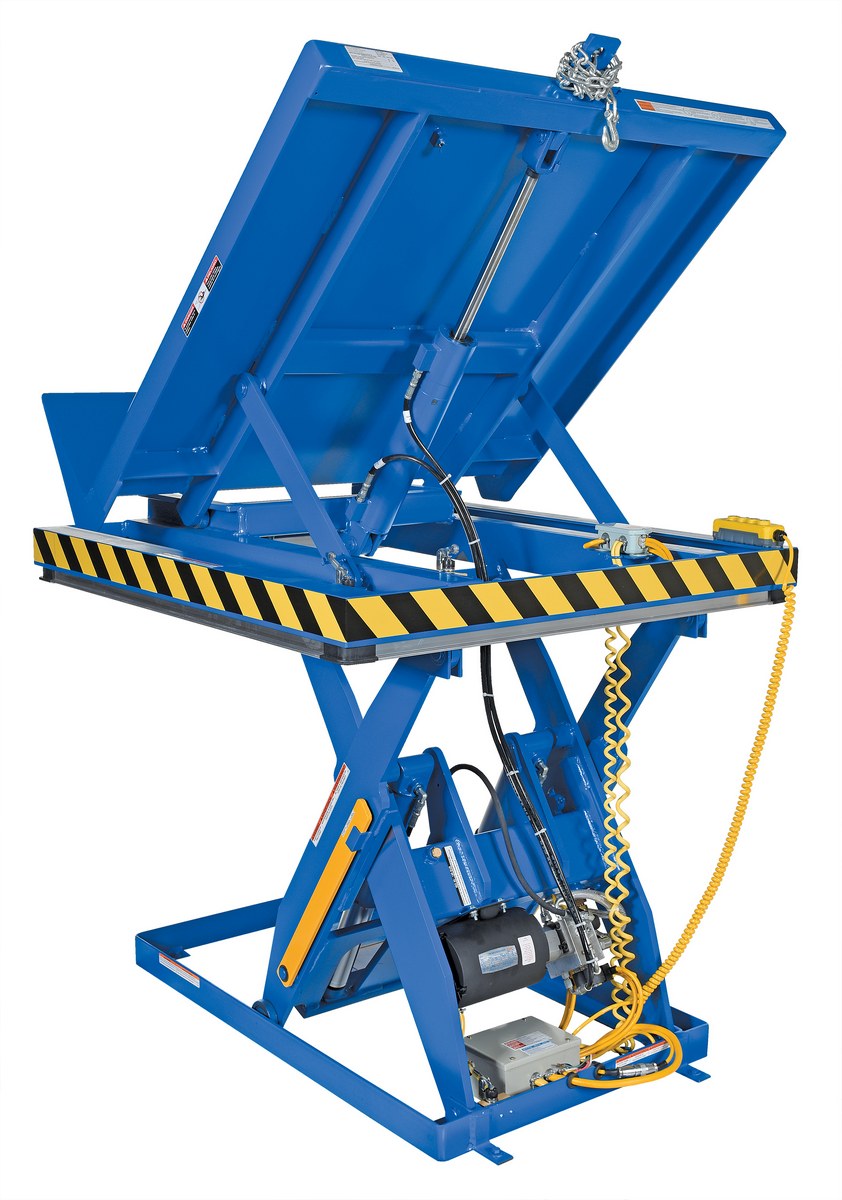

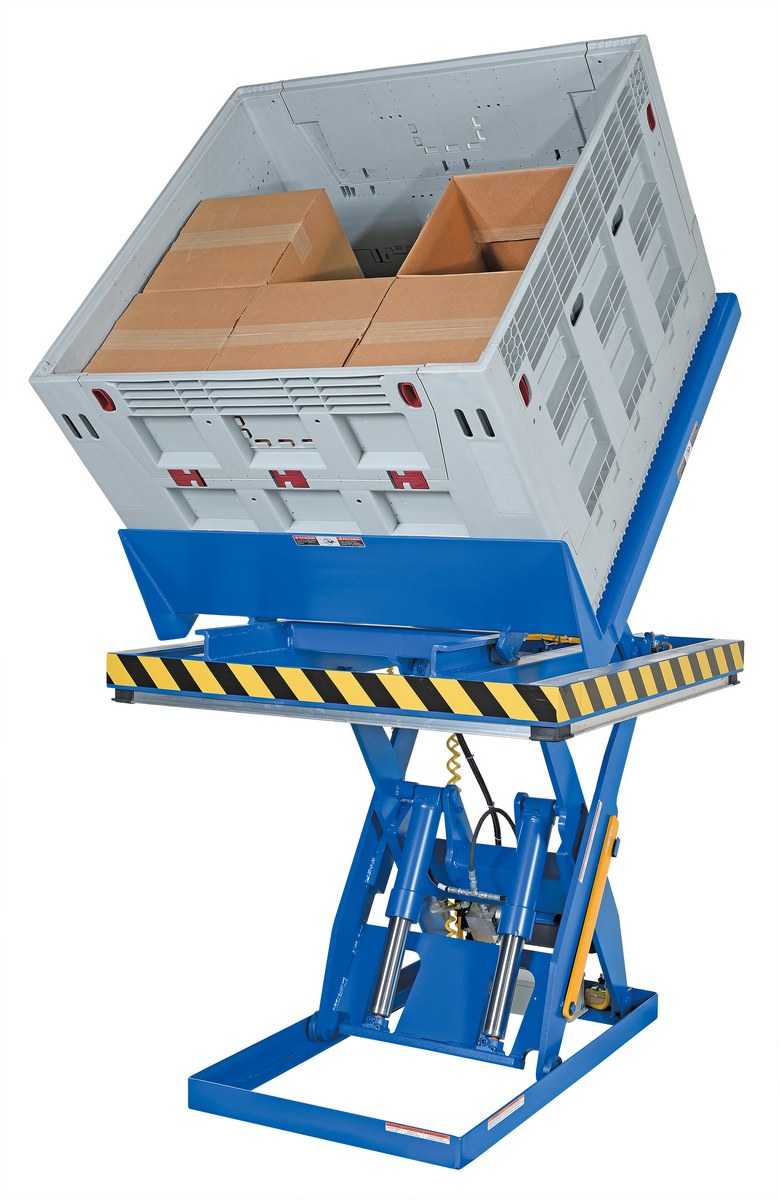

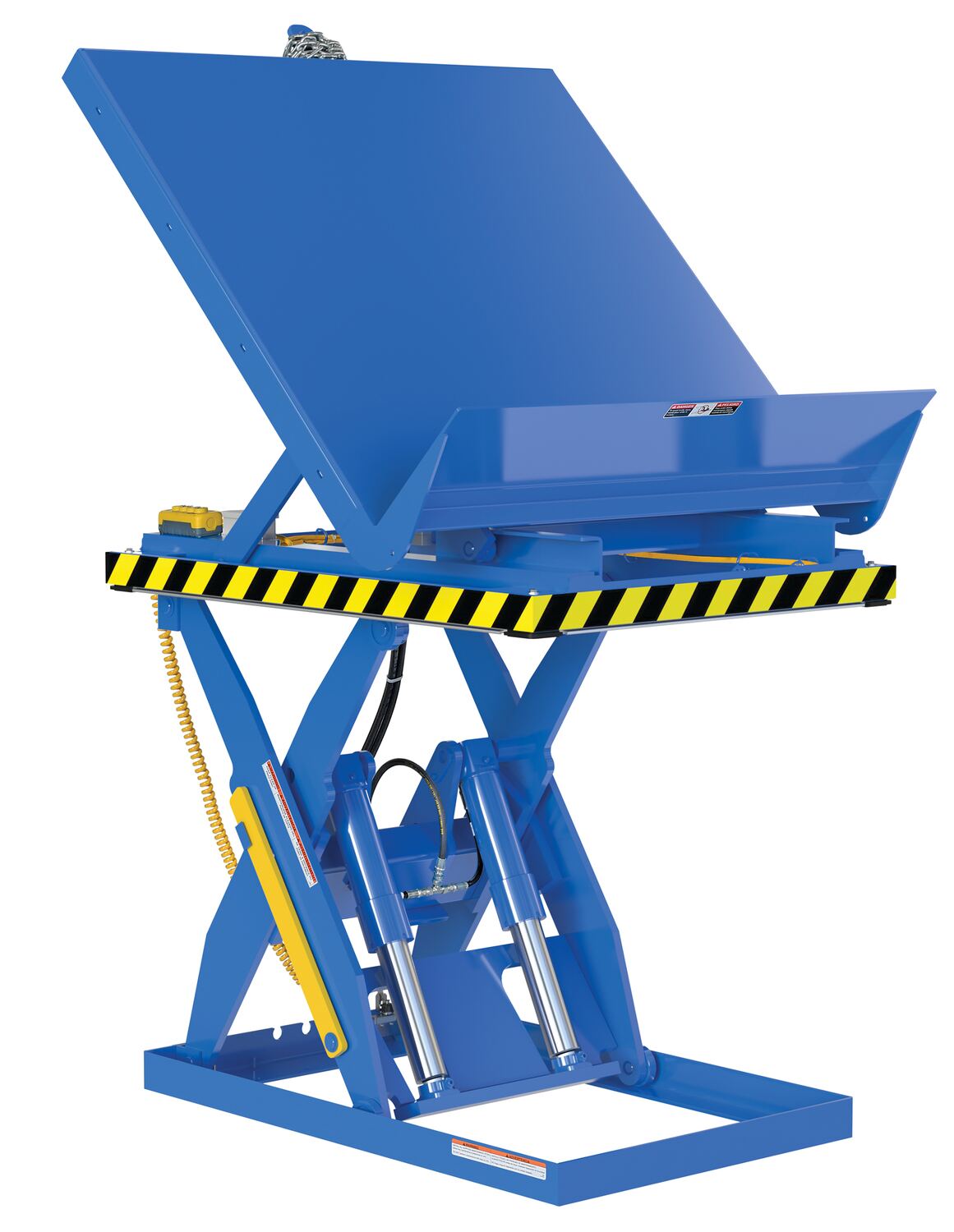

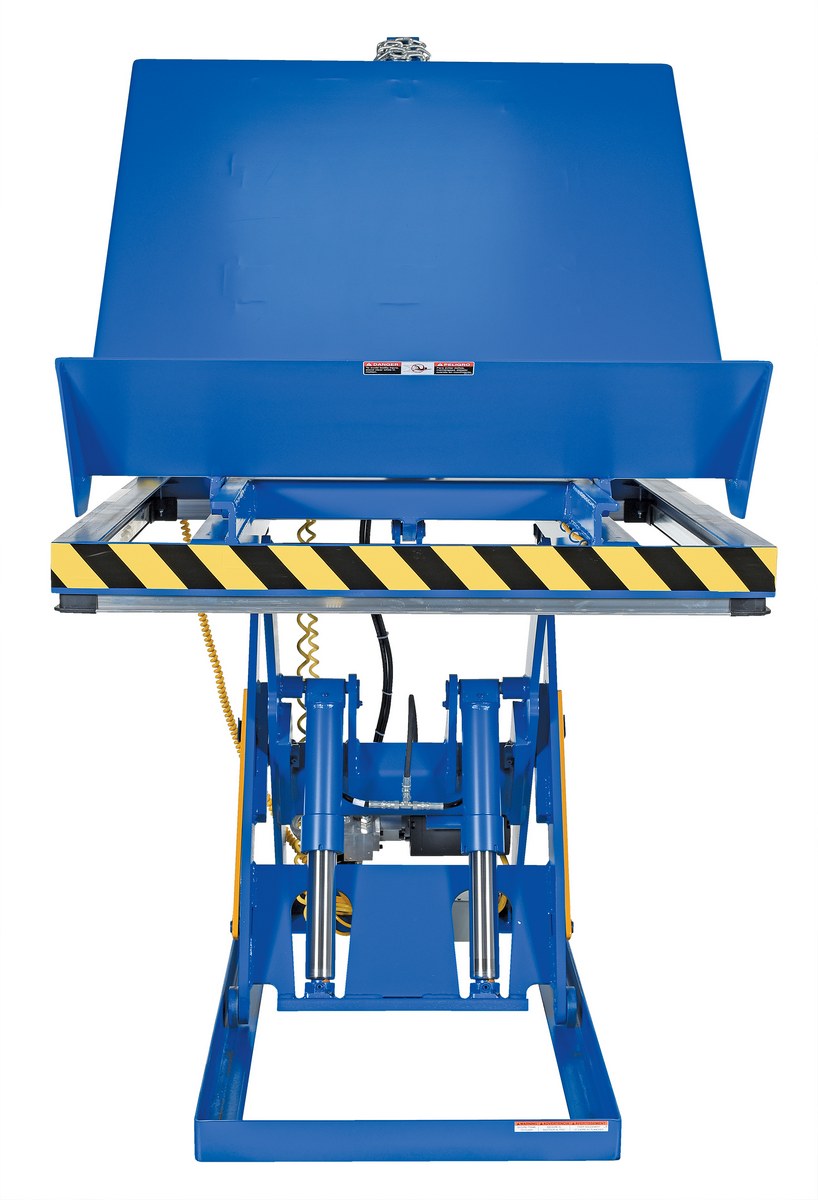

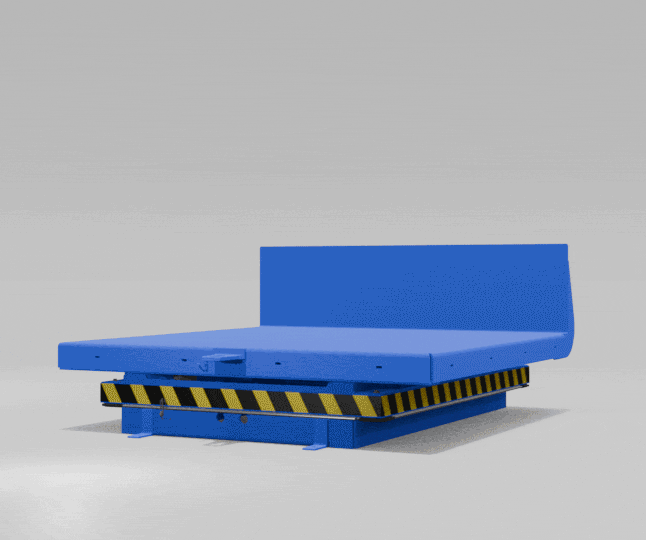

Lift & Tilt Scissor TablesPerforms both lifting and tilting operations. 45 degree and 90 degree tilt available. Restraining chain and 12" high lip keep load in place during tilting. Safety features include: electric toe guard to shield worker from pinch points during lowering of table, safety velocity fuses to stop travel due to loss of hydraulic pressure, 4 push-button hand pendent control on an 8 foot coil cord, upper limit switch to stop travel at maximum height reducing motor wear and maintenance prop. End tilt standard, side tilt available. Optional accordion skirting available for both the lifting and tilting portions of the table, contact factory.
shown with optional Accordian Skirt
Design Features:
- Steel Cradle is 12" high, open design allows loading/unloading from three sides.

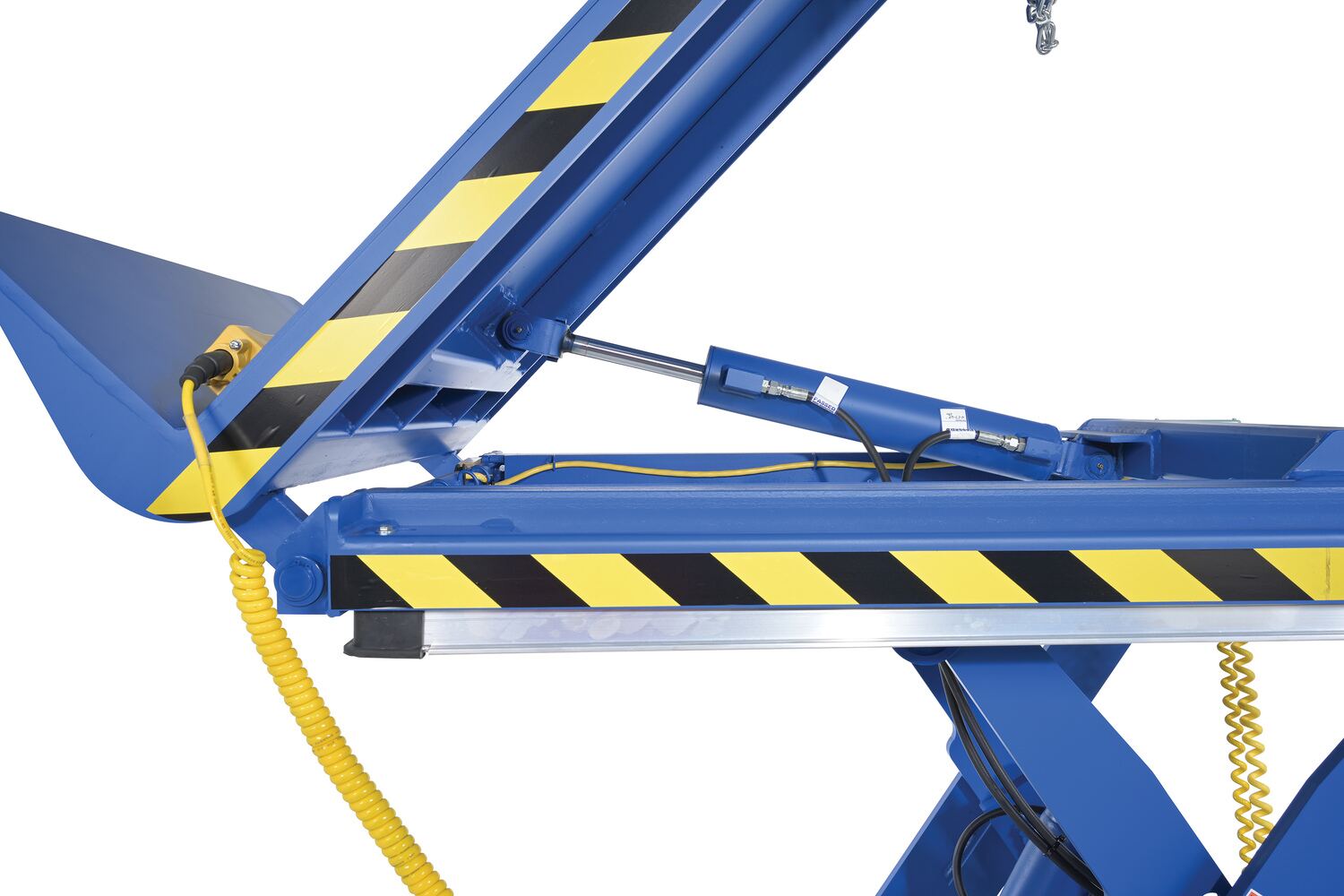

- Unique link tilt design center of load remains closer to the center of the table to increase safety and minimize space requirements.
- Safety Velocity fuse in cylinder prevents drop of table in event of hydraulic failure.

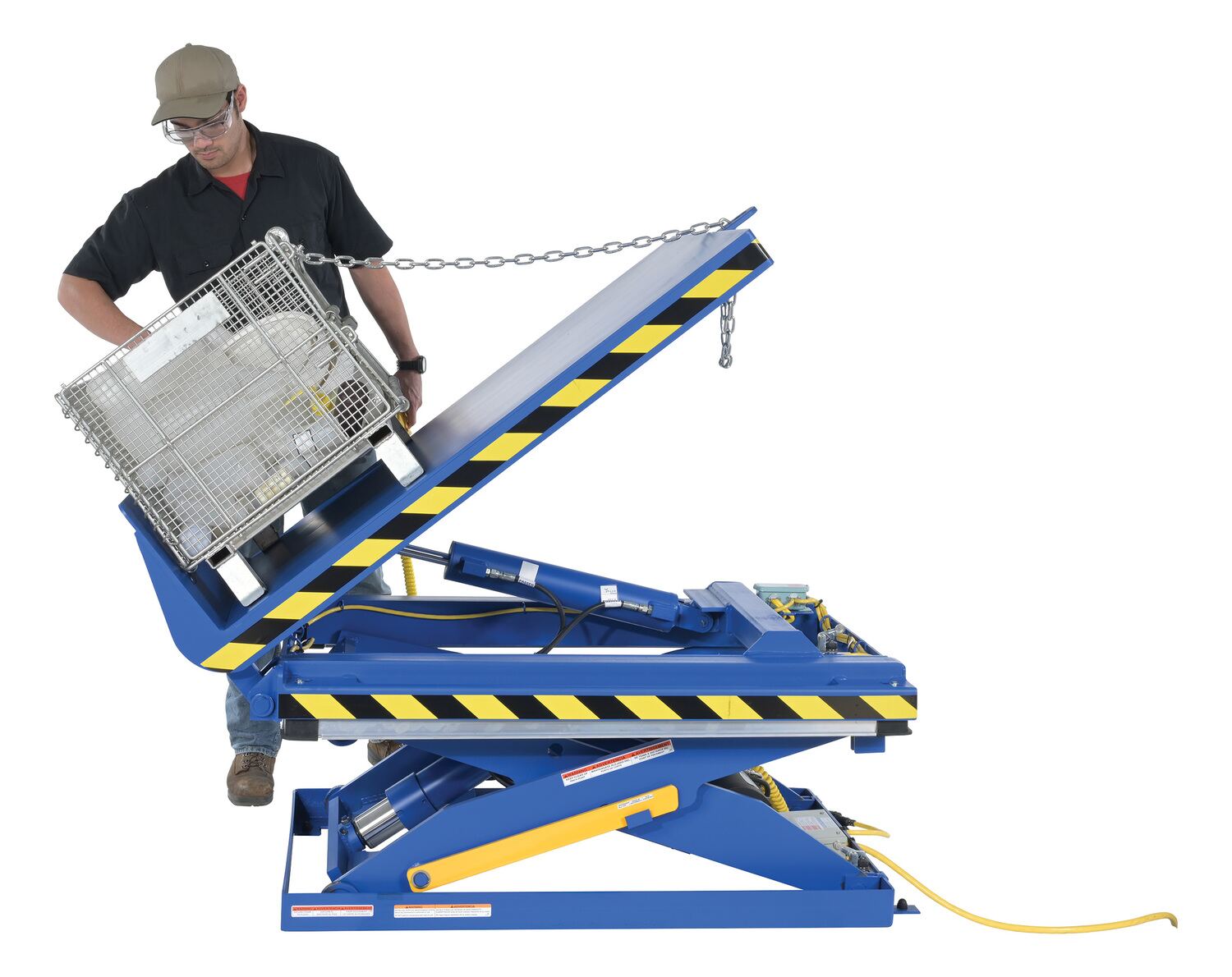

- Slot lock and restraint chain.

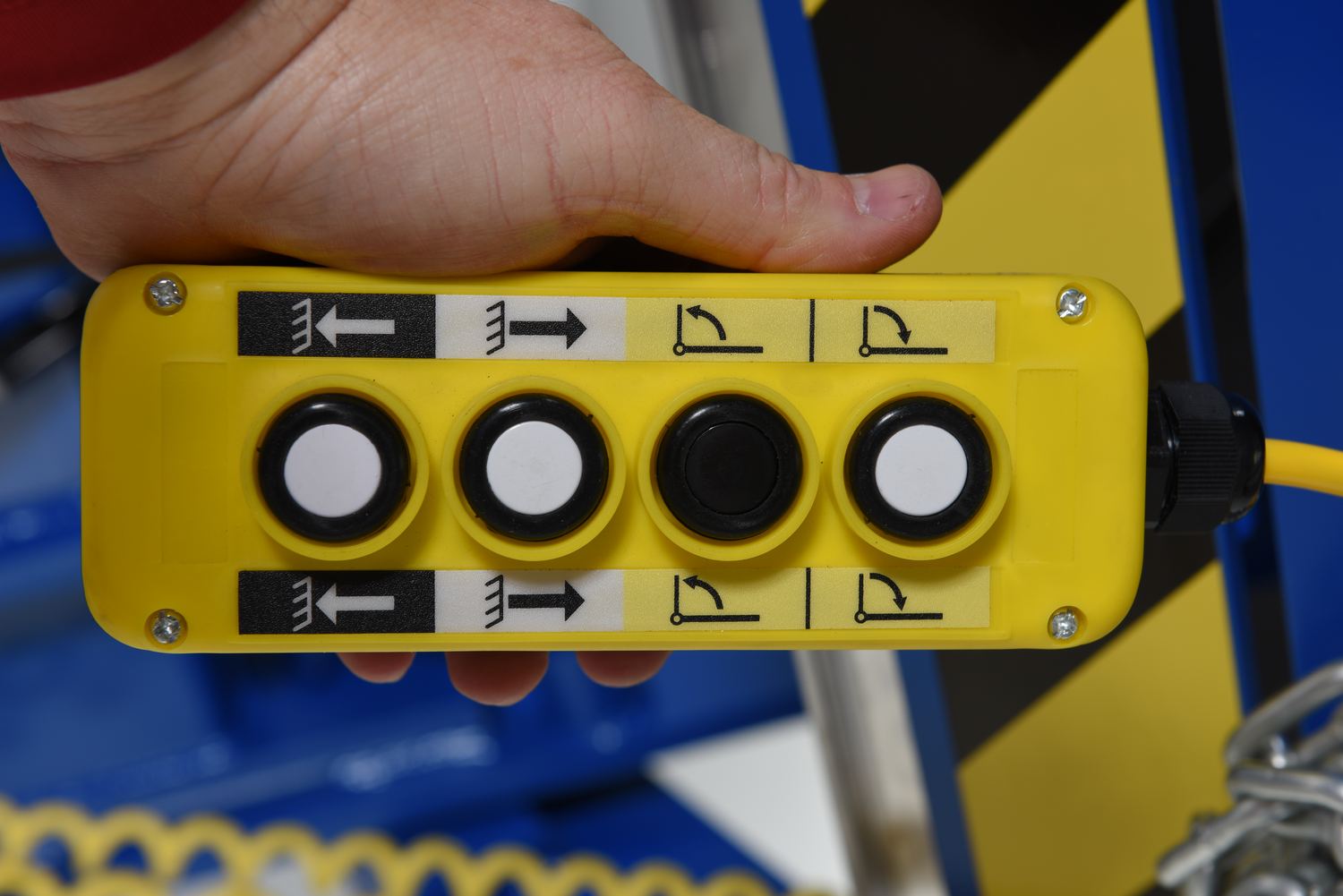

- NEMA-4 hand control provides a weatherproof case for years of durability.
- Fused 24 Volt control helps to ensure operator safety.
- Perimeter pinch point guard

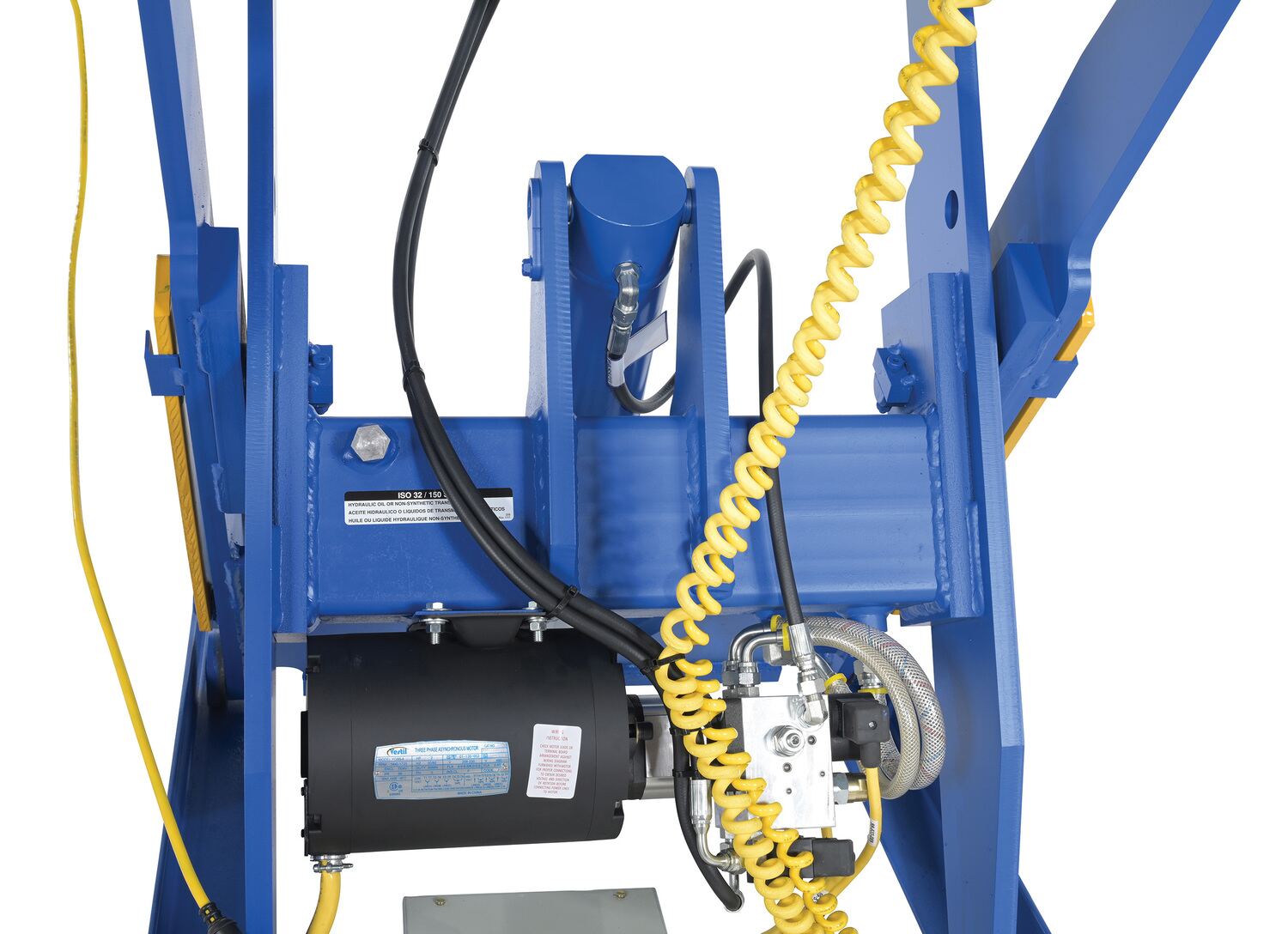

- Industrial quality, 56 frame, 2 HP motor delivers best torque with minimal amperage draw and maximum life.
- Upper Travel limit switch is field adjustable
- 3000 PSI component rating on crimped hoses and fittings.
Air Bag Scissor Lift Tables
Portable Electric Hydraulic Lift Table w/ Attached Hoist
Integral Scale for Scissor Tables
Lift & Tilt Workstation TablesAdditional Models In This Family
EHLTT-4848-4-47
EHLTT-3648-3-47
EHLTT-4848-3-47
EHLTT-4848-4-47
EHLTT-H-3648-2-47
EHLTT-4848-4-47
EHLTT-H-4848-2-47
EHLTT-4848-3-47
EHLTT-4848-4-47
EHLTT-H-3648-2-47
EHLTT-H-3648-2-47
EHLTT-4848-1-47
EHLTT-4848-2-47
EHLTTS-3654-2-48
EHLTT-H-3648-2-47
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

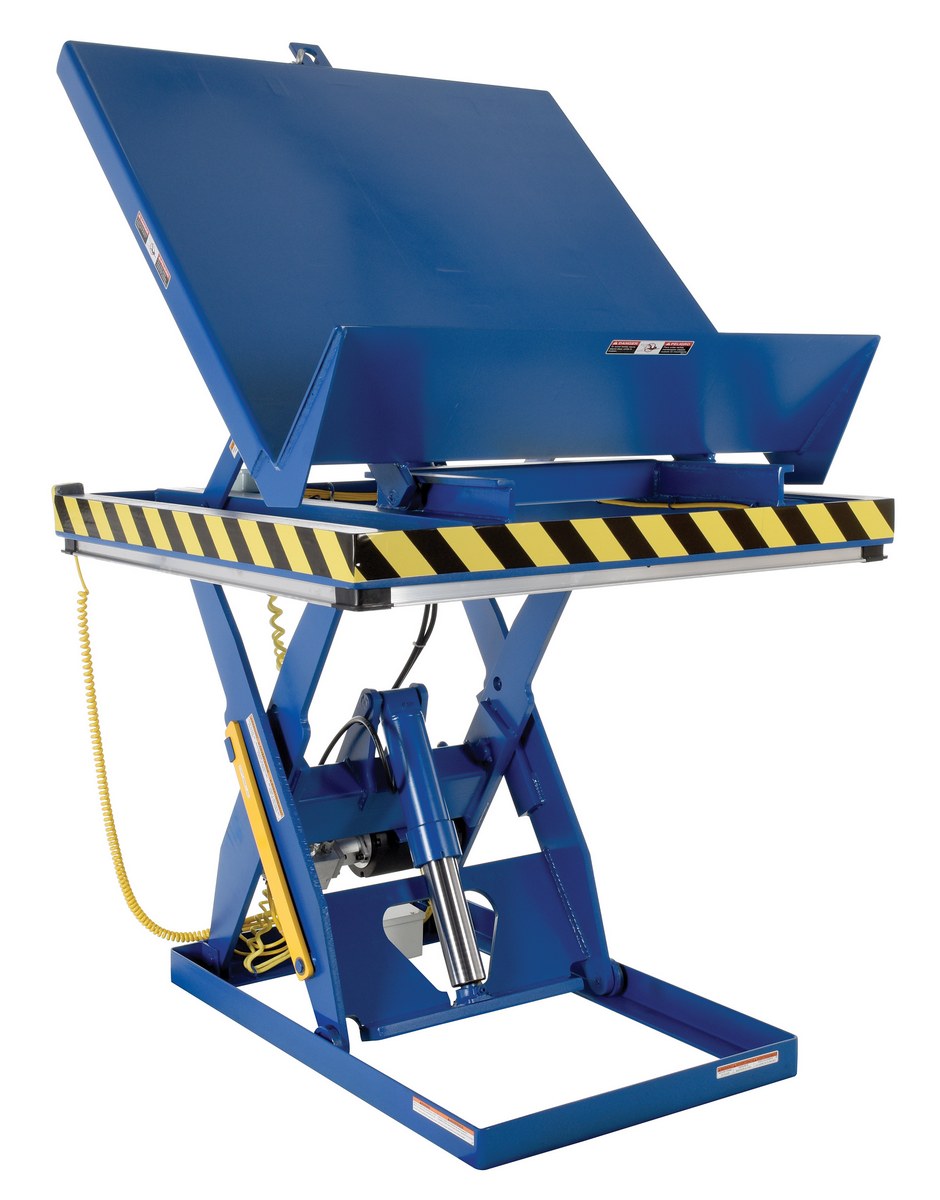

| EHLTT-3648-1-47 | |  | 1 Year Limited Warranty | Steel Lift and End Tilt Scissor Table 36 In. x 48 In. 1000 Lb. Capacity Blue | Uniform Capacity (lb.): 1000 Lowered Height (in.): 11 | 1148 | |

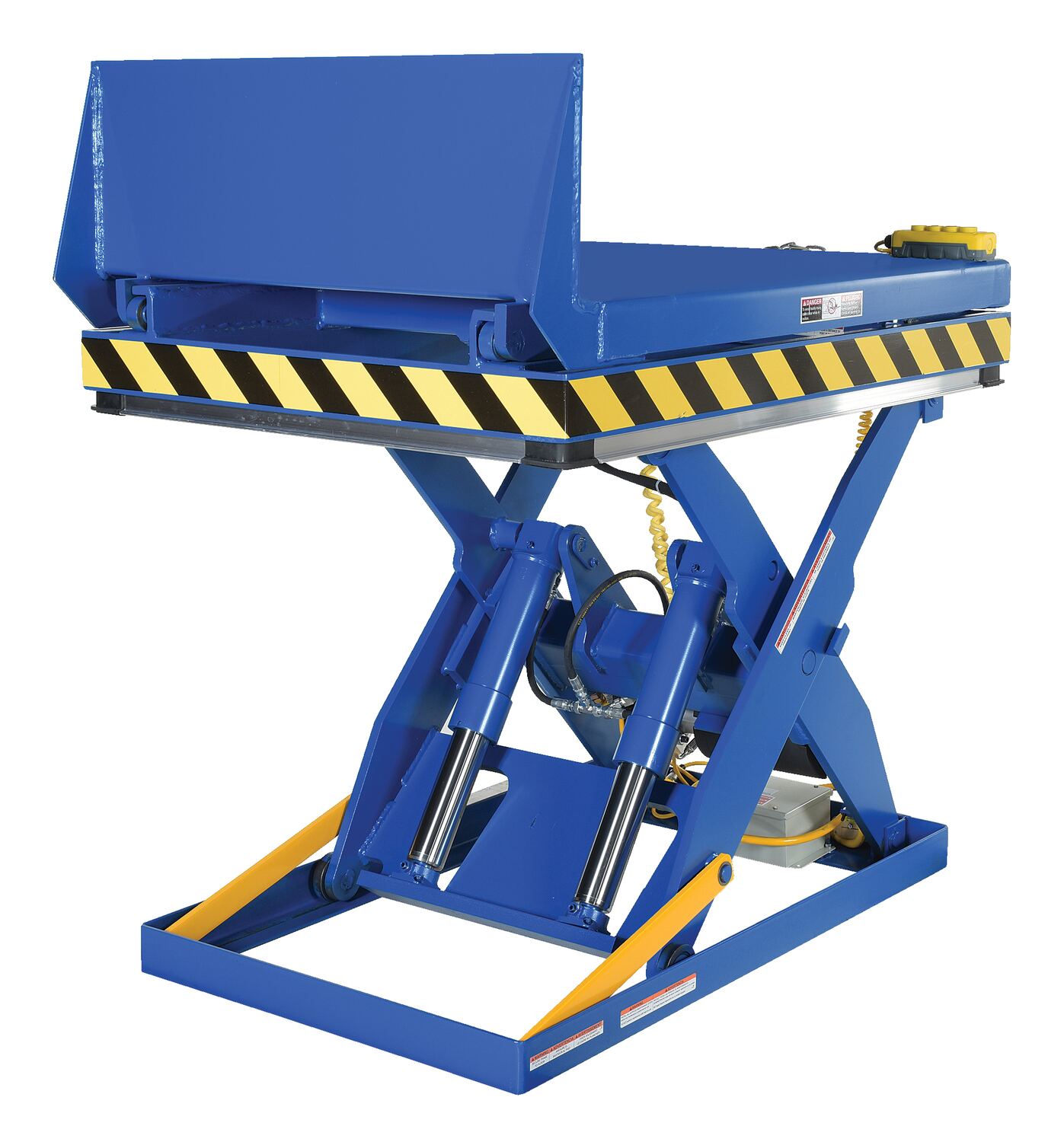

| EHLTT-3648-2-47 | |  | 1 Year Limited Warranty | Steel Lift and End Tilt Scissor Table 36 In. x 48 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Lowered Height (in.): 11 | 1204 | |
| EHLTT-3648-3-47 | | | 1 Year Limited Warranty | Steel Lift and End Tilt Scissor Table 36 In. x 48 In. 3000 Lb. Capacity Blue | Uniform Capacity (lb.): 3000 Lowered Height (in.): 11 | 1299 | |

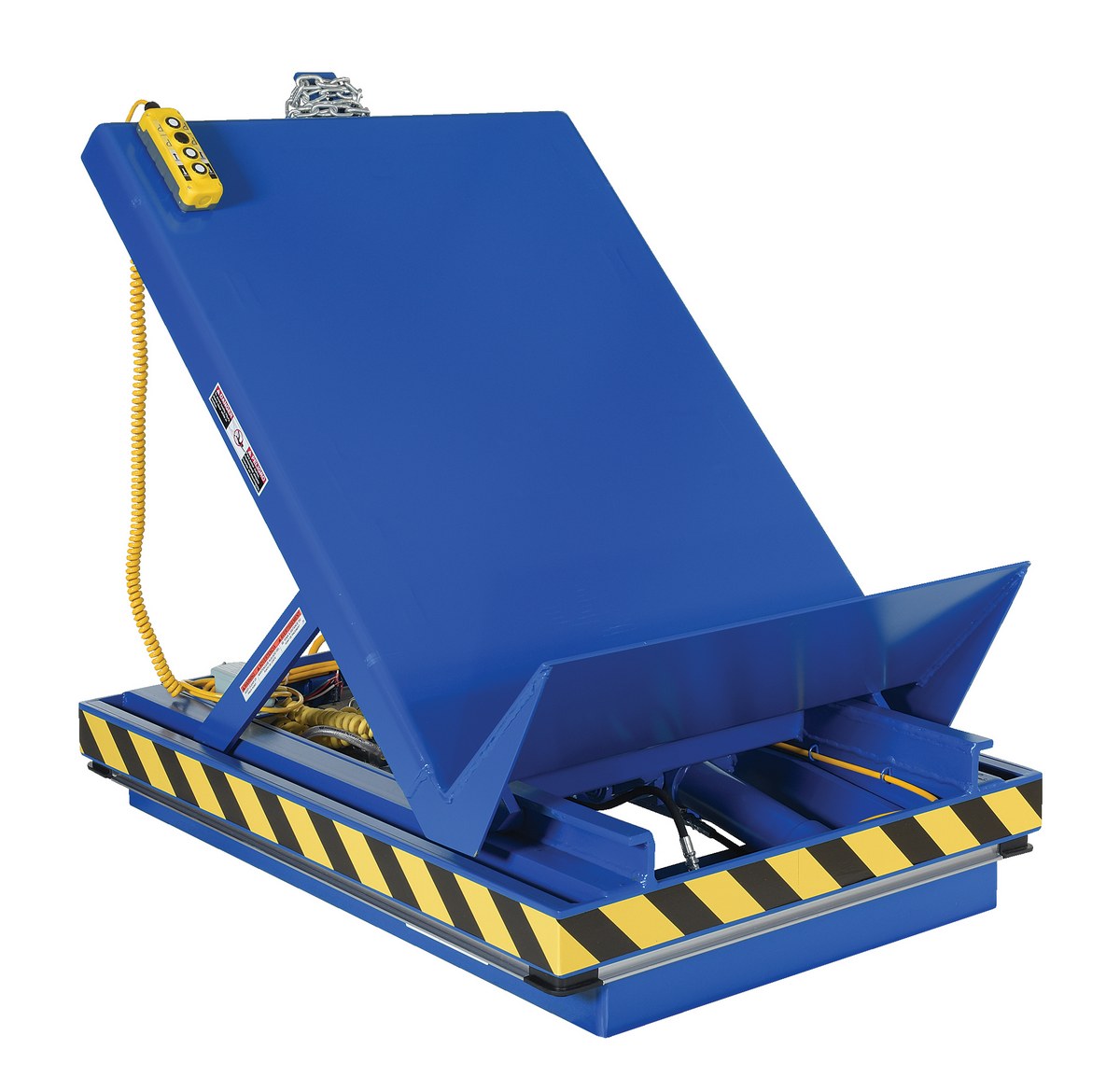

| EHLTT-3648-4-47 | |  | 1 Year Limited Warranty | Steel Lift and End Tilt Scissor Table 36 In. x 48 In. 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Lowered Height (in.): 11 | 1206 | |

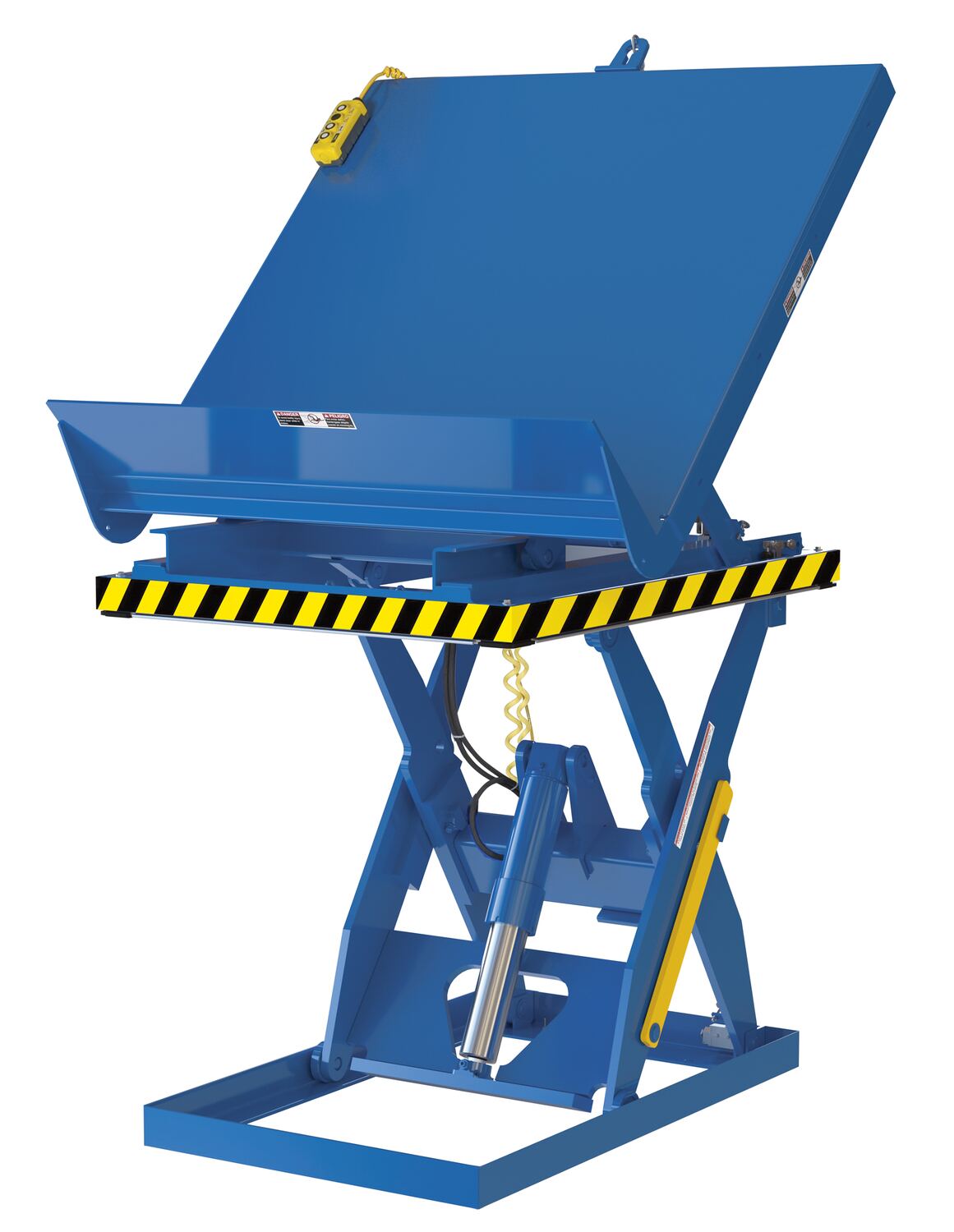

| EHLTT-4848-1-47 | |  | 1 Year Limited Warranty | Steel Lift and End Tilt Scissor Table 48 In. x 48 In. 1000 Lb. Capacity Blue | Uniform Capacity (lb.): 1000 Lowered Height (in.): 11 | 1228 | |

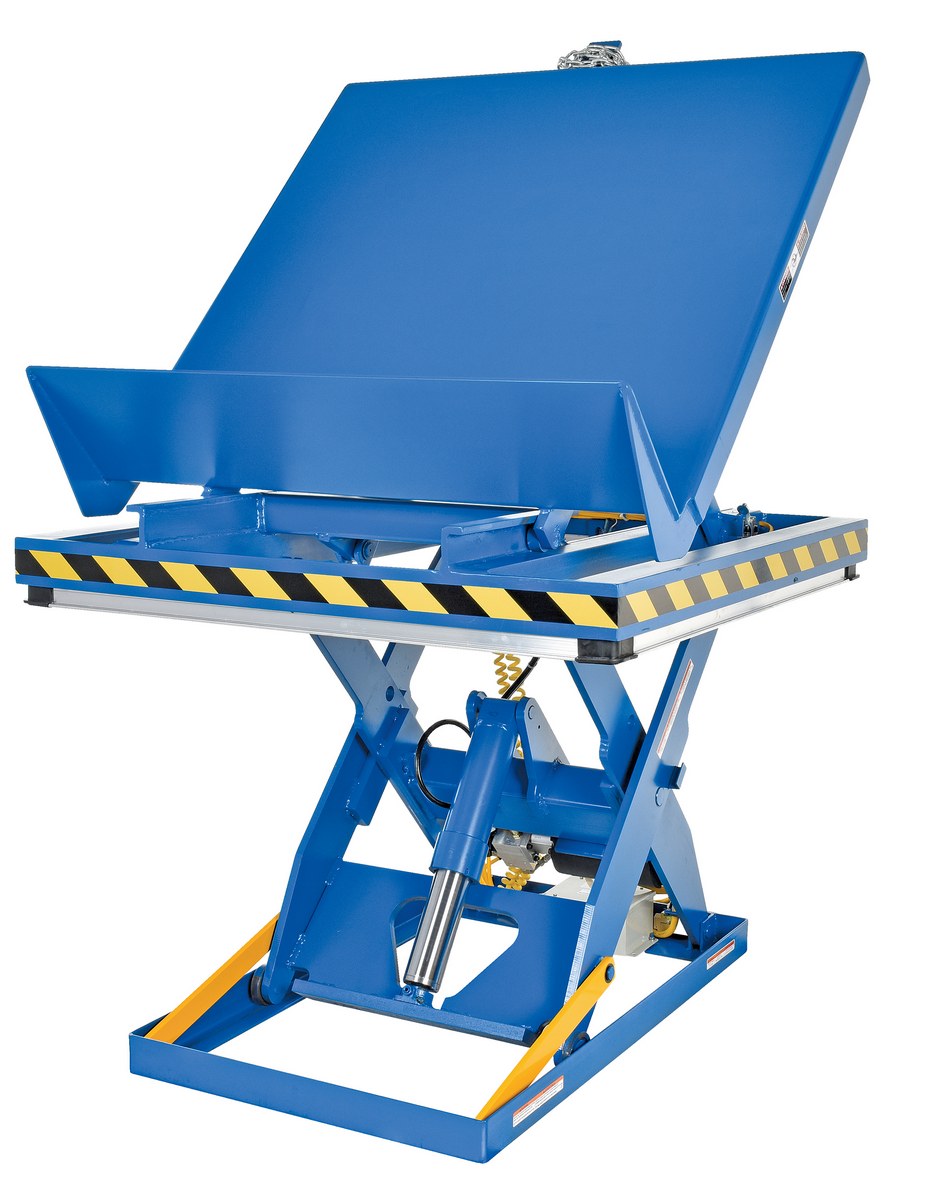

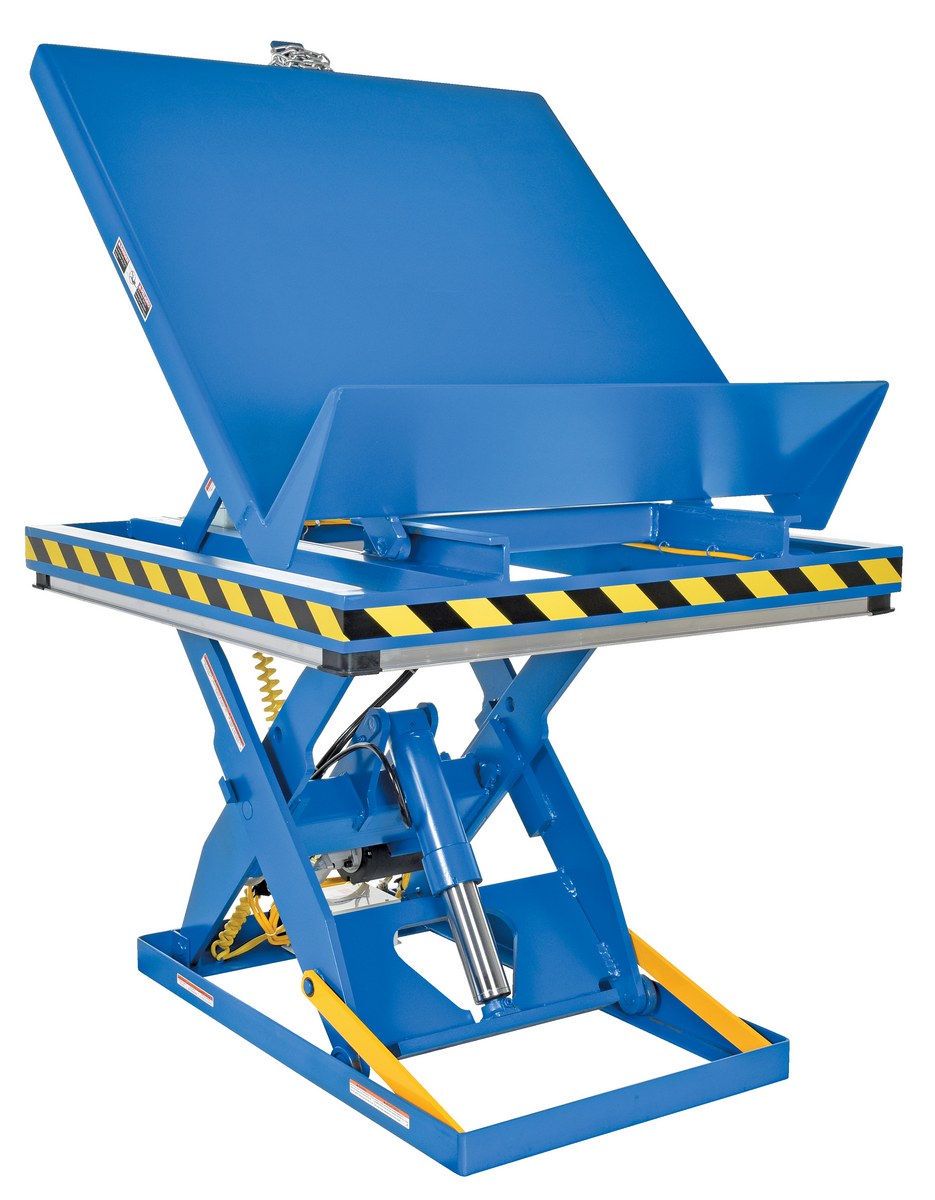

| EHLTT-4848-2-47 | | | 1 Year Limited Warranty | Steel Lift and End Tilt Scissor Table 48 In. x 48 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Lowered Height (in.): 11 | 1235 | |
| EHLTT-4848-3-47 | |  | 1 Year Limited Warranty | Steel Lift and End Tilt Scissor Table 48 In. x 48 In. 3000 Lb. Capacity Blue | Uniform Capacity (lb.): 3000 Lowered Height (in.): 11 | 1251 | |

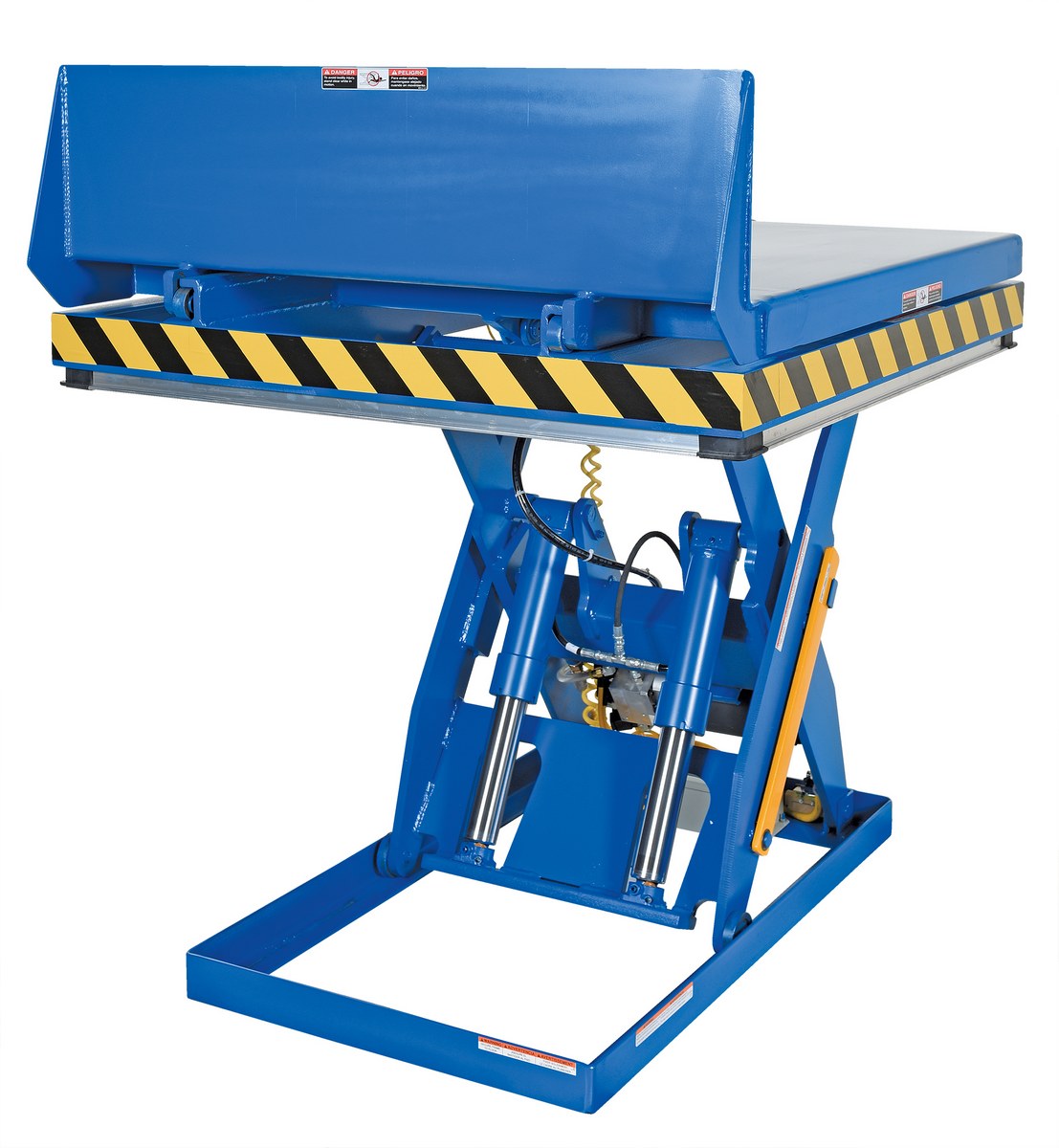

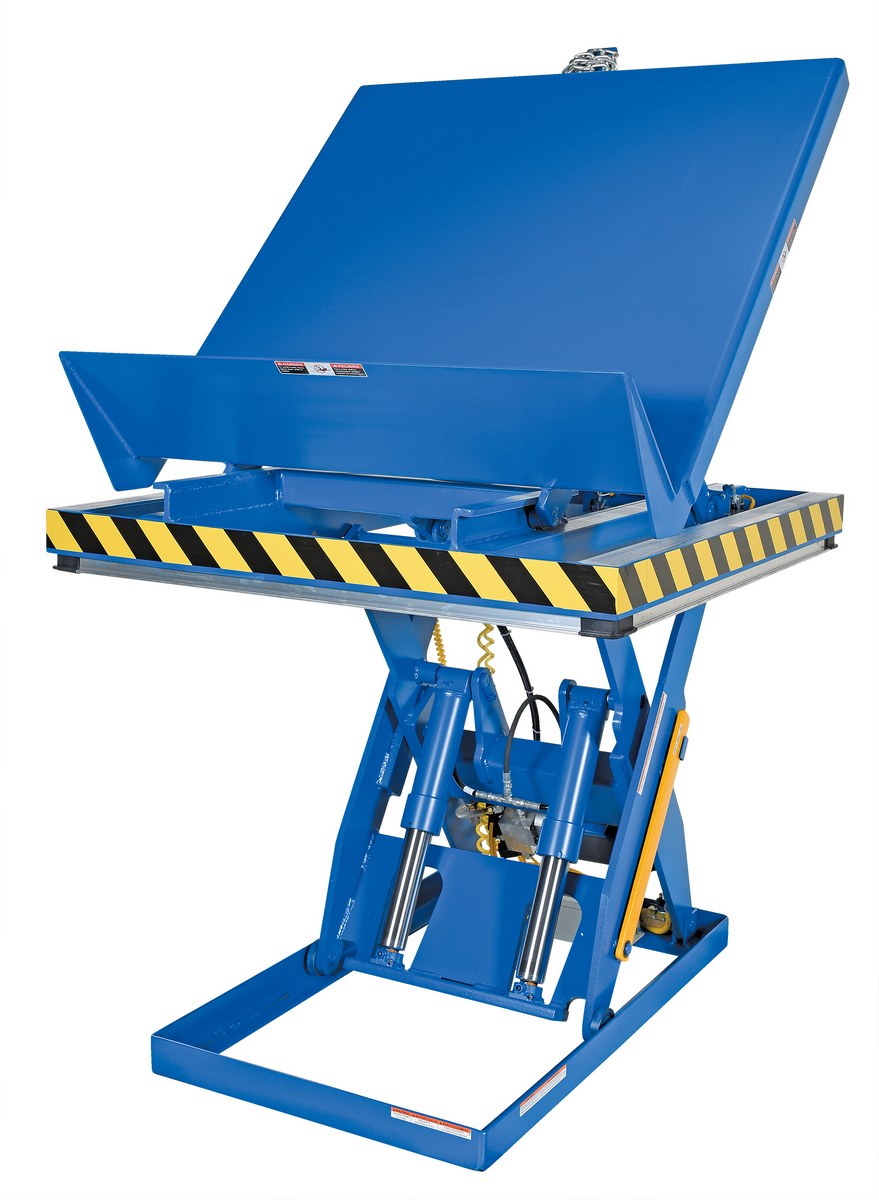

| EHLTT-4848-4-47 | POPULAR | | 1 Year Limited Warranty | Steel Lift and End Tilt Scissor Table 48 In. x 48 In. 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Lowered Height (in.): 11 | 1292 | |
| EHLTT-4848-5-47 | |  | 1 Year Limited Warranty | Steel Lift and End Tilt Scissor Table 48 In. x 48 In. 5000 Lb. Capacity Blue | Uniform Capacity (lb.): 5000 Lowered Height (in.): 13 | 1571 | |

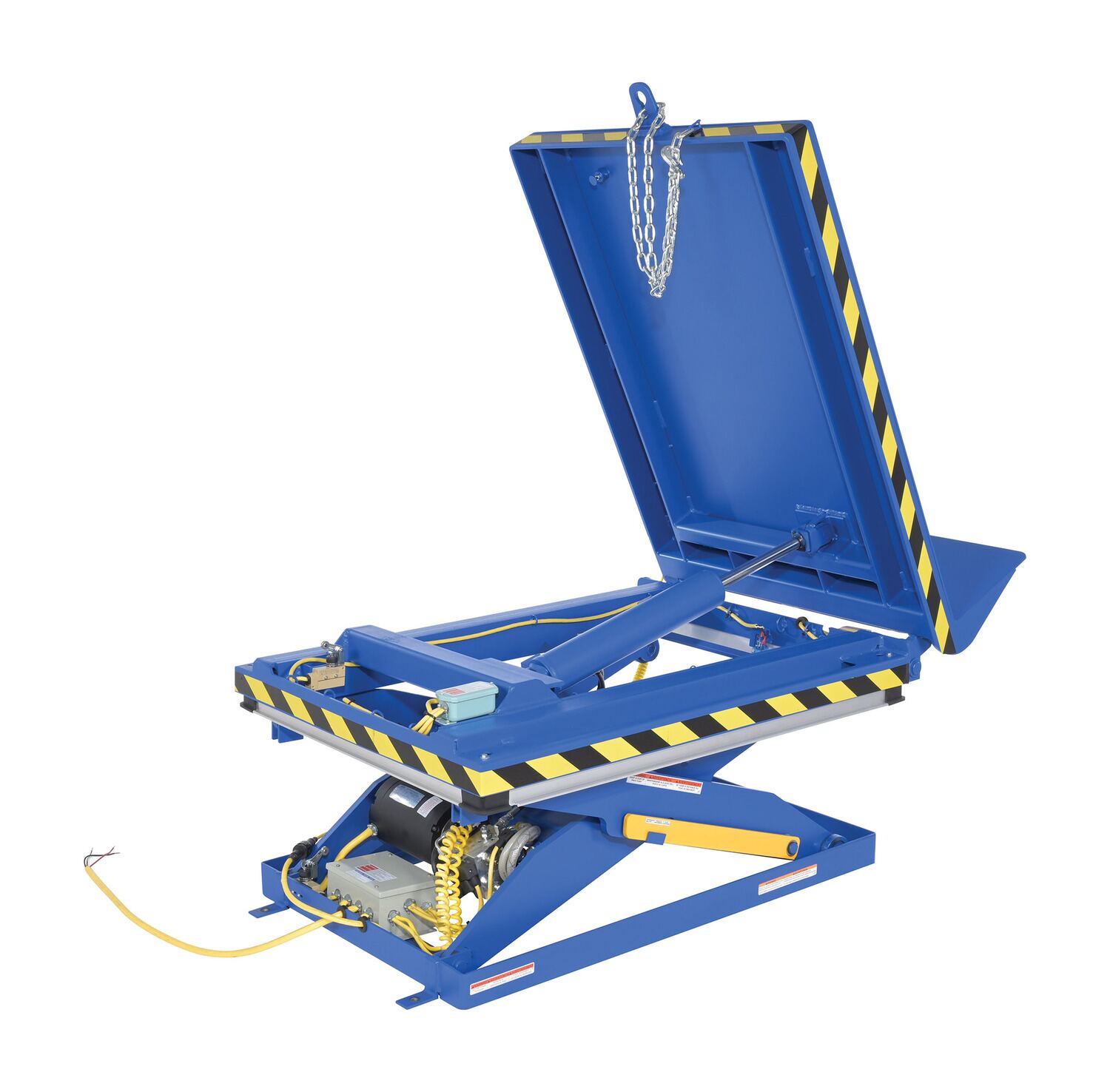

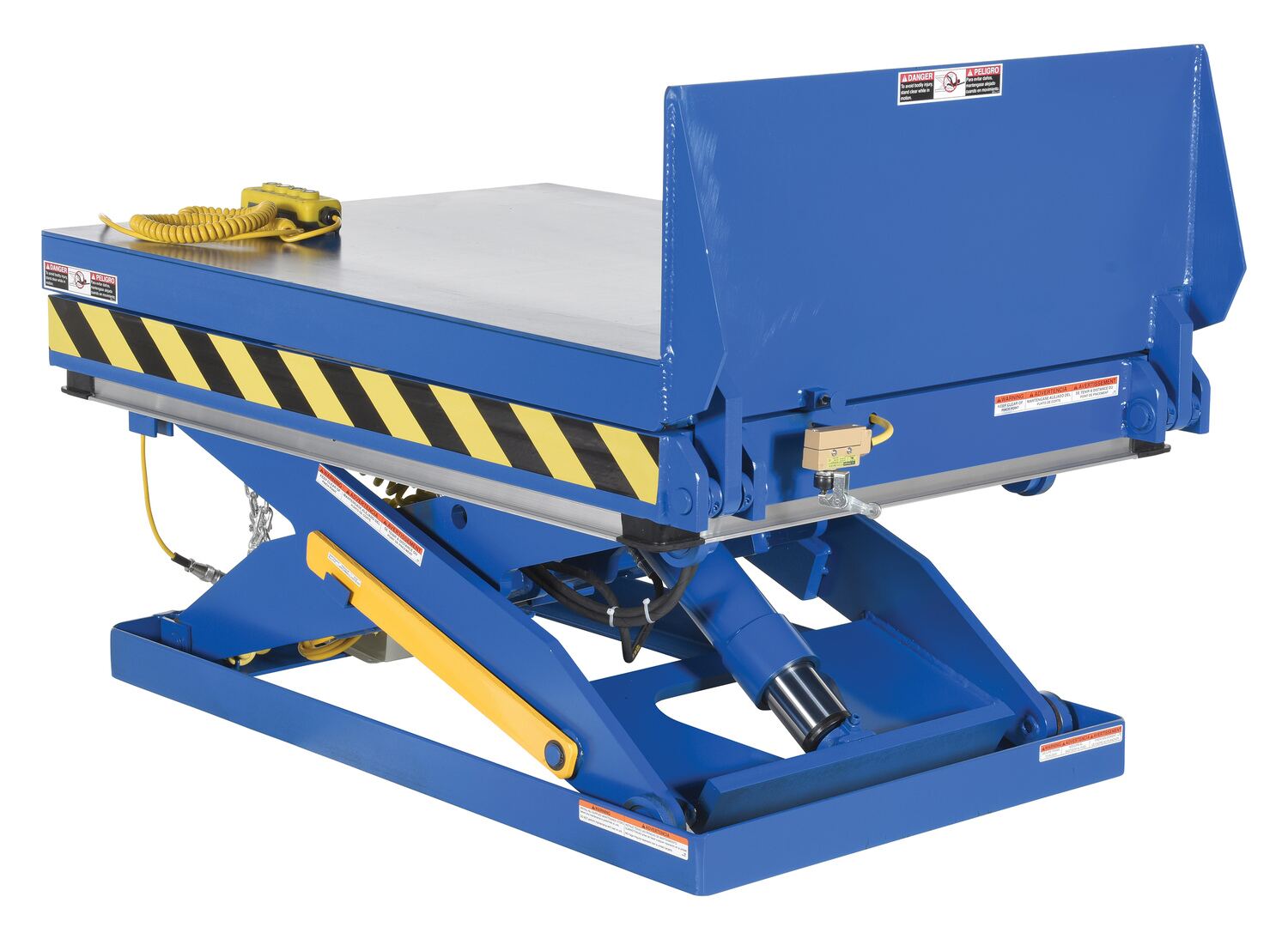

| EHLTT-H-3648-2-47 | |  | 1 Year Limited Warranty | Steel Lift and Hinge Tilt Scissor Table 36 In. x 48 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Lowered Height (in.): 11-1/4 | 1179 | |

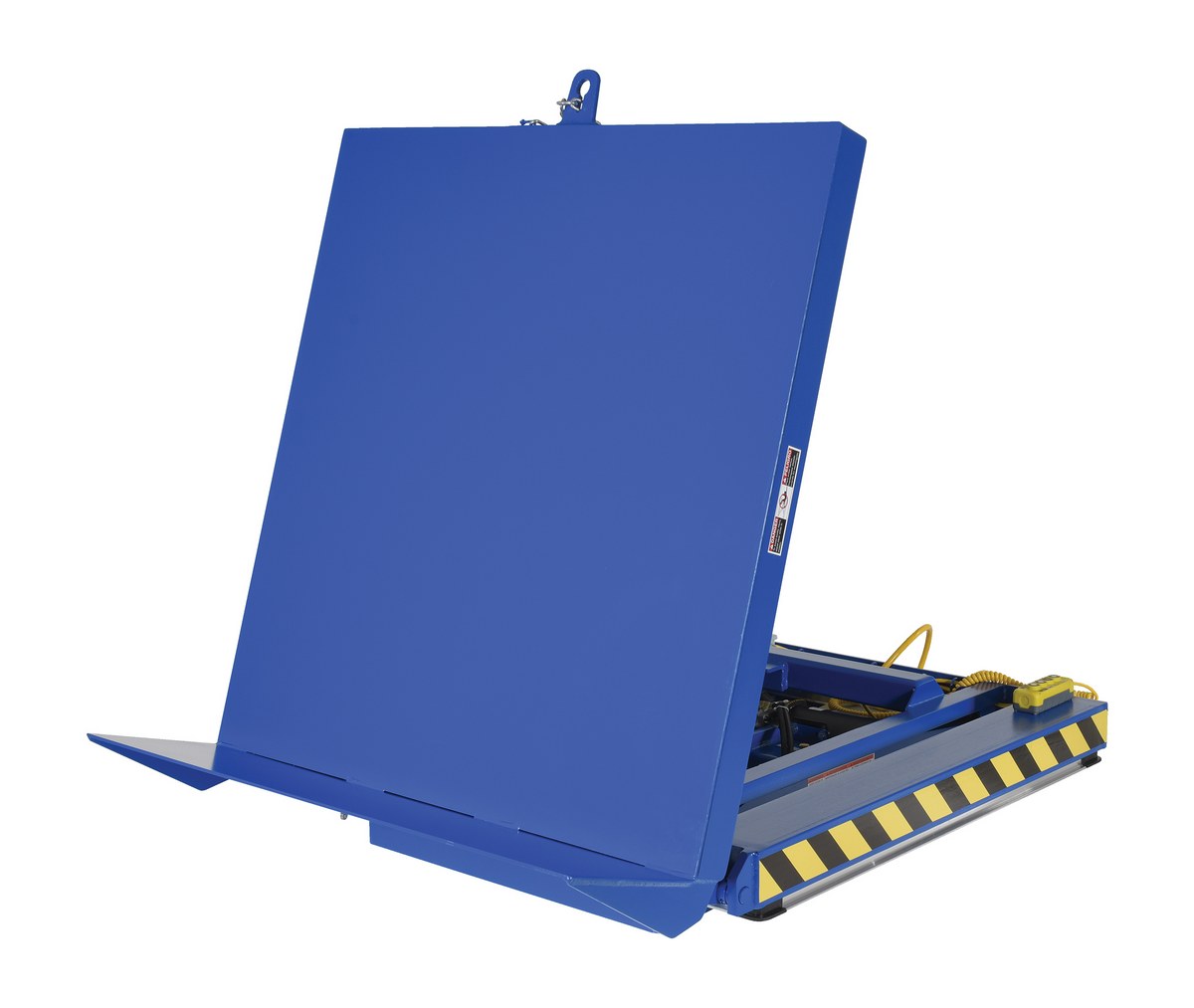

| EHLTT-H-4848-2-47 | |  | 1 Year Limited Warranty | Steel Lift and Hinge Tilt Scissor Table 48 In. x 48 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Lowered Height (in.): 11-1/4 | 1268 | |

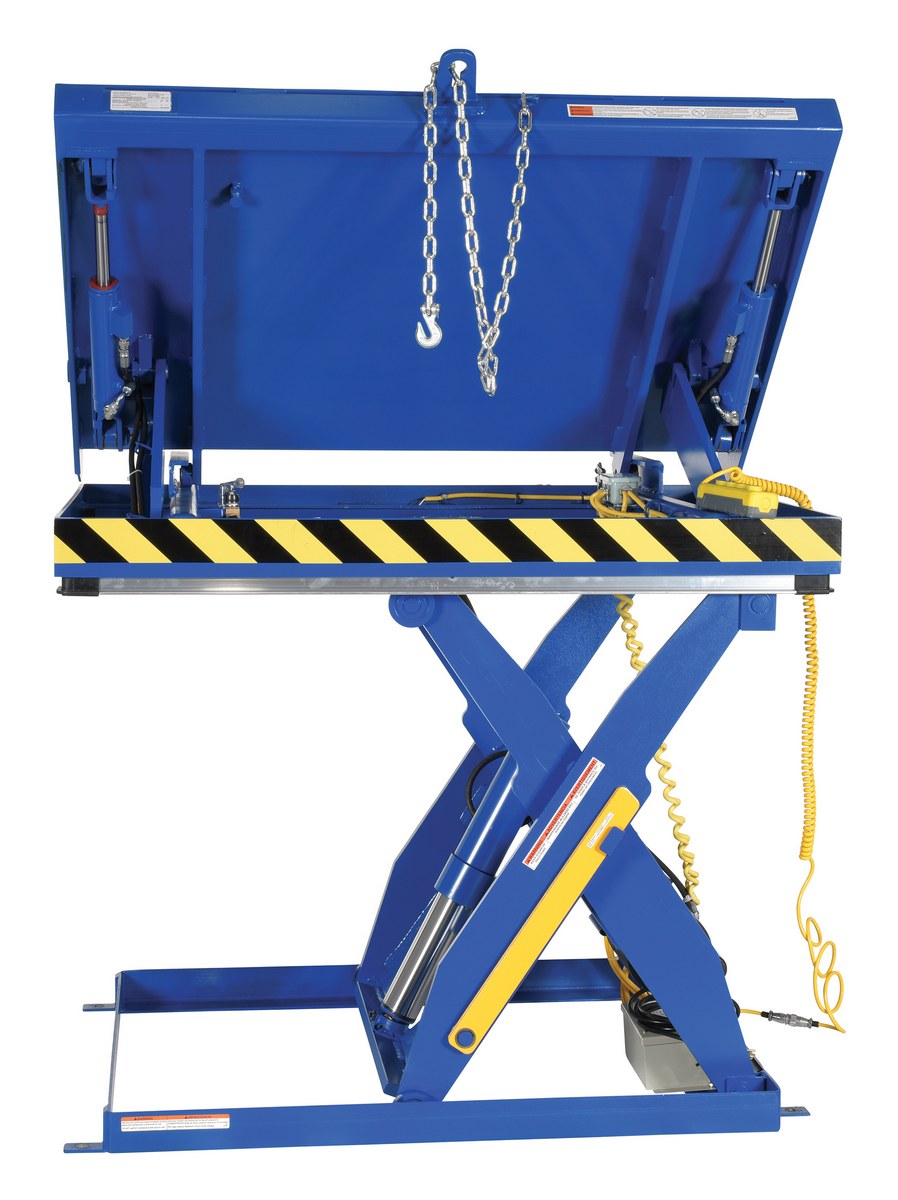

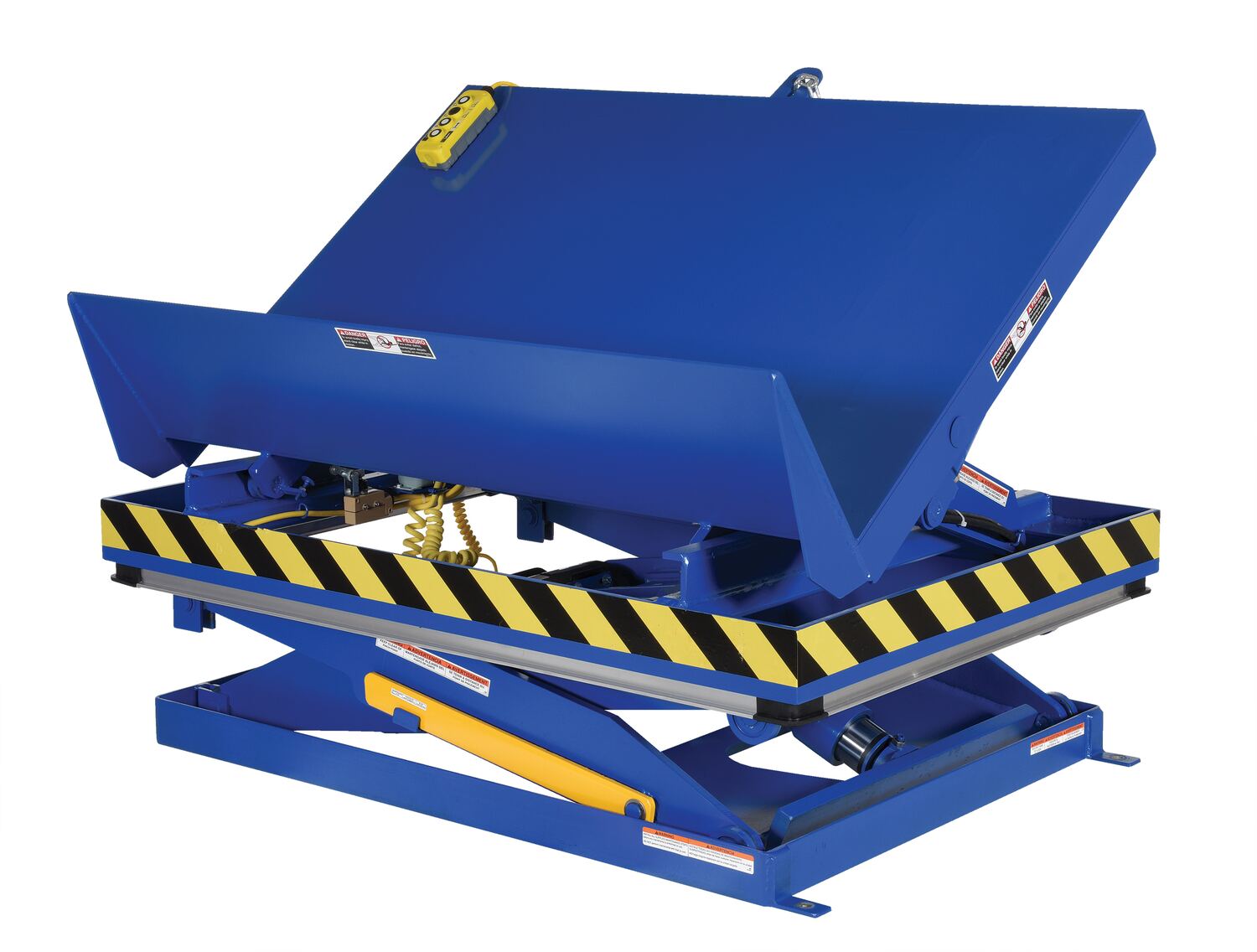

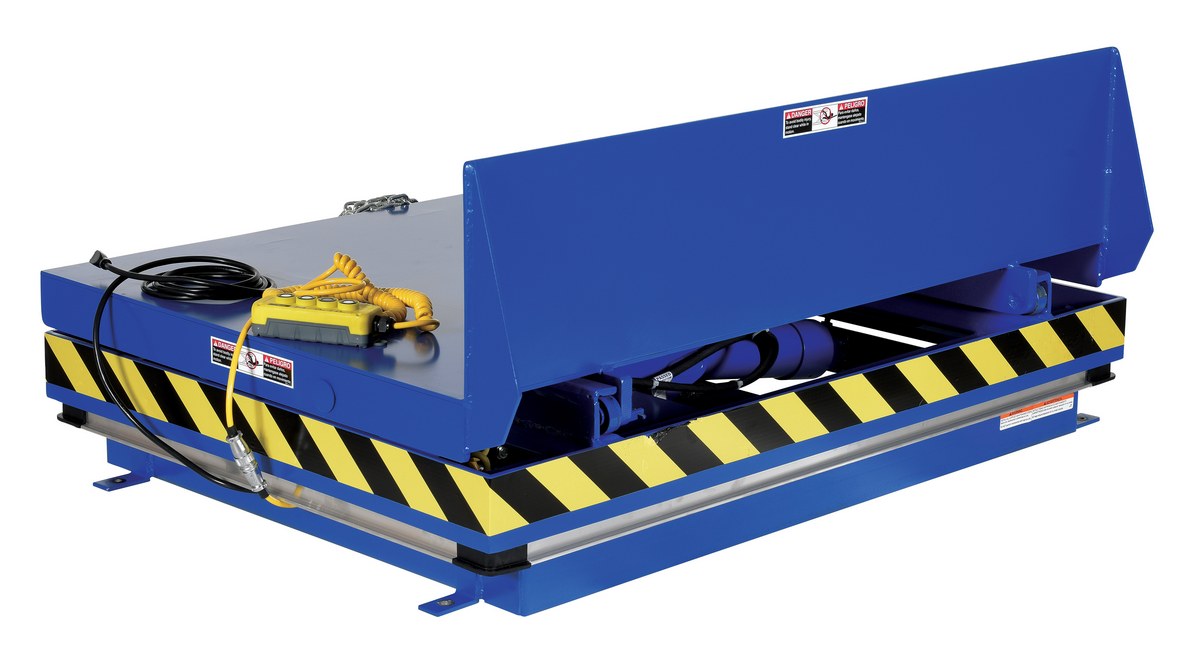

| EHLTTS-3654-2-48 | |  | 1 Year Limited Warranty | Steel Lift and Side Link Tilt Scissor Table 36 In. x 54 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Lowered Height (in.): 12 | 1238 | |
| EHLTTS-3654-4-48 | |  | 1 Year Limited Warranty | Steel Lift and Side Link Tilt Scissor Table 36 In. x 54 In. 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Lowered Height (in.): 12 | 1500 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
If you did not find an expected Model or SKU # in the table, try the Options Section Below
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Lowered Height (in.): 11
Uniform Capacity (lb.): 1000
Lowered Height (in.): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Lowered Height (in.): 11
Uniform Capacity (lb.): 2000
Lowered Height (in.): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Lowered Height (in.): 11
Uniform Capacity (lb.): 3000
Lowered Height (in.): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Lowered Height (in.): 11
Uniform Capacity (lb.): 4000
Lowered Height (in.): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Lowered Height (in.): 11
Uniform Capacity (lb.): 1000
Lowered Height (in.): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Lowered Height (in.): 11
Uniform Capacity (lb.): 2000
Lowered Height (in.): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Lowered Height (in.): 11
Uniform Capacity (lb.): 3000
Lowered Height (in.): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Lowered Height (in.): 11
Uniform Capacity (lb.): 4000
Lowered Height (in.): 11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Lowered Height (in.): 13
Uniform Capacity (lb.): 5000
Lowered Height (in.): 13
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Lowered Height (in.): 11-1/4
Uniform Capacity (lb.): 2000
Platform Lowered Height (in.): 11-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Lowered Height (in.): 11-1/4
Uniform Capacity (lb.): 2000
Platform Lowered Height (in.): 11-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Lowered Height (in.): 12
Uniform Capacity (lb.): 2000
Lowered Height (in.): 12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Lowered Height (in.): 12
Uniform Capacity (lb.): 4000
Lowered Height (in.): 12
For More Details of the Option Click the Red Model Button
| EHLTT-ROTARY-WMPB |  | 1 Year Limited Warranty | Factory Installed Air/Oil Power With Pneumatic Push Button For EHLTT Models | Brand / Model Compatibility: EHLTT-H-4848-2-48 Additional Contents: Factory Installed Power Unit | 36 |
|
Options For Electric Hydraulic Equipment Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section. |
|||||||
| Model | Description | ||||||
| HCP-2642 |  |
Optional Hand Control Pedestal | |||||
| Integeral Scale for Scissor Tables | Scales for lift tables | ||||||
| Radio Remote Control Option | 2 and 4 button hand controllers | ||||||
| Programmable Height Option | Multiple working heights at the touch of a button | ||||||
| Manual Built-In Carousel Option | Manual carousel (factory installed on new units only) | ||||||
| Safety Accordion Skirt | Keep people and debris from getting under the lift. Customer Installed. Contact factory. | ||||||
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Lift & Tilt Scissor Tables PDF's will open in a new window when clicked.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: EHLTT-3648-1-47
Hydraulic Oil SDS Sheet for: EHLTT-3648-2-47
Hydraulic Oil SDS Sheet for: EHLTT-3648-3-47
Hydraulic Oil SDS Sheet for: EHLTT-3648-4-47
Hydraulic Oil SDS Sheet for: EHLTT-4848-1-47
Hydraulic Oil SDS Sheet for: EHLTT-4848-2-47
Hydraulic Oil SDS Sheet for: EHLTT-4848-3-47
Hydraulic Oil SDS Sheet for: EHLTT-4848-4-47
Hydraulic Oil SDS Sheet for: EHLTT-4848-5-47
Hydraulic Oil SDS Sheet for: EHLTT-H-3648-2-47
Hydraulic Oil SDS Sheet for: EHLTT-H-4848-2-47
Hydraulic Oil SDS Sheet for: EHLTTS-3654-2-48
Hydraulic Oil SDS Sheet for: EHLTTS-3654-4-48
Other PDF's
No "Other PDFs" For This Product...
Directory Links Of Available PDF's For All Products
Q: What is the standard voltage and phase? Can the voltage and phase be changed?
A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.
Q: Is there an air powered option for this table?
A: For air powered option, the part number would be ROTARY-DA-HHPB.
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
