Fixed Height Aluminum Gantry Cranes

Print Friendly

Related Items
Model Chart
Options
PDF's
Image Gallery
Fixed Height Aluminum Gantry Cranes

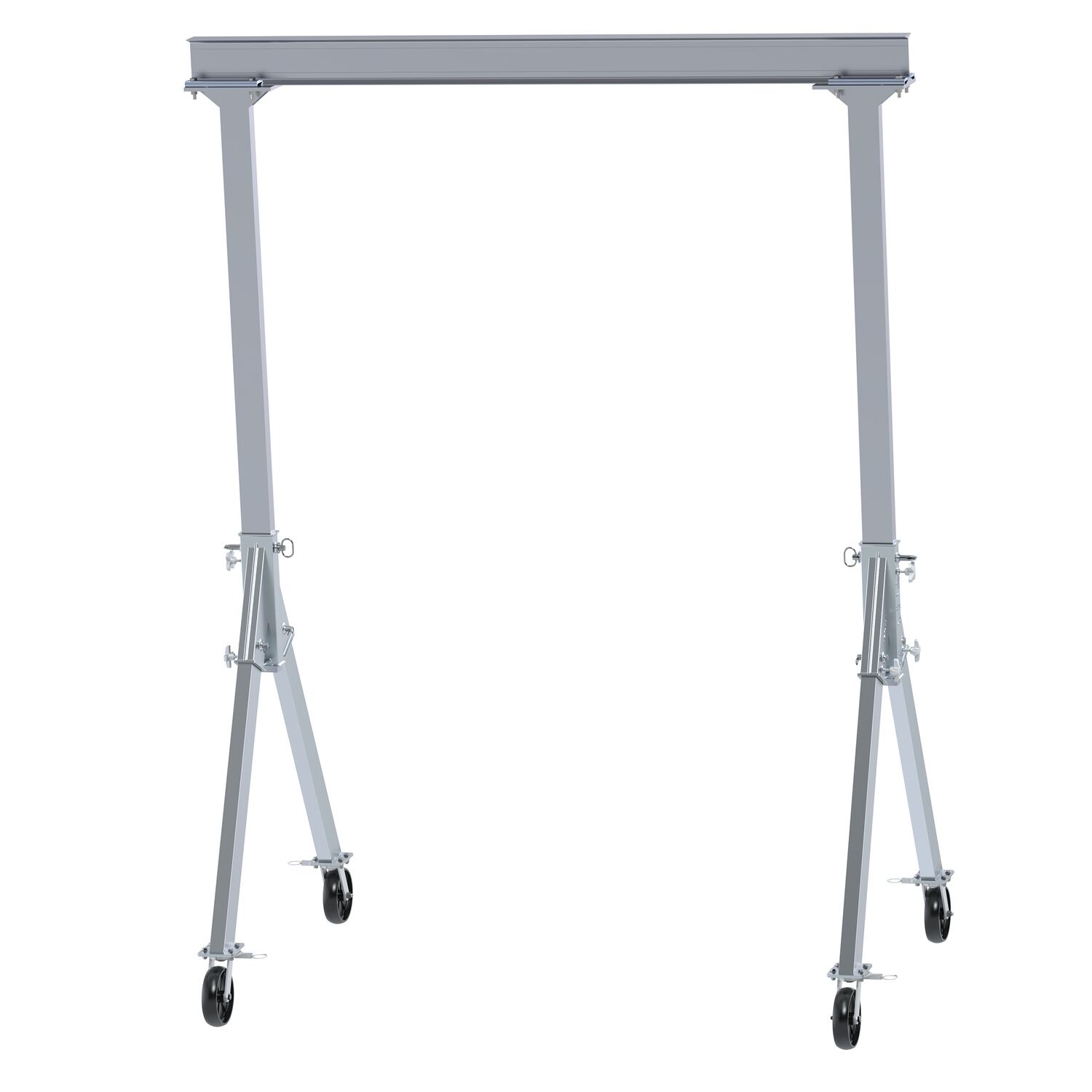

model: FHA-2-8-10

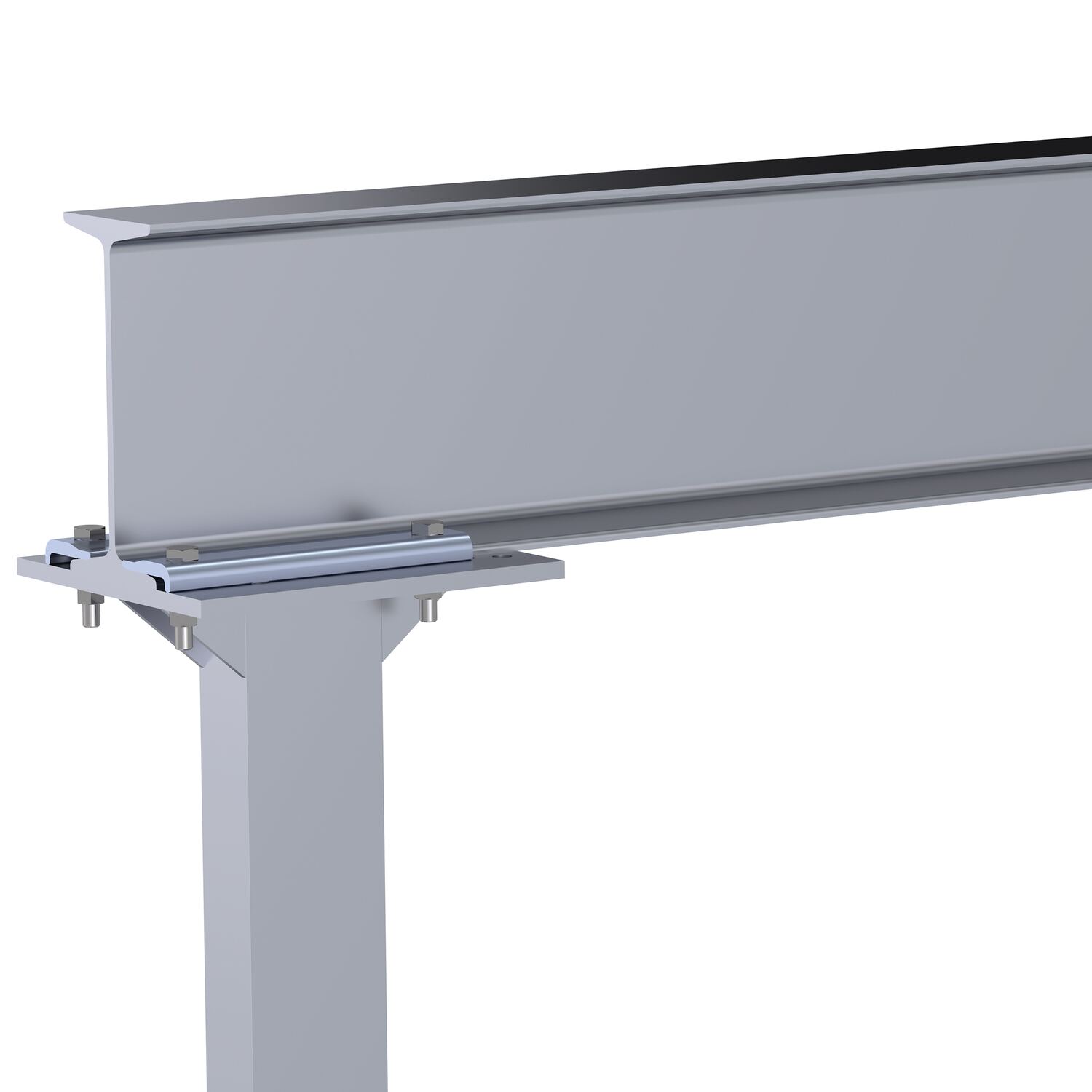

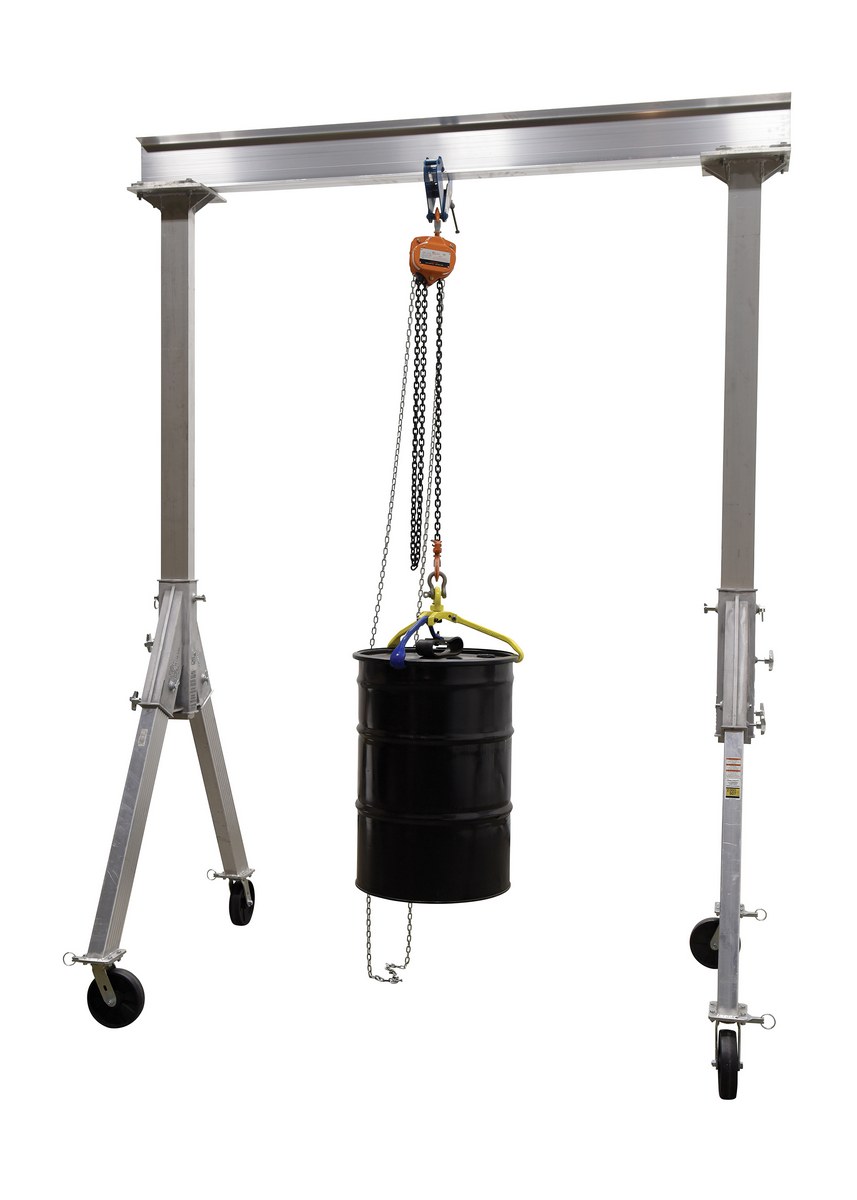

FHA-2-8-10_D.jpg FHA-2-8-10_C.jpg More Images +
Fixed Height Aluminum Gantry Cranes
SERIES: FHA

The Fixed Height Aluminum Gantry Cranes are ideal for variety of industries including maintenance and production. The aluminum design is easily manageable and can be simply assembled for immediate use. A fixed height is perfect for working in a permanent or semi-permanent environment where the surrounding seldom change. Casters provide a smooth way to transfer units when unloaded and if changing locations is needed. Unit comes standard four (4) position locking swivel casters with roller bearings (2K units have glass filled nylon casters. 4K-6K units have phenolic casters). A strong construction allows for long lasting strength through the harshest of environments. Hoists & Trollies can be ordered seperately.

  • Robust construction for long term use
  • Each unit includes four casters for safe positioning
  • The fixed height of the unit provides constant lifting stability
  • Great for long term consistent height projects

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option

Fixed Height Aluminum Gantry Cranes

model: FHA-2-8-10

Model # Description Attributes Net Wt.
(lbs)

* Usable distance between uprights is overall I-Beam length minus 15-7/8 Usable trolley travel length is overall I-Beam length minus 23-3/4

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
FHA-2-10-10
FHA-2-12-10
FHA-2-15-10
FHA-2-8-10
FHA-4-10-10
FHA-4-12-10
FHA-4-15-10
FHA-4-8-10
FHA-6-10-10
FHA-6-12-10
FHA-6-15-10
FHA-6-8-10
FHA-STLO
FHA-STLO-RF
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.
FHA-STLO FHA-STLOFactory Installed Steel Stationary Legs Kit Quantity 4 For F…85

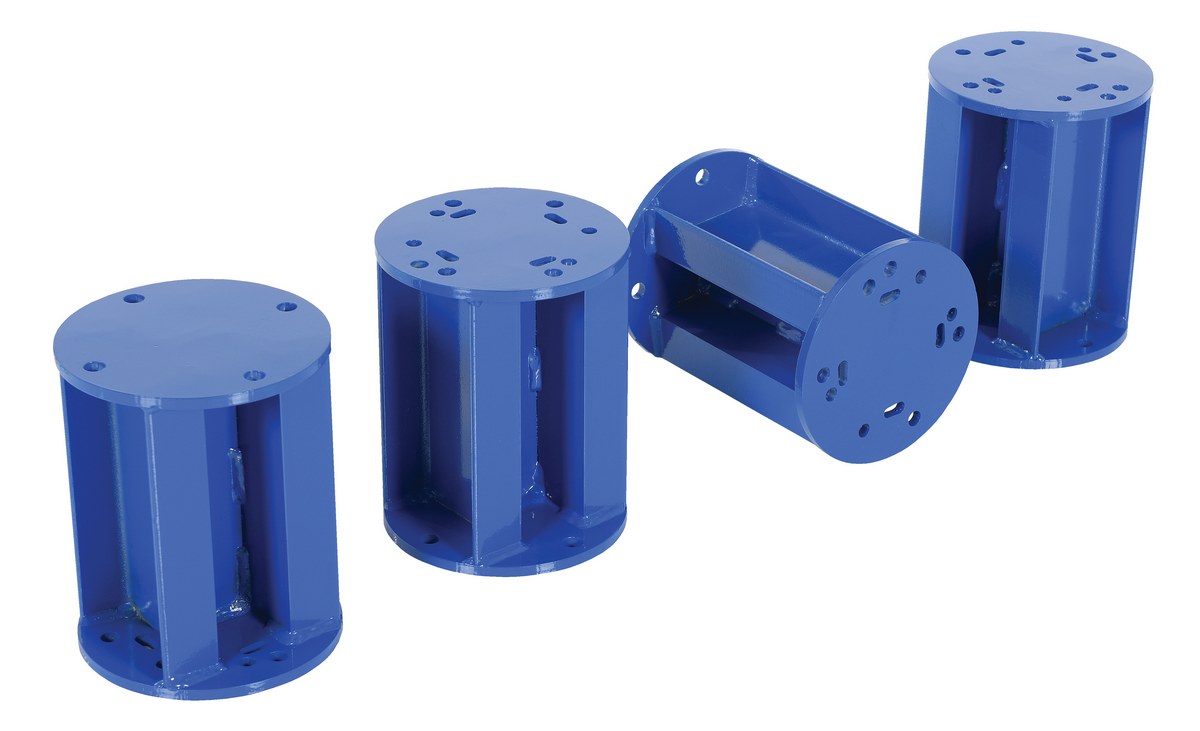

FHA-STLO-RF FHA-STLO-RFSteel Field Installed Stationary Legs For Fixed Height Alumi…85

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

FHA

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

FHA-2-8-10

FHA-2-10-10

FHA-2-12-10

FHA-2-15-10

FHA-4-8-10

FHA-4-10-10

FHA-4-12-10

FHA-4-15-10

FHA-6-8-10

FHA-6-10-10

FHA-6-12-10

FHA-6-15-10

FHA-STLO

FHA-STLO-RF

Testing Certificates

FHA-2-10-10

FHA-2-12-10

FHA-2-15-10

FHA-2-8-10

FHA-4-10-10

FHA-4-12-10

FHA-4-15-10

FHA-4-8-10

FHA-6-10-10

FHA-6-12-10

FHA-6-15-10

FHA-6-8-10

FHA-STLO

FHA-STLO-RF

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product
What type of aluminum is used for the FHA gantry cranes?
The FHA iBeams are 6061 aluminum and the frames are 6105 aluminum.

Related or Similar Products:

More From Gantry Cranes





Fixed Height Aluminum Gantry C...




The Fixed Height Aluminum Gantry Cranes are ideal for variety of industries including maintenance and production. The aluminum design is easily manageable and can be simply assembled for immediate use. A fixed height is perfect for working in a permanent or semi-permanent environment where the surrounding seldom change. Casters provide a smooth way to transfer units when unloaded and if changing locations is needed. Unit comes standard four (4) position locking swivel casters with roller bearings (2K units have glass filled nylon casters. 4K-6K units have phenolic casters). A strong construction allows for long lasting strength through the harshest of environments. Hoists & Trollies can be ordered seperately.

  • Robust construction for long term use
  • Each unit includes four casters for safe positioning
  • The fixed height of the unit provides constant lifting stability
  • Great for long term consistent height projects

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option


Model # Description Attributes Net Wt.
(lbs)

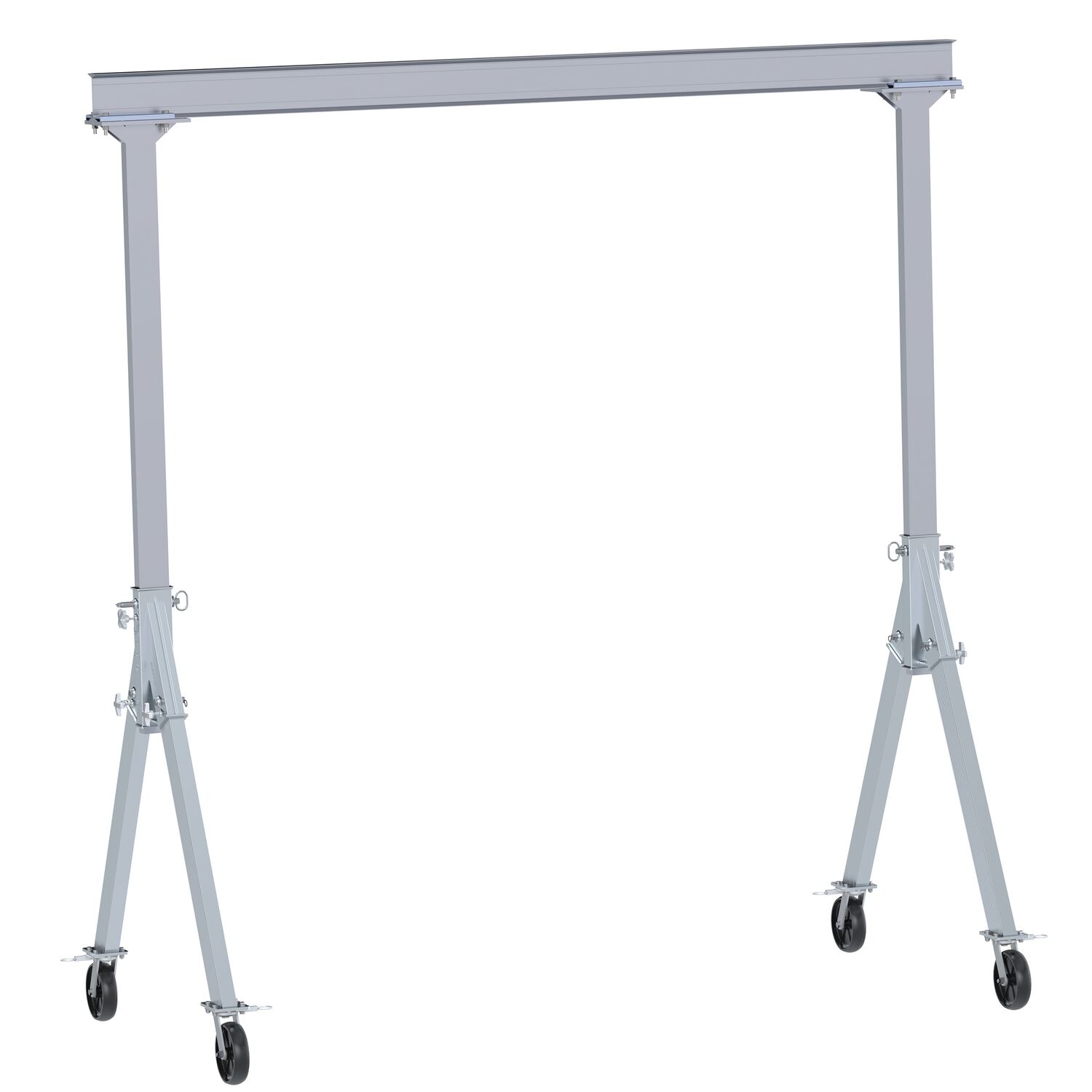

FHA-2-10-10 FHA-2-10-10Aluminum Fixed Gantry Crane with Glass Filled Nylon Locking Casters 10 Ft. x 10 Ft. 2000 Lb. Capacity SilverUniform Capacity (lb.): 2000
Overall I-Beam Length (in.): 120		333

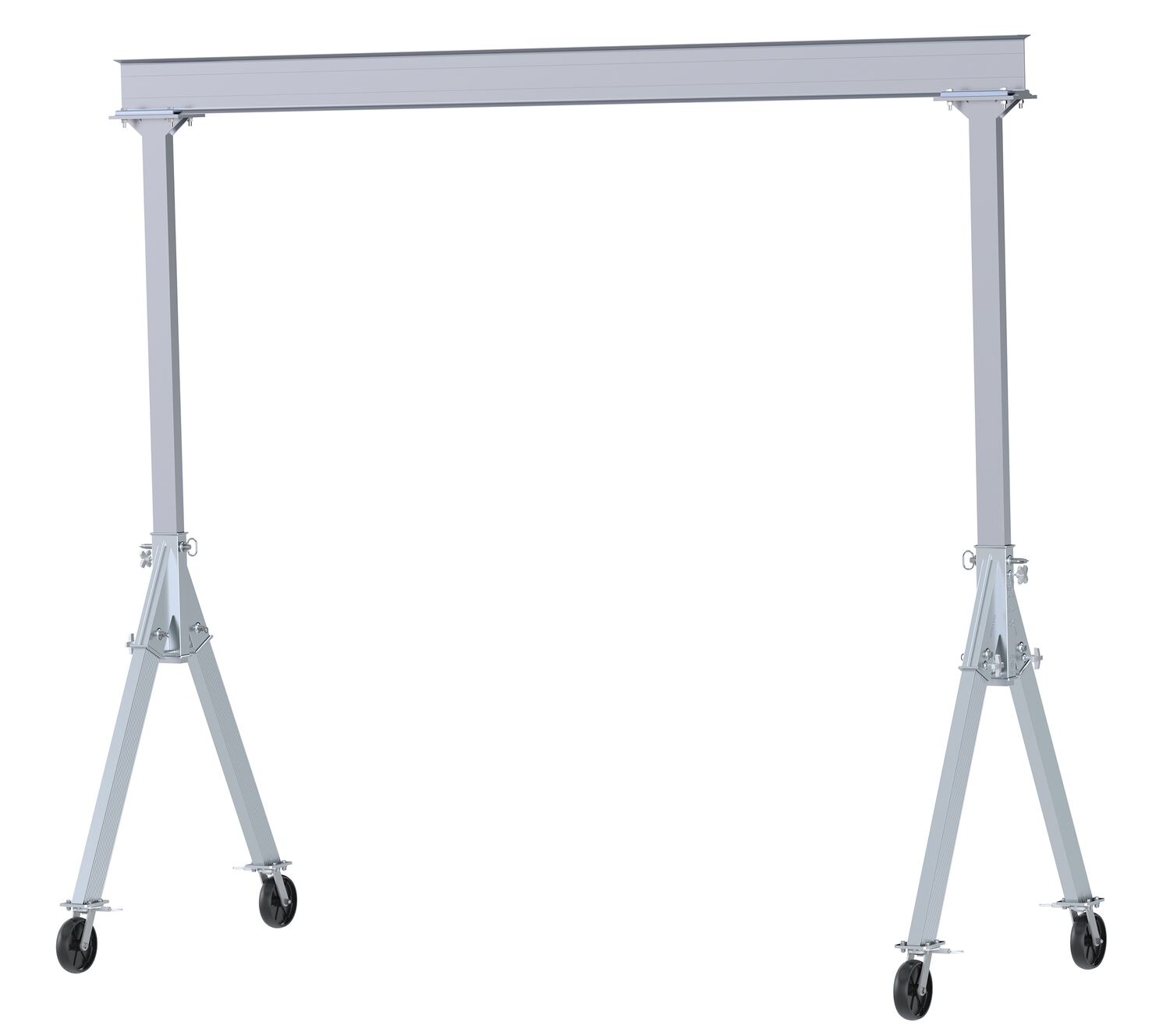

FHA-2-12-10 FHA-2-12-10Aluminum Fixed Gantry Crane with Glass Filled Nylon Locking Casters 12 Ft. x 10 Ft. 2000 Lb. Capacity SilverUniform Capacity (lb.): 2000
Overall I-Beam Length (in.): 144		355

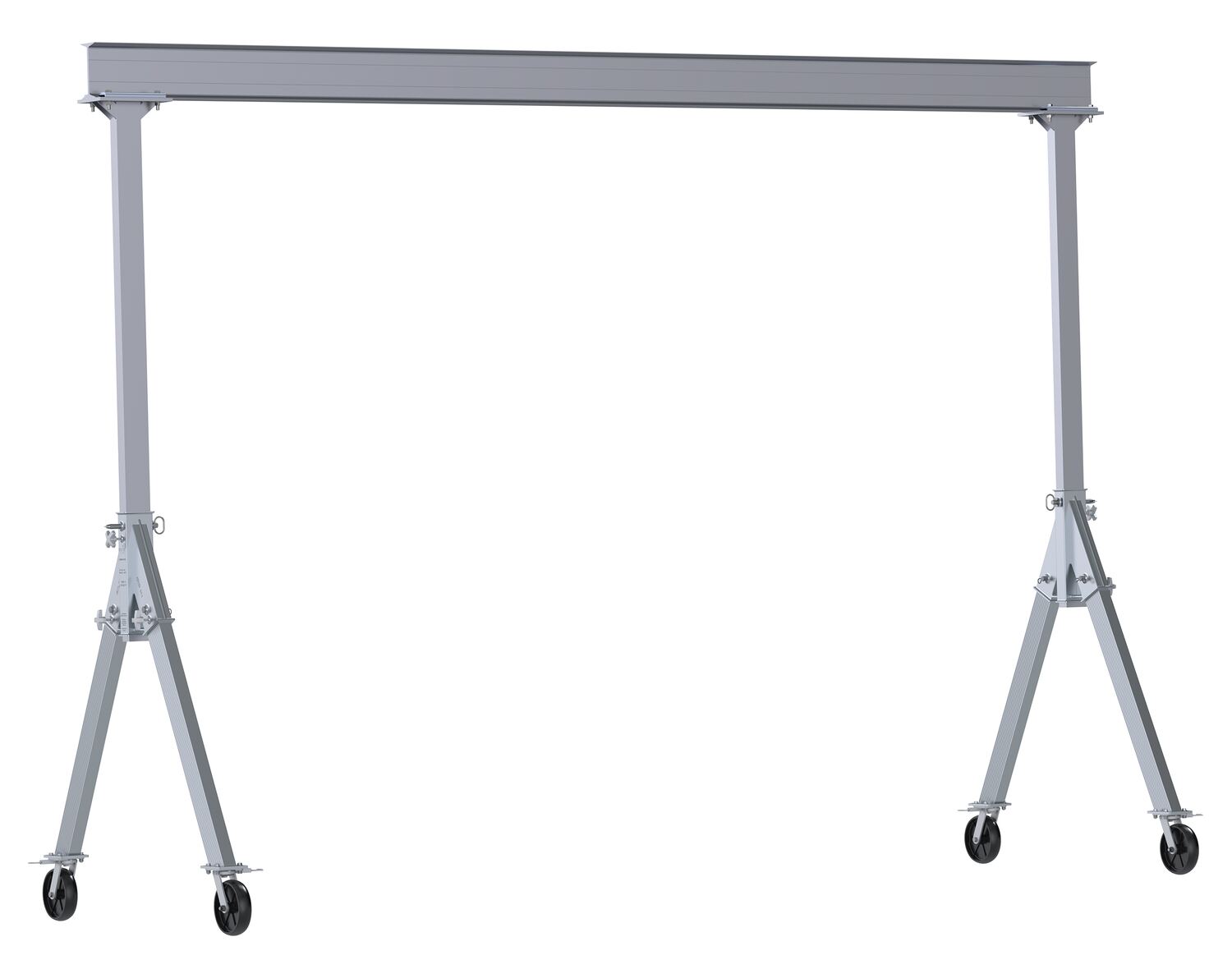

FHA-2-15-10 FHA-2-15-10Aluminum Fixed Gantry Crane with Glass Filled Nylon Locking Casters 15 Ft. x 10 Ft. 2000 Lb. Capacity SilverUniform Capacity (lb.): 2000
Overall I-Beam Length (in.): 180		445
FHA-2-8-10 FHA-2-8-10Aluminum Fixed Gantry Crane with Glass Filled Nylon Locking Casters 8 Ft. x 10 Ft. 2000 Lb. Capacity SilverUniform Capacity (lb.): 2000
Overall I-Beam Length (in.): 96		331

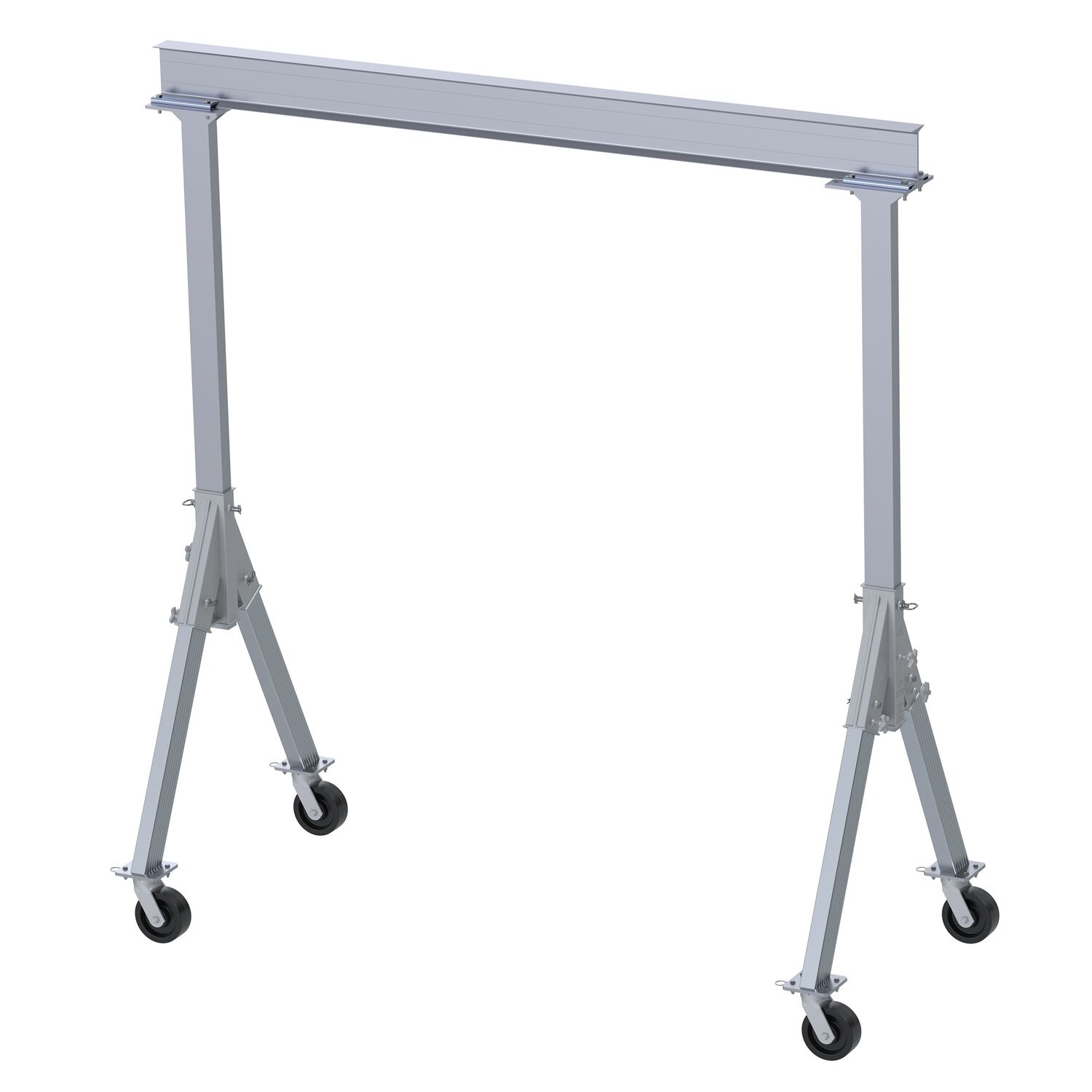

FHA-4-10-10 FHA-4-10-10Aluminum Fixed Gantry Crane with Phenolic Locking Casters 10 Ft. x 10 Ft. 4000 Lb. Capacity SilverUniform Capacity (lb.): 4000
Overall I-Beam Length (in.): 120		390

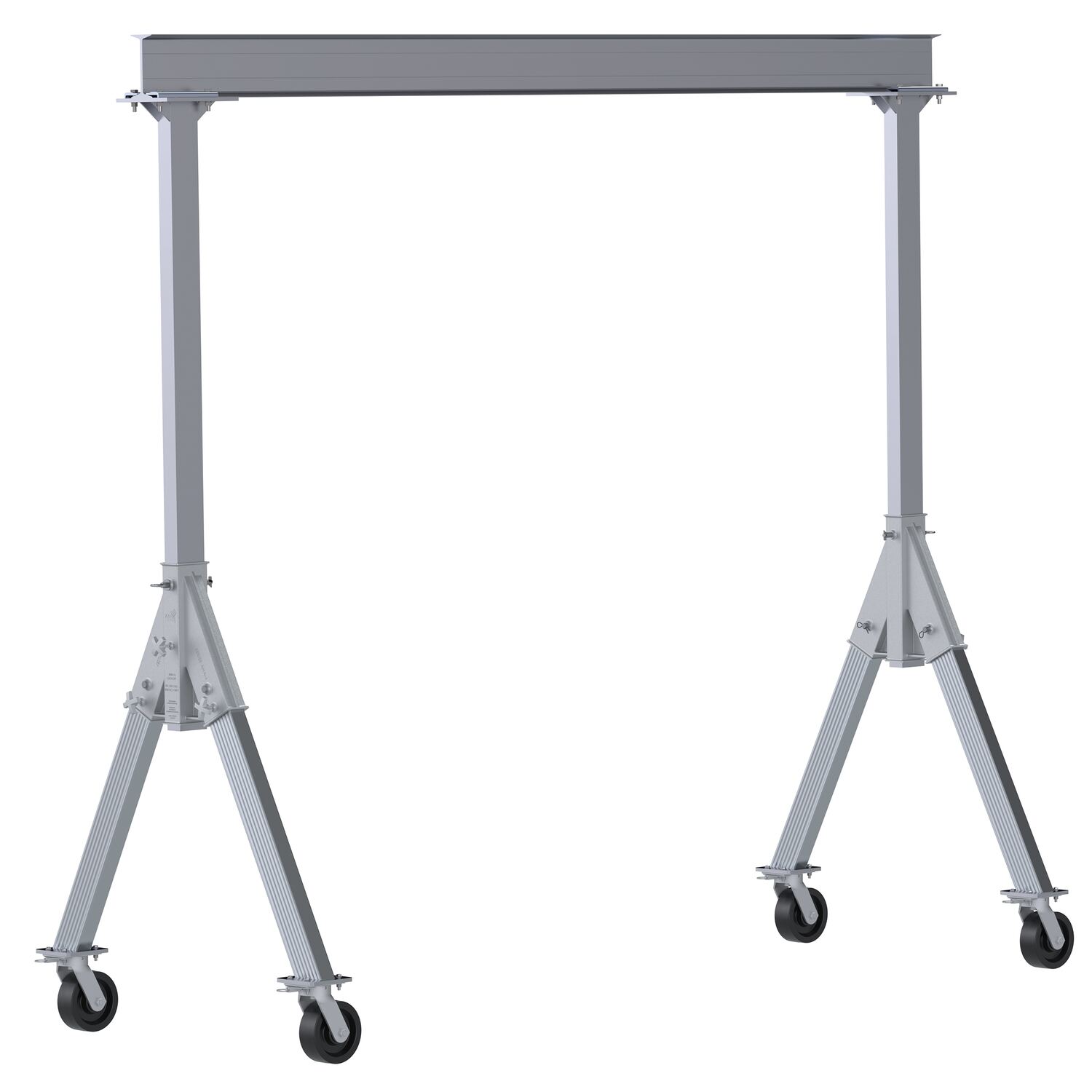

FHA-4-12-10 FHA-4-12-10Aluminum Fixed Gantry Crane with Phenolic Locking Casters 12 Ft. x 10 Ft. 4000 Lb. Capacity SilverUniform Capacity (lb.): 4000
Overall I-Beam Length (in.): 144		406

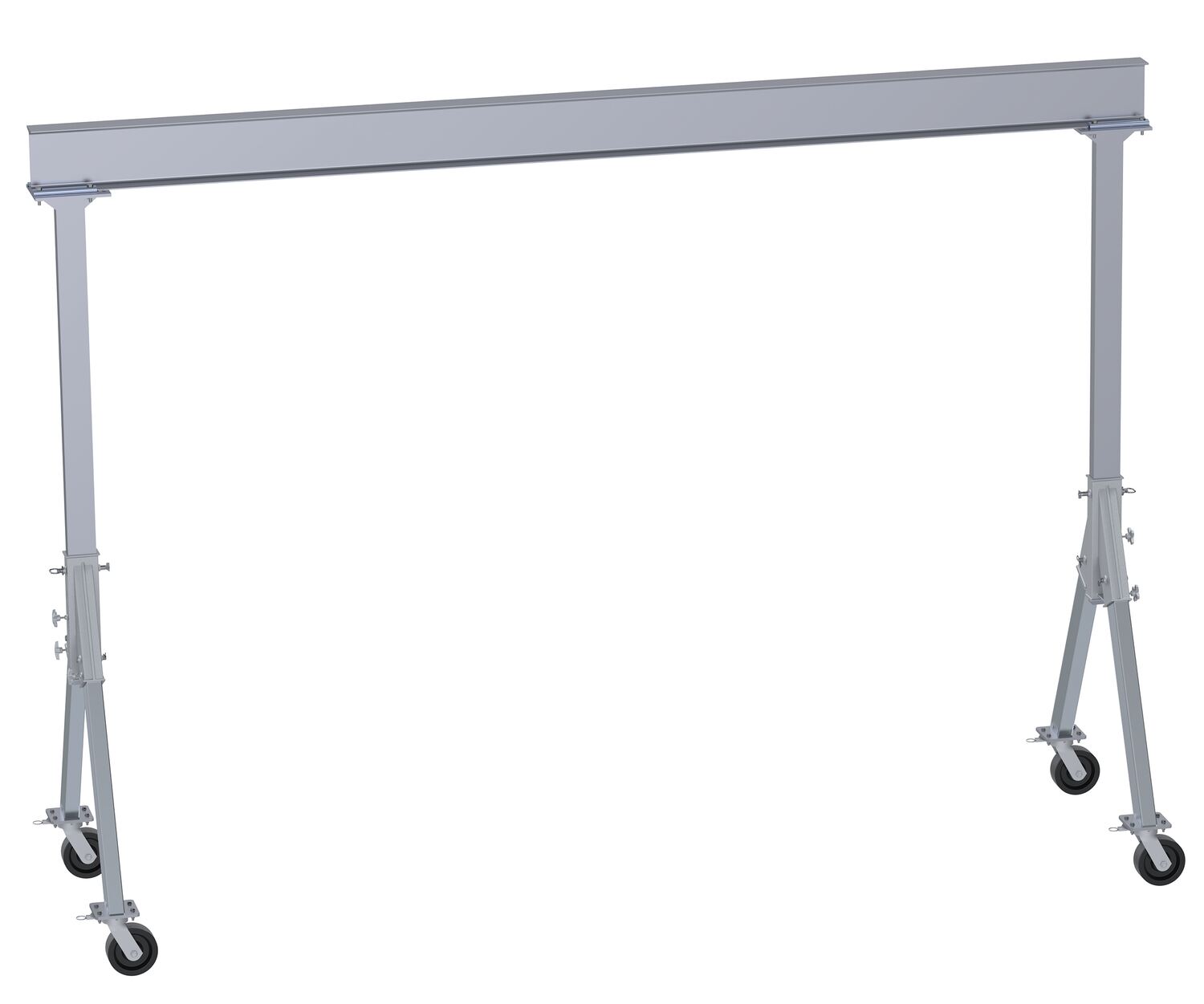

FHA-4-15-10 FHA-4-15-10Aluminum Fixed Gantry Crane with Phenolic Locking Casters 15 Ft. x 10 Ft. 4000 Lb. Capacity SilverUniform Capacity (lb.): 4000
Overall I-Beam Length (in.): 180		442
FHA-4-8-10 FHA-4-8-10Aluminum Fixed Gantry Crane with Phenolic Locking Casters 8 Ft. x 10 Ft. 4000 Lb. Capacity SilverUniform Capacity (lb.): 4000
Overall I-Beam Length (in.): 96		390
FHA-6-10-10 FHA-6-10-10Aluminum Fixed Gantry Crane with Phenolic Locking Casters 10 Ft. x 10 Ft. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Overall I-Beam Length (in.): 120		608
FHA-6-12-10 FHA-6-12-10Aluminum Fixed Gantry Crane with Phenolic Locking Casters 12 Ft. x 10 Ft. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Overall I-Beam Length (in.): 144		777

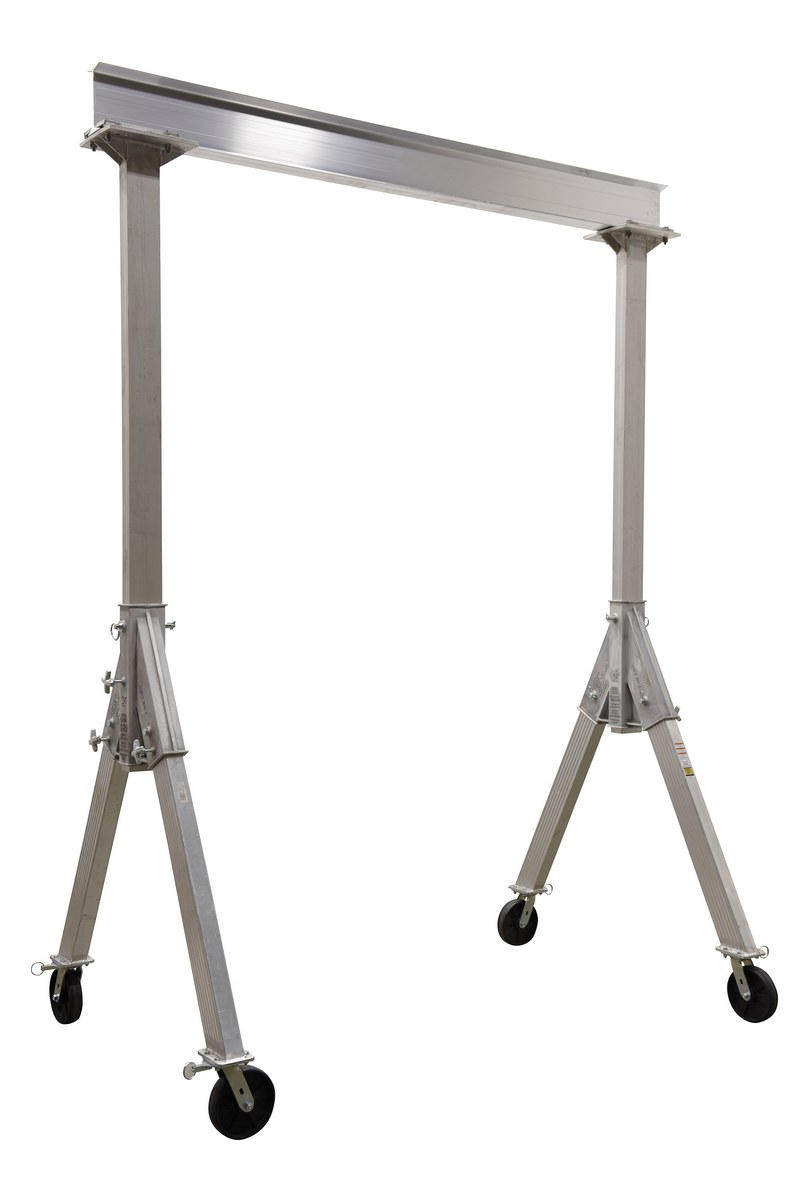

FHA-6-15-10 FHA-6-15-10Aluminum Fixed Gantry Crane with Phenolic Locking Casters 15 Ft. x 10 Ft. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Overall I-Beam Length (in.): 180		658
FHA-6-8-10 FHA-6-8-10Aluminum Fixed Gantry Crane with Phenolic Locking Casters 8 Ft. x 10 Ft. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Overall I-Beam Length (in.): 96		528
