Fixed Steel Gantry Cranes

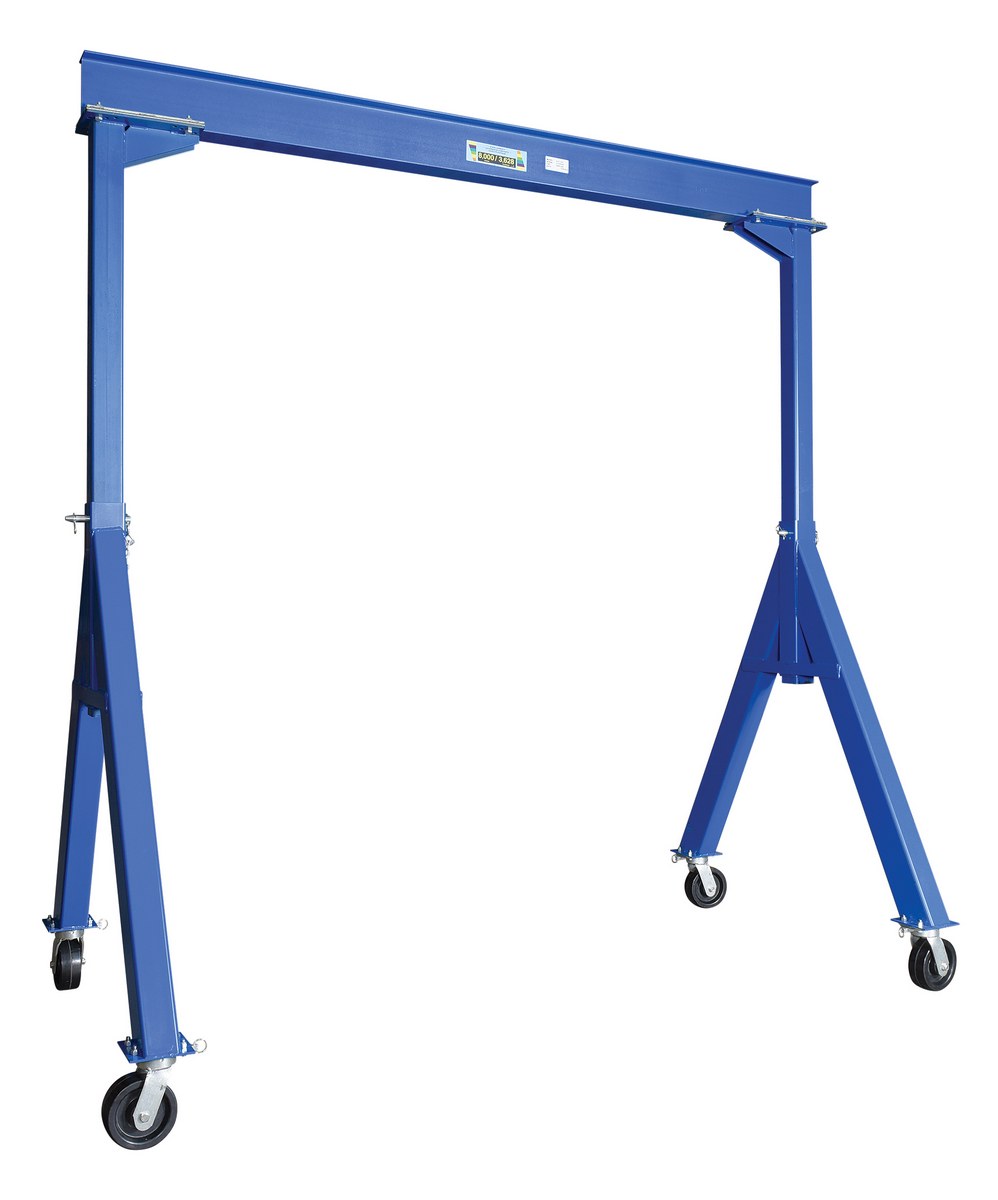

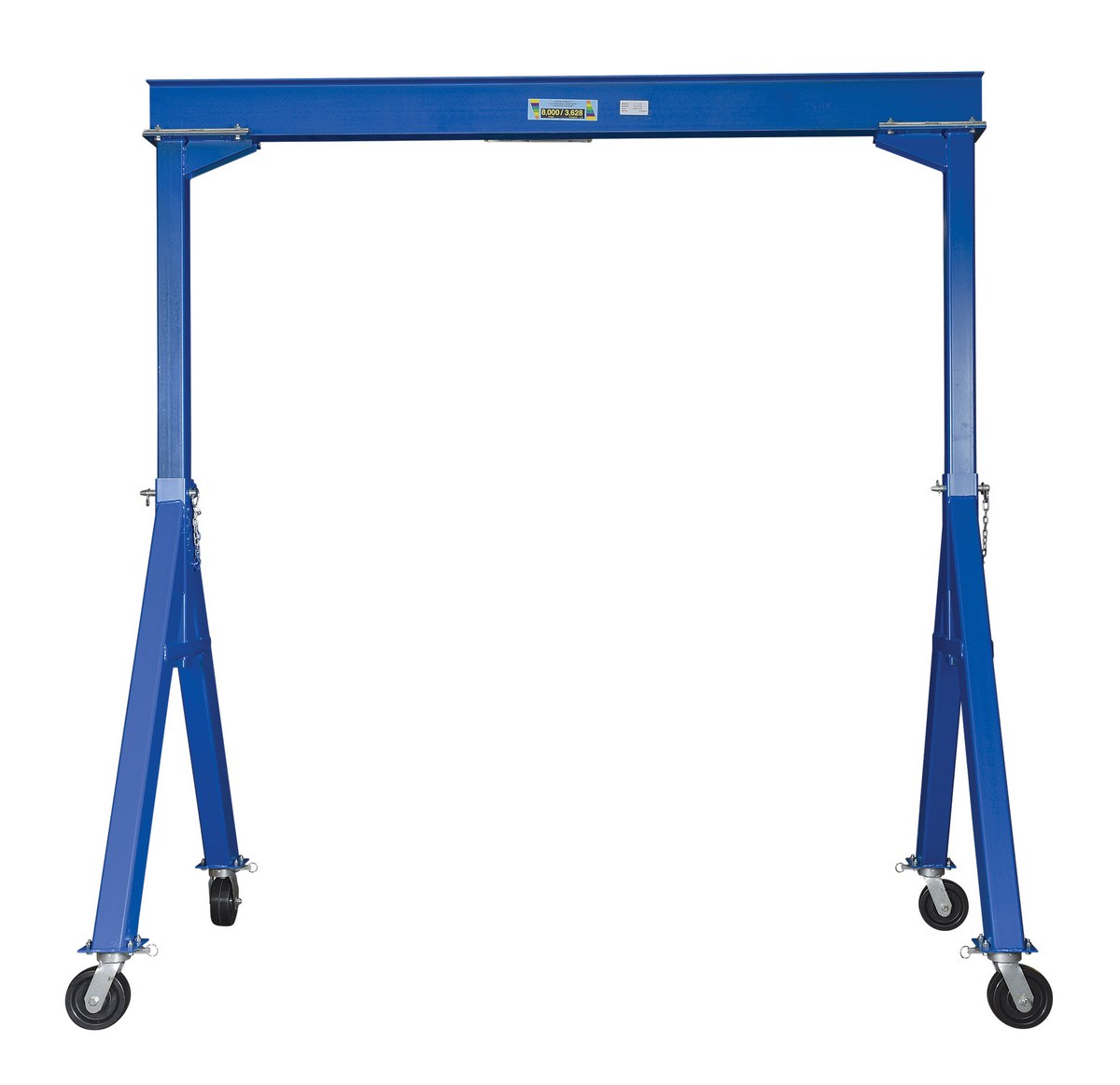

model: FHS-8-10

FHS-8-10_A.jpg FHS-8-10_1.jpg FHS-8-10_C.jpg More Images +
Fixed Steel Gantry Cranes
SERIES: FHS

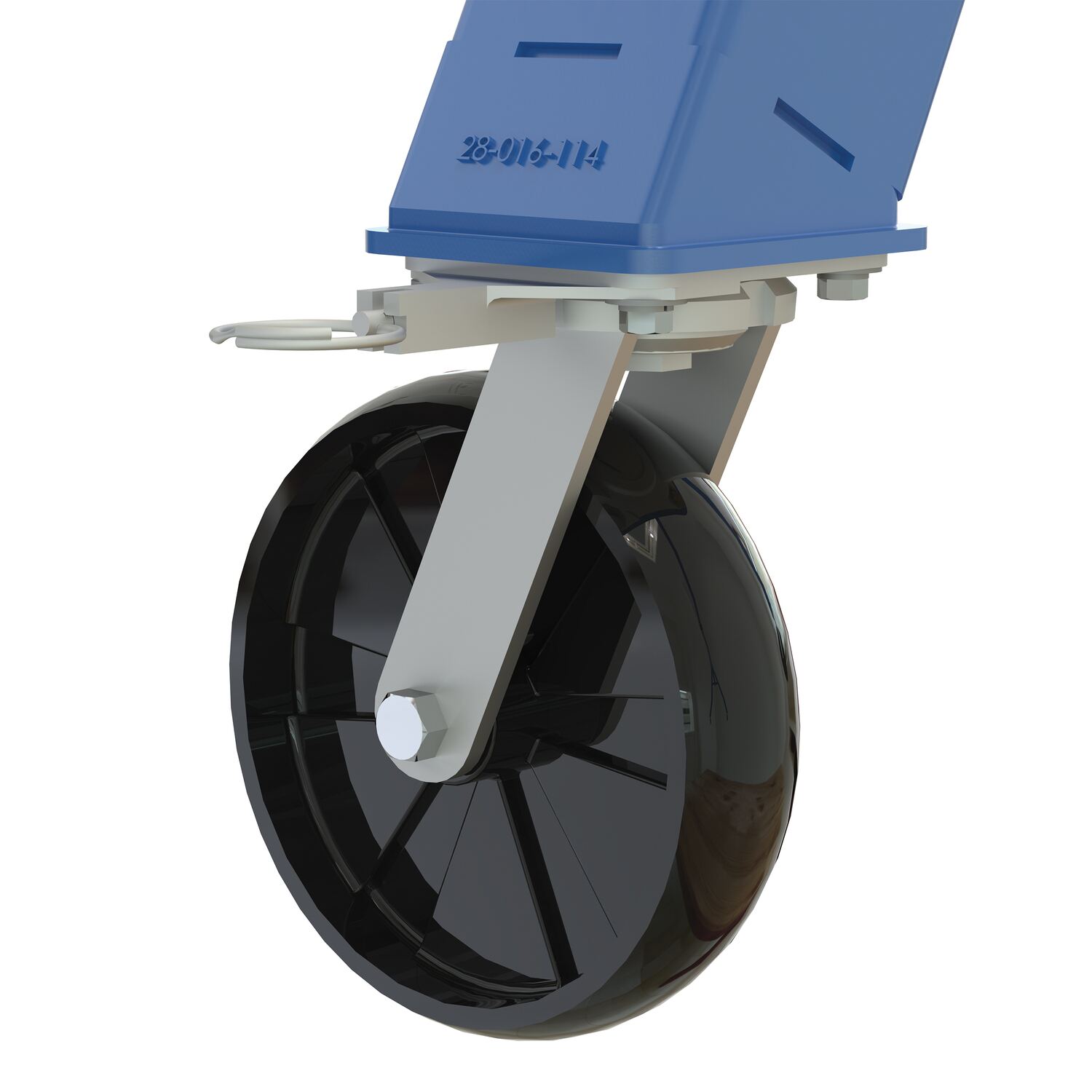

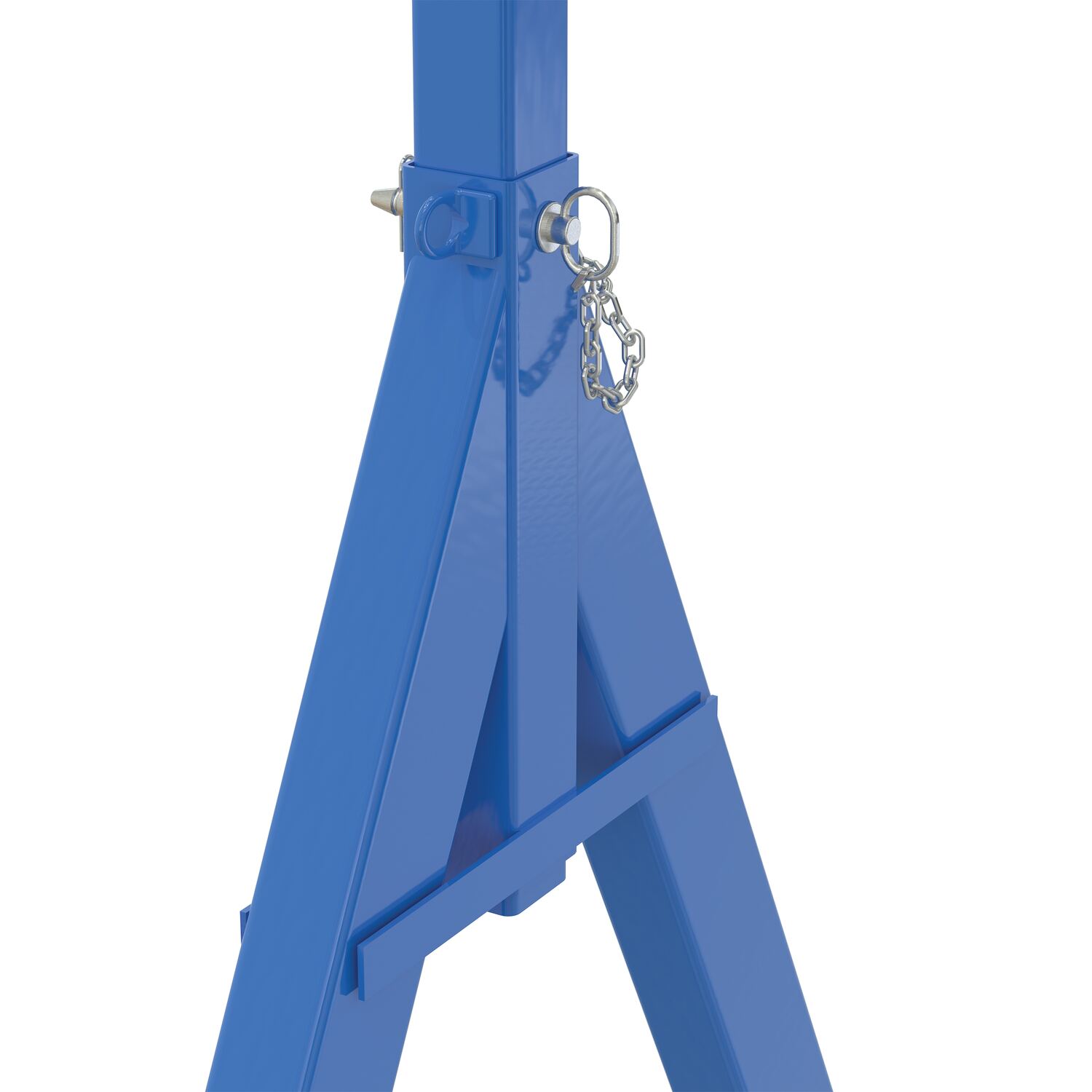

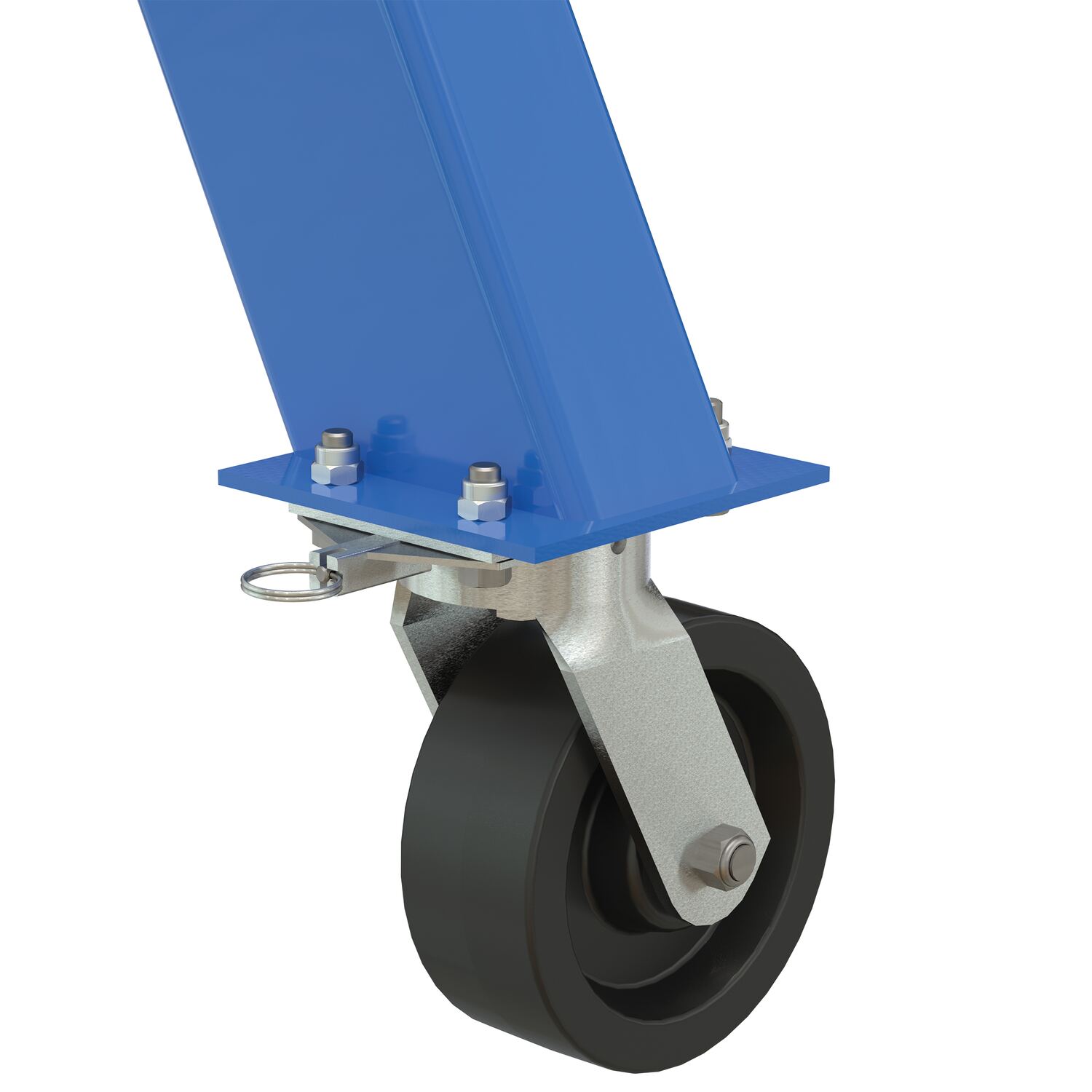

The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware.Unit comes standard four (4) position locking swivel casters with roller bearings (2K units have glass filled nylon casters. 4K-8K units have phenolic casters. 10K model has steel casters). The rigging locks in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit. Hoists & Trollies can be ordered seperately.

  • Heavy-duty welded steel construction for long lasting use
  • Each unit includes four swivel glass filled nylon casters with four-way position locks for safe positioning
  • The fixed height of the unit provides constant lifting stability
  • All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option

Fixed Steel Gantry Cranes

model: FHS-8-10

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
FHS-10-10
FHS-10-15
FHS-2-10
FHS-2-15
FHS-2-20
FHS-4-10
FHS-4-15
FHS-4-20
FHS-6-10
FHS-6-15
FHS-6-20
FHS-8-10
FHS-8-15
FHS-8-20
FHS-STLO
FHS-STLO-RF
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

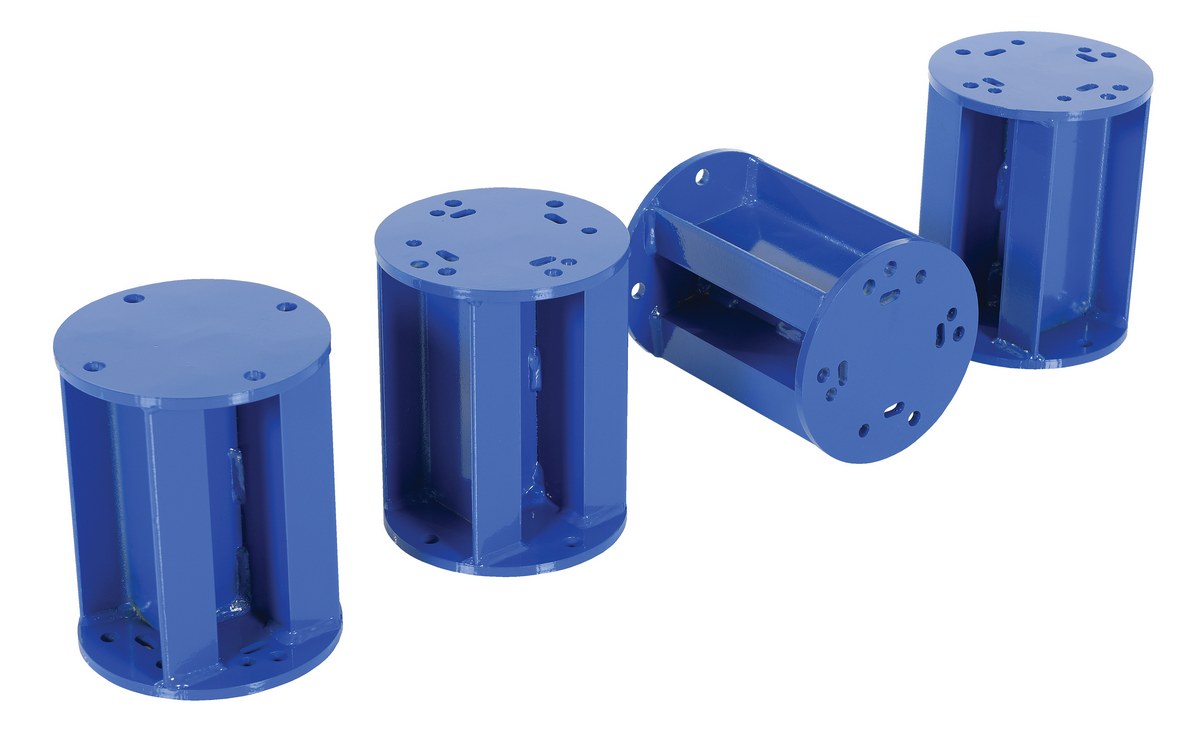

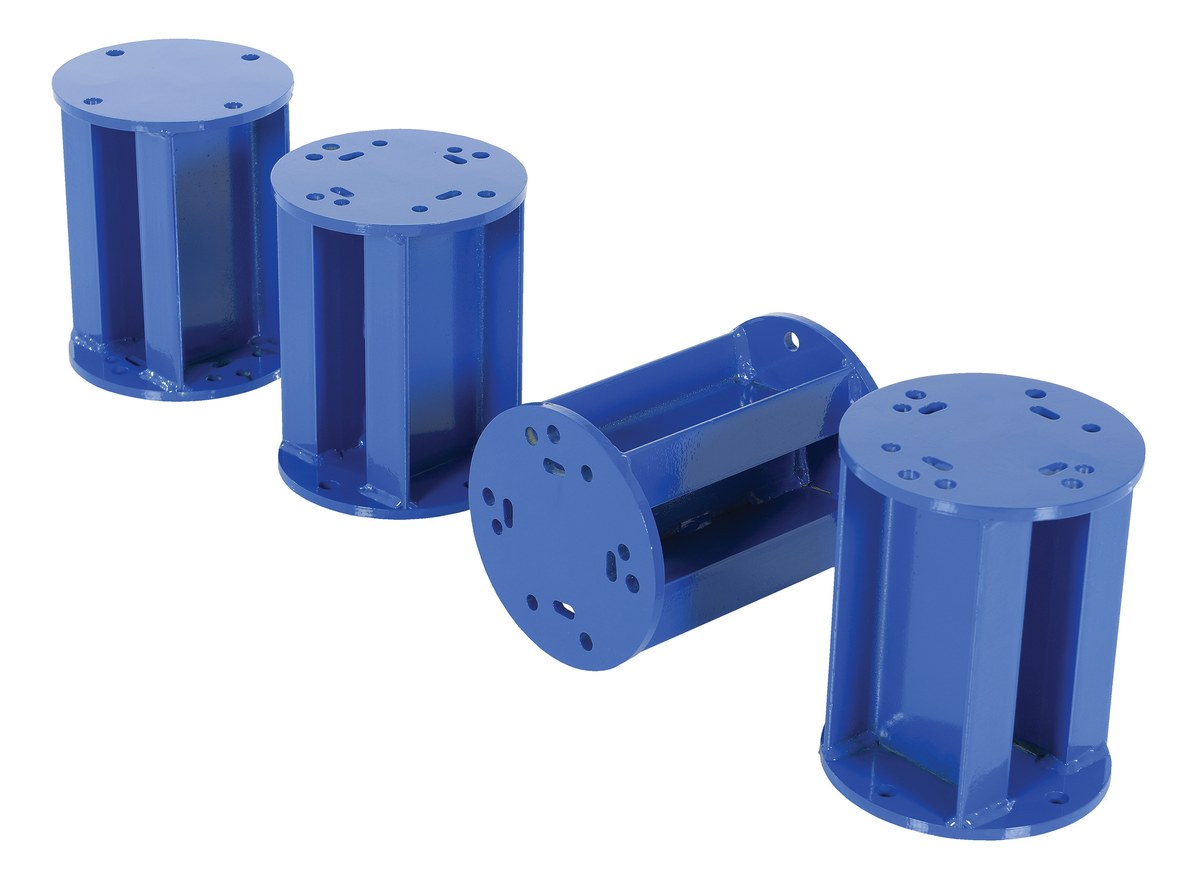

FHS-STLO FHS-STLOFactory Installed Steel Stationary Legs Kit Quantity 4 For F…85

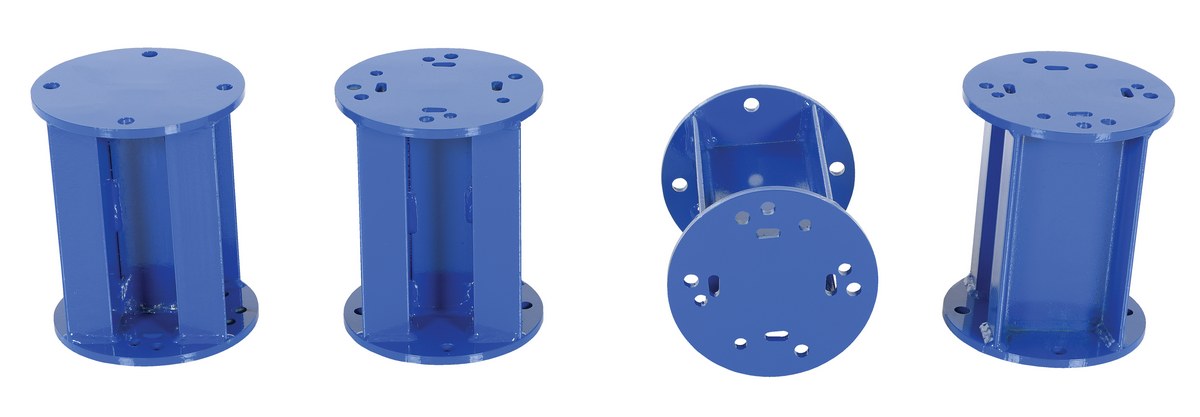

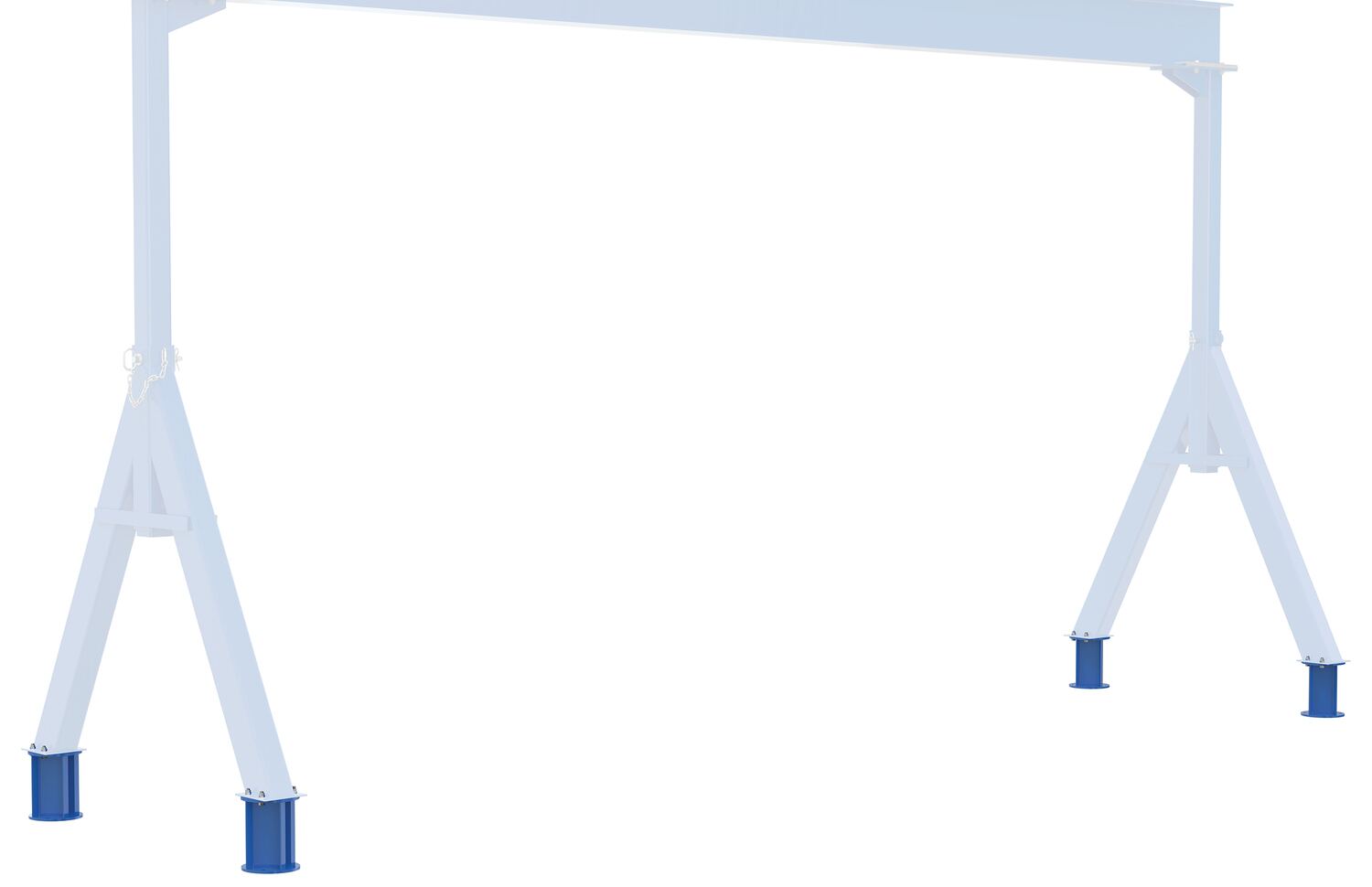

FHS-STLO-RF FHS-STLO-RFSteel Field Installed Stationary Legs For Fixed Height Steel…85

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

FHS

Survey Sheets

FHS

Engineering Drawings

FHS-2-10

FHS-2-15

FHS-2-20

FHS-4-10

FHS-4-15

FHS-4-20

FHS-6-10

FHS-6-15

FHS-6-20

FHS-8-10

FHS-8-15

FHS-8-20

FHS-10-10

FHS-10-15

FHS-STLO

FHS-STLO-RF

Testing Certificates

FHS-10-10

FHS-10-15

FHS-2-10

FHS-2-15

FHS-2-20

FHS-4-10

FHS-4-15

FHS-4-20

FHS-6-10

FHS-6-15

FHS-6-20

FHS-8-10

FHS-8-15

FHS-8-20

FHS-STLO

FHS-STLO-RF

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products

Enhanced Product Content

FHS-4-10

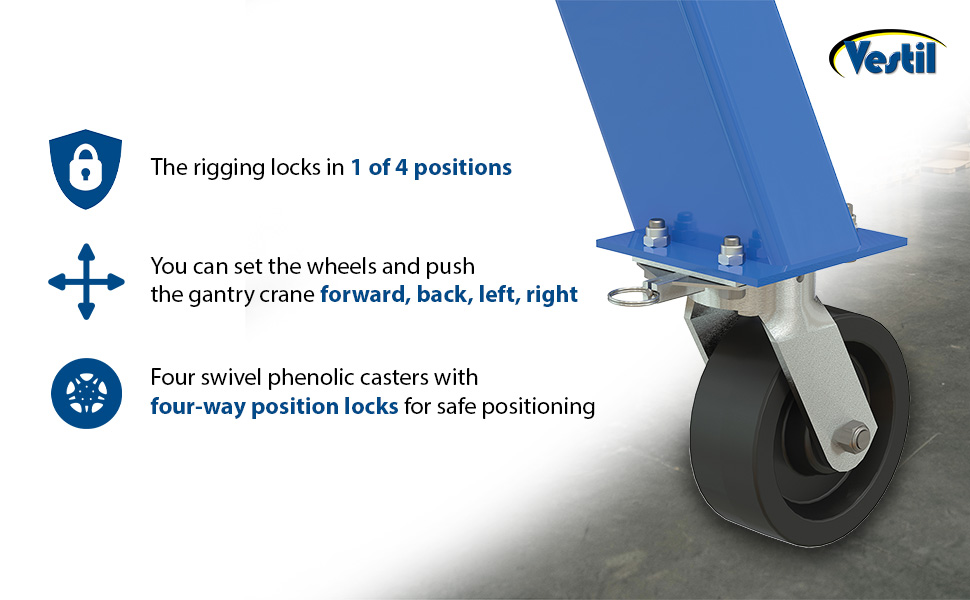

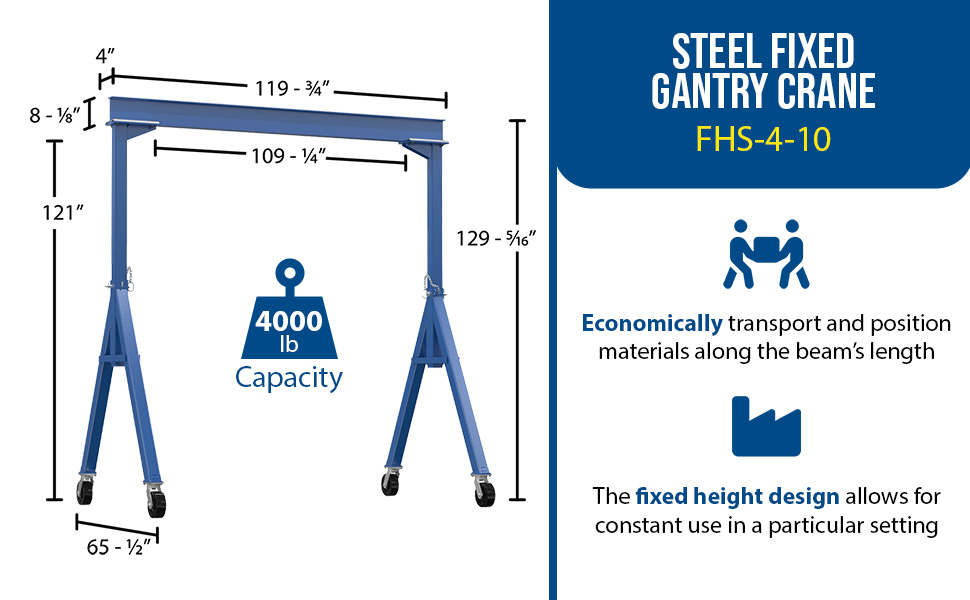

FHS-4-10 FHS-4-10 A+ Content - 3
FHS-4-10 FHS-4-10 A+ Content - 2
FHS-4-10 FHS-4-10 A+ Content - 1

Applications



Construction Projects

Warehouses

Do It Yourself

Automotive

Farming and Agriculture

Maintenance Yards

Packaging Areas
Does the gantry come with a hoist?
The hoists and trolleys for the fixed height steel gantry cranes are sold separately. You'll find multiple options available.
We are looking at the V-Groove system. Is it possible to keep the gantry on the rail with one person pushing the crane on one end?
The V-Groove option makes moving much easier. We recommend pushing the gantry on both ends when re-positioning it.

Related or Similar Products:

More From Gantry Cranes





Fixed Steel Gantry Cranes




The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware.Unit comes standard four (4) position locking swivel casters with roller bearings (2K units have glass filled nylon casters. 4K-8K units have phenolic casters. 10K model has steel casters). The rigging locks in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit. Hoists & Trollies can be ordered seperately.

  • Heavy-duty welded steel construction for long lasting use
  • Each unit includes four swivel glass filled nylon casters with four-way position locks for safe positioning
  • The fixed height of the unit provides constant lifting stability
  • All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option


Model # Description Attributes Net Wt.
(lbs)

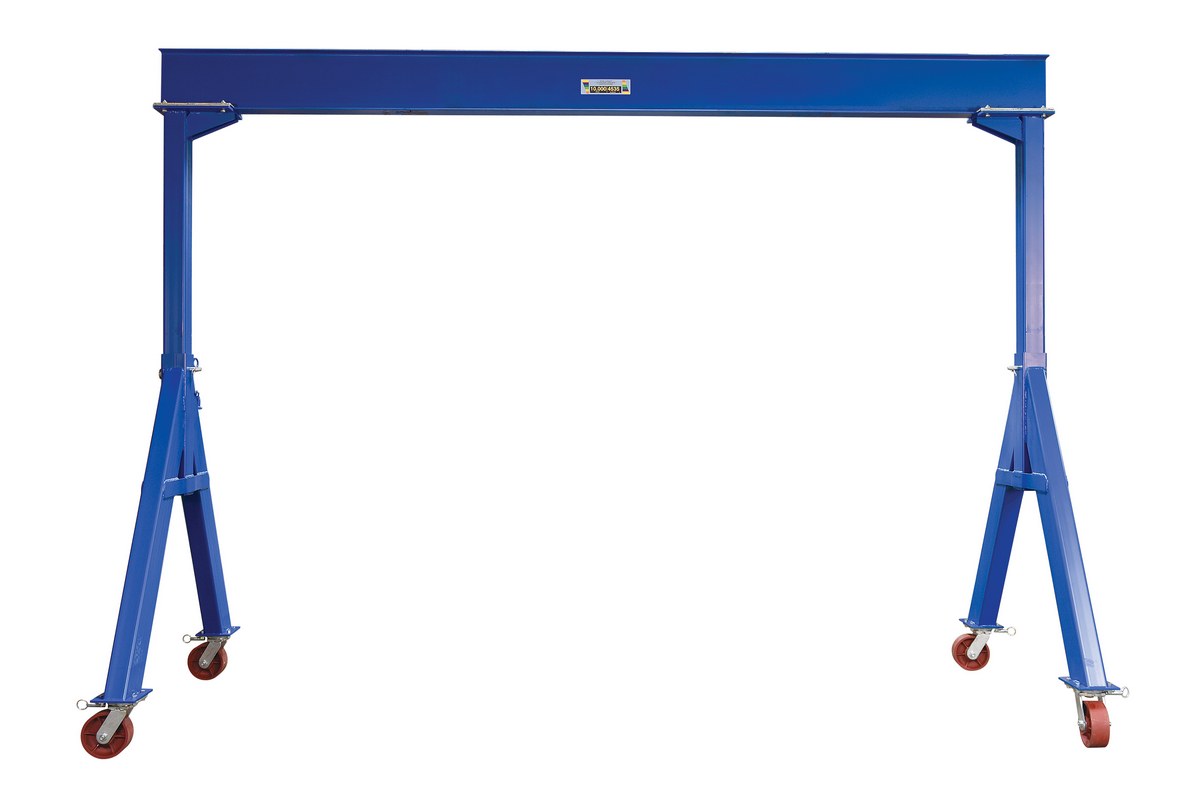

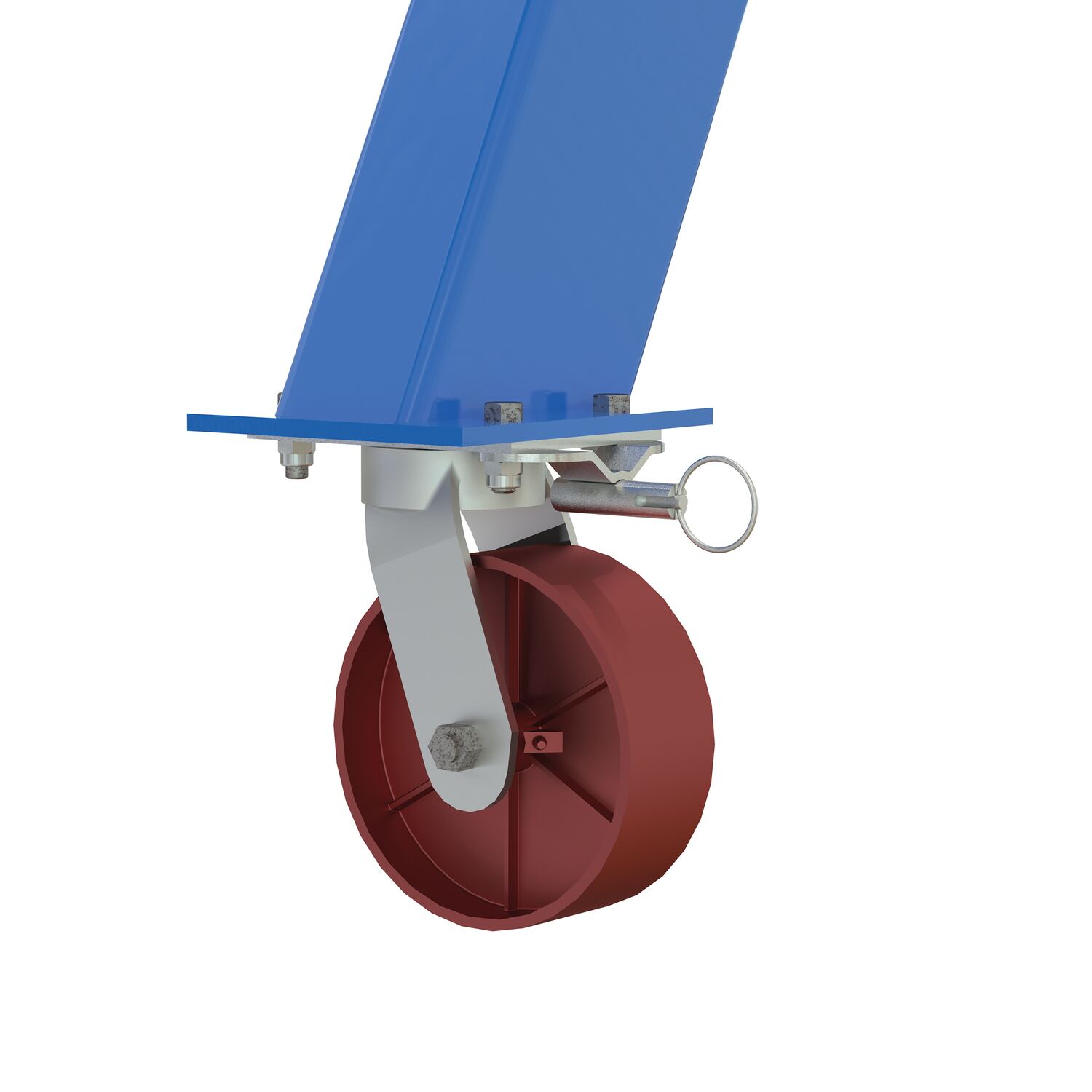

FHS-10-10 FHS-10-10Steel Fixed Gantry Crane with Ductile Steel Locking Casters 10 Ft. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10,000
Overall I-Beam Length (ft.): 10		856

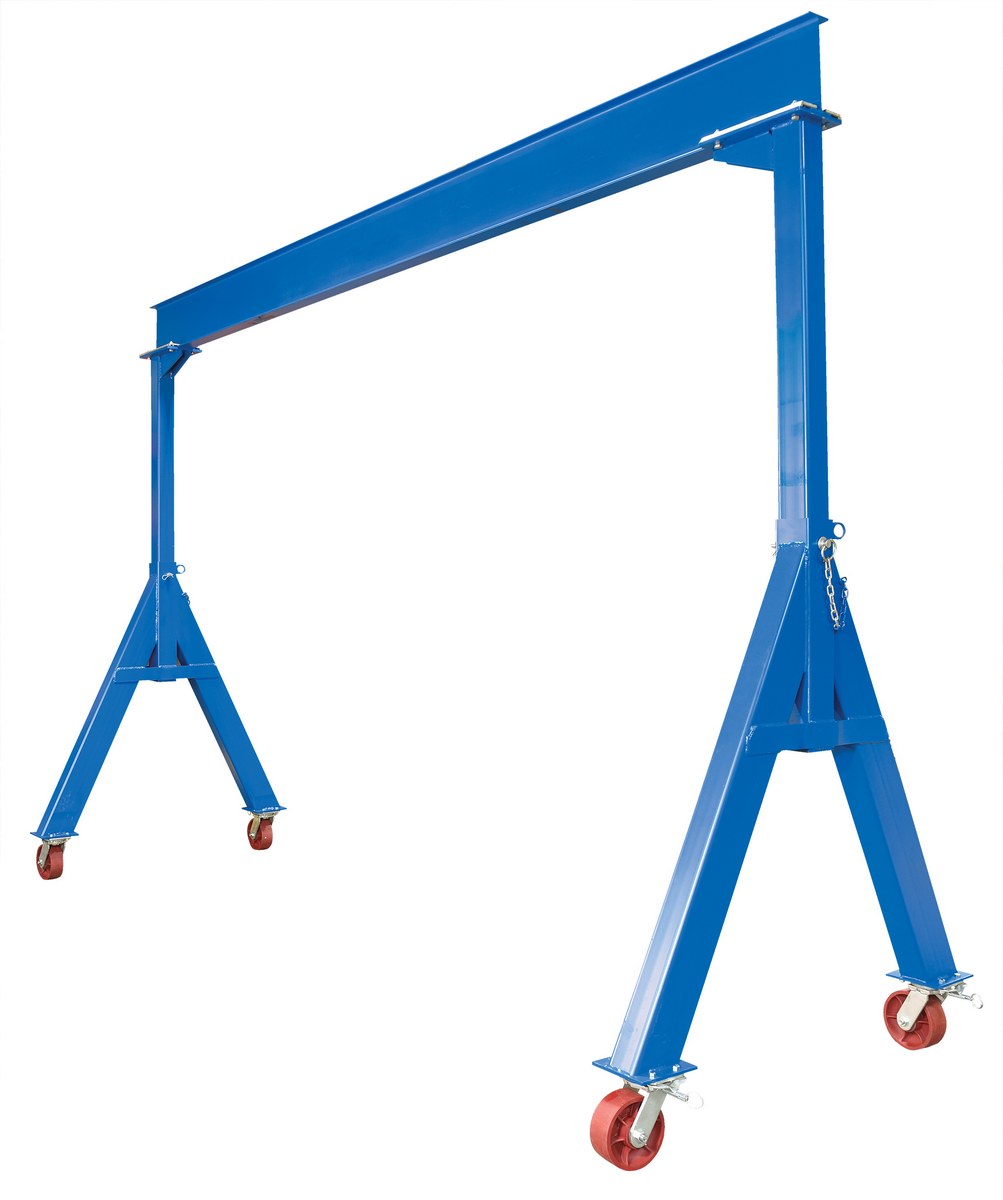

FHS-10-15 FHS-10-15Steel Fixed Gantry Crane with Ductile Steel Locking Casters 15 Ft. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10,000
Overall I-Beam Length (ft.): 15		915

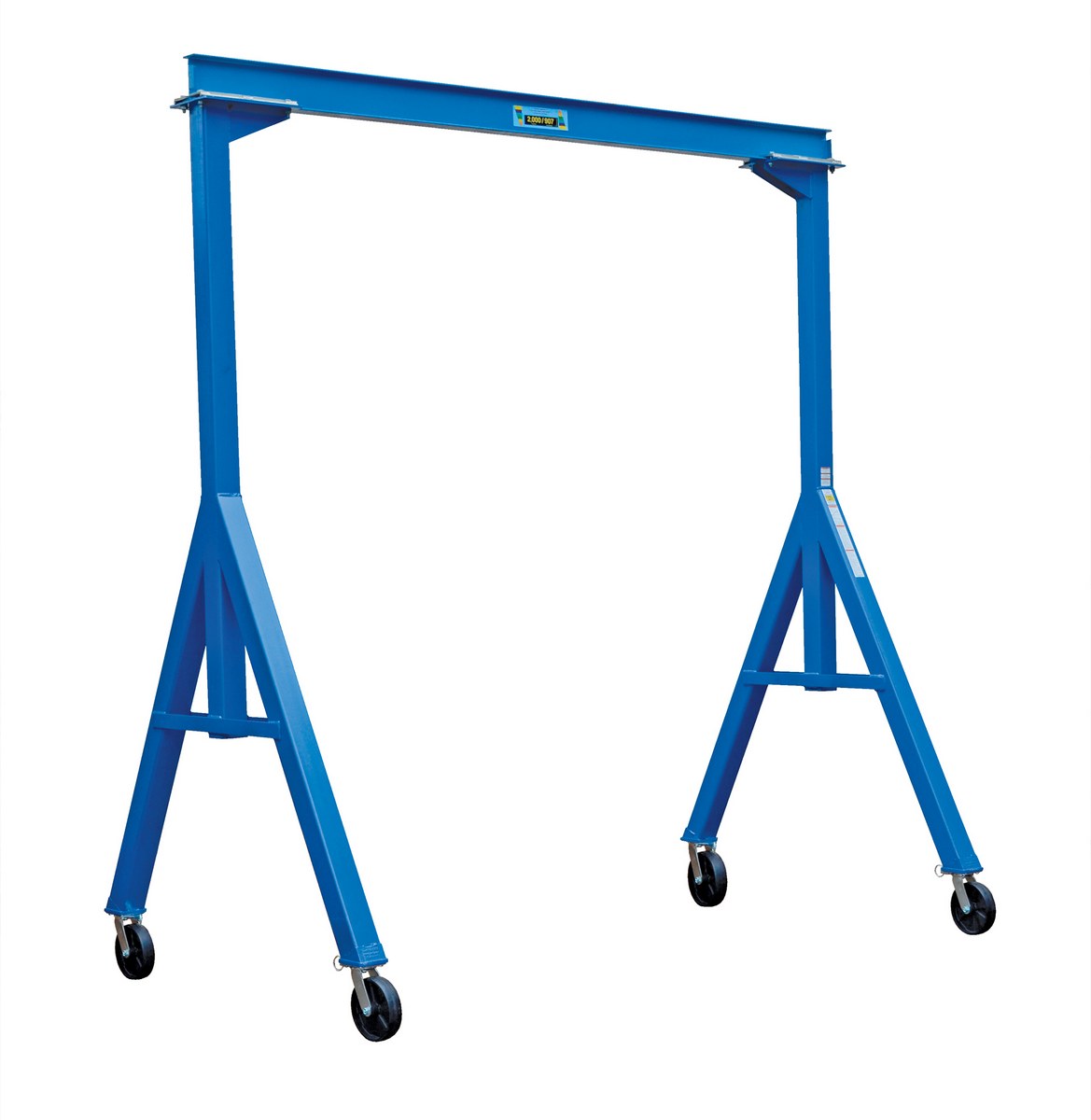

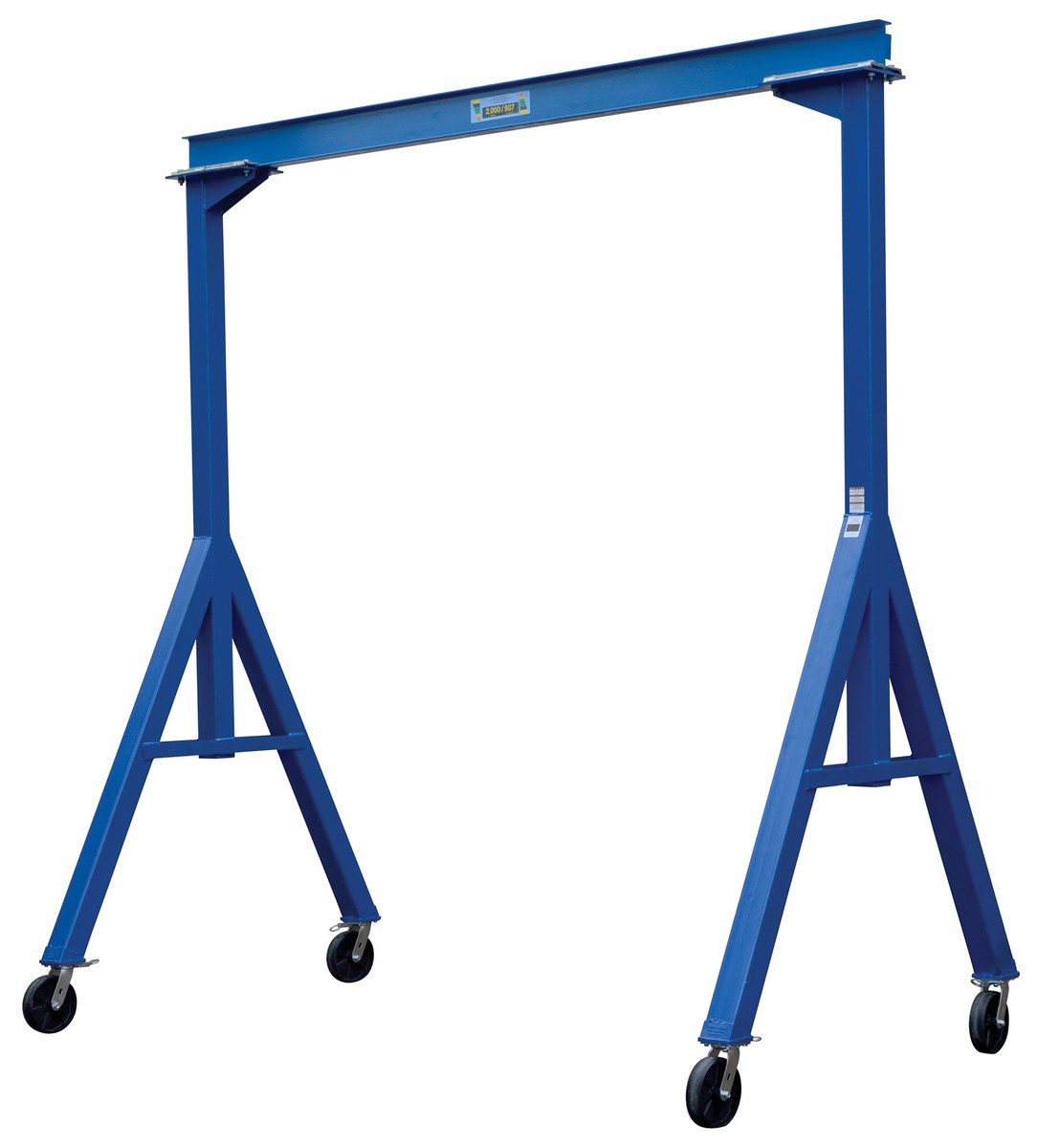

FHS-2-10 FHS-2-10Steel Fixed Gantry Crane with Glass Filled Nylon Casters 10 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 10		621

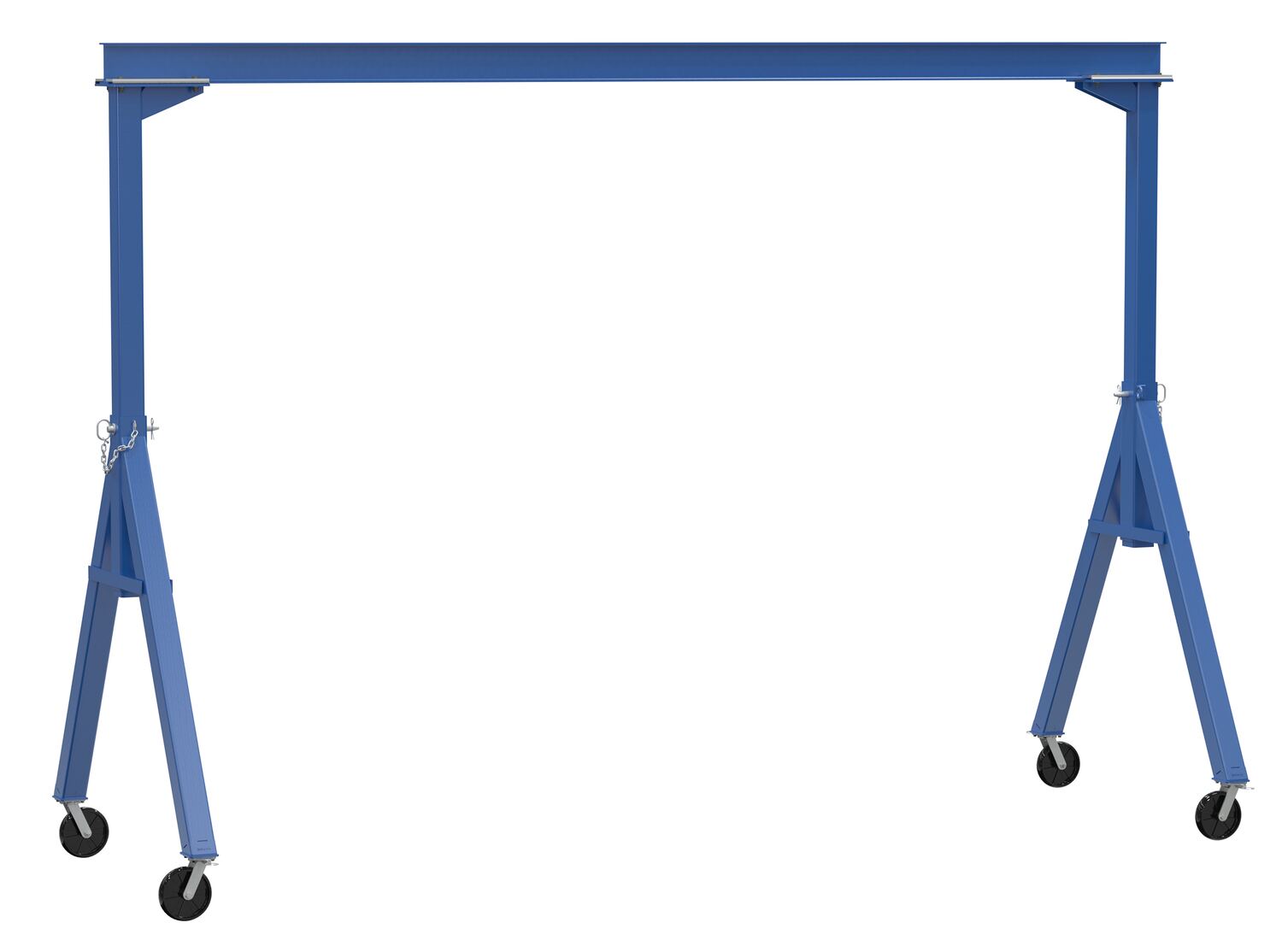

FHS-2-15 FHS-2-15Steel Fixed Gantry Crane with Glass Filled Nylon Casters 15 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15		624

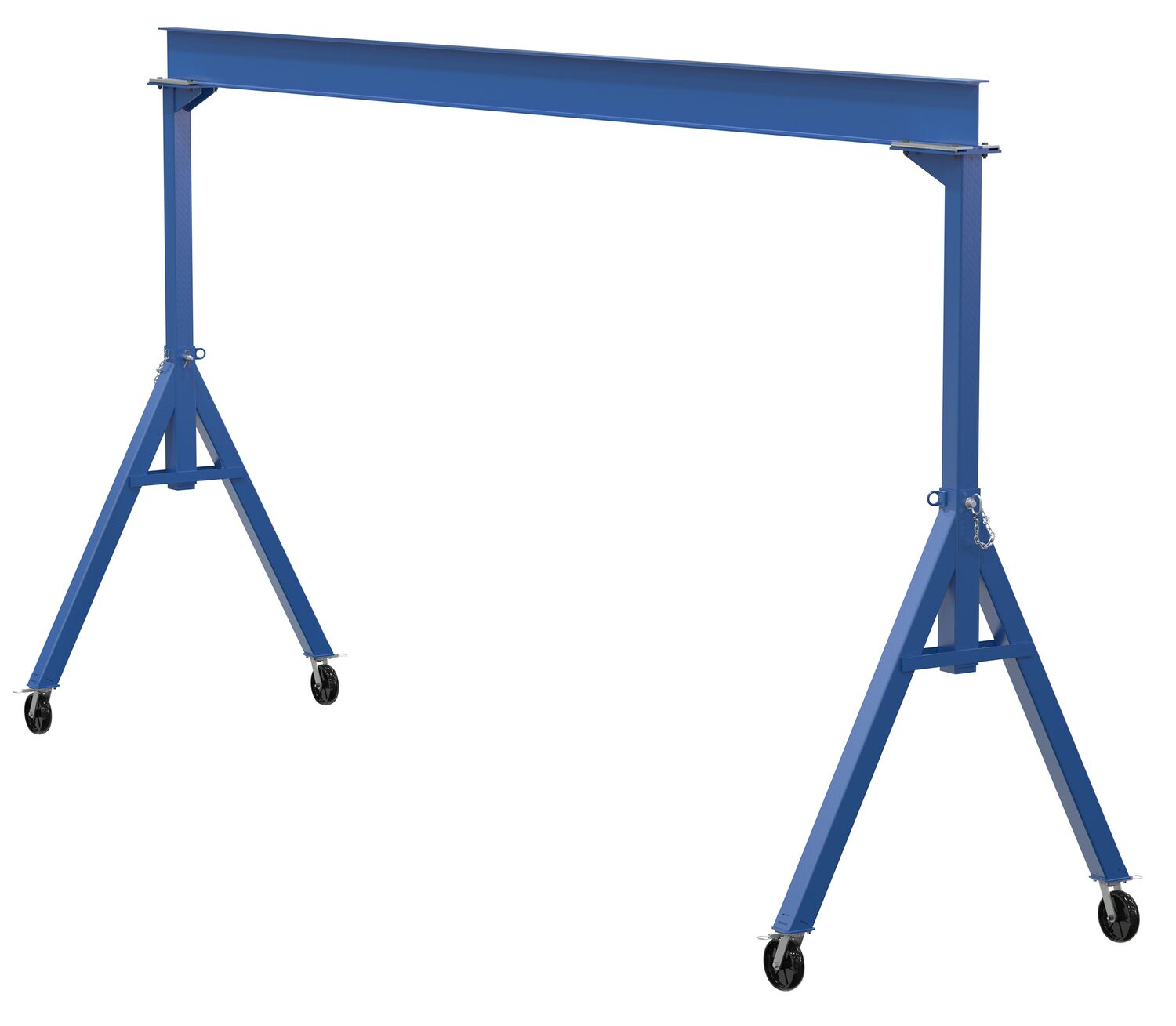

FHS-2-20 FHS-2-20Steel Fixed Gantry Crane with Glass Filled Nylon Casters 20 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 20		627

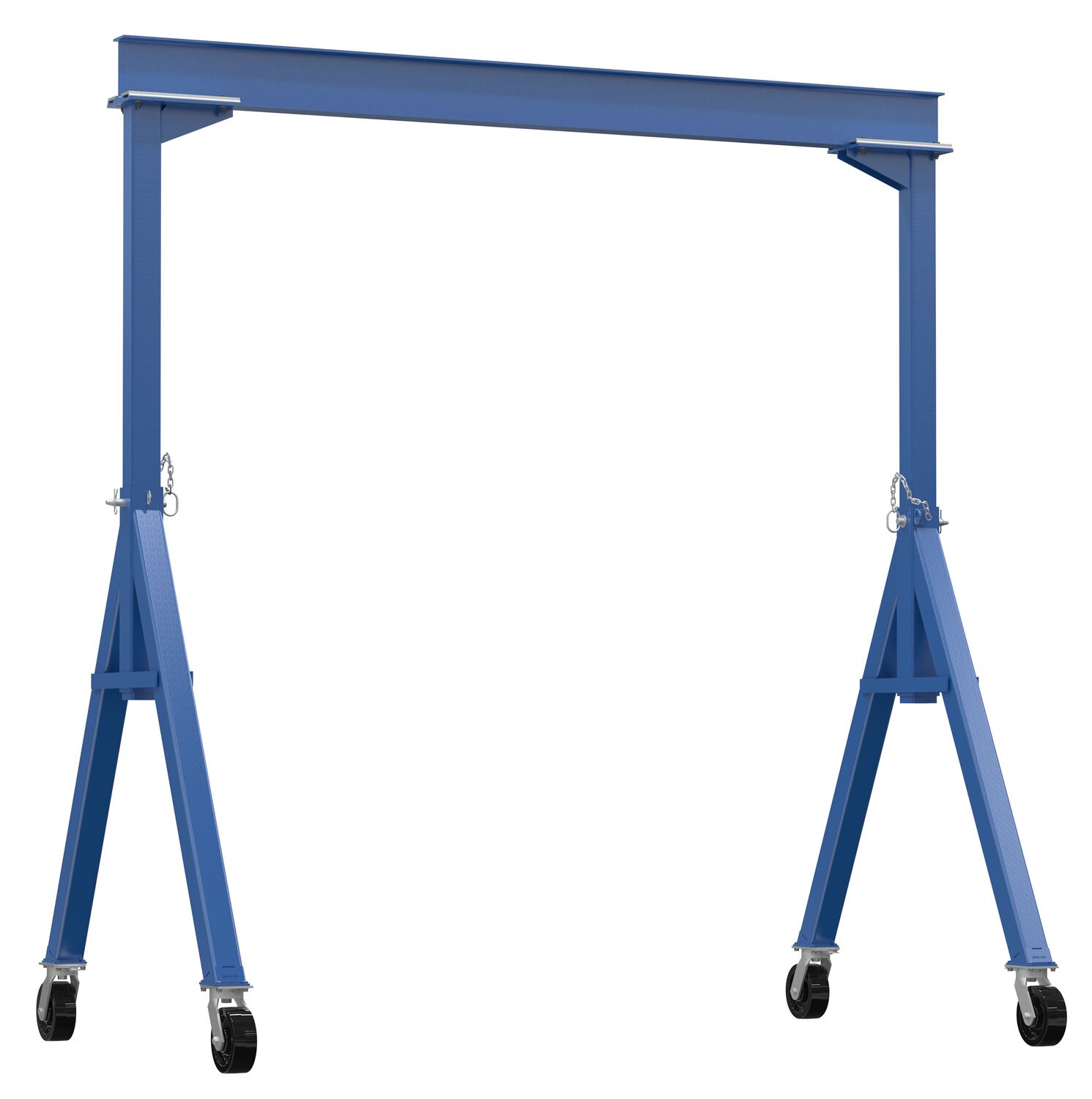

FHS-4-10 FHS-4-10Steel Fixed Gantry Crane with Phenolic Casters 10 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Overall I-Beam Length (ft.): 10		625

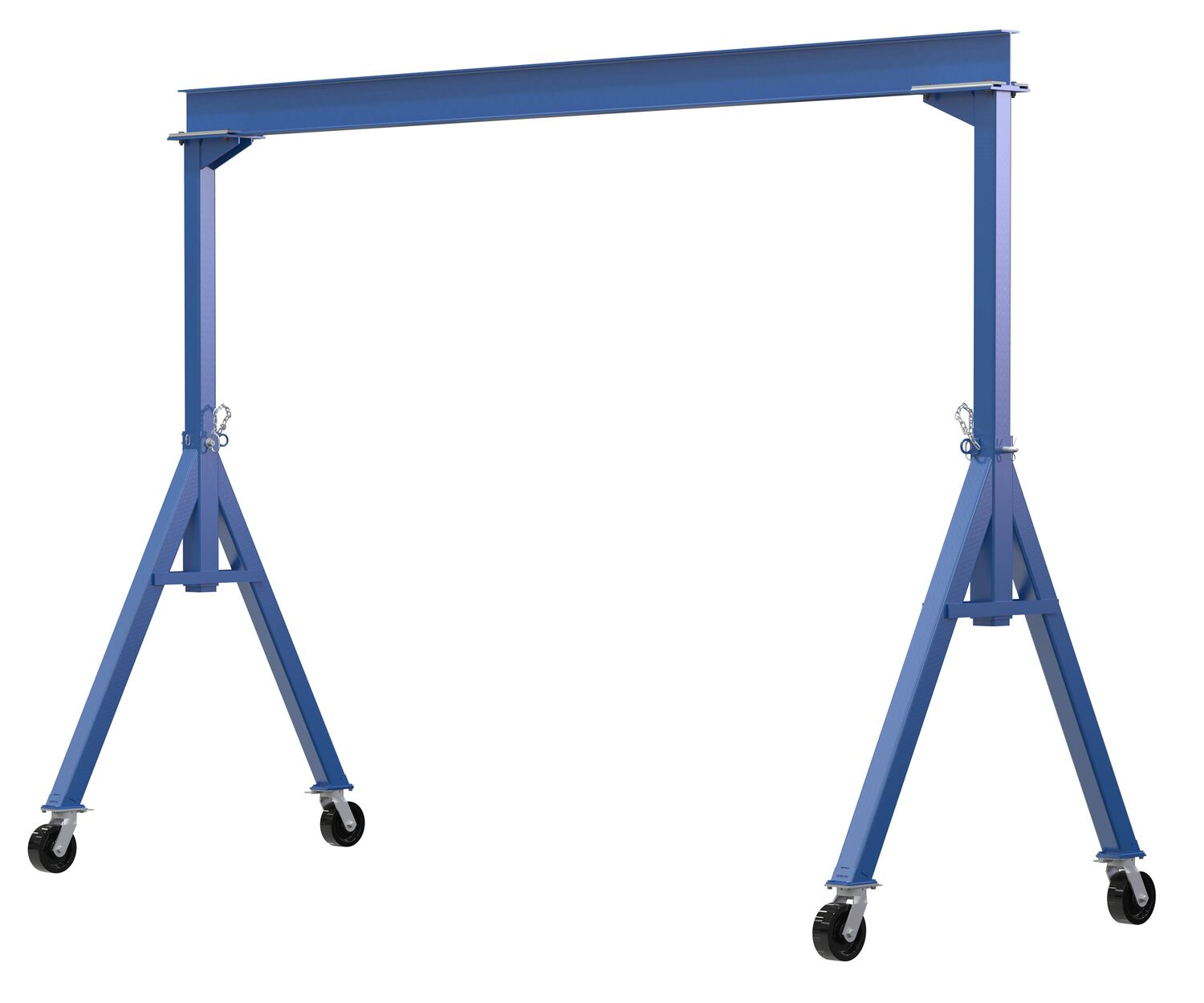

FHS-4-15 FHS-4-15Steel Fixed Gantry Crane with Phenolic Casters 15 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Overall I-Beam Length (ft.): 15		621

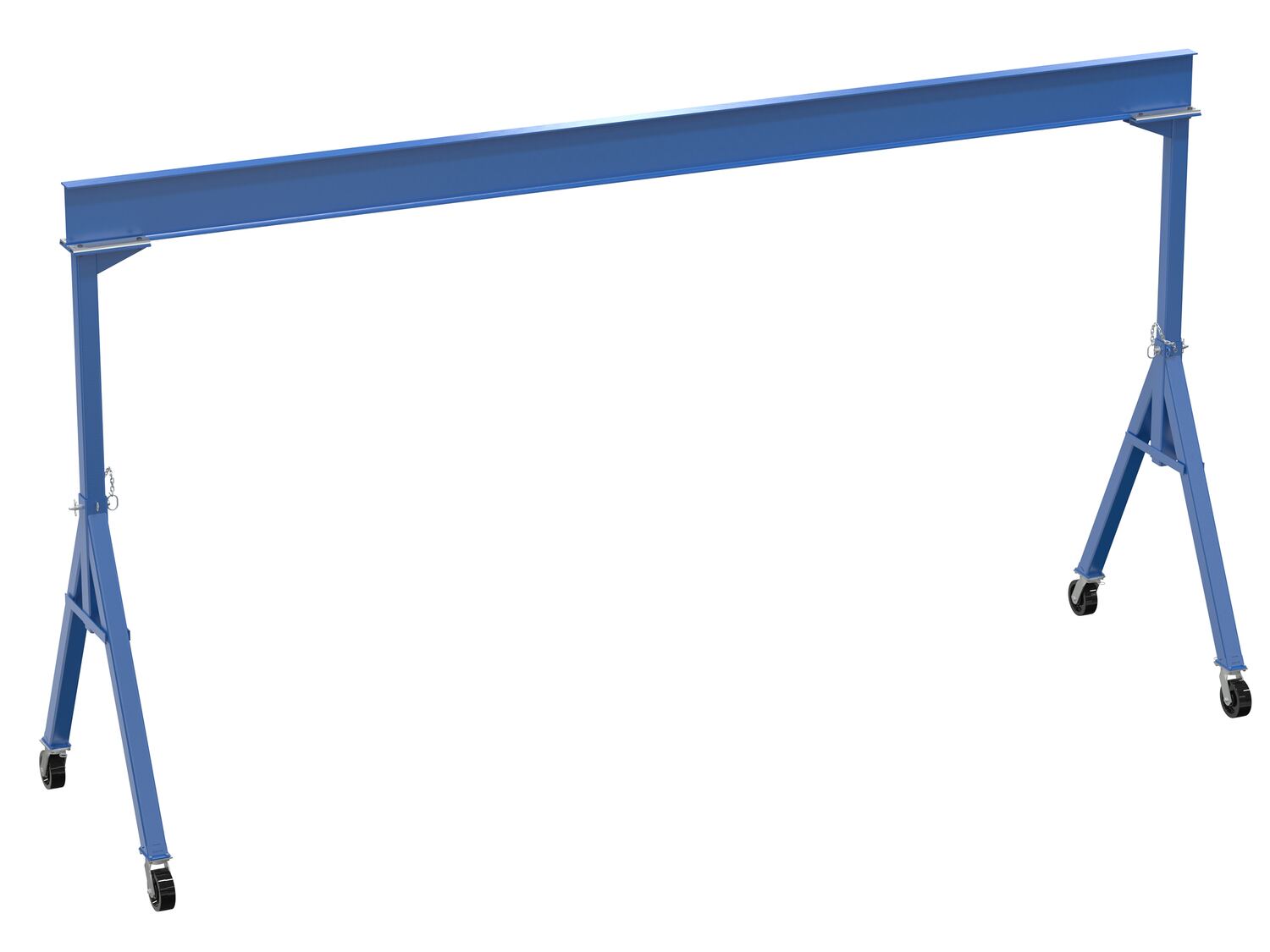

FHS-4-20 FHS-4-20Steel Fixed Gantry Crane with Phenolic Casters 20 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Overall I-Beam Length (ft.): 20		625

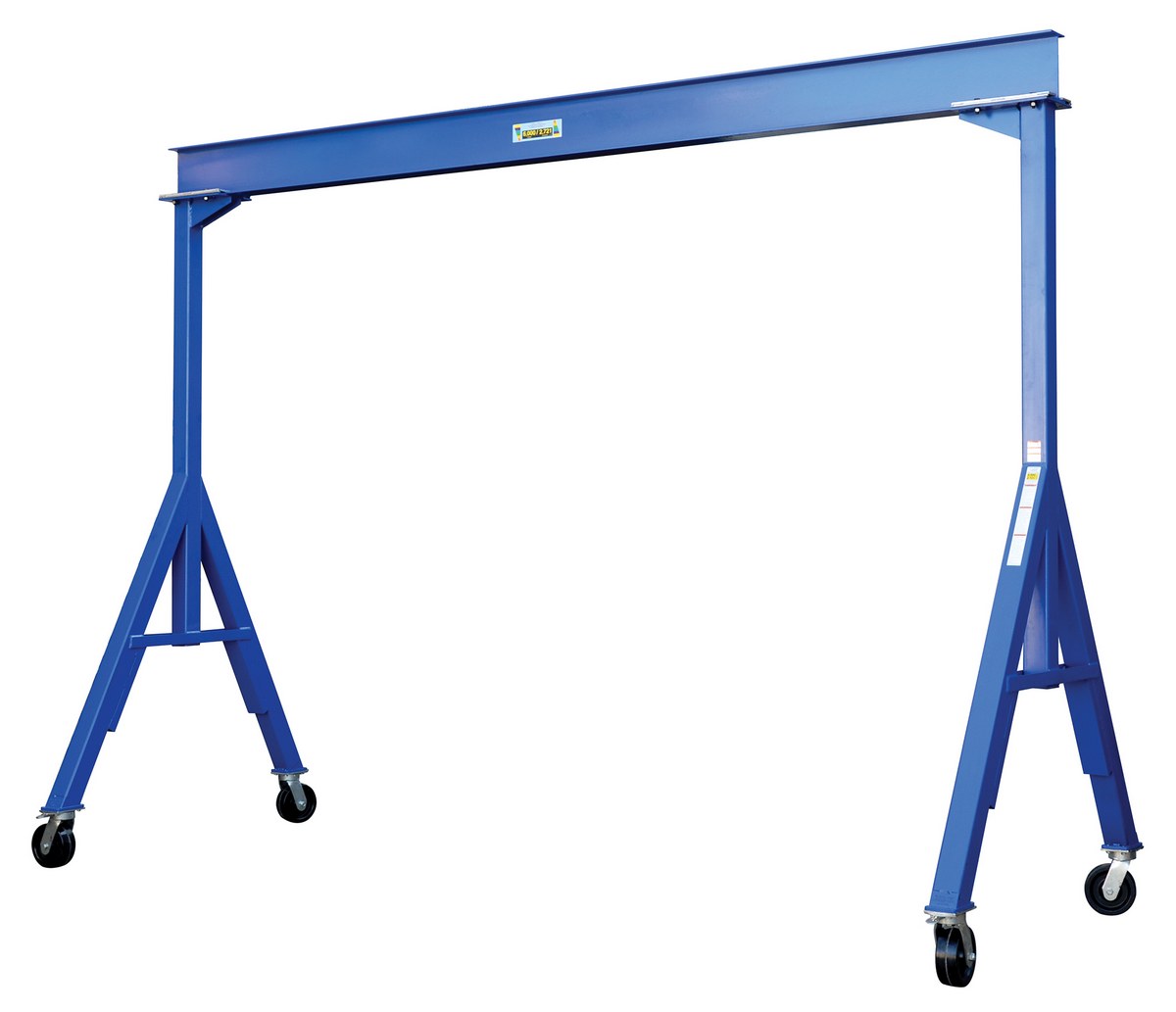

FHS-6-10 FHS-6-10Steel Fixed Gantry Crane with Phenolic Casters 10 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Overall I-Beam Length (ft.): 10		625

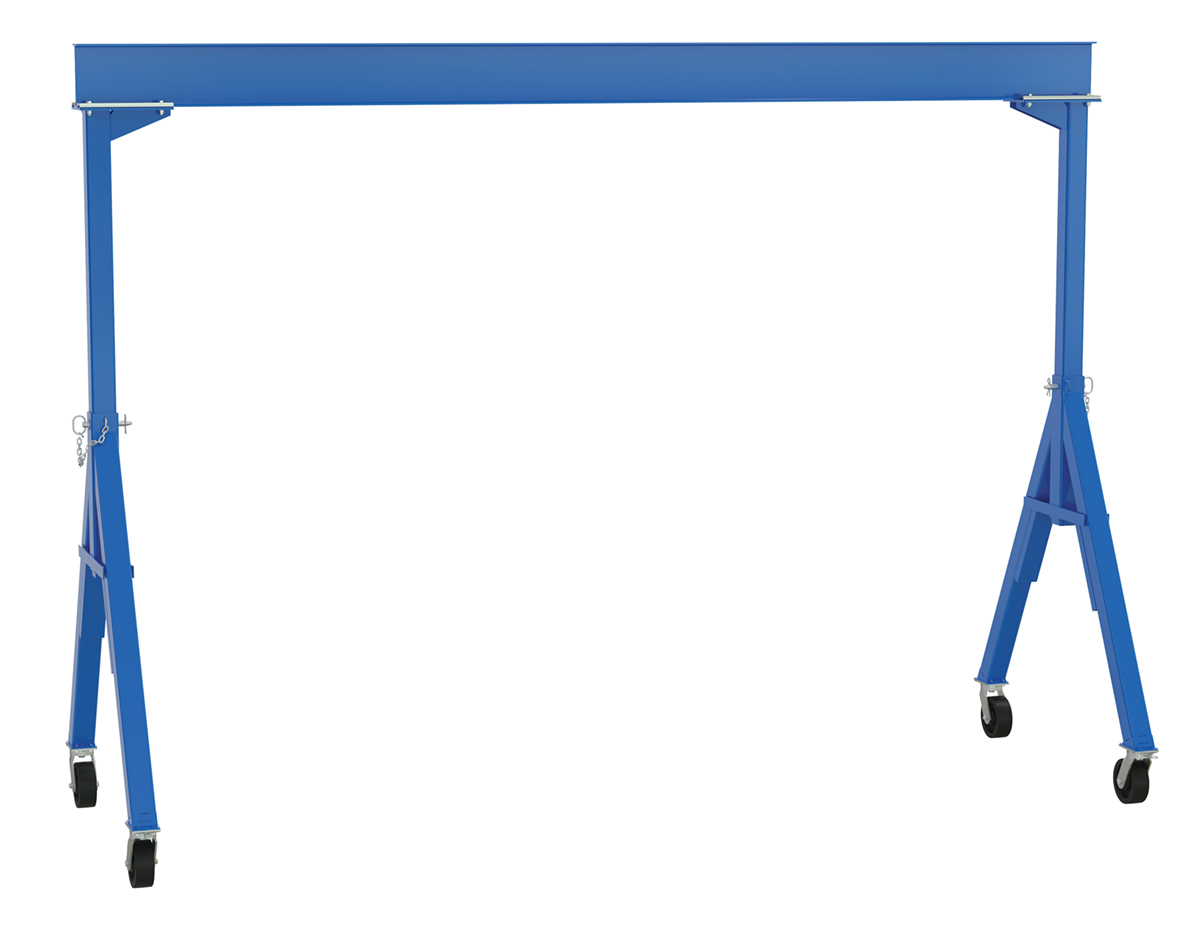

FHS-6-15 FHS-6-15Steel Fixed Gantry Crane with Phenolic Casters 15 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Overall I-Beam Length (ft.): 15		730

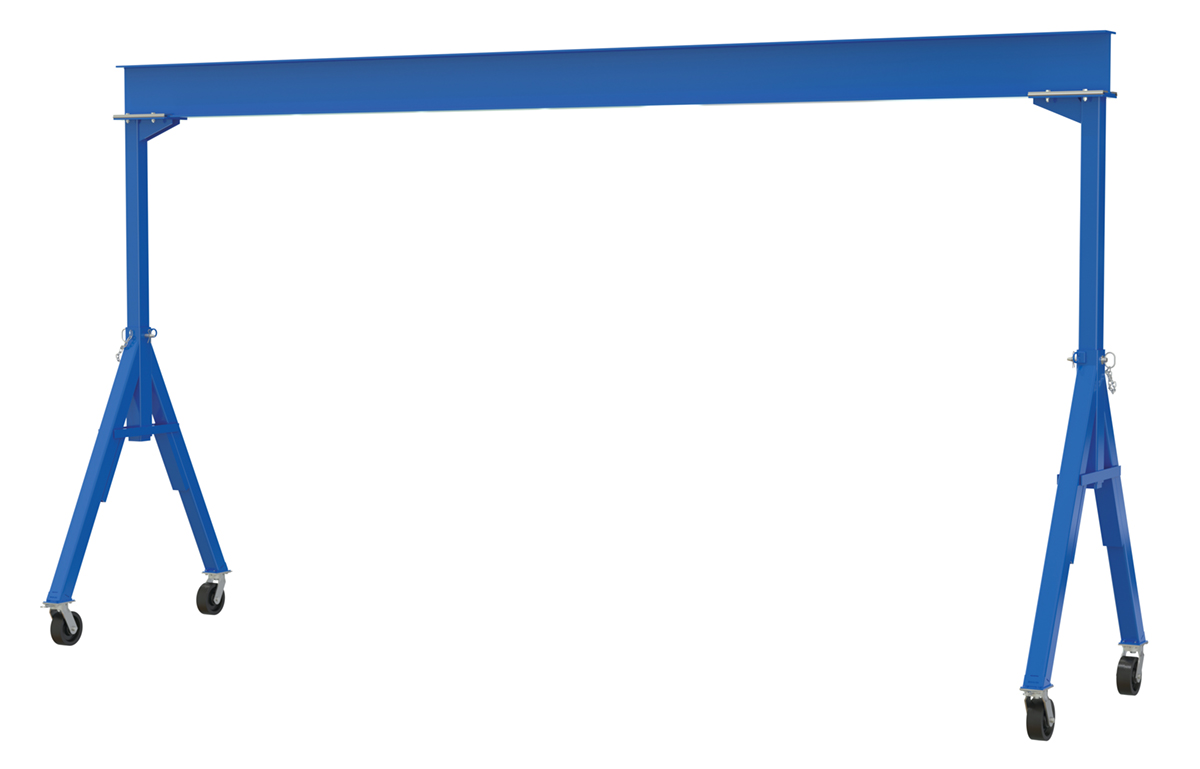

FHS-6-20 FHS-6-20Steel Fixed Gantry Crane with Phenolic Casters 20 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Overall I-Beam Length (ft.): 20		735

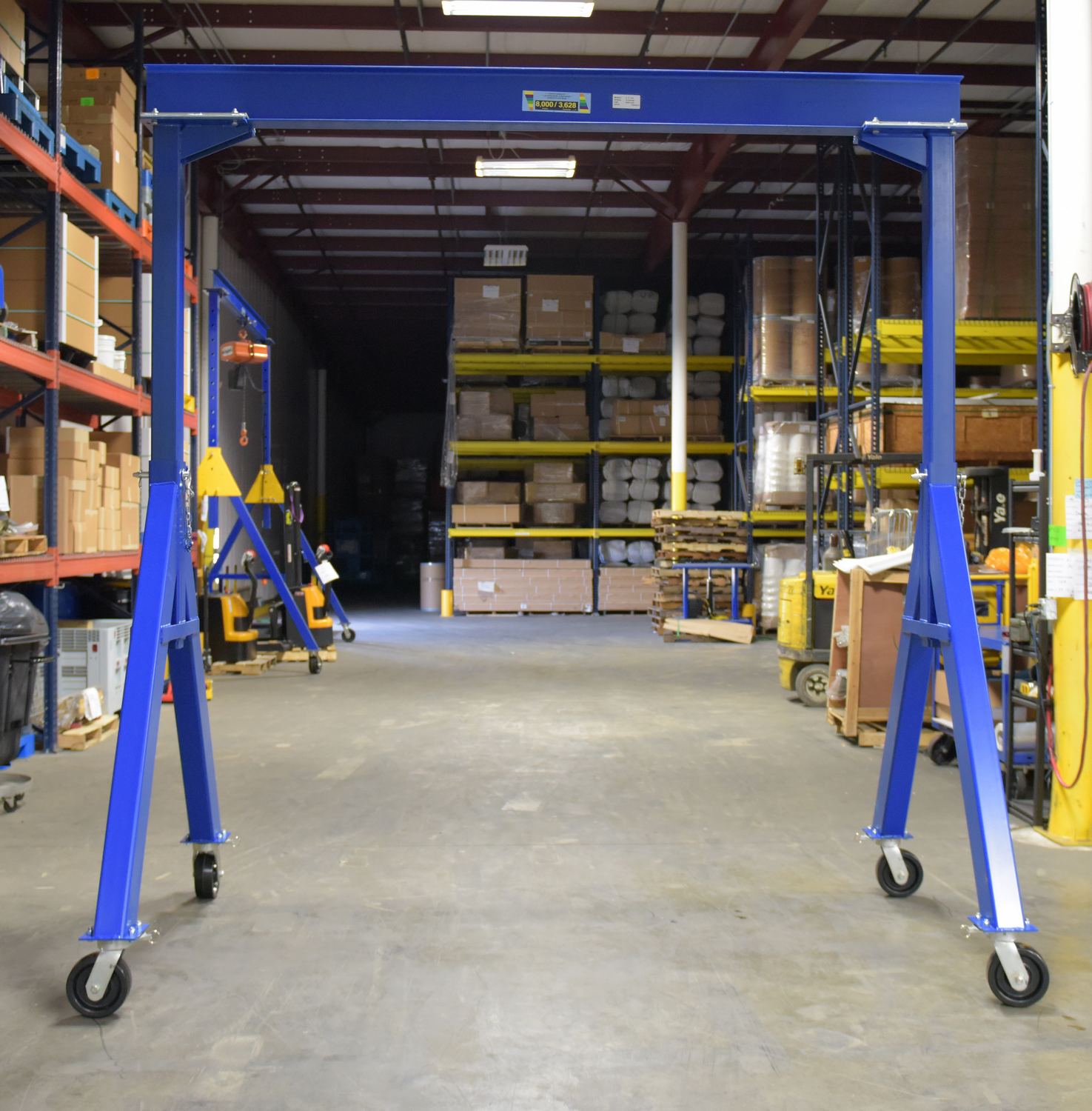

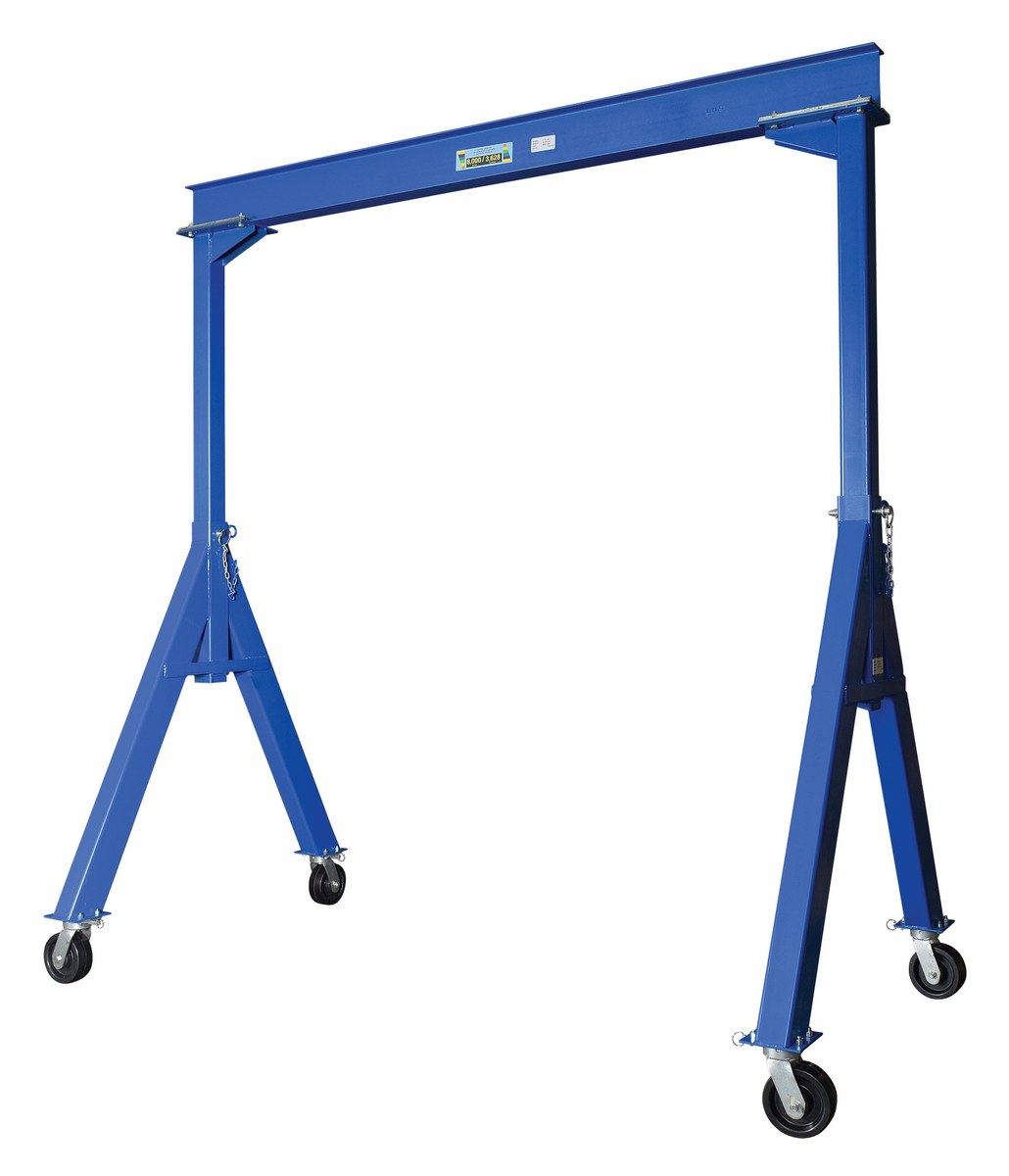

FHS-8-10 FHS-8-10Steel Fixed Gantry Crane with Phenolic Casters 10 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8,000
Overall I-Beam Length (ft.): 10		705

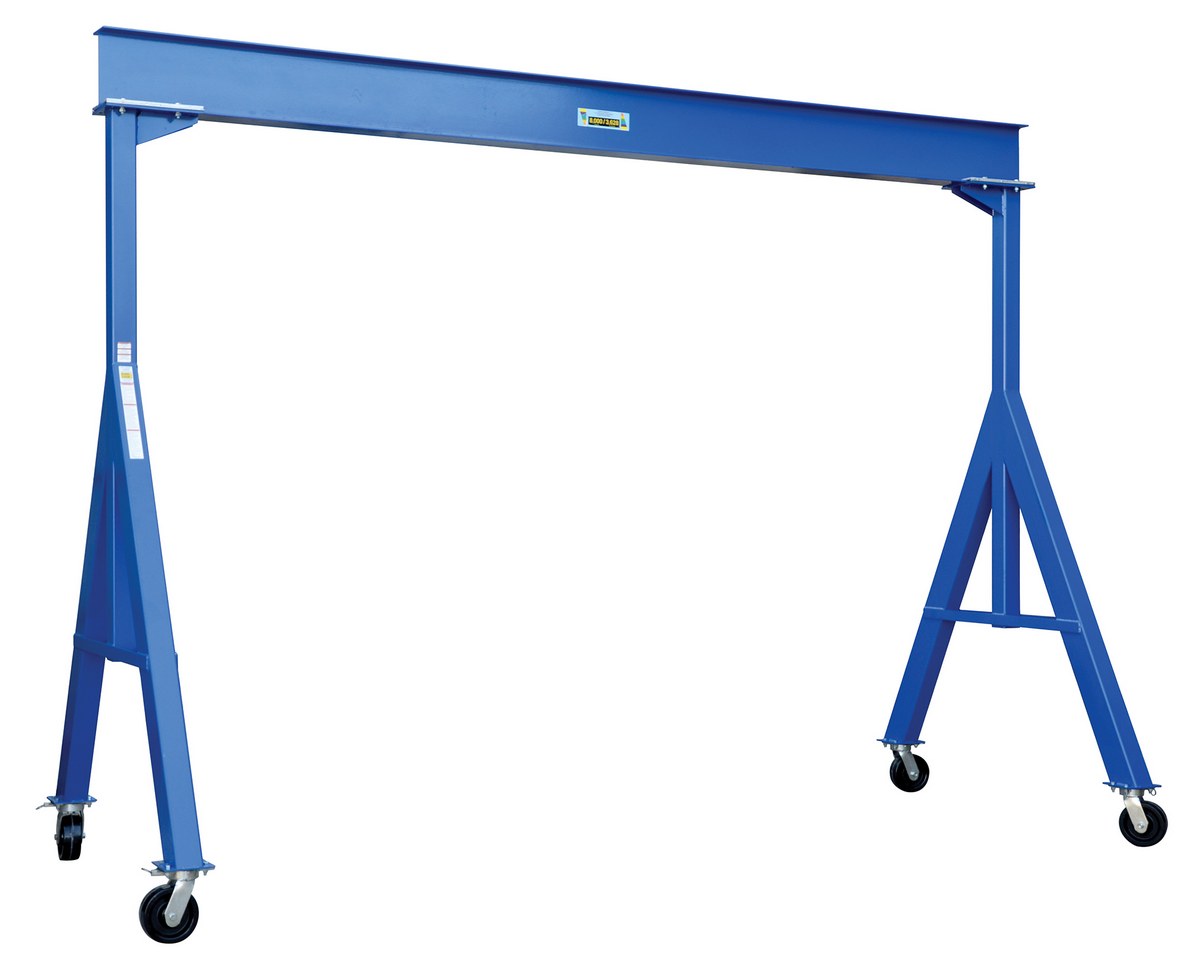

FHS-8-15 FHS-8-15Steel Fixed Gantry Crane with Phenolic Casters 15 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8,000
Overall I-Beam Length (ft.): 15		723

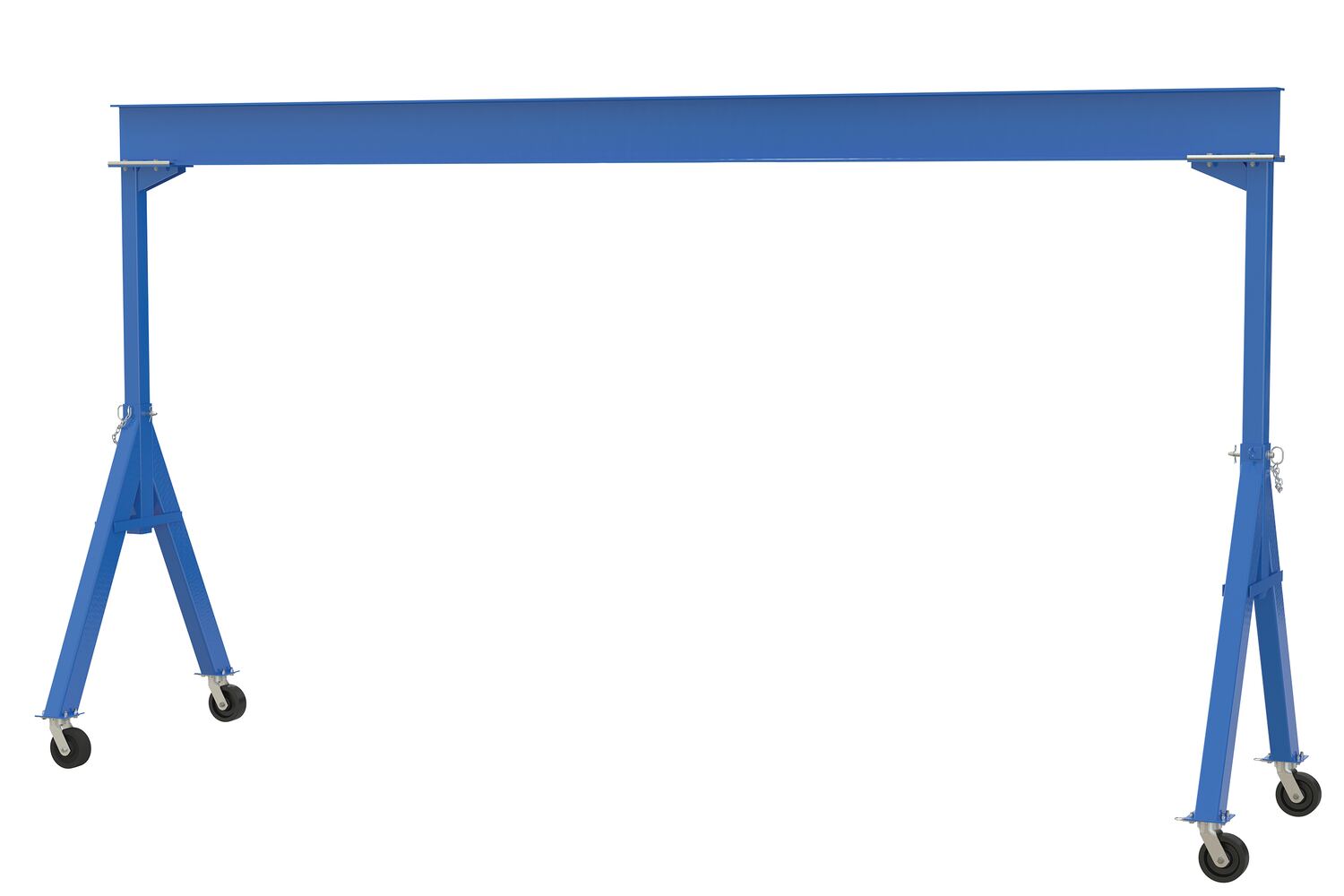

FHS-8-20 FHS-8-20Steel Fixed Gantry Crane with Phenolic Casters 20 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8,000
Overall I-Beam Length (ft.): 20		765
