Fixed Height Aluminum Gantry Cranes with Adjustable Leveling Option

model: FHA-2-8-10-ALO

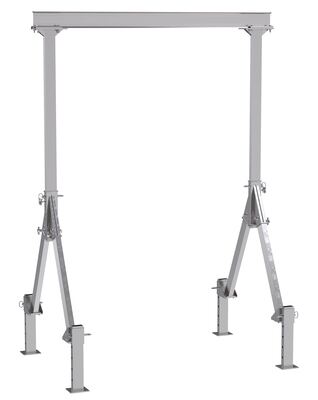

FHA-2-8-10-ALO_A.jpg FHA-2-15-10-ALO_A.jpg More Images +
Fixed Height Aluminum Gantry Cranes with Adjustable Leveling Option
SERIES: FHA-ALO

A fixed height Aluminum Gantry crane is valuable asset in warehouse and manufacturing settings. The crane has an all-aluminum construction making it corrosion resistant and perfect for outdoor use. The fixed height gives the user consistent familiarity when raising/lowering items. If a change in height is needed, the adjustable legs allow the crane to be raised or lowered in increments. Each leg has a pin style adjustment design with pre drilled alteration holes. With a rectangle shaped base included on each leg, the crane has a strong foundational support. Hoists & Trollies can be ordered seperately.

  • Leveling adjustment can be completed with support from fork truck or other overhead lifting device
  • Flat footed design provides surface stability
  • Beam length offers ample space for lifting and lowering
  • Lifting hoist/trolley available separately

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters

Fixed Height Aluminum Gantry Cranes with Adjustable Leveling Option

model: FHA-2-8-10-ALO

Model # Description Attributes Net Wt.
(lbs)

* Usable distance between uprights is overall I-Beam length minus 15-7/8 Usable trolley travel length is overall I-Beam length minus 23-3/4

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
FHA-2-10-10-ALO
FHA-2-12-10-ALO
FHA-2-15-10-ALO
FHA-2-8-10-ALO
FHA-2-ALO-RF
FHA-4-10-10-ALO
FHA-4-12-10-ALO
FHA-4-15-10-ALO
FHA-4-8-10-ALO
FHA-4-ALO-RF
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

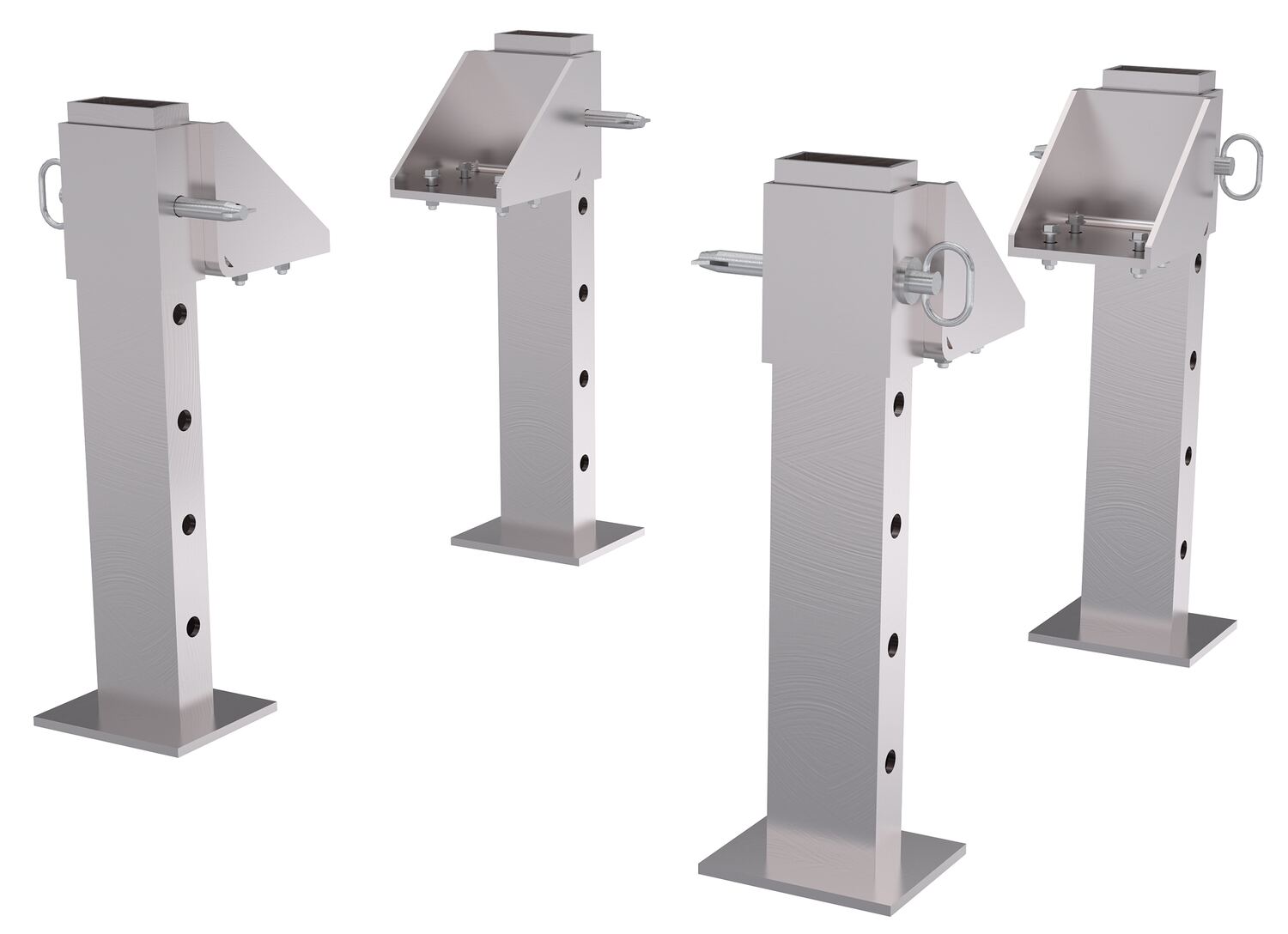

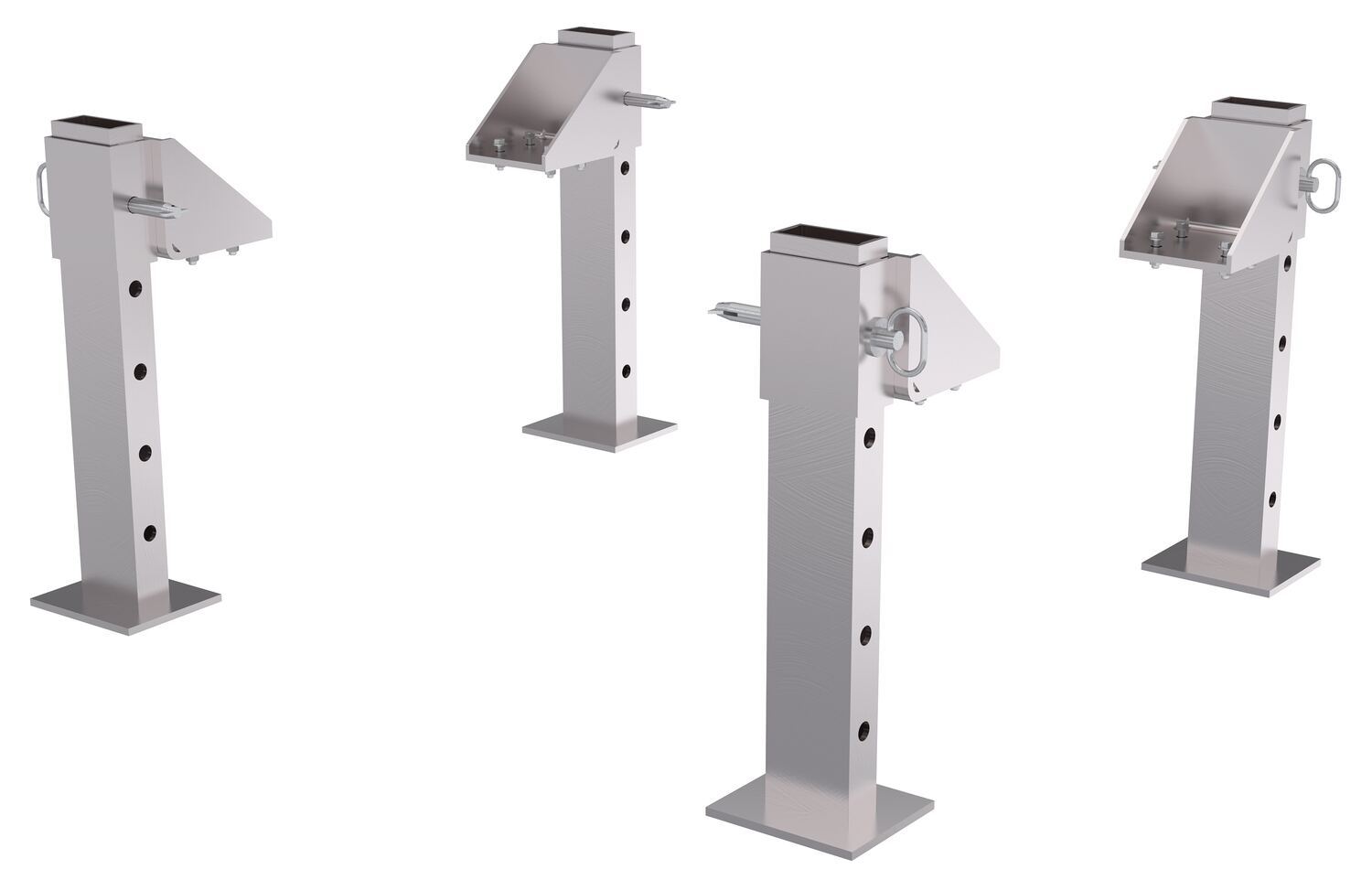

FHA-2-ALO-RF FHA-2-ALO-RFAluminum Fixed Height Retro Fit Kit 2,000 lb. Capacity54
FHA-4-ALO-RF FHA-4-ALO-RFAluminum Fixed Height Retro Fit Kit 4,000 lb. Capacity54

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

No Owners Manuals For This Product

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

FHA-2-8-10-ALO

FHA-2-10-10-ALO

FHA-2-12-10-ALO

FHA-2-15-10-ALO

FHA-4-8-10-ALO

FHA-4-10-10-ALO

FHA-4-12-10-ALO

FHA-4-15-10-ALO

FHA-2-ALO-RF

FHA-4-ALO-RF

Testing Certificates

FHA-2-10-10-ALO

FHA-2-12-10-ALO

FHA-2-15-10-ALO

FHA-2-8-10-ALO

FHA-2-ALO-RF

FHA-4-10-10-ALO

FHA-4-12-10-ALO

FHA-4-15-10-ALO

FHA-4-8-10-ALO

FHA-4-ALO-RF

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product
What type of aluminum is used for the FHA gantry cranes?
The FHA iBeams are 6061 aluminum and the frames are 6105 aluminum.

Related or Similar Products:

More From Gantry Cranes





Fixed Height Aluminum Gantry C...




A fixed height Aluminum Gantry crane is valuable asset in warehouse and manufacturing settings. The crane has an all-aluminum construction making it corrosion resistant and perfect for outdoor use. The fixed height gives the user consistent familiarity when raising/lowering items. If a change in height is needed, the adjustable legs allow the crane to be raised or lowered in increments. Each leg has a pin style adjustment design with pre drilled alteration holes. With a rectangle shaped base included on each leg, the crane has a strong foundational support. Hoists & Trollies can be ordered seperately.

  • Leveling adjustment can be completed with support from fork truck or other overhead lifting device
  • Flat footed design provides surface stability
  • Beam length offers ample space for lifting and lowering
  • Lifting hoist/trolley available separately

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters


Model # Description Attributes Net Wt.
(lbs)

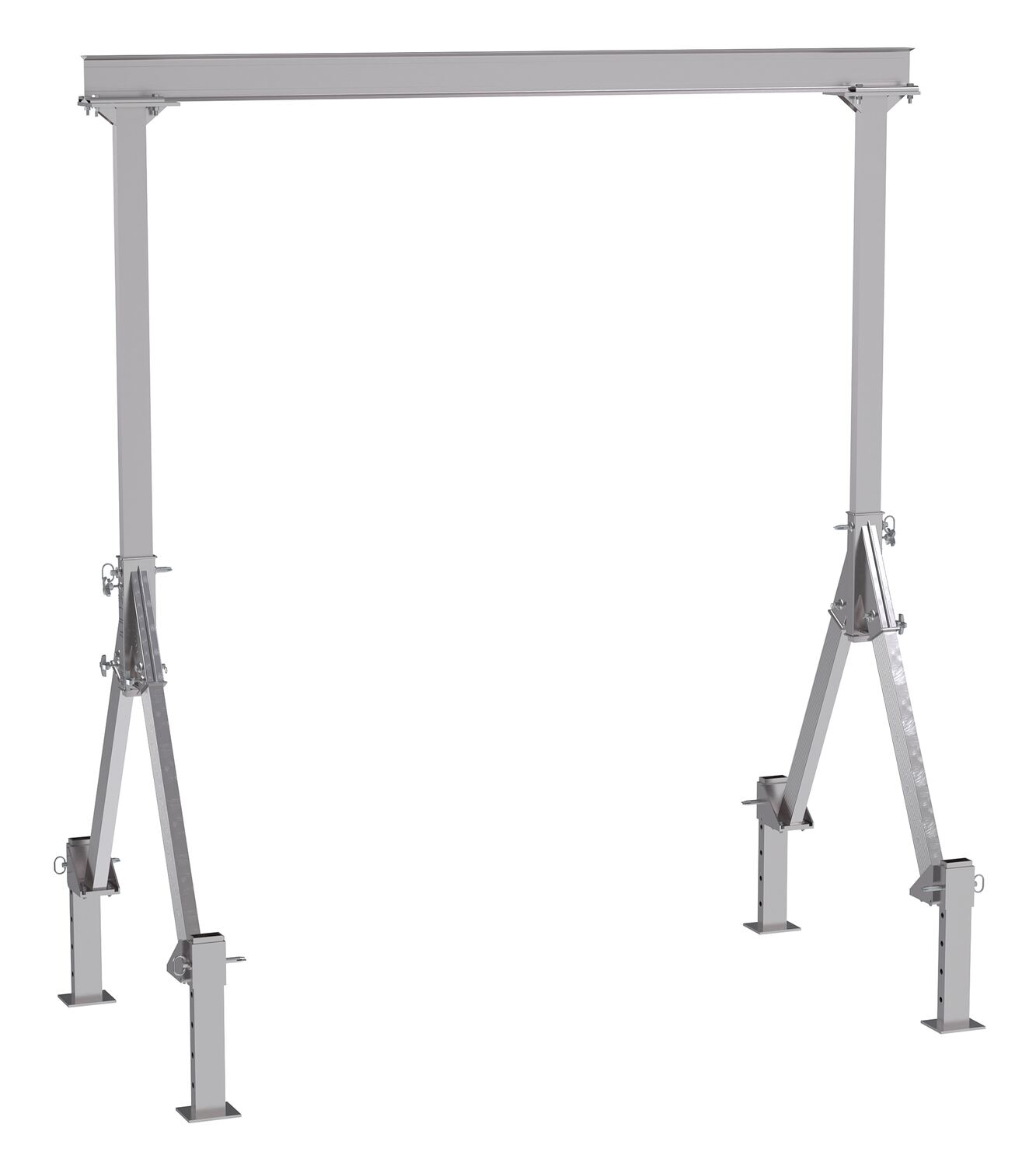

FHA-2-10-10-ALO FHA-2-10-10-ALOAluminum Fixed Height Gantry Crane With Adjustable Leveling Option 10ft. X 10 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 112		353

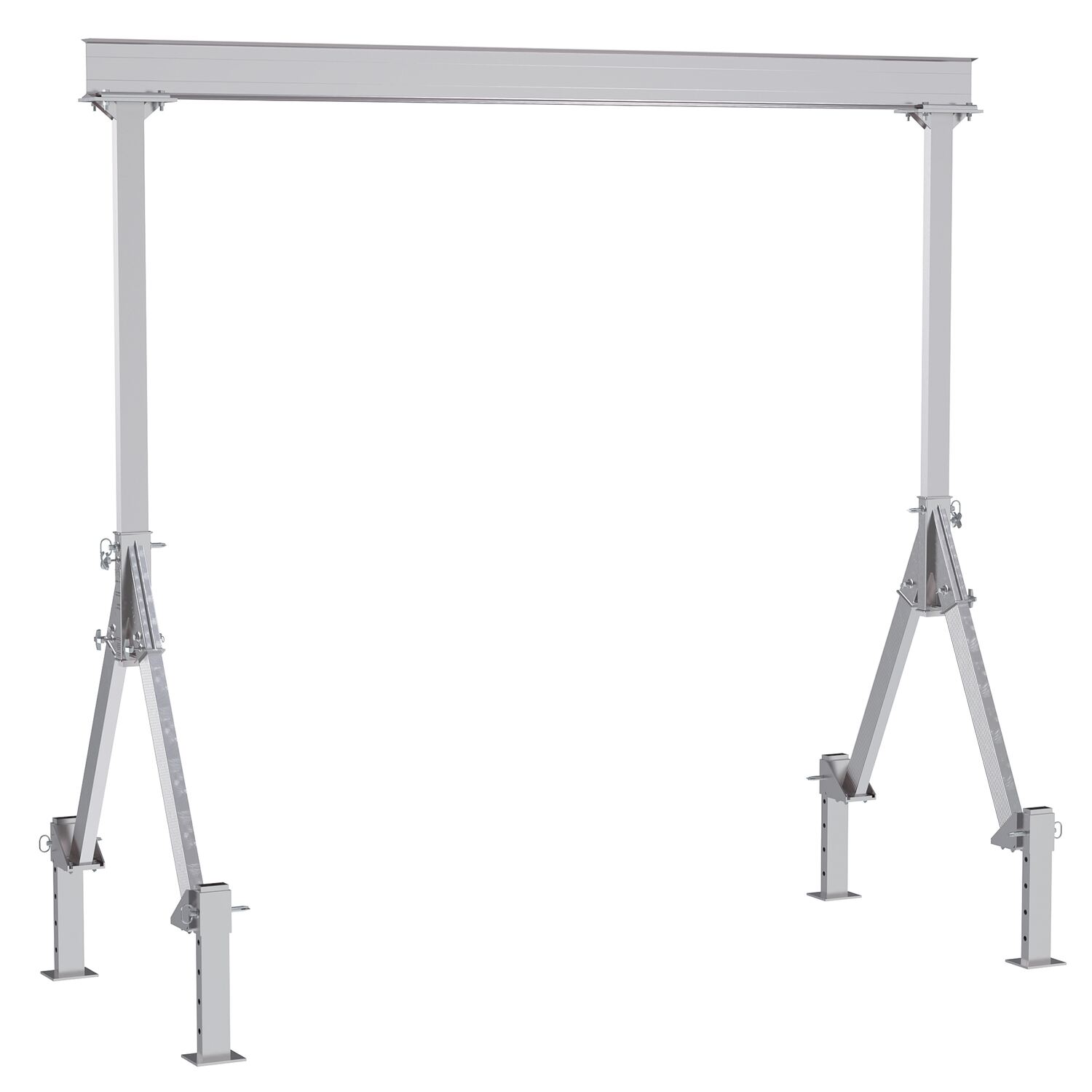

FHA-2-12-10-ALO FHA-2-12-10-ALOAluminum Fixed Height Gantry Crane With Adjustable Leveling Option 12 ft. X 10 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 112		375

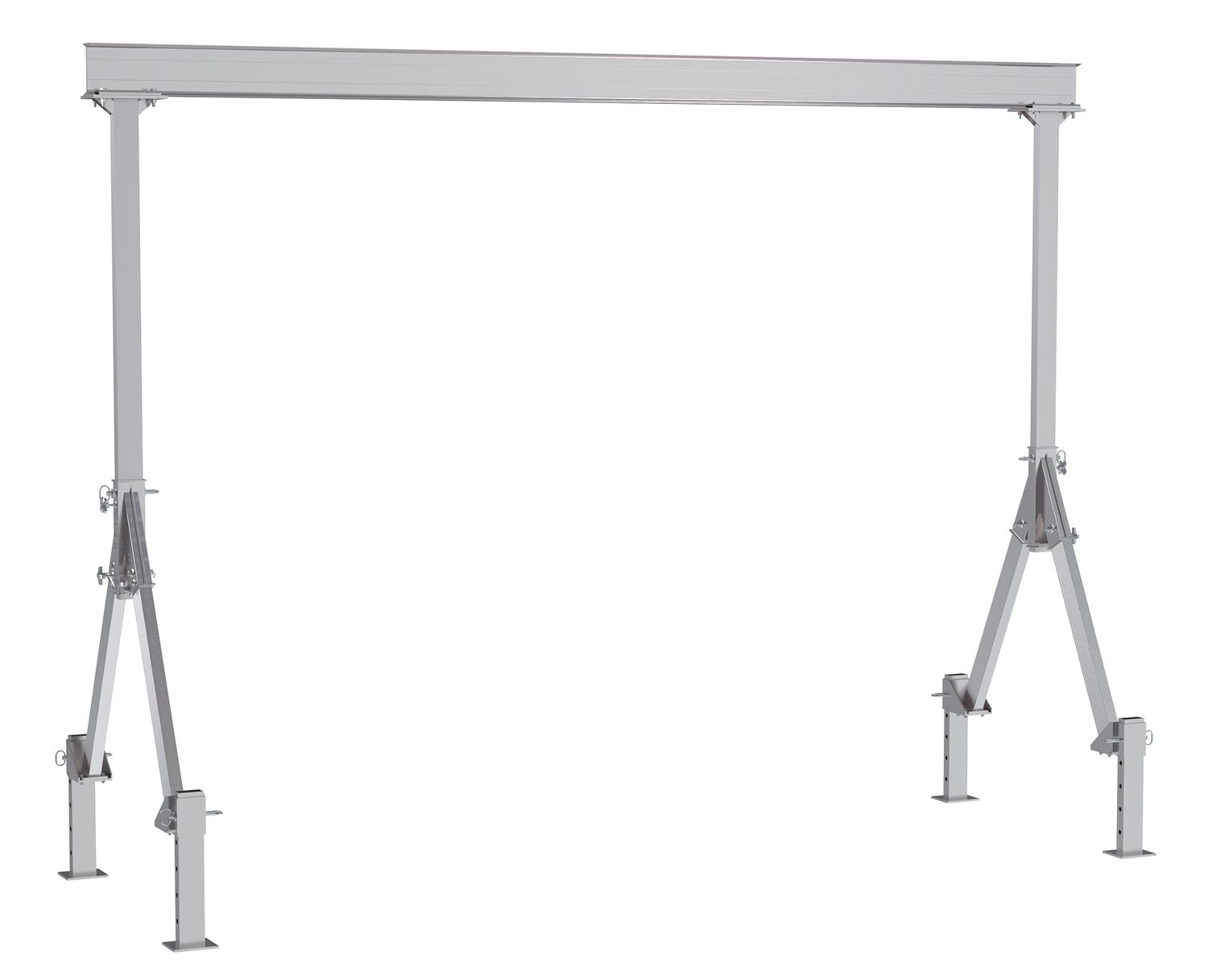

FHA-2-15-10-ALO FHA-2-15-10-ALOAluminum Fixed Height Gantry Crane With Adjustable Leveling Option 15 ft. X 10 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 112		465

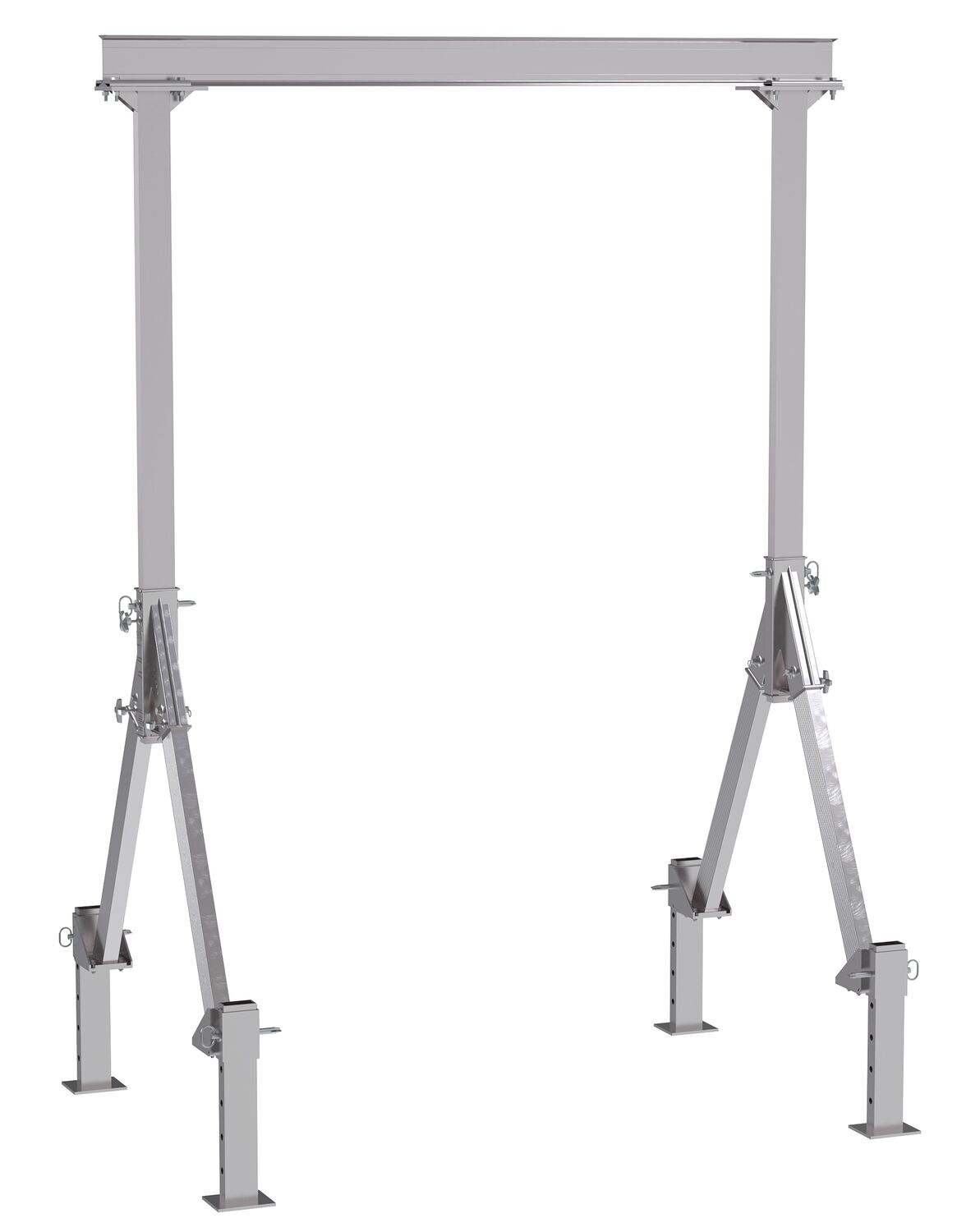

FHA-2-8-10-ALO FHA-2-8-10-ALOAluminum Fixed Height Gantry Crane With Adjustable Leveling Option 8ft. X 10 ft. 2000 lb. Capacity SilverUniform Capacity (lbs.): 2,000
Lowered Height (in.): 112		337

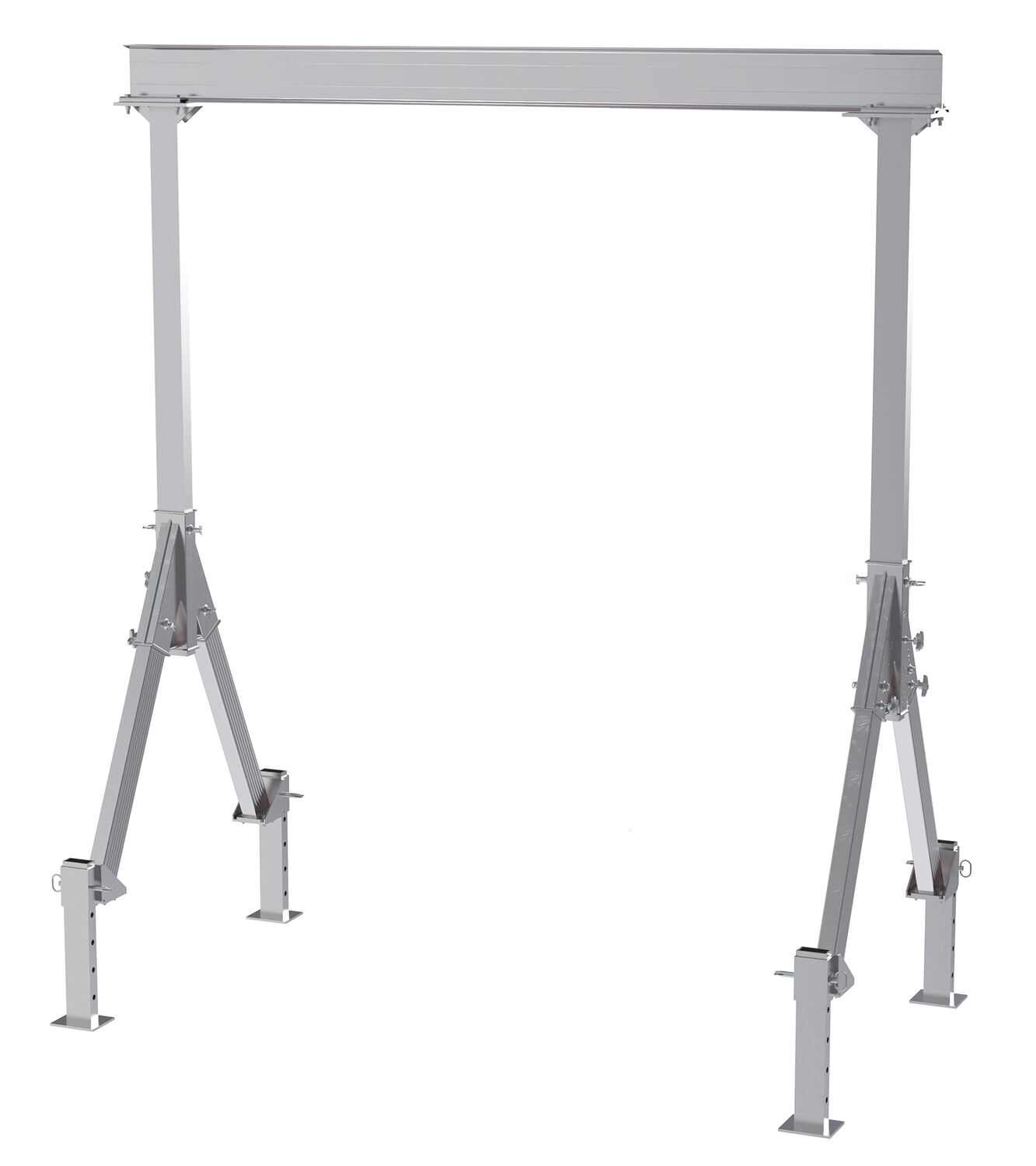

FHA-4-10-10-ALO FHA-4-10-10-ALOAluminum Fixed Height Gantry Crane With Adjustable Leveling Option 10 ft. X 10 ft. 4000 lb. Capacity SilverUniform Capacity (lbs.): 4,000
Lowered Height (in.): 112		408

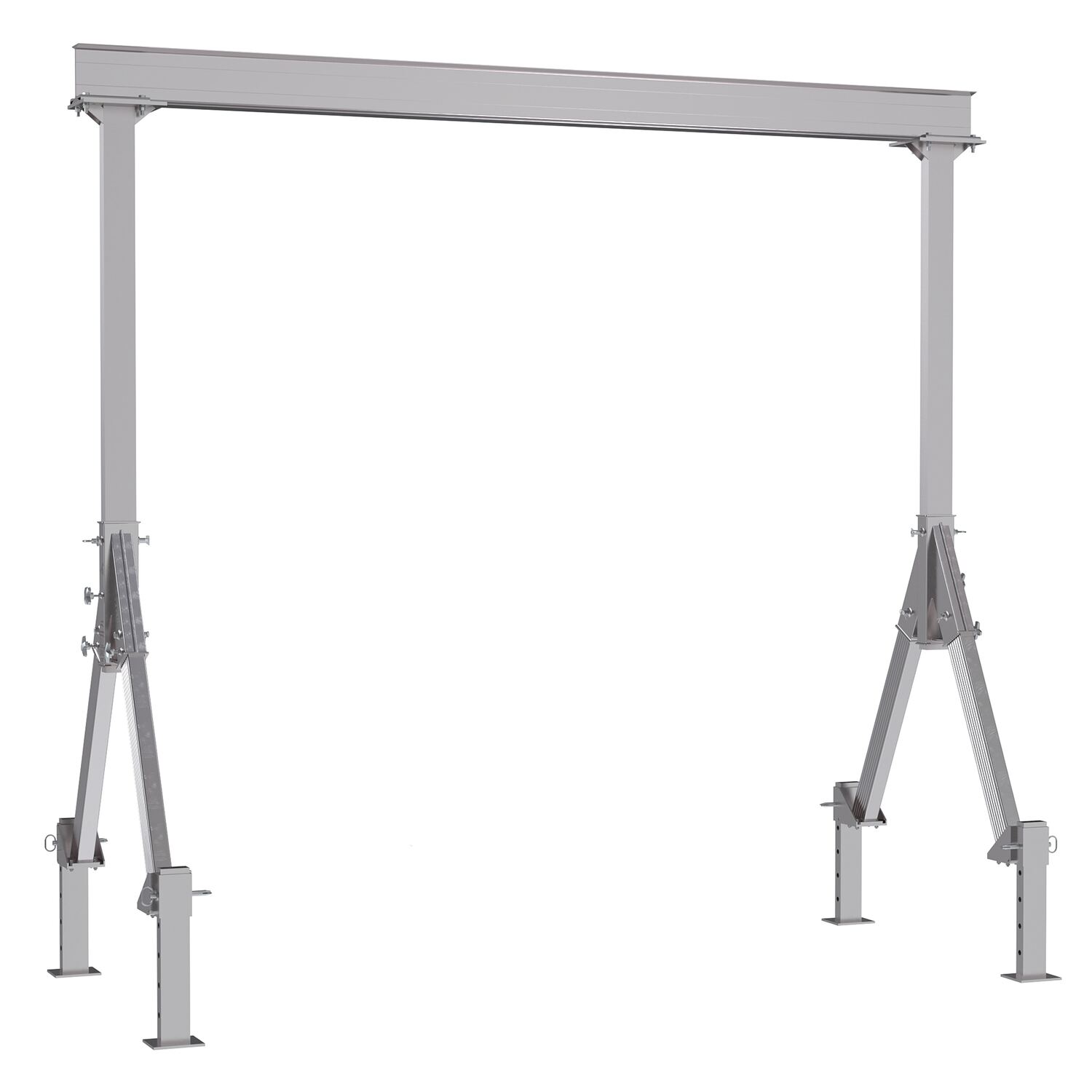

FHA-4-12-10-ALO FHA-4-12-10-ALOAluminum Fixed Height Gantry Crane With Adjustable Leveling Option 12 ft. X 10 ft. 4000 lb. Capacity SilverUniform Capacity (lbs.): 4,000
Lowered Height (in.): 112		426

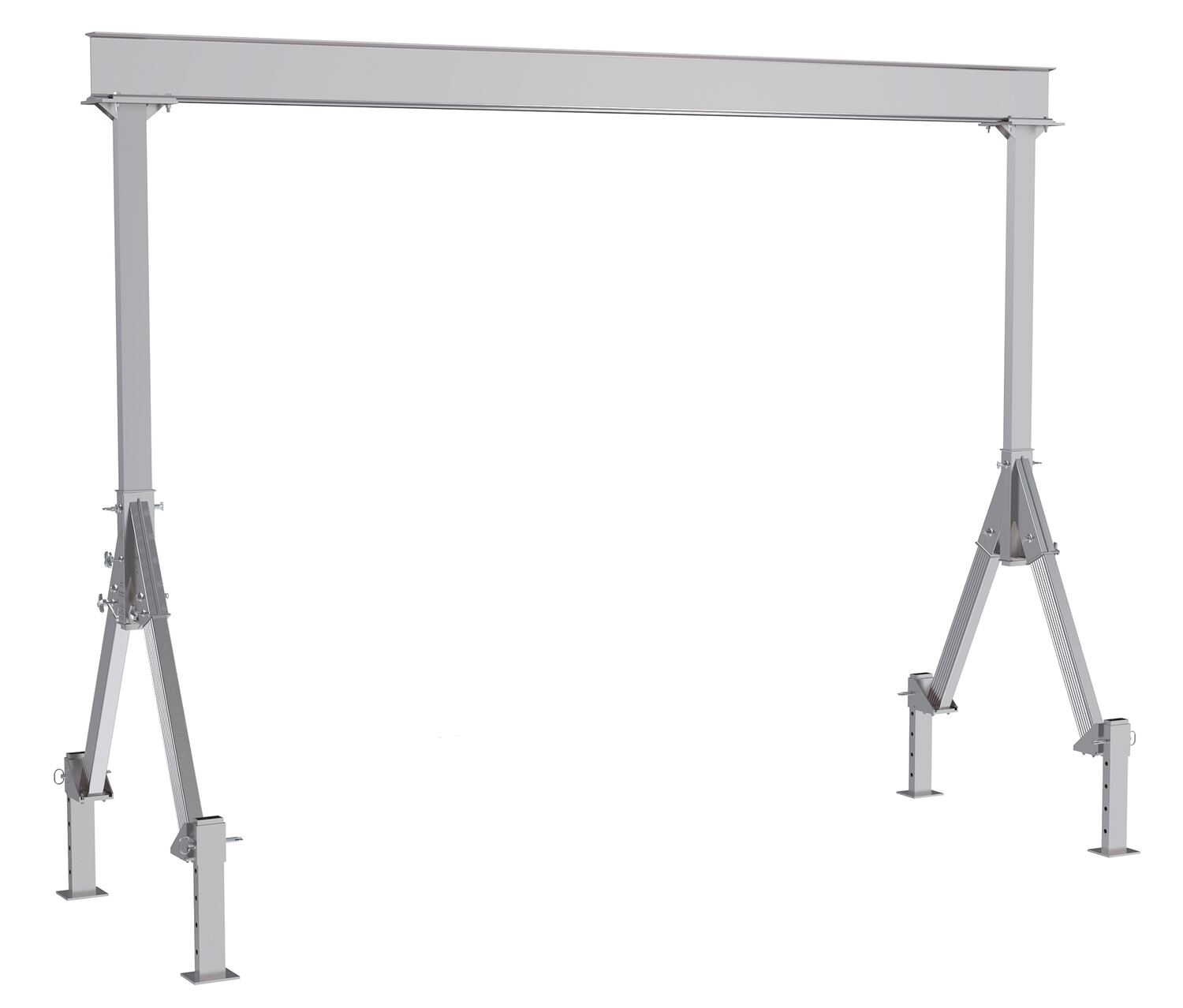

FHA-4-15-10-ALO FHA-4-15-10-ALOAluminum Fixed Height Gantry Crane With Adjustable Leveling Option 15 ft. X 10 ft. 4000 lb. Capacity SilverUniform Capacity (lbs.): 4,000
Lowered Height (in.): 112		471

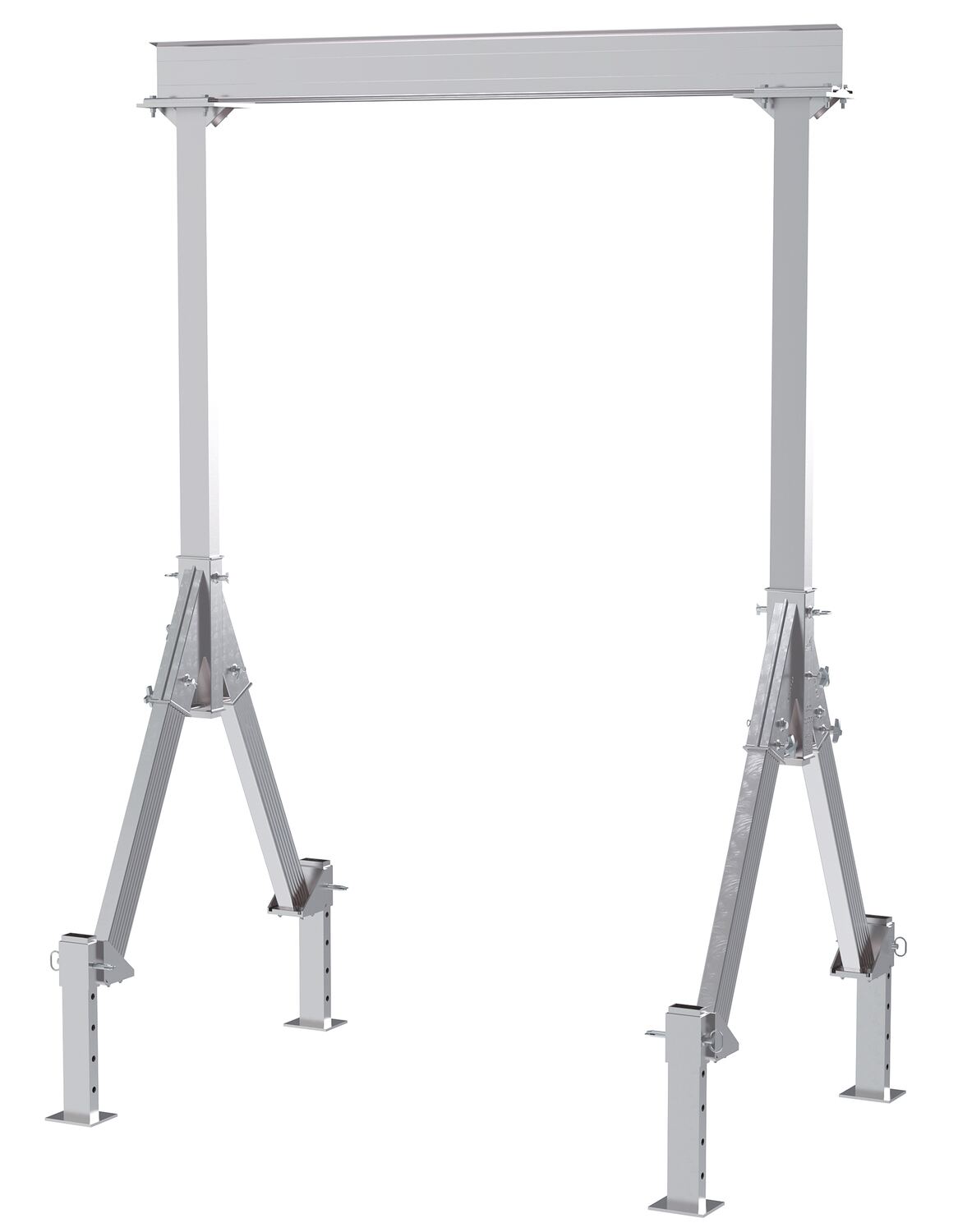

FHA-4-8-10-ALO FHA-4-8-10-ALOAluminum Fixed Height Gantry Crane With Adjustable Leveling Option 8 ft. X 10 ft. 4000 lb. Capacity SilverUniform Capacity (lbs.): 4,000
Lowered Height (in.): 112		406
