Fully Powered Electric Pallet Truck

model: EPT-2745-33

EPT-2745-33_A.jpg EPT-2745-33_C.jpg EPT-2745-33_E.jpg EPT-2745-33_F.jpg EPT-2745-33_G.jpg EPT-2745-33_I.jpg EPT-2745-33_J.jpg EPT-2745-33_H.jpg More Images +

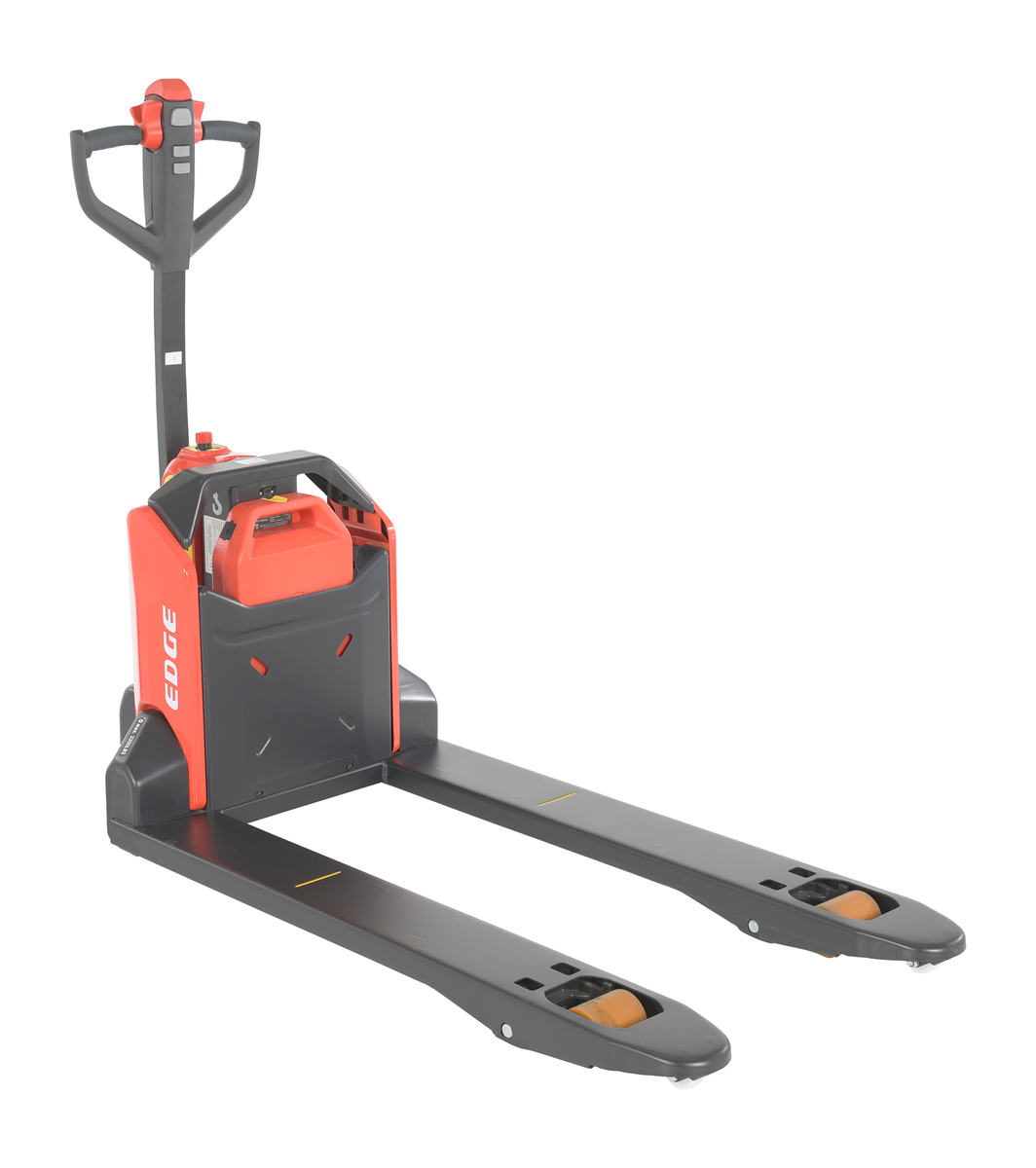

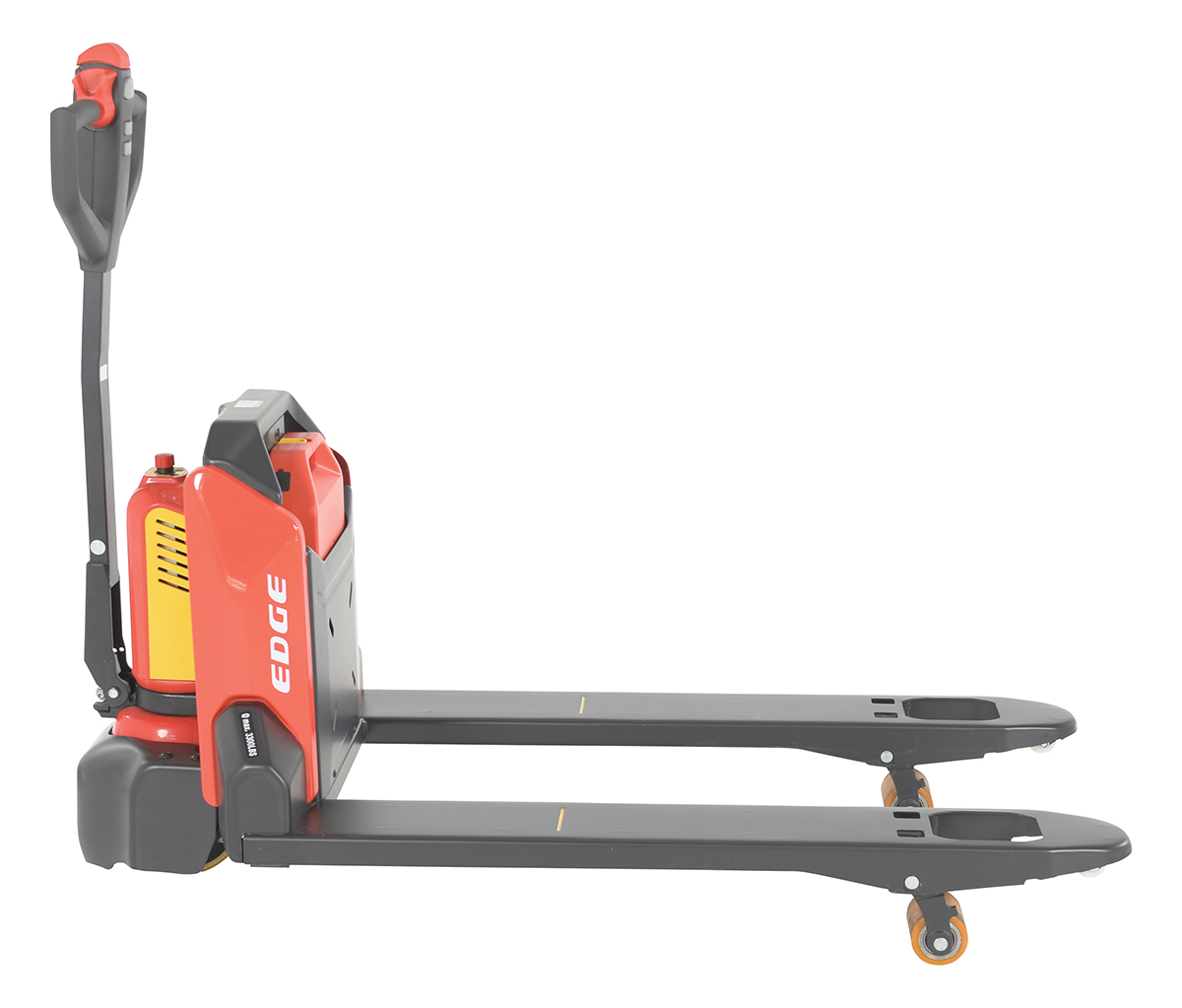

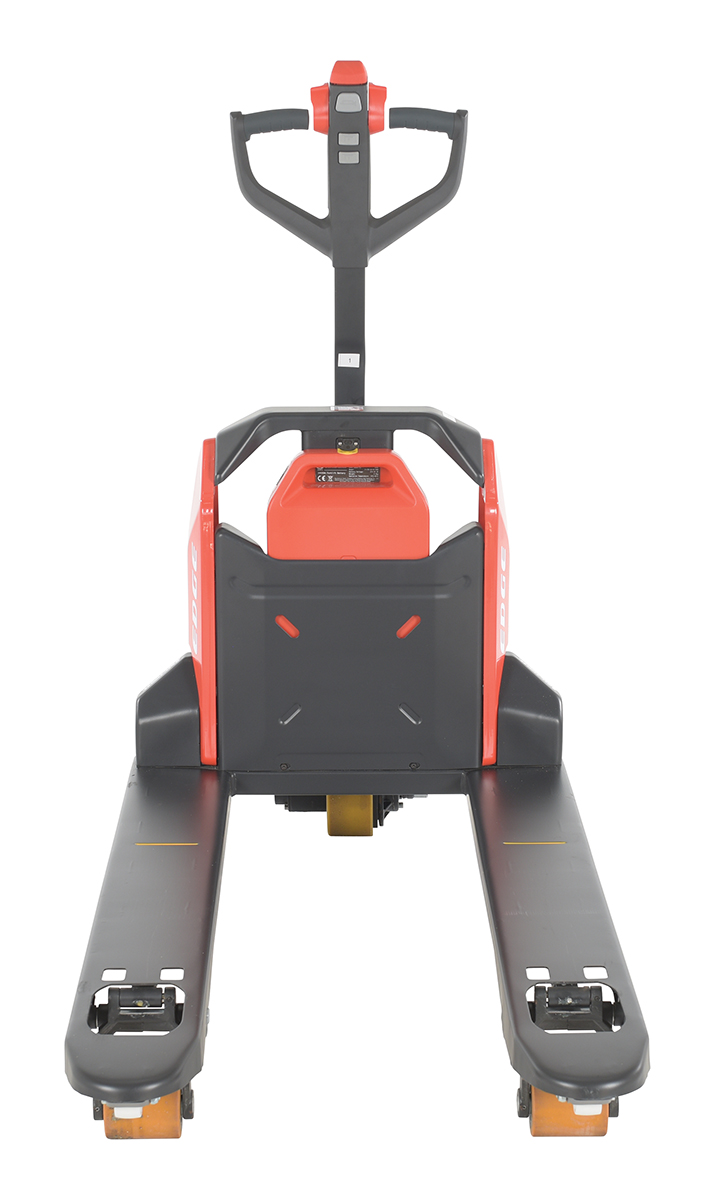

Fully Powered Electric Pallet Truck
SERIES: EPT

Combines the advantages of a manual and an electric pallet truck!

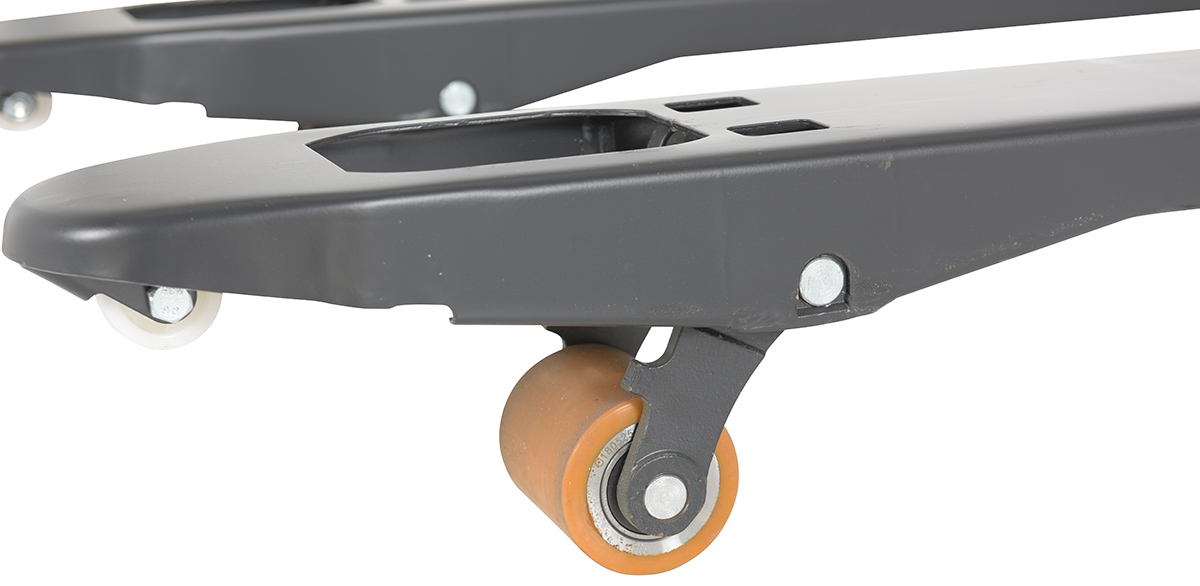

An electric pallet truck is the perfect upgrade from the standard manual design. This functional approach minimizes manual labor and maximizes efficiency when moving products and goods. Speed adjustments as well as raising/lowering forks can be modified without the users' hands leaving the functional handle. Unit is powered by a lithium ion battery for continuous consistent use. Forks are powder coated for a baked in added toughness.

Standard Features:

  • Smart design, high performance, and maintenance friendly.
  • Compact body design is even smaller than conventional hand pallet trucks.
  • Multi-function handle with integrated PIN code LCD display, emergency reverse, raise-lower buttons, horn, turtle speed button, and foward-reverse butterfly knobs.

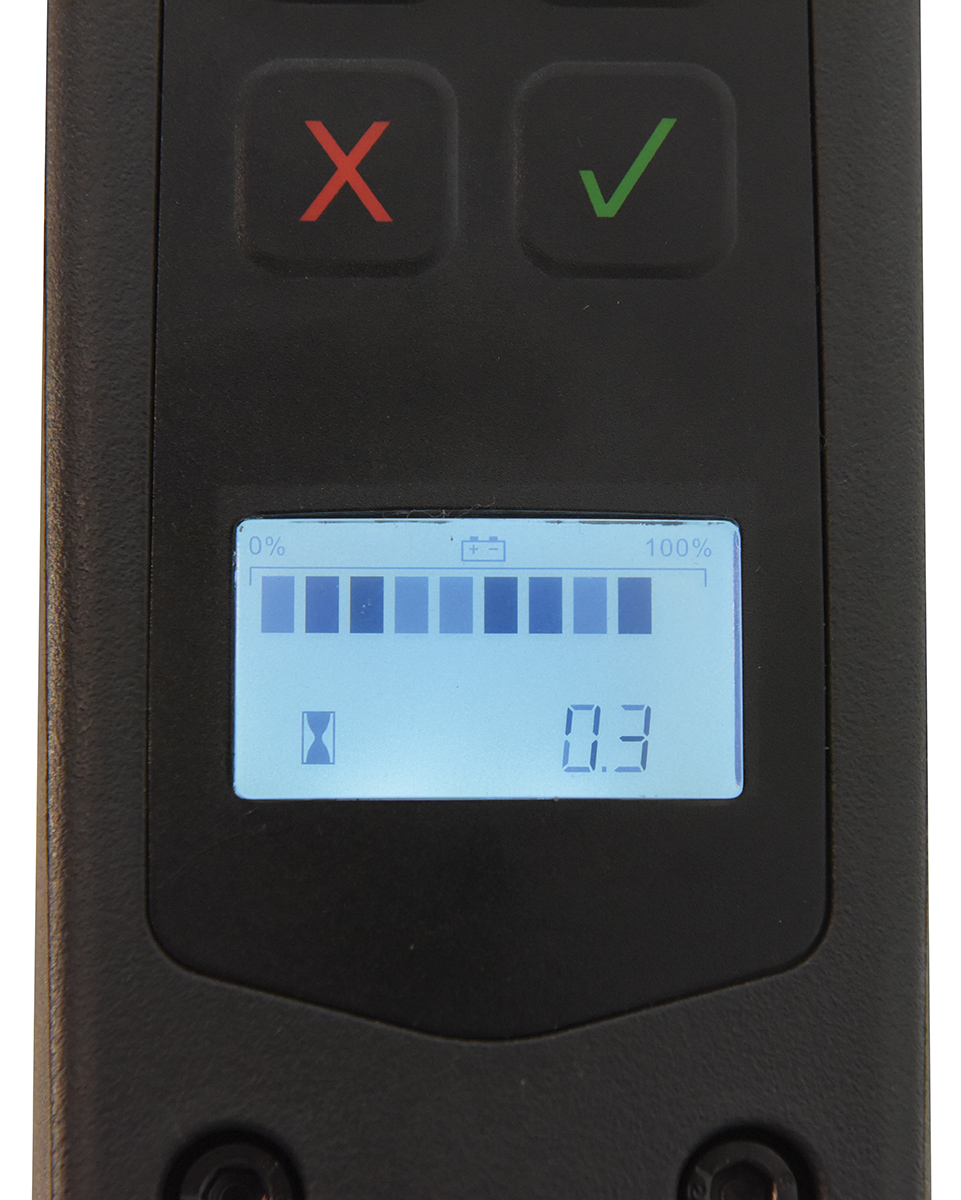

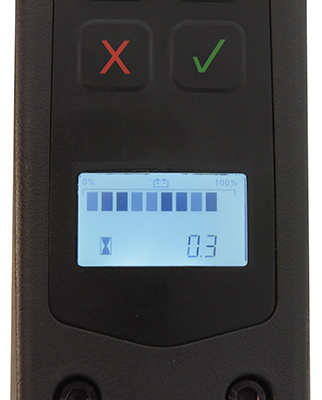

  • LCD display features battery charge indicator, operating hour counter, and on-board diagnostic via error code.
  • Unique auto sensor slows down the truck speed by 50% on sharp turns.
  • Unit can operate when handle is in up position. (UP-RIGHT Driving)
  • Equipped with a maintenance free 24V/20Ah lithium ion battery.
  • Battery pack is interchangeable for continuous usage.
  • Additional battery packs are available.

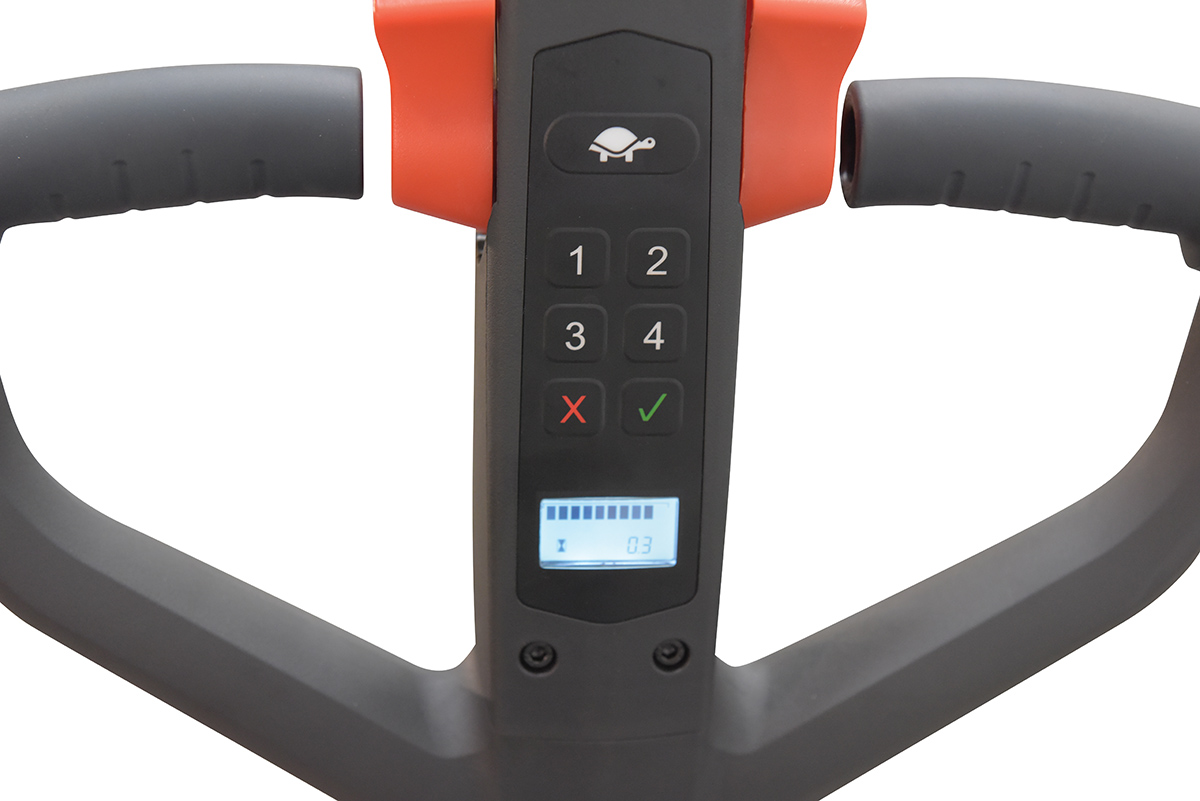

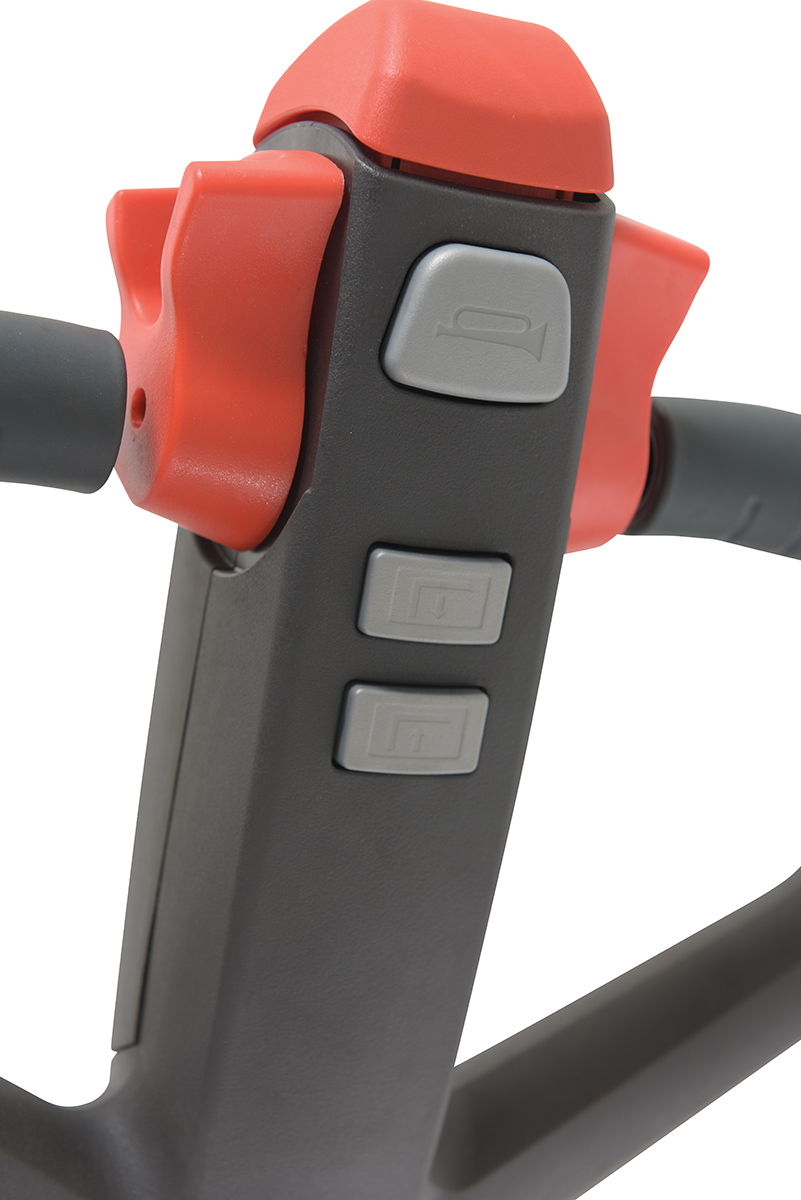

Multi-function handle with integrated PIN code LCD display, emergency reverse, raise-lower buttons, horn, turtle speed button, and foward-reverse butterfly knobs

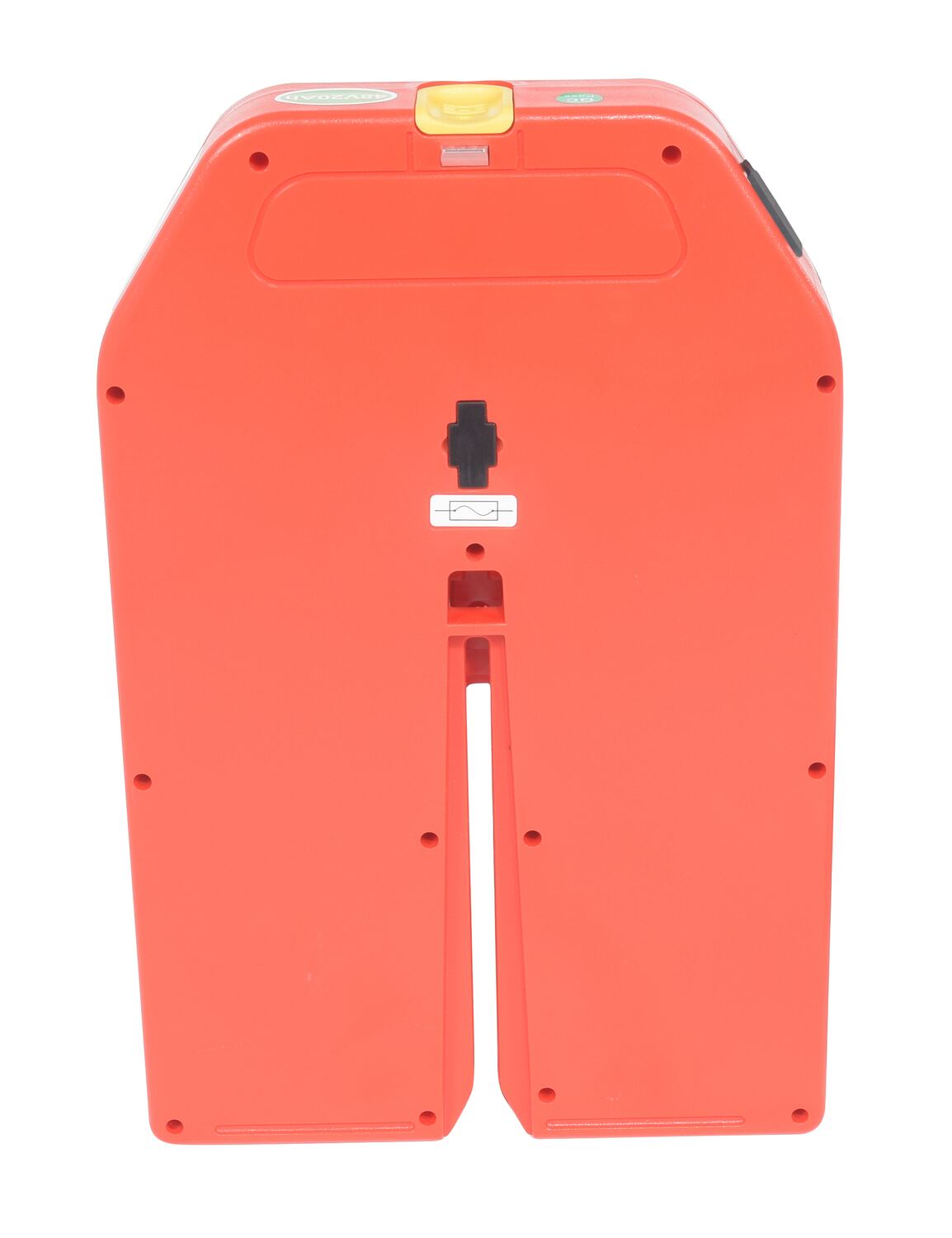

Additional Battery packs are available and interchangeable for continuous use.

Fully Powered Electric Pallet Truck

model: EPT-2745-33

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
EPT-1532-33
EPT-2145-33
EPT-2745-33
EPT-2745-45
EPT-2745-45-BATT
EPT-33-BATT
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

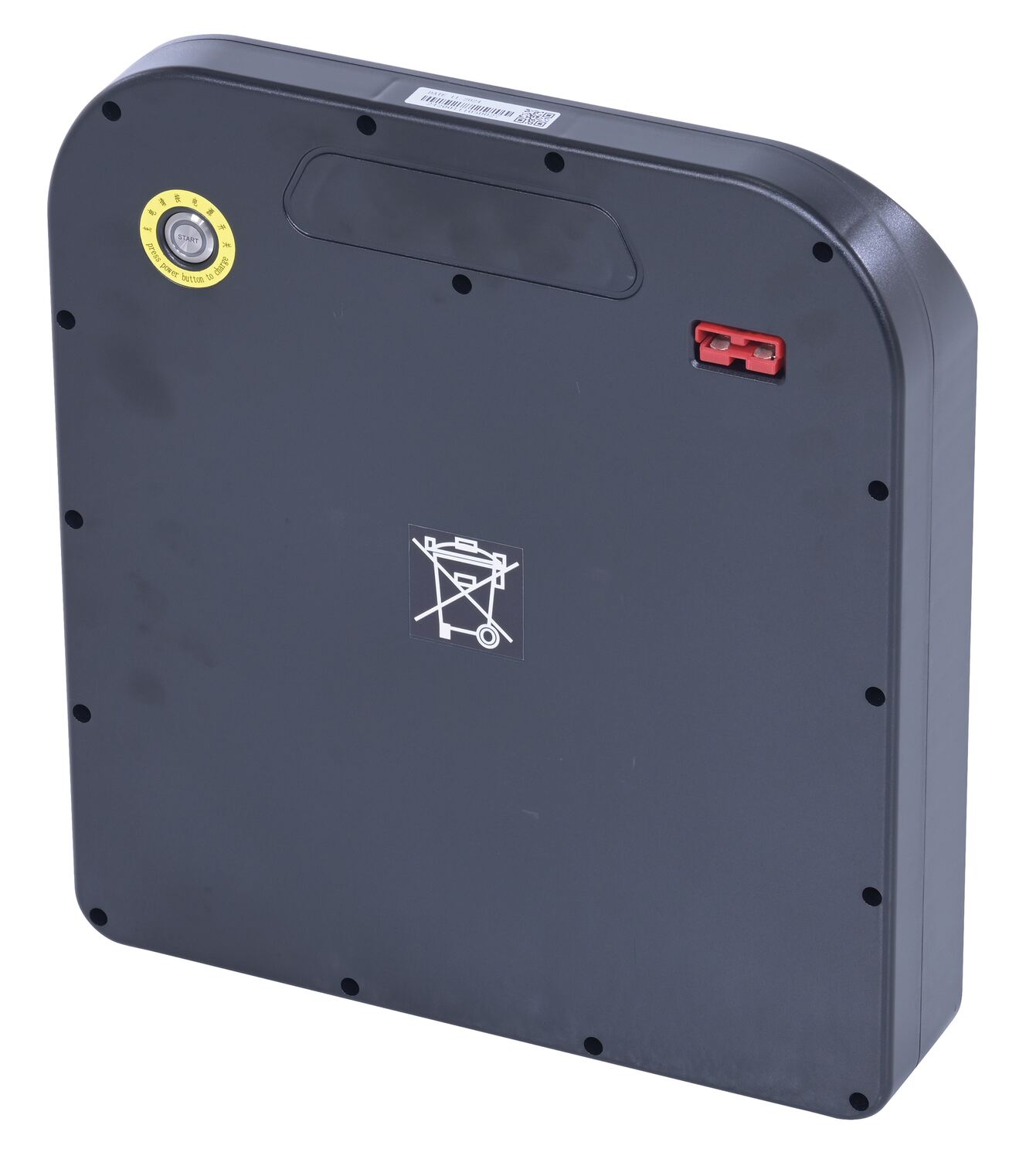

EPT-2745-45-BATT EPT-2745-45-BATTLithium Ion 24 Volt/20 Ah Battery Pack For EPT-2745-4517

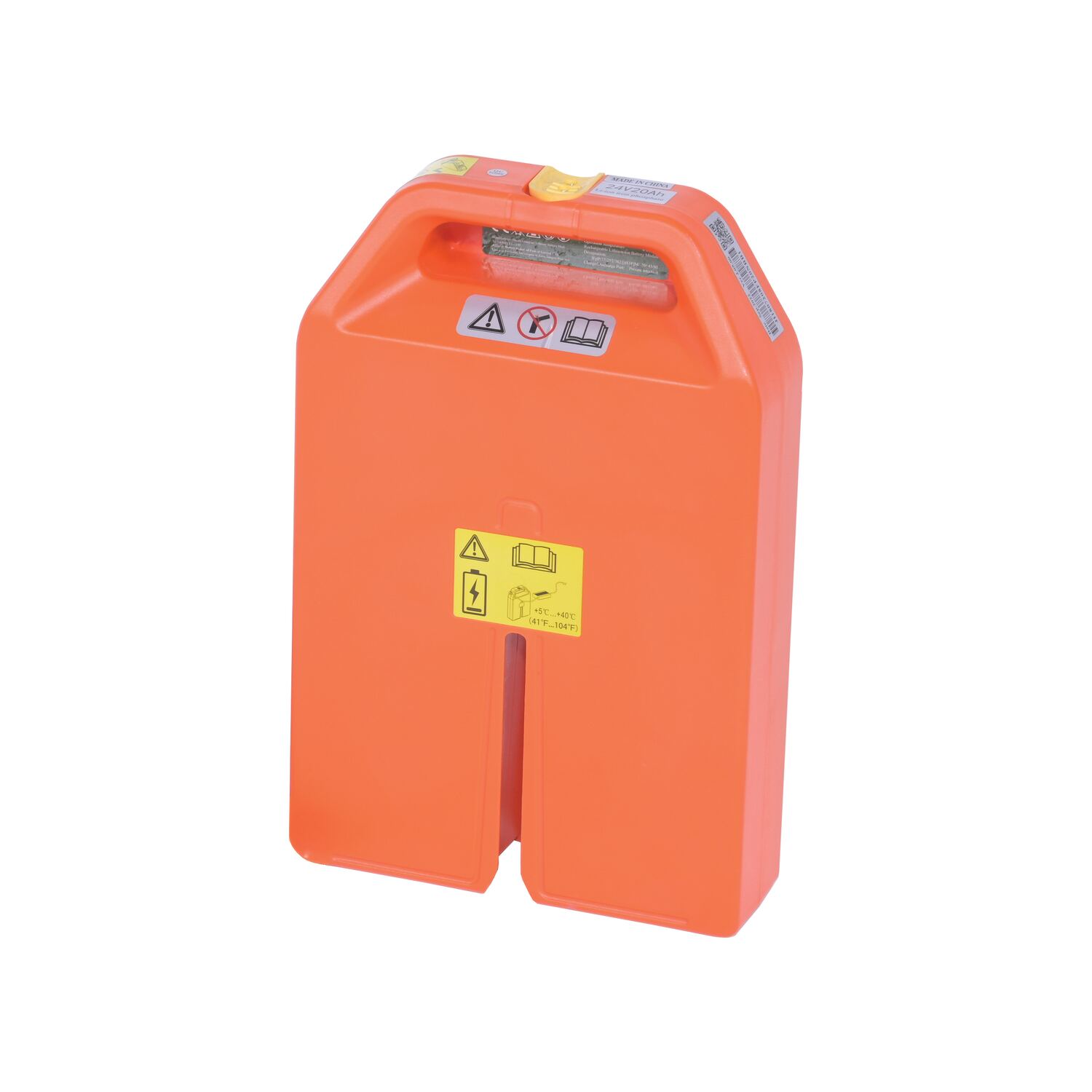

EPT-33-BATT EPT-33-BATTLithium Ion 24 Volt/20 Ah Battery Pack For EPT-33 Models Red13

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

EPT-XXXX-33

EPT-2745-45

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

No Approval Drawings For This Product

Testing Certificates

EPT-1532-33

EPT-2145-33

EPT-2745-33

EPT-2745-45

SDS Sheets


Hydraulic Oil
EPT-1532-33 SDS


Hydraulic Oil
EPT-2145-33 SDS


Li-Ion Battery
EPT-2745-33 SDS


Hydraulic Oil
EPT-2745-33 SDS


Hydraulic Oil
EPT-2745-45 SDS


Polymer Lithium Ion Battery
EPT-1532-33-BATT SDS


Polymer Lithium Ion Battery
EPT-1532-33 SDS


Polymer Lithium Ion Battery
EPT-2145-33 SDS


Polymer Lithium Ion Battery
EPT-2145-33-BATT SDS


Li-Ion Battery
EPT-2745-45 SDS


Li-Ion Battery
EPT-2745-45-BATT SDS


Li-Ion Battery
EPT-2745-33-BATT SDS

Other PDFs


Electric Pallet Truck Mailing Brochure

Lithium Ion Powered Mailing Brochure







Visit Our Youtube Channel For All Available Videos For All Products
What is the service range of the pallet jack?
The service range is 3.4" to 8". Lowered height 3.4" , raised height is 8".
What is the turning radius of the EPT-2745-33 pallet truck?
The turning radius is 52.36"
What is the battery life for continuous use?
The battery life for the EPT-2745-33 is 2-2.5 hours.
What is the battery charge time for the EPT-2745-33 pallet truck?
The charge time is 3-4 hours.

Related or Similar Products:

More From Powered Pallet Trucks





Fully Powered Electric Pallet ...




Combines the advantages of a manual and an electric pallet truck!

An electric pallet truck is the perfect upgrade from the standard manual design. This functional approach minimizes manual labor and maximizes efficiency when moving products and goods. Speed adjustments as well as raising/lowering forks can be modified without the users' hands leaving the functional handle. Unit is powered by a lithium ion battery for continuous consistent use. Forks are powder coated for a baked in added toughness.

Standard Features:

  • Smart design, high performance, and maintenance friendly.
  • Compact body design is even smaller than conventional hand pallet trucks.
  • Multi-function handle with integrated PIN code LCD display, emergency reverse, raise-lower buttons, horn, turtle speed button, and foward-reverse butterfly knobs.
  • LCD display features battery charge indicator, operating hour counter, and on-board diagnostic via error code.
  • Unique auto sensor slows down the truck speed by 50% on sharp turns.
  • Unit can operate when handle is in up position. (UP-RIGHT Driving)
  • Equipped with a maintenance free 24V/20Ah lithium ion battery.
  • Battery pack is interchangeable for continuous usage.
  • Additional battery packs are available.


Multi-function handle with integrated PIN code LCD display, emergency reverse, raise-lower buttons, horn, turtle speed button, and foward-reverse butterfly knobs


Additional Battery packs are available and interchangeable for continuous use.


Model # Description Attributes Net Wt.
(lbs)

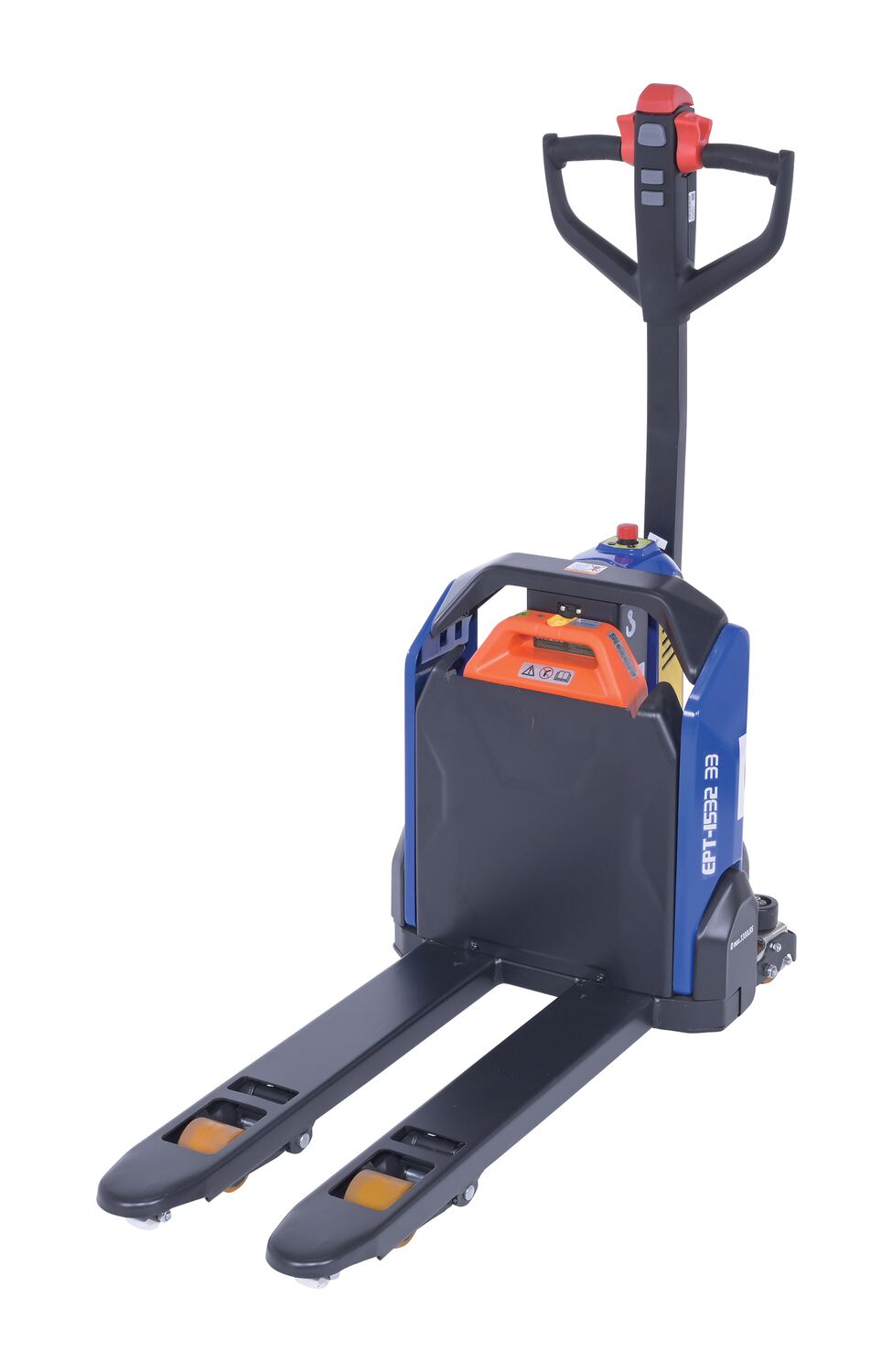

EPT-1532-33 EPT-1532-33Steel Fully Powered Electric Pallet Truck 15 In. x 32 In. 3,300 Lb. Capacity Blue / BlackOverall Fork Width (in.): 15
Overall Fork Length (in.): 32		330
EPT-2145-33 EPT-2145-33Steel Fully Powered Electric Pallet Truck 21 In. x 45 In. 3,300 Lb. Capacity BlackOverall Fork Width (in.): 21
Overall Fork Length (in.): 45		327
EPT-2745-33 EPT-2745-33Steel Electric Pallet Truck 27 In. x 45 In. 3300 Lb. Capacity Black/RedOverall Fork Width (in.): 27
Overall Fork Width (in.): 45		378

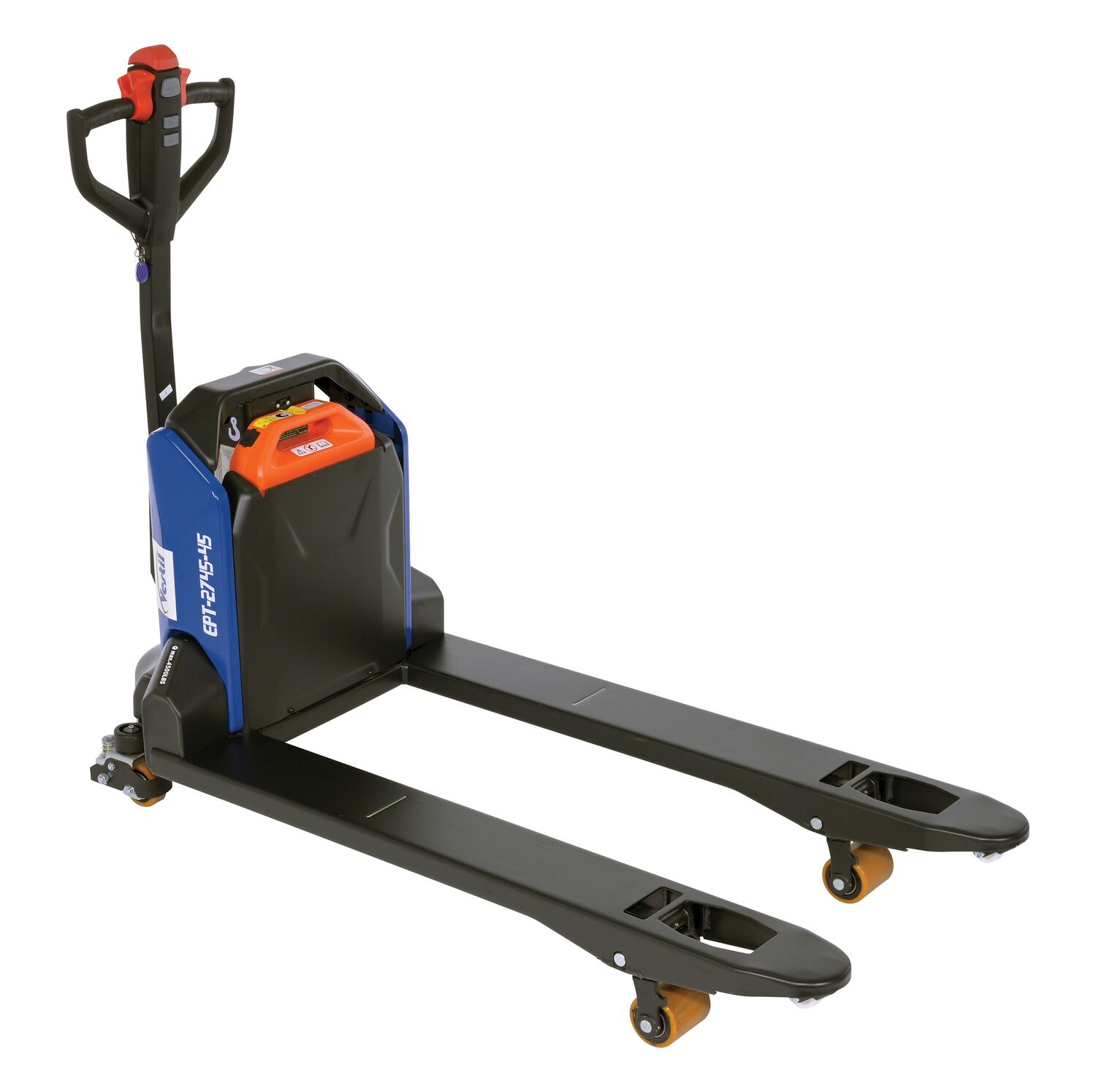

EPT-2745-45 EPT-2745-45Steel Electric Pallet Truck 27 In x 45 In 4,500 Lb. Capacity Black/BlueOverall Fork Width (in.): 27
Overall Fork Width (in.): 45		384
