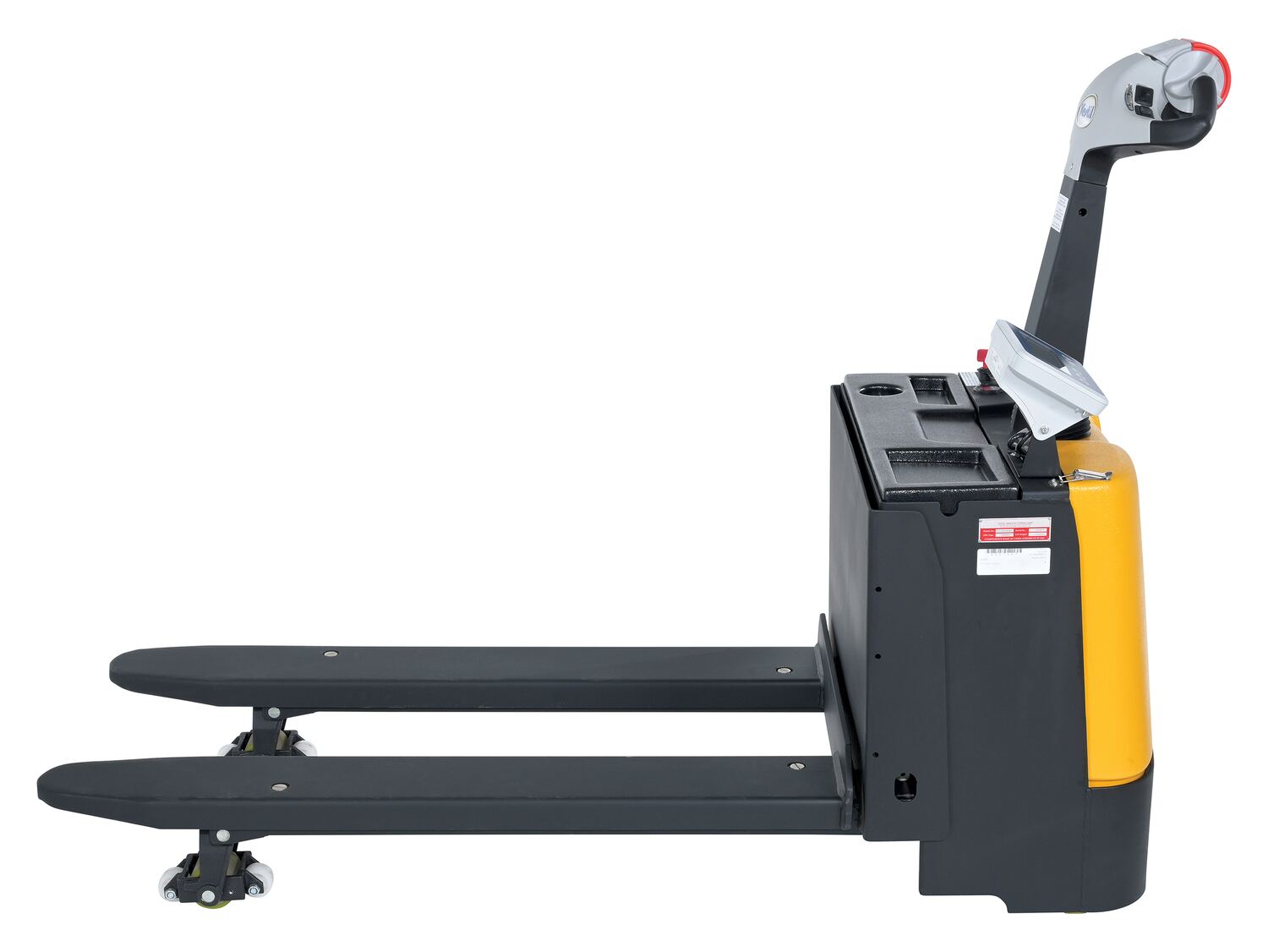

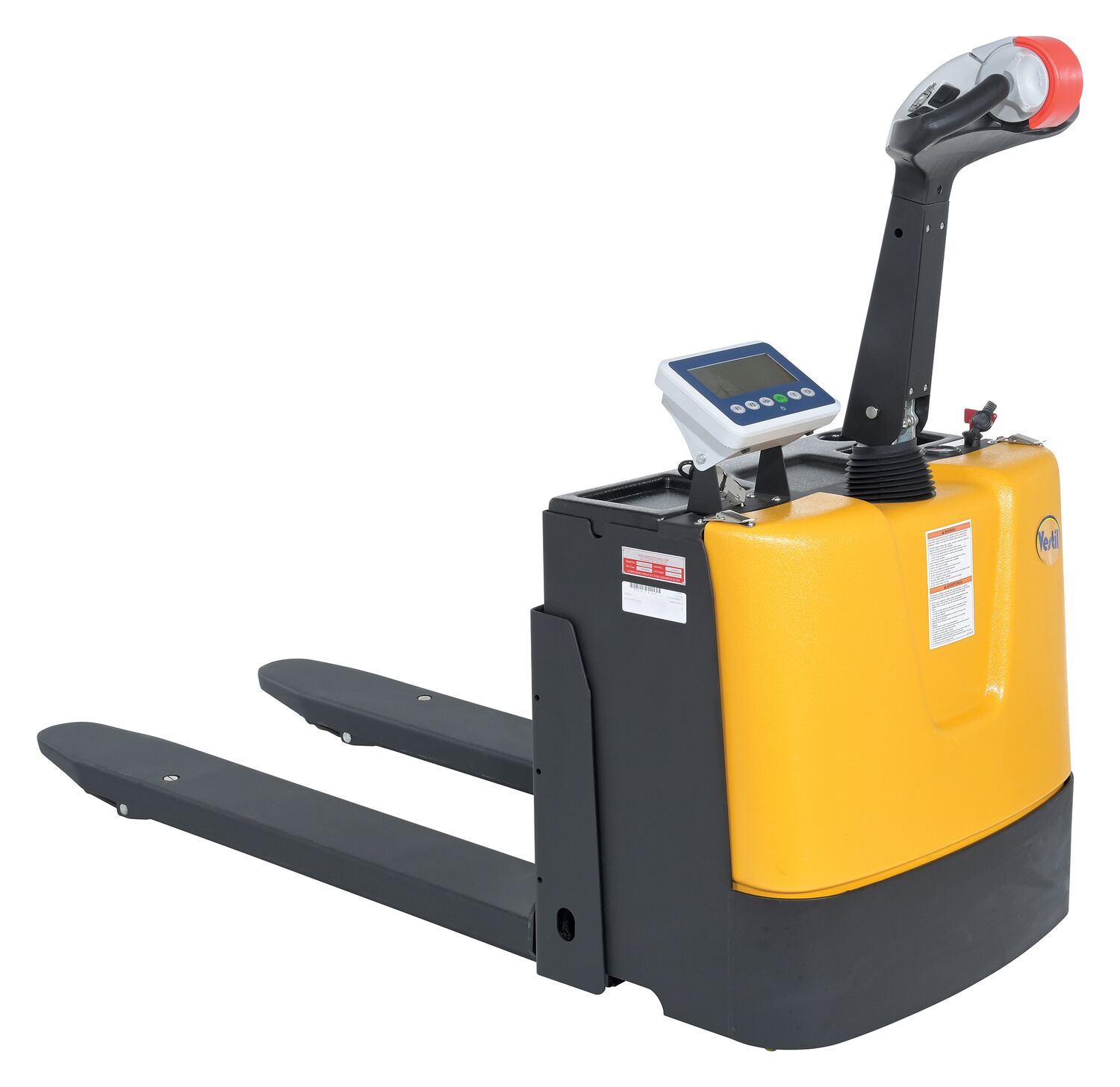

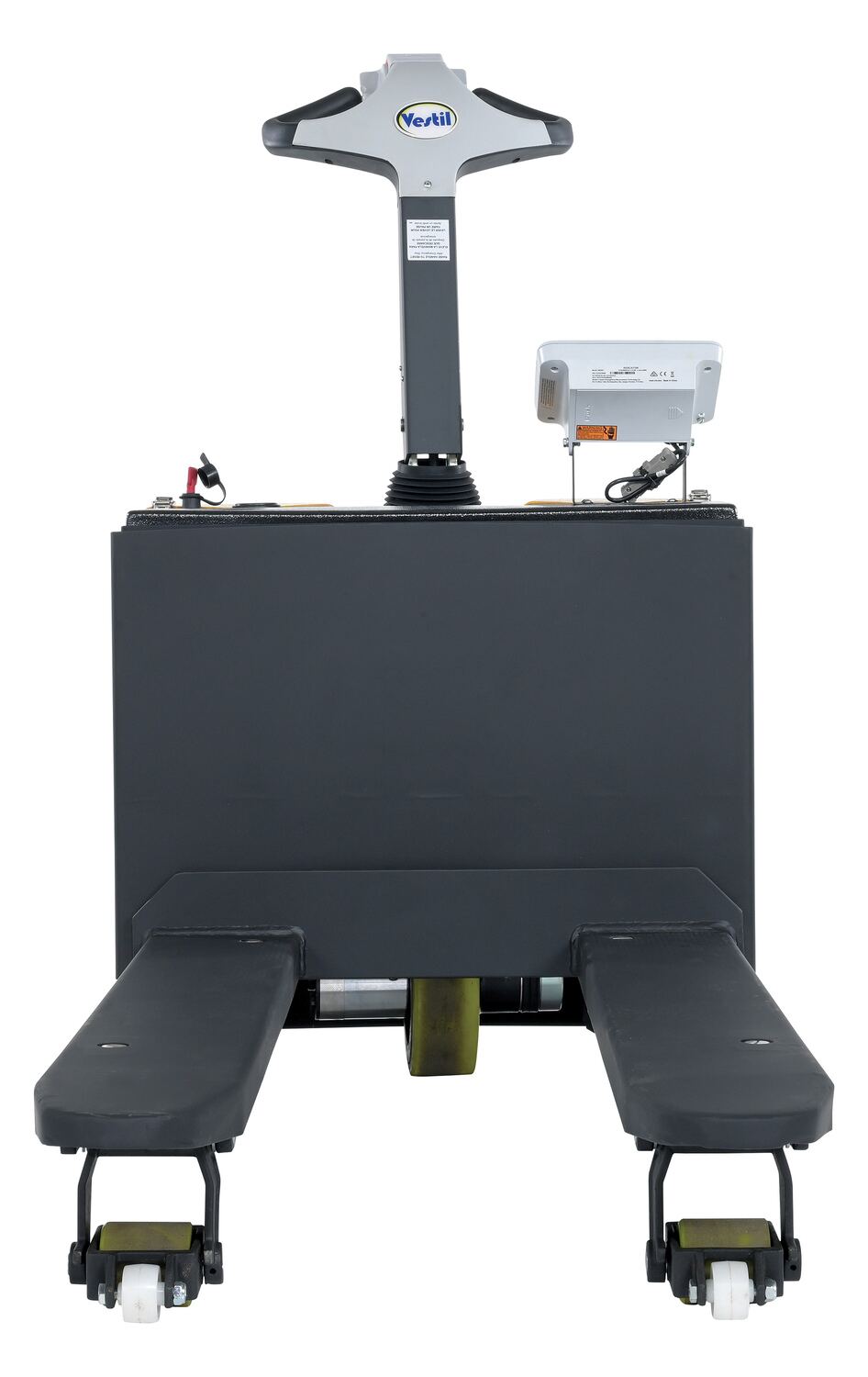

Electric Pallet Trucks with Scale24V DC STANDARD

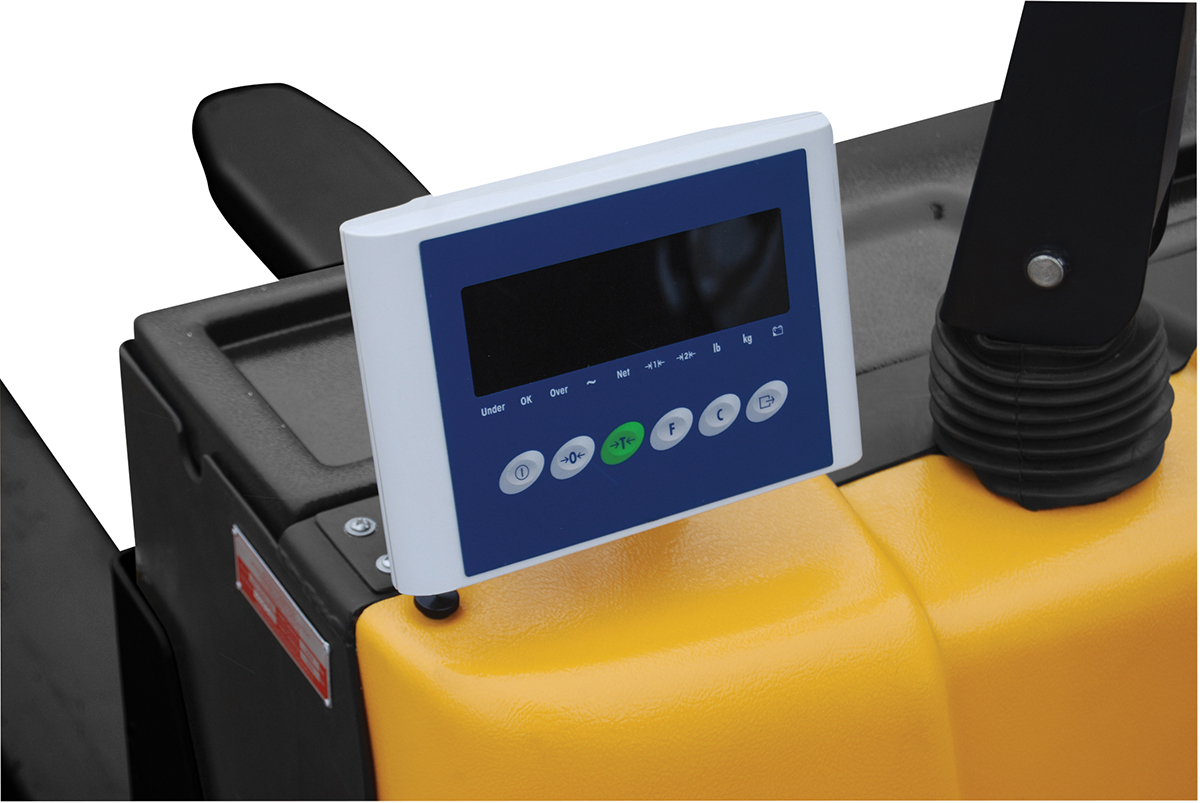

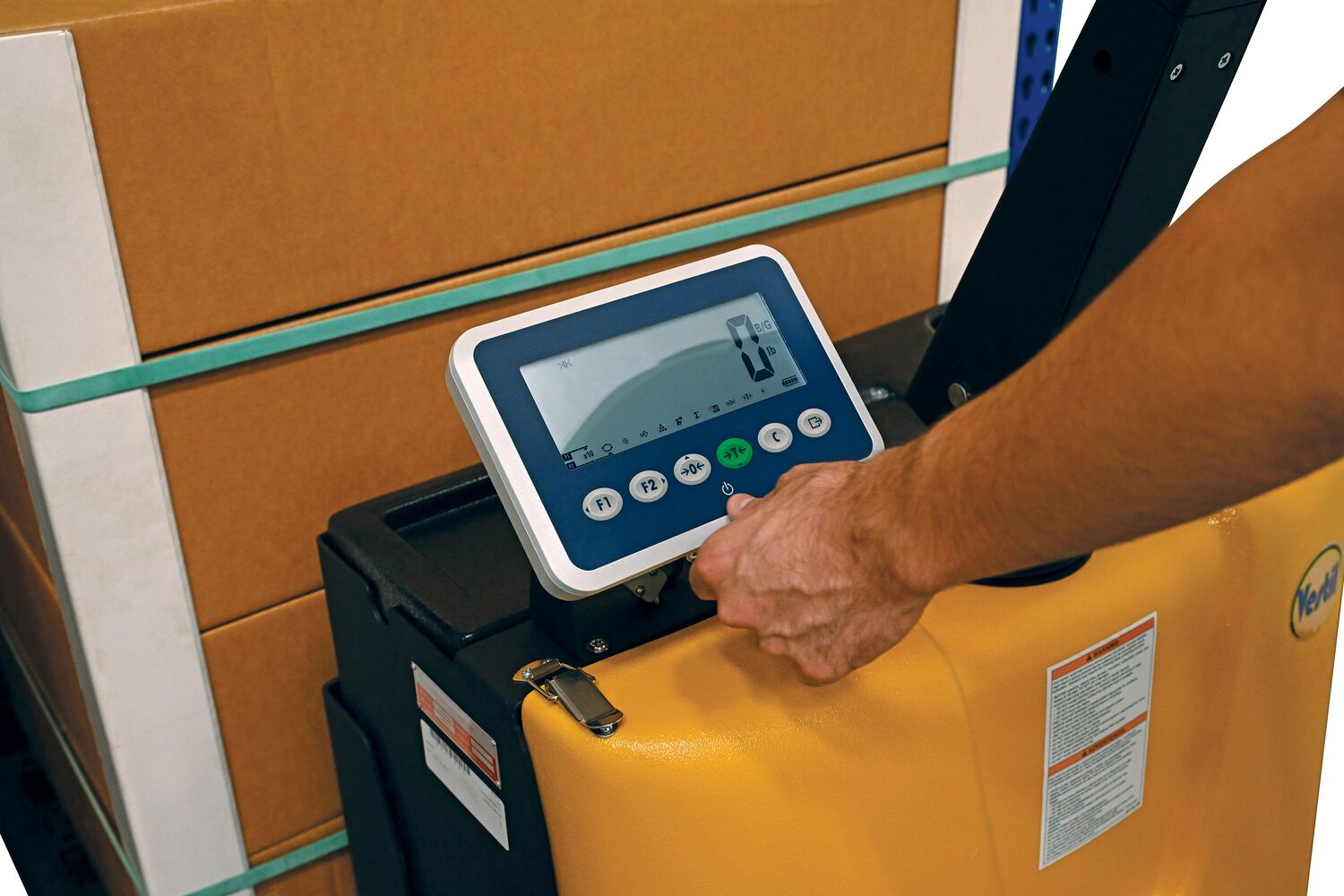

Verify inbound and outbound freight right on your pallet truck and then move your loads with ease. LCD Scale, with 1/2" high characters and 5 function keys (ZERO, TARE, NET/GROSS, PRINT, LB./KG.), displays weight in 1 lb. increments within trucks rated capacity. Scale display operates on (6) six AA batteries. Scale is not NTEP approved (not legal for trade). Scale head includes RS232 port for serial printing. Raise and lower loads with a push of a button. Maneuver loads in warehouses and trailers. Reinforced welded forks with adjustable tie-rods give long service. High-torque 24V DC drive & lift motors handle heavy duty jobs. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle. WORKS ONLY WITH OPEN BOTTOM SKIDS.
- Fully-powered pallet truck makes movement of pallets quick and easy

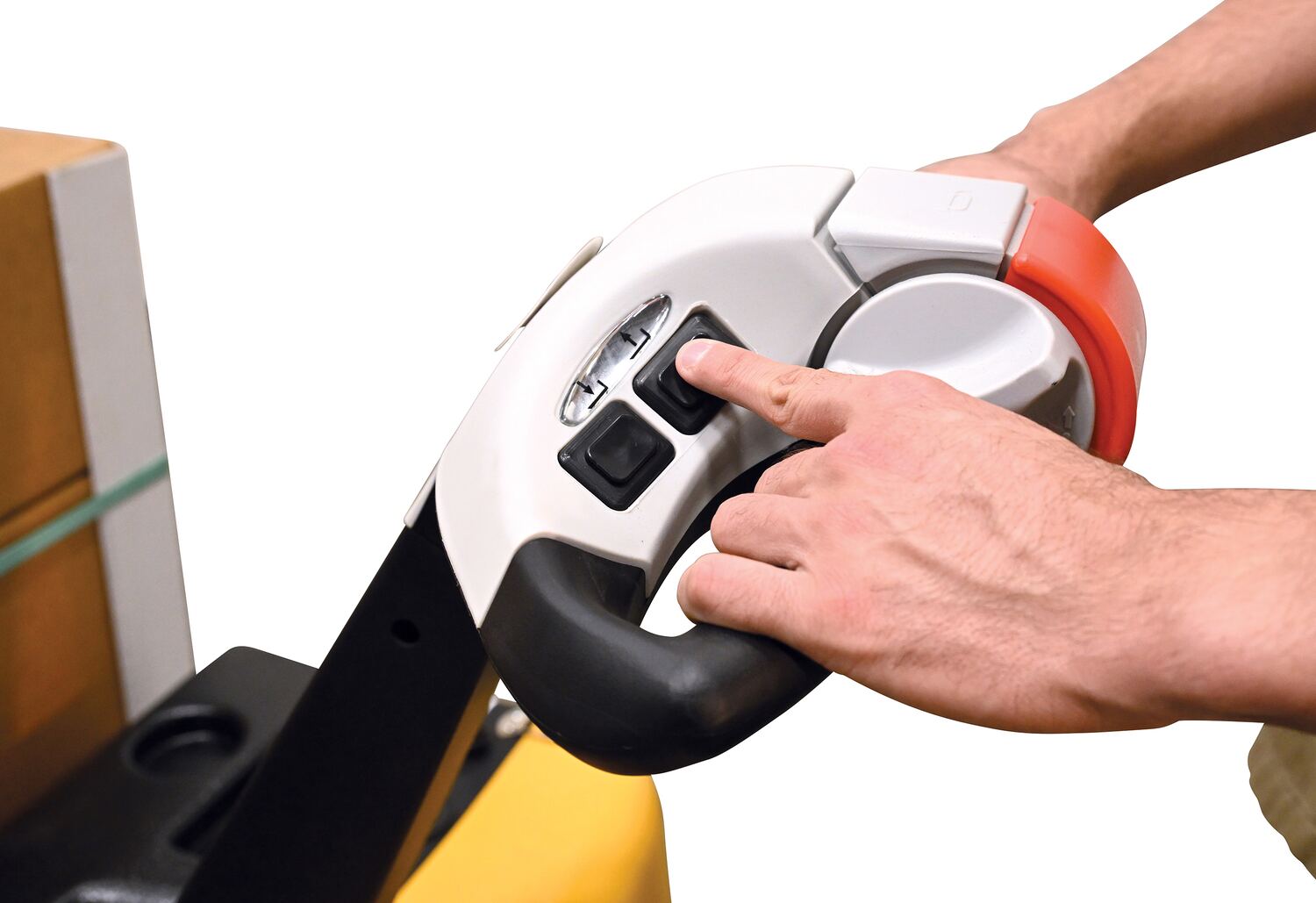

- Includes fingertip raise and lower buttons for operator convenience
- Safety belly reverse button improves worker safety
- Easy-to-operate throttle for forward and reverse direction
Fully Powered Electric Pallet Truck
Electric Pallet Truck (Pramac)
Fully Electric Pallet Truck with Backrest (6,000 lb. Capacity)
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

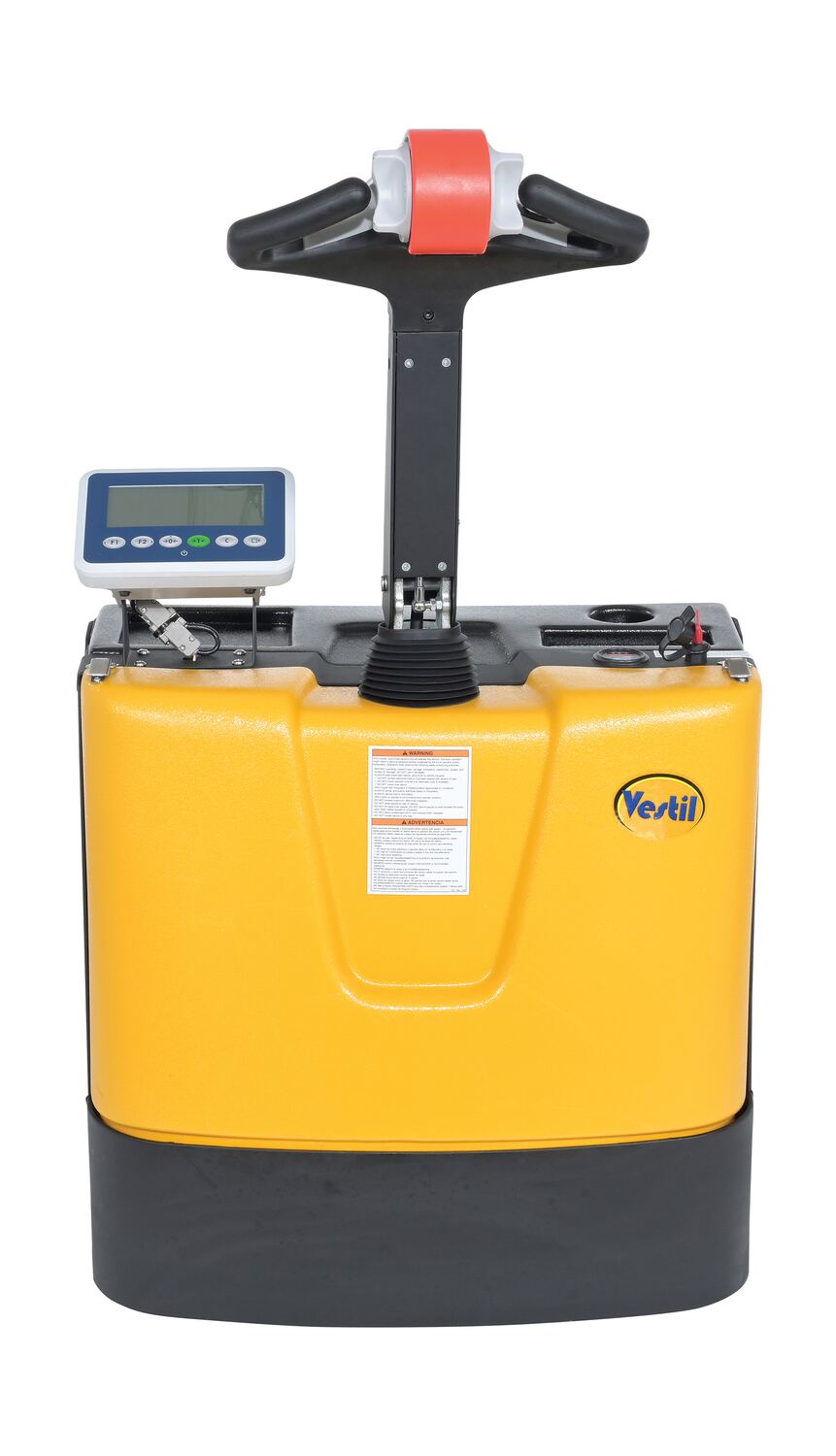

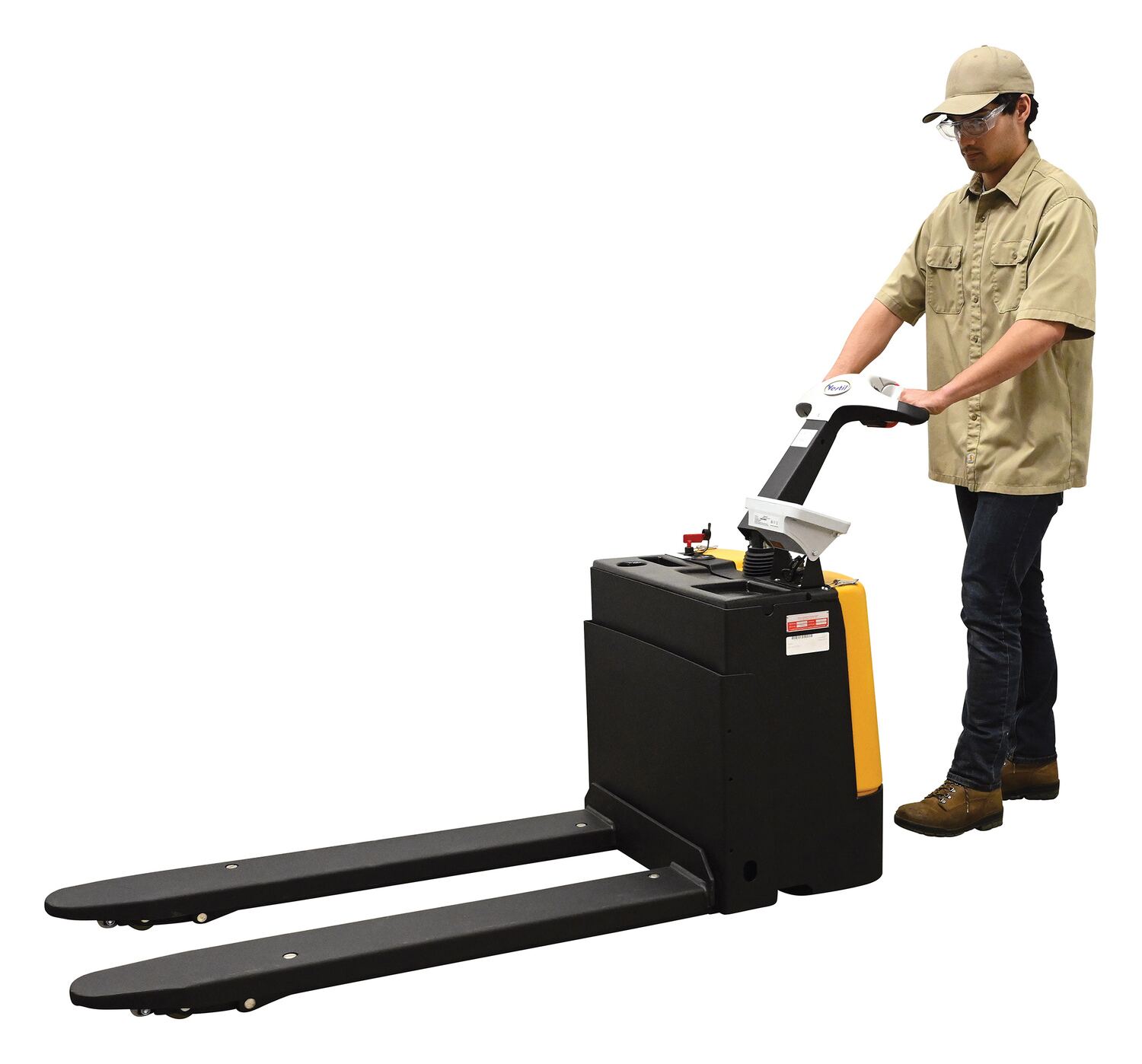

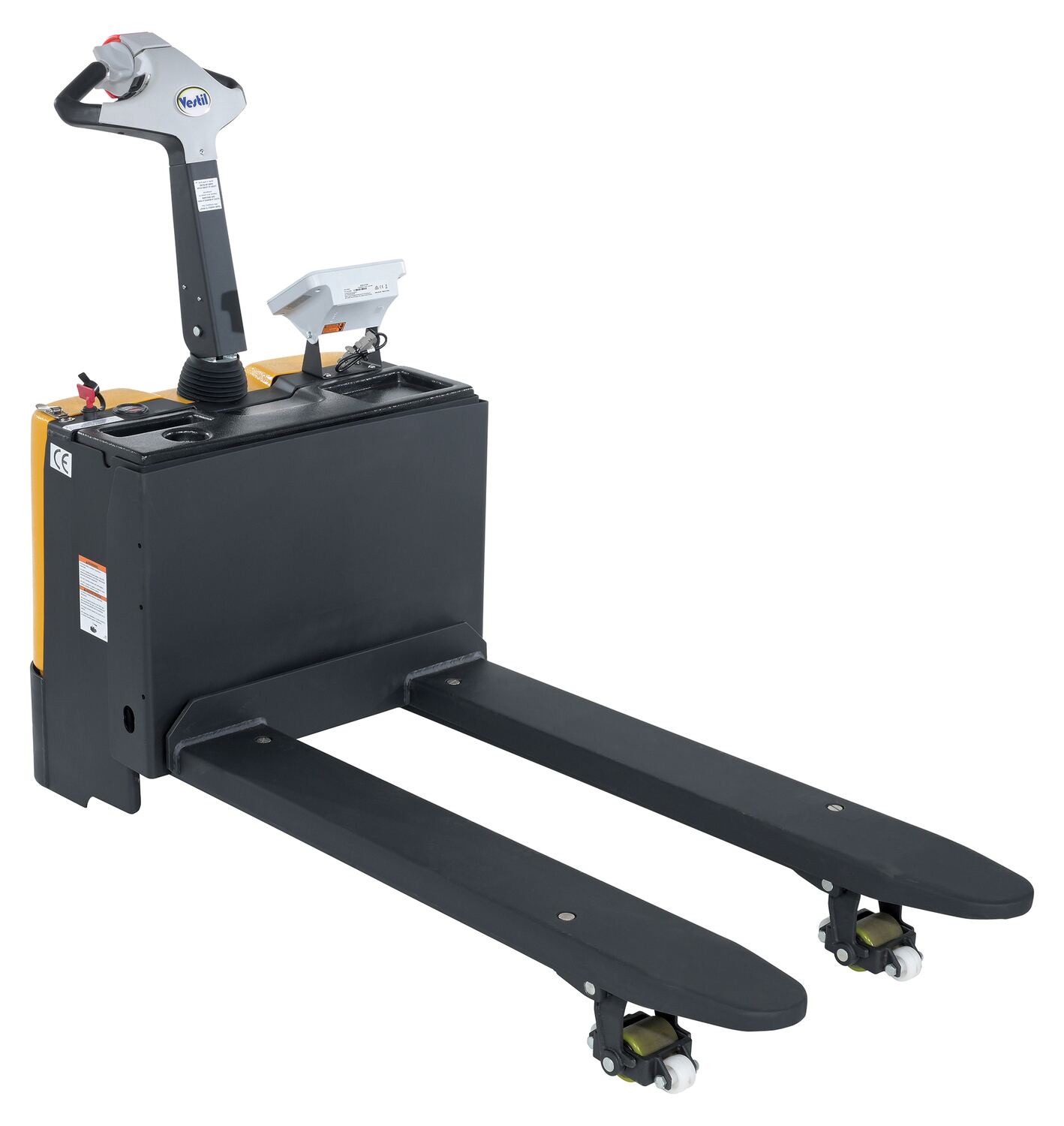

| EPT-2547-30-SCL | POPULAR |  | 1 Year Limited Warranty | Steel Electric Pallet Truck with Scale 25 In. x 47 In. 3000 Lb. Capacity Black / Yellow | Overall Fork Width (in.): 25.5625 Overall Fork Length (in.): 48 | 706 | |
| EPT-2547-30-SCL-AGM | |  | 1 Year Limited Warranty | Steel Electric Pallet Truck with Scale 25 In. x 47 In. 3,300 Lb. Capacity | Overall Fork Width (in.): 25 Overall Fork Length (in.): 47 | 702 | |

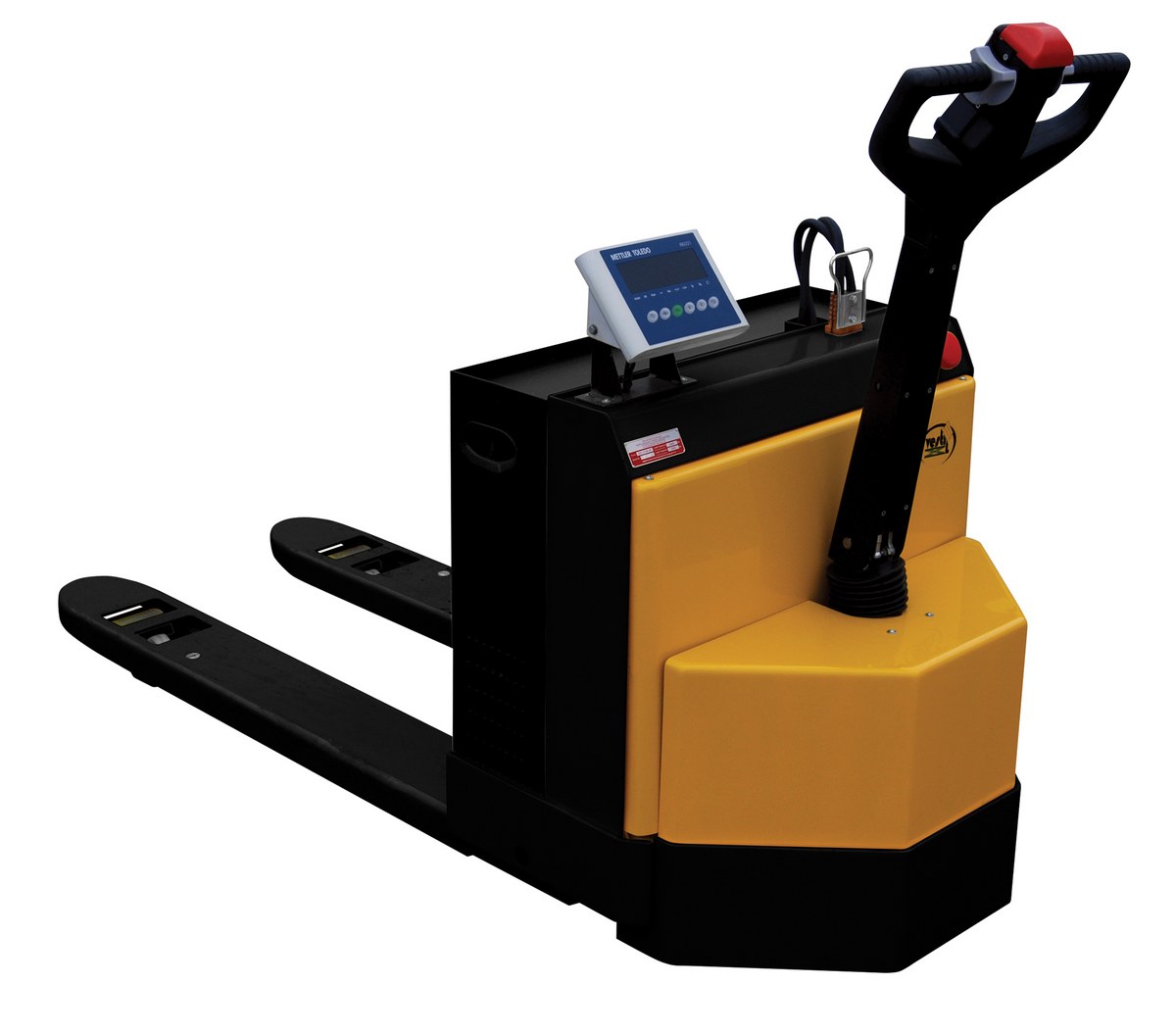

| EPT-2748-45-SCL | |  | 1 Year Limited Warranty | Steel Electric Pallet Truck with Scale 27 In. x 48 In. 4500 Lb. Capacity Black / Yellow | Overall Fork Width (in.): 27 Overall Fork Length (in.): 48 | 1206 | |
| EPT-2748-45-SCL-AGM | |  | 1 Year Limited Warranty | Steel Electric Pallet Truck with AGM Batteries and Scale 27 In. x 48 In. 4500 Lb. Capacity | Overall Fork Width (in.): 27 Overall Fork Length (in.): 48 | 1234 | |
| EPT-2748-45-SCL-RP | |  | 1 Year Limited Warranty | Steel Electric Pallet Truck with Scale and Rider Platform 27 In. x 48 In. 4500 Lb. Capacity Yellow/Black | Overall Fork Width (in.): 27 Overall Fork Length (in.): 48 | 954 | |
| EPT-2748-45-SCLRPAGM | |  | 1 Year Limited Warranty | Steel Electric Pallet Truck with AGM Batteries, Scale and Riding Platform 27 In. x 48 In. 4500 Lb. Capacity | Overall Fork Width (in.): 27 Overall Fork Length (in.): 48 | 1082 | |

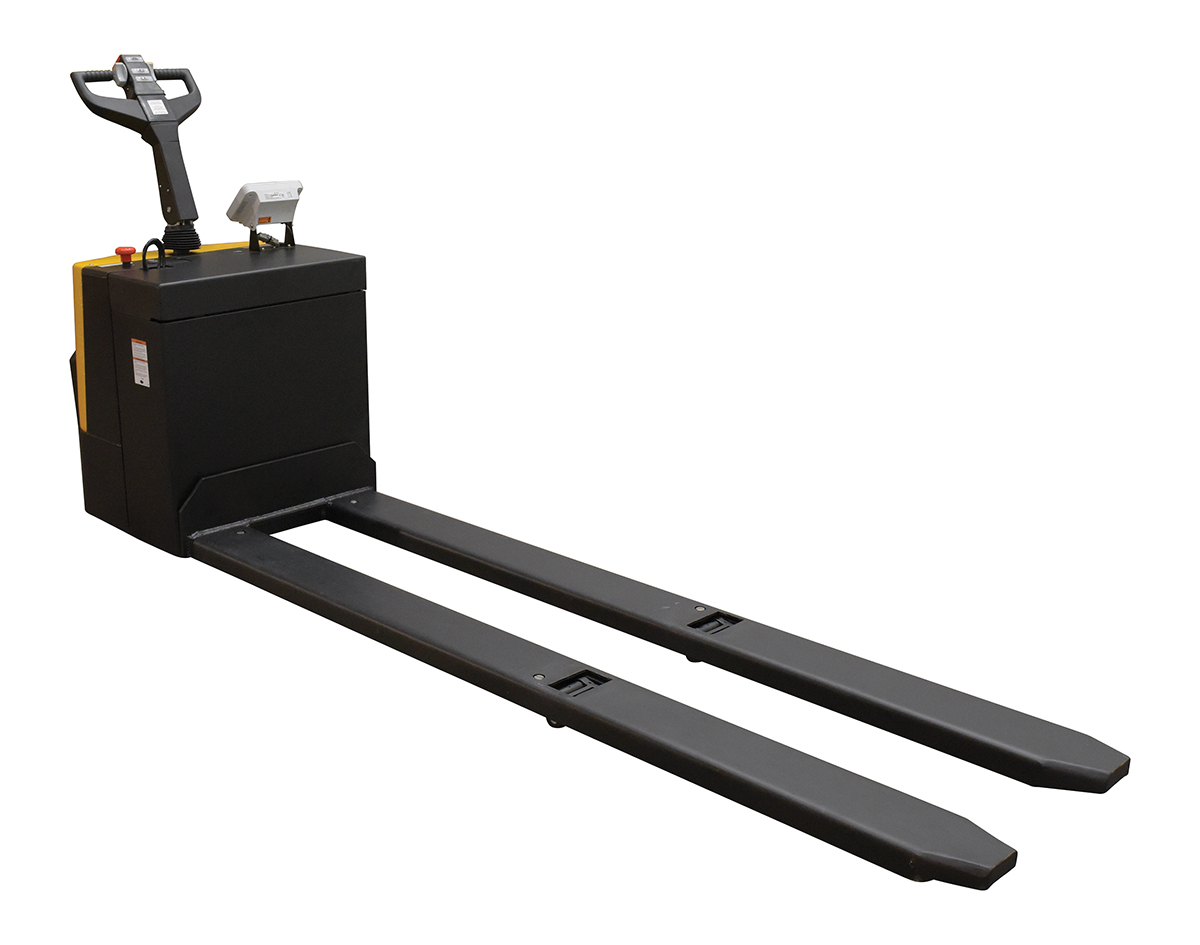

| EPT-2796-45-SCL | |  | 1 Year Limited Warranty | Steel Electric Pallet Truck with Scale 27 In. x 96 In. 4500 Lb. Capacity Black / Yellow | Overall Fork Width (in.): 27 Overall Fork Length (in.): 96 | 1442 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
For More Details of the Option Click the Red Model Button

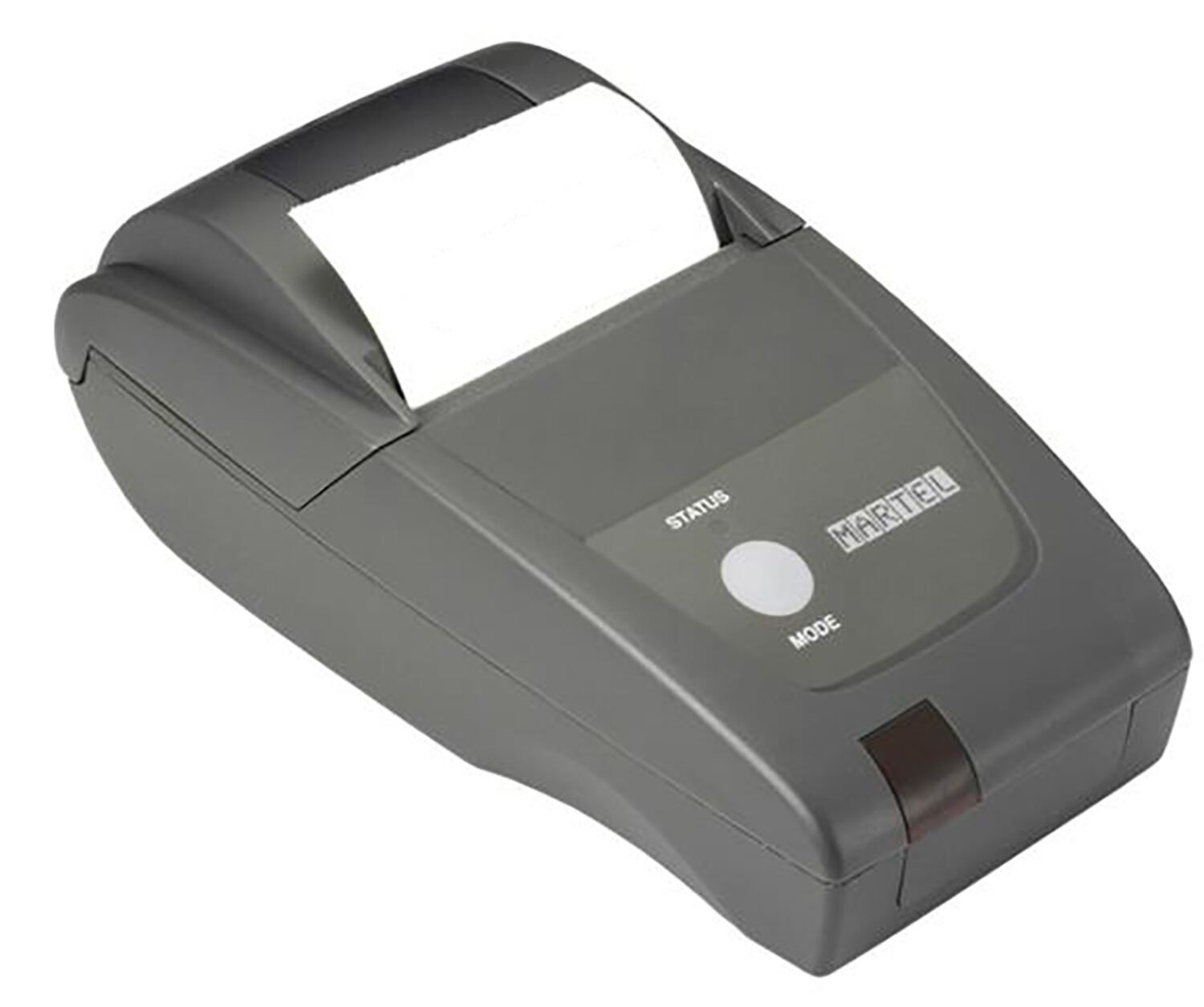

| EPT-SCL-PT |  | 90 Days Limited Warranty | Plastic Scale Printer For Electric Powered Trucks Gray | Power Source: Battery and Plug-In | 3 |
| Model | Image | Description | Wt (lbs.) | ||||
| EPT-45-RP-KIT |  |
Optional Rider Platform, Fields Installed, Available on 4,500 lb. units only | 20 | ||||
| Optional Batteries (Must be Ordered with New Units) | |||||||
| AGM-UPG-2-12V |  |
AGM Battery Upgrade 2x12V order with EPT-2547-30-SCL | |||||
| AGM-UPG-4-6V |  |
AGM Battery Upgrade 4x6V order w/EPT-2748-45-SCL or EPT-2748-45-SCL-RP | |||||
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: EPT-2748-45-SCL
Hydraulic Oil SDS Sheet for: EPT-2748-45-SCL
Valve Regulated Lead Acid Battery SDS Sheet for: EPT-2748-45-SCL-AGM
Hydraulic Oil SDS Sheet for: EPT-2748-45-SCL-AGM
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: EPT-2748-45-SCL-RP
Hydraulic Oil SDS Sheet for: EPT-2748-45-SCL-RP
Valve Regulated Lead Acid Battery SDS Sheet for: EPT-2748-45-SCLRPAGM
Hydraulic Oil SDS Sheet for: EPT-2748-45-SCLRPAGM
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: EPT-2796-45-SCL
Hydraulic Oil SDS Sheet for: EPT-2796-45-SCL
Other PDF's
Directory Links Of Available PDF's For All Products
Q: Can these be used with skids and pallets?
A: The electric pallet truck with scale is designed for use with skids or open bottom pallets. There should be a minimum of 3 1/2" clearance.
Q: What is the scale accuracy for EPT-2748-45-SCL?
A: The scale accuracy is 0.1% of applied load.
 |
||||||||||||||||||||||||||||||||||||||||||
