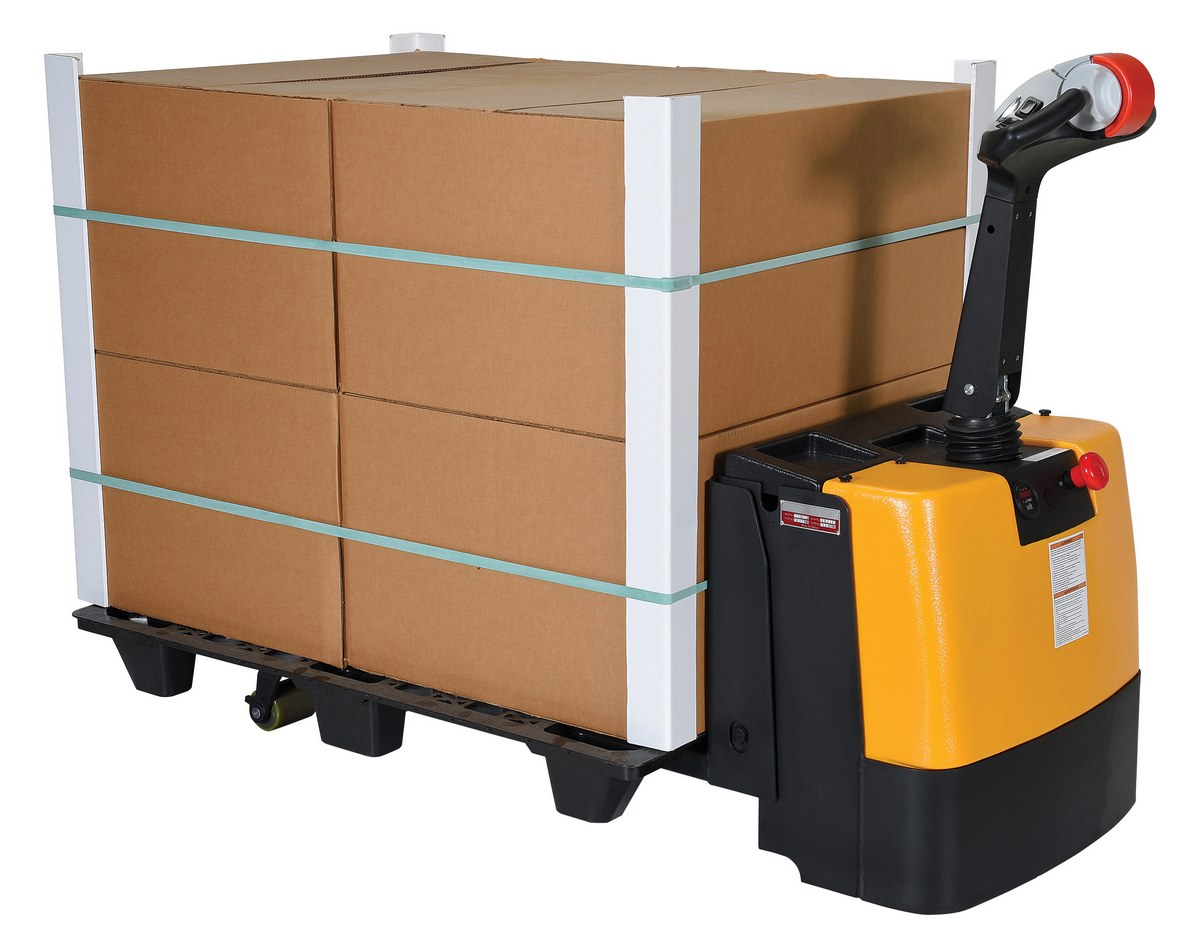

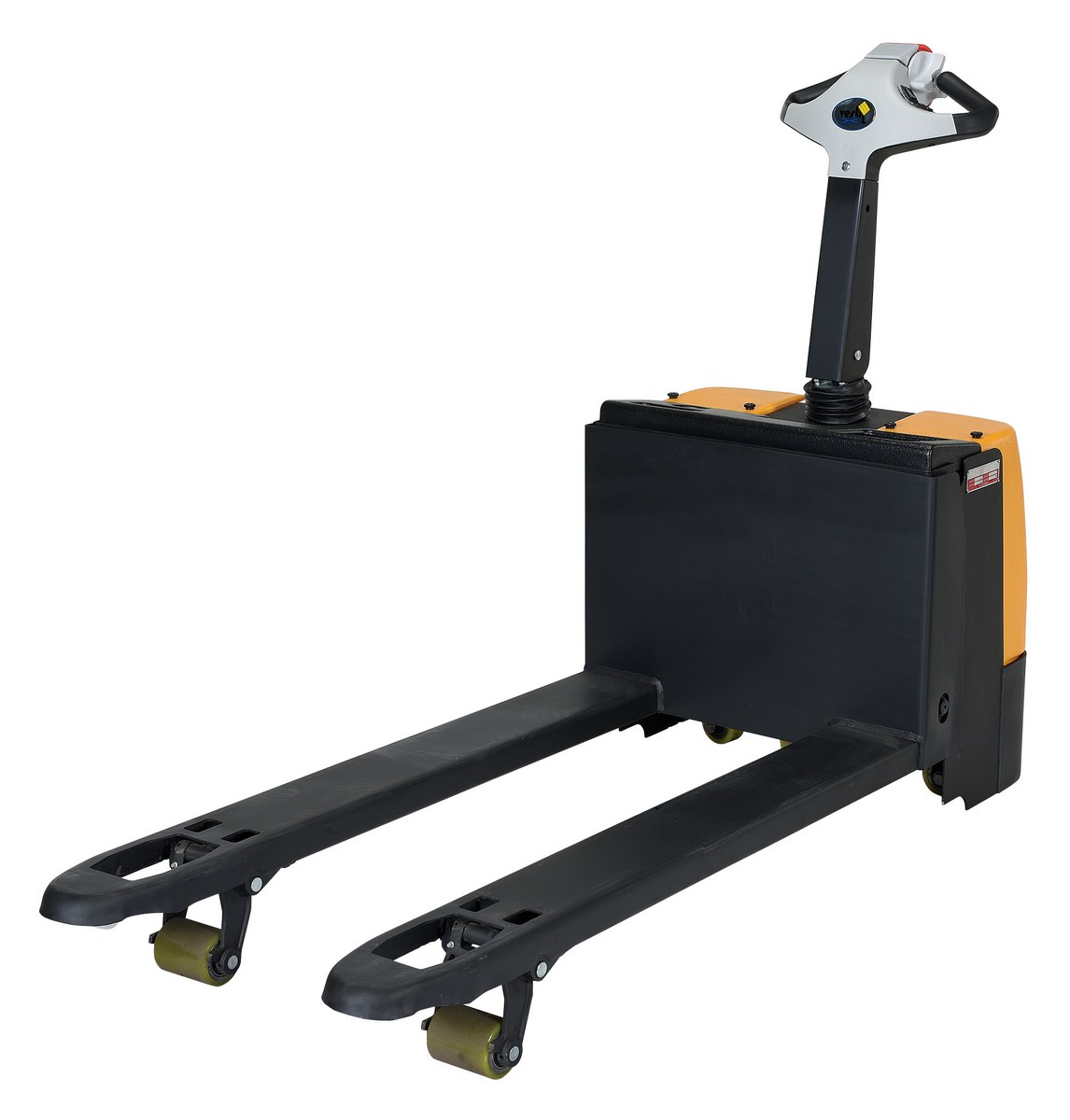

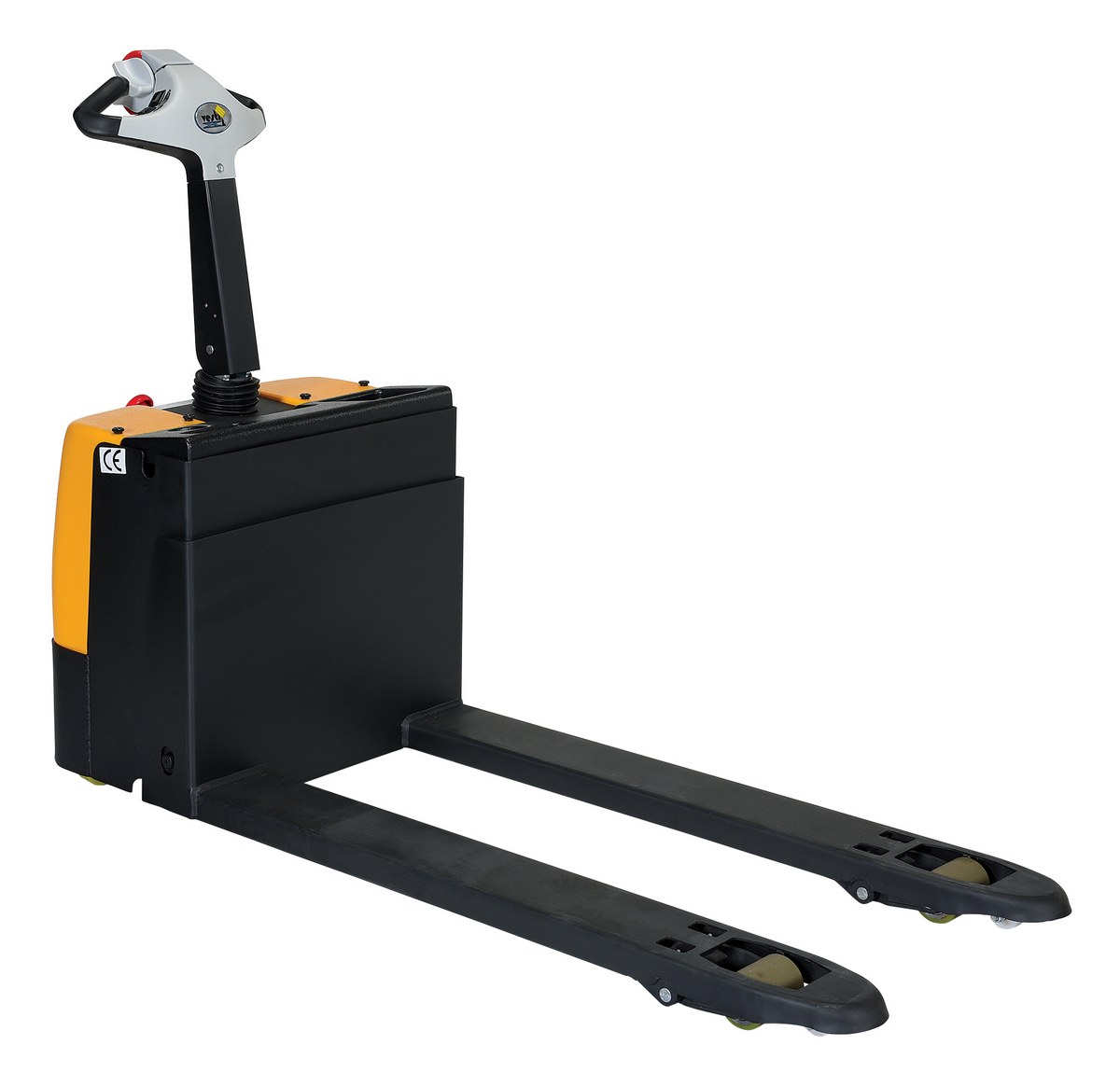

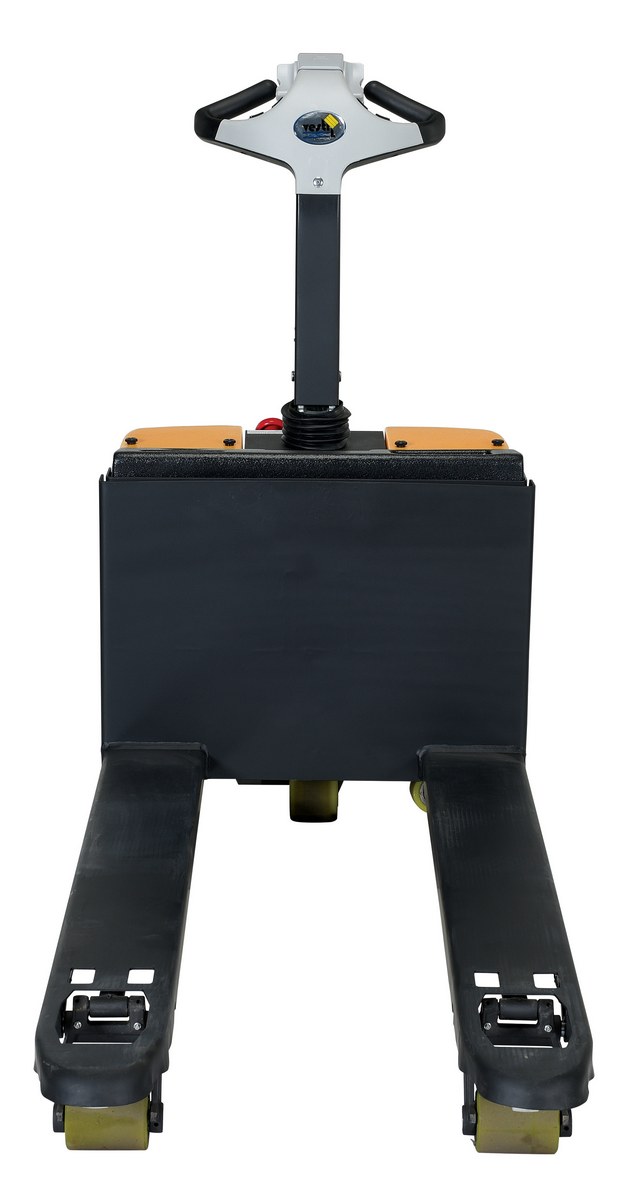

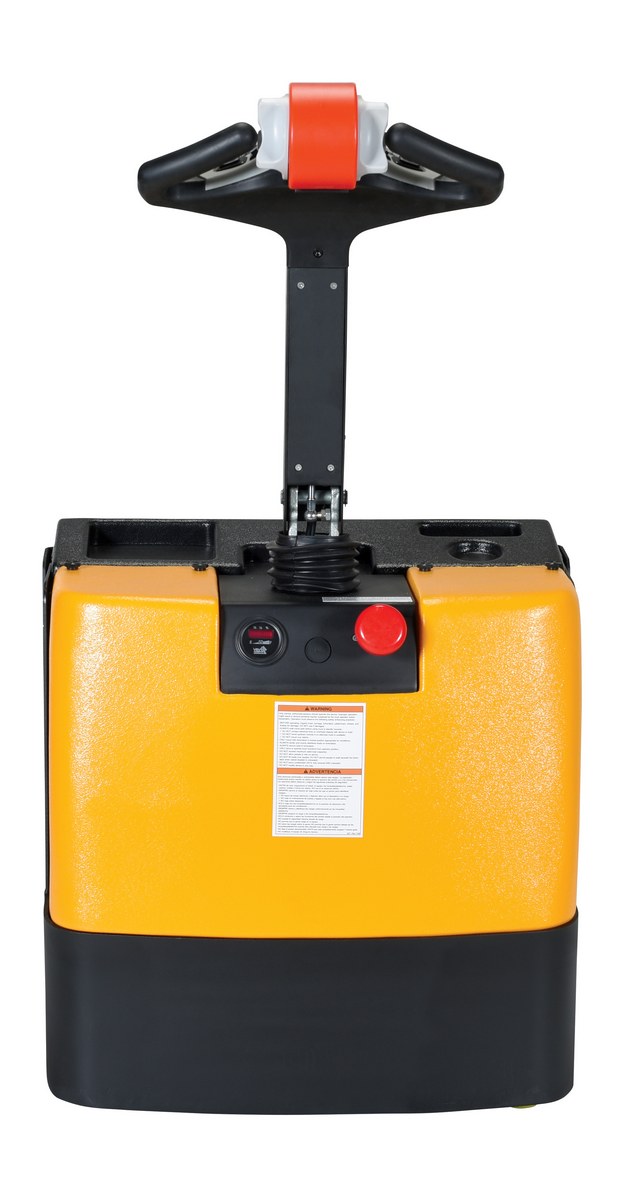

Fully Powered Electric Pallet Trucks

model: EPT-2547-30-E

Fully Powered Electric Pallet Trucks

SERIES: EPT

24V DC Standard

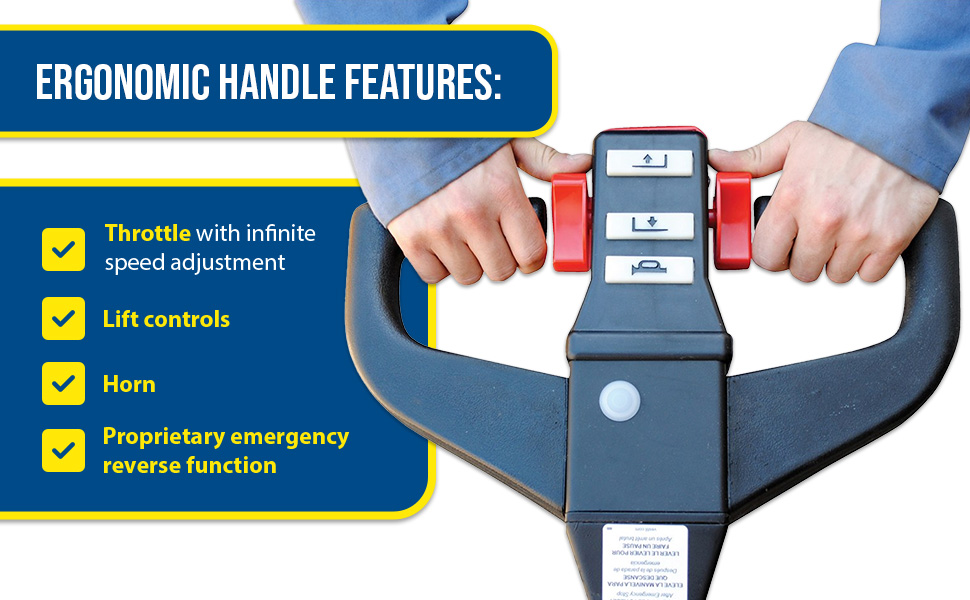

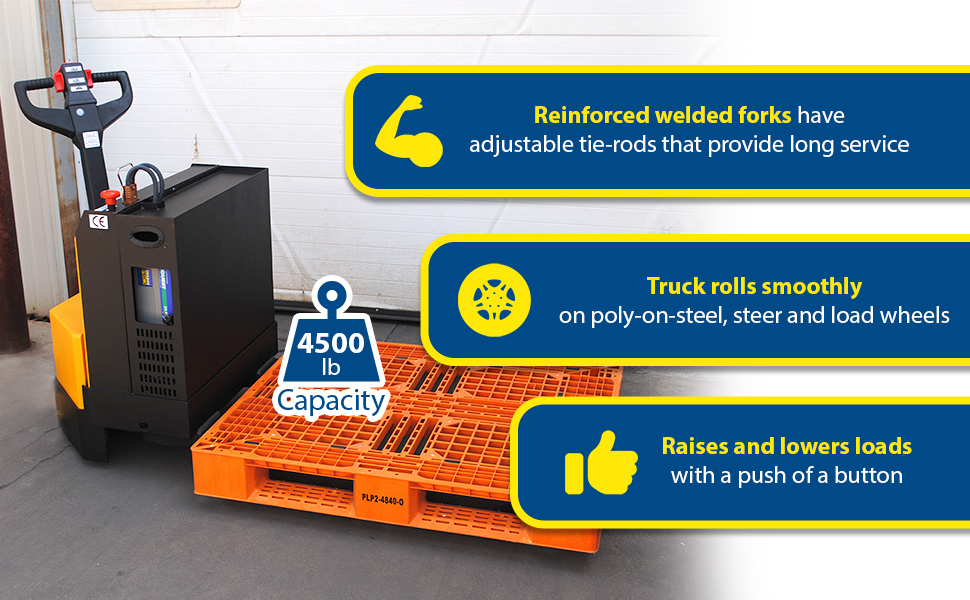

Fully Powered Electric Pallet Truck for easy and quick operation. Raise and lower loads with a push of a button. Maneuvers loads in warehouses and trailers. Reinforced welded forks with adjustable tie-rods give long service. High-torque 24V DC drive & lift motors handle heavy-duty jobs. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle.

3,000 and 3,300 pound unit uses two (2) 12V batteries, integral battery charger, and battery level gauge. The truck rolls smoothly on poly-on-steel steer and load wheels. Features 0.7 KW drive and 1.3 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

4,500 pound unit uses four (4) 6V batteries, integral battery charger, battery level gauge, and emergency battery disconnect. The truck rolls smoothly on poly-on-steel steer and load wheels. Features 1.2 KW drive and 1.3 KW lift motor. 6-7 hours operation at full charge - 8 hours when used intermittently.

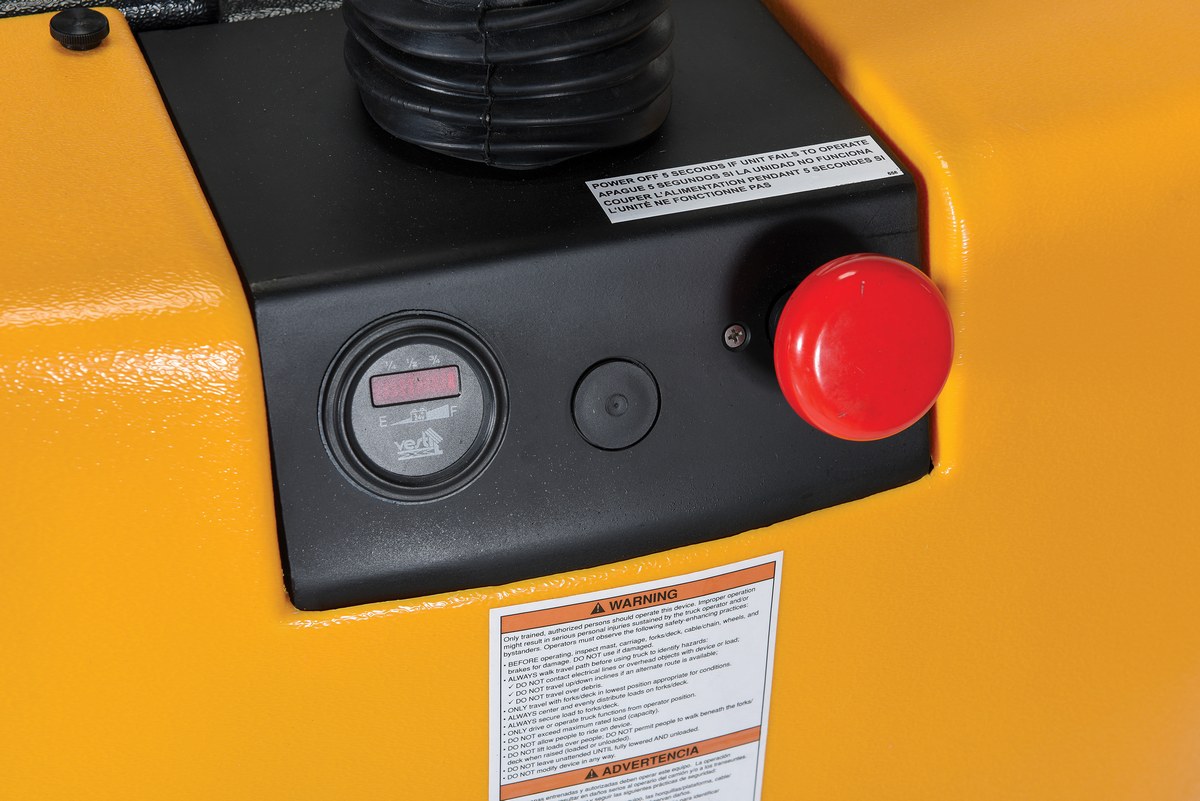

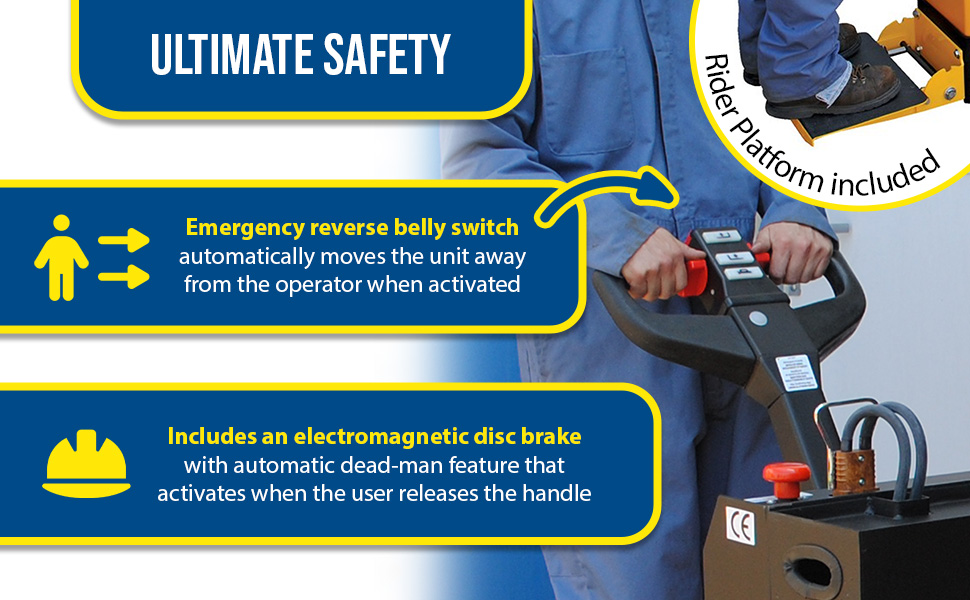

When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after 1.5 seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 1.5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

Fully Powered Electric Pallet Trucks

model: EPT-2547-30-E

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

EPT-2047-30-AGM

EPT-2048-45-AGM

EPT-2048-45-RP-AGM

EPT-2547-30-AGM

EPT-2748-45-AGM

EPT-2748-45-RP-AGM

EPT-2796-45-AGM

For More Details of the Option Click the Red Model Button

Model	Image	Details	Icons	Wt.

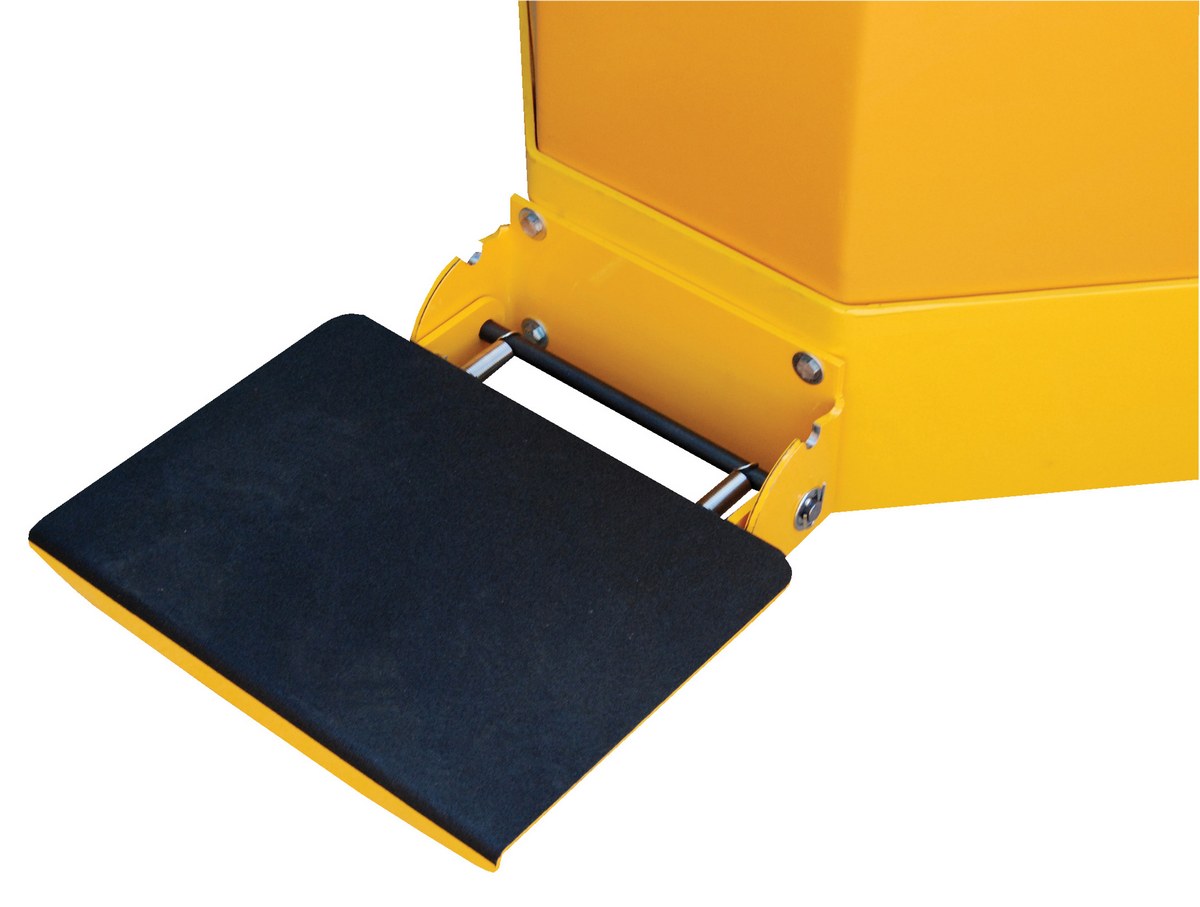

EPT-45-RP-KIT		Steel Rider Platform Kit Field Installed For Electric Powere…		20

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

PDFs will open in a new window when clicked.

Manuals

EPT

EPT, Master servic

EPT-45

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

EPT-45-RP-KIT

EPT-2047-30

EPT-2048-45

EPT-2547-30

EPT-2748-45

EPT-2796-45

EPT-2547-30-E

Testing Certificates

EPT-2047-30

EPT-2047-30-AGM

EPT-2048-45

EPT-2048-45-AGM

EPT-2048-45-RP

EPT-2048-45-RP-AGM

EPT-2547-30

EPT-2547-30-AGM

EPT-2547-30-E

EPT-2748-45

EPT-2748-45-AGM

EPT-2748-45-RP

EPT-2748-45-RP-AGM

EPT-2796-45

EPT-2796-45-AGM

EPT-45-RP-KIT

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
EPT-2047-30 SDS

Hydraulic Oil
EPT-2047-30 SDS

Non-Spillable Lead Acid Battery
EPT-2047-30-AGM SDS

Hydraulic Oil
EPT-2047-30-AGM SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
EPT-2048-45 SDS

Hydraulic Oil
EPT-2048-45 SDS

Valve Regulated Lead Acid Battery
EPT-2048-45-AGM SDS

Hydraulic Oil
EPT-2048-45-AGM SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
EPT-2048-45-RP SDS

Hydraulic Oil
EPT-2048-45-RP SDS

Valve Regulated Lead Acid Battery
EPT-2048-45-RP-AGM SDS

Hydraulic Oil
EPT-2048-45-RP-AGM SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
EPT-2547-30 SDS

Hydraulic Oil
EPT-2547-30 SDS

Non-Spillable Lead Acid Battery
EPT-2547-30-AGM SDS

Hydraulic Oil
EPT-2547-30-AGM SDS

Valve-Regulated Lead Acid Battery Series
EPT-2547-30-E SDS

Hydraulic Oil
EPT-2547-30-E SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
EPT-2547-30-SCL SDS

Hydraulic Oil
EPT-2547-30-SCL SDS

Non-Spillable Lead Acid Battery
EPT-2547-30-SCL-AGM SDS

Hydraulic Oil
EPT-2547-30-SCL-AGM SDS

Hydraulic Oil
EPT-2748-26 SDS

Haufu Lithium Battery
EPT-2748-30 SDS

Hydraulic Oil
EPT-2748-30 SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
EPT-2748-45 SDS

Hydraulic Oil
EPT-2748-45 SDS

Valve Regulated Lead Acid Battery
EPT-2748-45-AGM SDS

Hydraulic Oil
EPT-2748-45-AGM SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
EPT-2748-45-RP SDS

Hydraulic Oil
EPT-2748-45-RP SDS

Valve Regulated Lead Acid Battery
EPT-2748-45-RP-AGM SDS

Hydraulic Oil
EPT-2748-45-RP-AGM SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
EPT-2796-45 SDS

Hydraulic Oil
EPT-2796-45 SDS

Valve Regulated Lead Acid Battery
EPT-2796-45-AGM SDS

Hydraulic Oil
EPT-2796-45-AGM SDS

Hydraulic Oil
EPT-1932-26 SDS

Hydraulic Oil
EPT-1940-26 SDS

Hydraulic Oil
EPT-1540-26 SDS

Other PDFs

Extra Long Electric Pallet Truck Mailing Brochure

Applications

Trucking Companies

Warehouses

Gas Stations

Superstores

Moving Companies

Postal Services

Loading Docks

Packaging Areas

We have a slight incline about 10 degrees and need to lift about 2,000 lbs. with the electric pallet truck. Will that be possible?

The EPT-2047-30 is capable of lifting up to 2,500 lbs. at a 10° incline.

What is the amp/hr. rating for the EPT-2748-45-AGM?

AMP rating is 220 AH

What is the amp/hr. rating for the EPT-2748-45 with the lead acid battery ?

AMP rating is 75 AH

What is the inside dimension between the forks on the EPT-1540-26?

Dimension between the forks is 4.25".

Is the 20 in fork width dimension inside fork to inside fork?

Overall Fork Width (in.): 20

Print Friendly

Related or Similar Products:

More From Powered Pallet Trucks

Single Fork Electric Pallet Truck w/ Scale

Single Fork Electric Pallet Truck w/ Scale

Electric Pallet Truck (Pegasolift)

Electric Pallet Truck (Pegasolift)

Electric Powered Rough Terrain Pallet Trucks

Electric Powered Rough Terrain Pallet Trucks

Gas Powered All Terrain Pallet Trucks & Stackers

Gas Powered All Terrain Pallet Trucks & Stackers

Electric Powered Roll Pallet Trucks

Electric Powered Roll Pallet Trucks

Electric Pallet Truck with Single Fork

Electric Pallet Truck with Single Fork

Fully Powered Electric Pallet ...

24V DC Standard

Fully Powered Electric Pallet Truck for easy and quick operation. Raise and lower loads with a push of a button. Maneuvers loads in warehouses and trailers. Reinforced welded forks with adjustable tie-rods give long service. High-torque 24V DC drive & lift motors handle heavy-duty jobs. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle.

3,000 and 3,300 pound unit uses two (2) 12V batteries, integral battery charger, and battery level gauge. The truck rolls smoothly on poly-on-steel steer and load wheels. Features 0.7 KW drive and 1.3 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

4,500 pound unit uses four (4) 6V batteries, integral battery charger, battery level gauge, and emergency battery disconnect. The truck rolls smoothly on poly-on-steel steer and load wheels. Features 1.2 KW drive and 1.3 KW lift motor. 6-7 hours operation at full charge - 8 hours when used intermittently.

When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after 1.5 seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 1.5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

Model #		Description	Attributes	Net Wt. (lbs)

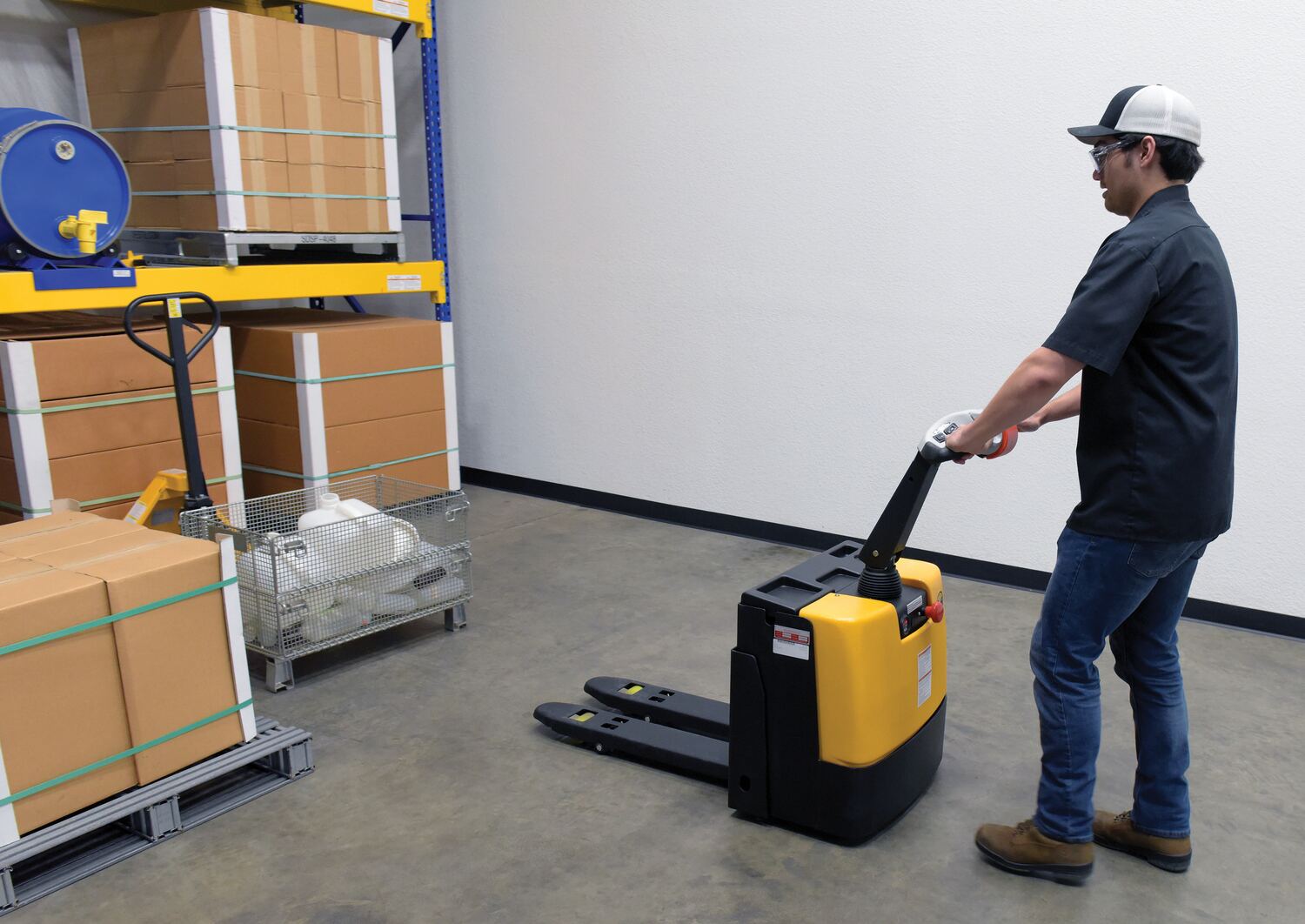

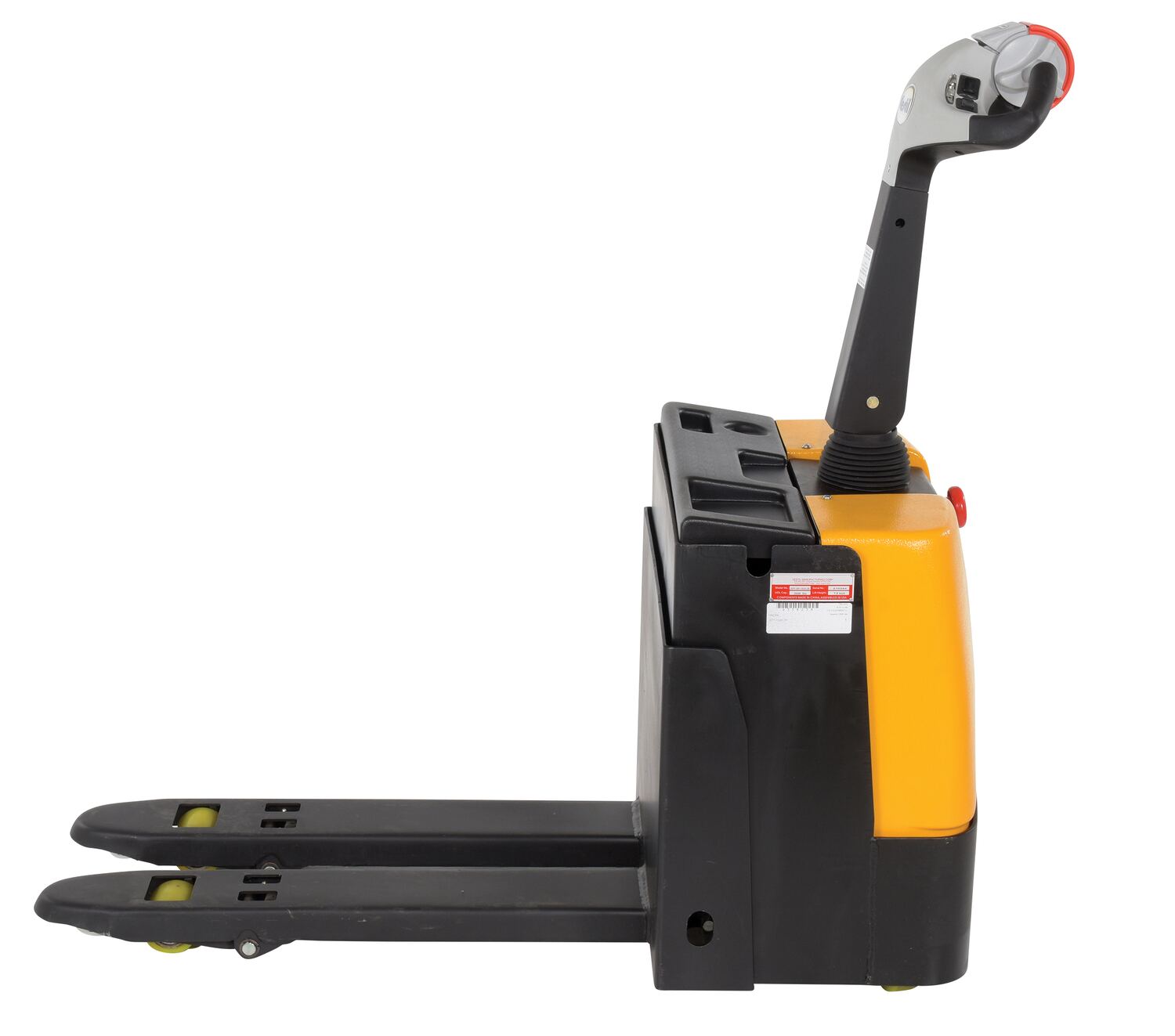

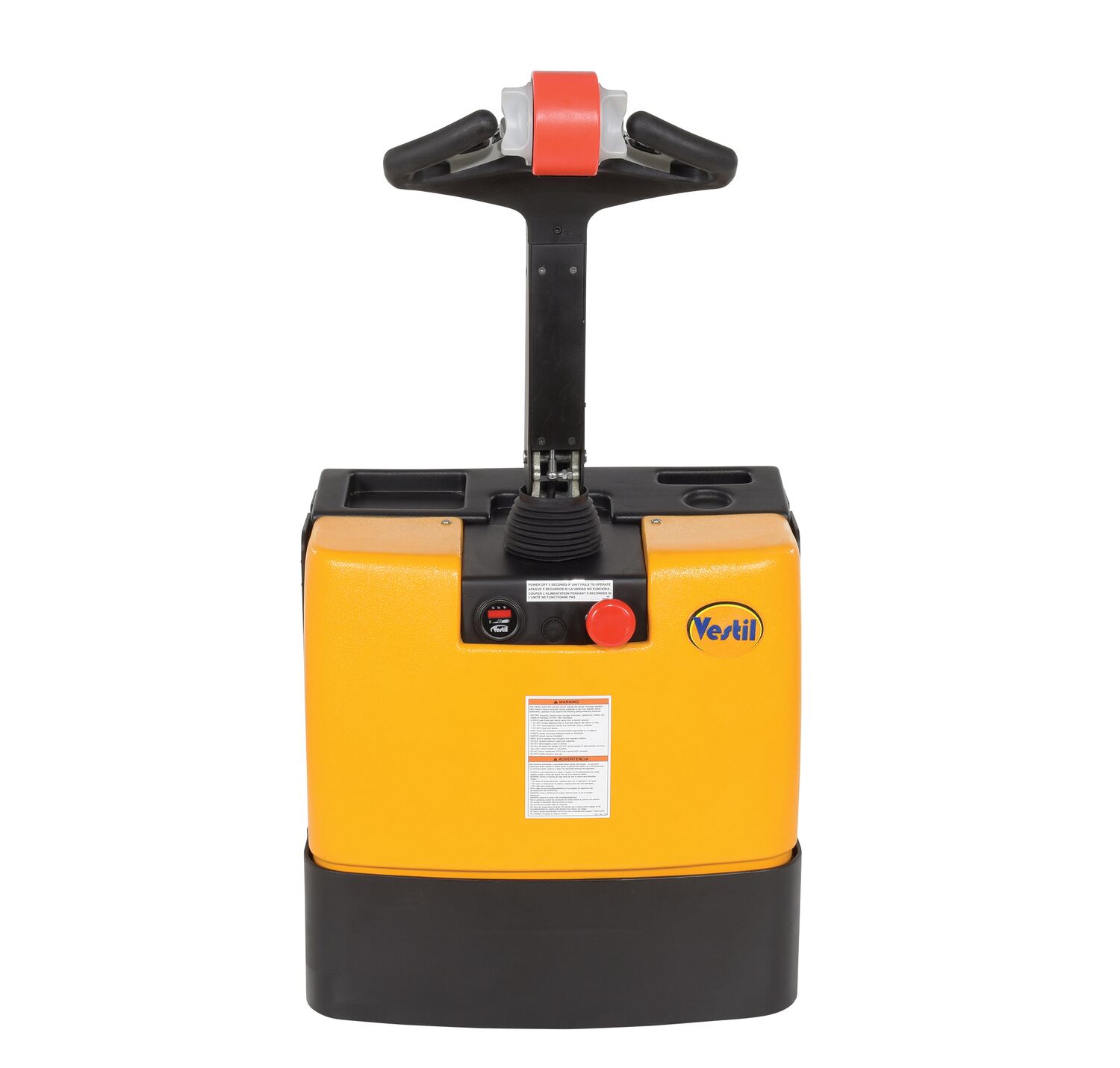

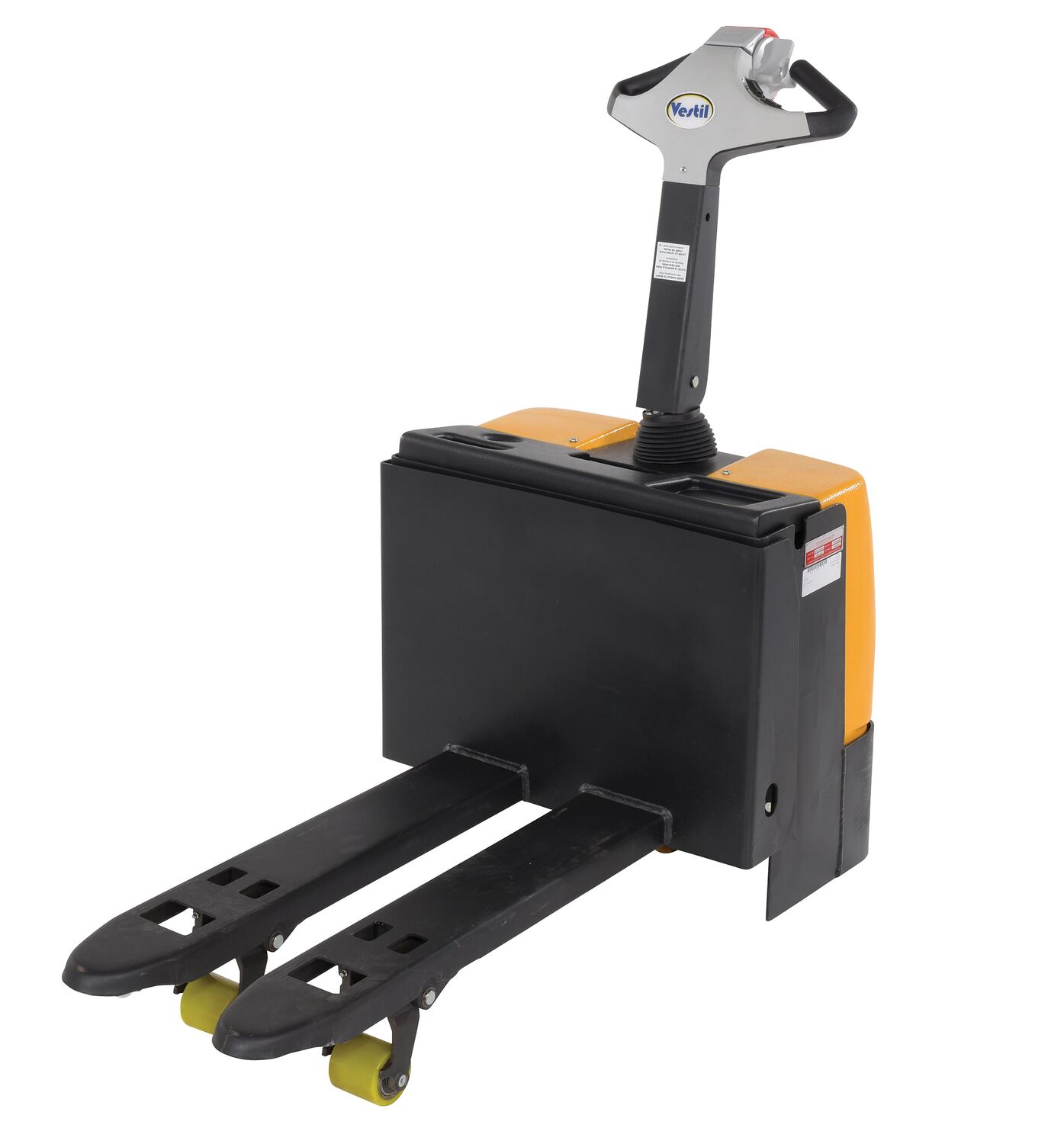

EPT-1540-26		Steel Fully Powered Electric Pallet Truck 20 In. x 47 In. 2,600 Lb. Capacity Black	Overall Fork Width (in.): 15 Overall Fork Length (in.): 40	574

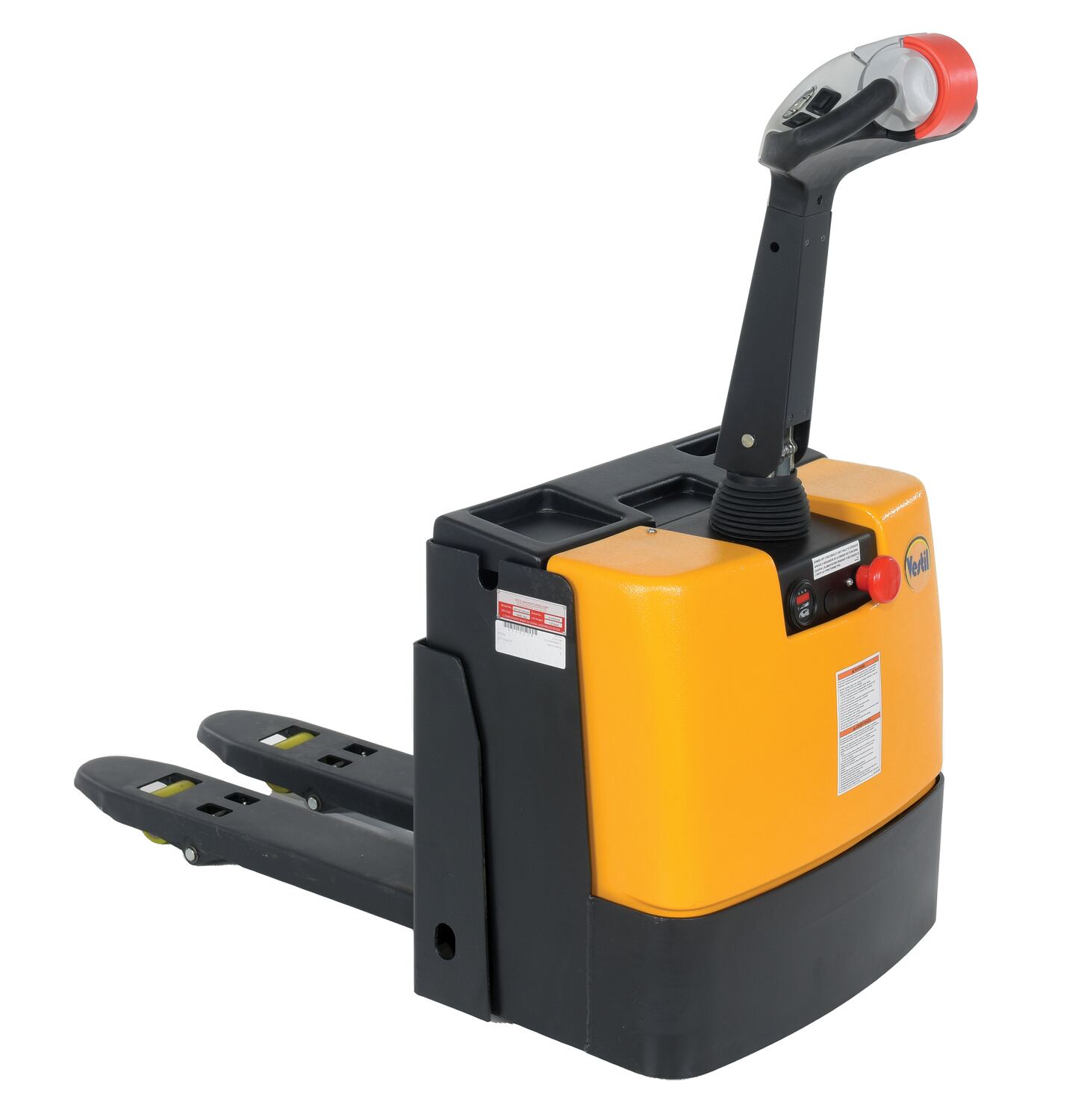

EPT-1932-26		Steel Fully Powered Electric Pallet Truck 19 In. x 32 In. 2,600 Lb. Capacity Black	Overall Fork Width (in.): 6 Overall Fork Length (in.): 32	544
EPT-1940-26		Steel Fully Powered Electric Pallet Truck 19 In. x 40 In. 2,600 Lb. Capacity Black	Overall Fork Width (in.): 6 Overall Fork Length (in.): 40	582

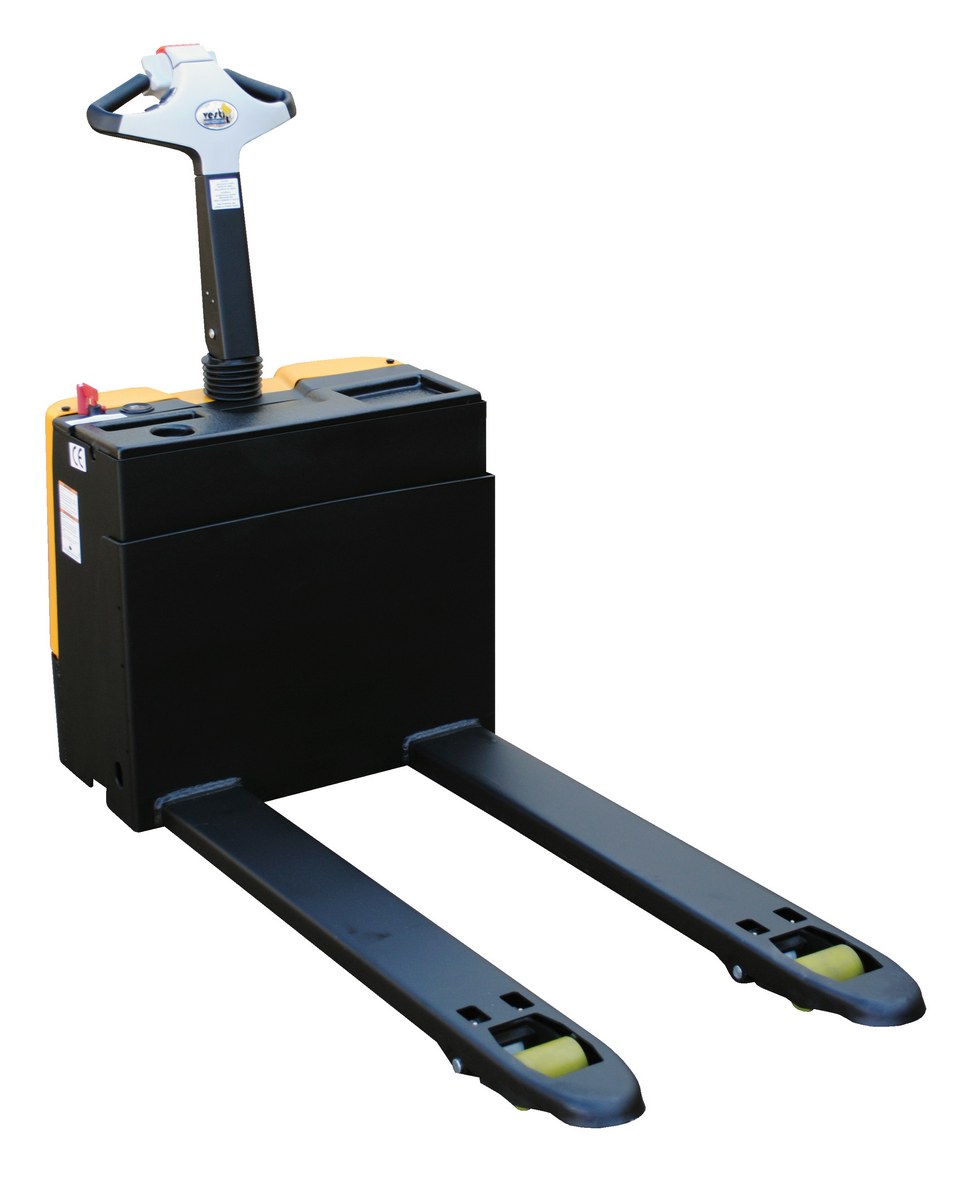

EPT-2047-30		Steel Fully Powered Electric Pallet Truck 20 In. x 47 In. 3,300 Lb. Capacity Black	Overall Fork Width (in.): 20 Overall Fork Length (in.): 47	702
EPT-2047-30-AGM		Steel Electric Pallet Truck 20 In. x 47 In. 3300 Lb. Capacity	Overall Fork Width (in.): 20 Overall Fork Length (in.): 47	744

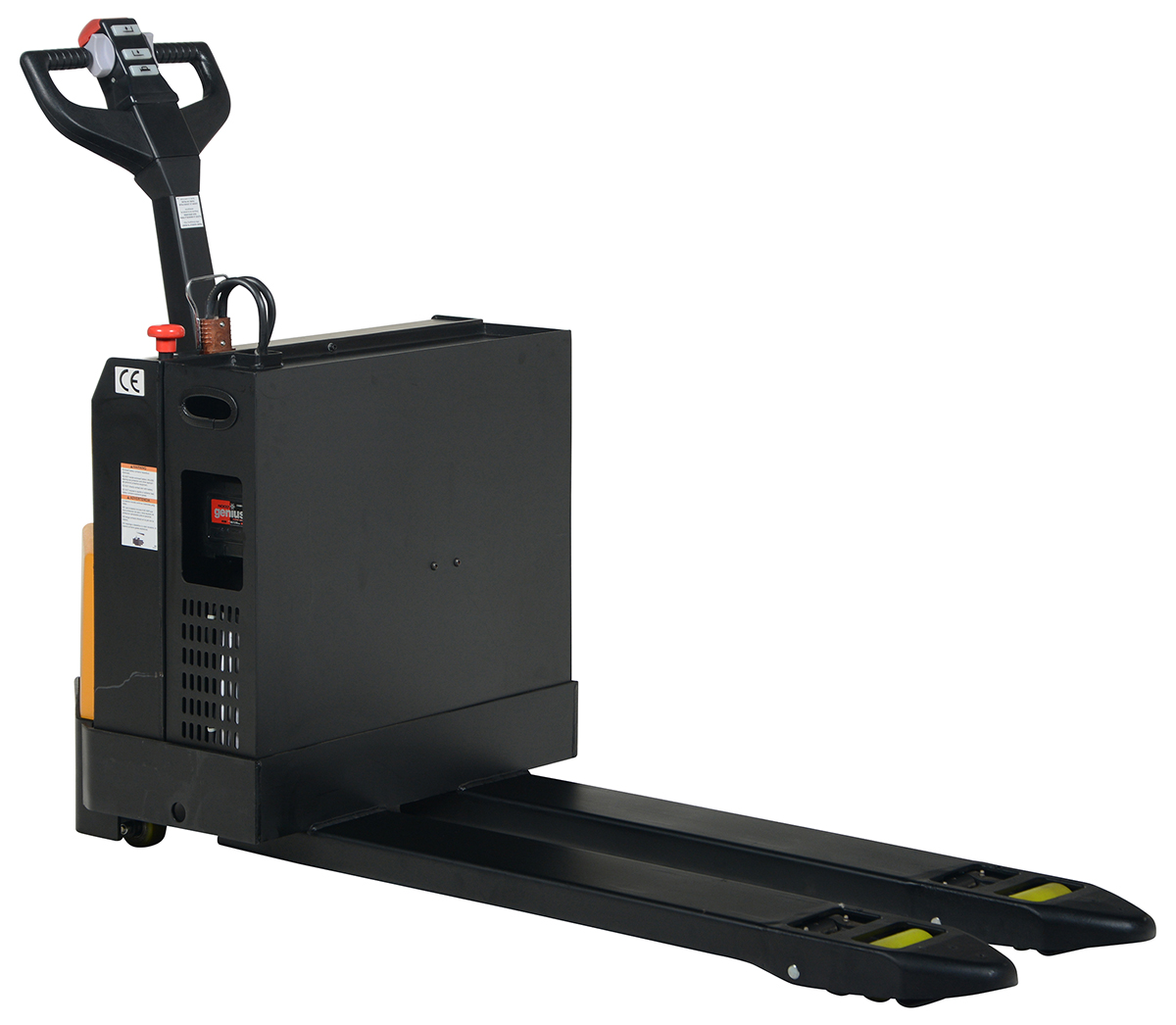

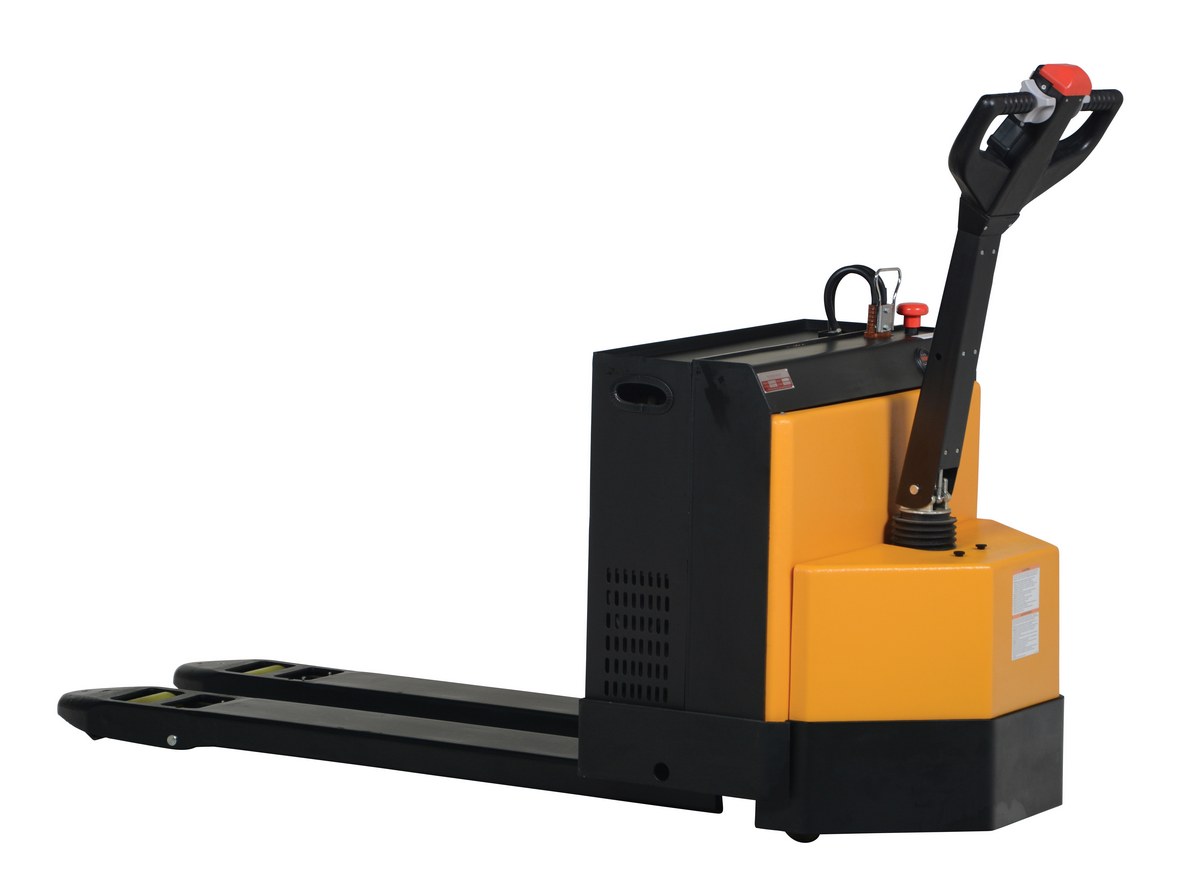

EPT-2048-45		Steel Fully Powered Electric Pallet Truck 20 In. x 48 In. 4,500 Lb. Capacity Black	Overall Fork Width (in.): 20.5 Overall Fork Length (in.): 48	1076
EPT-2048-45-AGM		Steel Electric Pallet Truck 20 In. x 48 In. 4500 Lb. Capacity	Overall Fork Width (in.): 20 Overall Fork Length (in.): 48	1028
EPT-2048-45-RP		Steel Pallet Truck with Rider Platform 20 In. x 48 In. 4500 Lb. Capacity Black	Overall Fork Width (in.): 20 Overall Fork Length (in.): 48	888

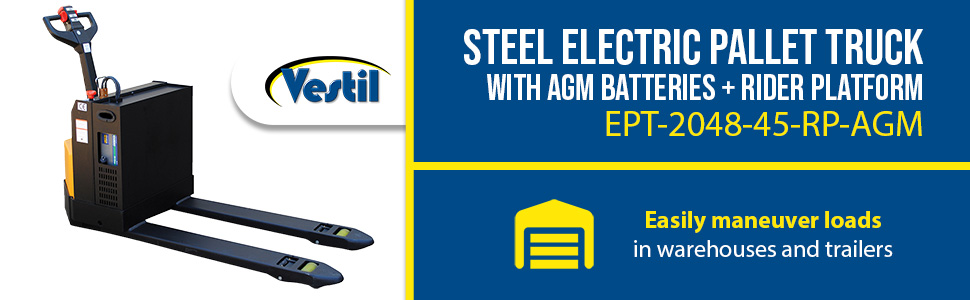

EPT-2048-45-RP-AGM		Steel Electric Pallet Truck with Rider Platform 20 In. x 48 In. 4,500 Lb. Capacity	Overall Fork Width (in.): 20 Overall Fork Length (in.): 48	1016

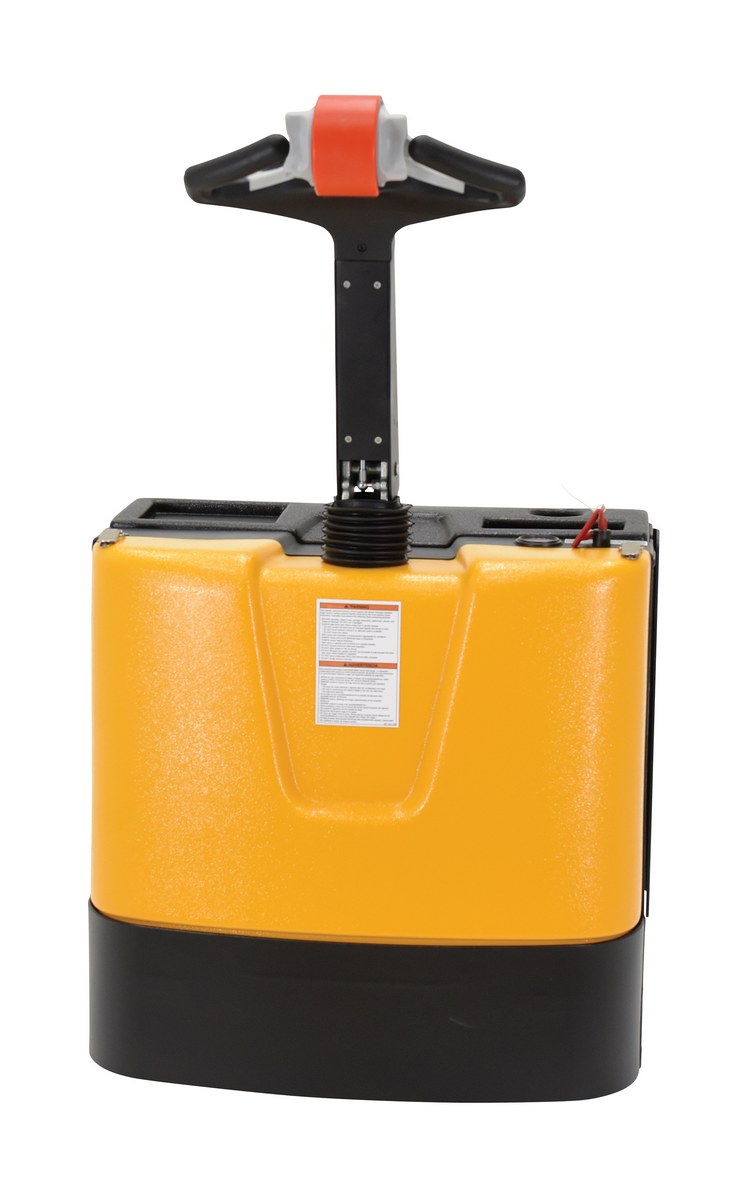

EPT-2547-30		Steel Fully Powered Electric Pallet Truck 25 In. x 48 In. 3,300 Lb. Capacity Black	Overall Fork Width (in.): 25 Overall Fork Length (in.): 48	700

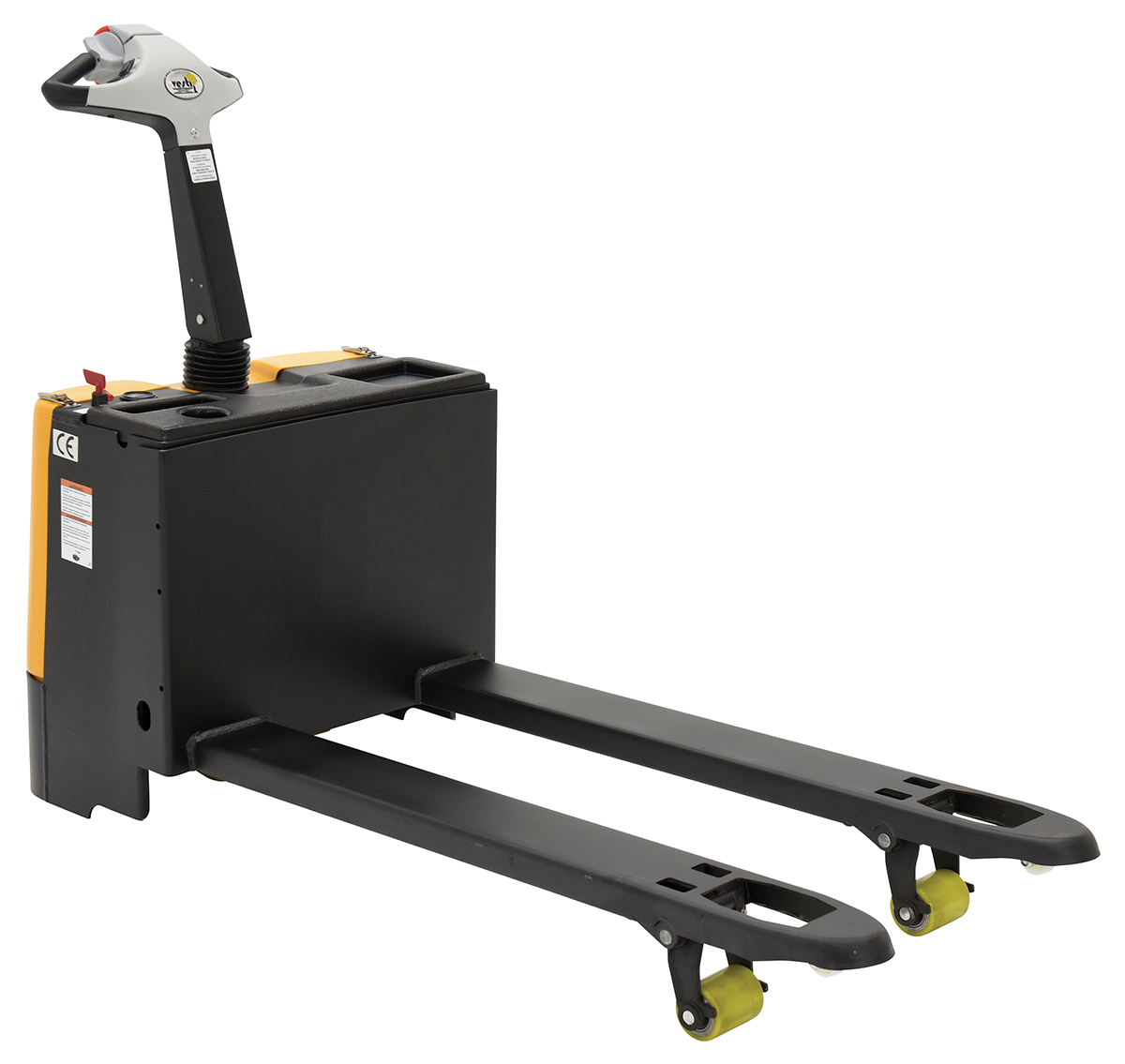

EPT-2547-30-AGM		Steel Electric Pallet Truck 25 In. x 47 In. 3,300 Lb. Capacity	Overall Fork Width (in.): 25 Overall Fork Length (in.): 48	636

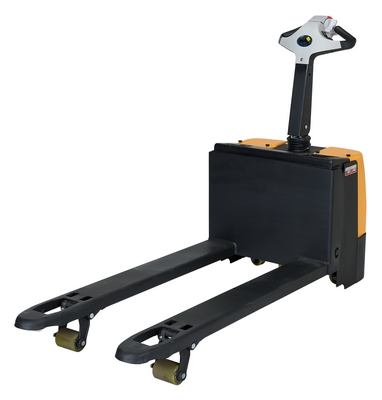

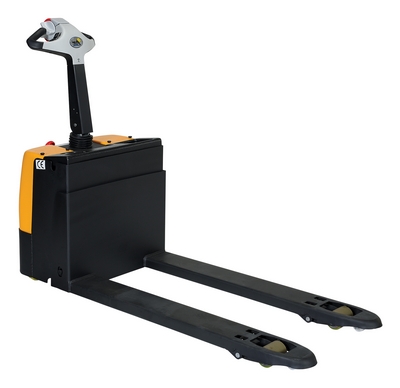

EPT-2547-30-E		Steel Fully Powered Electric Pallet Truck with Lead Acid Batteries 25 In. x 47 In. 3000 Lb. Capacity Black	Overall Fork Width (in.): 25 Overall Fork Length (in.): 47	556
EPT-2748-45		Steel Fully Powered Electric Pallet Truck with Lead Acid Batteries 27 In. x 48 In. 4500 Lb. Capacity Black	Overall Fork Width (in.): 27 Overall Fork Length (in.): 48	1088

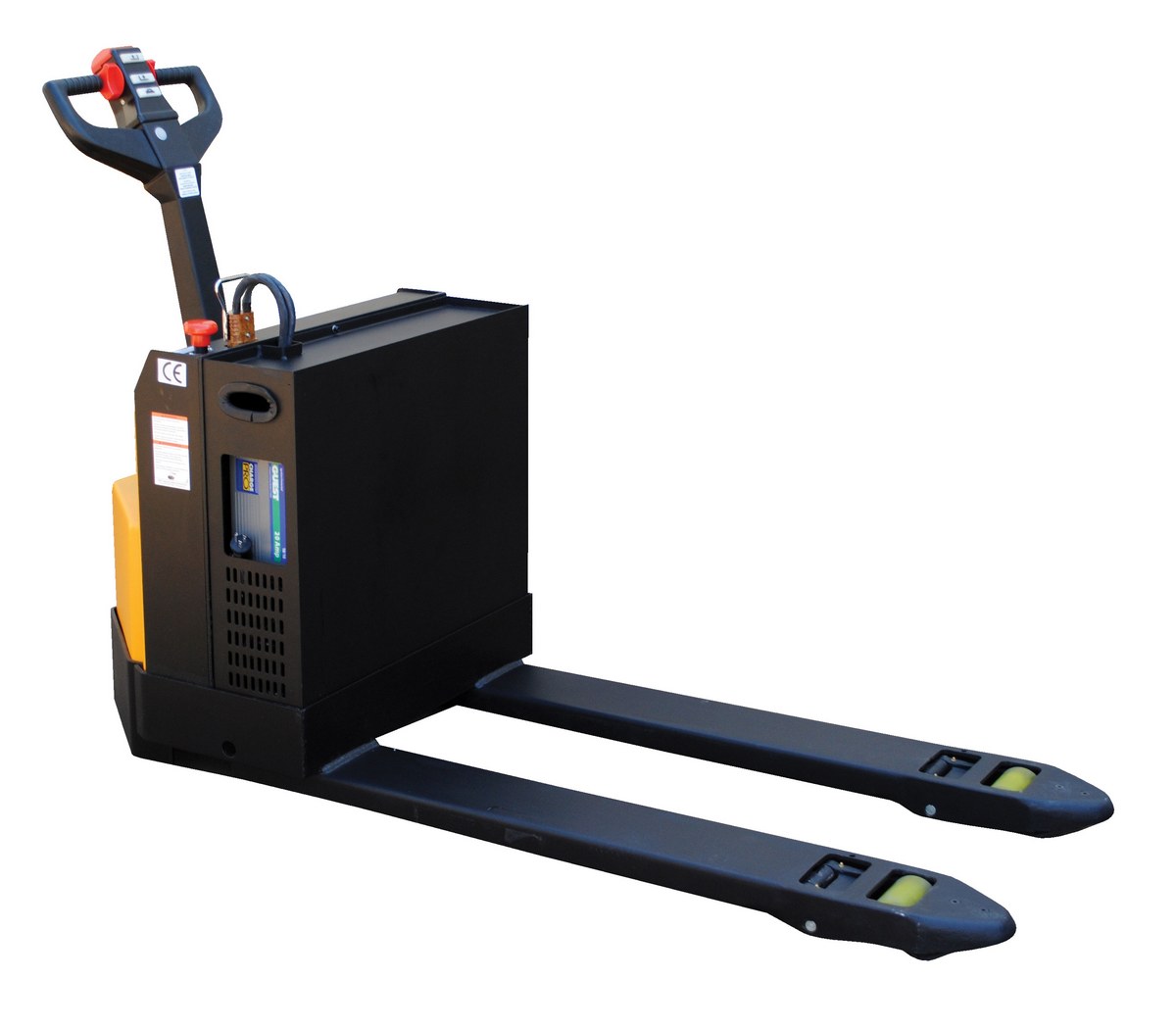

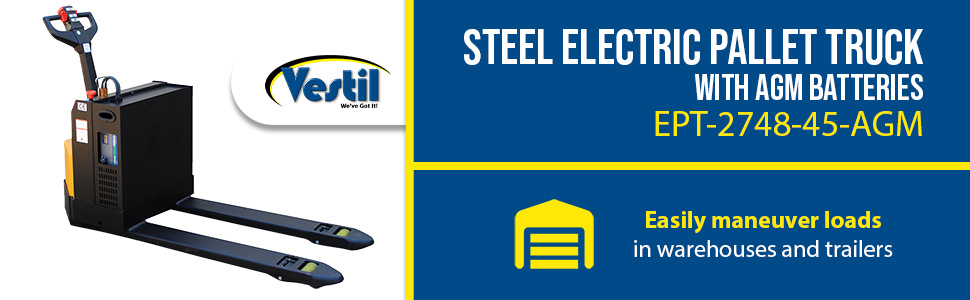

EPT-2748-45-AGM		Steel Electric Pallet Truck with AGM Batteries 27 In. x 48 In. 4500 Lb. Capacity	Overall Fork Width (in.): 27 Overall Fork Length (in.): 48	992

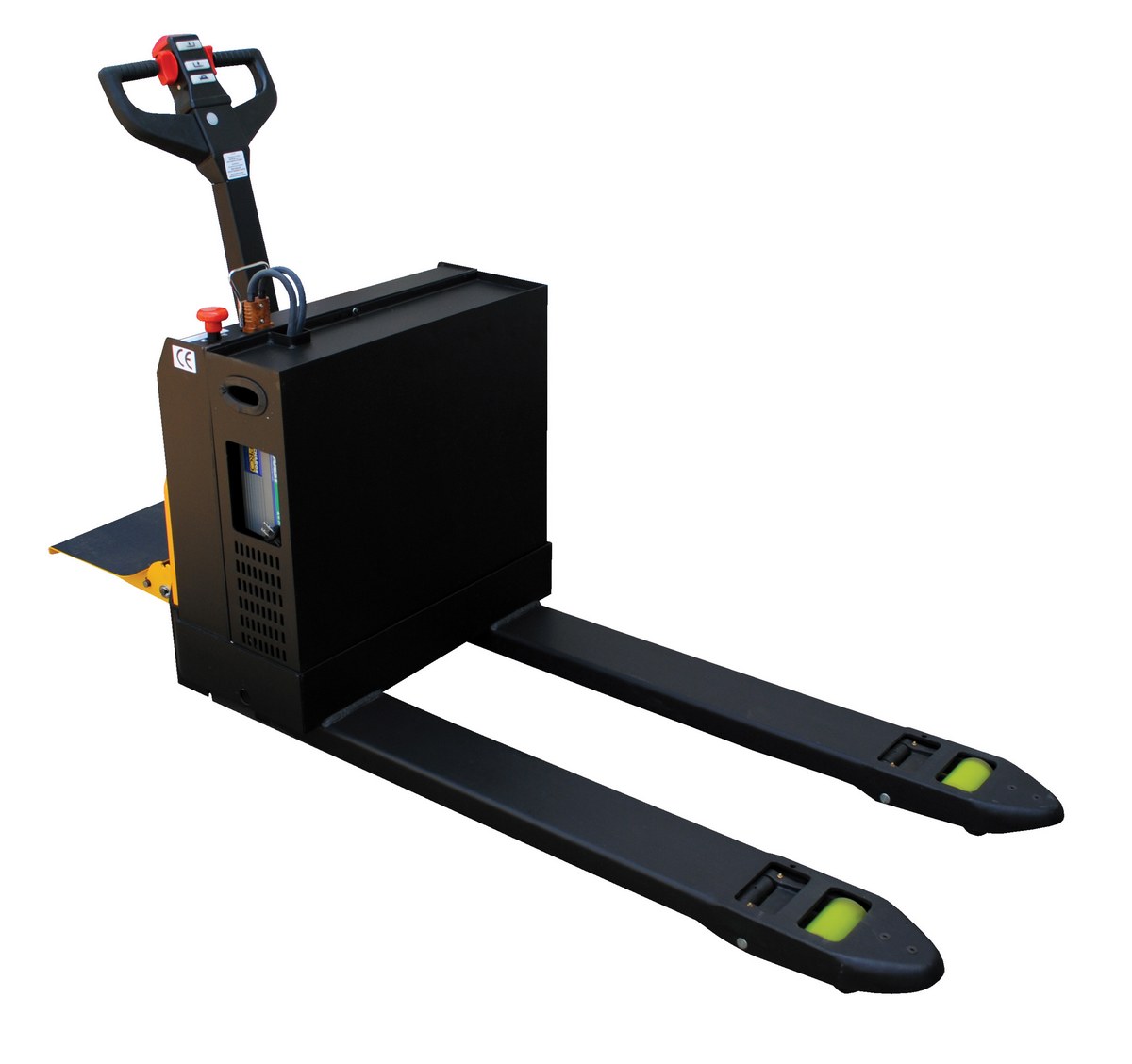

EPT-2748-45-RP		Steel Pallet Truck with Rider Platform 27 In. x 48 In. 4500 Lb. Capacity Black	Overall Fork Width (in.): 27 Overall Fork Length (in.): 48	874
EPT-2748-45-RP-AGM		Steel Electric Pallet Truck with AGM Batteries and Rider Platform 27 In. x 48 In. 4500 Lb. Capacity	Overall Fork Width (in.): 27 Overall Fork Length (in.): 48	1076

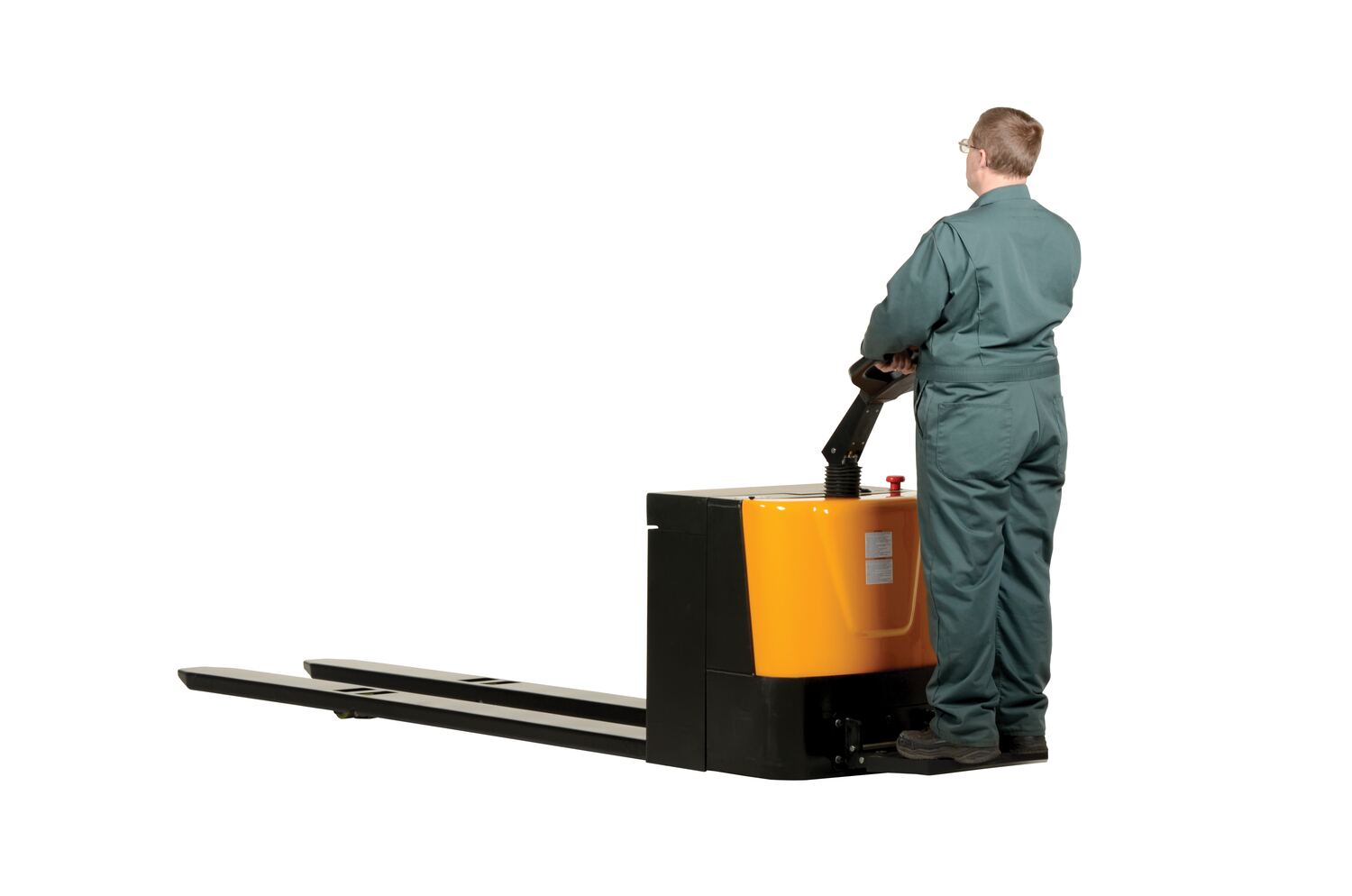

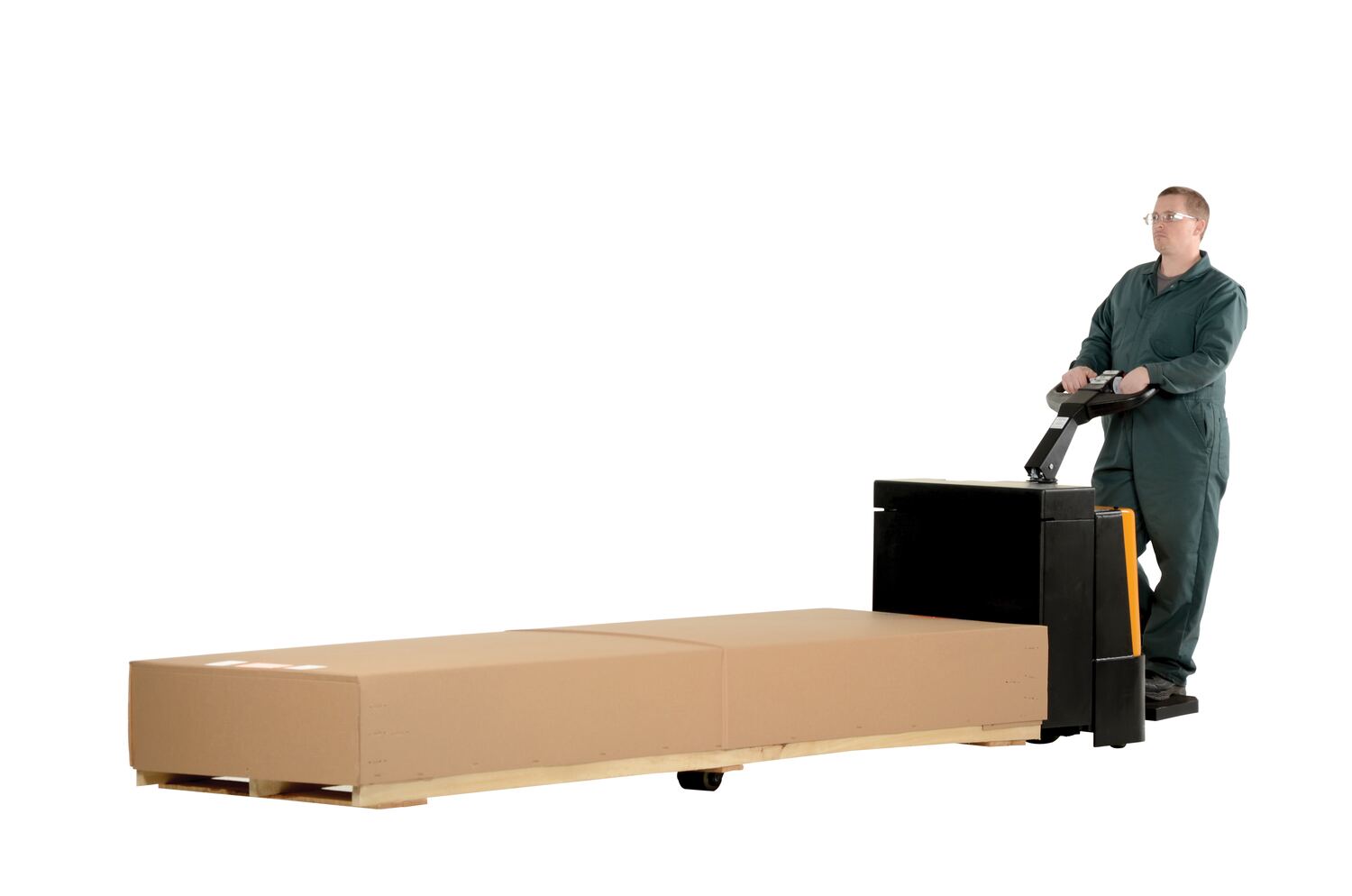

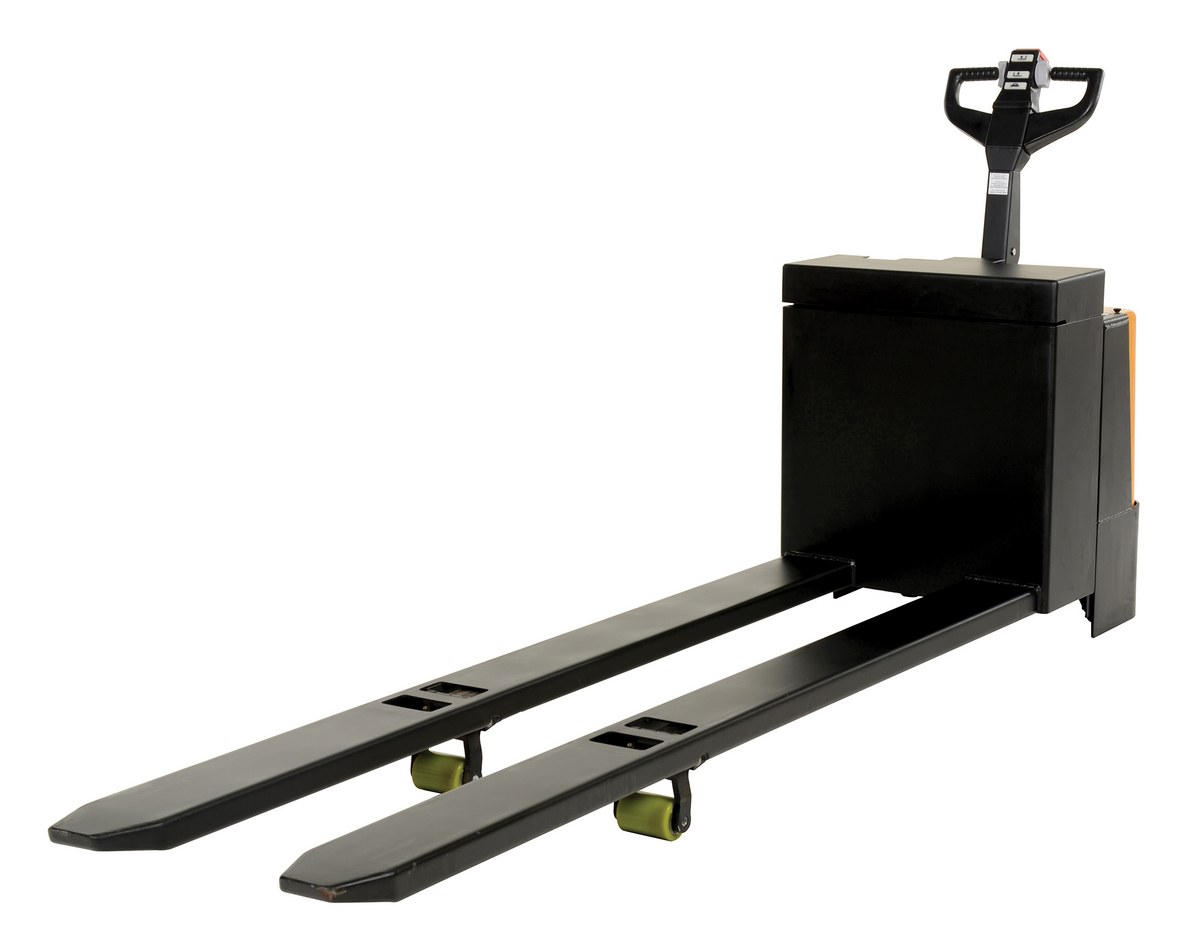

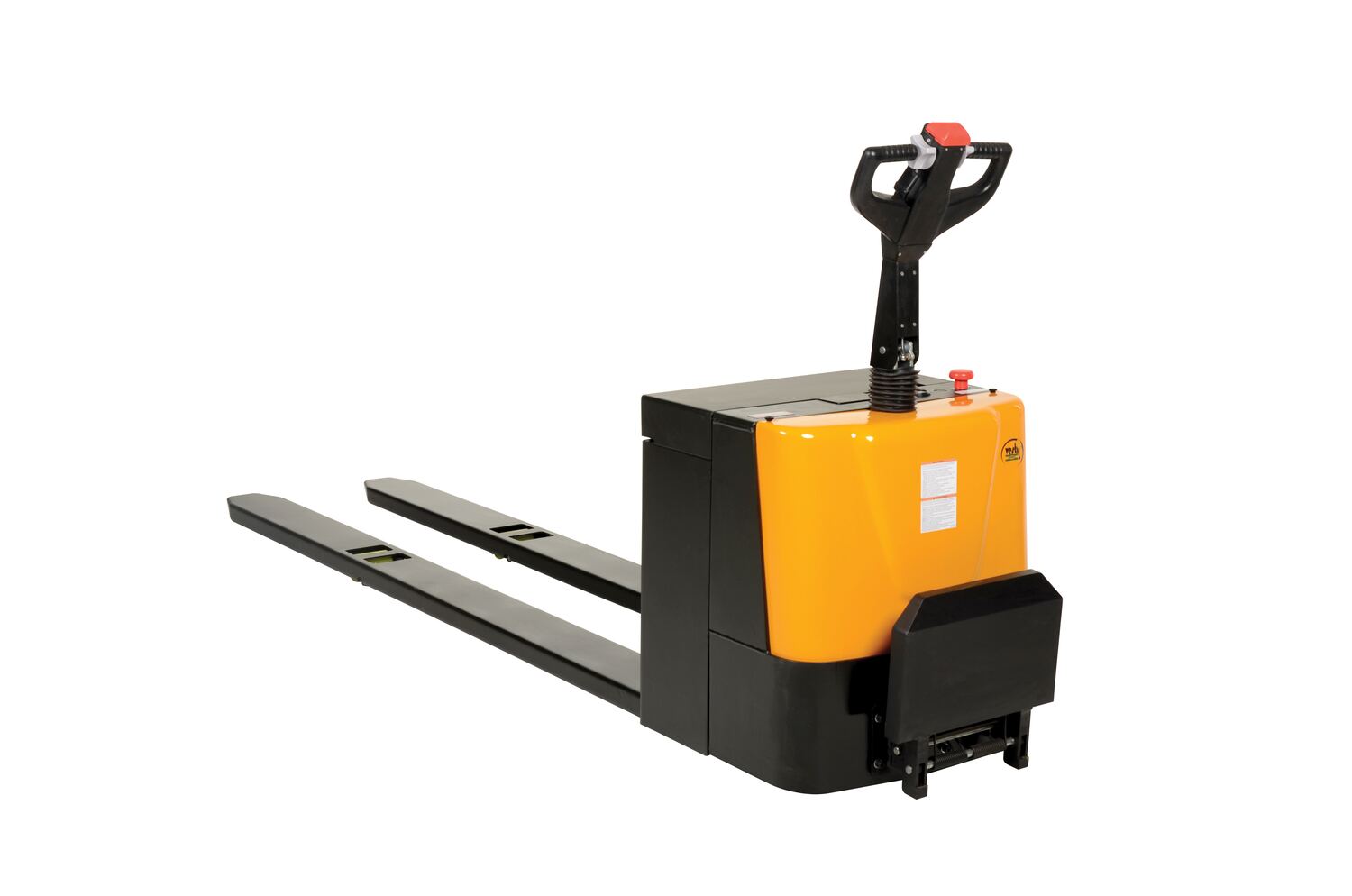

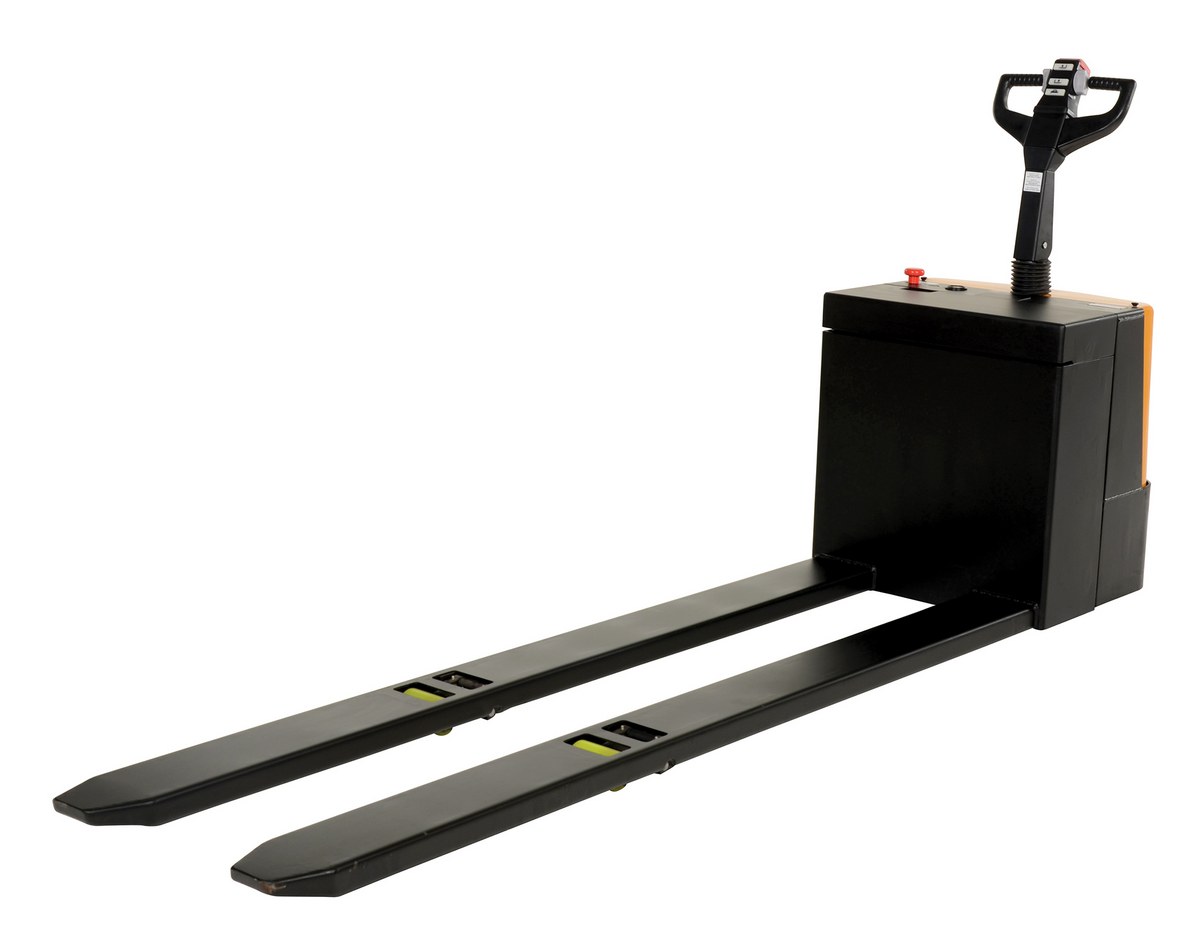

EPT-2796-45		Steel Fully Powered Electric Pallet Truck with Rider Platform 27 In. x 96 In. 4500 Lb. Capacity Black	Overall Fork Width (in.): 27 Overall Fork Length (in.): 96	1534
EPT-2796-45-AGM		Steel Electric Pallet Truck with AGM Batteries 27 In. x 96 In. 4500 Lb. Capacity	Overall Fork Width (in.): 27 Overall Fork Length (in.): 96	1340
