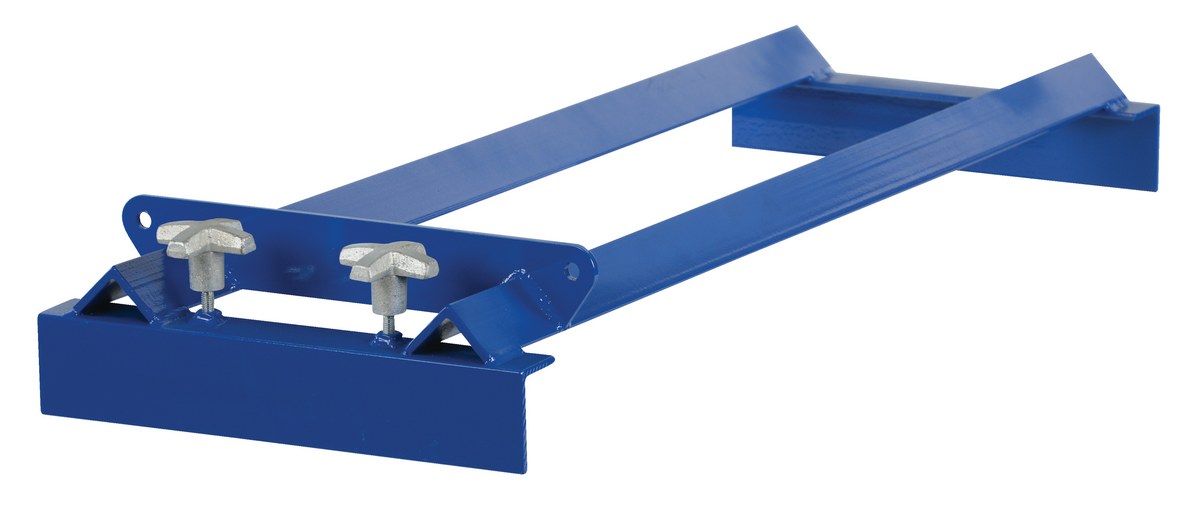

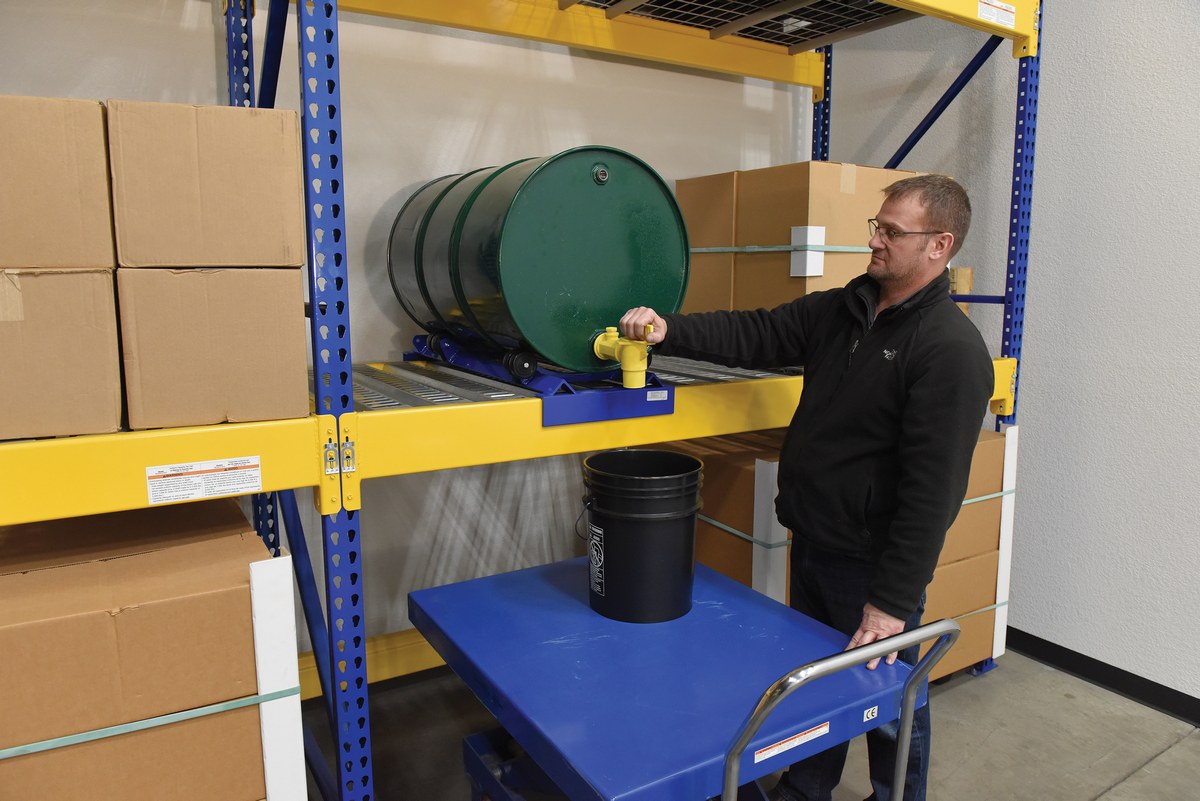

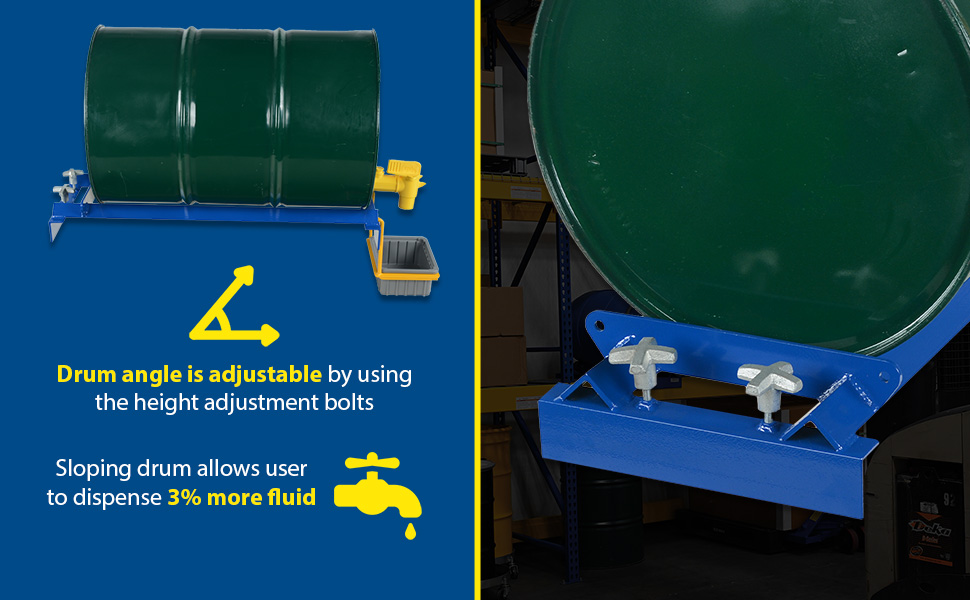

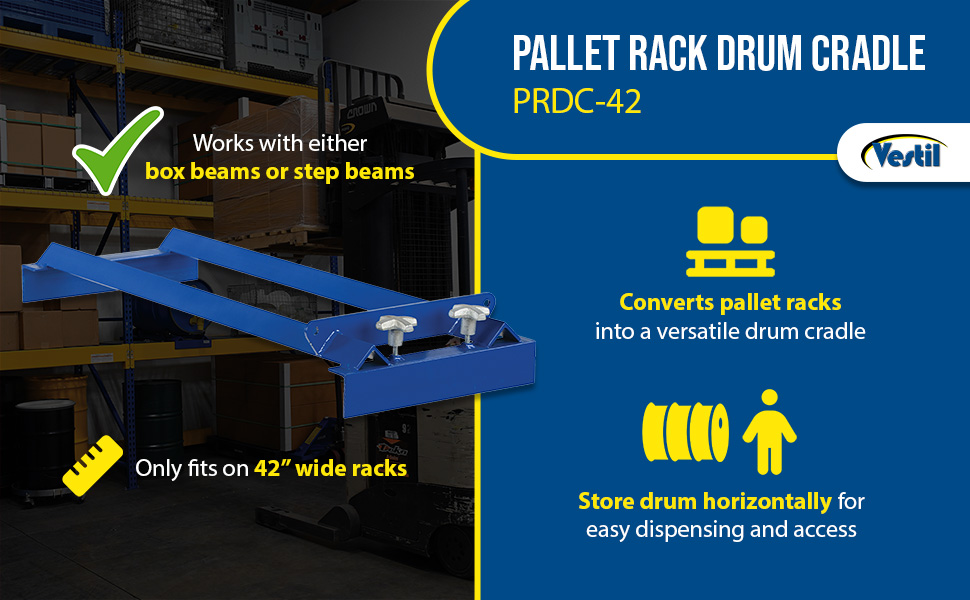

Pallet Rack Drum CradlesThe Pallet Rack Drum Cradle converts standard (42 inch) pallet racks into a versatile horizontal drum cradle. The unit works with either box beams and/or step beams. Accepts 30- and 55-gallon steel drums. The drum angle is adjustable by using the height-adjustment turn knobs (sloping drum allows user to get 3% more fluid out. Works well with the Hydraulic Drum Stacker and the Drum Positioner. Steel construction with baked in powder coat finish for added toughness.
- Unique design converts standard pallet rack into a horizontal drum cradle

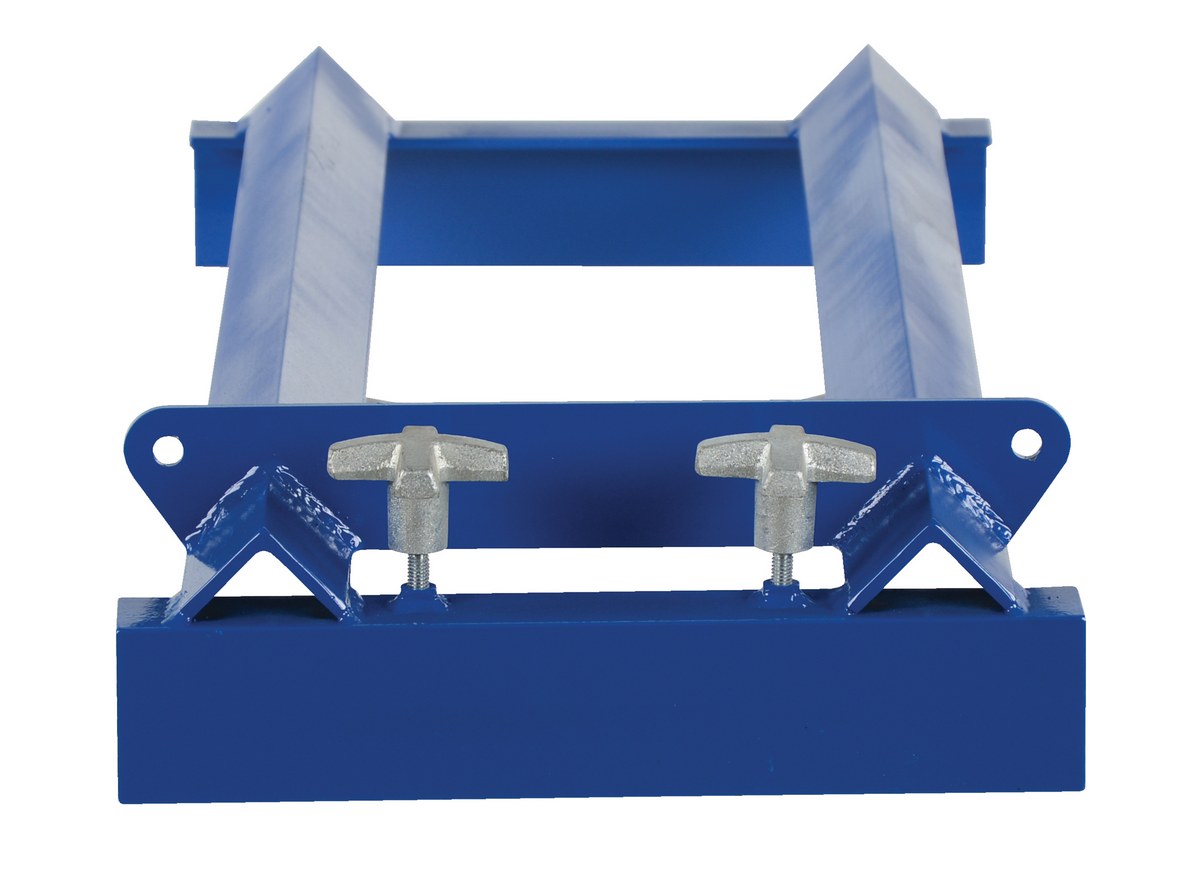

- Adjustable angle bolts tilt drum into desired position
- Universal design work with box or step beams
- Solid steel construction provides long lasting rugged use

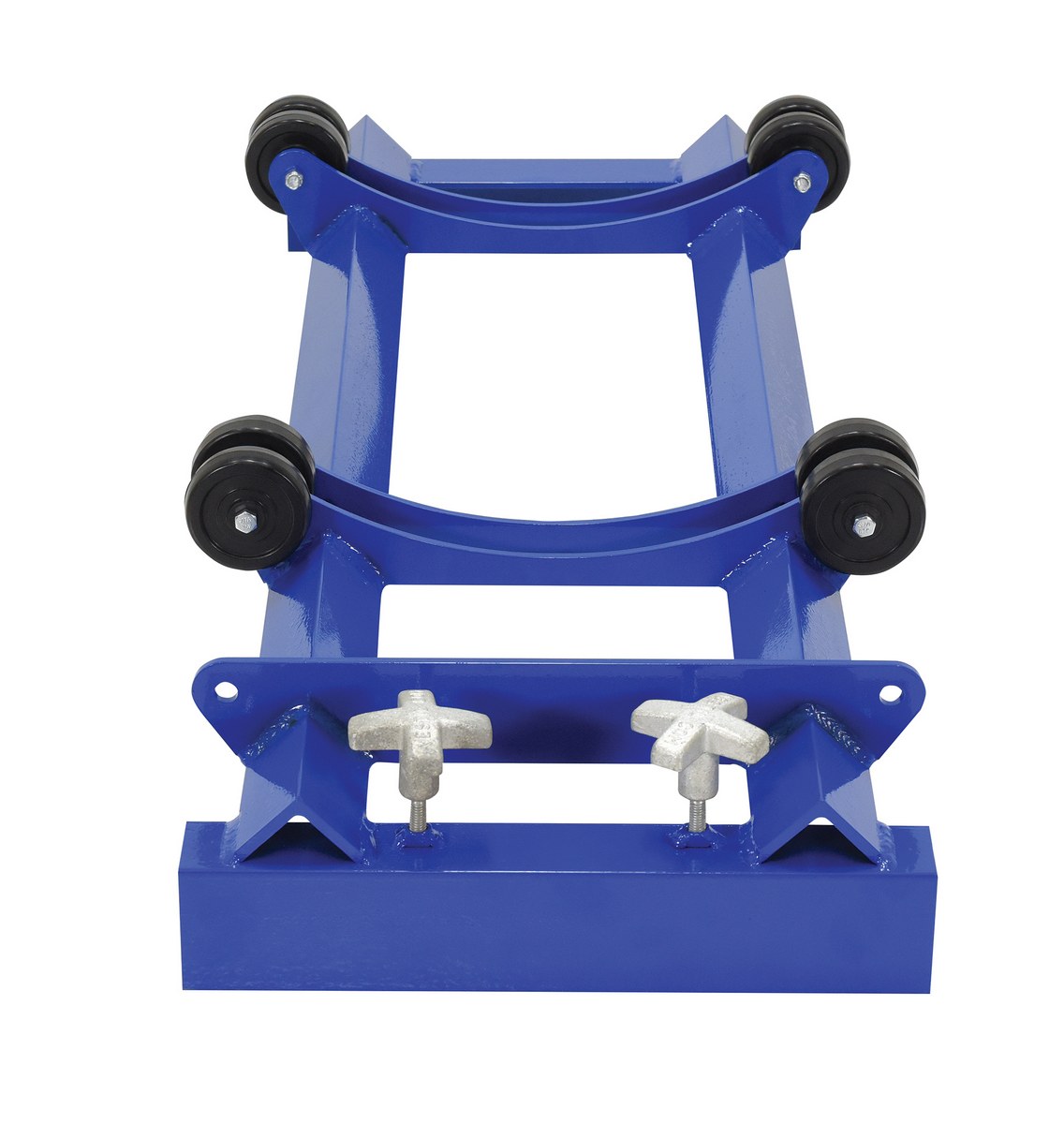

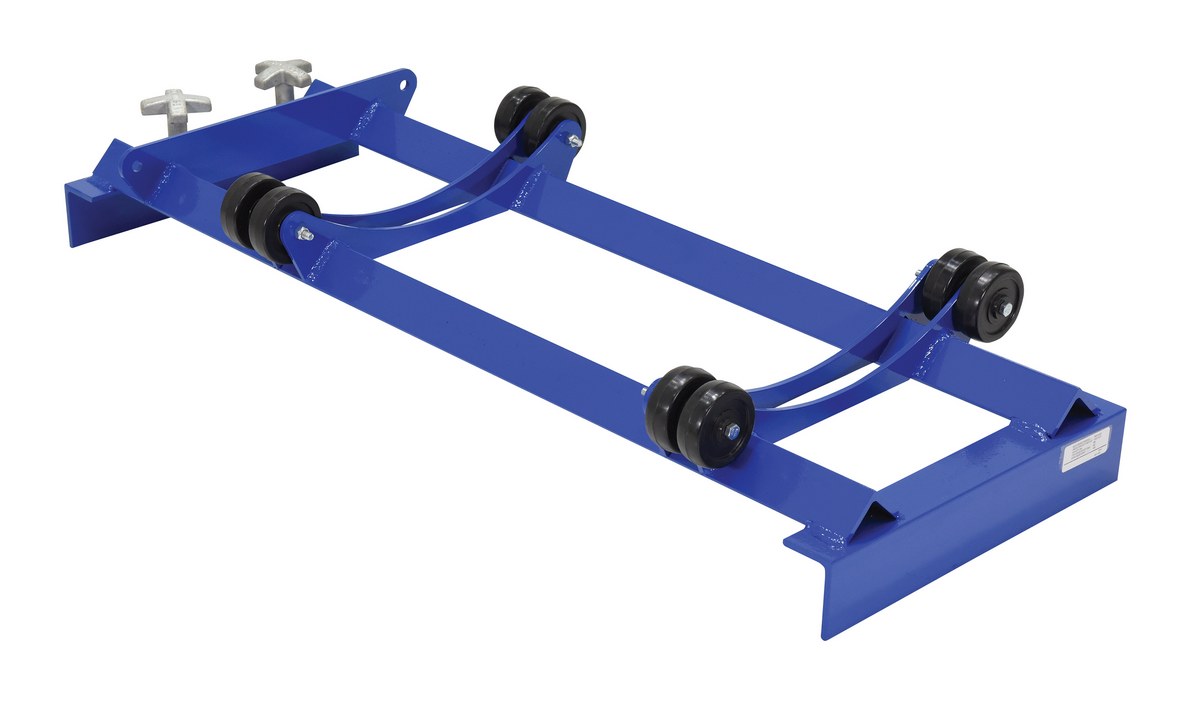

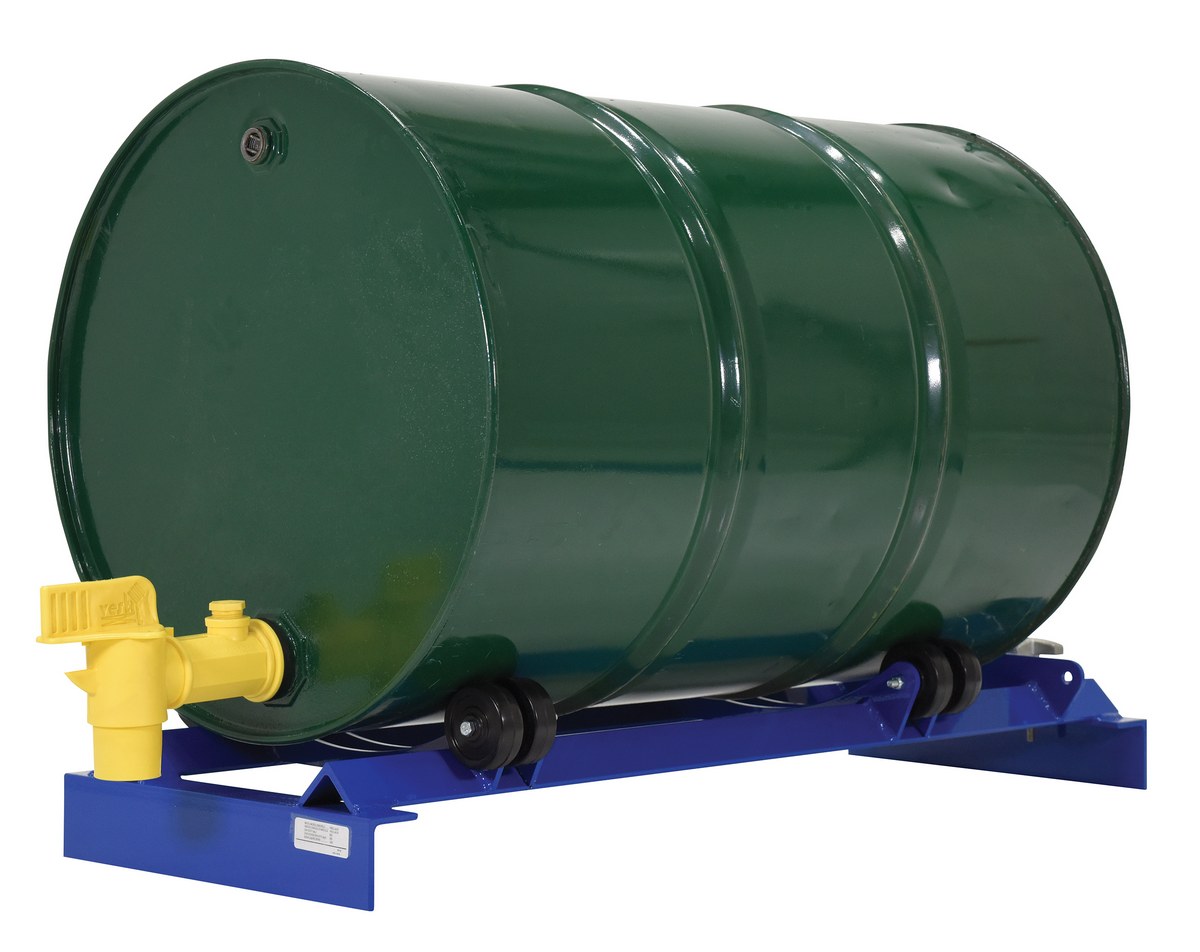

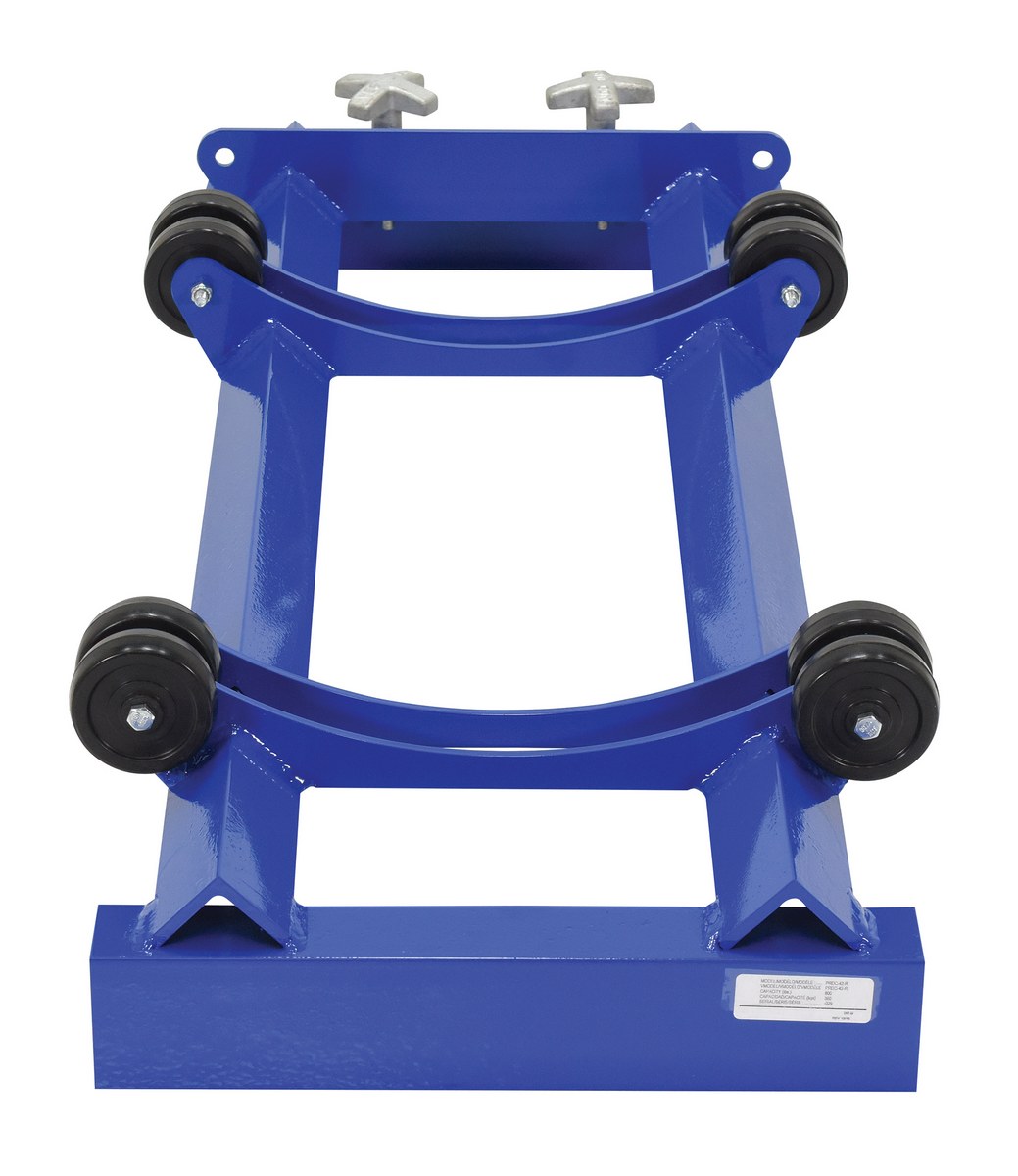

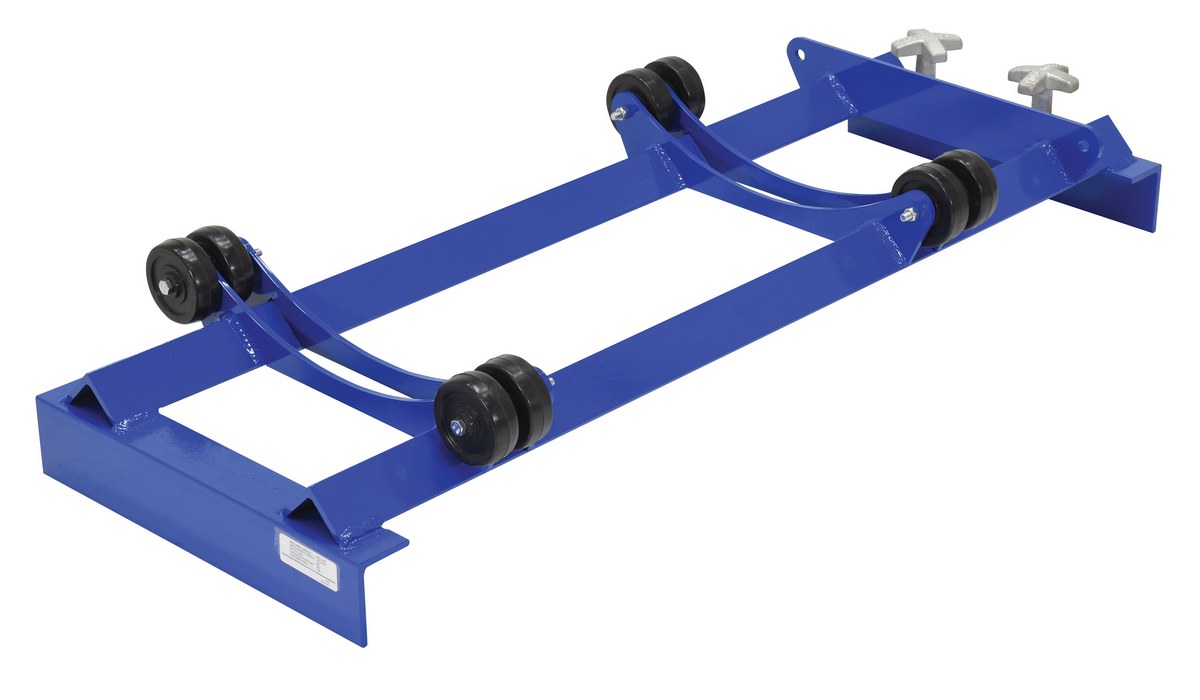

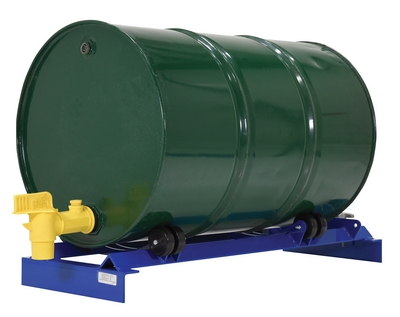

Model PRDC-42-R features 3" diameter poly rollers that allow manual drum rotation, making faucet and vent installation more convenient.

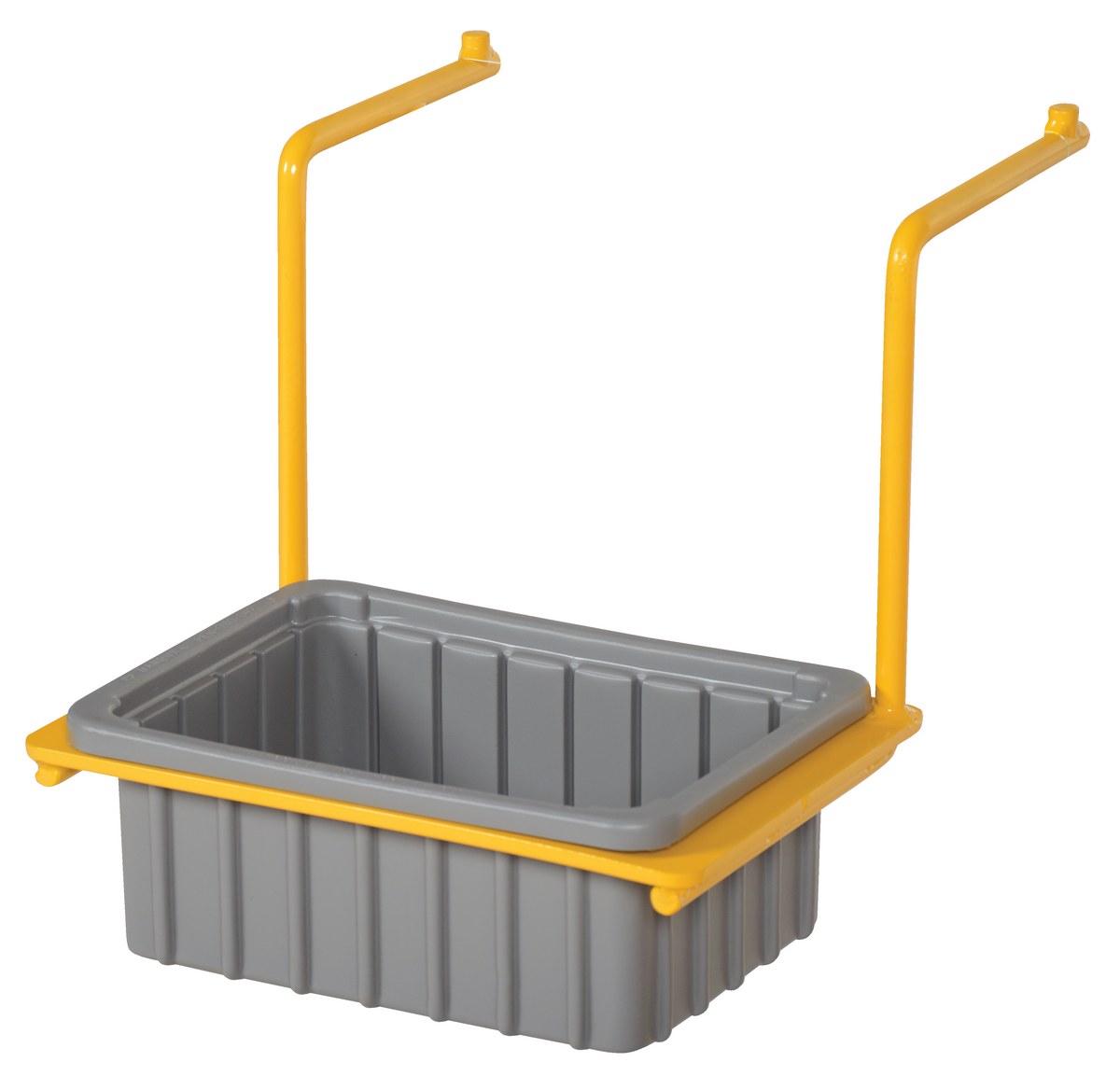

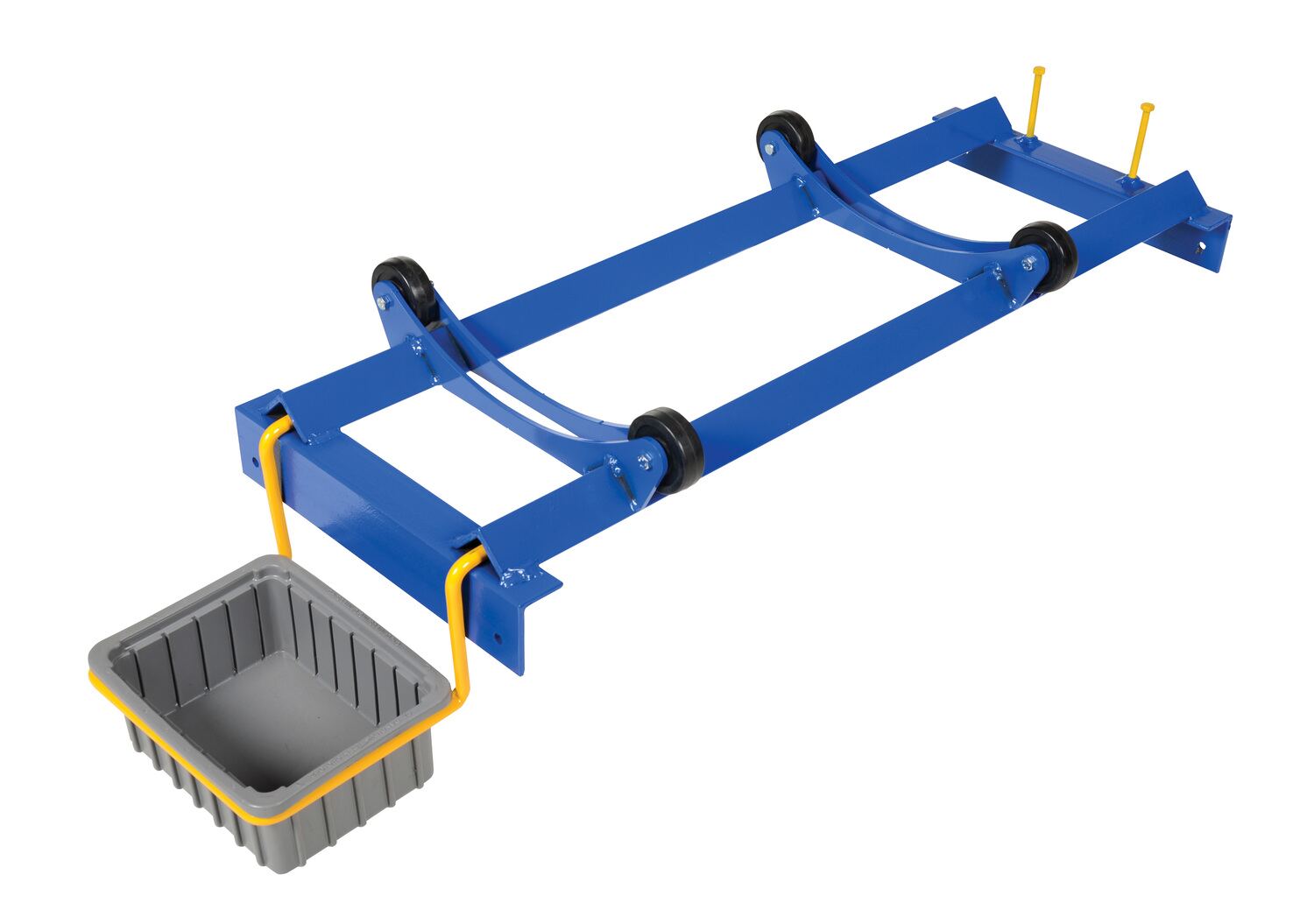

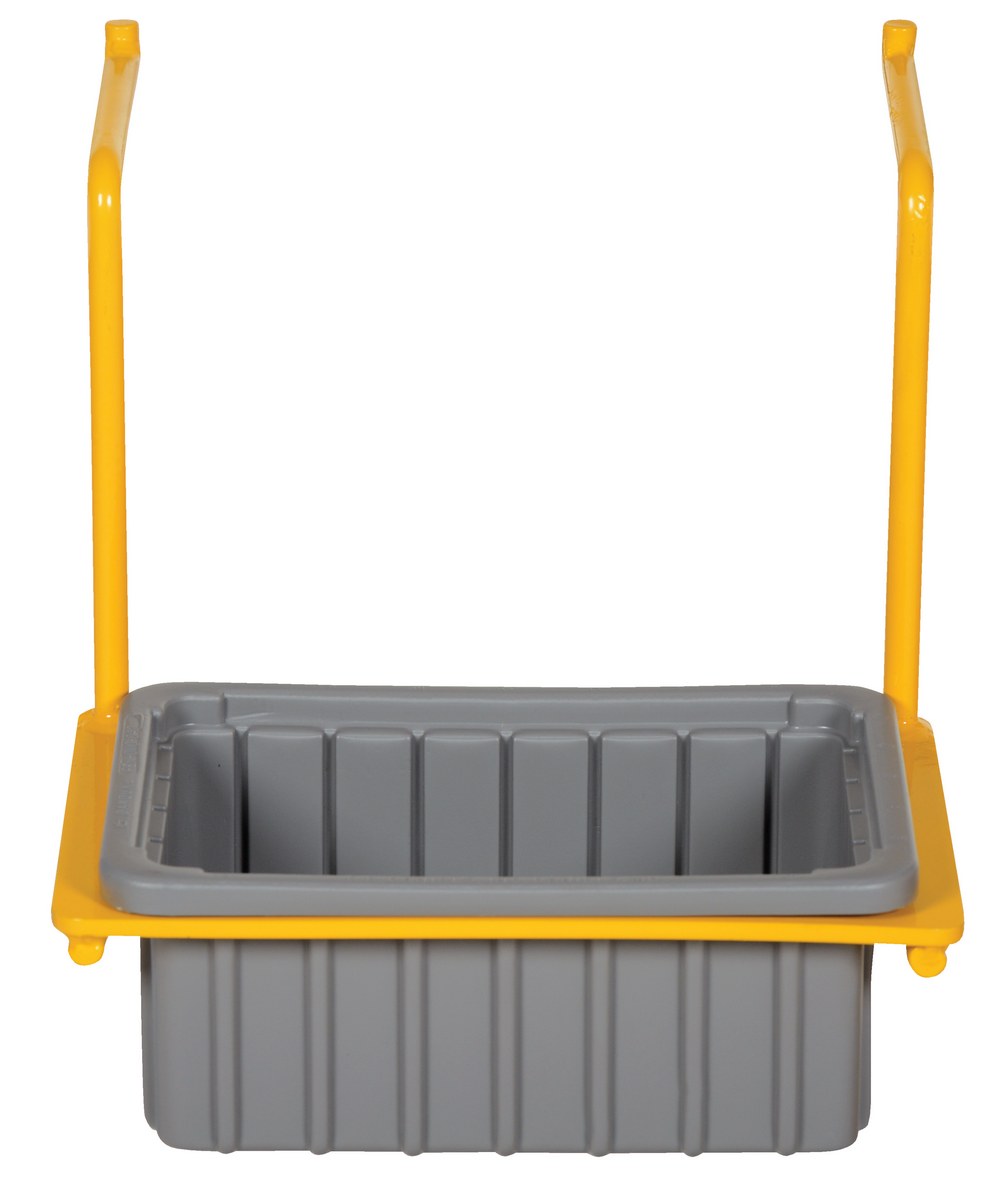

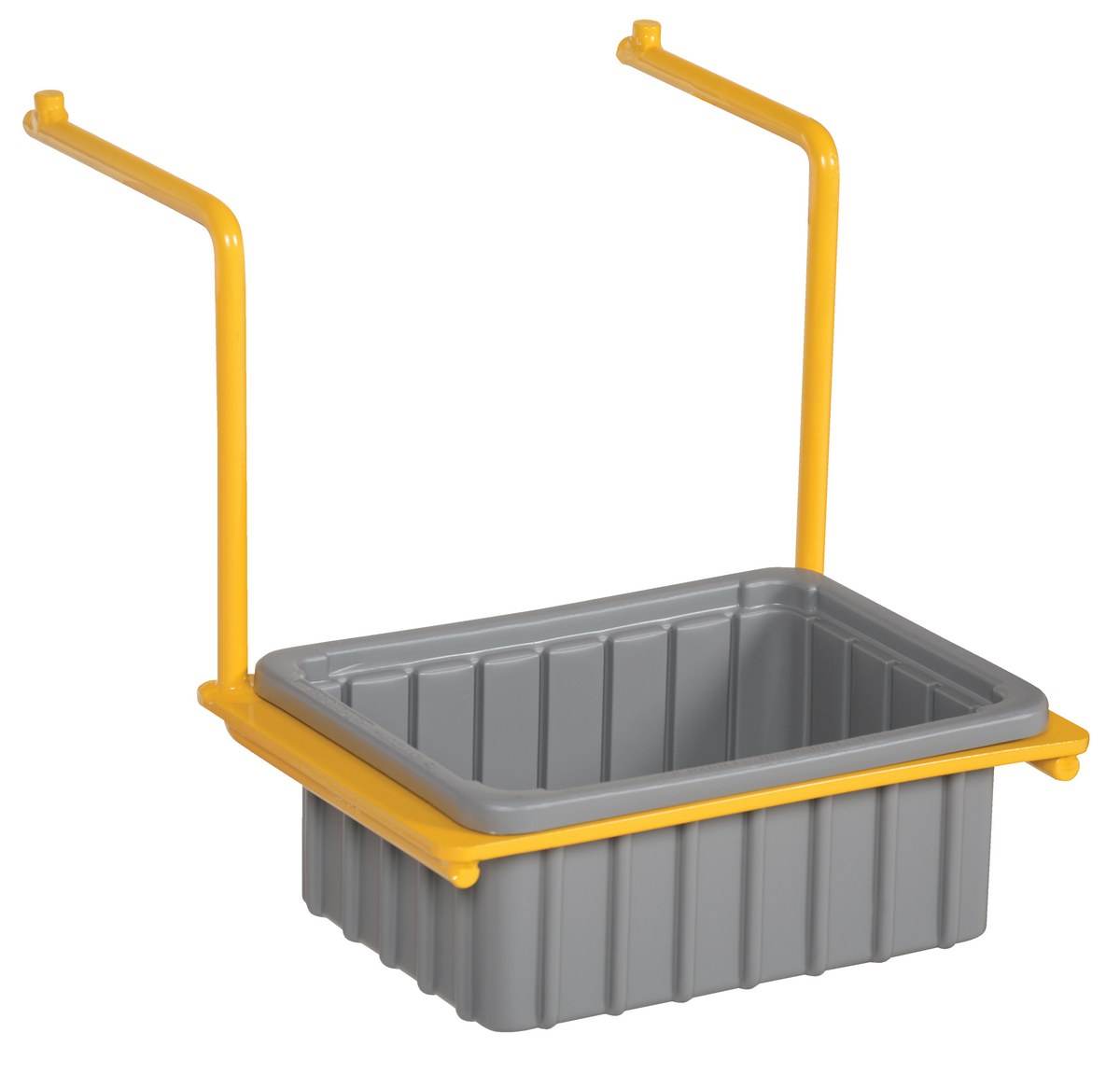

Model PRD-DPN includes brackets and prevents leaks from going to the floor. Usable dimensions: 9-3/4"W x 7-1/8"L x 4-3/16"H.
Polyethylene Drum Racks
Drum Stand
Stackable Horizontal Drum Storage Racks
Drum Rack With Fork PocketsAdditional Models In This Family
PRDC-36-R
PRDC-36
PRDC-42-R
PRDC-42-R
PRDC-42
PRDC-36-R
PRDC-36
PRDC-42
PRDC-36-R
PRDC-42-R
PRDC-DPN
PRDC-42-R
PRDC-42
PRDC-42
PRDC-DPN
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| PRDC-36 | | 90 Days Limited Warranty | Steel Pallet Rack Drum Cradle 36-1/2 In. x 15-7/8 In. x 5-5/8 In. 800 Lb. Capacity Blue | Uniform Capacity (lb.): 800 Acceptable Drum Size (gal.): 30 & 55 | 61 | ||
| PRDC-36-R | | 90 Days Limited Warranty | Steel Pallet Rack Drum Roller Cradle 36-1/2 In. x 17-3/8 In. x 6-15/16 In. 800 Lb. Capacity Blue | Uniform Capacity (lb.): 800 Acceptable Drum Size (gal.): 30 & 55 | 52 | ||

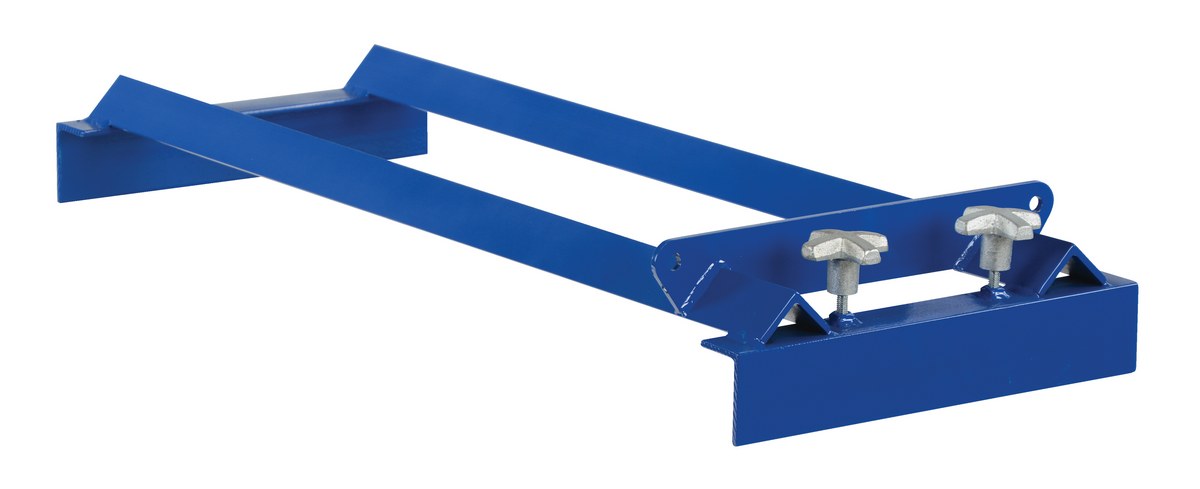

| PRDC-42 | | 90 Days Limited Warranty | Steel Pallet Rack Drum Cradle 42-1/2 In. x 15-7/8 In. x 5-5/8 In. 800 Lb. Capacity Blue | Uniform Capacity (lb.): 800 Acceptable Drum Size (gal.): 30 & 55 | 36 | ||
| PRDC-42-R |  | 90 Days Limited Warranty | Steel Pallet Rack Drum Roller Cradle 42-1/2 In. x 17-3/8 In. x 6-15/16 In. 800 Lb. Capacity Blue | Uniform Capacity (lb.): 800 Acceptable Drum Size (gal.): 30 & 55 | 58 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55
For More Details of the Option Click the Red Model Button
| PRDC-DPN |  | 30 Days Limited Warranty | Steel Drip Pan For PRDC Models Yellow | Length Added (in.): 8-5/8 Usable Width (in.): 9-3/4 | 5 | |

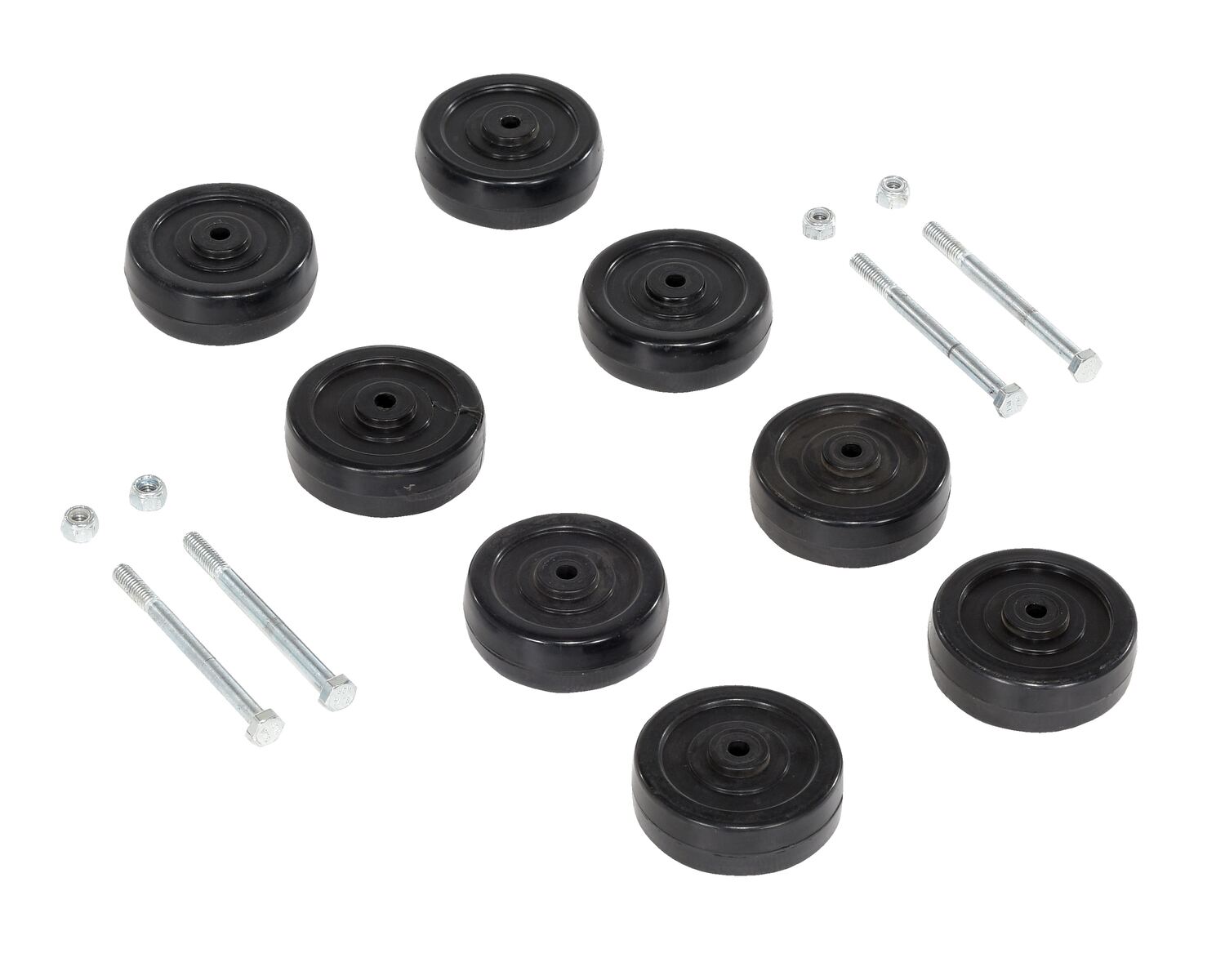

| PRDC-RK-RF |  | 90 Days Limited Warranty | Hard Rubber Retro Fit Roller Kit 3 In. x 1 In. For PRDC Models Black | Application: For use with PRDC-36 and PRDC-42 Package Contents: (6) Retro Fit Rollers and hardware | 4 |
.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products

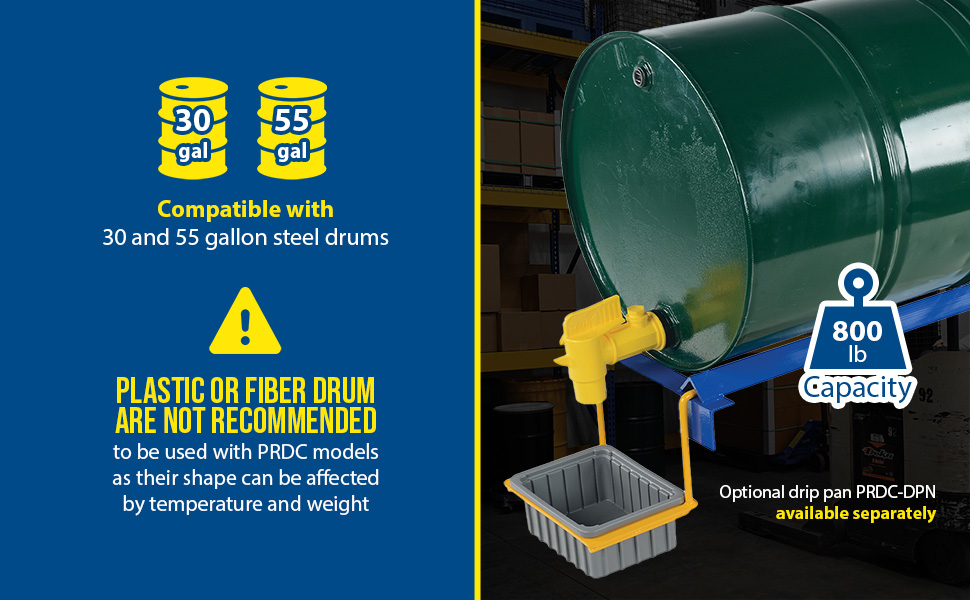

Q: Can this be used with plastic drums?
A: The shape of a plastic drum can be affected by temperature and weight. As a result, We don't recommend these drum cradles for use with plastic drums.
Q: Can I use the PRDC-42 on my 48" wide pallet rack?
A: :No, it will not work on a 48" wide rack. You will have to switch out your current pallet racking for the 42" wide pallet racks.
 |
|||||||||||||||||||||||||||
