Portable Hydraulic Drum Carrier/Rotator/Booms

model: HDC-305-96

HDC-305-96_D.jpg HDC-305-96_E.jpg HDC-305-96_A.jpg HDC-305-96_B.jpg HDC-305-96_C.jpg HDC-305-96_F.jpg HDC-305-96_G.jpg HDC-305-96_I.jpg More Images +
Portable Hydraulic Drum Carrier/Rotator/Booms
SERIES: HDC-305

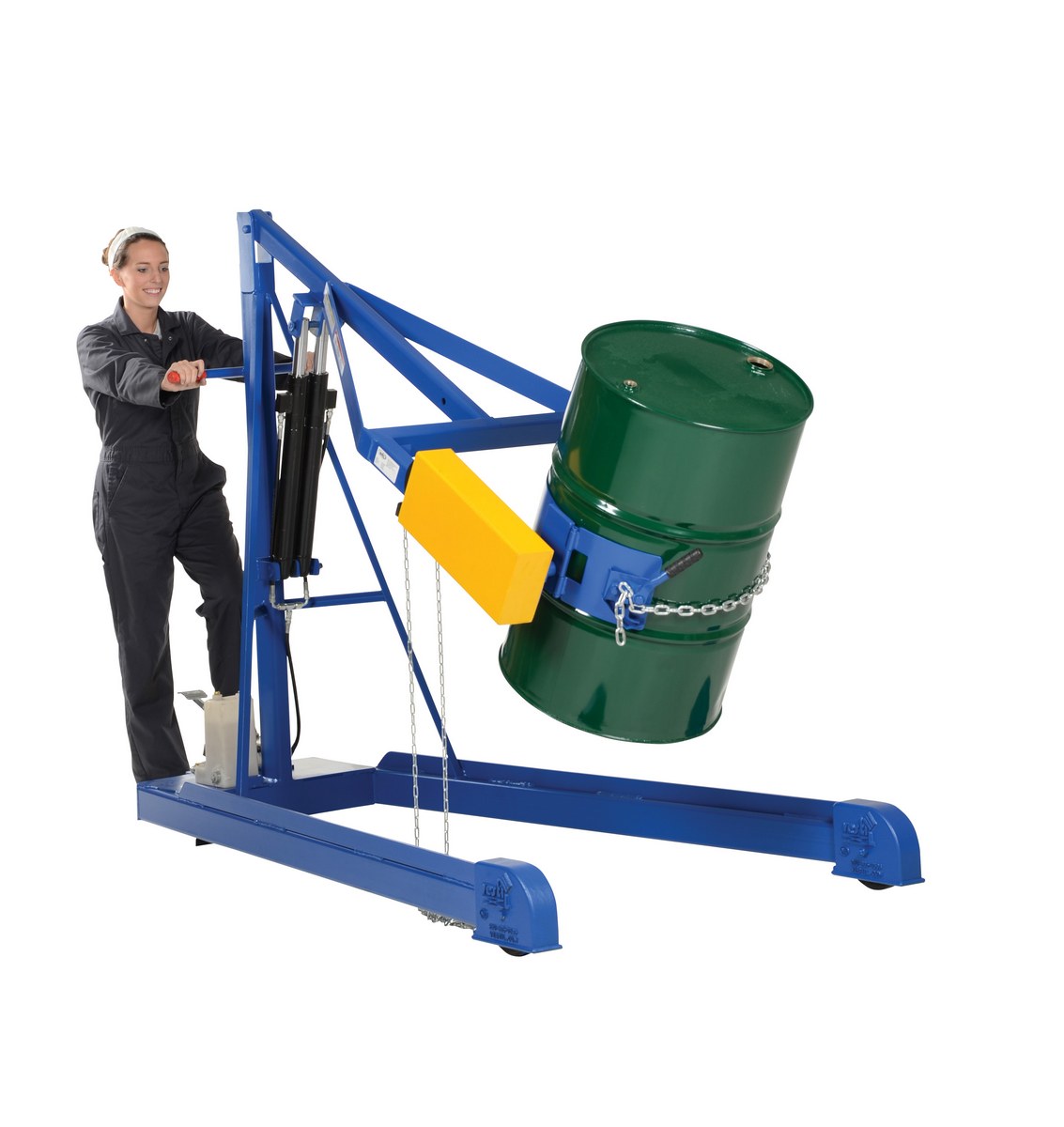

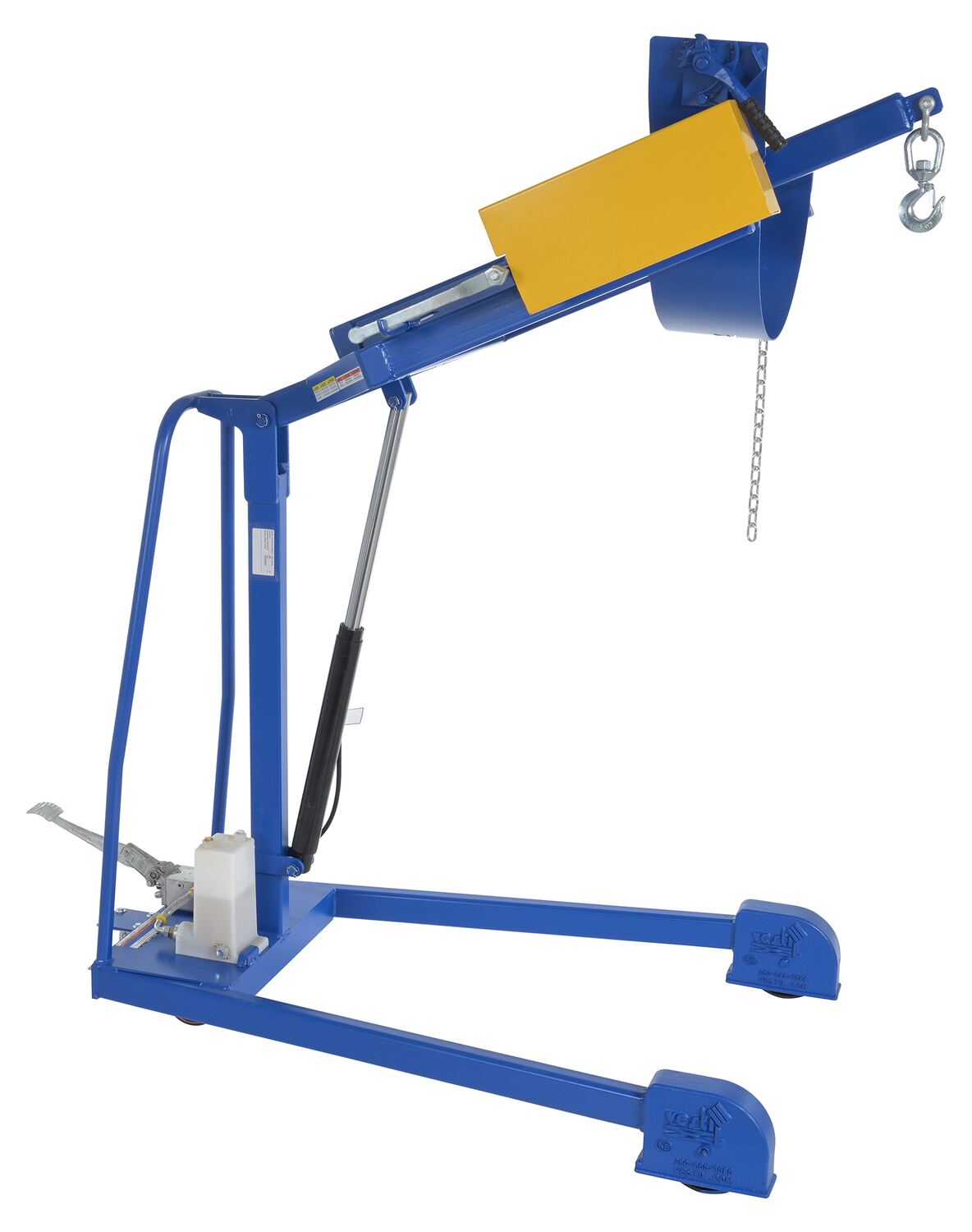

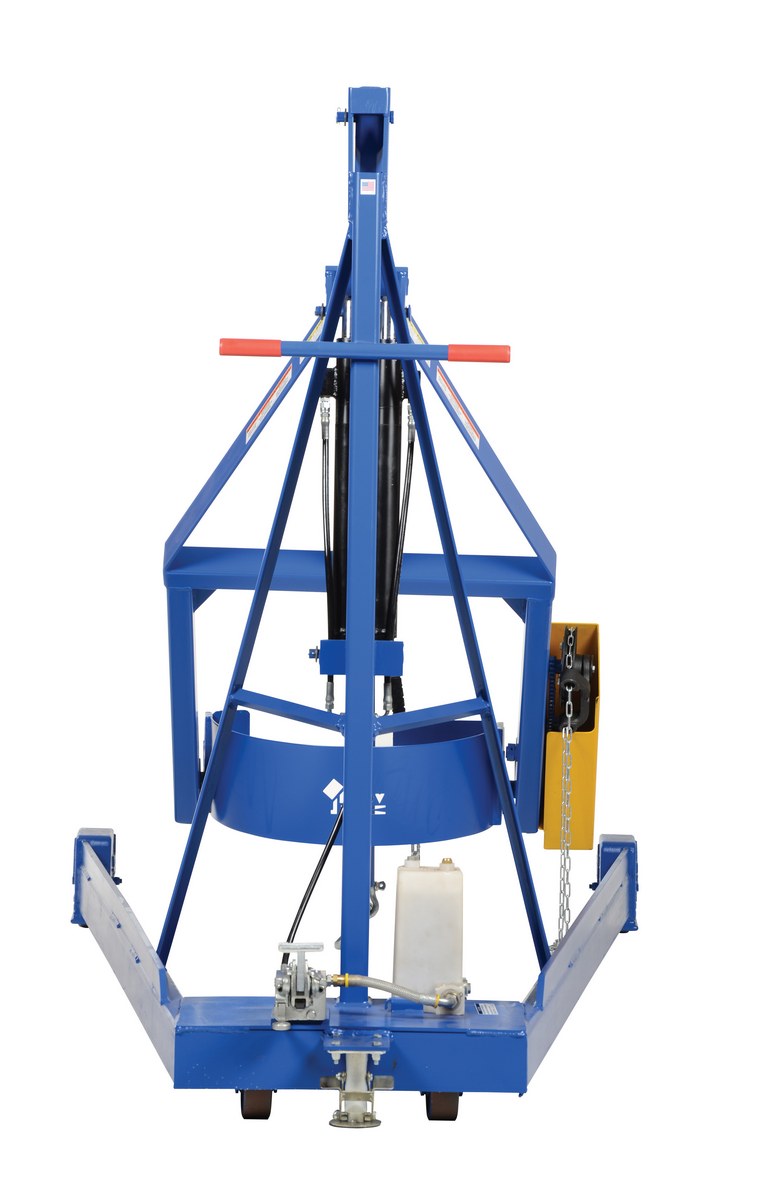

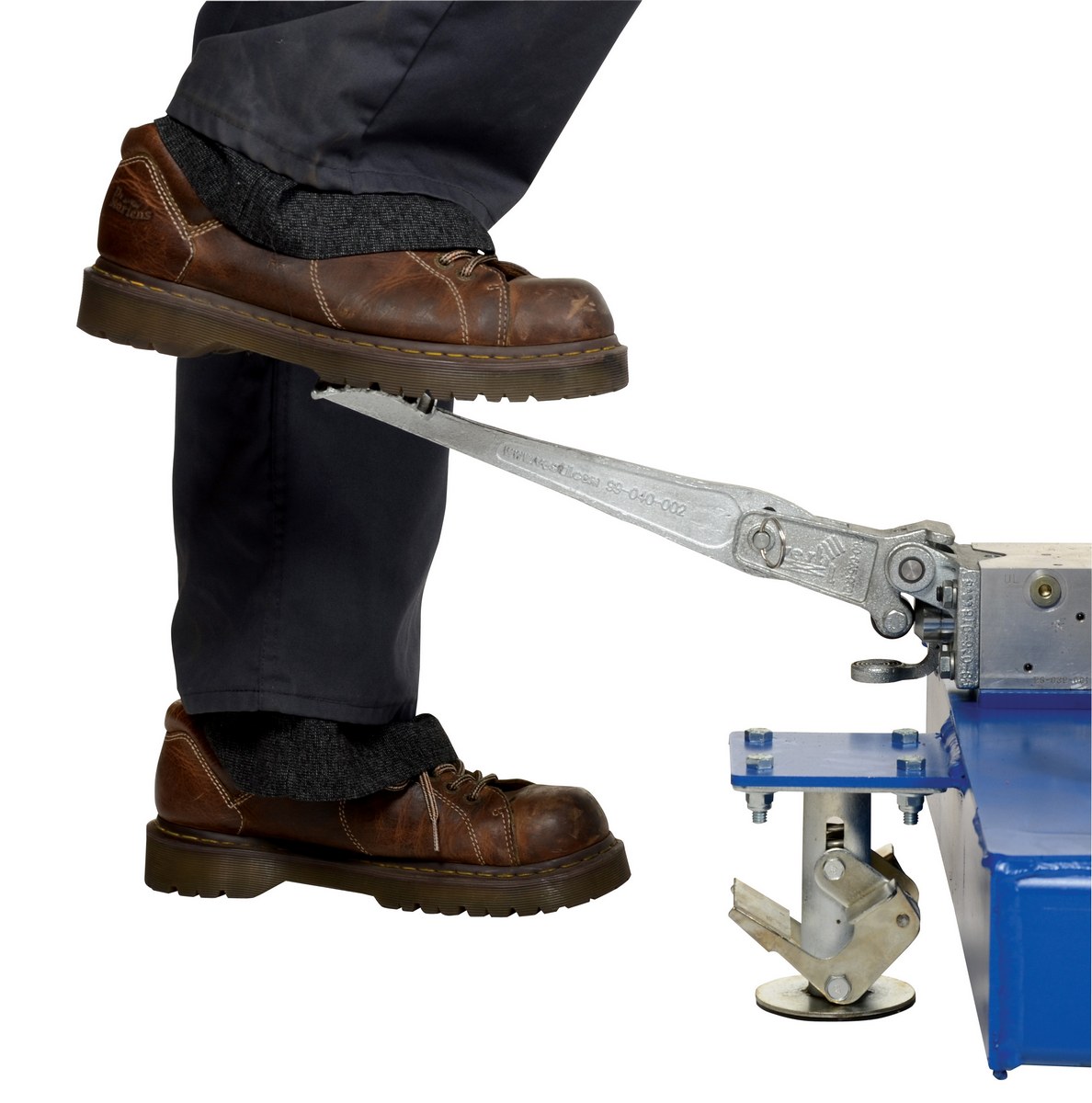

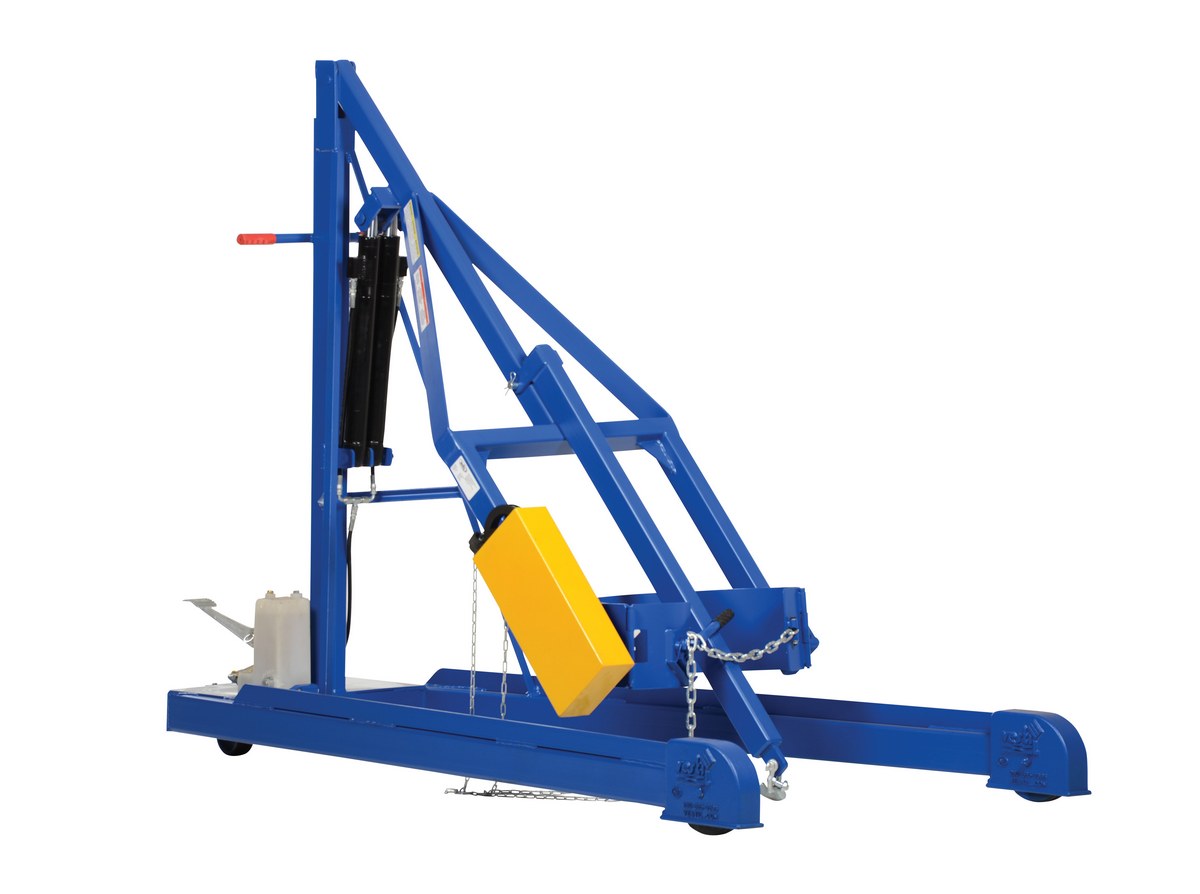

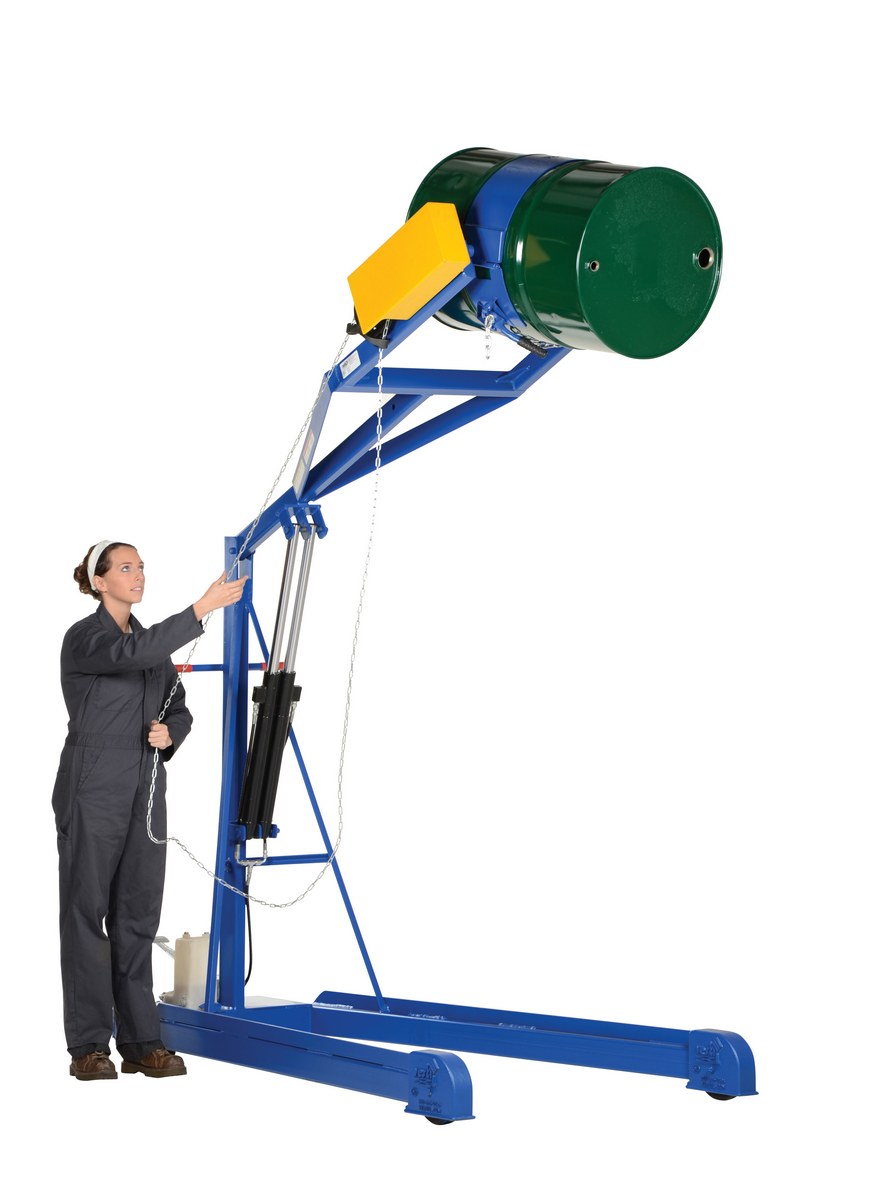

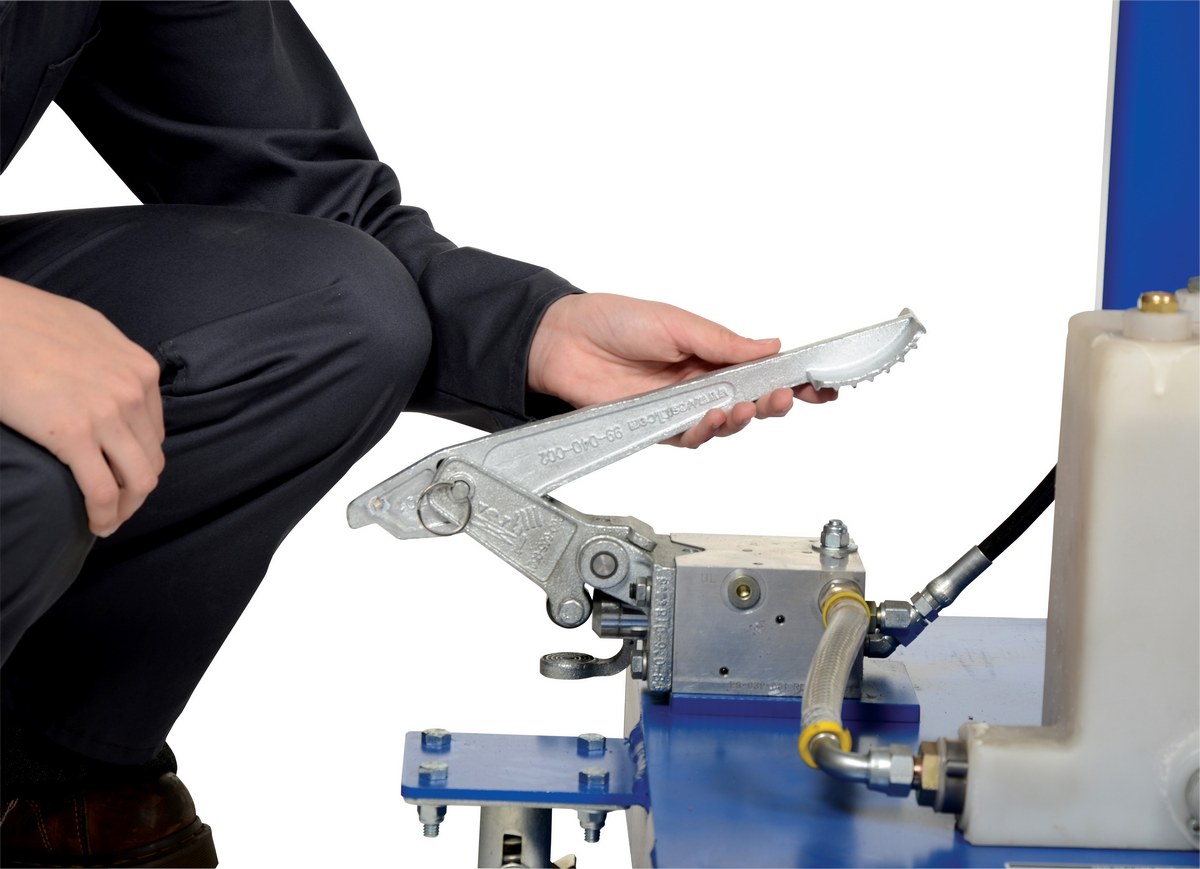

This product allows one person to lift, transport and dispense fully loaded 55 gallon steel drums with ease. It features a manual foot pump hydraulic lift and rolls on 5" rear swivel casters and 8" front rigid wheels. There is a hand crank on the 60" model and chain rotation on the other models to rotate the drum 360 degrees. All models feature a boom attachment which mounts on the outriggers. Optional power units available. Additional Plastic and Fiber Drum adapters and upgrades are available.

  • Unique design lifts & rotates drums up to 360 degrees
  • Rigid & swivel casters allow unit to roll smoothly
  • Standard design is for use with 55-gallon steel drums only
  • Heavy-duty welded steel construction provides long lasting rugged use
Portable Hydraulic Drum Carrier/Rotator/Booms

model: HDC-305-96

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
HDC-305-60
HDC-305-60-AC
HDC-305-60-DC
HDC-305-72
HDC-305-72-AC
HDC-305-72-DC
HDC-305-84
HDC-305-84-AC
HDC-305-84-DC
HDC-305-96
HDC-305-96-AC
HDC-305-96-DC
HDC-AC
HDC-AIR
HDC-DC
HDC-R-DC
HDC-R-HC
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.
HDC-AC Factory Installed 115 Volt AC Power Unit For Hydraulic Drum …36
HDC-AIR Factory Installed Air/Oil Operated Power Unit For Hydraulic …36
HDC-DC Factory Installed 12 Volt DC Power Unit For Hydraulic Drum C…54
HDC-R-DC Factory Installed 24V DC Power Rotation For Hydraulic Drum C…232
HDC-R-HC Factory Installed Manual Rotation For Hydraulic Drum Carrier…

Drums Must Be Full To Rotate At Rated Capacity

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

HDC-305

AUTOSHIFTER

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

HDC-305-60

HDC-305-72

HDC-305-84

HDC-305-96

Testing Certificates

HDC-305-60

HDC-305-60-AC

HDC-305-60-DC

HDC-305-72

HDC-305-72-AC

HDC-305-72-DC

HDC-305-84

HDC-305-84-AC

HDC-305-84-DC

HDC-305-96

HDC-305-96-AC

HDC-305-96-DC

HDC-AC

HDC-AIR

HDC-DC

HDC-R-DC

HDC-R-HC

SDS Sheets


Hydraulic Oil
HDC-305-60 SDS


Hydraulic Oil
HDC-305-60-AC SDS


Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
HDC-305-60-DC SDS


Hydraulic Oil
HDC-305-60-DC SDS


Hydraulic Oil
HDC-305-72 SDS


Hydraulic Oil
HDC-305-72-AC SDS


Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
HDC-305-72-DC SDS


Hydraulic Oil
HDC-305-72-DC SDS


Hydraulic Oil
HDC-305-84 SDS


Hydraulic Oil
HDC-305-84-AC SDS


Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
HDC-305-84-DC SDS


Hydraulic Oil
HDC-305-84-DC SDS


Hydraulic Oil
HDC-305-96 SDS


Hydraulic Oil
HDC-305-96-AC SDS


Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
HDC-305-96-DC SDS


Hydraulic Oil
HDC-305-96-DC SDS


Hydraulic Oil
HDC-AIR SDS


Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
HDC-DC SDS


Hydraulic Oil
HDC-DC SDS

Valve Regulated Lead-Acid Battery
HDC-R-DC SDS


Hydraulic Oil
HDC-R-DC SDS

Other PDFs

No "Other PDFs" For This Product
How many drums this can lift per hour?
Maximum 12 drums per hour is recommended.
It takes approximately 30 seconds to raise and approximately 18 seconds to lower.

Related or Similar Products:

More From Drum Positioners & Dumpers





Portable Hydraulic Drum Carrie...




This product allows one person to lift, transport and dispense fully loaded 55 gallon steel drums with ease. It features a manual foot pump hydraulic lift and rolls on 5" rear swivel casters and 8" front rigid wheels. There is a hand crank on the 60" model and chain rotation on the other models to rotate the drum 360 degrees. All models feature a boom attachment which mounts on the outriggers. Optional power units available. Additional Plastic and Fiber Drum adapters and upgrades are available.

  • Unique design lifts & rotates drums up to 360 degrees
  • Rigid & swivel casters allow unit to roll smoothly
  • Standard design is for use with 55-gallon steel drums only
  • Heavy-duty welded steel construction provides long lasting rugged use

Model # Description Attributes Net Wt.
(lbs)

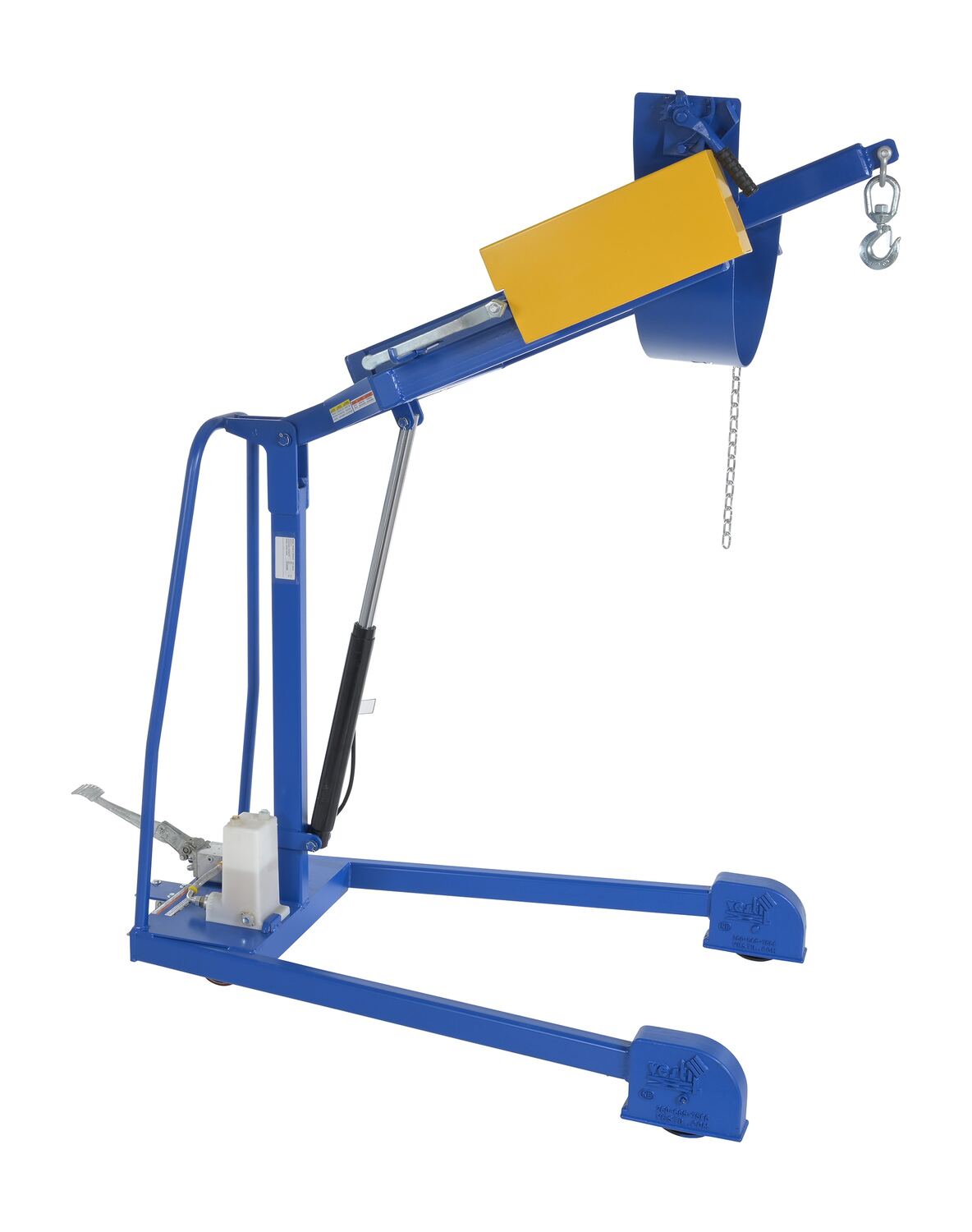

HDC-305-60 HDC-305-60Steel Portable Hydraulic Drum Carrier, Rotator and Boom 59-11/16 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 59-11/16		485
HDC-305-60-AC HDC-305-60-ACSteel Portable AC Powered Hydraulic Drum Carrier, Rotator and Boom 59-11/16 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 59-11/16		521
HDC-305-60-DC HDC-305-60-DCSteel Portable DC Powered Hydraulic Drum Carrier, Rotator and Boom 59-11/16 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 59-11/16		494
HDC-305-72 HDC-305-72Steel Portable Hydraulic Drum Carrier, Rotator and Boom 71-1/4 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 71-1/4		487
HDC-305-72-AC HDC-305-72-ACSteel Portable AC Powered Hydraulic Drum Carrier, Rotator and Boom 71-1/4 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 71-1/4		523

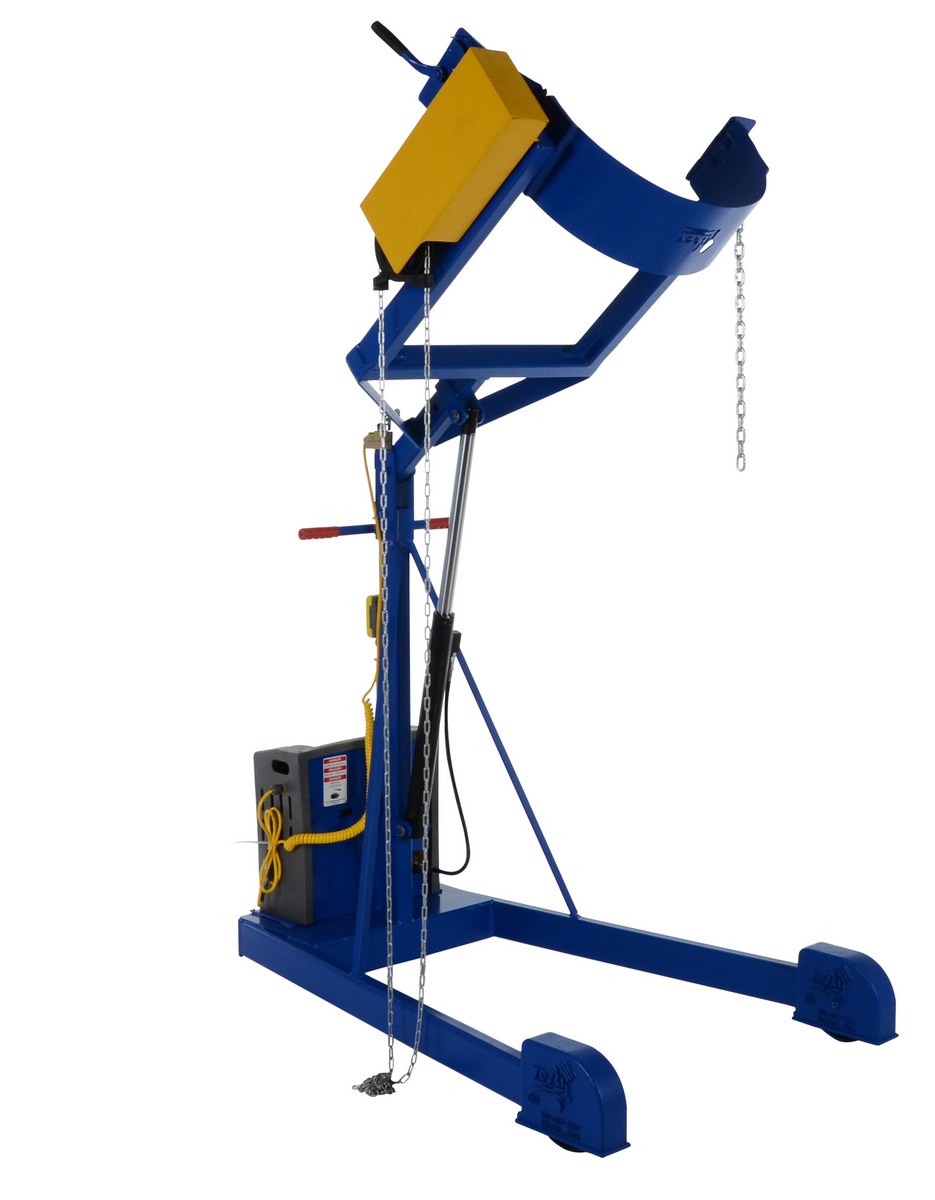

HDC-305-72-DC HDC-305-72-DCSteel Portable DC Powered Hydraulic Drum Carrier, Rotator and Boom 71-1/4 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 71-1/4		514

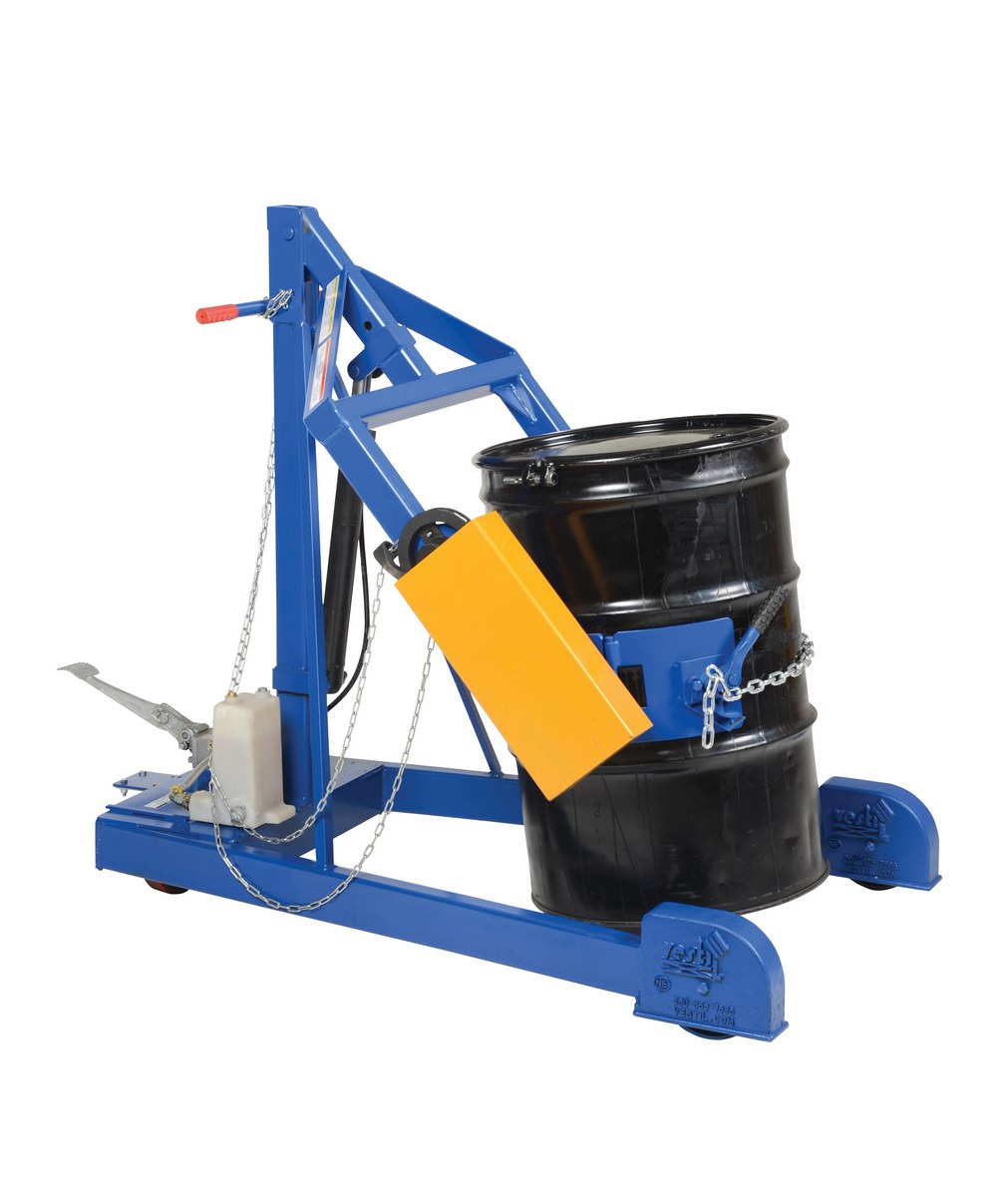

HDC-305-84 HDC-305-84Steel Portable Hydraulic Drum Carrier, Rotator and Boom 80-5/8 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 80-5/8		698

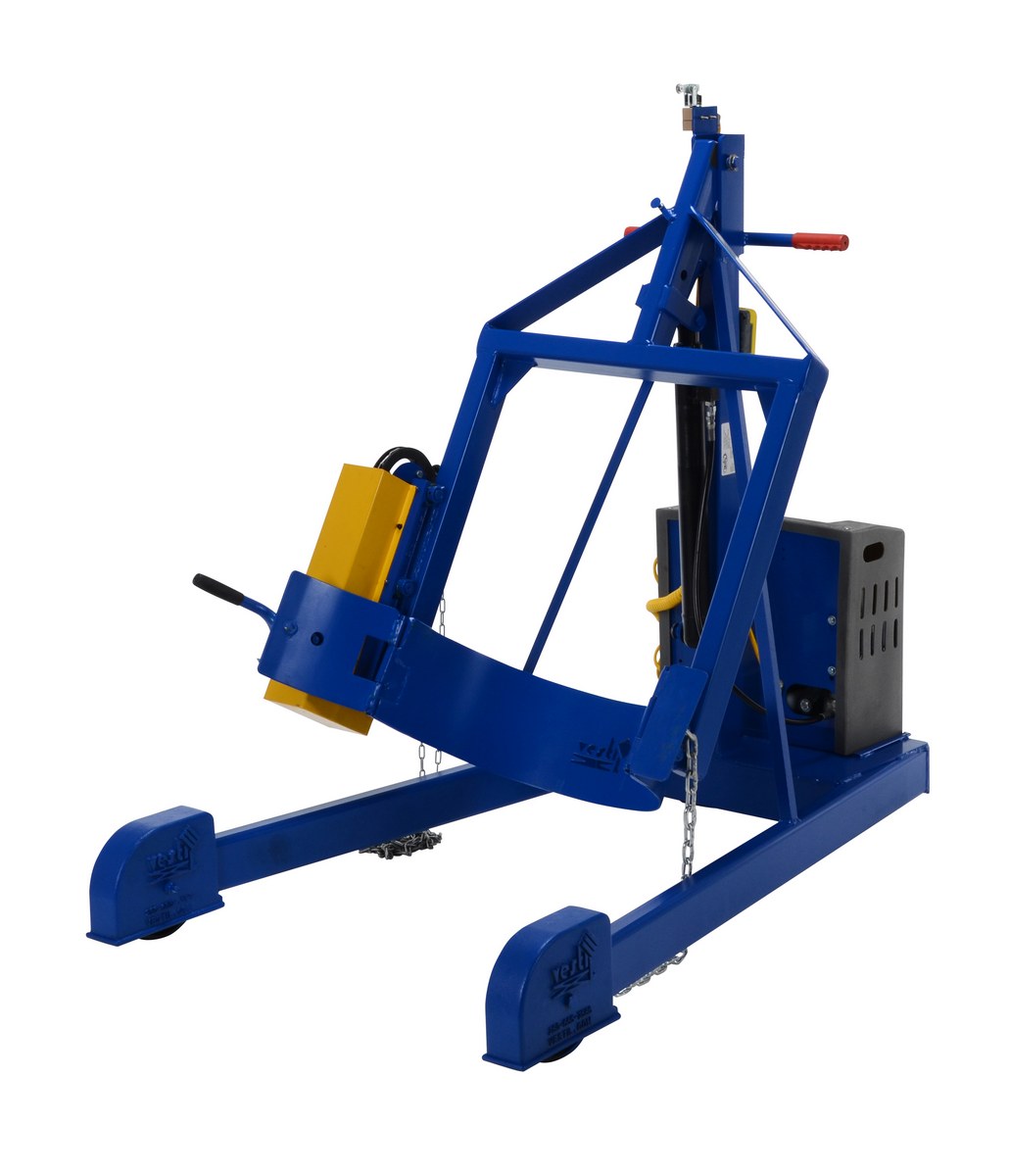

HDC-305-84-AC HDC-305-84-ACSteel Portable AC Powered Hydraulic Drum Carrier, Rotator and Boom 80-5/8 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 80-5/8		723
HDC-305-84-DC HDC-305-84-DCSteel Portable DC Powered Hydraulic Drum Carrier, Rotator and Boom 80-5/8 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 80-5/8		681

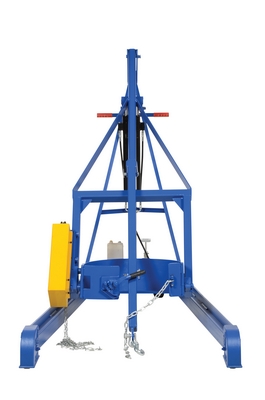

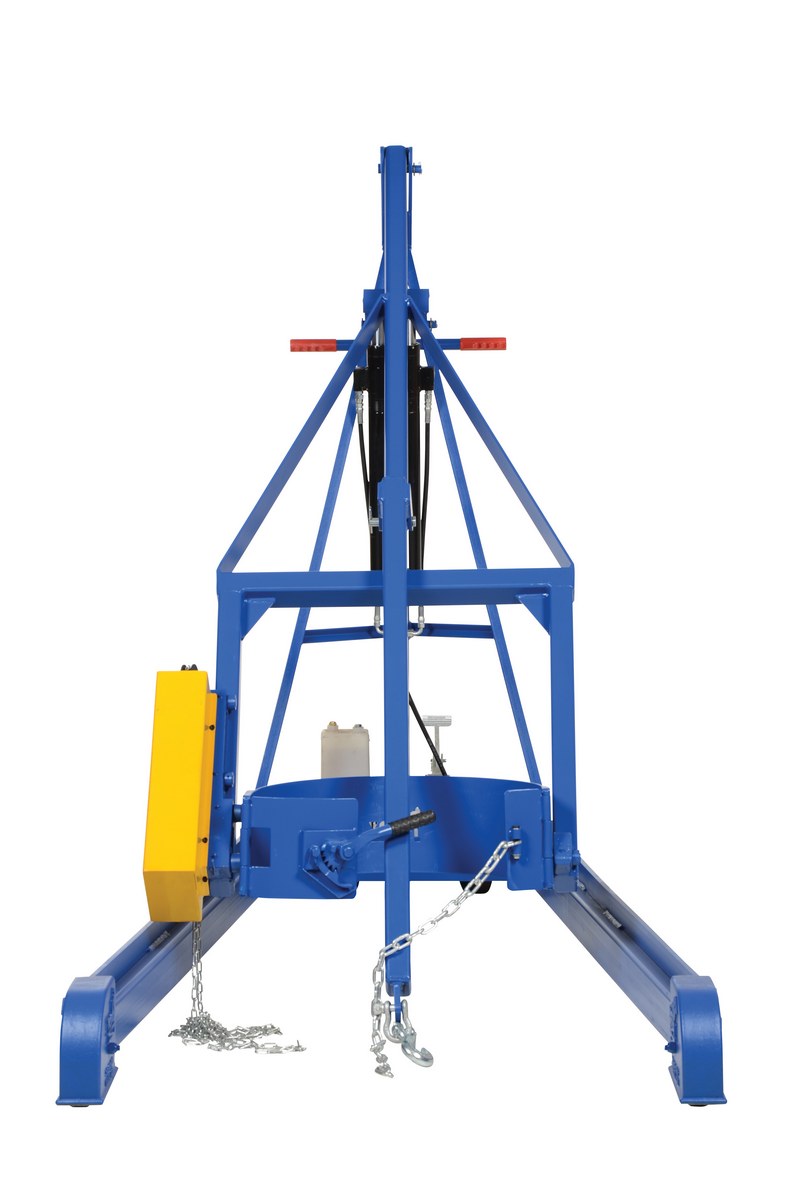

HDC-305-96 HDC-305-96Steel Portable Hydraulic Drum Carrier, Rotator and Boom 97-9/16 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 97-9/16		708
HDC-305-96-AC HDC-305-96-ACSteel Portable AC Powered Hydraulic Drum Carrier, Rotator and Boom 97-9/16 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 97-9/16		744
HDC-305-96-DC HDC-305-96-DCSteel Portable DC Powered Hydraulic Drum Carrier, Rotator and Boom 97-9/16 In. Lift Height 800 Lb. Capacity Blue / YellowUniform Capacity (lb.): 800
Lift Height (in.): 97-9/16		745

Options


Drums Must Be Full To Rotate At Rated Capacity
