Rug Rams/Carpet Poles

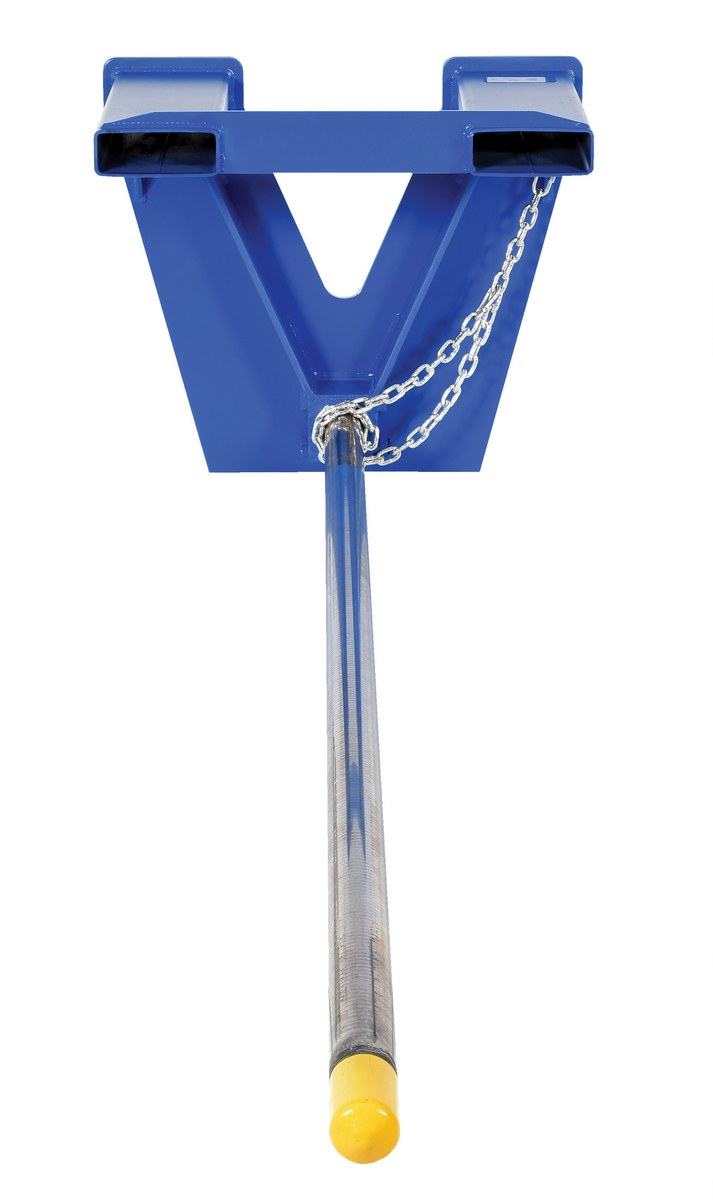

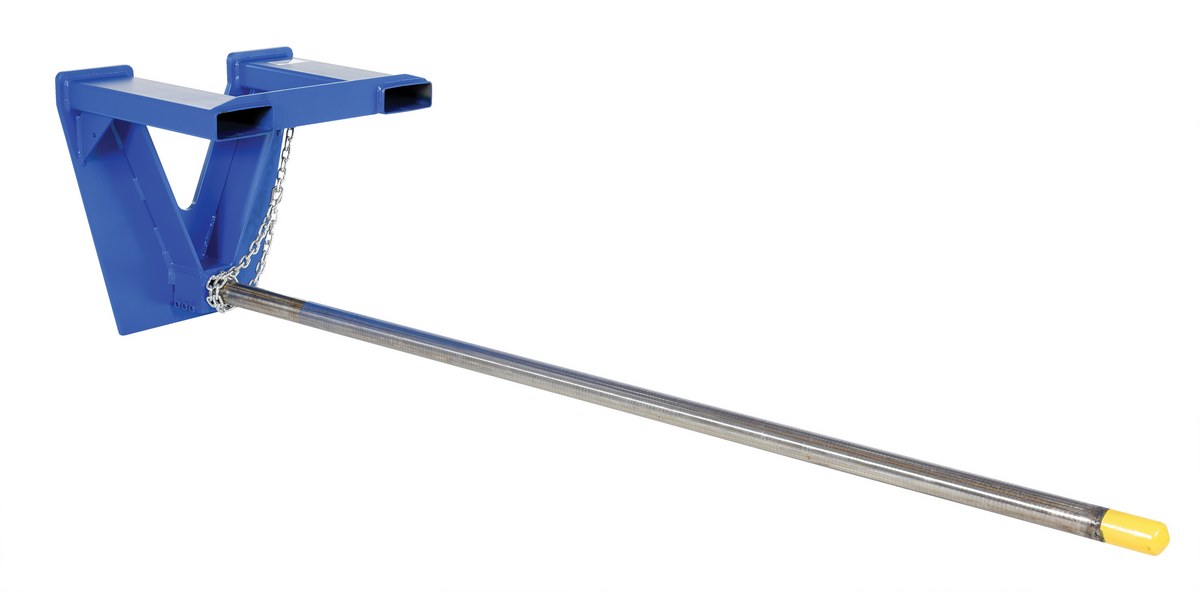

model: CRP-108

CRP-108_E.jpg CRP-108_A.jpg CRP-108_B.jpg CRP-108_C.jpg CRP-108_D.jpg CRP_Z.gif More Images +
Rug Rams/Carpet Poles
SERIES: CRP,CRF,CR

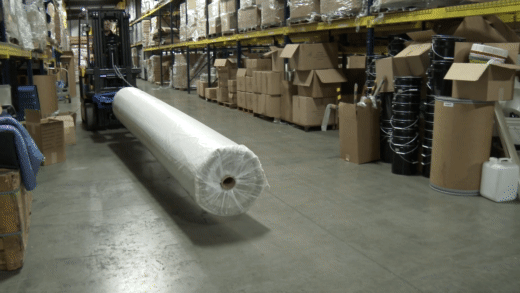

Transport rolls of carpet with our sturdy Rug Rams/Carpet Poles. Available in either carriage or fork mounted style. 2-3/4" diameter high strength, rotatable, replaceable pole has tapered tip. All units are made of steel construction and painted blue.

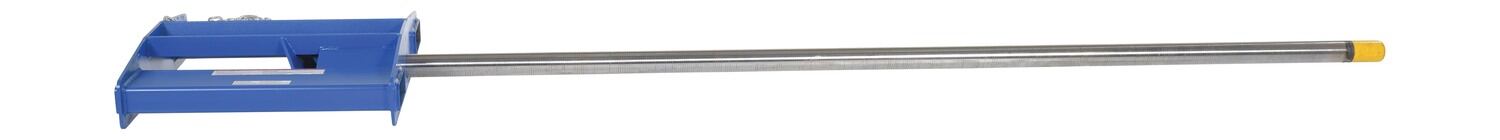

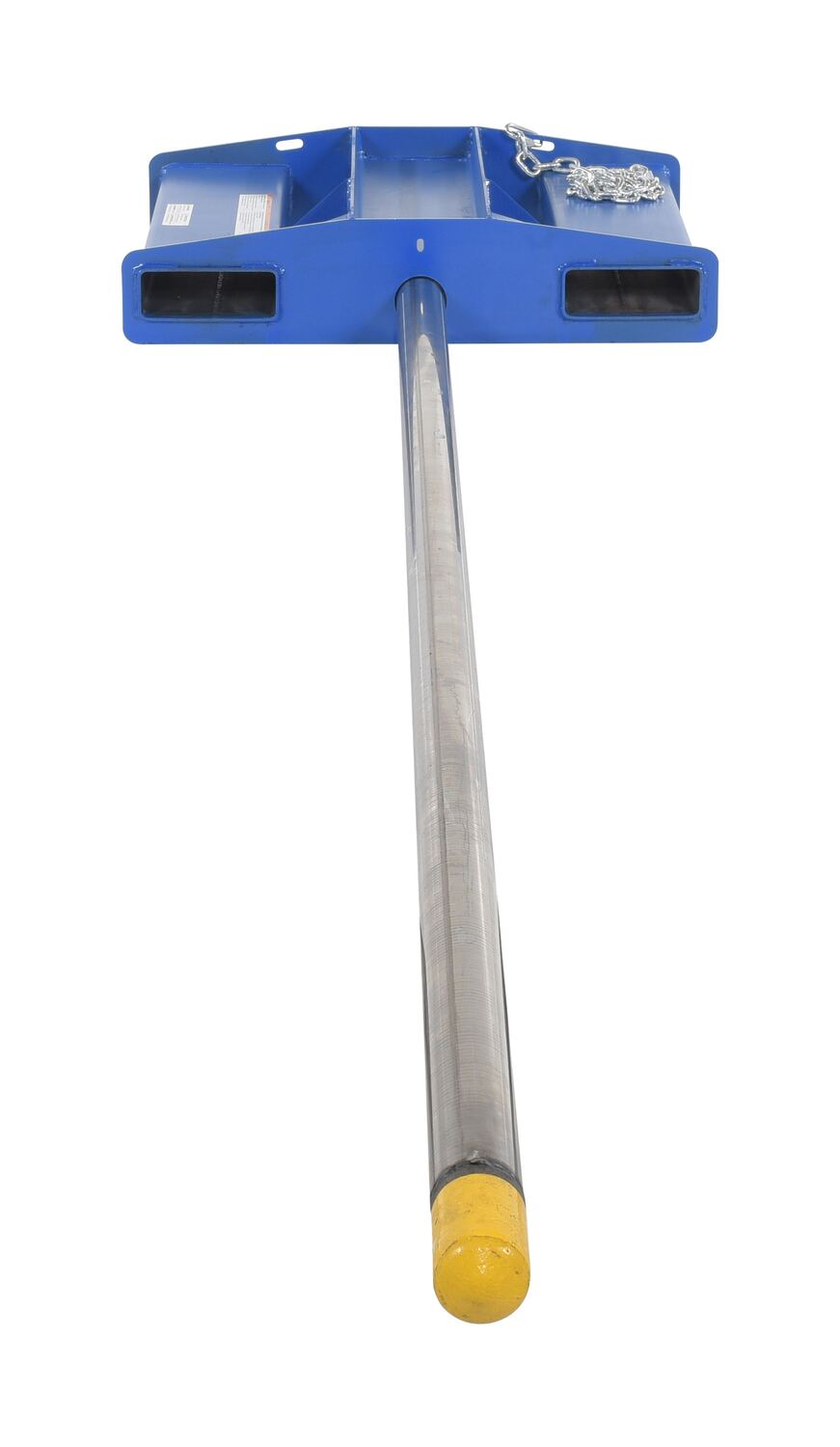

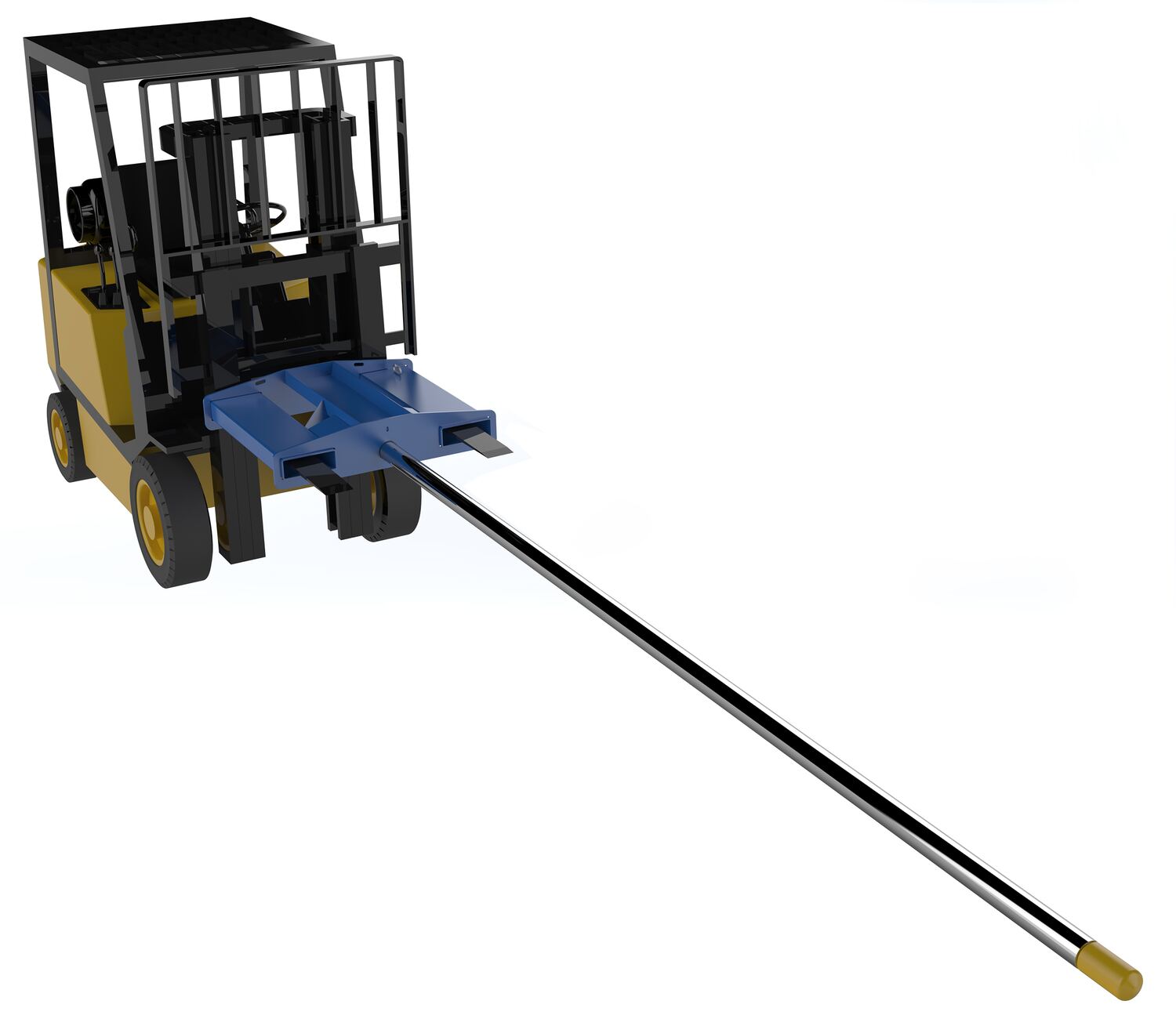

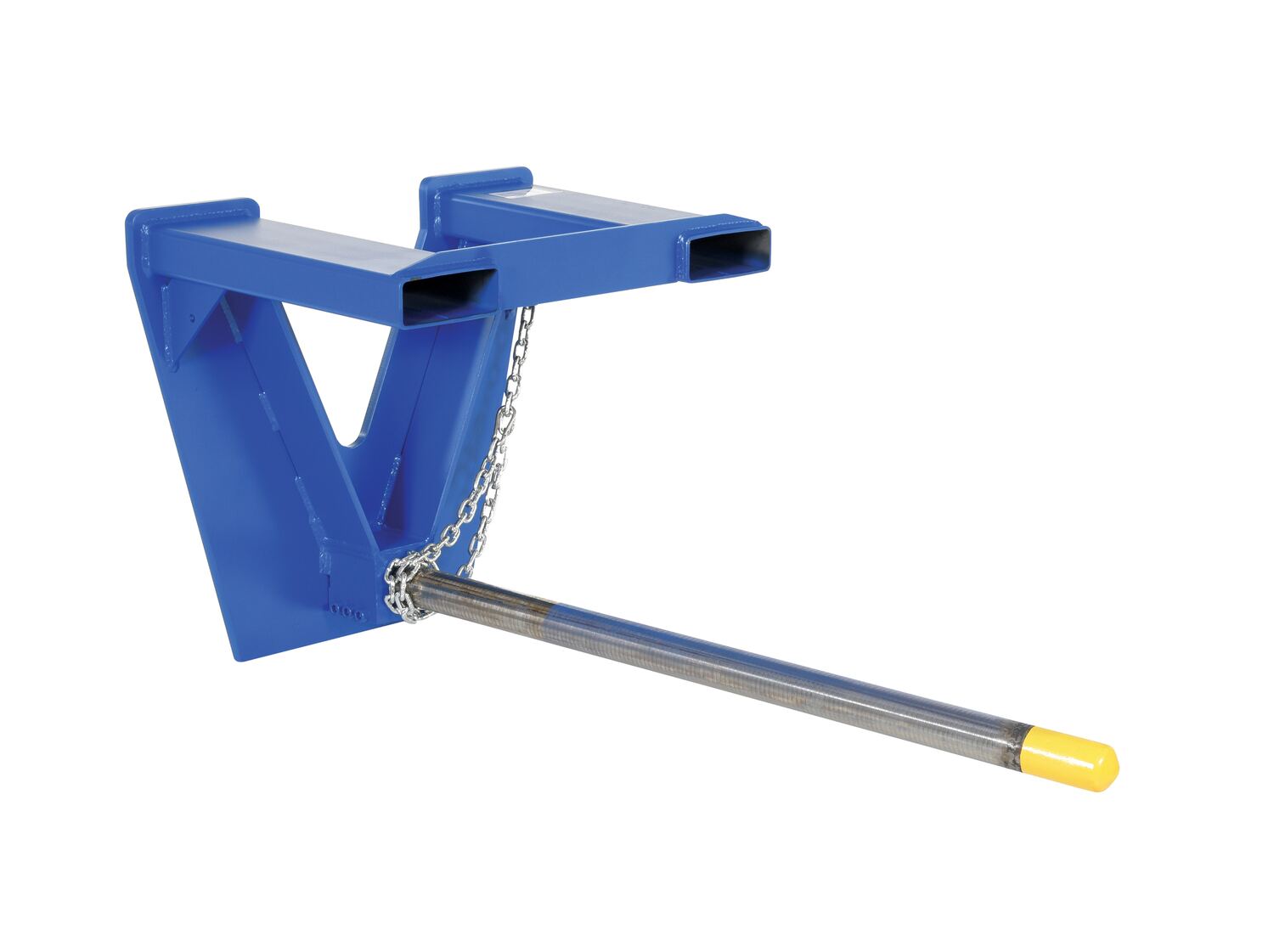

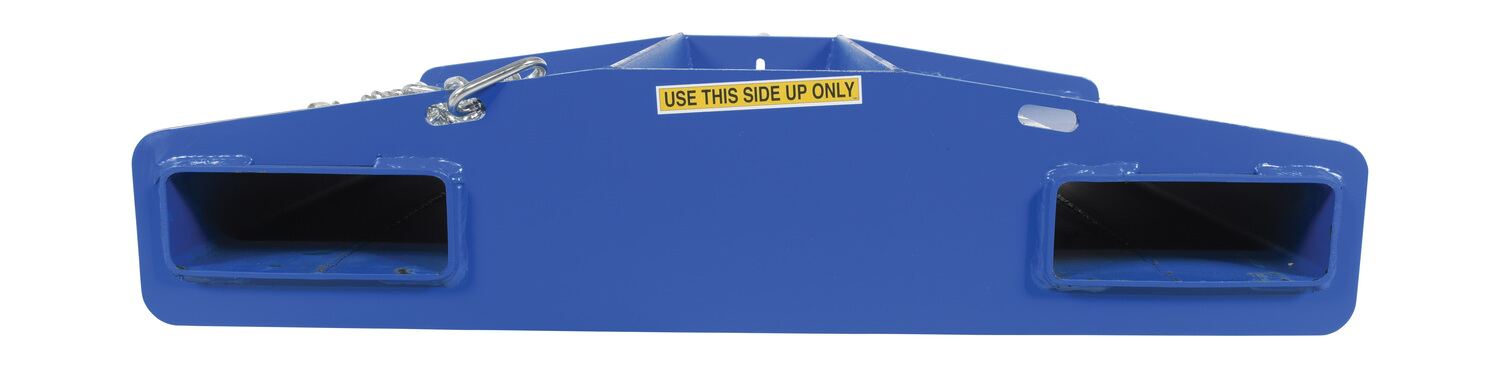

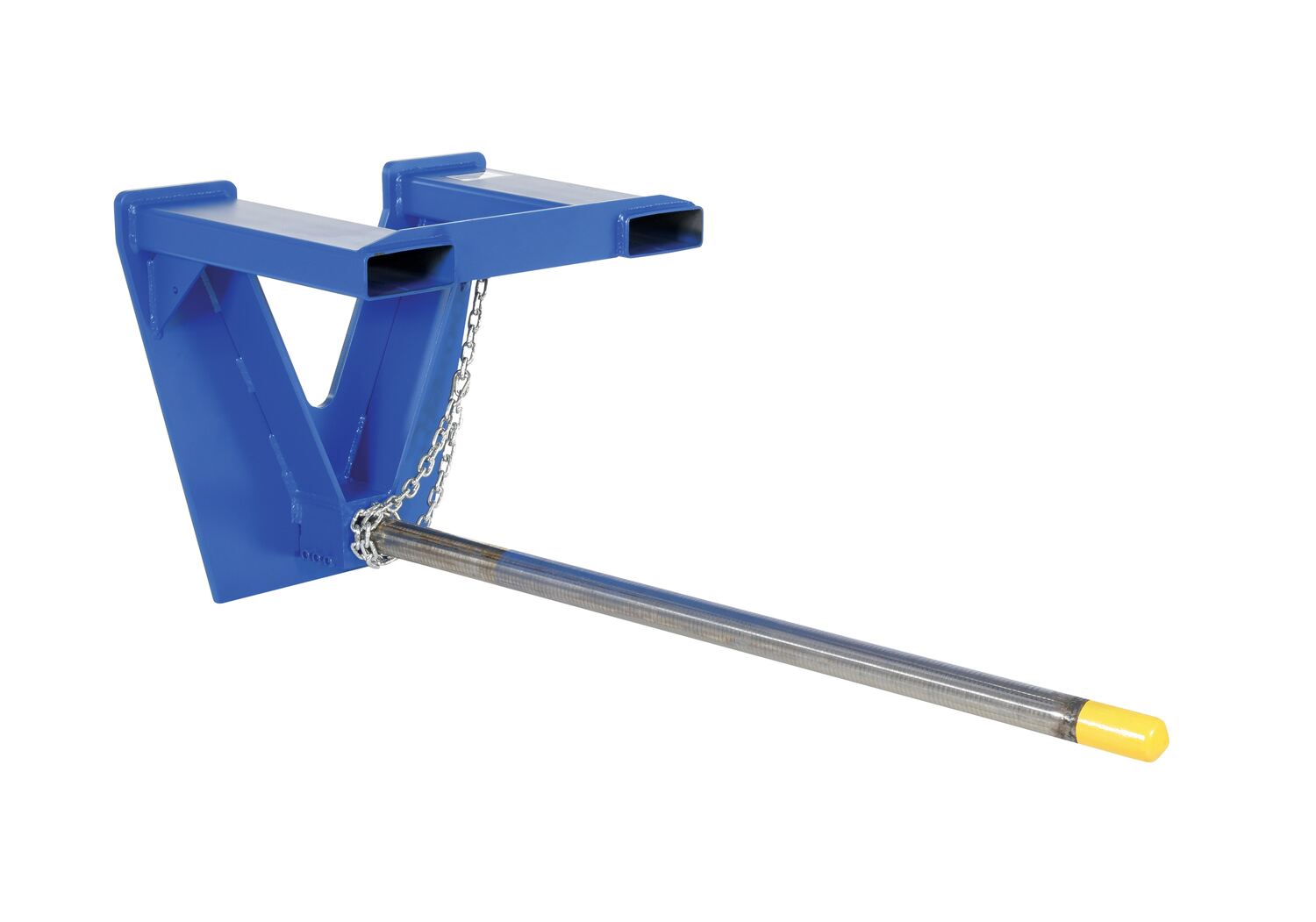

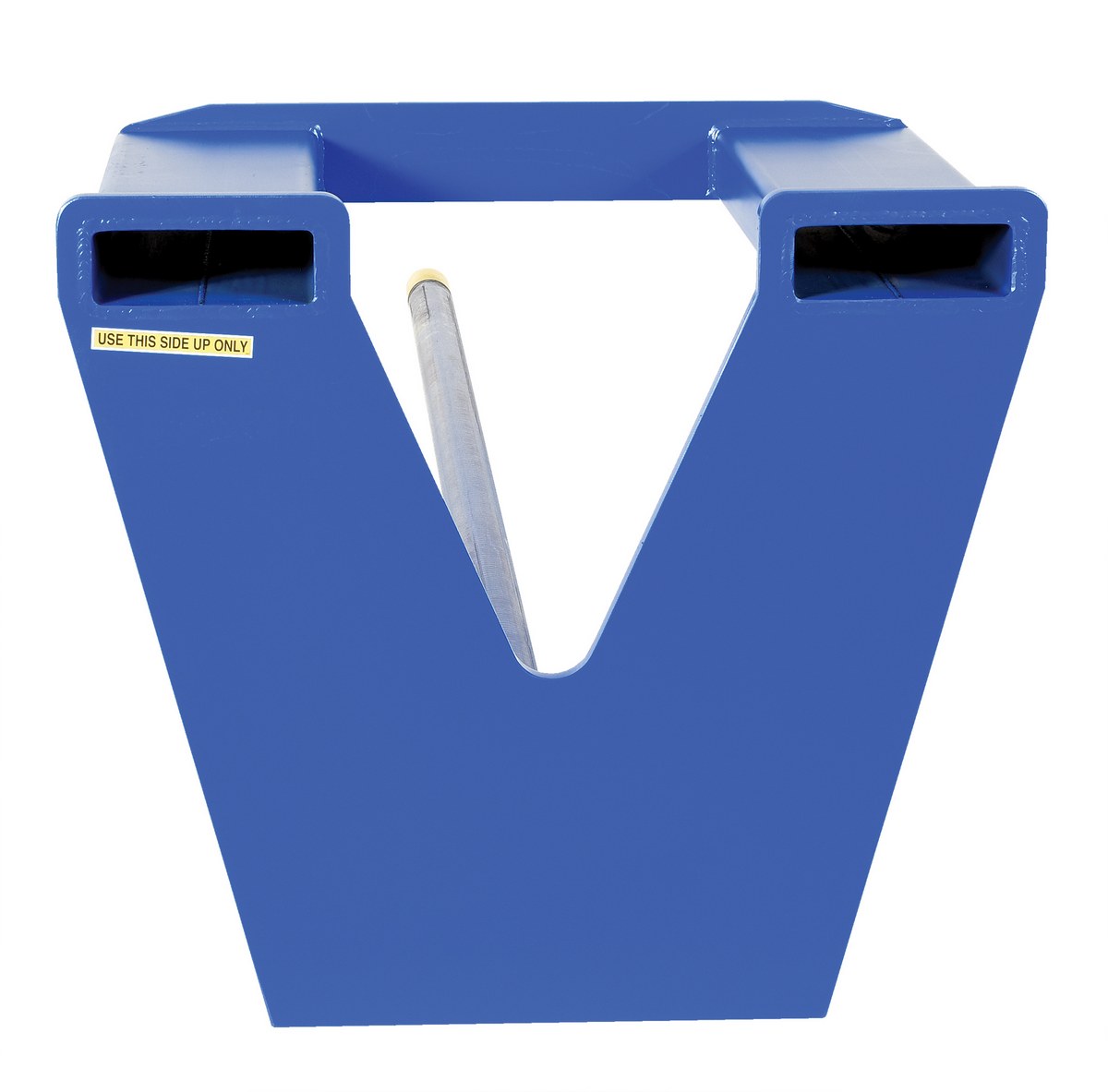

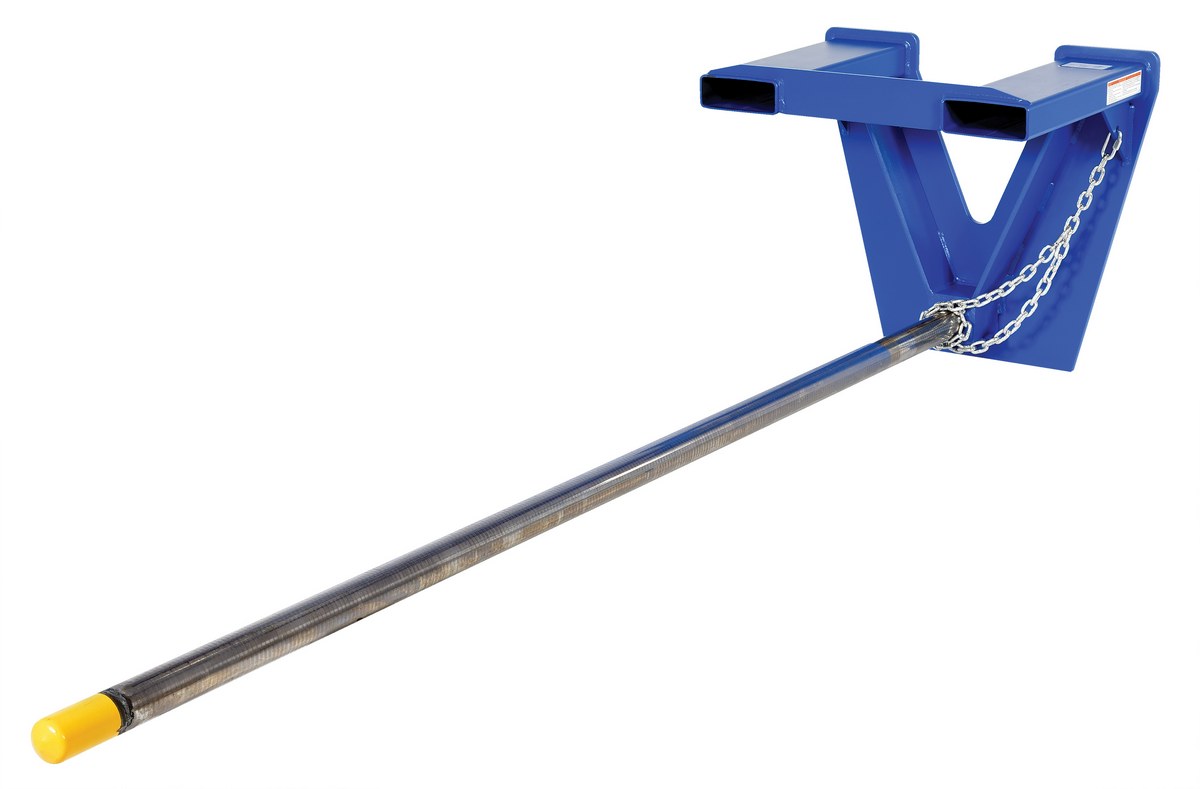

Fork Mounted Rug Rams feature 7-1/2"W x 2-1/2"H fork pockets on models CRP, 7-5/8"Wx2-5/8"H on CRF models, with 24" centers. Safety chain is included to secure unit to fork truck.

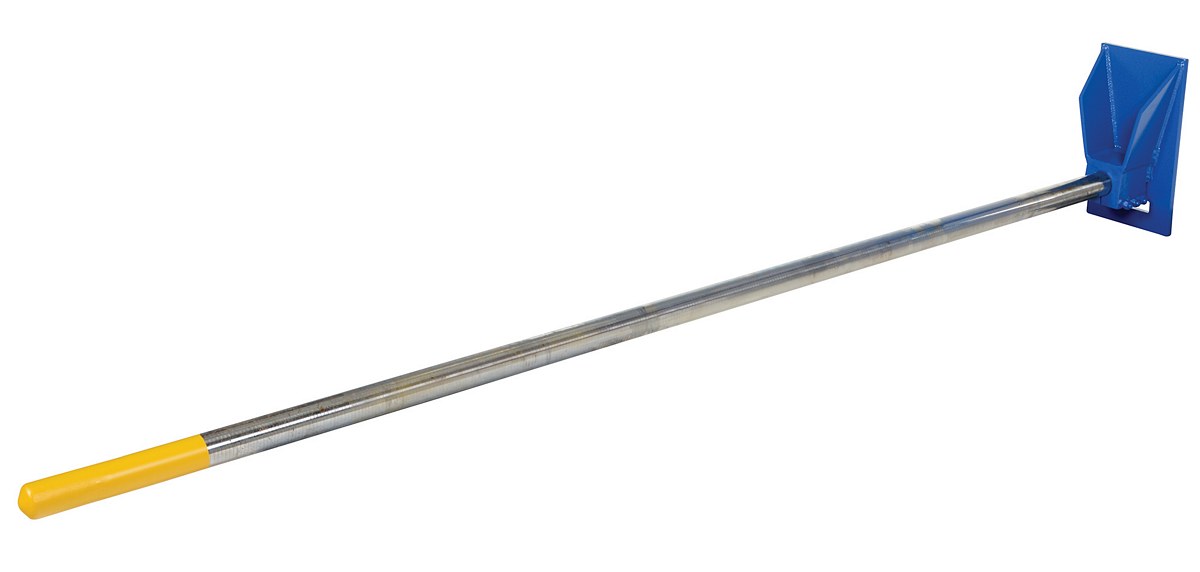

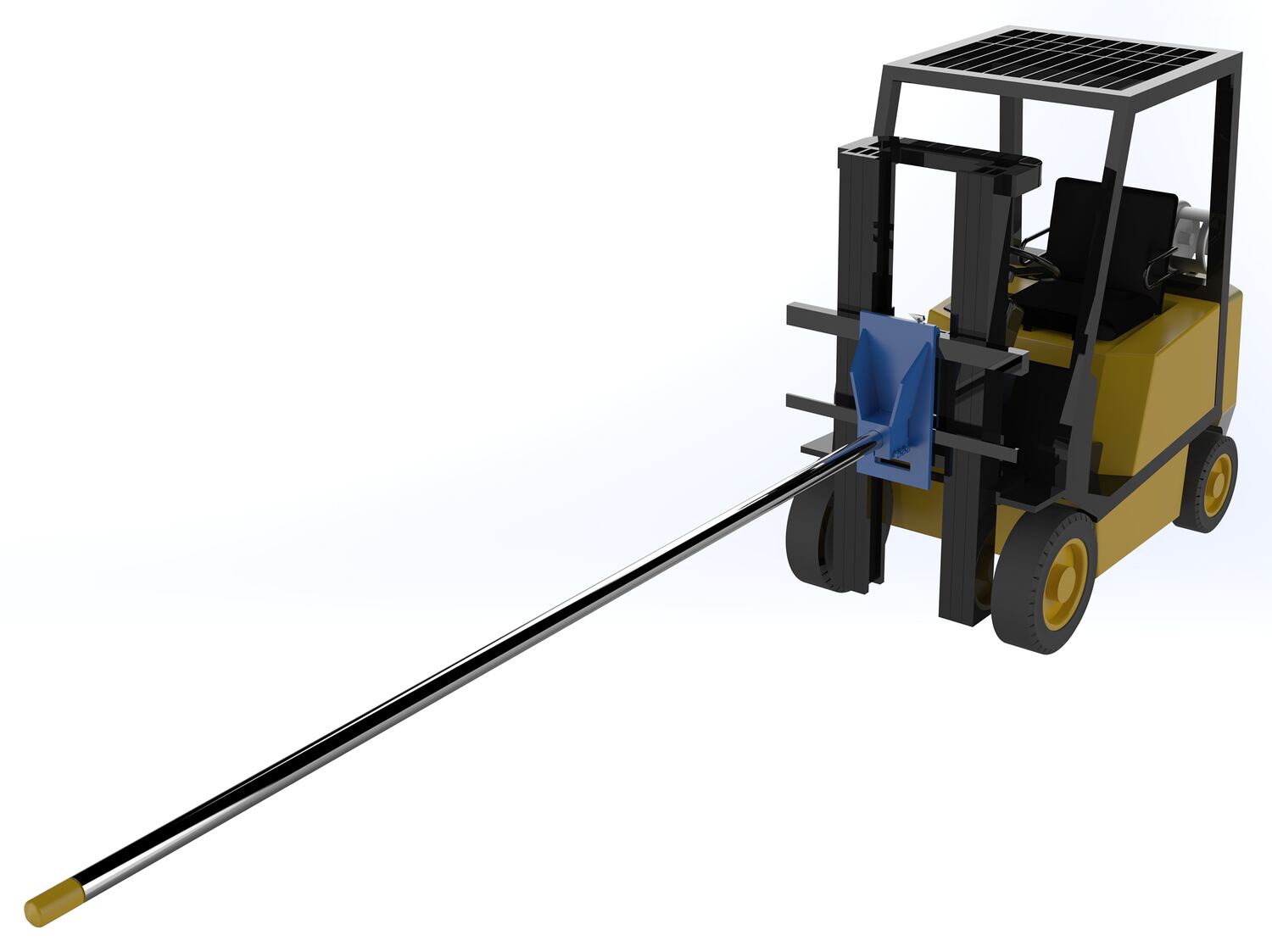

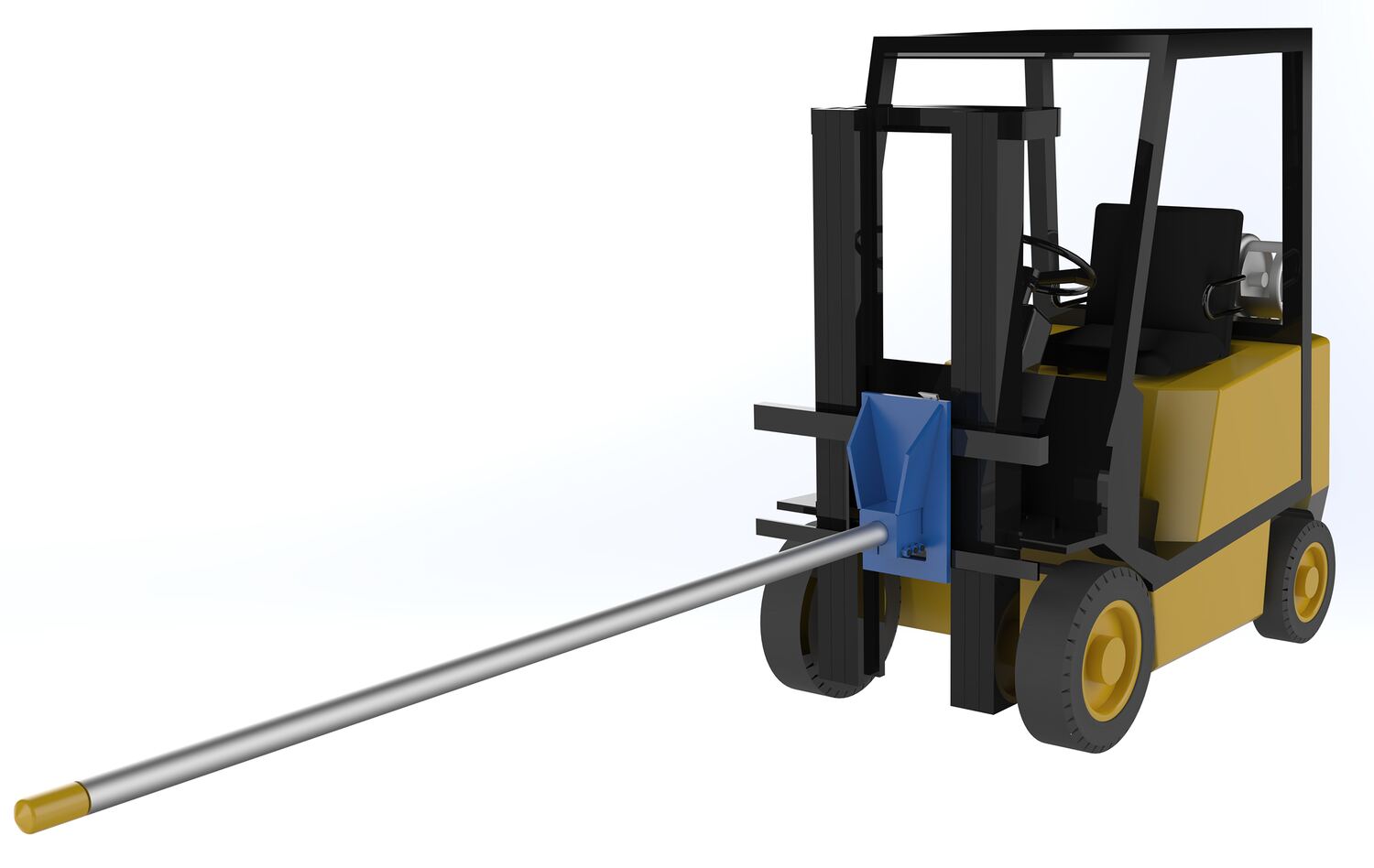

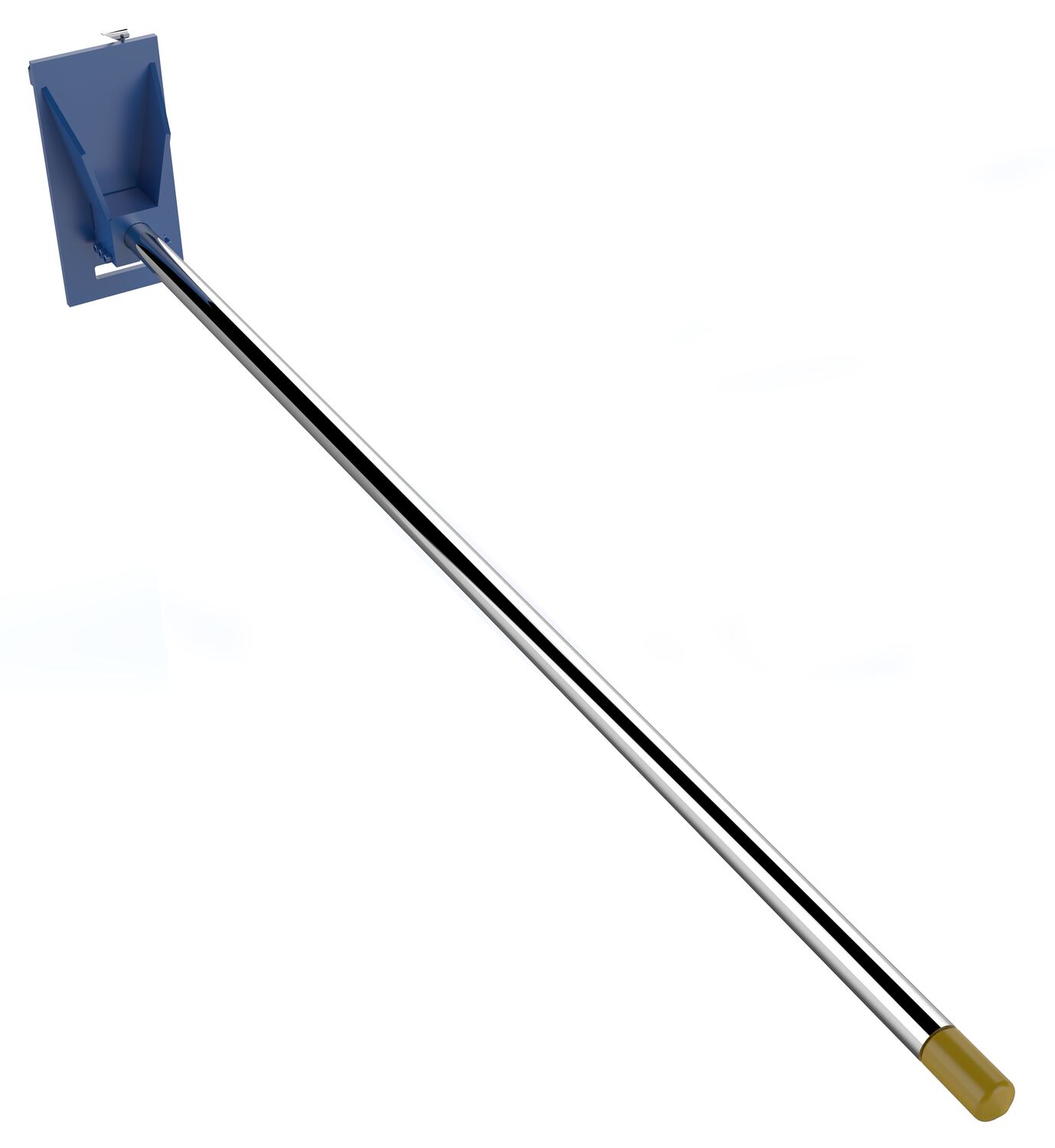

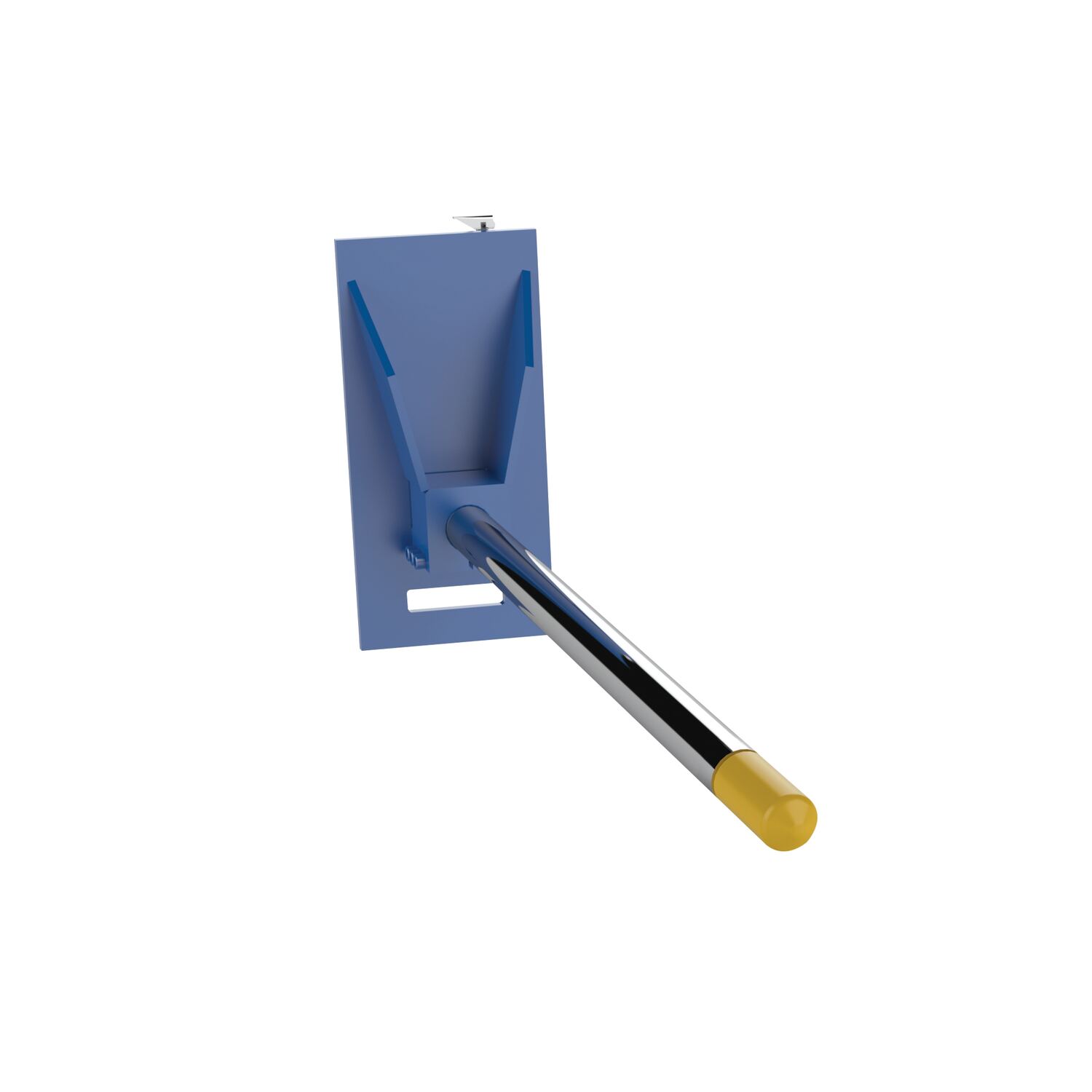

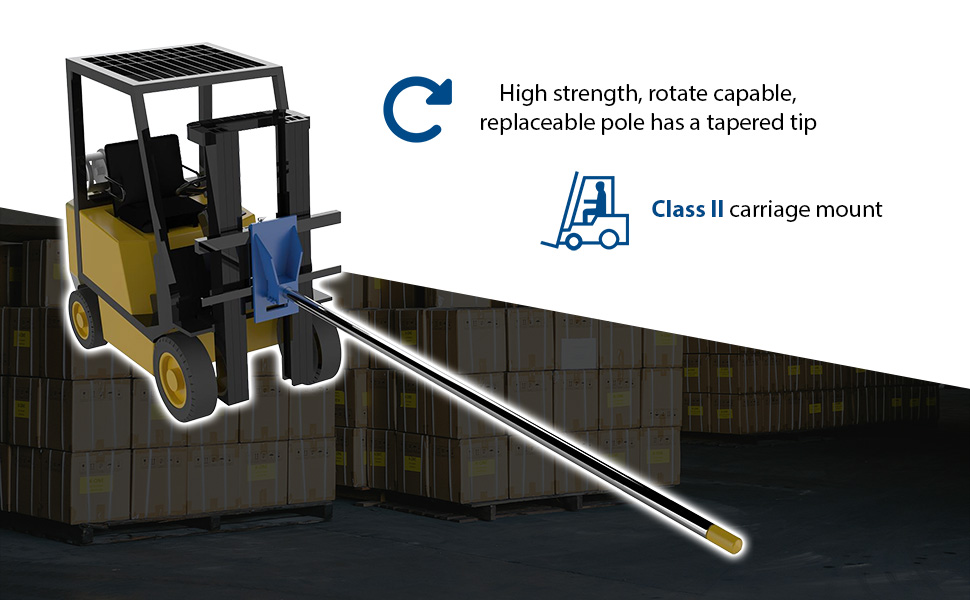

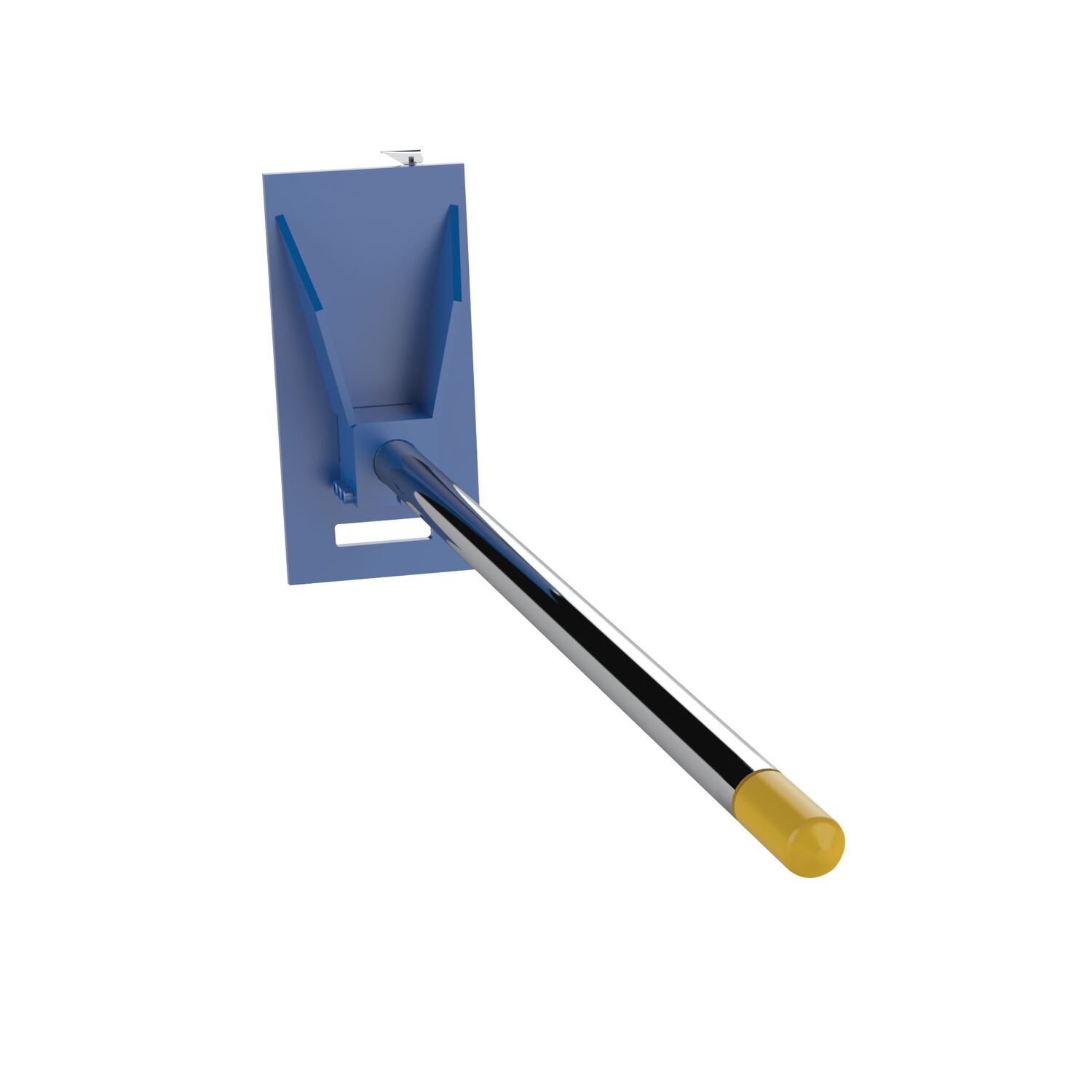

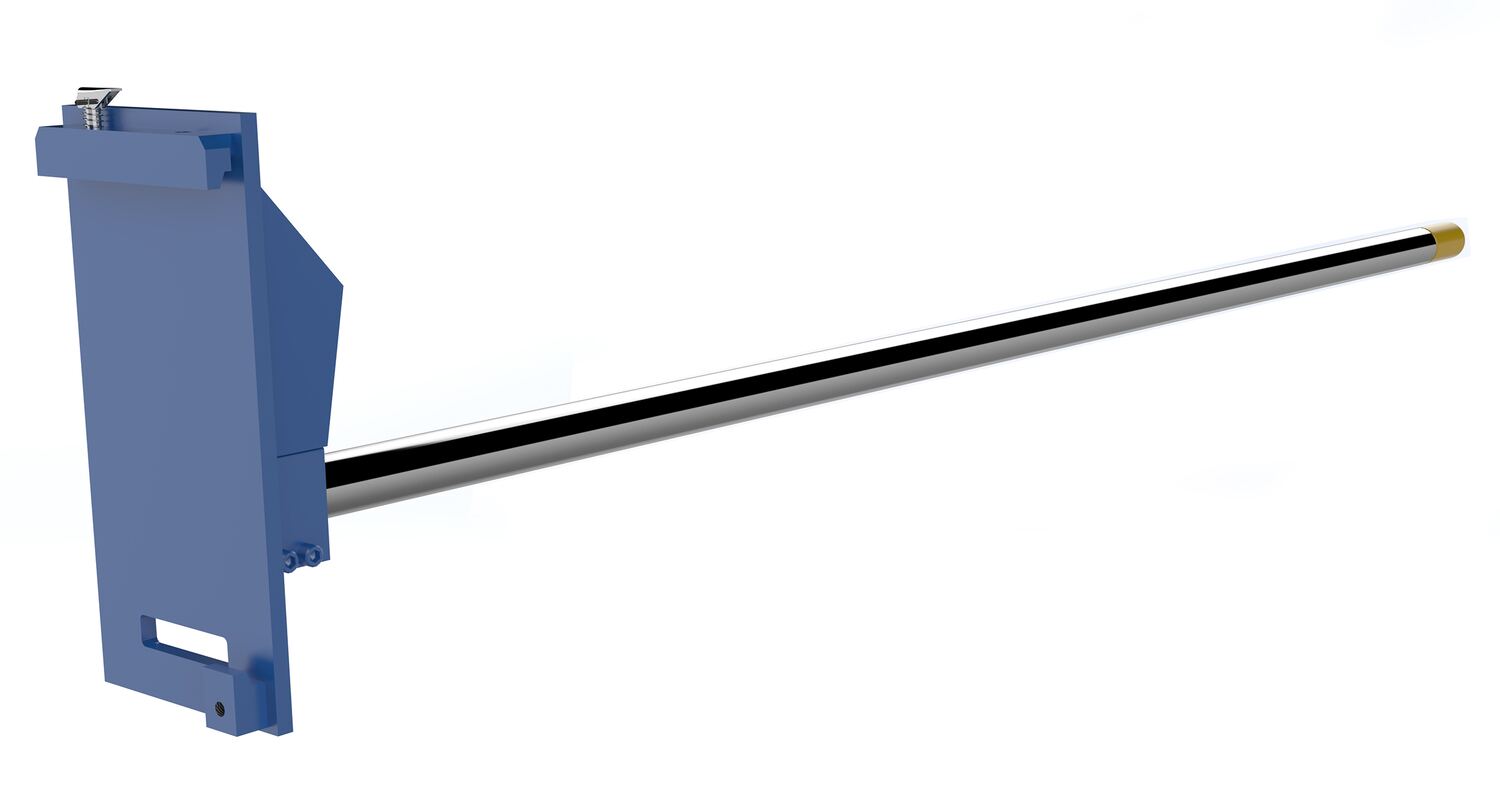

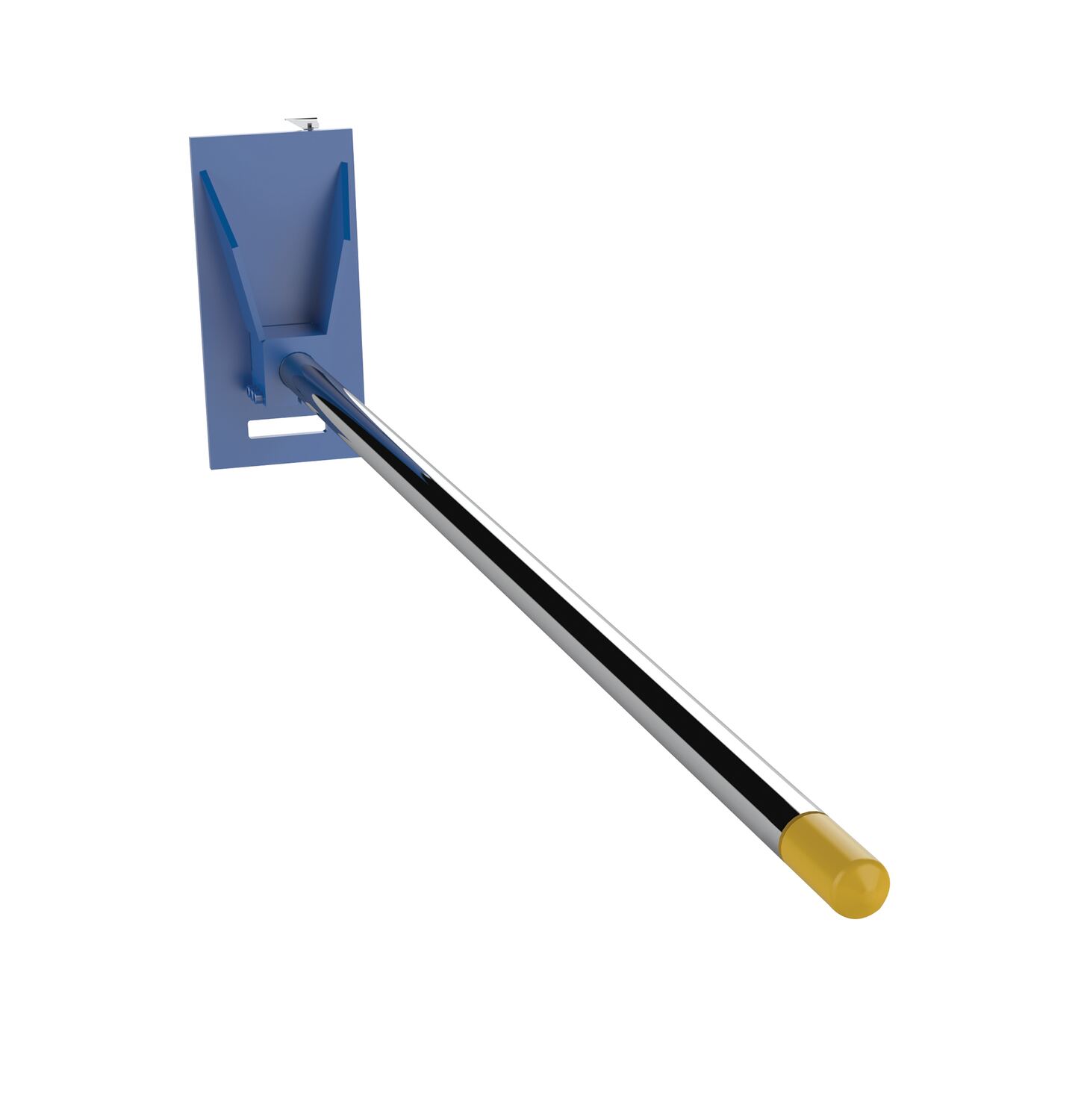

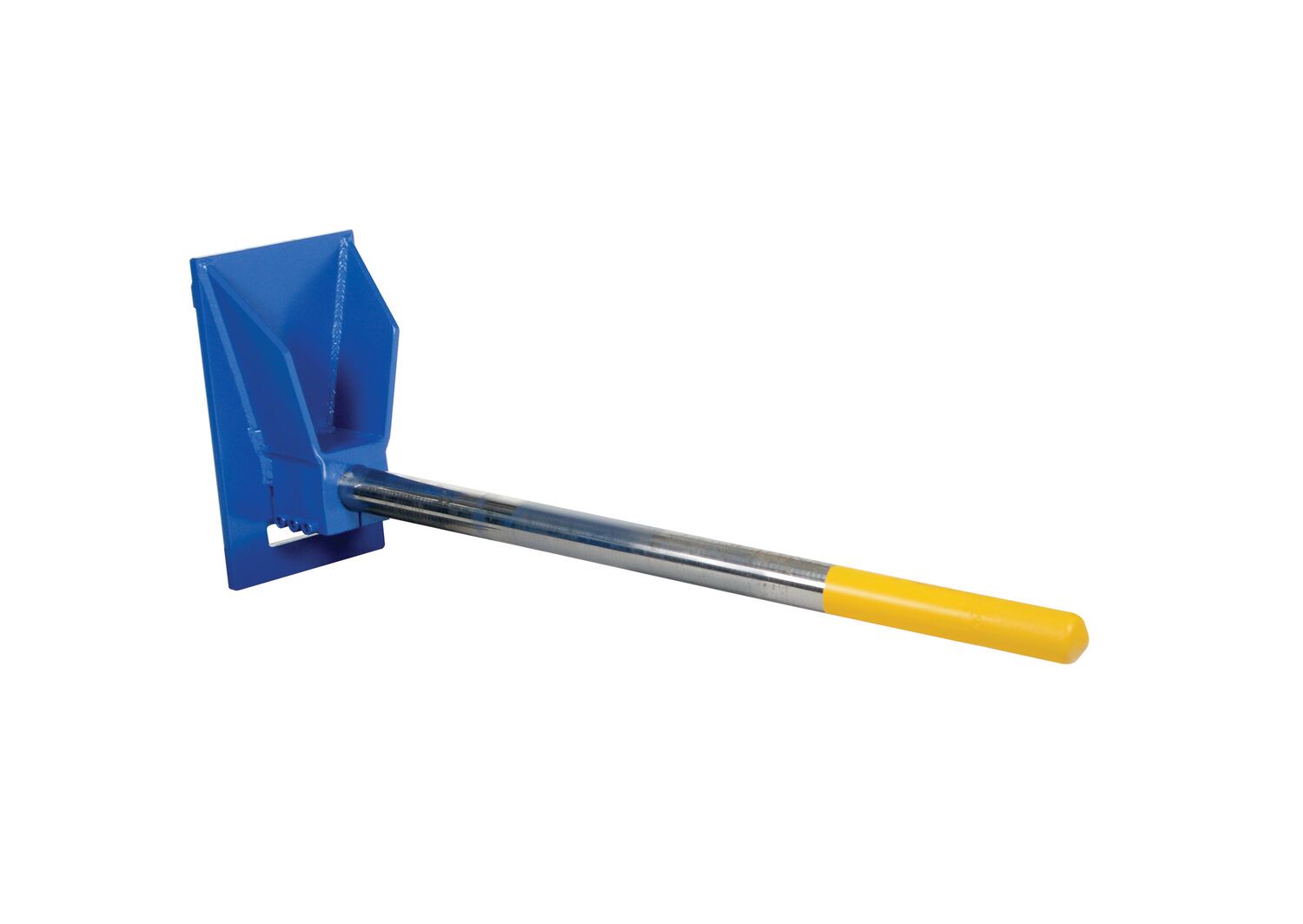

Carriage Mounted Rug Rams are available in class II or III mount and feature a spring loaded locking pin to secure them to the carriage.

Rug Ram Pole Length Recommended Carpet Roll Length
48" Models Recommended to be used for 4 foot (or shorter) carpet rolls
60" Models Recommended to be used for 5 foot (or shorter) carpet rolls
96" Models Recommended to be used for 8 foot (or shorter) carpet rolls
108" Models Recommended to be used for 9 foot (or shorter) carpet rolls
120" Models Recommended to be used for 10 foot (or shorter) carpet rolls
144" Models Recommended to be used for 12 foot (or shorter) carpet rolls

The carpet roll must not hang over the end of the pole. Carpet rolls must be loaded onto the pole having full contact with the mounting frame

Rug Rams/Carpet Poles

model: CRP-108

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

CR-108-2
CR-108-3
CR-120-2
CR-120-3
CR-144-2
CR-144-3
CR-48-2
CR-48-3
CR-60-2
CR-60-3
CR-96-2
CR-96-3
CRF-108
CRF-120
CRF-144
CRF-48
CRF-60
CRF-96
CRP-108
CRP-120
CRP-144
CRP-48
CRP-60
CRP-96
PDFs will open in a new window when clicked.

Manuals

CRP

CRF

CR

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

CR-108-2

CR-108-3

CR-120-2

CR-120-3

CR-144-2

CR-144-3

CRF-108

CRF-120

CRF-144

CRP-108

CRP-120

CRP-144

CRP-96

CRP-60

CRP-48

CRF-96

CRF-60

CRF-48

CR-96-3

CR-96-2

CR-60-3

CR-60-2

CR-48-3

CR-48-2

Testing Certificates

CR-108-2

CR-108-3

CR-120-2

CR-120-3

CR-144-2

CR-144-3

CR-48-2

CR-48-3

CR-60-2

CR-60-3

CR-96-2

CR-96-3

CRF-108

CRF-120

CRF-144

CRF-48

CRF-60

CRF-96

CRP-108

CRP-120

CRP-144

CRP-48

CRP-60

CRP-96

SDS Sheets

No SDS Sheets For This Product

Other PDFs


Rug Rams Carpet Poles Mailing Brochure

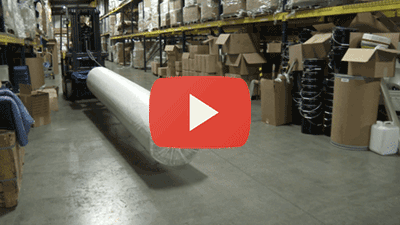

Visit Our Youtube Channel For All Available Videos For All Products

Enhanced Product Content

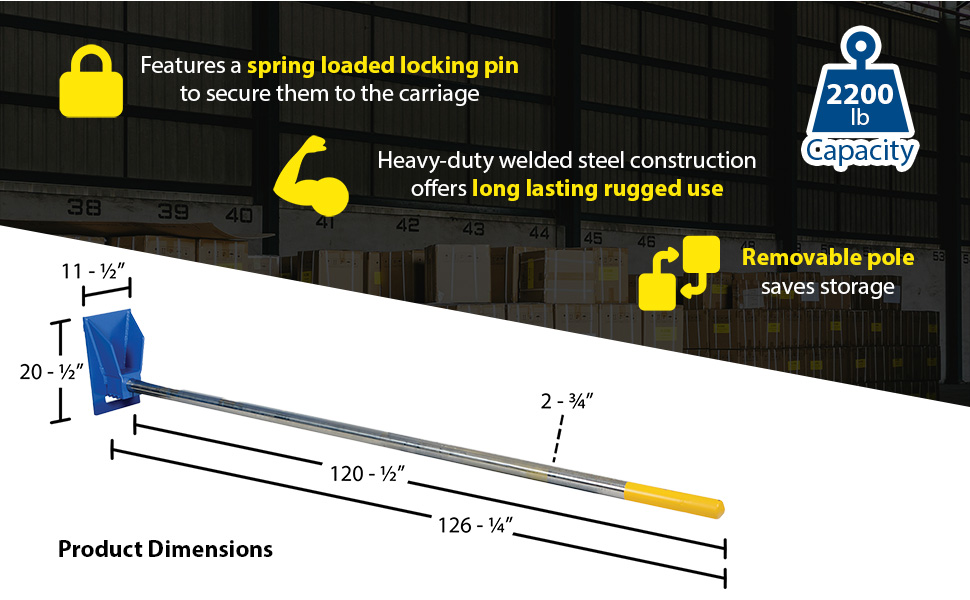

CR-120-2
CR-120-2 CR-120-2 A+ Content - 2
CR-120-2 CR-120-2 A+ Content - 1
CR-120-2 CR-120-2 A+ Content - 3

Applications



Hotels

Trucking Companies

Do It Yourself

Superstores

Moving Companies
I'm not able to find the size of carpet pole I need. Are there additional length poles?
The carpet poles are available in lengths of 48" to 144". Please contact a sales associate for details.
Do you have a carpet pole diameter larger than 2 3/4"?
We do not have alternate carpet pole sizes.
I see the pole diameter is 2 3/4". Is that a solid pole or hollow?
The carpet pole/rug rams poles are solid.
What kind of steel is the pole on your CR, CRF and CRP carpet poles?
Stress proof steel, 1144 ASTM A311-B

Related or Similar Products:





Rug Rams/Carpet Poles




Transport rolls of carpet with our sturdy Rug Rams/Carpet Poles. Available in either carriage or fork mounted style. 2-3/4" diameter high strength, rotatable, replaceable pole has tapered tip. All units are made of steel construction and painted blue.

Fork Mounted Rug Rams feature 7-1/2"W x 2-1/2"H fork pockets on models CRP, 7-5/8"Wx2-5/8"H on CRF models, with 24" centers. Safety chain is included to secure unit to fork truck.

Carriage Mounted Rug Rams are available in class II or III mount and feature a spring loaded locking pin to secure them to the carriage.

Rug Ram Pole Length Recommended Carpet Roll Length
48" Models Recommended to be used for 4 foot (or shorter) carpet rolls
60" Models Recommended to be used for 5 foot (or shorter) carpet rolls
96" Models Recommended to be used for 8 foot (or shorter) carpet rolls
108" Models Recommended to be used for 9 foot (or shorter) carpet rolls
120" Models Recommended to be used for 10 foot (or shorter) carpet rolls
144" Models Recommended to be used for 12 foot (or shorter) carpet rolls

The carpet roll must not hang over the end of the pole. Carpet rolls must be loaded onto the pole having full contact with the mounting frame


Model # Description Attributes Net Wt.
(lbs)

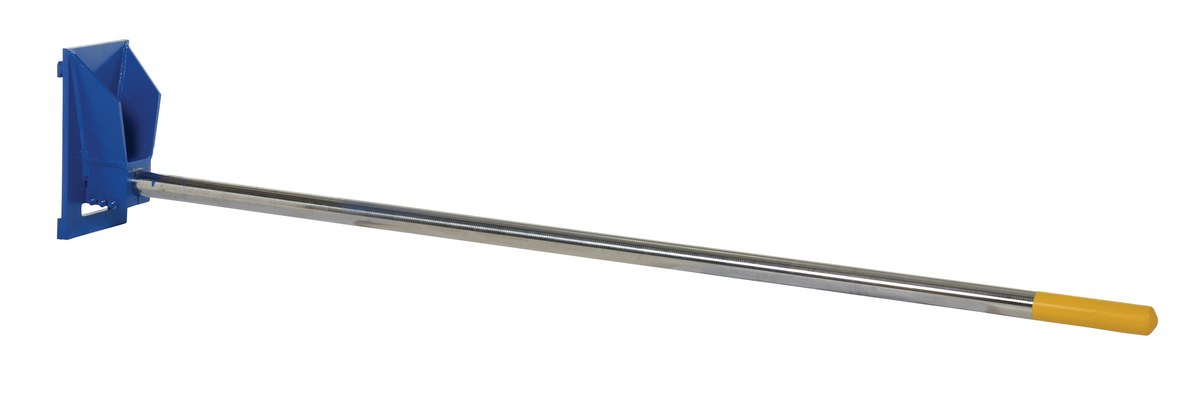

CR-108-2 CR-108-2Steel Carriage Mount Class II Rug Ram Boom 108 In. 2500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4		287
CR-108-3 CR-108-3Steel Carriage Mount Class III Rug Ram Boom 108 In. 2500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4		296

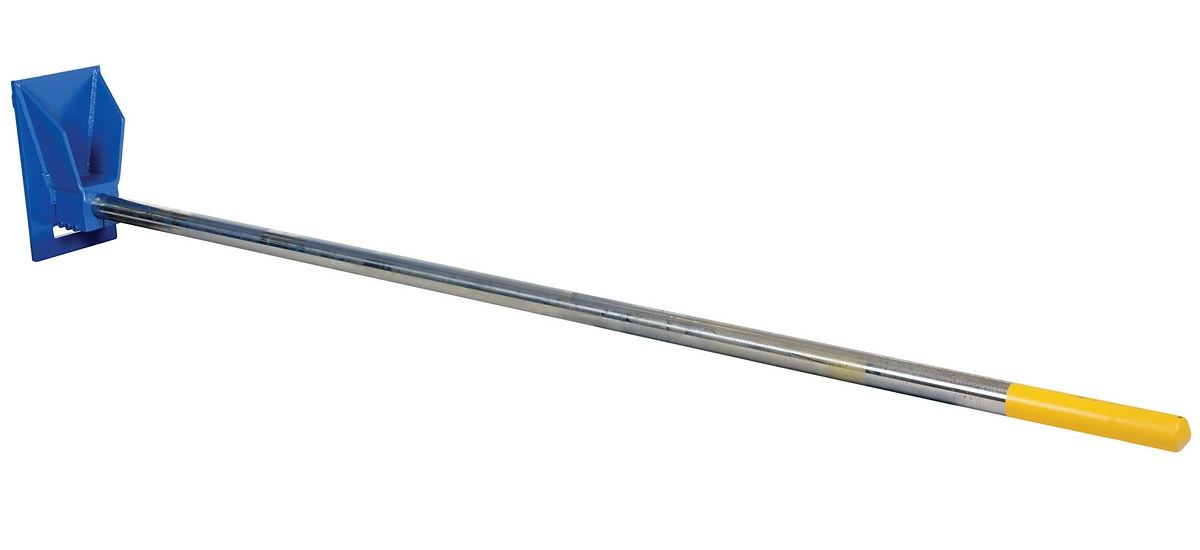

CR-120-2 CR-120-2Steel Carriage Mount Class II Rug Ram Boom 120 In. 2200 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4		310
CR-120-3 CR-120-3Steel Carriage Mount Class III Rug Ram Boom 120 In. 2500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4		316

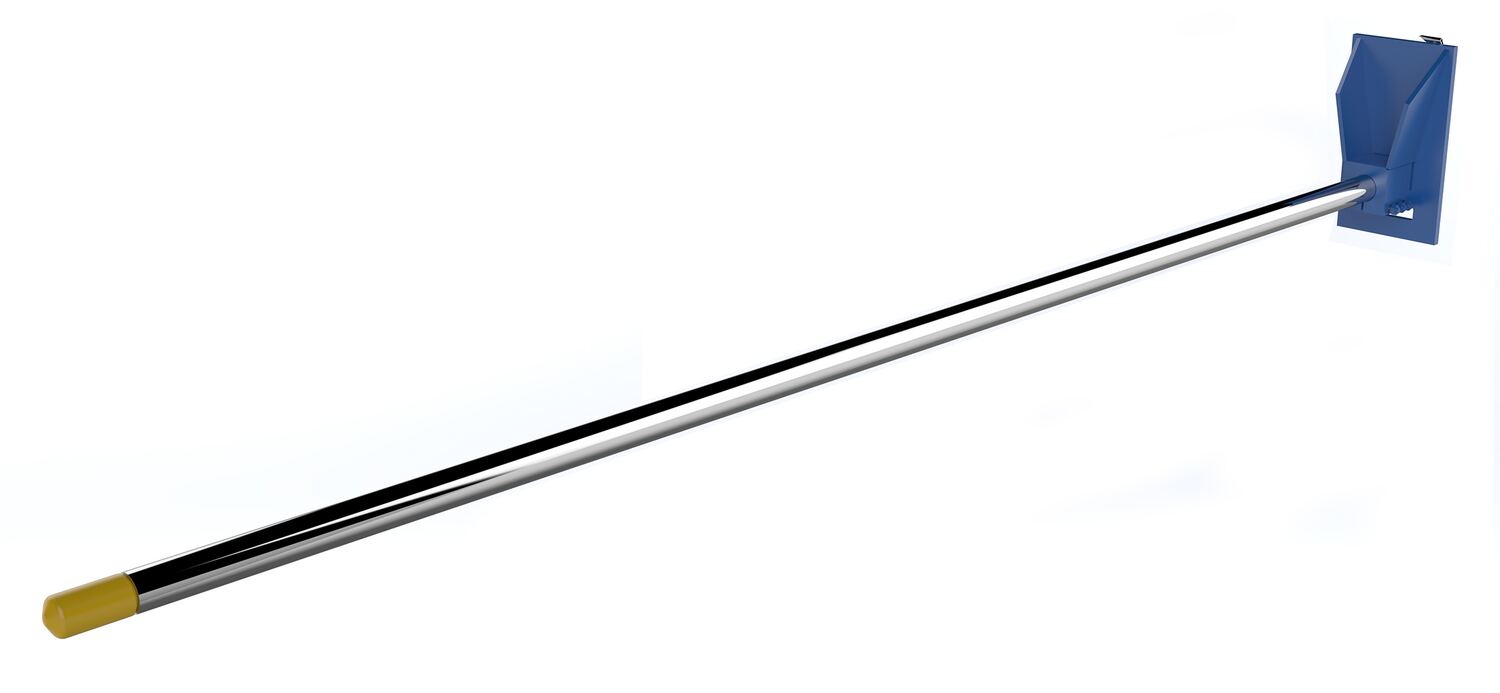

CR-144-2 CR-144-2Steel Carriage Mount Class II Rug Ram Boom 144 In. 1800 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4		342

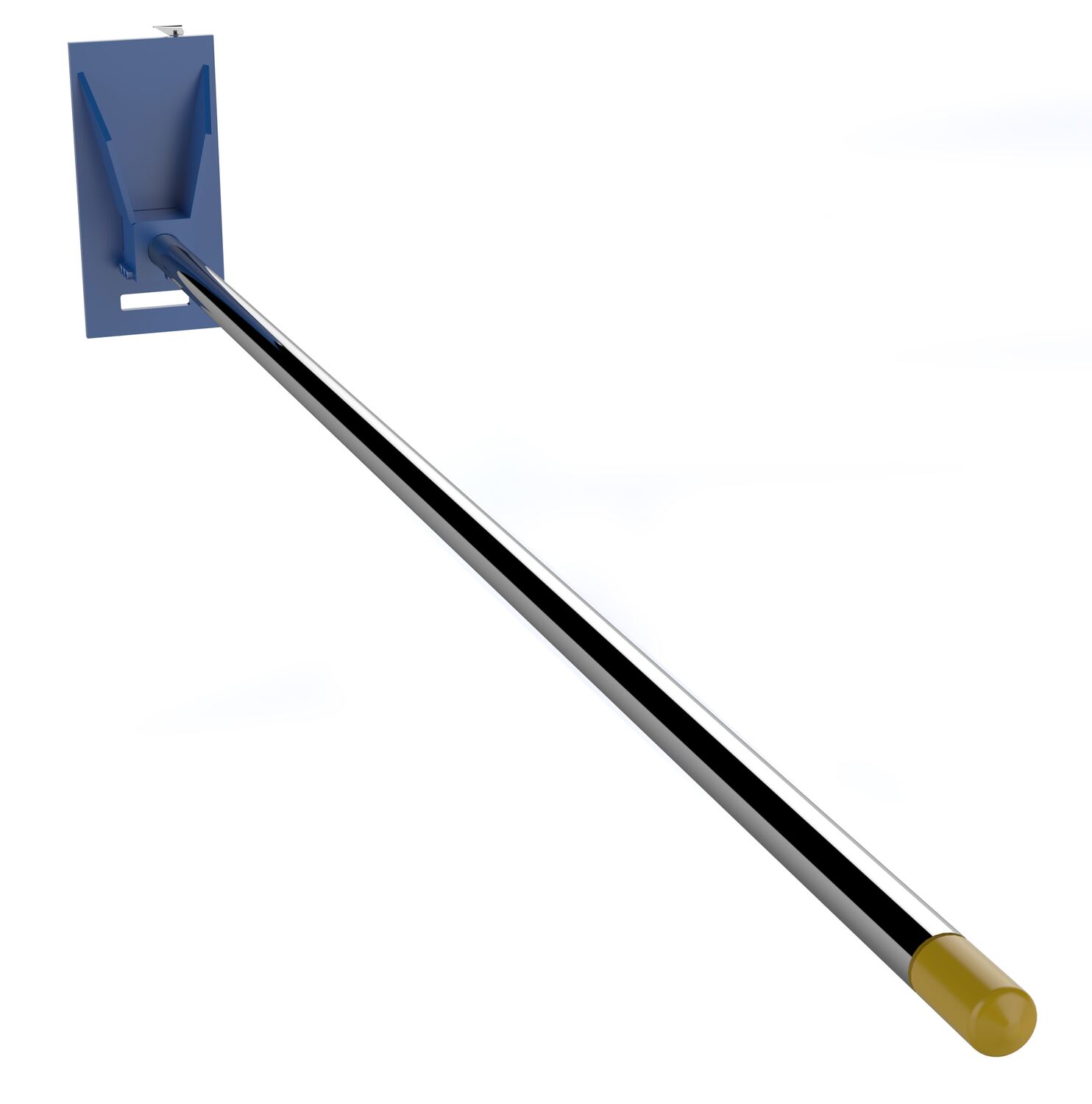

CR-144-3 CR-144-3Steel Carriage Mount Class III Rug Ram Boom 144 In. 1800 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4		478
CRF-108 CRF-108Steel Fork Mounted Rug Ram Boom 108 In. 2500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4		389

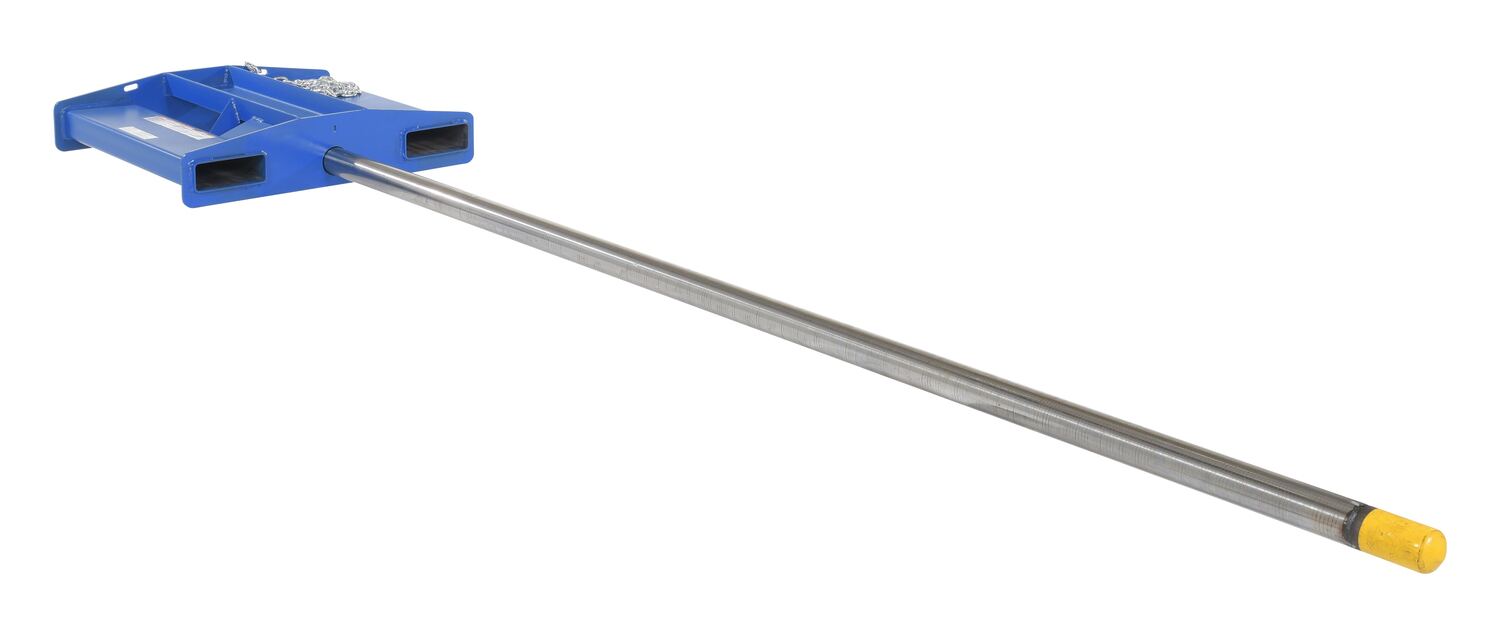

CRF-120 CRF-120Steel Fork Mounted Rug Ram Boom 120 In. 2200 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4		424

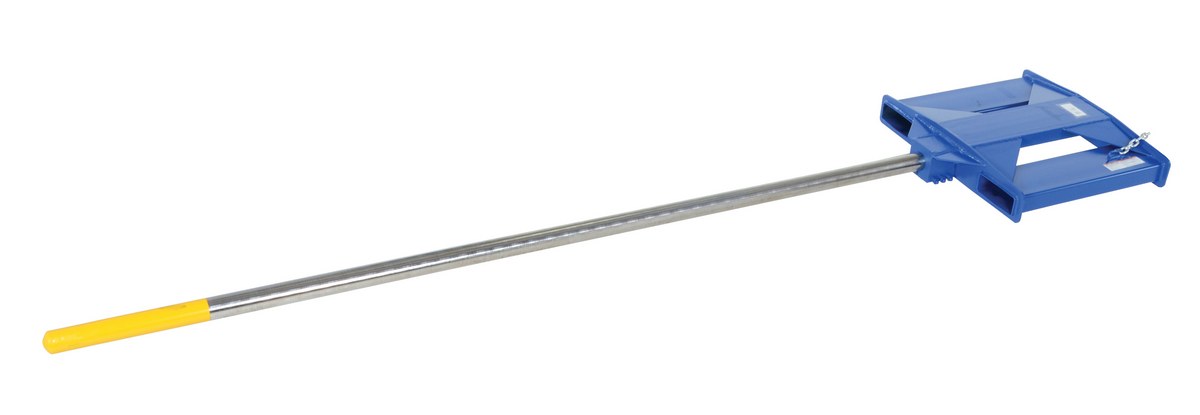

CRF-144 CRF-144Steel Fork Mounted Rug Ram Boom 144 In. 1800 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4		450

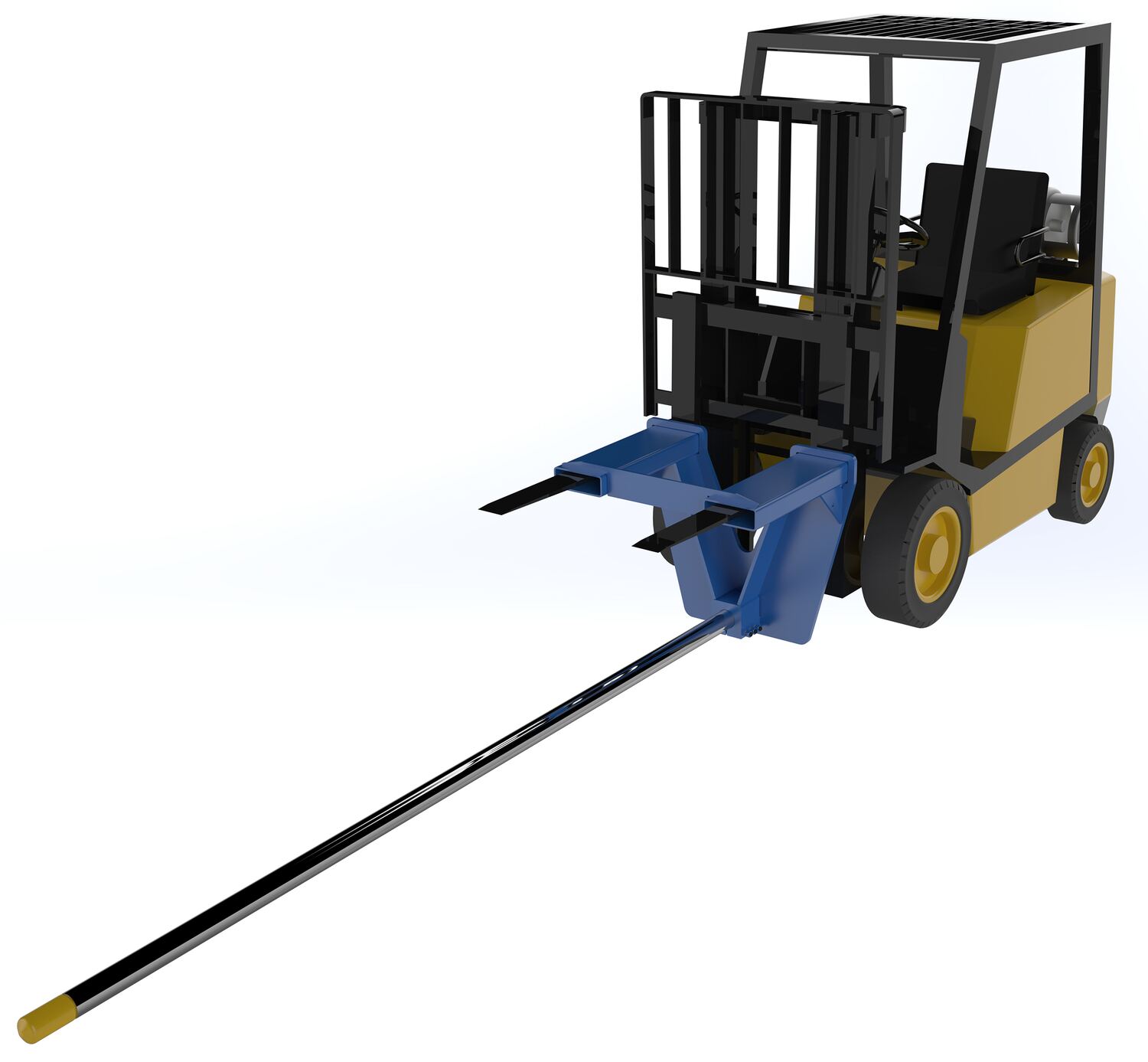

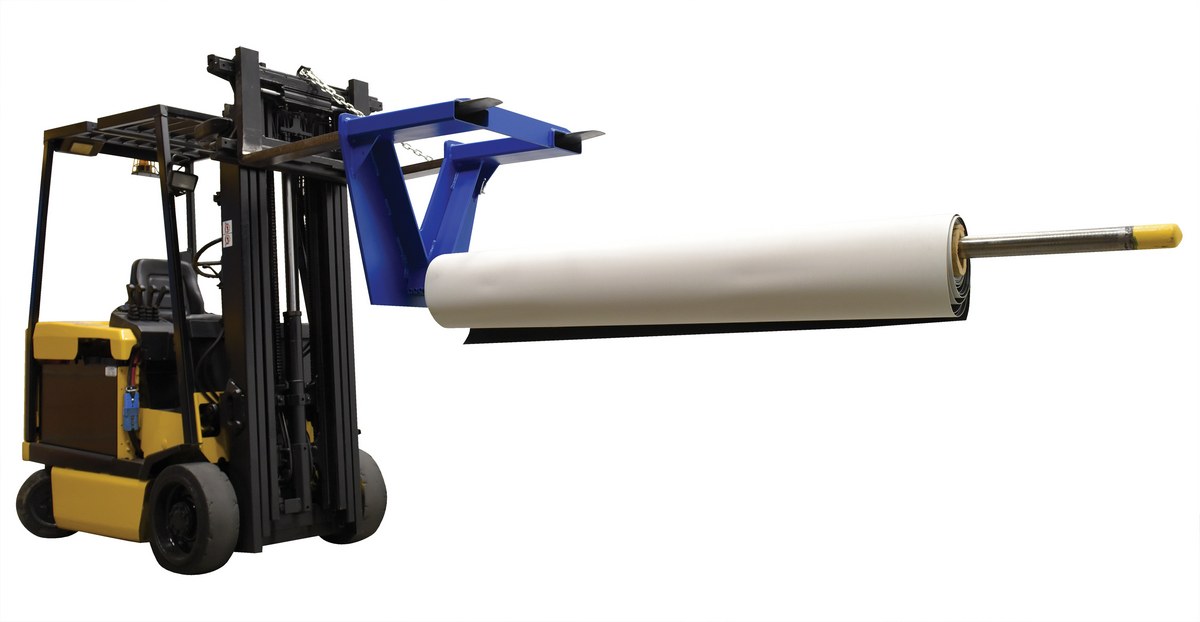

CRP-108 CRP-108Steel Fork Mounted Inverted Rug Ram Boom 108 In 2500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4		466

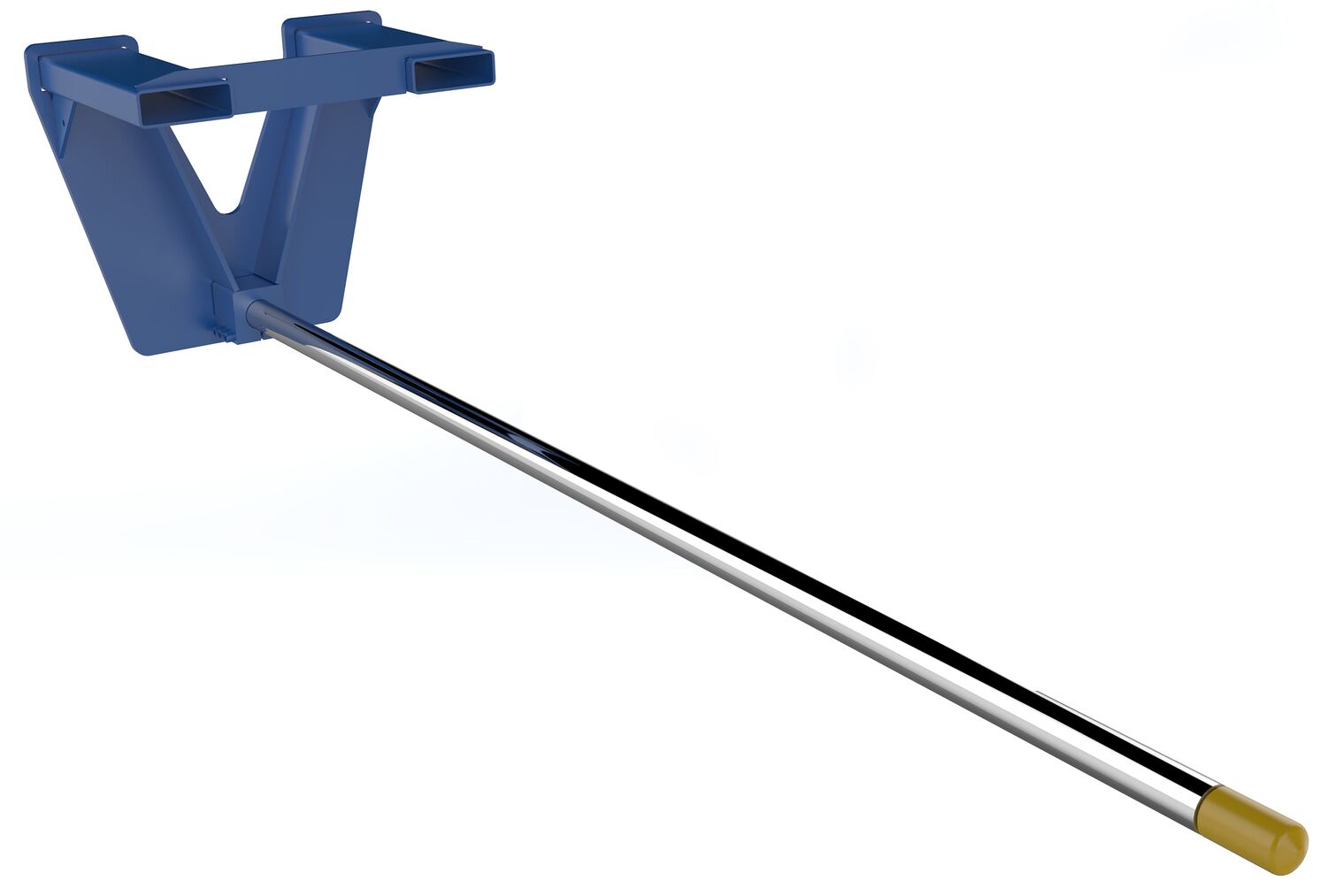

CRP-120 CRP-120Steel Fork Mounted Inverted Rug Ram Boom 120 In 2200 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4		488

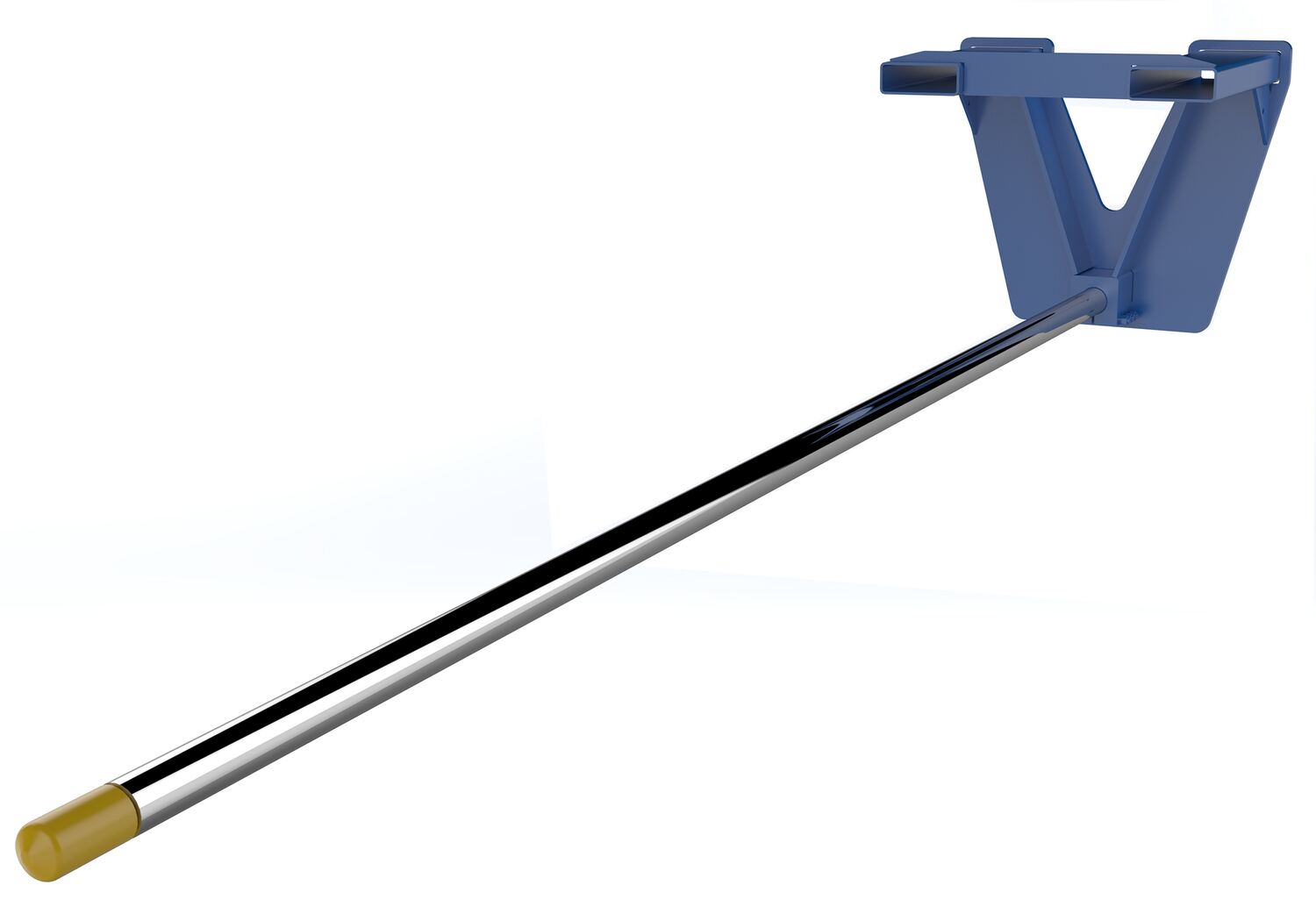

CRP-144 CRP-144Steel Fork Mounted Inverted Rug Ram Boom 144 In 1800 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4		528

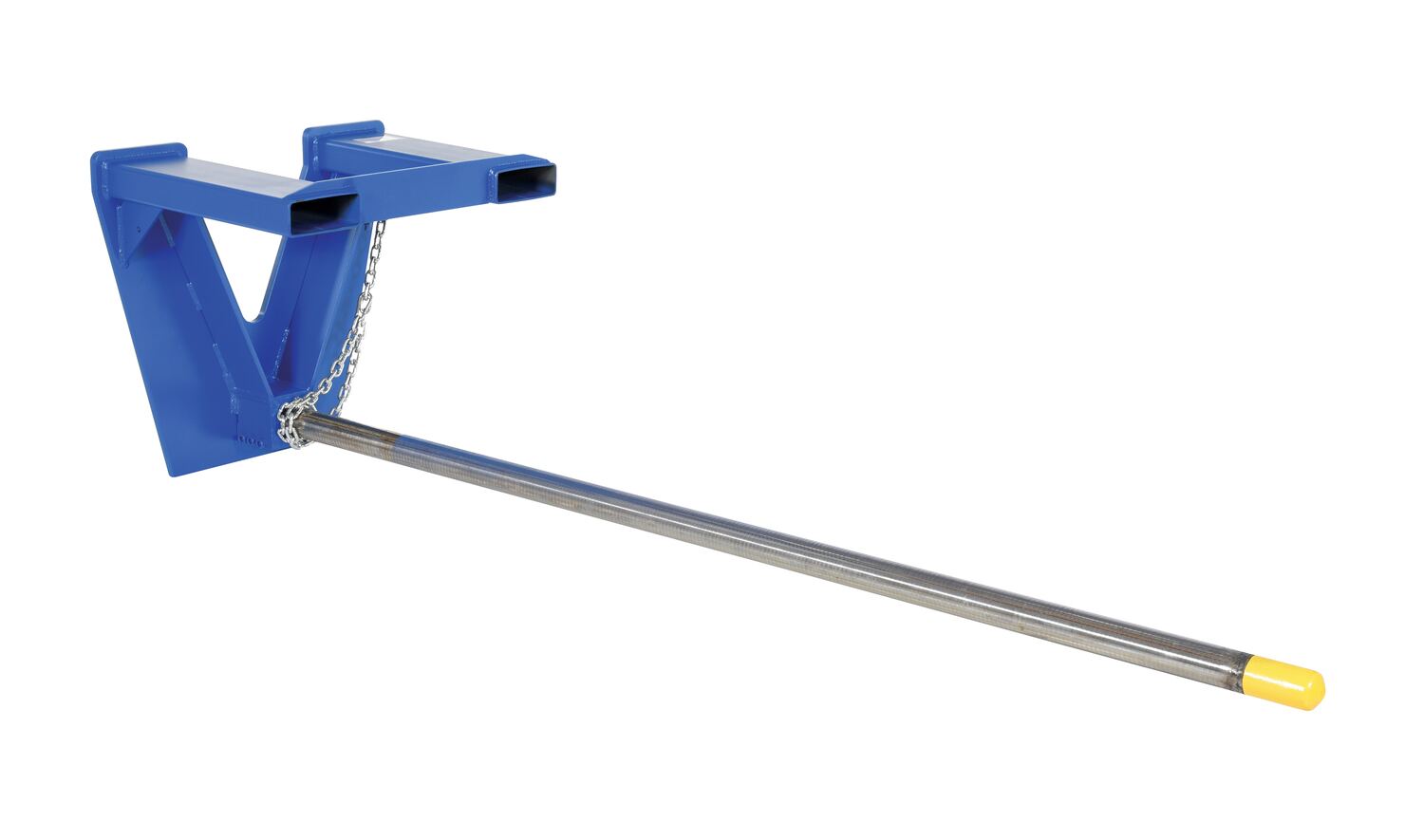

CRP-96 CRP-96Steel Rug Ram Boom Fork Mounted Inverted 96" Long 2500 Lb. Capacity BlueUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4		439
CRP-60 CRP-60Steel Rug Ram Boom Fork Mounted Inverted 60" Long 2500 Lb. Capacity BlueUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4		378
CRP-48 CRP-48Steel Rug Ram Boom Fork Mounted Inverted 48" Long 2500 Lb. Capacity BlueUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4		358

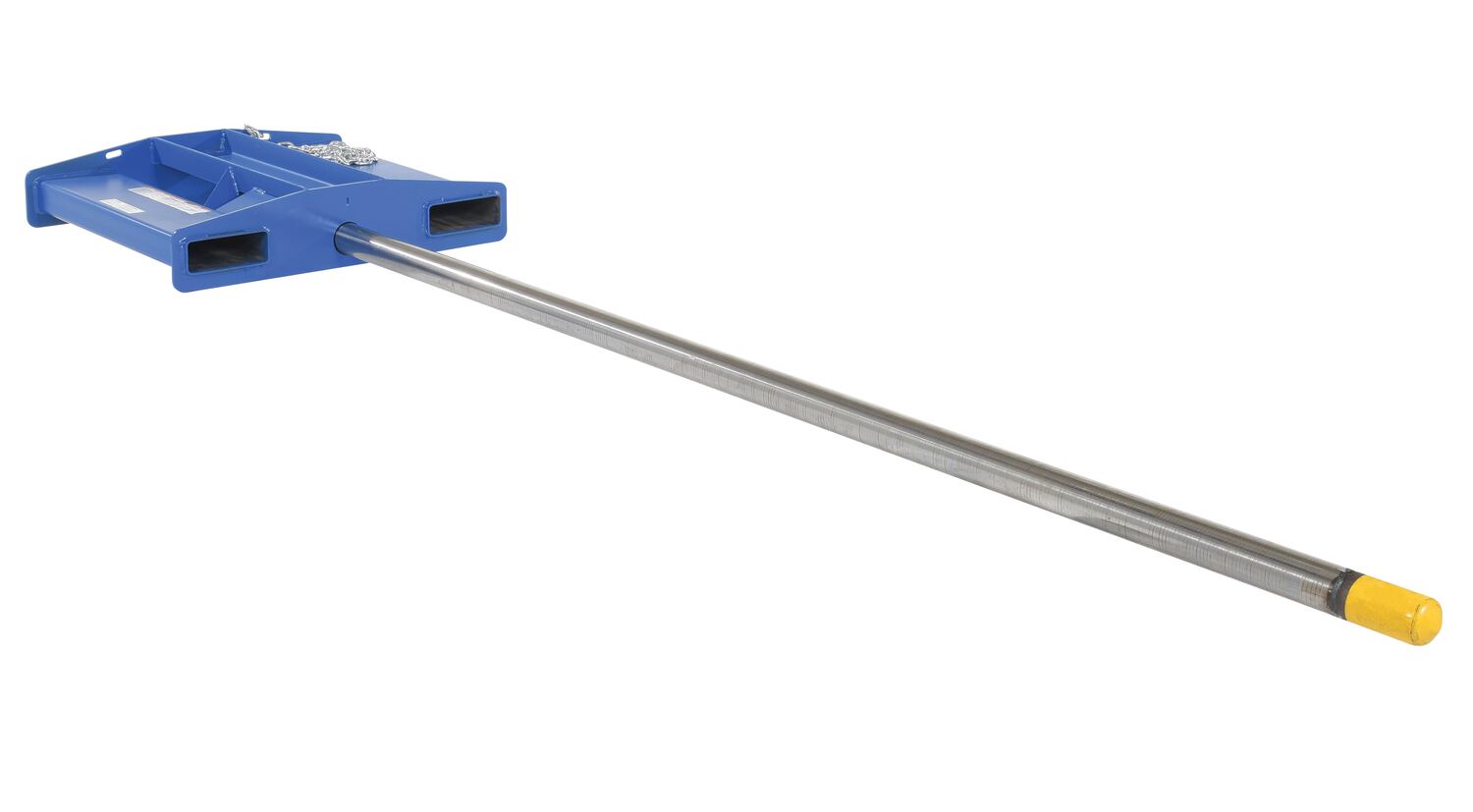

CRF-96 CRF-96Steel Rug Ram Boom Fork Mounted 96" Long 2500 Lb. Capacity BlueUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4		356

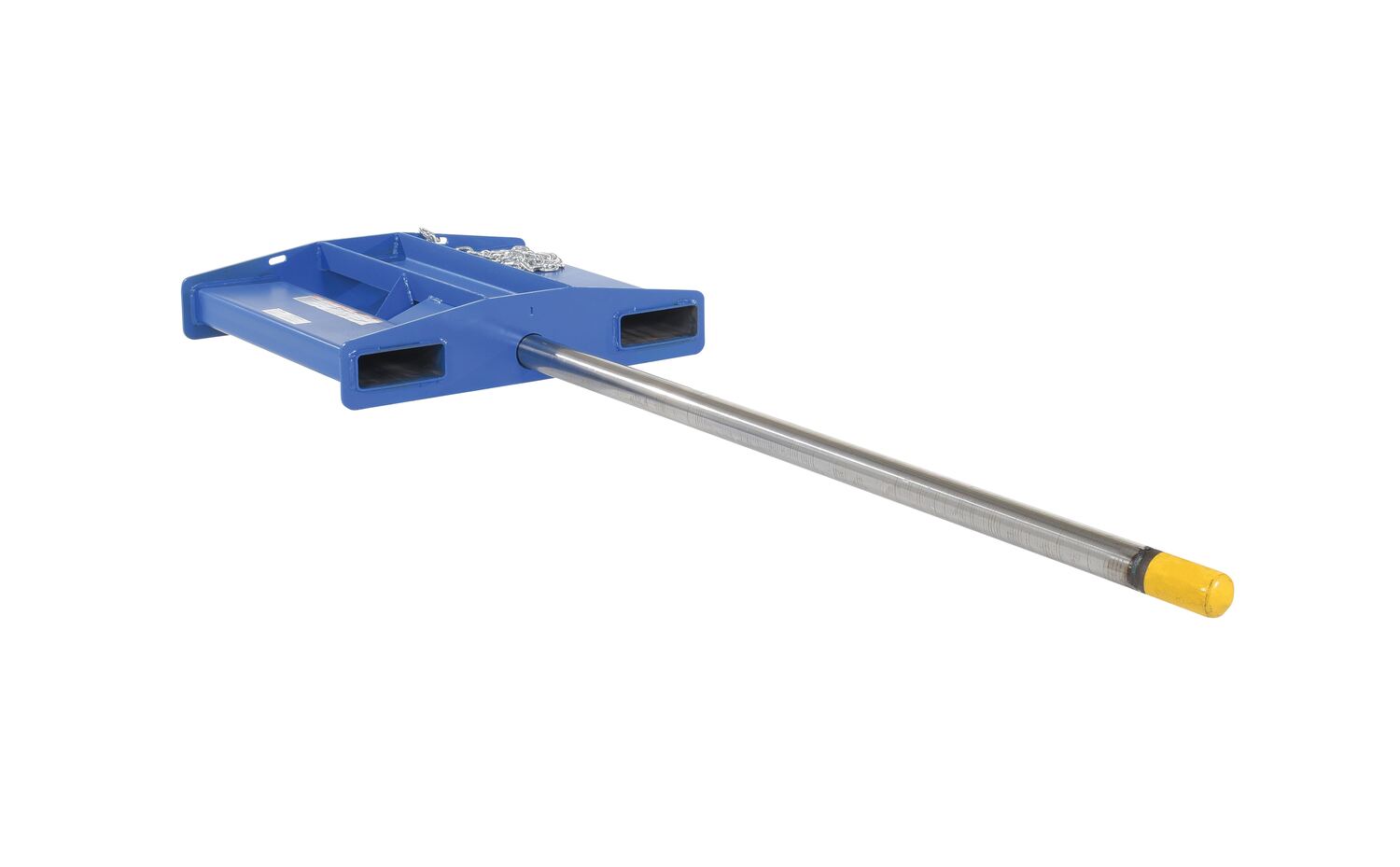

CRF-60 CRF-60Steel Rug Ram Boom Fork Mounted 60" Long 2500 Lb. Capacity BlueUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4		296
CRF-48 CRF-48Steel Rug Ram Boom Fork Mounted 48" Long 2500 Lb. Capacity BlueUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4		276
CR-96-3 CR-96-3Steel Rug Ram Boom Carriage Mount Class 3 96" Long 2500 Lb. Capacity BlueUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4		278

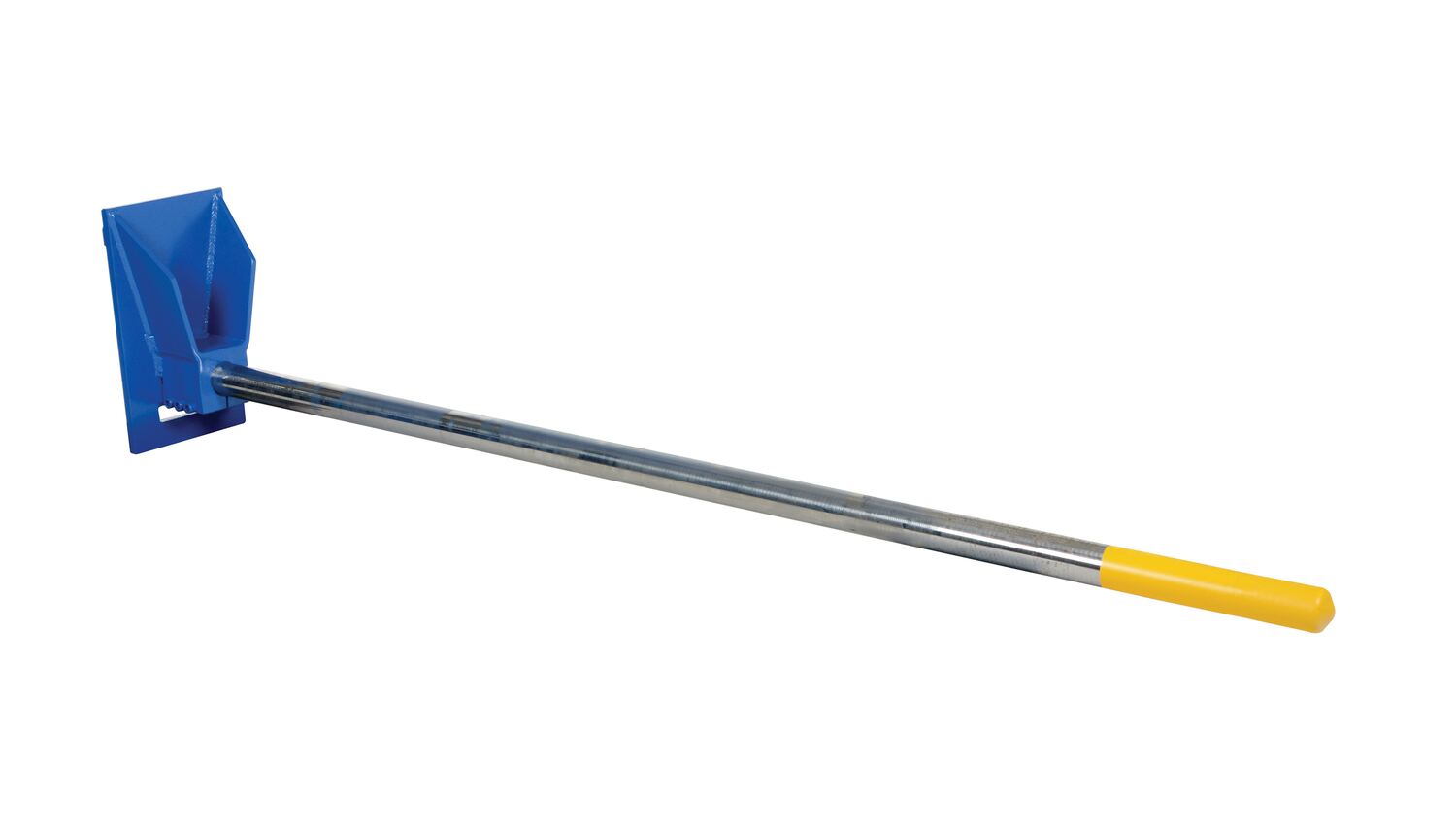

CR-96-2 CR-96-2Steel Rug Ram Boom Carriage Mount Class 2 96" Long 2500 Lb. Capacity BlueUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4		261
CR-60-3 CR-60-3Steel Rug Ram Boom Carriage Mount Class 3 60" Long 2500 Lb. Capacity BlueUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4		217

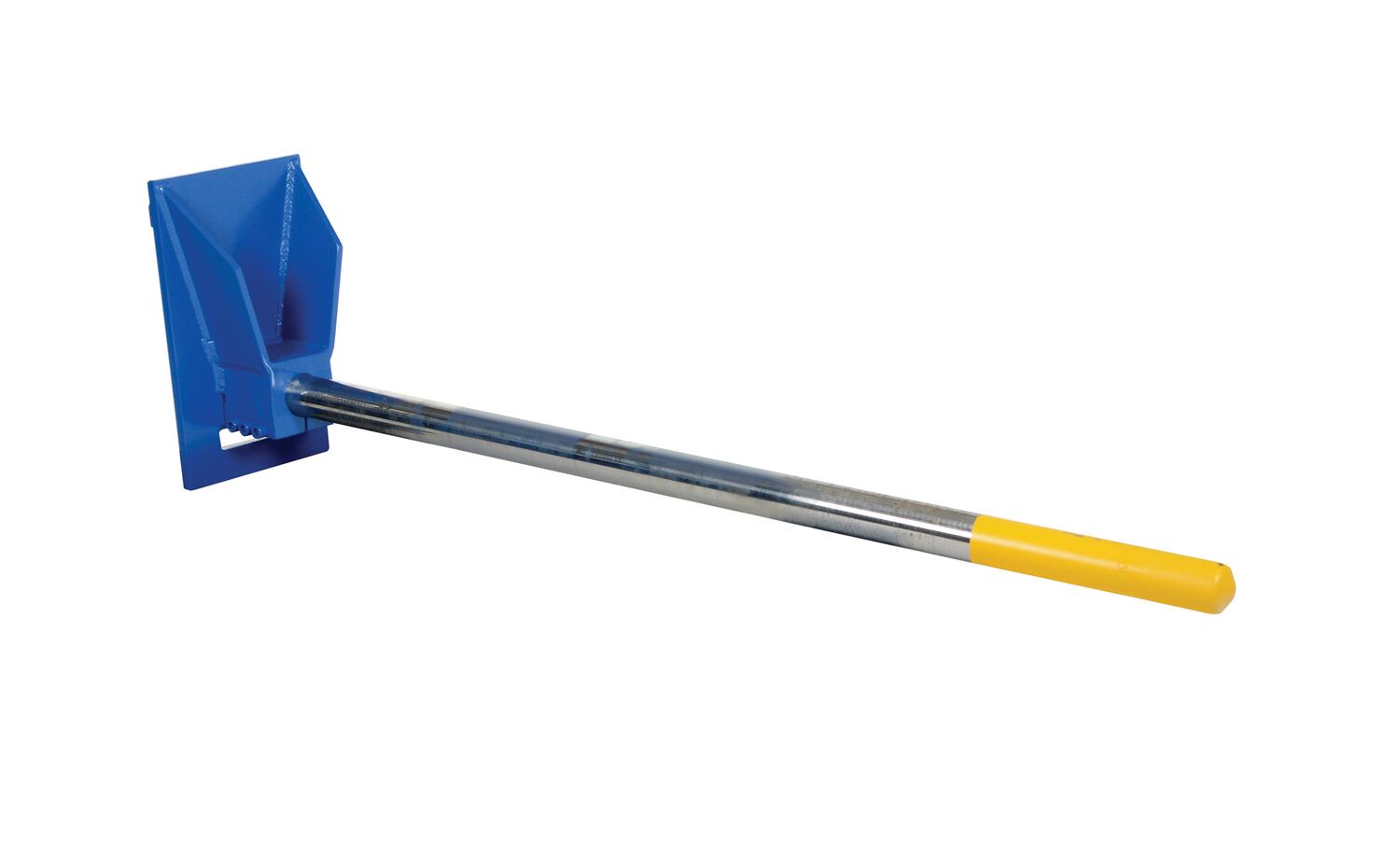

CR-60-2 CR-60-2Steel Rug Ram Boom Carriage Mount Class 2 60" Long 2500 Lb. Capacity BlueUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4		201
CR-48-3 CR-48-3Steel Rug Ram Boom Carriage Mount Class 3 48" Long 2500 Lb. Capacity BlueUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4		197
CR-48-2 CR-48-2Steel Rug Ram Boom Carriage Mount Class 2 48" Long 2500 Lb. Capacity BlueUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4		180
