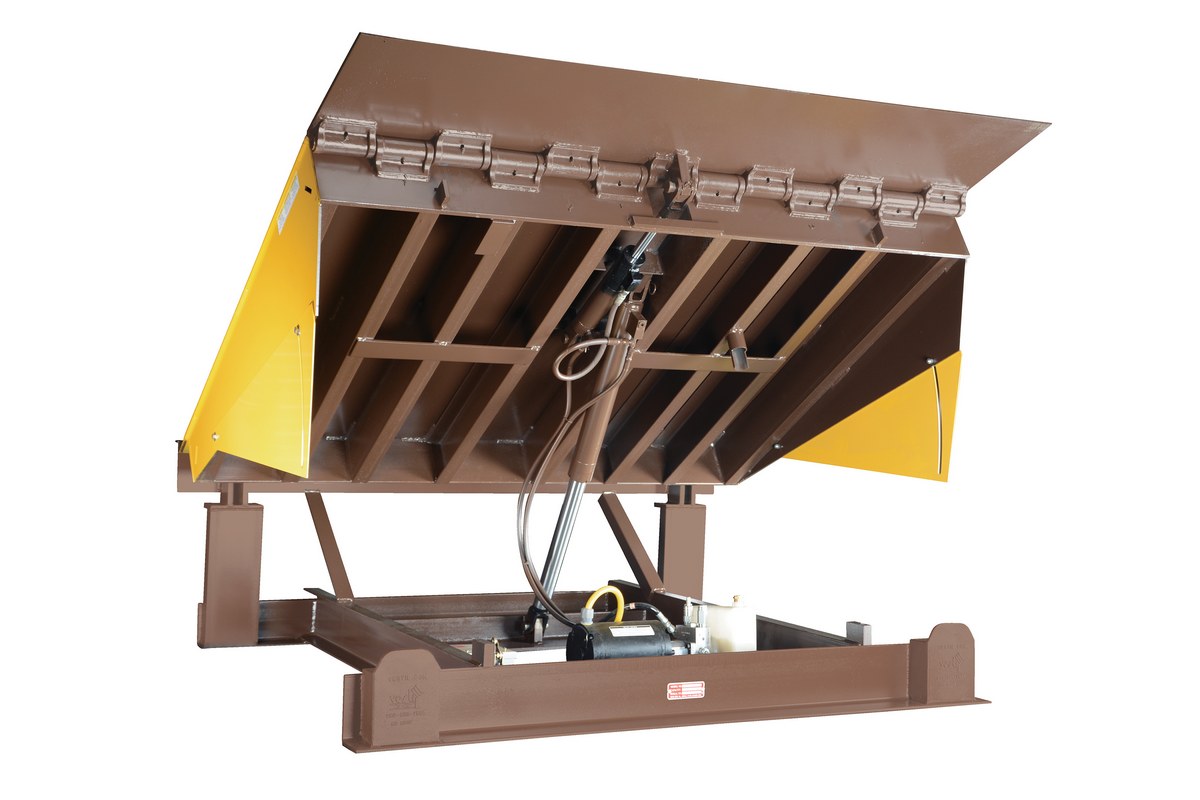

Electric Hydraulic Dock Levelers

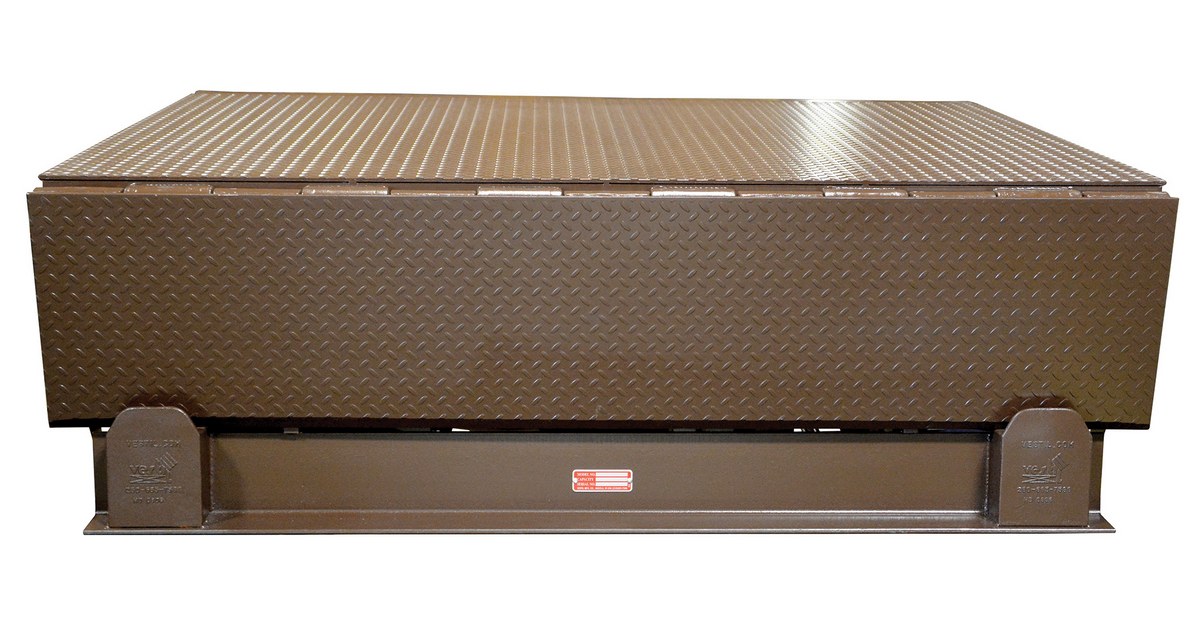

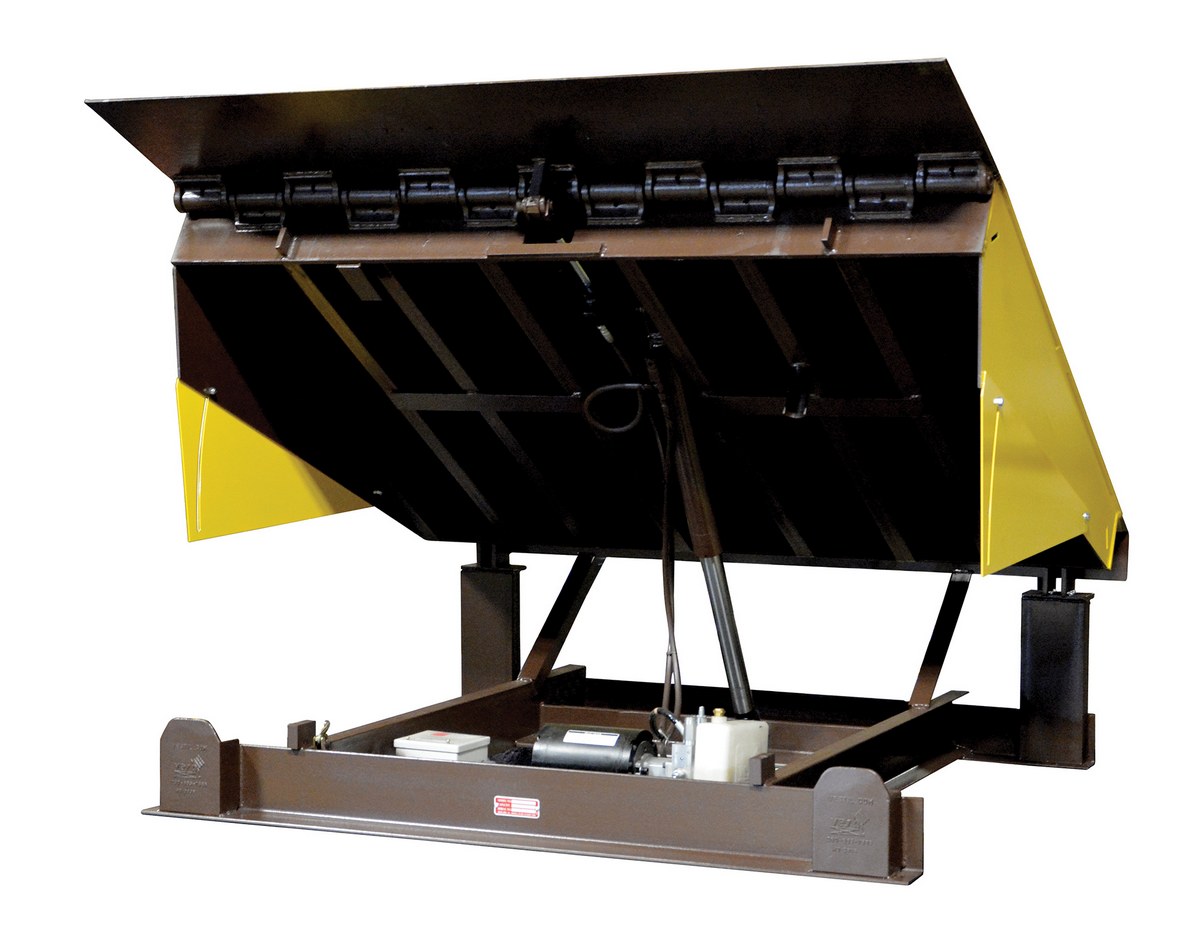

model: EH-66-20

EH-66-20_B.jpg EH-66-20_A.jpg EH-66-20_C.jpg EH-66-20_D.jpg EH-66-20_E.jpg EH-66-20_F.jpg More Images +

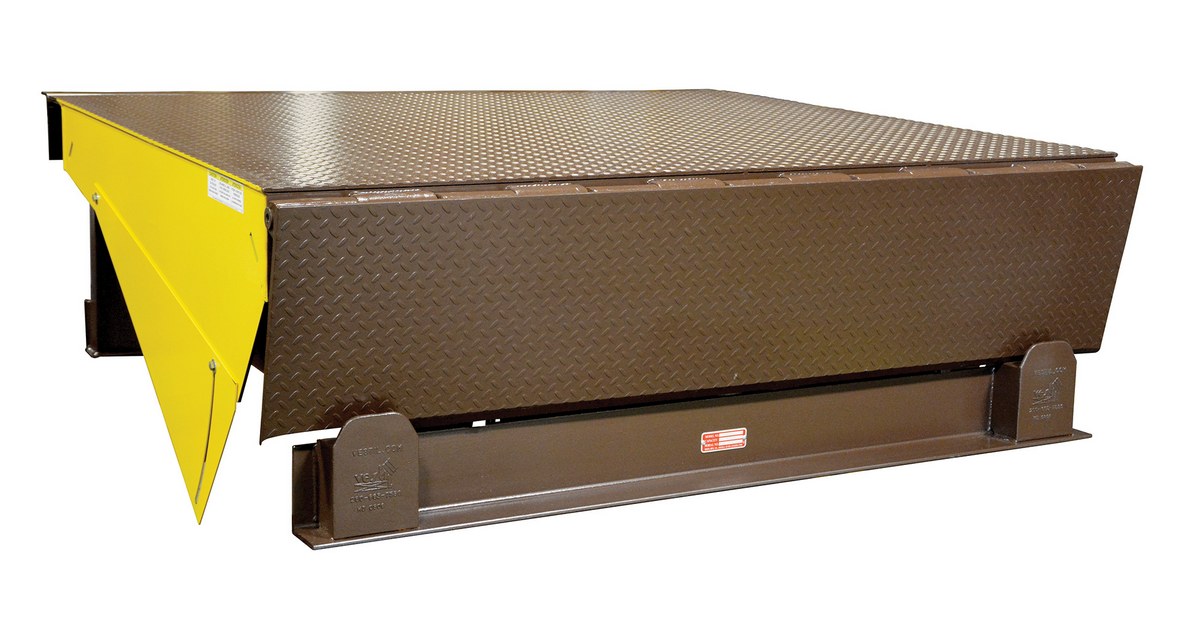

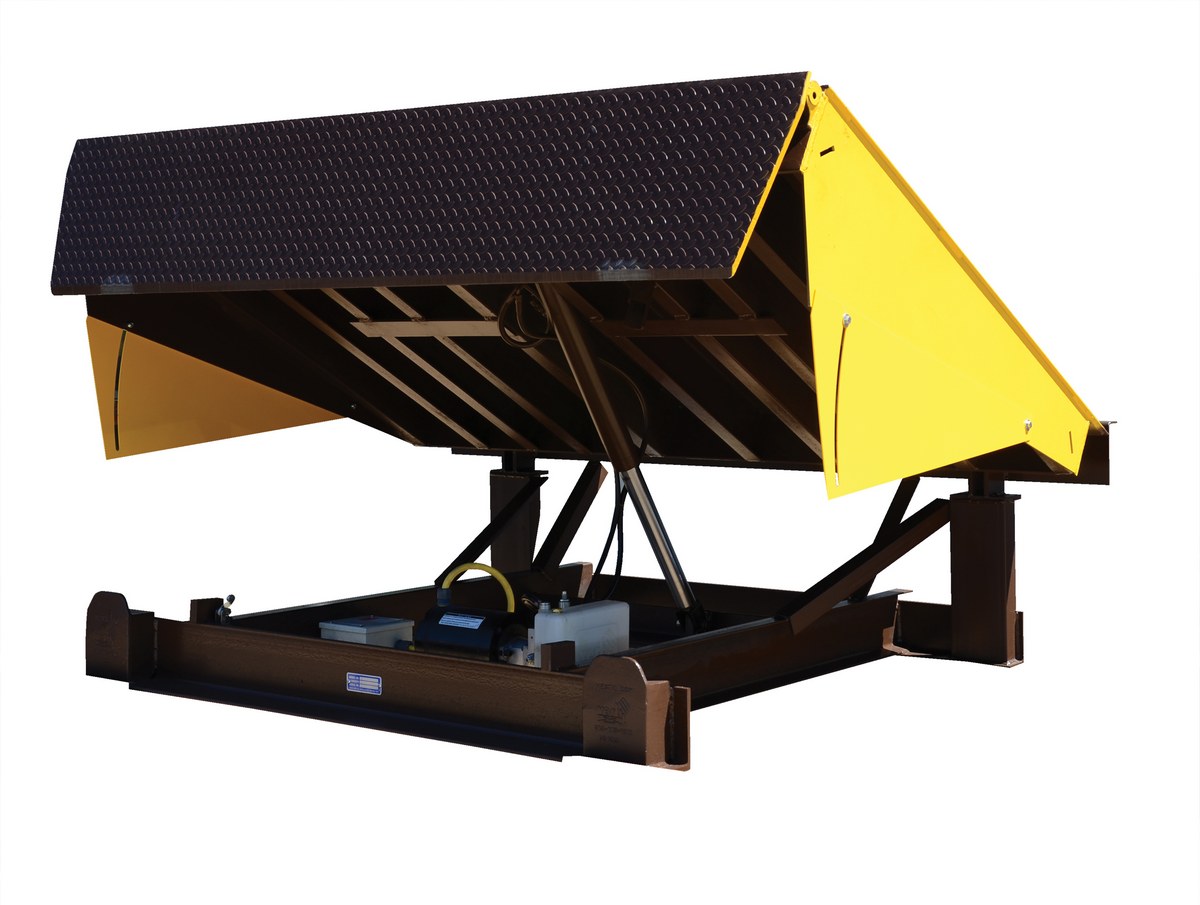

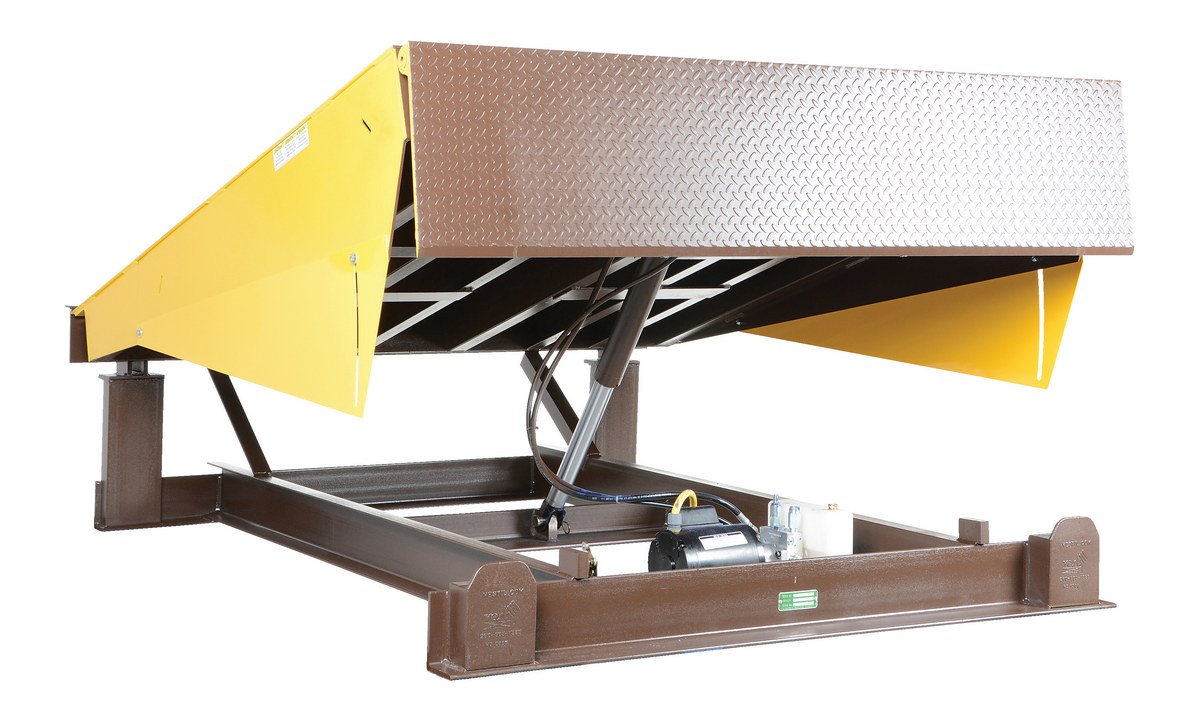

Electric Hydraulic Dock Levelers
SERIES: EH

The Electric Hydraulic Dock Leveler is ideal for high usage dock areas. The hydraulic design is state of the art and consists of a simple push of the button operation. The operator pushes and holds the "raise" button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the "raise" button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level cross traffic position. Includes telescopic steel toe guards on both sides, flush with platform edge, service range of +/- 12" and two (2) laminated bumpers. 460V 3-Phase standard. Uniform capacities available up to 80,000 pounds, contact factory.

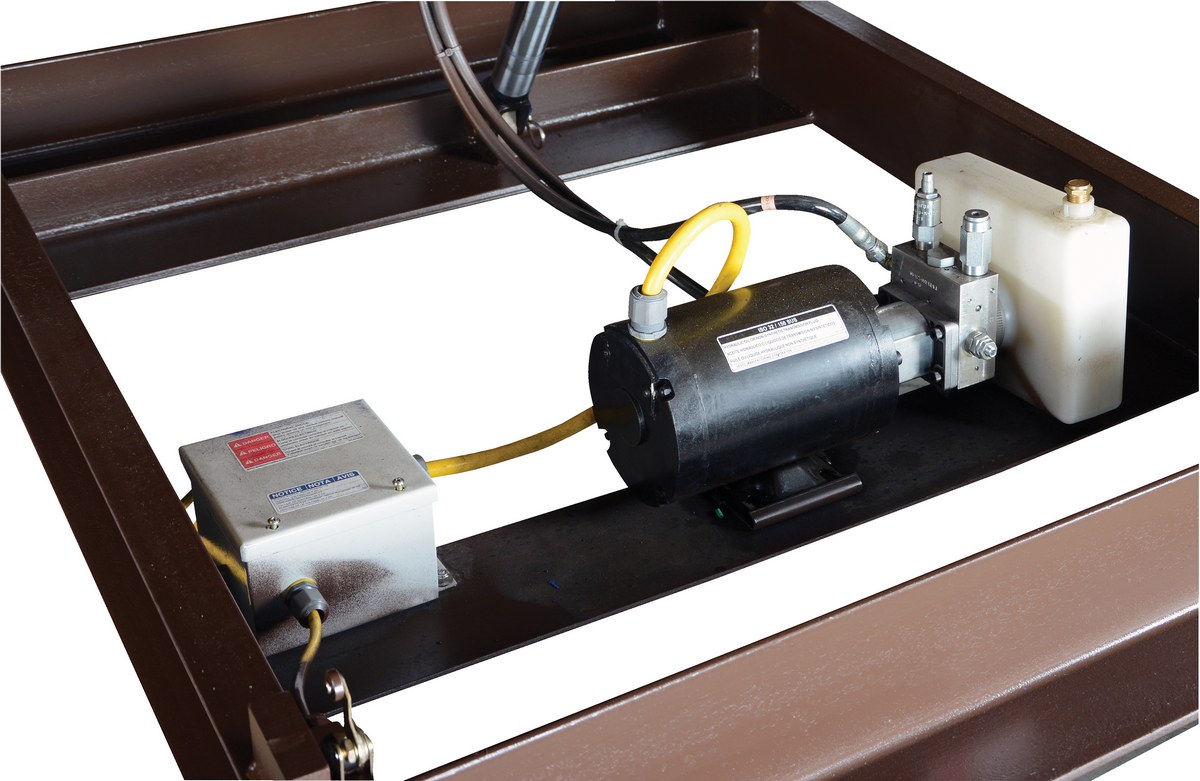

  • Hydraulic design is state of the art with simple push button operation
  • When the deck is raised lip automatically extends for easy loading/unloading

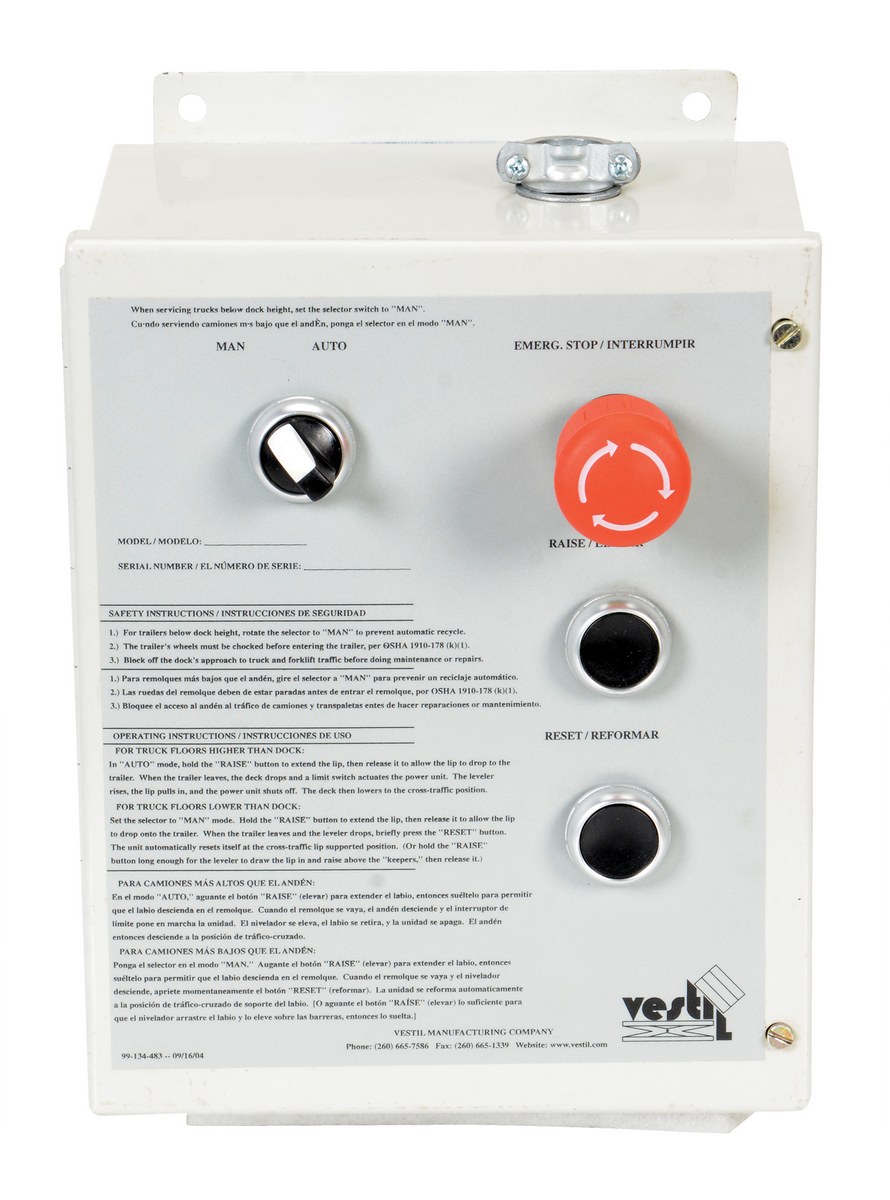

  • Control box includes a red emergency stop button for optimal safety
  • Features telescopic steel toe guards on both sides for added safety

Everything You'll Need For Your Dock!

Loading Dock Lights

Dock Insulated Blanket

Wheel Chocks

Trailer Stabilizing Jacks
Electric Hydraulic Dock Levelers

model: EH-66-20

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
18"LIP/6
18"LIP/7
CAS-610
CAS-65
CAS-66
CAS-68
CAS-710
CAS-75
CAS-76
CAS-78
EH-610-20
EH-610-25
EH-610-30
EH-610-35
EH-610-40
EH-610-45
EH-610-50
EH-65-20
EH-65-25
EH-65-30
EH-65-35
EH-65-40
EH-65-45
EH-65-50
EH-66-20
EH-66-25
EH-66-30
EH-66-35
EH-66-40
EH-66-45
EH-66-50
EH-68-20
EH-68-25
EH-68-30
EH-68-35
EH-68-40
EH-68-45
EH-68-50
EH-710-20
EH-710-25
EH-710-30
EH-710-35
EH-710-40
EH-710-45
EH-710-50
EH-75-20
EH-75-25
EH-75-30
EH-75-35
EH-75-40
EH-75-45
EH-75-50
EH-76-20
EH-76-25
EH-76-30
EH-76-35
EH-76-40
EH-76-45
EH-76-50
EH-78-20
EH-78-25
EH-78-30
EH-78-35
EH-78-40
EH-78-45
EH-78-50
EH-ROG
EH-TL
ES
FI
FOD/10'
FOD/6'
FOD/8'
SS/610
SS/65
SS/66
SS/68
SS/710
SS/75
SS/76
SS/78
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.
18"LIP/6 Factory Installed/Welded 18 In. Lip For 6 Ft. Electric Hydra…31
18"LIP/7 Factory Installed/ Welded 18 In. Lip For 7 Ft. Electric Hydr…36

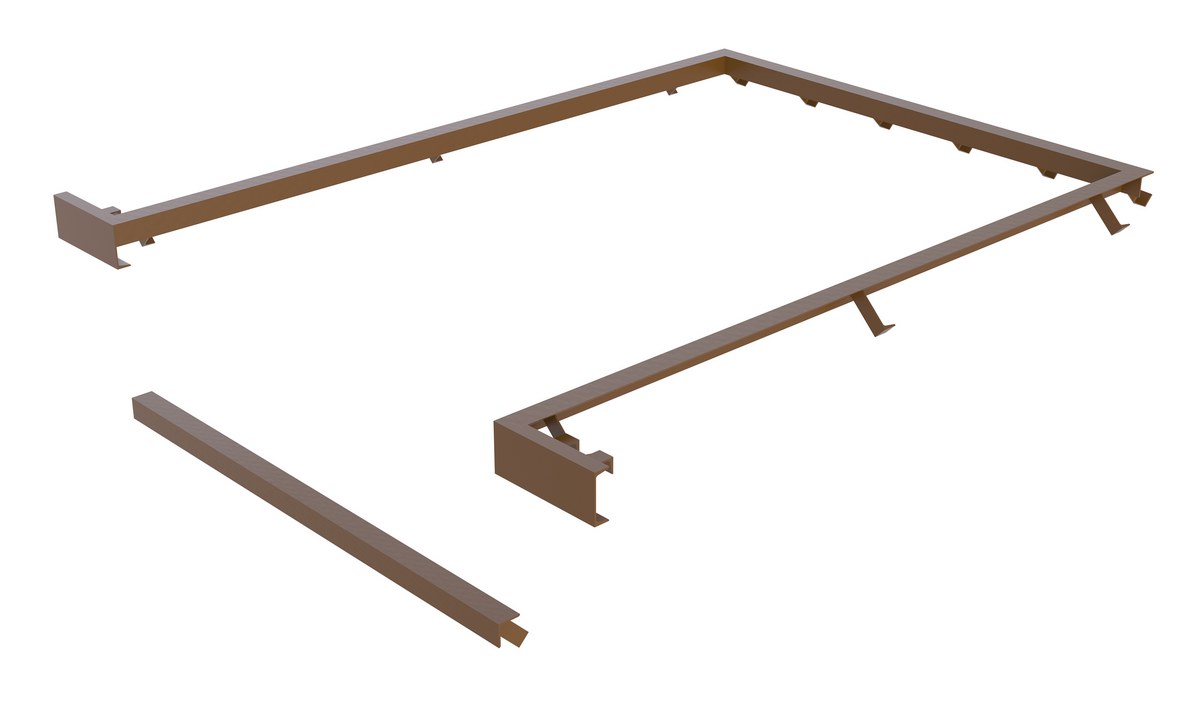

CAS-610 CAS-610Steel Dock Leveler Curb Angle Set 6 Ft. x 10 Ft.180

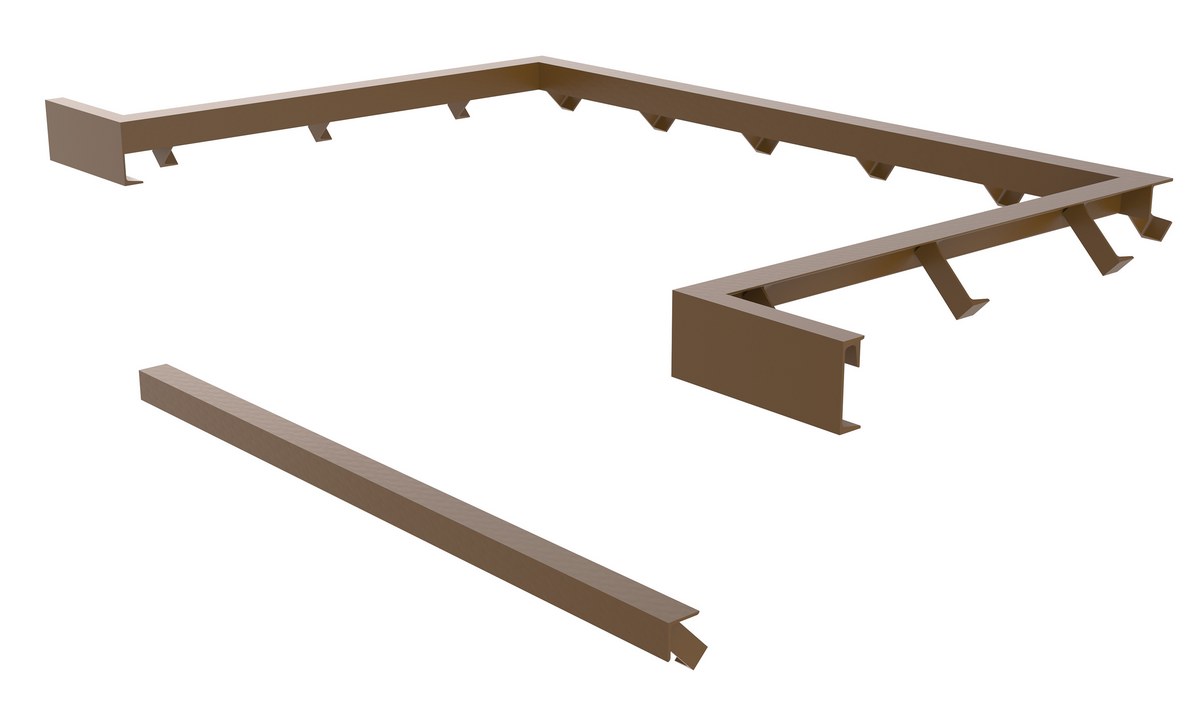

CAS-65 CAS-65Steel Dock Leveler Curb Angle Set 6 Ft. x 5 Ft.160

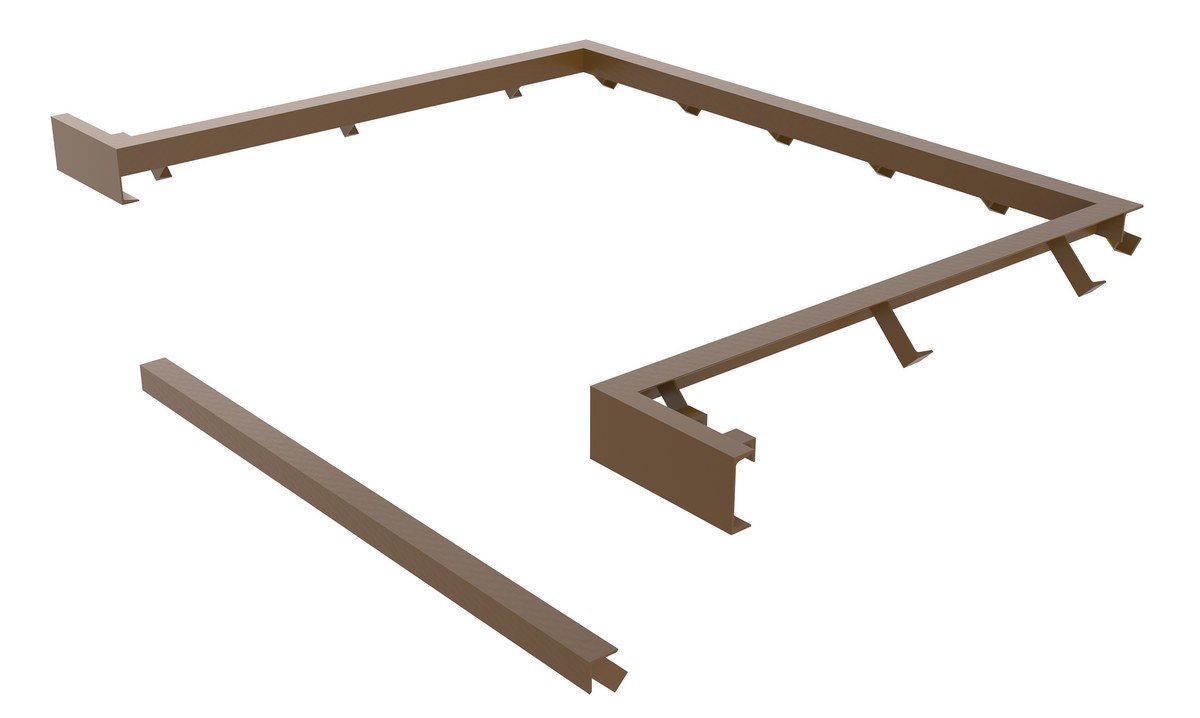

CAS-66 CAS-66Steel Dock Leveler Curb Angle Set 6 Ft. x 6 Ft.166

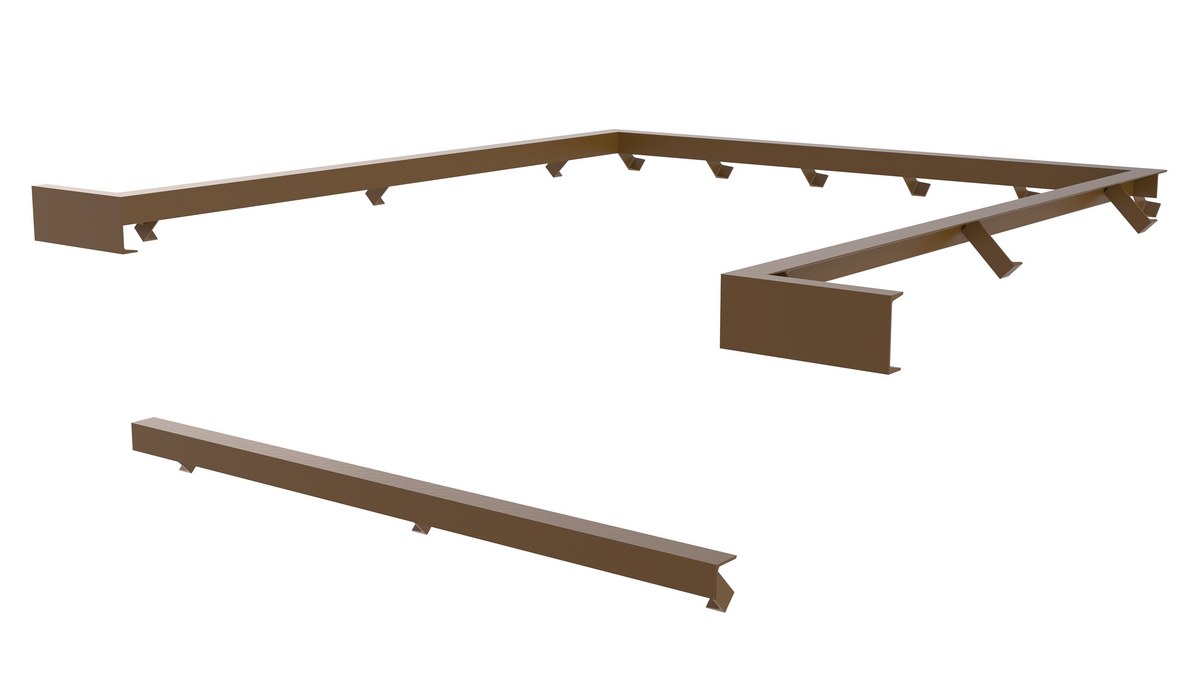

CAS-68 CAS-68Steel Dock Leveler Curb Angle Set 6 Ft. x 8 Ft.172

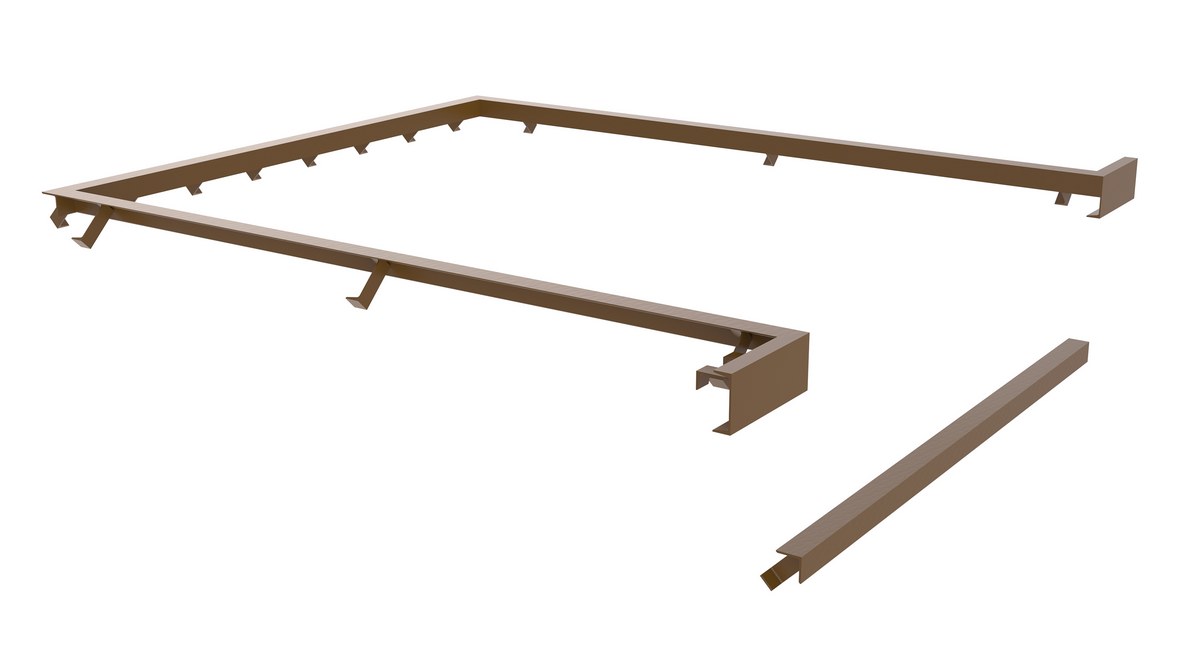

CAS-710 CAS-710Steel Dock Leveler Curb Angle Set 7 Ft. x 10 Ft.188

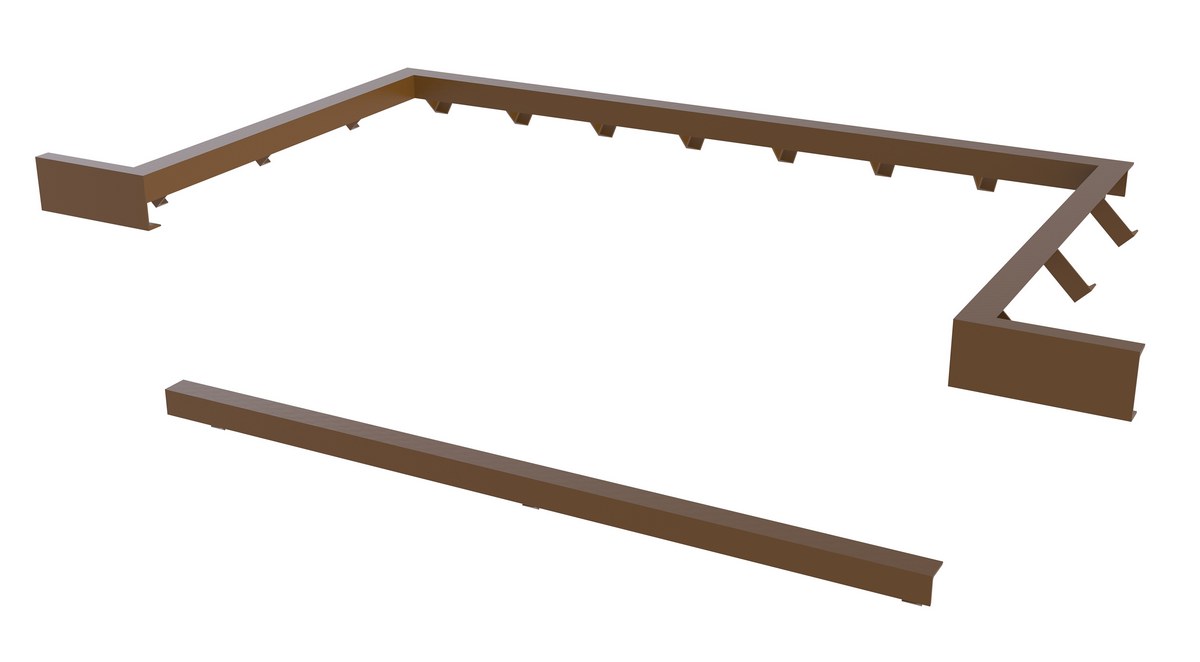

CAS-75 CAS-75Steel Dock Leveler Curb Angle Set 7 Ft. x 5 Ft.168

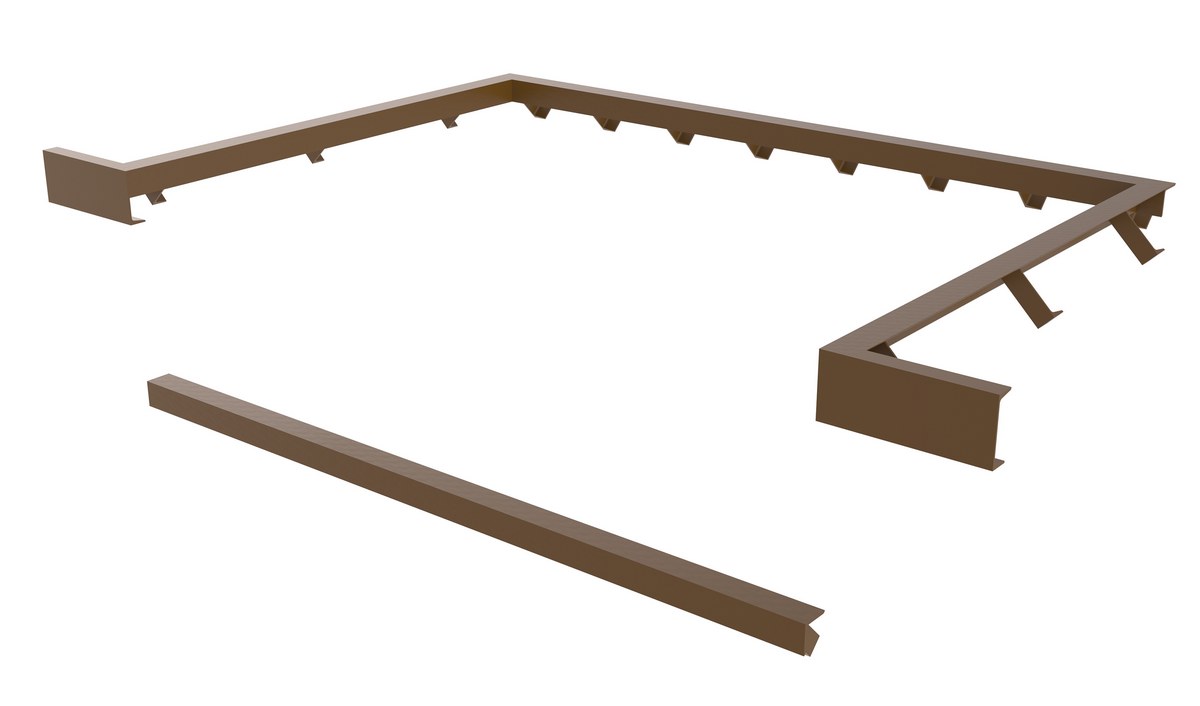

CAS-76 CAS-76Steel Dock Leveler Curb Angle Set 7 Ft. x 6 Ft.174

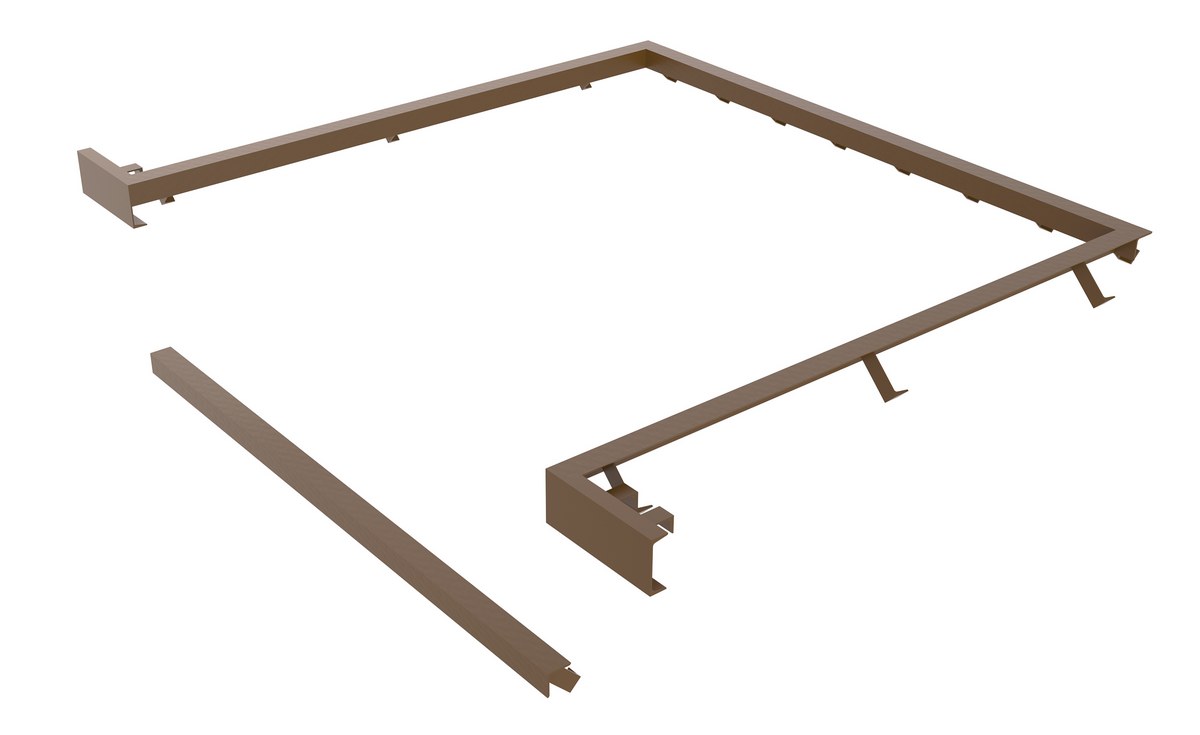

CAS-78 CAS-78Steel Dock Leveler Curb Angle Set 7 Ft. x 8 Ft.180
EH-ROG EH-ROGFactory Installed Steel Roll Off Guard For Electric/Hydrauli…12
EH-TL Factory Installed Electric Interlock For Electric Hydraulic …
ES Factory Installed Emergency Stop For Pull Chain Mechanical D…54
FI Factory Installed Foam Insulation For Dock Levelers6
FOD/10' Factory Installed Steel Leg For In Front Of Dock Placement o…240
FOD/6' Factory Installed Steel Leg For In Front Of Dock Placement o…240
FOD/8' Factory Installed Steel Leg For In Front Of Dock Placement o…240
SS/610 Steel Shell For Pour In Place Installation 6 Ft. x 10 Ft. Br…455
SS/65 Steel Shell For Pour In Place Installation 6 Ft. x 5 Ft. Bro…340
SS/66 Steel Shell For Pour In Place Installation 6 Ft. x 6 Ft. Bro…301
SS/68 Steel Shell For Pour In Place Installation 6 Ft. x 8 Ft. Bro…459
SS/710 Steel Shell For Pour In Place Installation 7 Ft. x 10 Ft. Br…473
SS/75 Steel Shell For Pour In Place Installation 7 Ft. x 5 Ft. Bro…314
SS/76 Steel Shell For Pour In Place Installation 7 Ft. x 6 Ft. Bro…354
SS/78 Steel Shell For Pour In Place Installation 7 Ft. x 8 Ft. Bro…414

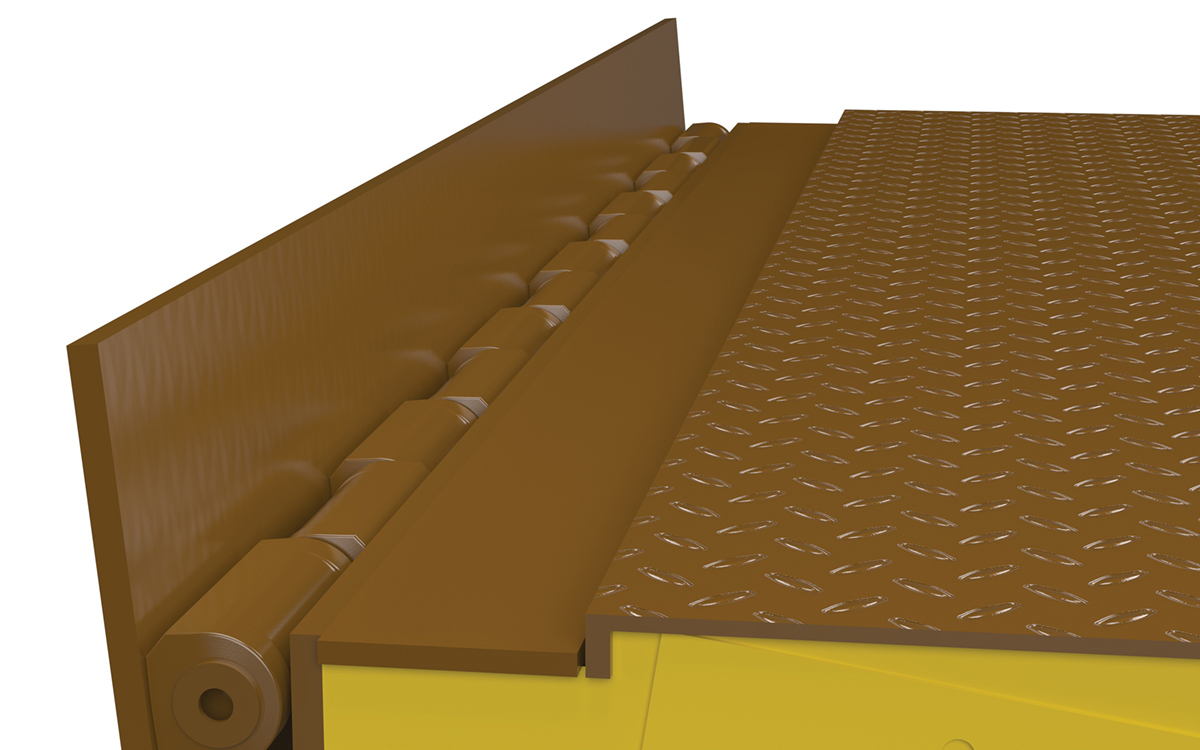

Roll Off Guard - model EH-ROG
A standard Electric Hydraulic Dock Leveler is important for high traffic dock areas. However, an electric hydraulic dock leveler with additional raised safety lip makes a dock leveler even more necessary. The raised lip is a roll off guard feature which adds safety to the user and accompanying personnel. The raised edge continues to maintain its height until the dock leveler is in the raised position. When the deck reaches the raised position the lip will automatically extend.

Model Image Description Wt. (lbs)
WS-DV Dual vinyl weather stripping (factory installed) -
SPO Shallow Pit Option (17-1/2" Min. Depth) -

*EH-TL Use in conjunction with EH series (electric hydraulic dock levelers) and TL-100 series (trailer lock systems)

*20" Lip Recommended For Refrigerated Trucks, Consult Factory for Pricing
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

EH

EH,%20POUR-IN-PLACE%20IN

WS

Survey Sheets

DOCK%20LEVELER

Engineering Drawings

CAS-65

CAS-66

CAS-68

CAS-75

CAS-76

CAS-78

CAS-610

CAS-710

EH-65-20

EH-65-25

EH-65-30

EH-65-40

EH-65-50

EH-66-20

EH-66-25

EH-66-30

EH-66-40

EH-66-50

EH-68-20

EH-68-25

EH-68-30

EH-68-40

EH-68-50

EH-75-20

EH-75-25

EH-75-30

EH-75-40

EH-75-50

EH-76-20

EH-76-25

EH-76-30

EH-76-40

EH-76-50

EH-78-20

EH-78-25

EH-78-30

EH-78-40

EH-78-50

EH-610-20

EH-610-25

EH-610-30

EH-610-40

EH-610-50

EH-710-20

EH-710-25

EH-710-30

EH-710-40

EH-710-50

EH-ROG

Testing Certificates

CAS-610

CAS-65

CAS-66

CAS-68

CAS-710

CAS-75

CAS-76

CAS-78

EH-610-20

EH-610-25

EH-610-30

EH-610-35

EH-610-40

EH-610-45

EH-610-50

EH-65-20

EH-65-25

EH-65-30

EH-65-35

EH-65-40

EH-65-45

EH-65-50

EH-66-20

EH-66-25

EH-66-30

EH-66-35

EH-66-40

EH-66-45

EH-66-50

EH-68-20

EH-68-25

EH-68-30

EH-68-35

EH-68-40

EH-68-45

EH-68-50

EH-710-20

EH-710-25

EH-710-30

EH-710-35

EH-710-40

EH-710-45

EH-710-50

EH-75-20

EH-75-25

EH-75-30

EH-75-35

EH-75-40

EH-75-45

EH-75-50

EH-76-20

EH-76-25

EH-76-30

EH-76-35

EH-76-40

EH-76-45

EH-76-50

EH-78-20

EH-78-25

EH-78-30

EH-78-35

EH-78-40

EH-78-45

EH-78-50

EH-ROG

EH-TL

ES

FI

SS/65

SS/78

SDS Sheets


Hydraulic Oil
EH-610-20 SDS


Hydraulic Oil
EH-610-25 SDS


Hydraulic Oil
EH-610-30 SDS


Hydraulic Oil
EH-610-35 SDS


Hydraulic Oil
EH-610-40 SDS


Hydraulic Oil
EH-610-45 SDS


Hydraulic Oil
EH-610-50 SDS


Hydraulic Oil
EH-65-20 SDS


Hydraulic Oil
EH-65-25 SDS


Hydraulic Oil
EH-65-30 SDS


Hydraulic Oil
EH-65-35 SDS


Hydraulic Oil
EH-65-40 SDS


Hydraulic Oil
EH-65-45 SDS


Hydraulic Oil
EH-65-50 SDS


Hydraulic Oil
EH-66-20 SDS


Hydraulic Oil
EH-66-25 SDS


Hydraulic Oil
EH-66-30 SDS


Hydraulic Oil
EH-66-35 SDS


Hydraulic Oil
EH-66-40 SDS


Hydraulic Oil
EH-66-45 SDS


Hydraulic Oil
EH-66-50 SDS


Hydraulic Oil
EH-68-20 SDS


Hydraulic Oil
EH-68-25 SDS


Hydraulic Oil
EH-68-30 SDS


Hydraulic Oil
EH-68-35 SDS


Hydraulic Oil
EH-68-40 SDS


Hydraulic Oil
EH-68-45 SDS


Hydraulic Oil
EH-68-50 SDS


Hydraulic Oil
EH-710-20 SDS


Hydraulic Oil
EH-710-25 SDS


Hydraulic Oil
EH-710-30 SDS


Hydraulic Oil
EH-710-35 SDS


Hydraulic Oil
EH-710-40 SDS


Hydraulic Oil
EH-710-45 SDS


Hydraulic Oil
EH-710-50 SDS


Hydraulic Oil
EH-75-20 SDS


Hydraulic Oil
EH-75-25 SDS


Hydraulic Oil
EH-75-30 SDS


Hydraulic Oil
EH-75-35 SDS


Hydraulic Oil
EH-75-40 SDS


Hydraulic Oil
EH-75-45 SDS


Hydraulic Oil
EH-75-50 SDS


Hydraulic Oil
EH-76-20 SDS


Hydraulic Oil
EH-76-25 SDS


Hydraulic Oil
EH-76-30 SDS


Hydraulic Oil
EH-76-35 SDS


Hydraulic Oil
EH-76-40 SDS


Hydraulic Oil
EH-76-45 SDS


Hydraulic Oil
EH-76-50 SDS


Hydraulic Oil
EH-78-20 SDS


Hydraulic Oil
EH-78-25 SDS


Hydraulic Oil
EH-78-30 SDS


Hydraulic Oil
EH-78-35 SDS


Hydraulic Oil
EH-78-40 SDS


Hydraulic Oil
EH-78-45 SDS


Hydraulic Oil
EH-78-50 SDS


Hydraulic Oil
EH-TL SDS

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products
How much oil does the dock leveler use?
The EH docklevelers use approximately 1 gallon of oil.
For the electric hydraulic dock levelers, are there any industry standards or guidelines that need to be followed for conduit placement in a pit for an EH ?
The National Electrical Code indicates the requirements and limitations for approved premises wiring methods, including access requirements.
There is a lot of leeway for placement of a conduit used to provided power and control wiring to the inside of the dock leveler. The location for the end of the raceway in the pit wall merely needs to allow for connection to whatever wiring method is chosen for the power and control circuit run.

Related or Similar Products:

More From Dock Levelers





Electric Hydraulic Dock Levelers




The Electric Hydraulic Dock Leveler is ideal for high usage dock areas. The hydraulic design is state of the art and consists of a simple push of the button operation. The operator pushes and holds the "raise" button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the "raise" button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level cross traffic position. Includes telescopic steel toe guards on both sides, flush with platform edge, service range of +/- 12" and two (2) laminated bumpers. 460V 3-Phase standard. Uniform capacities available up to 80,000 pounds, contact factory.

  • Hydraulic design is state of the art with simple push button operation
  • When the deck is raised lip automatically extends for easy loading/unloading
  • Control box includes a red emergency stop button for optimal safety
  • Features telescopic steel toe guards on both sides for added safety

Everything You'll Need For Your Dock!

Loading Dock Lights

Dock Insulated Blanket

Wheel Chocks

Trailer Stabilizing Jacks

Model # Description Attributes Net Wt.
(lbs)
EH-610-20 EH-610-20Steel Electric Hydraulic Dock Leveler 74"W x 110"L x 24"D Pit Dimensions, 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Service Range Above Dock (in.): 12		2267
EH-610-25 EH-610-25Steel Electric Hydraulic Dock Leveler 74"W x 110"L x 24"D Pit Dimensions, 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Service Range Above Dock (in.): 12		2267
EH-610-30 EH-610-30Steel Electric Hydraulic Dock Leveler 74"W x 110"L x24D Pit Dimensions, 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Service range above dock (in.): 12		2460
EH-610-35 EH-610-35Steel Electric Hydraulic Dock Leveler 74"W x 110"L x 24"D Pit Dimensions, 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Service Range Above Dock (in.): 12		2610
EH-610-40 EH-610-40Steel Electric Hydraulic Dock Leveler 74"W x 110"L x 24"D Pit Dimensions, 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Service Range Above Dock (in.): 12		2760
EH-610-45 EH-610-45Steel Electric Hydraulic Dock Leveler 74"W x 110"L x 24"D Pit Dimensions, 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Service Range Above Dock (in.): 12		2910
EH-610-50 EH-610-50Steel Electric Hydraulic Dock Leveler 74"W x 110"L x 24"D Pit Dimensions, 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Service range above dock (in.): 12		3060
EH-65-20 EH-65-20Steel Electric Hydraulic Dock Leveler 74"W x 50"L x 24"D Pit Dimensions 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Service Range Above Dock (in.): 12		1460
EH-65-25 EH-65-25Steel Electric Hydraulic Dock Leveler 74"W x 50"L x 24"D Pit Dimensions, 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Service range above dock (in.): 12		1498
EH-65-30 EH-65-30Steel Electric Hydraulic Dock Leveler 74"W x 50"L x 24"D Pit Dimensions, 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Service Range Above Dock (in.): 12		1463
EH-65-35 EH-65-35Steel Electric Hydraulic Dock Leveler 74"W x 50"L x 24"D Pit Dimensions, 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Service Range Above Dock (in.): 12		1698
EH-65-40 EH-65-40Steel Electric Hydraulic Dock Leveler 74"W x 50"L x 24"D Pit Dimensions, 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Service range above dock (in.): 12		1567
EH-65-45 EH-65-45Steel Electric Hydraulic Dock Leveler 74"W x 50"L x 24"D Pit Dimensions, 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Service Range Above Dock (in.): 12		1998
EH-65-50 EH-65-50Steel Electric Hydraulic Dock Leveler 74"W x 50"L x 24"D Pit Dimensions, 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Service Range Above Dock (in.): 12		2148
EH-66-20 EH-66-20Steel Electric Hydraulic Dock Leveler 74"W x 62"L x 24"D Pit Dimensions, 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Service Range Above Dock (in.): 12		1568
EH-66-25 EH-66-25Steel Electric Hydraulic Dock Leveler 74"W x 62"L x 24"D Pit Dimensions, 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Service Range Above Dock (in.): 12		1568
EH-66-30 EH-66-30Steel Electric Hydraulic Dock Leveler 74"W x 62"L x 24"D Pit Dimensions, 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Service Range Above Dock (in.): 12		1880
EH-66-35 EH-66-35Steel Electric Hydraulic Dock Leveler 74"W x 62"L x 24"D Pit Dimensions, 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Service Range Above Dock (in.): 12		1796
EH-66-40 EH-66-40Steel Electric Hydraulic Dock Leveler 74"W x 62"L x 24"D Pit Dimensions, 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Service Range Above Dock (in.): 12		2049
EH-66-45 EH-66-45Steel Electric Hydraulic Dock Leveler 74"W x 62"L x 24"D Pit Dimensions, 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Service Range Above Dock (in.): 12		2199
EH-66-50 EH-66-50Steel Electric Hydraulic Dock Leveler 74"W x 62"L x 24"D Pit Dimensions, 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Service Range Above Dock (in.): 12		2349
EH-68-20 EH-68-20Steel Electric Hydraulic Dock Leveler 74"W x 86"L x 224"D Pit Dimensions, 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Service Range Above Dock (in.): 12		1945
EH-68-25 EH-68-25Steel Electric Hydraulic Dock Leveler 74"W x 86"L x 24"D Pit Dimensions, 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Service Range Above Dock (in.): 12		2032
EH-68-30 EH-68-30Steel Electric Hydraulic Dock Leveler 74"W x 86"L x 24"D Pit Dimensions, 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Service Range Above Dock (in.): 12		2030
EH-68-35 EH-68-35Steel Electric Hydraulic Dock Leveler 74"W x 86"L x 24"D Pit Dimensions, 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Service Range Above Dock (in.): 12		2329
EH-68-40 EH-68-40Steel Electric Hydraulic Dock Leveler 74"W x 86"L x 24"D Pit Dimensions, 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Service Range Above Dock (in.): 12		2454
EH-68-45 EH-68-45Steel Electric Hydraulic Dock Leveler 74"W x 86"L x 24"D Pit Dimensions, 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Service Range Above Dock (in.): 12		2454
EH-68-50 EH-68-50Steel Electric Hydraulic Dock Leveler 74"W x 86"L x 24"D Pit Dimensions, 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Service Range Above Dock (in.): 12		2145
EH-710-20 EH-710-20Steel Electric Hydraulic Dock Leveler 86"W x 110"L x 24"D Pit Dimensions, 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Service Range Above Dock (in.): 12		2690
EH-710-25 EH-710-25Steel Electric Hydraulic Dock Leveler 86"W x 110"L x 24"D Pit Dimensions, 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Service Range Above Dock (in.): 12		2558
EH-710-30 EH-710-30Steel Electric Hydraulic Dock Leveler 86"W x 110"L x 24"D Pit Dimensions, 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Service Range Above Dock (in.): 12		3090
EH-710-35 EH-710-35Steel Electric Hydraulic Dock Leveler 86"W x 110"L x 24"D Pit Dimensions, 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Service Range Above Dock (in.): 12		3240
EH-710-40 EH-710-40Steel Electric Hydraulic Dock Leveler 86"W x 110"L x 24"D Pit Dimensions, 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Service Range Above Dock (in.): 12		3390
EH-710-45 EH-710-45Steel Electric Hydraulic Dock Leveler 86"W x 110"L x 24"D Pit Dimensions, 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Service Range Above Dock (in.): 12		3540
EH-710-50 EH-710-50Steel Electric Hydraulic Dock Leveler 86"W x 110"L x 24"D Pit Dimensions, 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Service range above dock (in.): 12		3690
EH-75-20 EH-75-20Steel Electric Hydraulic Dock Leveler 86"W x 50"L x 24"D Pit Dimensions, 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Service Range Above Dock (in.): 12		1638
EH-75-25 EH-75-25Steel Electric Hydraulic Dock Leveler 86"W x 50"L x 24"D Pit Dimensions, 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Service Range Above Dock (in.): 12		1566
EH-75-30 EH-75-30Steel Electric Hydraulic Dock Leveler 86"W x 50"L x 24"D Pit Dimensions, 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Service Range Above Dock (in.): 12		2050
EH-75-35 EH-75-35Steel Electric Hydraulic Dock Leveler 86"W x 50"L x 24"D Pit Dimensions, 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Service Range Above Dock (in.): 12		2200
EH-75-40 EH-75-40Steel Electric Hydraulic Dock Leveler 86"W x 50"L x 24"D Pit Dimensions, 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Service Range Above Dock (in.): 12		2350
EH-75-45 EH-75-45Steel Electric Hydraulic Dock Leveler 86"W x 50"L x 24"D Pit Dimensions, 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Service Range Above Dock (in.): 12		2500
EH-75-50 EH-75-50Steel Electric Hydraulic Dock Leveler 86"W x 50"L x 24"D Pit Dimensions, 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Service Range Above Dock (in.): 12		2650
EH-76-20 EH-76-20Steel Electric Hydraulic Dock Leveler 86"W x 62"L x 24"D Pit Dimensions, 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Service range above dock (in.): 12		1753
EH-76-25 EH-76-25Steel Electric Hydraulic Dock Leveler 86"W x 62"L x 24"D Pit Dimensions, 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Service Range Above Dock (in.): 12		1753
EH-76-30 EH-76-30Steel Electric Hydraulic Dock Leveler 86"W x 62"L x 24"D Pit Dimensions, 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Service Range Above Dock (in.): 12		2150
EH-76-35 EH-76-35Steel Electric Hydraulic Dock Leveler 86"W x 62"L x 24"D Pit Dimensions, 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Service Range Above Dock (in.): 12		2300
EH-76-40 EH-76-40Steel Electric Hydraulic Dock Leveler 86"W x 62"L x 24"D Pit Dimensions, 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Service Range Above Dock (in.): 12		2438
EH-76-45 EH-76-45Steel Electric Hydraulic Dock Leveler 86"W x 62"L x 24"D Pit Dimensions, 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Service range above dock (in.): 12		2600
EH-76-50 EH-76-50Steel Electric Hydraulic Dock Leveler 86"W x 62"L x 24"D Pit Dimensions, 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50,000
Service Range Above Dock (in.): 12		2750
EH-78-20 EH-78-20Steel Electric Hydraulic Dock Leveler 86"W x 86"L x 24"D Pit Dimensions, 20000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 20,000
Service Range Above Dock (in.): 12		1826
EH-78-25 EH-78-25Steel Electric Hydraulic Dock Leveler 86"W x 86"L x 24"D Pit Dimensions, 25000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 25,000
Service Range Above Dock (in.): 12		2145
EH-78-30 EH-78-30Steel Electric Hydraulic Dock Leveler 86"W x 86"L x 24"D Pit Dimensions, 30000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 30,000
Service Range Above Dock (in.): 12		2450
EH-78-35 EH-78-35Steel Electric Hydraulic Dock Leveler 86"W x 86"L x 24"D Pit Dimensions, 35000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 35,000
Service Range Above Dock (in.): 12		2600
EH-78-40 EH-78-40Steel Electric Hydraulic Dock Leveler 86"W x 86"L x 24"D Pit Dimensions, 40000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 40,000
Service Range Above Dock (in.): 12		2438
EH-78-45 EH-78-45Steel Electric Hydraulic Dock Leveler 86"W x 86"L x 24"D Pit Dimensions, 45000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 45,000
Service Range Above Dock (in.): 12		2900
EH-78-50 EH-78-50Steel Electric Hydraulic Dock Leveler 86"W x 86"L x 24"D Pit Dimensions, 50000 Lb. Capacity Brown/YellowUniform Capacity (lb.): 50000
Service range above dock (in.): 12		3050

Options


Roll Off Guard - model EH-ROG
A standard Electric Hydraulic Dock Leveler is important for high traffic dock areas. However, an electric hydraulic dock leveler with additional raised safety lip makes a dock leveler even more necessary. The raised lip is a roll off guard feature which adds safety to the user and accompanying personnel. The raised edge continues to maintain its height until the dock leveler is in the raised position. When the deck reaches the raised position the lip will automatically extend.

Model Image Description Wt. (lbs)
WS-DV Dual vinyl weather stripping (factory installed) -
SPO Shallow Pit Option (17-1/2" Min. Depth) -

*EH-TL Use in conjunction with EH series (electric hydraulic dock levelers) and TL-100 series (trailer lock systems)

*20" Lip Recommended For Refrigerated Trucks, Consult Factory for Pricing

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
