Truck Actuated Dock Levelers

model: RU-600-SCB

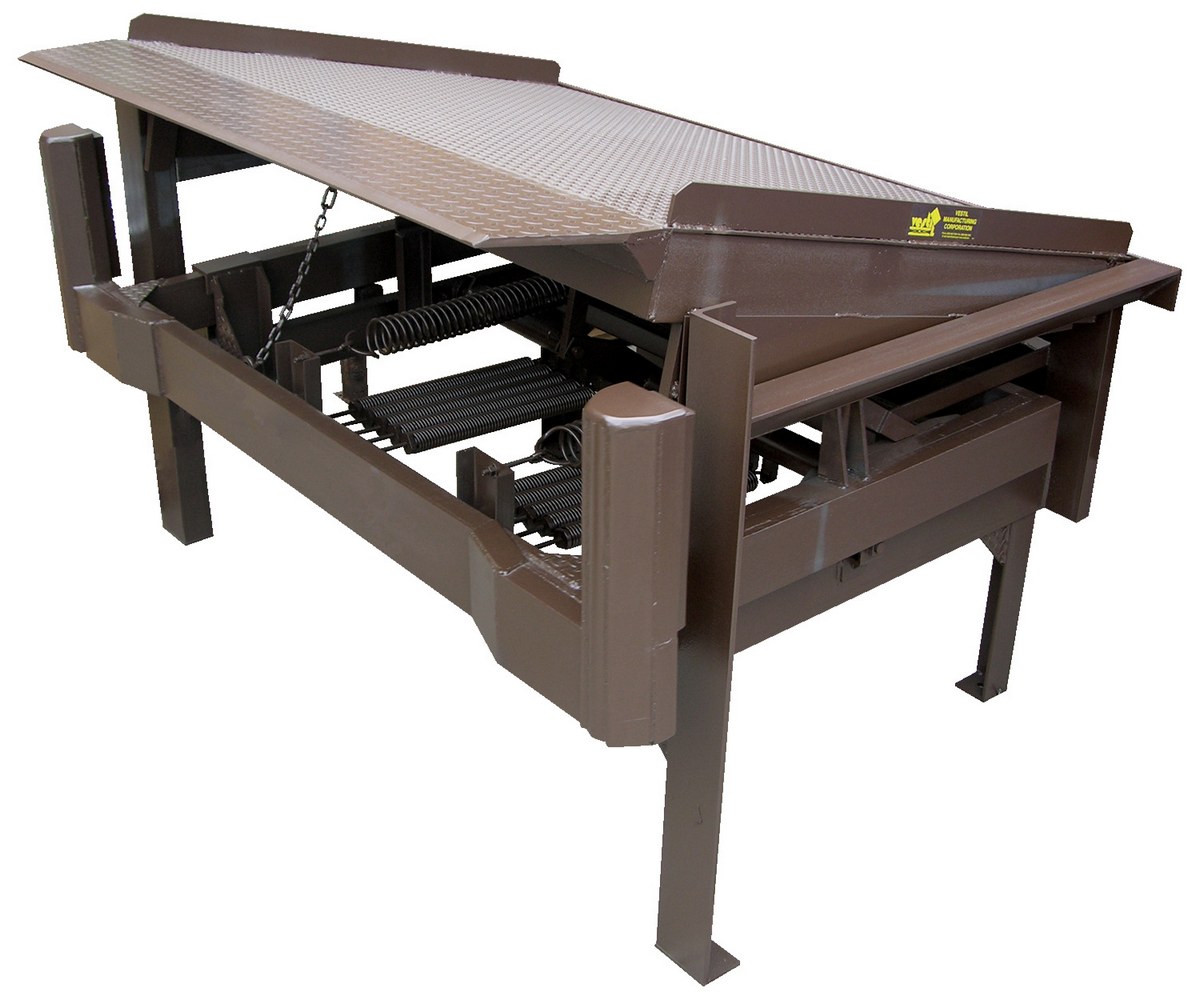

RU-600-SCB_A.jpg PU-600-SCB_A.jpg More Images +
Truck Actuated Dock Levelers
SERIES: RU,PU,SU

Truck Actuated Dock Levelers are designed to provide a seamless and automatic way to bridge the gap between a truck and a loading dock, ensuring a smooth transition for loading and unloading goods. They are a fully automatic loading ramp where there is no dock attendant needed. It consists of a lift by-pass for safety and toe guards on each side. As the truck backs against the twin actuating arms (bumpers) it pushes the carriage back. The dock and trailer must be raised for this process to work. As the carriage goes back the deck goes up. When the carriage bumpers contact the dock, the deck floats down to rest on the trailer. When the truck pulls out, the deck returns to level supported position automatically.

  • 55,000 psi high strength checker plate deck
  • 12" long lip (extends 6-1/2" into truck)
  • Toeguards on each side
  • (2) Molded Bumpers; 5"W x 16"H x 2"D
  • Lift By-Pass for Safety
  • Service range of 12" above through 8" below dock
Truck Actuated Dock Levelers

model: RU-600-SCB

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
BE
CAS-RU-1000
CAS-RU-600
CAS-RU-800
CAS-RU-800-F
PU-1000-SCB
PU-600-SCB
PU-800-SCB
RU-1000-SCB
RU-600-SCB
RU-800-SCB
RU-800-SCB-F
SPO
SPO-RU
SU-1000-SCB
SU-600-SCB
SU-800-SCB
SU-800-SCB-F
TA-30K/10
TA-30K/6
TA-30K/8
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.
BE Factory Installed Welded Bumper Extension For Truck Actuated…48

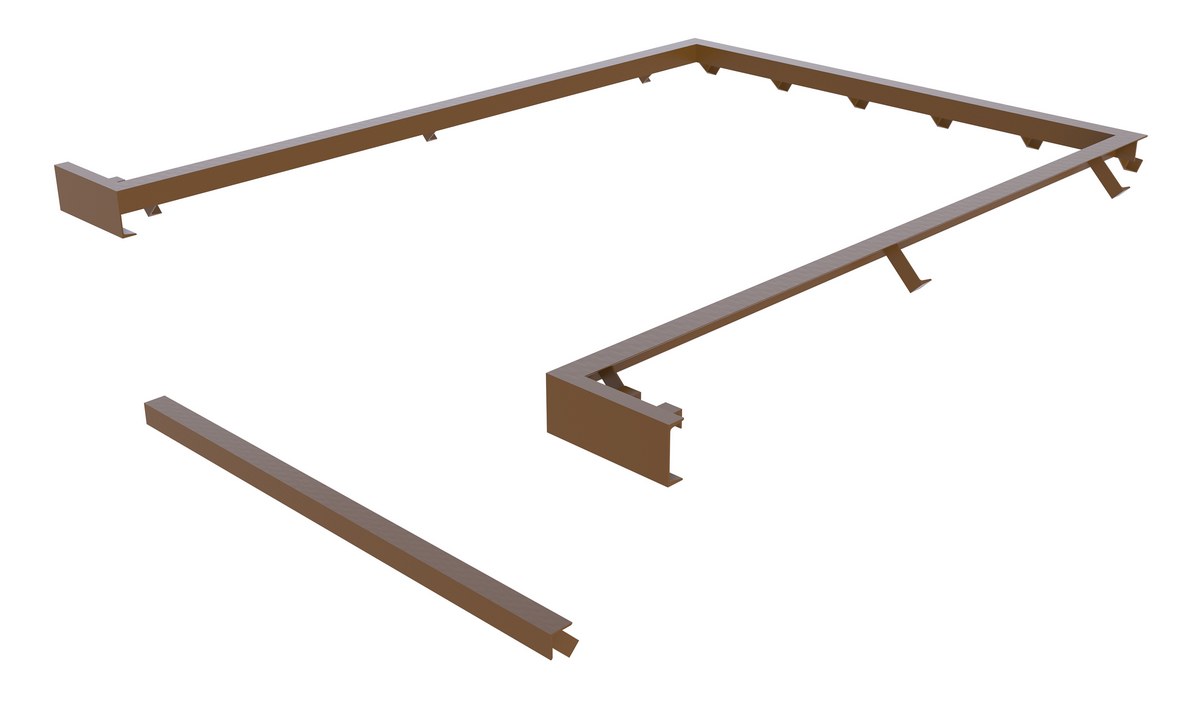

CAS-RU-1000 CAS-RU-1000Factory Installed Steel Curb Angle Set Usable Dimensions 104…233

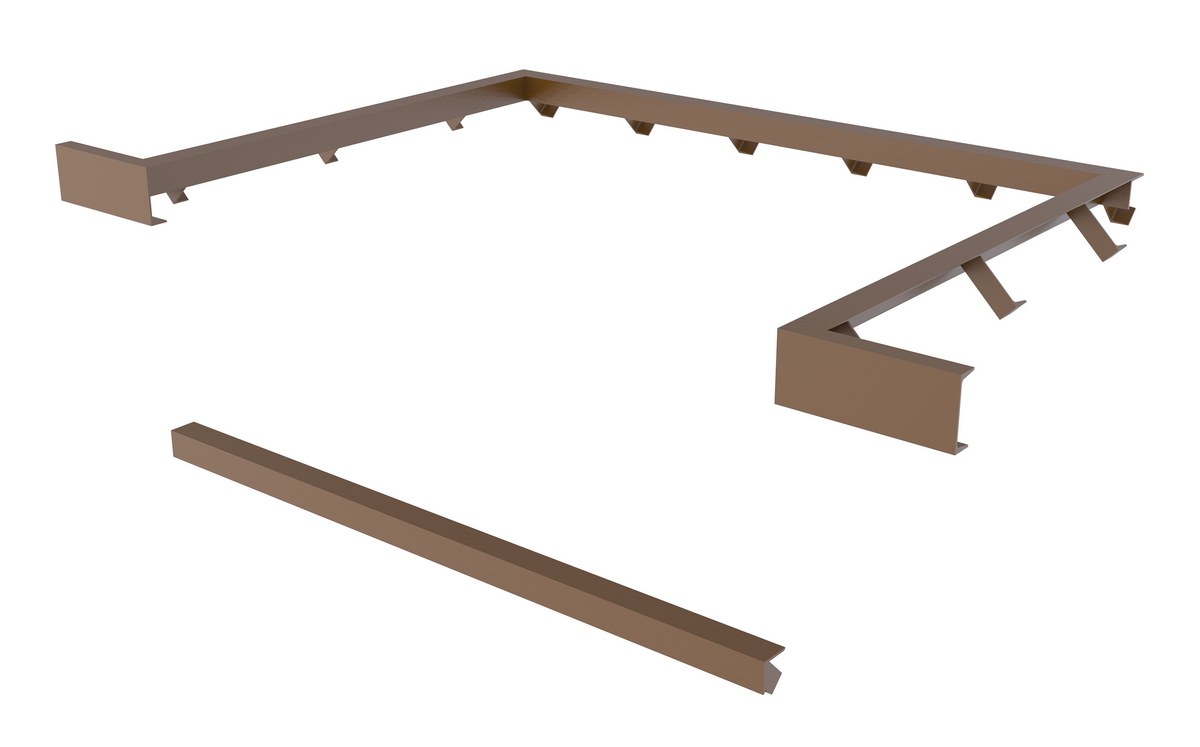

CAS-RU-600 CAS-RU-600Factory Installed Steel Curb Angle Set Usable Dimensions 56-…196

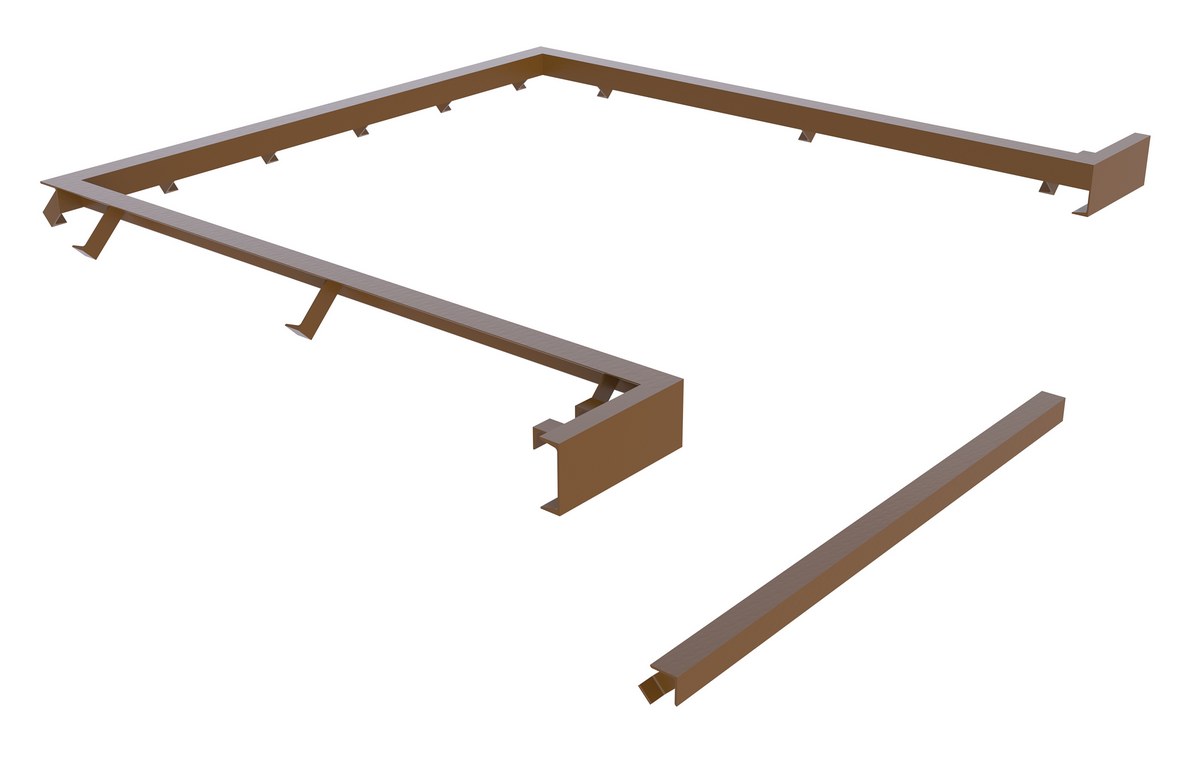

CAS-RU-800 CAS-RU-800Factory Installed Steel Curb Angle Set Usable Dimensions 80-…214

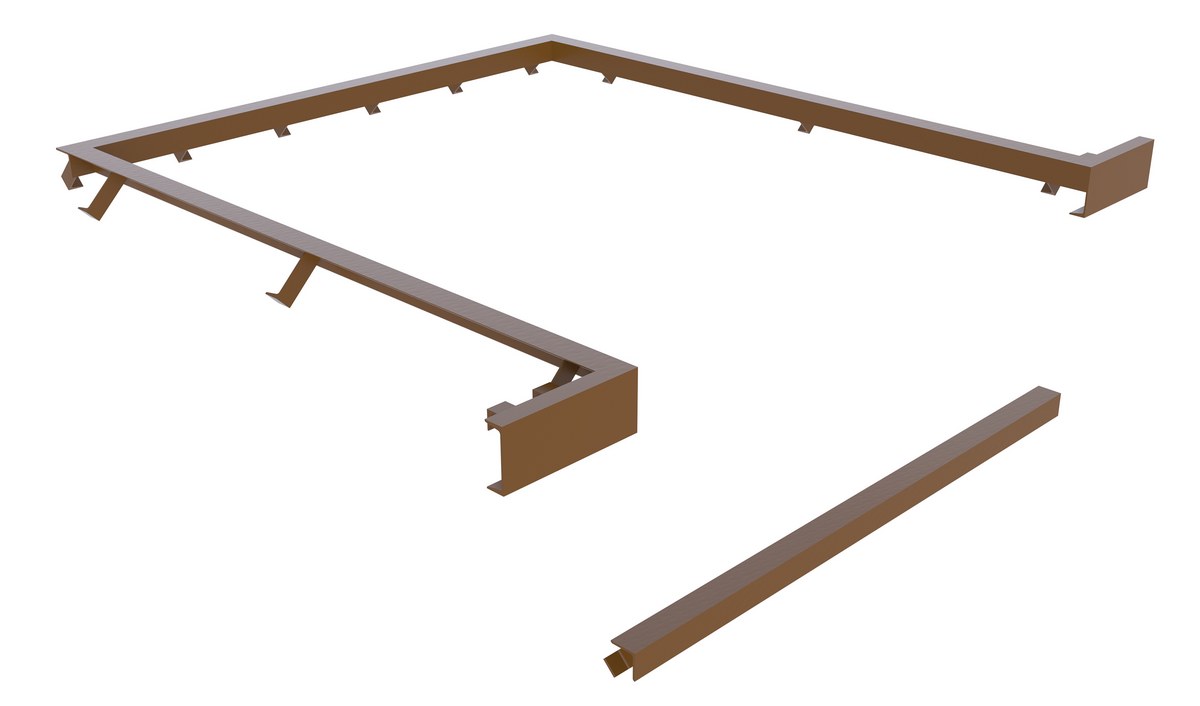

CAS-RU-800-F CAS-RU-800-FFactory Installed Steel Curb Angle Set Usable Dimensions 86-…318
SPO Factory Installed Fabricated Shallow Pit To Fit Dock Leveler…
SPO-RU Factory Installed/Fabricated Shallow Pit 24 In. Minimum Dept…
TA-30K/10 Factory Installed Additional 30,000 Lb. Capacity for 10' Len…
TA-30K/6 Factory Installed Additional 30,000 Lb. Capacity for 6' Leng…
TA-30K/8 Factory Installed Additional 30,000 Lb. Capacity for 8' Leng…
Model Image Description Wt.
(lbs.)
WS-DV Dual vinyl weather stripping (factory installed) -
FI Foam Insulation 6
Capacities to 100,000 pounds available - contact factory
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

RU

WS

Survey Sheets

DOCK%20LEVELER

Engineering Drawings

CAS-RU-600

CAS-RU-800

CAS-RU-800-F

CAS-RU-1000

PU-600-SCB

PU-800-SCB

PU-1000-SCB

RU-600-SCB

RU-800-SCB

RU-800-SCB-F

RU-1000-SCB

SU-600-SCB

SU-800-SCB

SU-800-SCB-F

SU-1000-SCB

Testing Certificates

BE

CAS-RU-1000

CAS-RU-600

CAS-RU-800

CAS-RU-800-F

PU-1000-SCB

PU-600-SCB

PU-800-SCB

RU-1000-SCB

RU-600-SCB

RU-800-SCB

RU-800-SCB-F

SPO

SPO-RU

SU-1000-SCB

SU-600-SCB

SU-800-SCB

SU-800-SCB-F

SDS Sheets


Hydraulic Oil
SU-1000-SCB SDS


Hydraulic Oil
SU-600-SCB SDS


Hydraulic Oil
SU-800-SCB SDS


Hydraulic Oil
SU-800-SCB-F SDS

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

More From Dock Levelers





Truck Actuated Dock Levelers




Truck Actuated Dock Levelers are designed to provide a seamless and automatic way to bridge the gap between a truck and a loading dock, ensuring a smooth transition for loading and unloading goods. They are a fully automatic loading ramp where there is no dock attendant needed. It consists of a lift by-pass for safety and toe guards on each side. As the truck backs against the twin actuating arms (bumpers) it pushes the carriage back. The dock and trailer must be raised for this process to work. As the carriage goes back the deck goes up. When the carriage bumpers contact the dock, the deck floats down to rest on the trailer. When the truck pulls out, the deck returns to level supported position automatically.

  • 55,000 psi high strength checker plate deck
  • 12" long lip (extends 6-1/2" into truck)
  • Toeguards on each side
  • (2) Molded Bumpers; 5"W x 16"H x 2"D
  • Lift By-Pass for Safety
  • Service range of 12" above through 8" below dock

Model # Description Attributes Net Wt.
(lbs)
PU-1000-SCB PU-1000-SCBSteel Truck Actuated Dock Leveler Front of Dock 10 Ft. Length 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		3203
PU-600-SCB PU-600-SCBSteel Truck Actuated Dock Leveler Front of Dock 6 Ft. Length 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2394
PU-800-SCB PU-800-SCBSteel Truck Actuated Dock Leveler Front of Dock 8 Ft. Length 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2830

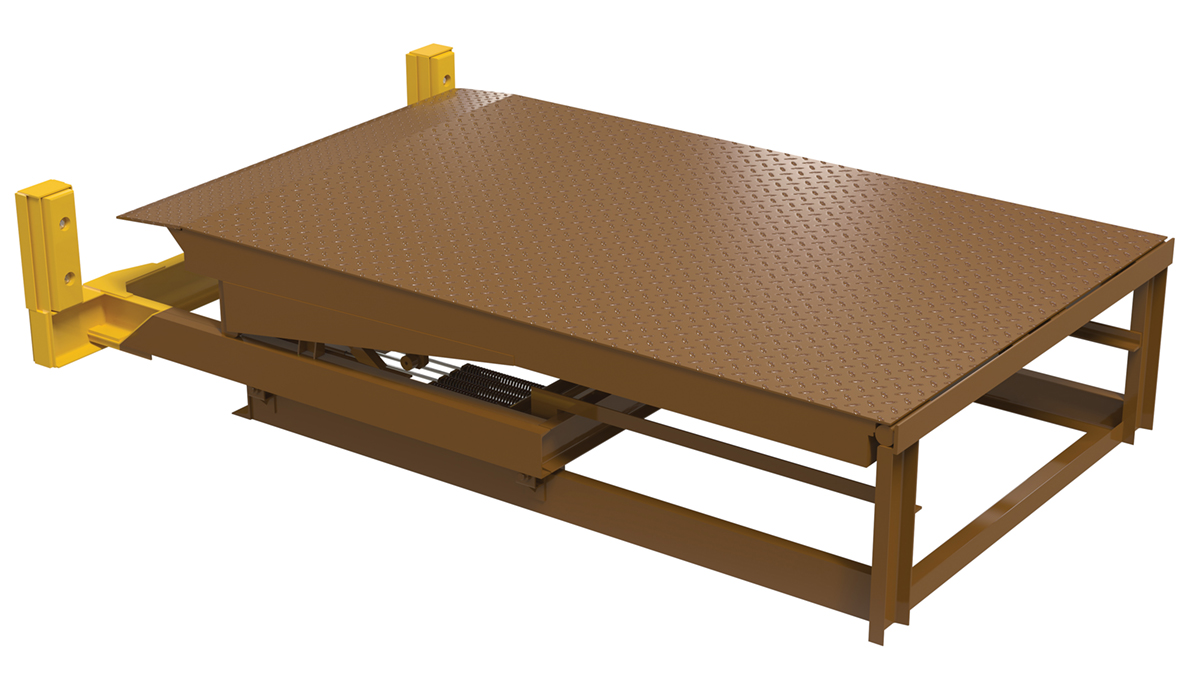

RU-1000-SCB RU-1000-SCBSteel Truck Actuated Dock Leveler 131-1/16 In. x 88 In. x 27-1/2 In. 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2730

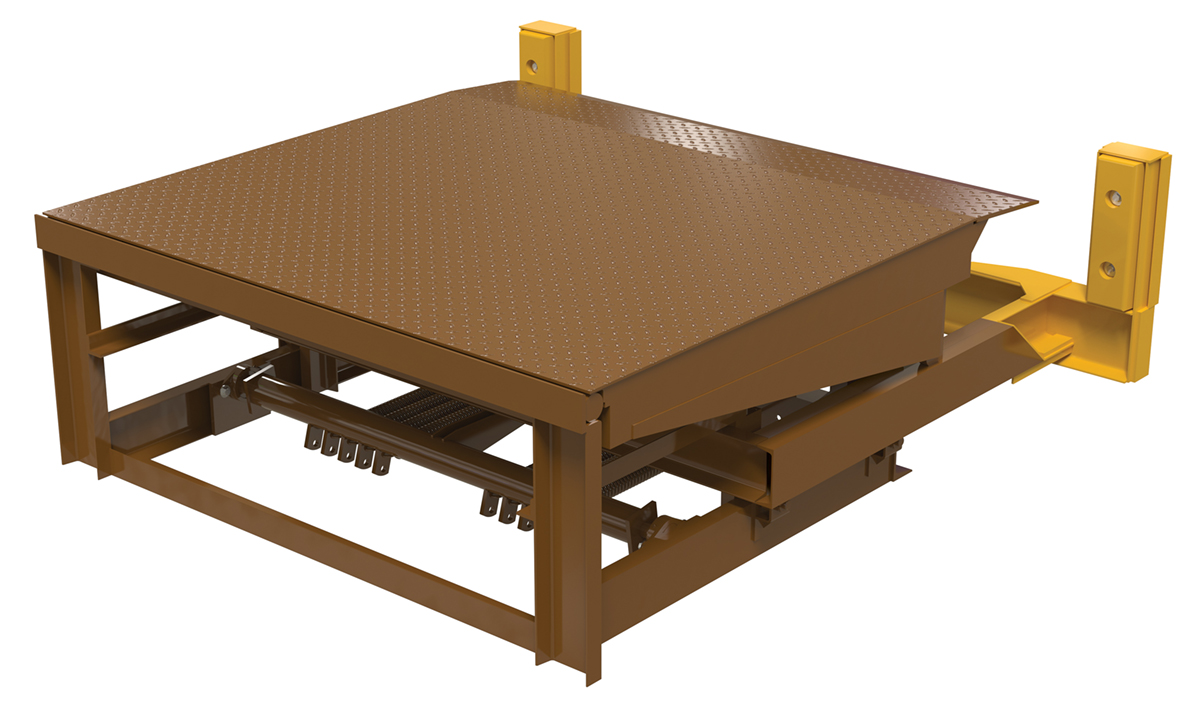

RU-600-SCB RU-600-SCBSteel Truck Actuated Dock Leveler 85-1/4 In. x 88 In. x 27-1/2 In. 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2056

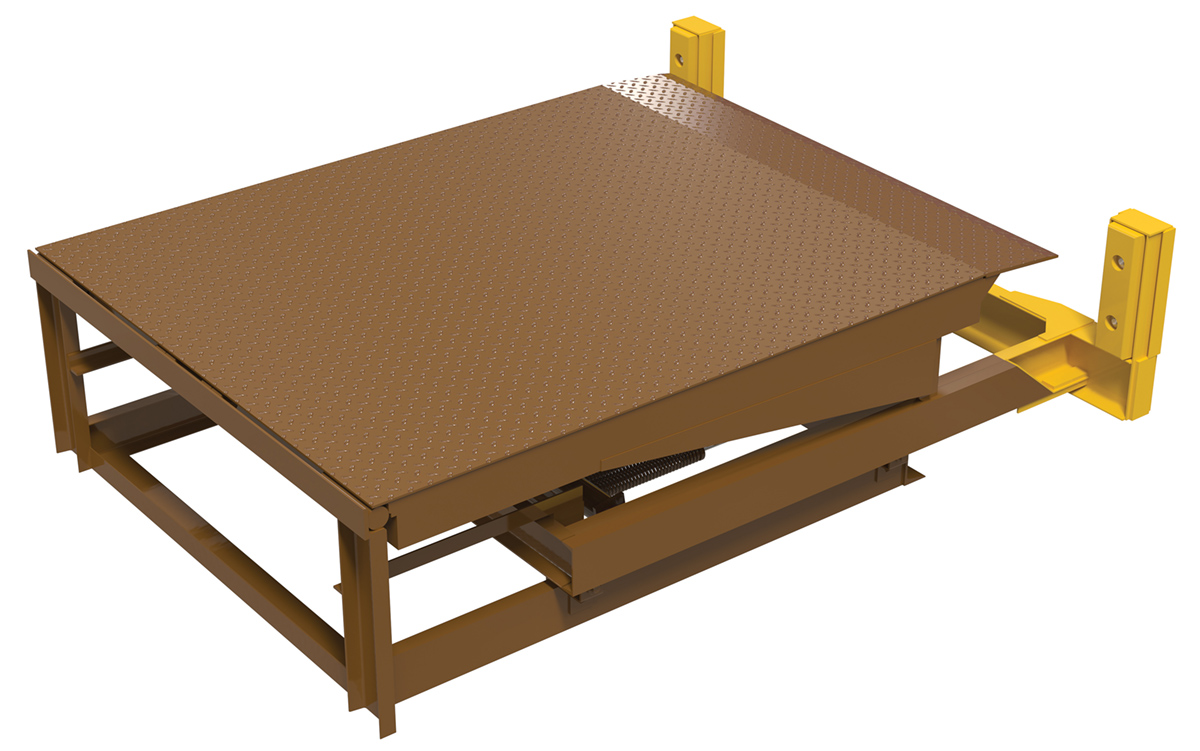

RU-800-SCB RU-800-SCBSteel Truck Actuated Dock Leveler 107-1/4 In. x 88 In. x 27-1/2 In. 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2425

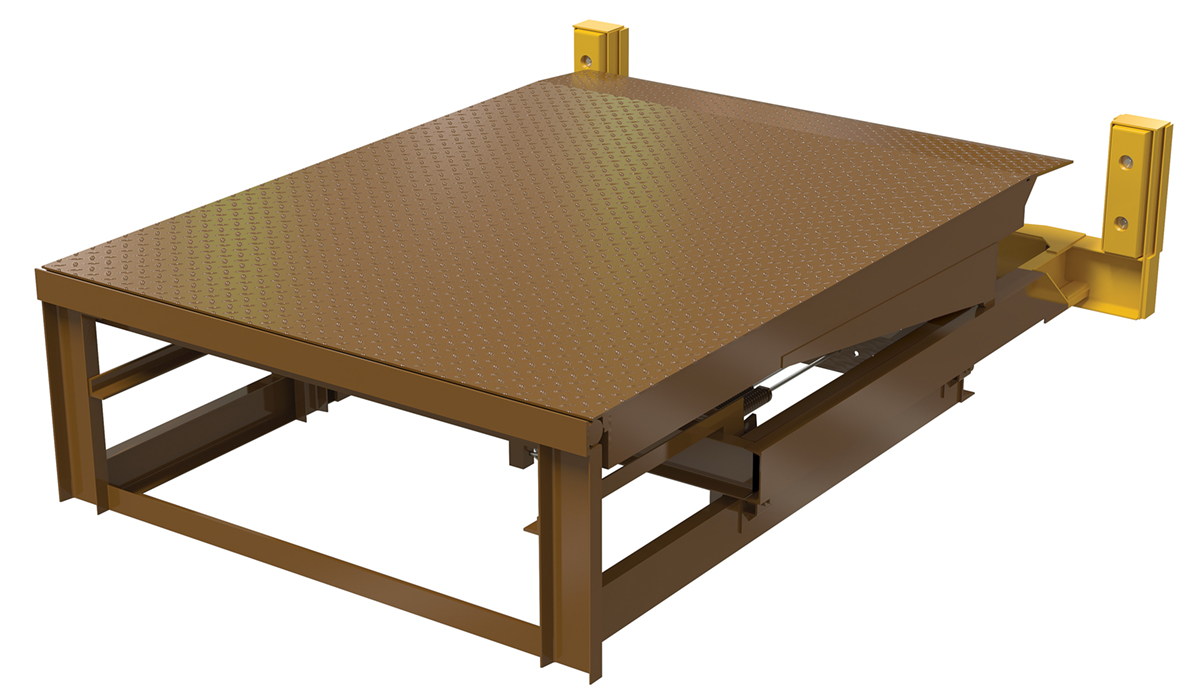

RU-800-SCB-F RU-800-SCB-FSteel Truck Actuated Dock Leveler 113-1/4 In. x 88 In. x 27-1/2 In. 20000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2475

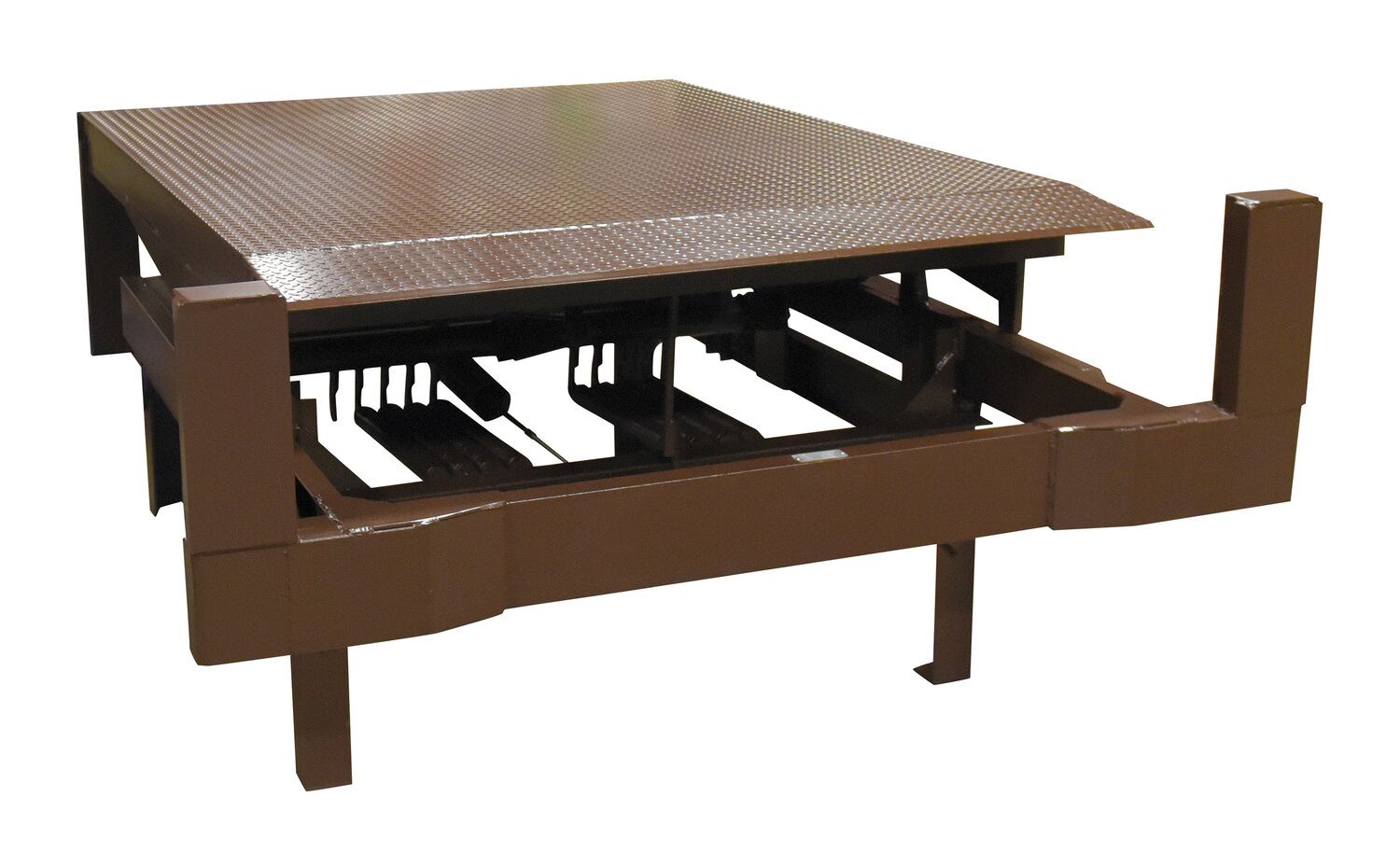

SU-1000-SCB SU-1000-SCBSteel Actuated Dock Leveler with Legs 131 In. x 88 In. 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2821
SU-600-SCB SU-600-SCBSteel Actuated Dock Leveler with Legs 84-1/2 In. x 88 In. 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2147
SU-800-SCB SU-800-SCBSteel Actuated Dock Leveler with Legs 107-1/4 In. x 88 In. 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2516
SU-800-SCB-F SU-800-SCB-FSteel Actuated Dock Leveler with Legs 113-1/4 In. x 88 In. 20,000 Lb. Capacity BrownUniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5		2592

Options


Model Image Description Wt.
(lbs.)
WS-DV Dual vinyl weather stripping (factory installed) -
FI Foam Insulation 6
Capacities to 100,000 pounds available - contact factory
