Electric/Hydraulic Box Dumpers460V 3-Phase Standard

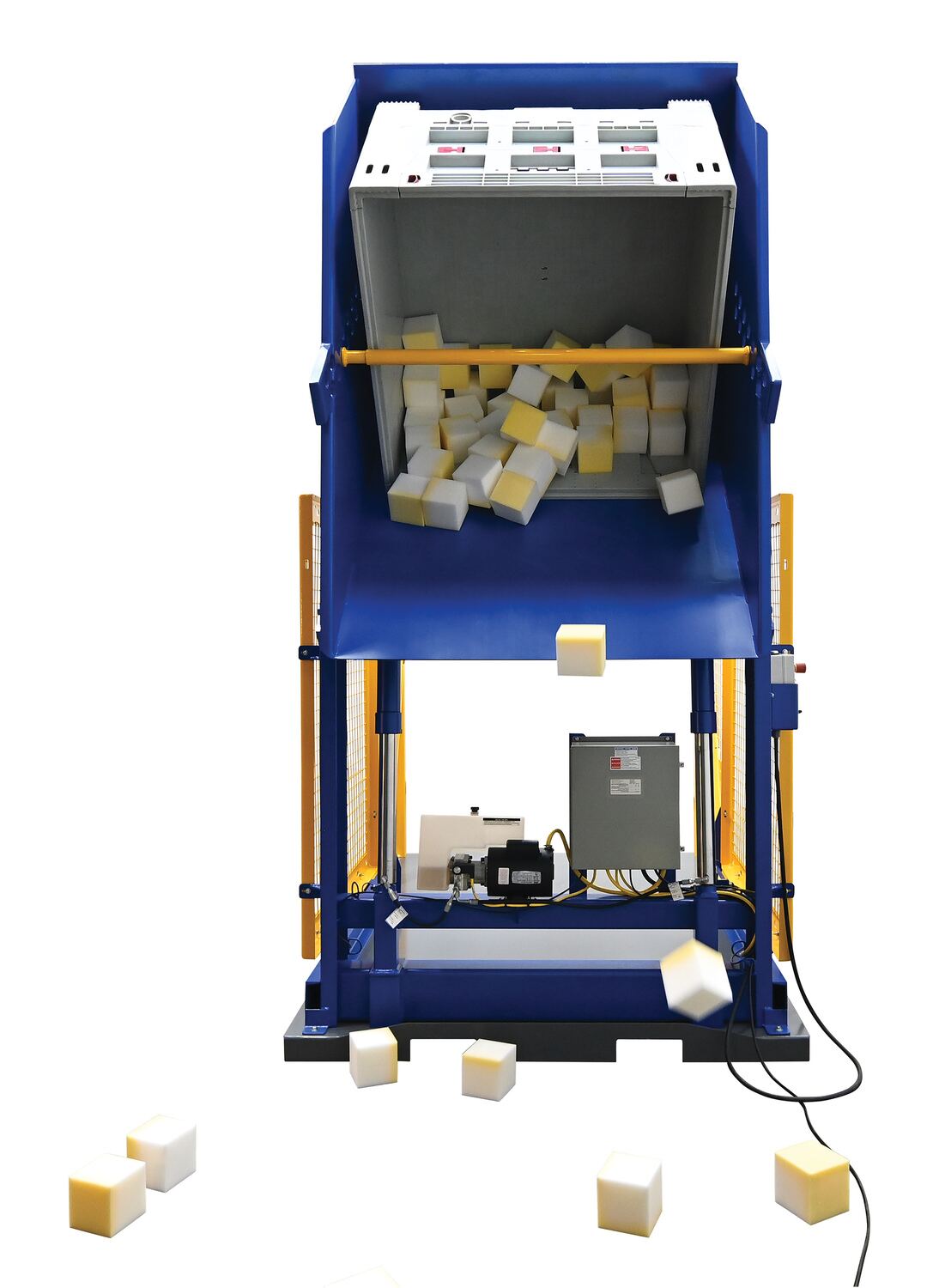

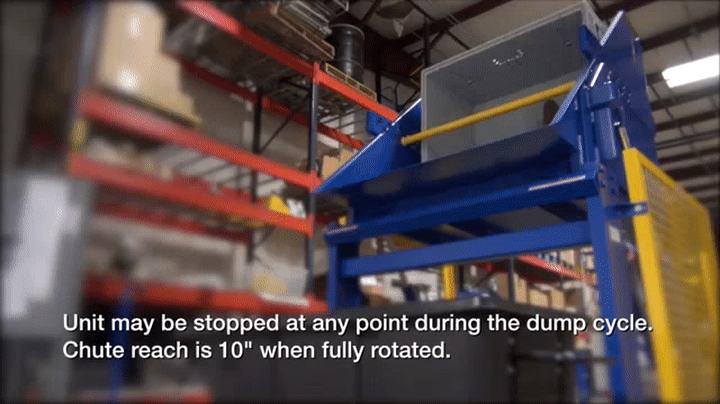

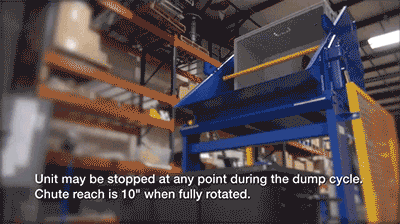

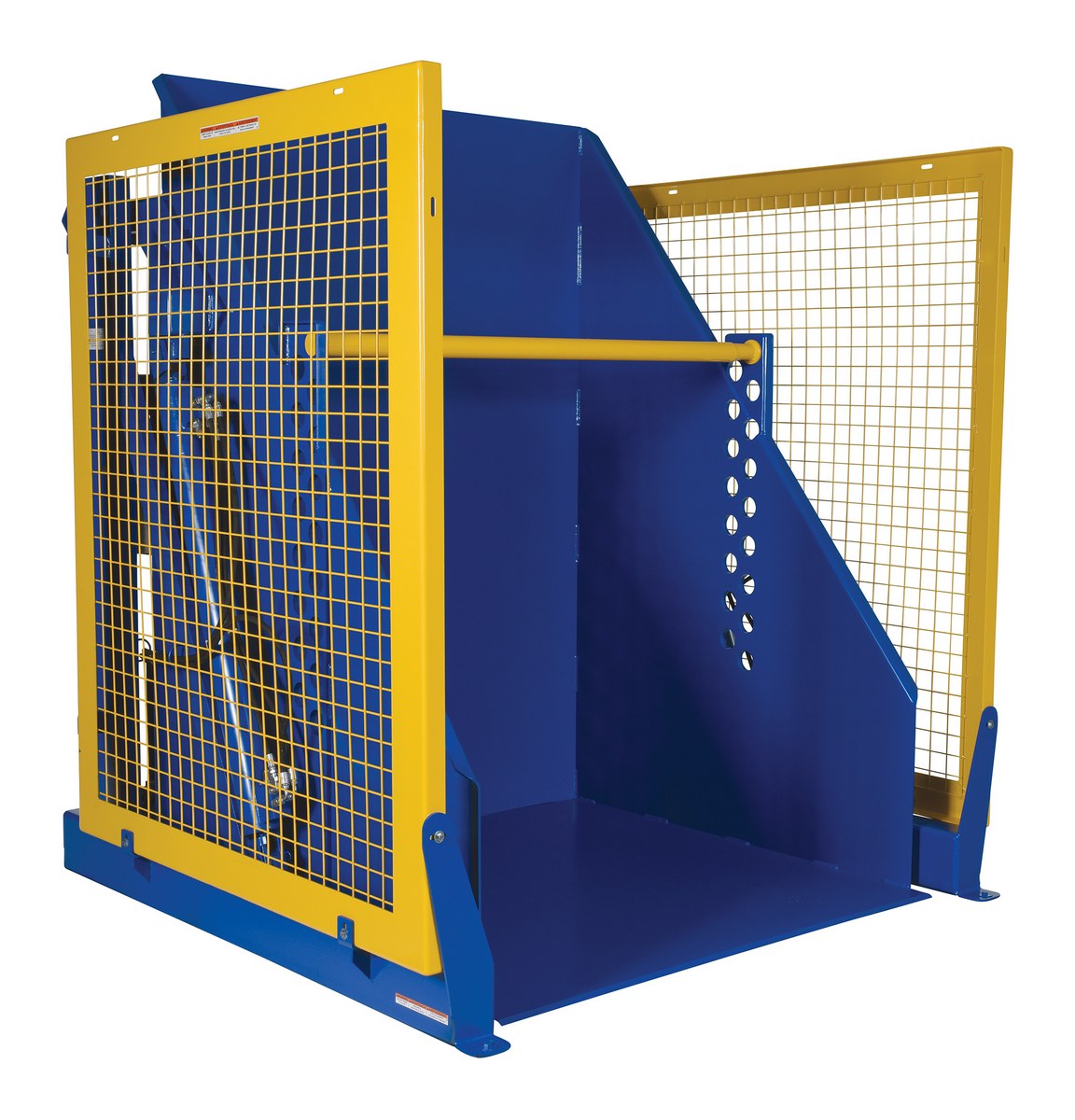

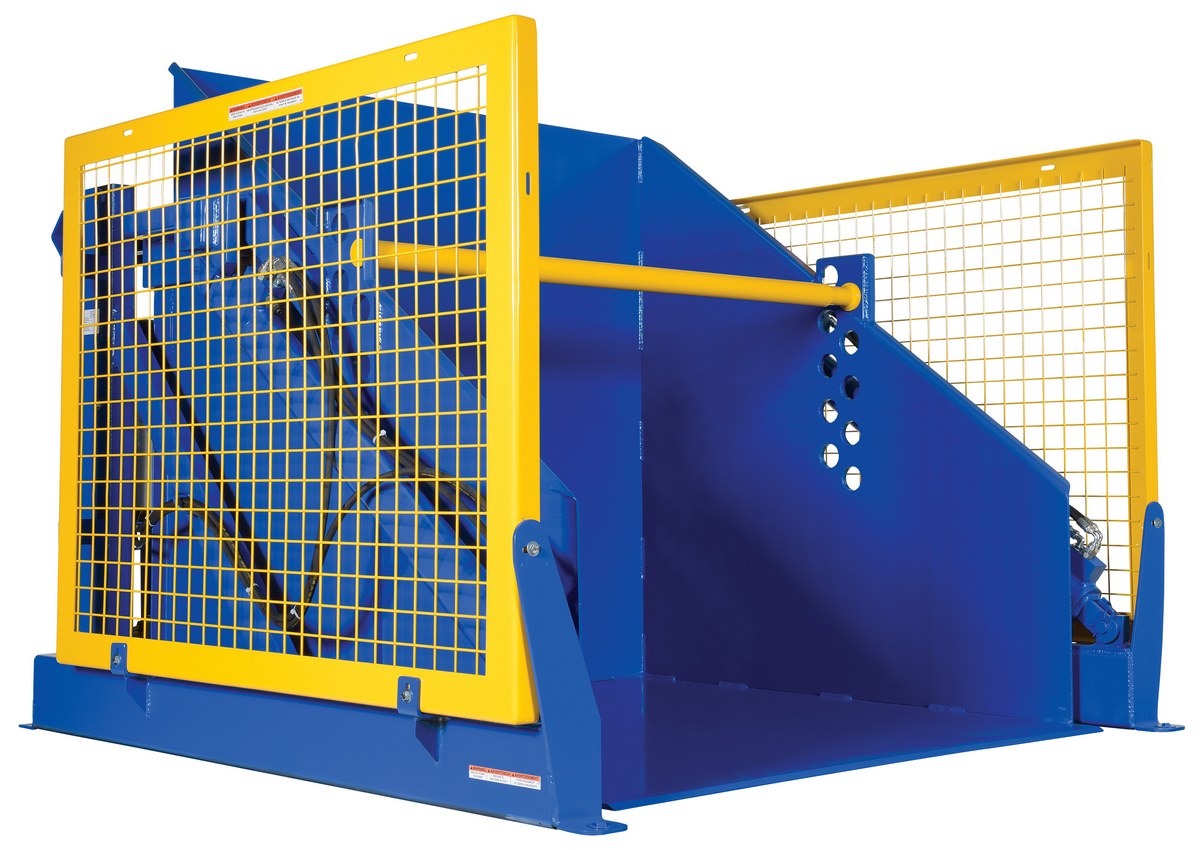

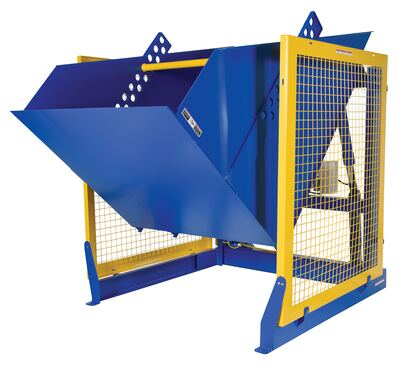

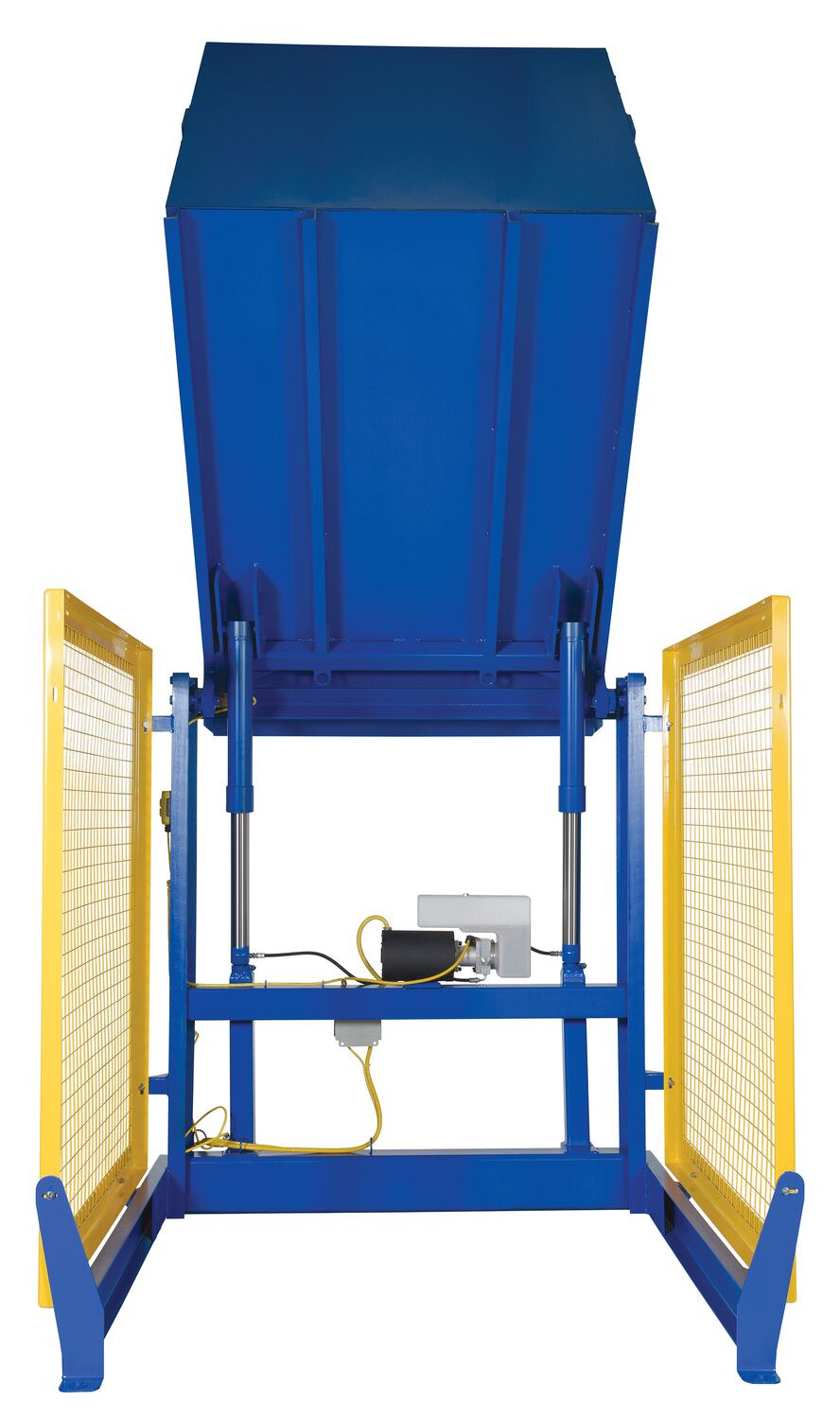

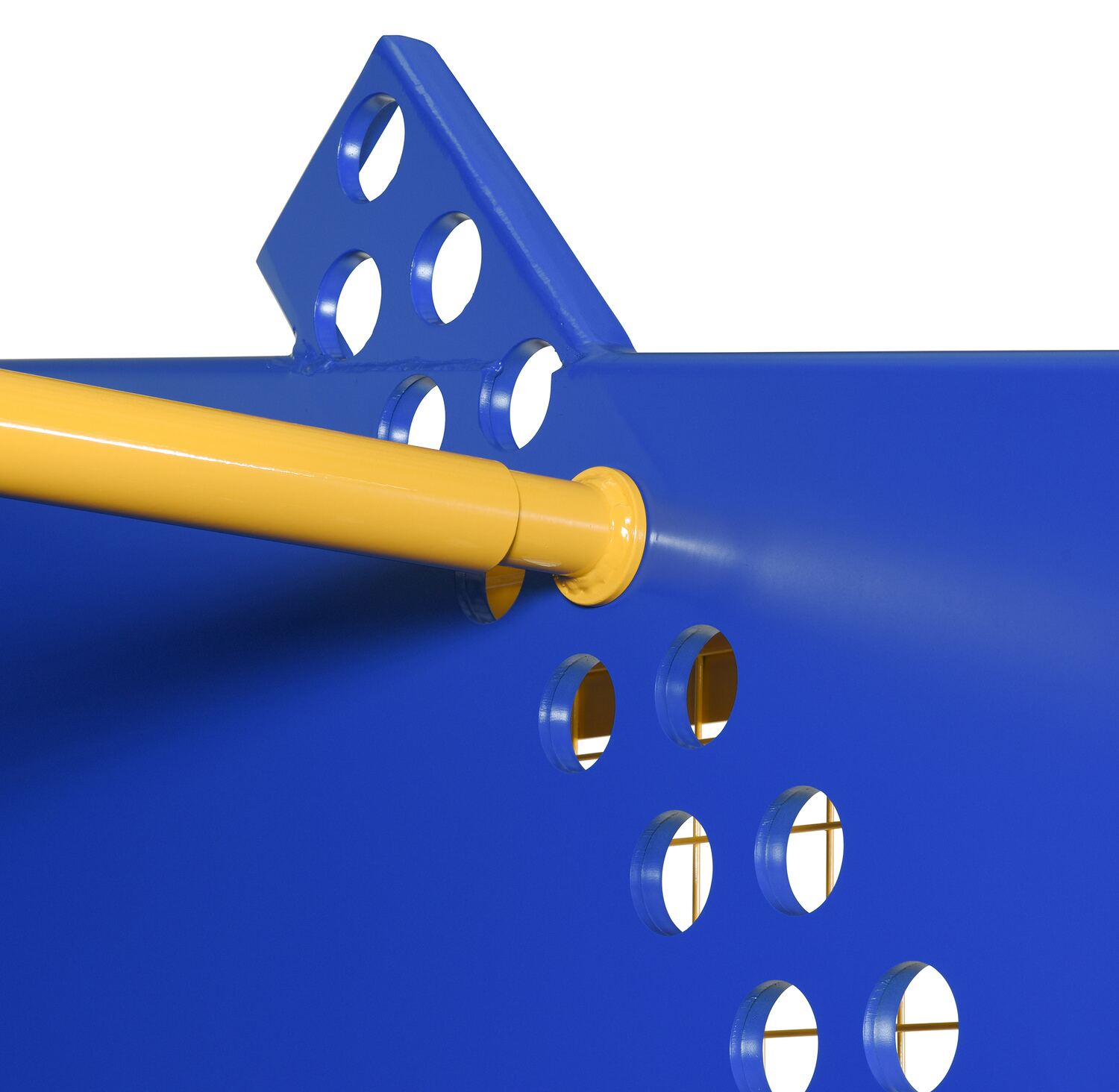

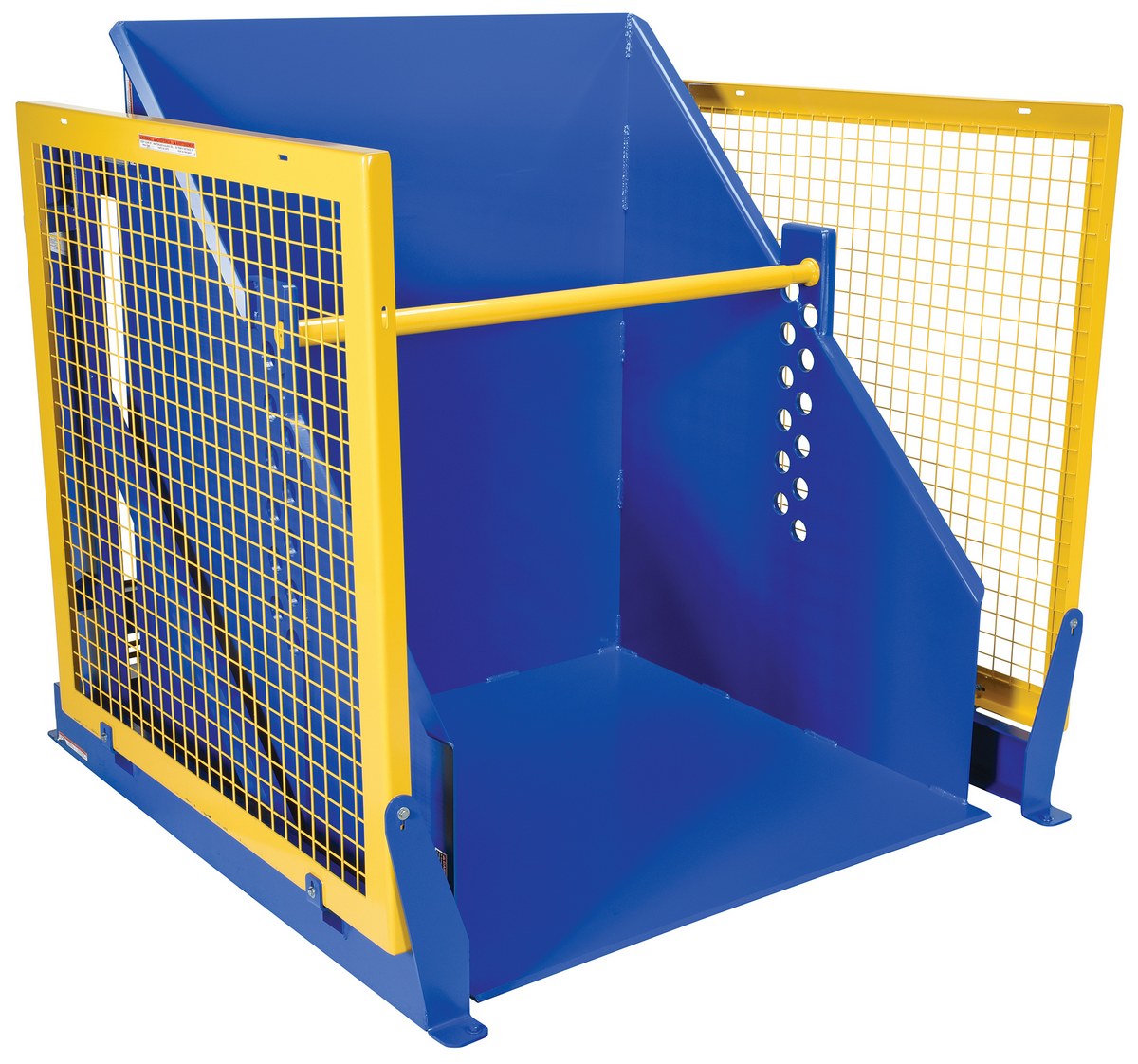

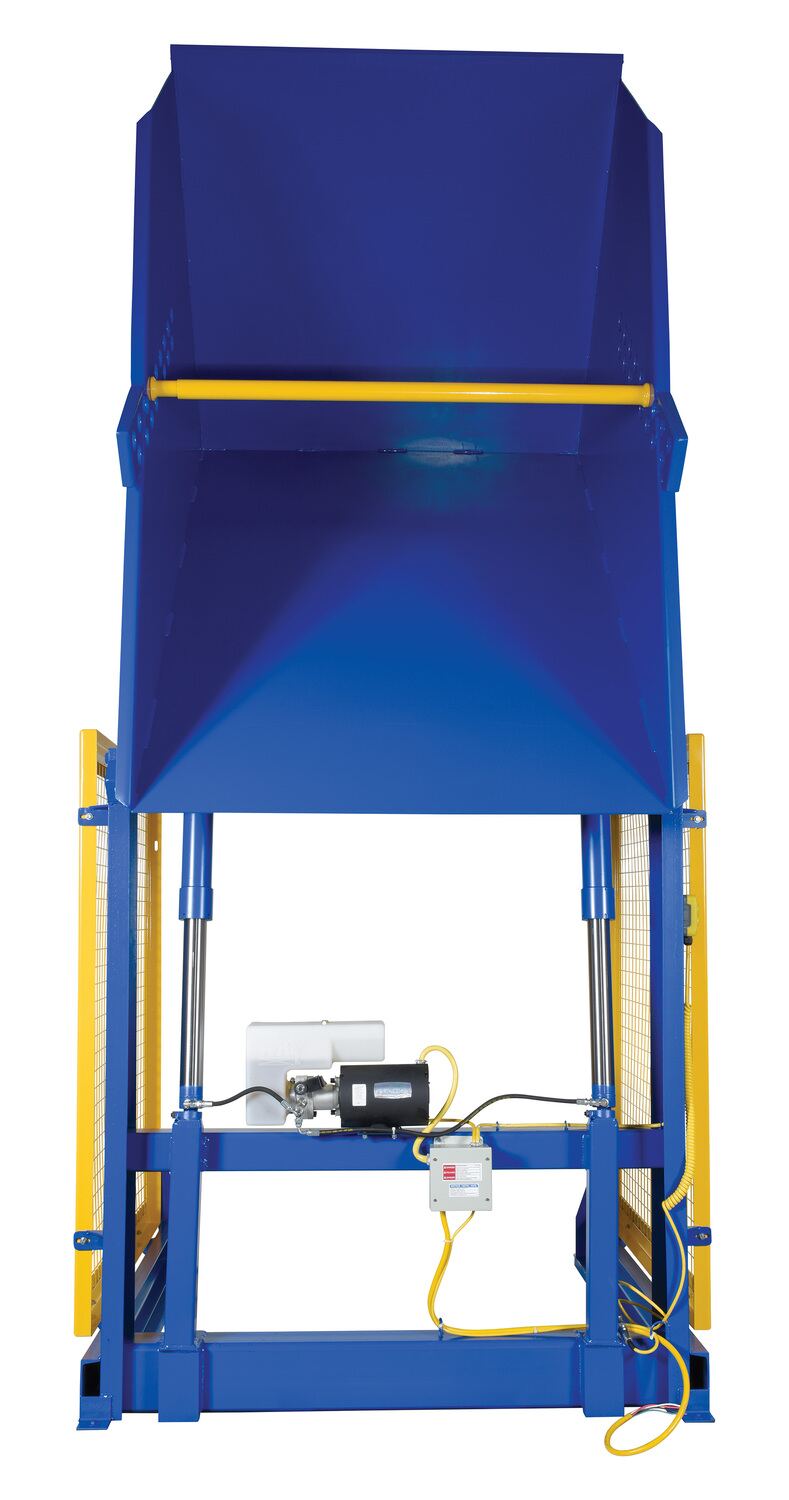

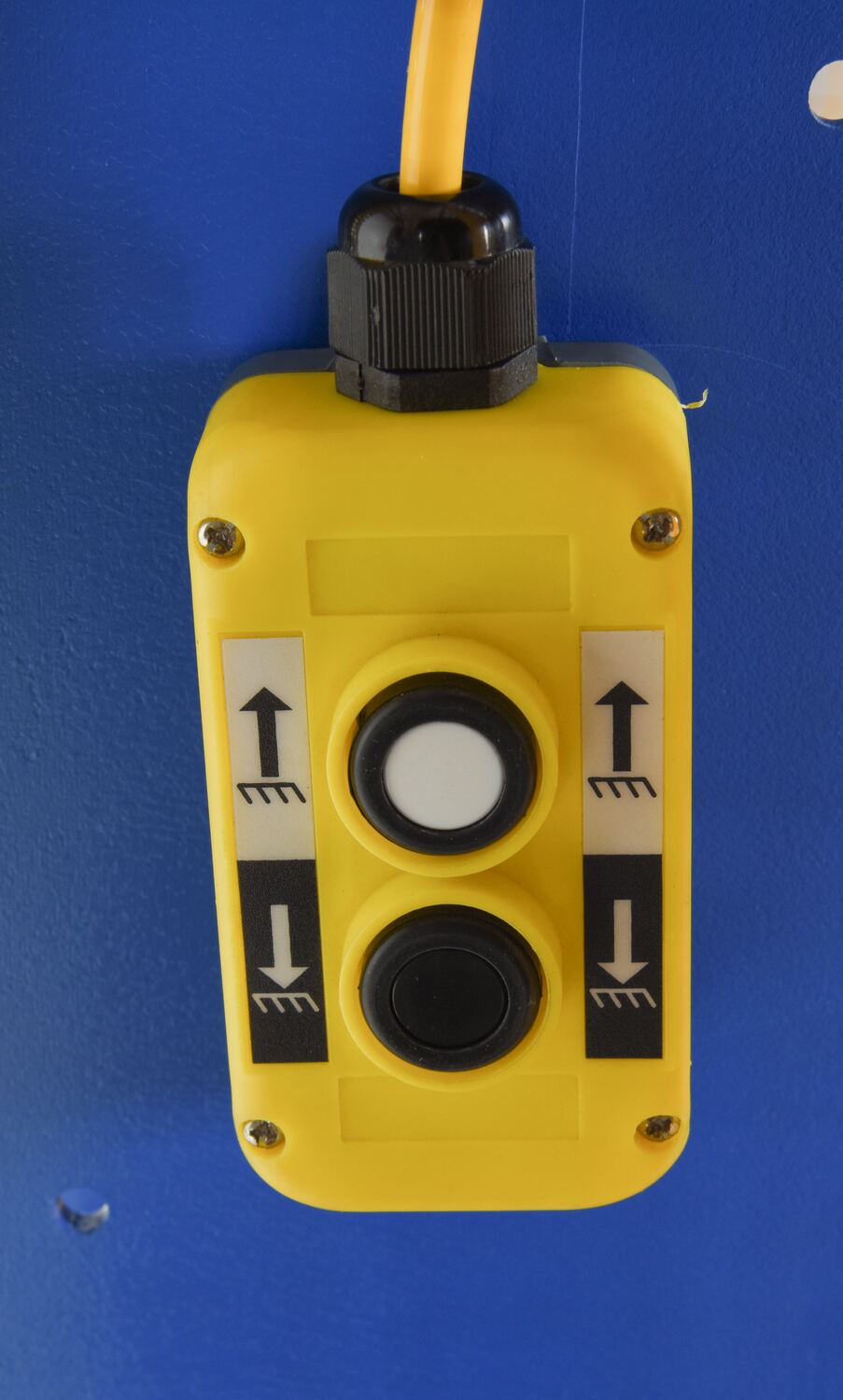

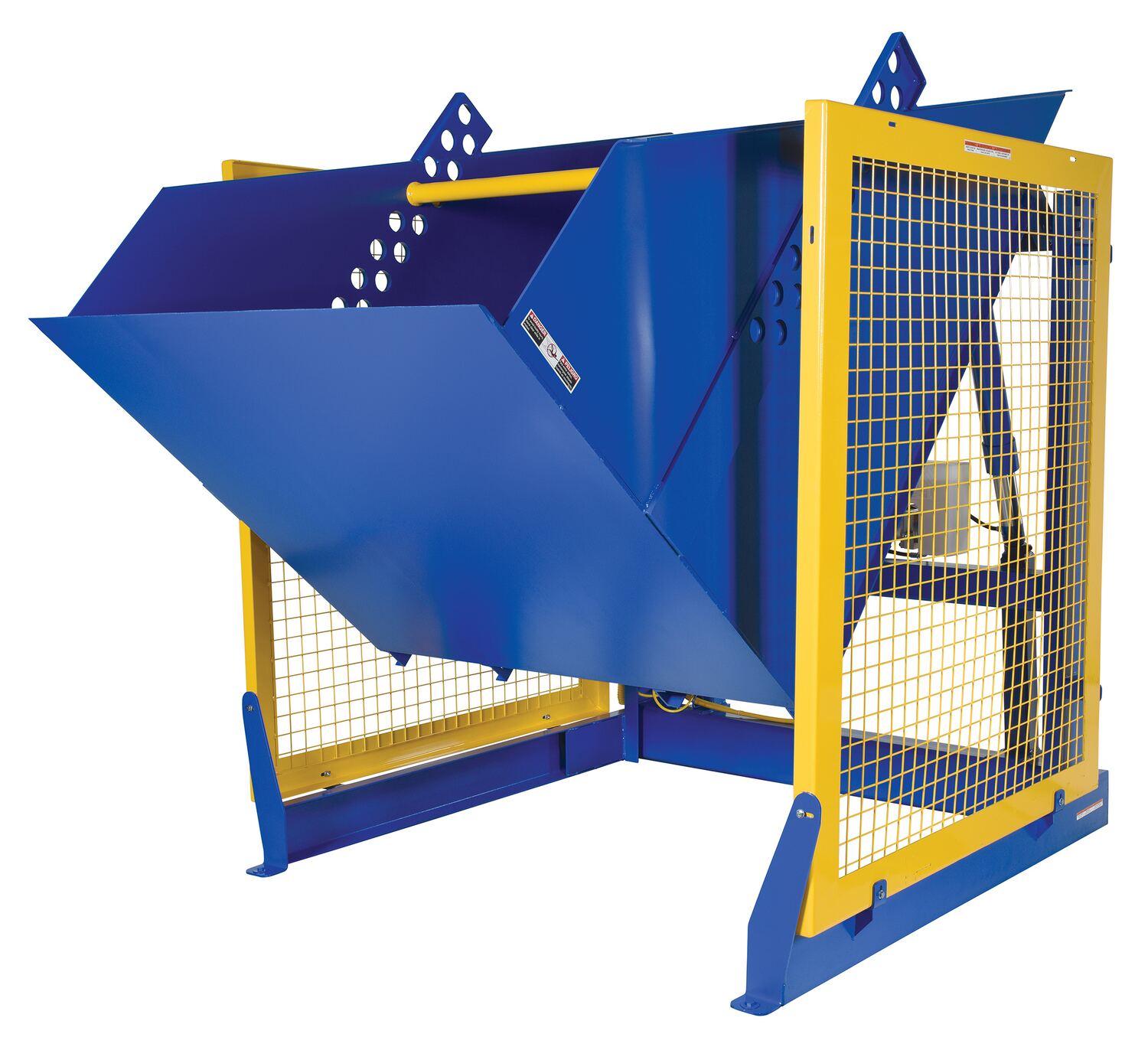

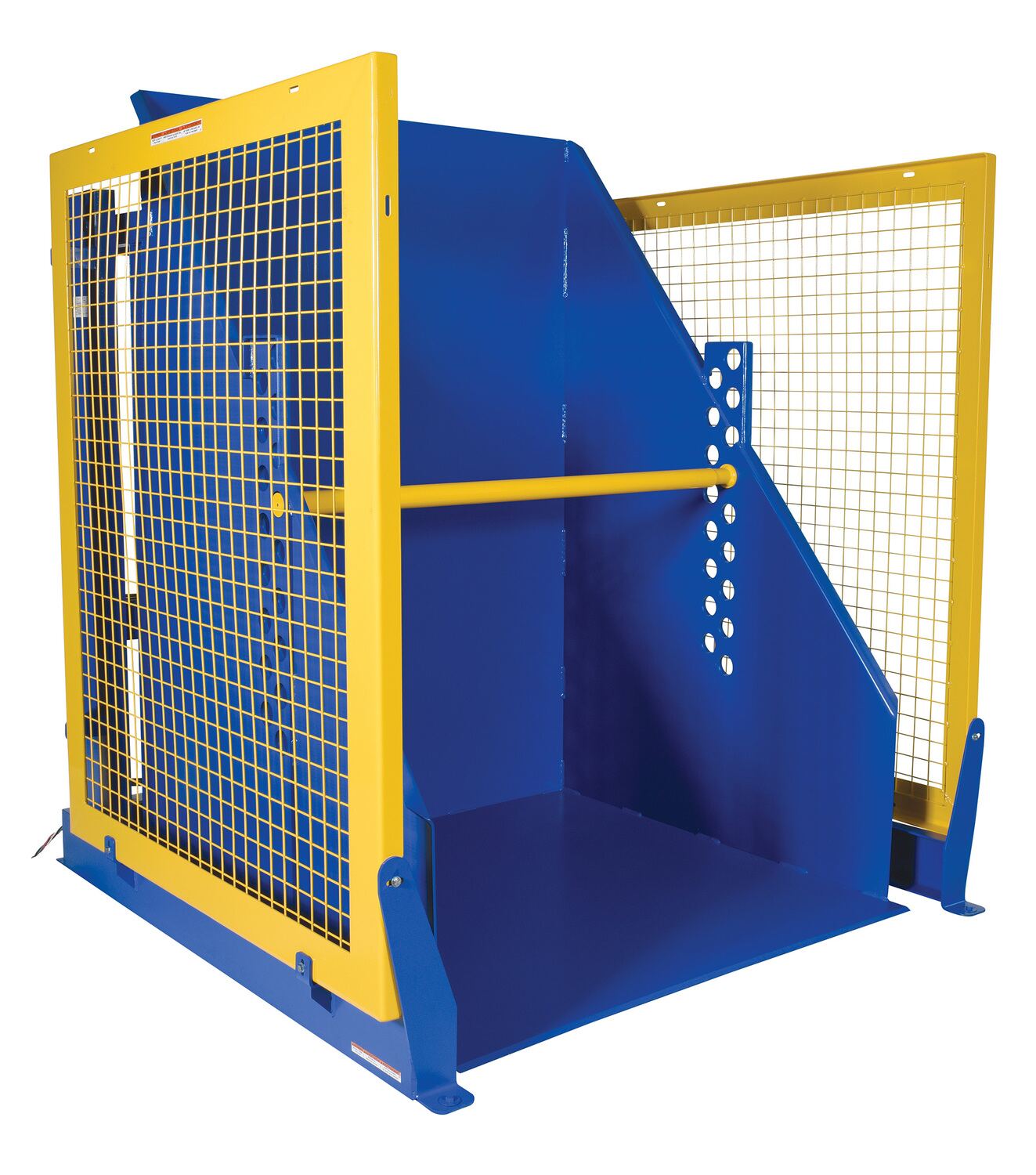

Designed for controlled dumping of material from boxes, crates, and other types of containers. Lowered height of only 3/8" allows for pallet truck loading and unloading. Retaining bar adjusts every 2" to accommodate a wide range of container heights. Each dump height has a hold down range, see chart. Maximum rotation is 135 degrees yielding a 45 degree dump angle. Unit may be stopped at any point during the dump cycle. Chute reach is 10" when fully rotated. Internal 2HP power unit and hand held control standard (5.5 HP power unit on 6,000 pound models). Protective mesh side screens included. Heavy-duty welded steel construction. Standard duty cycle equals maximum 15 starts per hour in a normal environment. Duty cycle is calculated by starts per hour or number of times "up" button is pushed. Jogging (bouncing of the chute) is NOT recommended.
Features:
- Industrial quality, 56 frame, 2 HP motor delivers best torque with minimal amperage draw and maximum life.
- Voltage - 460 Volt, 60 cycle, 3 phase. Options available

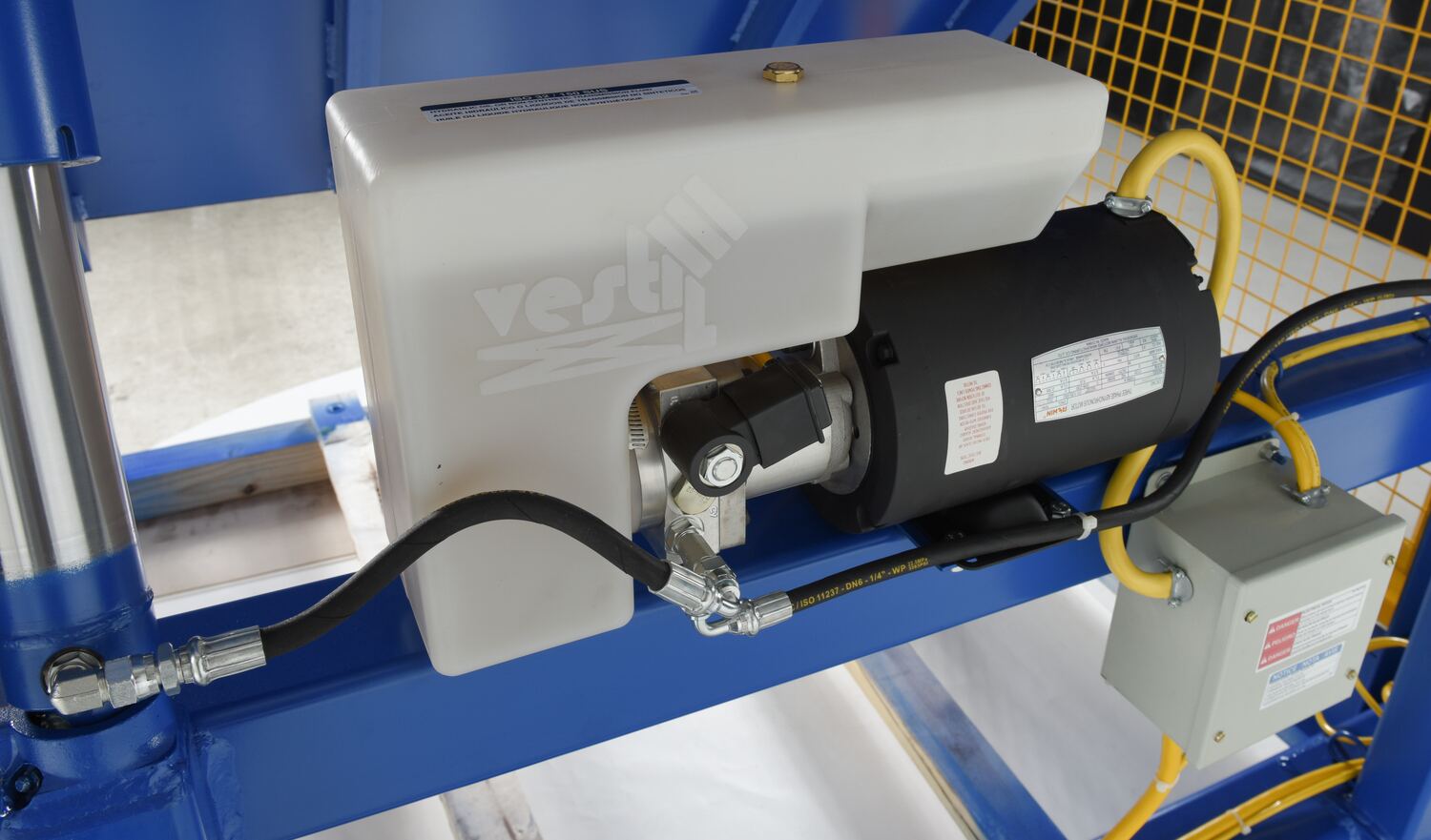

- Cast iron pump with integral valving including pressure relief valve, check valve, down solenoid valve and pressure compensated flow control valve.
- 24 Volt, fused control circuit to protect operator.
- Hydraulic Actuators have internal safety velocity fuse w/stainless steel spring for emergency lockup.
- Welding to meet A.W.S.

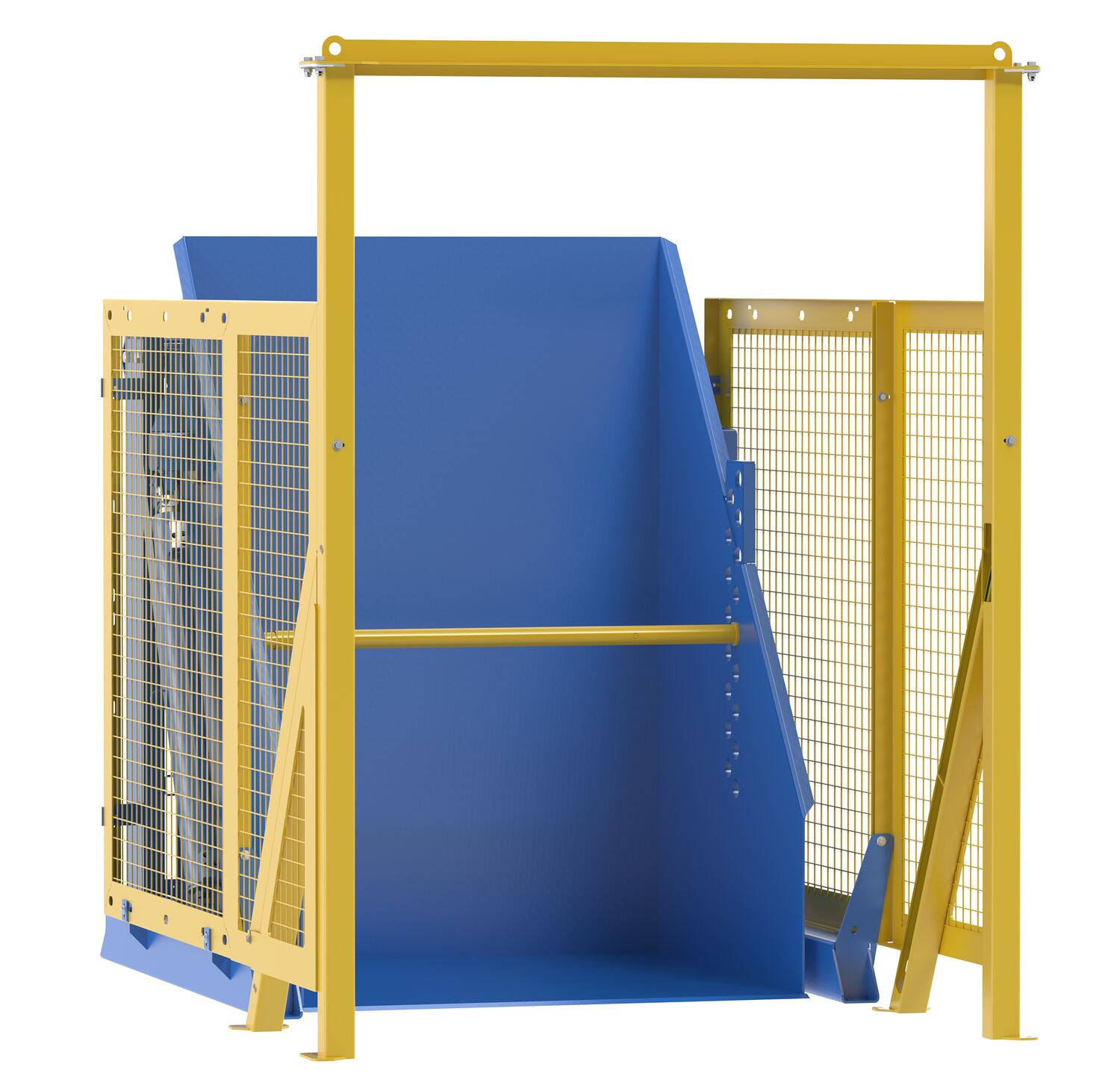

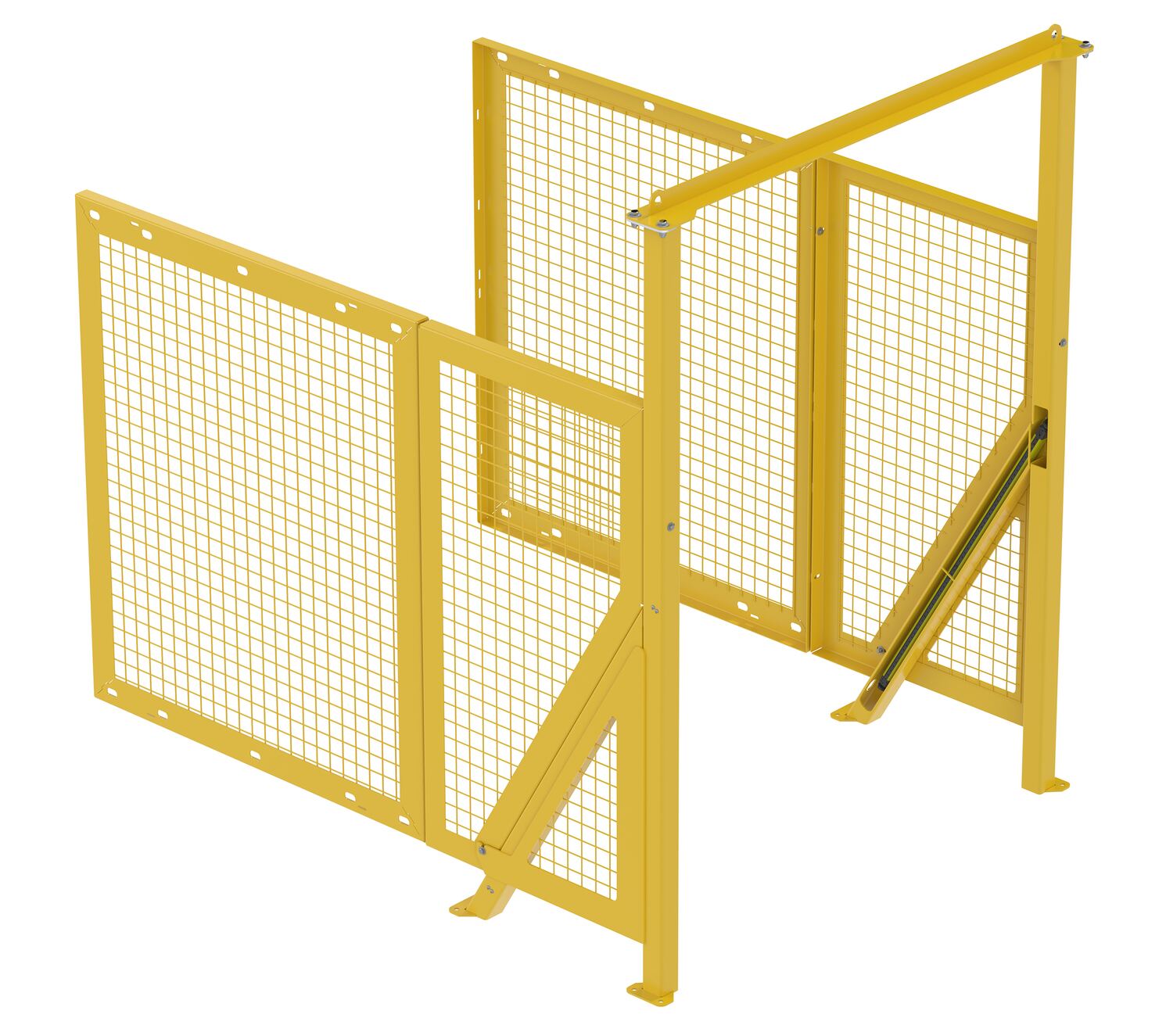

Safety Light Curtain Option - model HBD-SLC
Are you looking to improve your workplace safety? Are you tired of the ordinary and want something modern? If so, try a safety light curtain! Traditional safety gates need constant interaction, which wreak havoc on production efficiencies. On the contrary, the safety light curtain is so hands off; one might forget that it's even there! The photoelectric sensor of the light curtain keeps both personnel and work areas safe, while taking the element of human error away. If one or more of the light beams is interrupted the automatic safety switch will engage causing the operation of the box dumper to shut down. With this curtain protecting the entrance to a specific work area, the layout continues to give ample room for the box dumper to maneuver and operate in its natural way! See more details under OPTIONS tab below.
Electric Hydraulic Trash Can Dumpers
Multi-Purpose Tote Dumpers
Trash CansAdditional Models In This Family
HBD-2-36
HBD-4-48
HBD-4-60
HBD-4-48
HBD-2-48
HBD-2-60
HBD-6-36
HBD-6-60
HBD-SLC
HBD-4-36
HBD-4-48
HBD-4-60
HBD-GATE-48
HBD-4-48
HBD-2-36
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

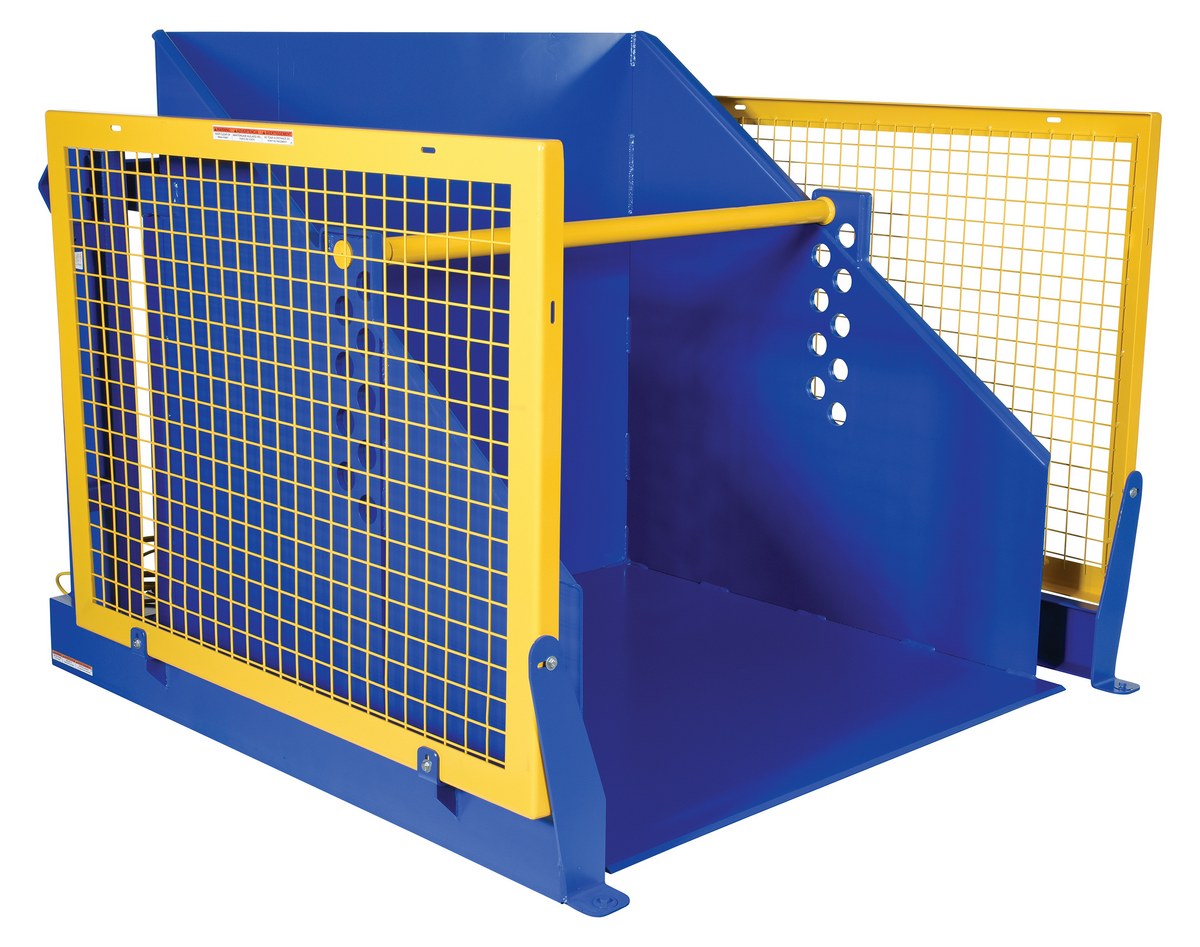

| HBD-2-36 | |  | 1 Year Limited Warranty | Steel Electric Hydraulic Box Dumper 36 In. Dump Height 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Dump Height (in.): 36 | 1787 | |

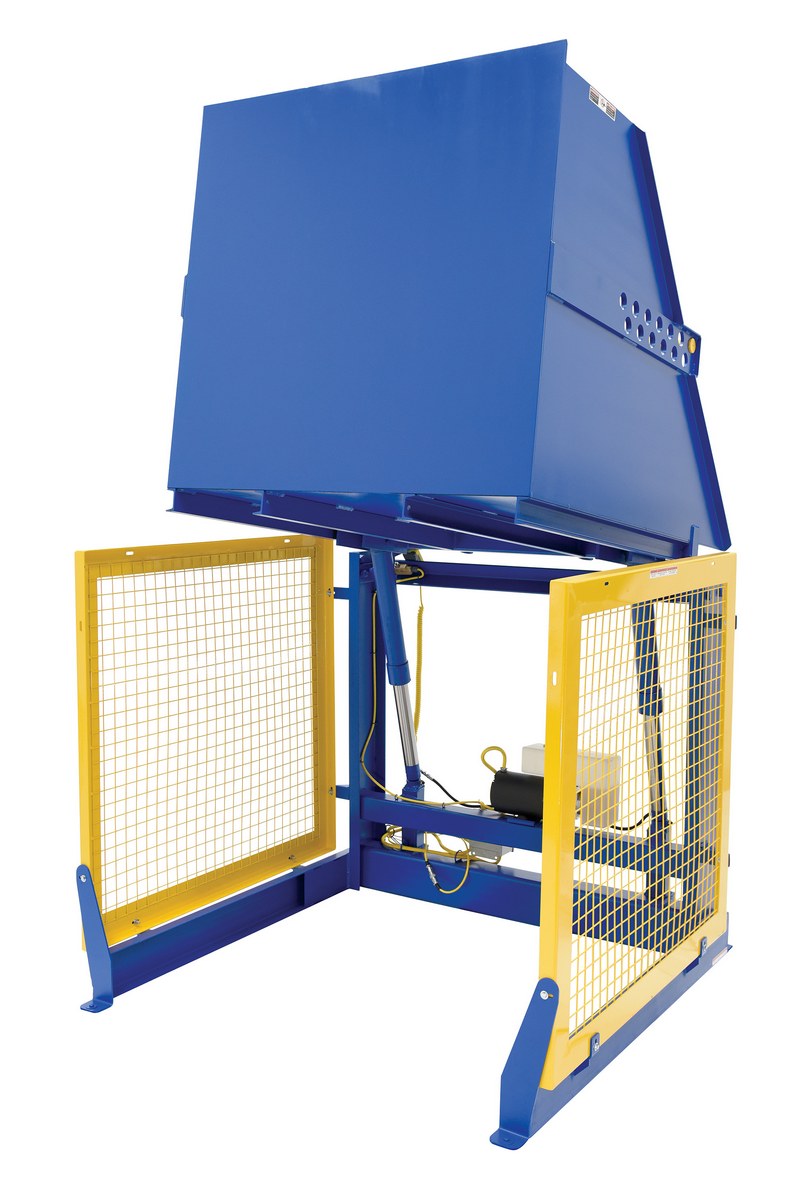

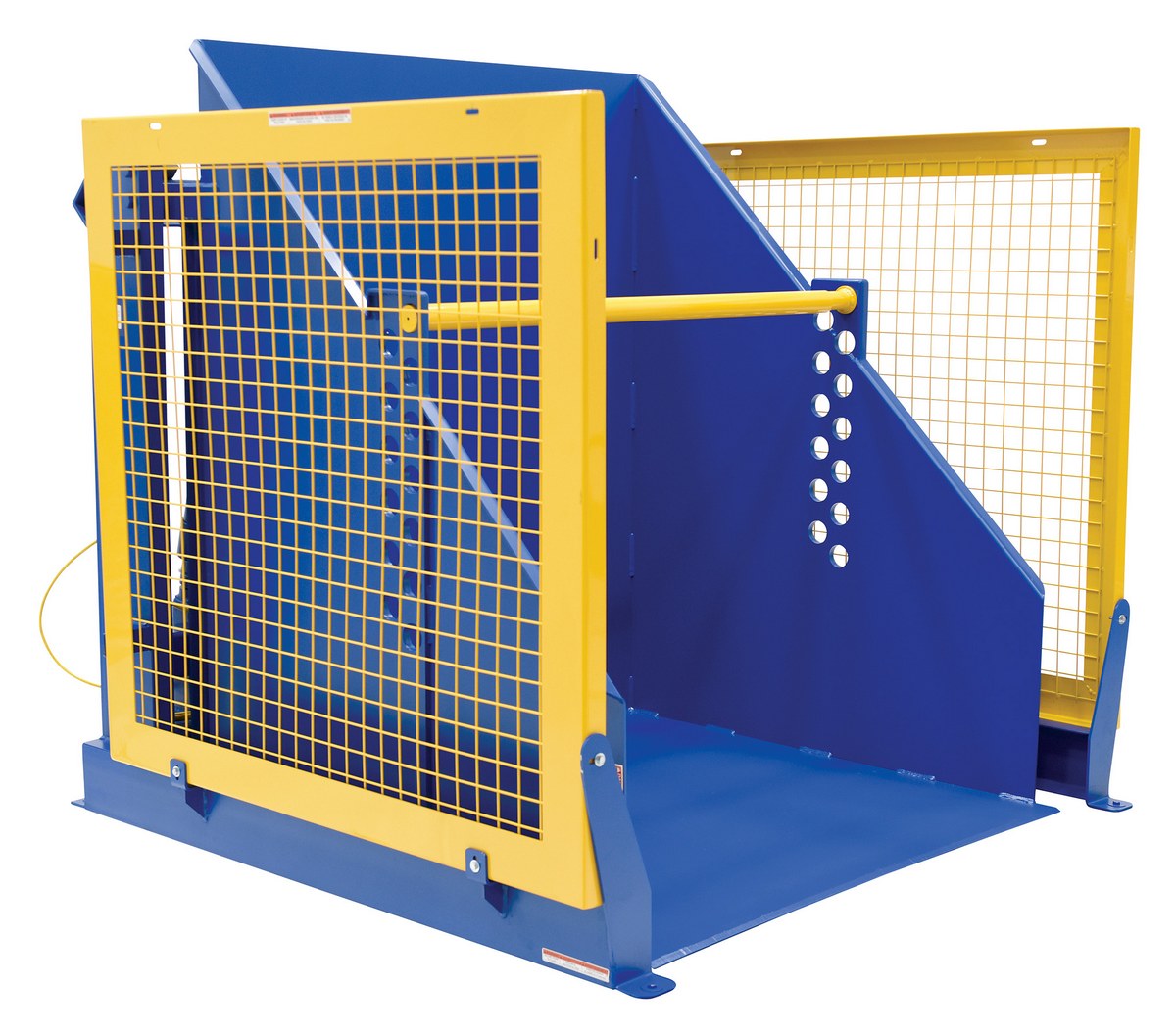

| HBD-2-48 | |  | 1 Year Limited Warranty | Steel Electric Hydraulic Box Dumper 48 In. Dump Height 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Dump Height (in.): 48 | 1948 | |

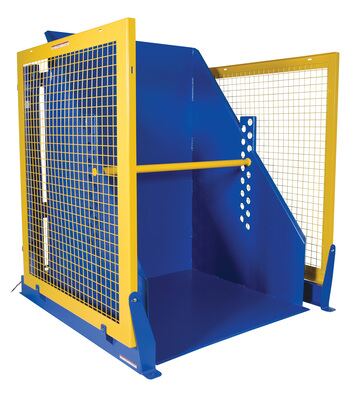

| HBD-2-60 | POPULAR |  | 1 Year Limited Warranty | Steel Electric Hydraulic Box Dumper 60 In. Dump Height 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Dump Height (in.): 60 | 2092 | |

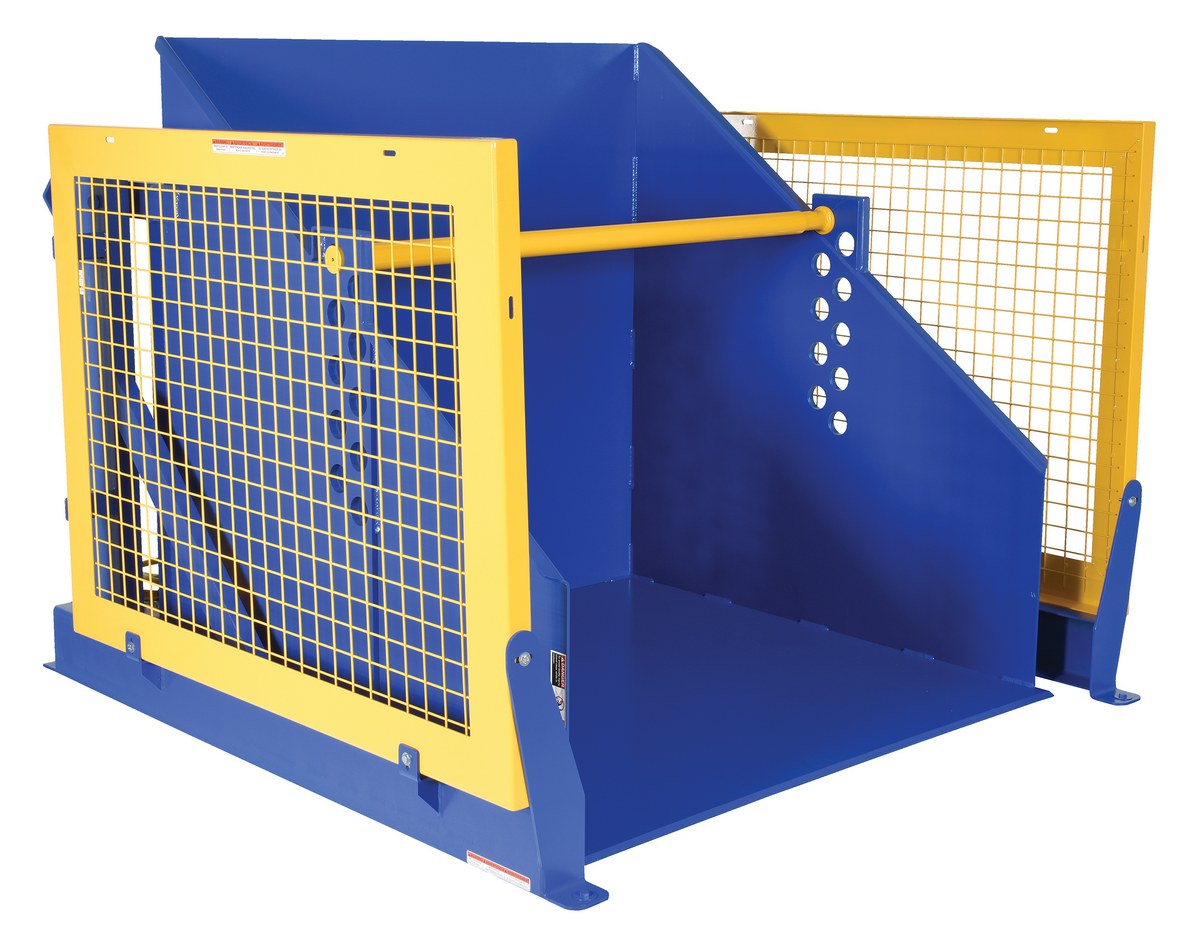

| HBD-4-36 | |  | 1 Year Limited Warranty | Steel Electric Hydraulic Box Dumper 36 In. Dump Height 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Dump Height (in.): 36 | 1721 | |

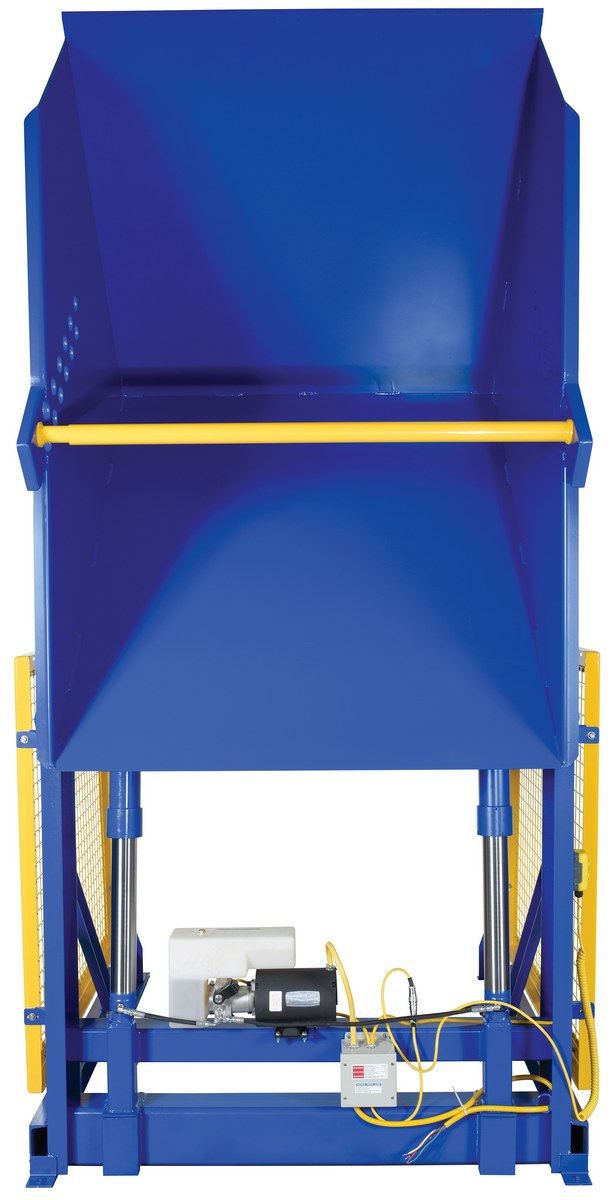

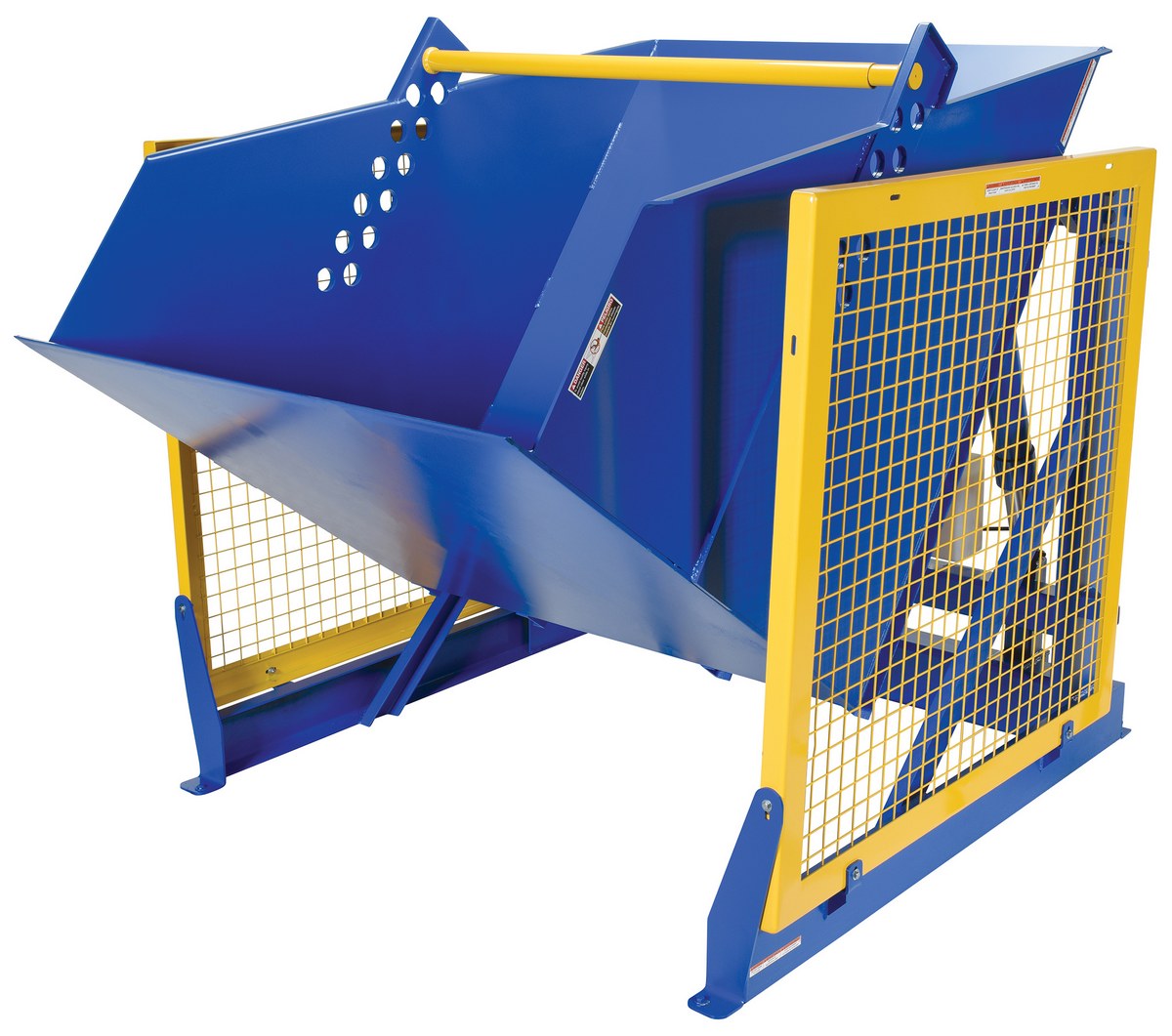

| HBD-4-48 | | | 1 Year Limited Warranty | Steel Electric Hydraulic Box Dumper 48 In. Dump Height 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Dump Height (in.): 48 | 1970 | |

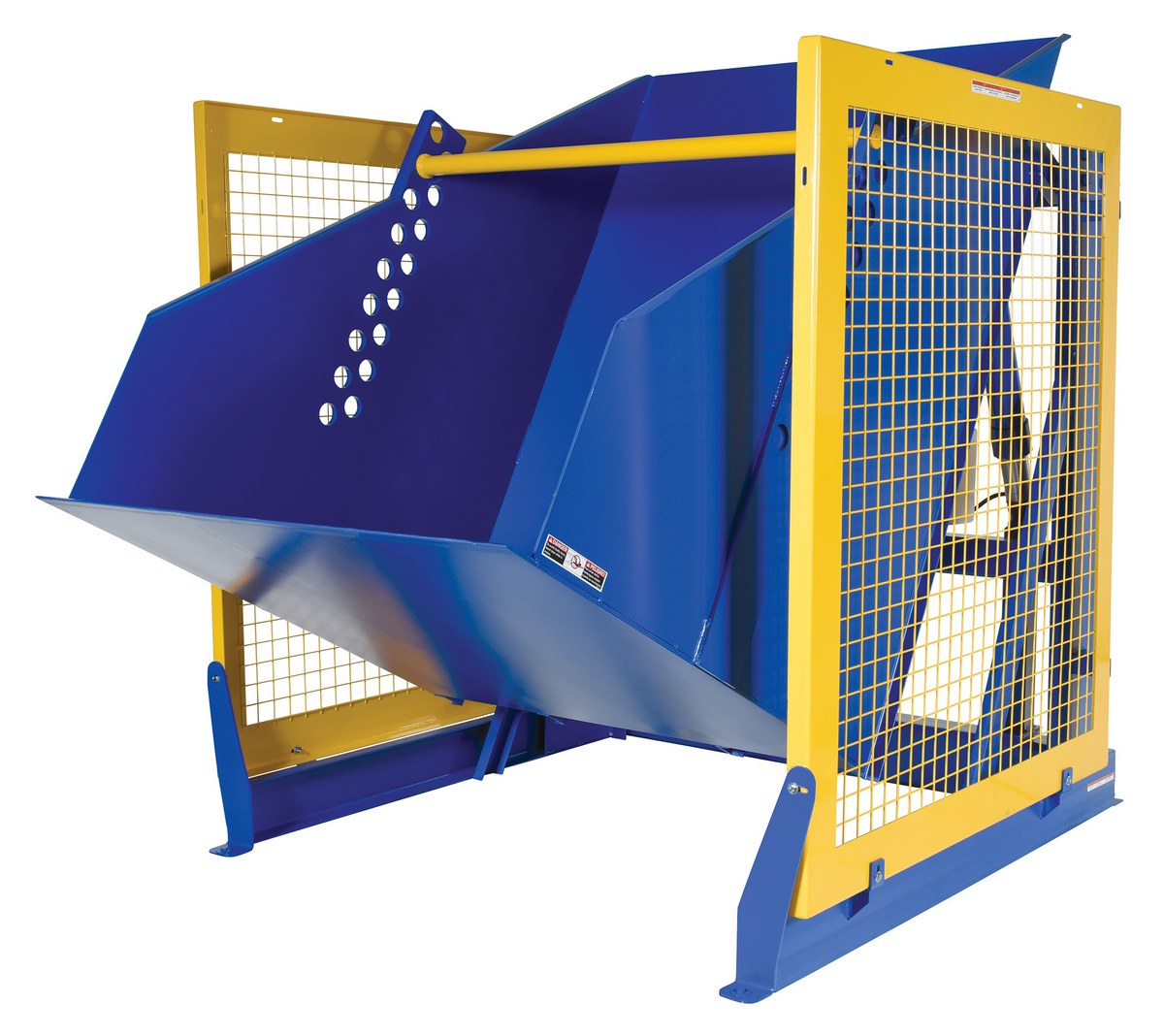

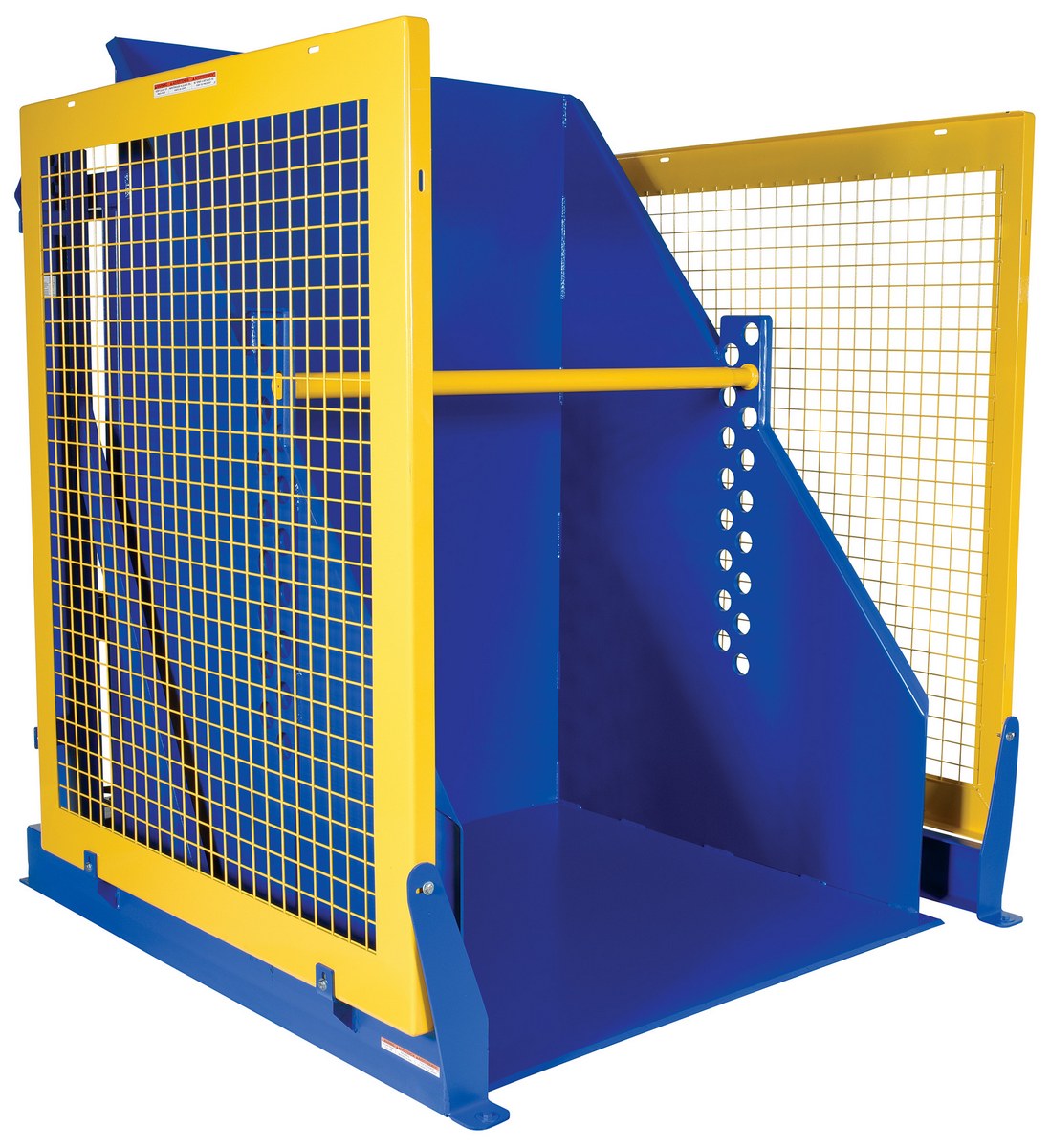

| HBD-4-60 | |  | 1 Year Limited Warranty | Steel Electric Hydraulic Box Dumper 60 In. Dump Height 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4000 Dump Height (in.): 60 | 2130 | |
| HBD-6-36 | |  | 1 Year Limited Warranty | Steel Electric Hydraulic Box Dumper 36 In. Dump Height 6,000 Lb. Capacity Blue | Uniform Capacity (lb.): 6000 Dump Height (in.): 36 | 2003 | |
| HBD-6-48 | |  | 1 Year Limited Warranty | Steel Electric Hydraulic Box Dumper 48 In. Dump Height 6,000 Lb. Capacity Blue | Uniform Capacity (lb.): 6000 Dump Height (in.): 48 | 2147 | |

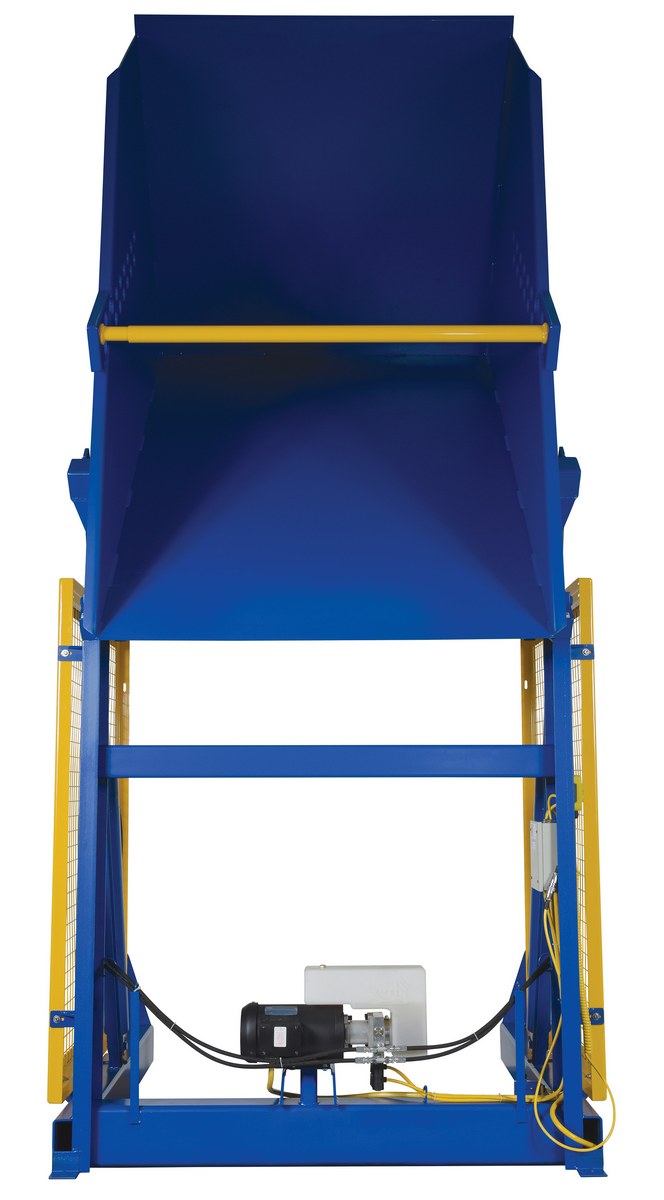

| HBD-6-60 | |  | 1 Year Limited Warranty | Steel Electric Hydraulic Box Dumper 60 In. Dump Height 6,000 Lb. Capacity Blue | Uniform Capacity (lb.): 6000 Dump Height (in.): 60 | 2227 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Dump Height (in.): 36
Uniform Capacity (lb.): 2000
Dump Height (in.): 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Dump Height (in.): 48
Uniform Capacity (lb.): 2000
Dump Height (in.): 48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Dump Height (in.): 60
Uniform Capacity (lb.): 2000
Dump Height (in.): 60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Dump Height (in.): 36
Uniform Capacity (lb.): 4000
Dump Height (in.): 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Dump Height (in.): 48
Uniform Capacity (lb.): 4000
Dump Height (in.): 48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Dump Height (in.): 60
Uniform Capacity (lb.): 4000
Dump Height (in.): 60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Dump Height (in.): 36
Uniform Capacity (lb.): 6000
Dump Height (in.): 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Dump Height (in.): 48
Uniform Capacity (lb.): 6000
Dump Height (in.): 48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Dump Height (in.): 60
Uniform Capacity (lb.): 6000
Dump Height (in.): 60
For More Details of the Option Click the Red Model Button

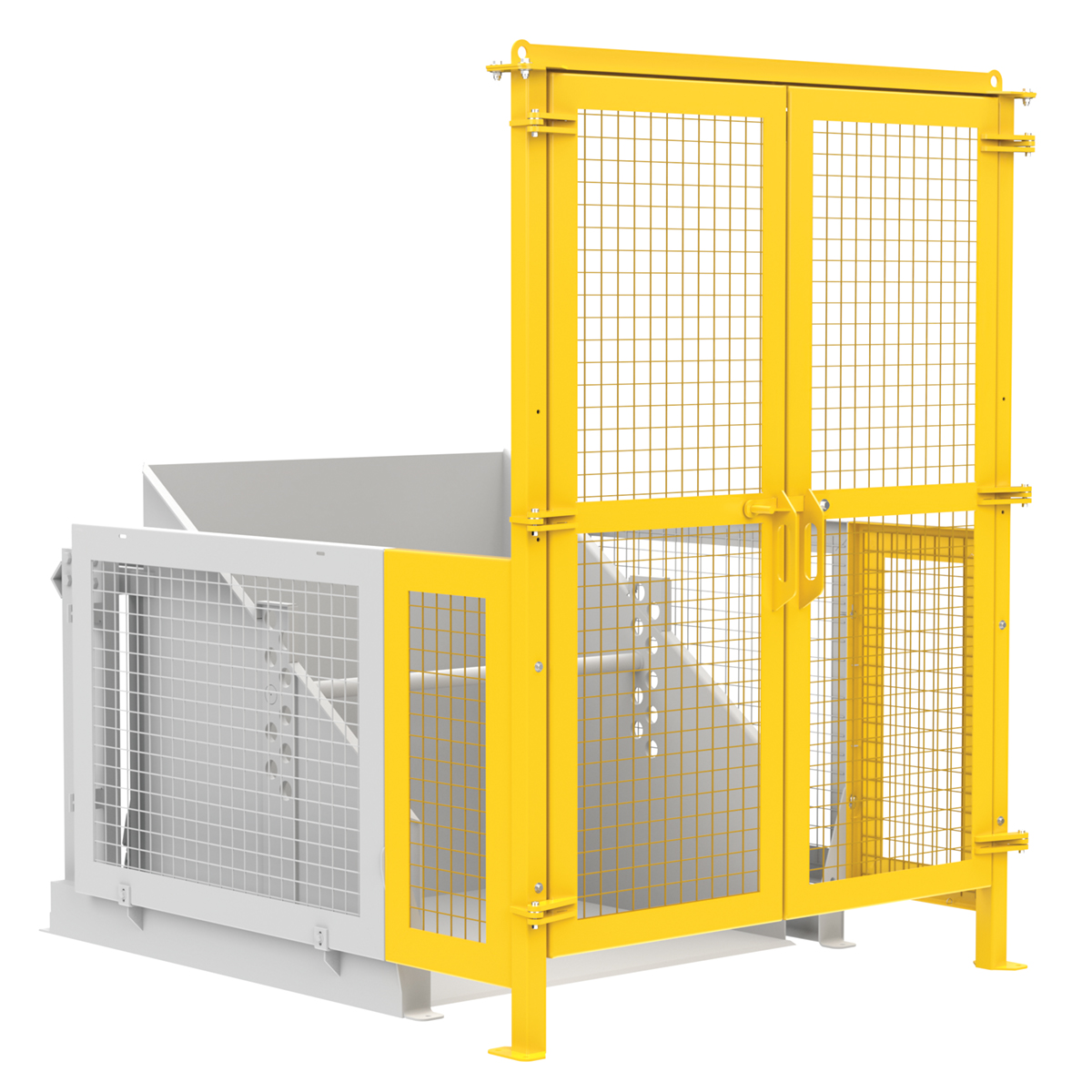

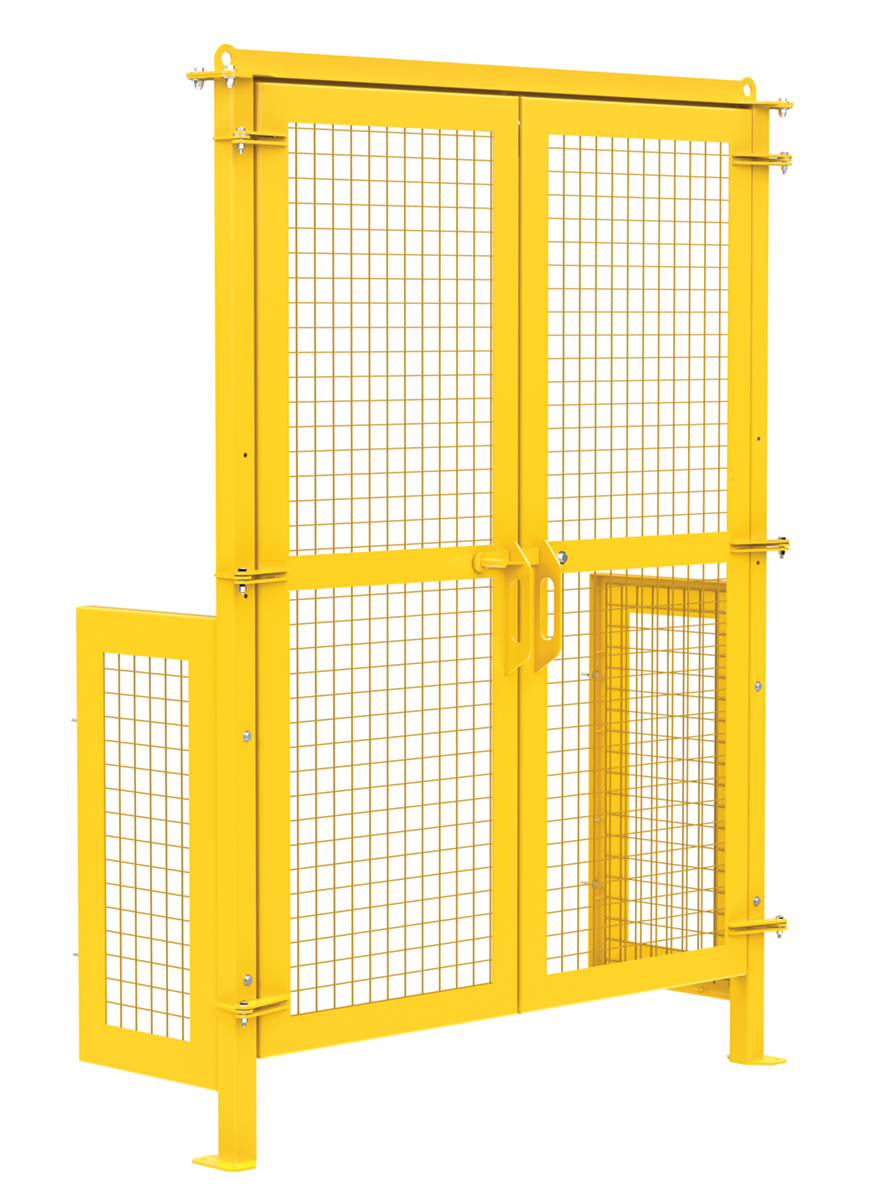

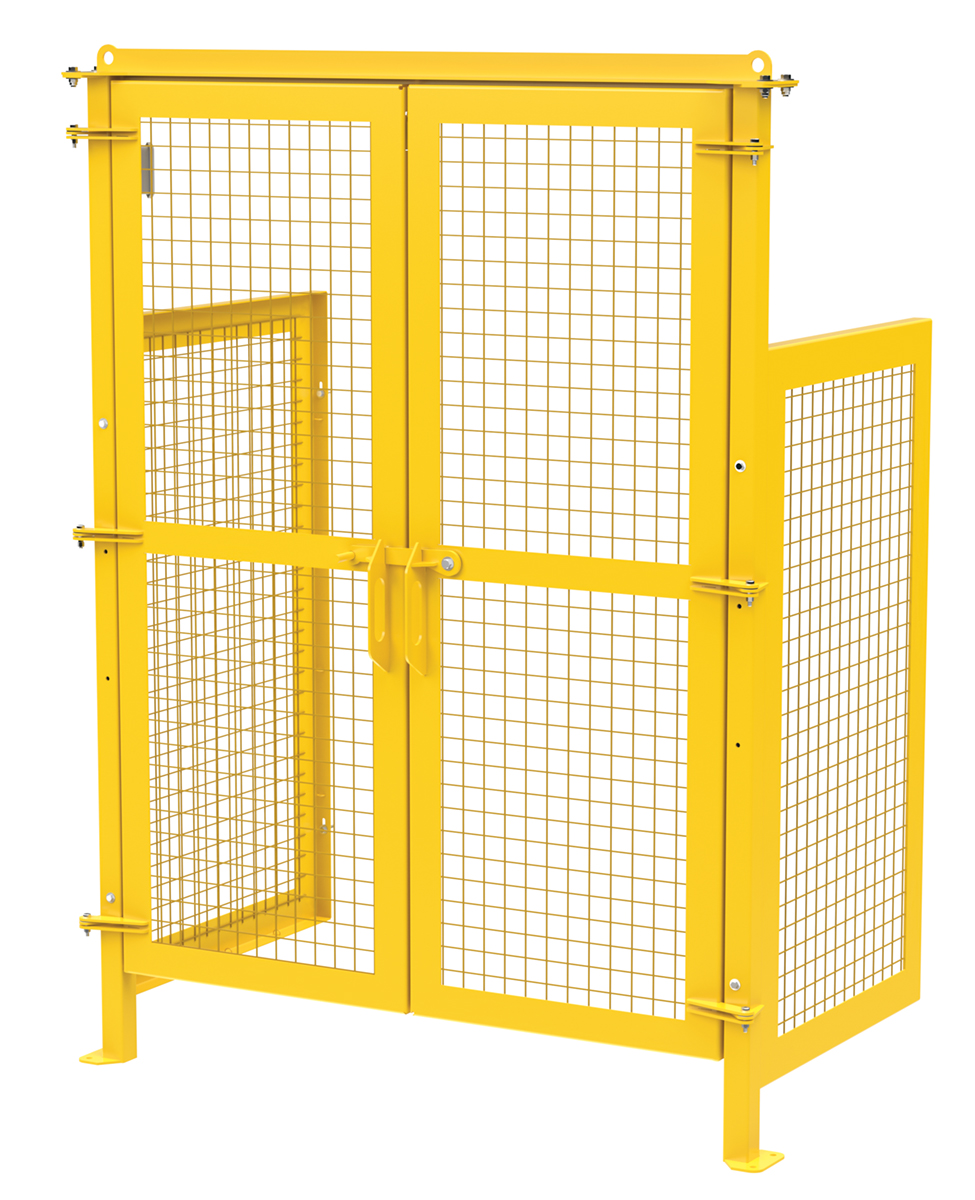

| HBD-GATE-36 |  | 90 Days Limited Warranty | Steel Hydraulic Box Dumper Gate 25-1/2 In Length x 92 In Height Yellow | Usable Width (in.): 63-1/4 Usable Height (in.): 92 | 500 | |

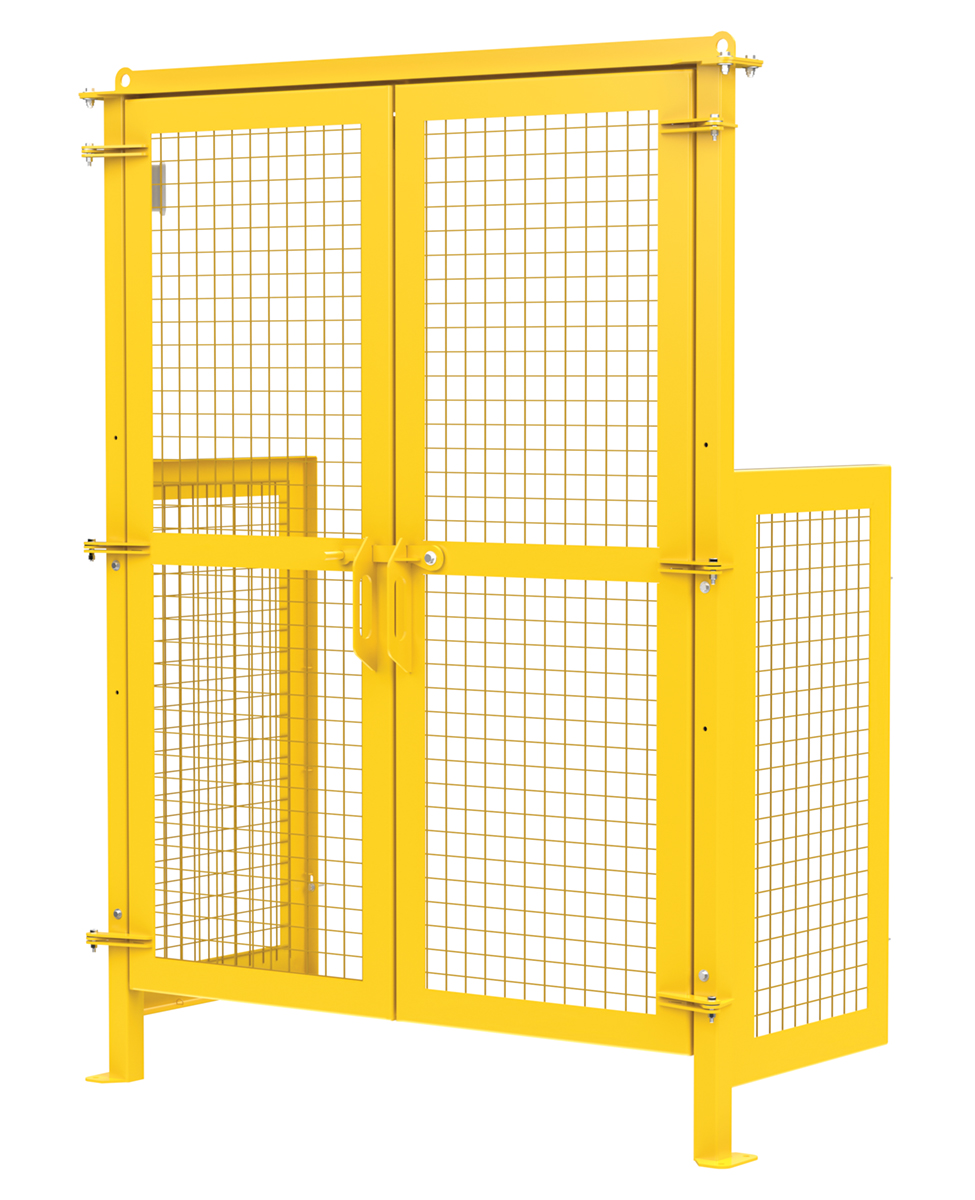

| HBD-GATE-48 |  | 90 Days Limited Warranty | Steel Hydraulic Box Dumper Gate 33-1/4 In Length x 92 In Height Yellow | Usable Width (in.): 63-1/4 Usable Height (in.): 92 | 525 | |
| HBD-GATE-60 |  | 90 Days Limited Warranty | Steel Hydraulic Box Dumper Gate 41-1/2 In Length x 92 In Height Yellow | Usable Width (in.): 63-1/4 Usable Height (in.): 92 | 550 | |
| HBD-PU-X |  | 90 Days Limited Warranty | Factory Installed Extended Duty Power for 6000 Lb. Capacity Hydraulic Box Dumper | Brand / Model Compatibility: HBD-6-36, HBD-6-48, HBD-6-60 Additional Contents: Factory Installed Power Unit | 2677 | |
| HBD-SLC | NEW | | 90 Days Limited Limited Warranty | Steel Hydraulic Box Dumper Factory Installed Safety Light Curtain Option Yellow | Power Option: DC Enclosure Type: Push Button | 481 |
| Model | Image | Description | Wt. (lbs) |
| HCP-2642 |  |
Optional Hand Control Pedestal | 12 |
| FC-2 |  |
Foot Control | 6 |
| RRC-2PB |  |
Radio Remote Control 2-Button System (Lift-Hold-Lower Circuit) | 1 |
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: HBD-2-36
Hydraulic Oil SDS Sheet for: HBD-2-48
Hydraulic Oil SDS Sheet for: HBD-2-60
Hydraulic Oil SDS Sheet for: HBD-4-36
Hydraulic Oil SDS Sheet for: HBD-4-48
Hydraulic Oil SDS Sheet for: HBD-4-60
Hydraulic Oil SDS Sheet for: HBD-6-36
Hydraulic Oil SDS Sheet for: HBD-6-48
Hydraulic Oil SDS Sheet for: HBD-6-60
Other PDF's
Directory Links Of Available PDF's For All Products
Q: I'm looking at the HBD-4-60 but need a higher dump height.
A: Our engineering team may be able to accommodate your height request. Please contact one of our sales associates to request a modified box dumper quote.
Q: What qualifies as a "start" for the box dumper? We will be using it consistently during the shift.
A: The standard power unit can accommodate 15 starts per hour. A "start" is when the motor is started or the button is pushed ( on, off, up, down). An extended duty continuous run power unit is available for the box dumper. Please contact a sales associate for more information.
Q: What is the standard voltage and phase? Can the voltage and phase be changed?
A: The box dumpers come standard 460 V 3 phase. The voltage and phase can be changed. Please contact a sales associate for voltage options.
Q: Can the Electric Hydraulic Box Dumpers be installed/used outdoors?
A: The Electric Hydraulic Box Dumpers are intended to be installed in an indoor environment. It is not recommended to be installed outdoors with constant exposure to sun and weather elements.
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||
