Portable Pallet Inverters

- - - -

Description
Model Chart
PDF's
Image Gallery

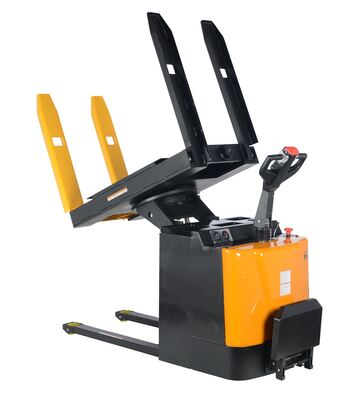

PI-P-3000-3254_A.jpg PI-P-3000-3254_B.jpg PI-P-3000-3254_C.jpg PI-P-3000-3254_D.jpg
PI-P-3000-3254_E.jpg PI-P-3000-3254_F.jpg PI-P-3000-3254_G.jpg PI-P-3000-3254_H.jpg
Portable Pallet Inverters

model: PI-P-3000-3254



Featured Ergonomic Solutions


Worker Platforms
Electric/Hydraulic Box Dumpers
Plastic Floor Grid
Ergonomic Power Assist Pallet Trucks
Elevating Lift Carts
Economy Fully Automatic Electric Pallet Trucks
Fully Powered Electric Pallet Truck
Tilters
Double Mast Stackers with Powered Drive and Powered Lift
model chart

Product Family Overview

Print Friendly
Portable Pallet Inverters
SERIES: PI-P

24V DC STANDARD

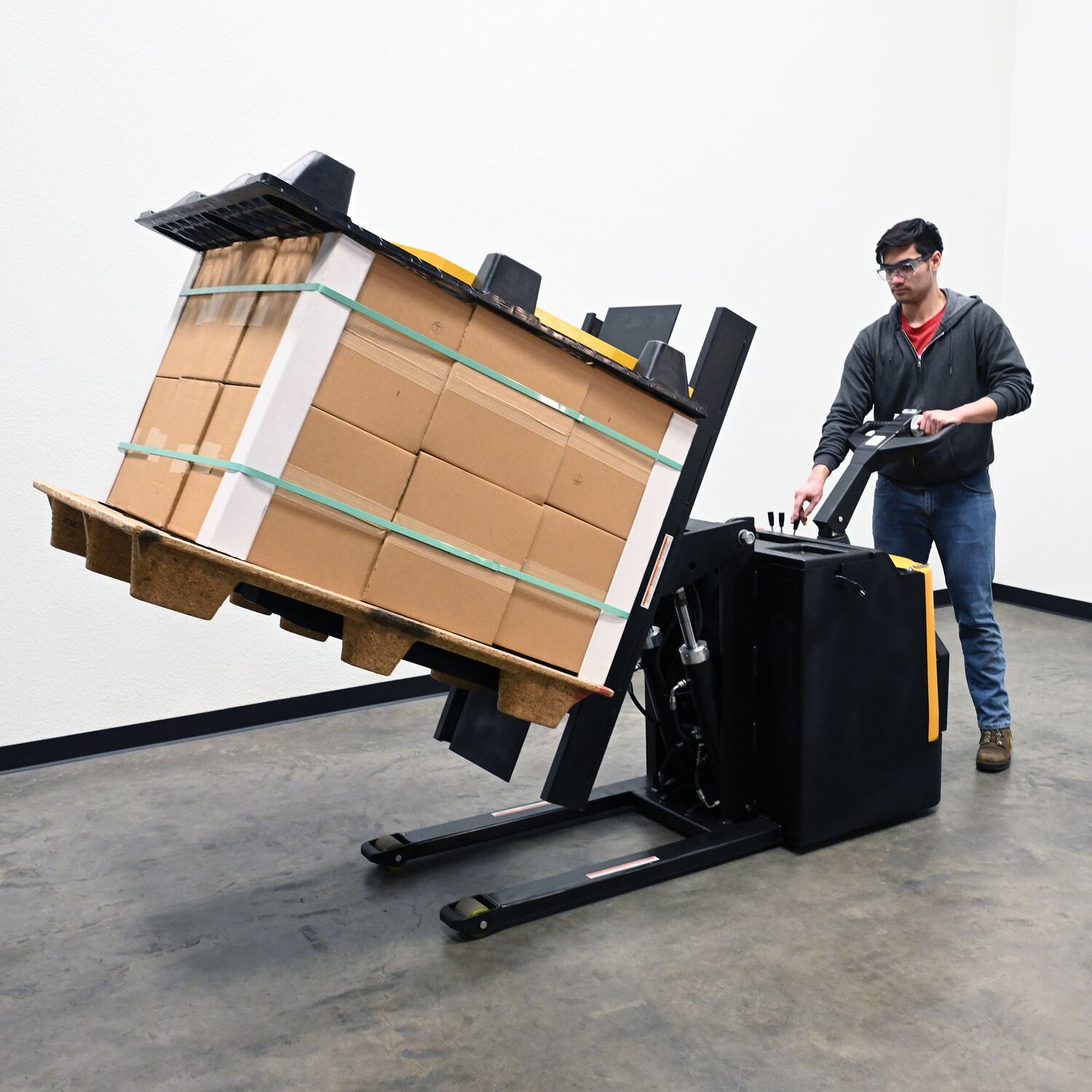

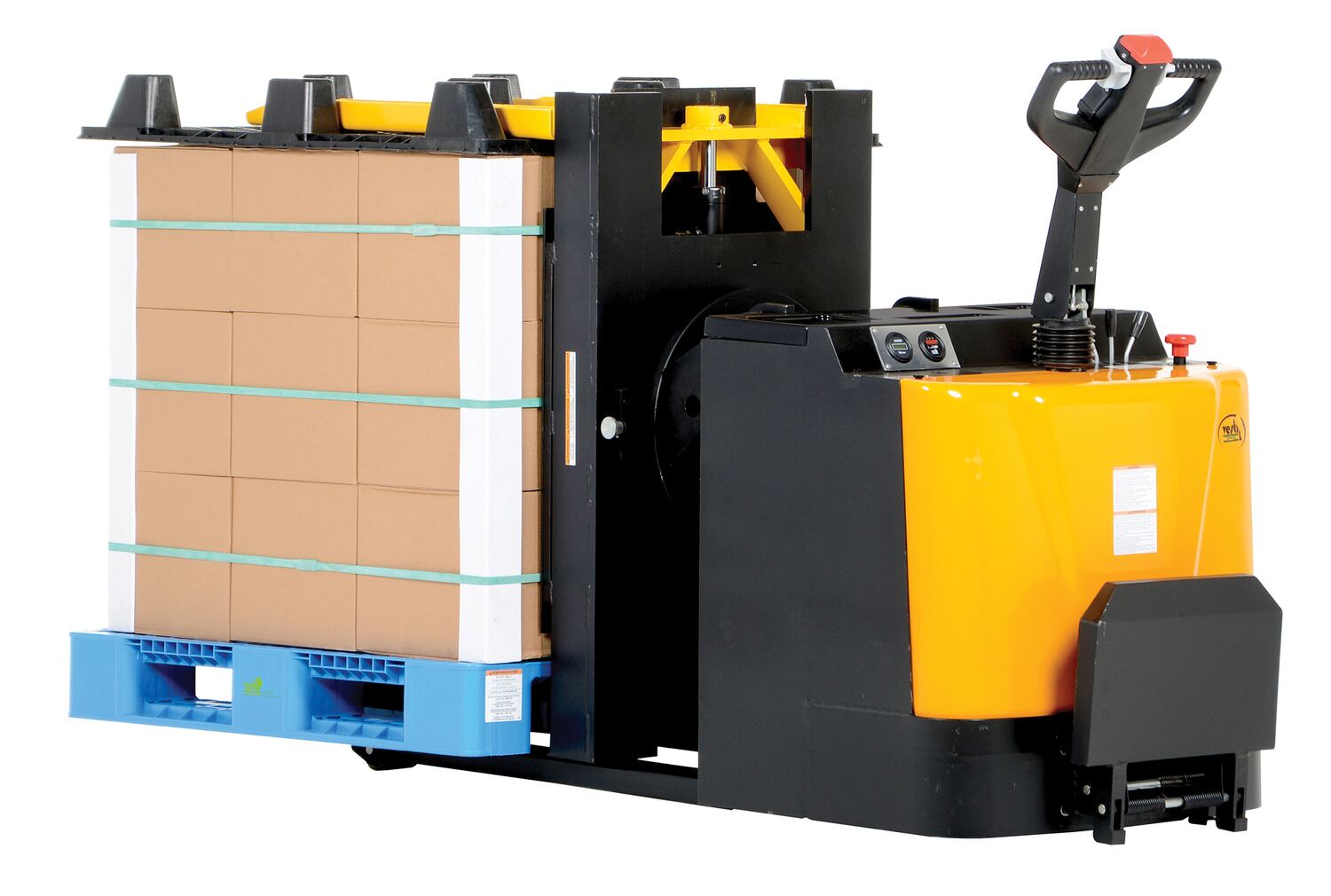

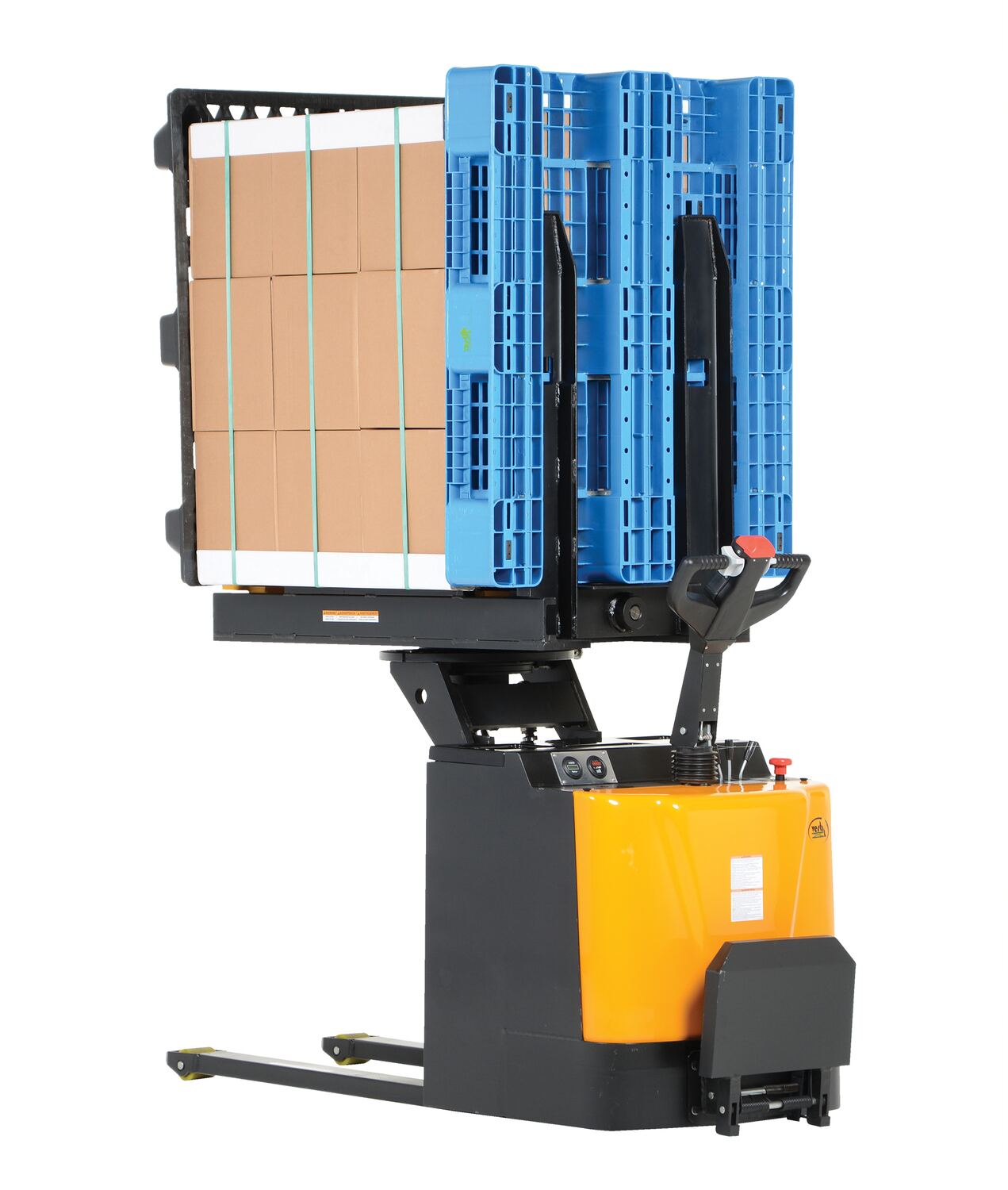

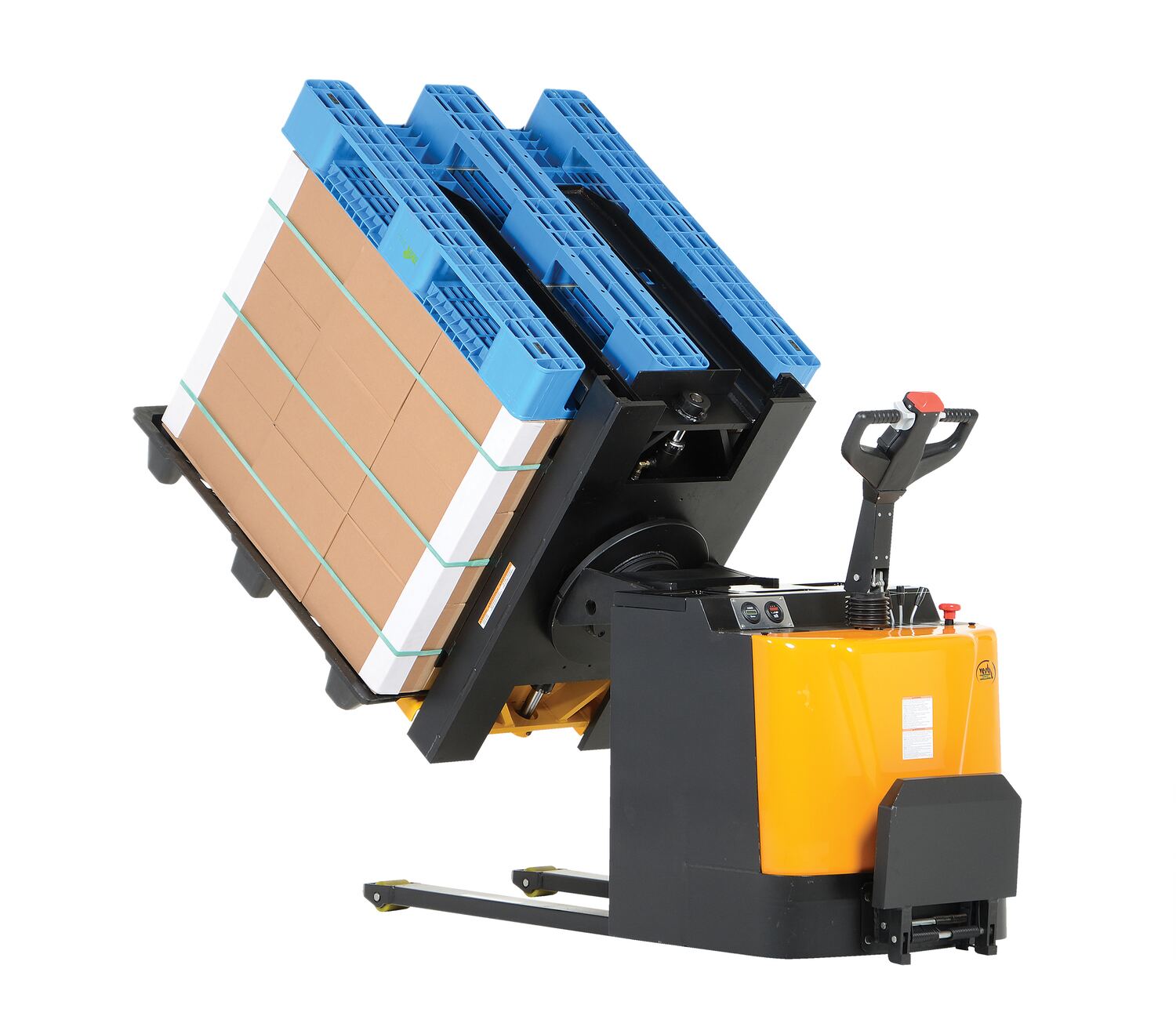

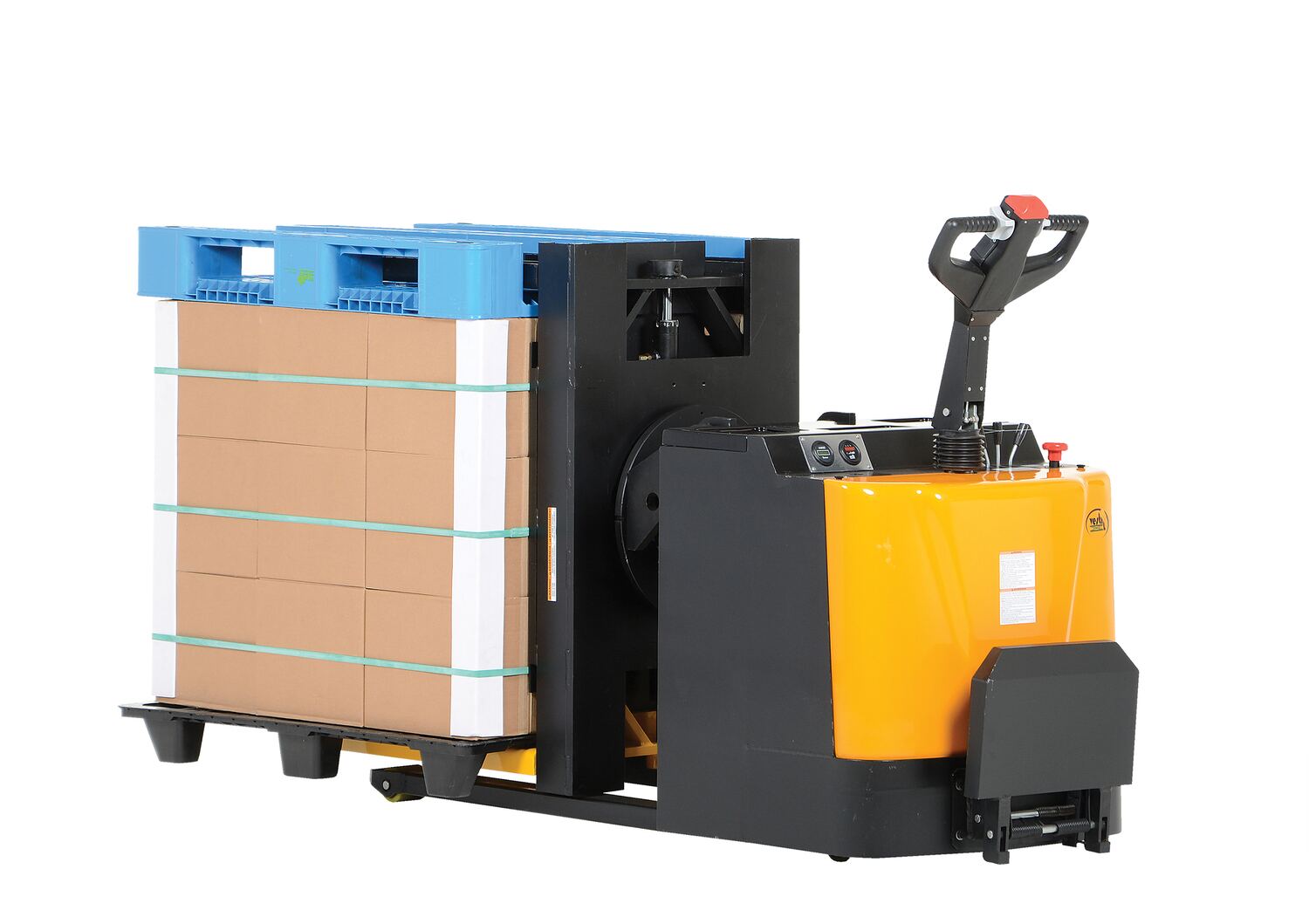

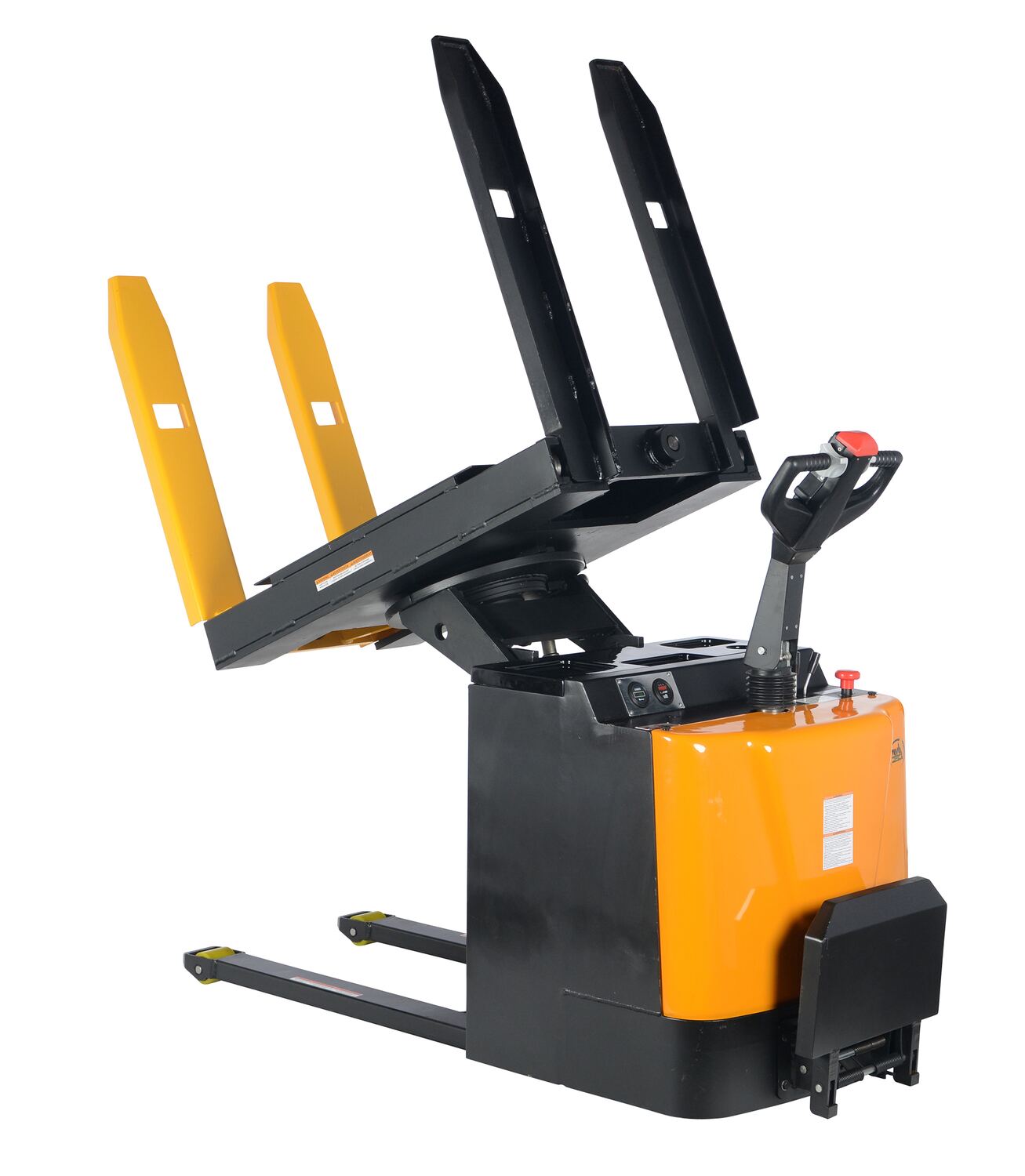

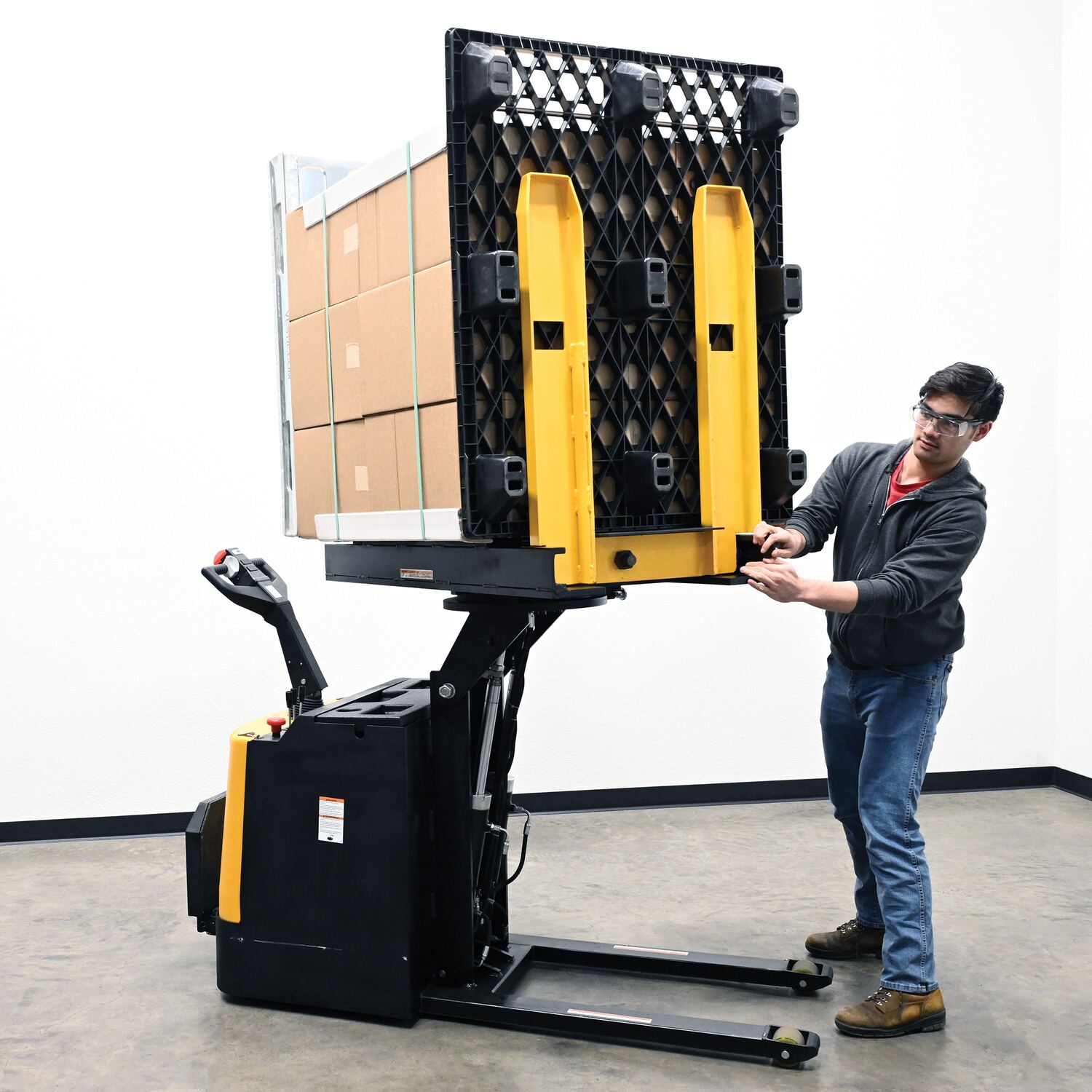

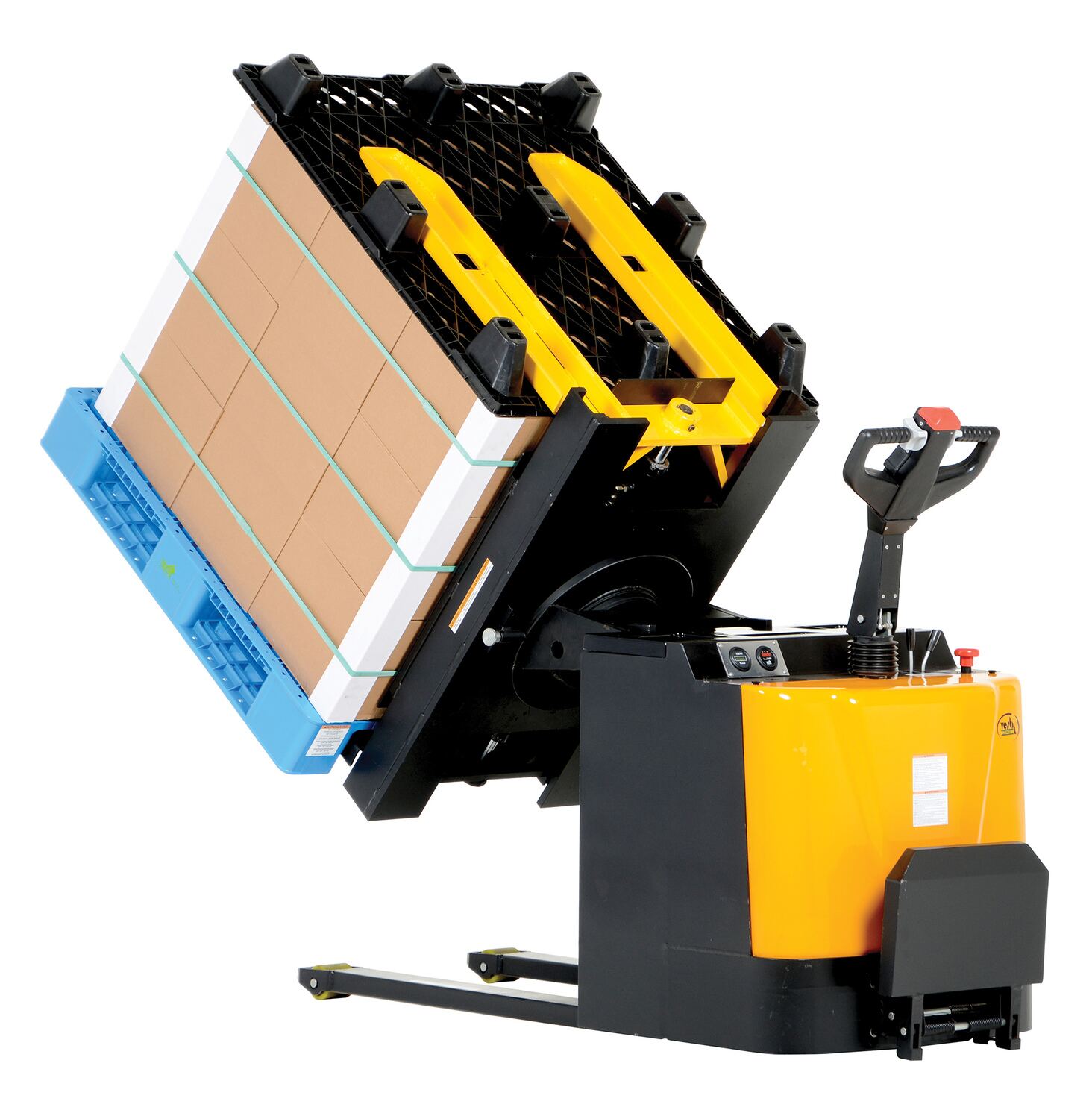

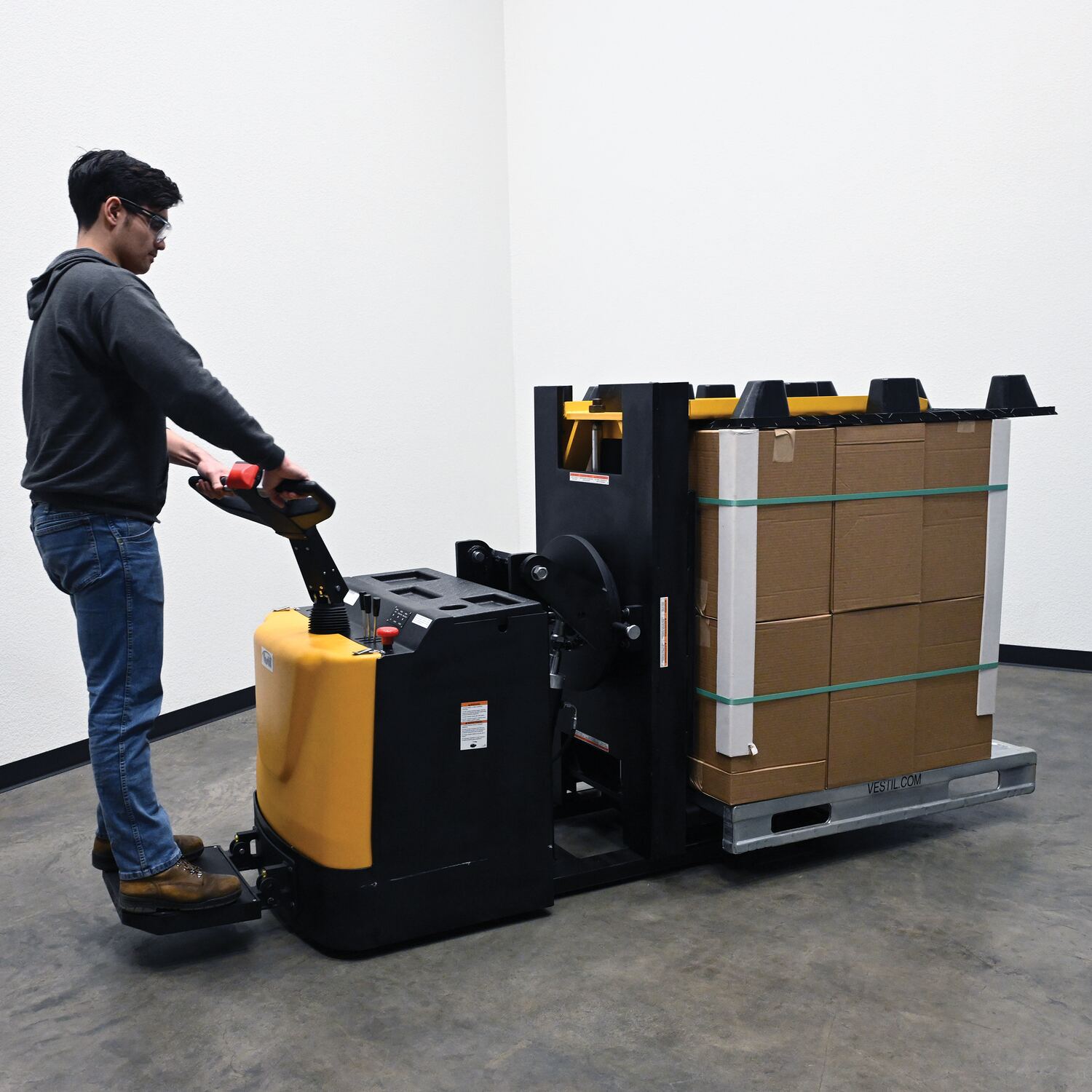

Tilt (powered) and rotate (manual) loads with our durable Pallet Inverter. Low profile design allows the operator to stand on the rider platform and steer the load from workstation to workstation quickly and easily. DC power lift and drive makes operation safe and efficient. The ergonomic handle features easy to operate throttle with infinite forward and reverse speeds, tilt/lower controls, safety belly reverse button, and horn. Features an electromagnetic disc brake with automatic dead-man feature that activates when user releases handle. Includes (4) 6V batteries, an on-board battery charger, battery level gauge, emergency battery disconnect, and horn. Ideal in loading dock areas as a powered pallet truck, powered pallet tilter, or as a manual turntable. Rolls smoothly on polyurethane steer and load wheels.

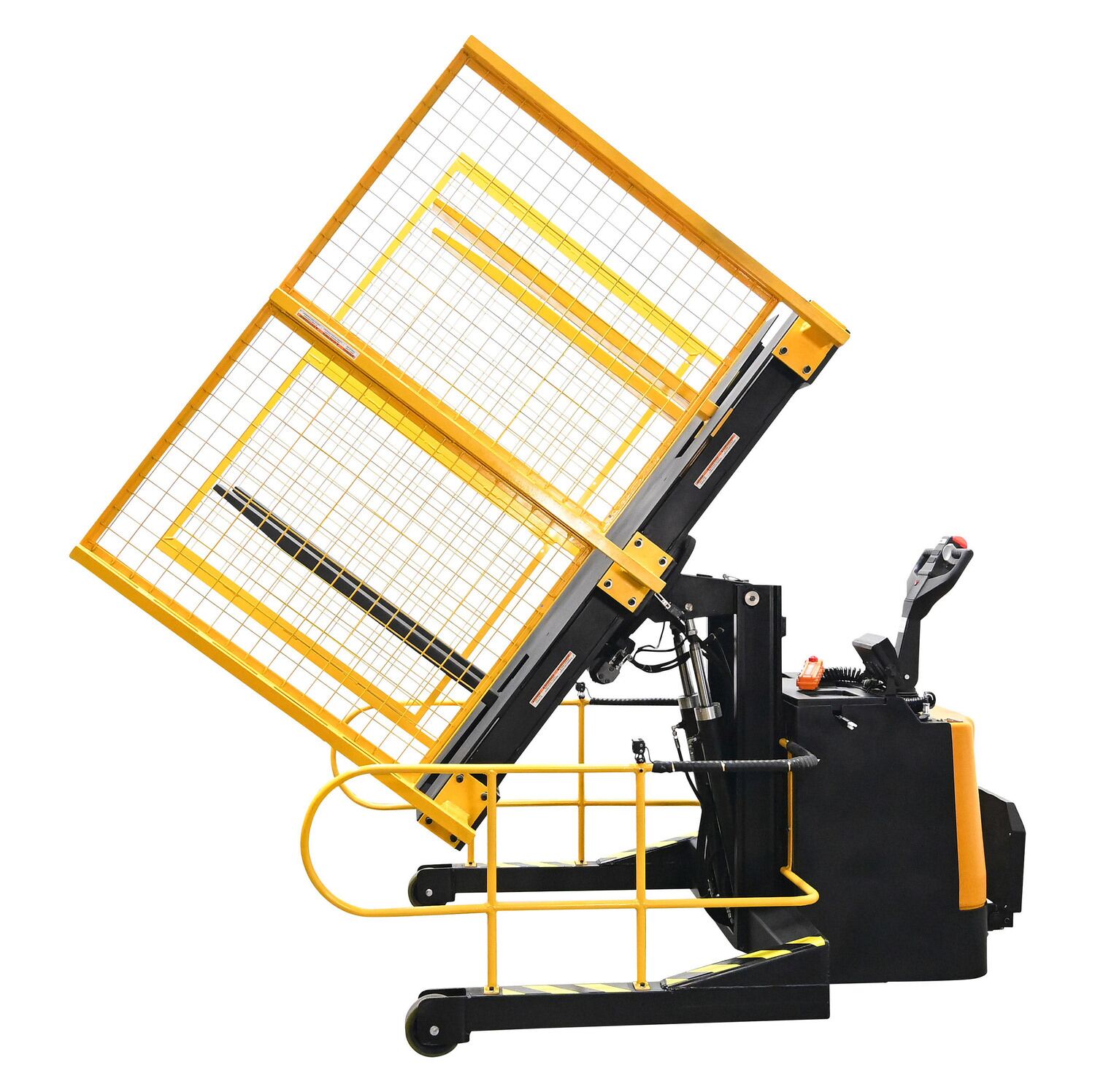

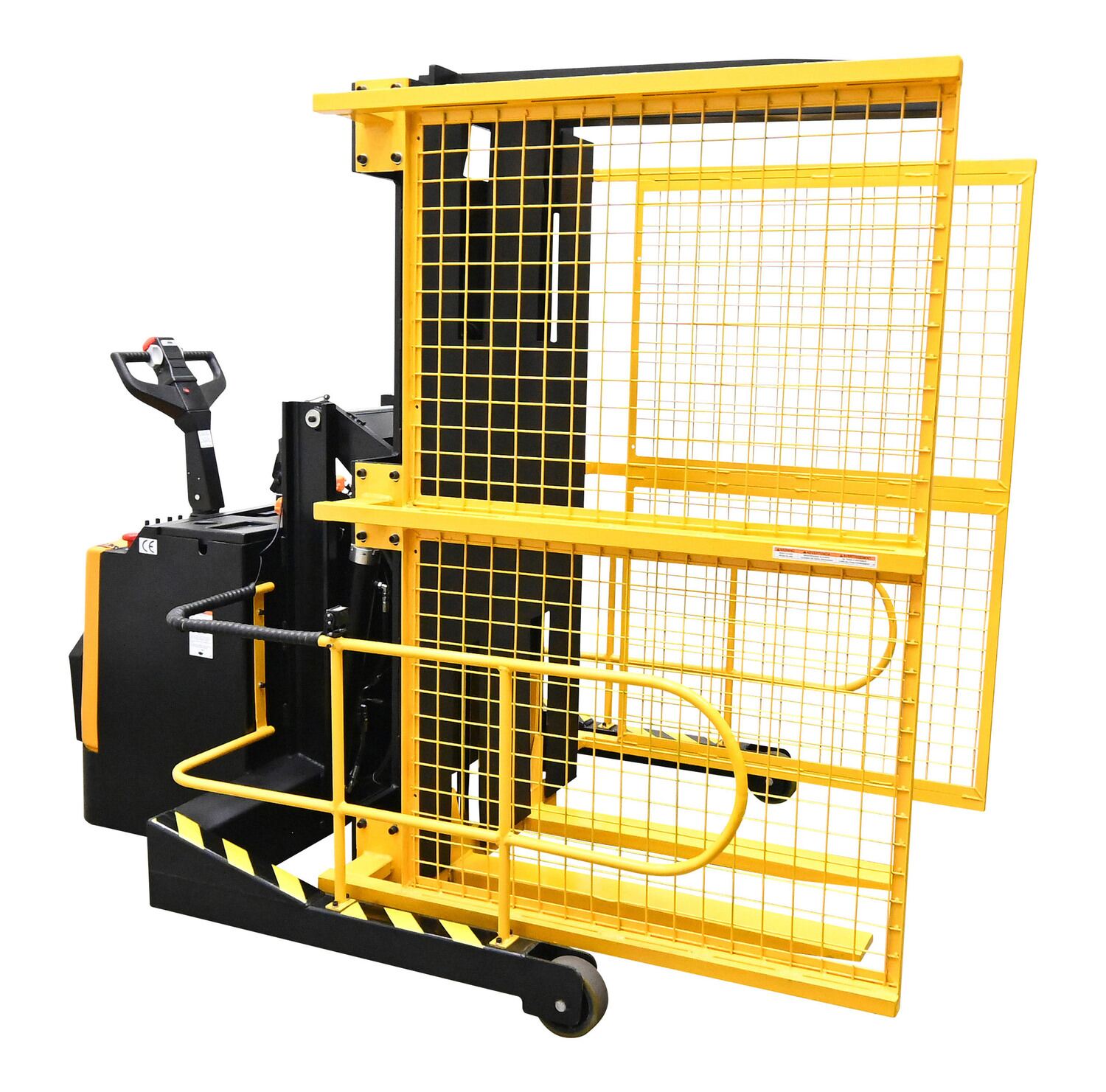

Model PI-P-SL-3276-PRSR includes safety cage for safe enclosure.


24V DC STANDARD

Tilt (powered) and rotate (manual) loads with our durable Pallet Inverter. Low profile design allows the operator to stand on the rider platform and steer the load from workstation to workstation quickly and easily. DC power lift and drive makes operation safe and efficient. The ergonomic handle features easy to operate throttle with infinite forward and reverse speeds, tilt/lower controls, safety belly reverse button, and horn. Features an electromagnetic disc brake with automatic dead-man feature that activates when user releases handle. Includes (4) 6V batteries, an on-board battery charger, battery level gauge, emergency battery disconnect, and horn. Ideal in loading dock areas as a powered pallet truck, powered pallet tilter, or as a manual turntable. Rolls smoothly on polyurethane steer and load wheels.

Model PI-P-SL-3276-PRSR includes safety cage for safe enclosure.


Other Pallet Inverters

 Pallet Inverters

Additional Models In This Family
view entire Image Gallery

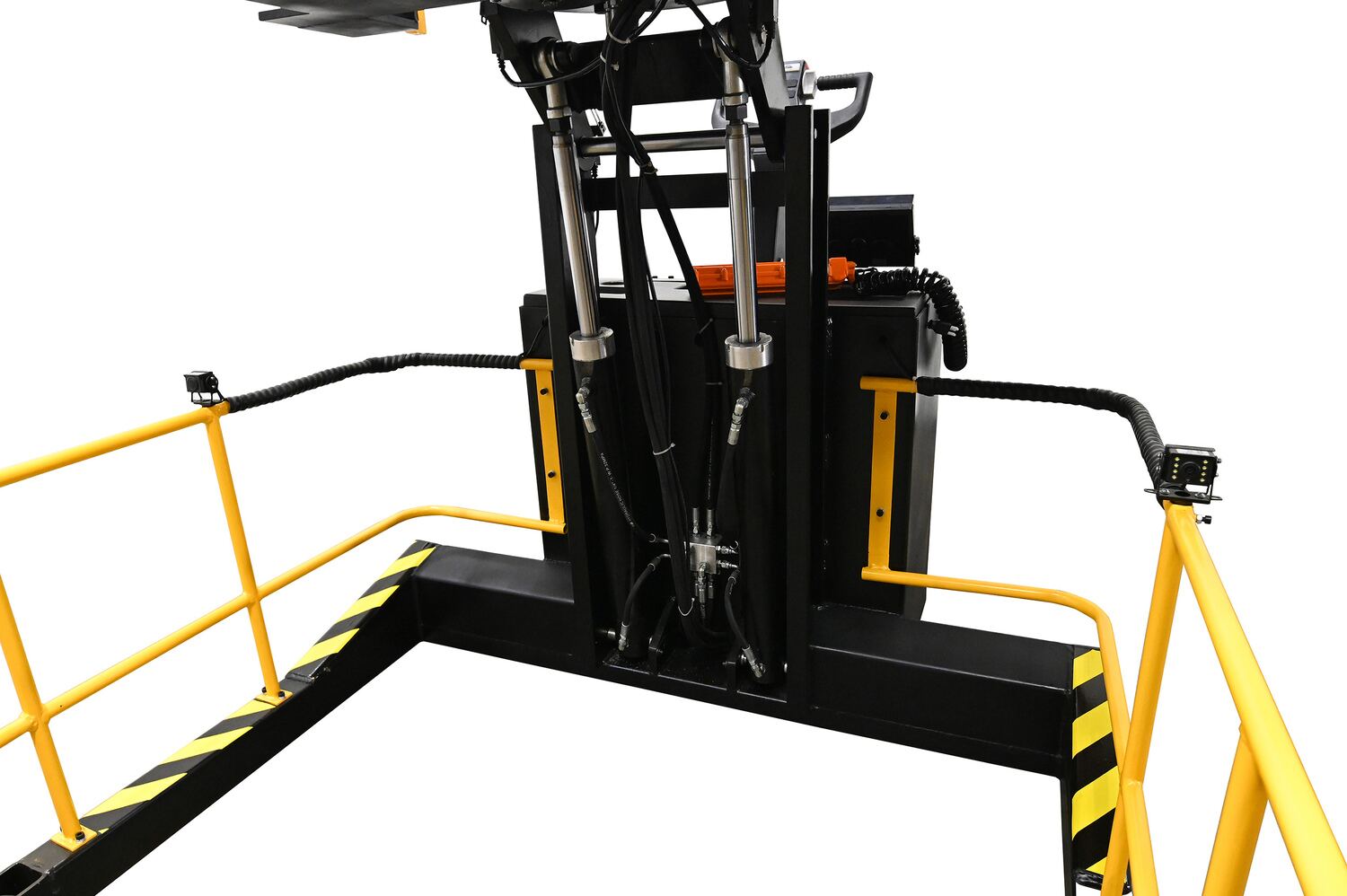

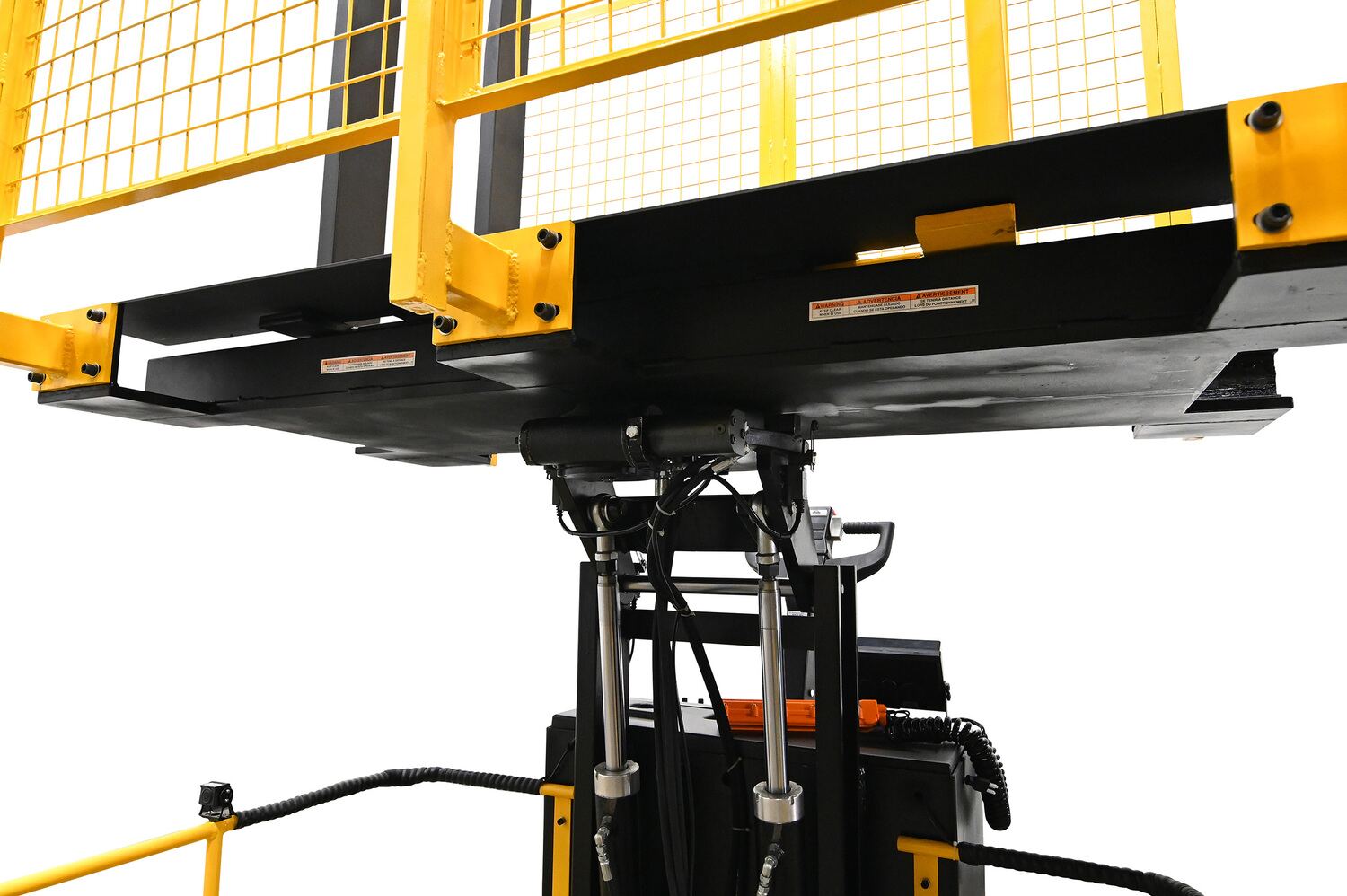

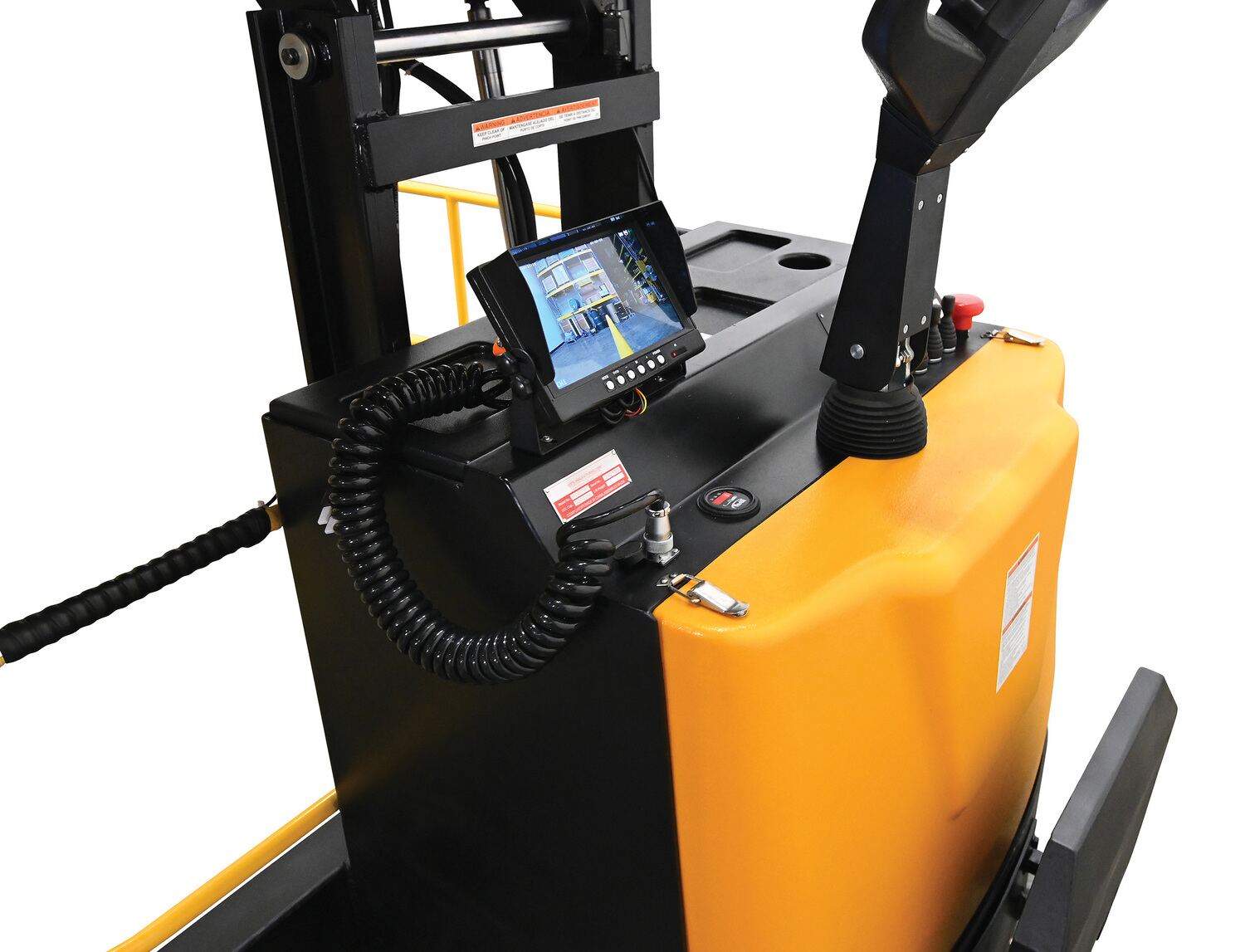

PI-P-SL-3276-PRSR

PI-P-SL-3276-PRSR

PI-P-SL-3276-PRSR

PI-P-SL-3276-PRSR

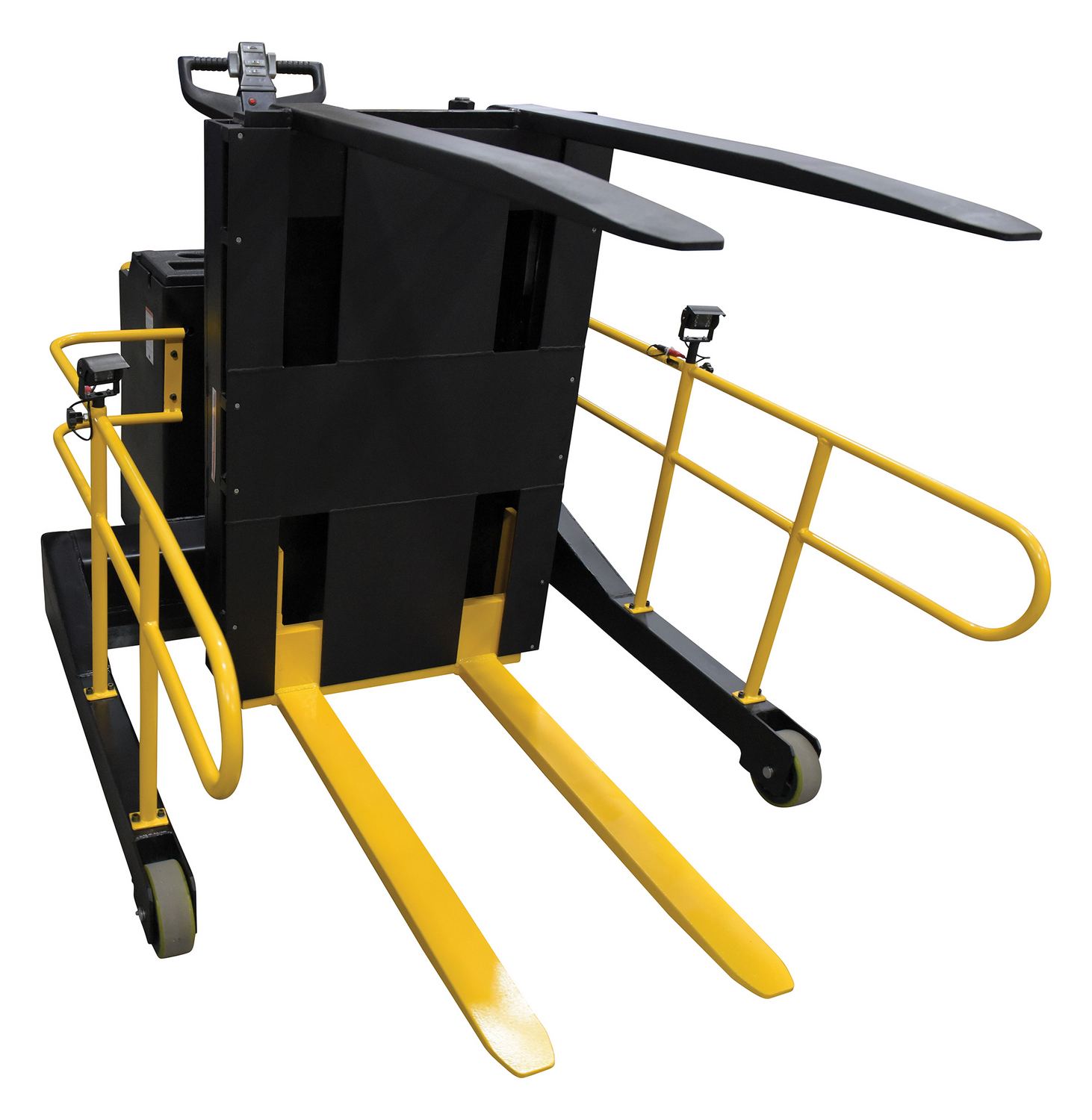

PI-P-SL-3000-4088

PI-P-SL-3000-4088

PI-P-3000-3254

PI-P-3000-3254

PI-P-SL-3276-PRSR

PI-P-SL-3276-PRSR

PI-P-SL-3000-4088

PI-P-SL-3000-4088

PI-P-SL-3000-4088

PI-P-SL-3000-4088

PI-P-3000-3254

PI-P-3000-3254

PI-P-3000-3254

PI-P-3000-3254

PI-P-SL-3276-PRSR

PI-P-SL-3276-PRSR

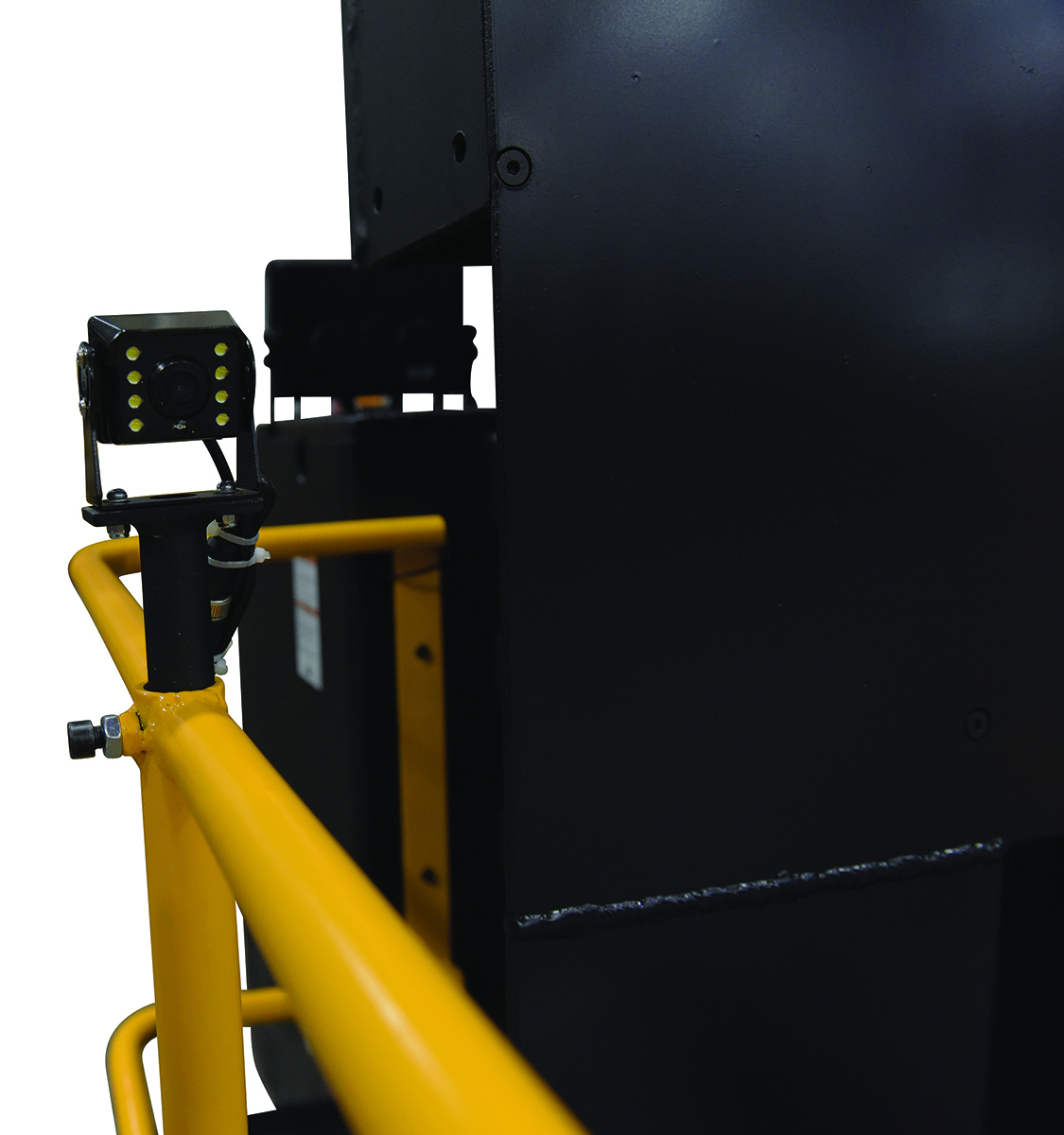

PI-P-SL-3000-3276

PI-P-SL-3000-3276

PI-P-SL-3000-4088

PI-P-SL-3000-4088

PI-P-SL-3000-4088

PI-P-SL-3000-4088

PI-P-SL-3276-PRSR

PI-P-SL-3276-PRSR

PI-P-SL-3000-4088

PI-P-SL-3000-4088

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
PI-P-3000-3254
PI-P-3000-32541 Year Limited WarrantySteel Portable Pallet Inverter Low Profile 32 In. to 54 In. Fork Opening 3000 Lb. Capacity Yellow/BlackUniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 54		2388
PI-P-SL-3000-3254

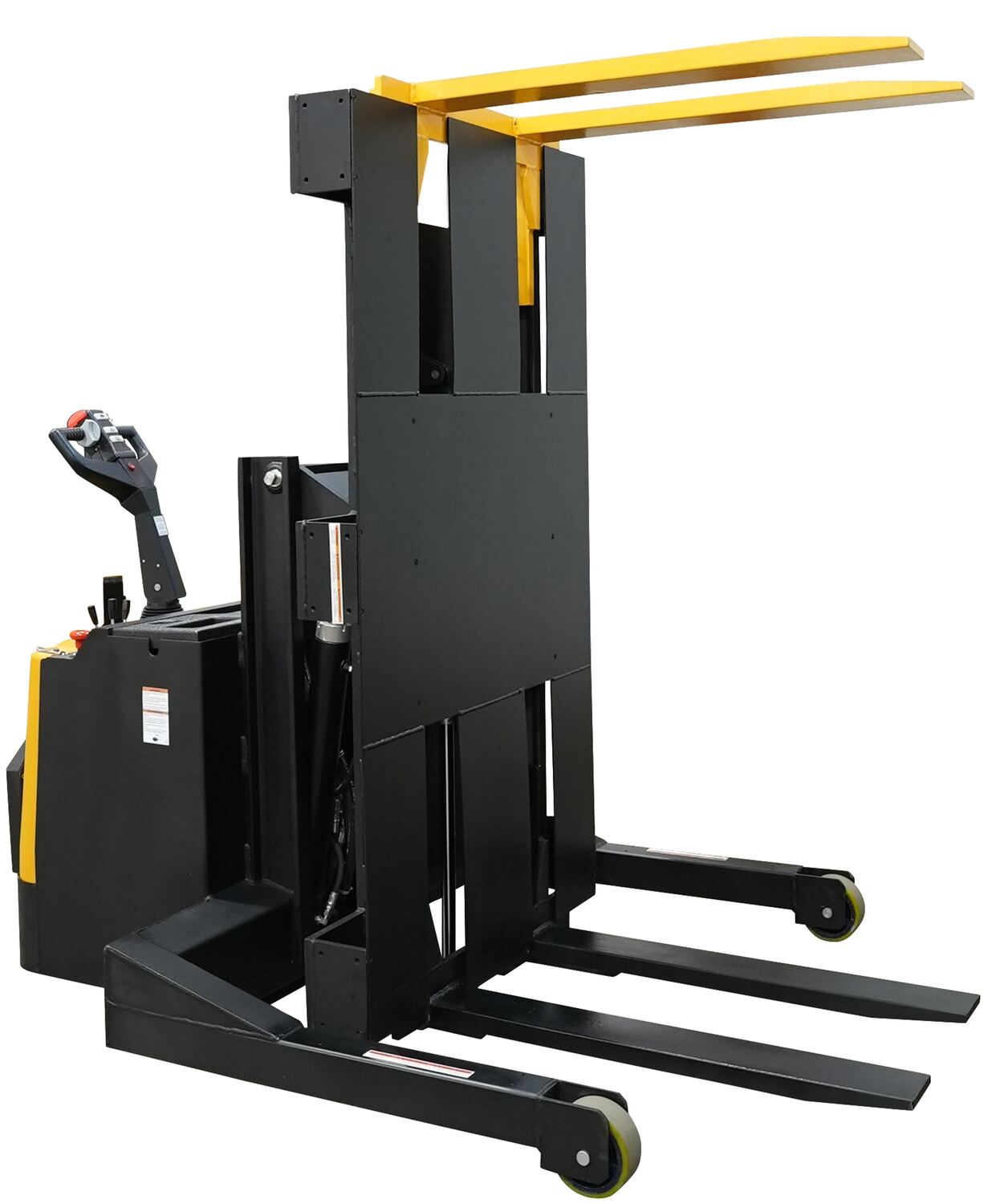

PI-P-SL-3000-32541 Year Limited WarrantySteel Portable Pallet Inverter 32 In. to 54 In Fork Opening 3000 Lb. Capacity Yellow/BlackUniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 54		1879
PI-P-SL-3000-3276 POPULAR

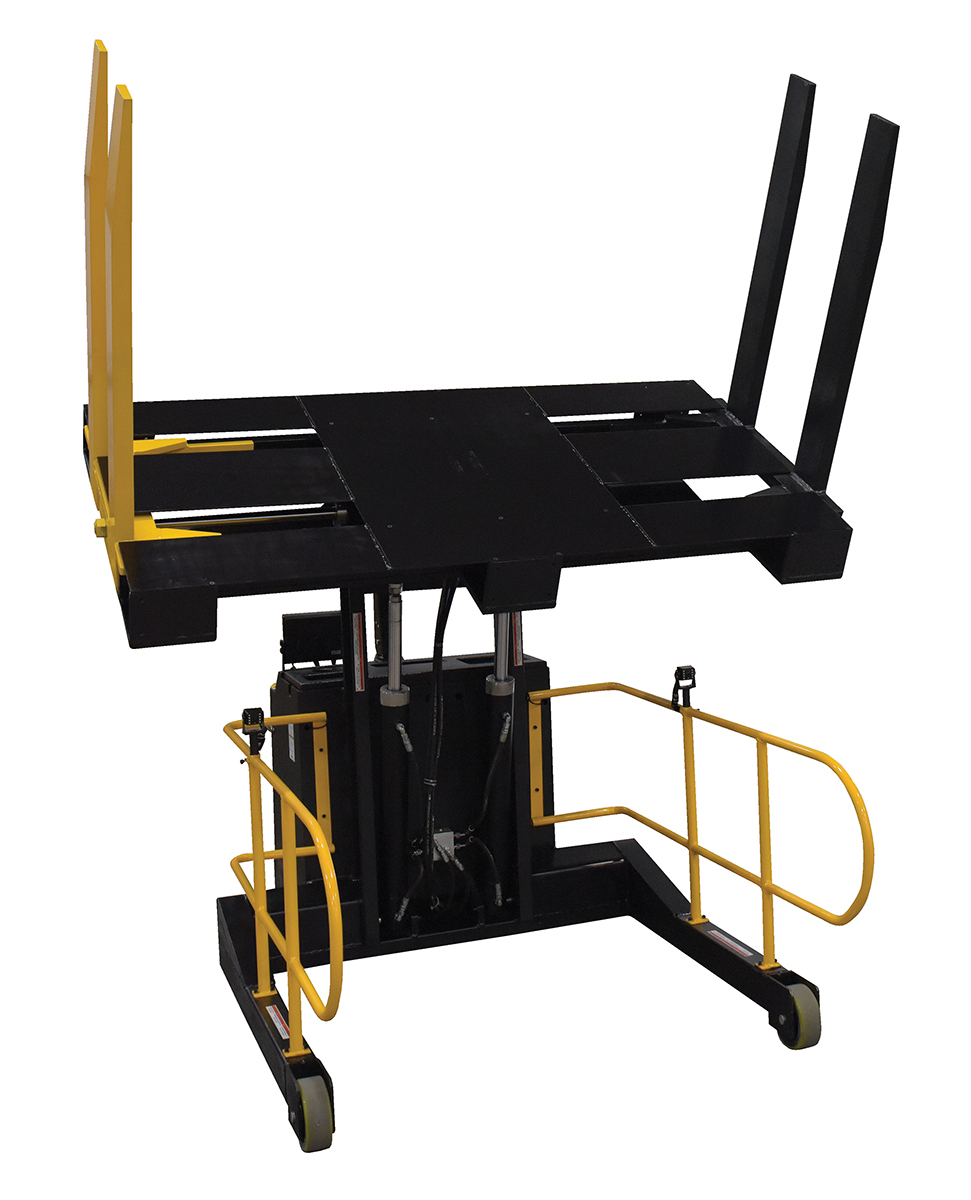

PI-P-SL-3000-32761 Year Limited WarrantySteel Portable Pallet Inverter 32 In. to 76 In Fork Opening 3000 Lb. Capacity Yellow/BlackUniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 76		3026

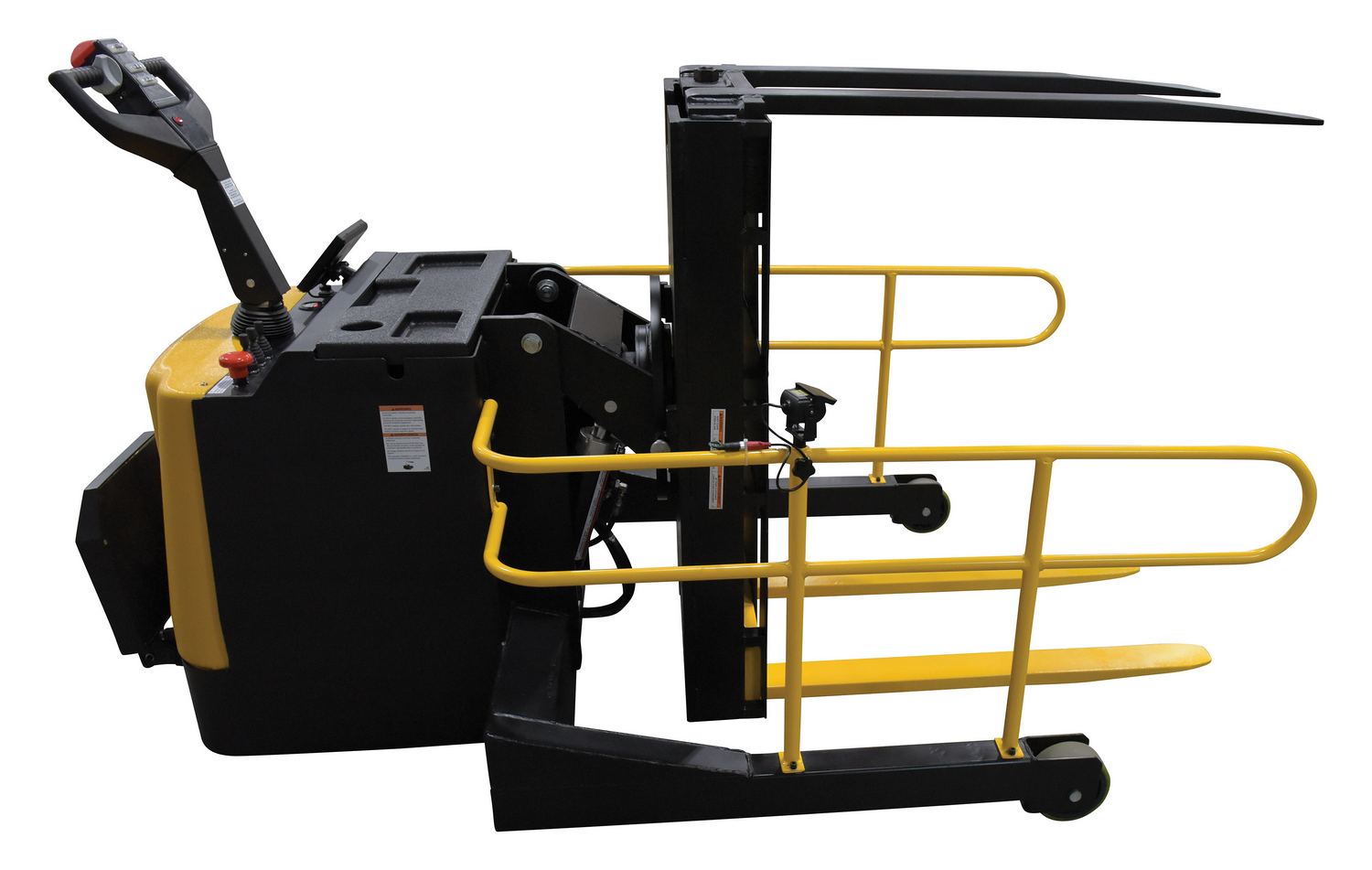

PI-P-SL-3000-4088
PI-P-SL-3000-40881 Year Limited WarrantySteel Portable Pallet Inverter 40 In. to 88 In Fork Opening 3000 Lb. Capacity Yellow/BlackUniform Capacity (lb.): 3000
Fork Opening (in.): 40 to 88		3095
PI-P-SL-3276-PRSR NEW
PI-P-SL-3276-PRSR1 Year Limited WarrantySteel Portable Pallet Inverter With Cage 32 In. to 76 In Fork Opening 3,000 Lb. Capacity Yellow/BlackUniform Capacity (lb.): 3000
Usable Fork Opening (in.): 32 to 76		3275

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

PI-P-3000-3254
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 54
Uniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 54

PI-P-SL-3000-3254
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 54
Uniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 54

PI-P-SL-3000-3276
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 76
Uniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 76

PI-P-SL-3000-4088
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Fork Opening (in.): 40 to 88
Uniform Capacity (lb.): 3000
Fork Opening (in.): 40 to 88

PI-P-SL-3276-PRSR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Usable Fork Opening (in.): 32 to 76
Uniform Capacity (lb.): 3000
Usable Fork Opening (in.): 32 to 76
Portable Pallet Inverters PDF's will open in a new window when clicked.

Manuals


PI-P-4400-3254
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


PI-P-3000-3254

PI-P-SL-3000-3254

PI-P-SL-3000-3276

Testing Certificates


PI-P-3000-3254

PI-P-SL-3000-3254

PI-P-SL-3000-3276

PI-P-SL-3000-4088

PI-P-SL-3276-PRSR

SDS Sheets

Hydraulic Oil SDS Sheet for: PI-P-3000-3254
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PI-P-SL-3000-3254
Hydraulic Oil SDS Sheet for: PI-P-SL-3000-3254
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PI-P-SL-3000-3276
Hydraulic Oil SDS Sheet for: PI-P-SL-3000-3276
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PI-P-SL-3000-4088
Hydraulic Oil SDS Sheet for: PI-P-SL-3000-4088

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: Can the portable pallet inverter pick up a loaded pallet?

A: The portable pallet inverter (part number PI-P-4400-3254) can be used to pick up skids. Please see the straddle model options to pick up pallets or skids. (PI-P-SL-3000-3254, PI-P-SL-3000-3276, or PI-P-SL-3000-4088).
