Electric Powered TuggersMove loads without excessive stress or strain on the user's body!
24V DC POWERED

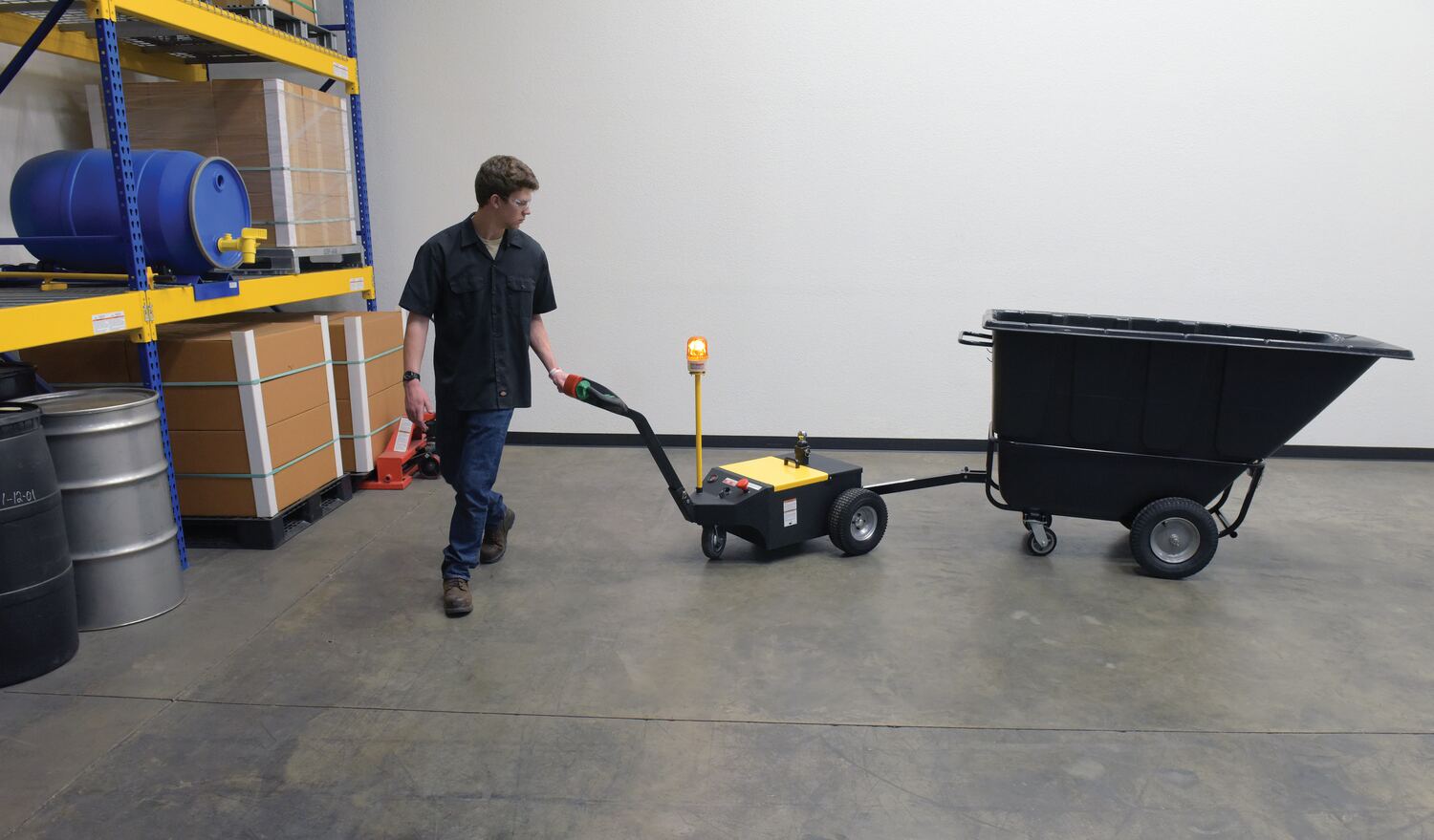

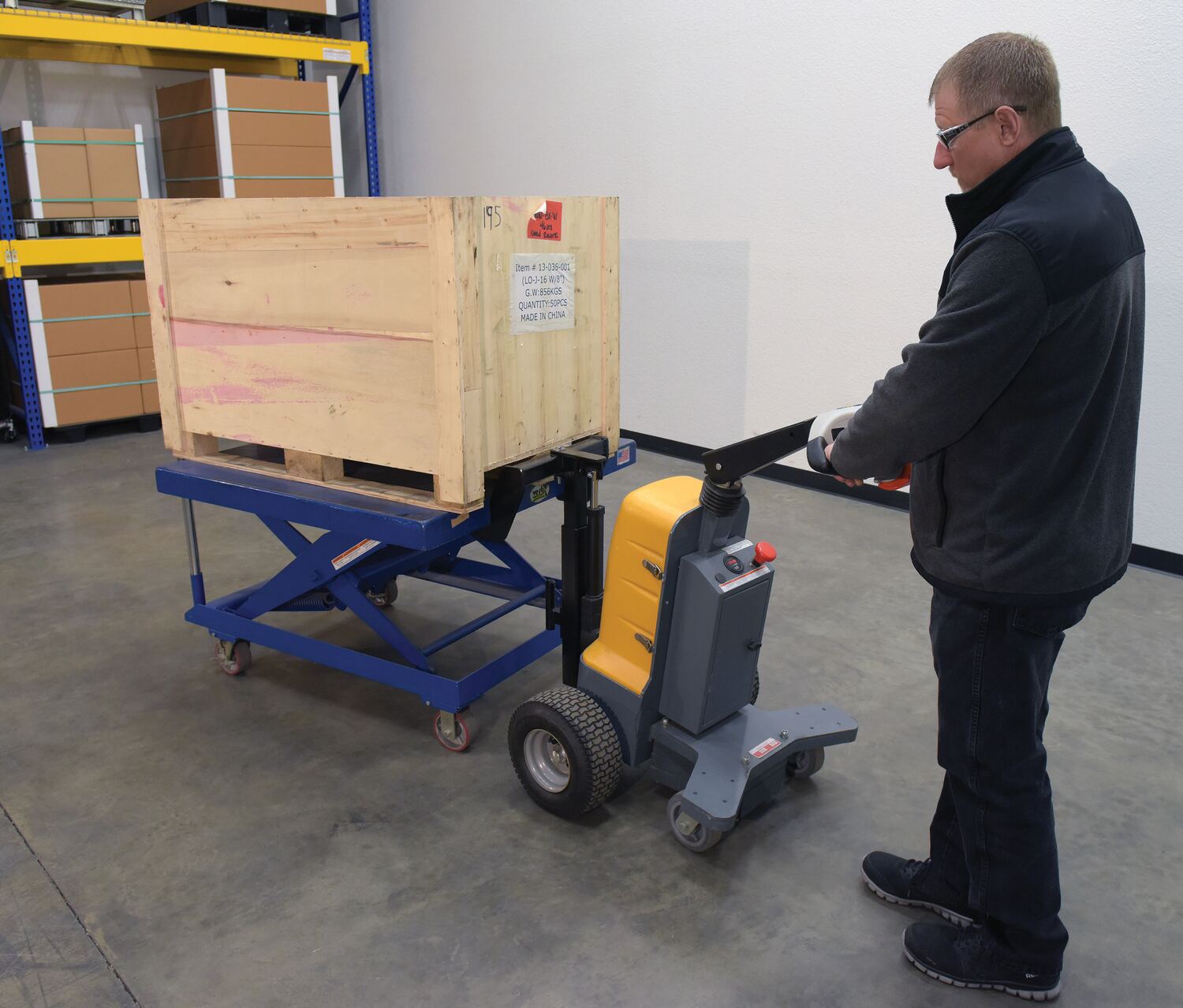

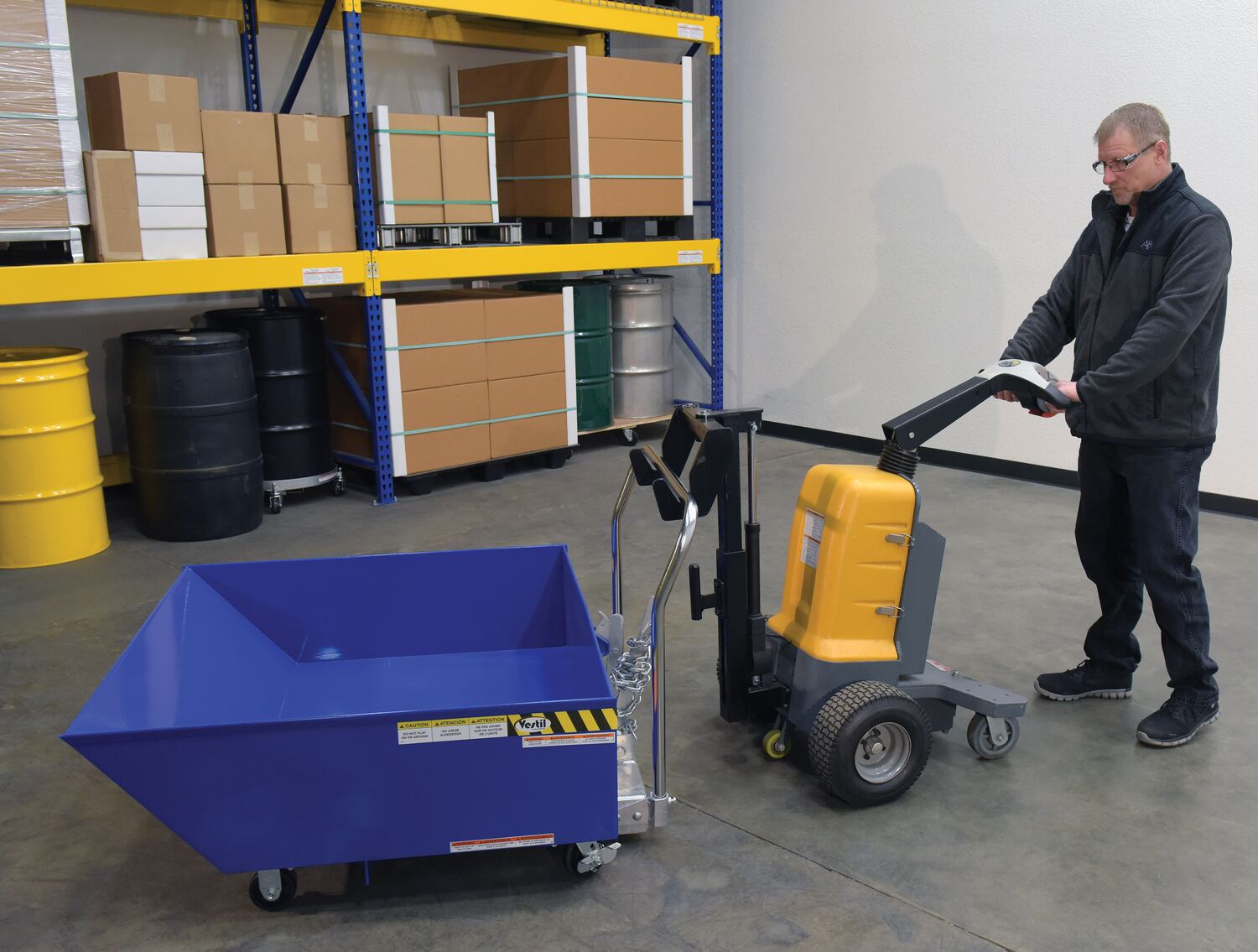

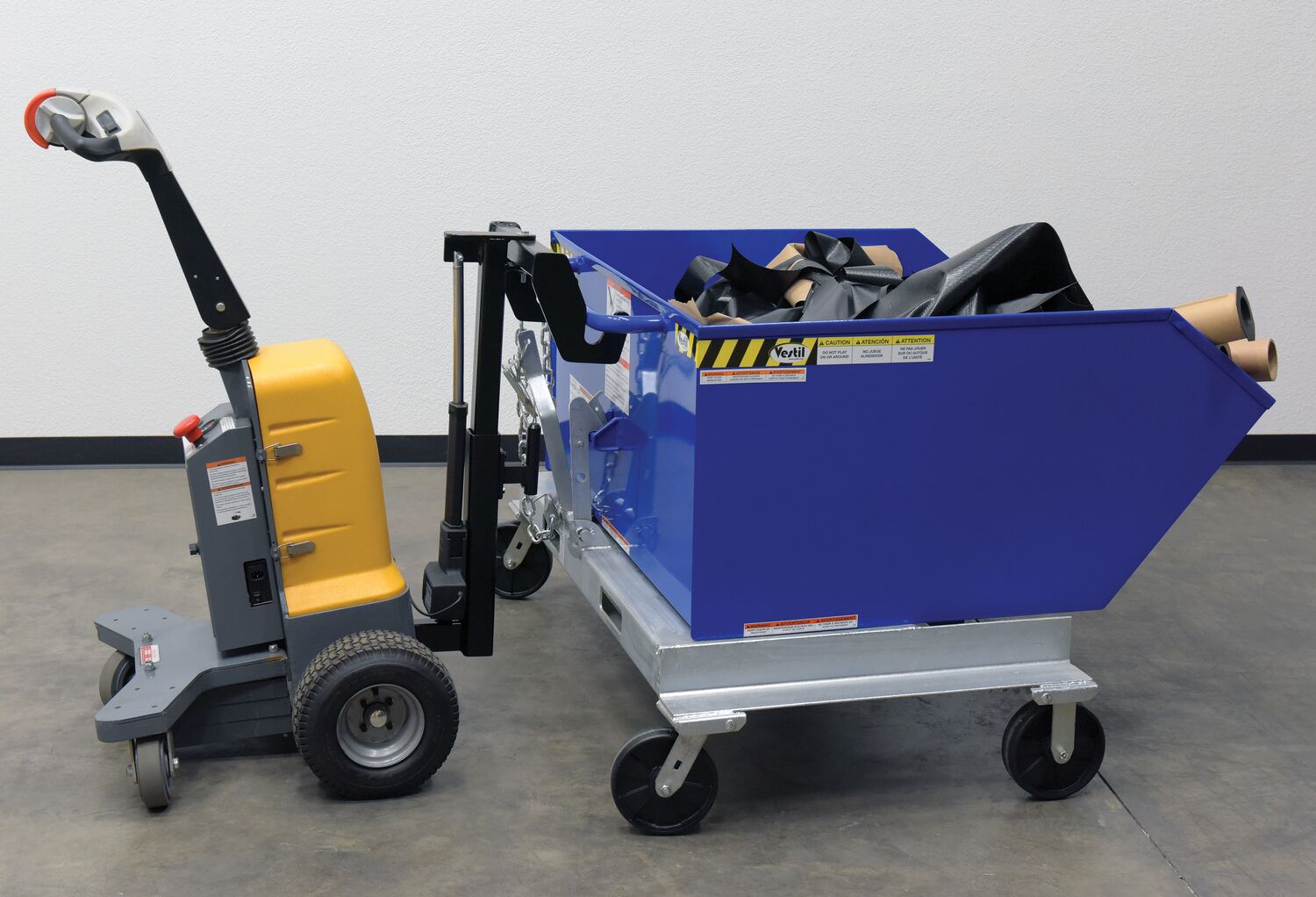

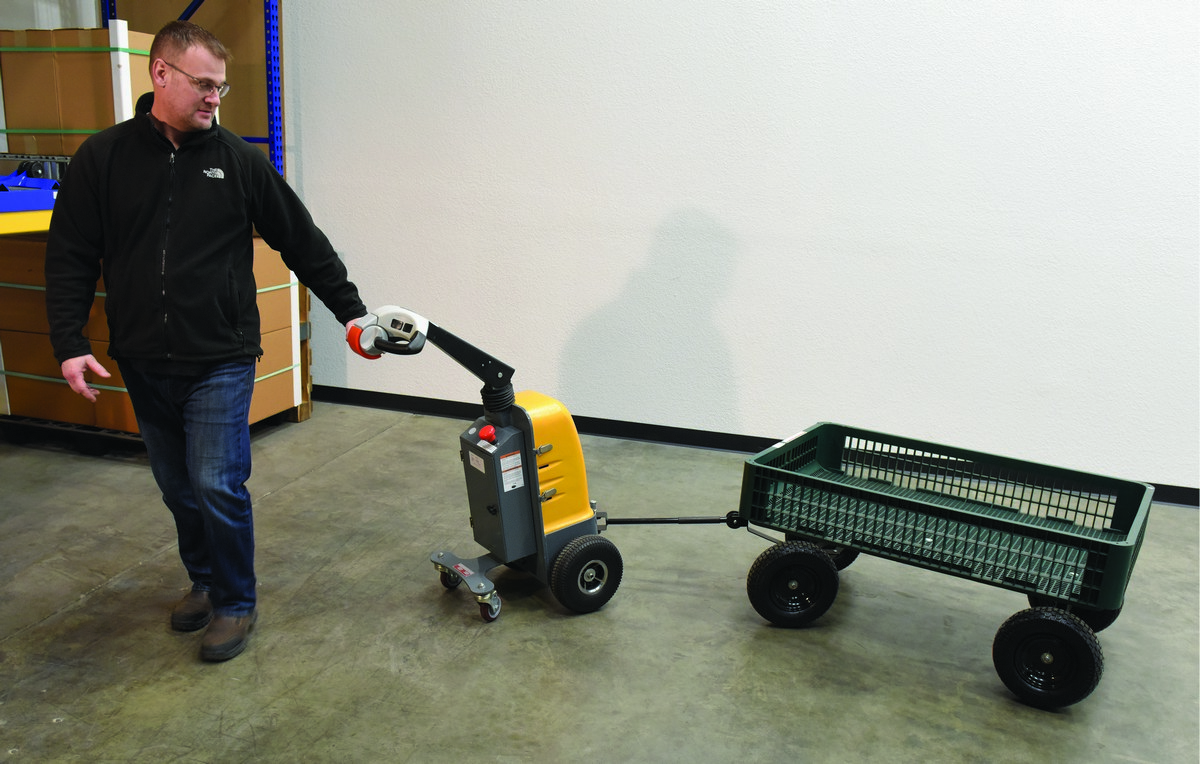

The Electric Powered Tuggers are suitable to use in airports, hospitals, and wholesale and retail stores. They can be used in a variety of applications like pulling industrial carts, hoppers, trash cans, trailers, and tow bars. E-TUG-10/20/30: Ideal to PULL loads without extreme stress or strain on the user's body. E-TUG-HD-30/50/70/100/120:The tuggers also help reduce the risk of accidents and injuries and improve handling efficiencies. High torque 24V DC drive motor handles heavy-duty jobs. Ergonomic handle features easy to operate throttle with FWD/REV speeds and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle. Includes two (2) 12V batteries, an integral battery charger, and a battery level gauge. Pin Hitch standard, optional attachments available.
| New 12,000 Lb. model & Fifth Wheel Hitch RV model! | |

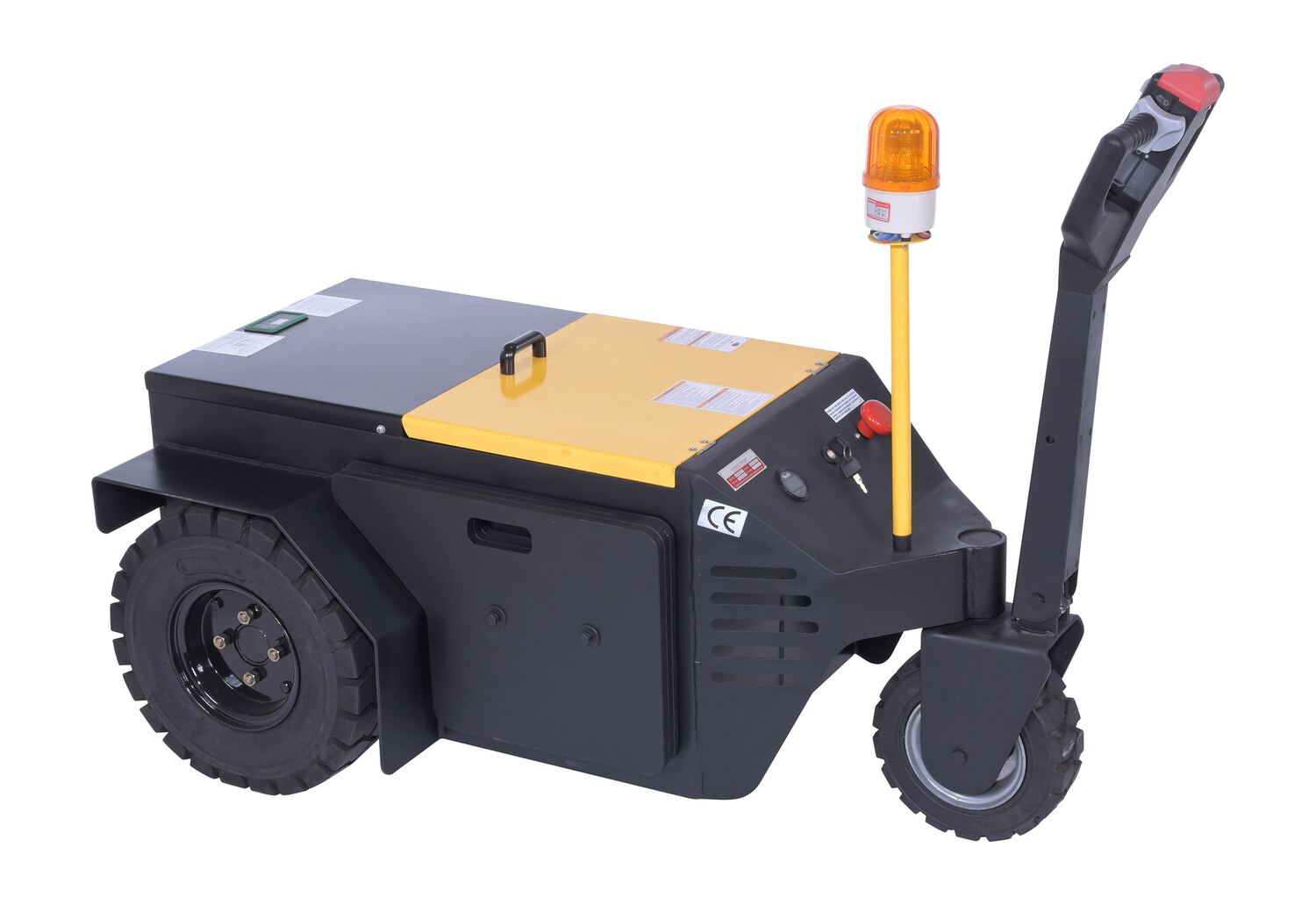

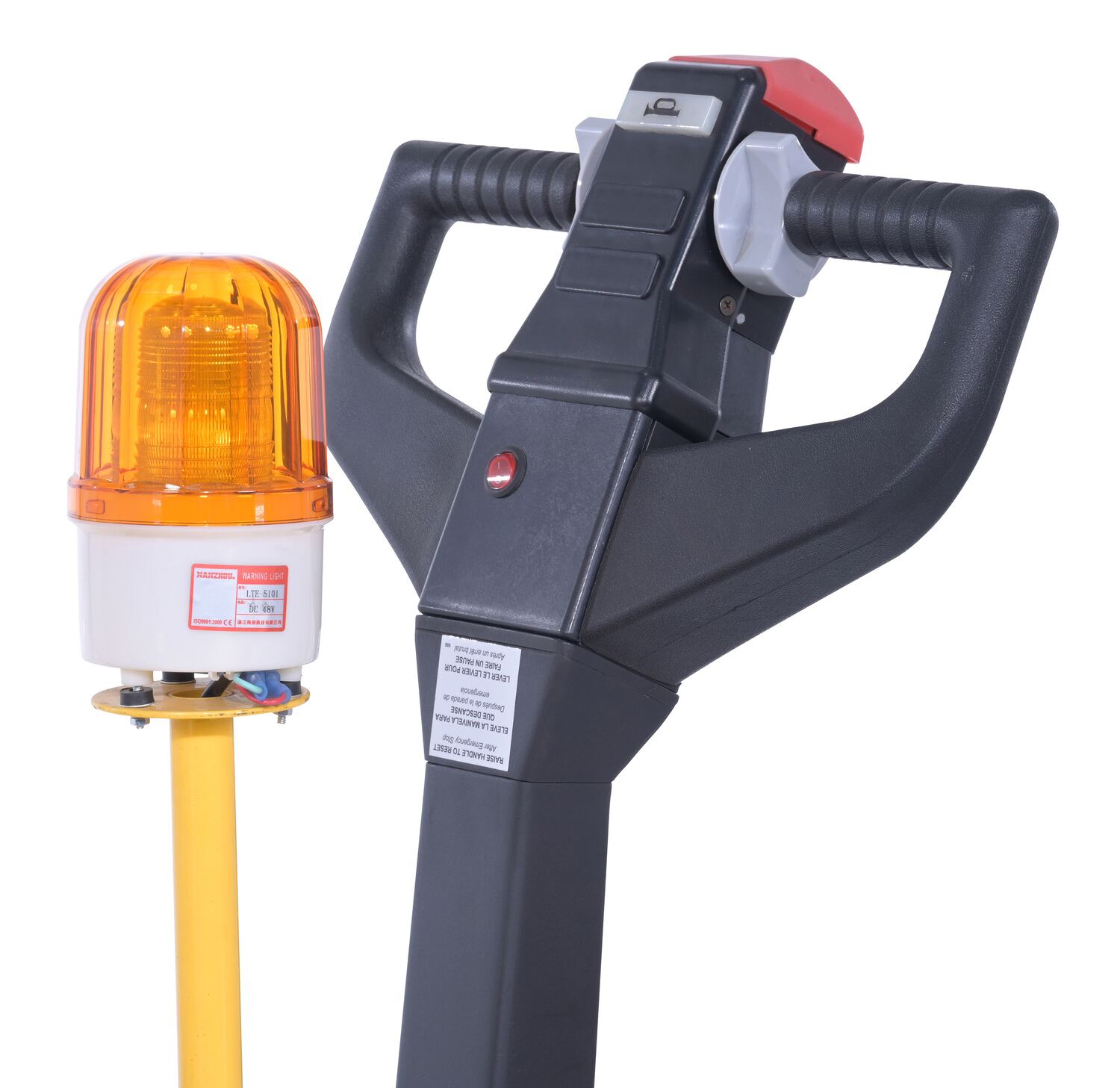

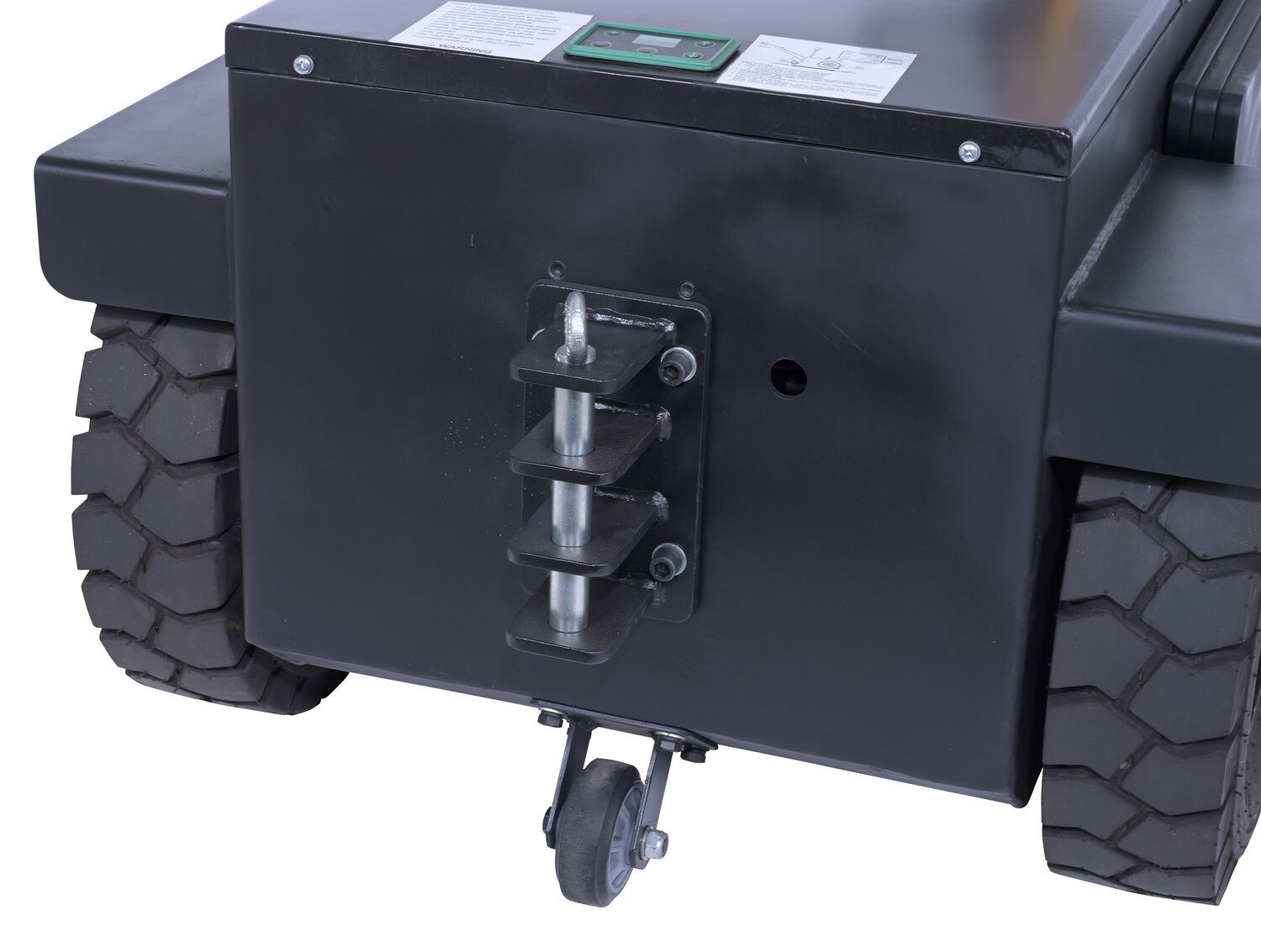

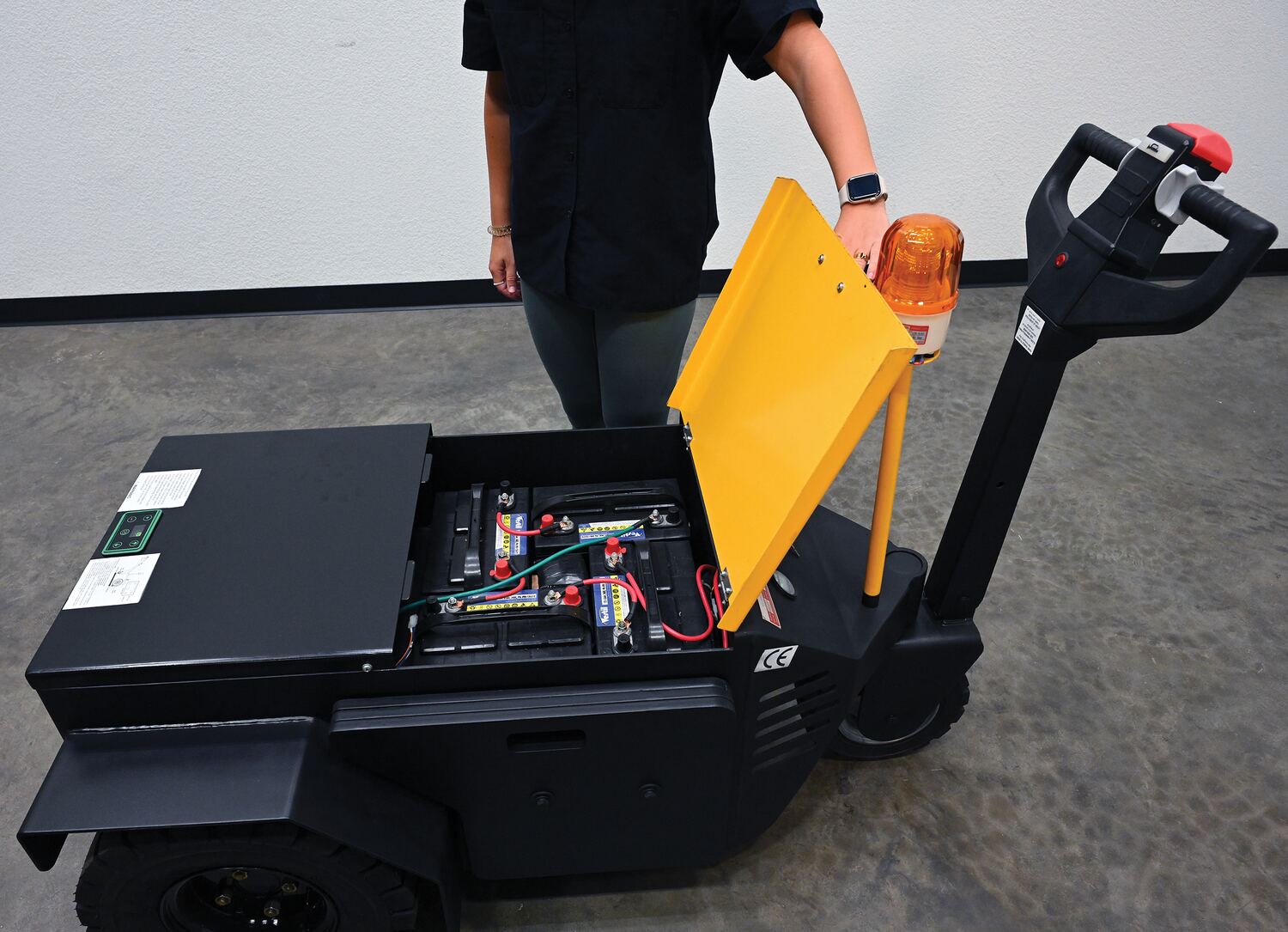

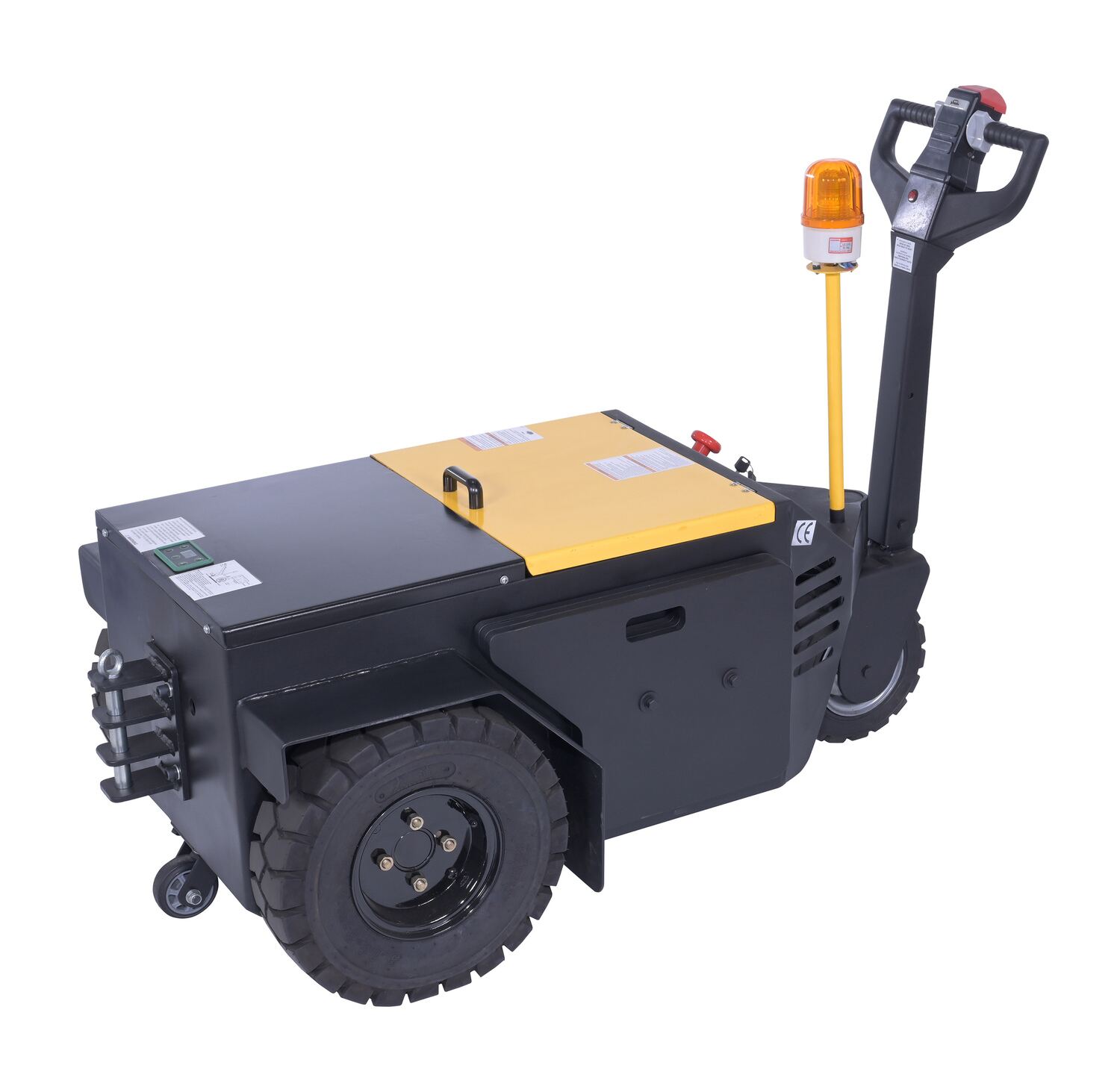

 model E-TUG-HD-120 |

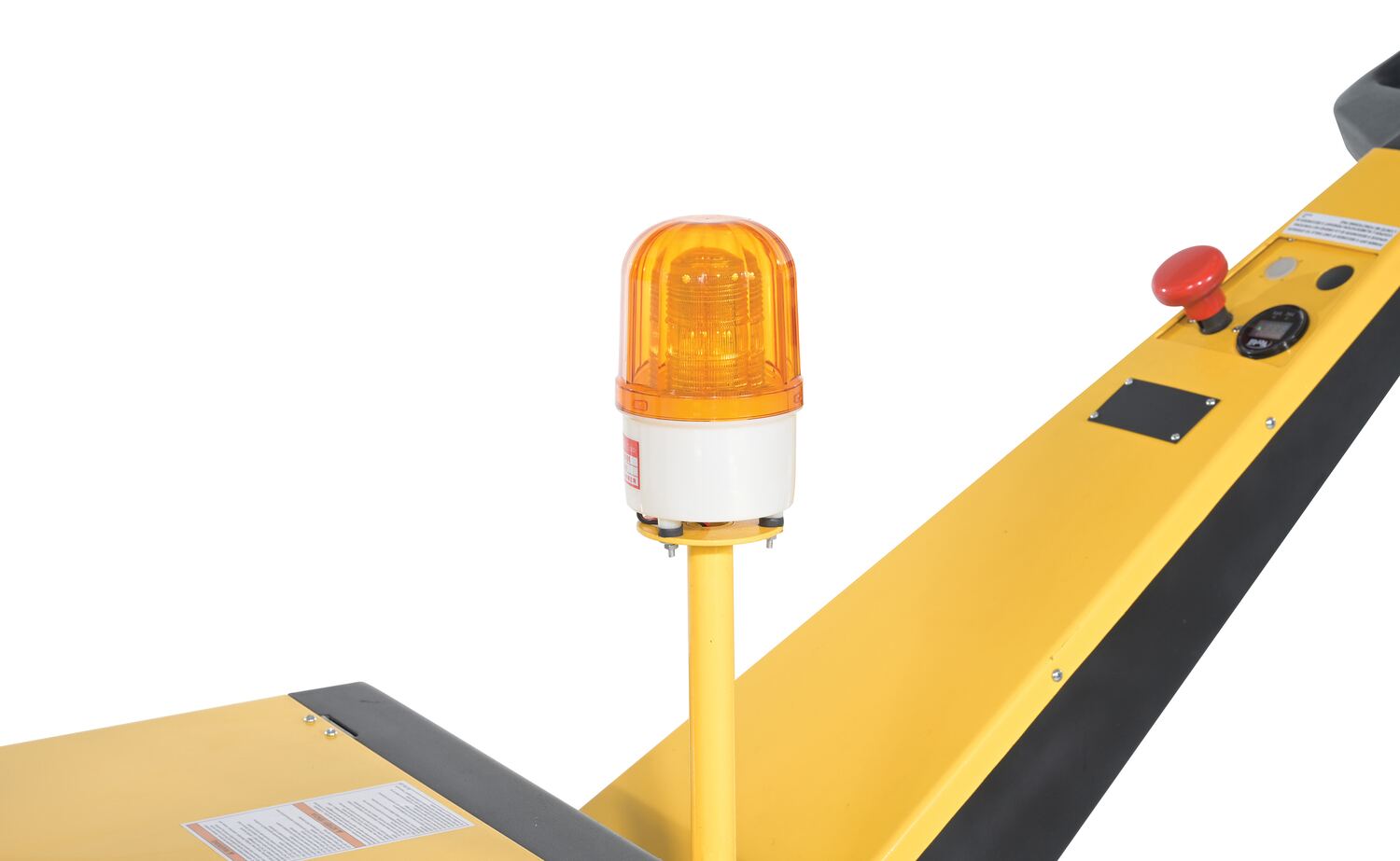

 model E-TUG-HD-100-RV |
Contact Vestil For A Quote On Custom Attachments

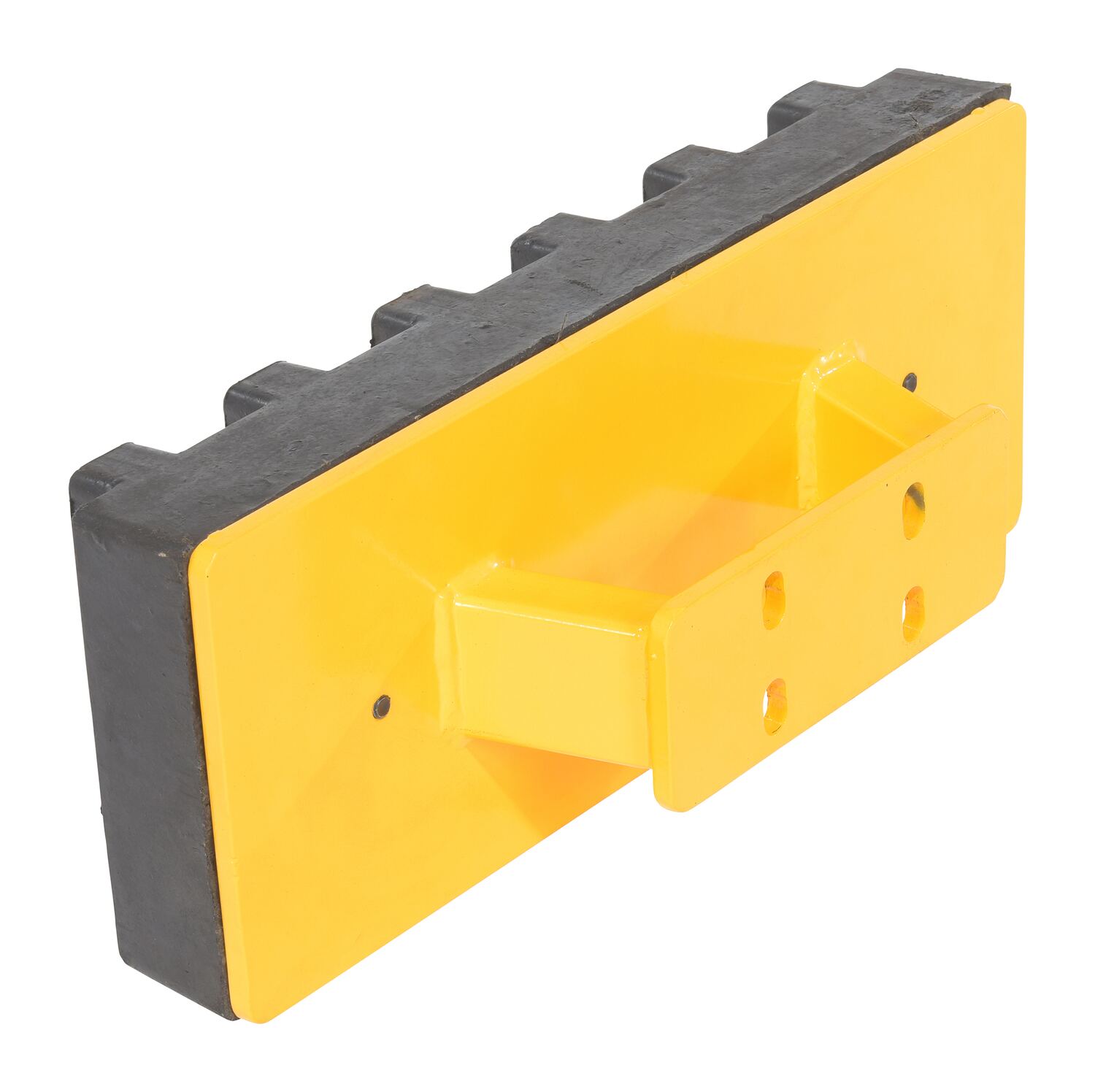

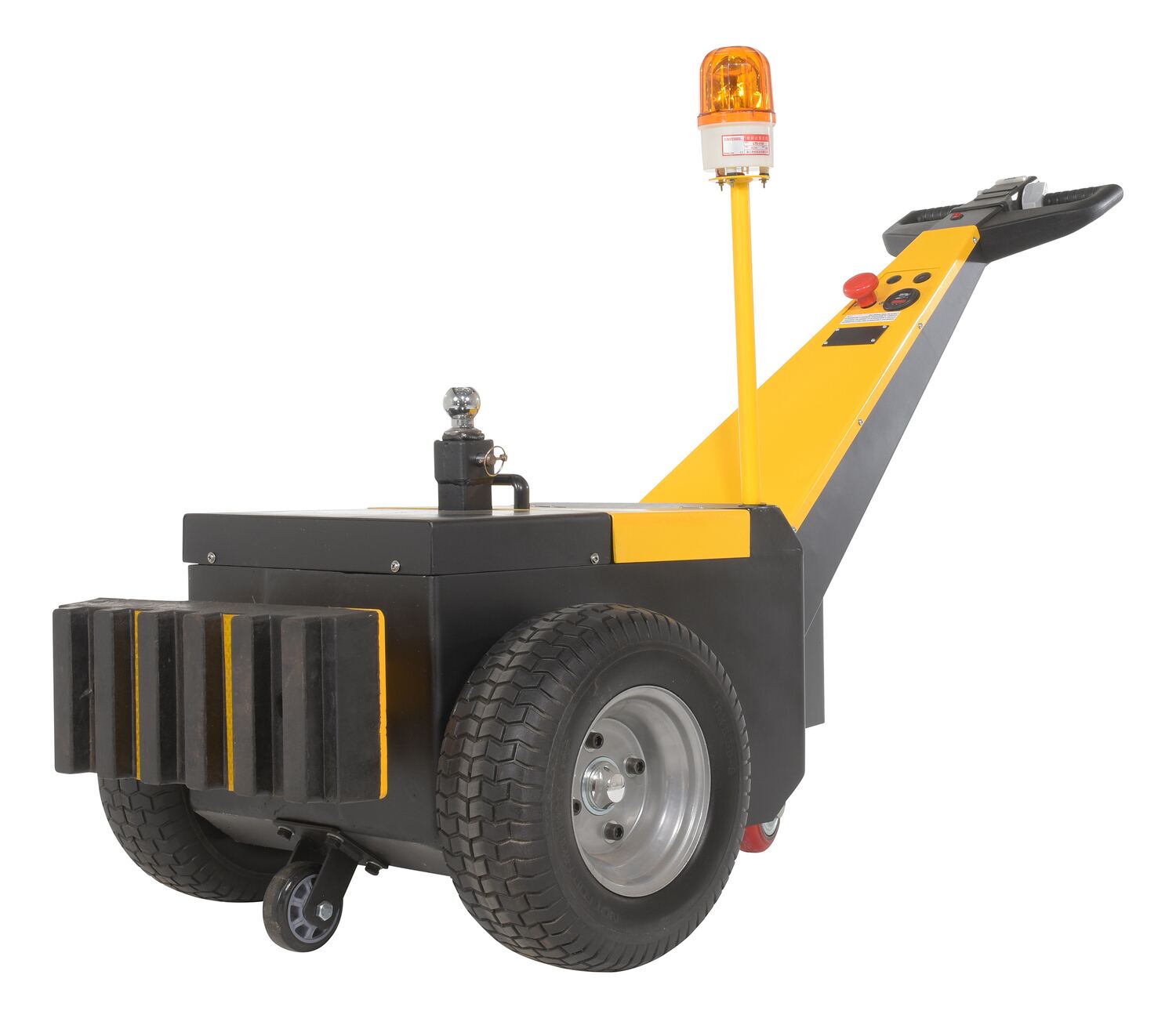

E-TUG-HD shown with E-TUG-HD-RPB-19 Rubber Bumper Attachment
Gas Powered Trailer Mover
Power Move MastersAdditional Models In This Family

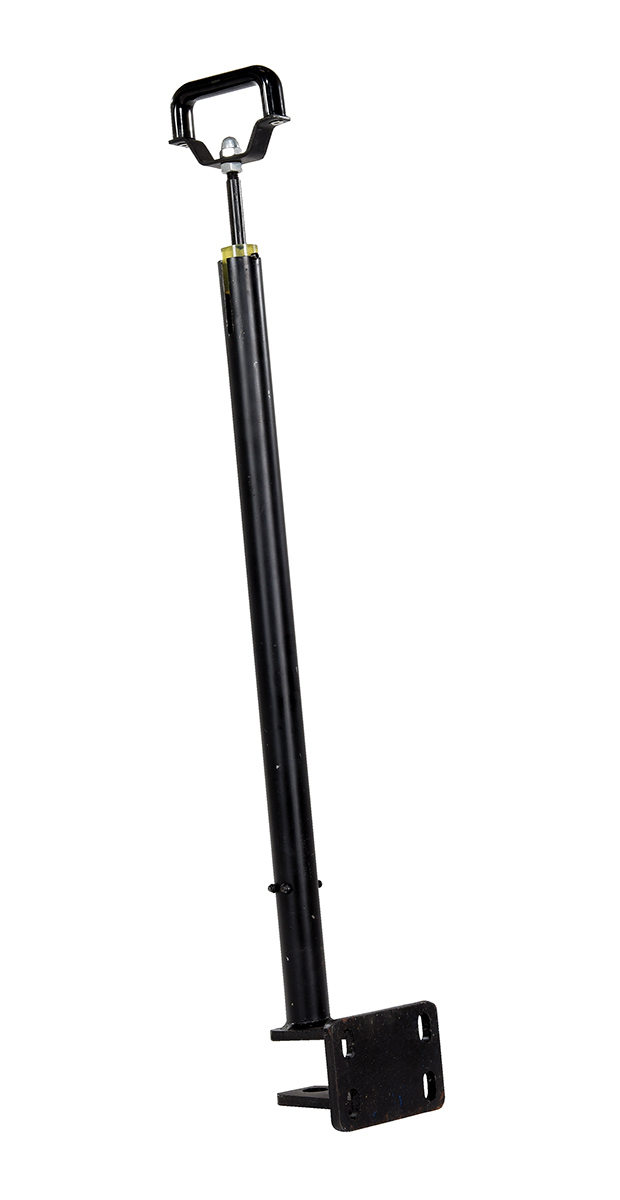

E-TUG-HD-SLPINH

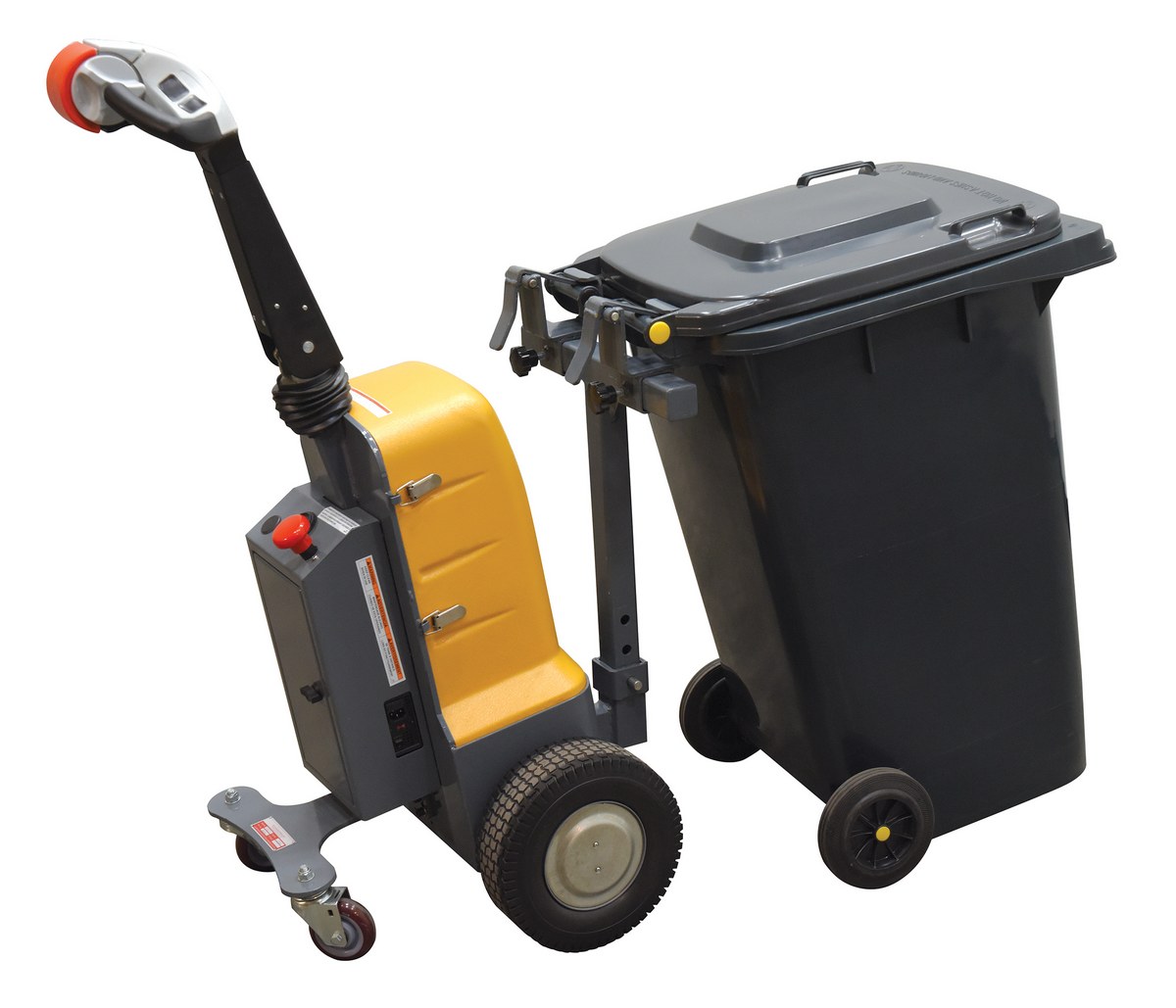

E-TUG-MM

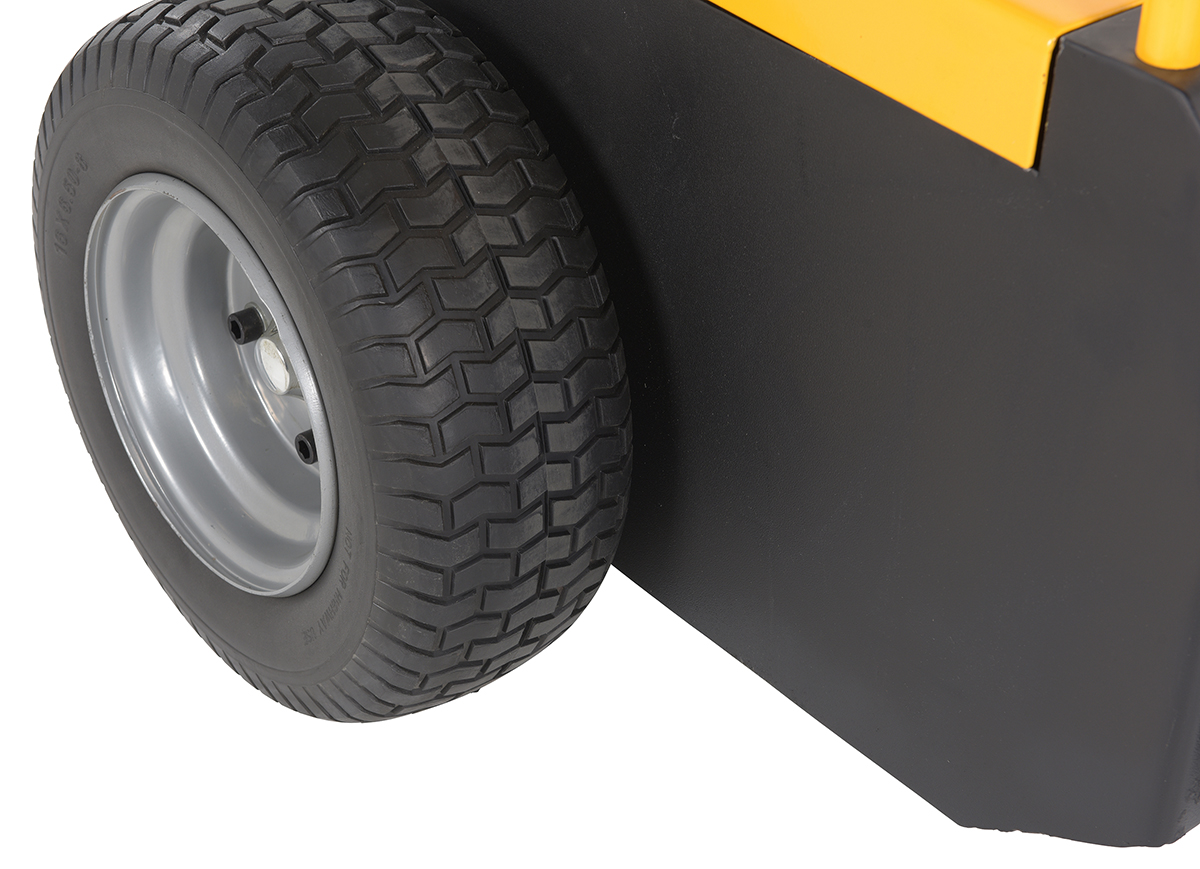

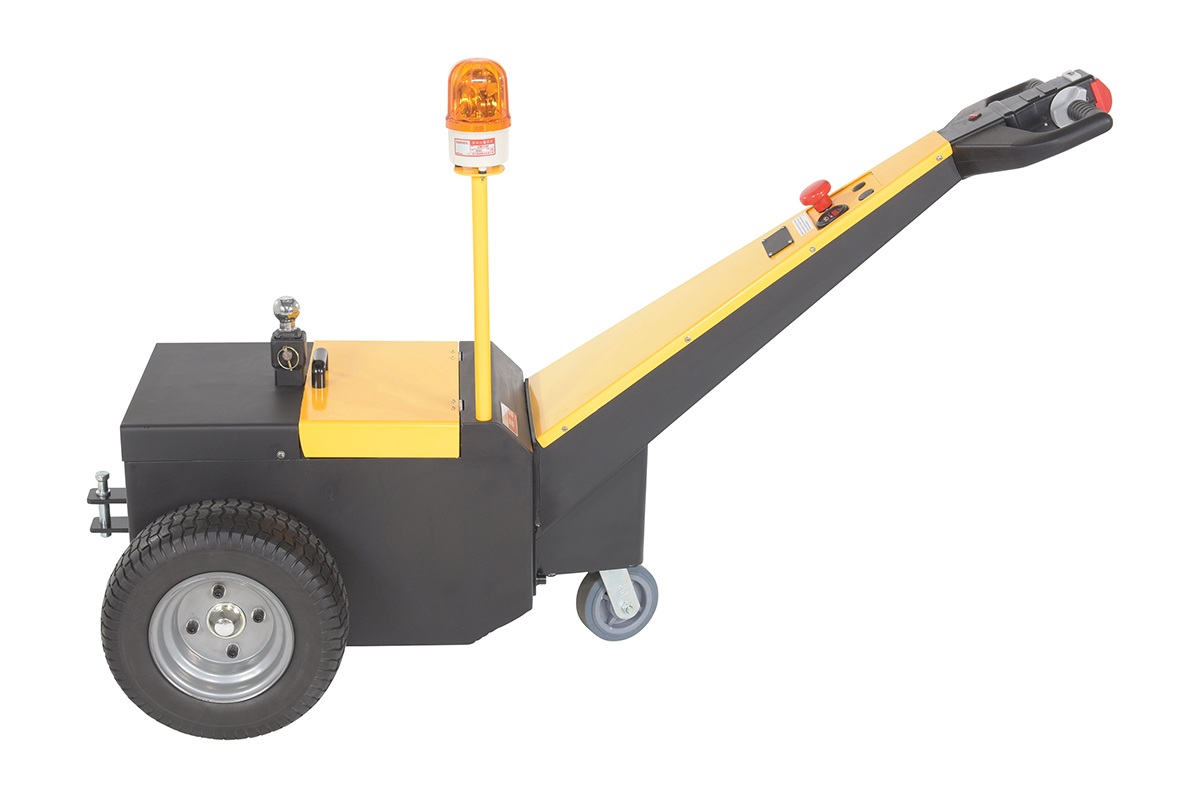

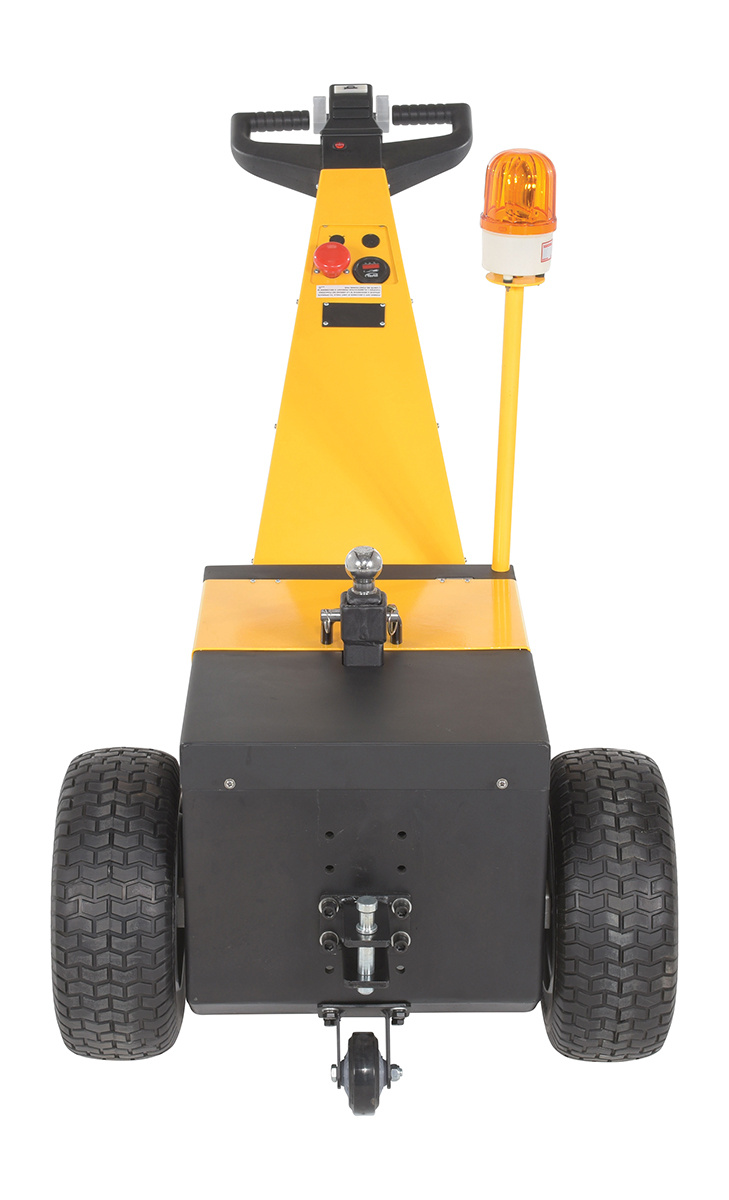

E-TUG-HD-50

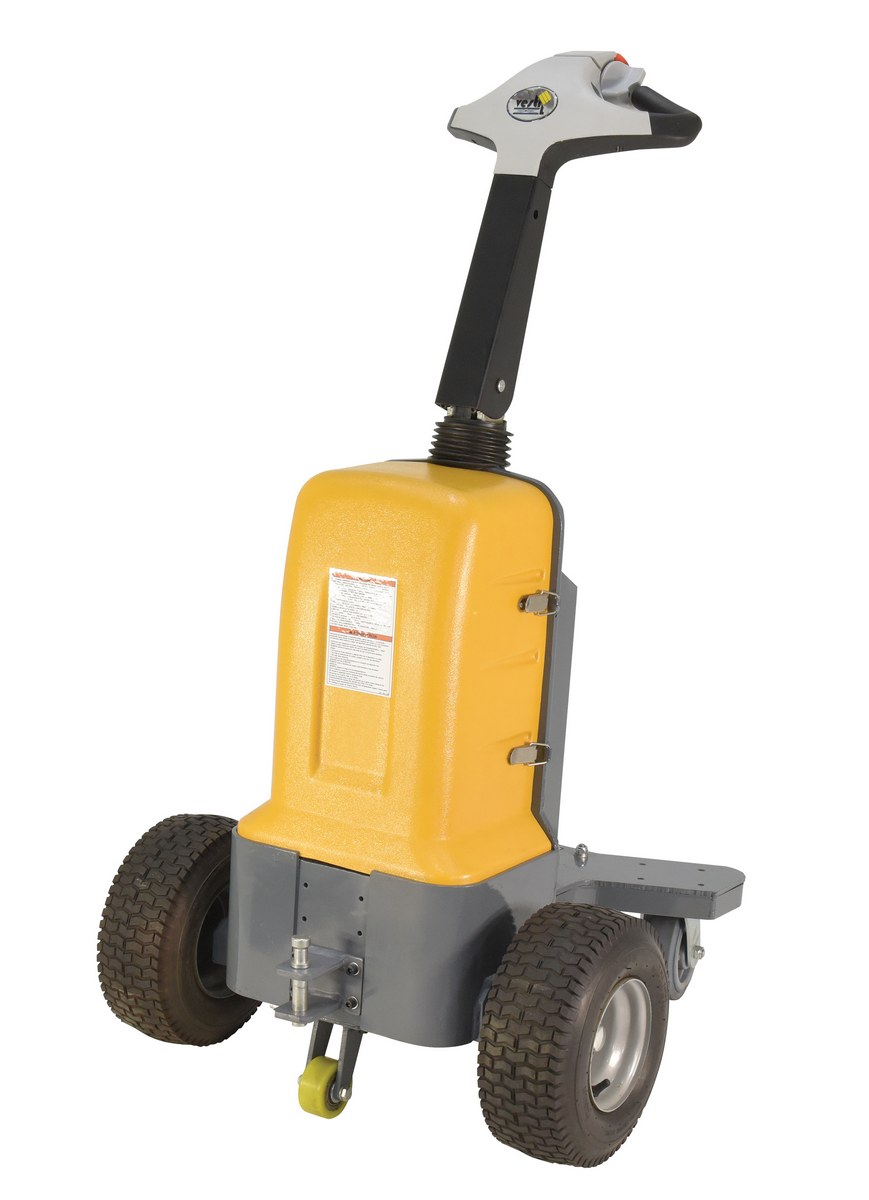

E-TUG-30

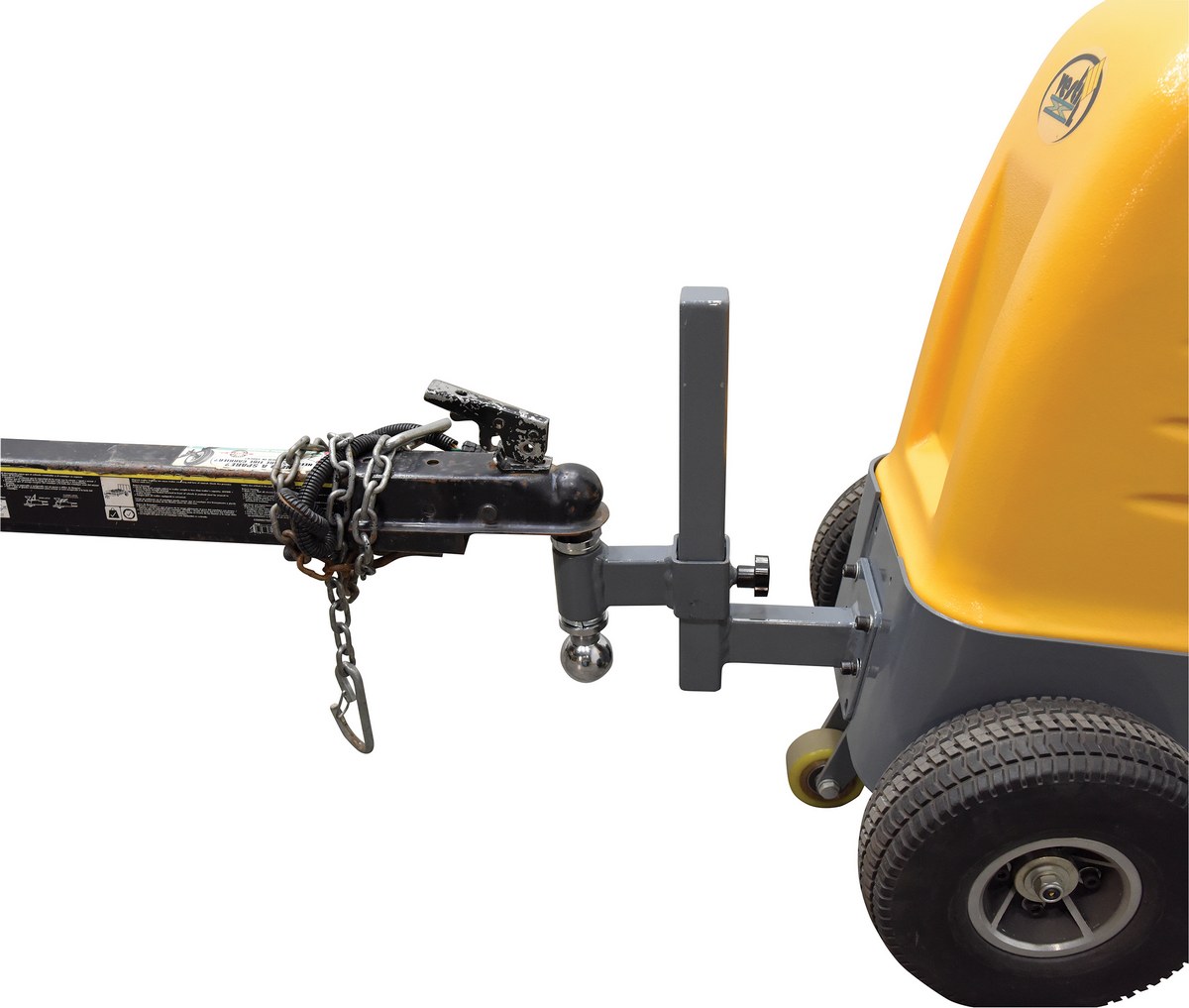

E-TUG-20
E-TUG-HD-RPB-19
E-TUG-HD-SBH-4

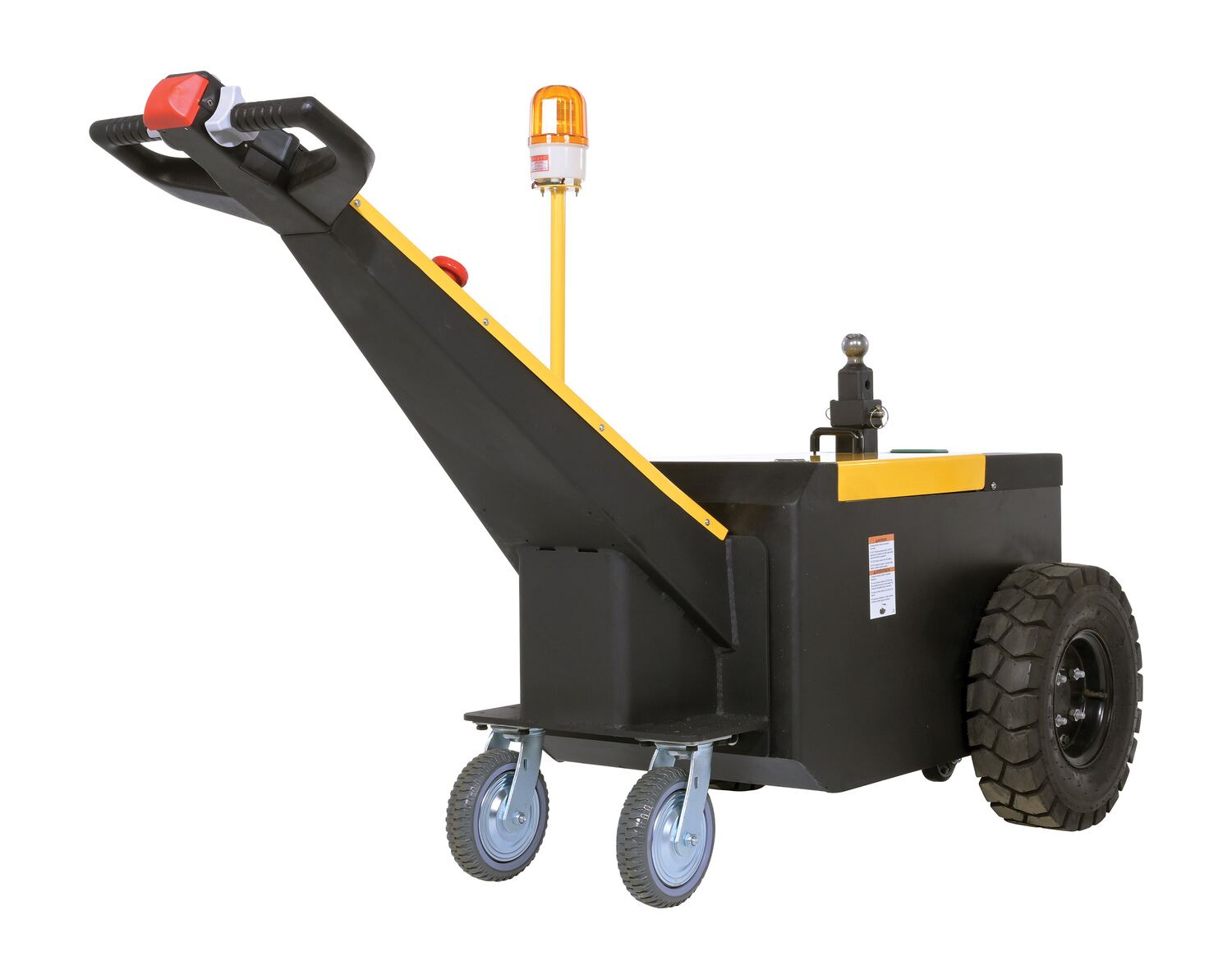

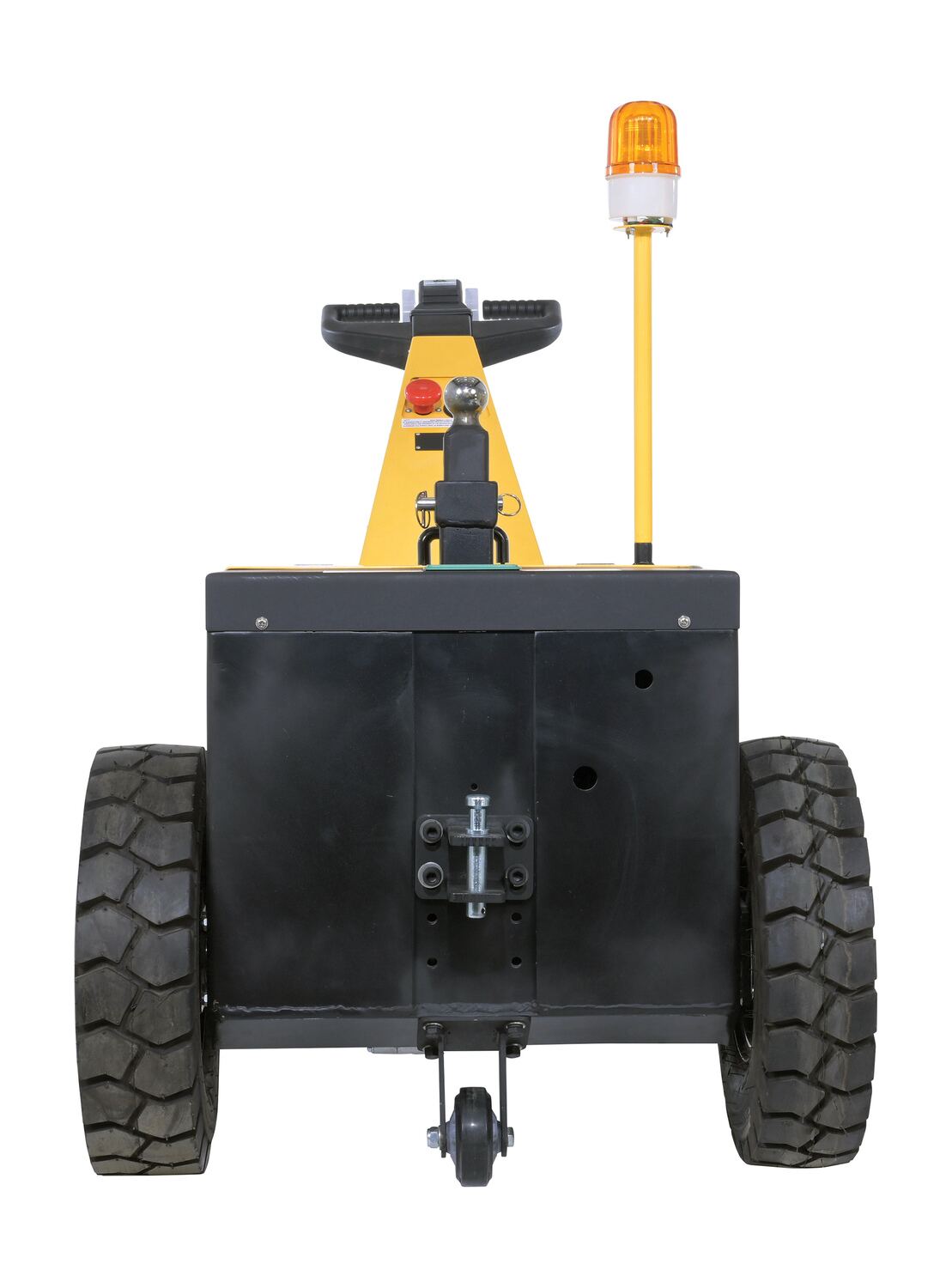

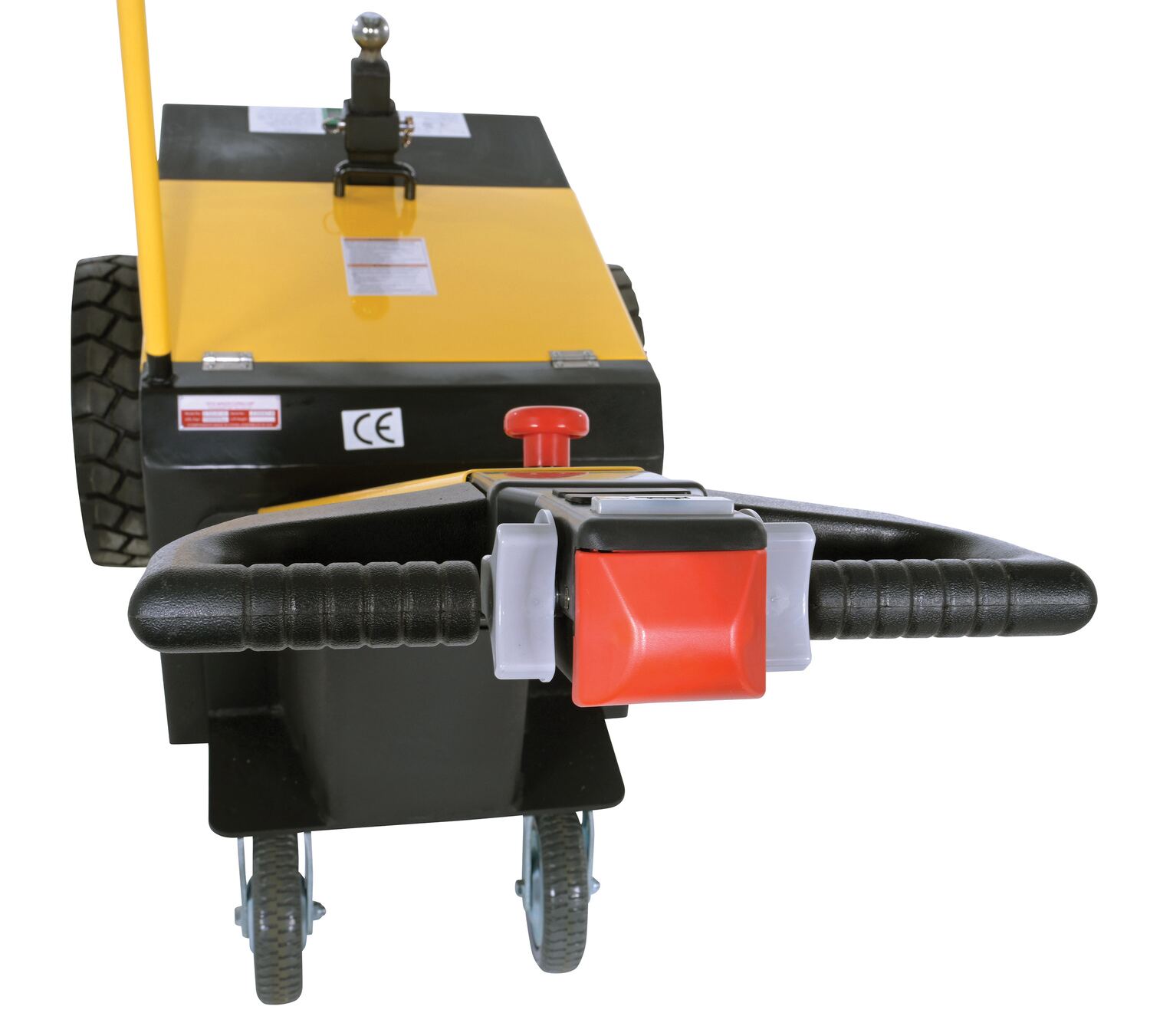

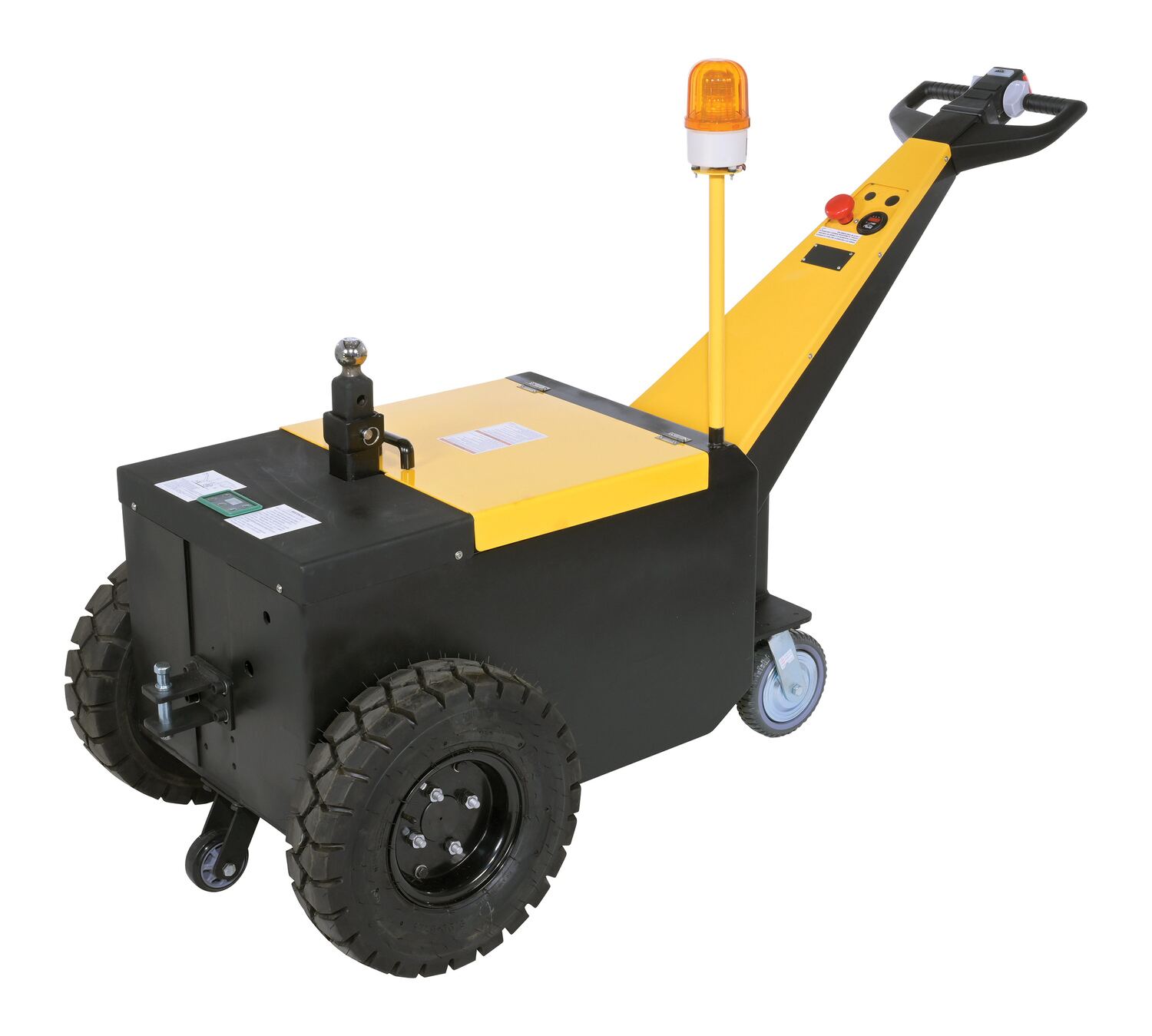

E-TUG-HD-100
E-TUG-ADSH
E-TUG-HD-100-RV
E-TUG-HD-RPB-19
E-TUG-HD-RP-16

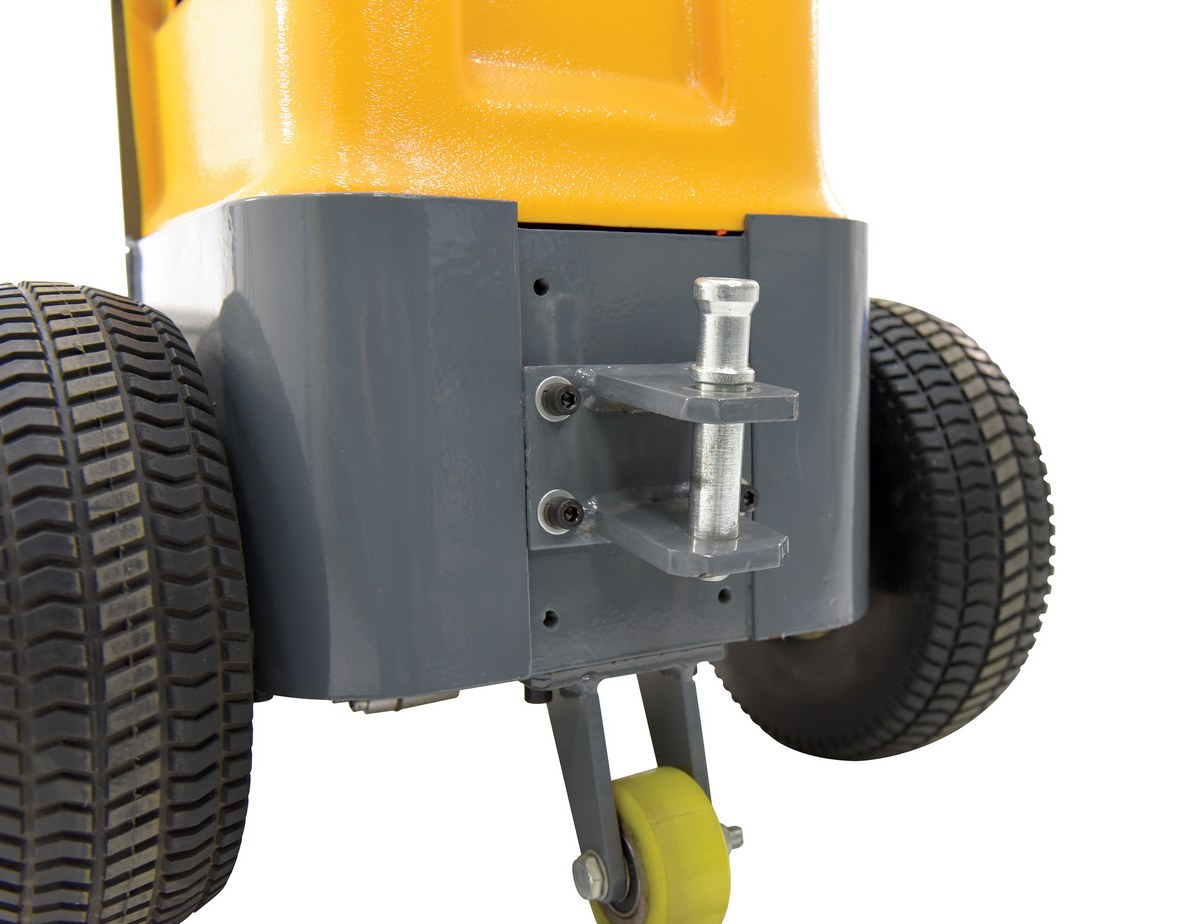

E-TUG-PINH
E-TUG-HD-50
E-TUG-MCLA
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

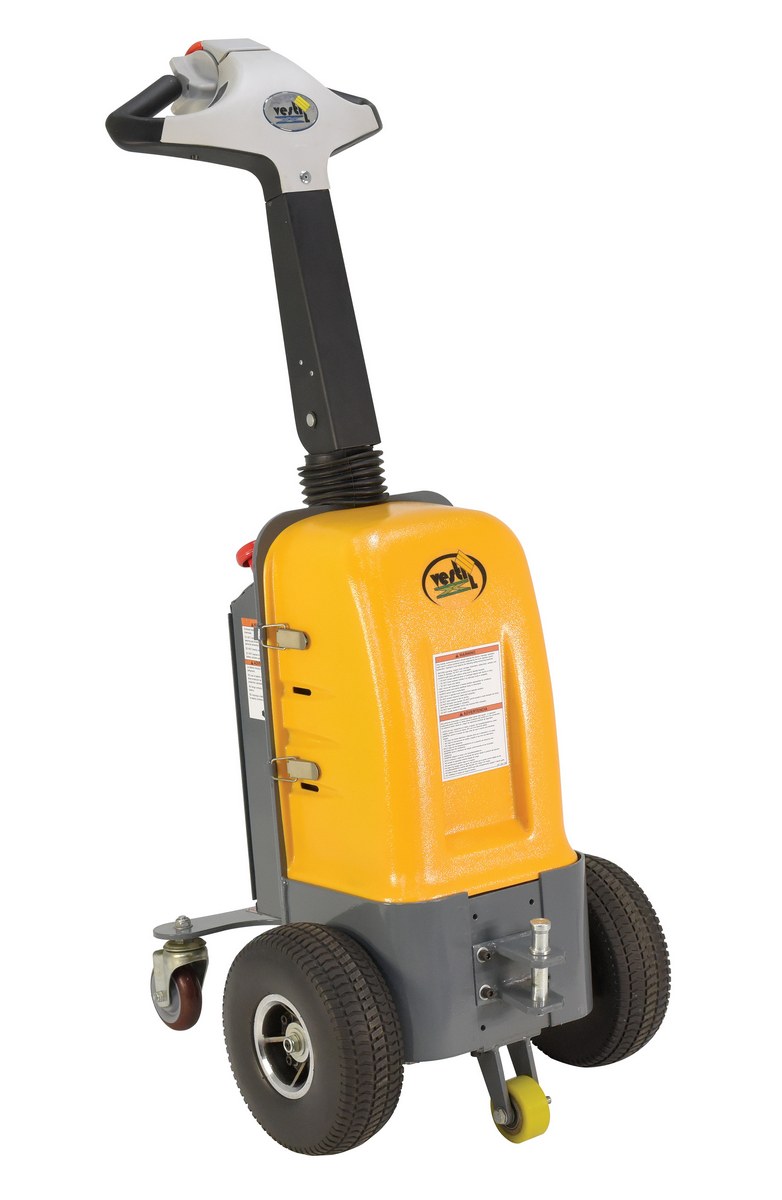

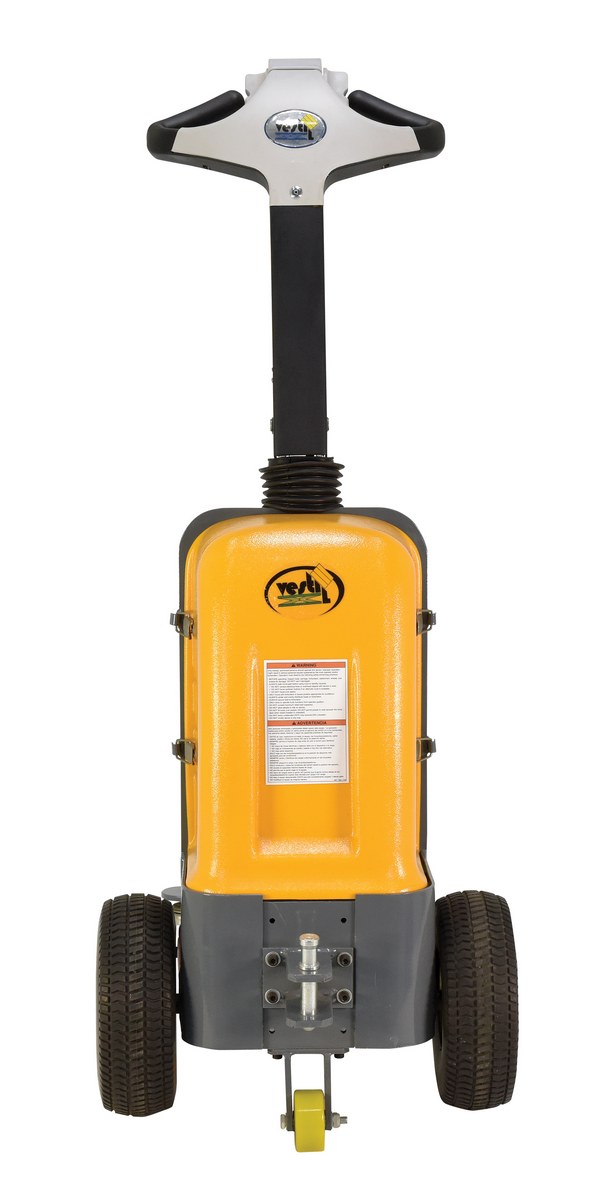

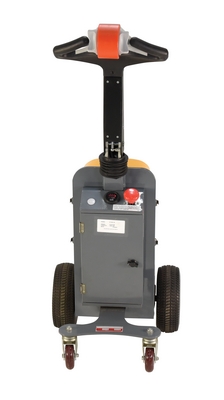

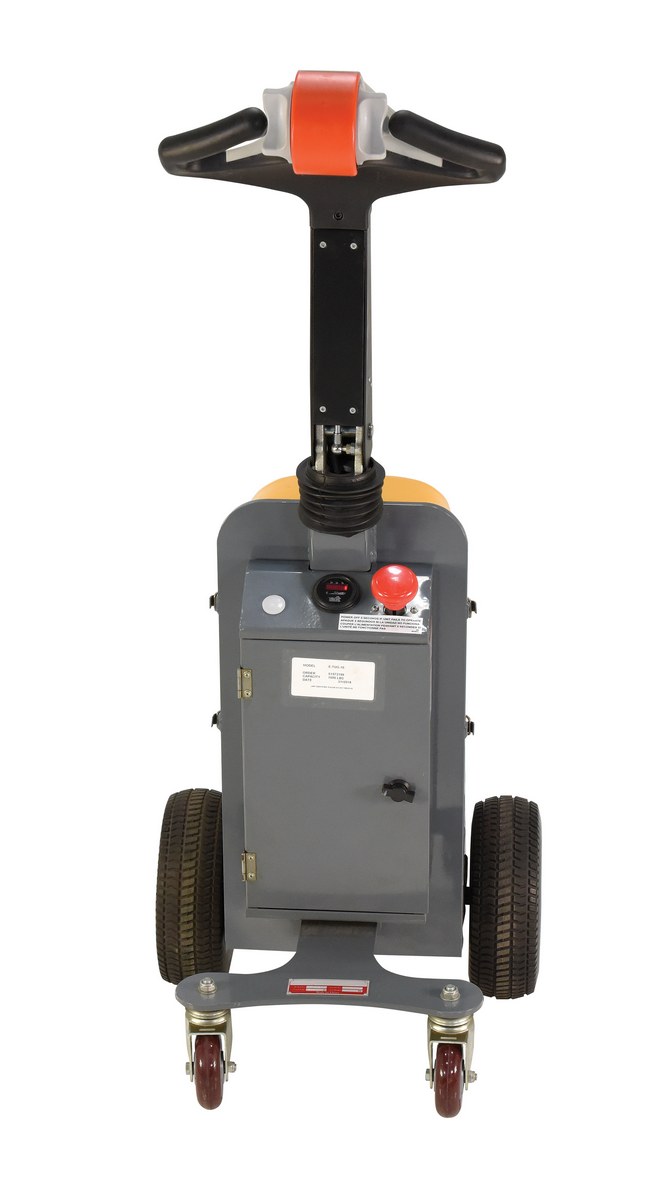

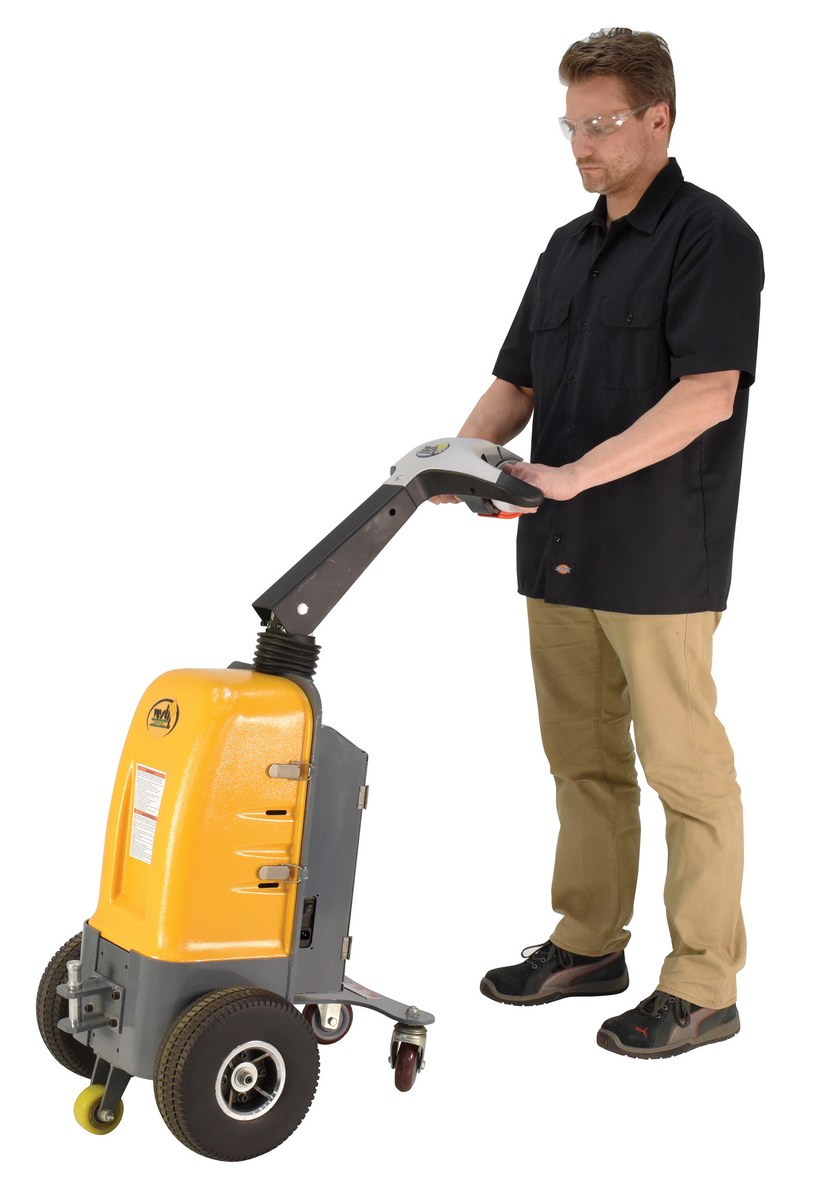

| E-TUG-10 |  | 1 Year Limited Warranty | Steel Electric Powered Tugger 1000 Lb. Pull Capacity Yellow/Black | Uniform Pull Capacity (lb.): 1,000 Drive Motor: 24V DC | 258 | ||

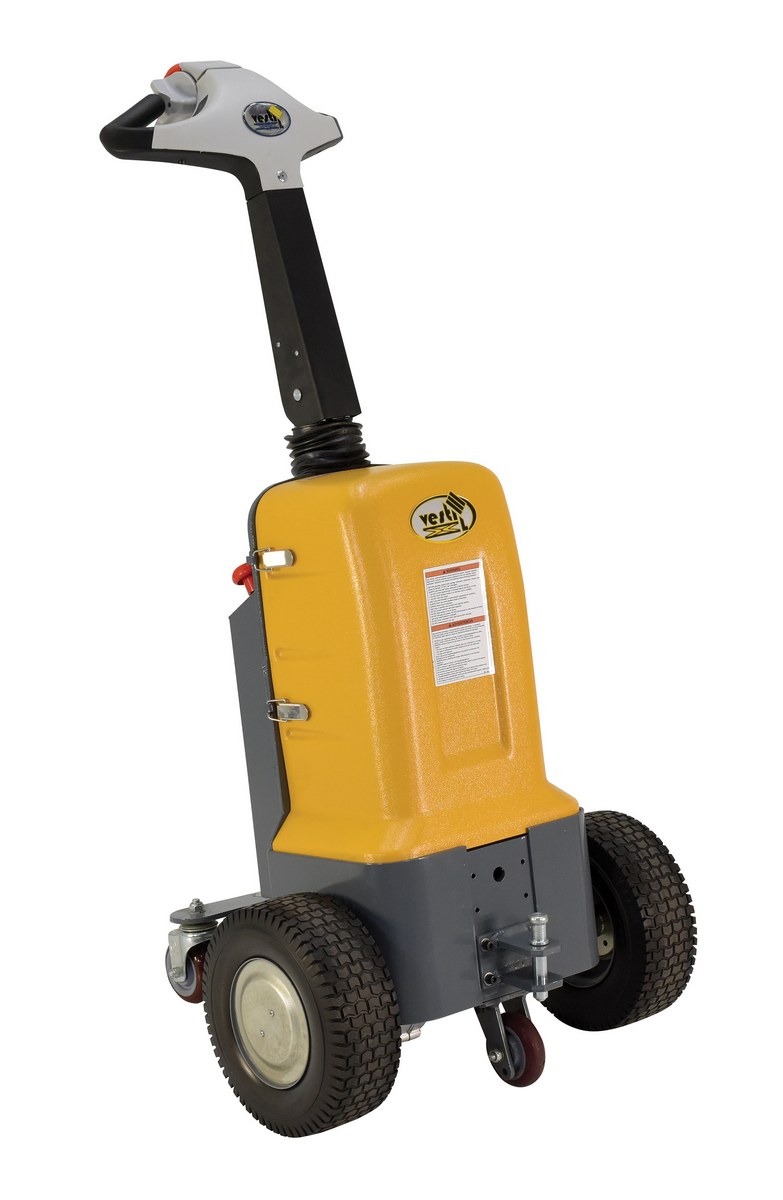

| E-TUG-20 | POPULAR |  | 1 Year Limited Warranty | Steel Electric Powered Tugger 2000 Lb. Pull Capacity Yellow/Black | Uniform Pull Capacity (lb.): 2,000 Drive Motor: 24V DC | 282 | |

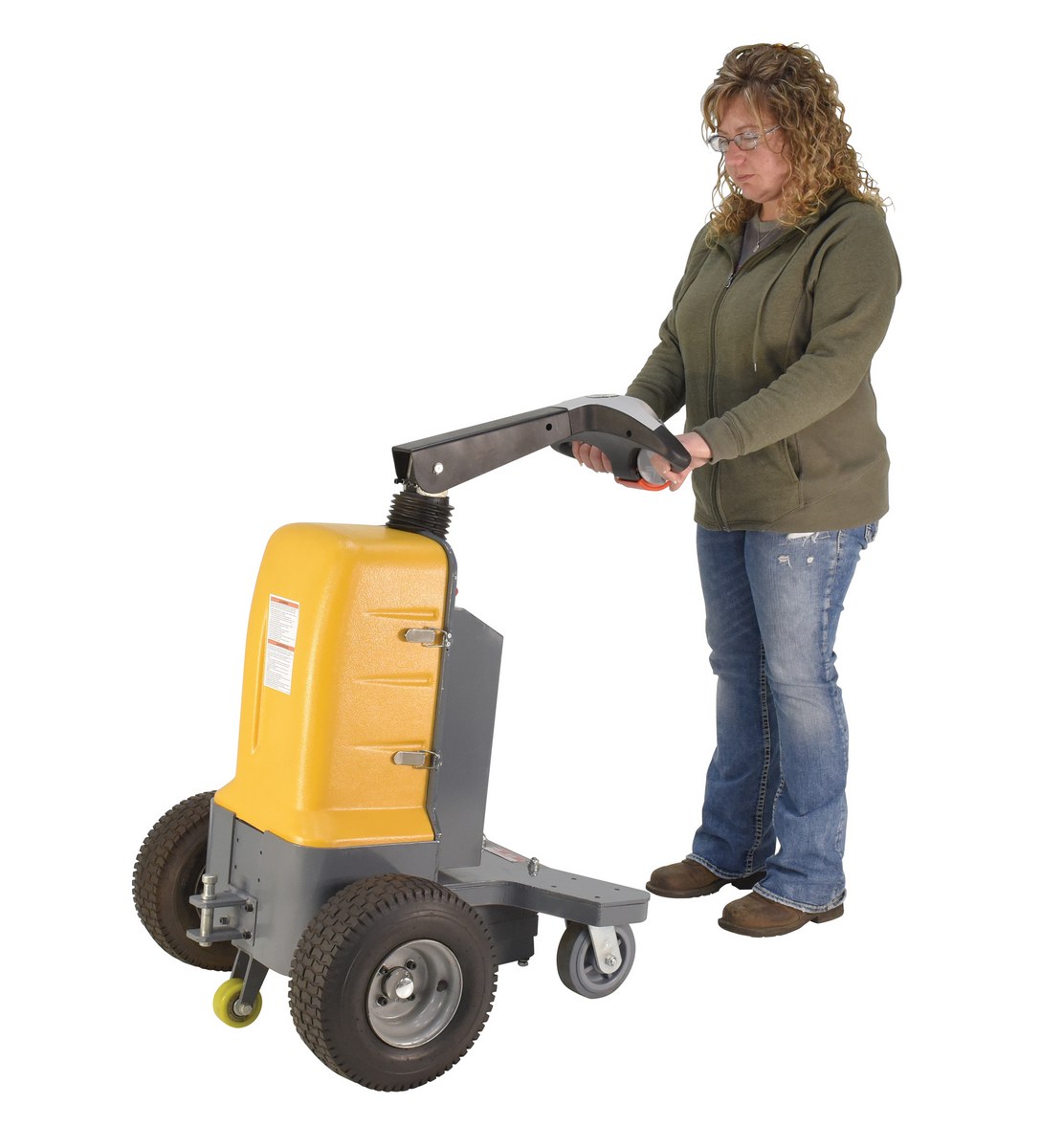

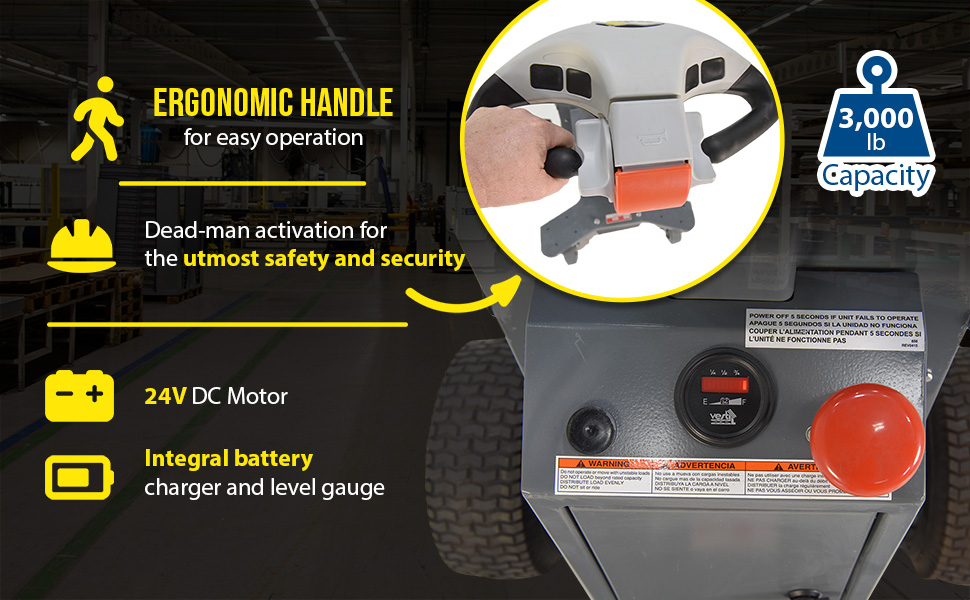

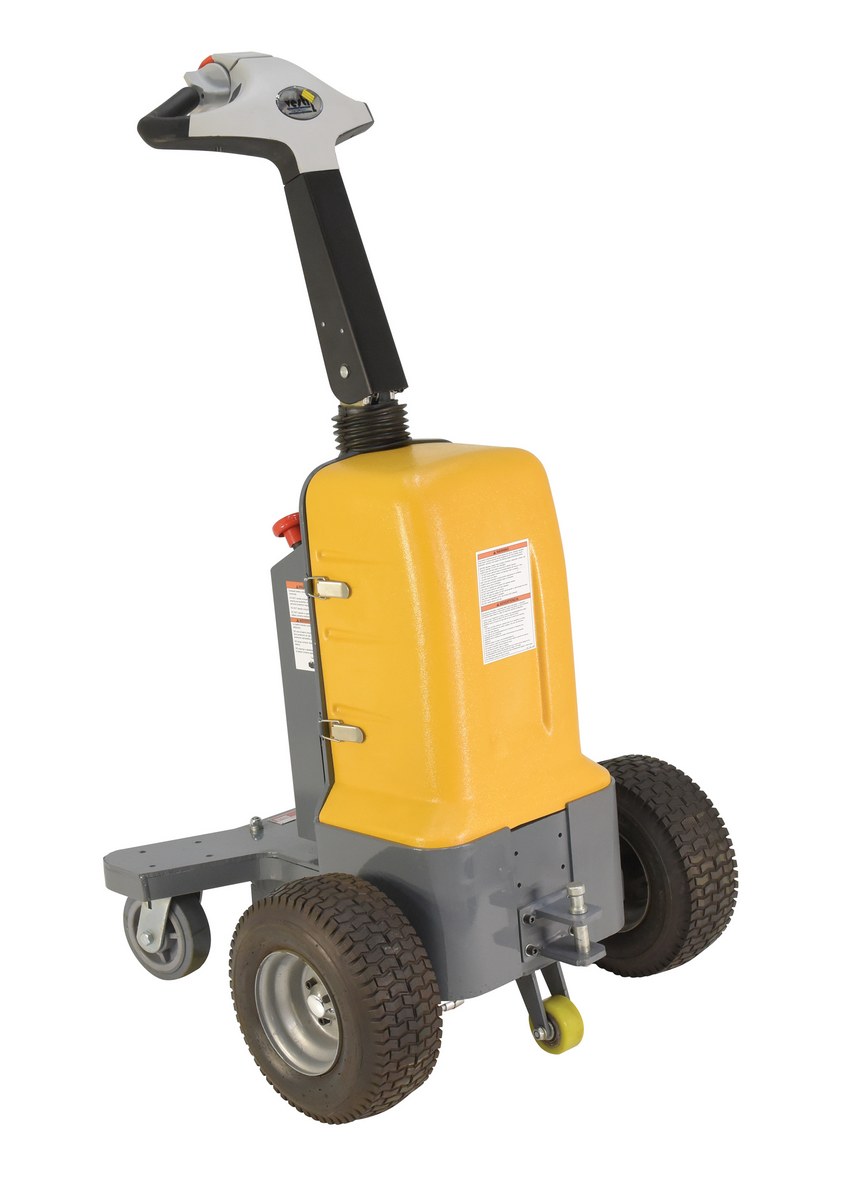

| E-TUG-30 |  | 1 Year Limited Warranty | Electric Powered Tugger with 3000 Lb. Pull Capacity Yellow/Black | Uniform Pull Capacity (lb.): 3,000 Drive Motor: 24V DC | 434 | ||

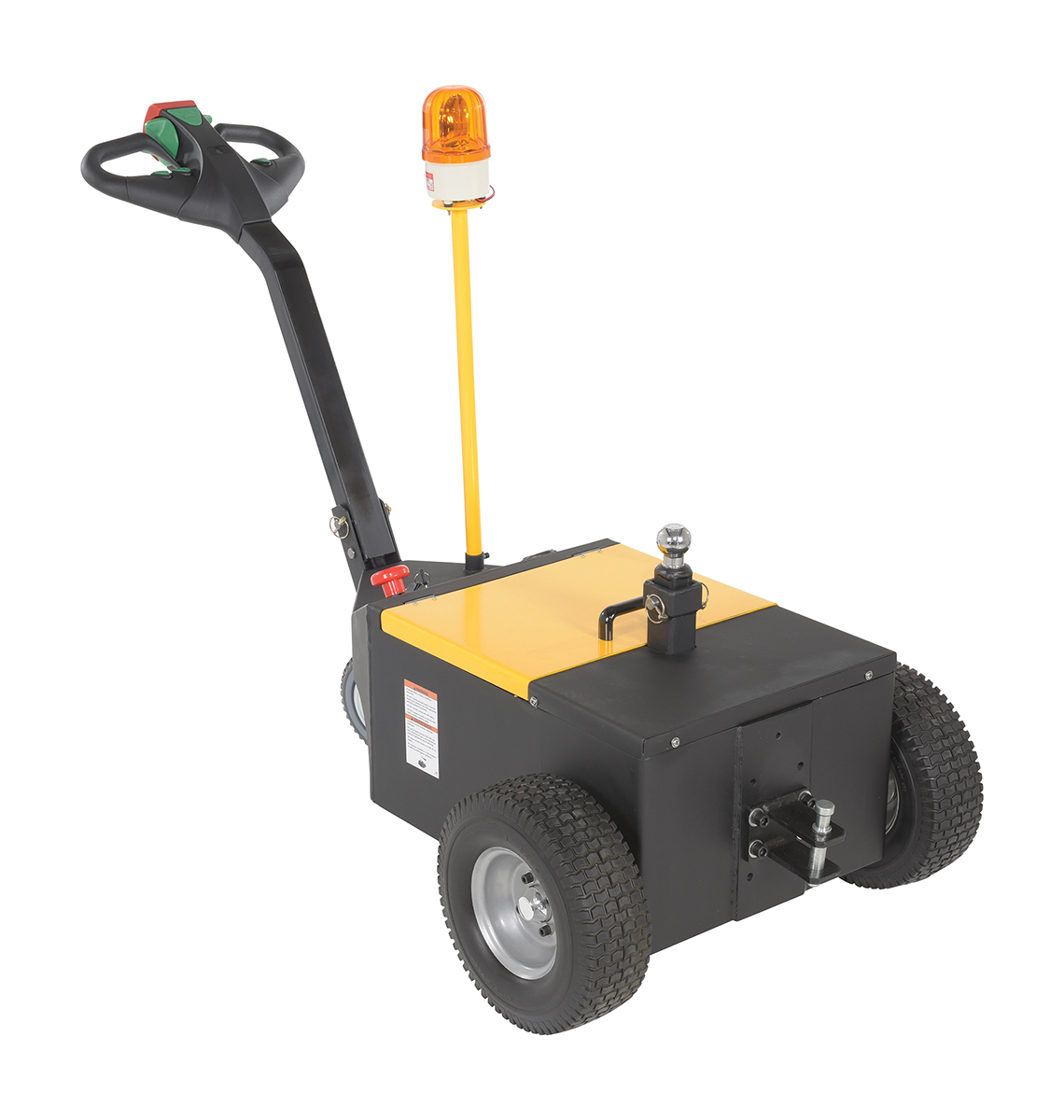

| E-TUG-HD-30 |  | 1 Year Limited Warranty | Steel Heavy Duty Electric Powered Tugger 3000 Lb. Pull Capacity Yellow/Black | Uniform Capacity (lb.): 3000 Drive Motor: 24V DC | 420 | ||

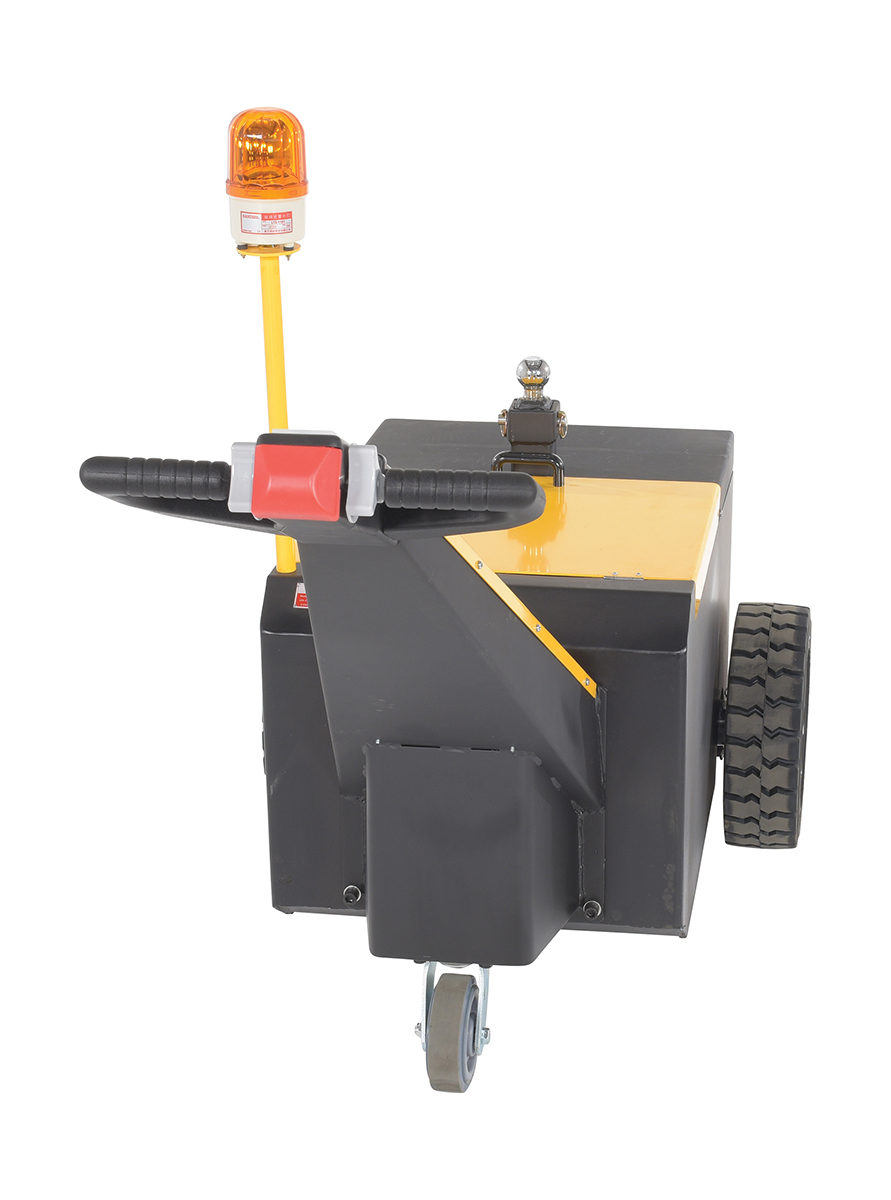

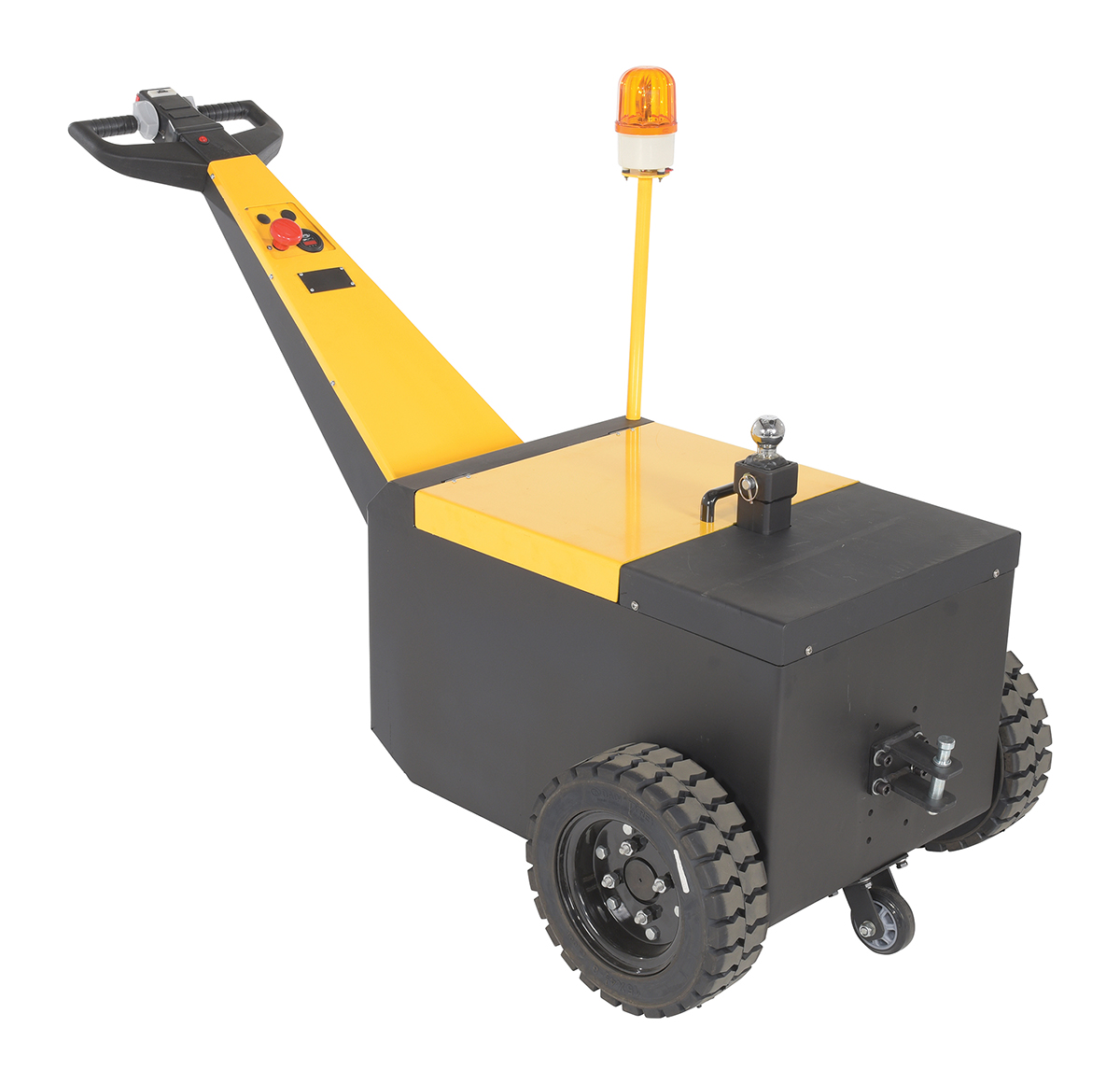

| E-TUG-HD-70 |  | 1 Year Limited Warranty | Steel Heavy Duty Electric Powered Tugger 7000 Lb. Pull Capacity Yellow/Black | Uniform Capacity (lb.): 7000 Drive Motor: 24V DC | 1012 | ||

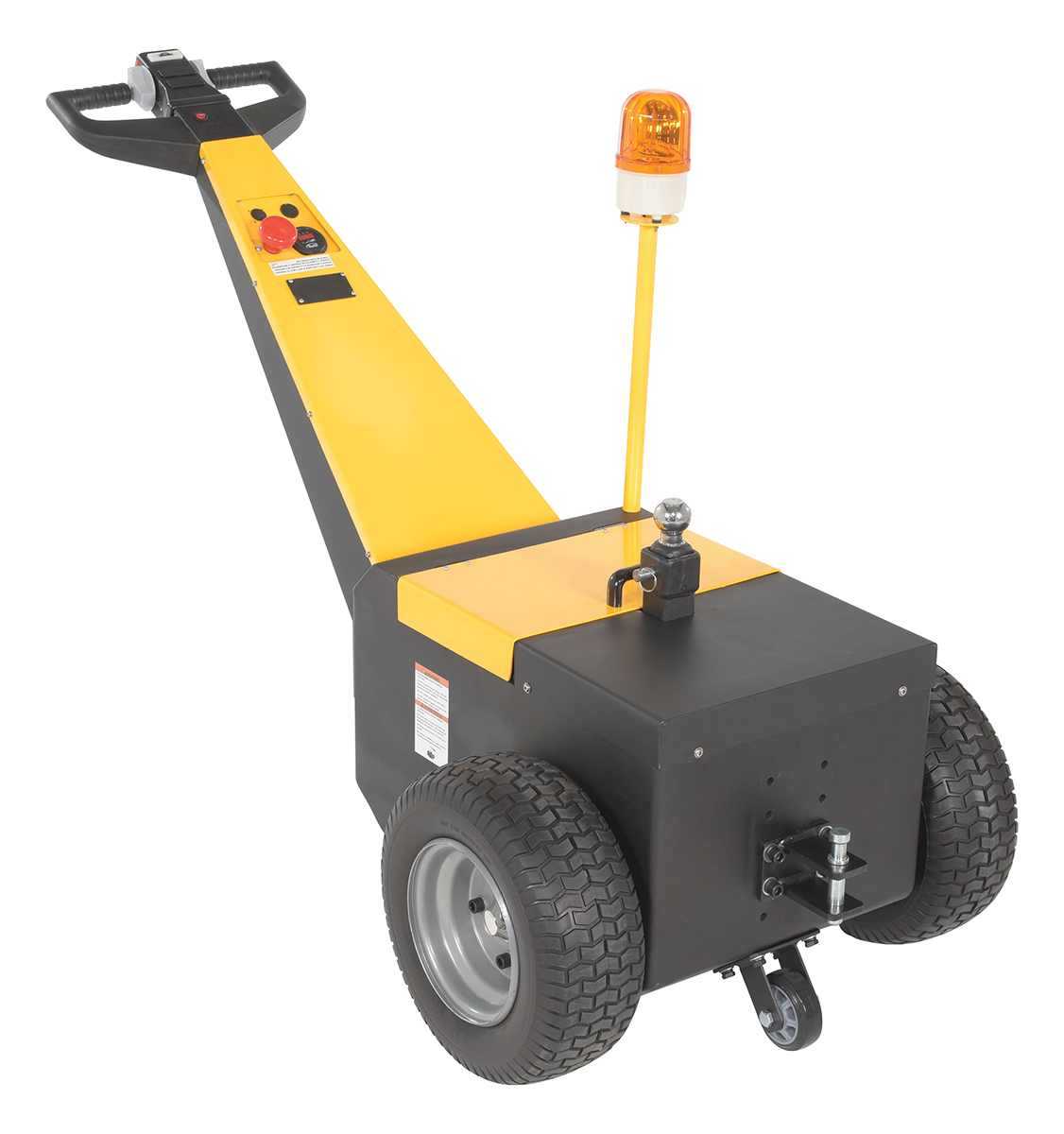

| E-TUG-HD-50 |  | 1 Year Limited Warranty | Steel Heavy Duty Electric Powered Tugger 5000 Lb. Pull Capacity Yellow/Black | Uniform Capacity (lb.): 5000 Drive Motor: 24V DC | 606 | ||

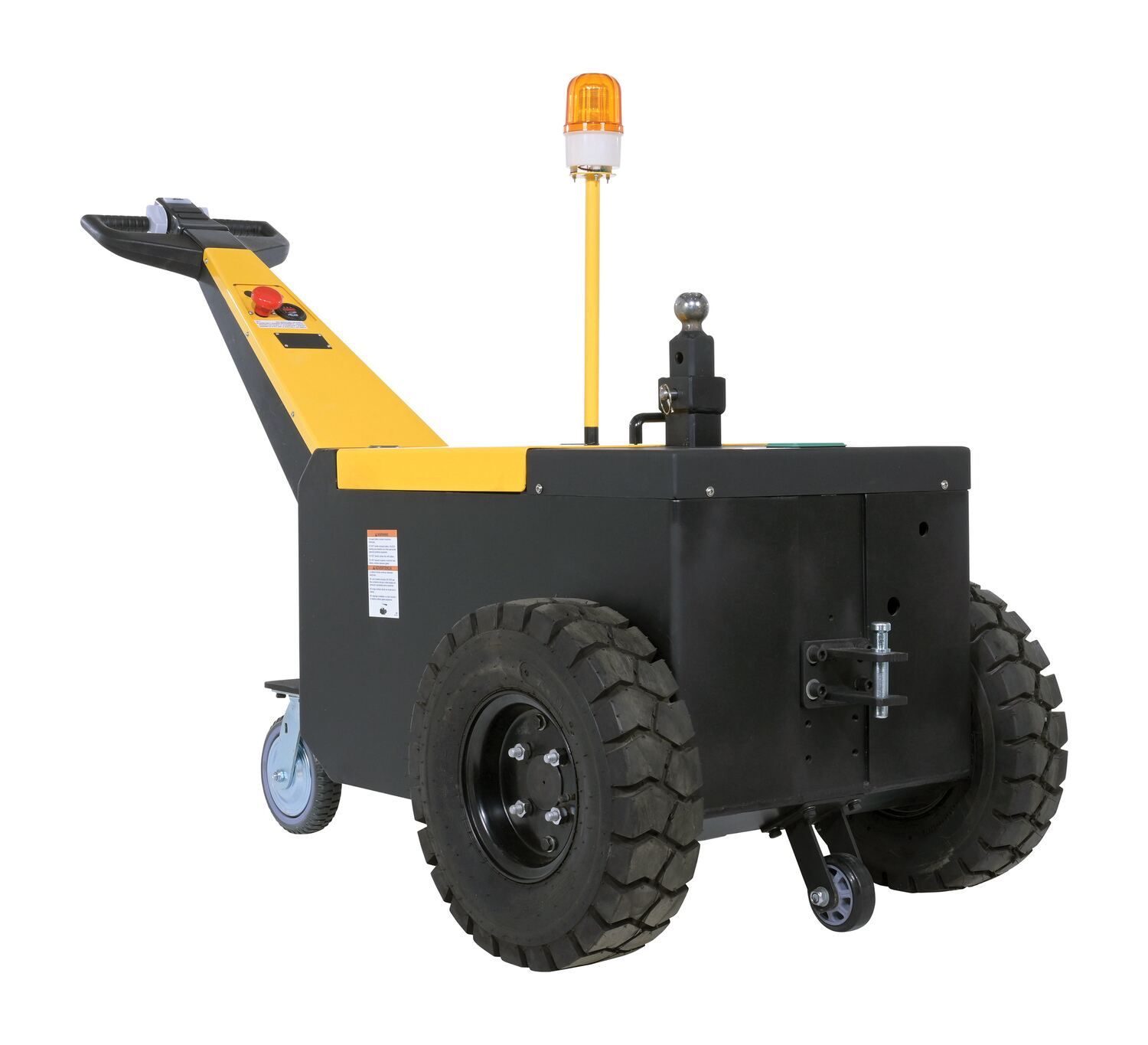

| E-TUG-HD-100 | | 1 Year Limited Warranty | Steel Heavy Duty Electric Powered Tugger 10,000 Lb. Pulling Capacity Yellow | Uniform Capacity (lb.): 10000 DCV: 4-6V Non-Spillable | 1072 | ||

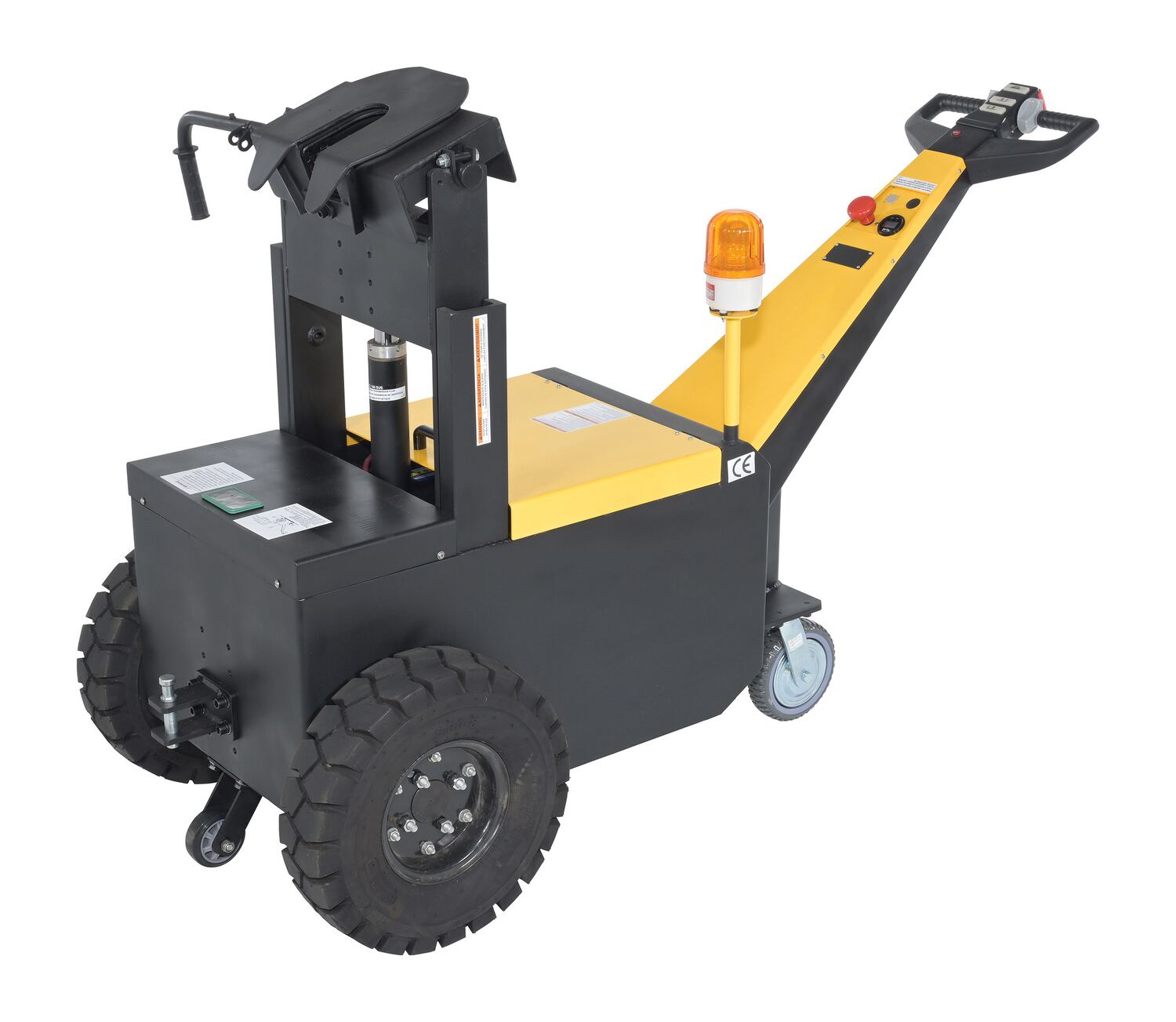

| E-TUG-HD-100-RV | NEW |  | 1 Year Limited Warranty | Steel Heavy Duty Electric Powered Tugger With Fifth Wheel Attachment 10,000 Lb. Pulling Capacity Yellow | Uniform Capacity (lb.): 10000 DCV: 4-6V Non-Spillable | 1300 | |
| E-TUG-HD-120 | NEW |  | 1 Year Limited Warranty | Steel Heavy Duty Electric Powered Tugger 12,000 Lb. Pulling Capacity Yellow | Uniform Capacity (lb.): 12000 DCV: 4-6V Non-Spillable | 1190 | |

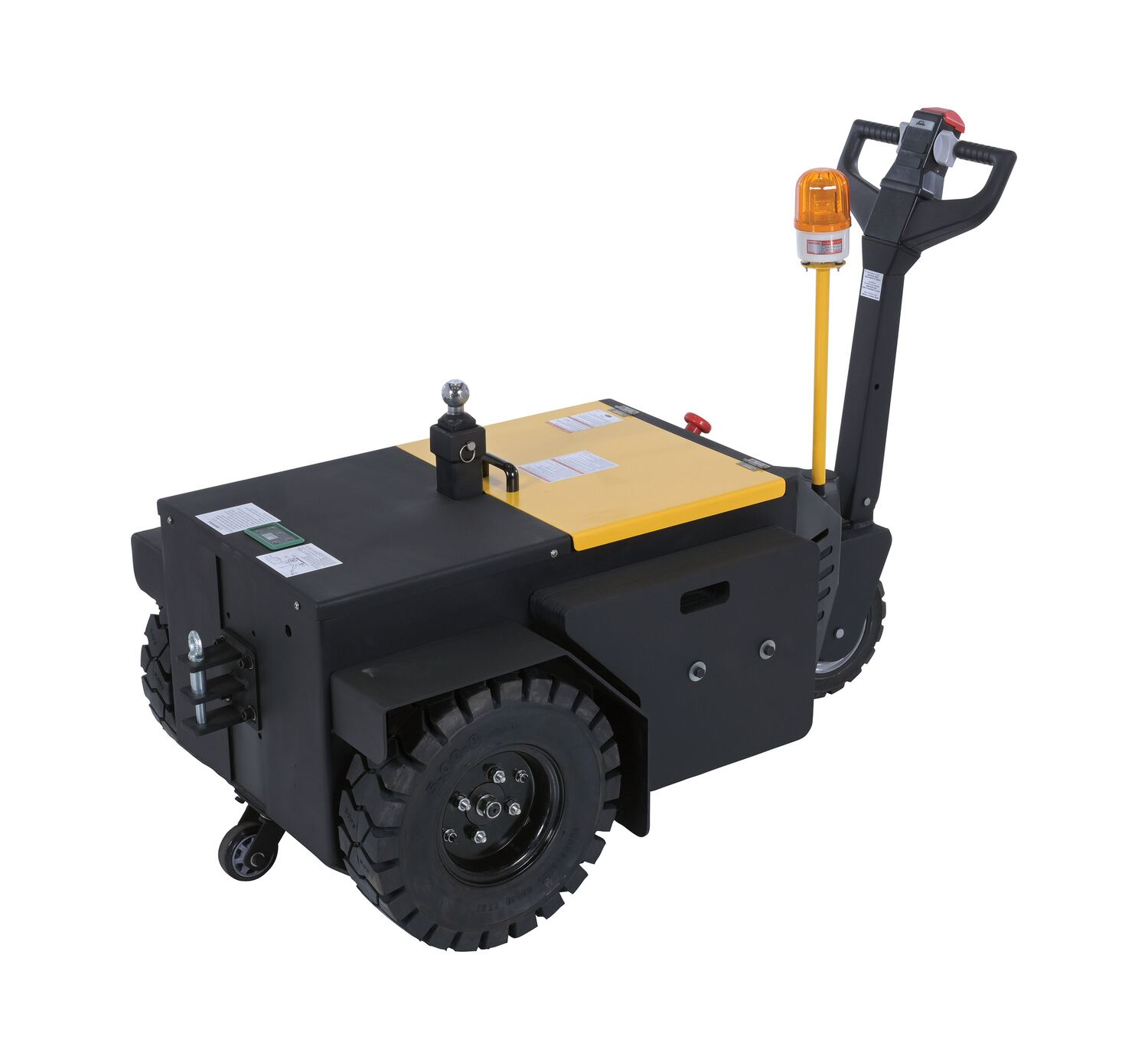

| E-TUG-HD-180 | NEW |  | 1 Year Limited Warranty | Steel Heavy Duty Electric Powered Tugger 18,000 Lb. Pulling Capacity Black | Uniform Capacity (lb.): 18000 Drive Motor: 24V DC | 1550 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pull Capacity (lb.): 1,000
Drive Motor: 24V DC
Uniform Pull Capacity (lb.): 1,000
Drive Motor: 24V DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pull Capacity (lb.): 2,000
Drive Motor: 24V DC
Uniform Pull Capacity (lb.): 2,000
Drive Motor: 24V DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pull Capacity (lb.): 3,000
Drive Motor: 24V DC
Uniform Pull Capacity (lb.): 3,000
Drive Motor: 24V DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Drive Motor: 24V DC
Uniform Capacity (lb.): 3000
Drive Motor: 24V DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 7000
Drive Motor: 24V DC
Uniform Capacity (lb.): 7000
Drive Motor: 24V DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Drive Motor: 24V DC
Uniform Capacity (lb.): 5000
Drive Motor: 24V DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
DCV: 4-6V Non-Spillable
Uniform Capacity (lb.): 10000
DCV: 4-6V Non-Spillable
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
DCV: 4-6V Non-Spillable
Uniform Capacity (lb.): 10000
DCV: 4-6V Non-Spillable
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 12000
DCV: 4-6V Non-Spillable
Uniform Capacity (lb.): 12000
DCV: 4-6V Non-Spillable
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 18000
Drive Motor: 24V DC
Uniform Capacity (lb.): 18000
Drive Motor: 24V DC
For More Details of the Option Click the Red Model Button

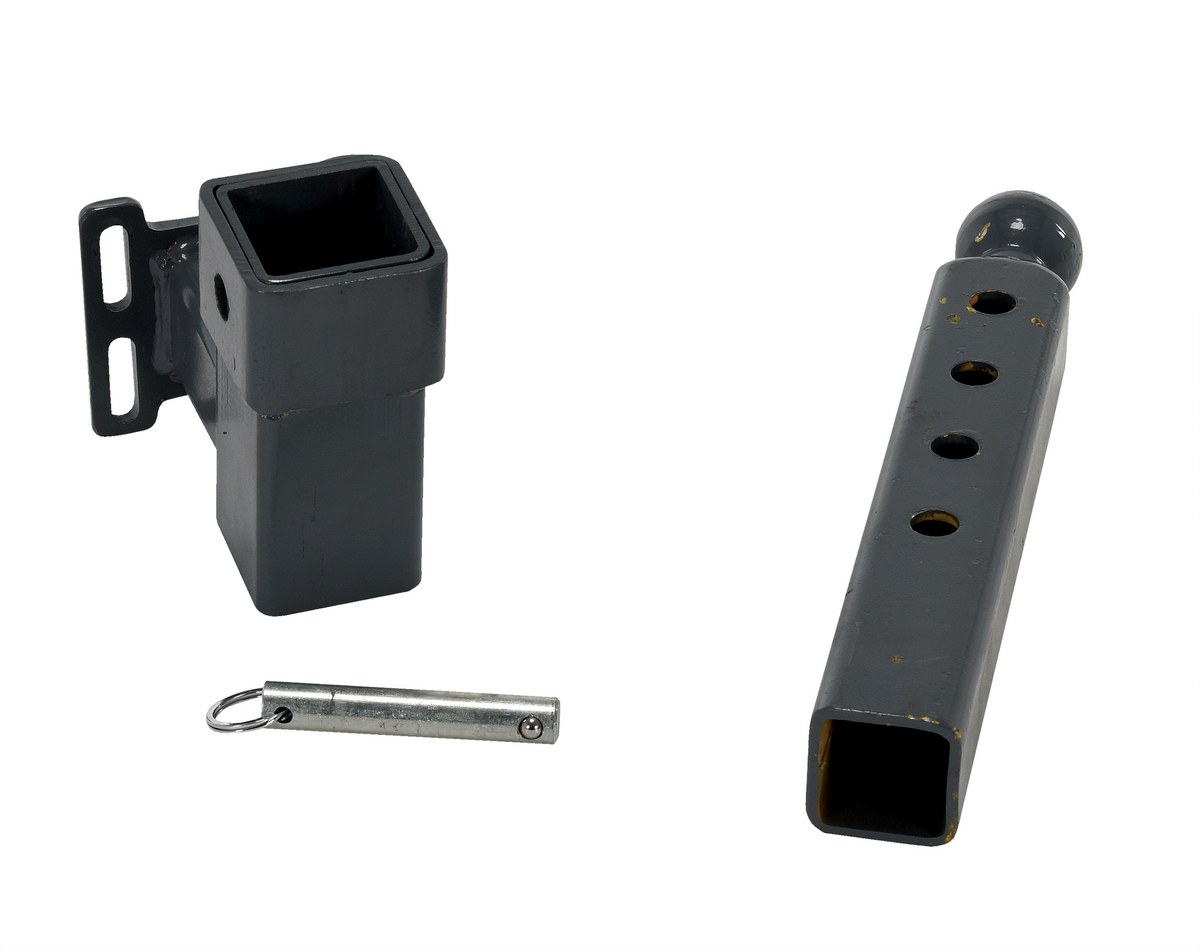

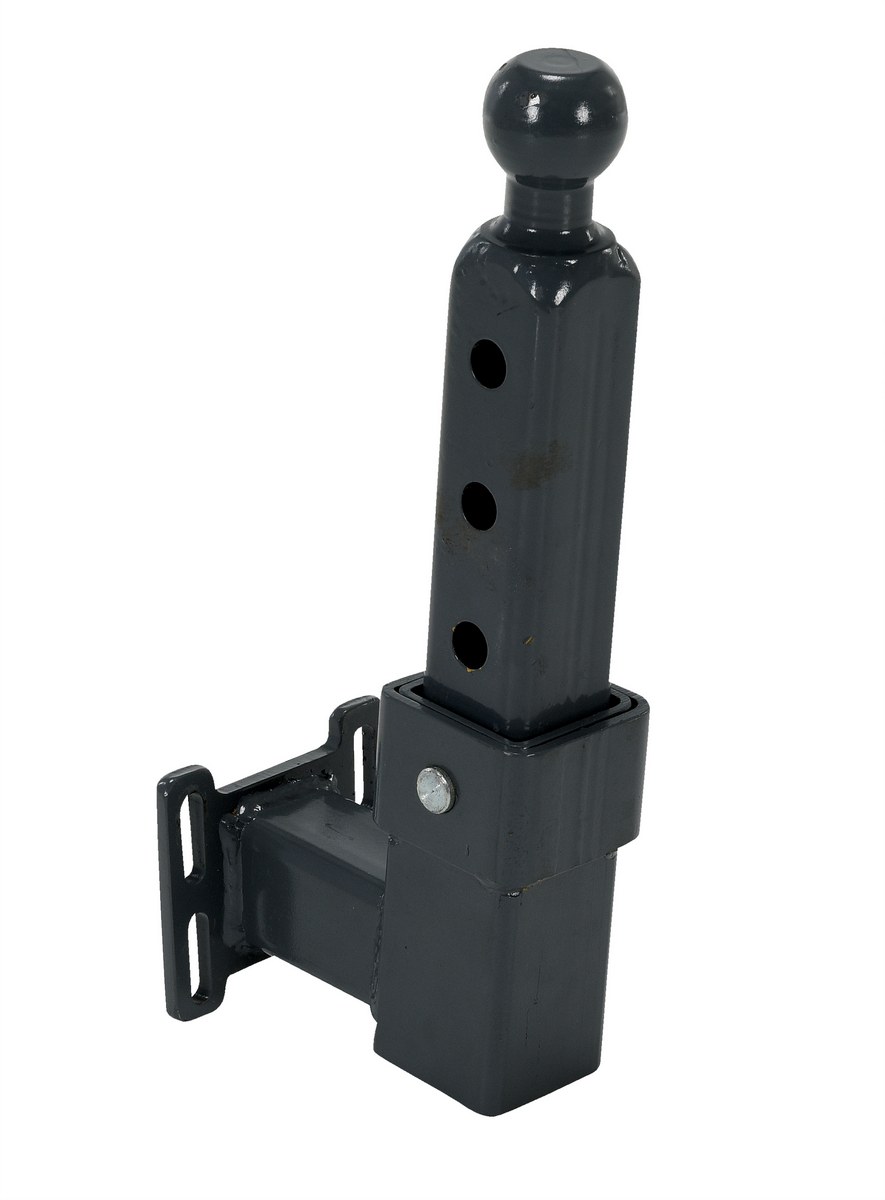

| E-TUG-ABMH |  | 90 Days Limited Warranty | Steel Adjustable Ball Mount Hitch For E-Tug Models | Installation Hardware Included: No Number of Casters / Wheels: No Wheels / Casters | 12 | |

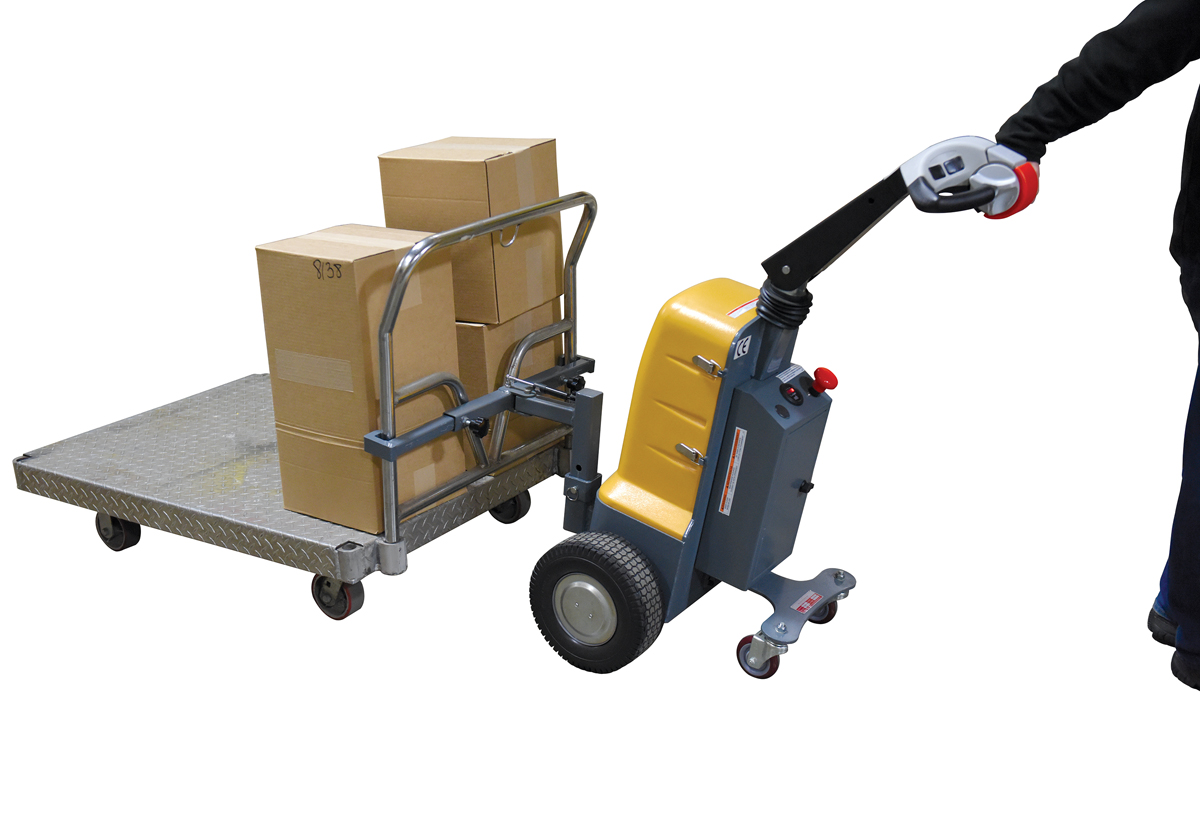

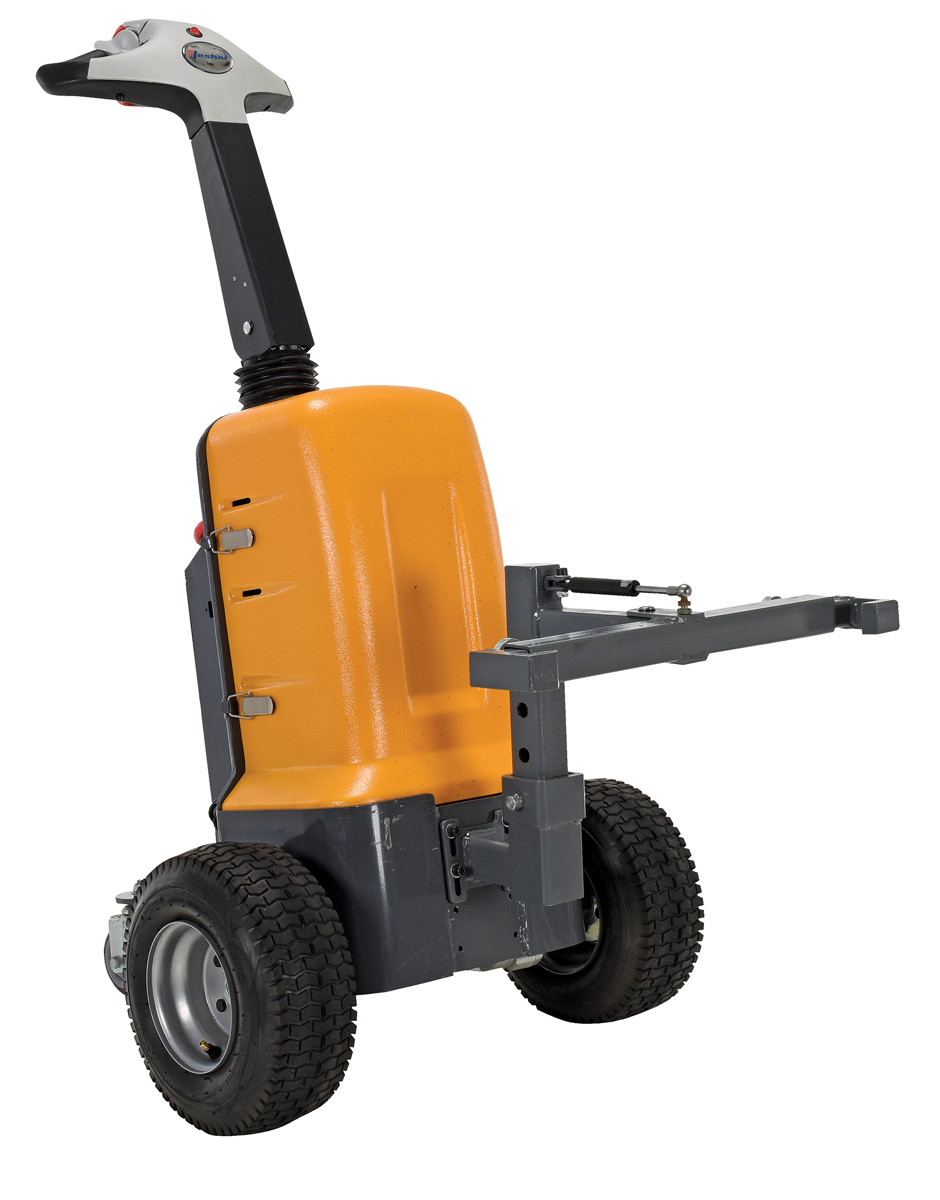

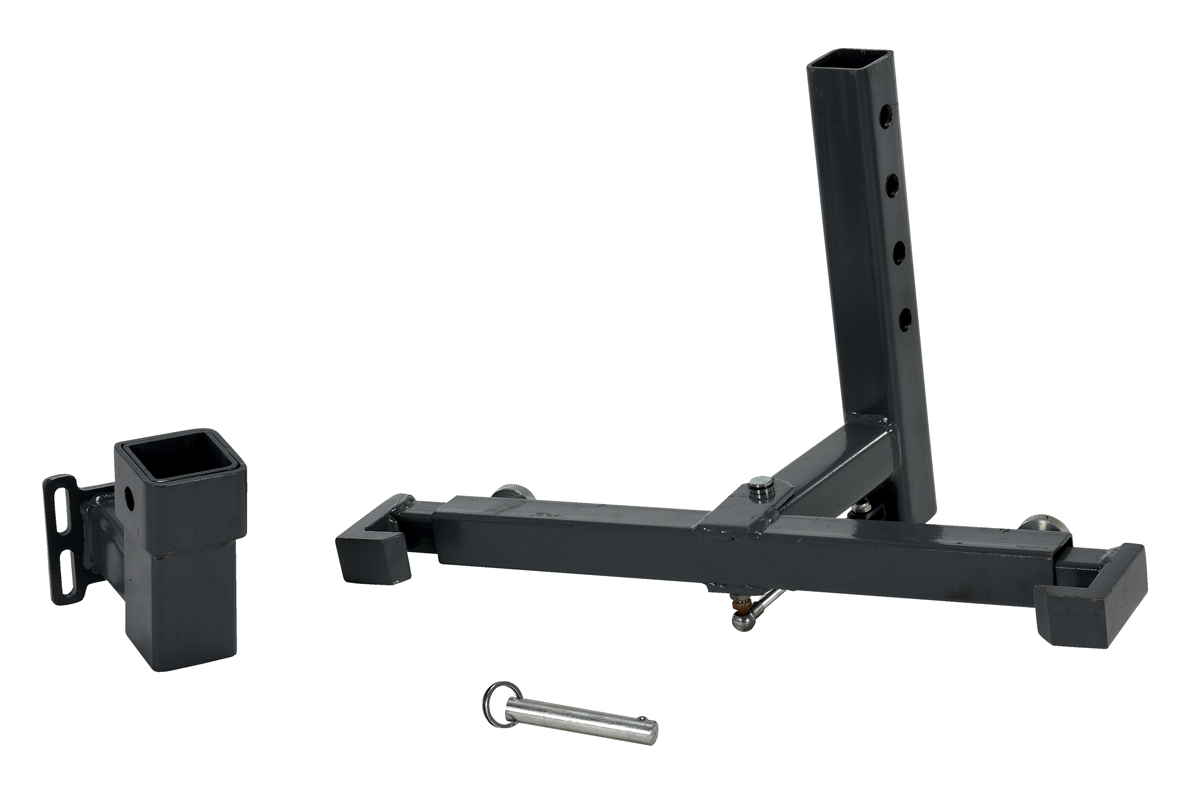

| E-TUG-ADSH |  | 90 Days Limited Warranty | Steel Adjustable Double Sided Hook For E-Tug Models | Installation Hardware Included: Yes Number of Casters / Wheels: No Wheels / Casters | 22 | |

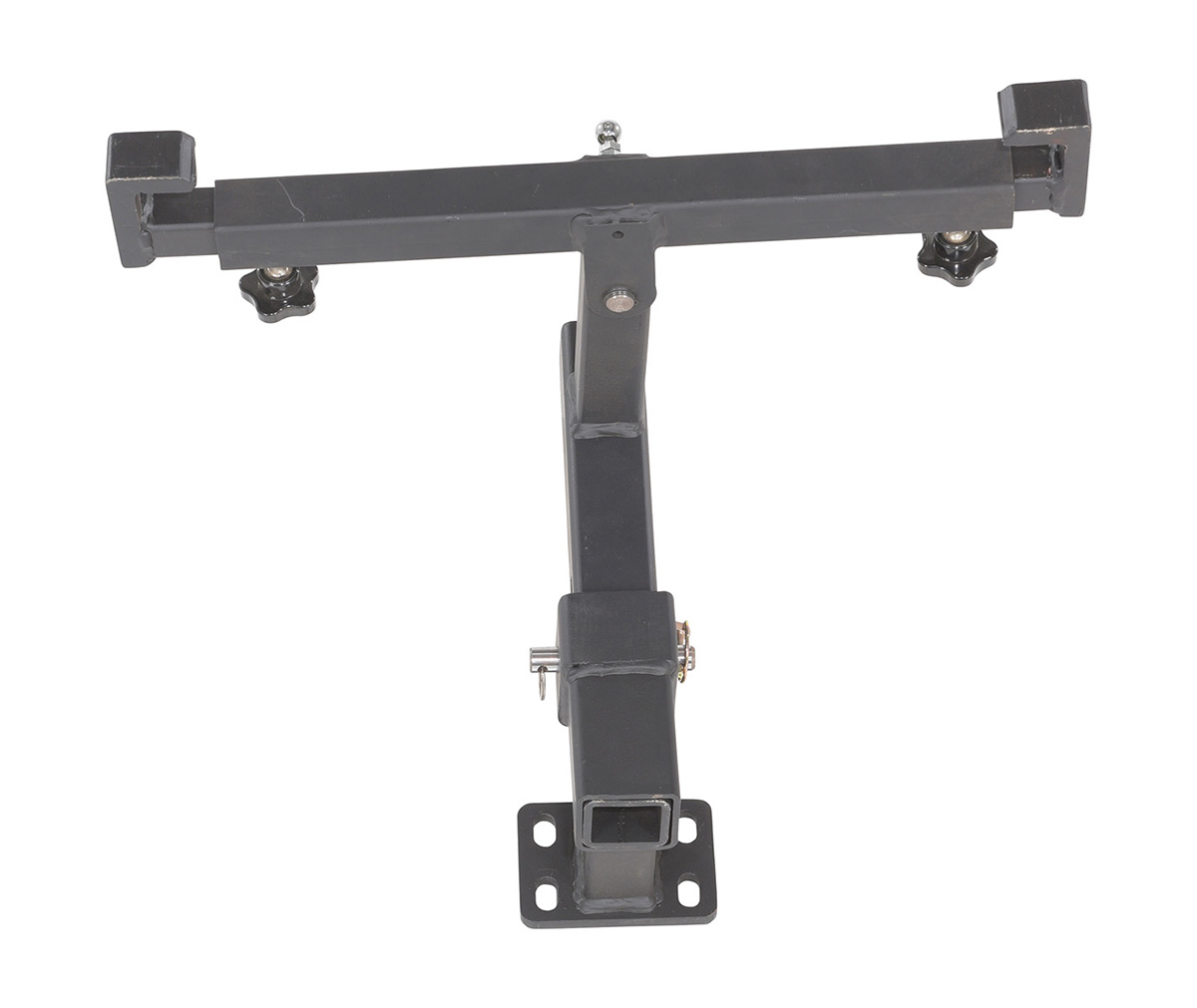

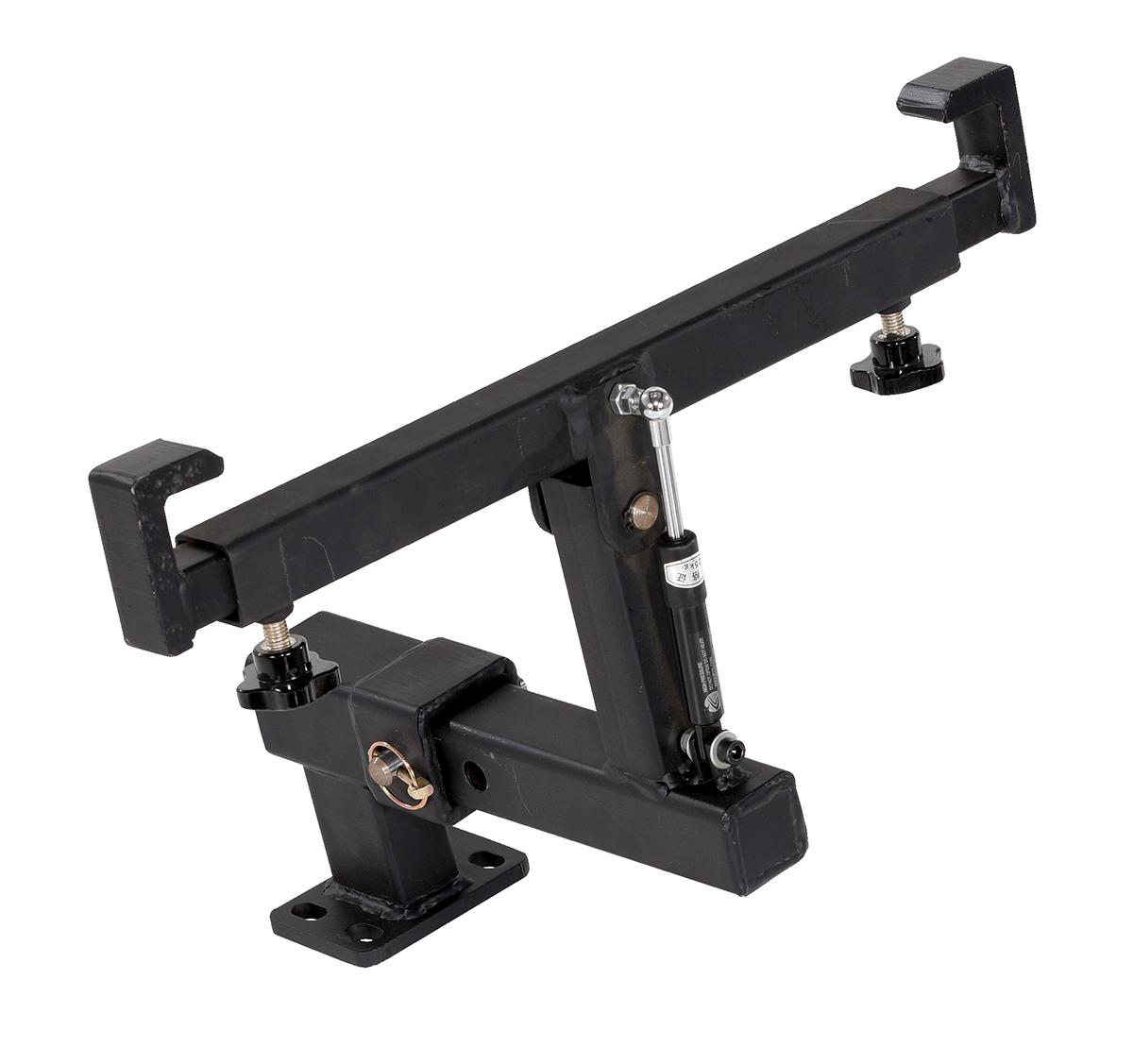

| E-TUG-HD-ADSH |  | 90 Days Limited Warranty | Steel Adjustable Double Sided Hook For E-Tug-HD Models Black | - | 25 | |

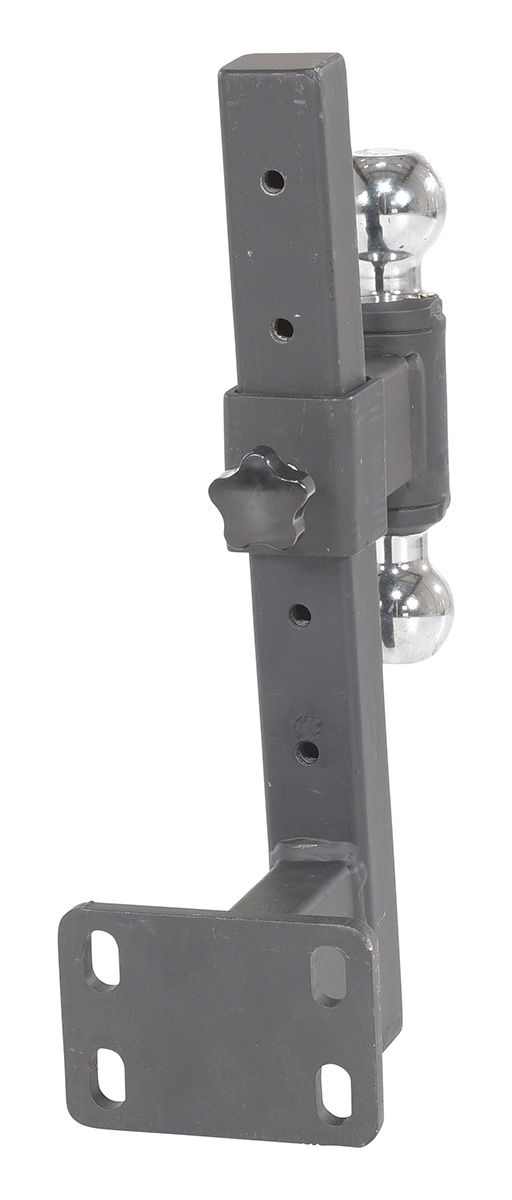

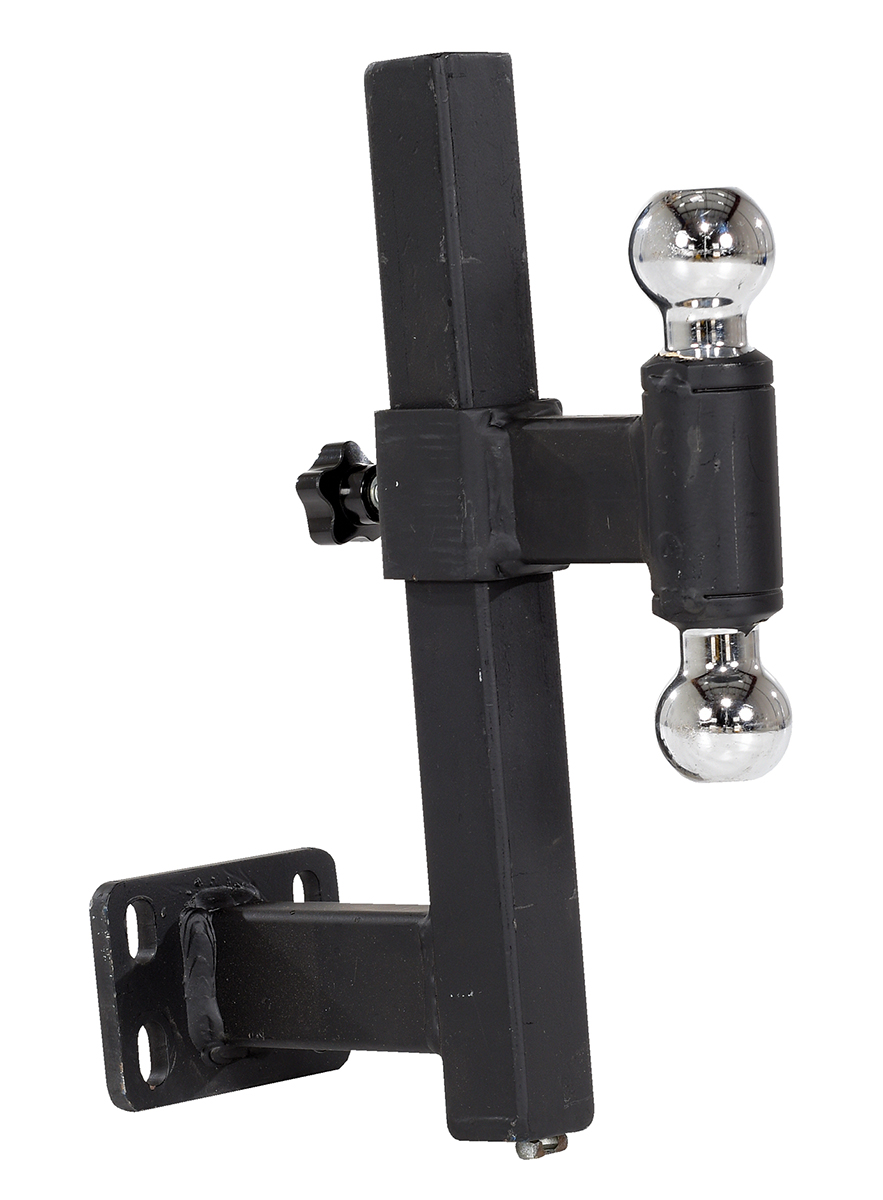

| E-TUG-HD-DABH |  | 90 Days Limited Warranty | Steel Double Ball Hitch Mount For E-Tug-HD Models Black | Ball sizes: 1-7/8" & 2" | 13 | |

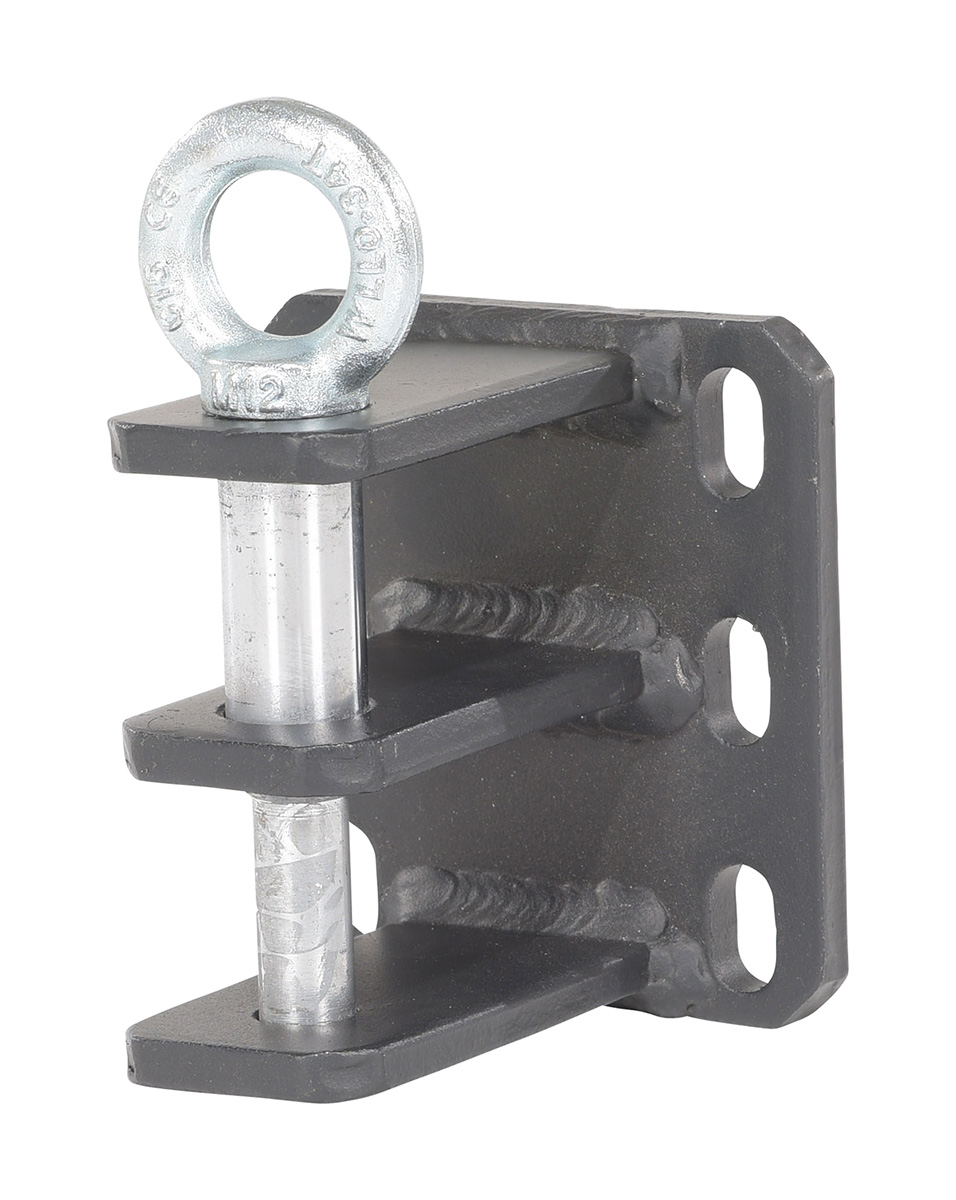

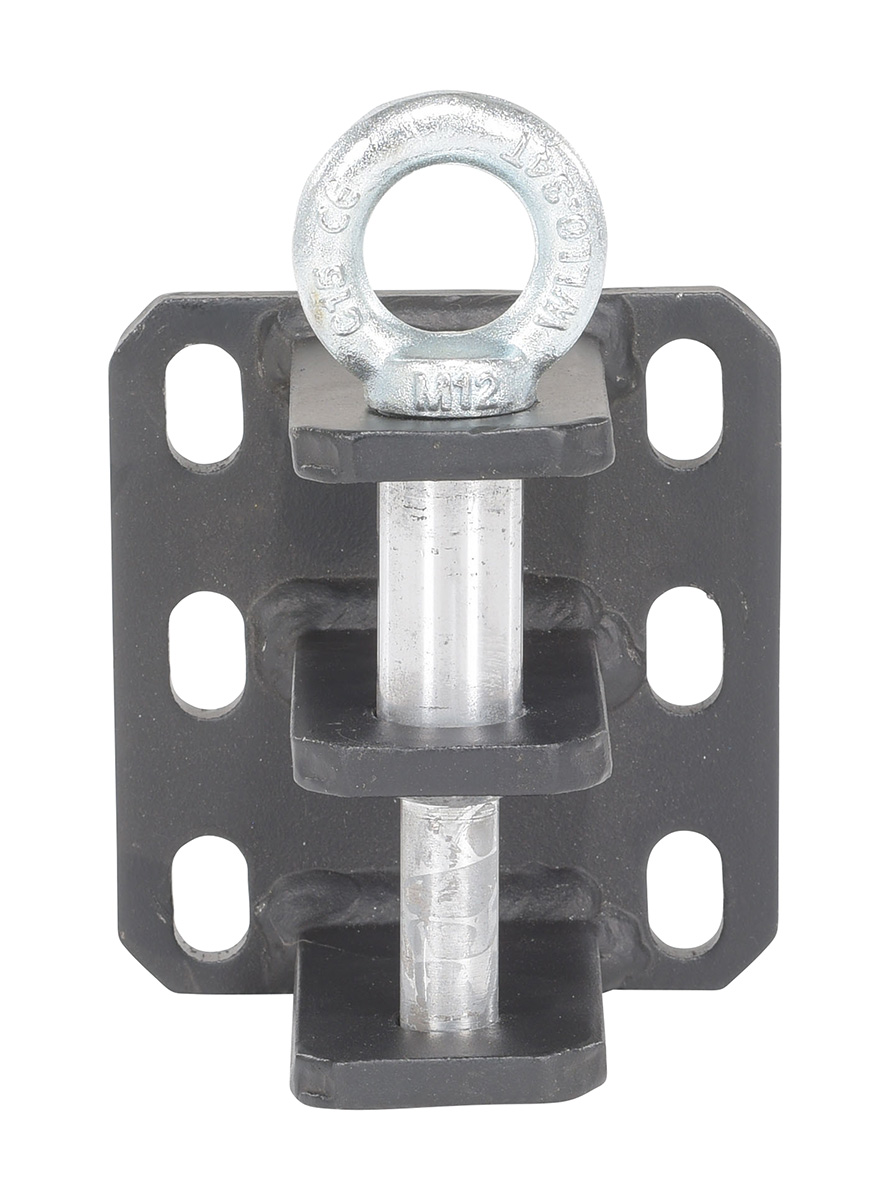

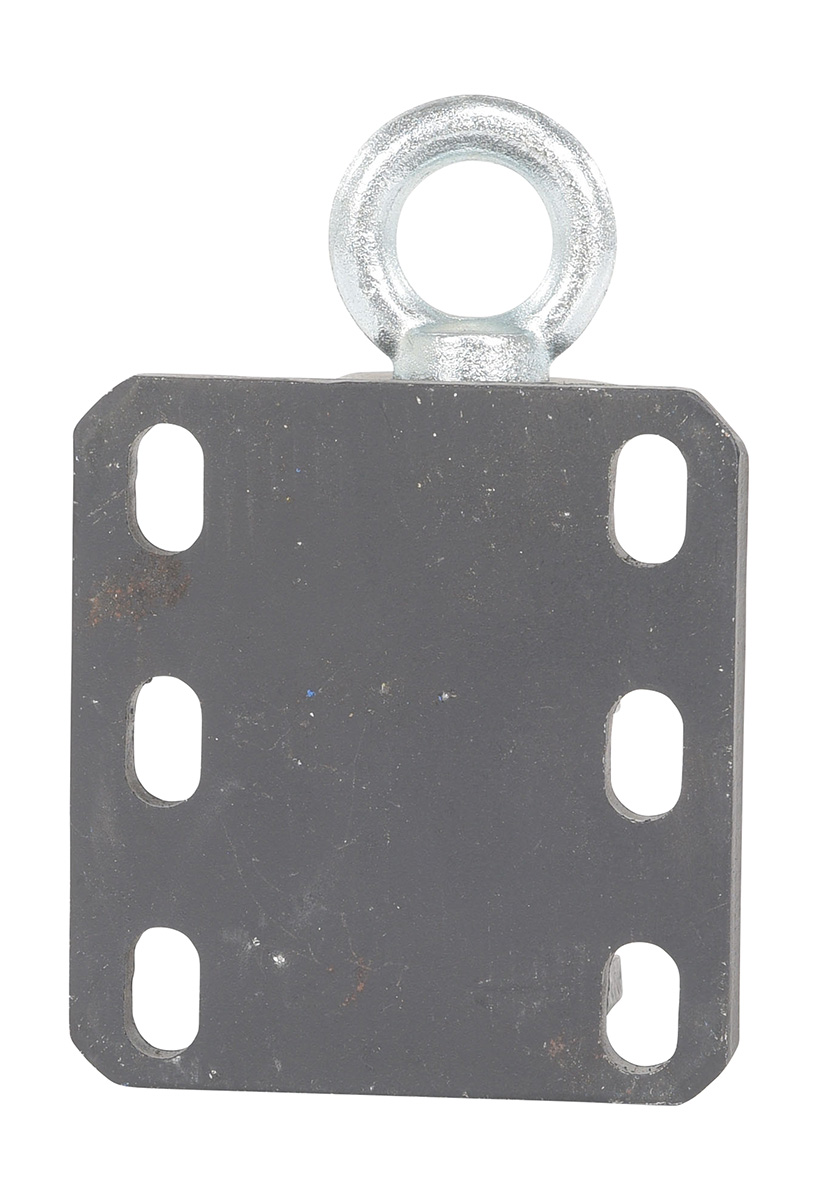

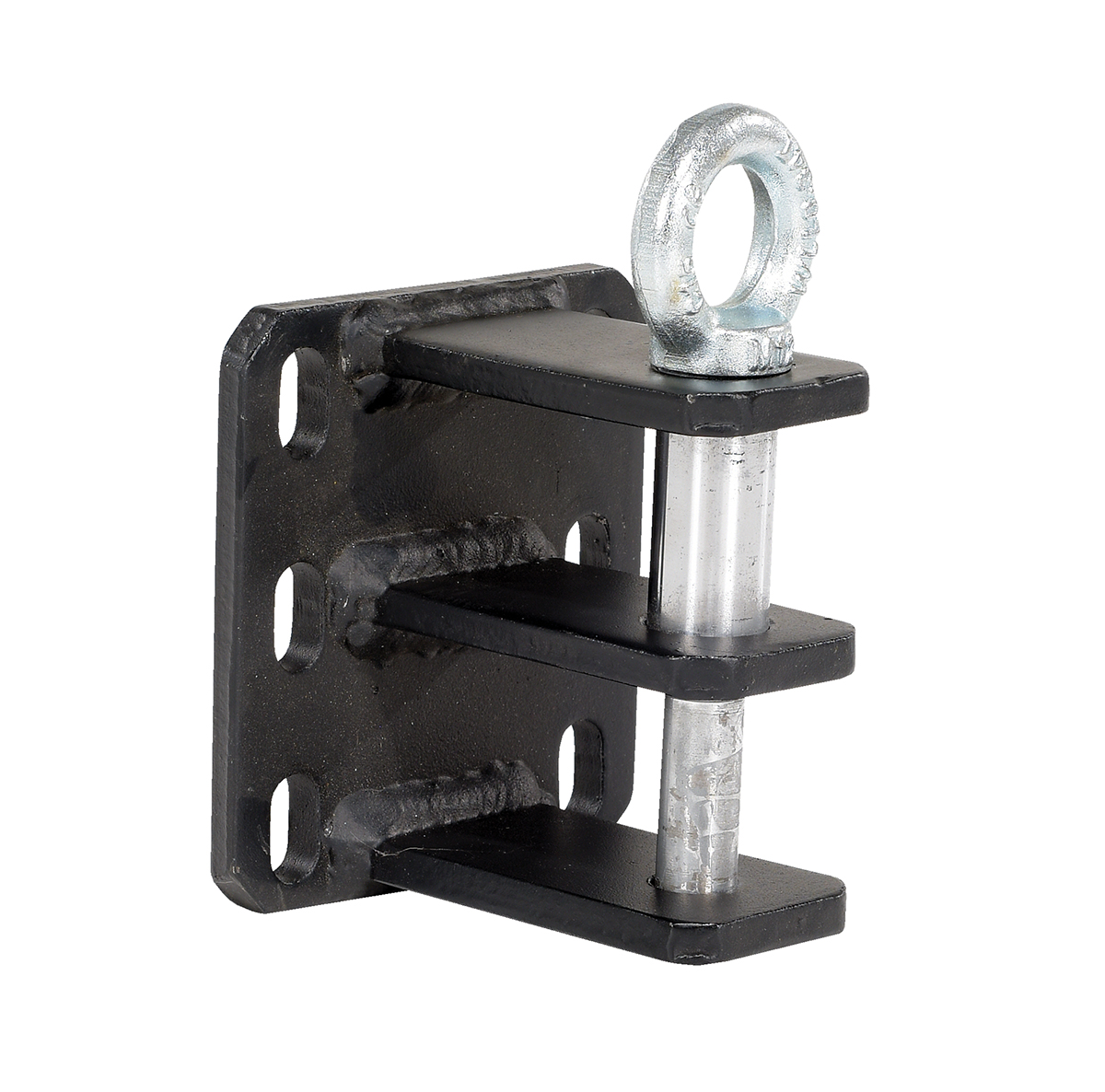

| E-TUG-HD-DPINH |  | 90 Days Limited Warranty | Steel Double Pin Hitch For E-Tug-HD Models Black | - | 8 | |

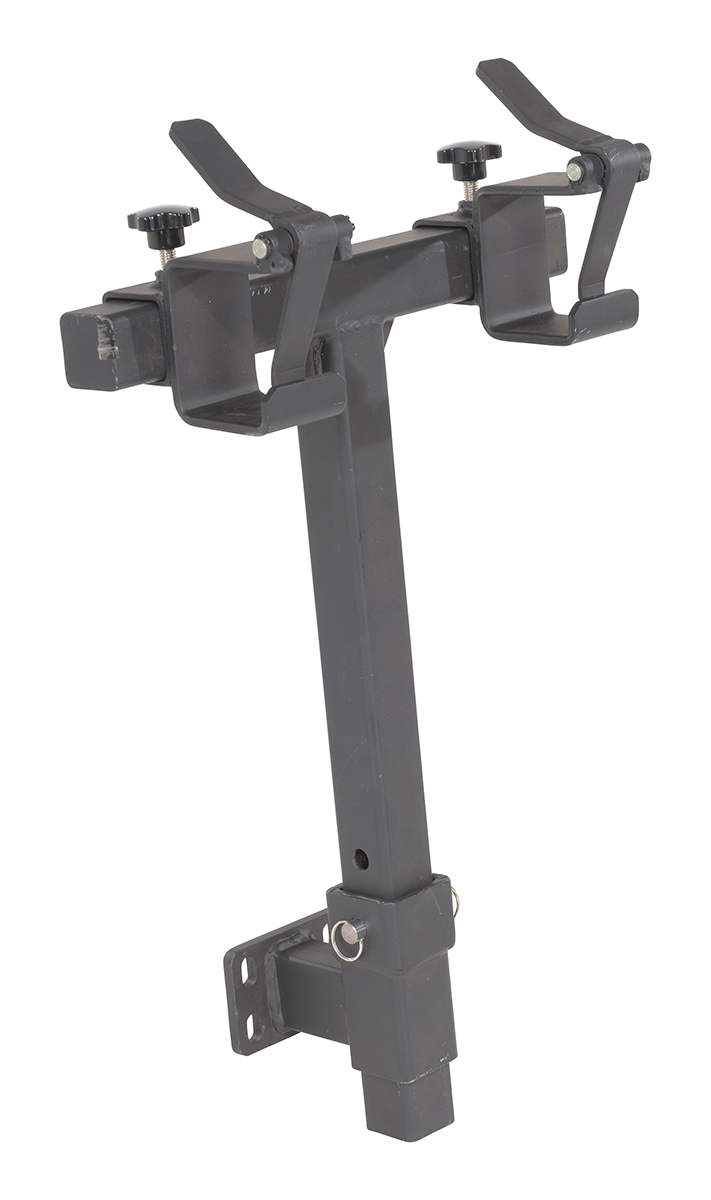

| E-TUG-HD-MM |  | 90 Days Limited Warranty | Steel Multi Mover For E-Tug-HD Models Black | - | 31 | |

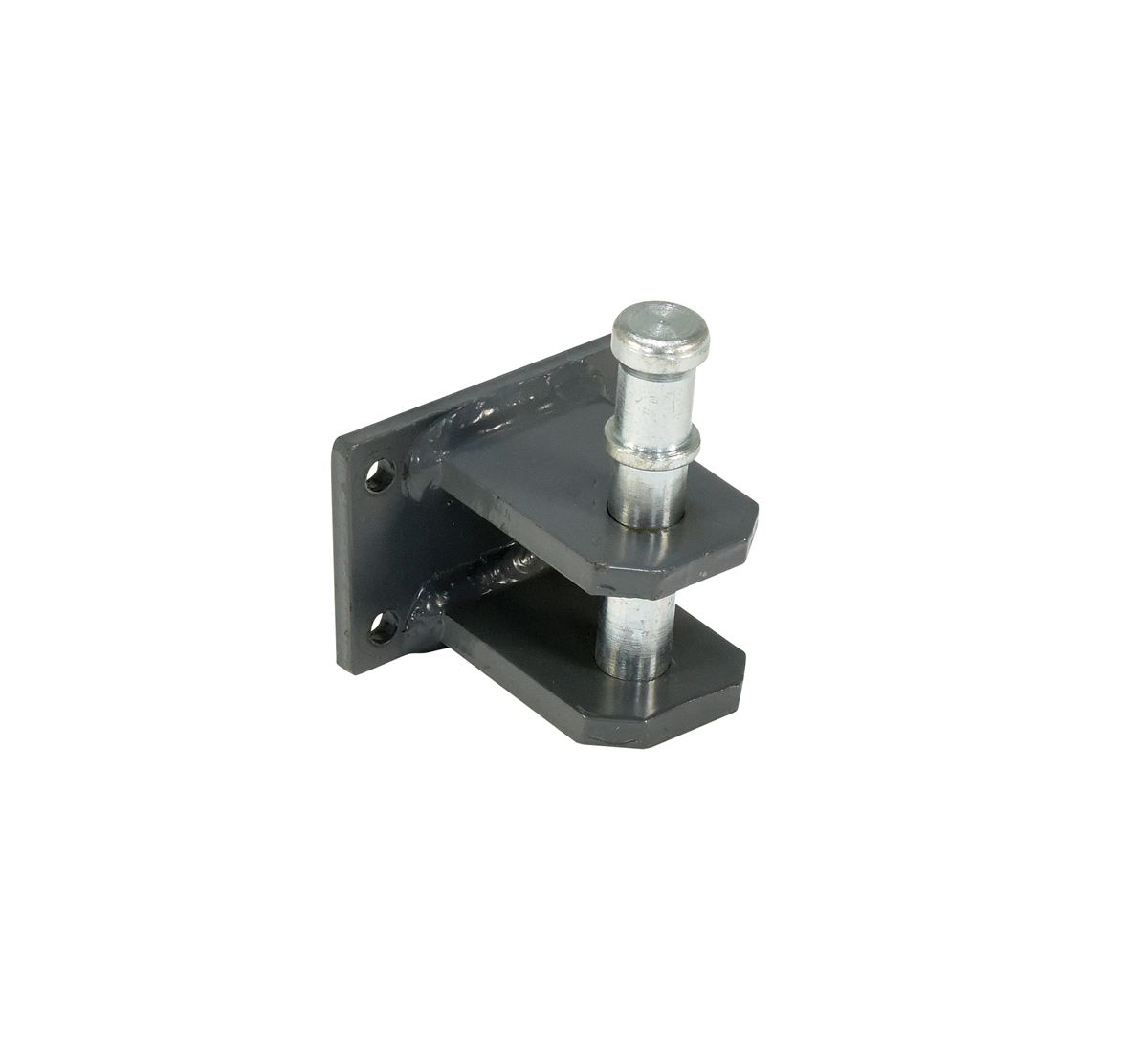

| E-TUG-HD-PINH |  | 90 Days Limited Warranty | Steel Pin Hitch For E-Tug-HD Models Black/Silver | - | 6 | |

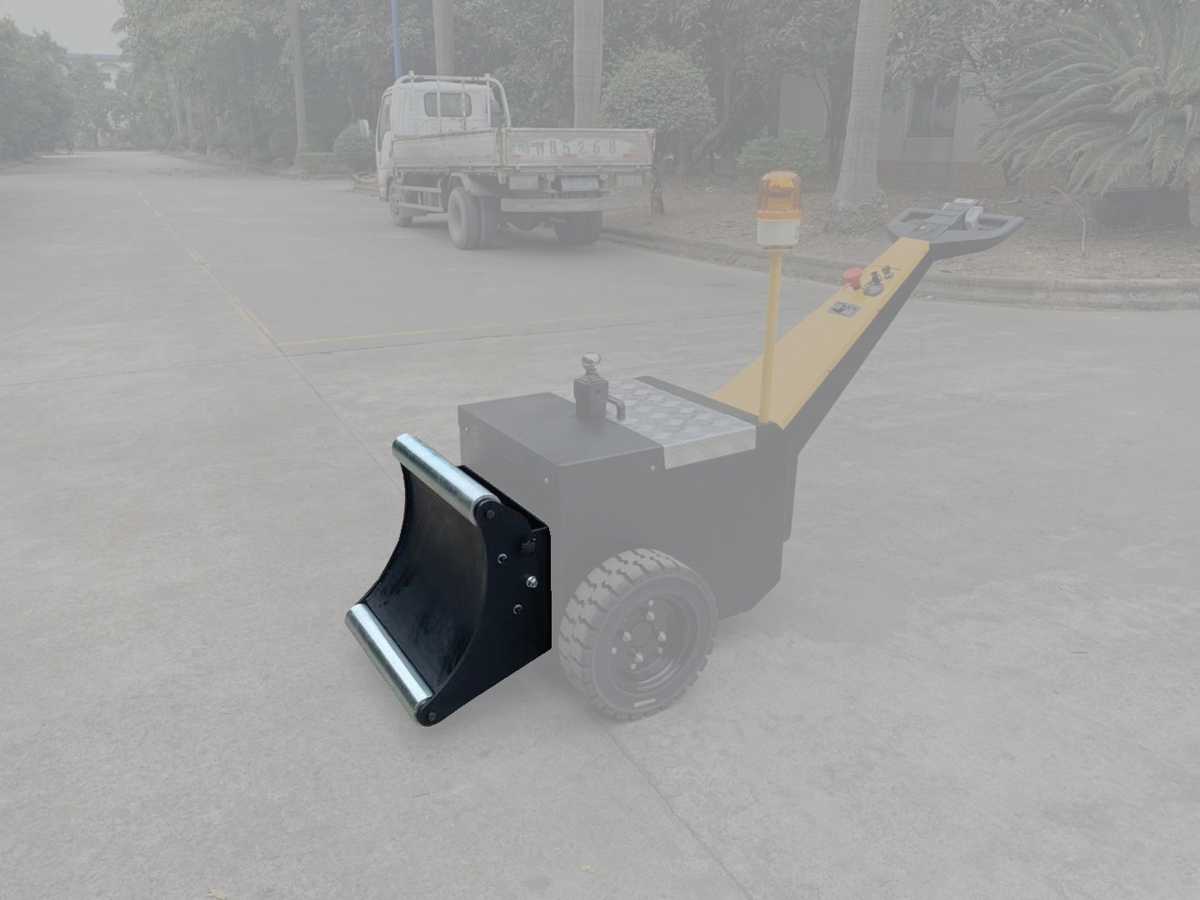

| E-TUG-HD-RP-16 | | 90 Days Limited Warranty | Steel Roller/Pusher Attachment 16 In. Width For E-Tug-HD Models Black | - | 76 | |
| E-TUG-HD-RP-20 |  | 90 Days Limited Warranty | Steel Roller/Pusher Attachment 20 In. Width For E-Tug-HD Models Black | - | 93 | |

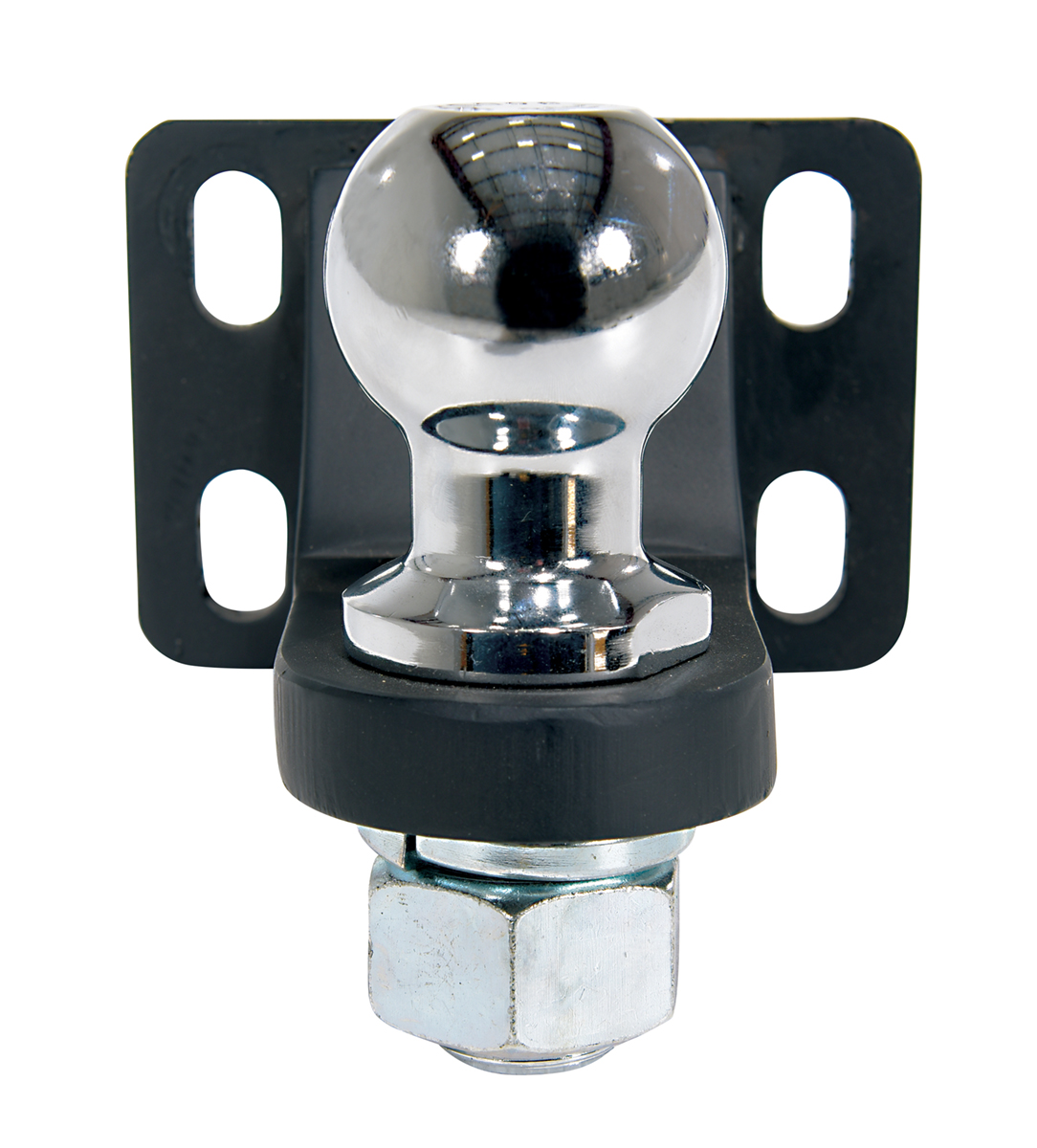

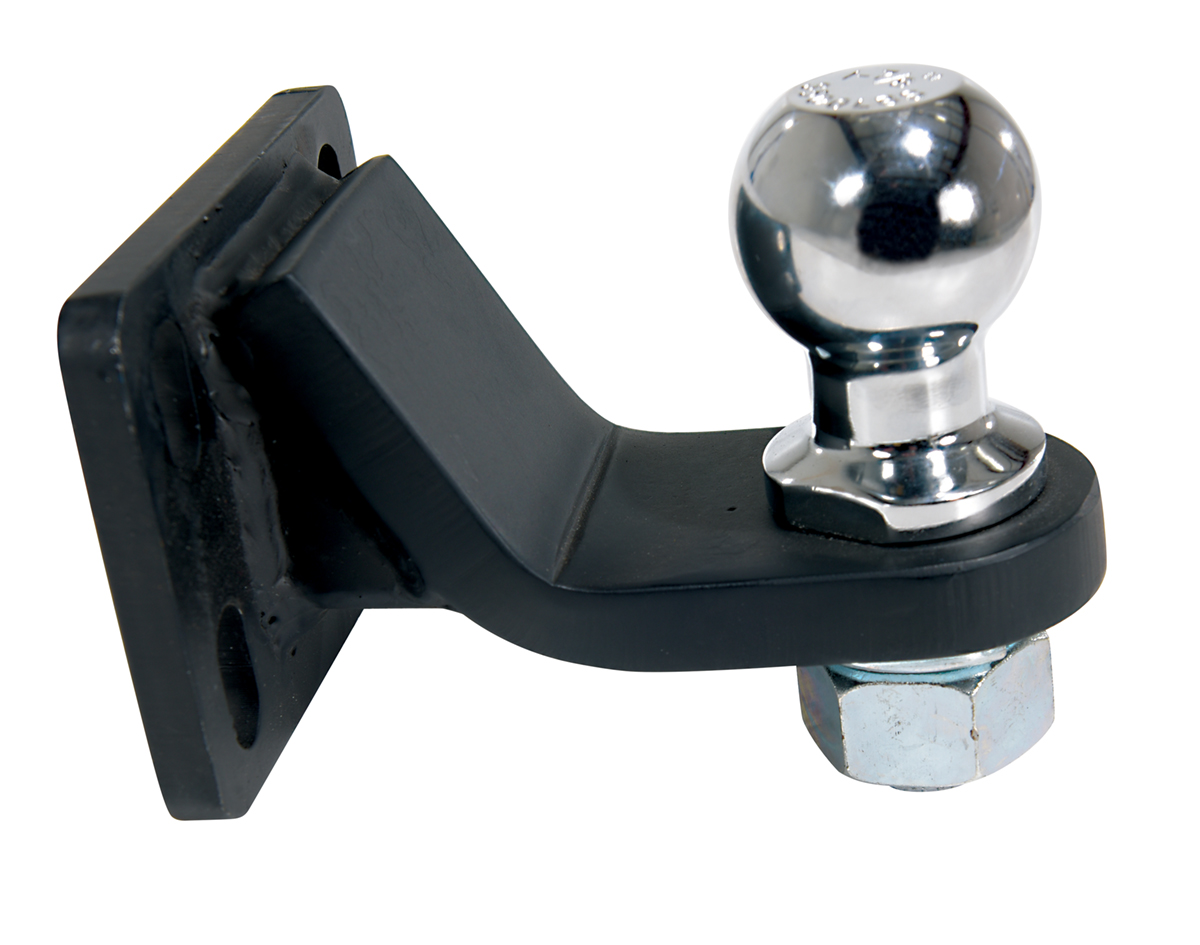

| E-TUG-HD-SBH-4 | | 90 Days Limited Warranty | Steel Single Ball Hitch Mount 4 In. Length For E-Tug-HD Models Black | - | 8 | |

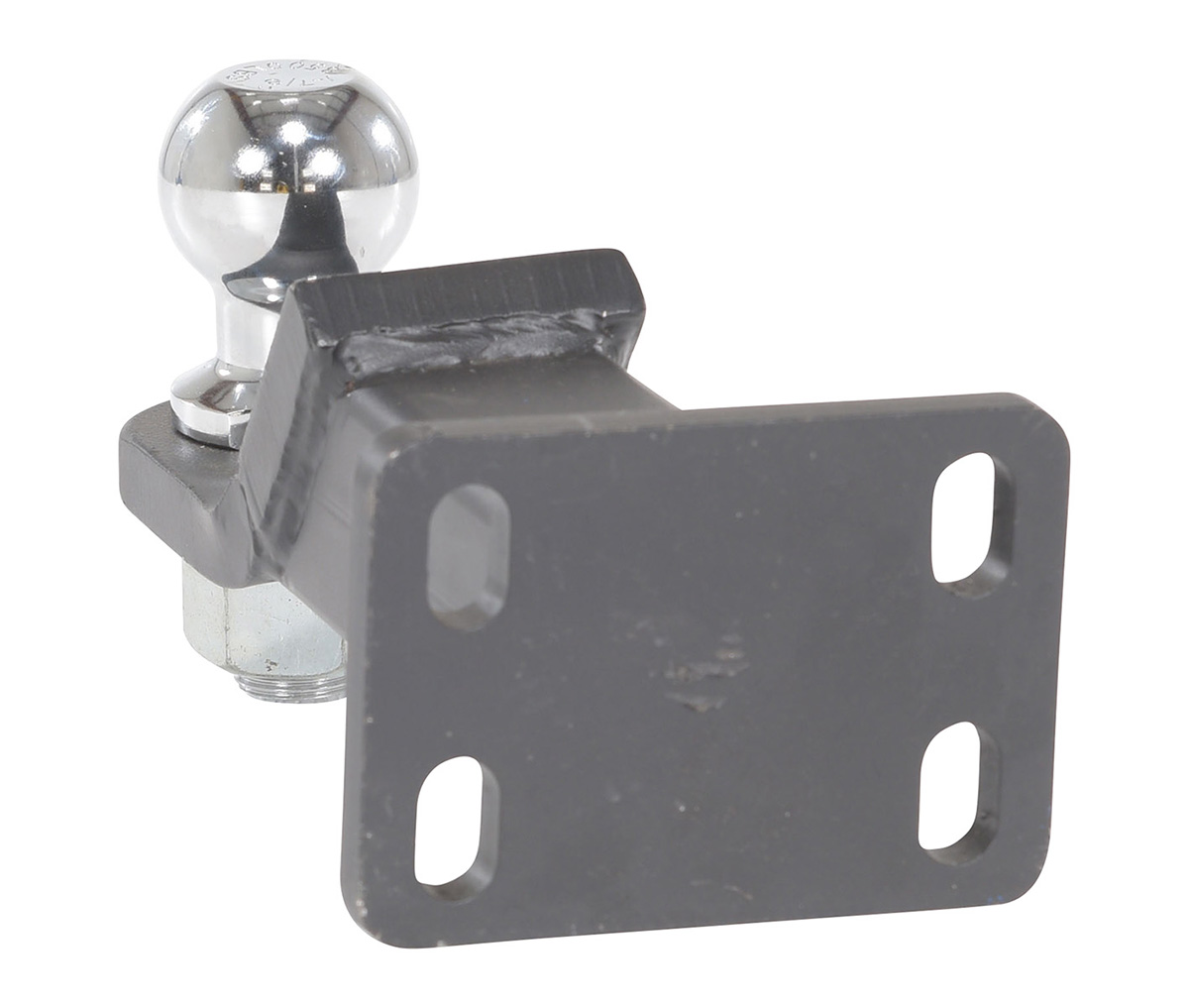

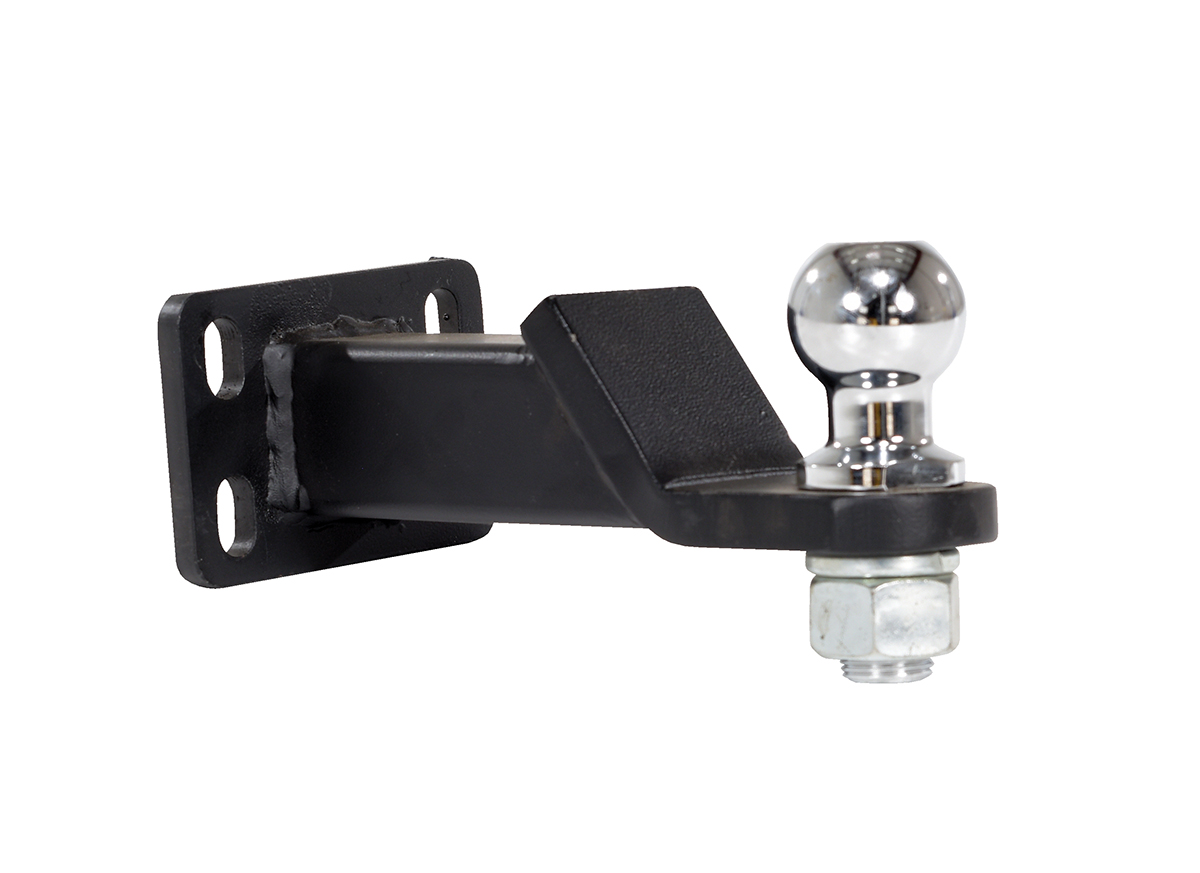

| E-TUG-HD-SBH-8 |  | 90 Days Limited Warranty | Steel Single Ball Hitch Mount 8 In. Length For E-Tug-HD Models Black | - | 9 | |

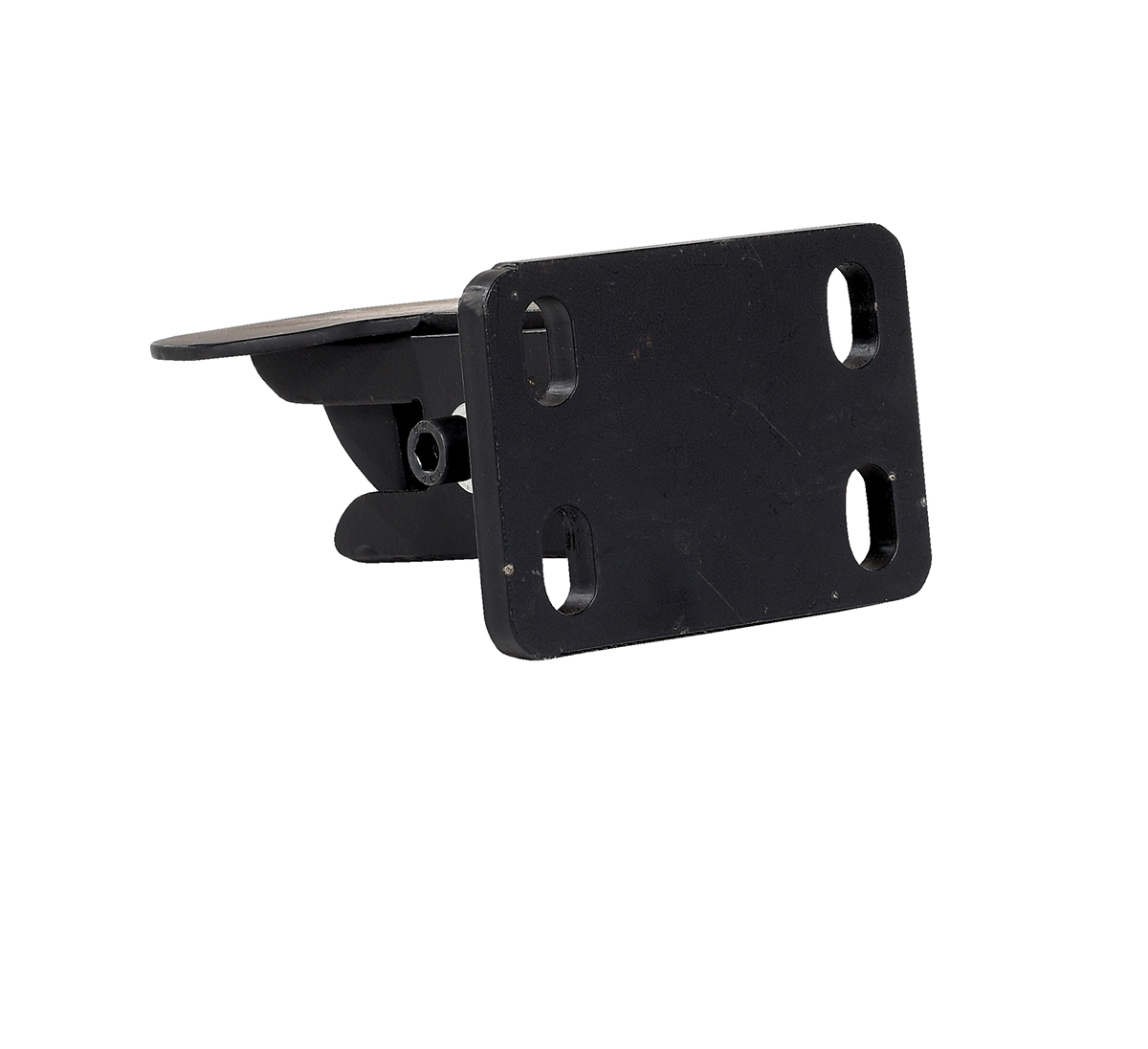

| E-TUG-HD-SLH |  | 90 Days Limited Warranty | Steel Self Locking Hitch For E-Tug-HD Models Black | - | 5 | |

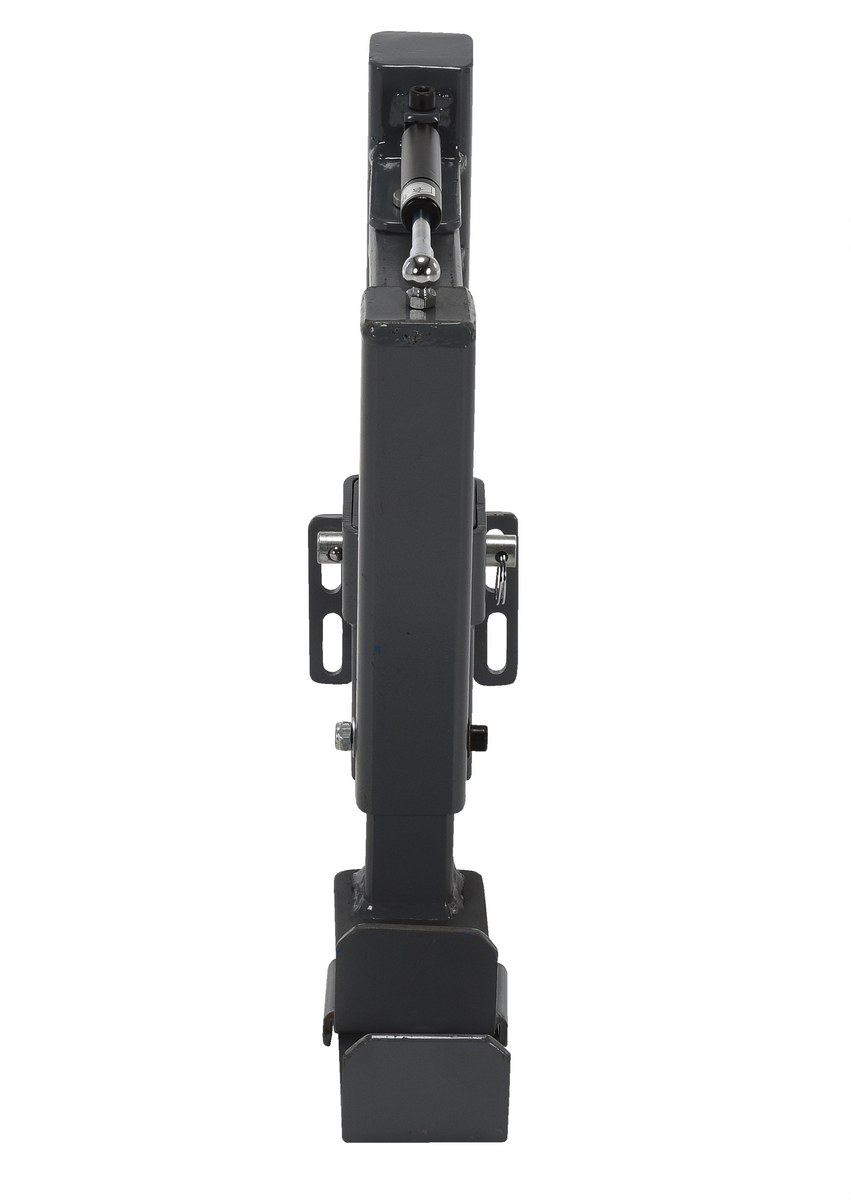

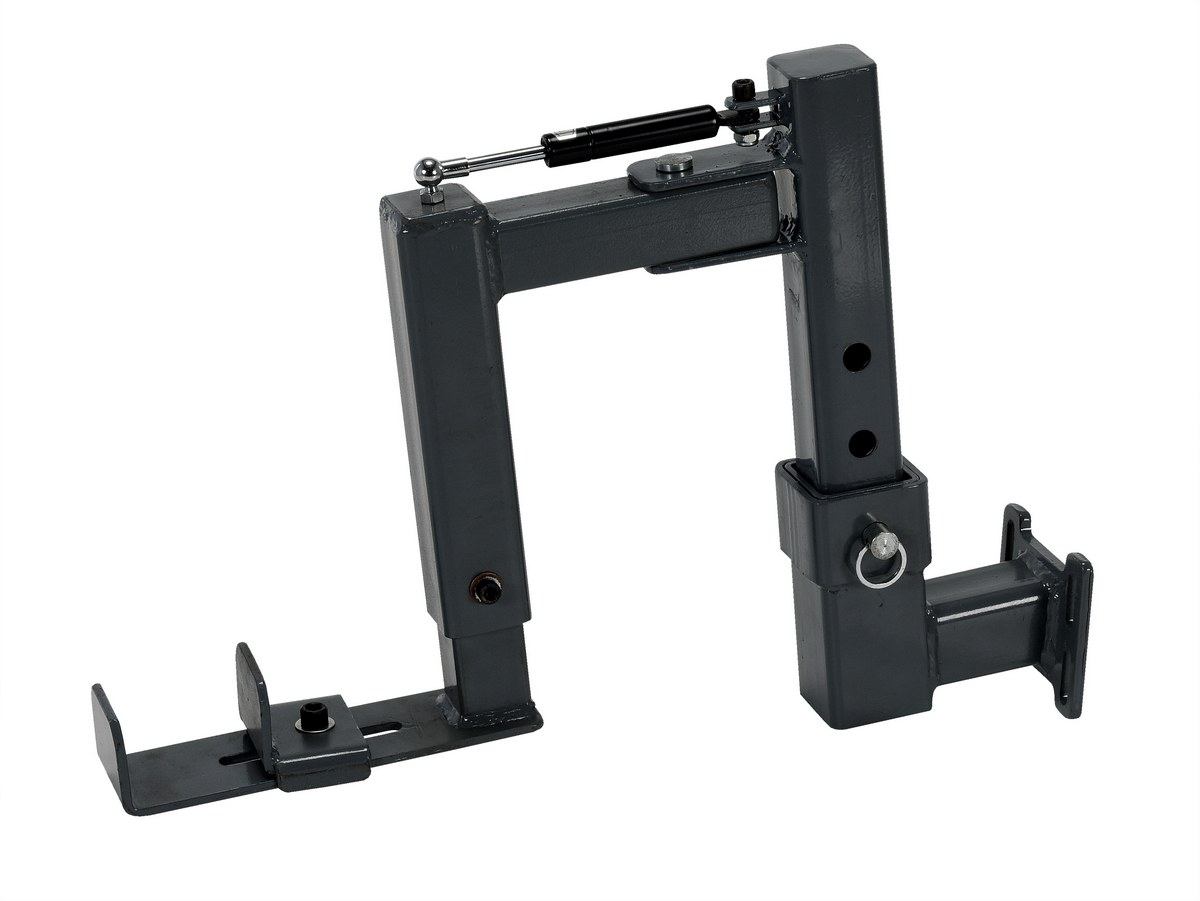

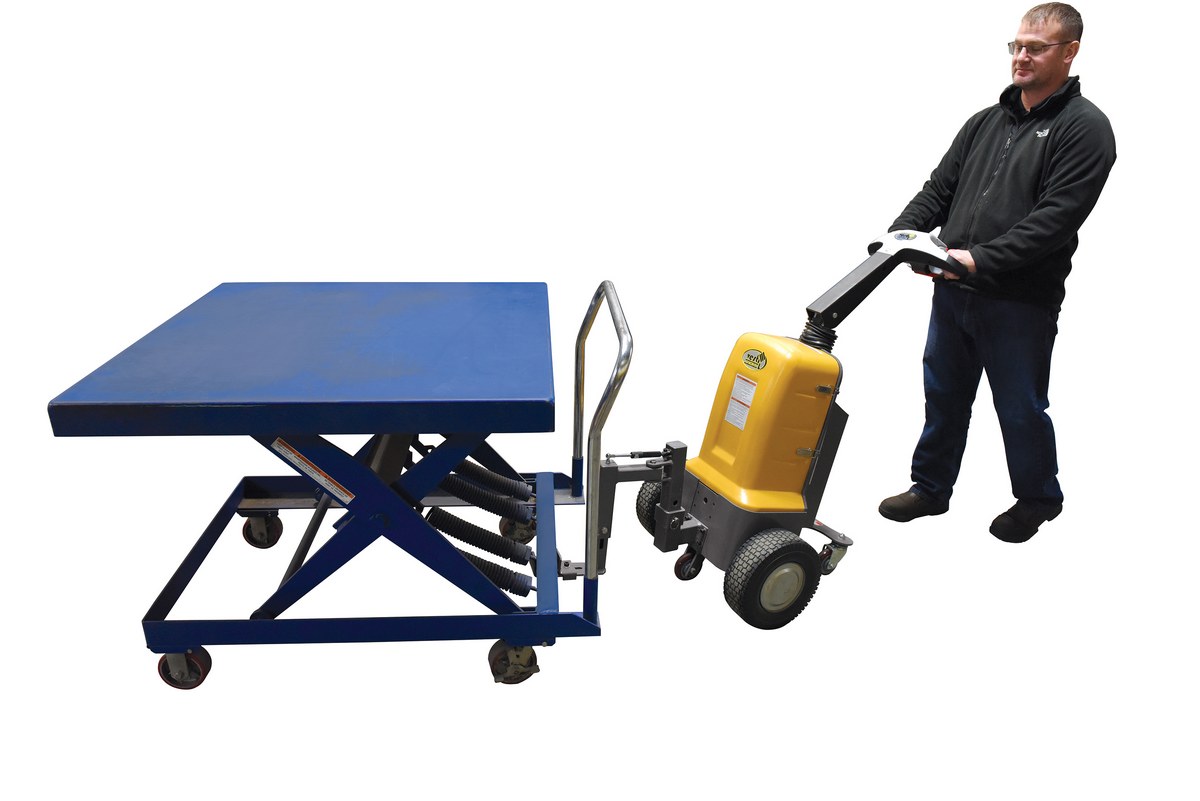

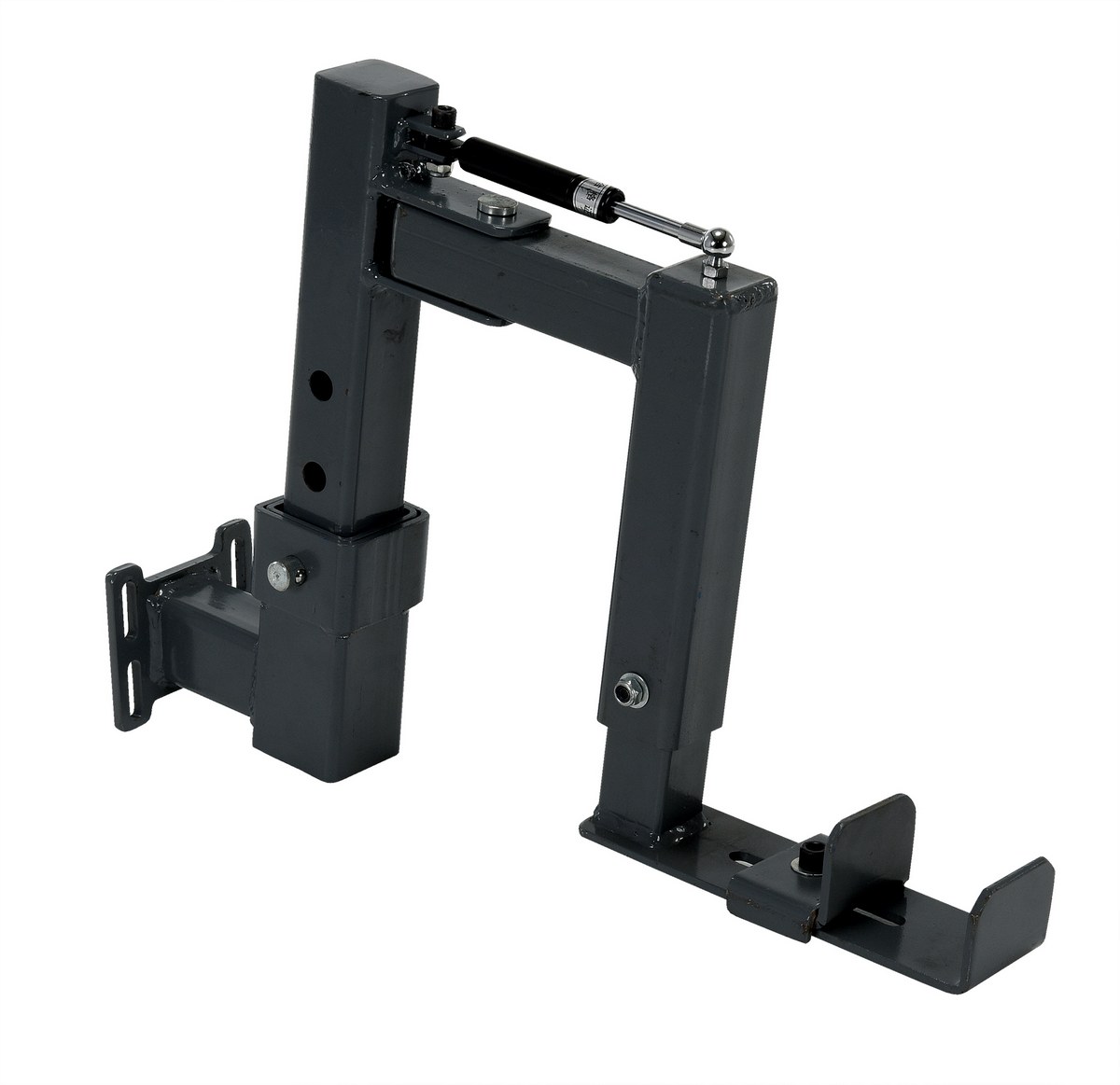

| E-TUG-MCLA | | 90 Days Limited Warranty | Steel Spring Loaded Manual Channel Lift For E-Tug Models Black | Installation Hardware Included: Number of Casters / Wheels: No Wheels / Casters | 22 | |

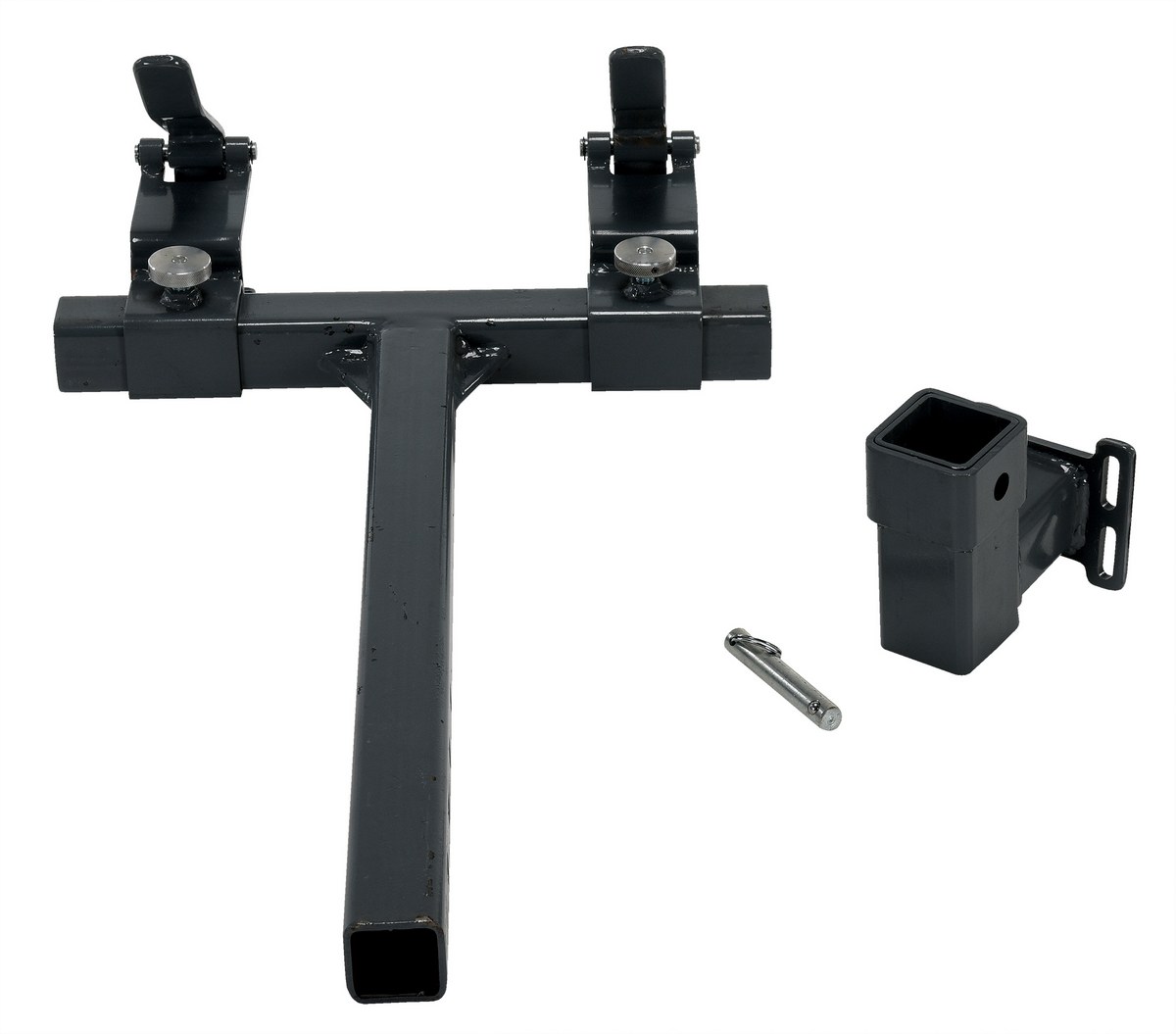

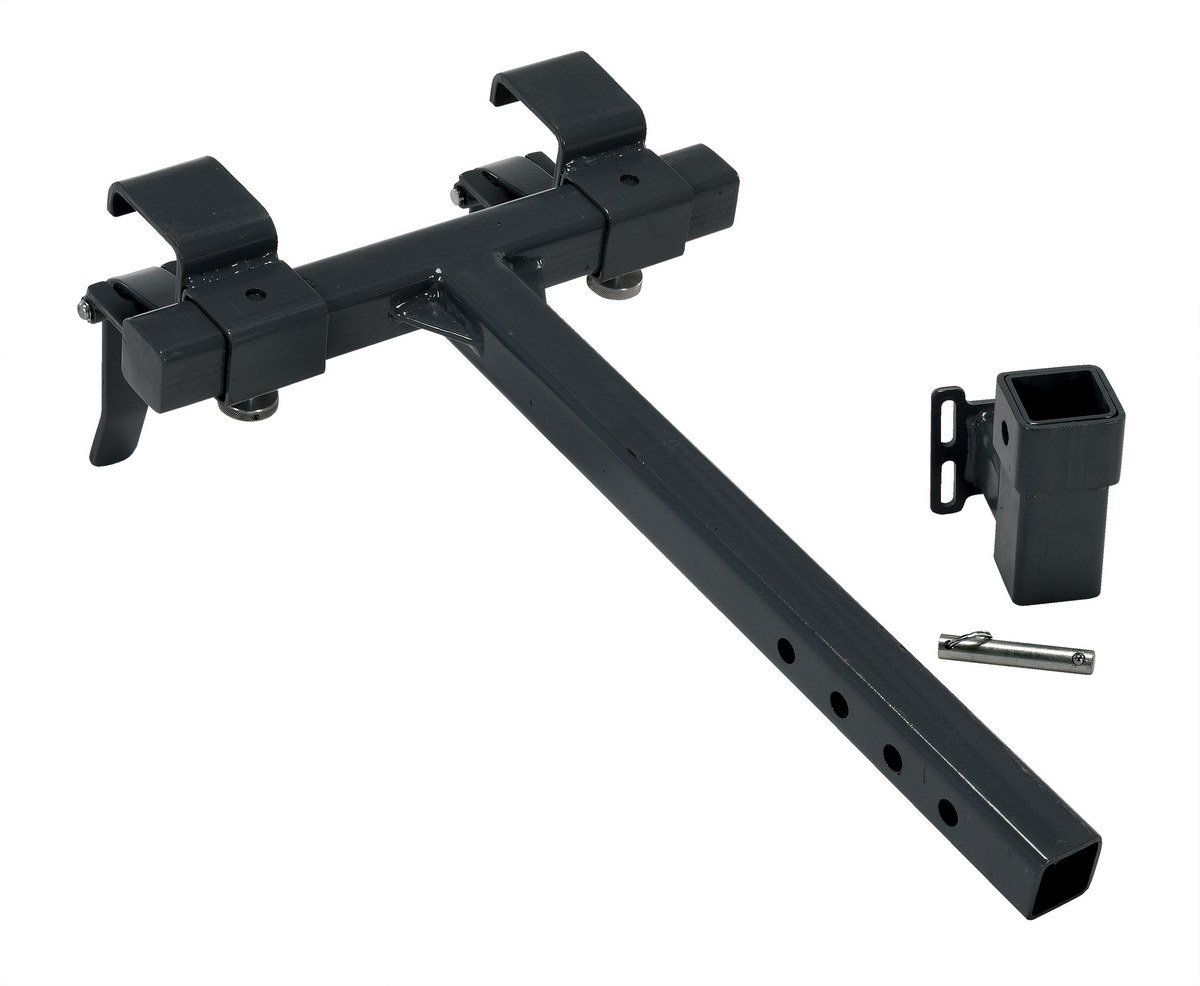

| E-TUG-MM | | 90 Days Limited Warranty | Steel Multi Mover For E-Tug Models Black | Installation Hardware Included: Number of Casters / Wheels: | 31 | |

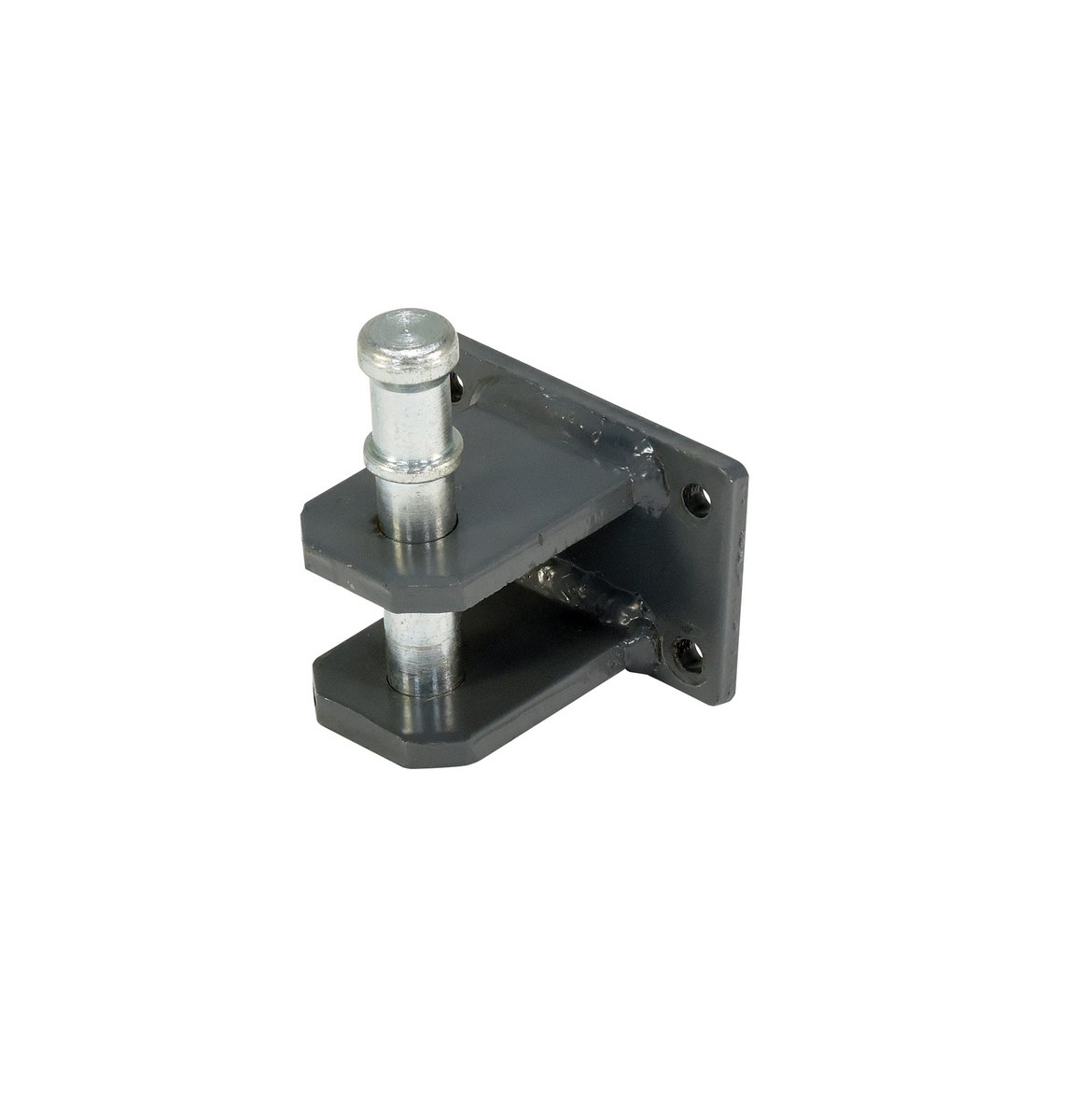

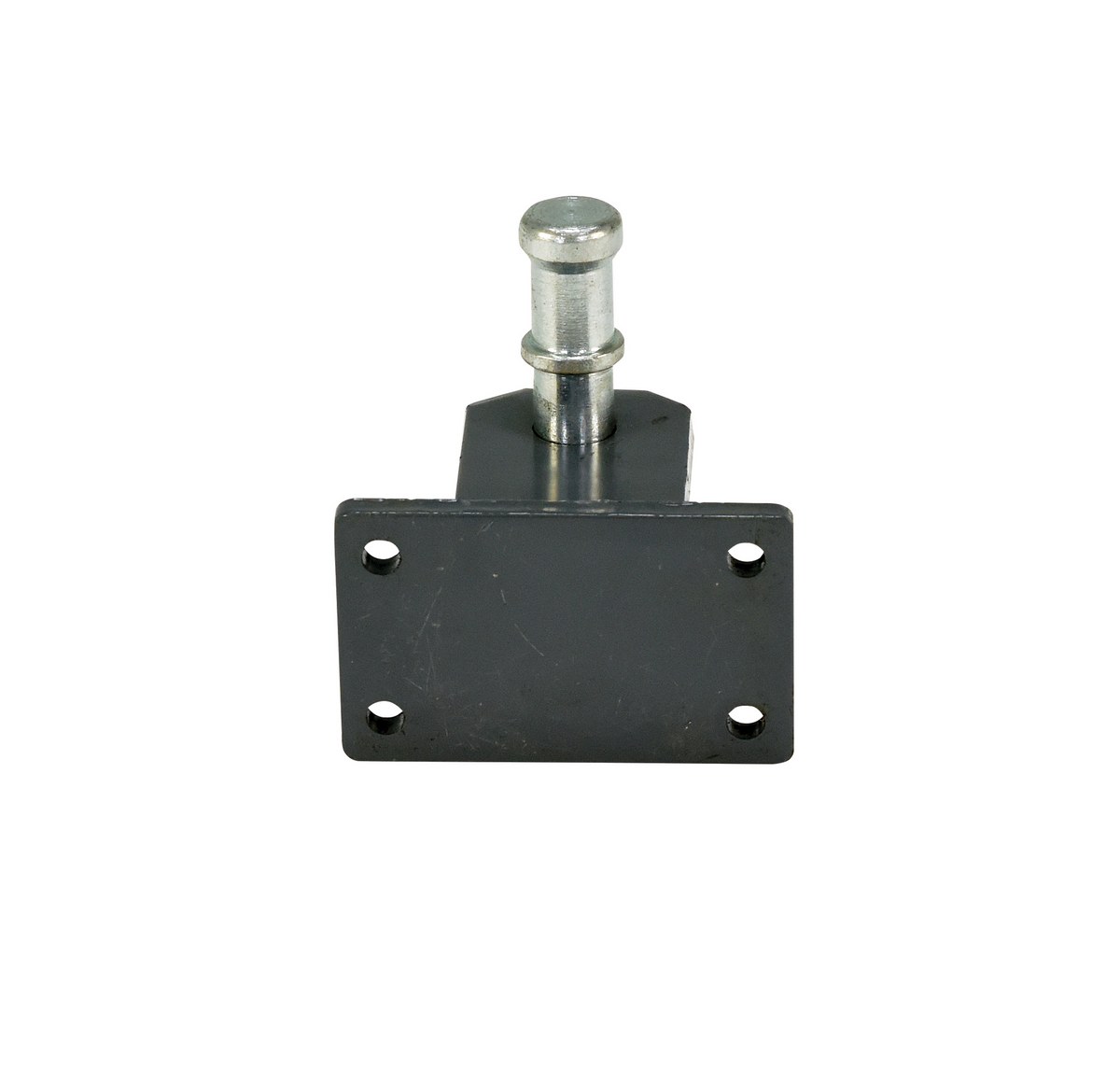

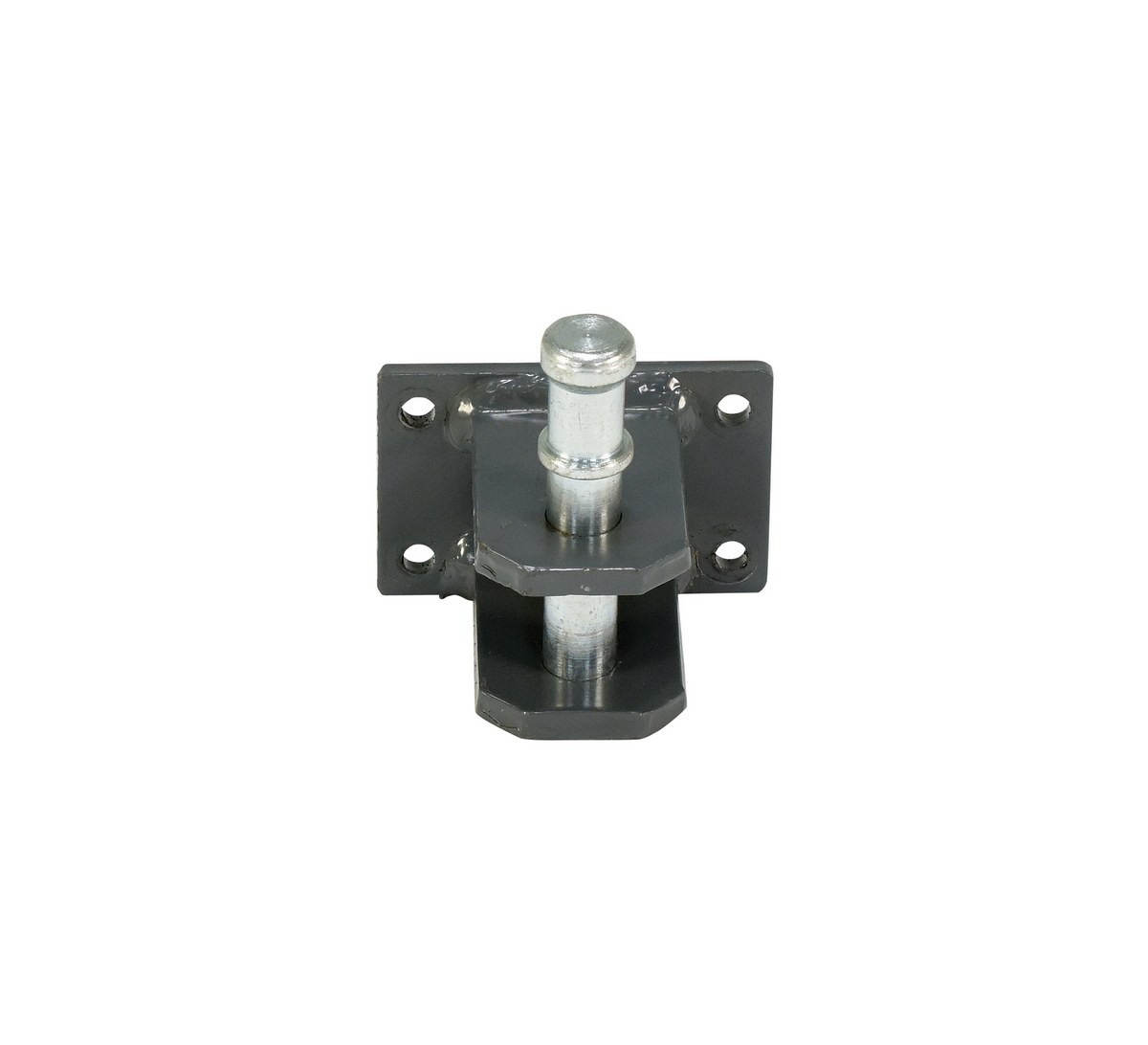

| E-TUG-PINH |  | 90 Days Limited Warranty | Steel Pin Hitch For E-Tug Models Black/Silver | Pin Shaft Diameter (In): 3/4 Pin Shaft Length (In): 4-5/8 | 4 | |

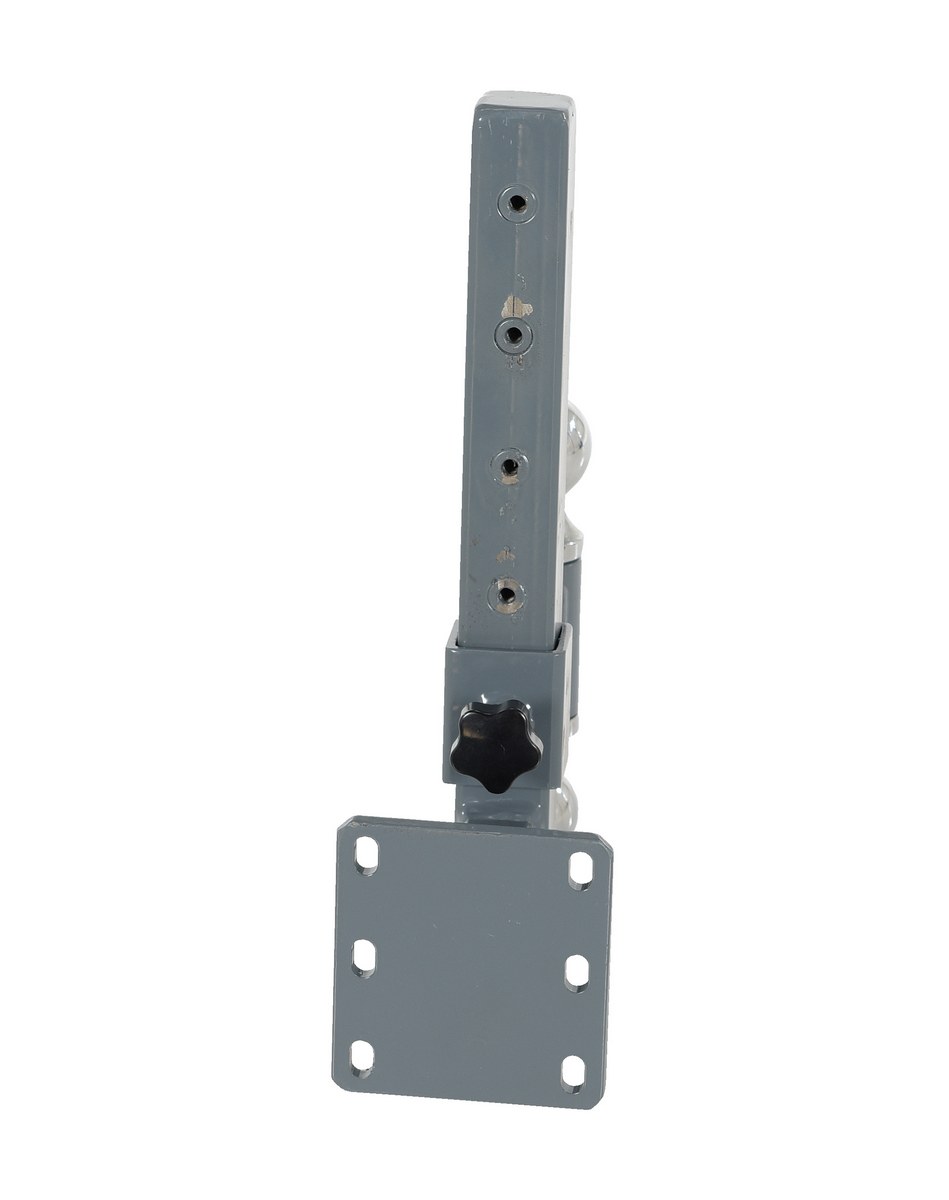

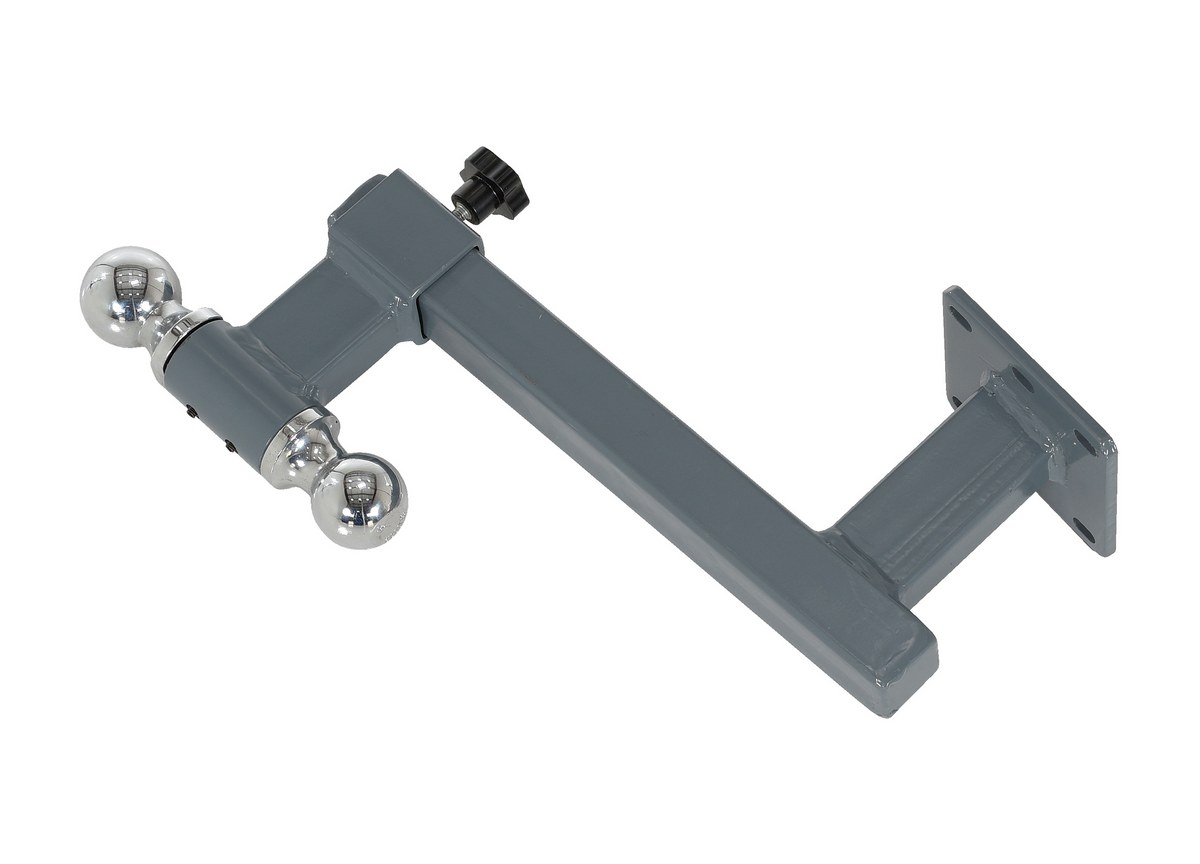

| E-TUG-SABH |  | 90 Days Limited Warranty | Steel Adjustable Single Side Hook Double Ball Hitch Mount For E-Tug Models Black | Ball sizes: 1-7/8" & 2" Attachment Method: Bolt On | 14 | |

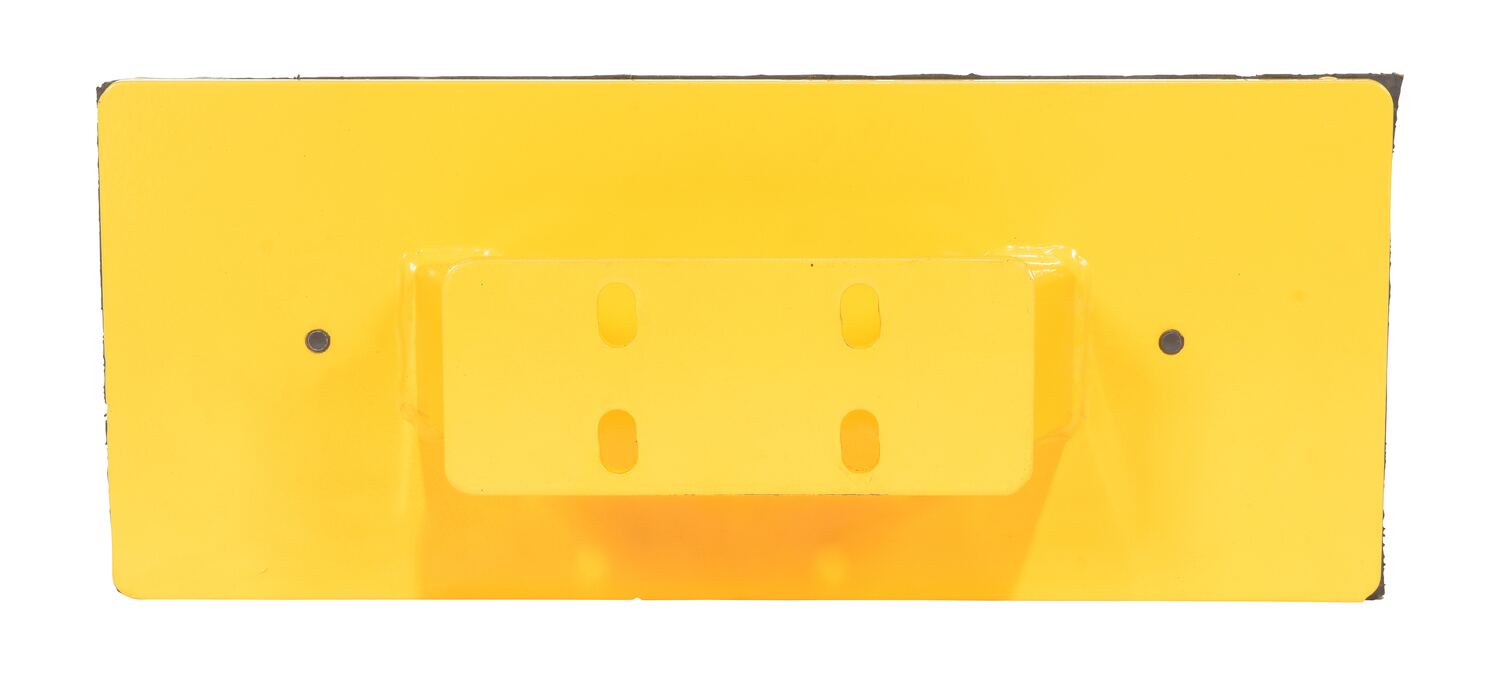

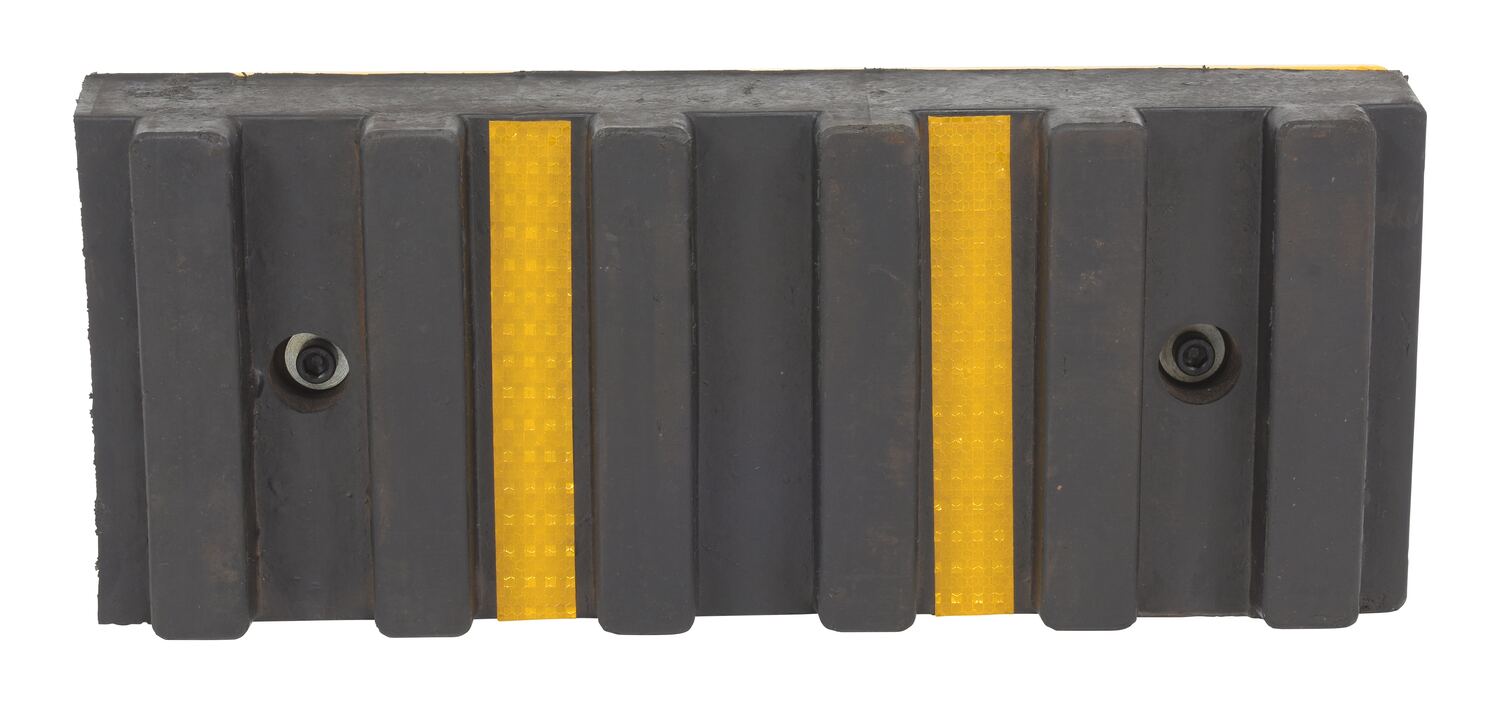

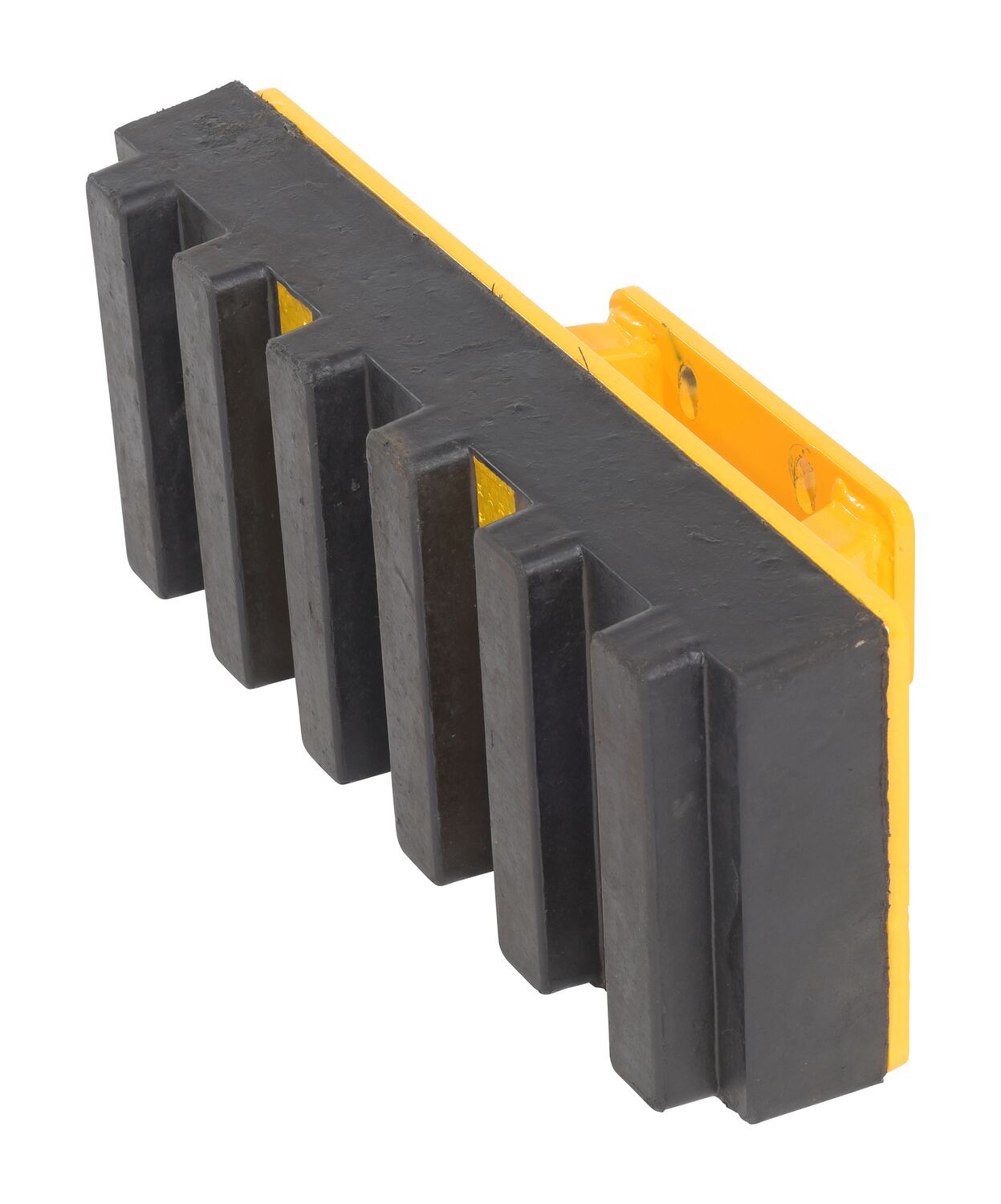

| E-TUG-HD-RPB-19 | NEW |  | 90 Days Limited Warranty | Rubber Bumper Attachment 19 In. | Installation Hardware Included: Yes Number of Casters / Wheels: No Wheels / Casters | 21 |
.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Valve-Regulated Lead Acid Battery Series SDS Sheet for: E-TUG-10
Hydraulic Oil SDS Sheet for: E-TUG-10
Valve-Regulated Lead Acid Battery Series SDS Sheet for: E-TUG-20
Hydraulic Oil SDS Sheet for: E-TUG-20
Valve-Regulated Lead Acid Battery Series SDS Sheet for: E-TUG-30
Hydraulic Oil SDS Sheet for: E-TUG-30
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: E-TUG-HD-30
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: E-TUG-HD-50
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: E-TUG-HD-70
Hydraulic Oil SDS Sheet for: E-TUG-HD-100-RV
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: E-TUG-HD-100-RV
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: E-TUG-HD-100
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: E-TUG-HD-120
Other PDF's
Directory Links Of Available PDF's For All Products
Q: How long does it take to charge the battery for the E-TUG-30 ?
A: The battery for the E-TUG-10, E-TUG-20, and E-TUG-30 will be fully charged in approximately 5 hours. If the battery is dead it may take up to 8 hours to be fully charged.
Q: How long will the E-TUG-10 run?
A: The E-TUG-10, E-TUG-20, and E-TUG-30 will operate approximately 4 hours of continuous use on a fully charged battery. For intermittent use, you can expect 8 hours .
Q: What is the diameter of the E-TUG-PINH?
A: The diameter of the pin (E-TUG -PINH) is approximately 3/4".
Q: Can the tugger be used on an incline?
A: The E-TUG-10, E-TUG-20, and E-TUG-30 will operate efficiently on a slope of 2-3 °.
Q: What is the service range of the ball hitches?
A: The service range of the E-TUG-SABH is 14-15/16 to 23-5/8. The service range of the E-TUG-ABMH is 15-1/2 to 21-1/2.
Q: What is the life cycle of spring on the E-TUG-HD-SLH?
A: The life cycle of spring for moderate use is approximately 1 to 2 years.
Q: Is the orientation of the hitch E-TUG-HD-SLH relevant?
A: Yes. The hitch is designed for horizontal pulling only.
Q: What is the life cycle of the hitch E-TUG-HD-SLH ?
A: The life cycle of the hitch is approximately one year with moderate use.
Q: The wheels on the tugger are foam filled. What material are the front casters?
A: The front casters are poly on poly.
Q: What is the IP rating of the E-TUG-20?
A: The IP rating is IP54.
Q: What is the adjustment range for this attachment?
A: The hook adjustment range is from 18-1/2" - 26".
Q: What are the dims of the hitch pin on the unit?
A: The dimensions of the hitch pin are E-TUG-PINH 3/4" SHAFT / 15/16" HEAD / 4 5/8" LONG.

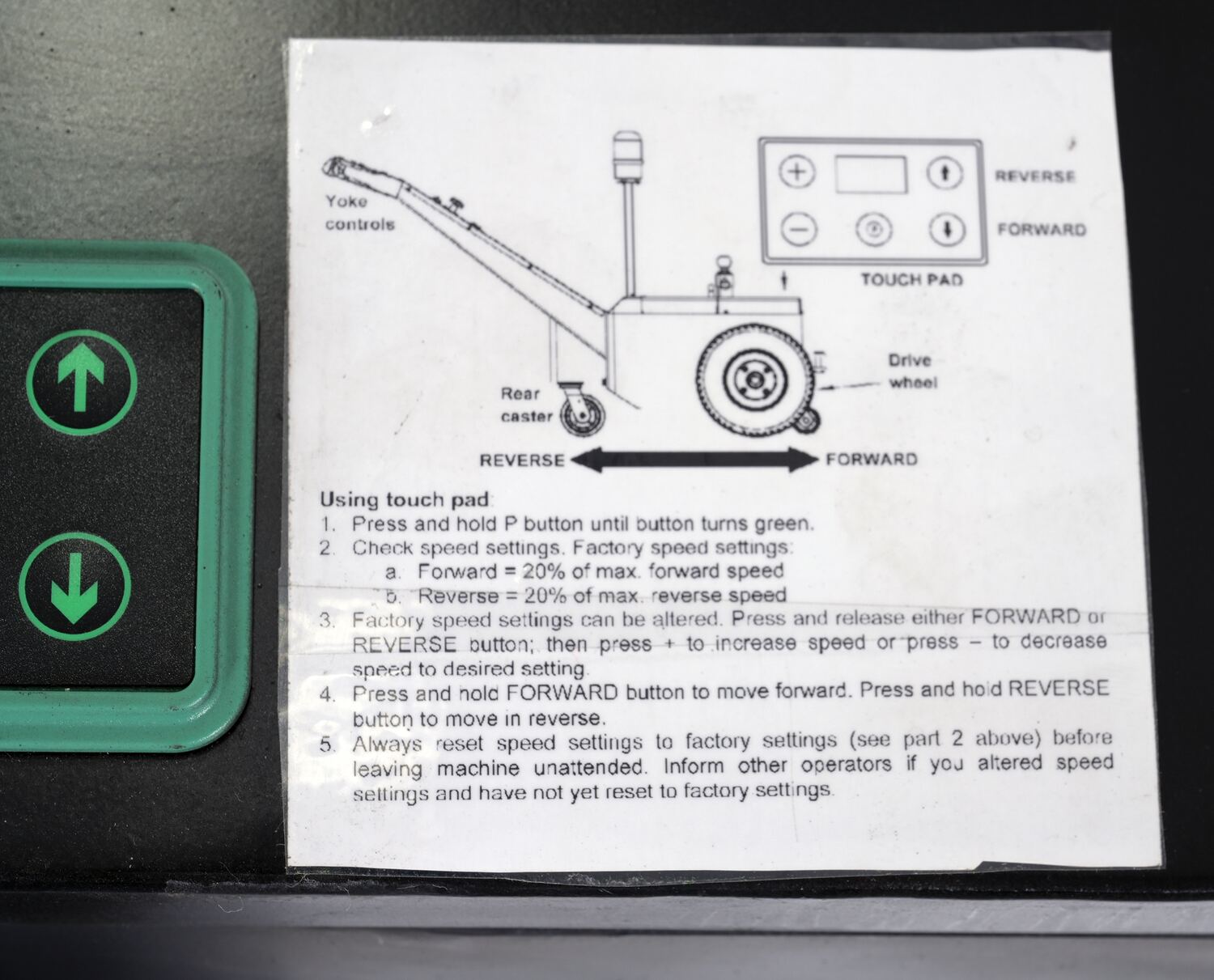

Q: What is the speed of this unit?
A: Factory speed is set at 2.8MPH unloaded and 2.2MPH loaded.
Q: Are the E-TUG models CSA, UL or ELT compliant?
A: Yes the E-TUG models are CSA, UL and ELT compliant.
Q: Can you tell me what the distance is between each hole is going vertical and horizontal on the E-TUG-HD-SBH-8?
A: Horizontal- 2 7/8 in (3 3/8 in on center) Vertical- 7/8 in (1 3/4 in on center)
Q: What are the mounting hole dimensions for the E-TUG-HD-SLH?
A: The mounting hole dimensions are as follows: 3 1/2 in wide on center x 1 7/8 in tall on center Holes are 1/2 in wide x 7/8 in tall
Q: What are the ball sizes on E-TUG-SABH and E-TUG-HD-DABH?
A: Both hitches have a double ball that are 1-7/8" & 2"
Q: What is the distance between the two horizontal plates on E-TUG-HD-PINH?
A: 1-3/4"
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
