Power Move Masters24V DC POWERED STANDARD
Power Move Masters are compact in size and easy to use. They are highly maneuverable, making them ideal for turning in tight spaces (not recommended for use on an incline or slope). DC powered for smooth, quiet operation with variable speed control for generous low speed torque and precise positioning. Built in battery charger for quick recovery. In addition, their ergonomic design provides stability and simple control. A variety of hitch attachments along with other options are available, contact factory. The tire size is 18" x 9-1/2". The hydraulic lift is standard on models PMM-3000 and PMM-3000-15, 9" to 26". Optional hydraulic lift option available on model PMM-1000. Three point mounting configurations allow for adjustable service range.
- Power move master is compact and highly maneuverable in order to turn in tight spaces
- Unit is DC powered with variable speed control for low speed torque and precise positioning
- Includes a built in battery charger for quick recovery
- Three point mounting configurations allow for adjustable service range
Gas Powered Trailer Mover
Electric Powered Tuggers
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

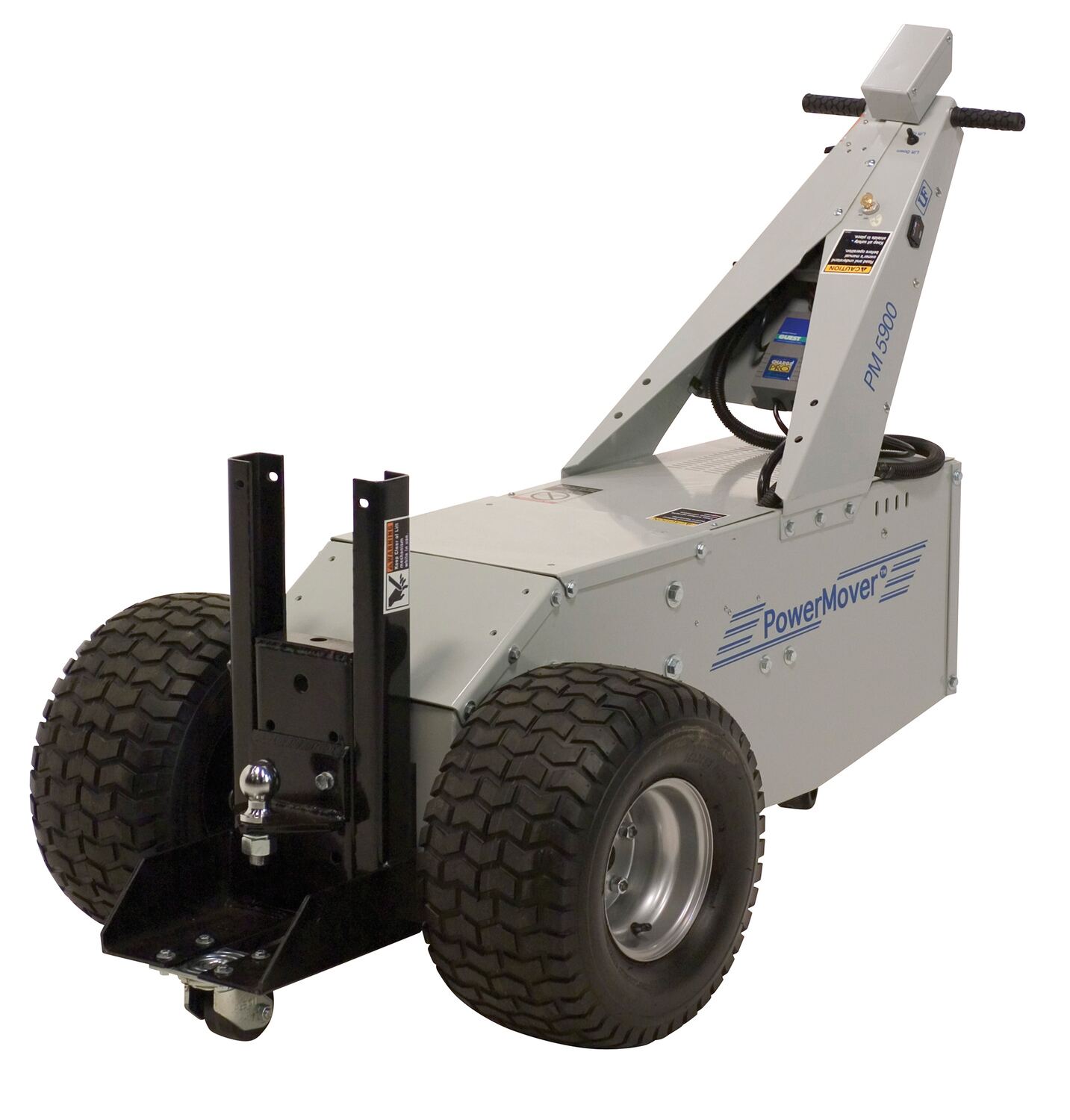

| PMM-1000 |  | 90 Days Limited Warranty | Power Move Master 53 In. x 37-1/2 In. x 37 In. 1500 Lb. Capacity Gray | Uniform Tongue Weight Load from Lift (lb.): 1,000 Uniform Maximum Push/Pull Weight (lb.): 40,000 | 858 | ||

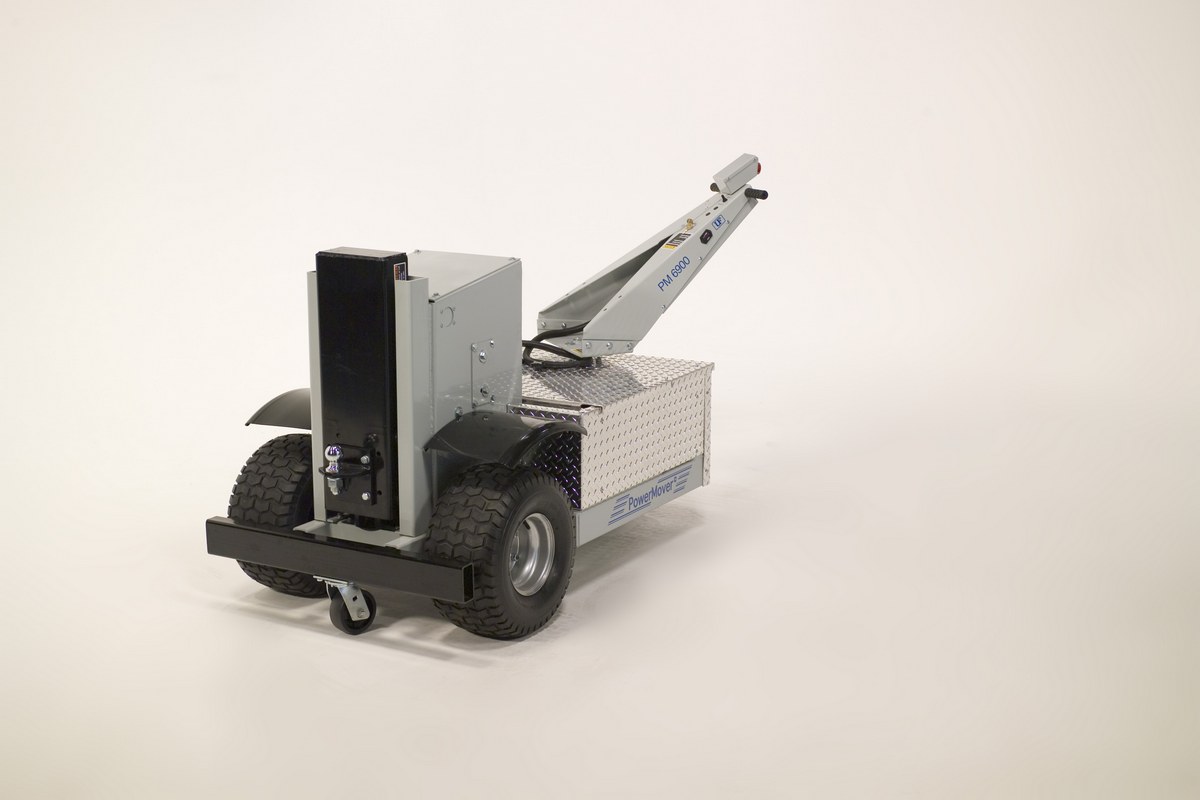

| PMM-3000 |  | 90 Days Limited Warranty | Power Move Master 78 In. x 36 In. x 43 In. 3000 Lb. Capacity Gray | Uniform Tongue Weight Load from Lift (lb.): 1,000 Uniform Maximum Push/Pull Weight (lb.): 70,000 | 2008 | ||

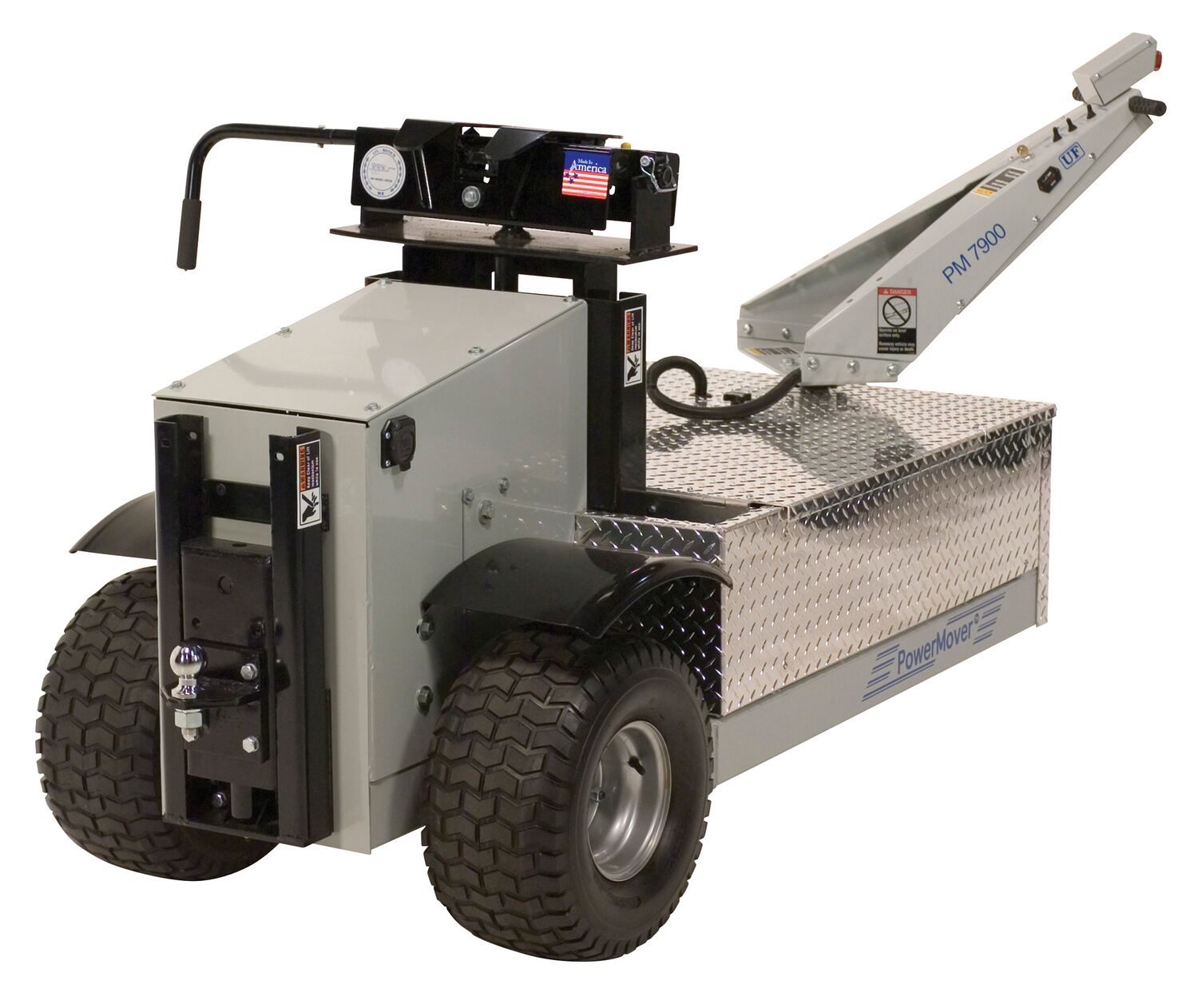

| PMM-3000-15 |  | 90 Days Limited Warranty | Power Move Master 96 In. x 36 In. x 43 In. 3000-1500 Lb. Capacity Gray | Uniform Tongue Weight Load from Lift Front/Top (lb.): 3,000/1,000 Uniform Maximum Push/Pull Weight (lb.): 70,000 | 2036 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Tongue Weight Load from Lift (lb.): 1,000
Uniform Maximum Push/Pull Weight (lb.): 40,000
Uniform Tongue Weight Load from Lift (lb.): 1,000
Uniform Maximum Push/Pull Weight (lb.): 40,000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Tongue Weight Load from Lift (lb.): 1,000
Uniform Maximum Push/Pull Weight (lb.): 70,000
Uniform Tongue Weight Load from Lift (lb.): 1,000
Uniform Maximum Push/Pull Weight (lb.): 70,000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Tongue Weight Load from Lift Front/Top (lb.): 3,000/1,000
Uniform Maximum Push/Pull Weight (lb.): 70,000
Uniform Tongue Weight Load from Lift Front/Top (lb.): 3,000/1,000
Uniform Maximum Push/Pull Weight (lb.): 70,000
For More Details of the Option Click the Red Model Button

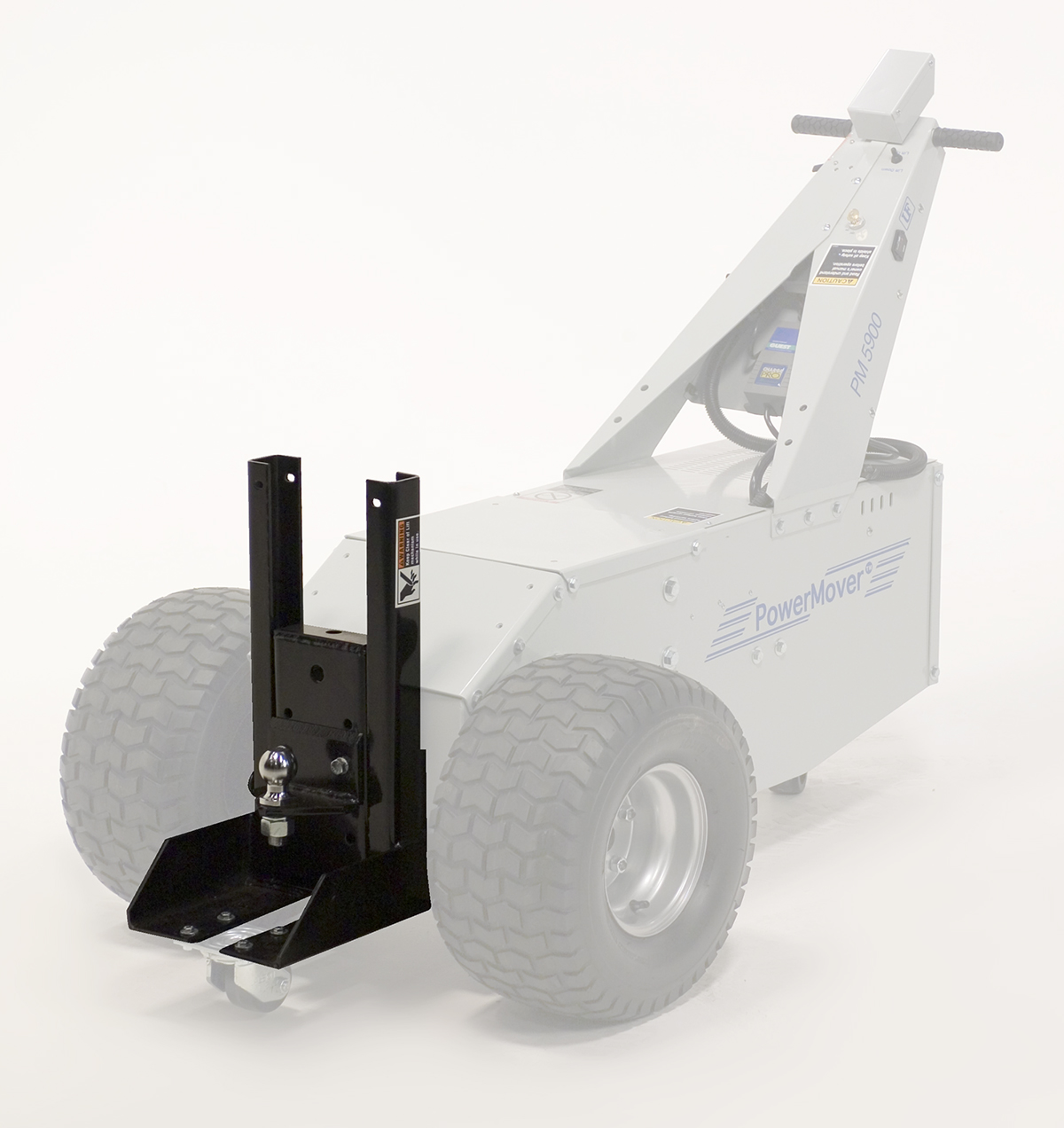

| PMM-HYD-LIFT |  | 90 Days Limited Warranty | Factory Installed Hydraulic Lift 9 In. To 26 In. Lift For Power Move Master | Lift (in.) to (in.): 9 to 26 | 150 |
.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Lead Acid Battery SDS Sheet for: PMM-1000
Hydraulic Oil SDS Sheet for: PMM-1000
Lead Acid Battery SDS Sheet for: PMM-3000
Hydraulic Oil SDS Sheet for: PMM-3000
Lead Acid Battery SDS Sheet for: PMM-3000-15
Hydraulic Oil SDS Sheet for: PMM-3000-15
Hydraulic Oil SDS Sheet for: PMM-HYD-LIFT
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What degree of incline this unit can handle?
A: Zero. The move master will not perform with any incline.
 |
||||||||||||||||||||||
