Multi-Purpose Drum Trucks/Cradles

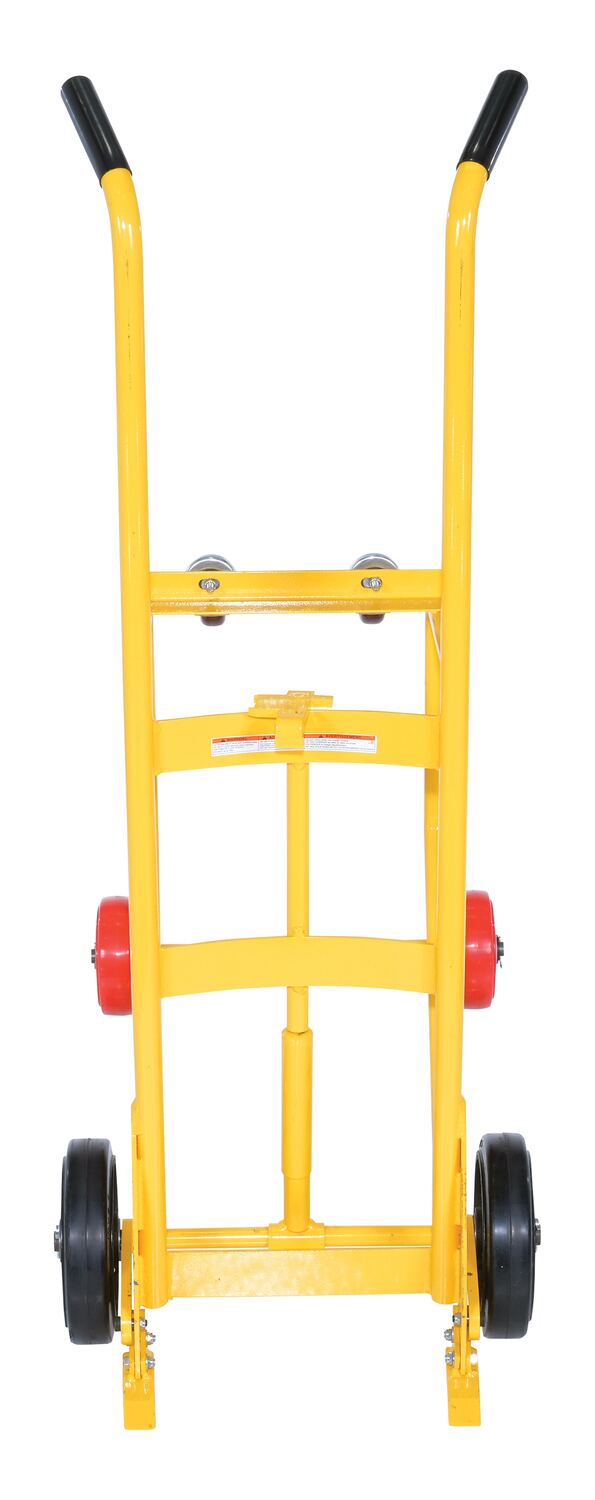

model: RDBT-MR

Multi-Purpose Drum Trucks/Cradles

SERIES: RDBT

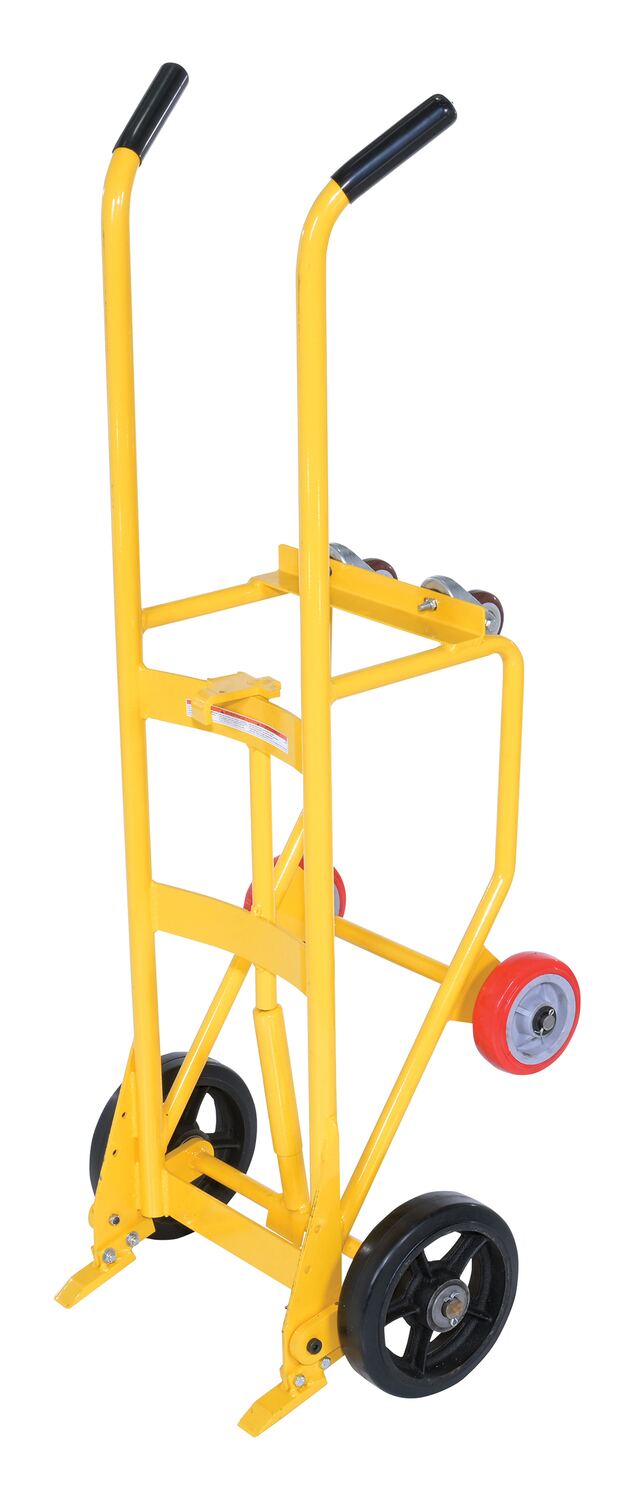

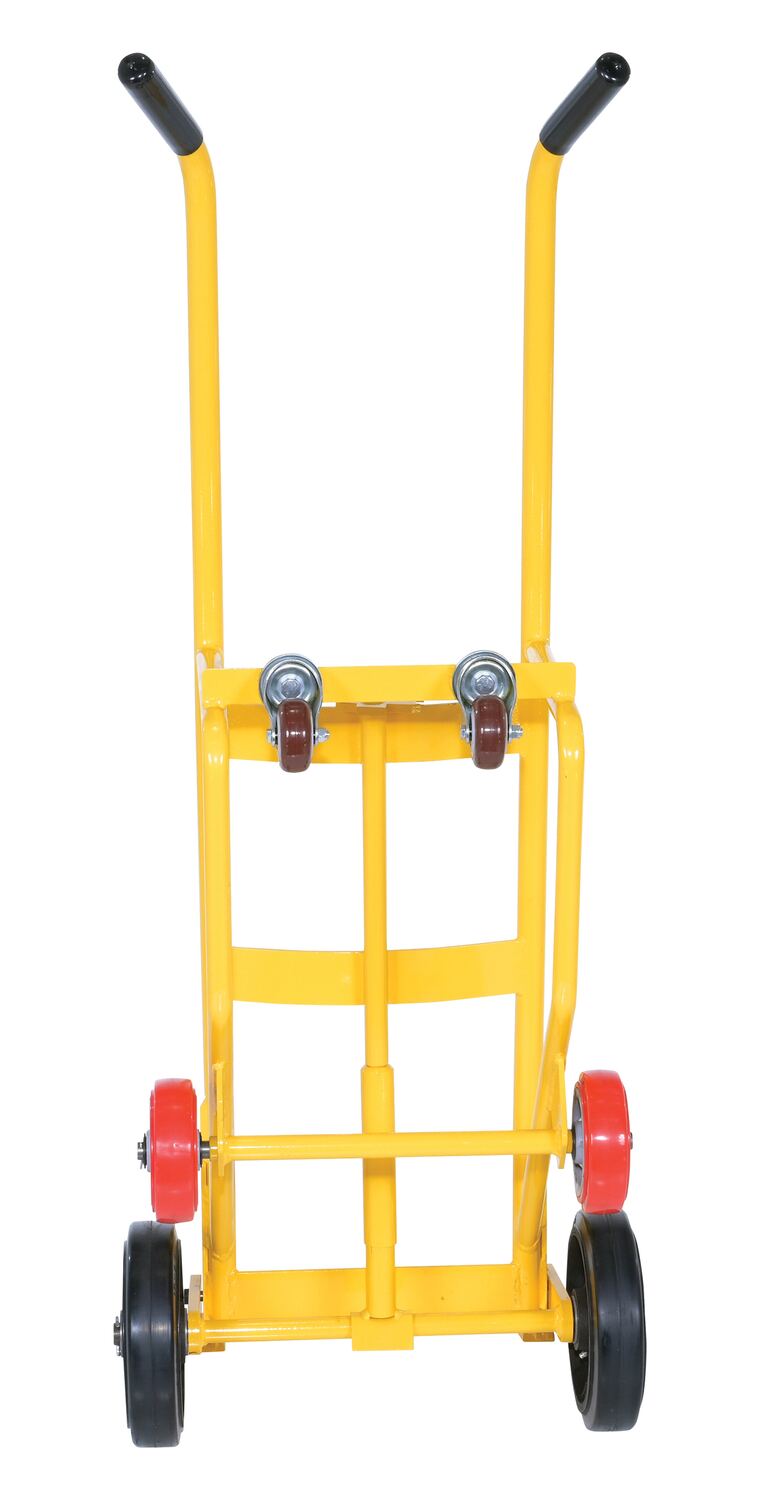

One of the most versatile drum trucks in the industry. This innovative product allows the operator to easily tip back the truck in order to transport drums ergonomically on four wheels. Unit doubles as a drum cradle for storage and dispensing all in one. Top angle is 3 degrees when used as a Drum Cradle. This unique design also allows the operator to place drums and retrieve off of a pallet. Accommodates 55-gallon steel, plastic, or fiber drums. Rolls smoothly on a variety of (2) 10" x 2-1/2" wheel types (see table below), (2) 6" x 2" poly-on-poly wheels, and (2) 3" x 1-1/4" poly-on-poly swivel casters. Standard with a wheeled undercarriage that positions the drum horizontally for drainage or storage. The drain height is 12-13/16" high in the cradle position. An integral self-storing bung wrench is standard. This attractive feature not only opens numerous drums, but helps to keep the drum snug on the truck. A yellow baked in powder coat finish for added toughness. Optional drip pan available.

Extended height handle for better posture

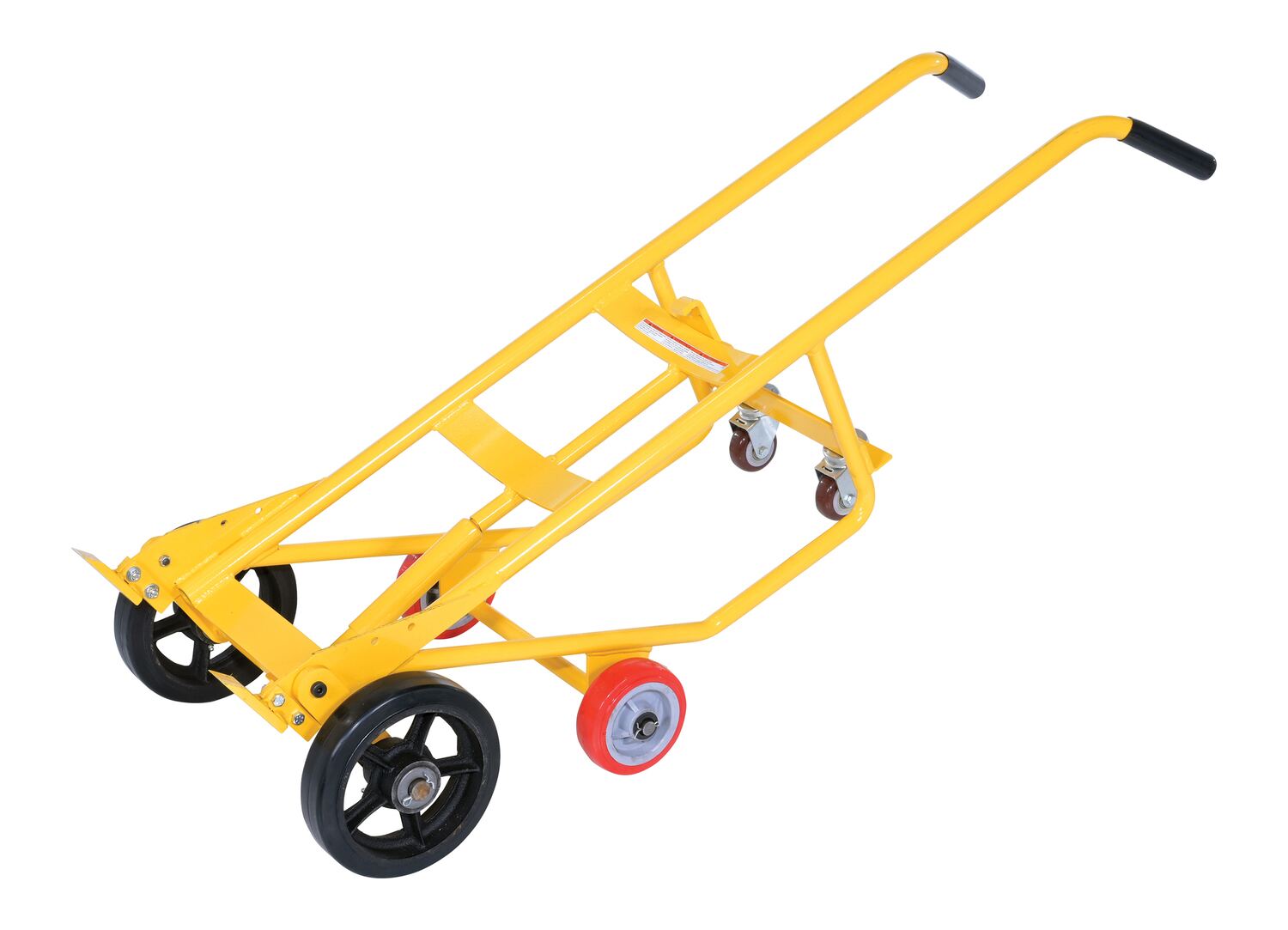

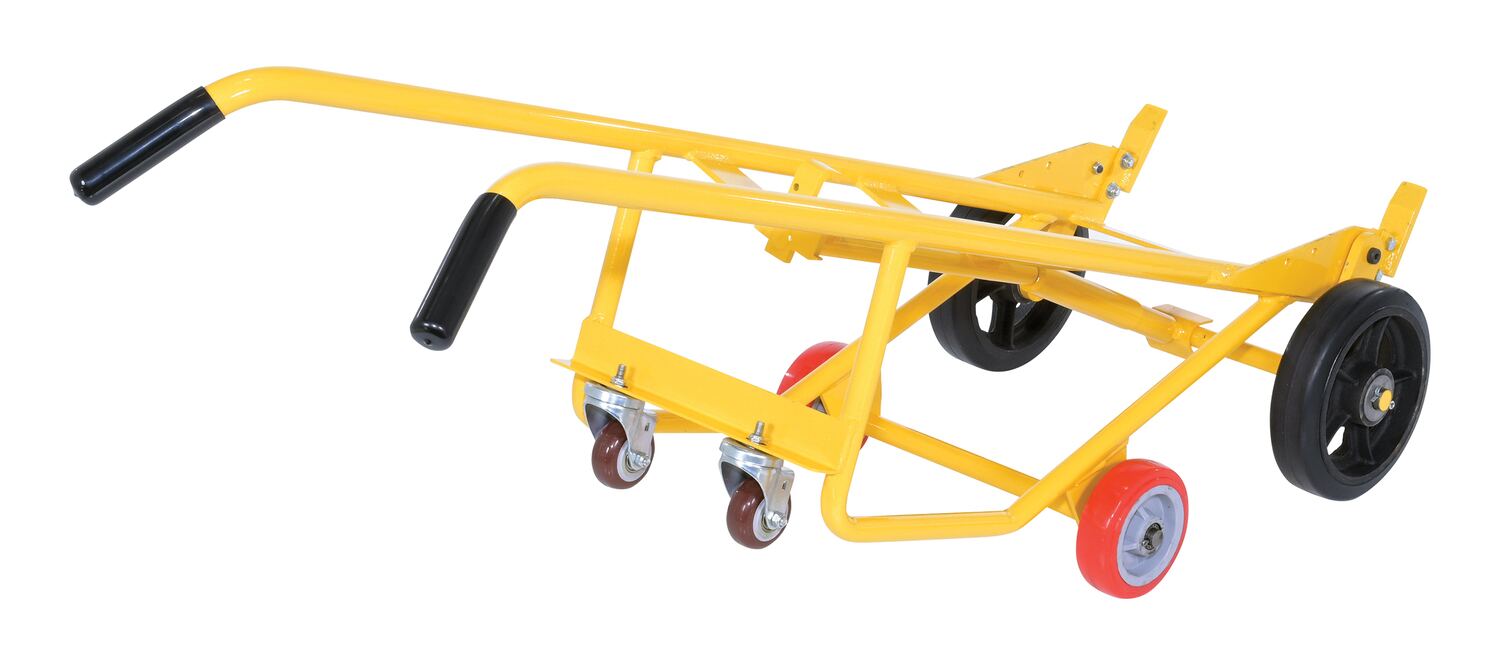

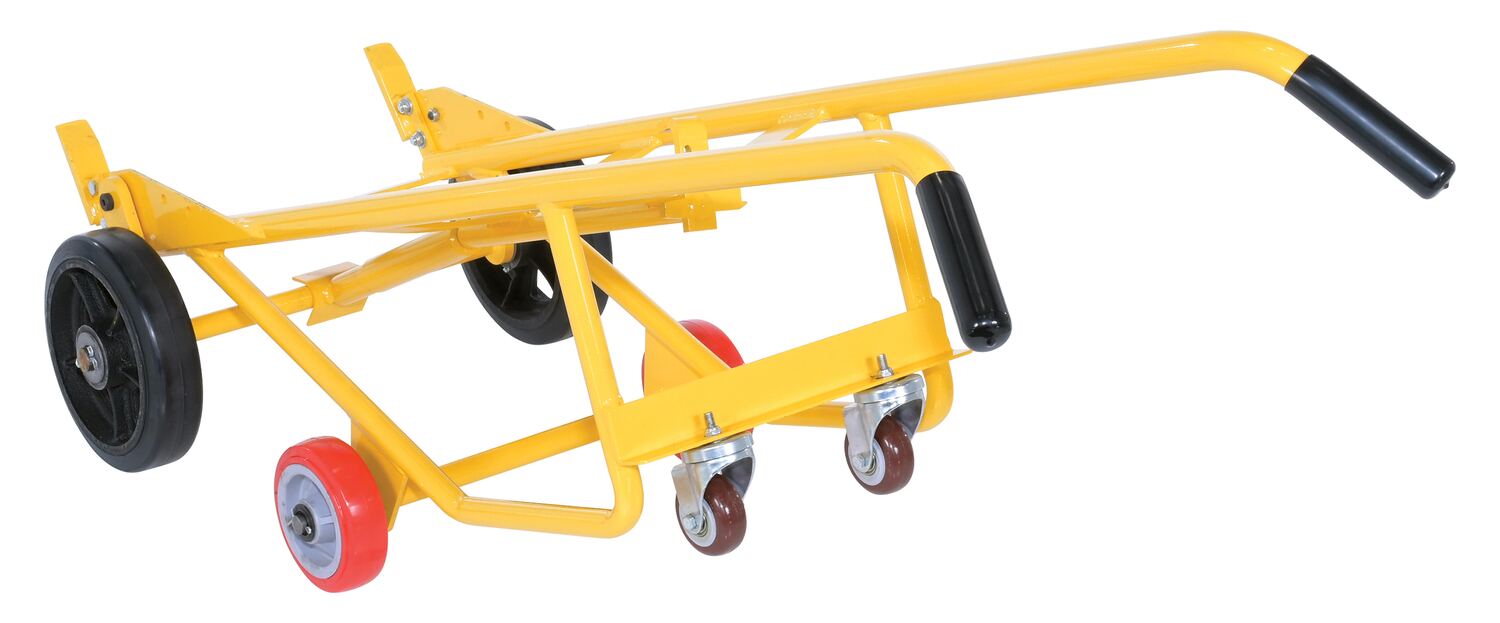

Rolling casters when in horizontal position
Extended foot and top security points
Ability to transfer a variety of drum materials

Multi-Purpose Drum Trucks/Cradles

model: RDBT-MR

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

For More Details of the Option Click the Red Model Button

Model	Image	Details	Icons	Wt.

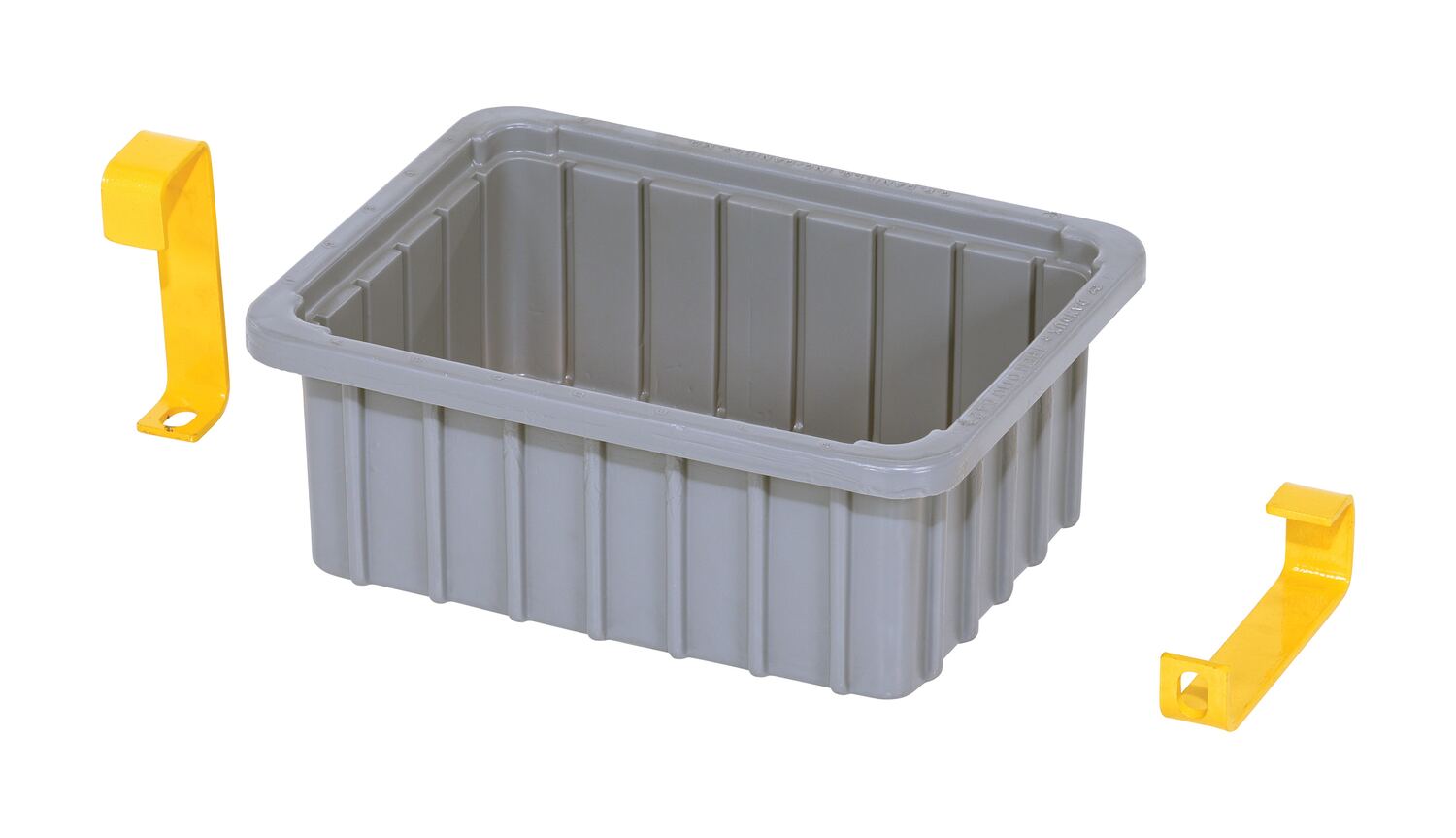

RDBT-PAN		Plastic Drip Pan With Brackets For Multi-Purpose Drum Truck/…		3

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

PDFs will open in a new window when clicked.

Manuals

No Owners Manuals For This Product

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

RDBT-MR

RDBT-PO

RDBT-SS

RDBT-PAN

Testing Certificates

RDBT-MR

RDBT-PAN

RDBT-PO

RDBT-SS

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product

Print Friendly

Related or Similar Products:

More From Drum Transporters, Trucks, Carts & Jacks

Economy Rotating Drum Carts

Economy Rotating Drum Carts

Stainless Steel Drum Lifter/Transporter

Stainless Steel Drum Lifter/Transporter

Deluxe Rotating Drum Carts

Deluxe Rotating Drum Carts

Ergonomic Drum Truck with Scale

Ergonomic Drum Truck with Scale

Manual Drum Carrier/Rotator

Manual Drum Carrier/Rotator

Manual Low Profile Hydraulic Drum Truck

Multi-Purpose Drum Trucks/Cradles

One of the most versatile drum trucks in the industry. This innovative product allows the operator to easily tip back the truck in order to transport drums ergonomically on four wheels. Unit doubles as a drum cradle for storage and dispensing all in one. Top angle is 3 degrees when used as a Drum Cradle. This unique design also allows the operator to place drums and retrieve off of a pallet. Accommodates 55-gallon steel, plastic, or fiber drums. Rolls smoothly on a variety of (2) 10" x 2-1/2" wheel types (see table below), (2) 6" x 2" poly-on-poly wheels, and (2) 3" x 1-1/4" poly-on-poly swivel casters. Standard with a wheeled undercarriage that positions the drum horizontally for drainage or storage. The drain height is 12-13/16" high in the cradle position. An integral self-storing bung wrench is standard. This attractive feature not only opens numerous drums, but helps to keep the drum snug on the truck. A yellow baked in powder coat finish for added toughness. Optional drip pan available.

Extended height handle for better posture
Rolling casters when in horizontal position
Extended foot and top security points
Ability to transfer a variety of drum materials

Model #		Description	Attributes	Net Wt. (lbs)

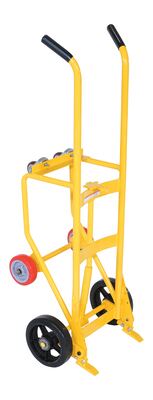

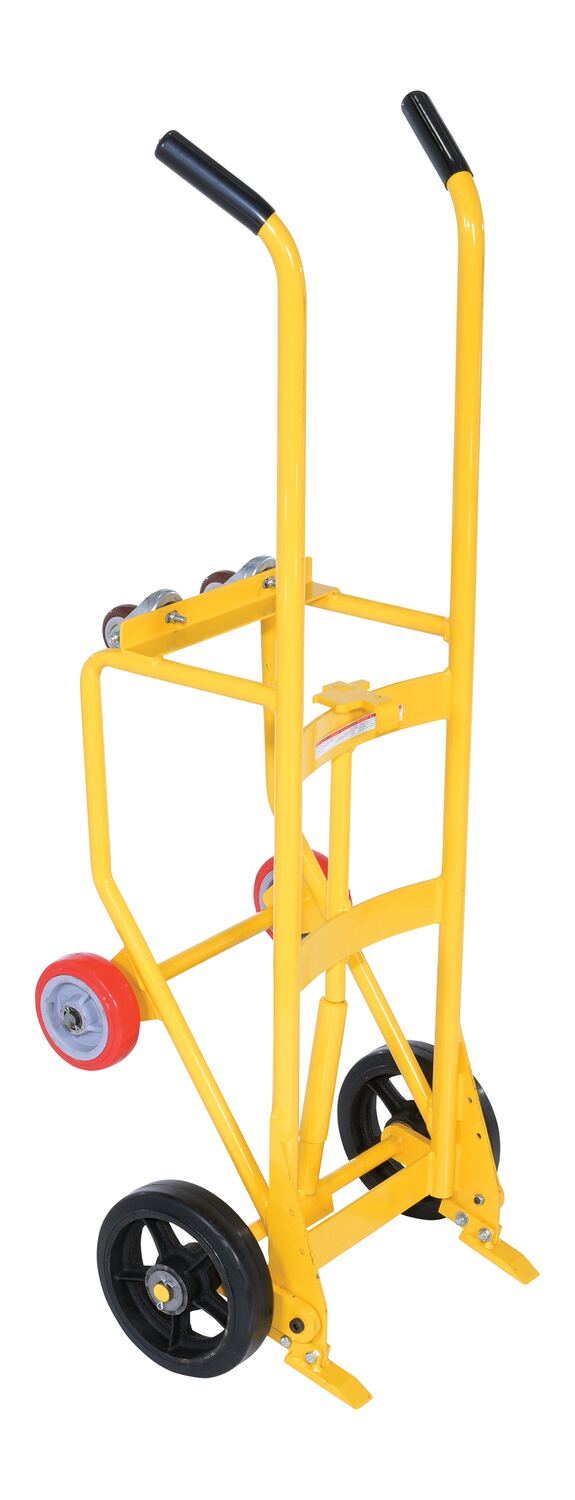

RDBT-MR		Steel Drum Truck Cradle With Mold On Rubber Wheel 20-1/16 In. x 23-11/16 In. x 60-5/8 In. 1000 Lb. Capacity Yellow	Uniform Capacity (lb.): 1,000 Mold-on-Rubber Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2	124

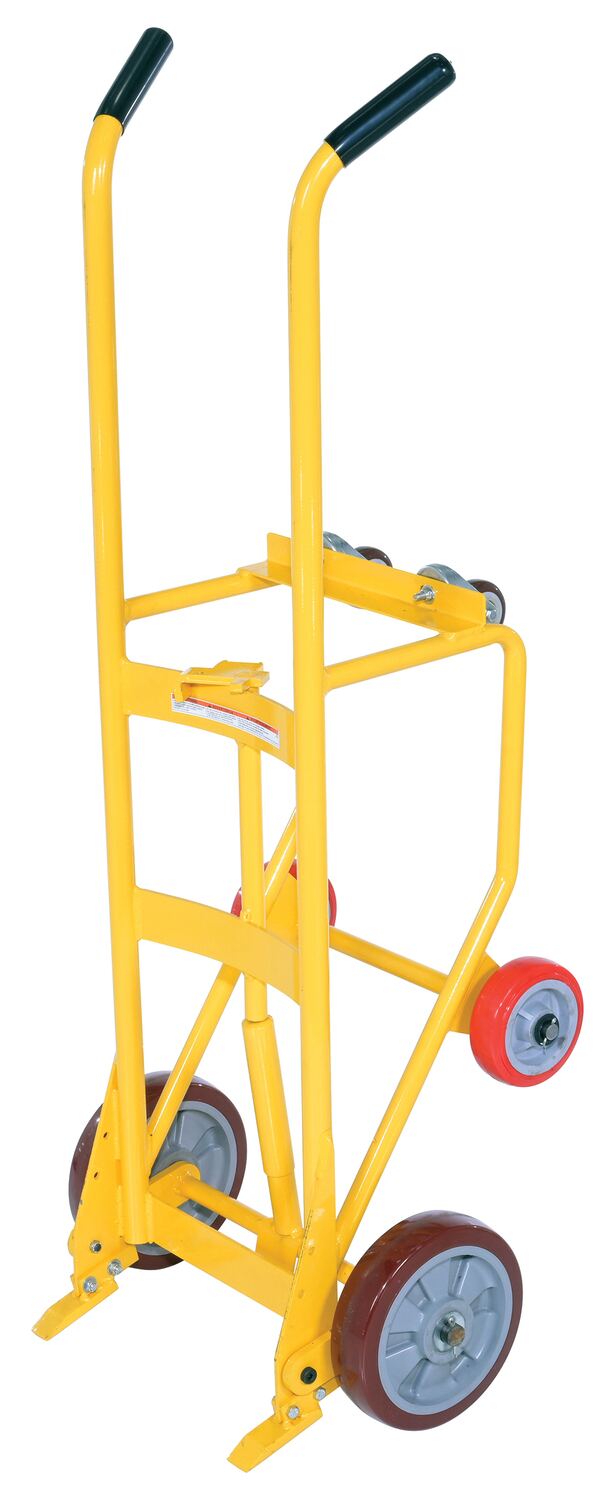

RDBT-PO		Steel Drum Truck Cradle With Poly On Poly 20-1/16 In. x 23-11/16 In. x 60-5/8 In. 1000 Lb. Capacity Yellow	Uniform Capacity (lb.): 1,000 Poly on Poly: (2) 10 x 2-1/2	124

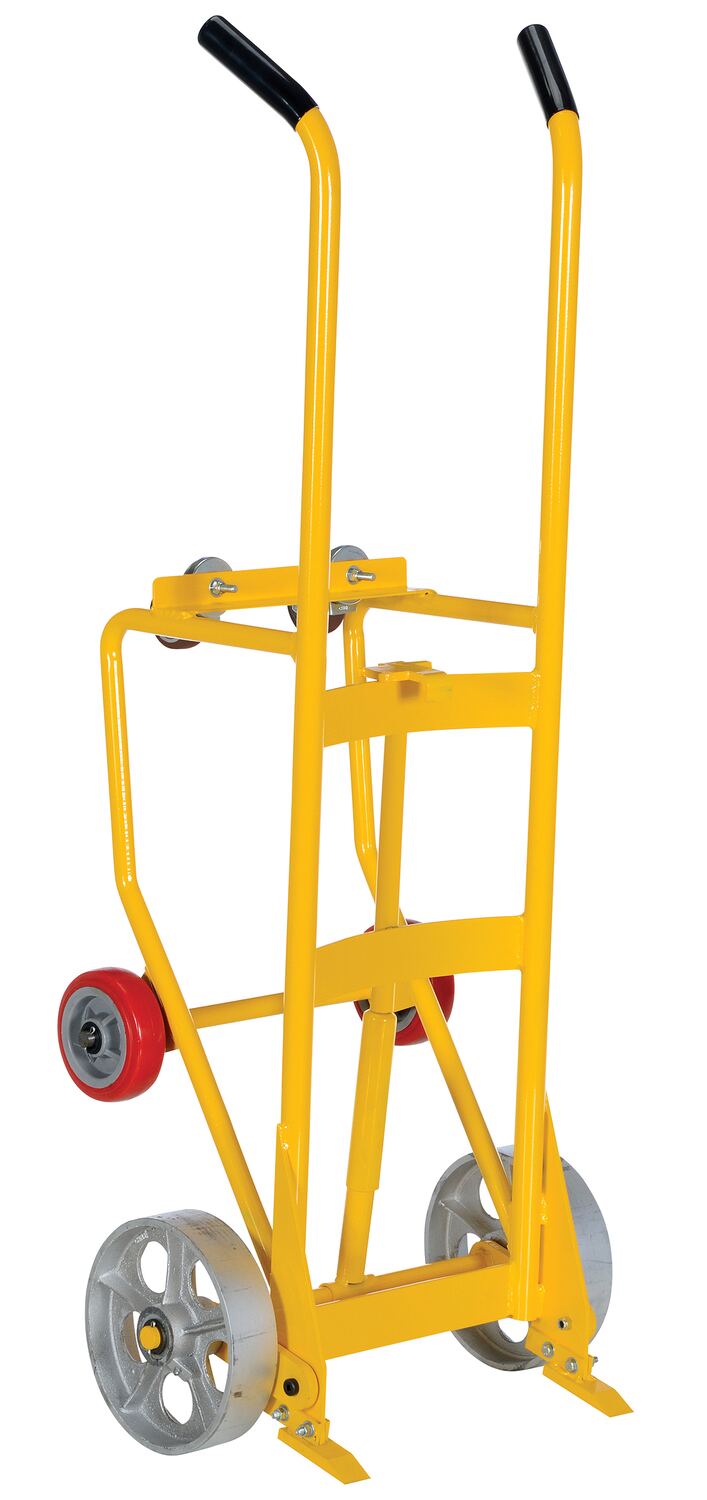

RDBT-SS		Steel Drum Truck Cradle With Semi-Steel Wheels 20-1/16 In. x 23-11/16 In. x 60-5/8 In. 1000 Lb. Capacity Yellow	Uniform Capacity (lb.): 1,000 Semi-Steel Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2	134

Options

.
