Galvanized Folding Gates

model: VPFG-865

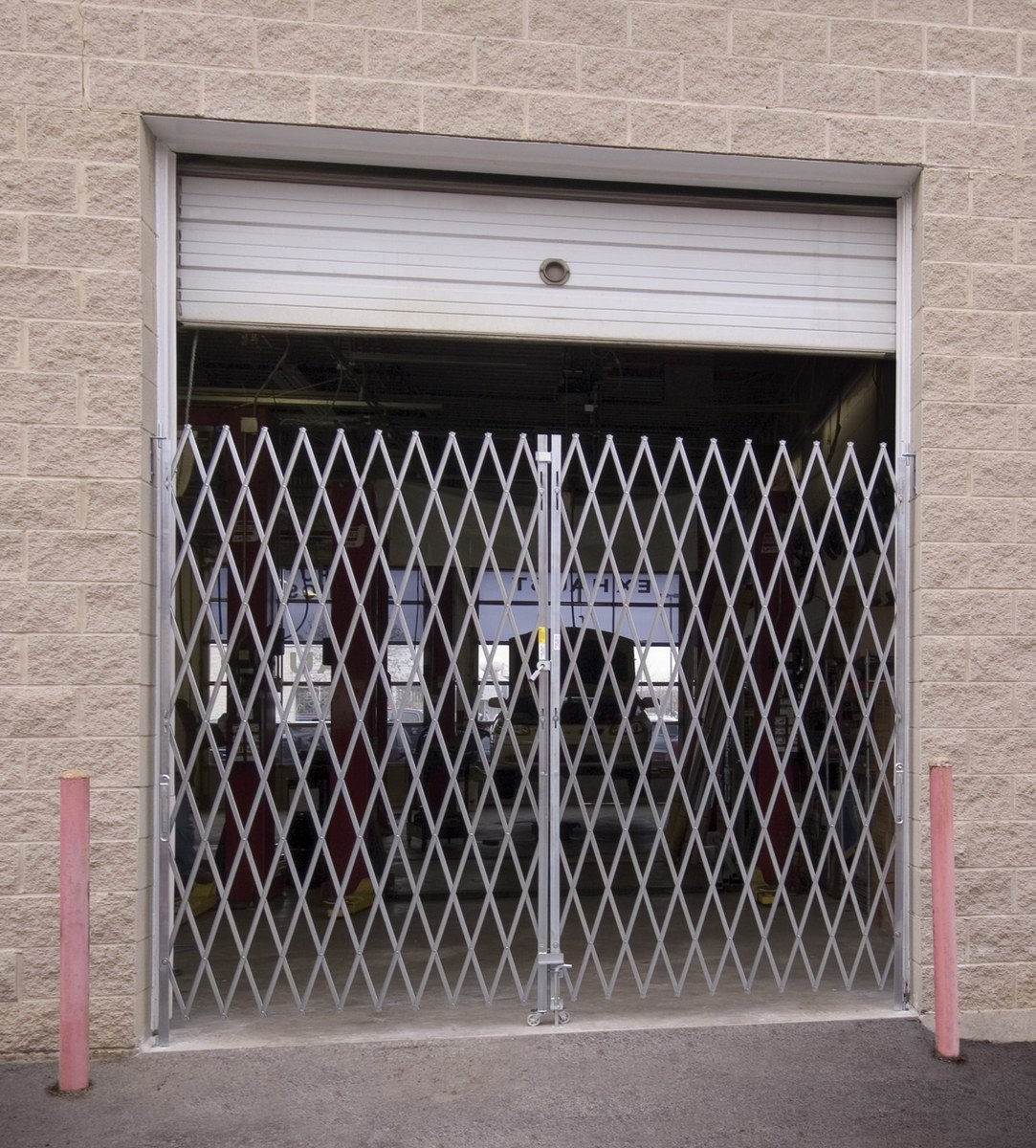

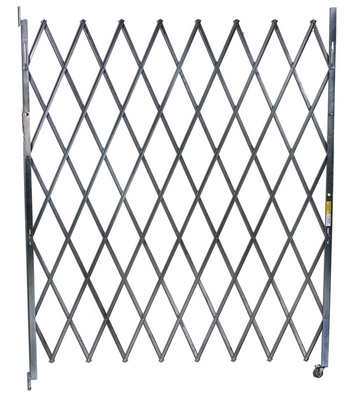

VPFG-865_A.jpg VSSG-465_A.jpg More Images +
Galvanized Folding Gates
SERIES: VPFG,VSSG

Secure outside access during the day and add security at night with heavy-duty 14 gauge steel folding gates. Durable 2" steel casters allow operator to quickly and fully retract gate when not in use. Center drop pin rests in pre-drilled hole to secure gate when extended. Easy installation! Galvanized for durability. Constructed of steel U-channels riveted back to back using aircraft quality rivets and heavy-duty 1-1/2" x 1-1/2" vertical angles. Contact factory for additional sizes.

  • Gate design secures outside access during the day and adds security at night
  • Steel wheels allow operator to quickly and fully retract gate when not in use
  • Center drop pin rests in pre-drilled hole to secure gate when extended
  • Aircraft quality rivets and heavy-duty vertical angles hold unit together
  • Left side locks are available by quote only
Galvanized Folding Gates

model: VPFG-865

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
EX-BRACKET-9
VPFG-1065
VPFG-1070
VPFG-1075
VPFG-1080
VPFG-1085
VPFG-1265
VPFG-1270
VPFG-1275
VPFG-1280
VPFG-1285
VPFG-1465
VPFG-1470
VPFG-1475
VPFG-1480
VPFG-1485
VPFG-1665
VPFG-1670
VPFG-1675
VPFG-1680
VPFG-1685
VPFG-1870
VPFG-1875
VPFG-1880
VPFG-2070
VPFG-2080
VPFG-865
VPFG-870
VPFG-875
VPFG-880
VPFG-885
VSSG-1070
VSSG-1080
VSSG-465
VSSG-470
VSSG-475
VSSG-480
VSSG-485
VSSG-565
VSSG-570
VSSG-575
VSSG-580
VSSG-585
VSSG-665
VSSG-670
VSSG-675
VSSG-680
VSSG-685
VSSG-765
VSSG-770
VSSG-775
VSSG-780
VSSG-785
VSSG-865
VSSG-870
VSSG-875
VSSG-880
VSSG-885
VSSG-970
VSSG-975
VSSG-980
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

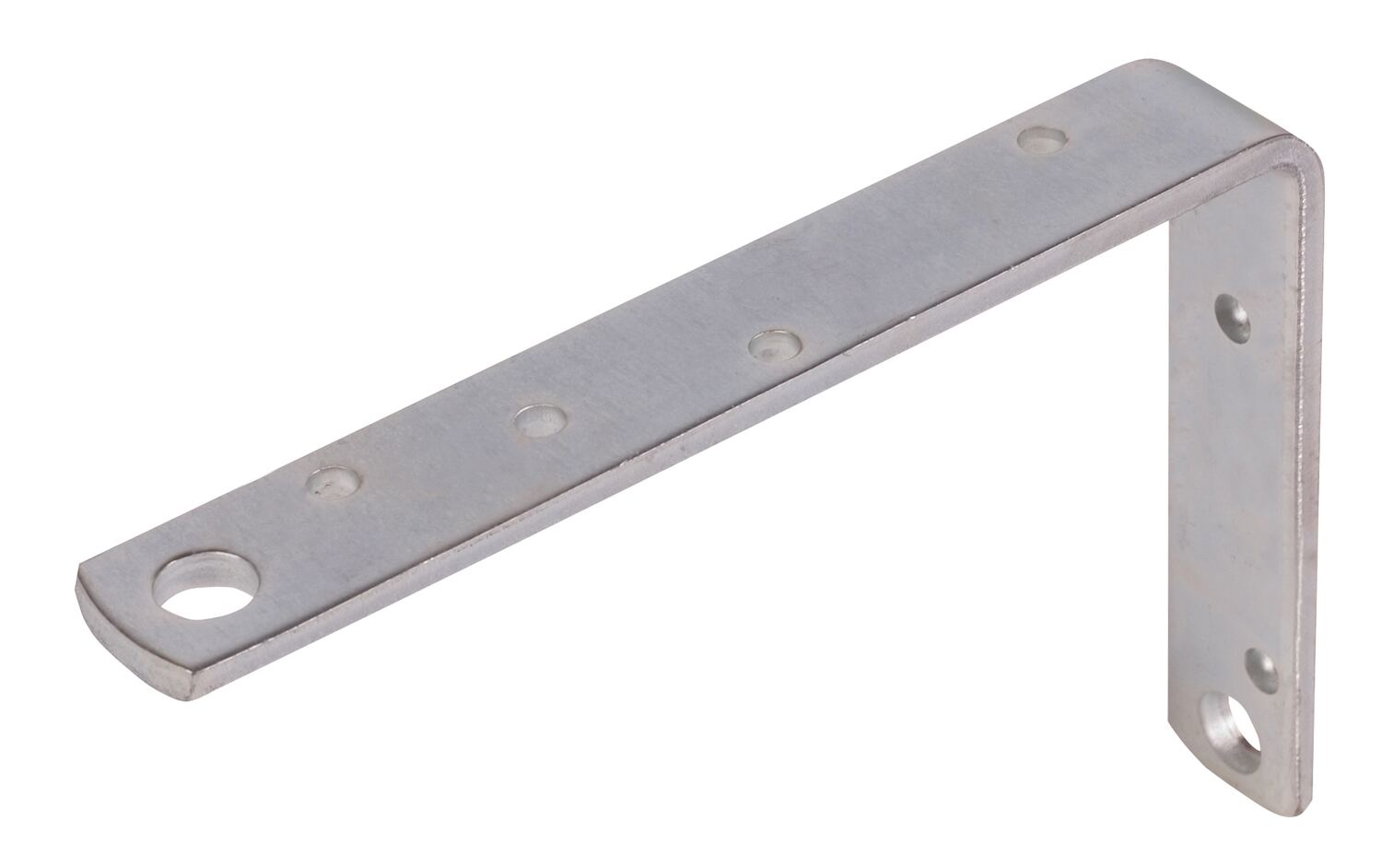

EX-BRACKET-9 EX-BRACKET-9Galvanized Steel Angle 6 In. to 9 In. L Bracket Gray For Sin…2

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

SingleGate_Ins

PairGa

VSSG-980

VPFG-1680

Survey Sheets

VSSG & VPFG

Engineering Drawings

No Approval Drawings For This Product

Testing Certificates

EX-BRACKET-9

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product

Related or Similar Products:

More From Protective Barriers Miscellaneous





Galvanized Folding Gates




Secure outside access during the day and add security at night with heavy-duty 14 gauge steel folding gates. Durable 2" steel casters allow operator to quickly and fully retract gate when not in use. Center drop pin rests in pre-drilled hole to secure gate when extended. Easy installation! Galvanized for durability. Constructed of steel U-channels riveted back to back using aircraft quality rivets and heavy-duty 1-1/2" x 1-1/2" vertical angles. Contact factory for additional sizes.

  • Gate design secures outside access during the day and adds security at night
  • Steel wheels allow operator to quickly and fully retract gate when not in use
  • Center drop pin rests in pre-drilled hole to secure gate when extended
  • Aircraft quality rivets and heavy-duty vertical angles hold unit together
  • Left side locks are available by quote only

Model # Description Attributes Net Wt.
(lbs)
VPFG-1065 VPFG-1065Galvanized Steel Double Fold Scissor Gate 10 Ft. x 6-1/2 Ft. GrayCollapsed Width Per Gate (in.): 11
Overall Usable Width (ft.): 8 to 10		125
VPFG-1070 VPFG-1070Galvanized Steel Double Fold Scissor Gate 10 Ft. x 7 Ft. GrayCollapsed Width Per Gate (in.): 11
Overall Usable Width (ft.): 8 to 10		135
VPFG-1075 VPFG-1075Galvanized Steel Double Fold Scissor Gate 10 Ft. x 7-1/2 Ft. GrayCollapsed Width Per Gate (in.): 11
Overall Usable Width (ft.): 8 to 10		176
VPFG-1080 VPFG-1080Galvanized Steel Double Fold Scissor Gate 10 Ft. x 8 Ft. GrayCollapsed Width Per Gate (in.): 11
Overall Usable Width (ft.): 8 to 10		160
VPFG-1085 VPFG-1085Galvanized Steel Double Fold Scissor Gate 10 Ft. x 8-1/2 Ft. GrayCollapsed Width Per Gate (in.): 11
Overall Usable Width (ft.): 8 to 10		170
VPFG-1265 VPFG-1265Galvanized Steel Double Fold Scissor Gate 12 Ft. x 6-1/2 Ft. GrayCollapsed Width Per Gate (in.): 11
Overall Usable Width (ft.): 10 to 12		140
VPFG-1270 VPFG-1270Galvanized Steel Double Fold Scissor Gate 12 Ft. x 7 Ft. GrayCollapsed Width Per Gate (in.): 11
Overall Usable Width (ft.): 10 to 12		145
VPFG-1275 VPFG-1275Galvanized Steel Double Fold Scissor Gate 12 Ft. x 7-1/2 Ft. GrayCollapsed Width Per Gate (in.): 11
Overall Usable Width (ft.): 10 to 12		153
VPFG-1280 VPFG-1280Galvanized Steel Double Fold Scissor Gate 12 Ft. x 8 Ft. GrayCollapsed Width Per Gate (in.): 11
Overall Usable Width (ft.): 10 to 12		175
VPFG-1285 VPFG-1285Galvanized Steel Double Fold Scissor Gate 12 Ft. x 8-1/2 Ft. GrayCollapsed Width Per Gate (in.): 11
Overall Usable Width (ft.): 10 to 12		180
VPFG-1465 VPFG-1465Galvanized Steel Double Fold Scissor Gate 14 Ft. x 6-1/2 Ft. GrayCollapsed Width Per Gate (in.): 11
Overall Usable Width (ft.): 12 to 14		170
VPFG-1470 VPFG-1470Galvanized Steel Double Fold Scissor Gate 14 Ft. x 7 Ft. GrayCollapsed Width Per Gate (in.): 11
Overall Usable Width (ft.): 12 to 14		185
VPFG-1475 VPFG-1475Galvanized Steel Double Fold Scissor Gate 14 Ft. x 7-1/2 Ft. GrayCollapsed Width Per Gate (in.): 11
Overall Usable Width (ft.): 12 to 14		175
VPFG-1480 VPFG-1480Galvanized Steel Double Fold Scissor Gate 14 Ft. x 8 Ft. GrayCollapsed Width Per Gate (in.): 15
Overall Usable Width (ft.): 12 to 14		195
VPFG-1485 VPFG-1485Galvanized Steel Double Fold Scissor Gate 14 Ft. x 8-1/2 Ft. GrayCollapsed Width Per Gate (in.): 15
Overall Usable Width (ft.): 12 to 14		200
VPFG-1665 VPFG-1665Galvanized Steel Double Fold Scissor Gate 16 Ft. x 6-1/2 Ft. GrayCollapsed Width Per Gate (in.): 14
Overall Usable Width (ft.): 14 to 16		190
VPFG-1670 VPFG-1670Galvanized Steel Double Fold Scissor Gate 16 Ft. x 7 Ft. GrayCollapsed Width Per Gate (in.): 14
Overall Usable Width (ft.): 14 to 16		195
VPFG-1675 VPFG-1675Galvanized Steel Double Fold Scissor Gate 16 Ft. x 7-1/2 Ft. GrayCollapsed Width Per Gate (in.): 14
Overall Usable Width (ft.): 14 to 16		200
VPFG-1680 VPFG-1680Galvanized Steel Double Fold Scissor Gate 16 Ft. x 8 Ft. GrayCollapsed Width Per Gate (in.): 15
Overall Usable Width (ft.): 14 to 16		215
VPFG-1685 VPFG-1685Galvanized Steel Double Fold Scissor Gate 16 Ft. x 8-1/2 Ft. GrayCollapsed Width Per Gate (in.): 15
Overall Usable Width (ft.): 14 to 16		220
VPFG-1870 VPFG-1870Galvanized Steel Double Fold Scissor Gate 18 Ft. x 7 Ft. GrayCollapsed Width Per Gate (in.): 15
Overall Usable Width (ft.): 16 to 18		210
VPFG-1875 VPFG-1875Galvanized Steel Double Fold Scissor Gate 18 Ft. x 7-1/2 Ft. GrayCollapsed Width Per Gate (in.): 15
Overall Usable Width (ft.): 16 to 18		218
VPFG-1880 VPFG-1880Galvanized Steel Double Fold Scissor Gate 18 Ft. x 8 Ft. GrayCollapsed Width Per Gate (in.): 15
Overall Usable Width (ft.): 16 to 18		235
VPFG-2070 VPFG-2070Galvanized Steel Double Fold Scissor Gate 20 Ft. x 7 Ft. GrayCollapsed Width Per Gate (in.): 15
Overall Usable Width (ft.): 18 to 20		210
VPFG-2080 VPFG-2080Galvanized Steel Double Fold Scissor Gate 20 Ft. x 8 Ft. GrayCollapsed Width Per Gate (in.): 15
Overall Usable Width (ft.): 18 to 20		235
VPFG-865 VPFG-865Galvanized Steel Double Fold Scissor Gate 8 Ft. x 6-1/2 Ft. GrayCollapsed Width Per Gate (in.): 11
Overall Usable Width (ft.): 6 to 8		120
VPFG-870 VPFG-870Galvanized Steel Double Fold Scissor Gate 8 Ft. x 7 Ft. GrayCollapsed Width Per Gate (in.): 11
Overall Usable Width (ft.): 6 to 8		125
VPFG-875 VPFG-875Galvanized Steel Double Fold Scissor Gate 8 Ft. x 7-1/2 Ft. GrayCollapsed Width Per Gate (in.): 11
Overall Usable Width (ft.): 6 to 8		133
VPFG-880 VPFG-880Galvanized Steel Double Fold Scissor Gate 8 Ft. x 8 Ft. GrayCollapsed Width Per Gate (in.): 11
Overall Usable Width (ft.): 6 to 8		150
VPFG-885 VPFG-885Galvanized Steel Double Fold Scissor Gate 8 Ft. x 8-1/2 Ft. GrayCollapsed Width Per Gate (in.): 11
Overall Usable Width (ft.): 6 to 8		153
VSSG-1070 VSSG-1070Galvanized Steel Single Fold Scissor Gate 10 Ft. x 7 Ft. GrayCollapsed Width (in.): 15
Overall Usable Width (ft.): 9 to 10		135
VSSG-1080 VSSG-1080Galvanized Steel Single Fold Scissor Gate 10 Ft. x 8 Ft. GrayCollapsed Width (in.): 15
Overall Usable Width (ft.): 9 to 10		140
VSSG-465 VSSG-465Galvanized Steel Single Fold Scissor Gate 4 Ft. x 6-1/2 Ft. GrayCollapsed Width (in.): 11
Overall Usable Width (ft.): 3 to 4		45
VSSG-470 VSSG-470Galvanized Steel Single Fold Scissor Gate 4 Ft. x 7 Ft. GrayCollapsed Width (in.): 11
Overall Usable Width (ft.): 3 to 4		50
VSSG-475 VSSG-475Galvanized Steel Single Fold Scissor Gate 4 Ft. x 7-1/2 Ft. GrayCollapsed Width (in.): 11
Overall Usable Width (ft.): 3 to 4		88
VSSG-480 VSSG-480Galvanized Steel Single Fold Scissor Gate 4 Ft. x 8 Ft. GrayCollapsed Width (in.): 11
Overall Usable Width (ft.): 3 to 4		95
VSSG-485 VSSG-485Galvanized Steel Single Fold Scissor Gate 4 Ft. x 8-1/2 Ft. GrayCollapsed Width (in.): 11
Overall Usable Width (ft.): 3 to 4		100

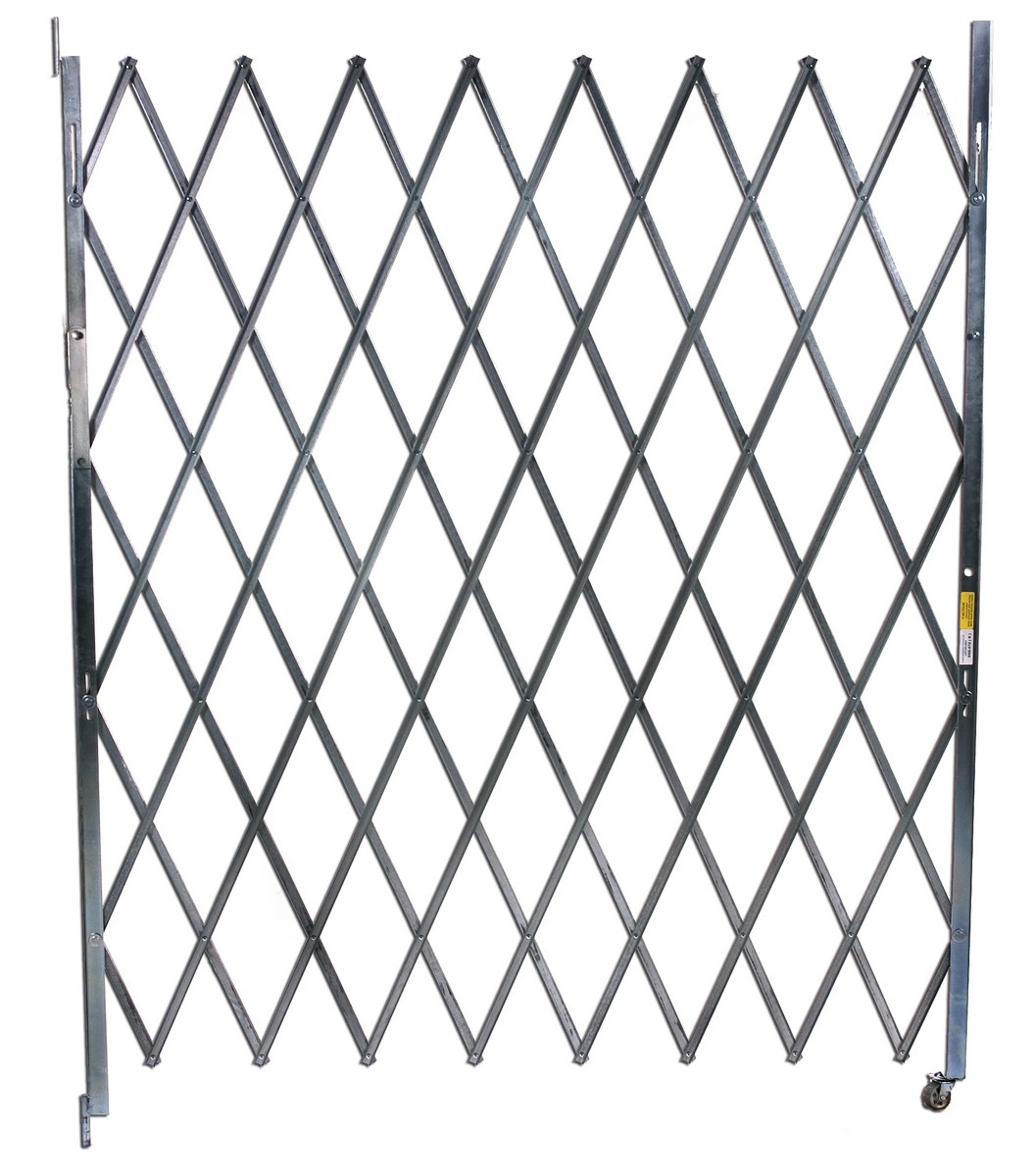

VSSG-565 VSSG-565Galvanized Steel Single Fold Scissor Gate 5 Ft. x 6-1/2 Ft. GrayCollapsed Width (in.): 11
Overall Usable Width (ft.): 4 to 5		50
VSSG-570 VSSG-570Galvanized Steel Single Fold Scissor Gate 5 Ft. x 7 Ft. GrayCollapsed Width (in.): 11
Overall Usable Width (ft.): 4 to 5		55
VSSG-575 VSSG-575Galvanized Steel Single Fold Scissor Gate 5 Ft. x 7-1/2 Ft. GrayCollapsed Width (in.): 11
Overall Usable Width (ft.): 4 to 5		93
VSSG-580 VSSG-580Galvanized Steel Single Fold Scissor Gate 5 Ft. x 8 Ft. GrayCollapsed Width (in.): 11
Overall Usable Width (ft.): 4 to 5		100
VSSG-585 VSSG-585Galvanized Steel Single Fold Scissor Gate 5 Ft. x 8-1/2 Ft. GrayCollapsed Width (in.): 11
Overall Usable Width (ft.): 4 to 5		100
VSSG-665 VSSG-665Galvanized Steel Single Fold Scissor Gate 6 Ft. x 6-1/2 Ft. GrayCollapsed Width (in.): 11
Overall Usable Width (ft.): 5 to 6		60
VSSG-670 VSSG-670Galvanized Steel Single Fold Scissor Gate 6 Ft. x 7 Ft. GrayCollapsed Width (in.): 11
Overall Usable Width (ft.): 5 to 6		65
VSSG-675 VSSG-675Galvanized Steel Single Fold Scissor Gate 6 Ft. x 7-1/2 Ft. GrayCollapsed Width (in.): 11
Overall Usable Width (ft.): 5 to 6		118
VSSG-680 VSSG-680Galvanized Steel Single Fold Scissor Gate 6 Ft. x 8 Ft. GrayCollapsed Width (in.): 11
Overall Usable Width (ft.): 5 to 6		105
VSSG-685 VSSG-685Galvanized Steel Single Fold Scissor Gate 6 Ft. x 8-1/2 Ft. GrayCollapsed Width (in.): 11
Overall Usable Width (ft.): 5 to 6		110
VSSG-765 VSSG-765Galvanized Steel Single Fold Scissor Gate 7 Ft. x 6-1/2 Ft. GrayCollapsed Width (in.): 11
Overall Usable Width (ft.): 6 to 7		65
VSSG-770 VSSG-770Galvanized Steel Single Fold Scissor Gate 7 Ft. x 7 Ft. GrayCollapsed Width (in.): 11
Overall Usable Width (ft.): 6 to 7		75
VSSG-775 VSSG-775Galvanized Steel Single Fold Scissor Gate 7 Ft. x 7-1/2 Ft. GrayCollapsed Width (in.): 11
Overall Usable Width (ft.): 6 to 7		113
VSSG-780 VSSG-780Galvanized Steel Single Fold Scissor Gate 7 Ft. x 8 Ft. GrayCollapsed Width (in.): 15
Overall Usable Width (ft.): 6 to 7		120
VSSG-785 VSSG-785Galvanized Steel Single Fold Scissor Gate 7 Ft. x 8-1/2 Ft. GrayCollapsed Width (in.): 15
Overall Usable Width (ft.): 6 to 7		125
VSSG-865 VSSG-865Galvanized Steel Single Fold Scissor Gate 8 Ft. x 6-1/2 Ft. GrayCollapsed Width (in.): 14
Overall Usable Width (ft.): 7 to 8		75
VSSG-870 VSSG-870Galvanized Steel Single Fold Scissor Gate 8 Ft. x 7 Ft. GrayCollapsed Width (in.): 14
Overall Usable Width (ft.): 7 to 8		115
VSSG-875 VSSG-875Galvanized Steel Single Fold Scissor Gate 8 Ft. x 7-1/2 Ft. GrayCollapsed Width (in.): 14
Overall Usable Width (ft.): 7 to 8		123
VSSG-880 VSSG-880Galvanized Steel Single Fold Scissor Gate 8 Ft. x 8 Ft. GrayCollapsed Width (in.): 15
Overall Usable Width (ft.): 7 to 8		130
VSSG-885 VSSG-885Galvanized Steel Single Fold Scissor Gate 8 Ft. x 8-1/2 Ft. GrayCollapsed Width (in.): 15
Overall Usable Width (ft.): 7 to 8		130
VSSG-970 VSSG-970Galvanized Steel Single Fold Scissor Gate 9 Ft. x 7 Ft. GrayCollapsed Width (in.): 15
Overall Usable Width (ft.): 8 to 9		120
VSSG-975 VSSG-975Galvanized Steel Single Fold Scissor Gate 9 Ft. x 7-1/2 Ft. GrayCollapsed Width (in.): 15
Overall Usable Width (ft.): 8 to 9		128
VSSG-980 VSSG-980Galvanized Steel Single Fold Scissor Gate 9 Ft. x 8 Ft. GrayCollapsed Width (in.): 15
Overall Usable Width (ft.): 8 to 9		135
