Square Safety Handrails

model: SQ

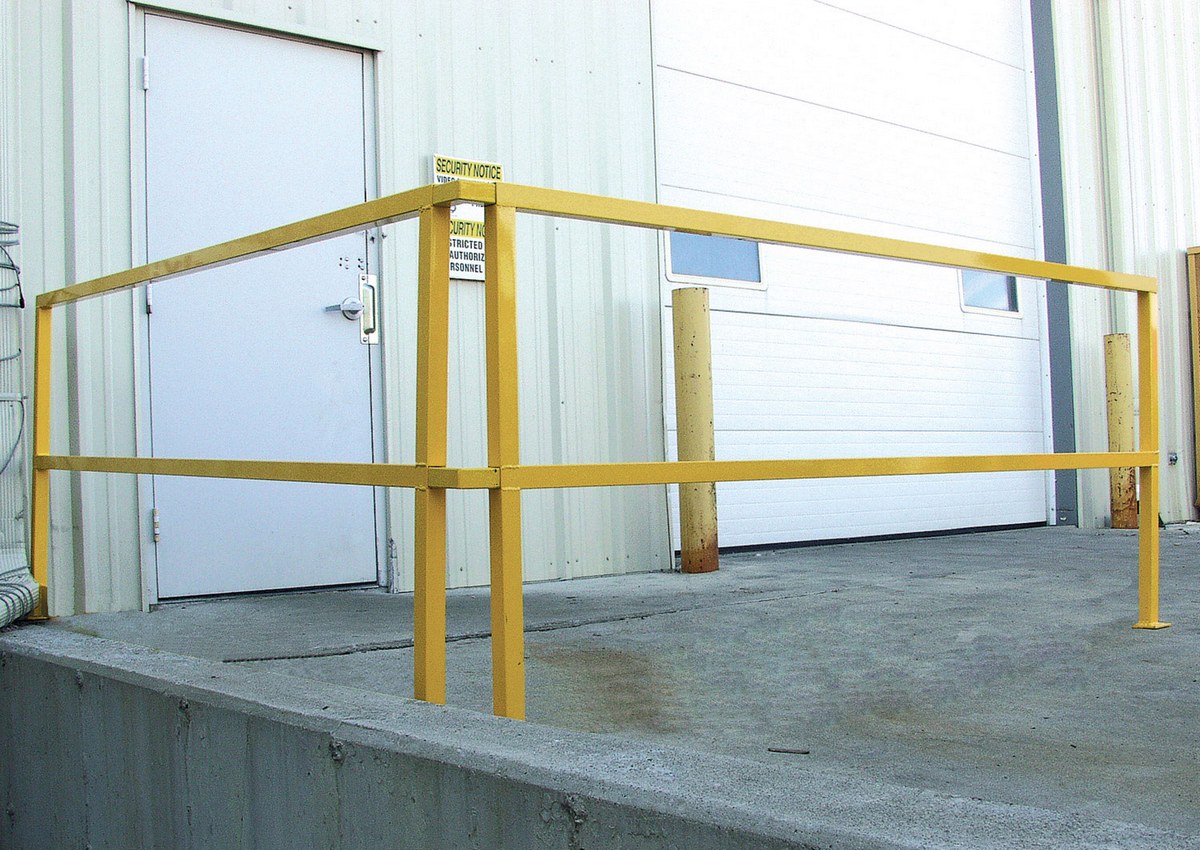

SQ_X.jpg More Images +
Square Safety Handrails
SERIES: SQ,WM,CSEC,TOE

Steel Square Safety Handrails are an economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Highly visible safety yellow powder coat finish. Available with or without toeboards as application requires.

  • Modular design allows for maximum versatility
  • Heavy-duty square steel tubing construction offers the utmost protection
  • Pre-drilled bolt holes provide quick and easy installation
  • Powder coat safety yellow finish provides maximum durability

Aluminum Square Safety Handrail provides an economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Robust design provides stabilization throughout those areas.

  • Modular design allows for maximum versatility
  • Square aluminum construction offers the utmost protection
  • Pre-drilled bolt holes provide quick and easy installation
  • Smooth surface for maximum durability
Square Safety Handrails

model: SQ

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
C-CON
CSEC-108
CSEC-120
CSEC-48
CSEC-60
CSEC-72
CSEC-84
CSEC-96
S-GATE-60
SQ-108
SQ-108-HWR
SQ-108-TB
SQ-108-TB-HWR
SQ-120
SQ-120-HWR
SQ-120-TB
SQ-120-TB-HWR
SQ-48
SQ-48-HWR
SQ-48-TB
SQ-48-TB-HWR
SQ-60
SQ-60-HWR
SQ-60-TB
SQ-60-TB-HWR
SQ-72
SQ-72-HWR
SQ-72-TB
SQ-72-TB-HWR
SQ-84
SQ-84-HWR
SQ-84-TB
SQ-84-TB-HWR
SQ-96
SQ-96-HWR
SQ-96-TB
SQ-96-TB-HWR
SQ-A-108
SQ-A-120
SQ-A-48
SQ-A-60
SQ-A-72
SQ-A-84
SQ-A-96
SQ-CAP
TOE-B-108-N
TOE-B-120-N
TOE-B-48-N
TOE-B-60-N
TOE-B-72-N
TOE-B-84-N
TOE-B-96-N
WM-108
WM-120
WM-48
WM-60
WM-72
WM-84
WM-96
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

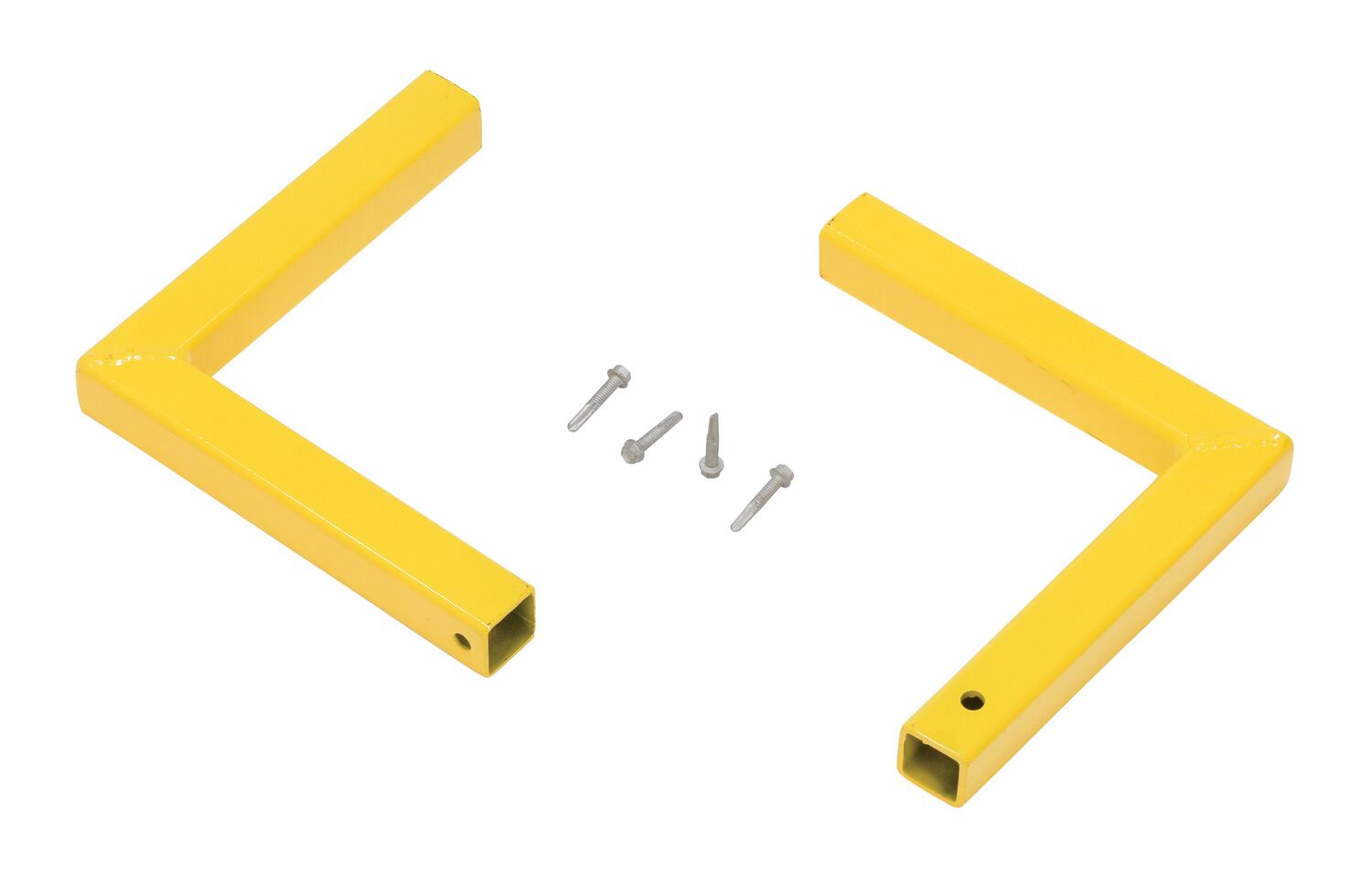

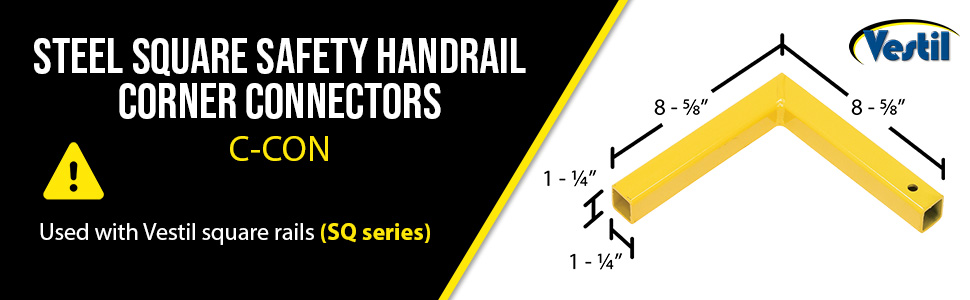

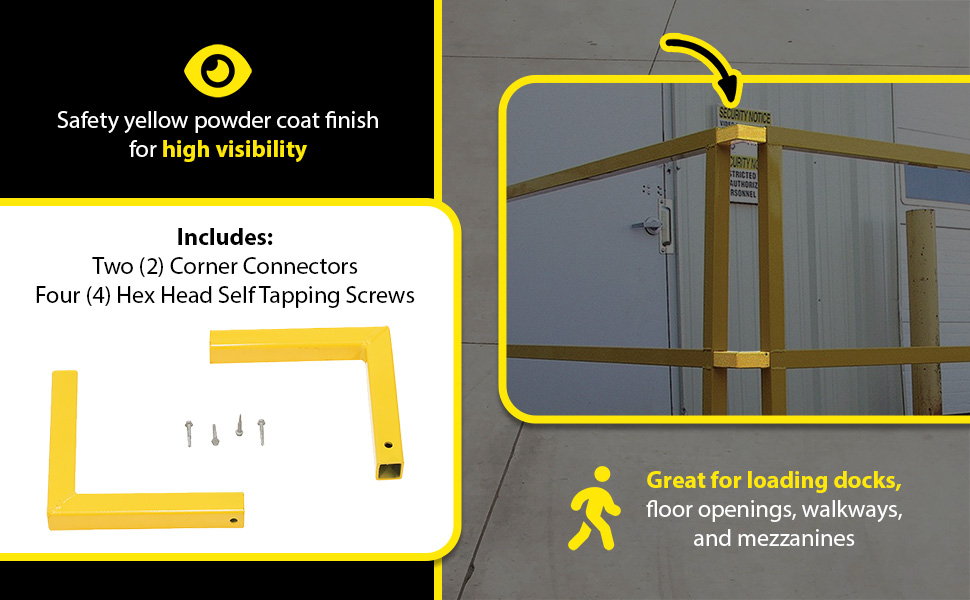

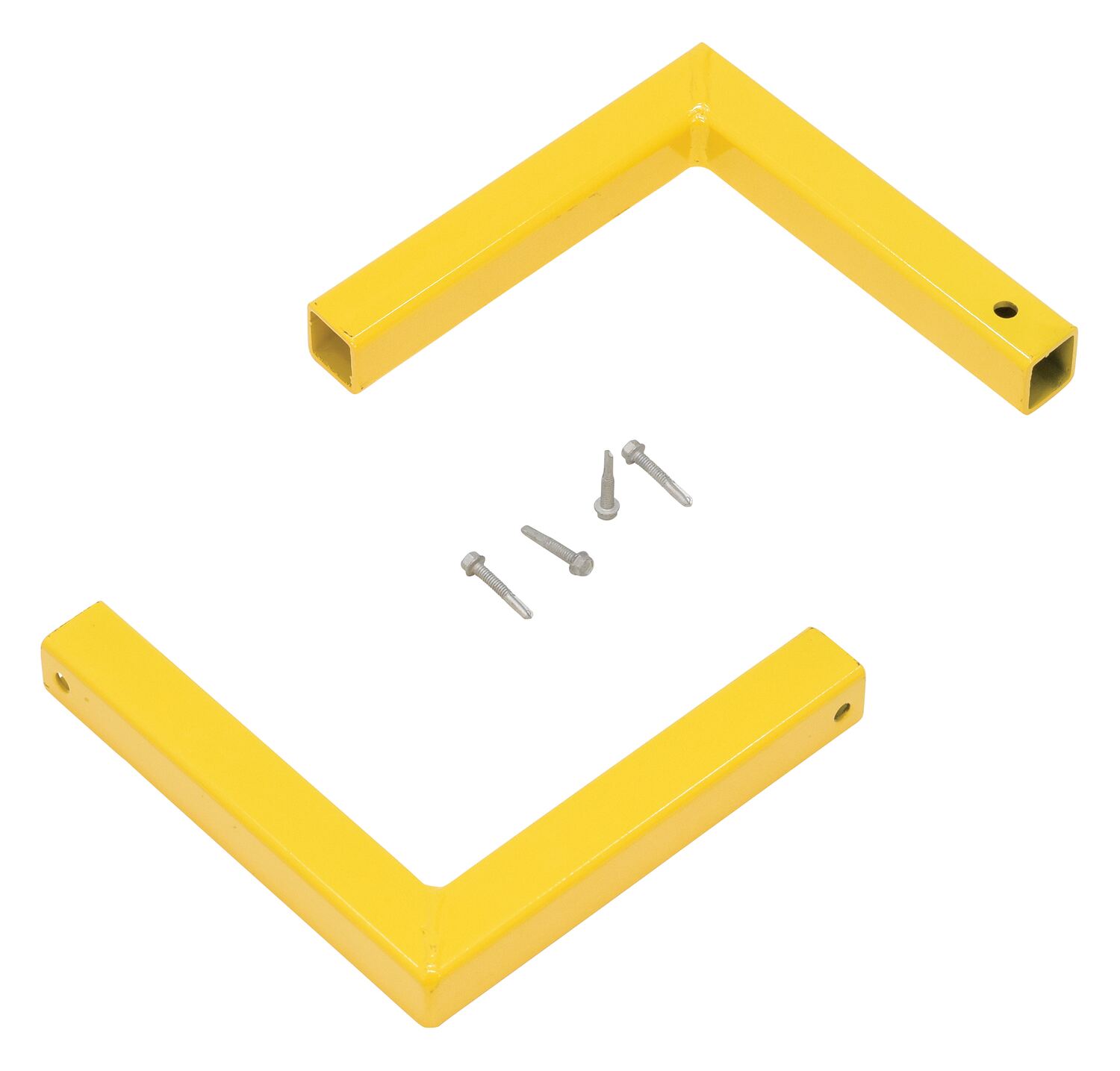

C-CON C-CONSteel Square Safety Handrail Corner Connectors For Use With …10

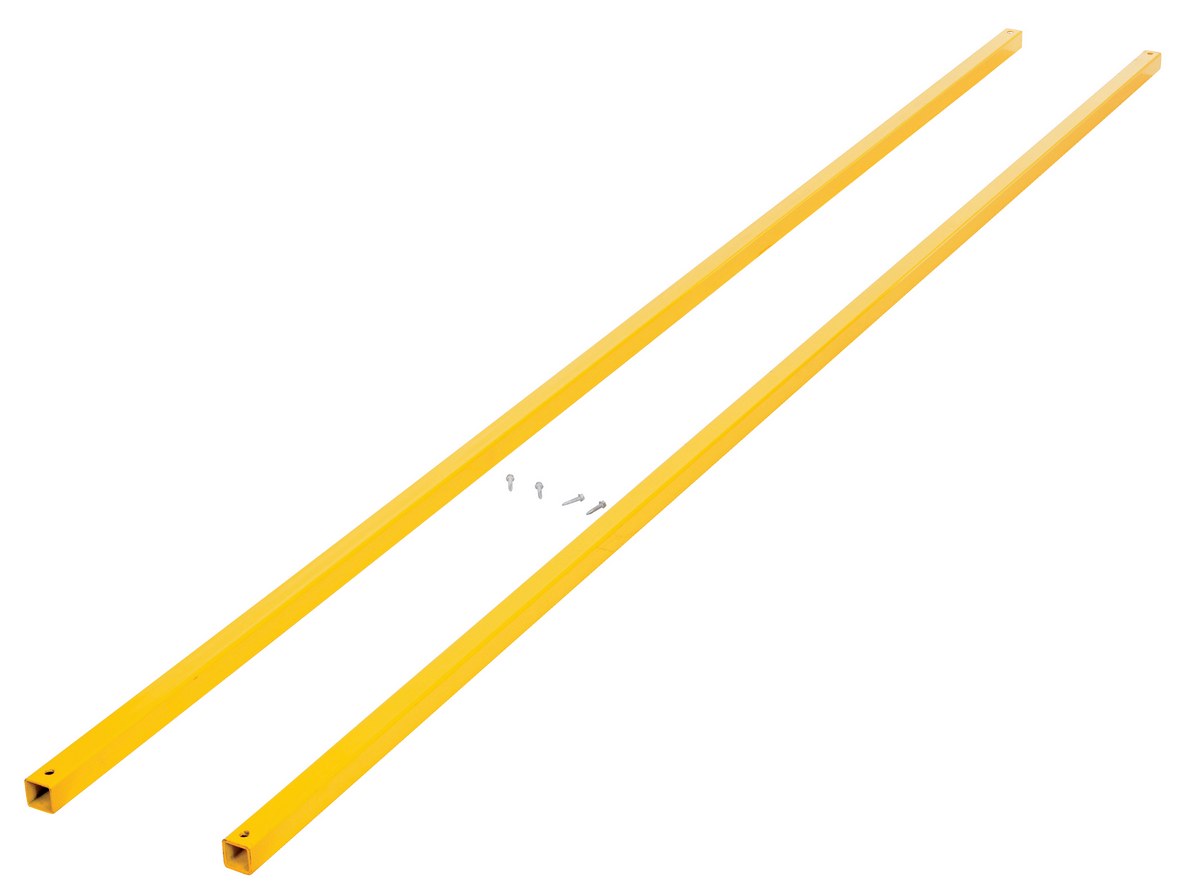

CSEC-108 CSEC-108Steel Square Safety Handrail Connection Tubing 108 In. Yello…96

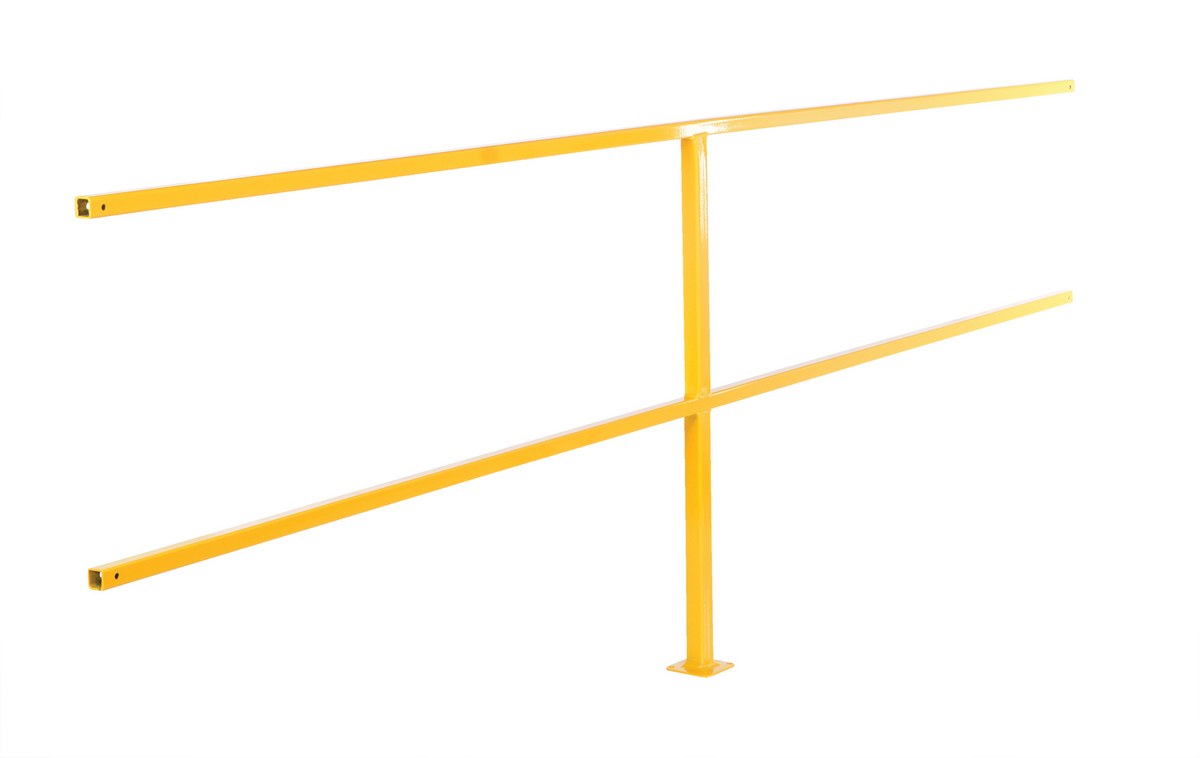

CSEC-120 CSEC-120Steel Square Safety Handrail Connection Tubing 120 In. Yello…108

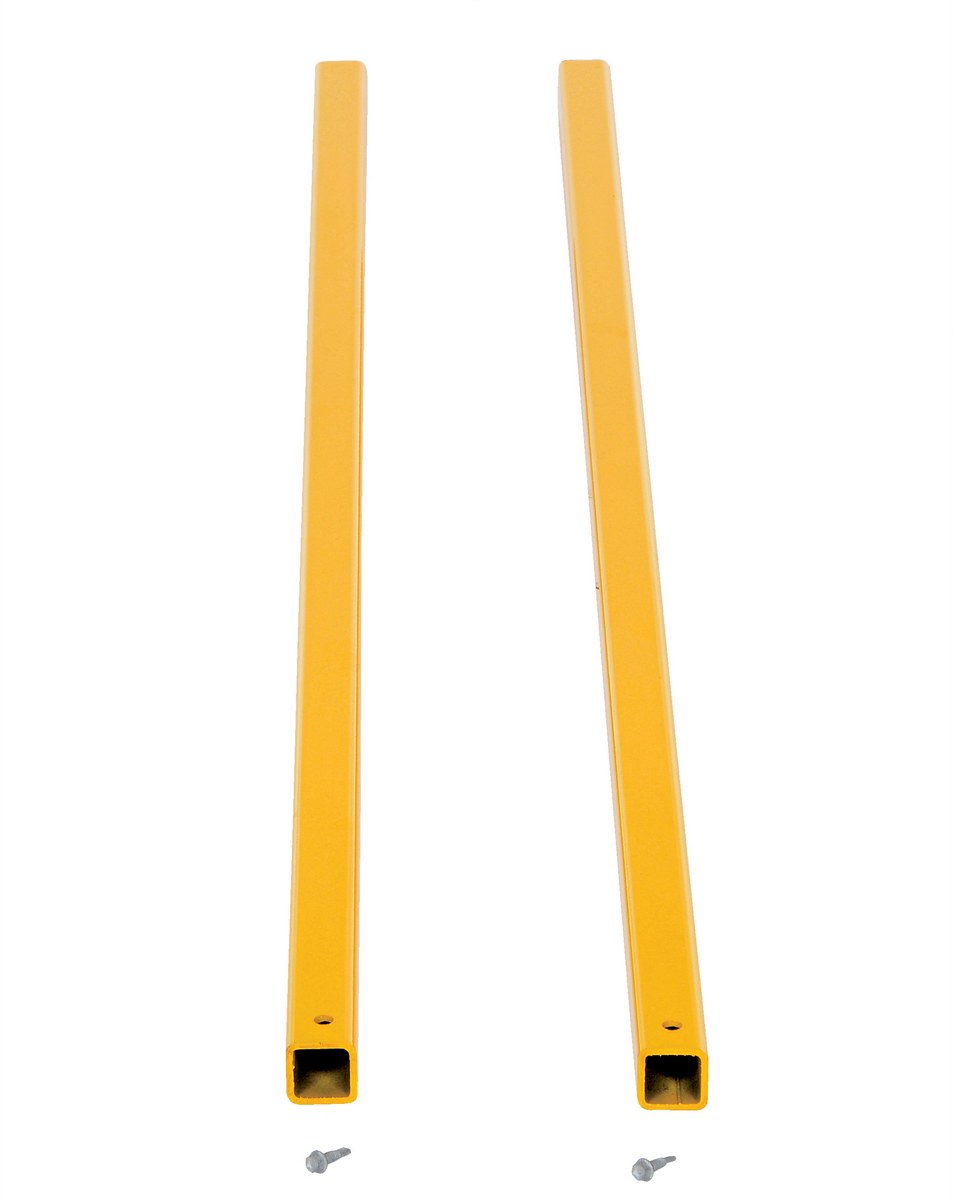

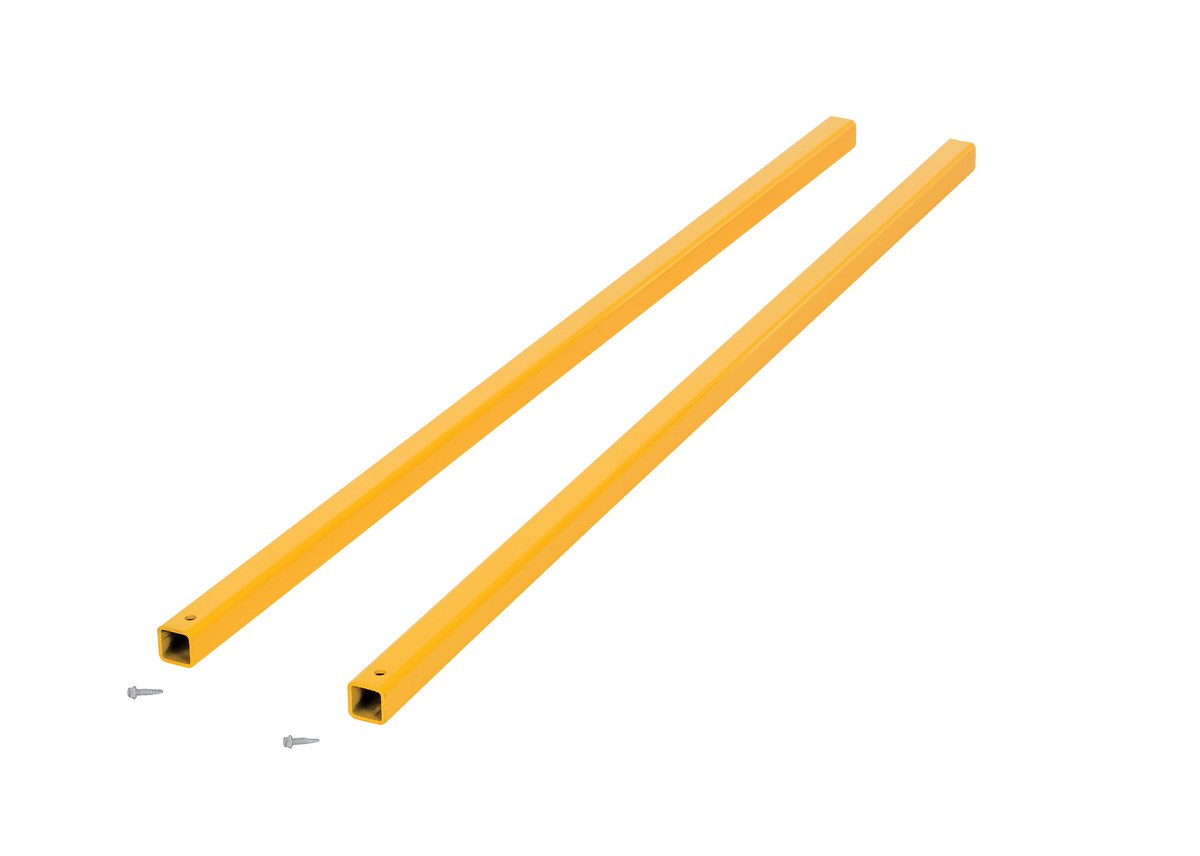

CSEC-48 CSEC-48Steel Square Safety Handrail Connection Tubing 48 In. Yellow14

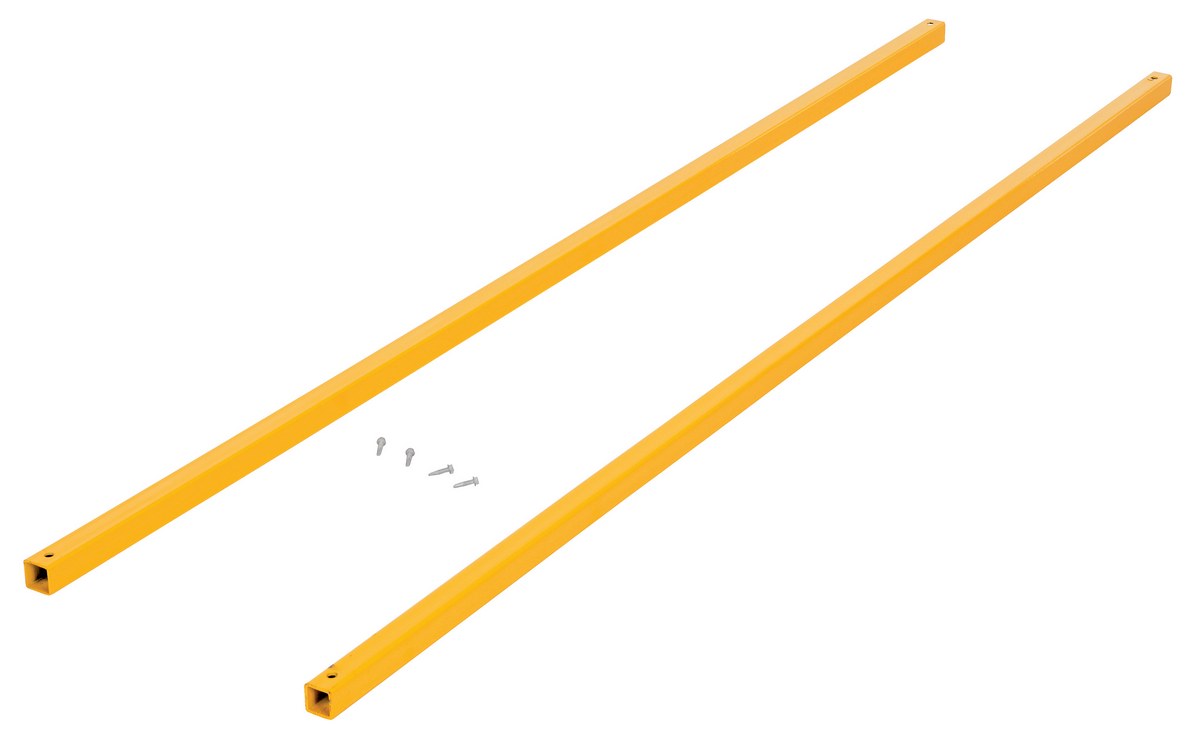

CSEC-60 CSEC-60Steel Square Safety Handrail Connection Tubing 60 In. Yellow18

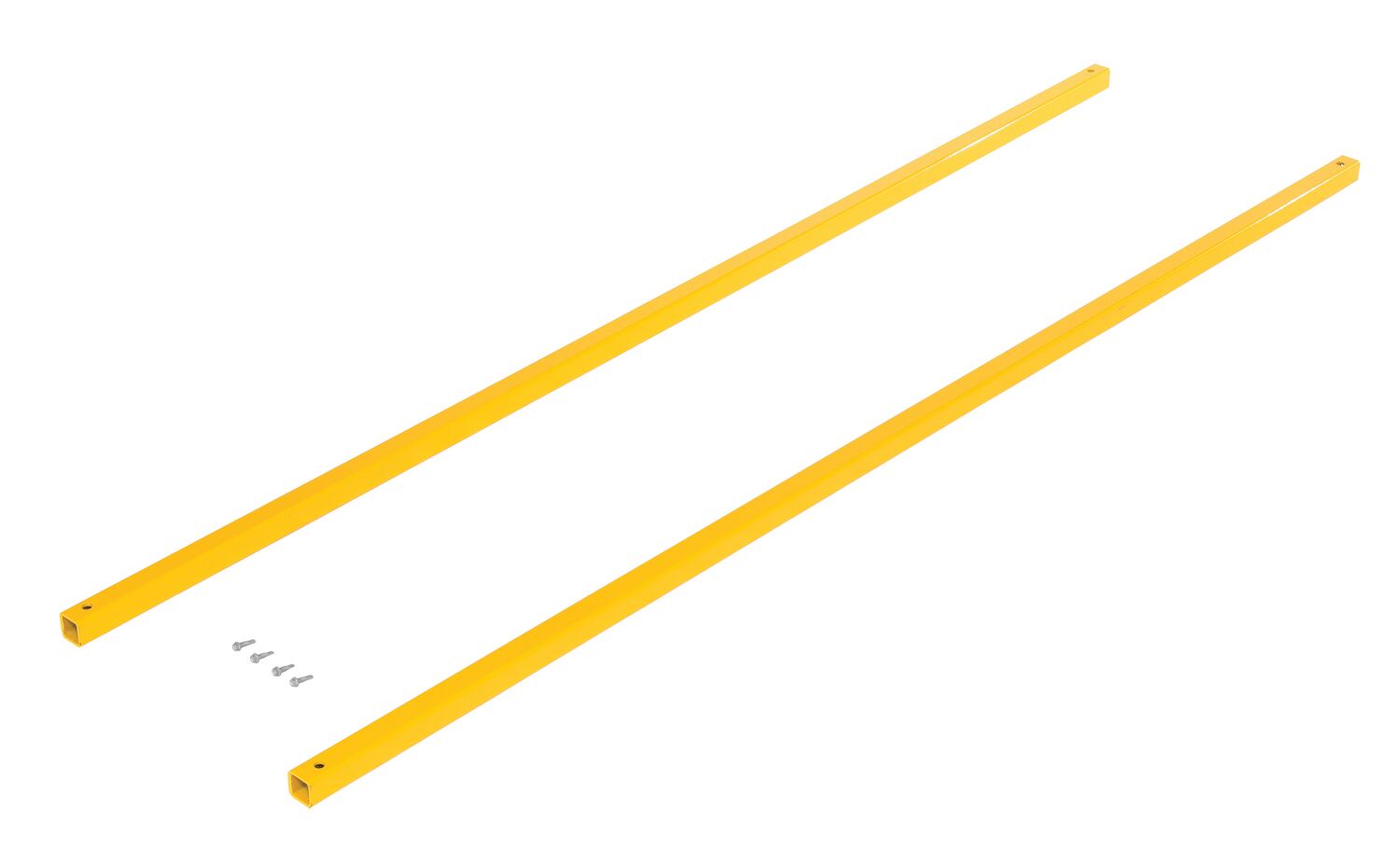

CSEC-72 CSEC-72Steel Square Safety Handrail Connection Tubing 72 In. Yellow18
CSEC-84 CSEC-84Steel Square Safety Handrail Connection Tubing 84 In. Yellow26

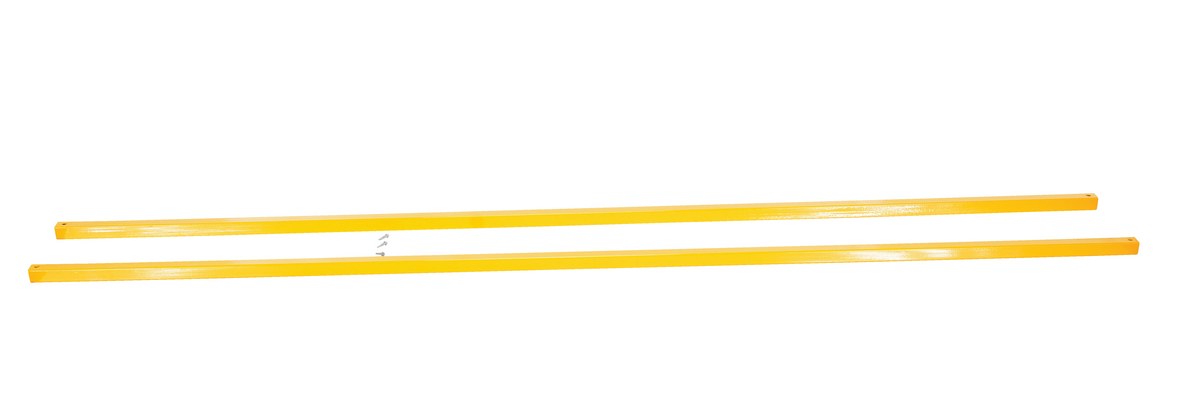

CSEC-96 CSEC-96Steel Square Safety Handrail Connection Tubing 96 In. Yellow32

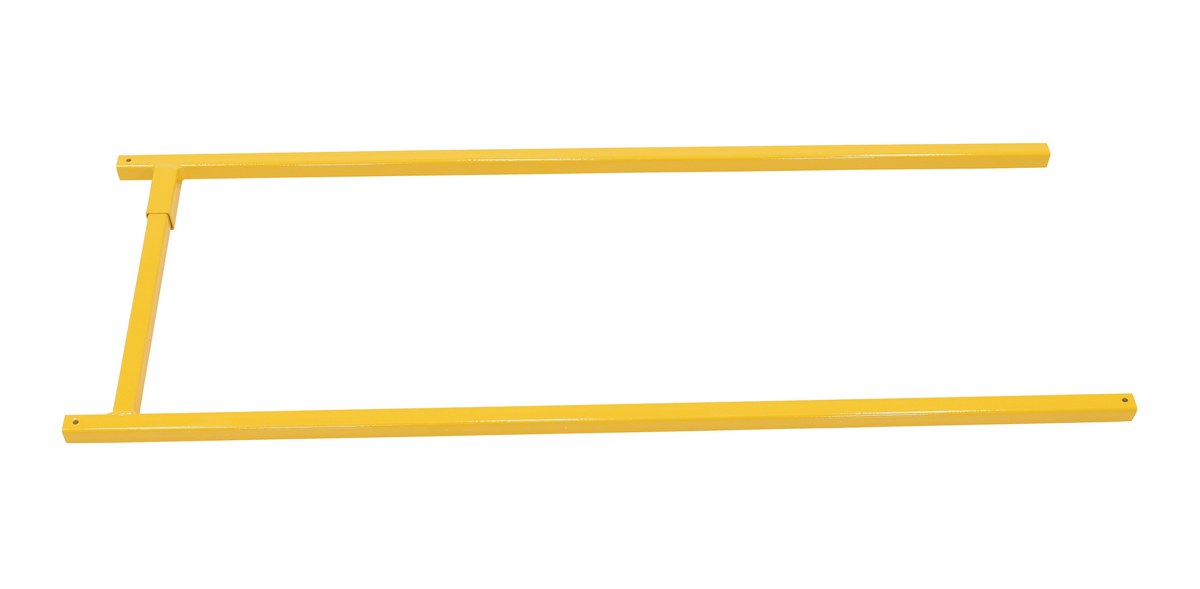

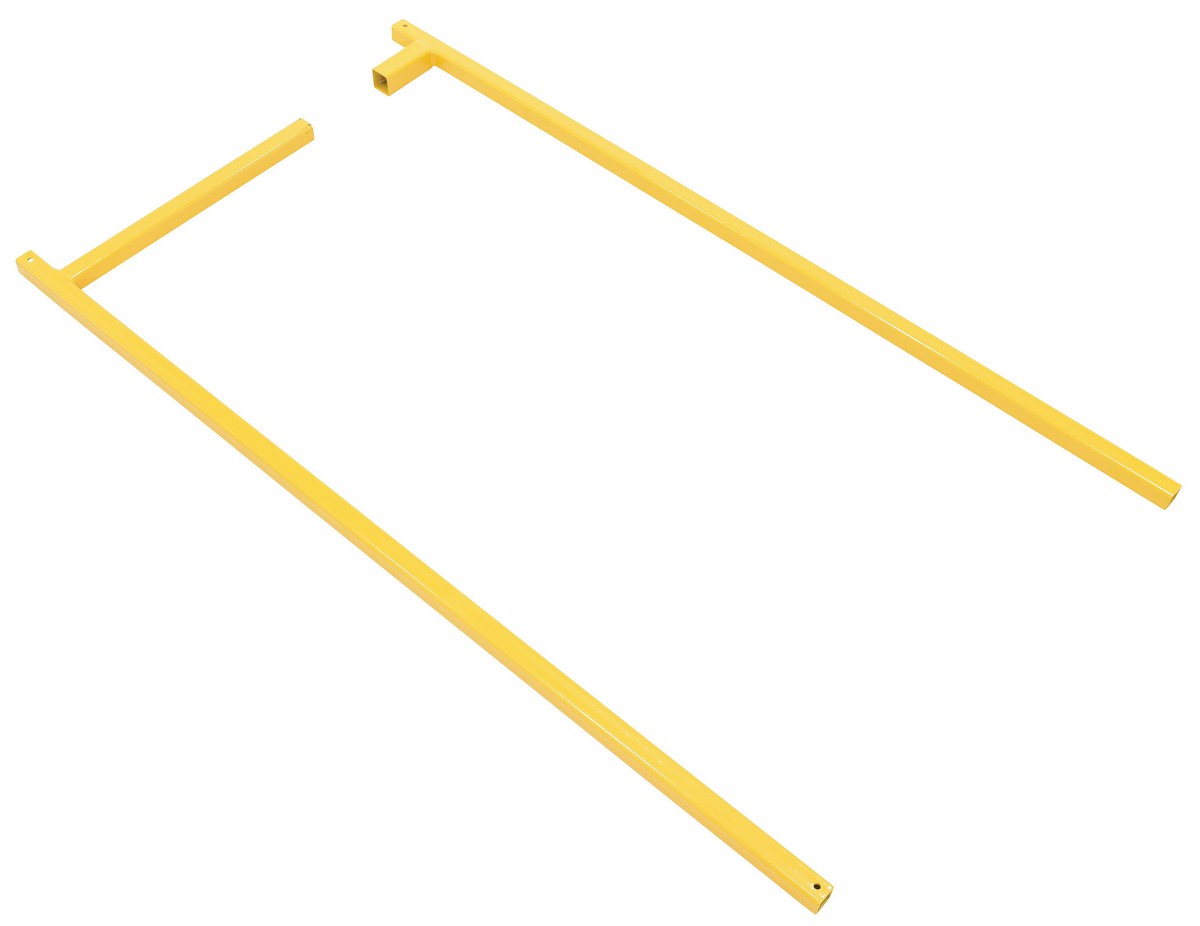

S-GATE-60 S-GATE-60Steel Square Handrail Sliding Gate 1-1/4 In. x 64 In. x 25-5…83

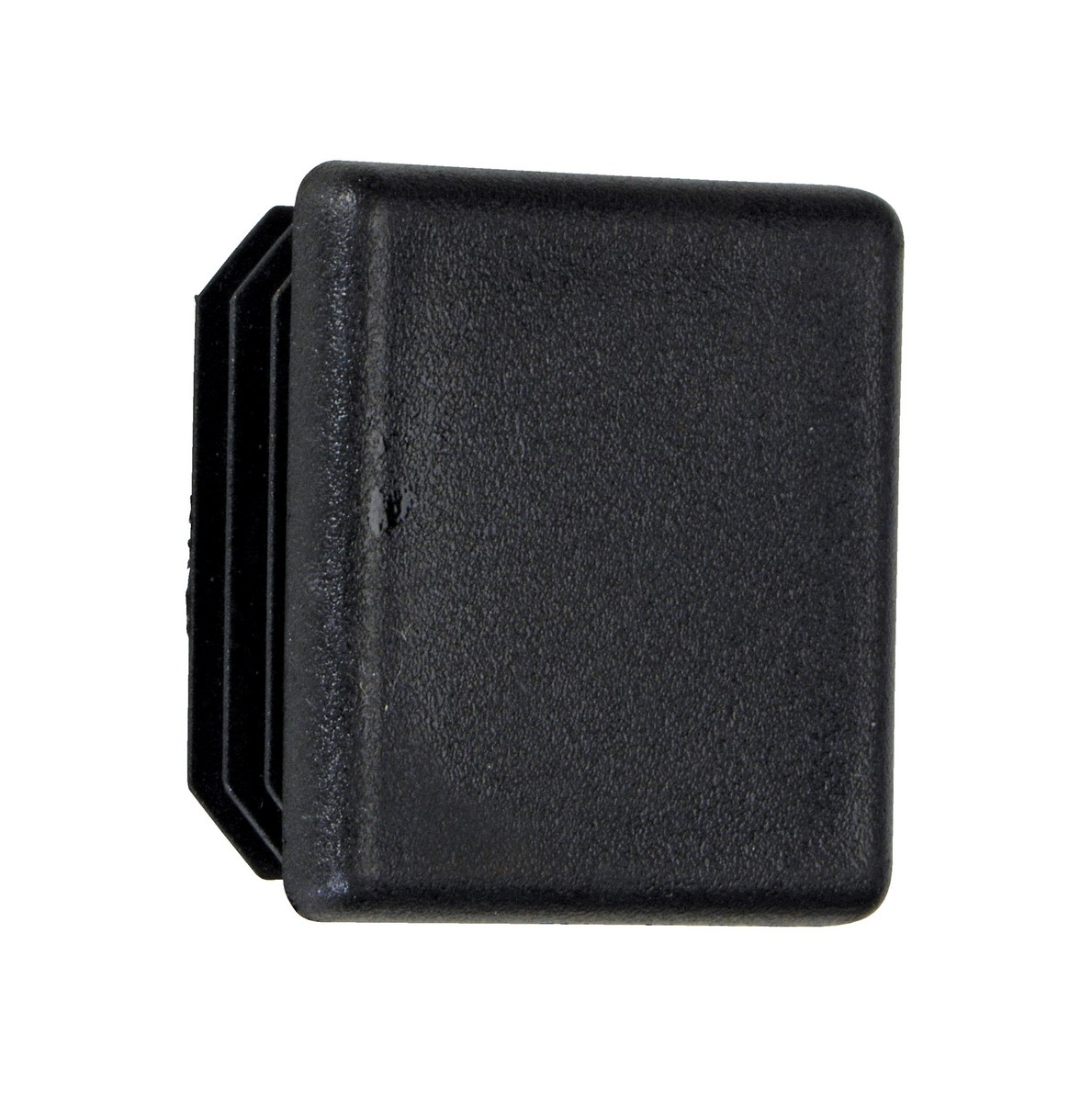

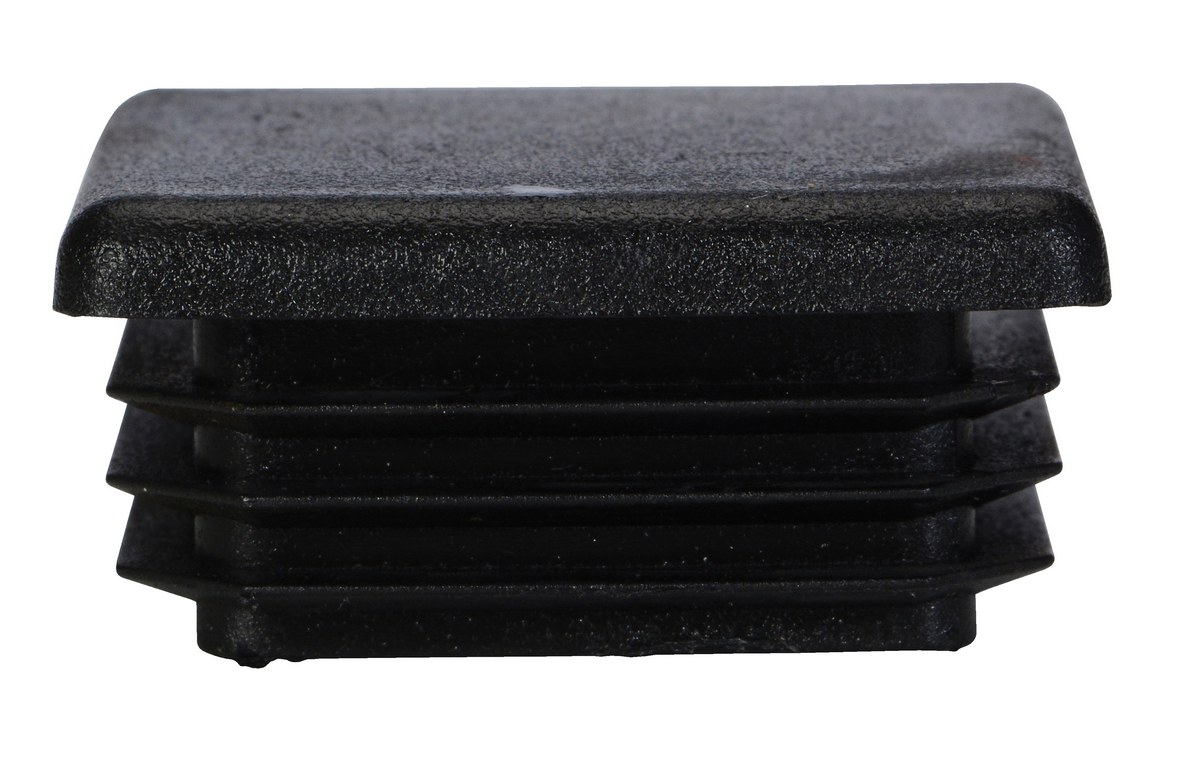

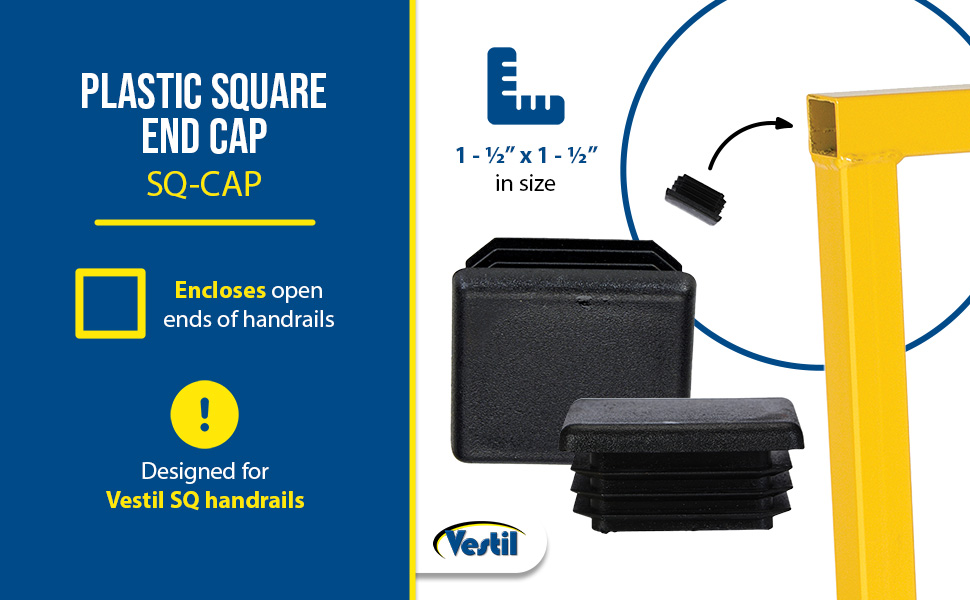

SQ-CAP SQ-CAPPlastic Square Safety Handrail End Cap Black1
TOE-B-108-N TOE-B-108-NSteel Square Safety Handrail Toe Board 51-3/8 In. x 3-7/8 In…30

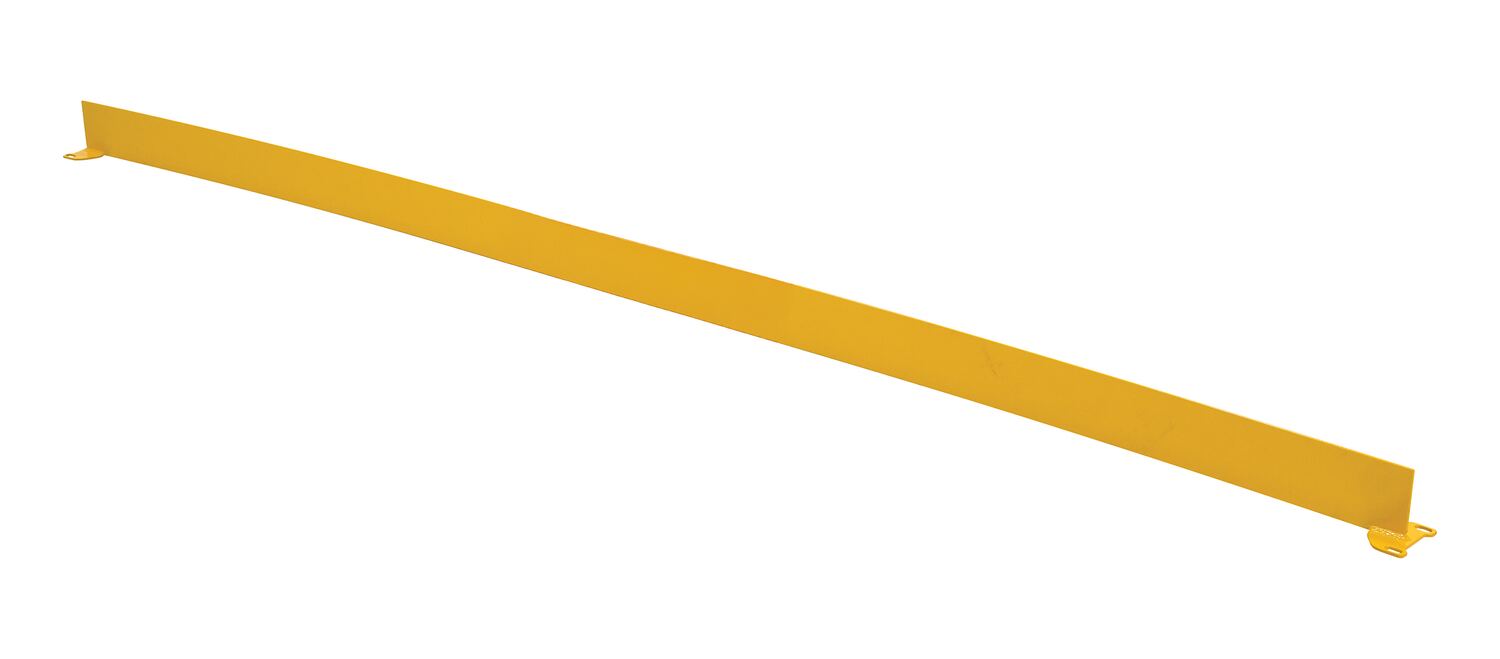

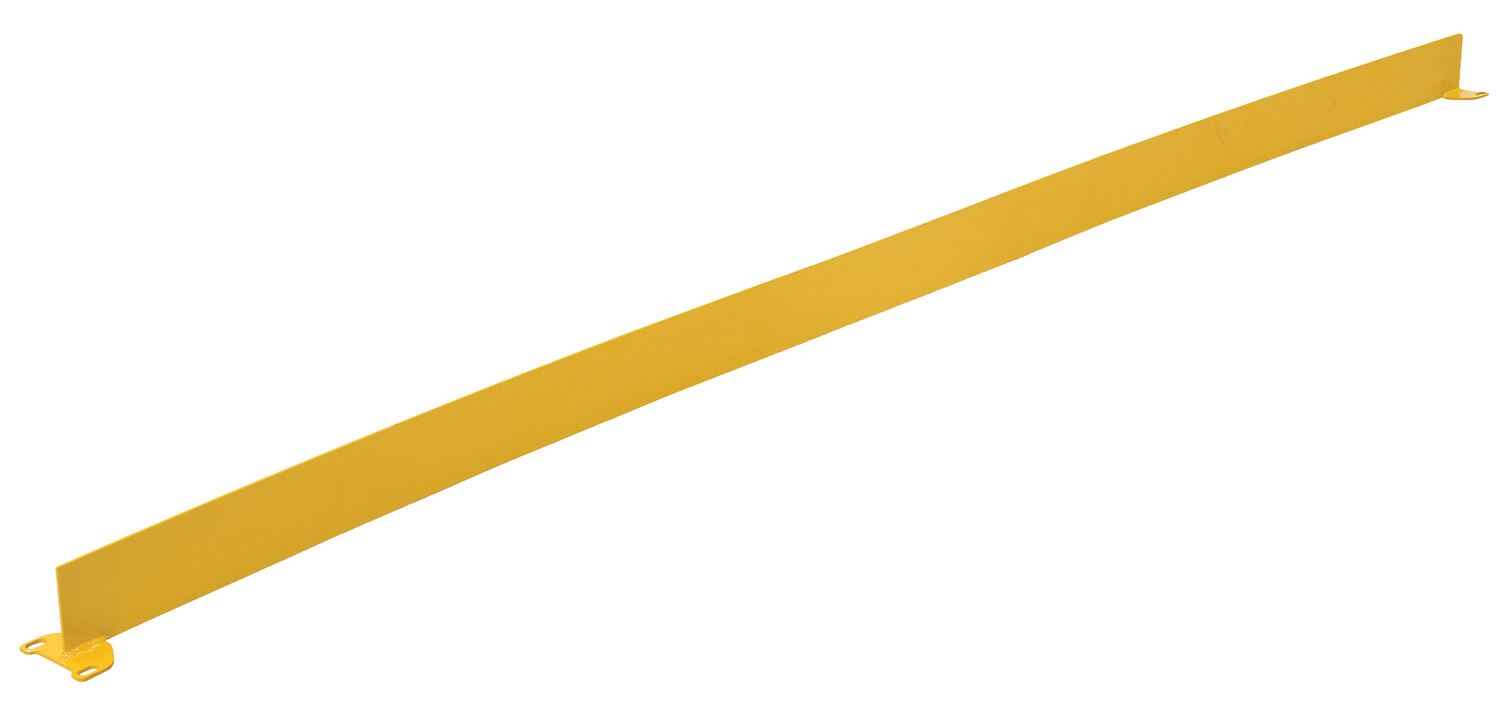

TOE-B-120-N TOE-B-120-NSteel Square Safety Handrail Toe Board 120 In. Yellow86

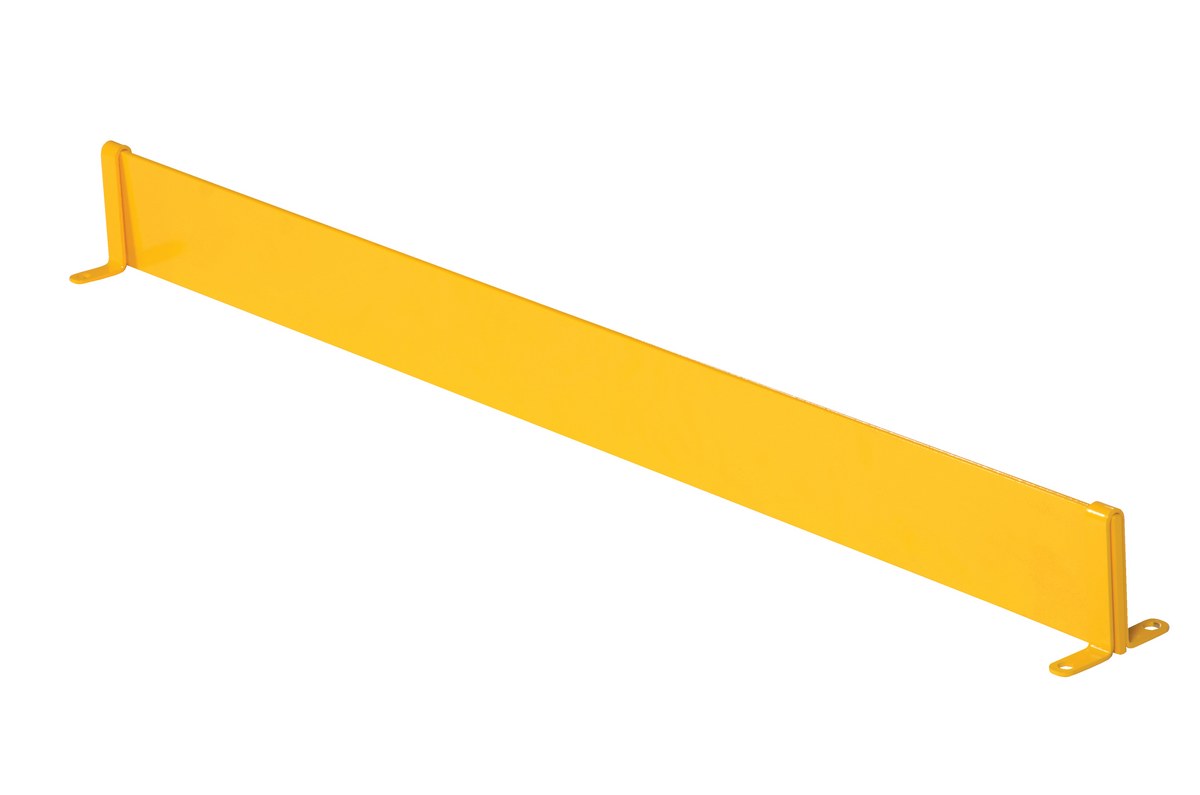

TOE-B-48-N TOE-B-48-NSteel Square Safety Handrail Toe Board 44-5/8 In. x 3-7/8 In…9

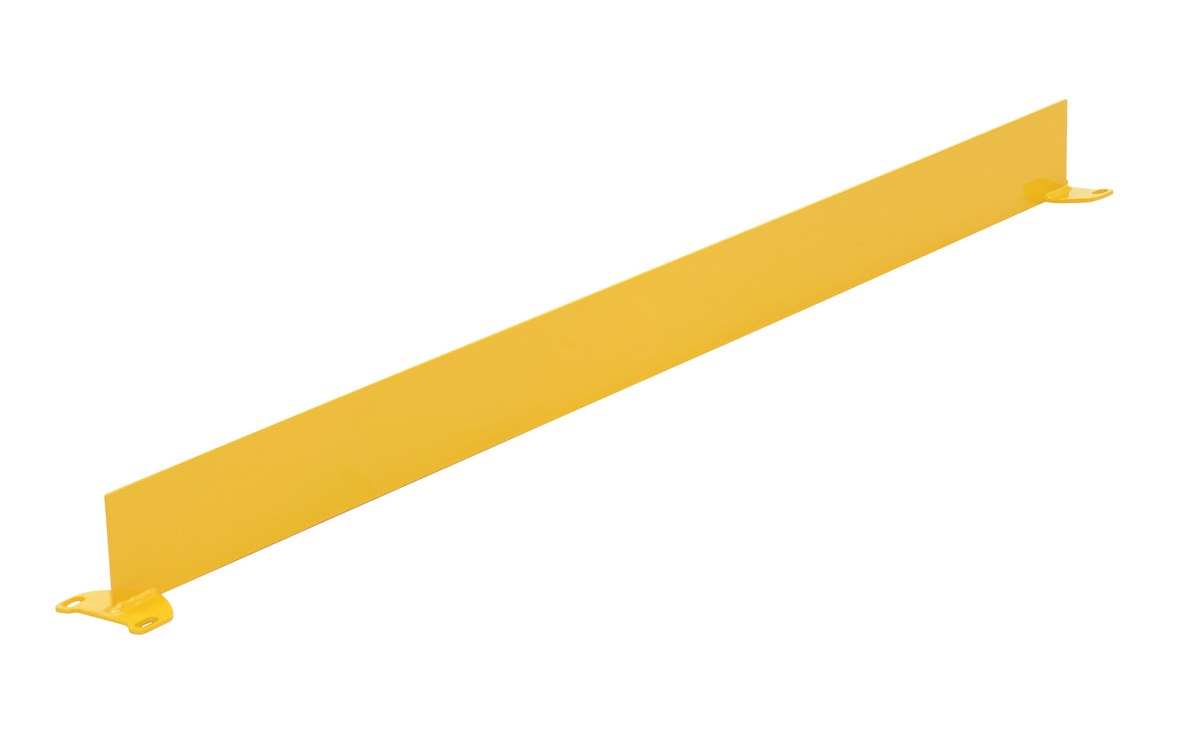

TOE-B-60-N TOE-B-60-NSteel Square Safety Handrail Toe Board 56-5/8 In. x 3-7/8 In…12

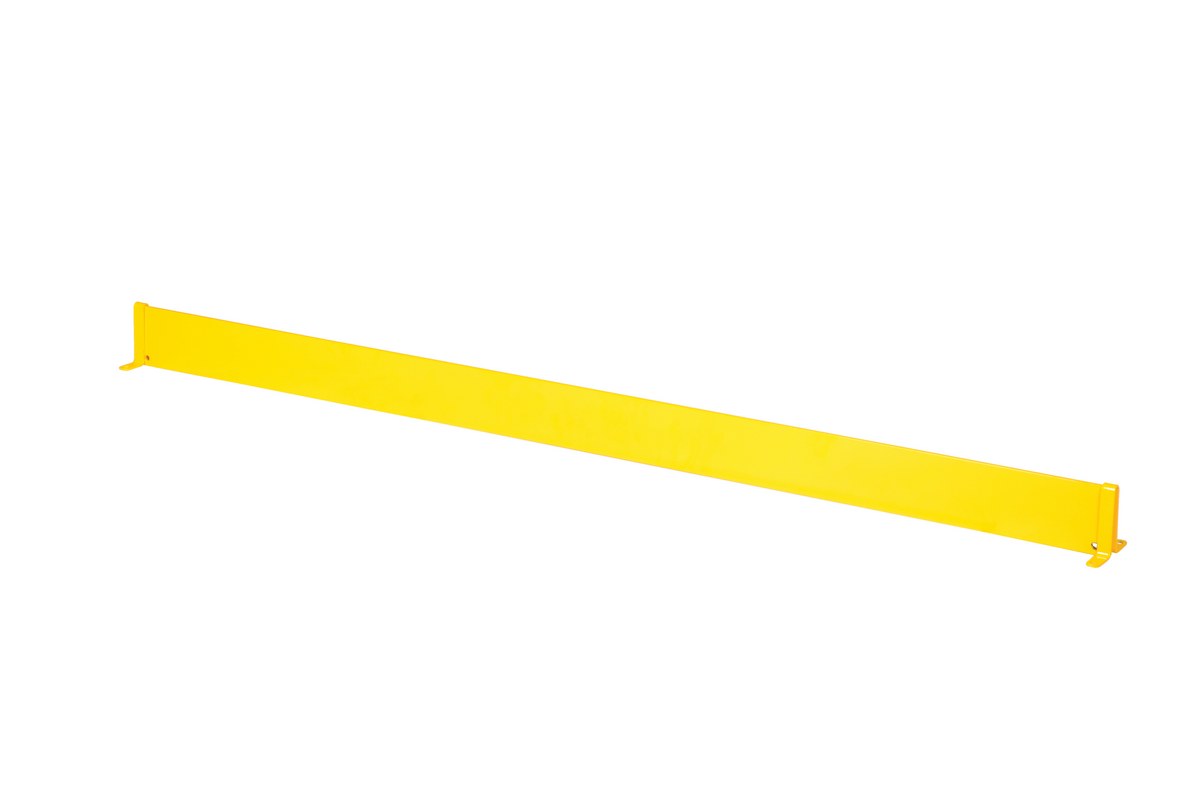

TOE-B-72-N TOE-B-72-NSteel Square Safety Handrail Toe Board 68-5/8 In. x 3-7/8 In…16

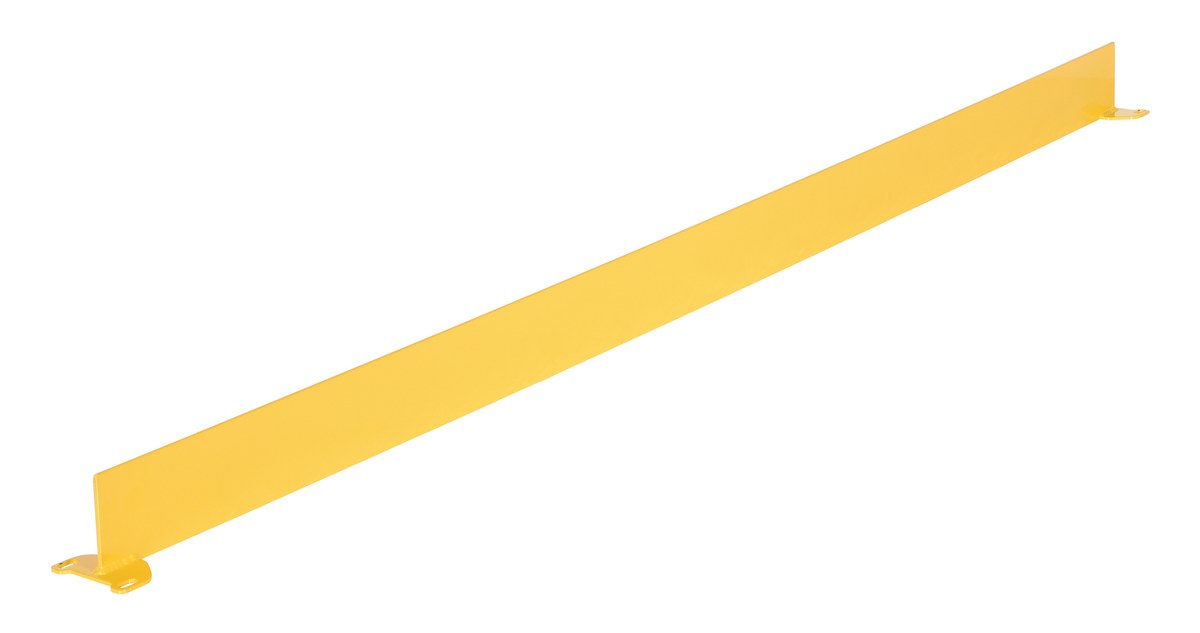

TOE-B-84-N TOE-B-84-NSteel Square Safety Handrail Toe Board 80-5/8 In. x 3-7/8 In…19

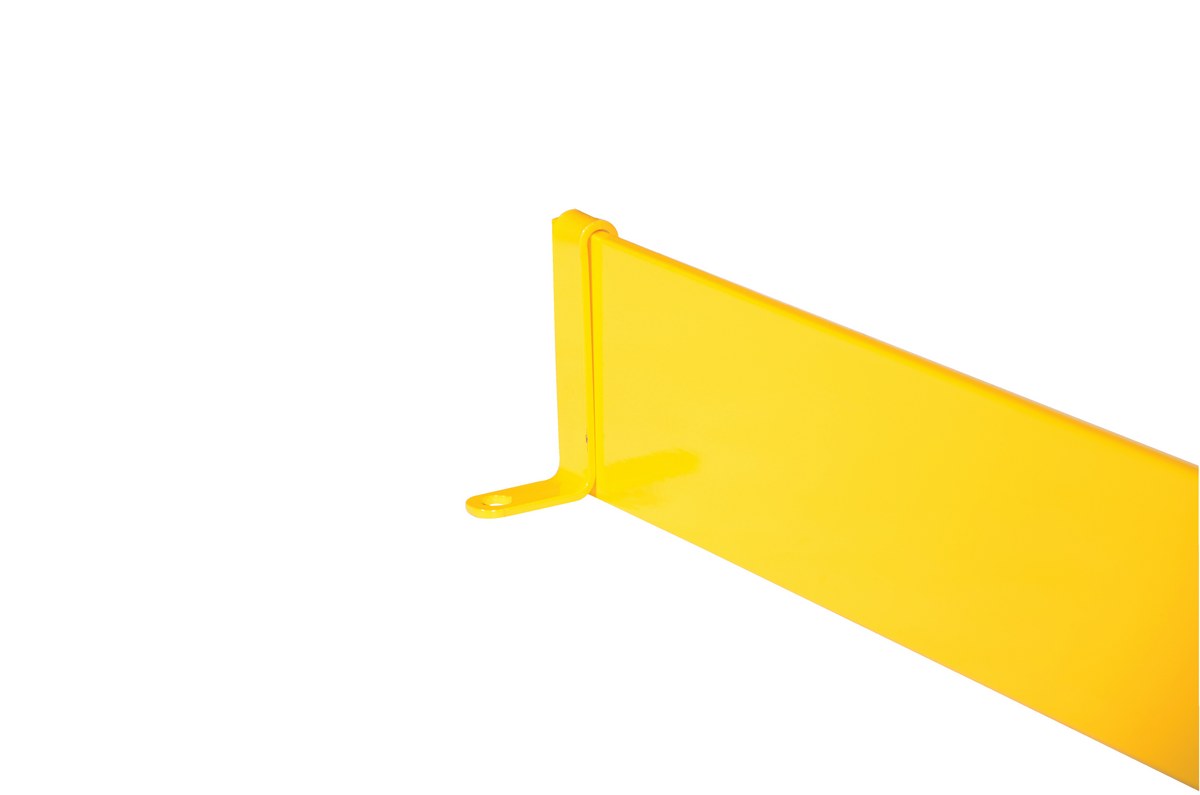

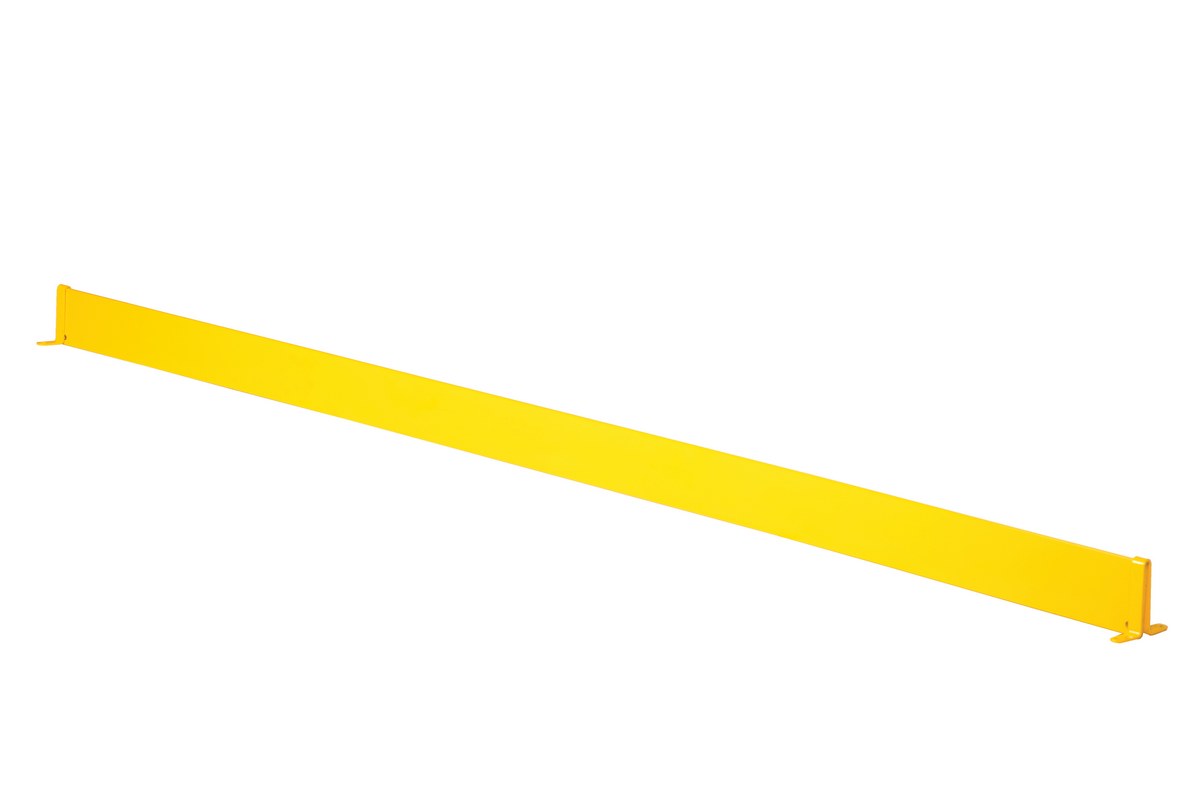

TOE-B-96-N TOE-B-96-NSteel Square Safety Handrail Toe Board 92-5/8 In. x 3-7/8 In…22
WM-108 WM-108Steel Bolt On Wire Mesh 108 In. Length For Square Safety Han…41
WM-120 WM-120Steel Bolt On Wire Mesh 120 In. Length For Square Safety Han…58

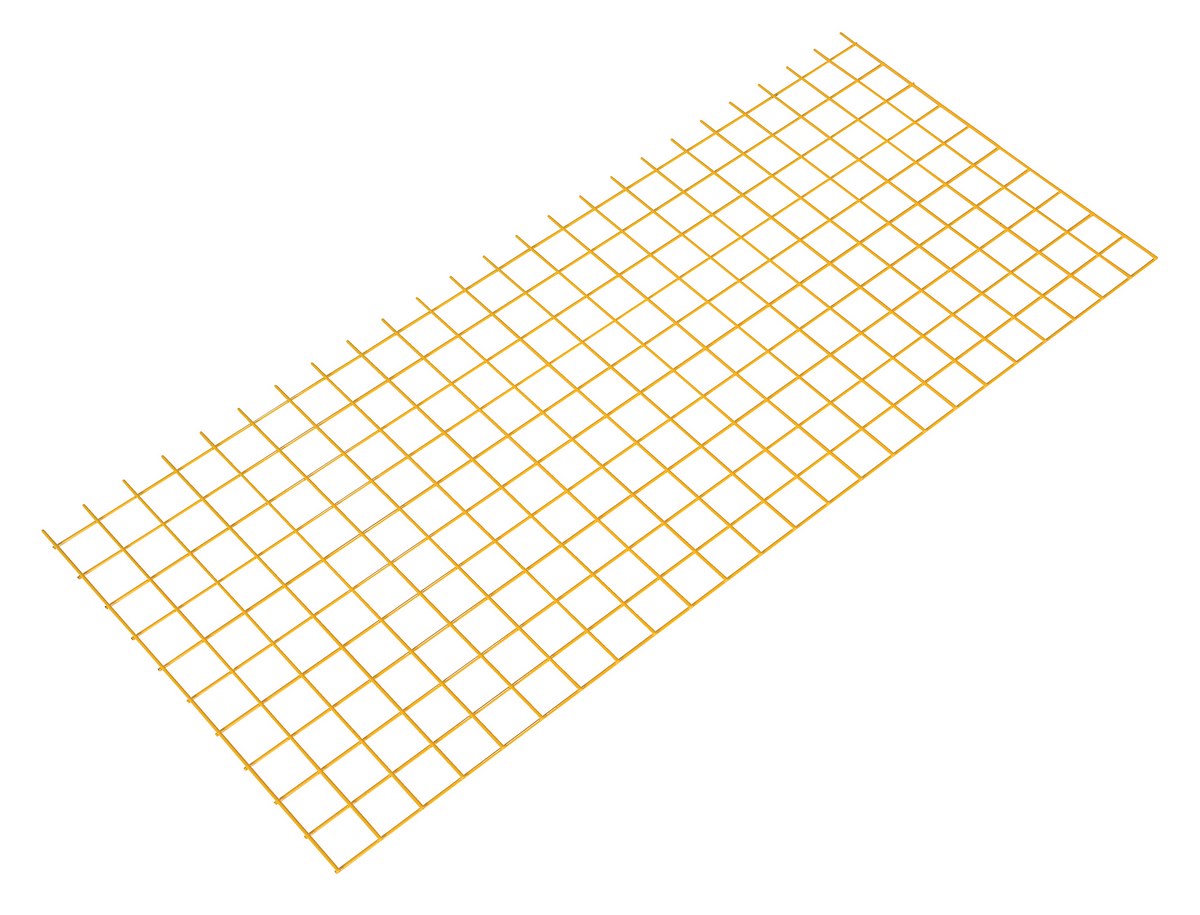

WM-48 WM-48Steel Bolt On Wire Mesh 48 In. Length For Square Safety Hand…7

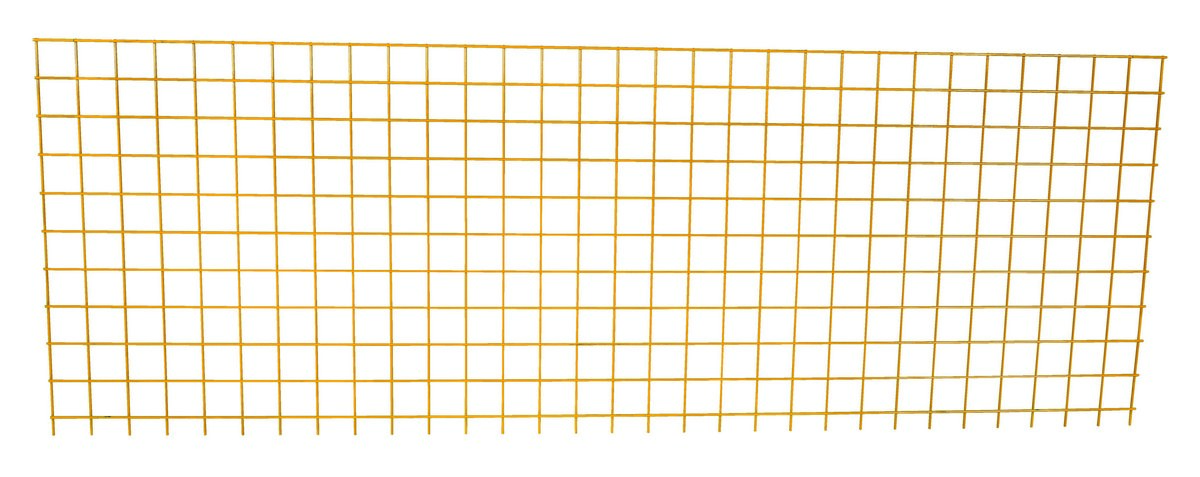

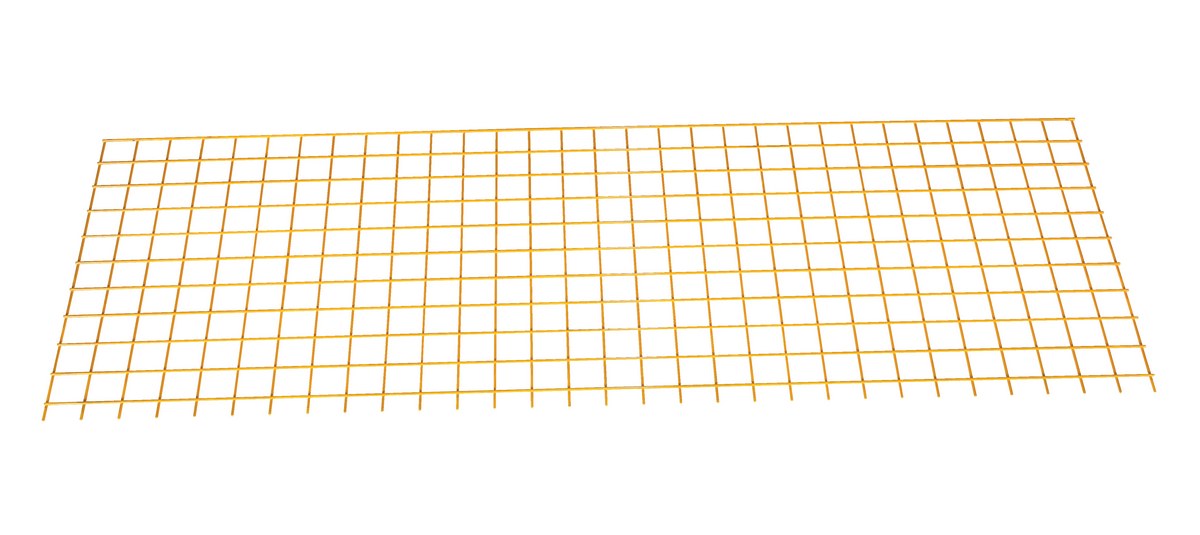

WM-60 WM-60Steel Bolt On Wire Mesh 60 In. Length For Square Safety Hand…9
WM-72 WM-72Steel Bolt On Wire Mesh 72 In. Length For Square Safety Hand…11

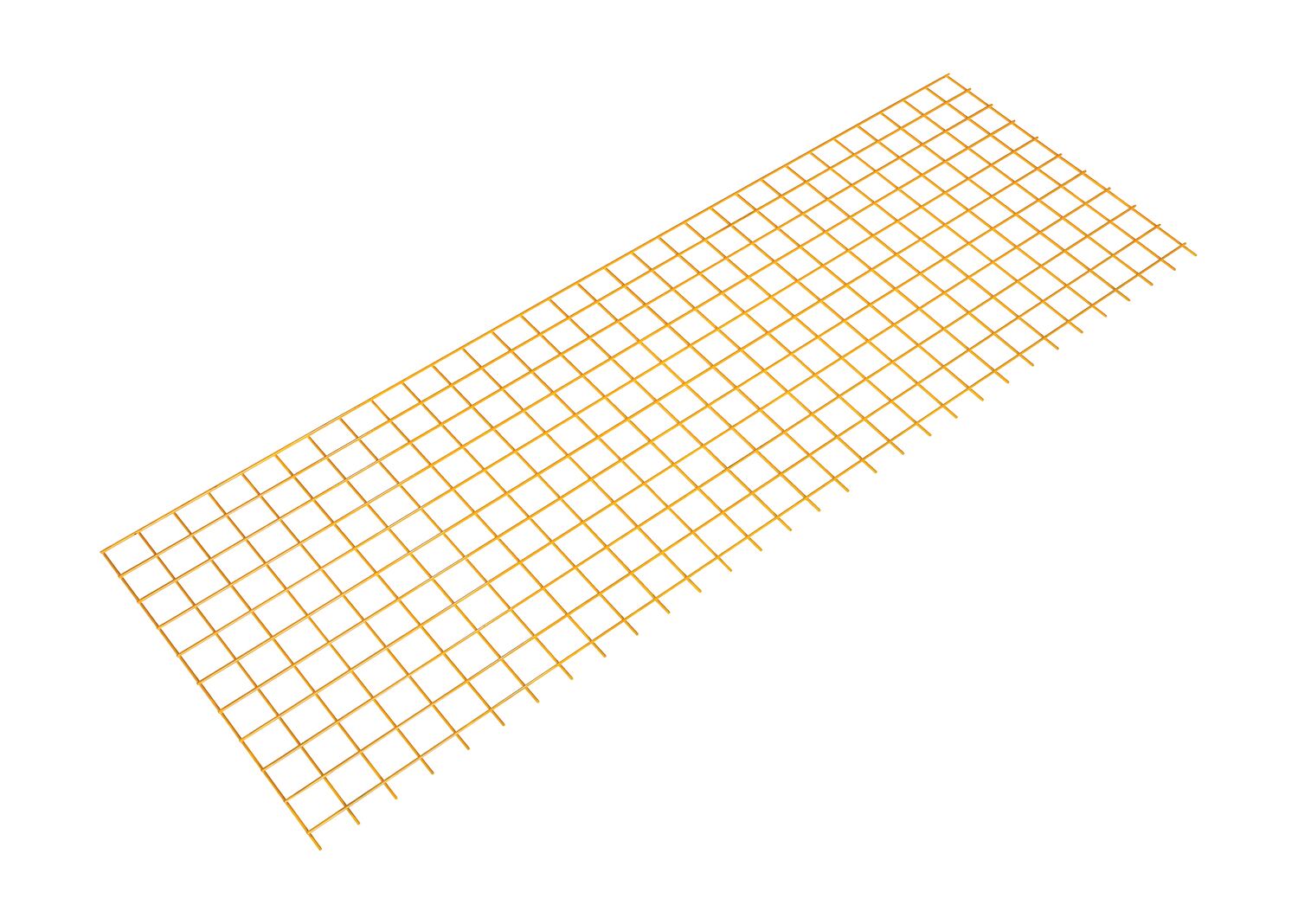

WM-84 WM-84Steel Bolt On Wire Mesh 84 In. Length For Square Safety Hand…12
WM-96 WM-96Steel Bolt On Wire Mesh 96 In. Length For Square Safety Hand…14
Model Image PDFs Description Wt (lbs.)
AS-383 - Concrete Anchor Bolts (1) 3/8"x3" 1
AS-383-4PK - Concrete Anchor Bolts (4) 3/8"x3" 4
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

SQ

Survey Sheets

SQ

Engineering Drawings

C-CON

CSEC-48

CSEC-60

CSEC-72

CSEC-84

CSEC-96

CSEC-108

CSEC-120

S-GATE-60

SQ-48

SQ-48-TB

SQ-60

SQ-60-TB

SQ-72

SQ-72-TB

SQ-84

SQ-84-TB

SQ-96

SQ-96-TB

SQ-108

SQ-108-TB

SQ-120

SQ-120-TB

SQ-A-48

SQ-A-60

SQ-A-72

SQ-A-84

SQ-A-96

SQ-A-108

SQ-A-120

TOE-B-48-N

TOE-B-60-N

TOE-B-72-N

TOE-B-84-N

TOE-B-96-N

TOE-B-108-N

TOE-B-120-N

Testing Certificates

C-CON

CSEC-108

CSEC-120

CSEC-48

CSEC-60

CSEC-72

CSEC-84

CSEC-96

S-GATE-60

SQ-108

SQ-108-HWR

SQ-108-TB

SQ-108-TB-HWR

SQ-120

SQ-120-HWR

SQ-120-TB

SQ-120-TB-HWR

SQ-48

SQ-48-HWR

SQ-48-TB

SQ-48-TB-HWR

SQ-60

SQ-60-HWR

SQ-60-TB

SQ-60-TB-HWR

SQ-72

SQ-72-HWR

SQ-72-TB

SQ-72-TB-HWR

SQ-84

SQ-84-HWR

SQ-84-TB

SQ-84-TB-HWR

SQ-96

SQ-96-HWR

SQ-96-TB

SQ-96-TB-HWR

SQ-A-108

SQ-A-120

SQ-A-48

SQ-A-60

SQ-A-72

SQ-A-84

SQ-A-96

TOE-B-108-N

TOE-B-120-N

TOE-B-48-N

TOE-B-60-N

TOE-B-72-N

TOE-B-84-N

TOE-B-96-N

WM-108

WM-120

WM-48

WM-60

WM-72

WM-84

WM-96

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products

Enhanced Product Content

C-CON
C-CON C-CON A+ Content - 2
C-CON C-CON A+ Content - 1
SQ-48
SQ-48 SQ-48 A+ Content - 3
SQ-48 SQ-48 A+ Content - 2
SQ-48 SQ-48 A+ Content - 1
SQ-72-TB-HWR
SQ-72-TB-HWR SQ-72-TB-HWR A+ Content - 3
SQ-72-TB-HWR SQ-72-TB-HWR A+ Content - 2
SQ-72-TB-HWR SQ-72-TB-HWR A+ Content - 1
I want to install the wire mesh on the square railing. What hardware is needed?
The hardware for the wire mesh to install on the square railing is included.
What is the thickness of the floor base plates SQ series Steel Square Safety Handrails?
3/16” thick baseplate
What type of steel is used for the SQ series Steel Square Safety Handrails?
ASTM A500 Grade B steel tube
Where is the SQ series Steel Square Safety Handrails manufactured?
Vestil Manufacturing, Angola, IN USA

Related or Similar Products:

More From Safety Railing





Square Safety Handrails




Steel Square Safety Handrails are an economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Highly visible safety yellow powder coat finish. Available with or without toeboards as application requires.

  • Modular design allows for maximum versatility
  • Heavy-duty square steel tubing construction offers the utmost protection
  • Pre-drilled bolt holes provide quick and easy installation
  • Powder coat safety yellow finish provides maximum durability

Aluminum Square Safety Handrail provides an economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Robust design provides stabilization throughout those areas.

  • Modular design allows for maximum versatility
  • Square aluminum construction offers the utmost protection
  • Pre-drilled bolt holes provide quick and easy installation
  • Smooth surface for maximum durability

Model # Description Attributes Net Wt.
(lbs)

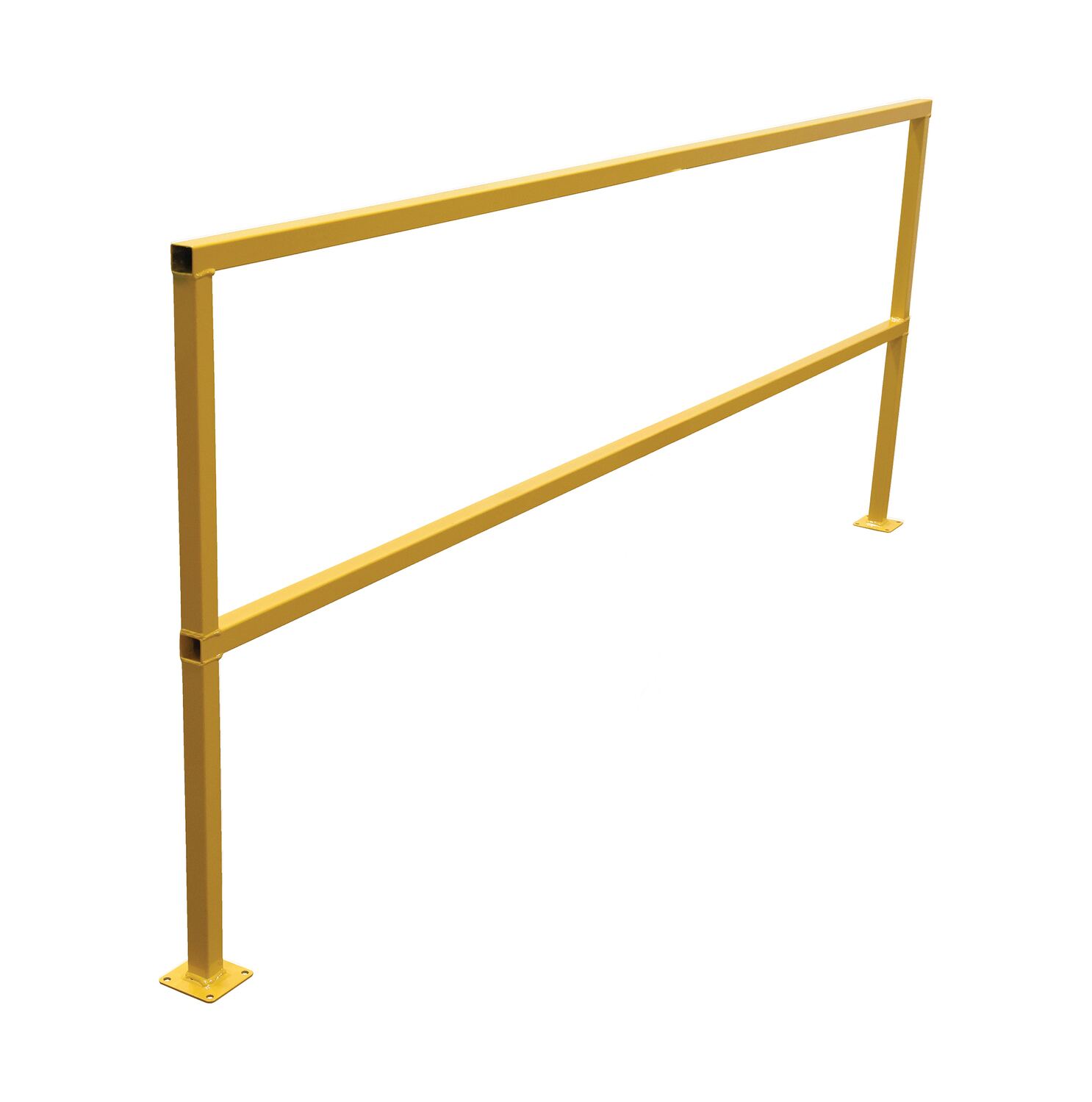

SQ-108 SQ-108Steel Square Safety Handrail 110-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		65
SQ-108-HWR SQ-108-HWRSteel Safety Handrail with Hardware 110-1/2 In. x 4 In. x 44 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		67

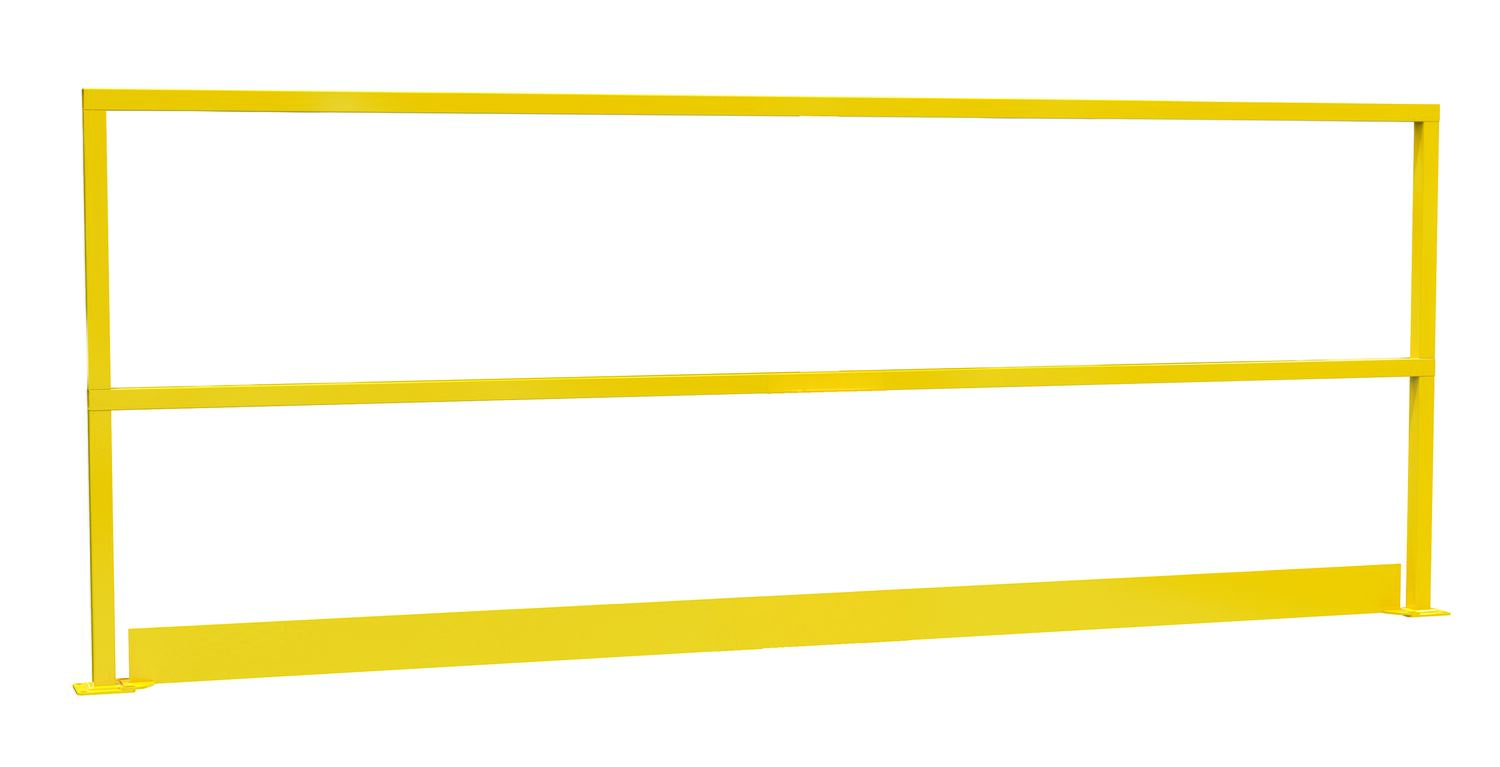

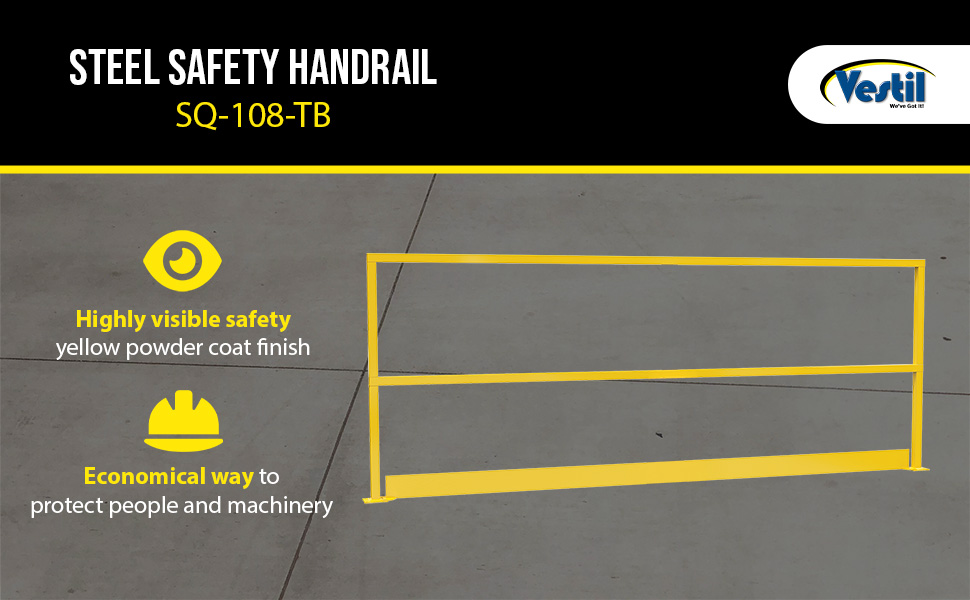

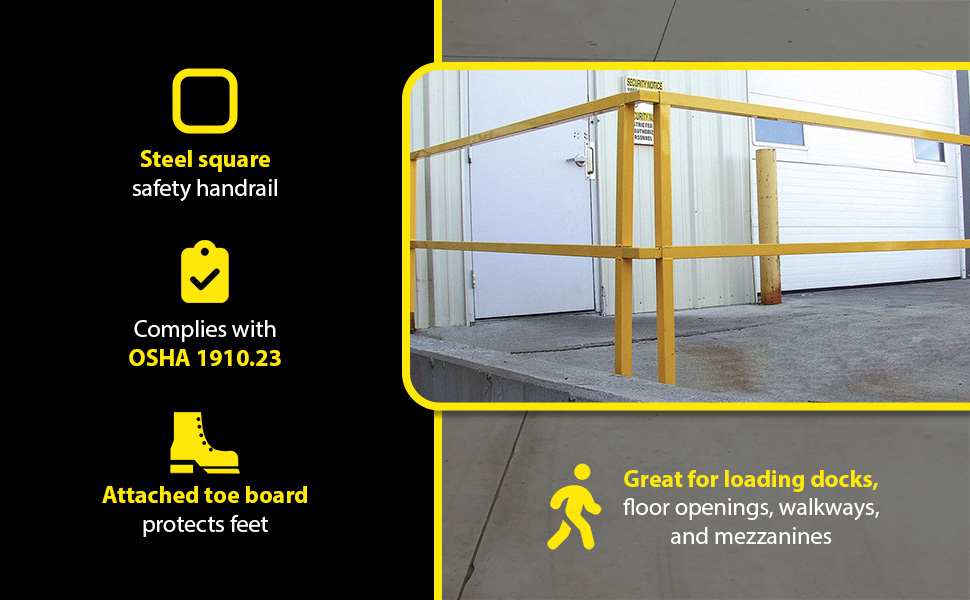

SQ-108-TB SQ-108-TBSteel Safety Handrail with Toe Board 110-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		106
SQ-108-TB-HWR SQ-108-TB-HWRSteel Safety Handrail with Hardware and Toe Board 110 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		108

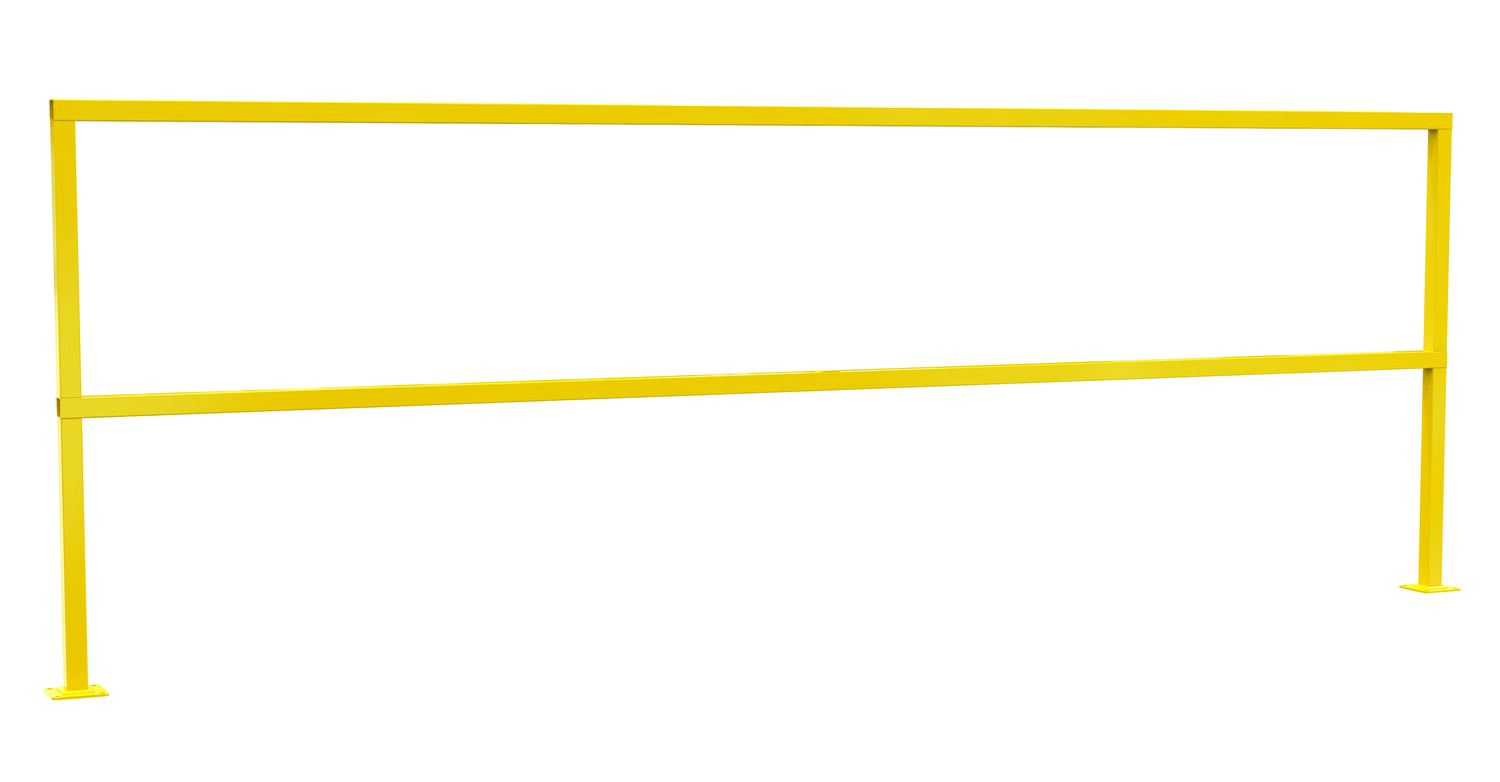

SQ-120 SQ-120Steel Square Safety Handrail 122-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		69
SQ-120-HWR SQ-120-HWRSteel Safety Handrail with Hardware 122-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		71

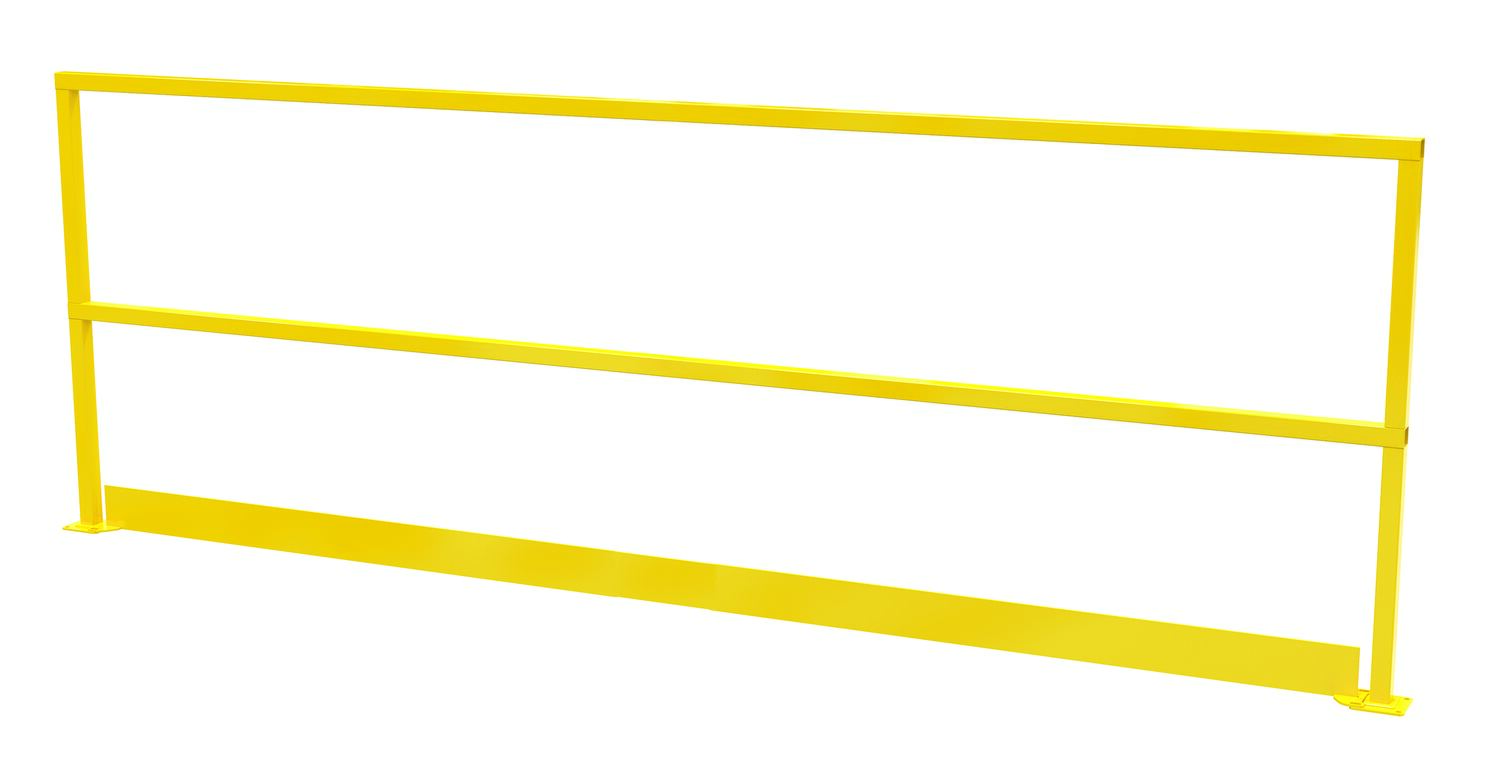

SQ-120-TB SQ-120-TBSteel Safety Handrail with Toe Board 122-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		168

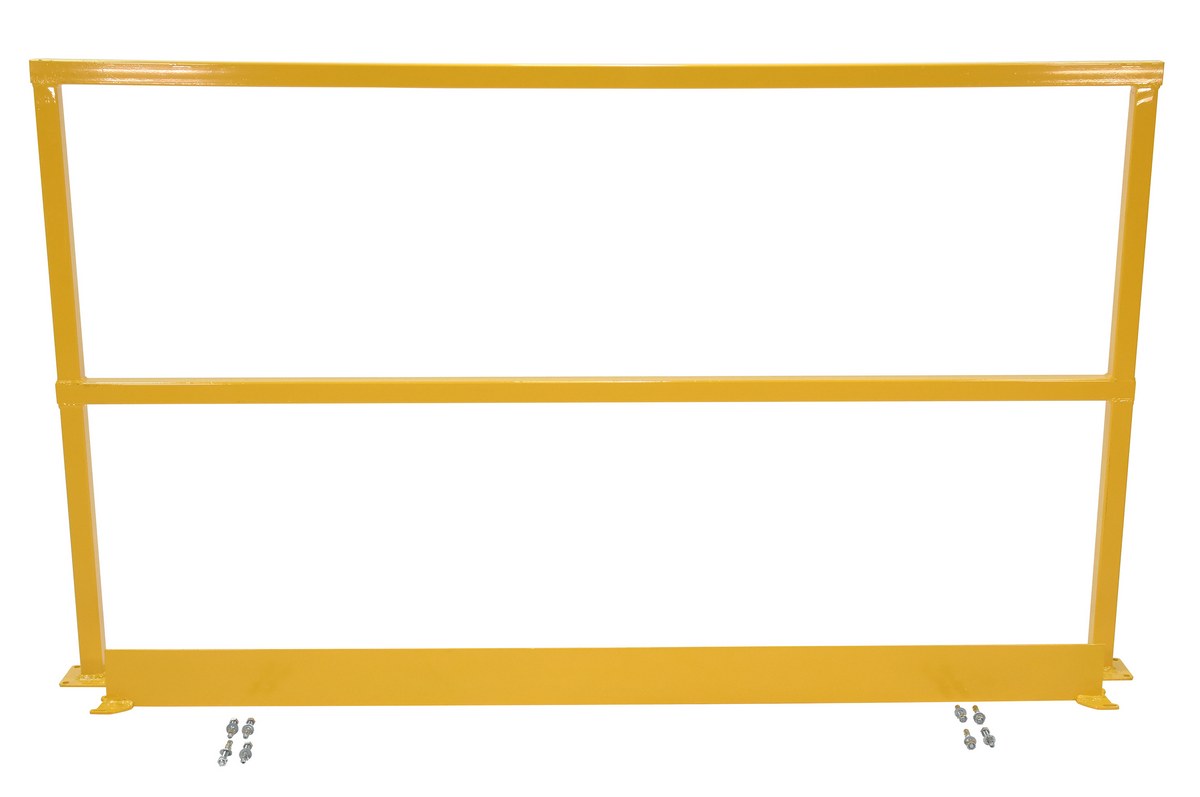

SQ-120-TB-HWR SQ-120-TB-HWRSteel Safety Handrail with Hardware and Toe Board 122-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		170

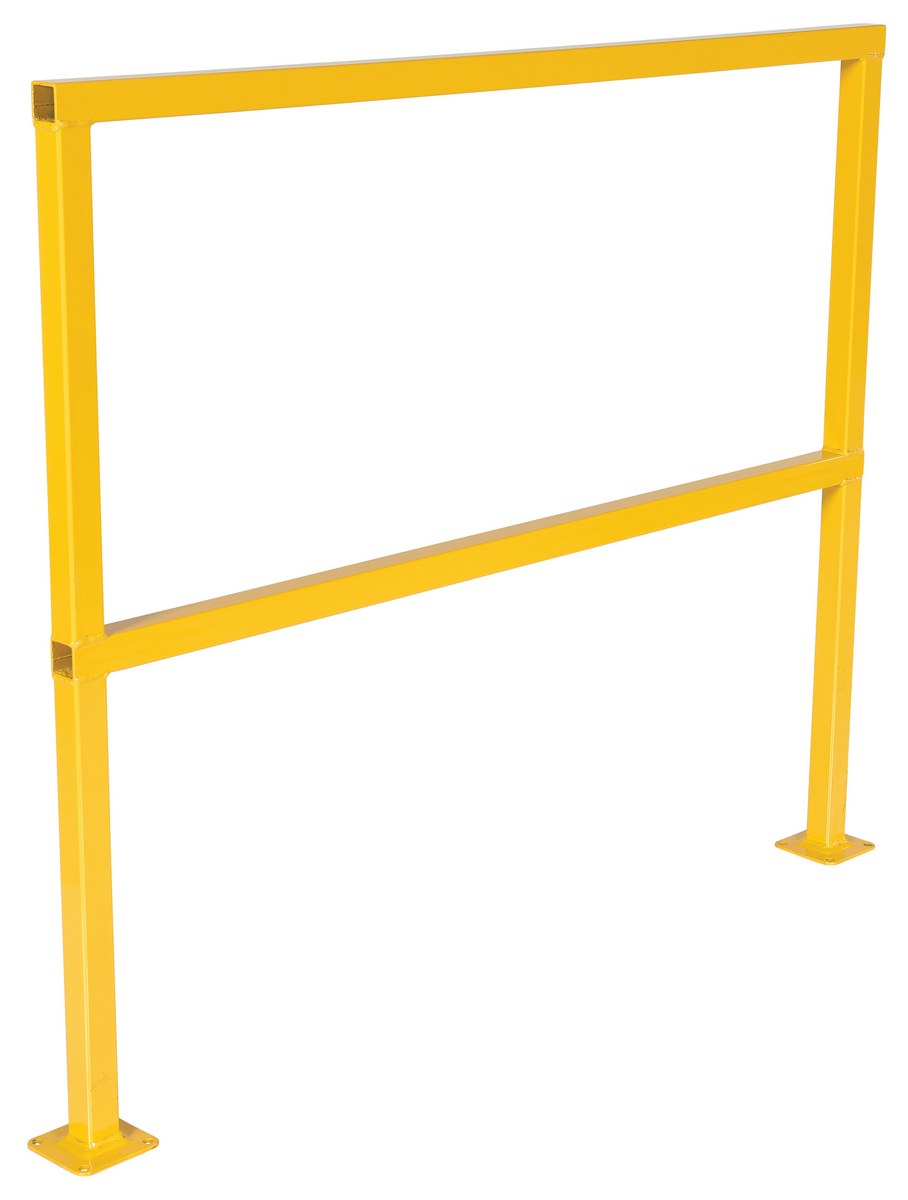

SQ-48 SQ-48Steel Square Safety Handrail 50-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		44

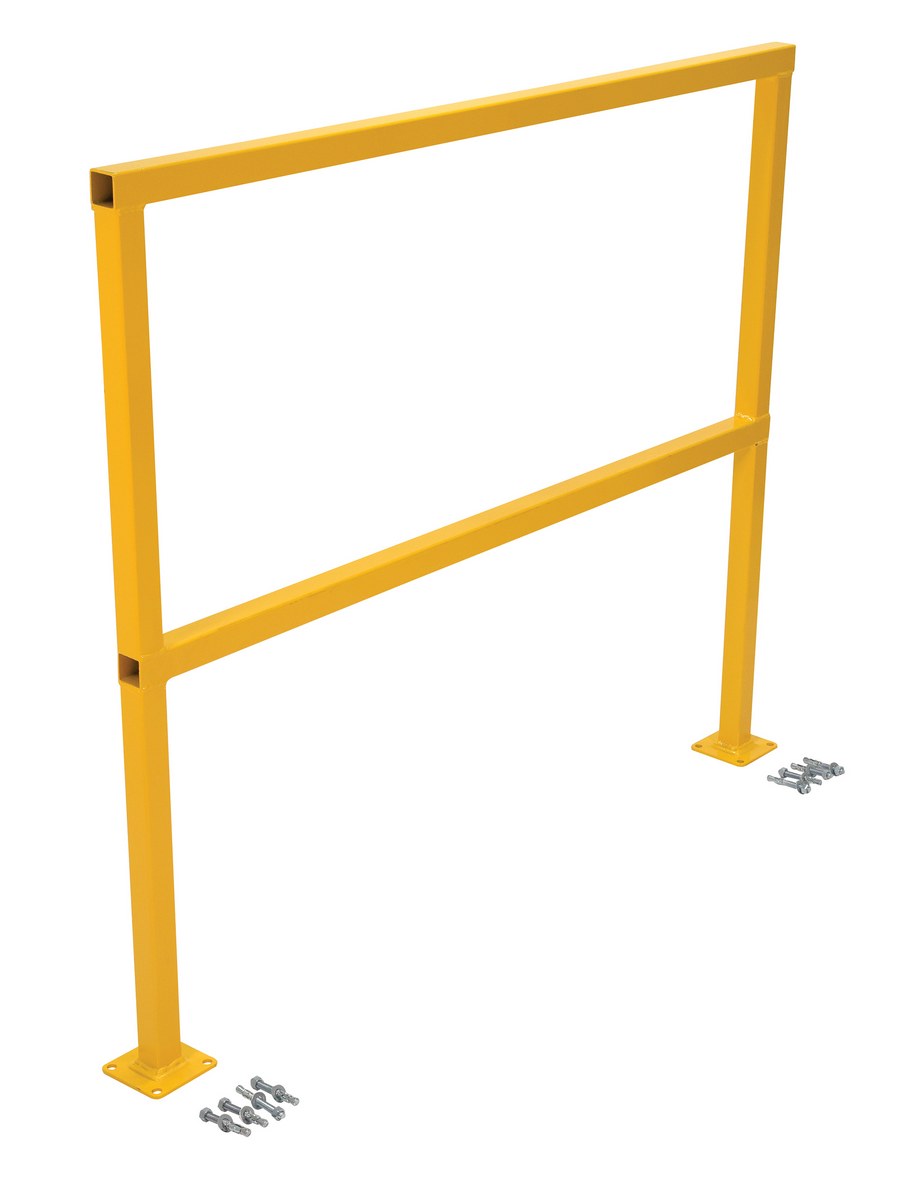

SQ-48-HWR SQ-48-HWRSteel Safety Handrail with Hardware 50-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		100
SQ-48-TB SQ-48-TBSteel Safety Handrail with Toe Board 50-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		60

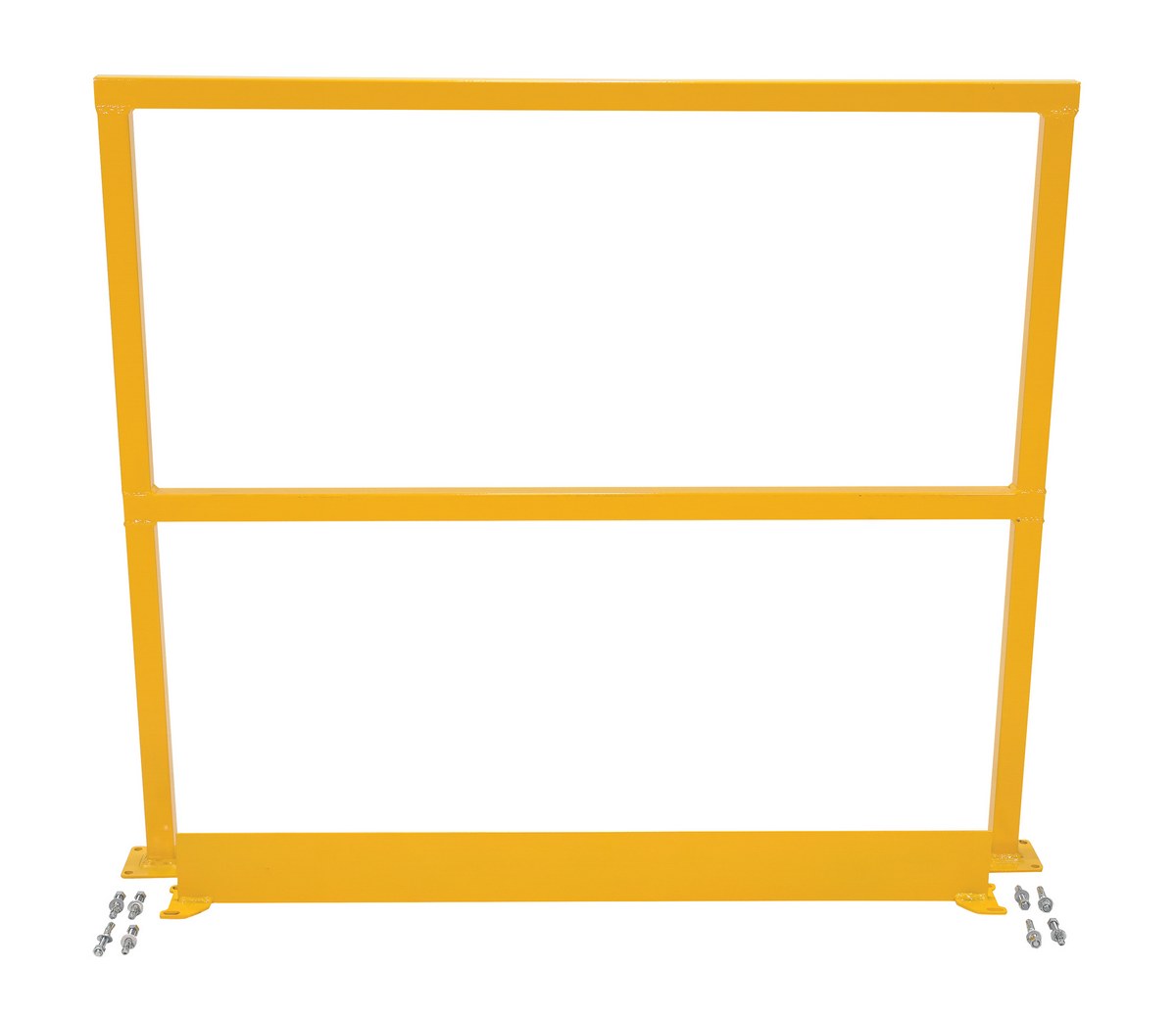

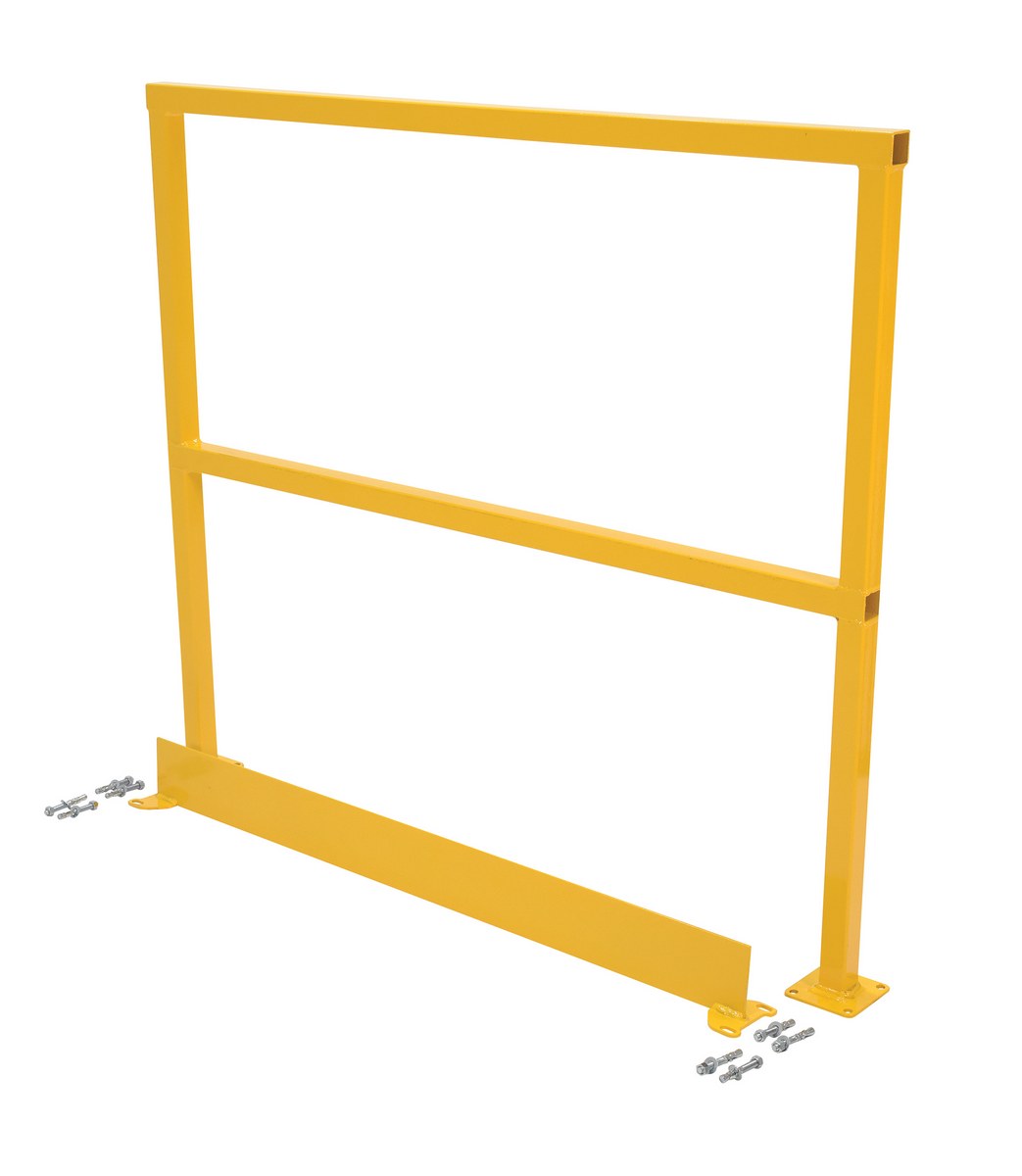

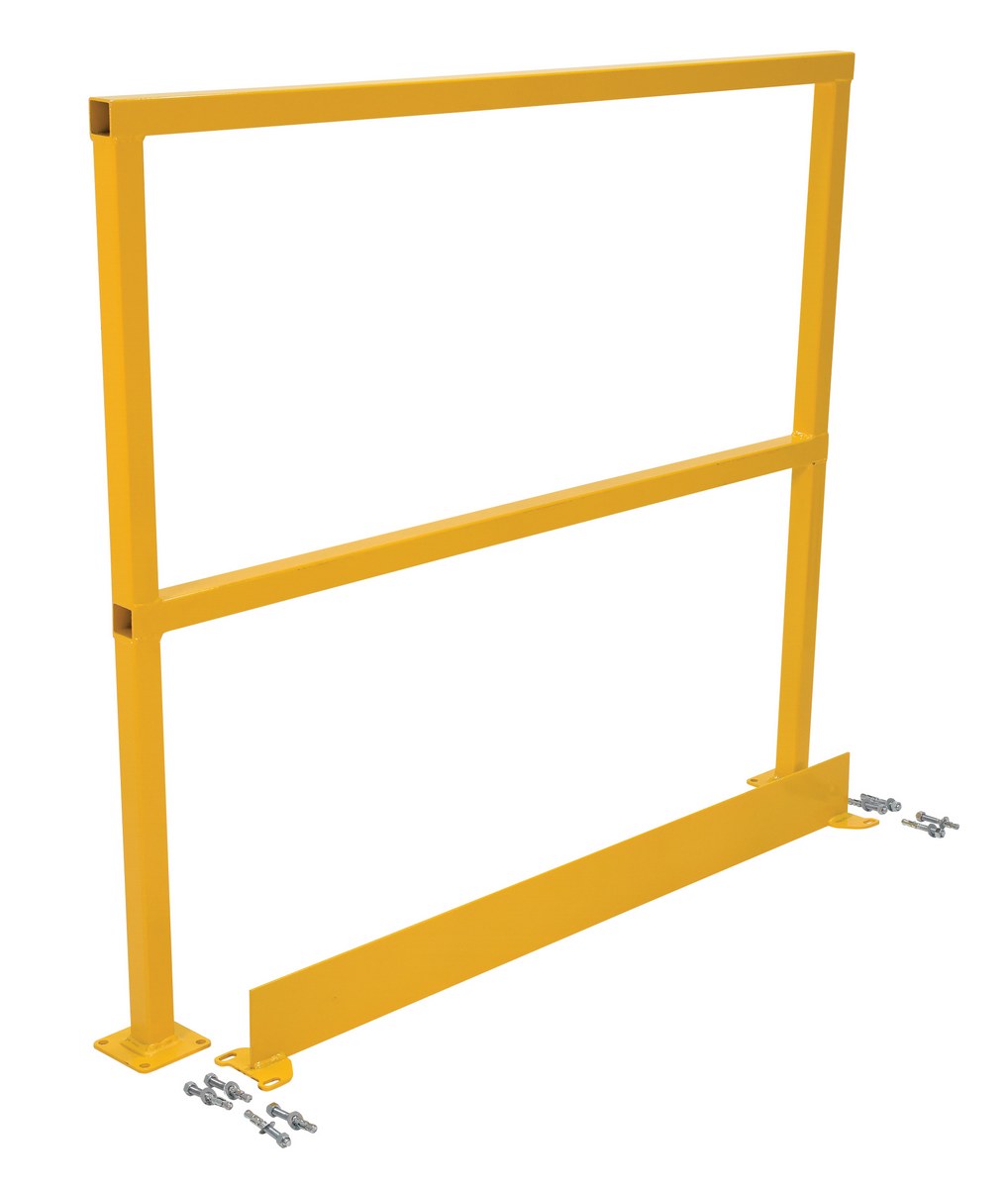

SQ-48-TB-HWR SQ-48-TB-HWRSteel Safety Handrail with Hardware and Toe Board 50-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		61

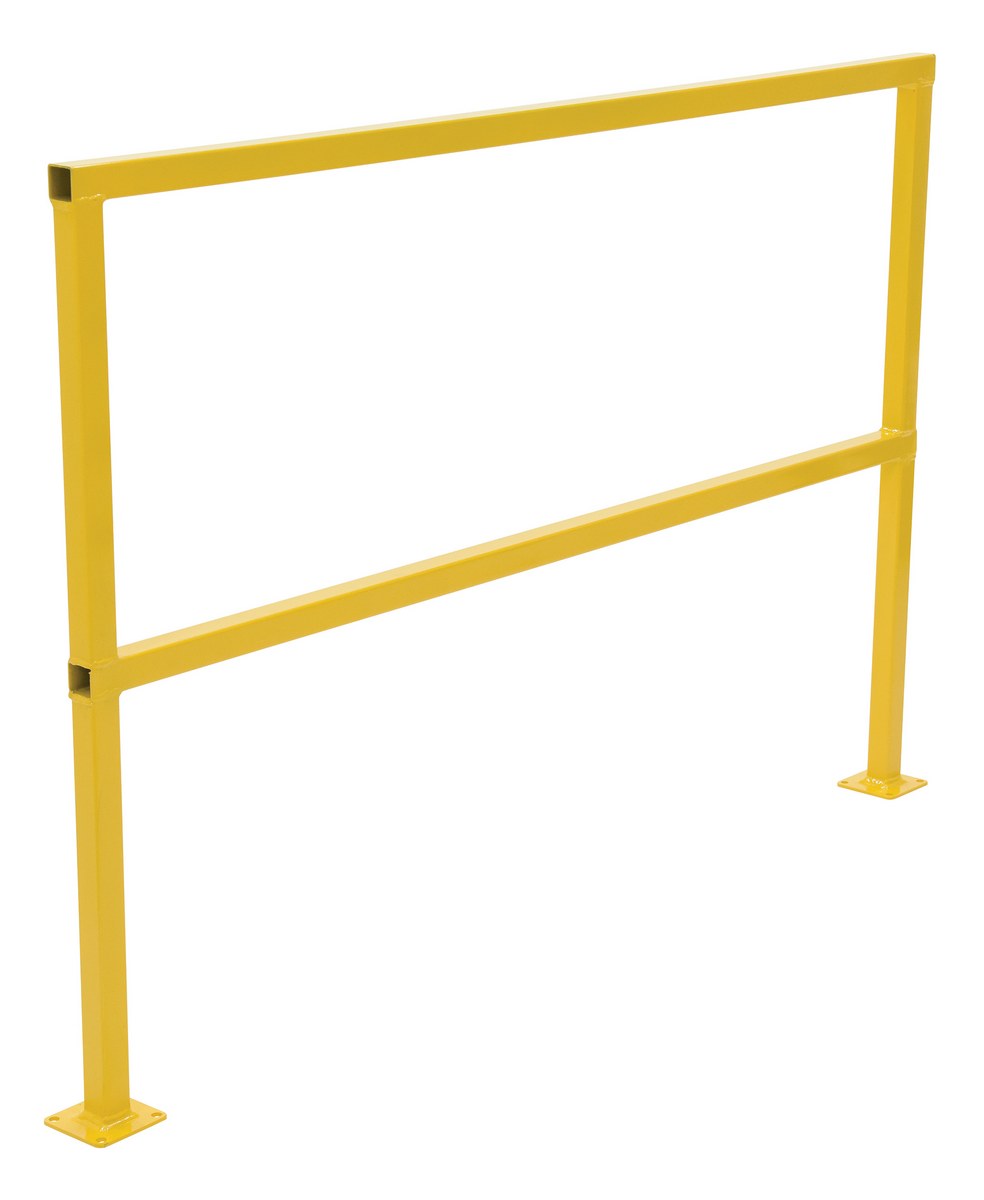

SQ-60 SQ-60Steel Square Safety Handrail 62-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		48

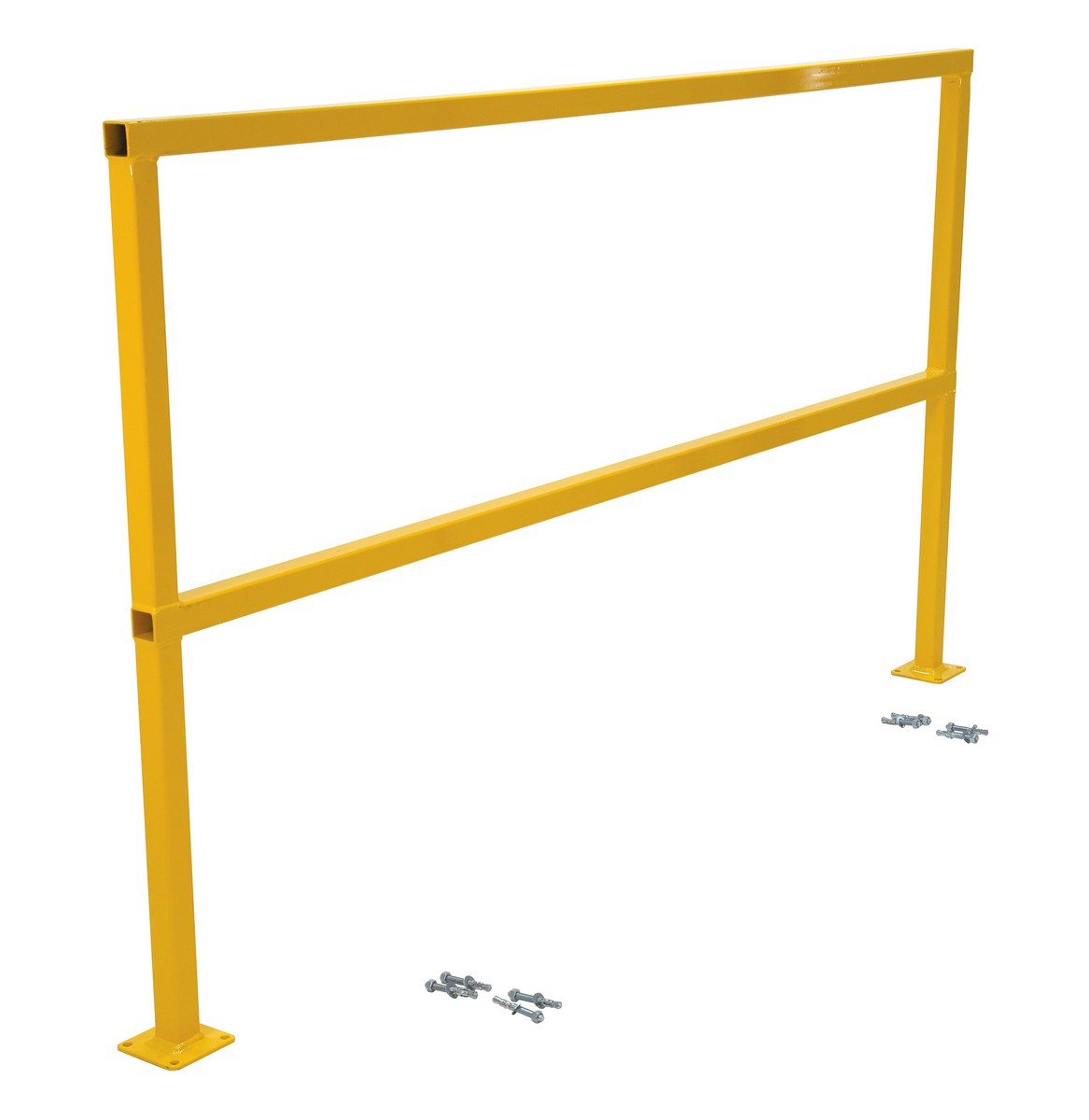

SQ-60-HWR SQ-60-HWRSteel Safety Handrail with Hardware 62-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		50
SQ-60-TB SQ-60-TBSteel Safety Handrail with Toe Board 62-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		67
SQ-60-TB-HWR SQ-60-TB-HWRSteel Safety Handrail with Hardware and Toe Board 62-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		69

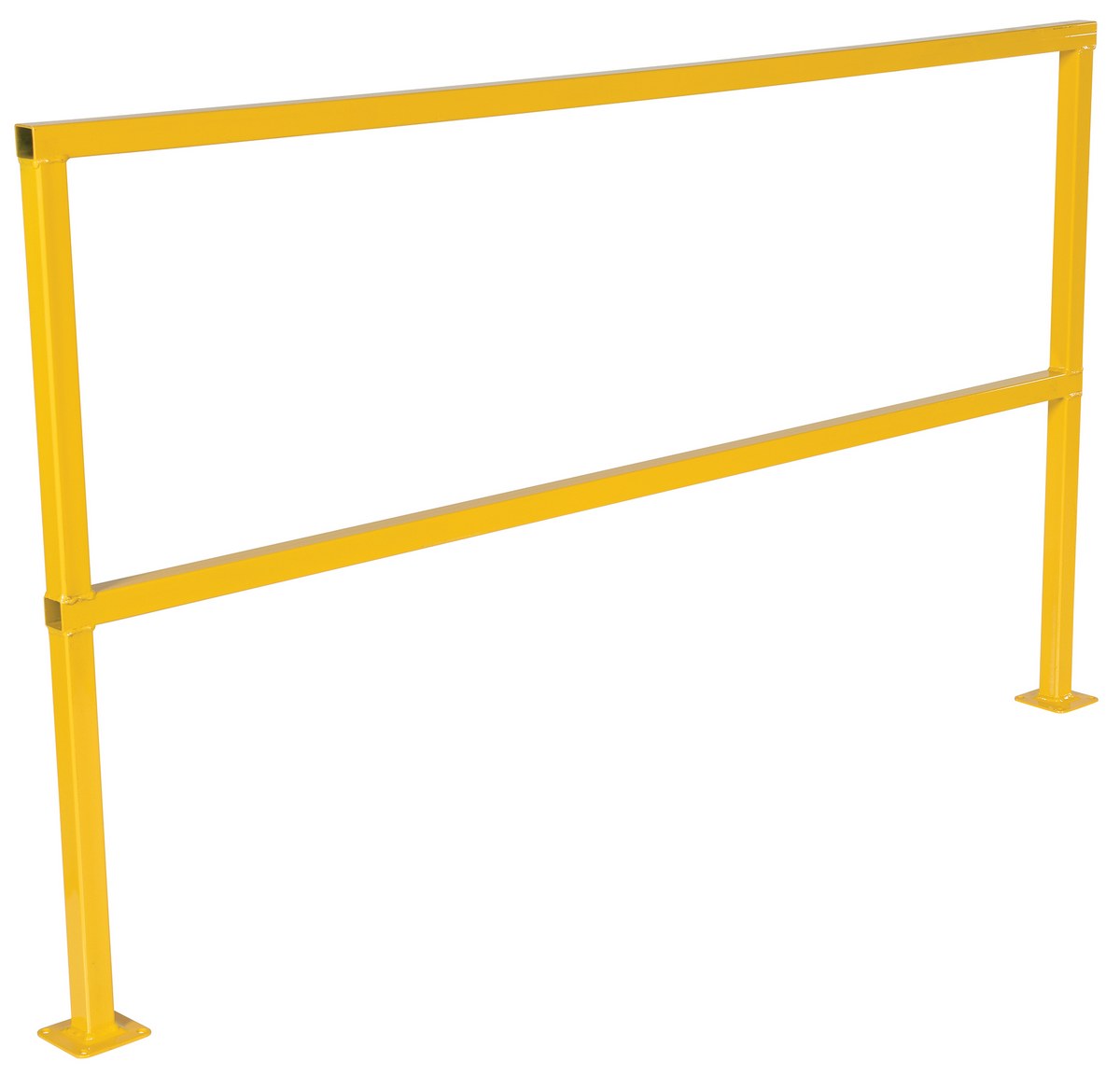

SQ-72 SQ-72Steel Square Safety Handrail 74-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		54

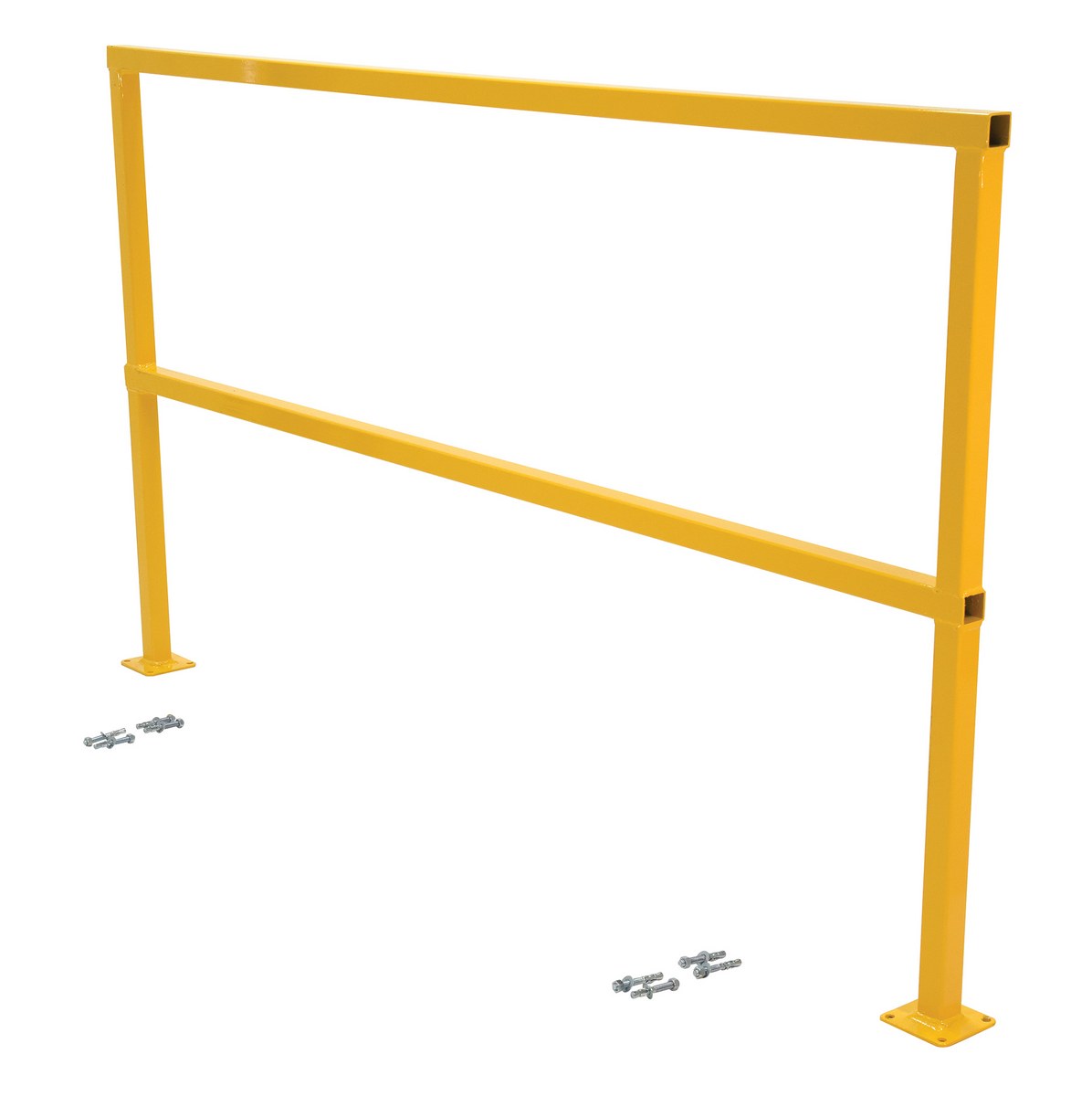

SQ-72-HWR SQ-72-HWRSteel Safety Handrail with Hardware 74-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		58

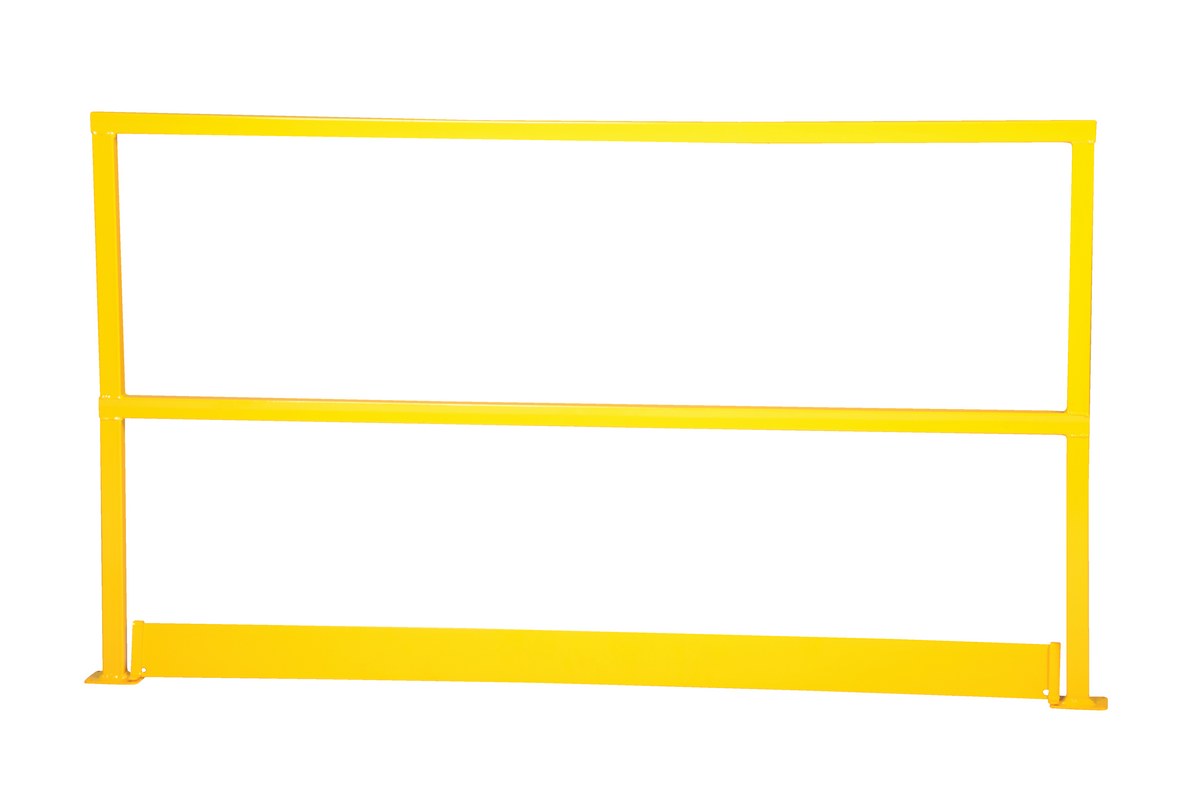

SQ-72-TB SQ-72-TBSteel Safety Handrail with Toe Board 74-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		86

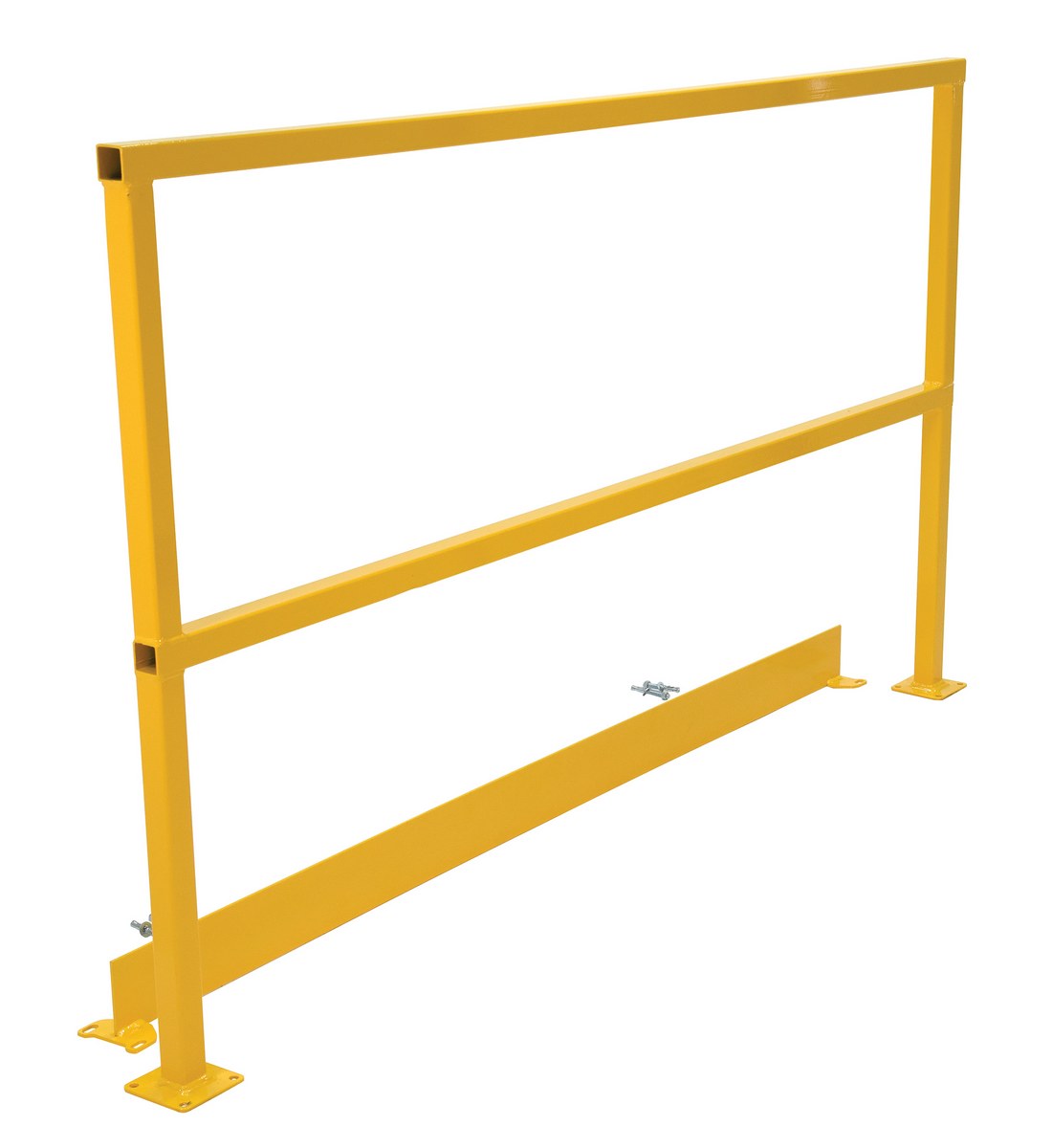

SQ-72-TB-HWR SQ-72-TB-HWRSteel Safety Handrail with Hardware and Toe Board 74-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		93

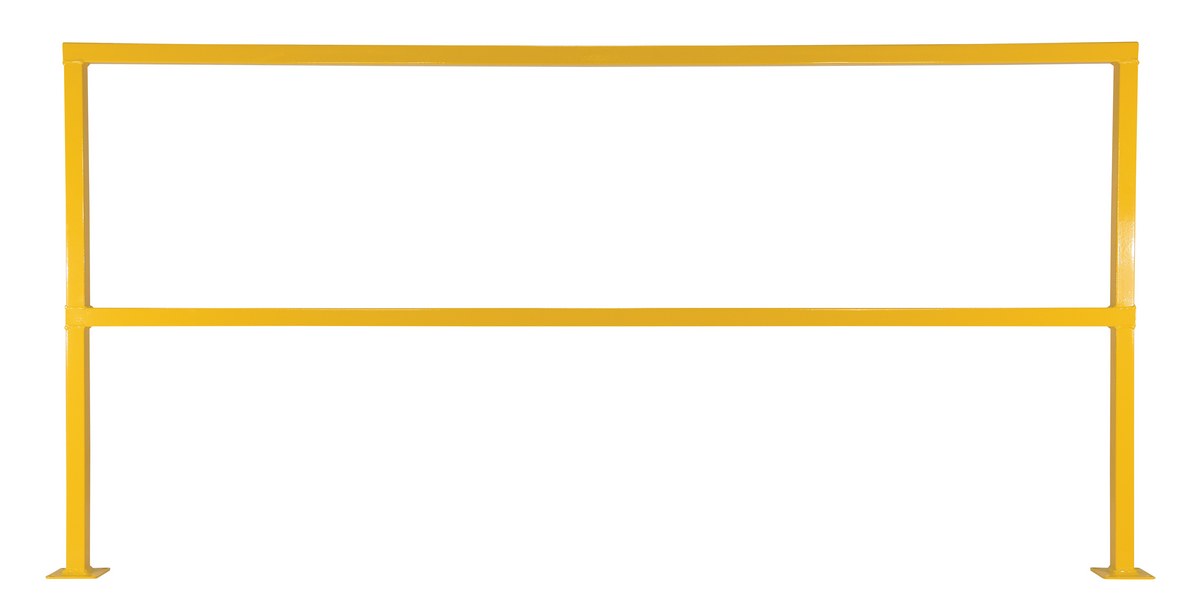

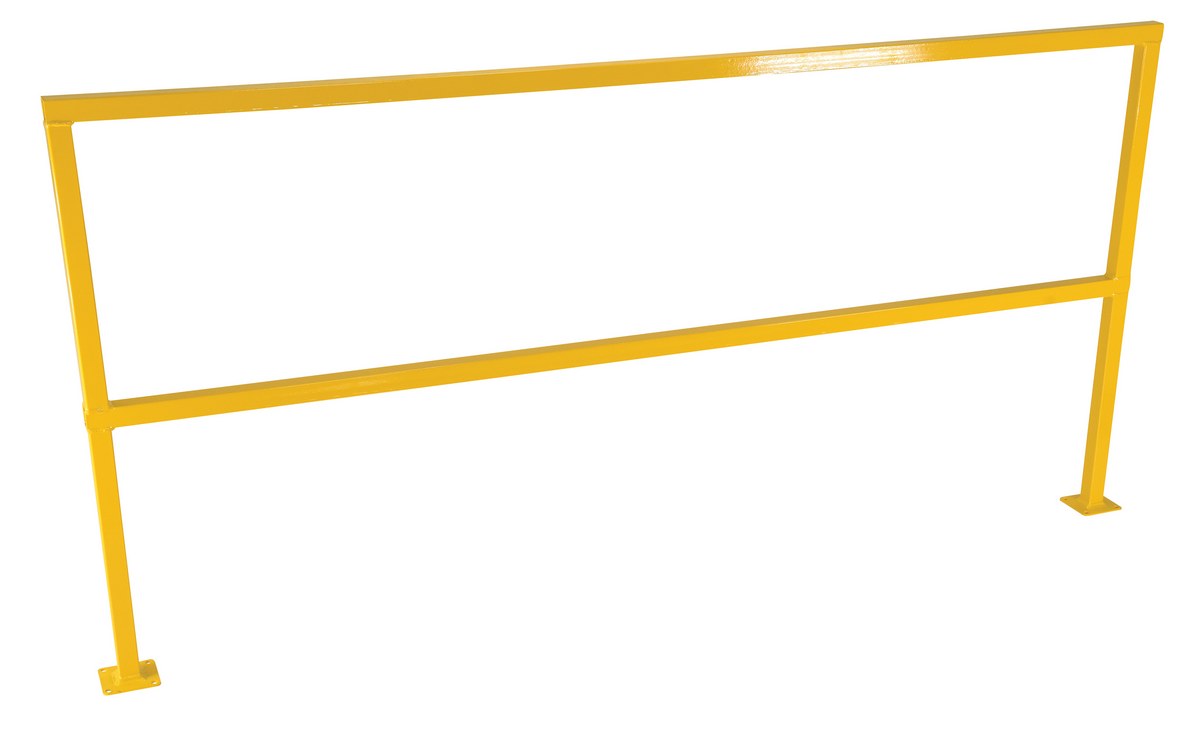

SQ-84 SQ-84Steel Square Safety Handrail 86-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		57
SQ-84-HWR SQ-84-HWRSteel Safety Handrail with Hardware 86-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		59

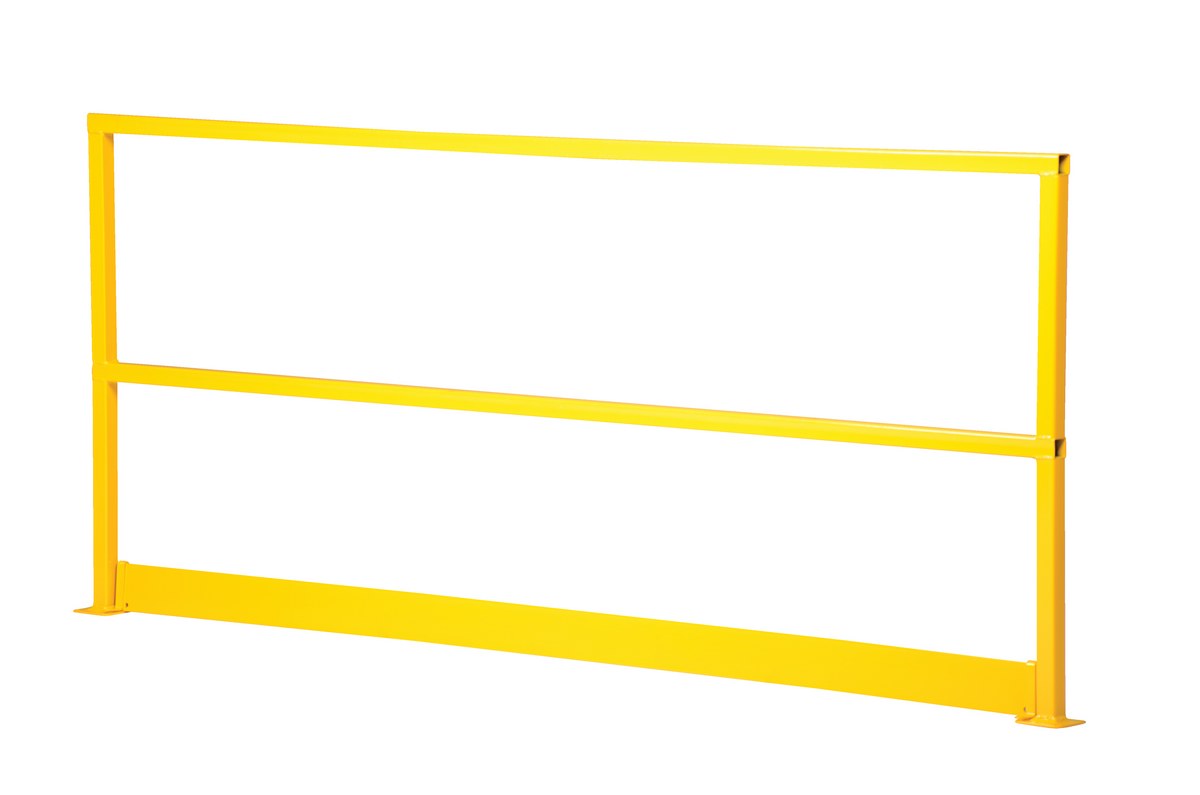

SQ-84-TB SQ-84-TBSteel Safety Handrail with Toe Board 86-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		92
SQ-84-TB-HWR SQ-84-TB-HWRSteel Safety Handrail with Hardware and Toe Board 86-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		94

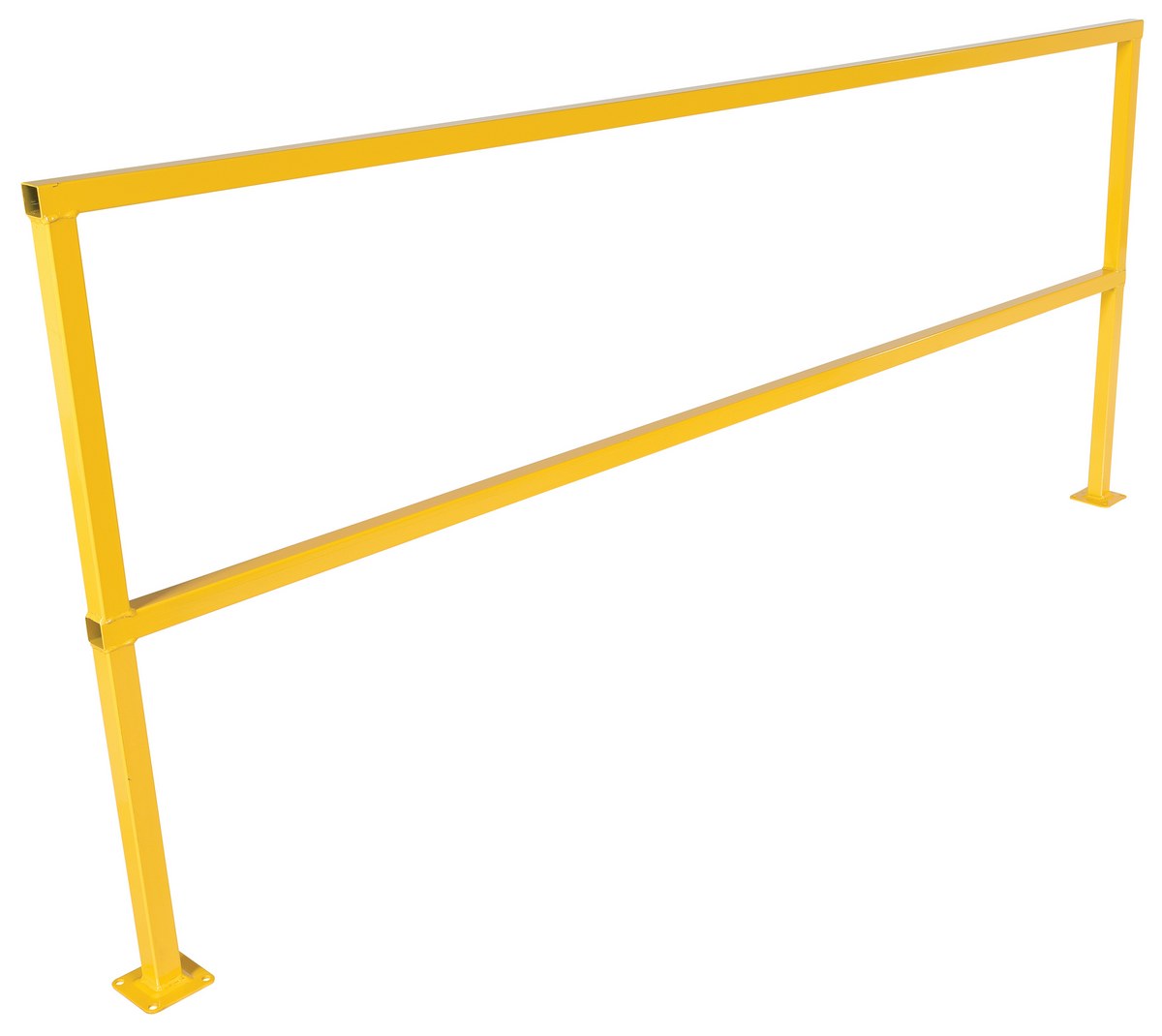

SQ-96 SQ-96Steel Square Safety Handrail 98-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		60

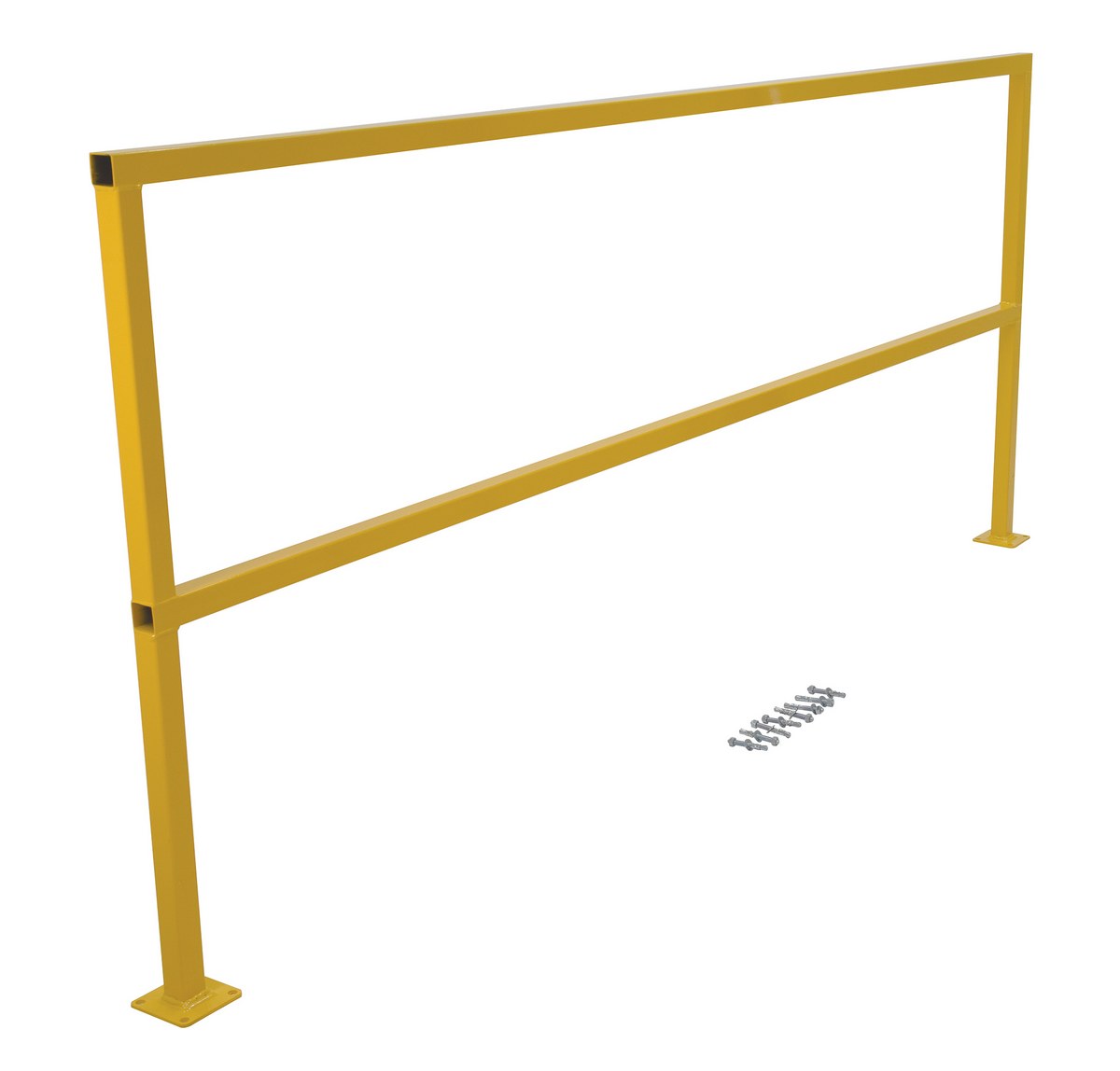

SQ-96-HWR SQ-96-HWRSteel Safety Handrail with Hardware 98-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		59
SQ-96-TB SQ-96-TBSteel Safety Handrail with Toe Board 98-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		98
SQ-96-TB-HWR SQ-96-TB-HWRSteel Safety Handrail with Hardware and Toe Board 98-1/2 In. x 4 In. x 42 In. YellowSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16		104

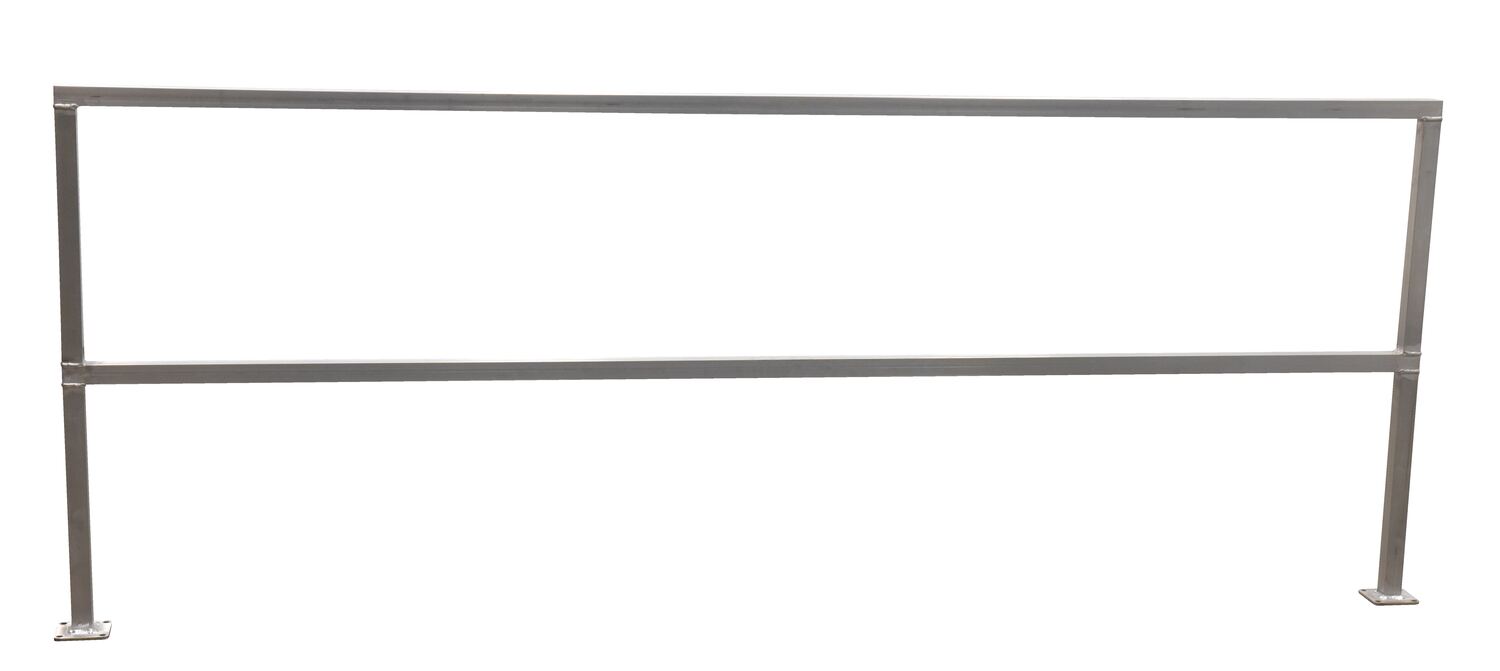

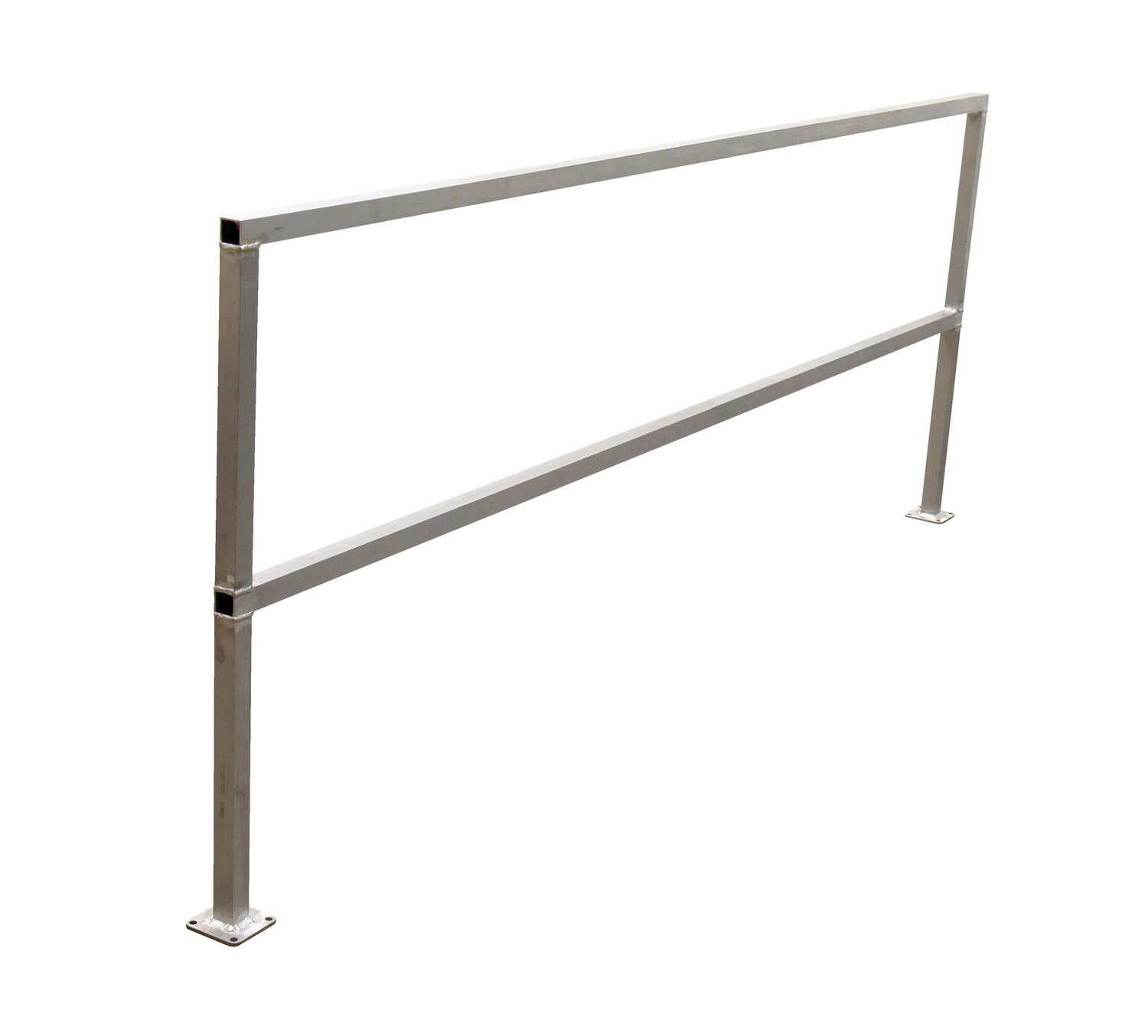

SQ-A-108 SQ-A-108Aluminum Safety Handrail 110-1/2 In. x 4 In. x 42 In. SilverSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-1/8		92

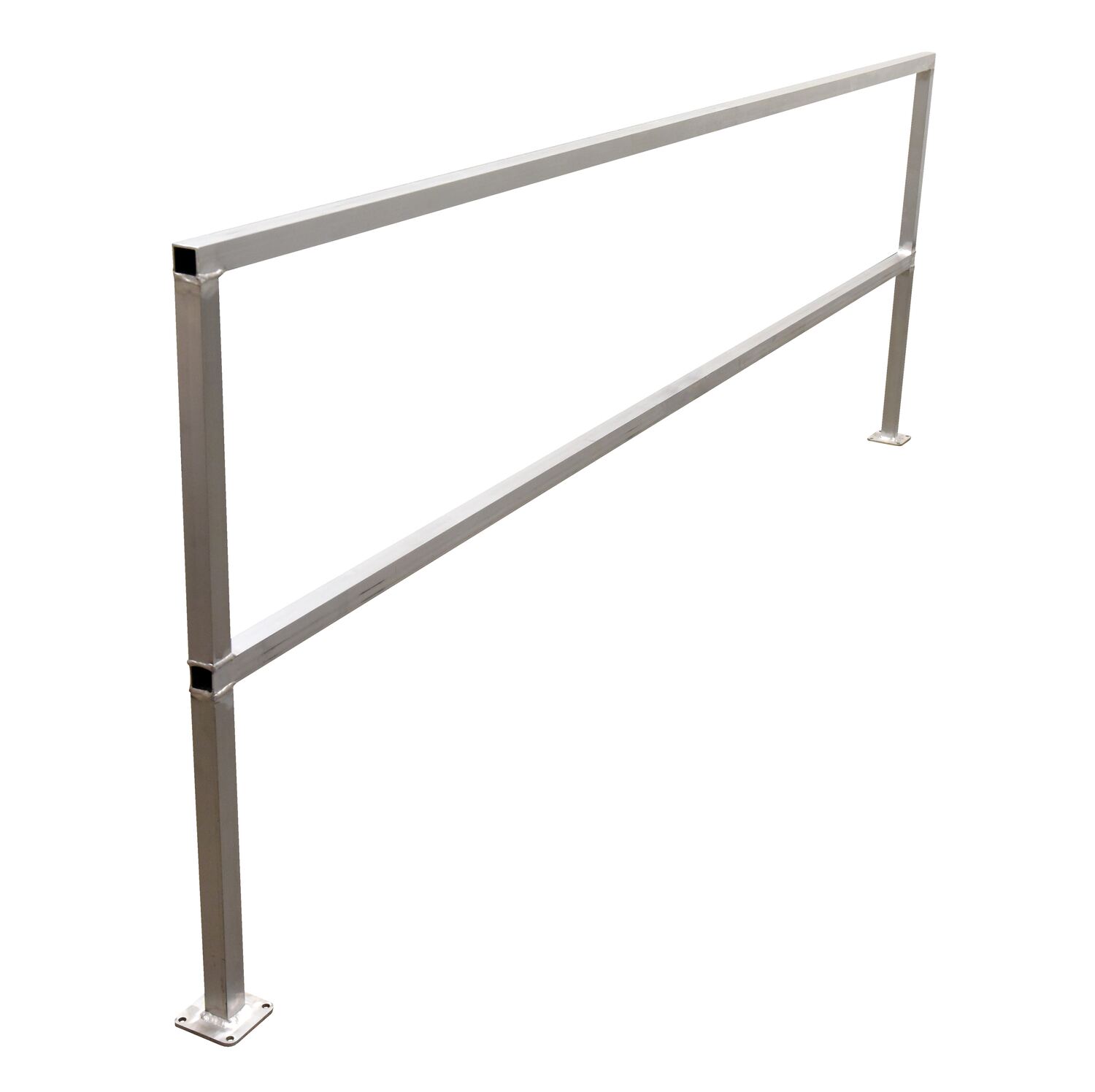

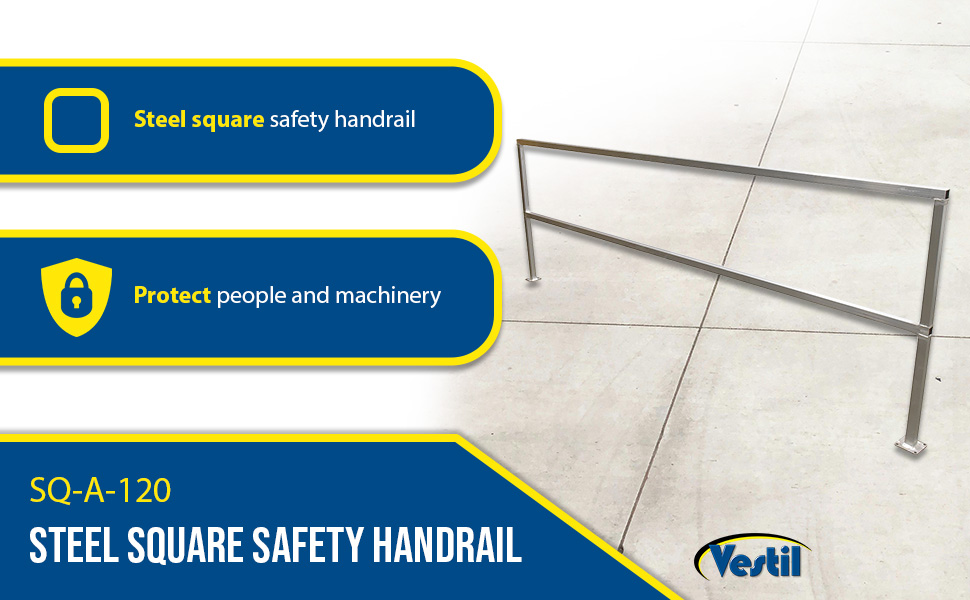

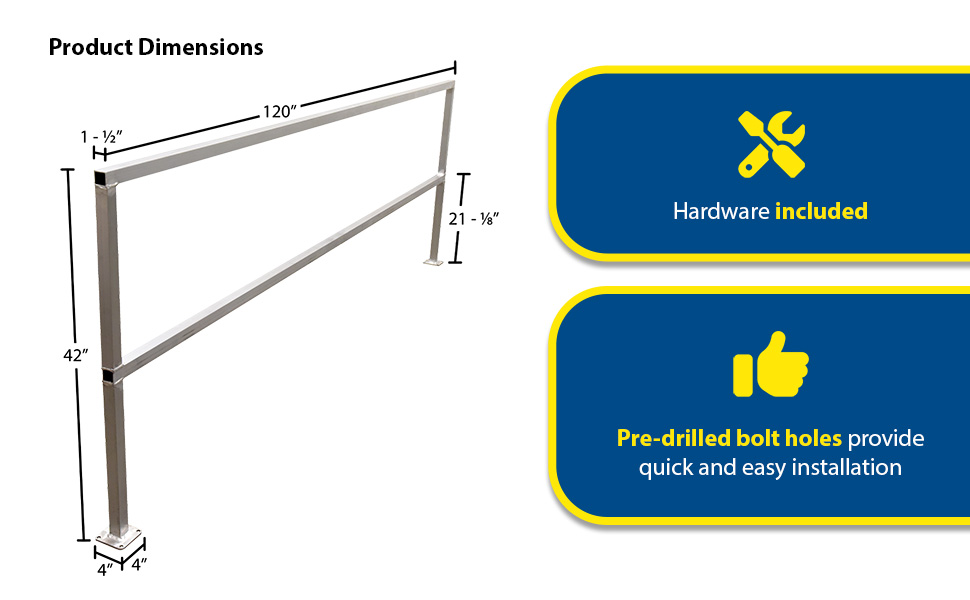

SQ-A-120 SQ-A-120Aluminum Safety Handrail 122-1/2 In. x 4 In. x 42 In. SilverSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-1/8		96

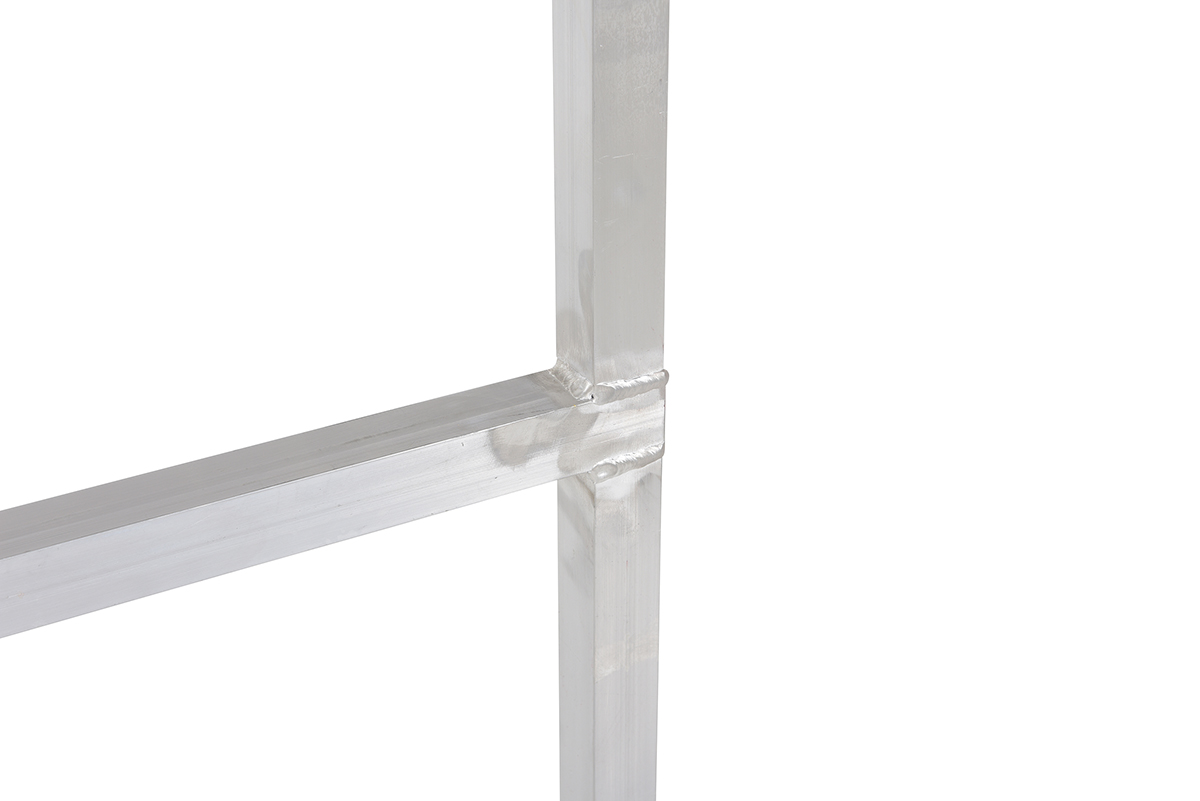

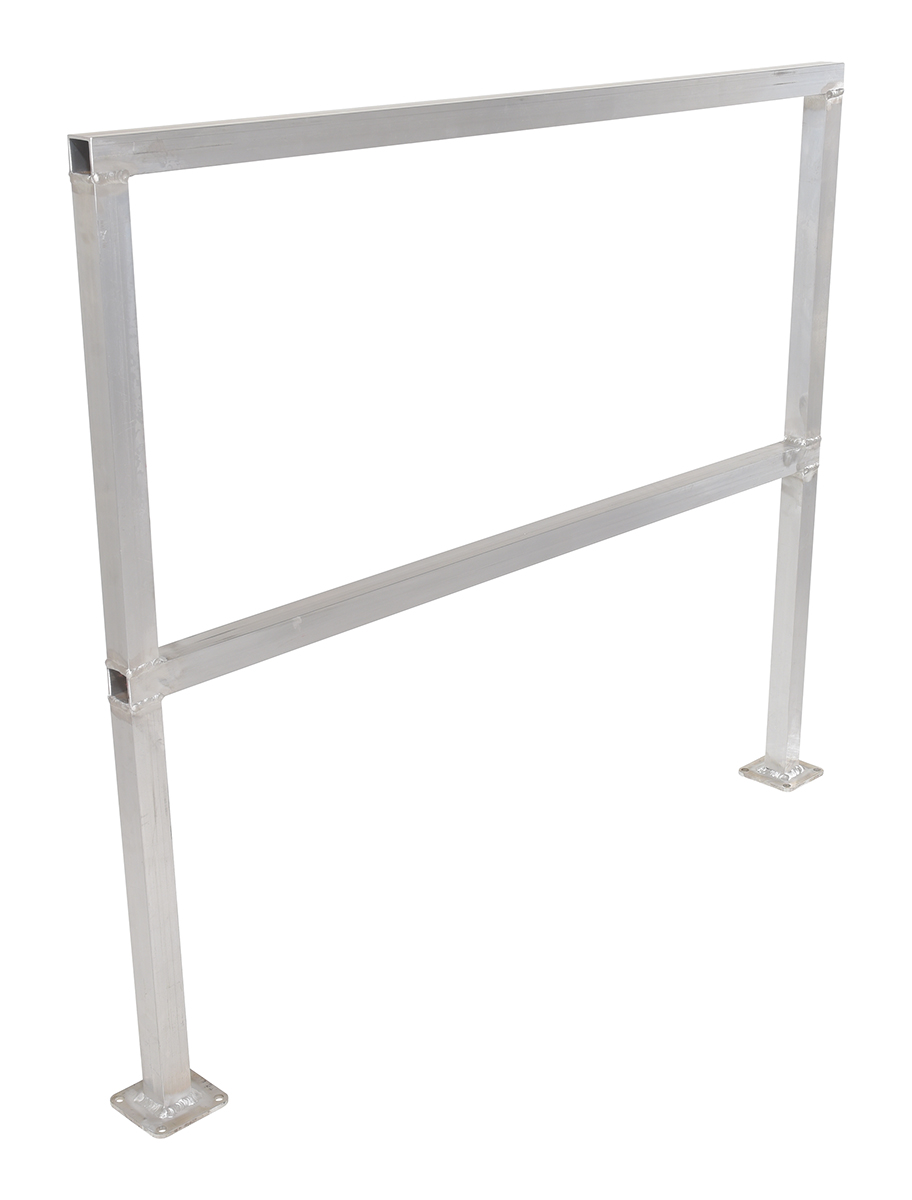

SQ-A-48 SQ-A-48Aluminum Safety Handrail 50-1/2 In. x 4 In. x 42 In. SilverSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-1/8		15

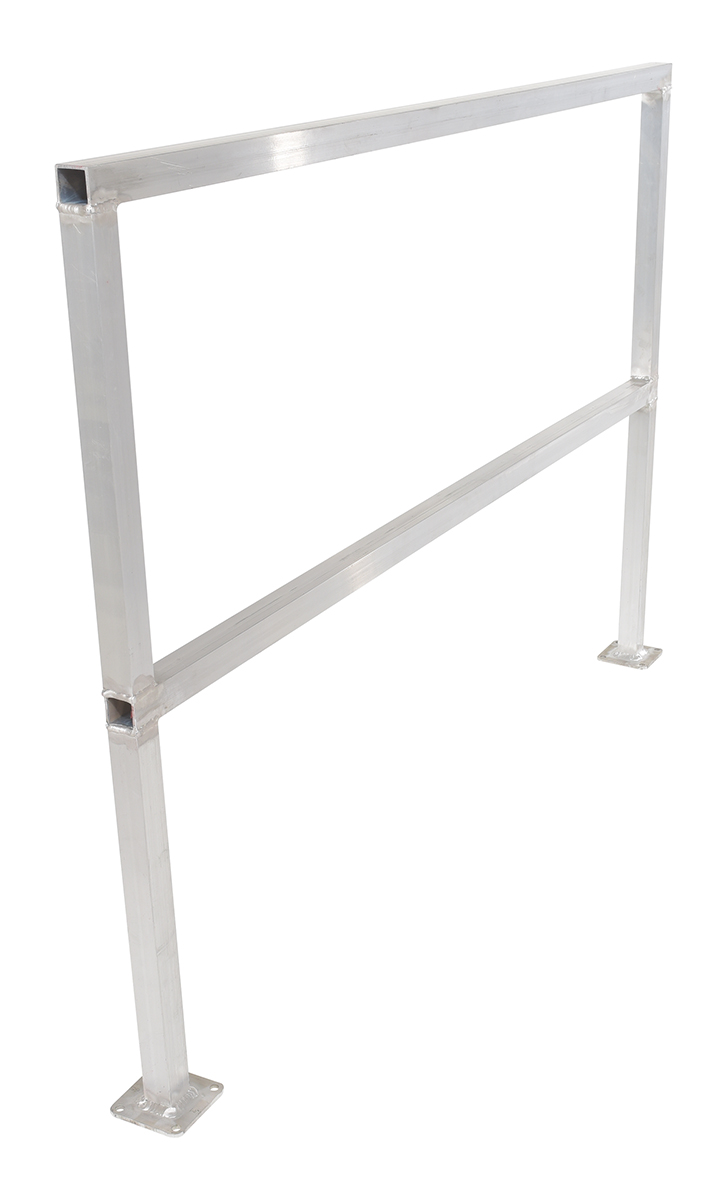

SQ-A-60 SQ-A-60Aluminum Safety Handrail 62-1/2 In. x 4 In. x 42 In. SilverSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-1/8		17

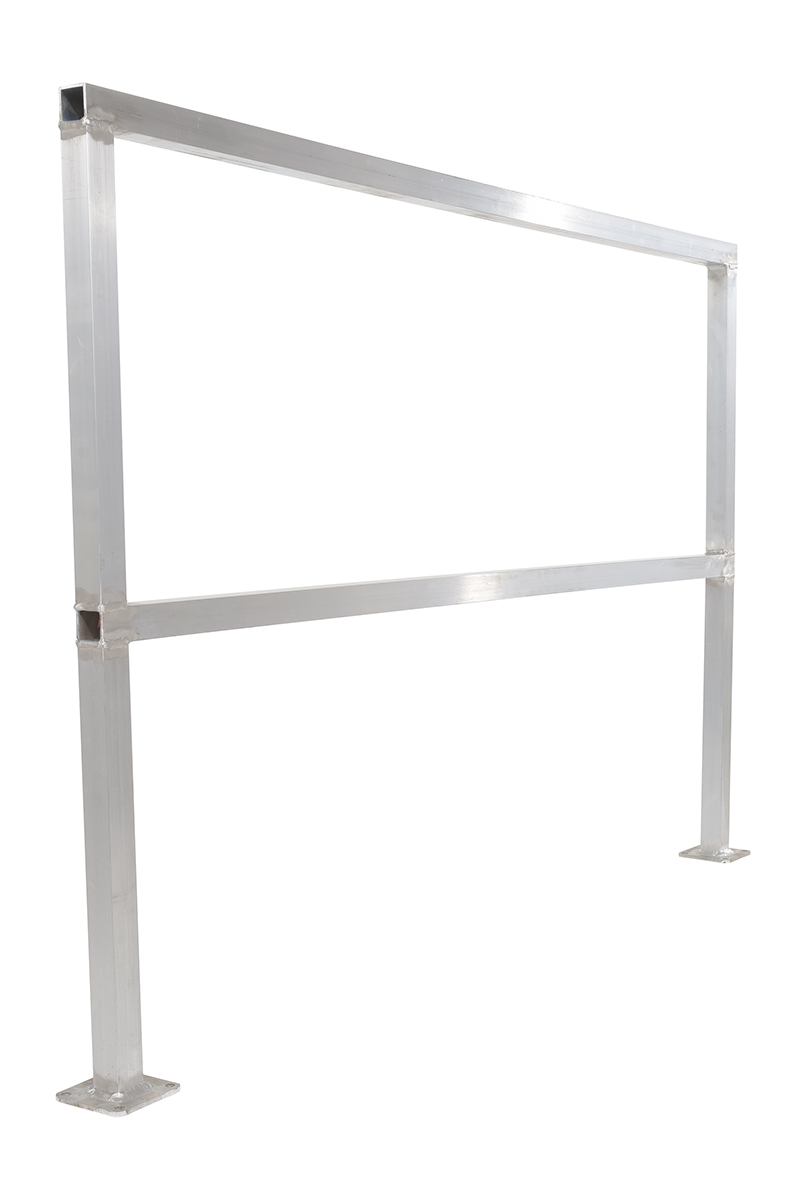

SQ-A-72 SQ-A-72Aluminum Safety Handrail 74-1/2 In. x 4 In. x 42 In. SilverSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-1/8		58

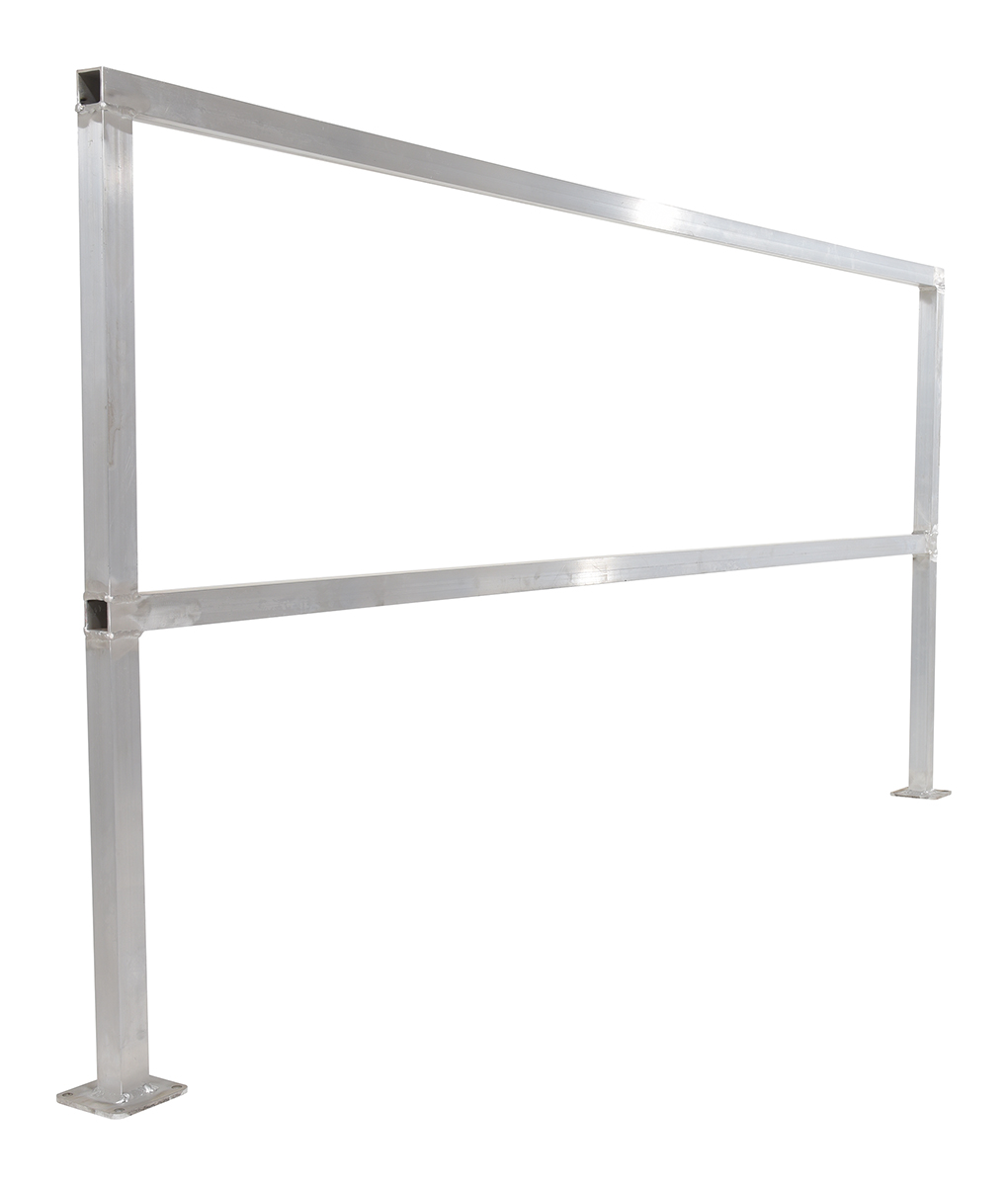

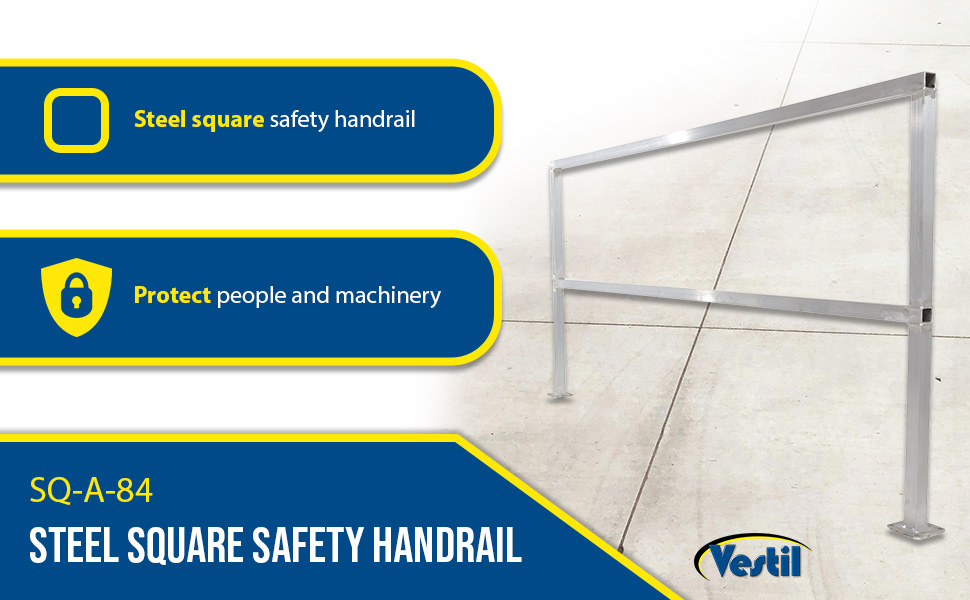

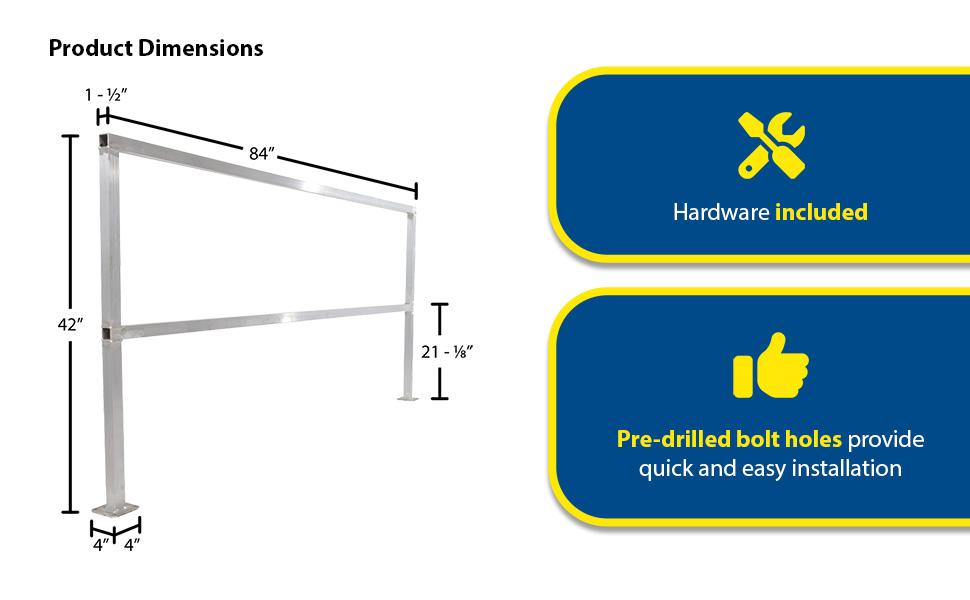

SQ-A-84 SQ-A-84Aluminum Safety Handrail 86-1/2 In. x 4 In. x 42 In. SilverSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-1/8		60

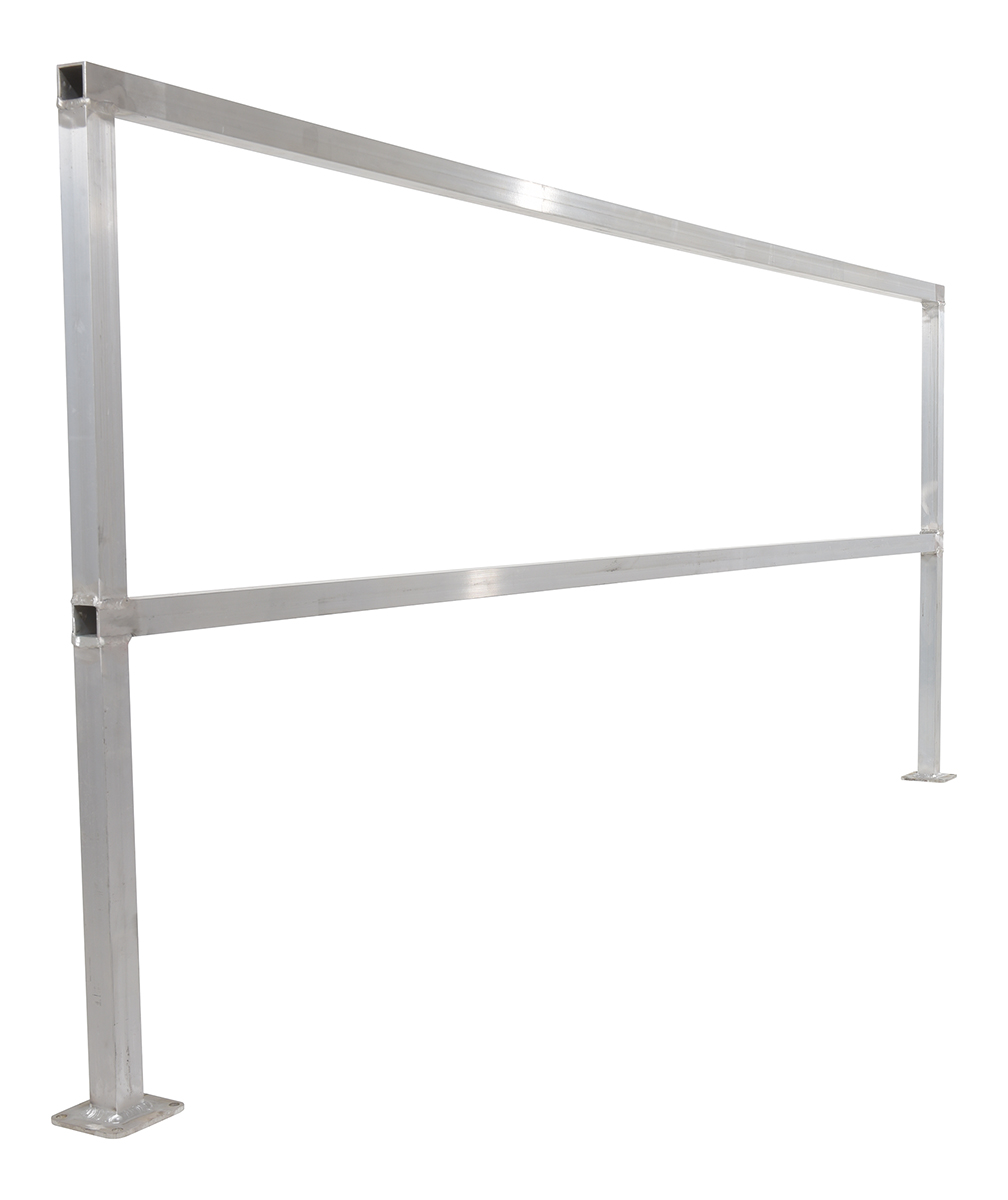

SQ-A-96 SQ-A-96Aluminum Safety Handrail 98-1/2 In. x 4 In. x 42 In. SilverSquare Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-1/8		88

Options


Model Image PDFs Description Wt (lbs.)
AS-383 - Concrete Anchor Bolts (1) 3/8"x3" 1
AS-383-4PK - Concrete Anchor Bolts (4) 3/8"x3" 4
