Alternating-Tread Stairs

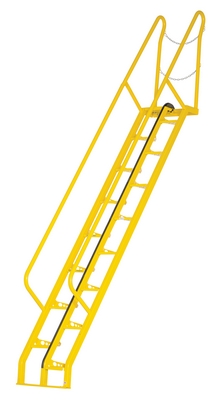

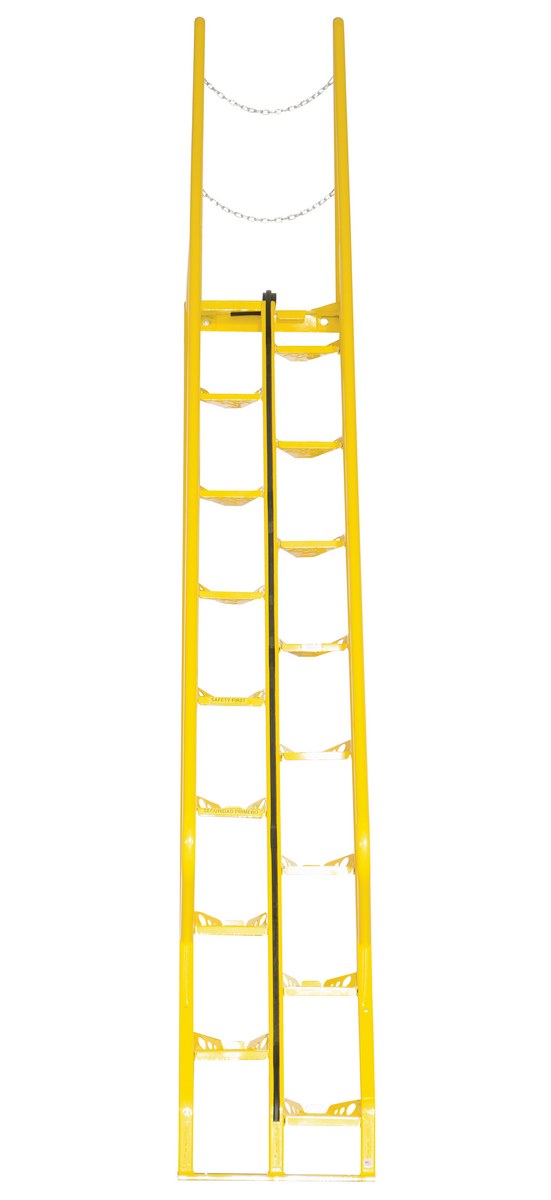

model: ATS-10-56

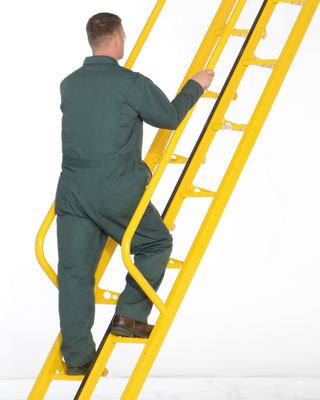

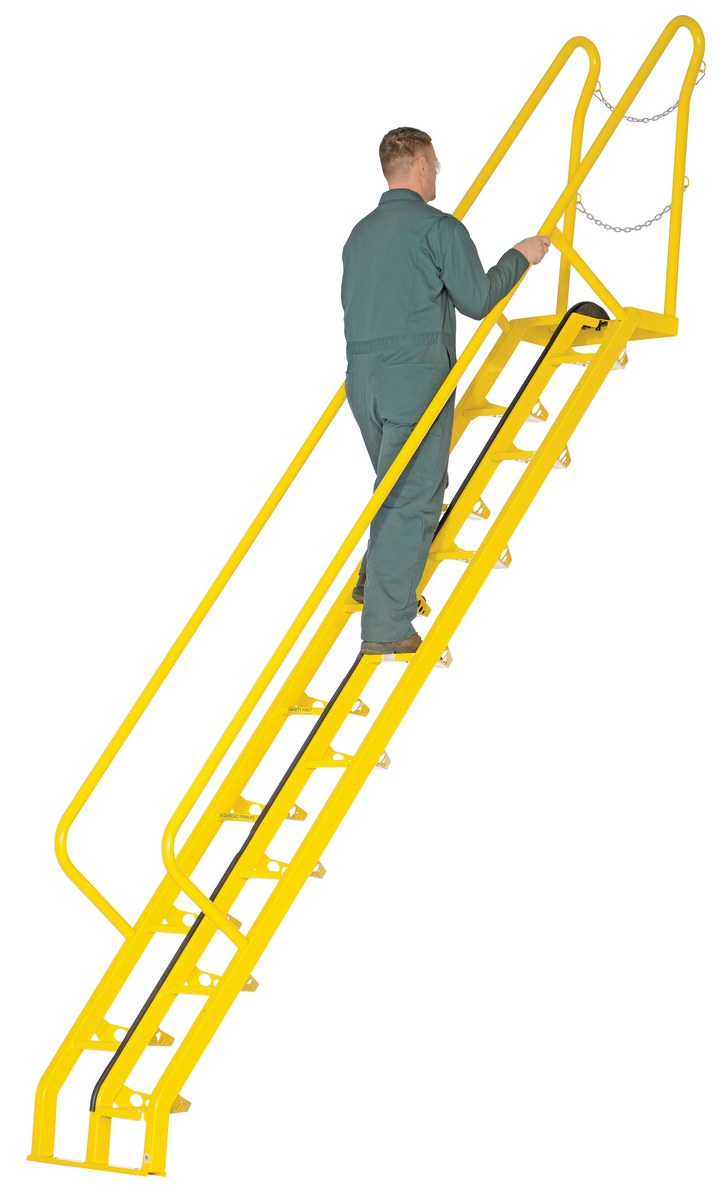

ATS-10-56_D.jpg ATS-10-56_A.jpg ATS-10-56_B.jpg ATS-10-56_C.jpg ATS-10-56_E.jpg ATS-10-56_1.jpg ATS-10-56_2.jpg More Images +

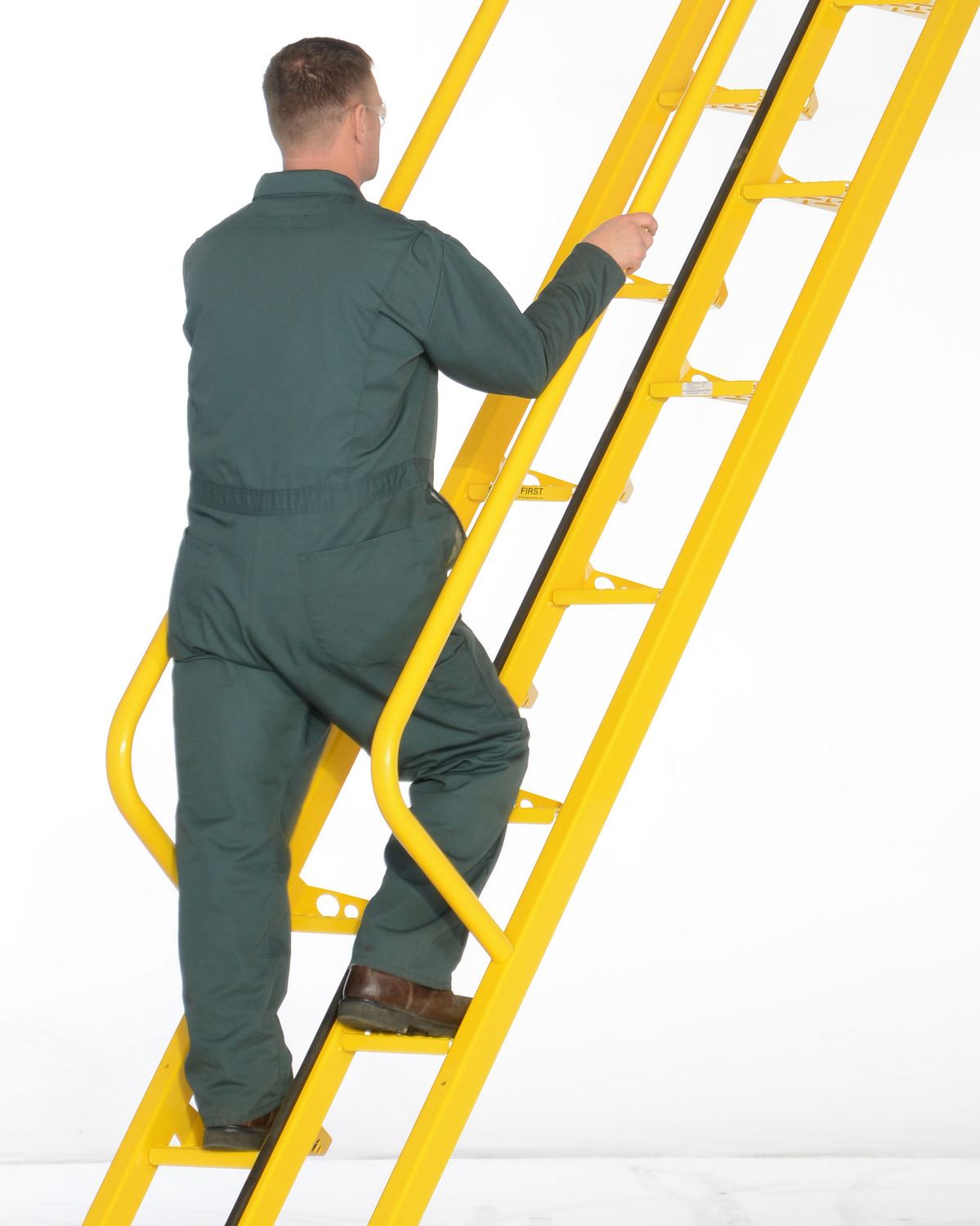

Alternating-Tread Stairs
SERIES: ATS

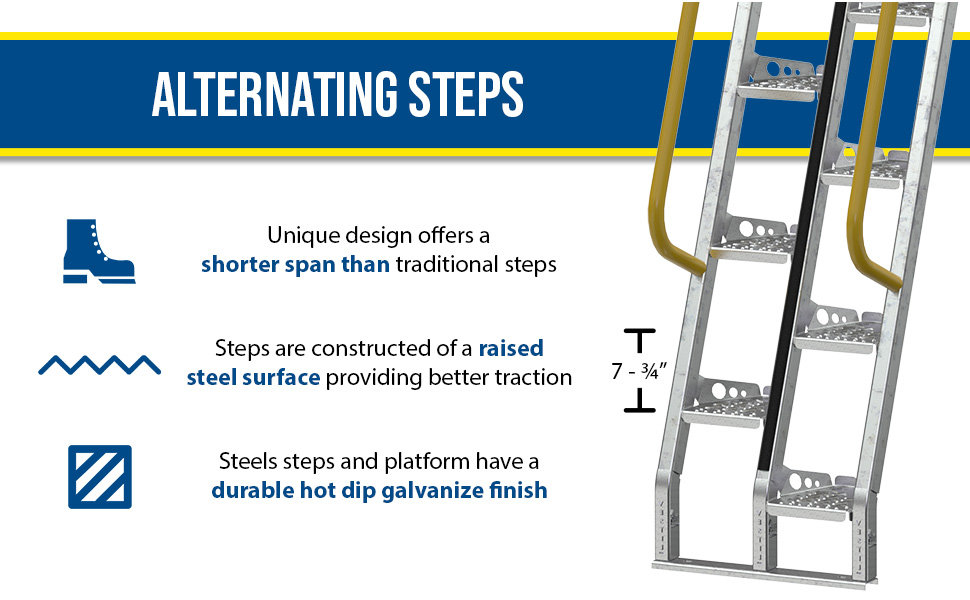

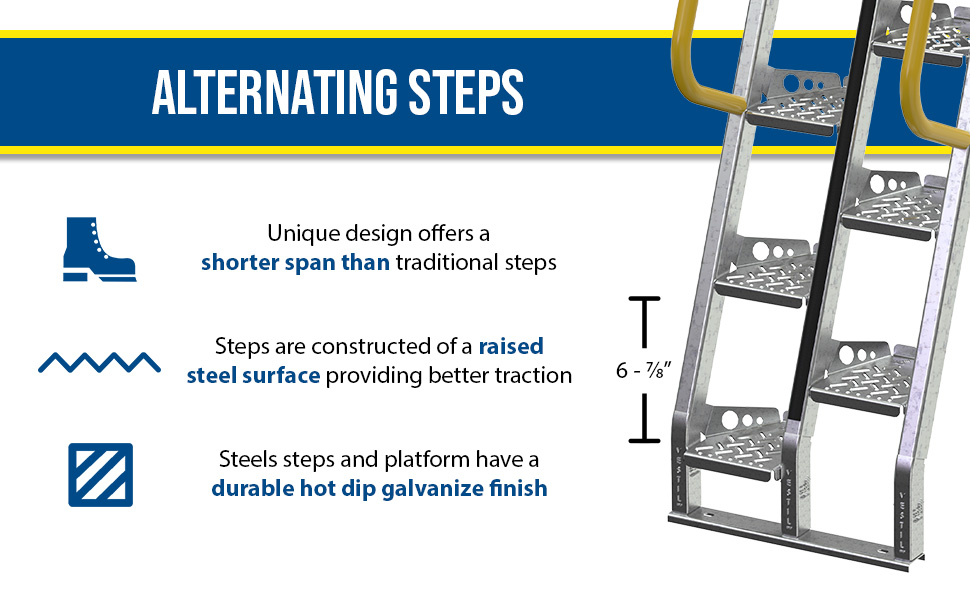

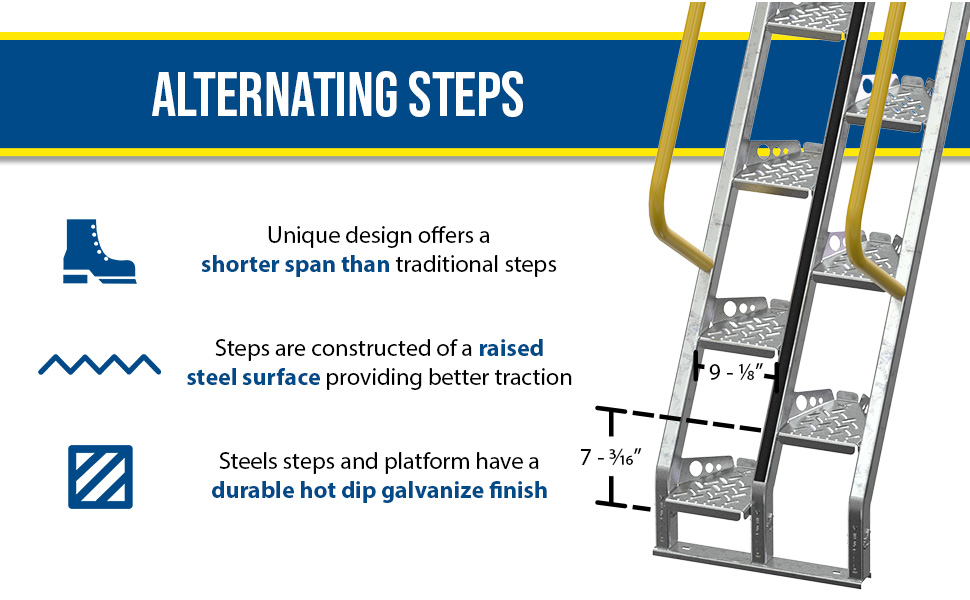

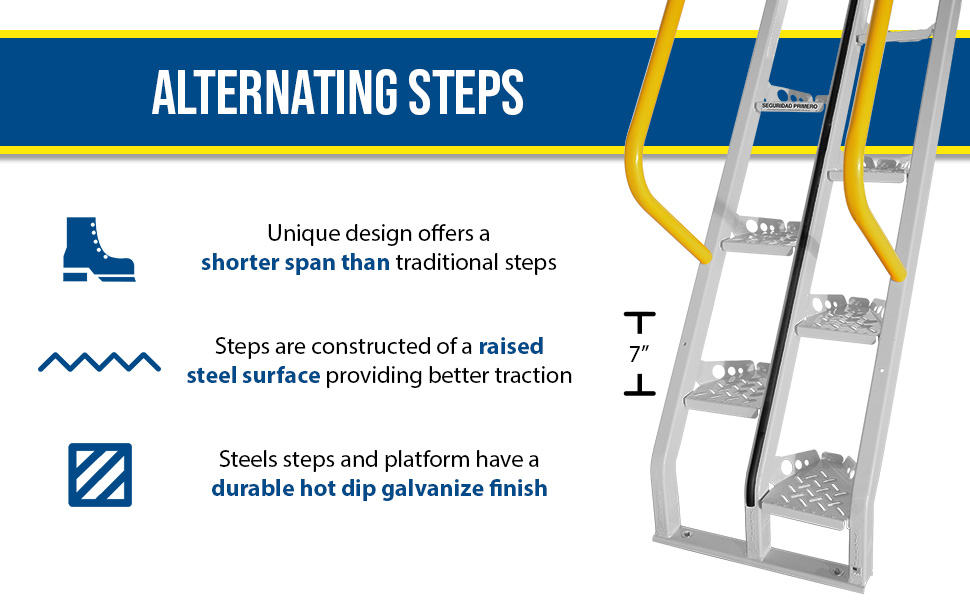

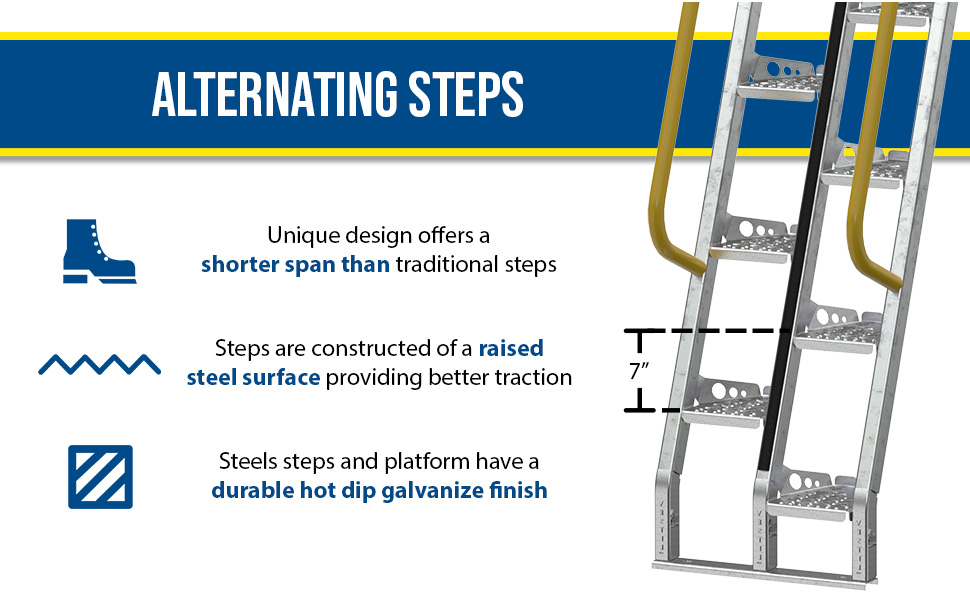

Alternating-Tread Step design offers a shorter span than traditional steps. Features a handrail on each side of unit and formed steel steps with raised surfaces for better traction. Welded steel construction with bolt-on handrails. Baked-in powder coat finish for added toughness. Meets OSHA specification 29 CFR 1910.25(f). Ships knockdown for lower freight costs.

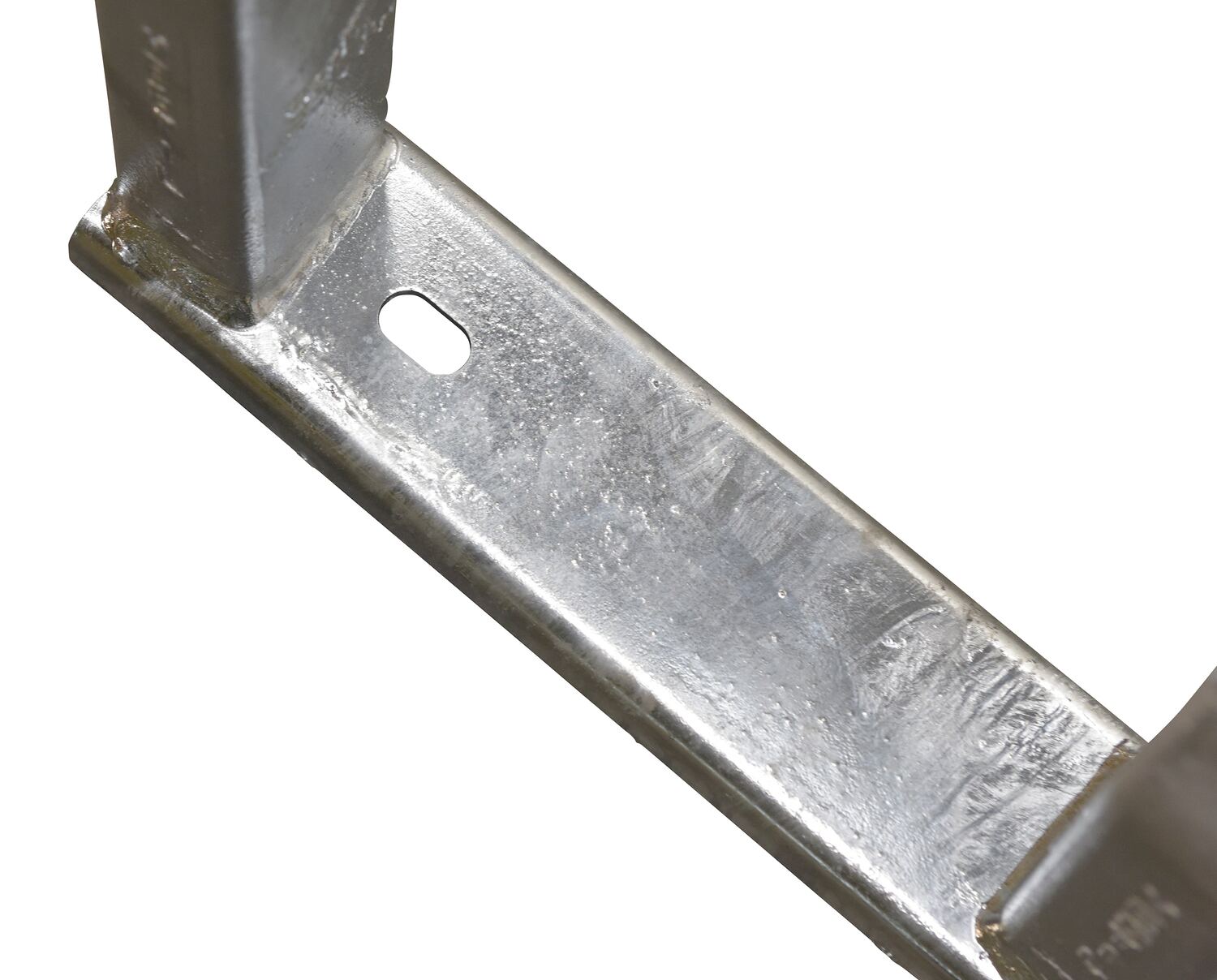

Models ending in -HDG have hot dip galvanized steel steps. Handrails have a yellow powder coat finish.

  • Great for condensed work areas

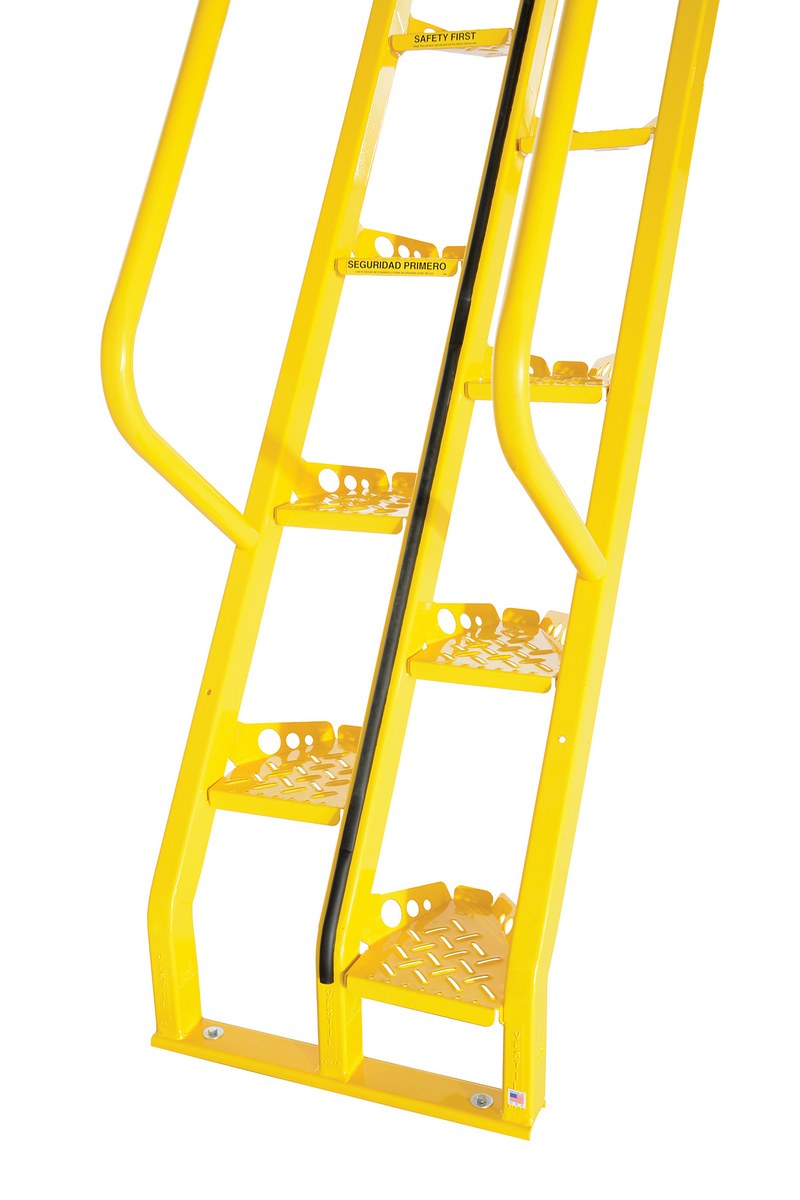

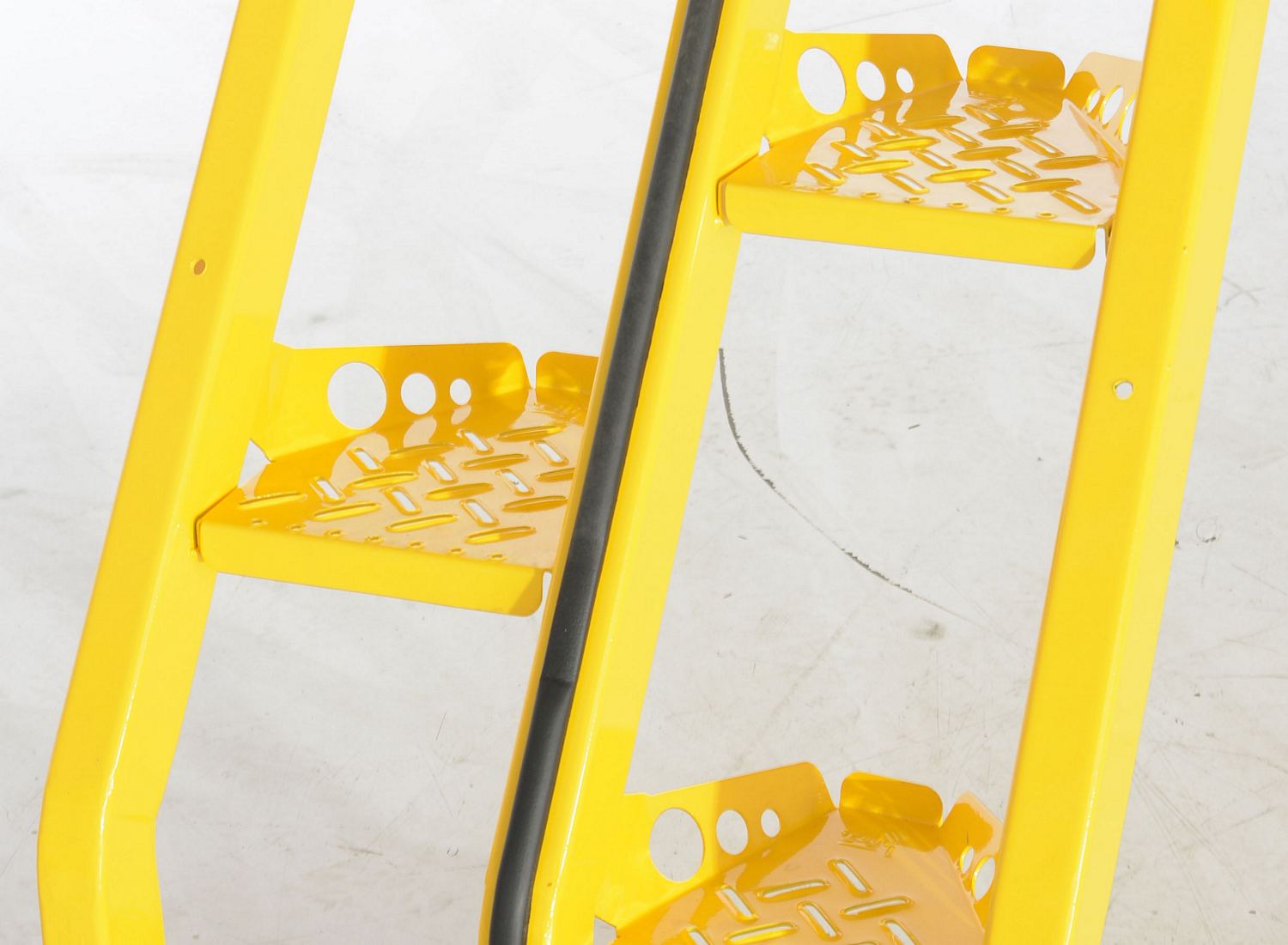

  • Treaded step design for sure footing
  • 56 and 68 degree climbing angles available

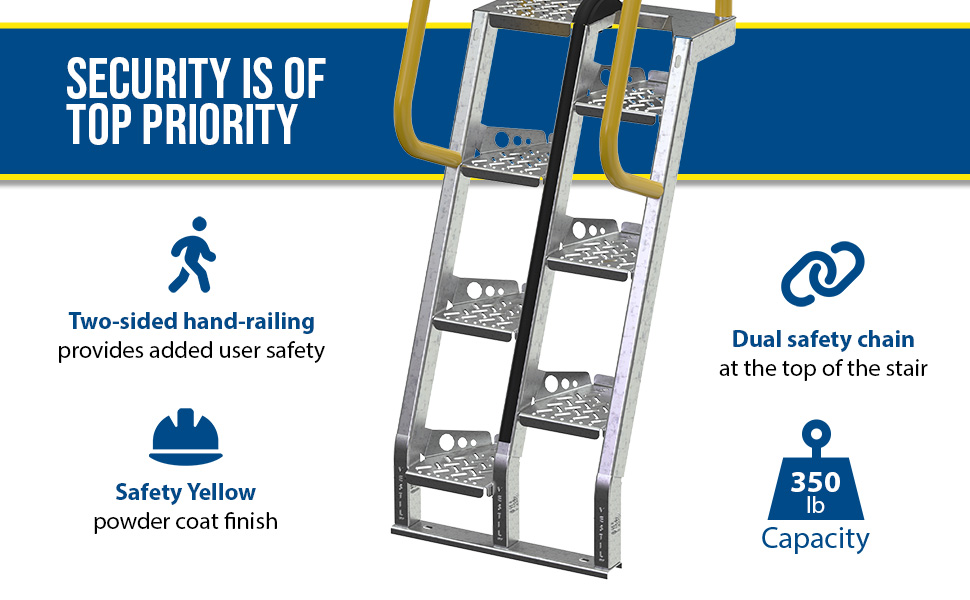

  • Dual safety chain gate included

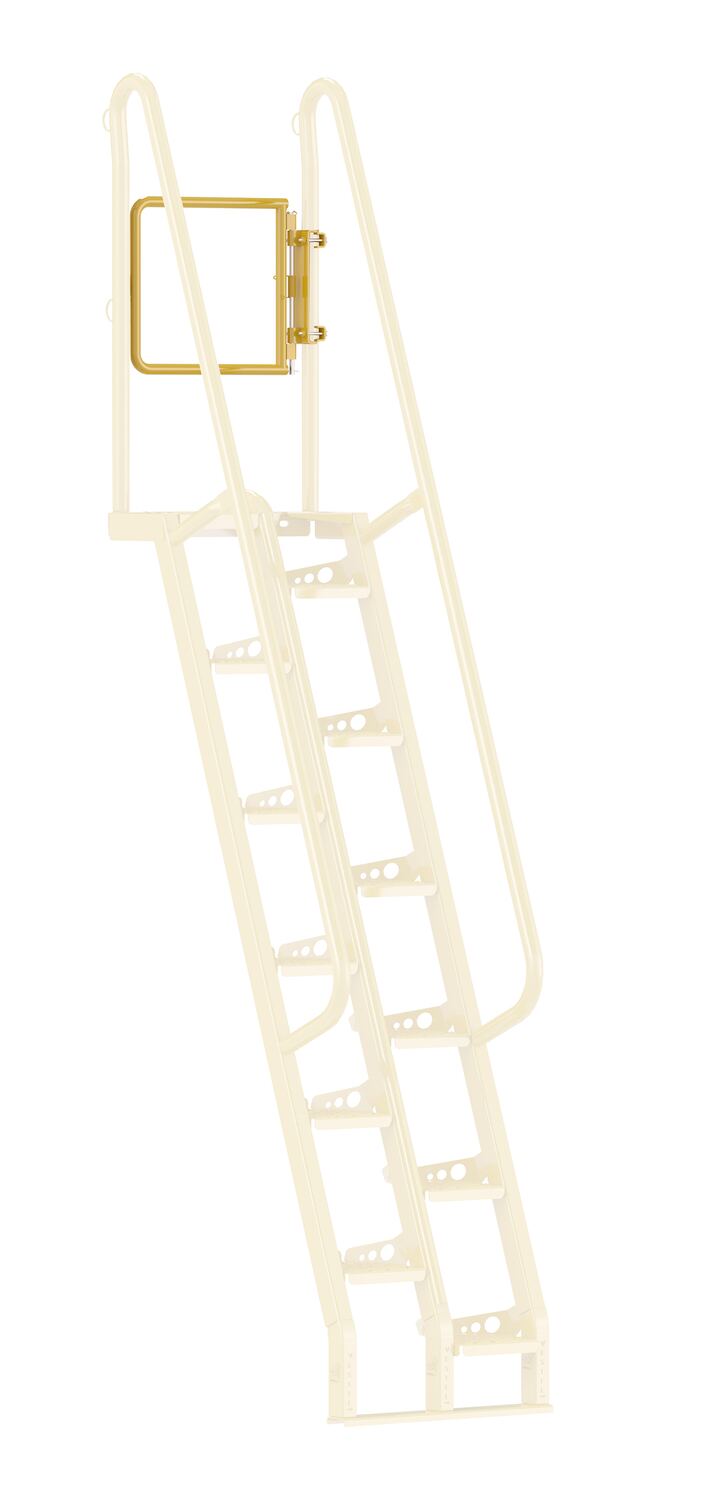

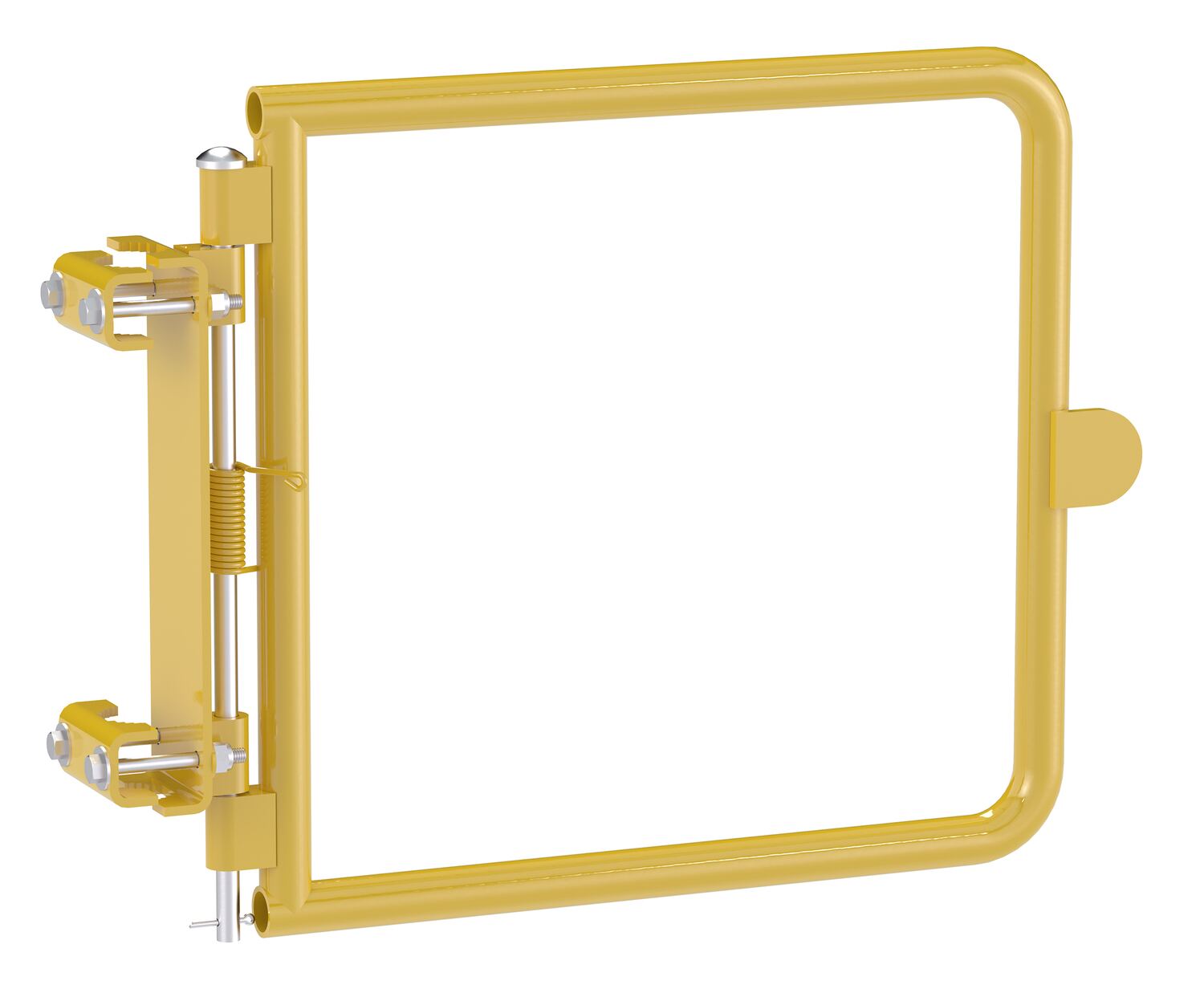

ATS-SCGOptional Self Closing Gate

Often times the top step of a ladder is left open, with no railing. This optional gate brings the two ladder side rails together, providing much needed personnel protection. The gate includes a top and bottom rail ensuring high and low user safety.

Alternating-Tread Stairs

model: ATS-10-56

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
ATS-10-56
ATS-10-56-HDG
ATS-10-68
ATS-10-68-HDG
ATS-11-56
ATS-11-56-HDG
ATS-11-68
ATS-11-68-HDG
ATS-12-56
ATS-12-56-HDG
ATS-12-68
ATS-12-68-HDG
ATS-13-56
ATS-13-56-HDG
ATS-13-68
ATS-13-68-HDG
ATS-14-56
ATS-14-56-HDG
ATS-14-68
ATS-14-68-HDG
ATS-4-56
ATS-4-56-HDG
ATS-4-68
ATS-4-68-HDG
ATS-5-56
ATS-5-56-HDG
ATS-5-68
ATS-5-68-HDG
ATS-6-56
ATS-6-56-HDG
ATS-6-68
ATS-6-68-HDG
ATS-7-56
ATS-7-56-HDG
ATS-7-68
ATS-7-68-HDG
ATS-8-56
ATS-8-56-HDG
ATS-8-68
ATS-8-68-HDG
ATS-9-56
ATS-9-56-HDG
ATS-9-68
ATS-9-68-HDG
ATS-SCG
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.
ATS-SCG ATS-SCGSteel Alternating Tread Step Self-Closing Gate Steel Yellow16

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

ATS

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

ATS-4-56

ATS-4-56-HDG

ATS-4-68

ATS-4-68-HDG

ATS-5-56

ATS-5-56-HDG

ATS-5-68

ATS-5-68-HDG

ATS-6-56

ATS-6-56-HDG

ATS-6-68

ATS-6-68-HDG

ATS-7-56

ATS-7-56-HDG

ATS-7-68

ATS-7-68-HDG

ATS-8-56

ATS-8-56-HDG

ATS-8-68

ATS-8-68-HDG

ATS-9-56

ATS-9-56-HDG

ATS-9-68

ATS-9-68-HDG

ATS-10-56

ATS-10-56-HDG

ATS-10-68

ATS-10-68-HDG

ATS-11-56

ATS-11-56-HDG

ATS-11-68

ATS-11-68-HDG

ATS-12-56

ATS-12-56-HDG

ATS-12-68

ATS-12-68-HDG

ATS-13-56

ATS-13-56-HDG

ATS-13-68

ATS-13-68-HDG

ATS-14-56

ATS-14-56-HDG

ATS-14-68

ATS-14-68-HDG

ATS-SCG

Testing Certificates

ATS-10-56

ATS-10-56-HDG

ATS-10-68

ATS-10-68-HDG

ATS-11-56

ATS-11-56-HDG

ATS-11-68

ATS-11-68-HDG

ATS-12-56

ATS-12-56-HDG

ATS-12-68

ATS-12-68-HDG

ATS-13-56

ATS-13-56-HDG

ATS-13-68

ATS-13-68-HDG

ATS-14-56

ATS-14-56-HDG

ATS-14-68

ATS-14-68-HDG

ATS-4-56

ATS-4-56-HDG

ATS-4-68

ATS-4-68-HDG

ATS-5-56

ATS-5-56-HDG

ATS-5-68

ATS-5-68-HDG

ATS-6-56

ATS-6-56-HDG

ATS-6-68

ATS-6-68-HDG

ATS-7-56

ATS-7-56-HDG

ATS-7-68

ATS-7-68-HDG

ATS-8-56

ATS-8-56-HDG

ATS-8-68

ATS-8-68-HDG

ATS-9-56

ATS-9-56-HDG

ATS-9-68

ATS-9-68-HDG

ATS-SCG

SDS Sheets

No SDS Sheets For This Product

Other PDFs


Self-Closing Gate for Alternating Tread Stairs Mailing Brochure







Visit Our Youtube Channel For All Available Videos For All Products
Reference #: CF-6003 Wall Mounted Stair Platform
 Reference #: CF-6003 Wall Mounted Stair Platform
Reference #: CF-6003 Wall Mounted Stair Platform
Special Wall Mounted Stair Platform
For more Specialty Designs similar to these... Click Here
What is the diameter of the handrail on the ATS-8-68?
The handrail has a 1-1/4" diameter.
I see that you do custom designs on these ladders. What is the maximum height?
The ATS-68 (68 degree step angle) can be designed up to 204" top step height.
The ATS-56 (56 degree step angle) can be designed up to 168" top step height.
Please contact a sales associate for details.
What kind of steel is used in these ladders?
Our ATS ladders are built out of ASTM A36 hot rolled steel.

Related or Similar Products:

More From Ladders





Alternating-Tread Stairs




Alternating-Tread Step design offers a shorter span than traditional steps. Features a handrail on each side of unit and formed steel steps with raised surfaces for better traction. Welded steel construction with bolt-on handrails. Baked-in powder coat finish for added toughness. Meets OSHA specification 29 CFR 1910.25(f). Ships knockdown for lower freight costs.

Models ending in -HDG have hot dip galvanized steel steps. Handrails have a yellow powder coat finish.

  • Great for condensed work areas
  • Treaded step design for sure footing
  • 56 and 68 degree climbing angles available
  • Dual safety chain gate included

ATS-SCGOptional Self Closing Gate

Often times the top step of a ladder is left open, with no railing. This optional gate brings the two ladder side rails together, providing much needed personnel protection. The gate includes a top and bottom rail ensuring high and low user safety.


Model # Description Attributes Net Wt.
(lbs)

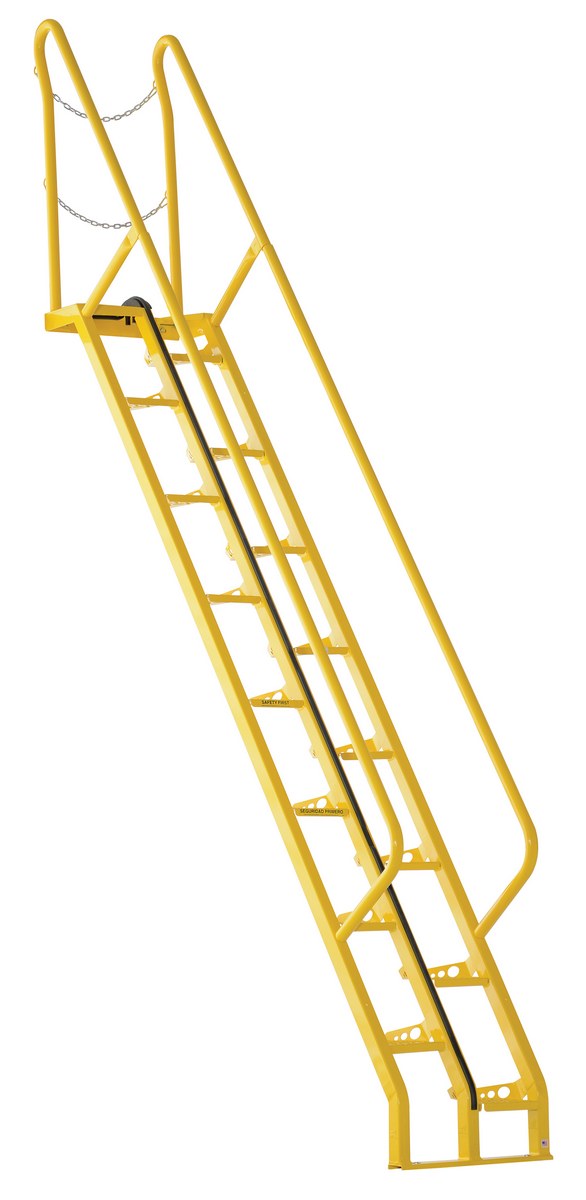

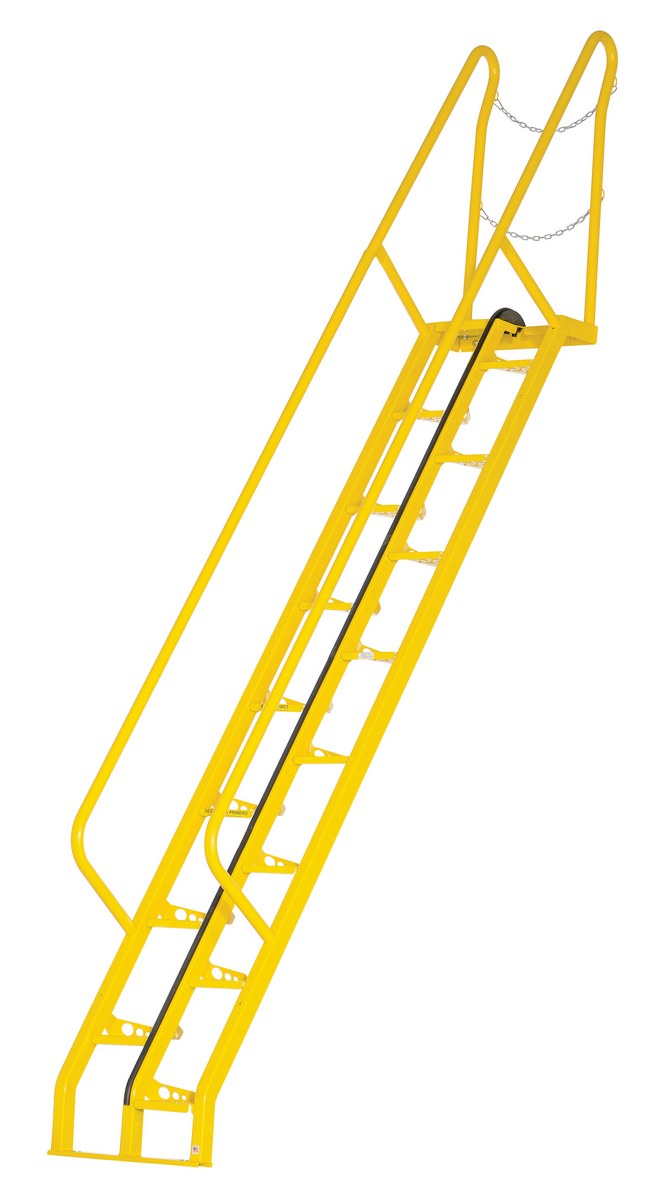

ATS-10-56 ATS-10-56Steel Alternate Tread Stair 56 Degrees 89-3/4 In. x 23-1/2 In. x 162-3/8 In. 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps (Including Top Step): 16		312

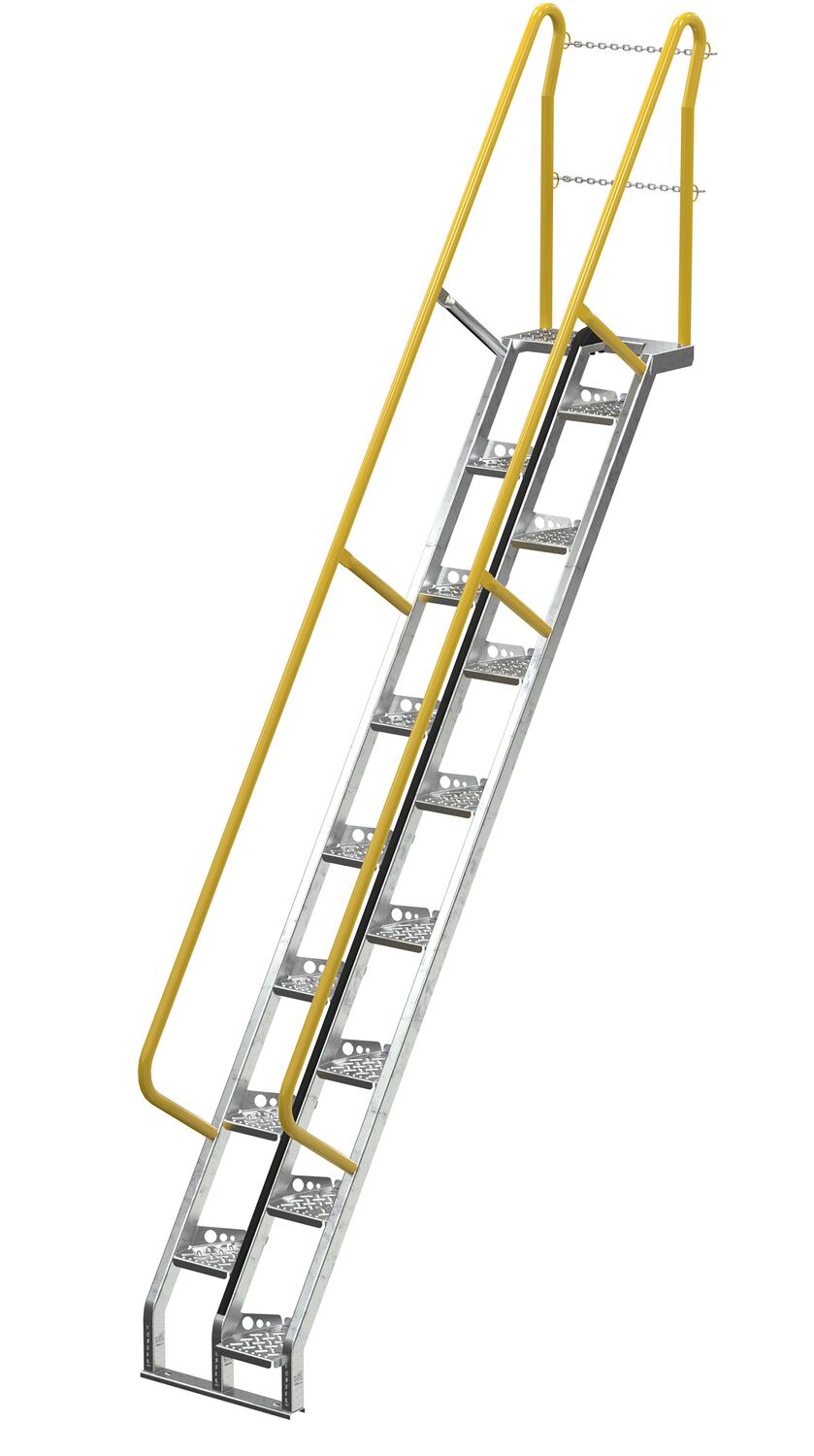

ATS-10-56-HDG ATS-10-56-HDGGalvanized Alternate Tread Stair 56 Degrees 89-3/4 In. x 23-1/2 In. x 162-3/8 In. 350 Lb. Capacity SilverUniform Capacity (lb.): 350
Number of Steps (Including Top Step): 16		312
ATS-10-68 ATS-10-68Steel Alternate Tread Stair 68 Degrees 58-7/8 In. x 23-1/2 In. x 161-7/8 In. 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 16		274

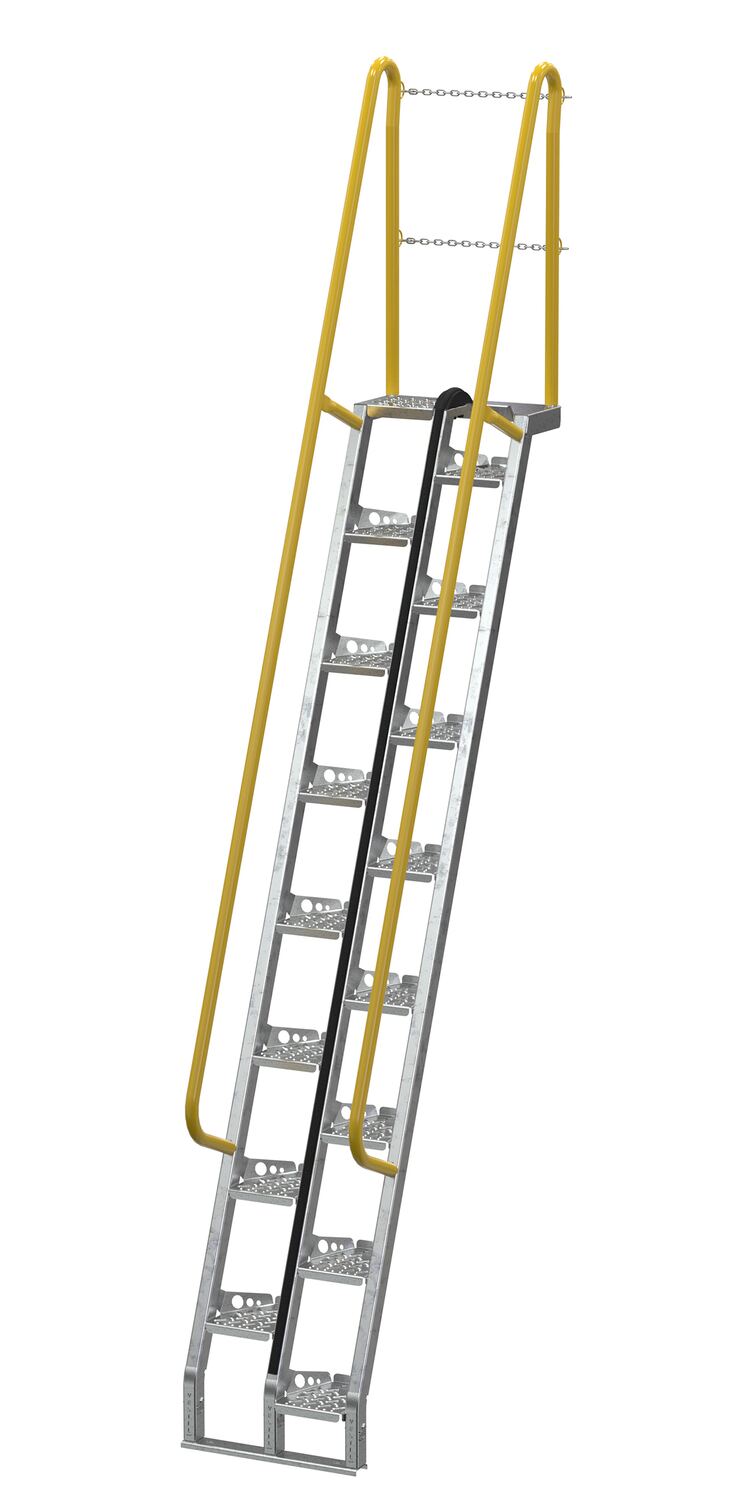

ATS-10-68-HDG ATS-10-68-HDGGalvanized Alternate Tread Stair 68 Degrees 58-7/8 In. x 23-1/2 In. x 161-7/8 In. 350 Lb. Capacity SilverUniform Capacity (lb.): 350
Number of Steps: 16		274

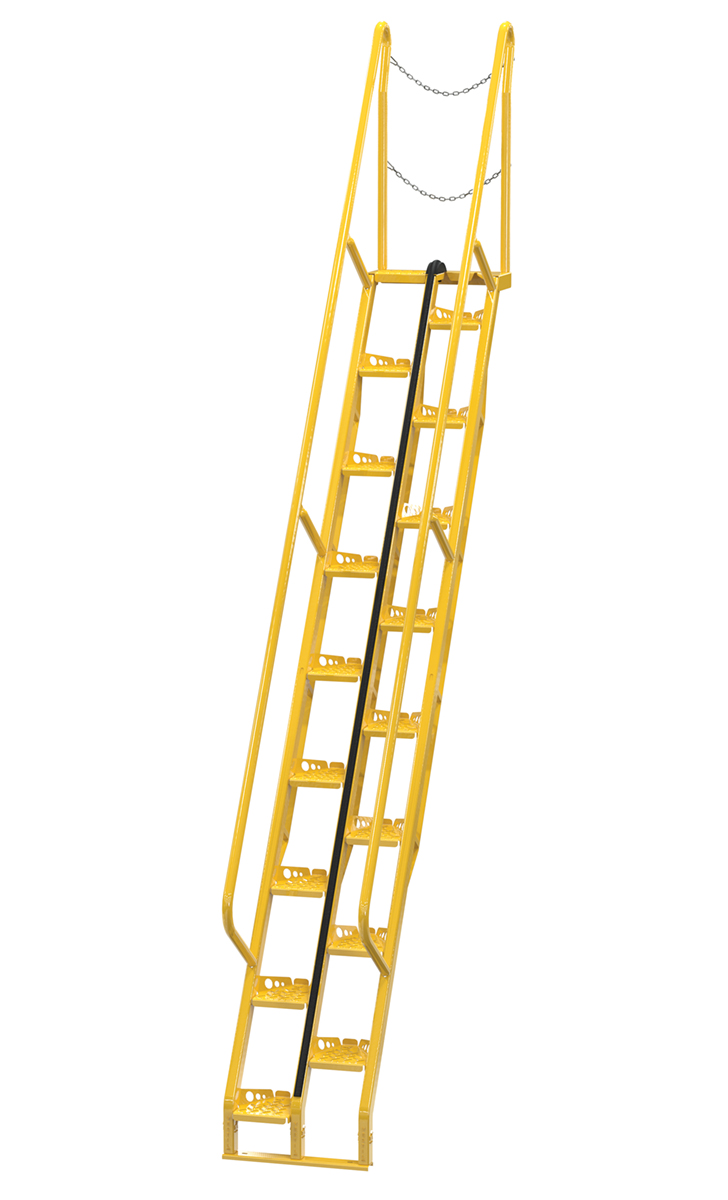

ATS-11-56 ATS-11-56Steel Alternate Tread Stair 56 Degrees 97-1/2 In. x 23-1/2 In. x 174-1/8 In. 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 17		374

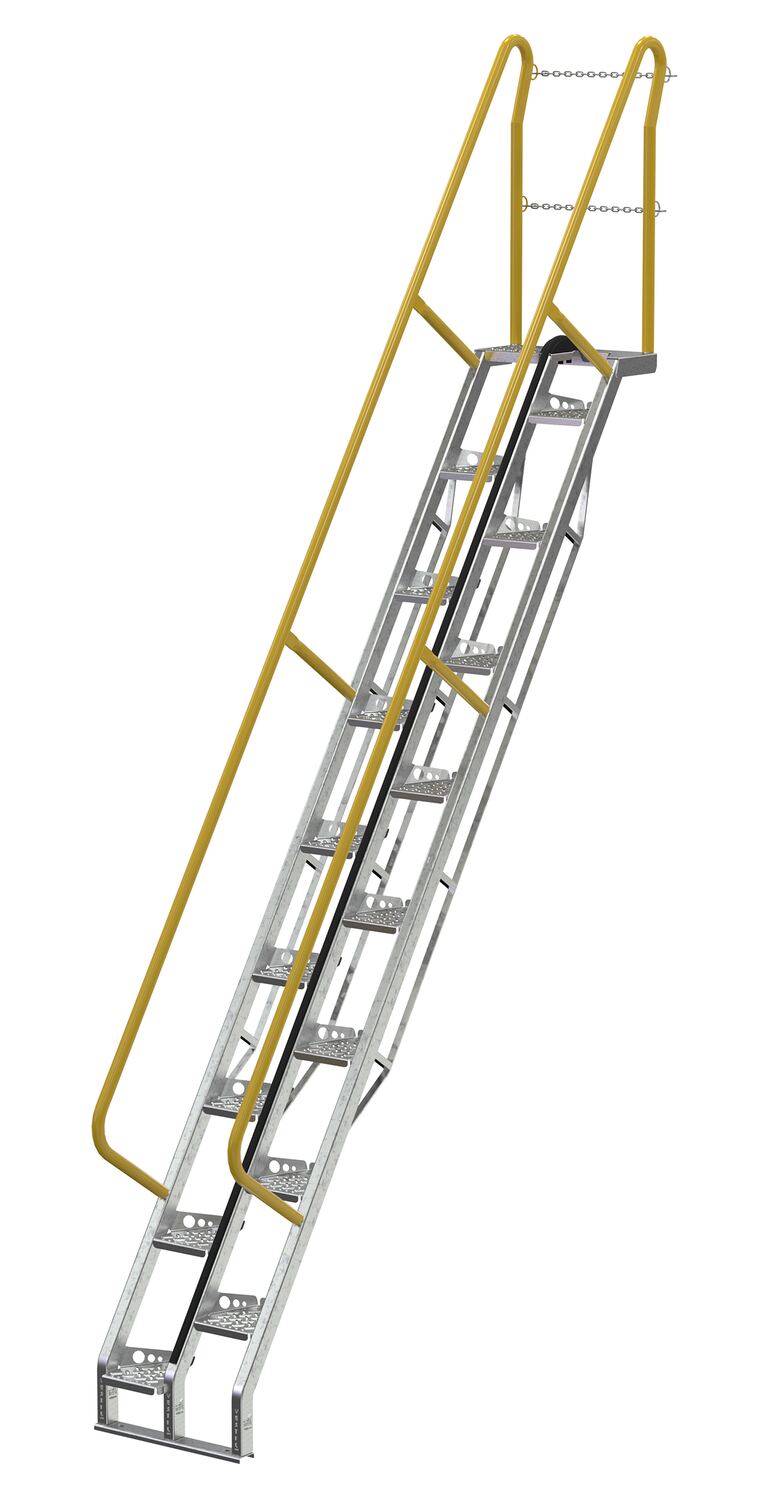

ATS-11-56-HDG ATS-11-56-HDGGalvanized Alternate Tread Stair 56 Degrees 97-1/2 In. x 23-1/2 In. x 174-1/8 In. 350 Lb. Capacity SilverUniform Capacity (lb.): 350
Number of Steps: 17		374

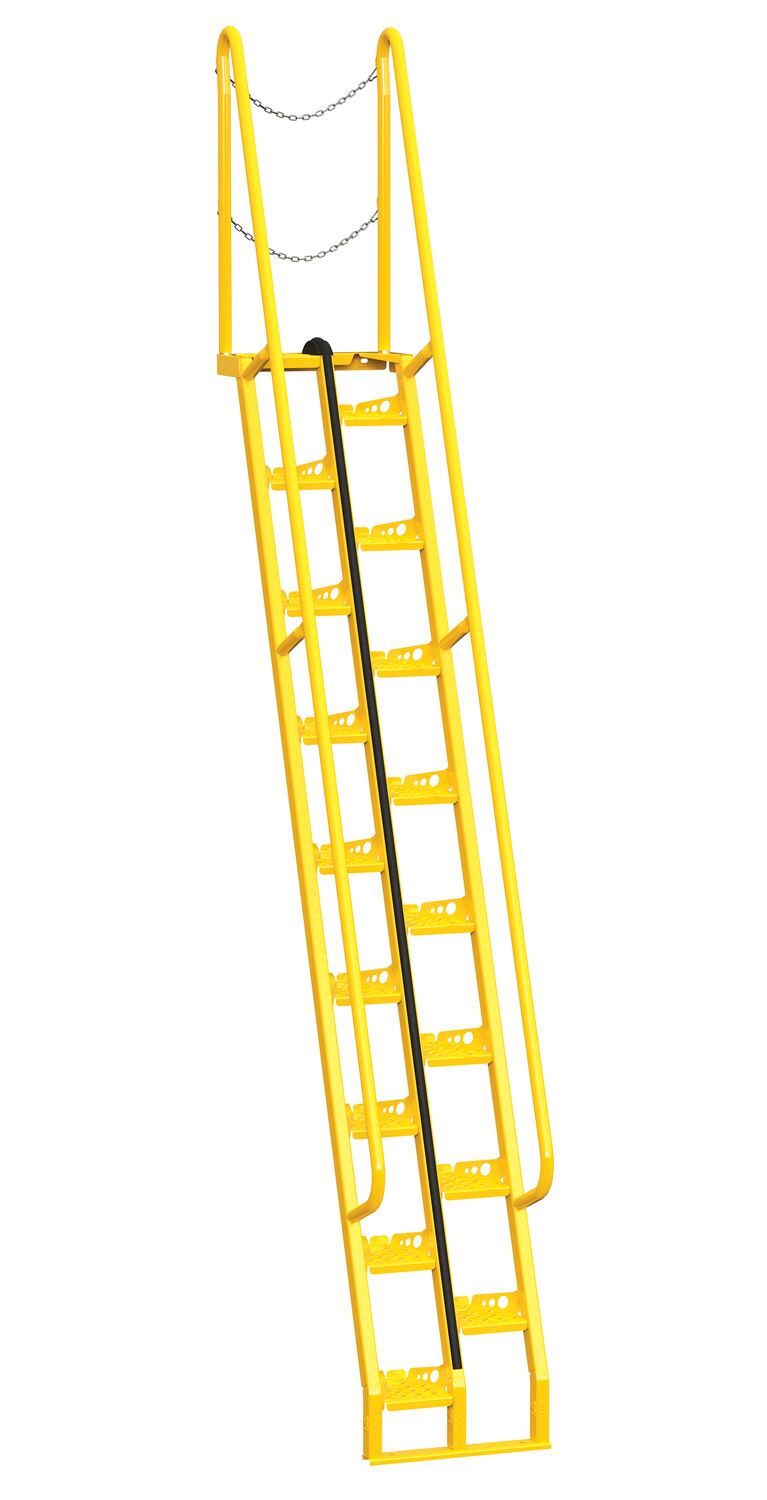

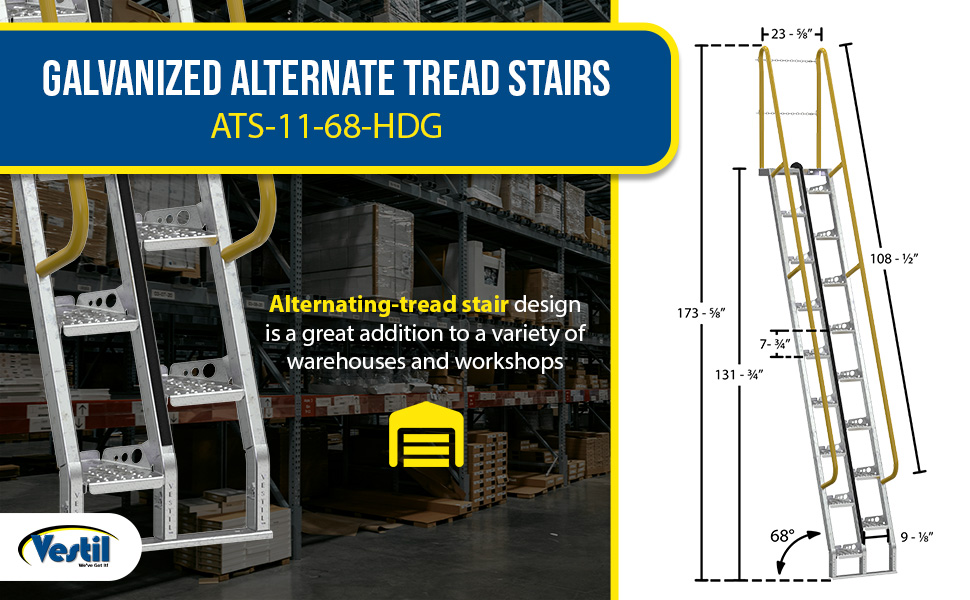

ATS-11-68 ATS-11-68Steel Alternate Tread Stair 68 Degrees 63-1/2 In. x 23-1/2 In. x 173-5/8 In. 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 17		298

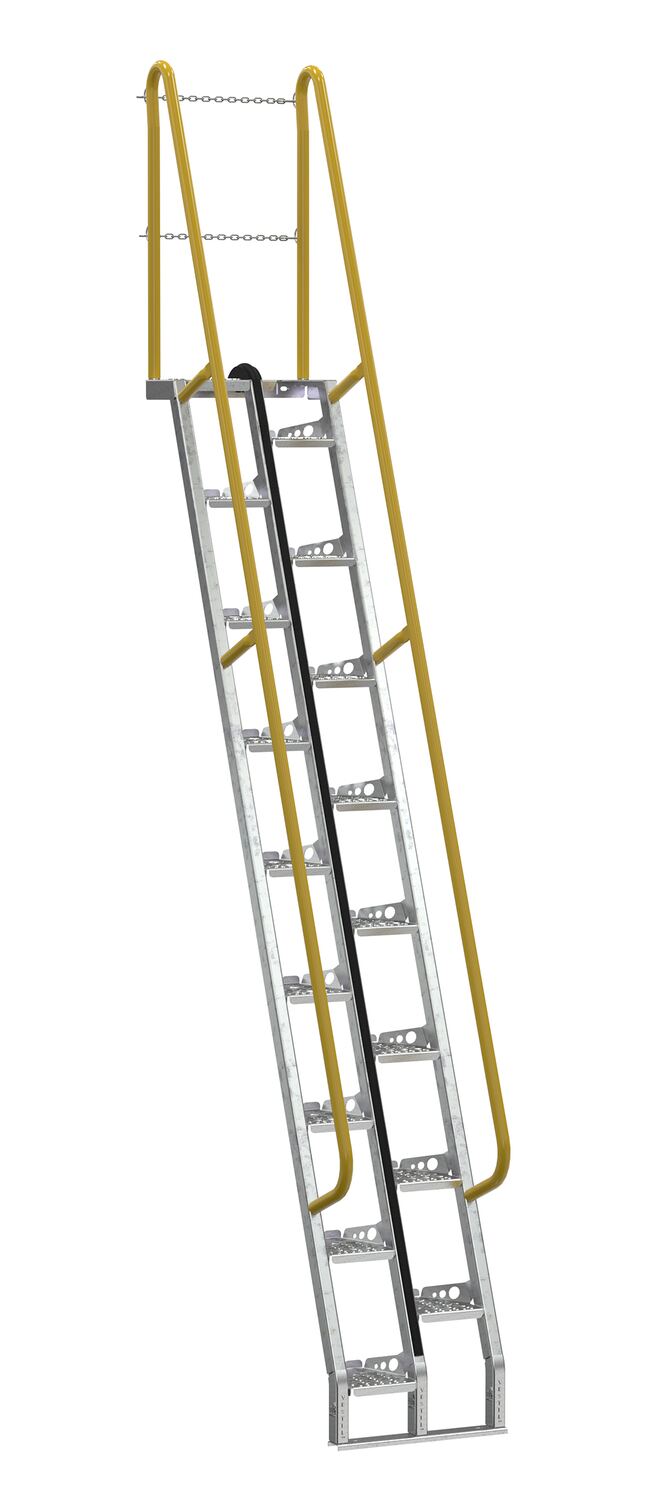

ATS-11-68-HDG ATS-11-68-HDGGalvanized Alternate Tread Stair 68 Degrees 63-1/2 In. x 23-1/2 In. x 173-5/8 In. 350 Lb. Capacity SilverUniform Capacity (lb.): 350
Number of Steps: 17		298

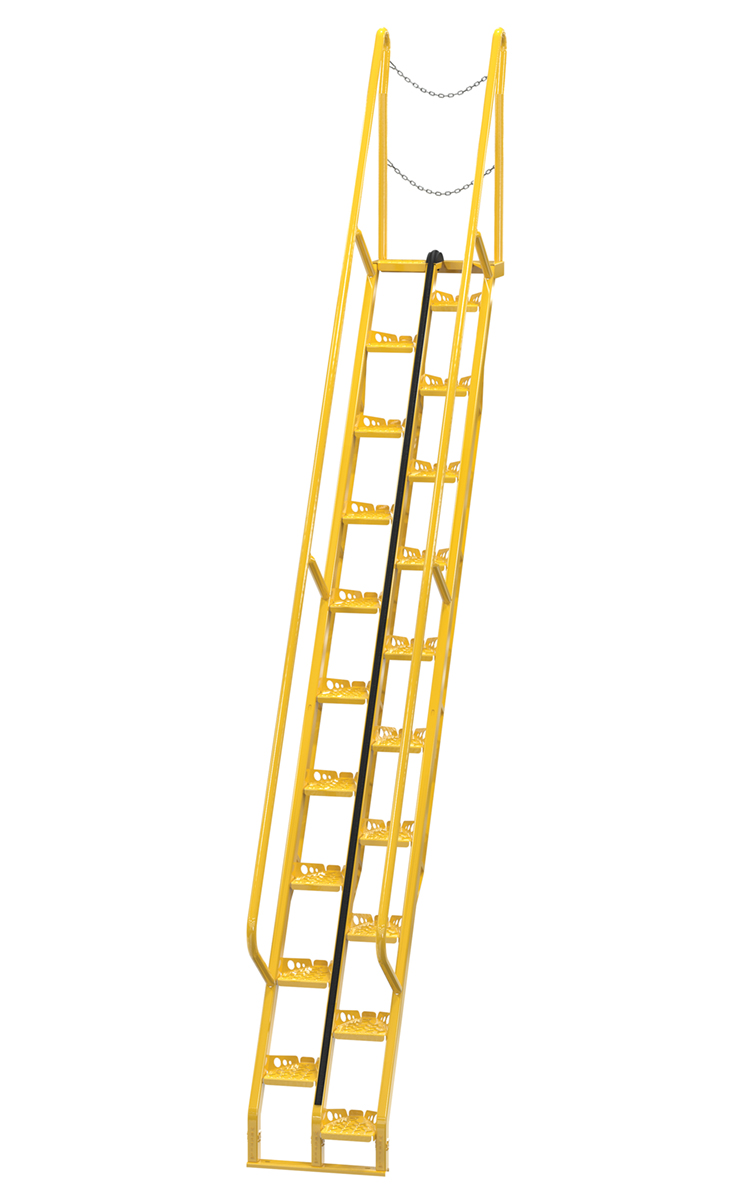

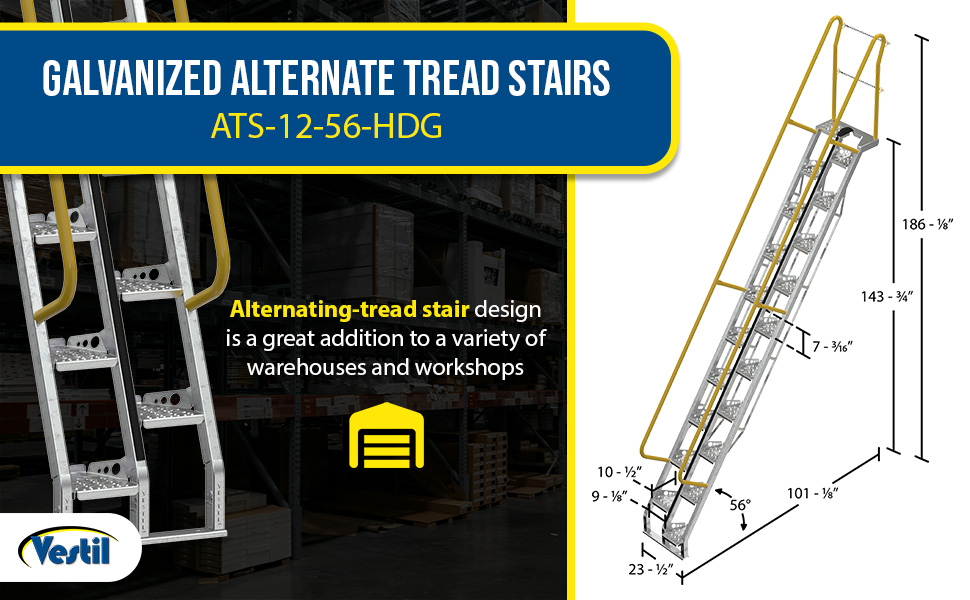

ATS-12-56 ATS-12-56Steel Alternate Tread Stair 56 Degrees 106 In. x 23-1/2 In. x 186-1/8 In. 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 20		400

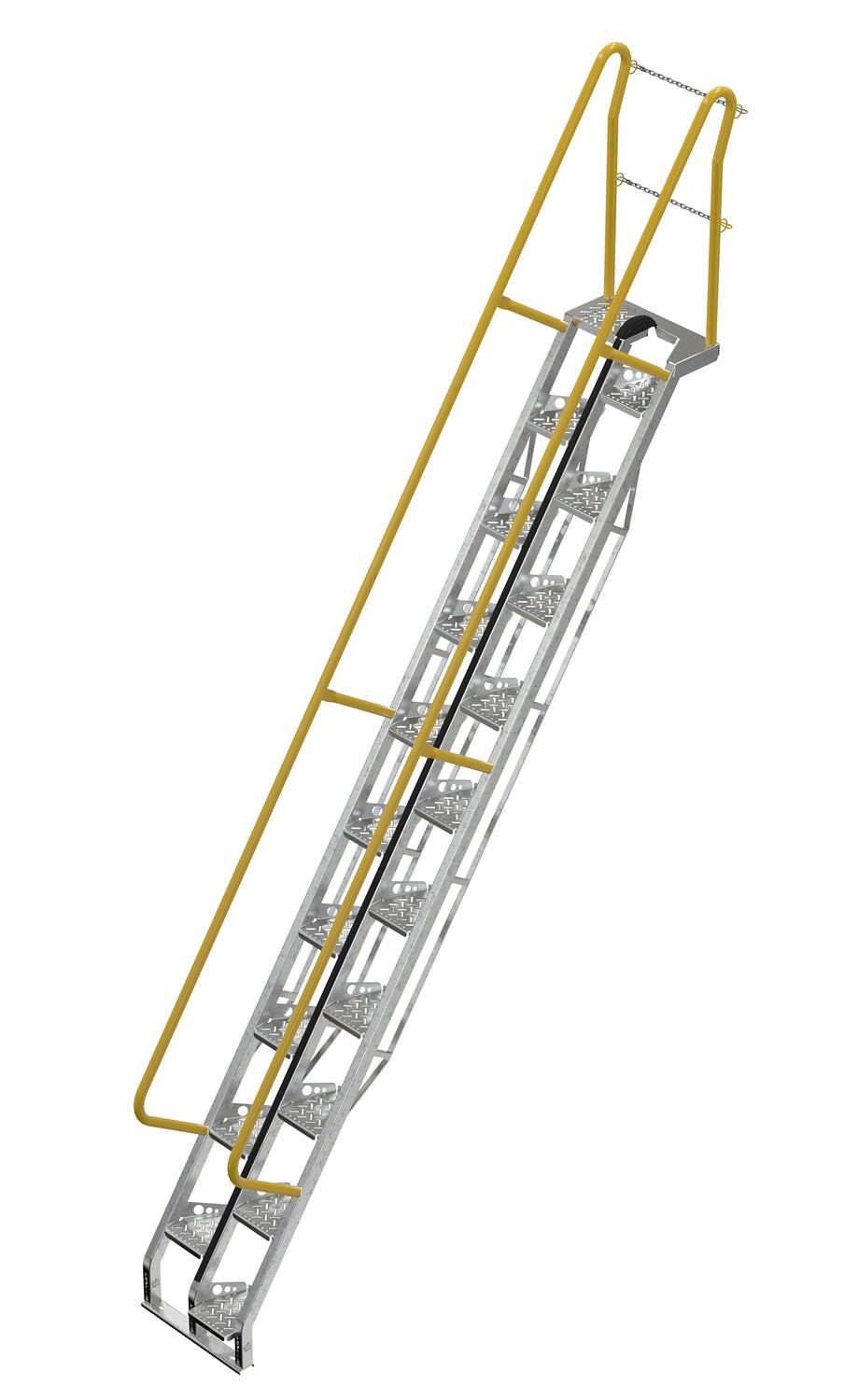

ATS-12-56-HDG ATS-12-56-HDGGalvanized Alternate Tread Stair 56 Degrees 106 In. x 23-1/2 In. x 186-1/8 In. 350 Lb. Capacity SilverUniform Capacity (lb.): 350
Number of Steps: 20		400

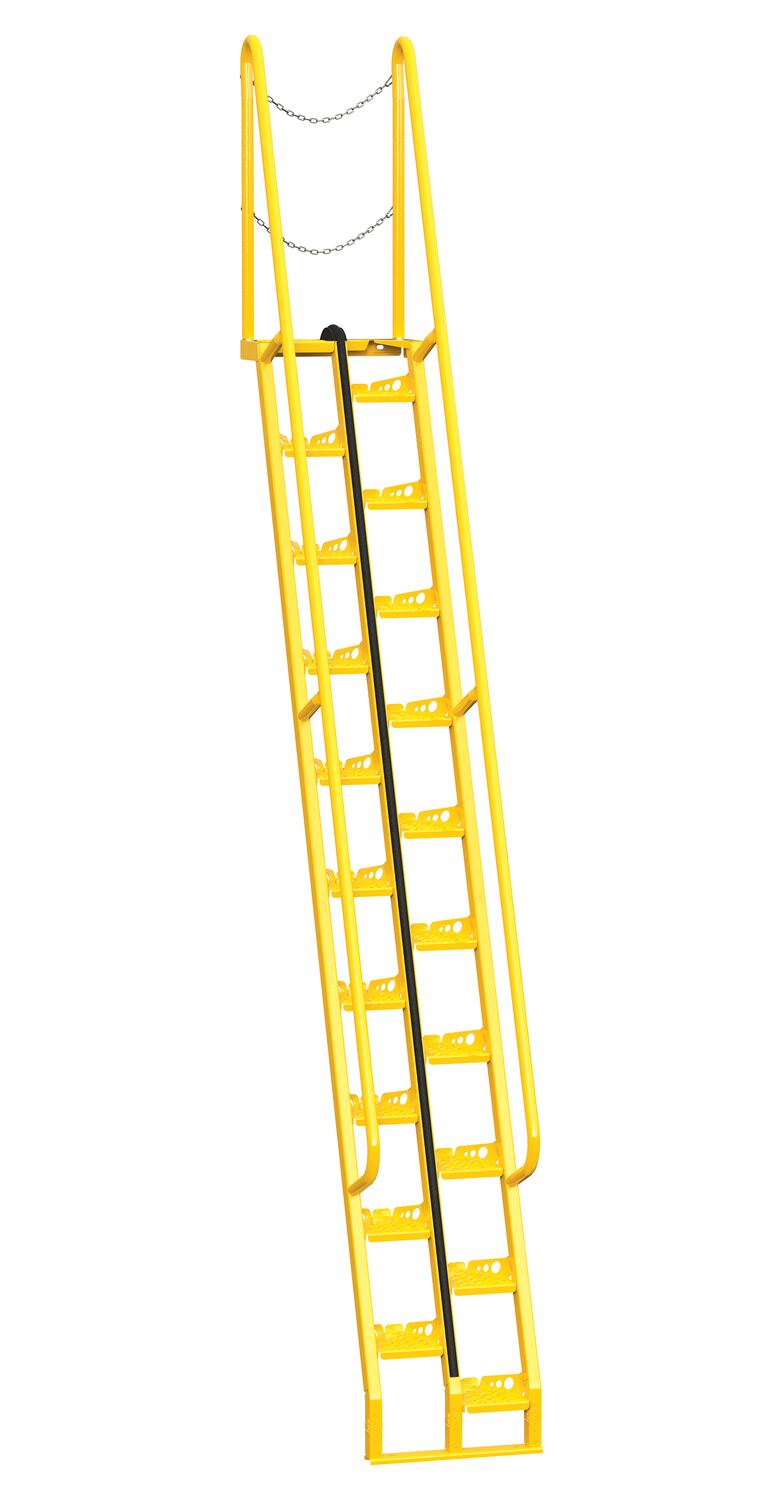

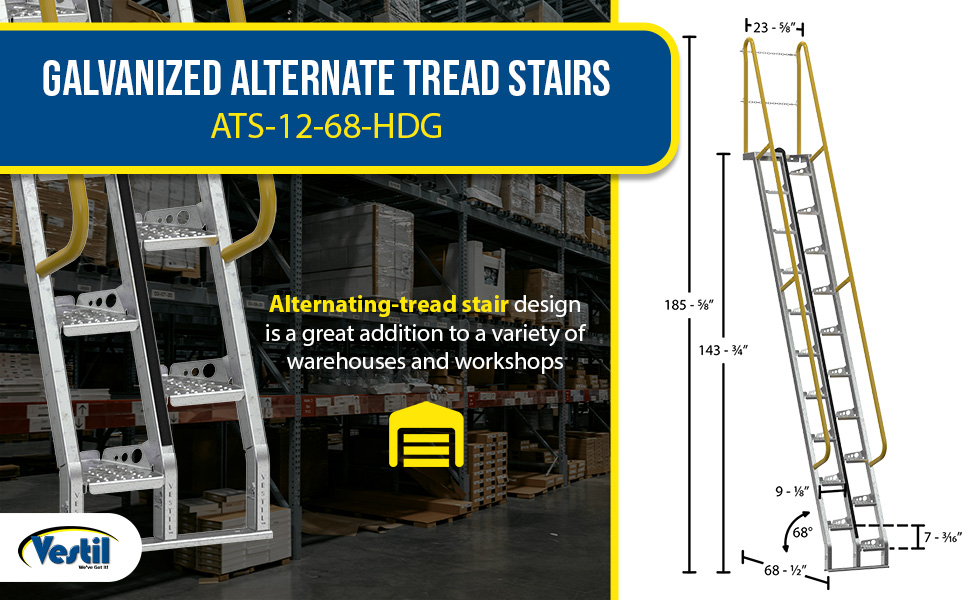

ATS-12-68 ATS-12-68Steel Alternate Tread Stair 68 Degrees 68-1/2 In. x 23-1/2 In. x 185-5/8 In. 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 20		338

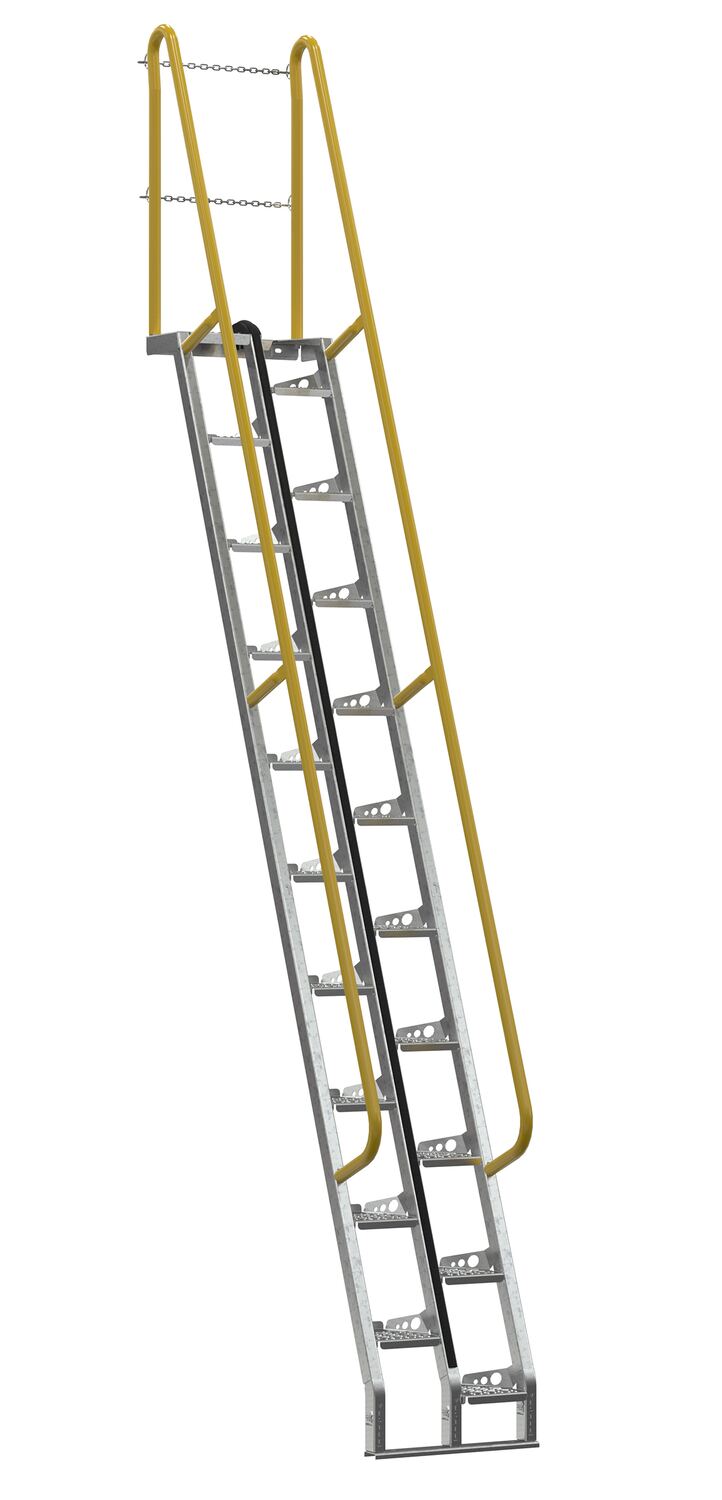

ATS-12-68-HDG ATS-12-68-HDGGalvanized Alternate Tread Stair 68 Degrees 68-1/2 In. x 23-1/2 In. x 185-5/8 In. 350 Lb. Capacity SilverUniform Capacity (lb.): 350
Number of Steps: 20		338

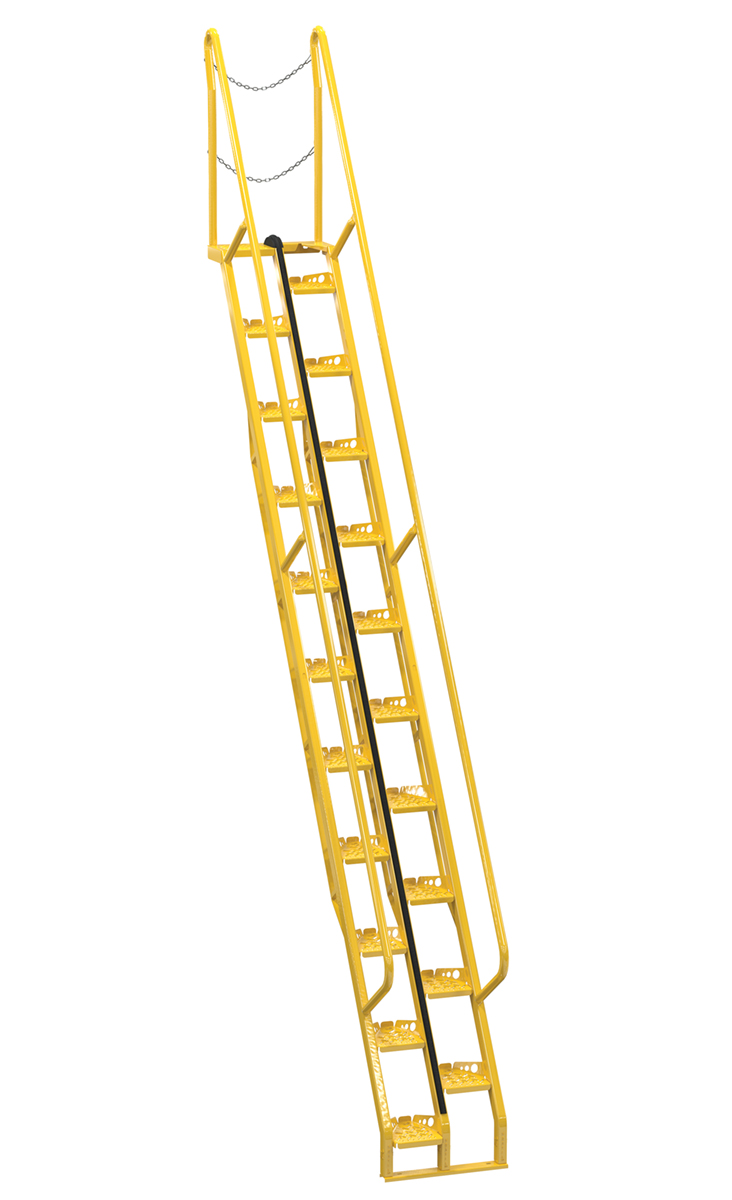

ATS-13-56 ATS-13-56Steel Alternate Tread Stair 56 Degrees 114-1/8 In. x 23-1/2 In. x 198-5/8 In. 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 21		608

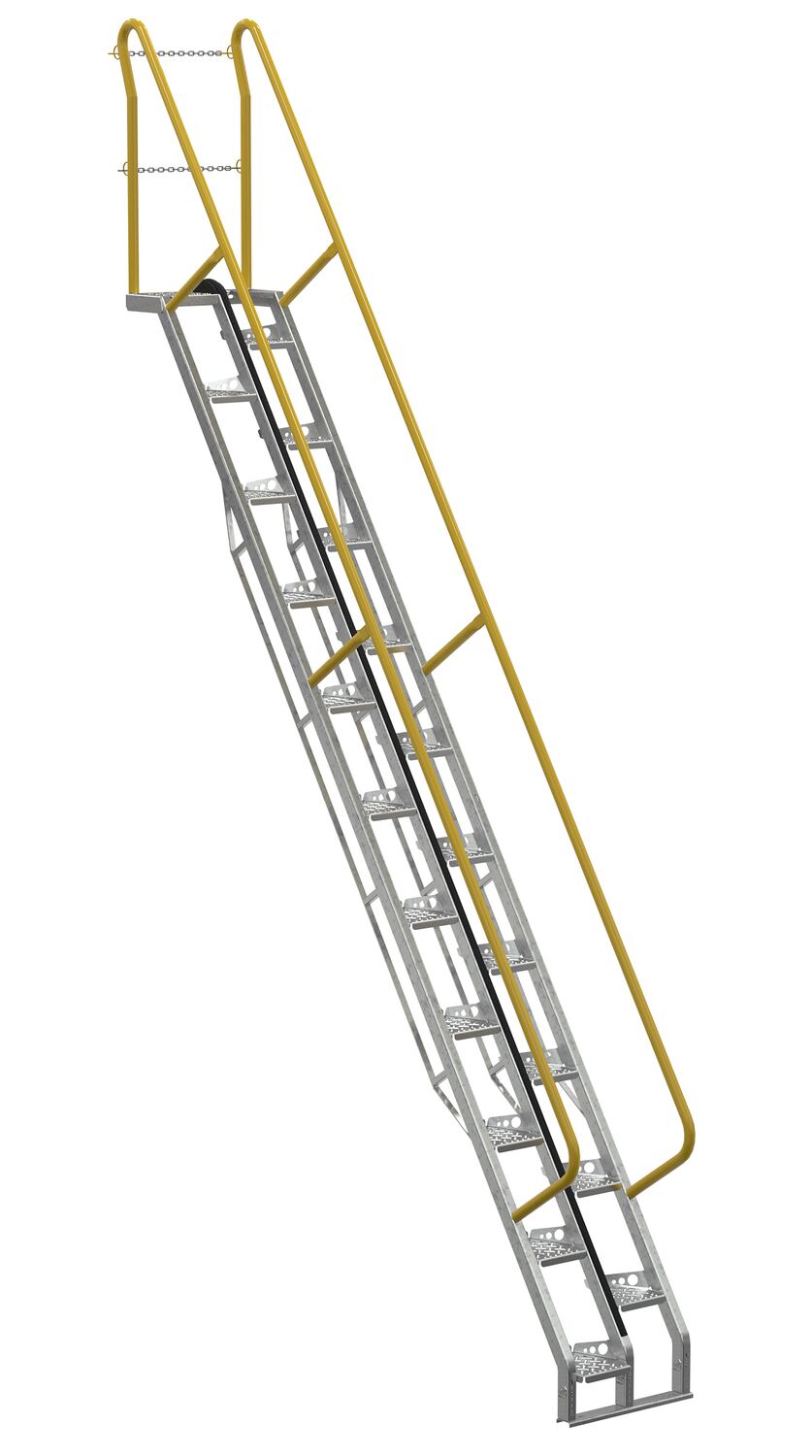

ATS-13-56-HDG ATS-13-56-HDGGalvanized Alternate Tread Stair 56 Degrees 114-1/8 In. x 23-1/2 In. x 198-5/8 In. 350 Lb. Capacity SilverUniform Capacity (lb.): 350
Number of Steps: 21		608

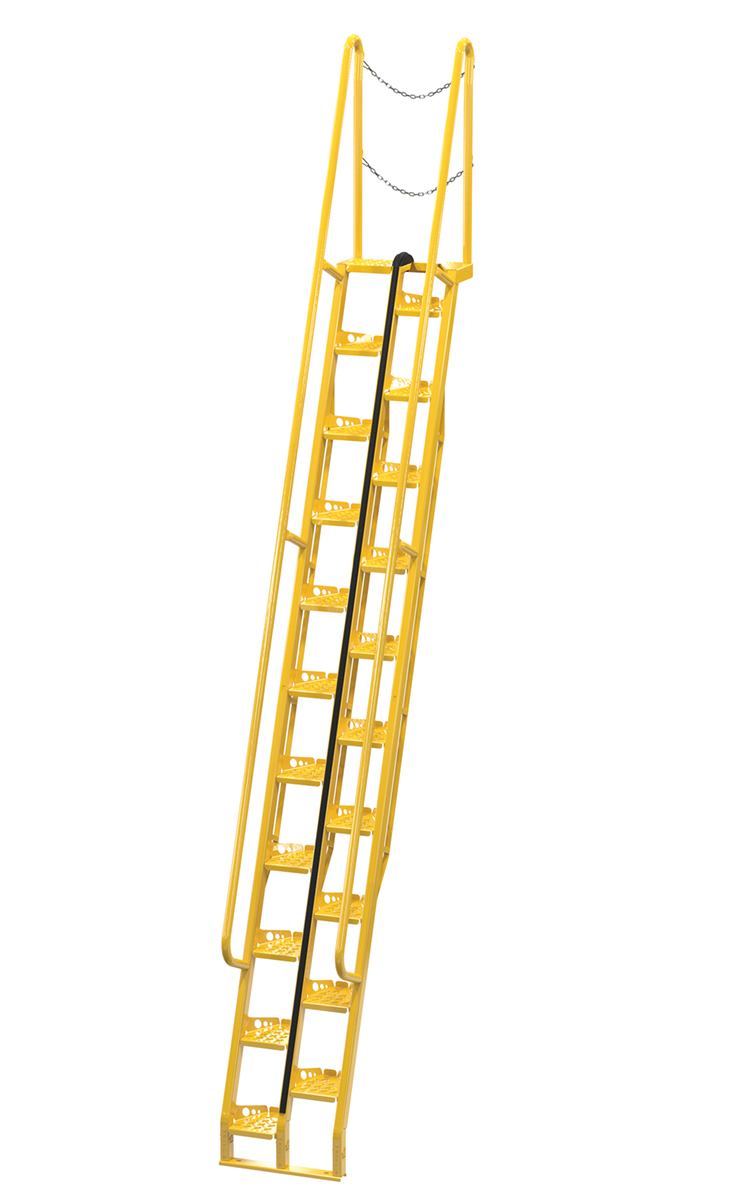

ATS-13-68 ATS-13-68Steel Alternate Tread Stair 68 Degrees 73-1/2 In. x 23-1/2 In. x 198 In. 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 21		600

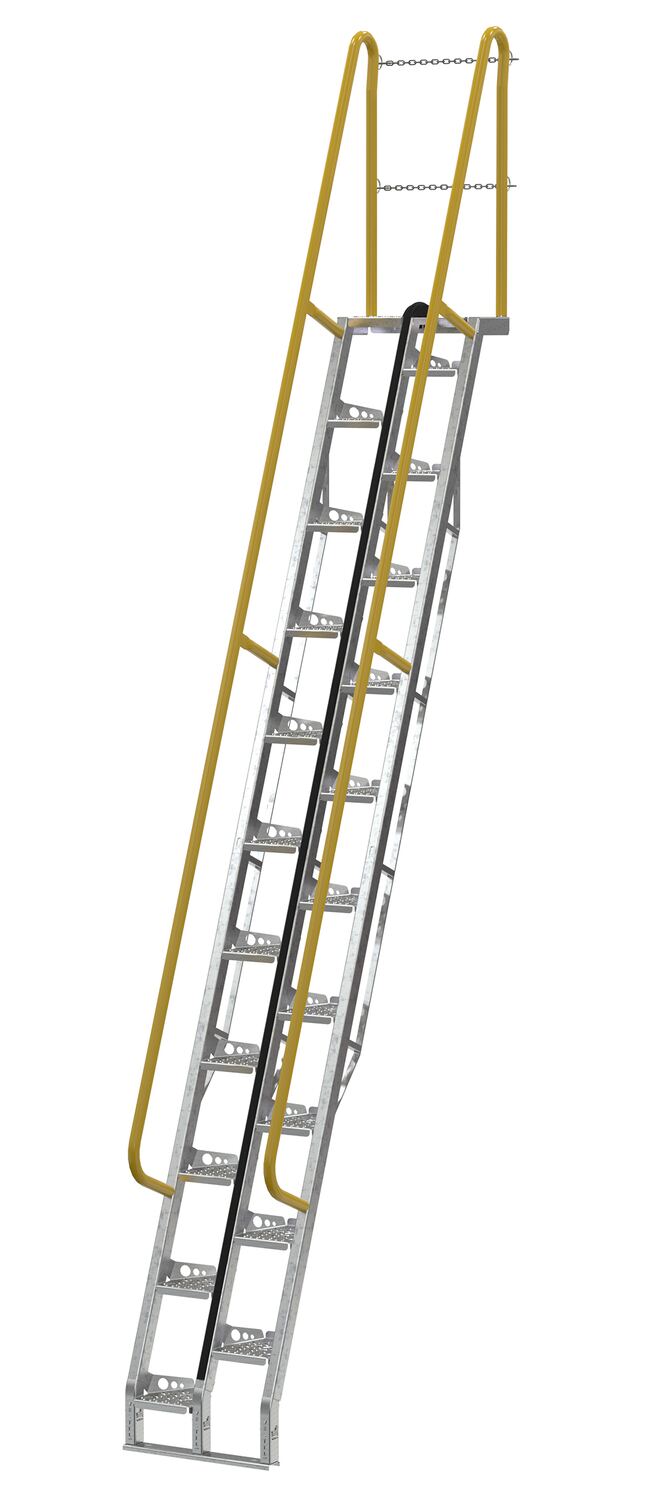

ATS-13-68-HDG ATS-13-68-HDGGalvanized Alternate Tread Stair 68 Degrees 73-1/2 In. x 23-1/2 In. x 198 In. 350 Lb. Capacity SilverUniform Capacity (lb.): 350
Number of Steps: 21		600

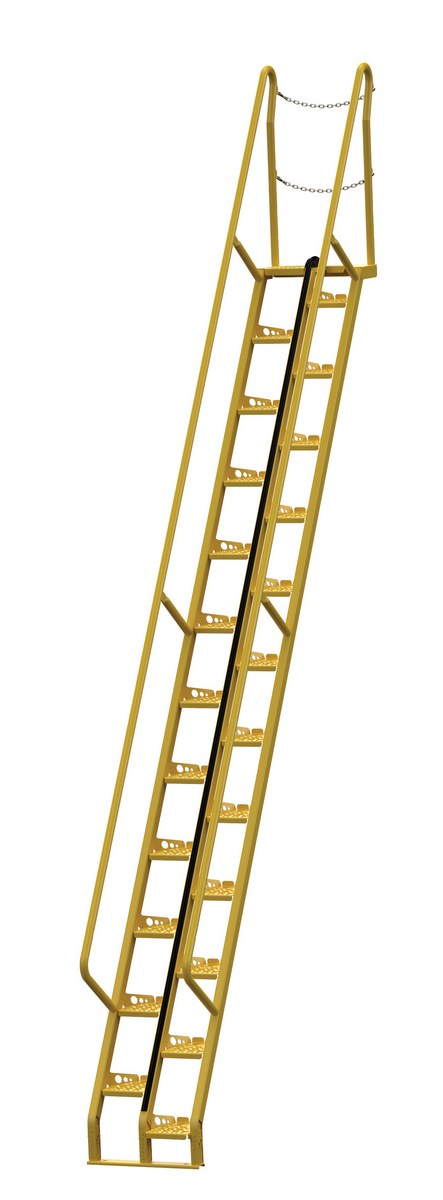

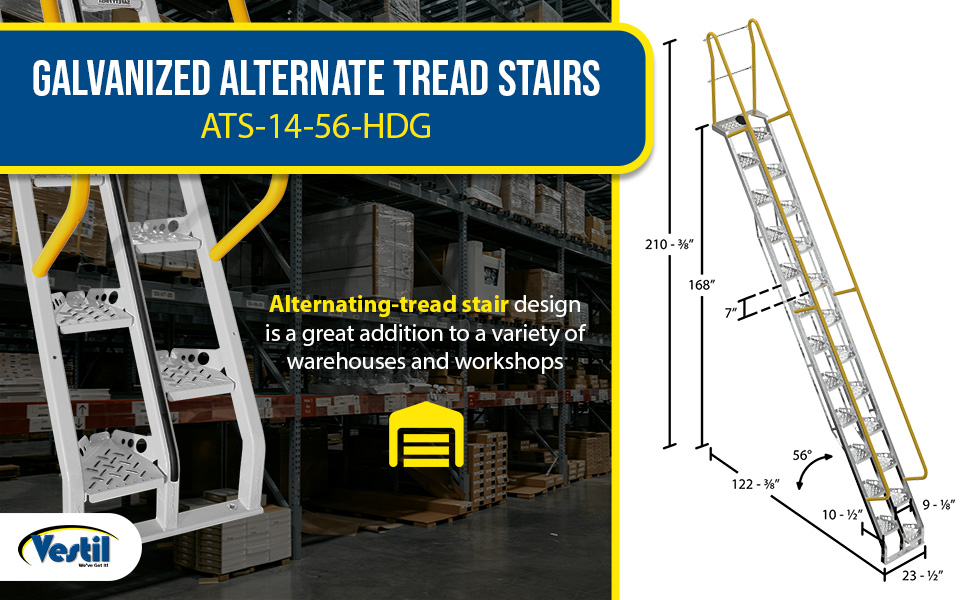

ATS-14-56 ATS-14-56Steel Alternate Tread Stair 56 Degrees 122-3/8 In. x 23-1/2 In. x 210-3/8 In. 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 24		638

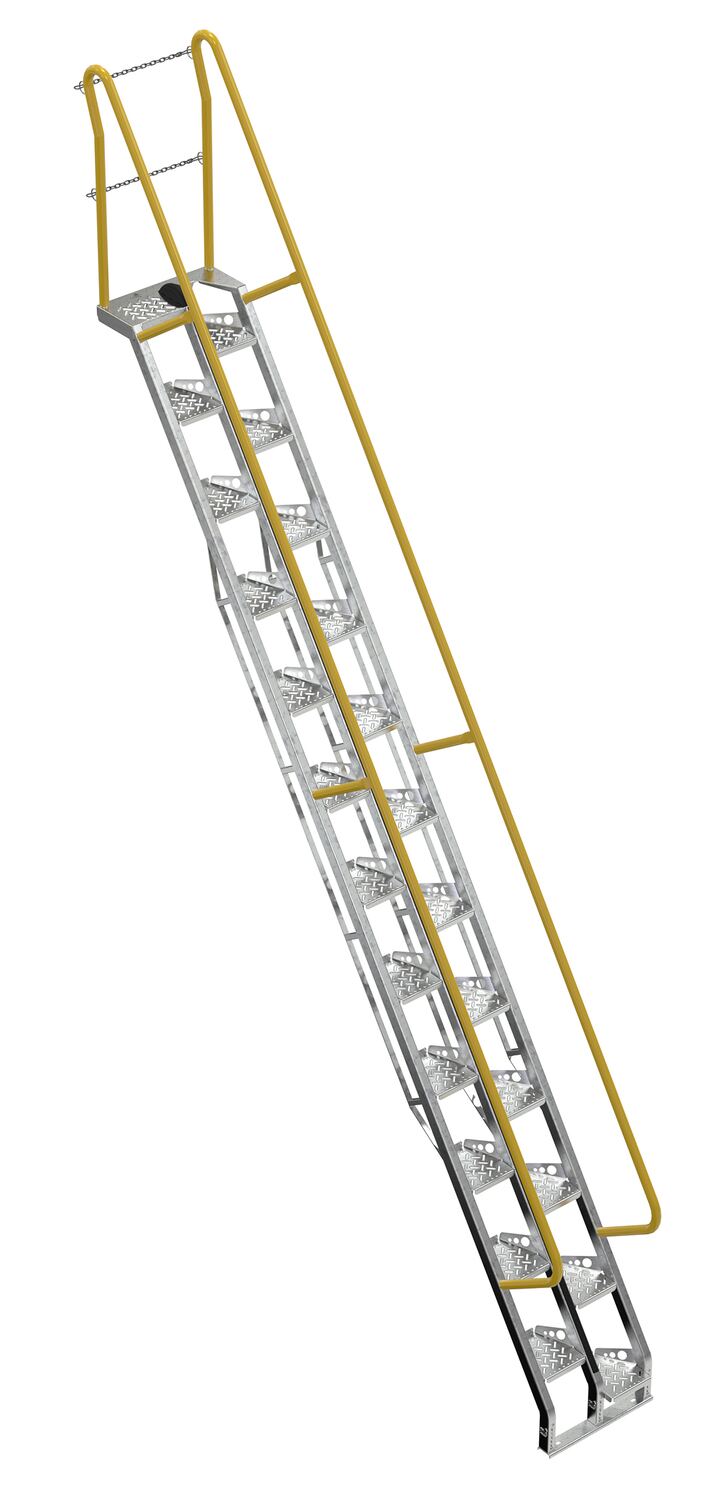

ATS-14-56-HDG ATS-14-56-HDGGalvanized Alternate Tread Stair 56 Degrees 122-3/8 In. x 23-1/2 In. x 210-3/8 In. 350 Lb. Capacity SilverUniform Capacity (lb.): 350
Number of Steps: 24		638

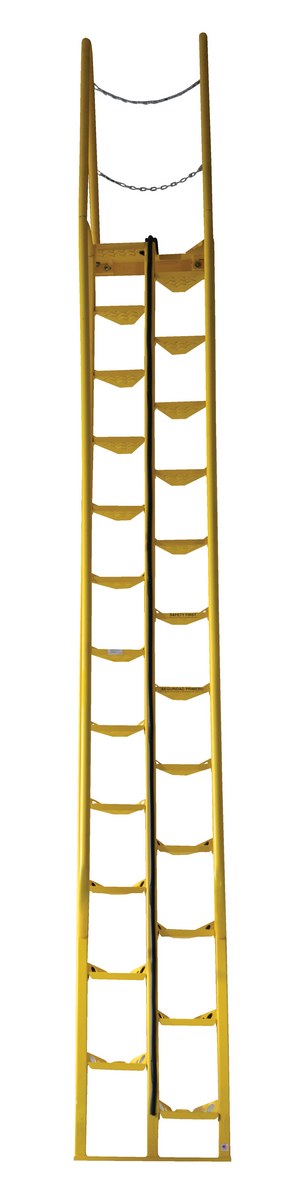

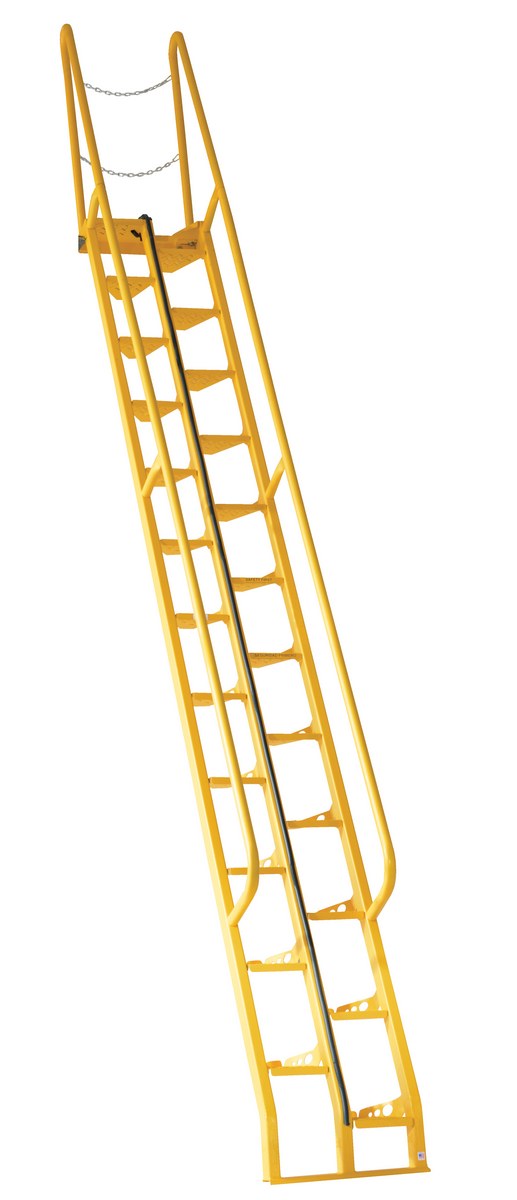

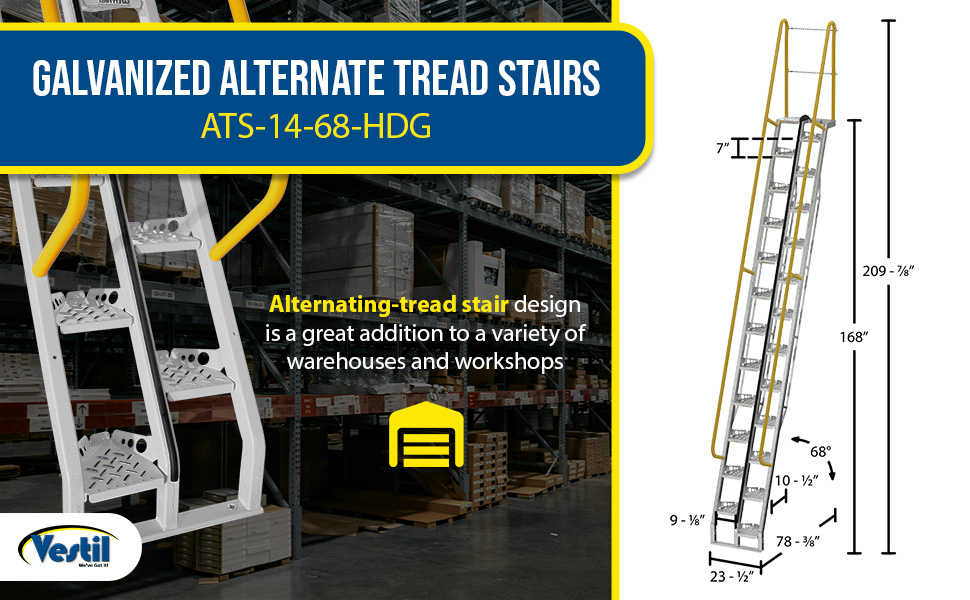

ATS-14-68 ATS-14-68Steel Alternate Tread Stair 68 Degrees 78-3/8 In. x 23-1/2 In. x 209-7/8 In. 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 24		610

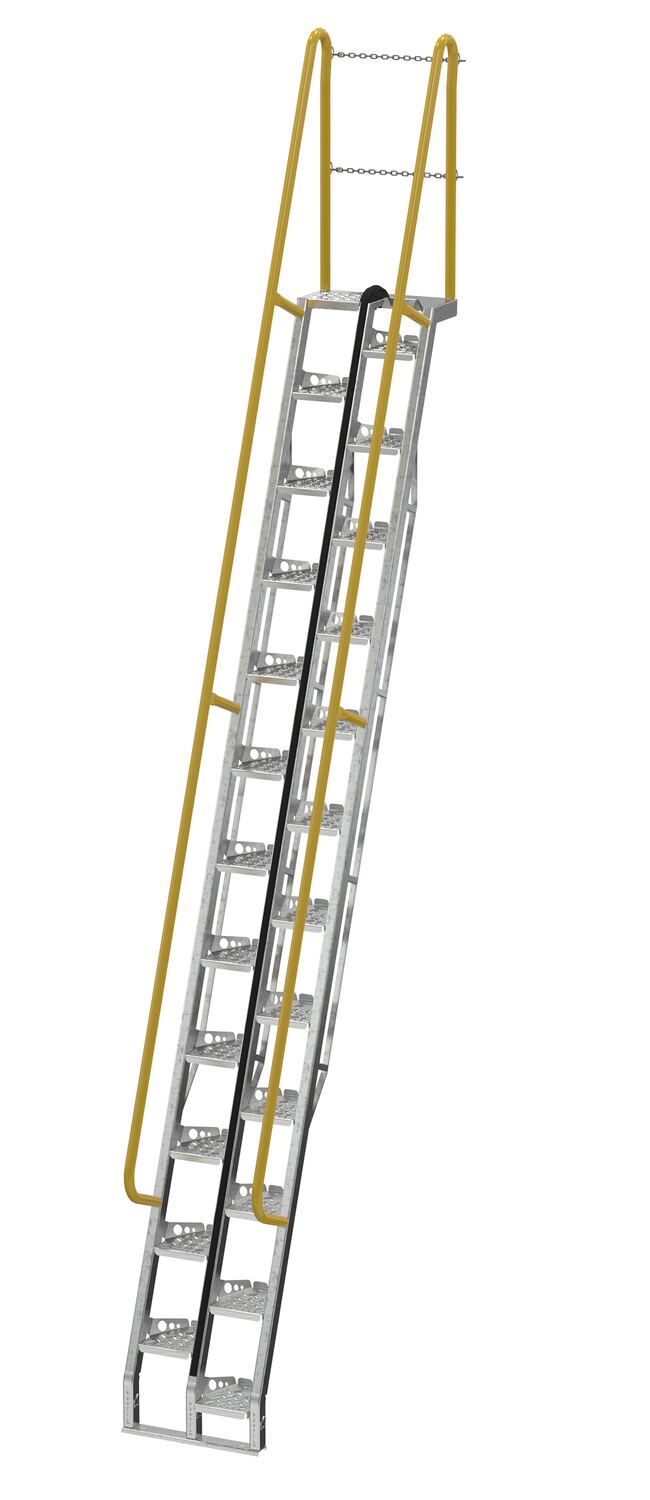

ATS-14-68-HDG ATS-14-68-HDGGalvanized Alternate Tread Stair 68 Degrees 78-3/8 In. x 23-1/2 In. x 209-7/8 In. 350 Lb. Capacity SilverUniform Capacity (lb.): 350
Number of Steps: 24		610

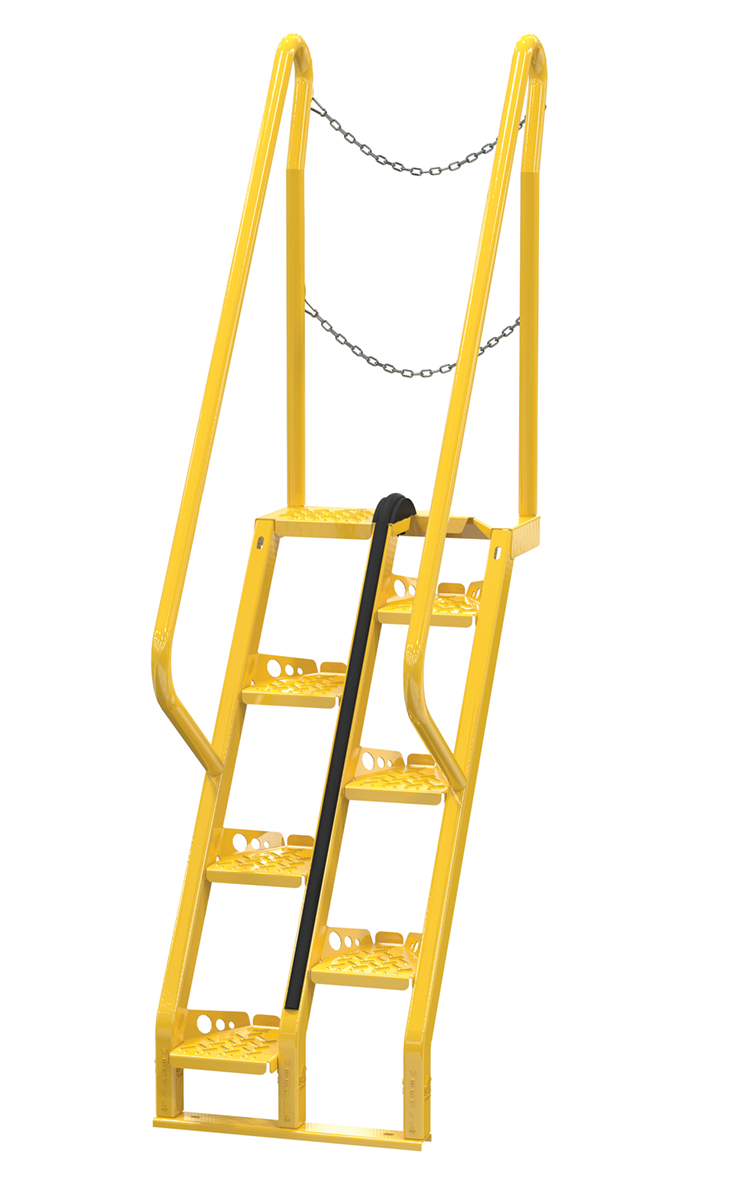

ATS-4-56 ATS-4-56Steel Alternate Tread Stair 56 Degrees 42 In. x 23-1/2 In. x 90-1/2 In. 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 7		156

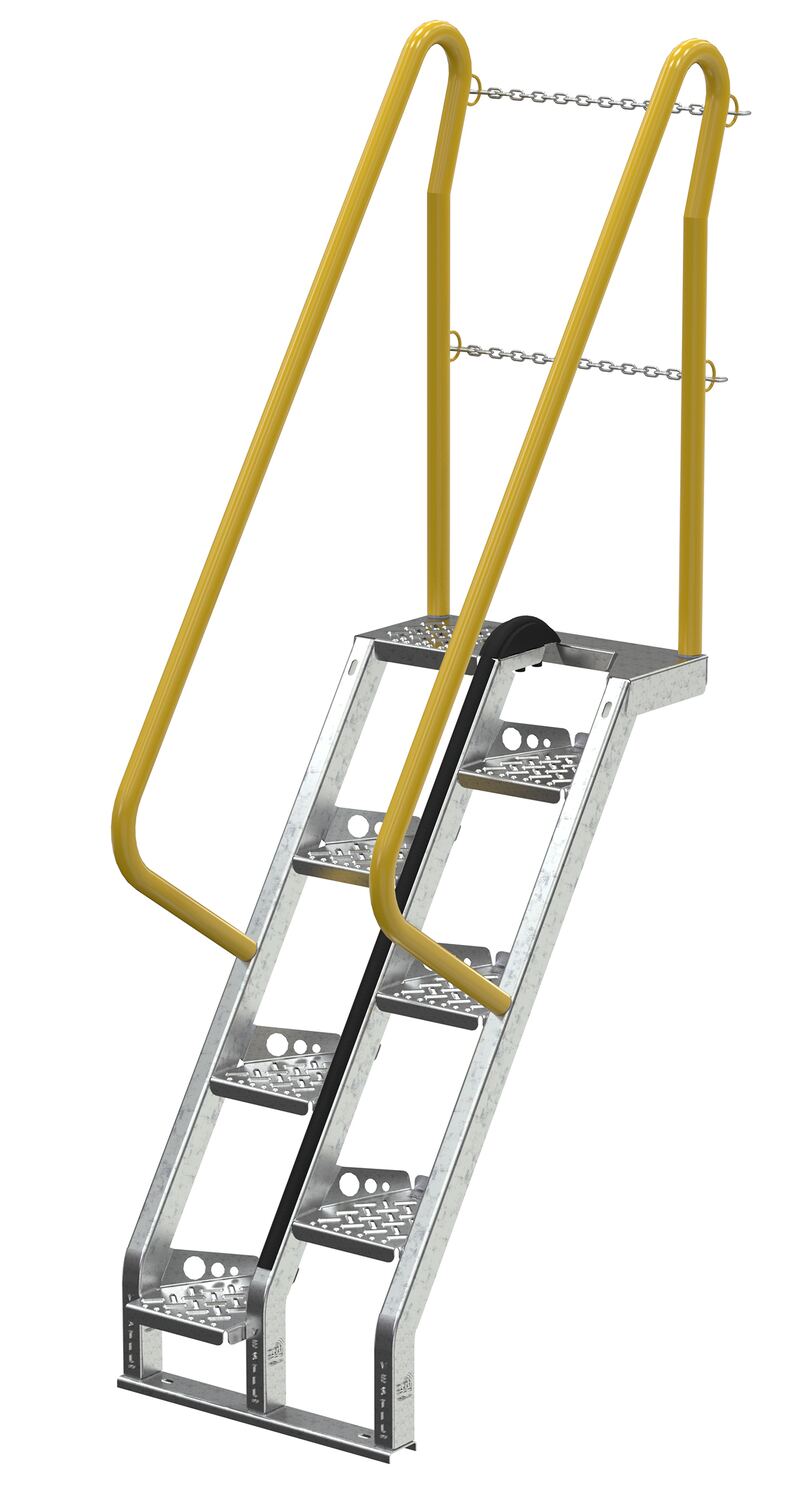

ATS-4-56-HDG ATS-4-56-HDGGalvanized Alternate Tread Stair 56 Degrees 42 In. x 23-1/2 In. x 90-1/2 In. 350 Lb. Capacity SilverUniform Capacity (lb.): 350
Number of Steps: 7		156

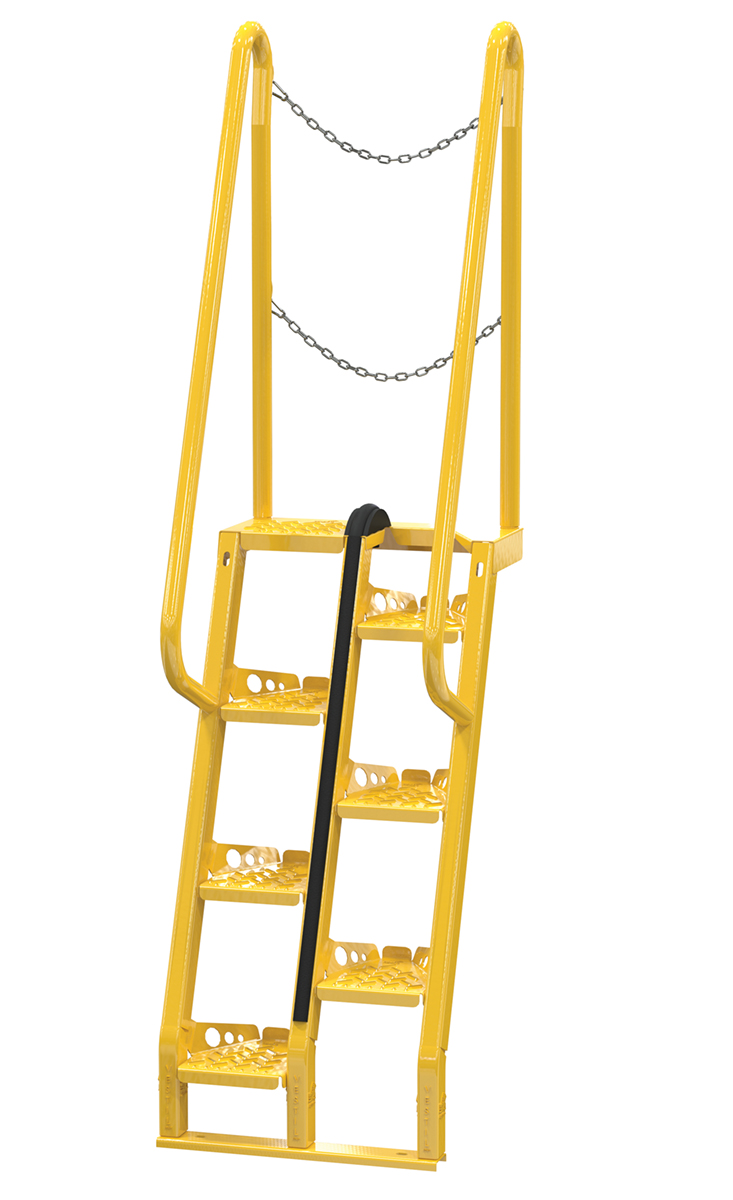

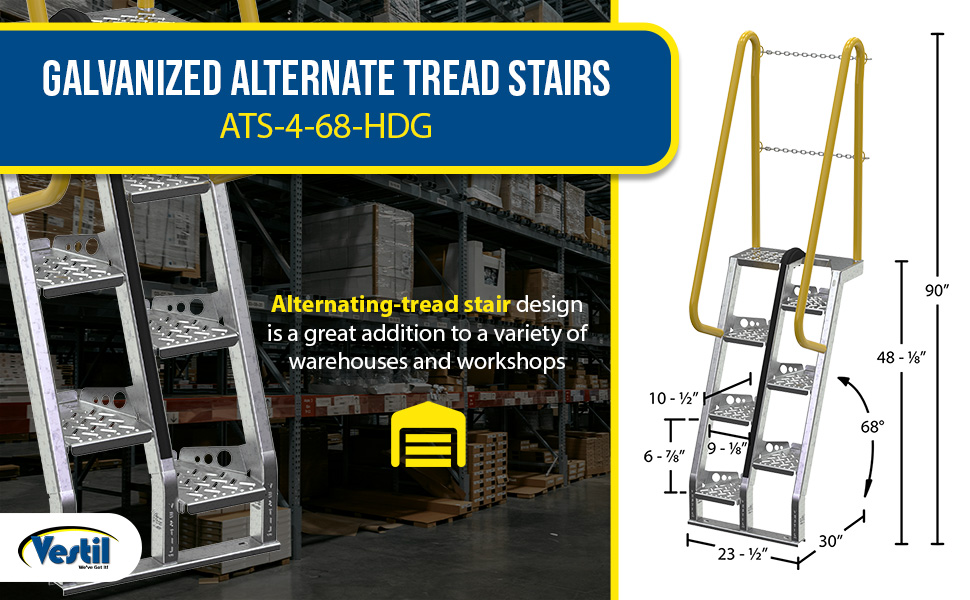

ATS-4-68 ATS-4-68Steel Alternate Tread Stair 68 Degrees 30 In. x 23-1/2 In. x 90 In. 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 7		150

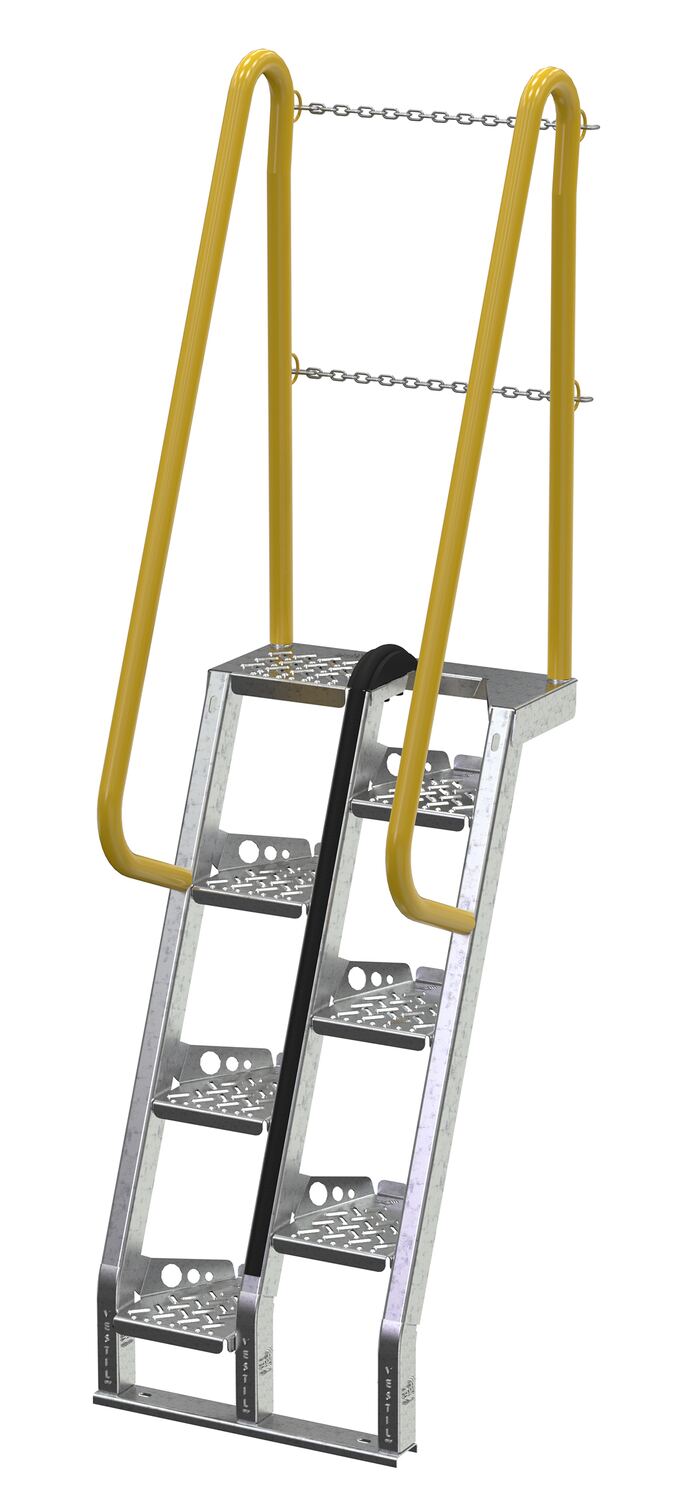

ATS-4-68-HDG ATS-4-68-HDGGalvanized Alternate Tread Stair 68 Degrees 30 In. x 23-1/2 In. x 90 In. 350 Lb. Capacity SilverUniform Capacity (lb.): 350
Number of Steps: 7		150

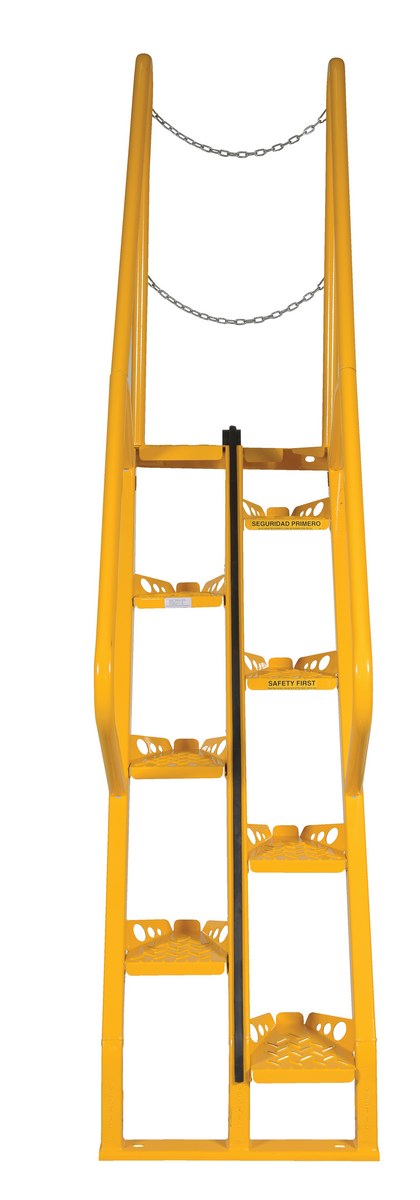

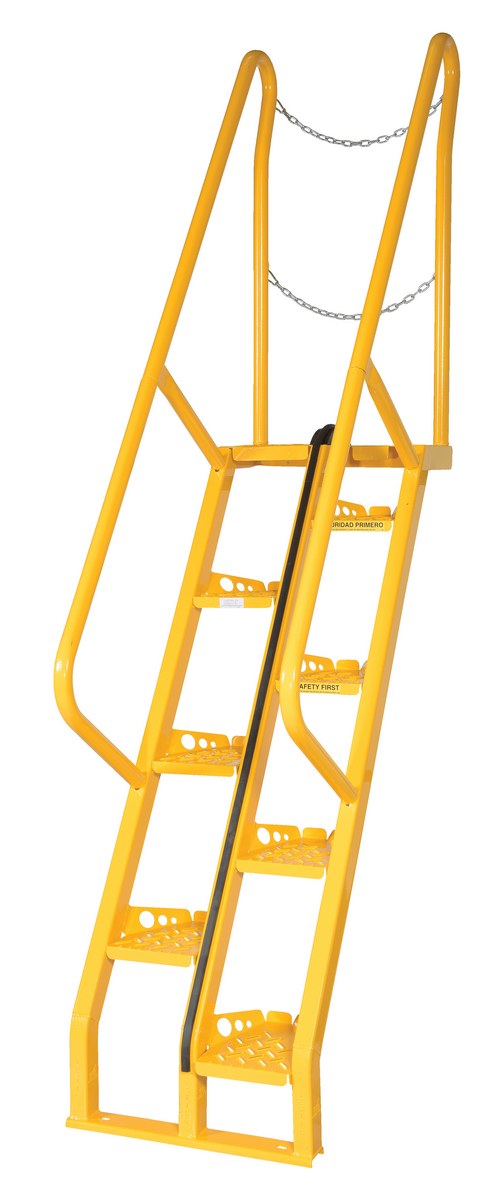

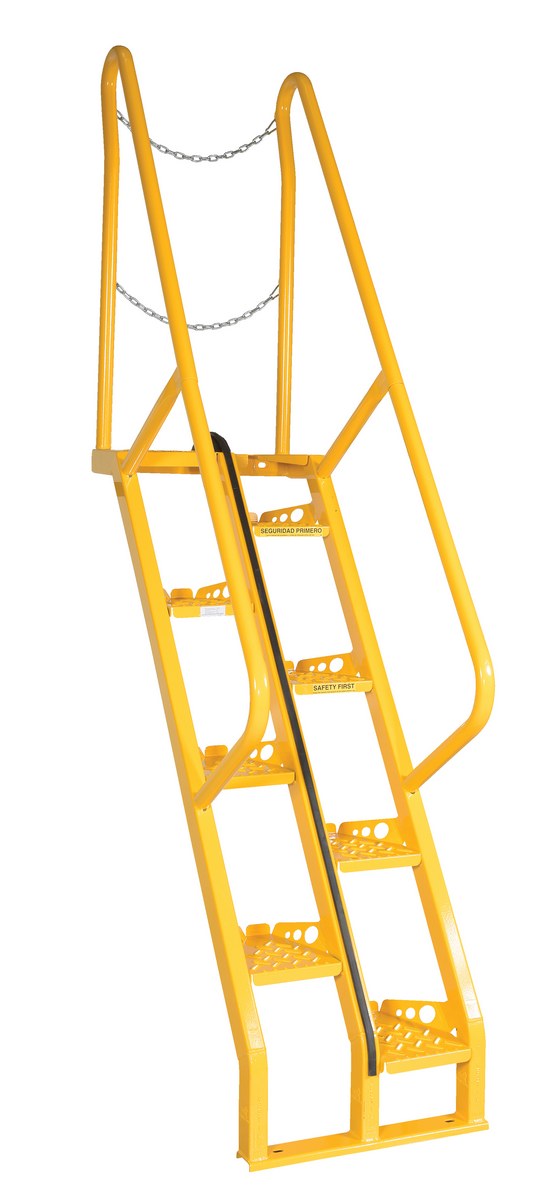

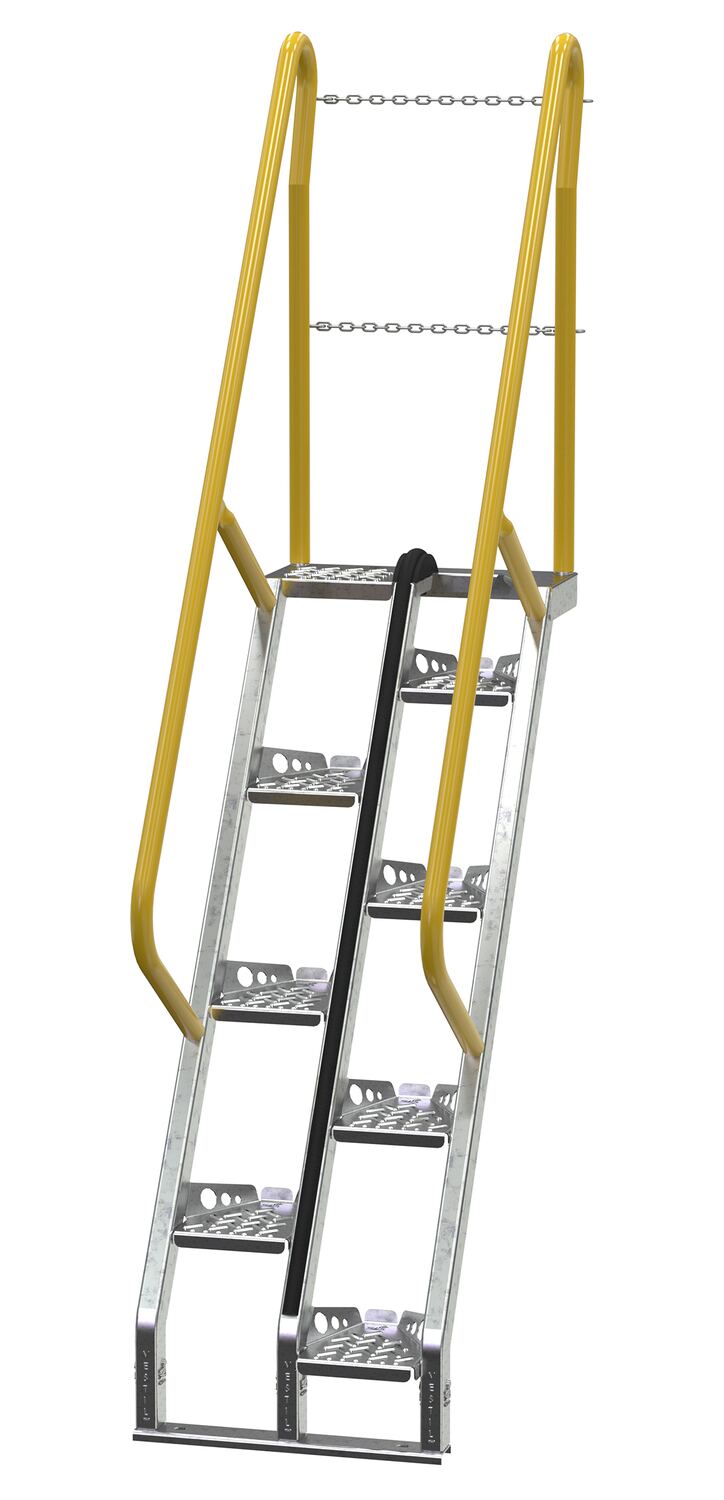

ATS-5-56 ATS-5-56Steel Alternate Tread Stair 56 Degrees 49-1/4 In. x 23-1/2 In. x 102-7/16 In. 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 8		192
ATS-5-56-HDG ATS-5-56-HDGGalvanized Alternate Tread Stair 56 Degrees 49-1/4 In. x 23-1/2 In. x 102-7/16 In. 350 Lb. Capacity SilverUniform Capacity (lb.): 350
Number of Steps: 8		192

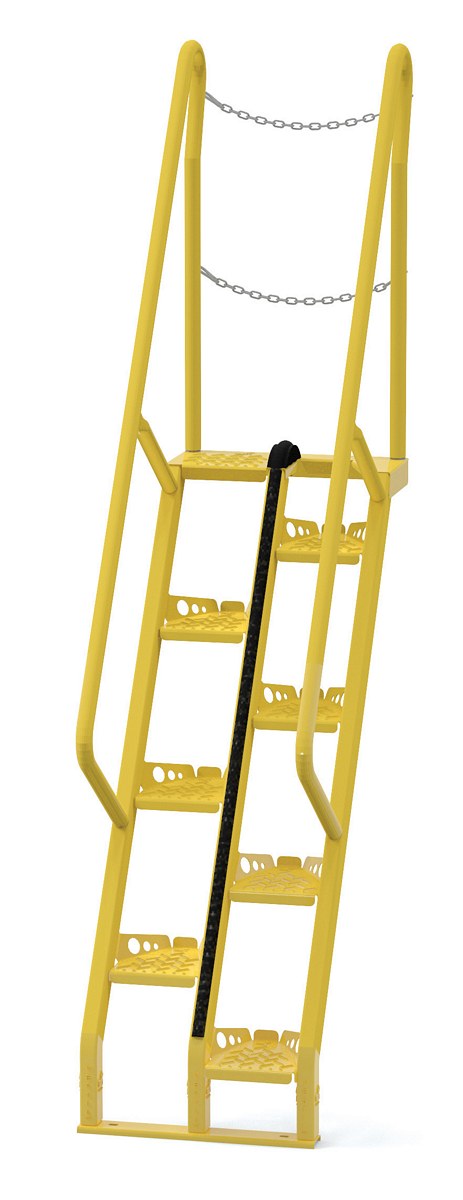

ATS-5-68 ATS-5-68Steel Alternate Tread Stair 68 Degrees 34-5/8 In. x 23-1/2 In. x 101-7/8 In. 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 8		180

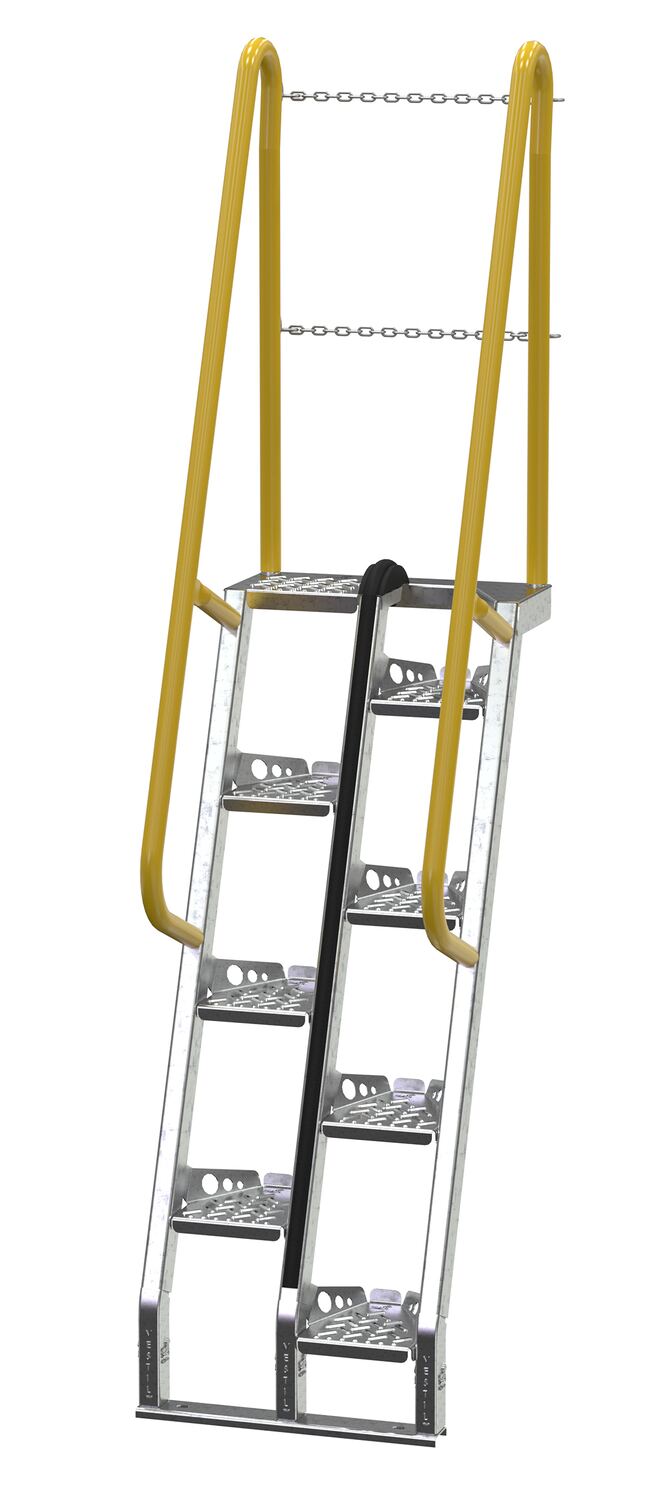

ATS-5-68-HDG ATS-5-68-HDGGalvanized Alternate Tread Stair 68 Degrees 34-5/8 In. x 23-1/2 In. x 101-7/8 In. 350 Lb. Capacity SilverUniform Capacity (lb.): 350
Number of Steps: 8		180

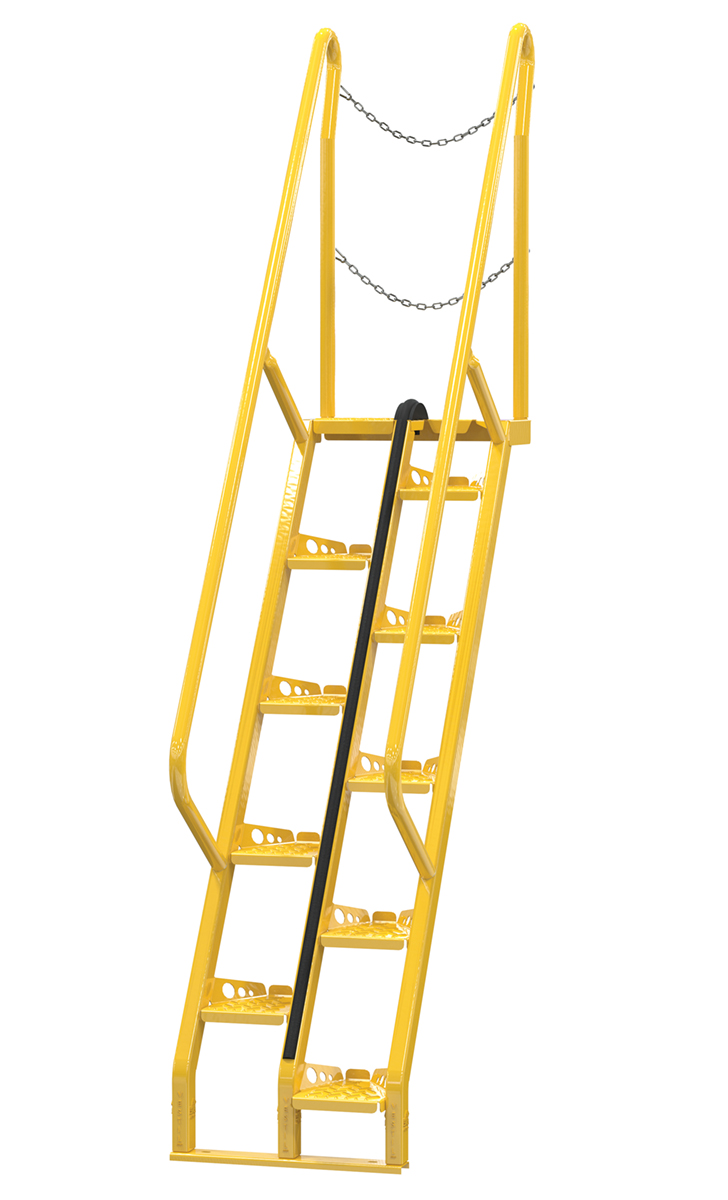

ATS-6-56 ATS-6-56Steel Alternate Tread Stair 56 Degrees 57-1/2 In. x 23-1/2 In. x 114-1/4 In. 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 10		214

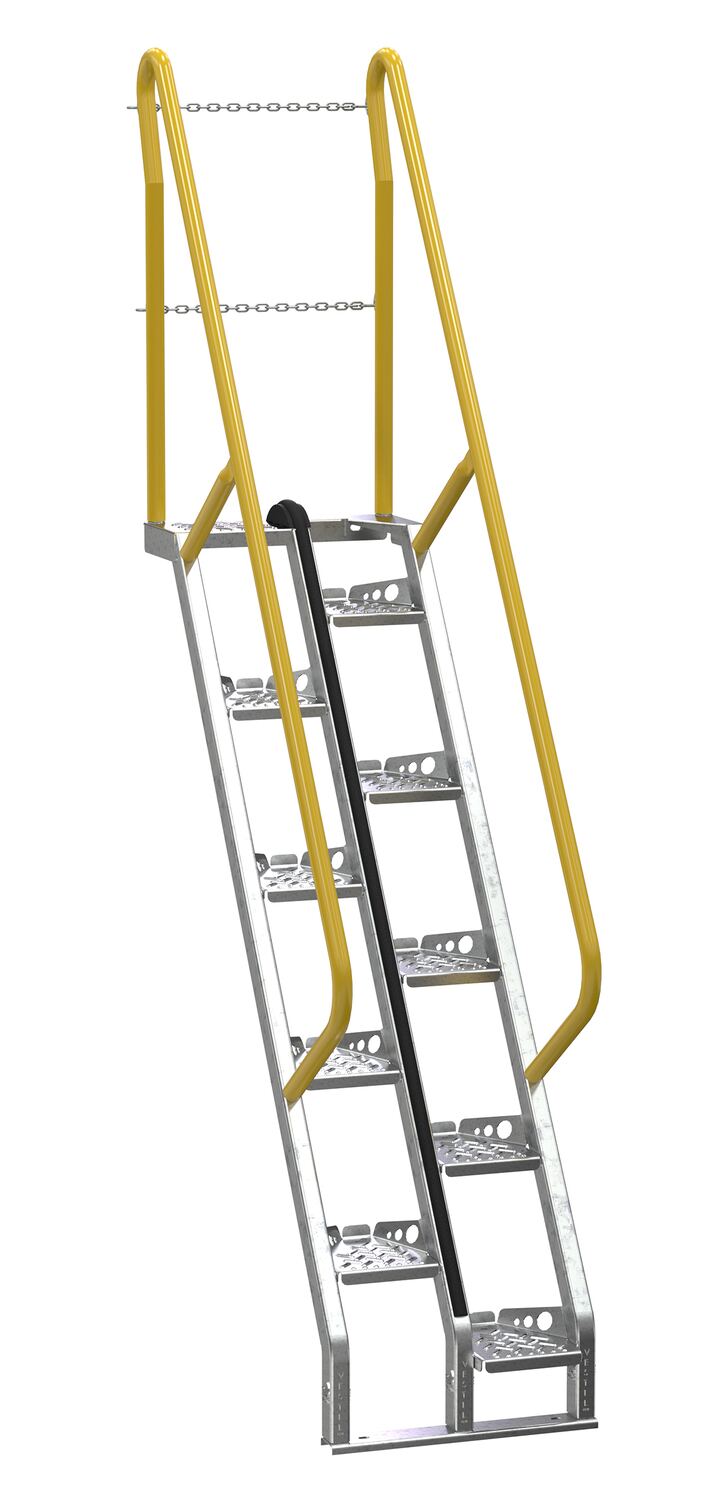

ATS-6-56-HDG ATS-6-56-HDGGalvanized Alternate Tread Stair 56 Degrees 57-1/2 In. x 23-1/2 In. x 114-1/4 In. 350 Lb. Capacity SilverUniform Capacity (lb.): 350
Number of Steps: 10		214

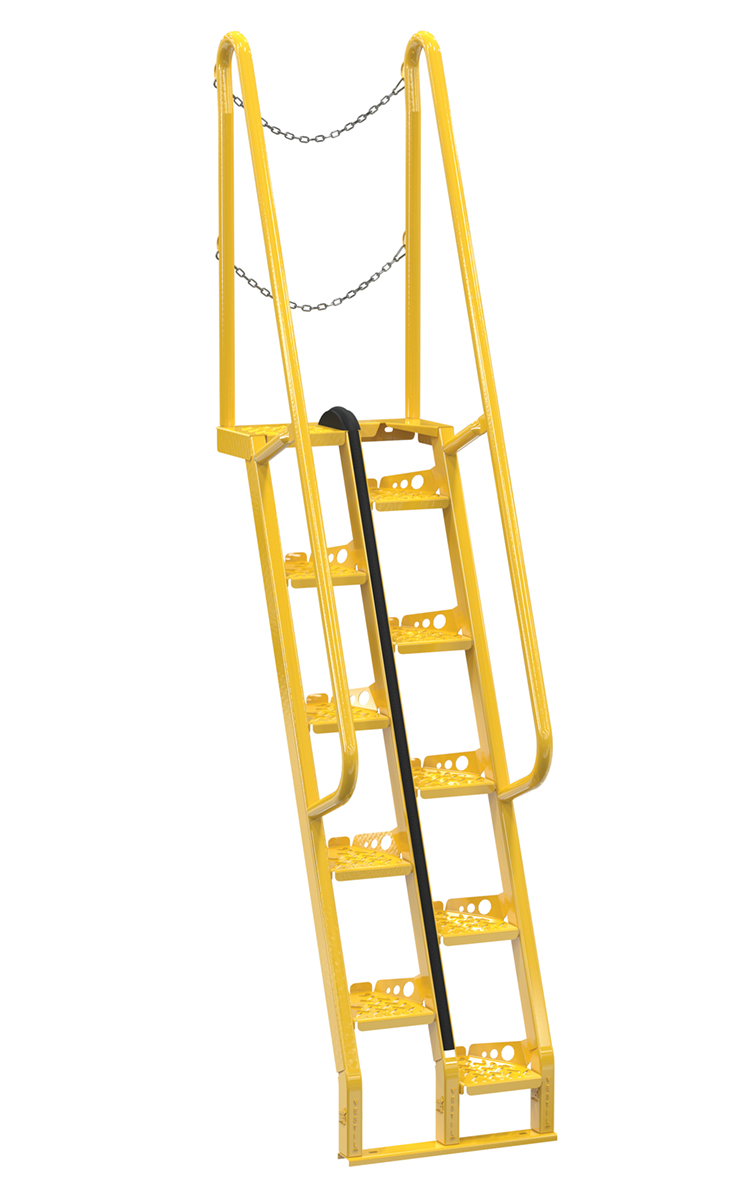

ATS-6-68 ATS-6-68Steel Alternate Tread Stair 68 Degrees 39-1/2 In. x 23-1/2 In. x 113-3/4 In. 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 10		188

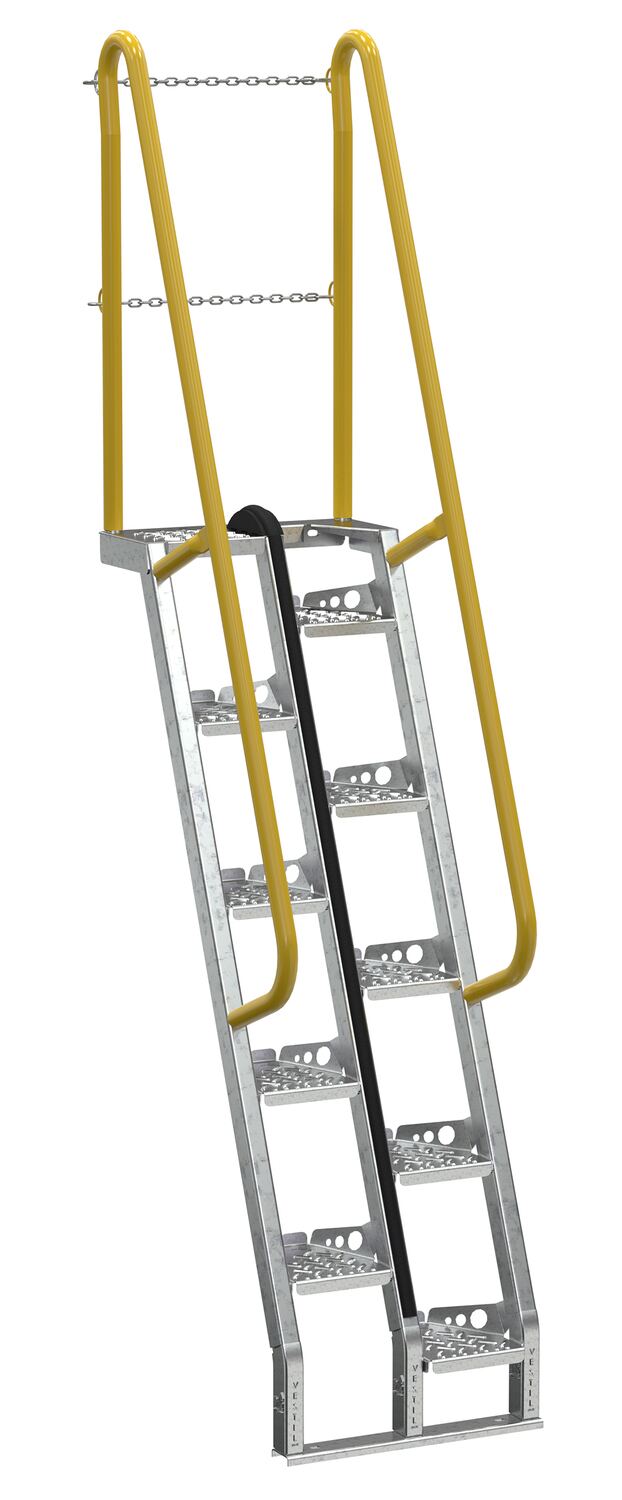

ATS-6-68-HDG ATS-6-68-HDGGalvanized Alternate Tread Stair 68 Degrees 39-1/2 In. x 23-1/2 In. x 113-3/4 In. 350 Lb. Capacity SilverUniform Capacity (lb.): 350
Number of Steps: 10		188

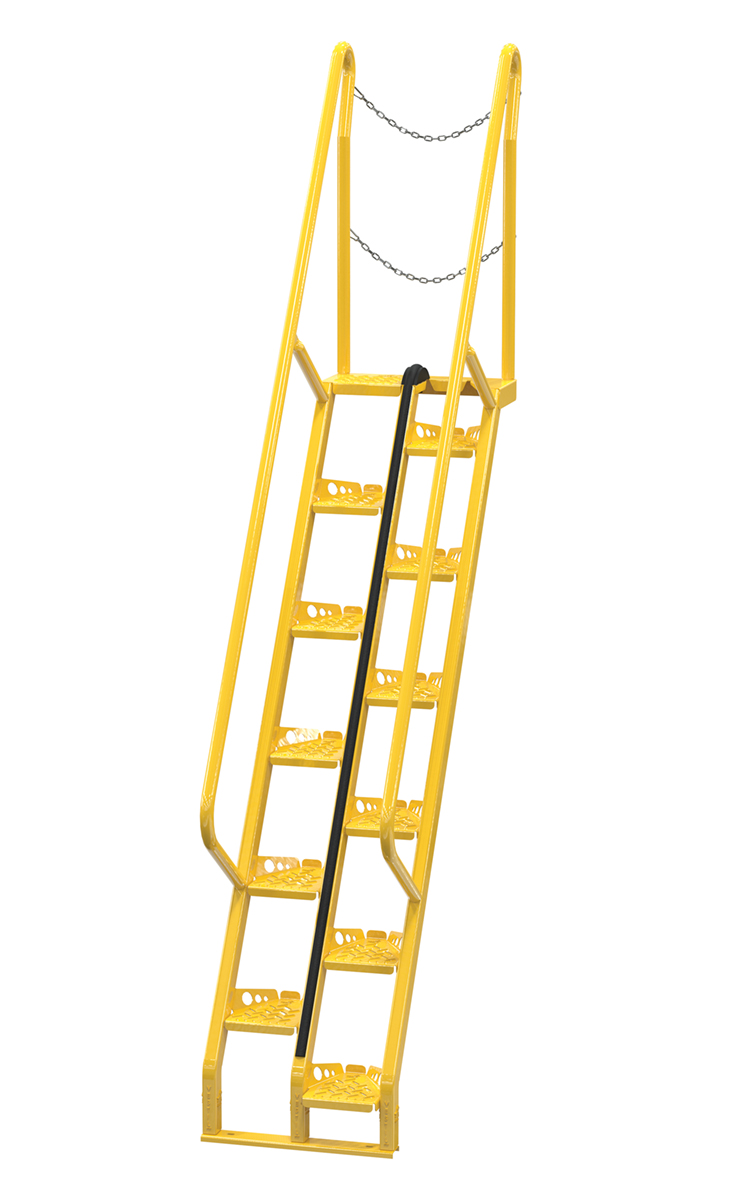

ATS-7-56 ATS-7-56Steel Alternate Tread Stair 56 Degrees 65-3/4 In. x 23-1/2 In. x 126-3/4 In. 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 12		224

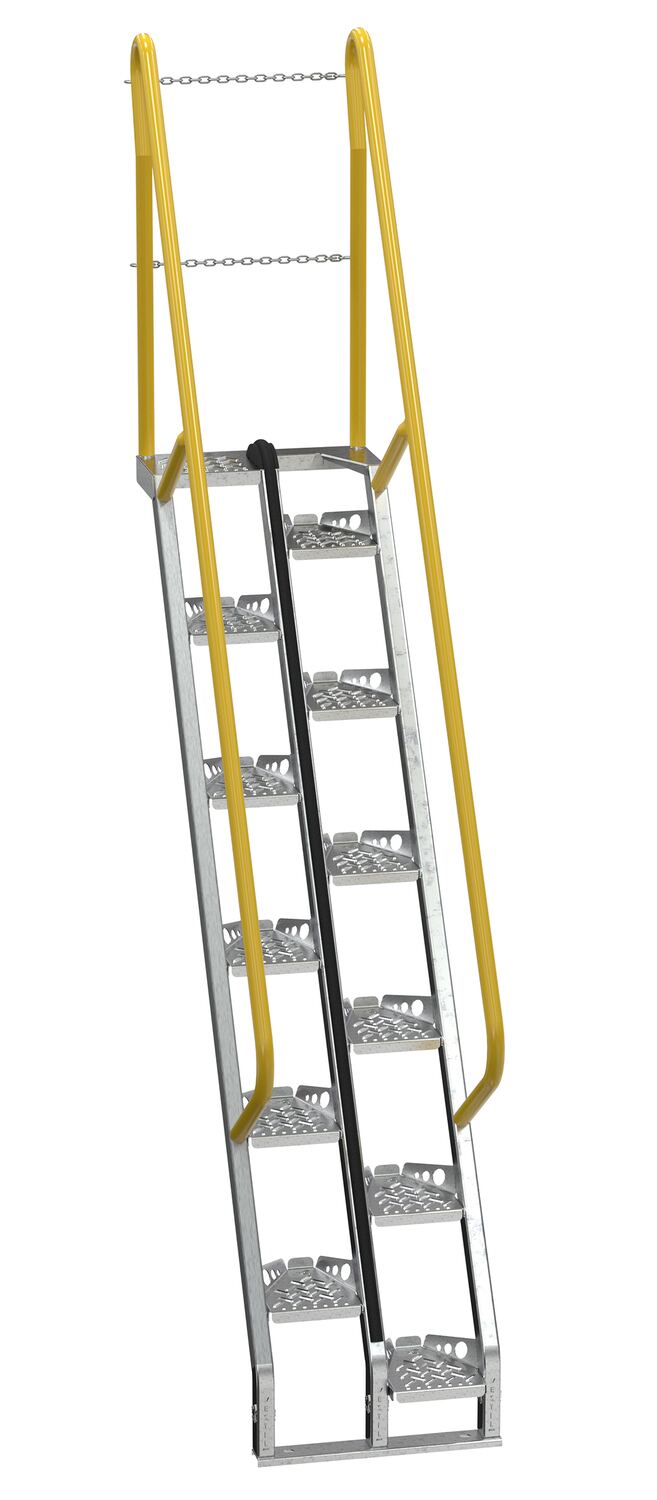

ATS-7-56-HDG ATS-7-56-HDGGalvanized Alternate Tread Stair 56 Degrees 65-3/4 In. x 23-1/2 In. x 126-3/4 In. 350 Lb. Capacity SilverUniform Capacity (lb.): 350
Number of Steps: 12		224

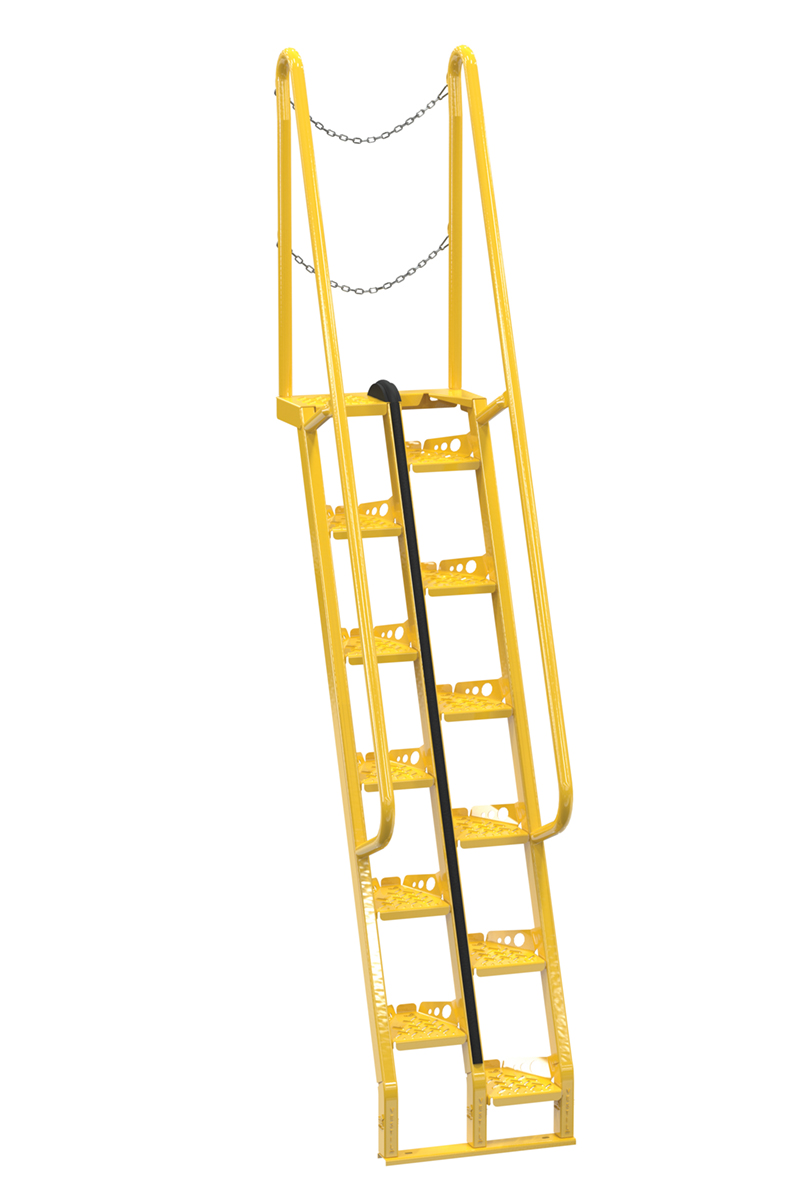

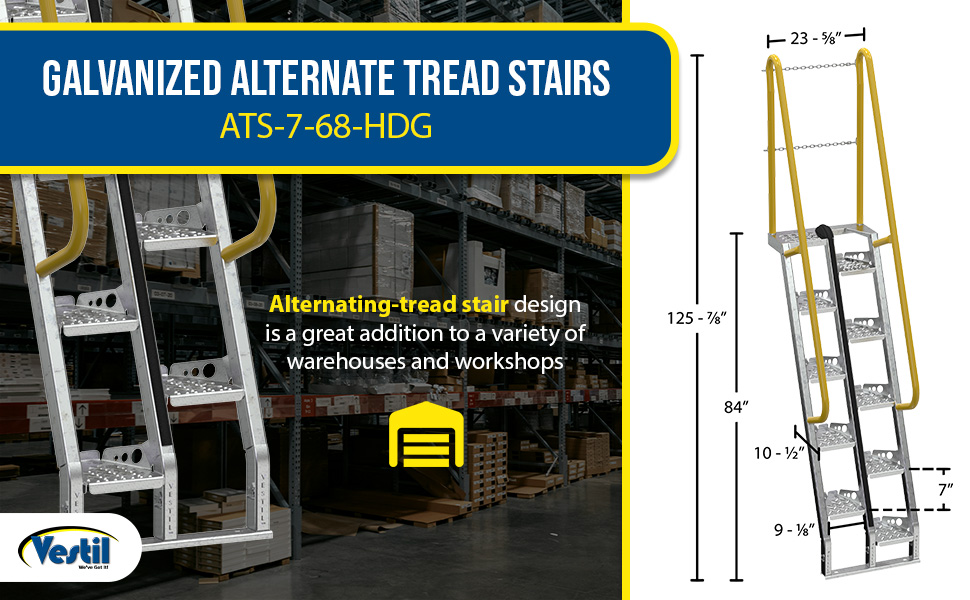

ATS-7-68 ATS-7-68Steel Alternate Tread Stair 68 Degrees 44-1/2 In. x 23-1/2 In. x 125-7/8 In. 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 12		238

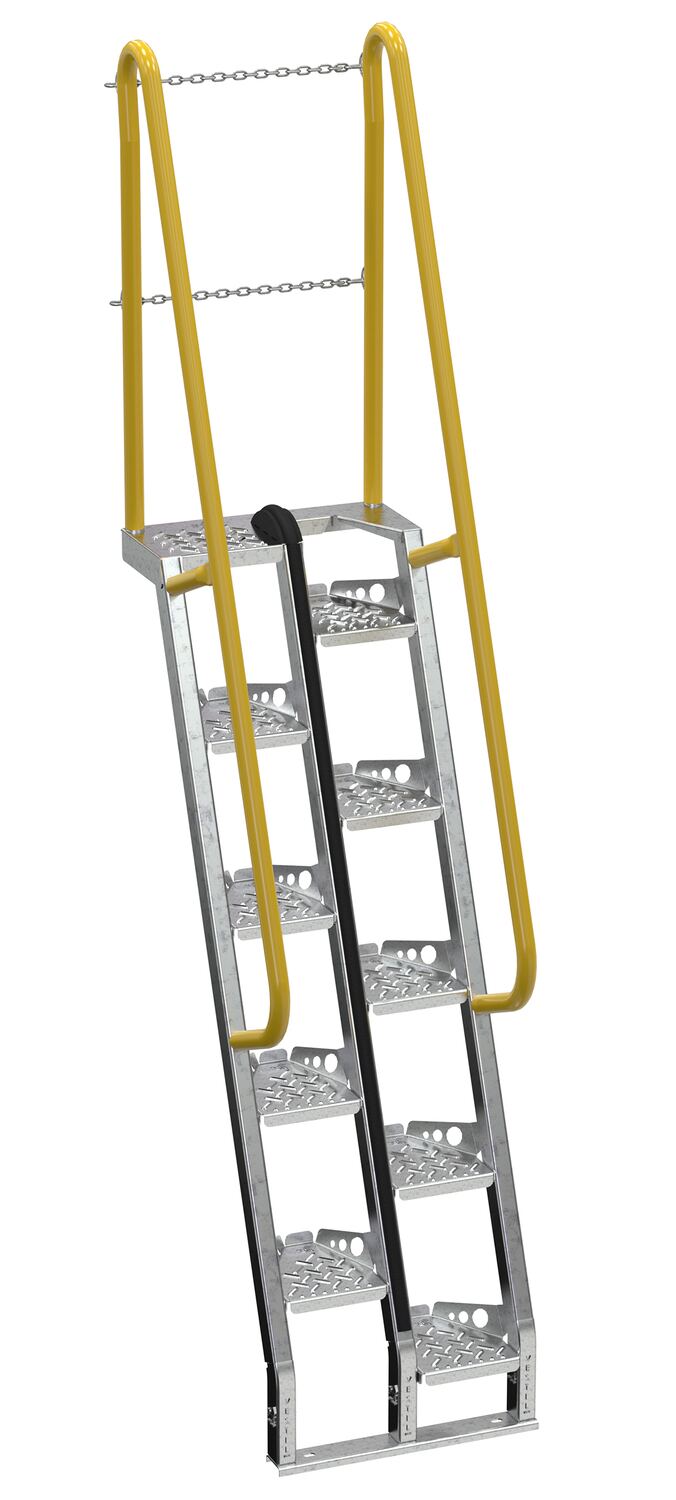

ATS-7-68-HDG ATS-7-68-HDGGalvanized Alternate Tread Stair 68 Degrees 44-1/2 In. x 23-1/2 In. x 125-7/8 In. 350 Lb. Capacity SilverUniform Capacity (lb.): 350
Number of Steps: 12		238

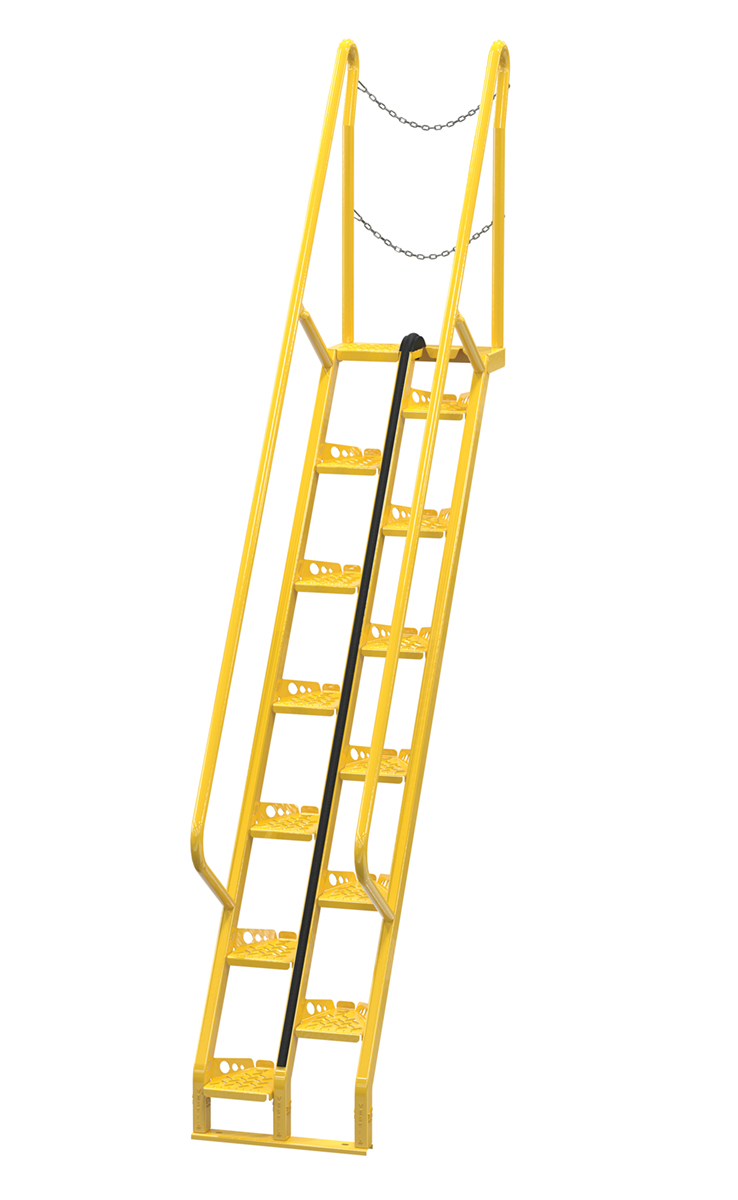

ATS-8-56 ATS-8-56Steel Alternate Tread Stair 56 Degrees 73-1/2 In. x 23-1/2 In. x 138-1/4 In. 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 13		254

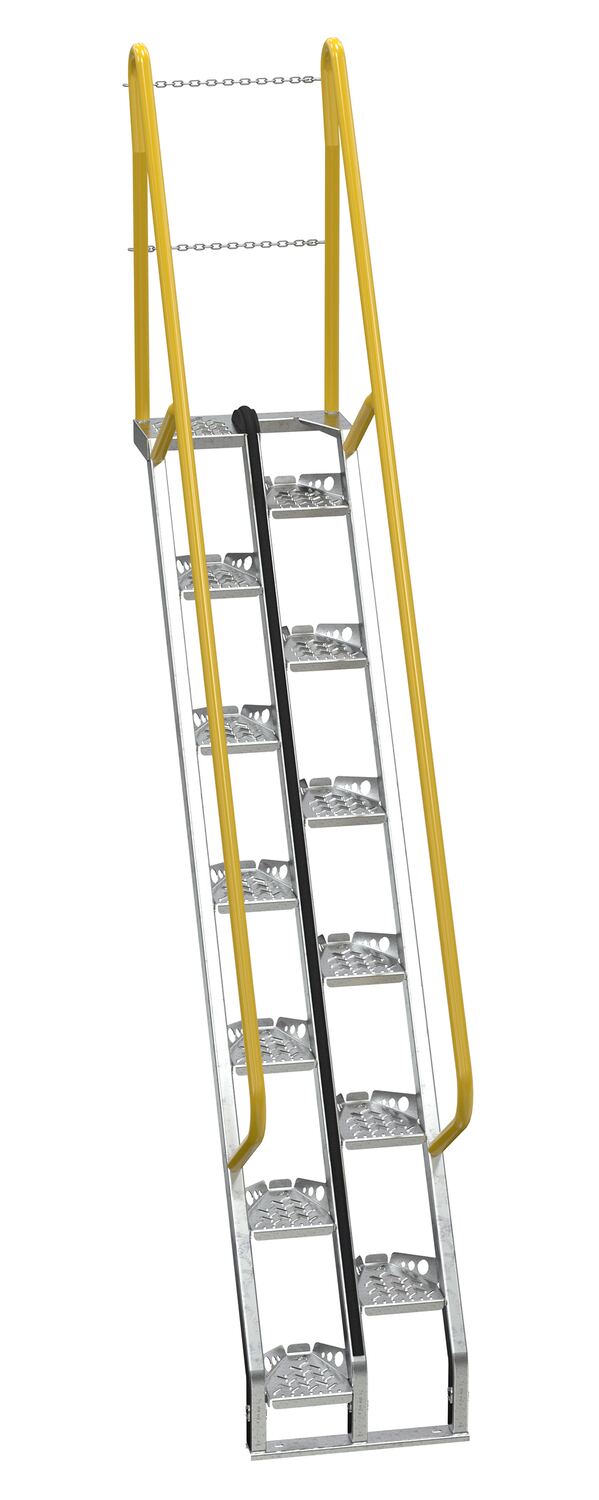

ATS-8-56-HDG ATS-8-56-HDGGalvanized Alternate Tread Stair 56 Degrees 73-1/2 In. x 23-1/2 In. x 138-1/4 In. 350 Lb. Capacity SilverUniform Capacity (lb.): 350
Number of Steps: 13		254

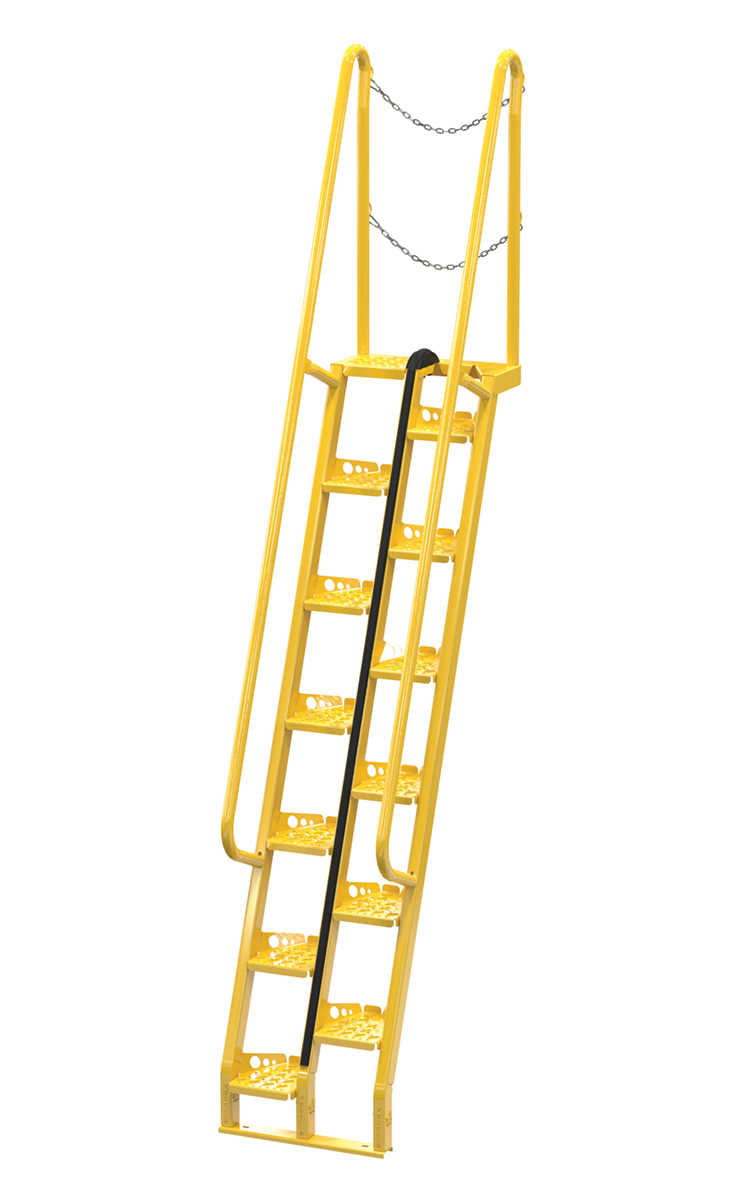

ATS-8-68 ATS-8-68Steel Alternate Tread Stair 68 Degrees 49-3/4 In. x 23-1/2 In. x 137-3/4 In. 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 13		248

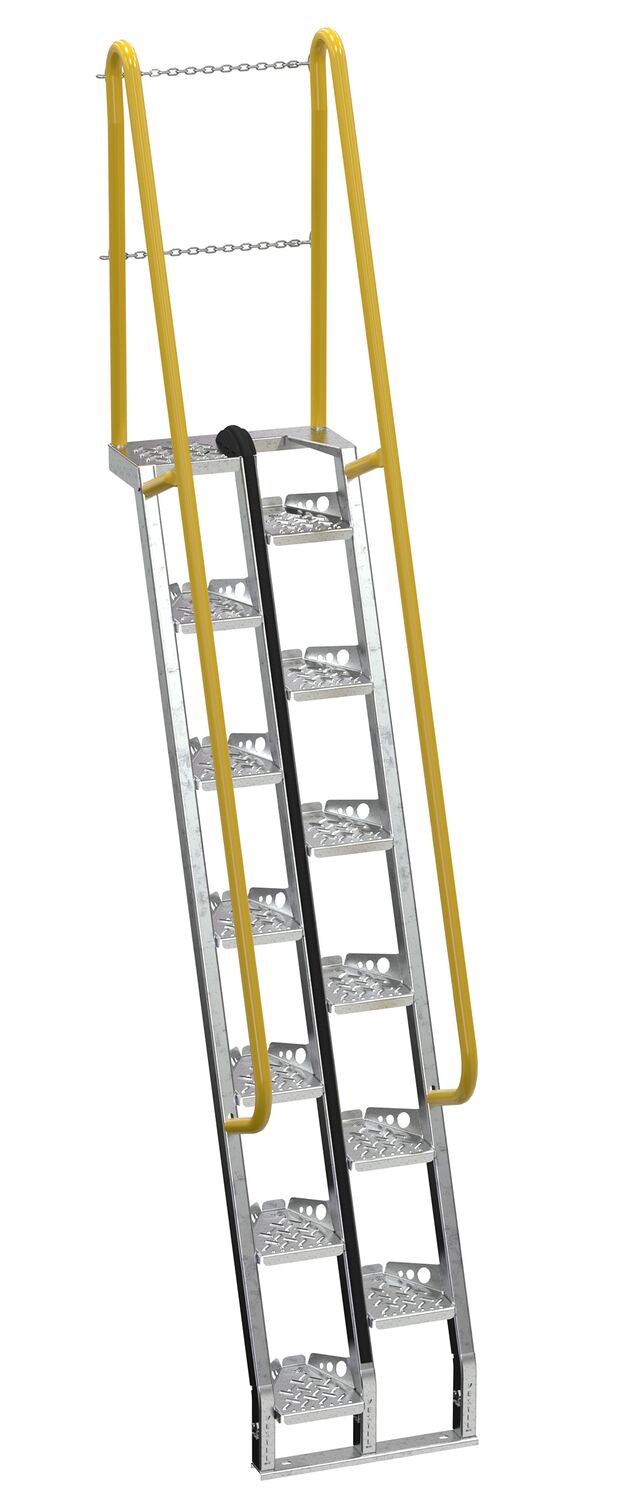

ATS-8-68-HDG ATS-8-68-HDGGalvanized Alternate Tread Stair 68 Degrees 49-3/4 In. x 23-1/2 In. x 137-3/4 In. 350 Lb. Capacity SilverUniform Capacity (lb.): 350
Number of Steps: 13		248

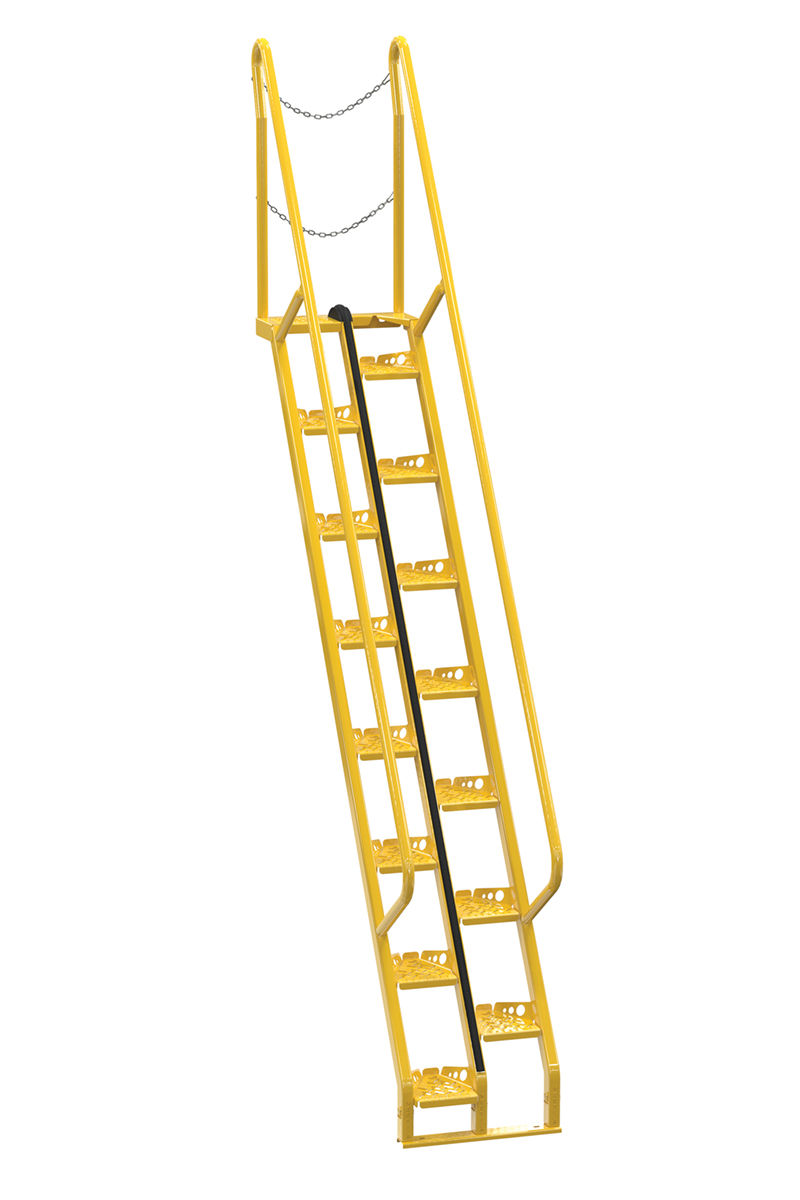

ATS-9-56 ATS-9-56Steel Alternate Tread Stair 56 Degrees 81-5/8 In. x 23-1/2 In. x 150-1/4 In. 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 15		284

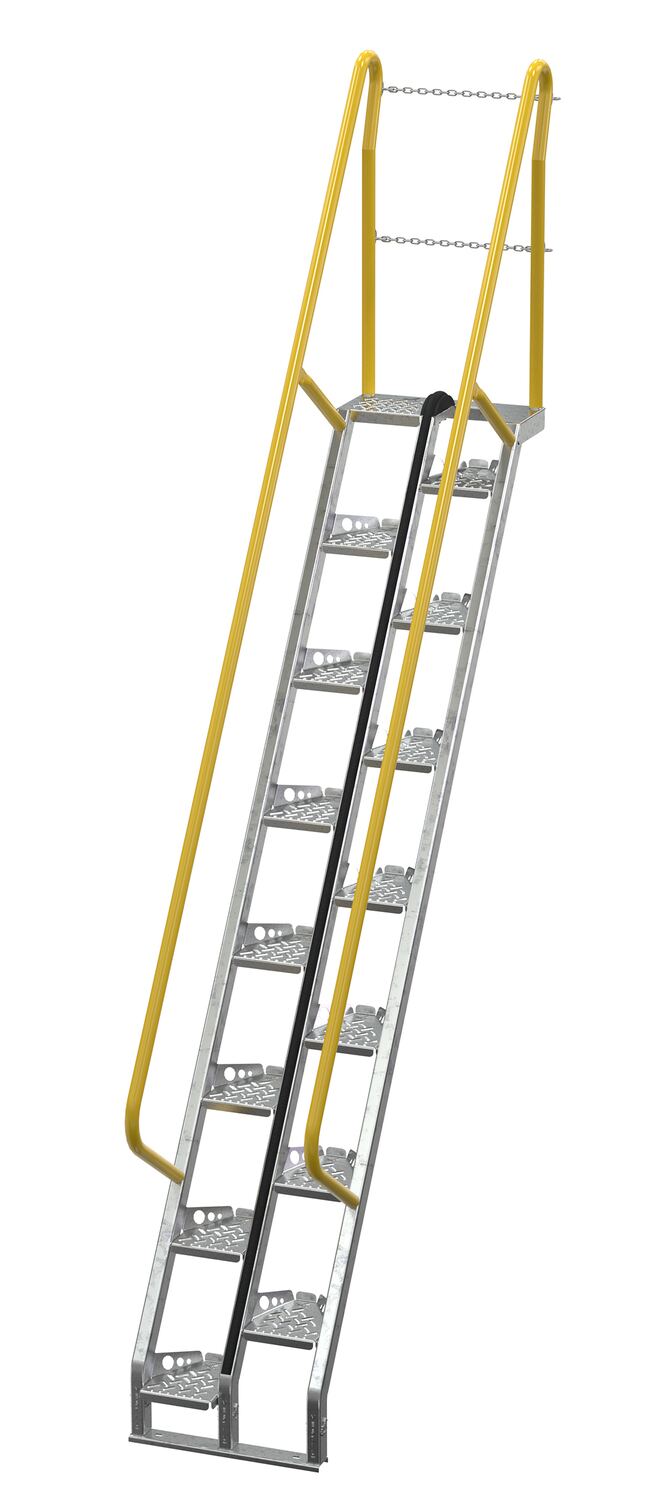

ATS-9-56-HDG ATS-9-56-HDGGalvanized Alternate Tread Stair 56 Degrees 81-5/8 In. x 23-1/2 In. x 150-1/4 In. 350 Lb. Capacity SilverUniform Capacity (lb.): 350
Number of Steps: 15		284

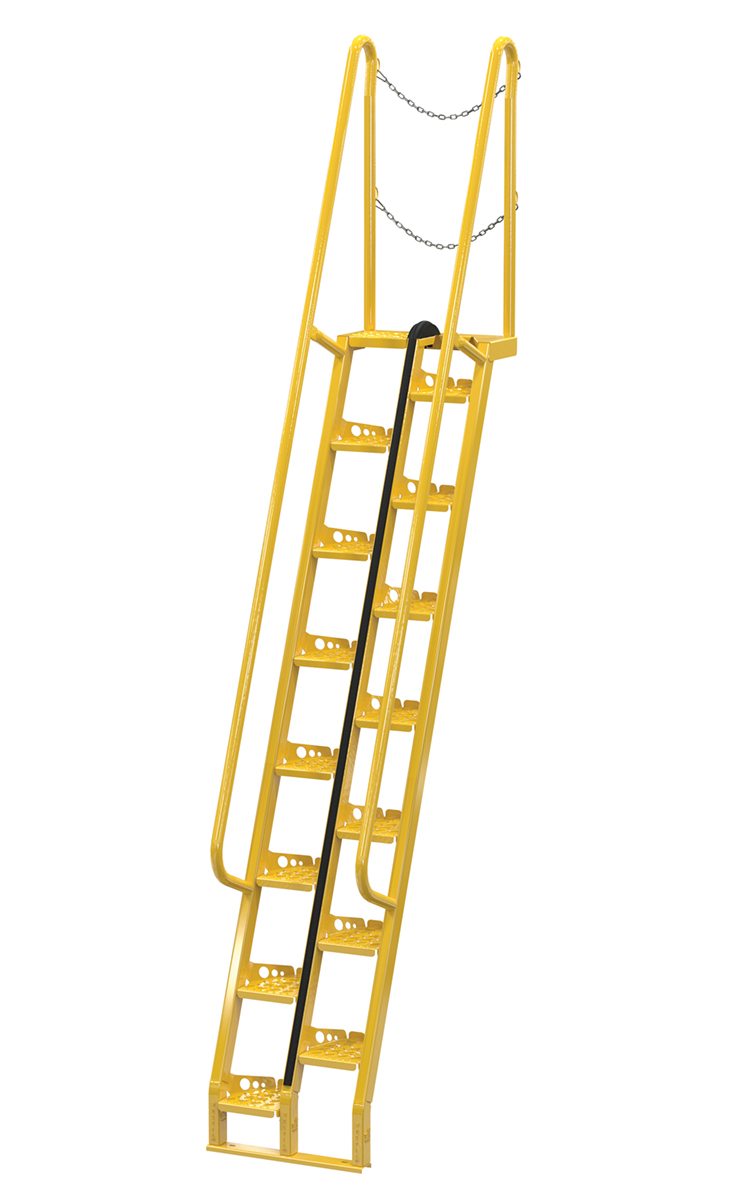

ATS-9-68 ATS-9-68Steel Alternate Tread Stair 68 Degrees 54-1/8 In. x 23-1/2 In. x 149-5/8 In. 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 15		256

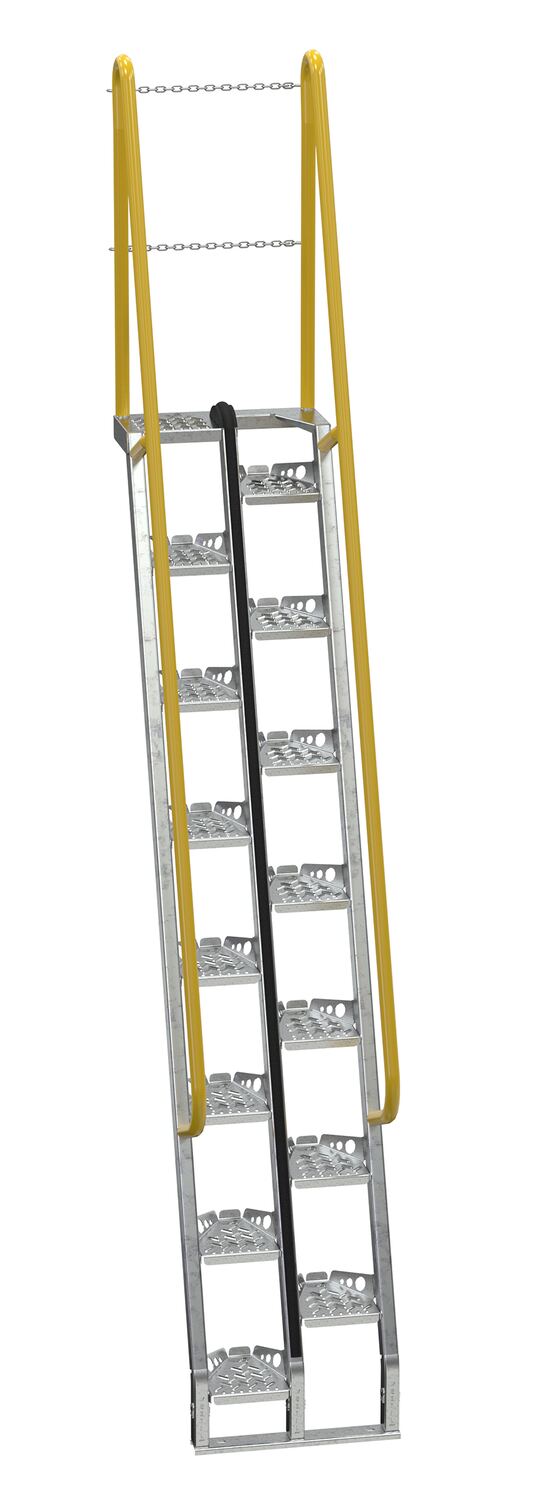

ATS-9-68-HDG ATS-9-68-HDGGalvanized Alternate Tread Stair 68 Degrees 54-1/8 In. x 23-1/2 In. x 149-5/8 In. 350 Lb. Capacity SilverUniform Capacity (lb.): 350
Number of Steps: 15		256
