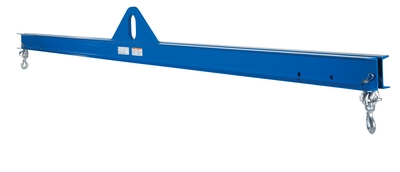

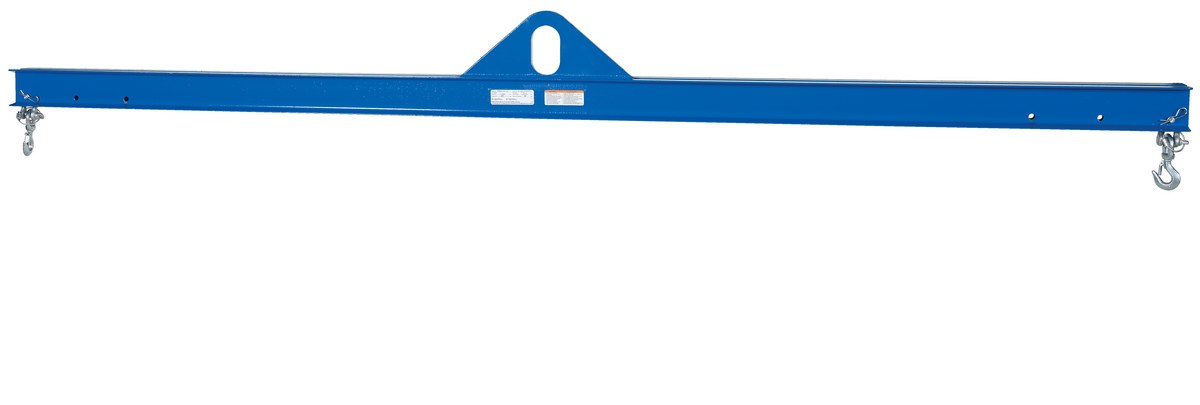

Economy Spreader Beams

model: SBM-10-10

Economy Spreader Beams

SERIES: SBM

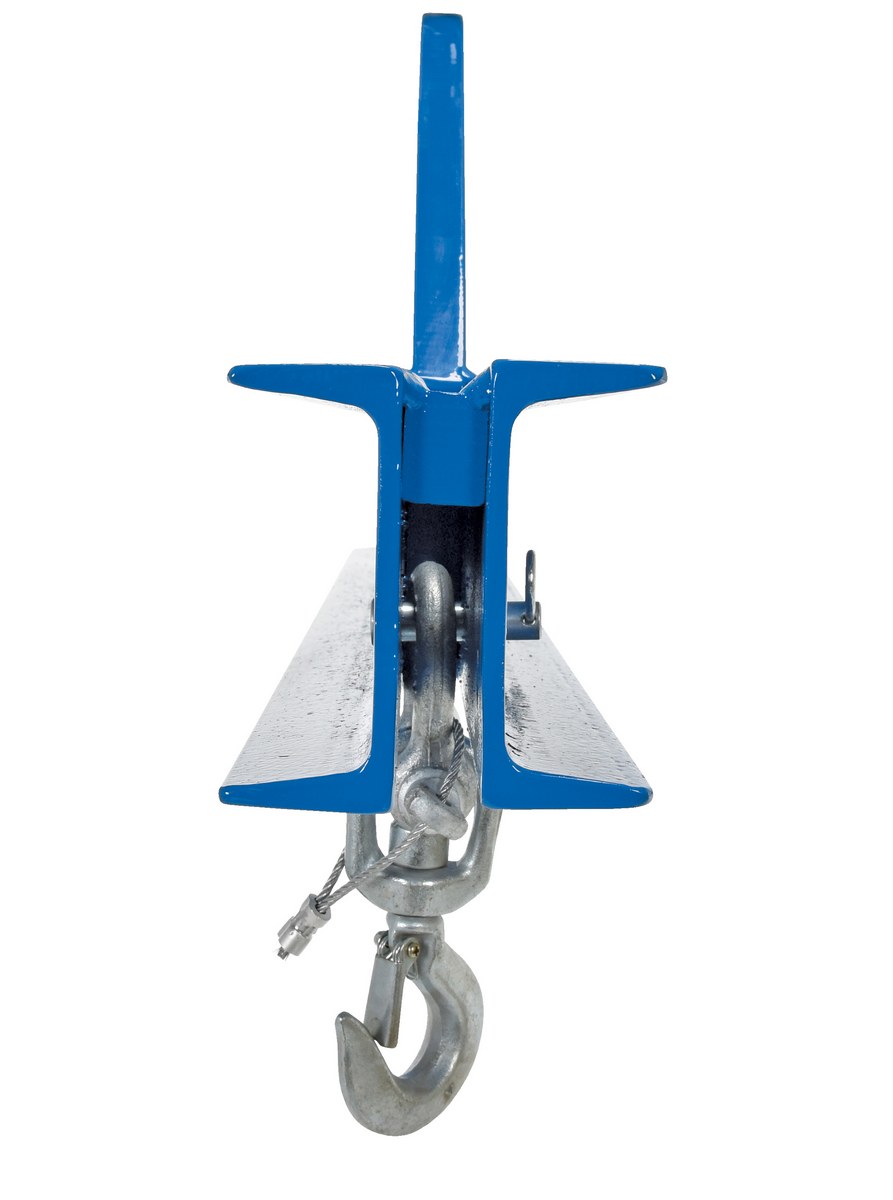

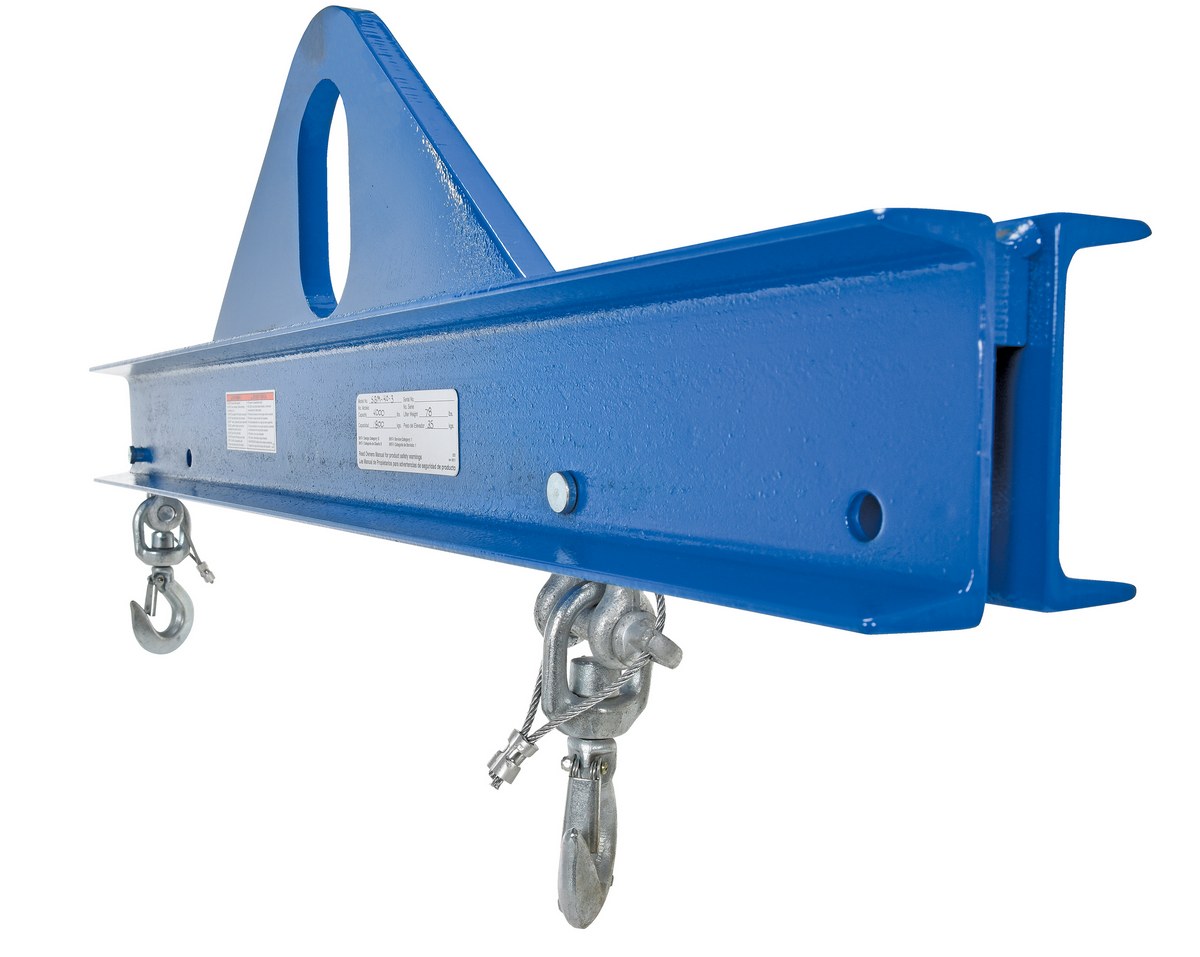

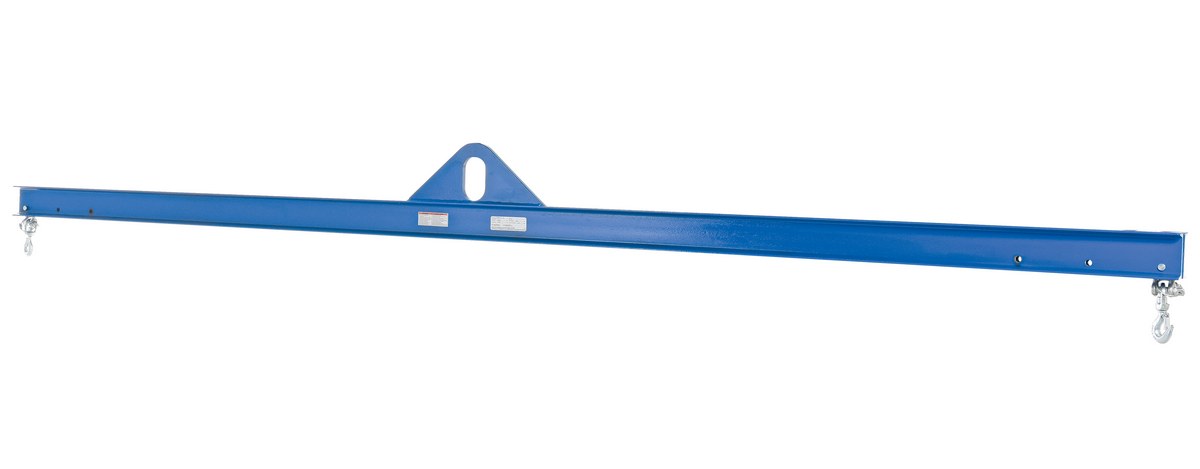

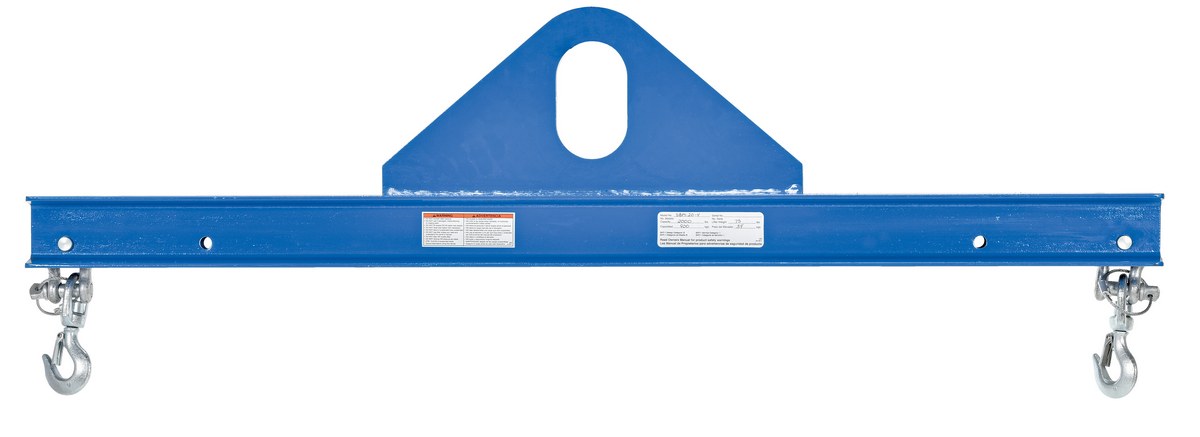

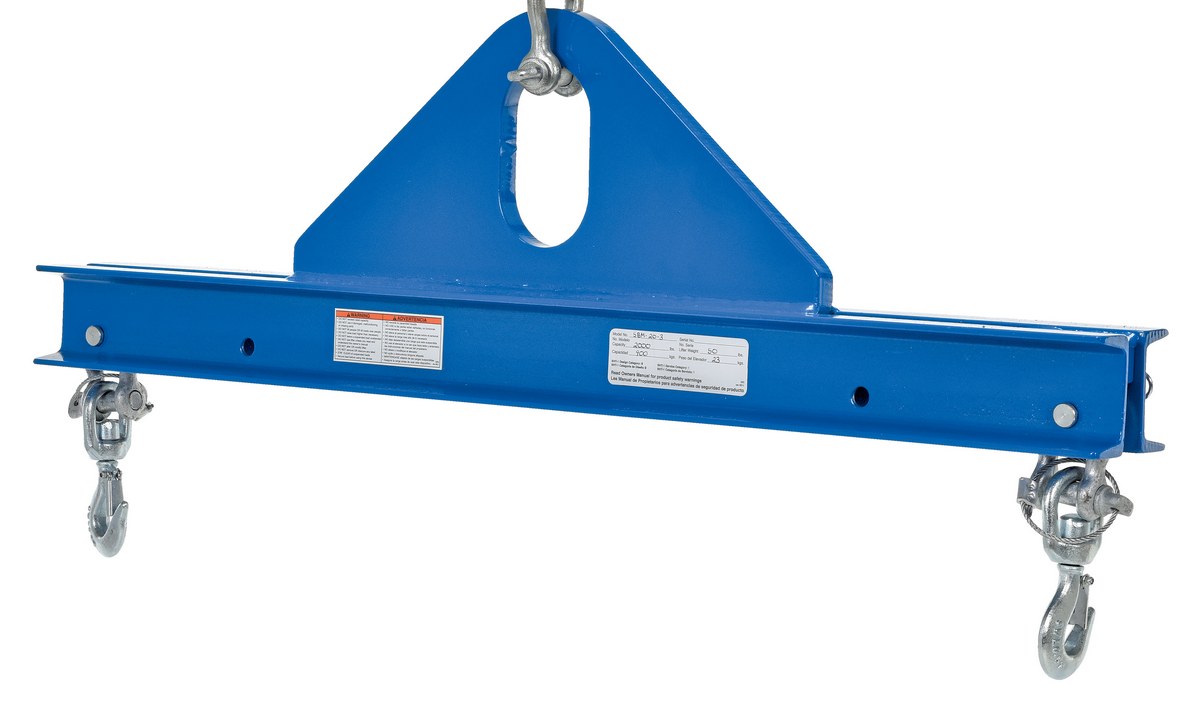

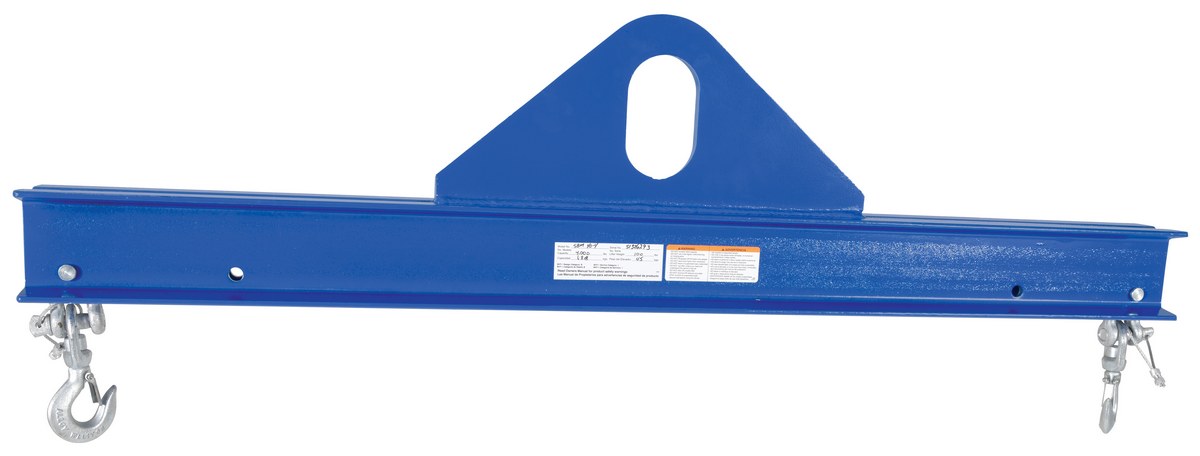

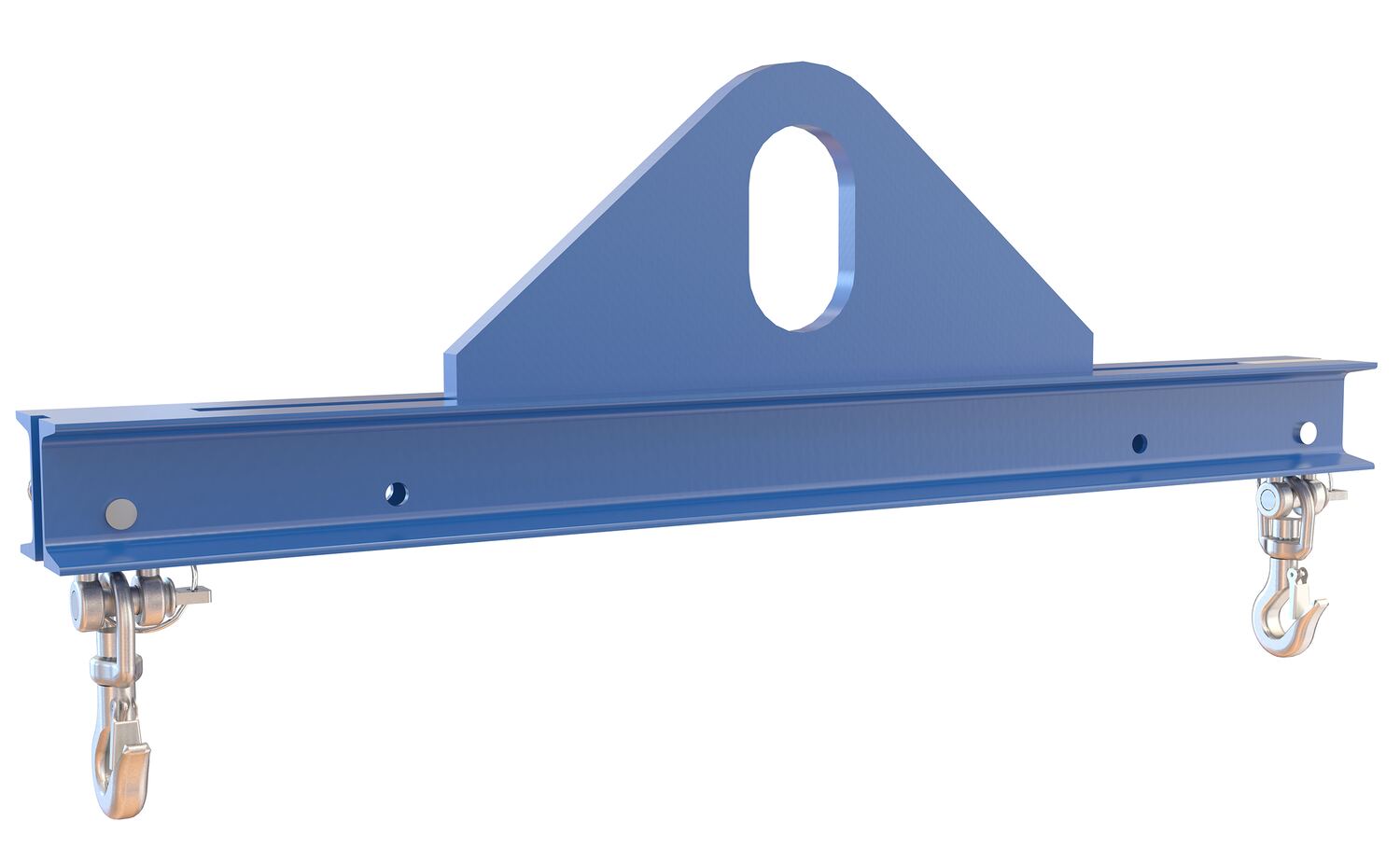

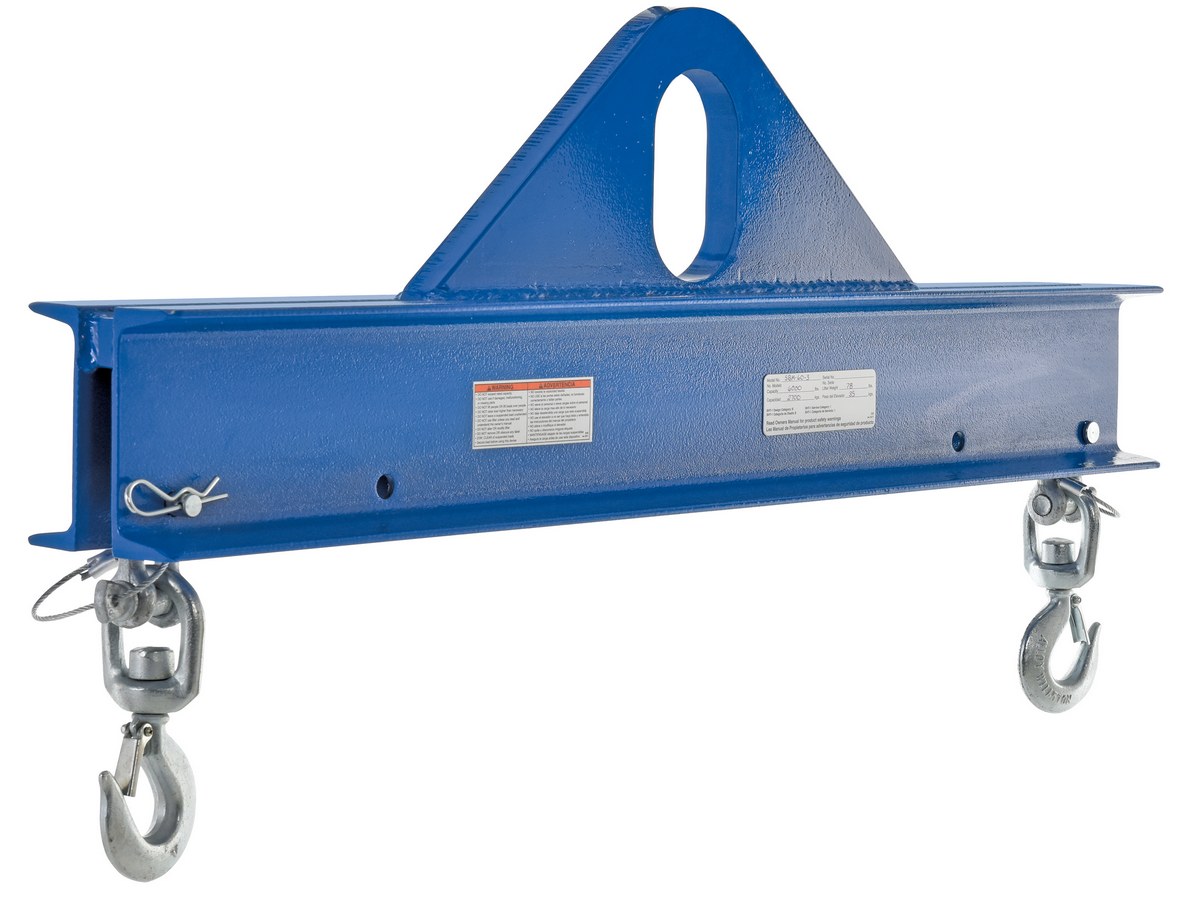

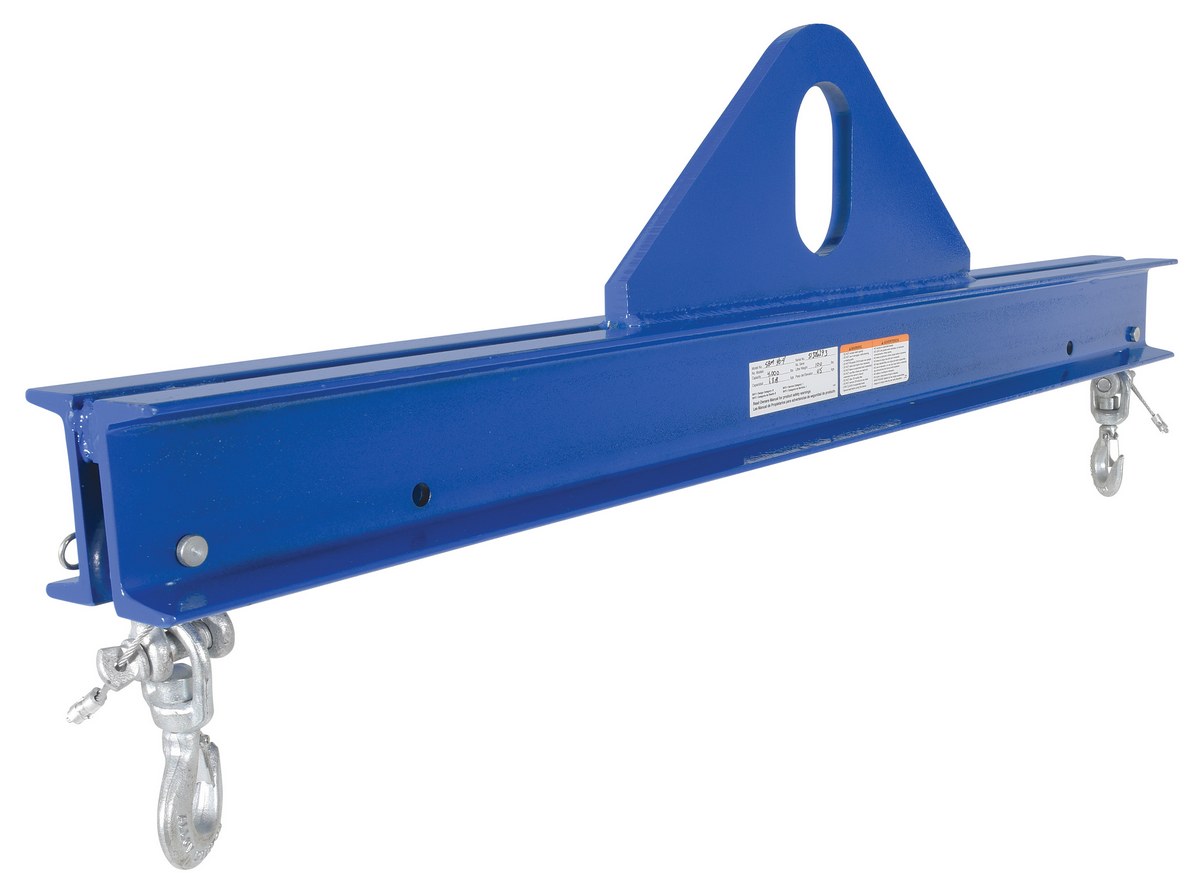

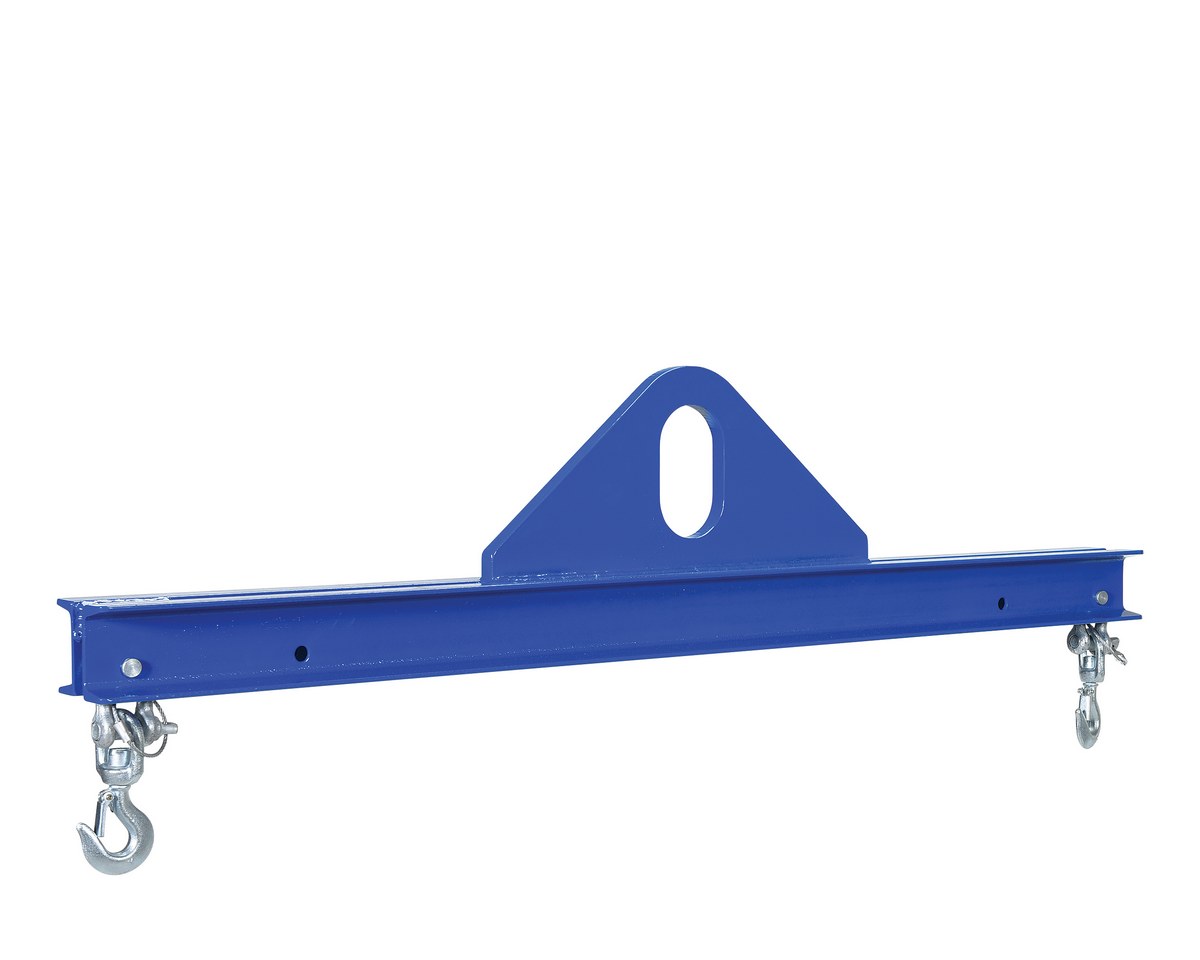

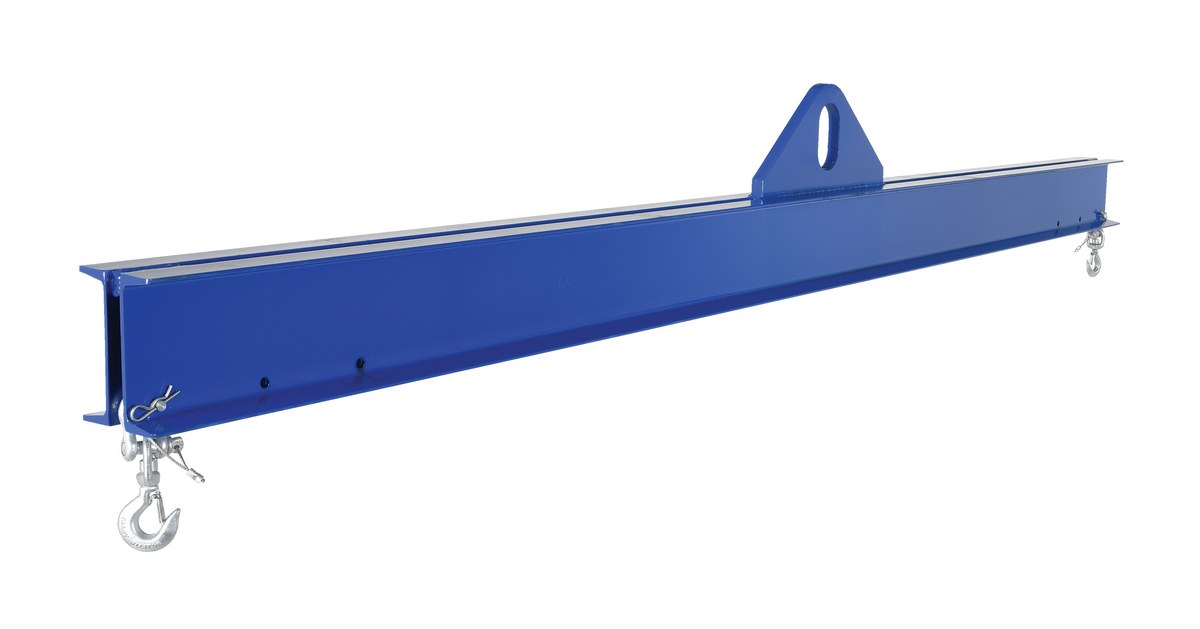

These versatile lifters are ideal for lifting a variety of loads where headroom is limited. Complies with OSHA and ANSI B30.20 standards. Usable bail is 3" wide, 5" high. Two safety swivel hooks and durable baked-in powder-coat finish for toughness. Heavy-duty welded steel construction.

Designed to lift and move uneven and awkward loads
Complies with ASME B30.20-1993 standards

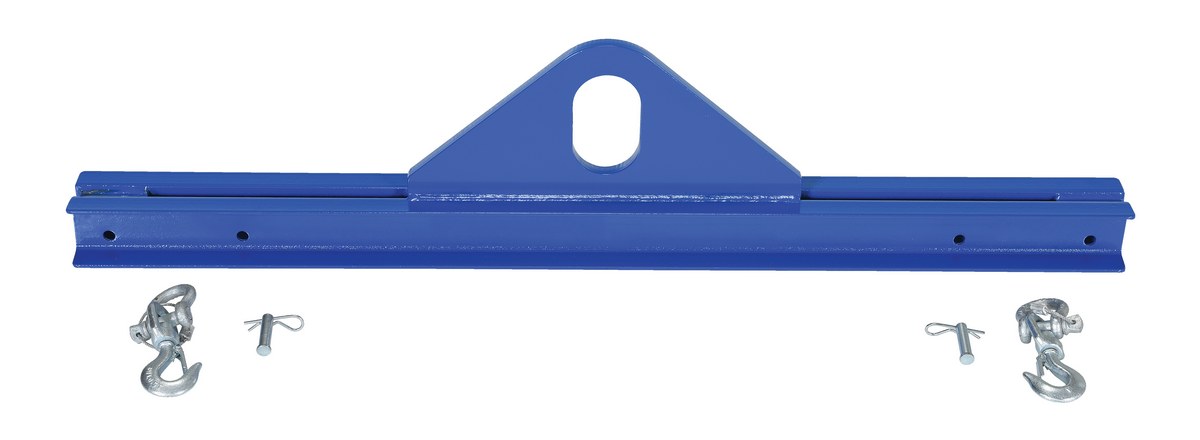

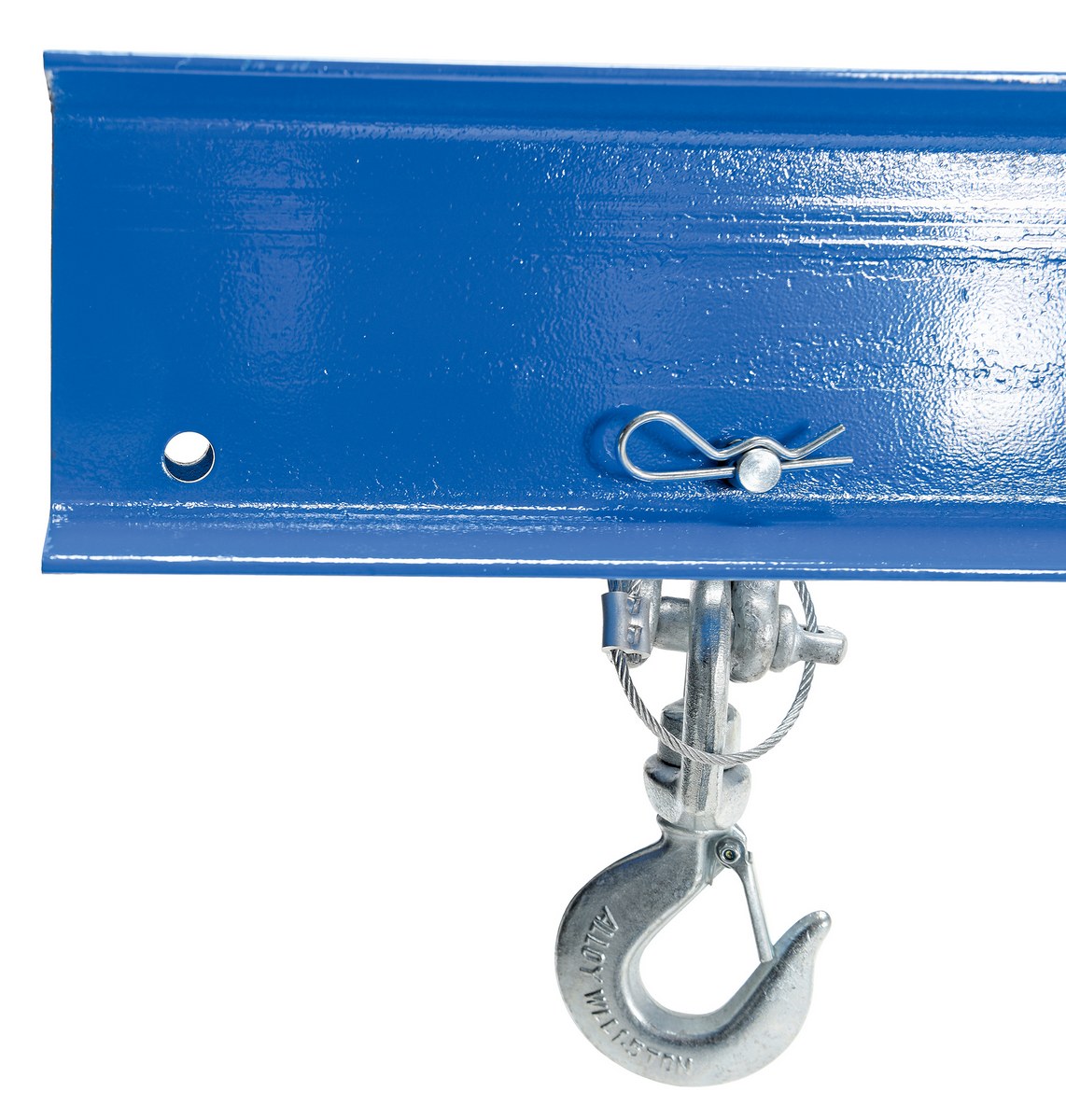

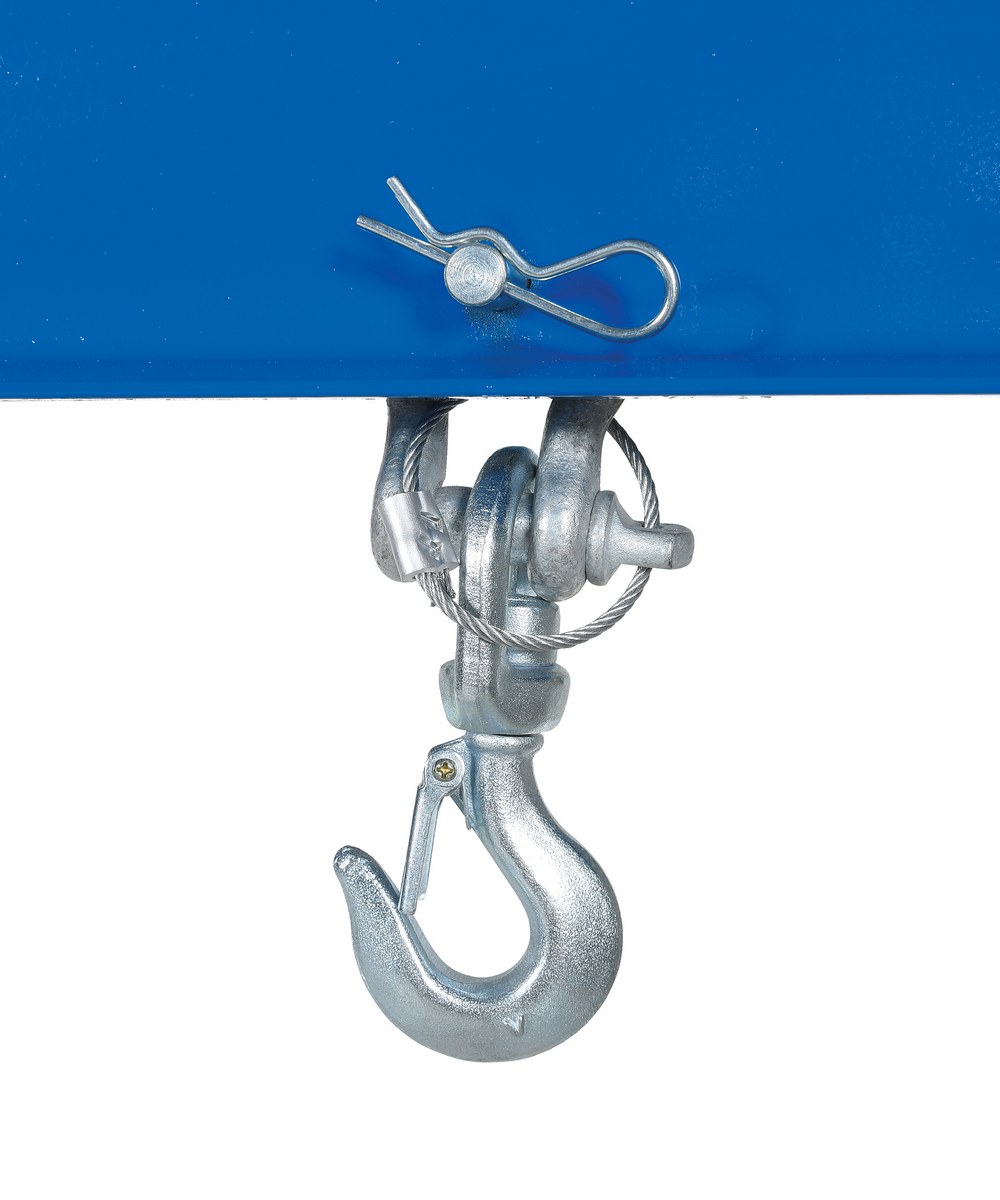

Includes two swivel lifting hooks for added versatility
Welded steel construction for heavy duty performance

Economy Spreader Beams

model: SBM-10-10

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

PDFs will open in a new window when clicked.

Manuals

SBM

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

SBM-10-3

SBM-10-4

SBM-10-6

SBM-10-8

SBM-10-10

SBM-10-12

SBM-20-3

SBM-20-4

SBM-20-6

SBM-20-8

SBM-20-10

SBM-20-12

SBM-40-3

SBM-40-4

SBM-40-6

SBM-40-8

SBM-40-10

SBM-40-12

SBM-60-3

SBM-60-4

SBM-60-6

SBM-60-8

SBM-60-10

SBM-60-12

Testing Certificates

SBM-10-10

SBM-10-12

SBM-10-3

SBM-10-4

SBM-10-6

SBM-10-8

SBM-20-10

SBM-20-12

SBM-20-3

SBM-20-4

SBM-20-6

SBM-20-8

SBM-40-10

SBM-40-12

SBM-40-3

SBM-40-4

SBM-40-6

SBM-40-8

SBM-60-10

SBM-60-12

SBM-60-3

SBM-60-4

SBM-60-6

SBM-60-8

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product

Reference #: CF-6508 4 Point Spreader Beam

Reference #: CF-6508 4 Point Spreader Beam

Reference #: CF-6508 4 Point Spreader Beam
Special 4 Point Forklift Spreader Beam

For more Specialty Designs similar to these... Click Here

What service class is the SBM-60-12 built to?

Design Category B and Service Category 1

What kind of steel are SBM models made from?

A-36

Print Friendly

Related or Similar Products:

More From Spreader Beams

Magnetic Spreader Beams

Magnetic Spreader Beams

Short Span Steel Lifting Plate

Short Span Steel Lifting Plate

Economy Spreader Beams

These versatile lifters are ideal for lifting a variety of loads where headroom is limited. Complies with OSHA and ANSI B30.20 standards. Usable bail is 3" wide, 5" high. Two safety swivel hooks and durable baked-in powder-coat finish for toughness. Heavy-duty welded steel construction.

Designed to lift and move uneven and awkward loads
Complies with ASME B30.20-1993 standards
Includes two swivel lifting hooks for added versatility
Welded steel construction for heavy duty performance

Model #		Description	Attributes	Net Wt. (lbs)

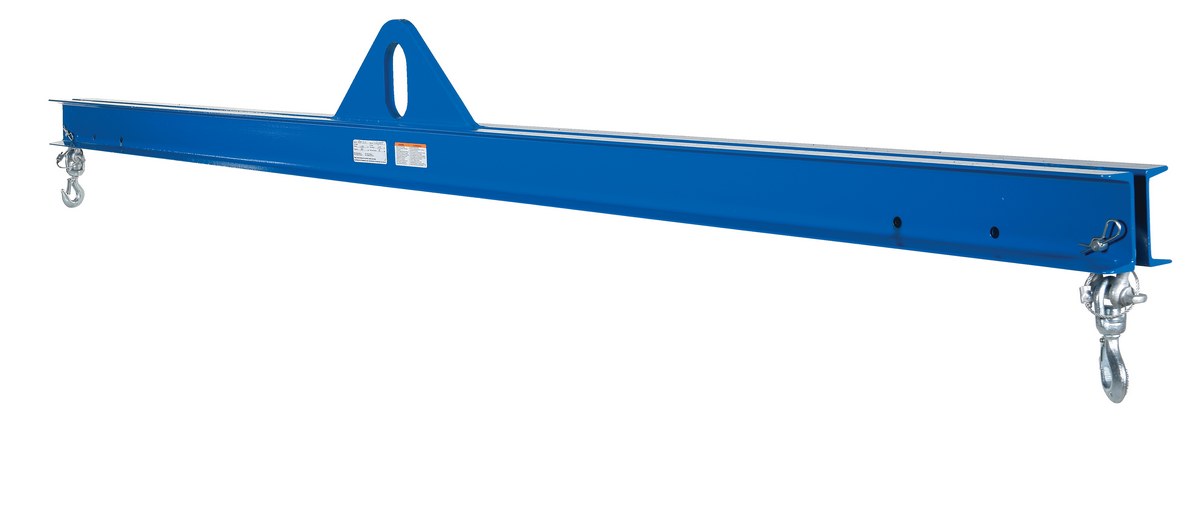

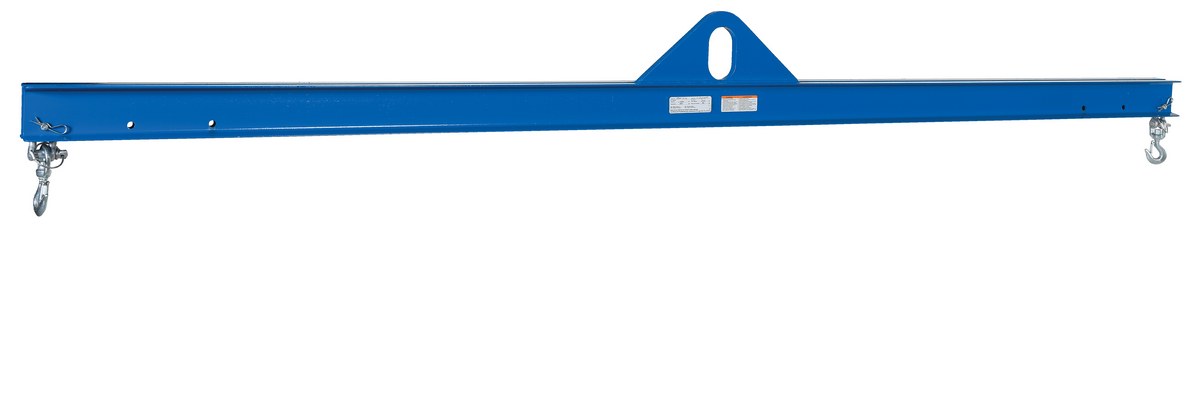

SBM-10-10		Steel Economy Spreader Beam 120 In Length 1,000 Lb. Capacity Blue	Uniform Capacity (lb.): 1000 Headroom (in.): 14	232

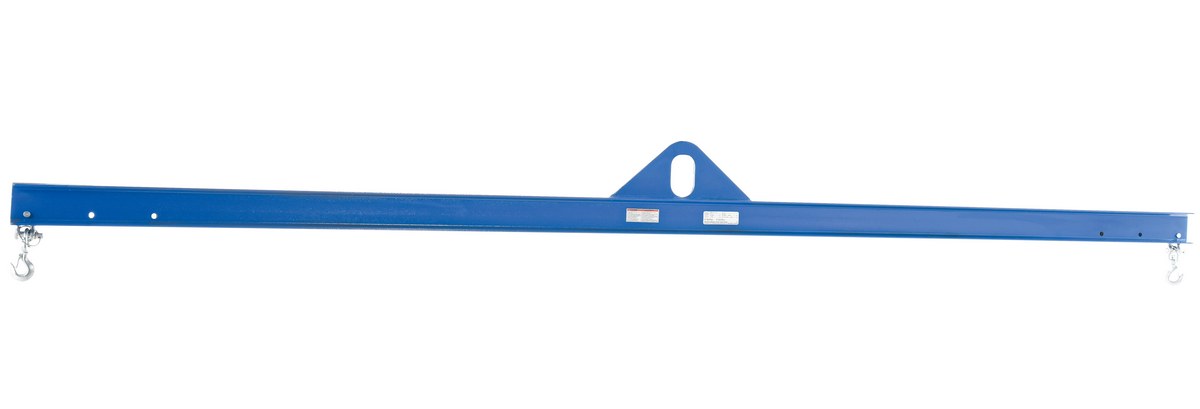

SBM-10-12		Steel Economy Spreader Beam 144 In Length 1,000 Lb. Capacity Blue	Uniform Capacity (lb.): 1000 Headroom (in.): 14	198
SBM-10-3		Steel Economy Spreader Beam 36 In. Length 1,000 Lb. Capacity Blue	Uniform Capacity (lb.): 1000 Headroom (in.): 14	67
SBM-10-4		Steel Economy Spreader Beam 48 In Length 1,000 Lb. Capacity Blue	Uniform Capacity (lb.): 1000 Headroom (in.): 14	75

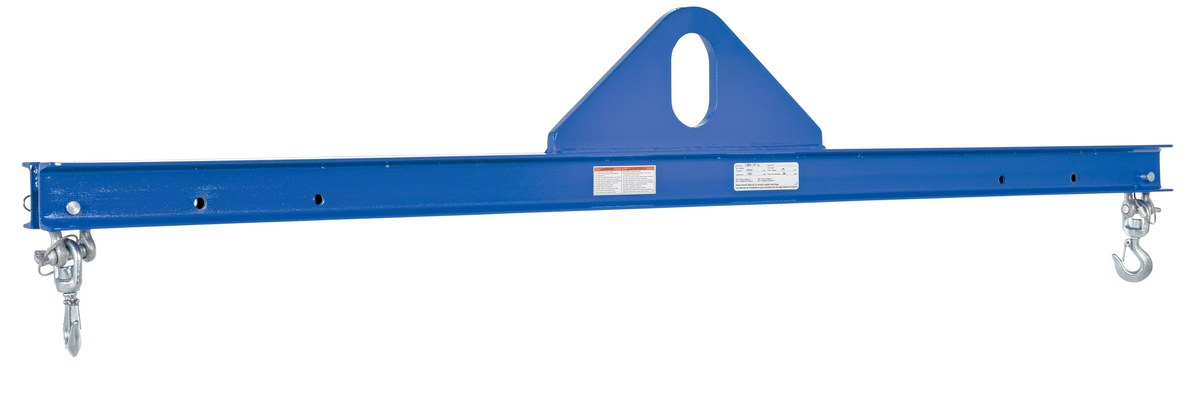

SBM-10-6		Steel Economy Spreader Beam 72 In Length 1,000 Lb. Capacity Blue	Uniform Capacity (lb.): 1000 Headroom (in.): 14	140

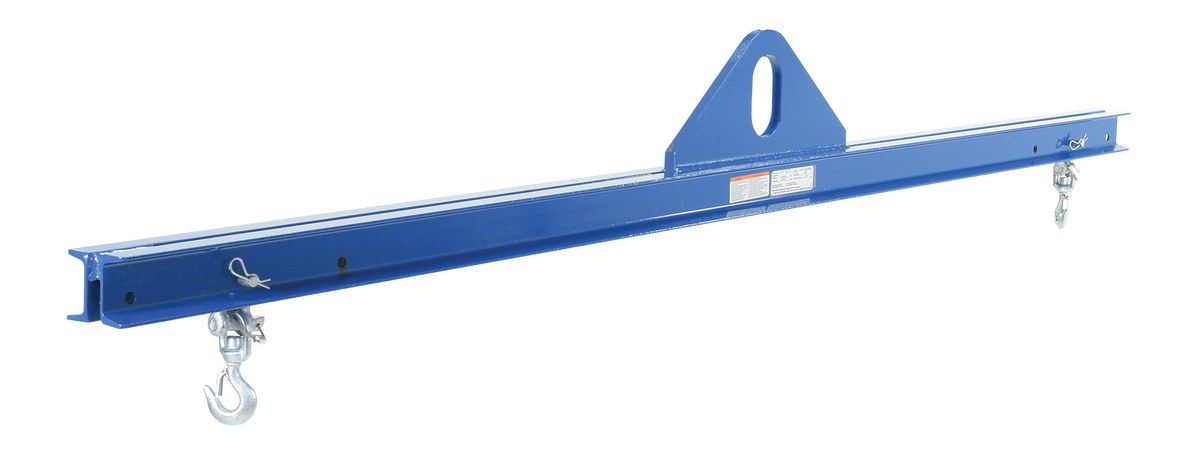

SBM-10-8		Steel Economy Spreader Beam 96 In Length 1,000 Lb. Capacity Blue	Uniform Capacity (lb.): 1000 Headroom (in.): 14	120

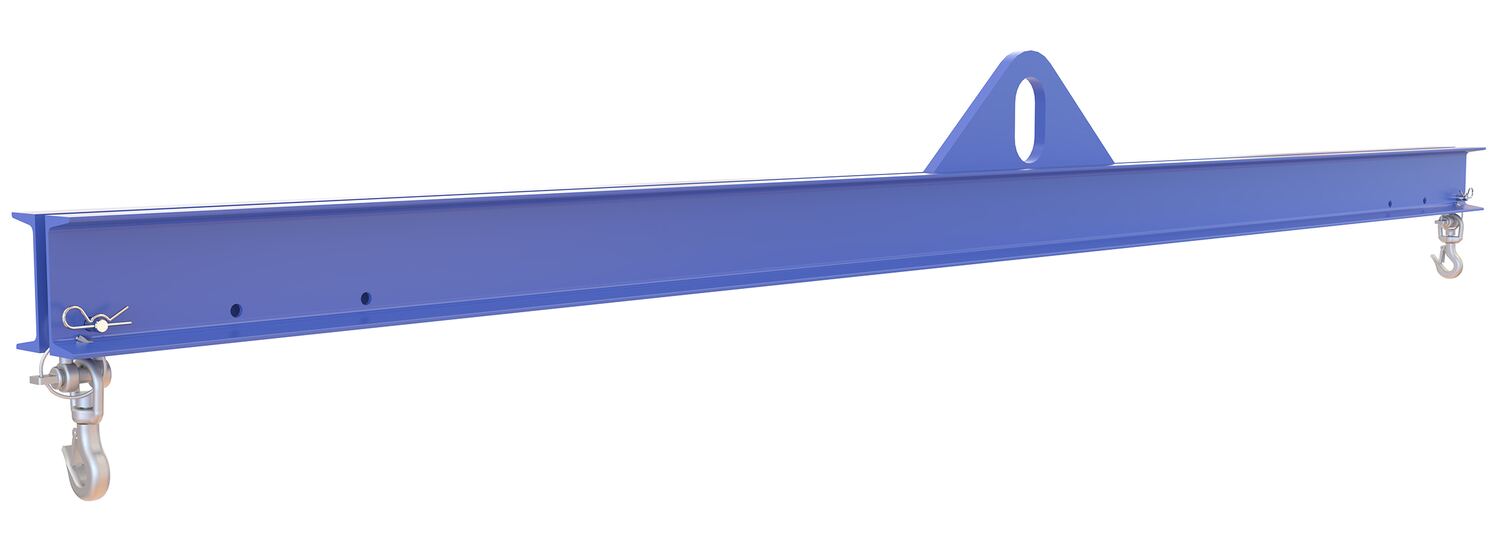

SBM-20-10		Steel Economy Spreader Beam 120 In Length 2,000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Headroom (in.): 15	202

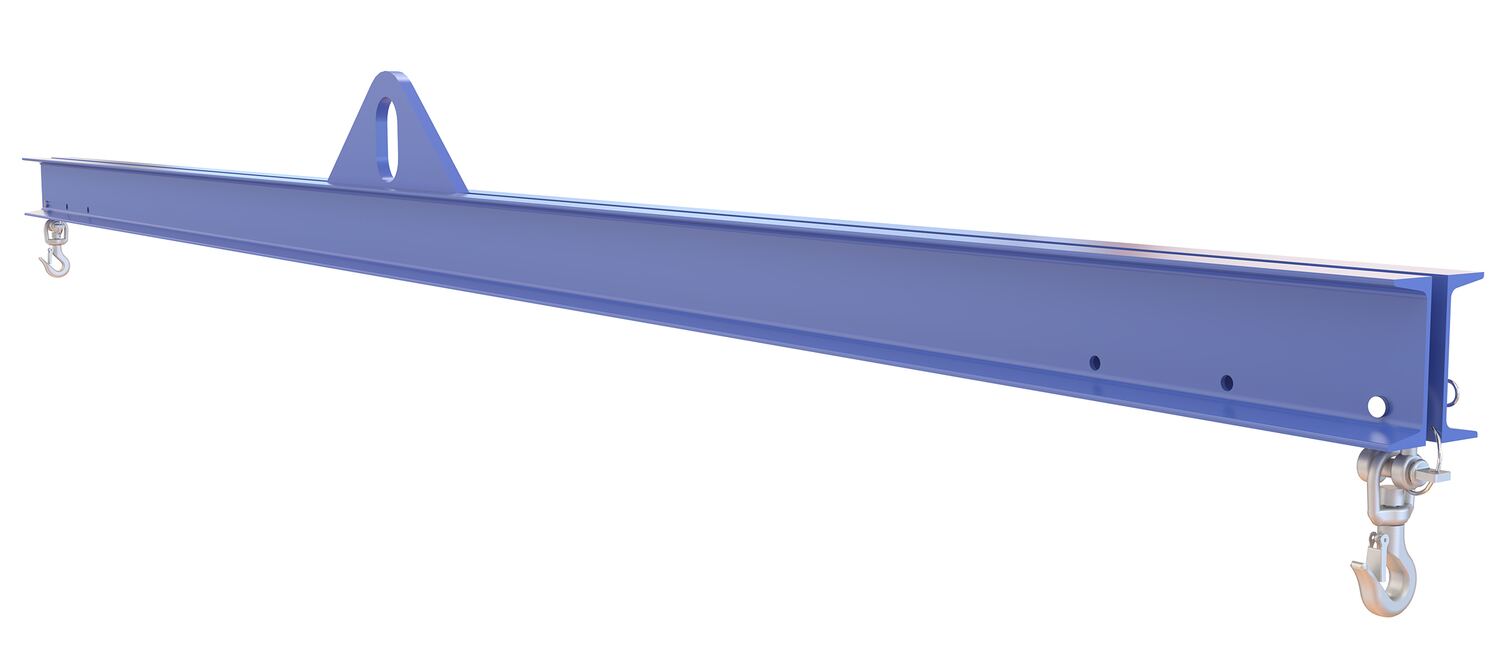

SBM-20-12		Steel Economy Spreader Beam 144 In Length 2,000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Headroom (in.): 15	282

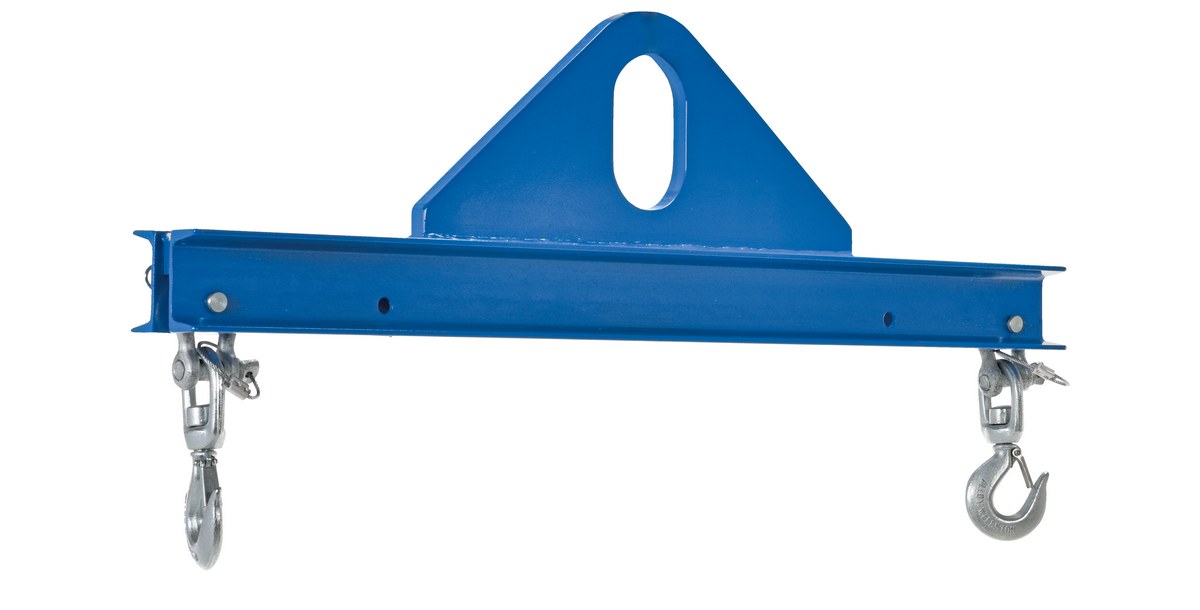

SBM-20-3		Steel Economy Spreader Beam 36 In. Length 2,000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Headroom (in.): 14	54

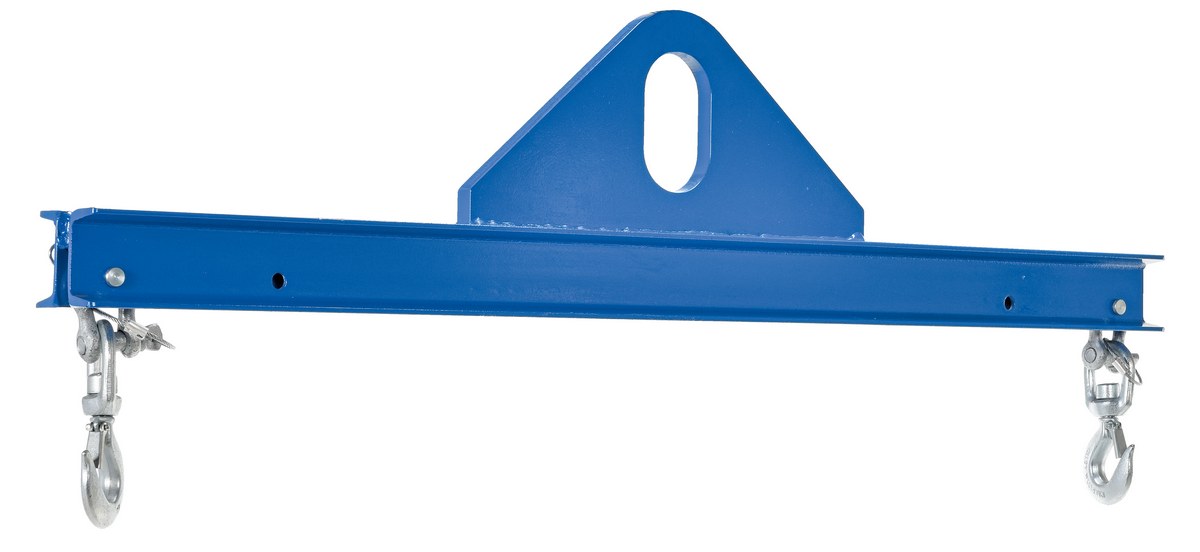

SBM-20-4		Steel Economy Spreader Beam 48 In Length 2,000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Headroom (in.): 14	61

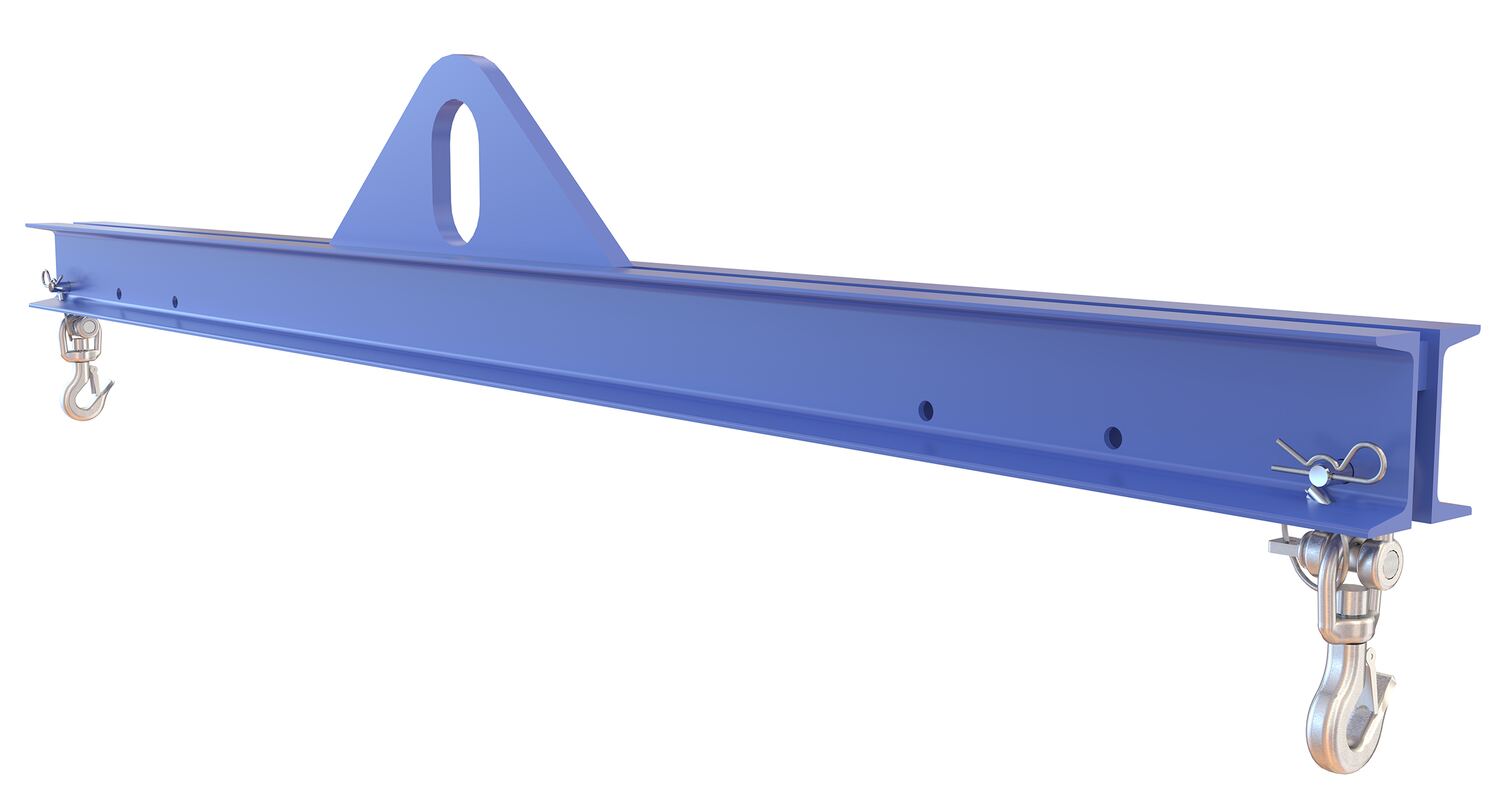

SBM-20-6		Steel Economy Spreader Beam 72 In Length 2,000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Headroom (in.): 14	122

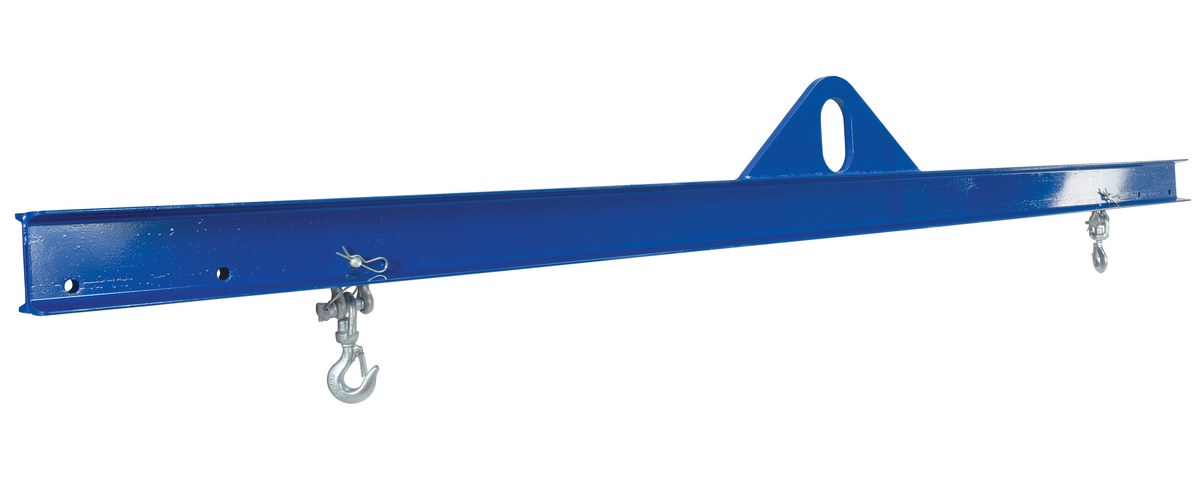

SBM-20-8		Steel Economy Spreader Beam 96 In Length 2,000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Headroom (in.): 14	172
SBM-40-10		Steel Economy Spreader Beam 120 In Length 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Headroom (in.): 18-13/16	322

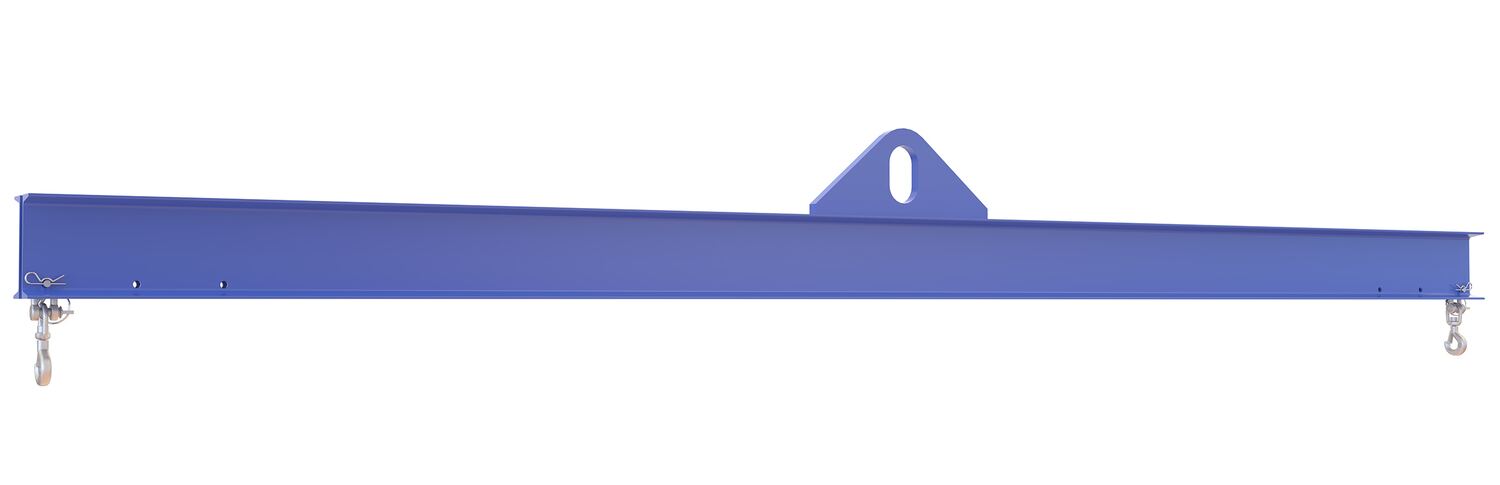

SBM-40-12		Steel Economy Spreader Beam 144 In Length 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Headroom (in.): 18-13/16	336

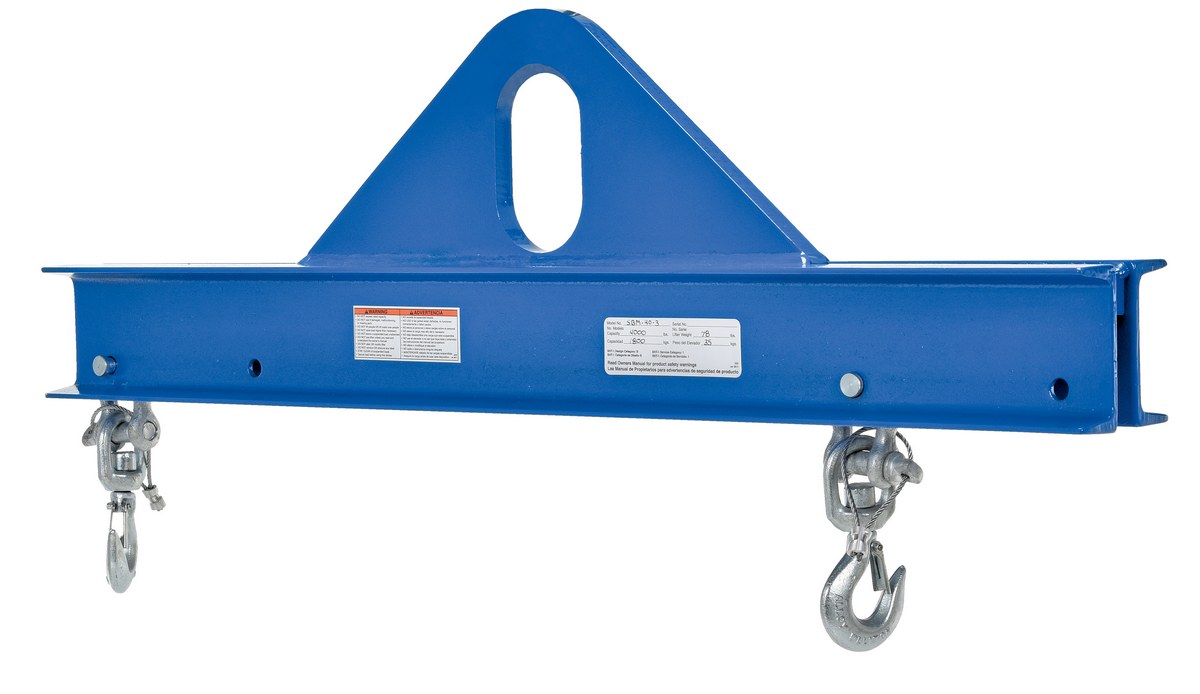

SBM-40-3		Steel Economy Spreader Beam 36 In. Length 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Headroom (in.): 14-13/16	82
SBM-40-4		Steel Economy Spreader Beam 48 In Length 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Headroom (in.): 14-1/2	130

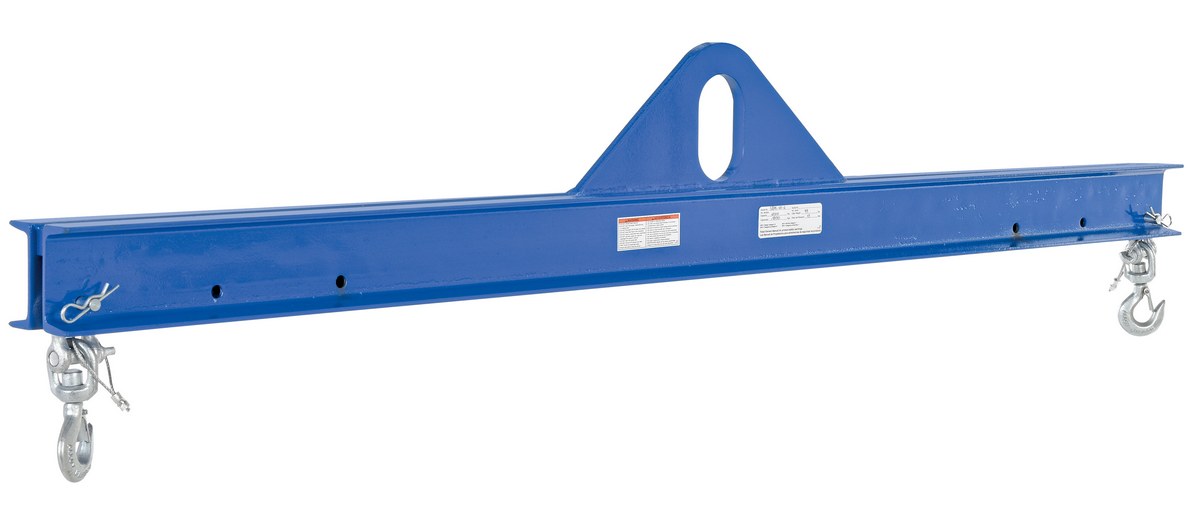

SBM-40-6		Steel Economy Spreader Beam 72 In Length 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Headroom (in.): 15-13/16	156

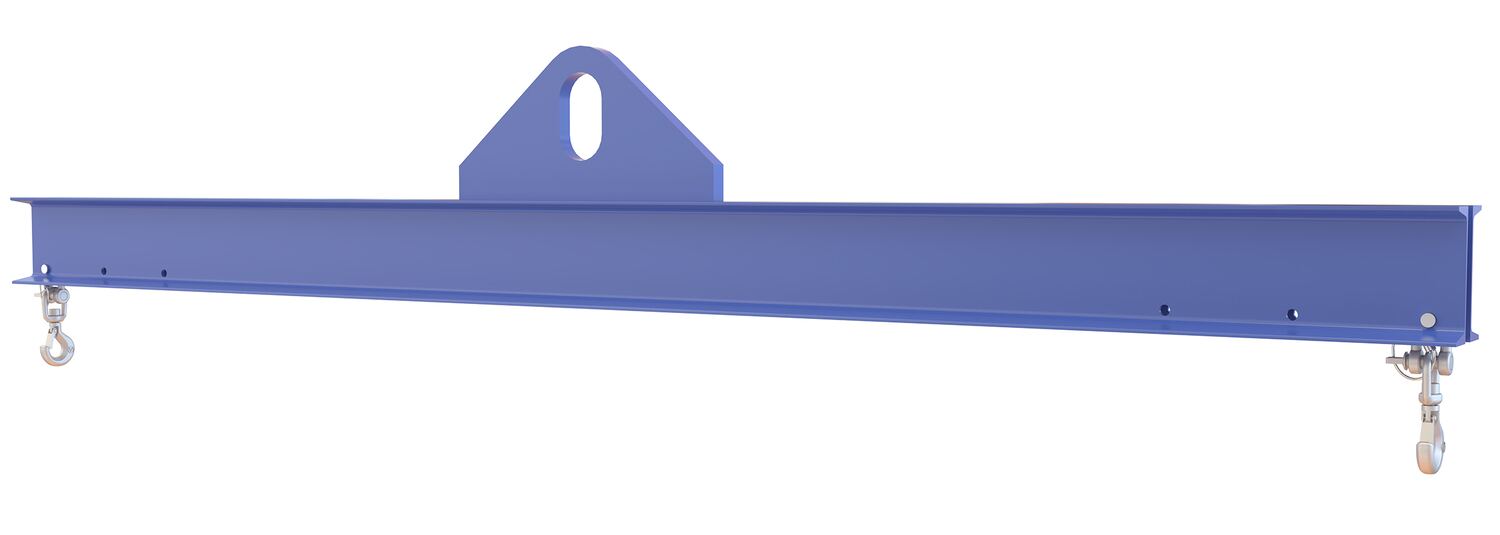

SBM-40-8		Steel Economy Spreader Beam 96 In Length 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Headroom (in.): 18-13/16	210

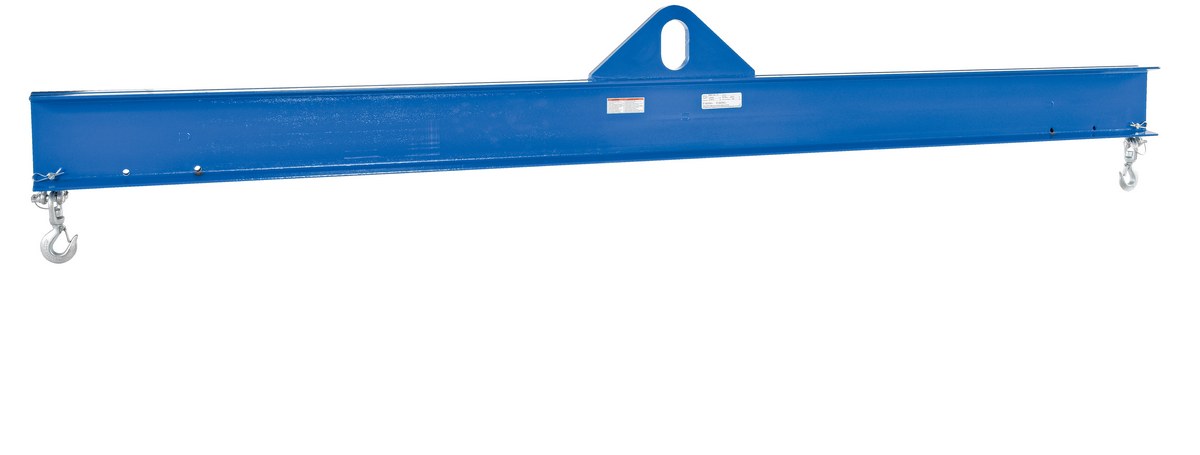

SBM-60-10		Steel Economy Spreader Beam 120 In Length 6,000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Headroom (in.): 18-11/16	375

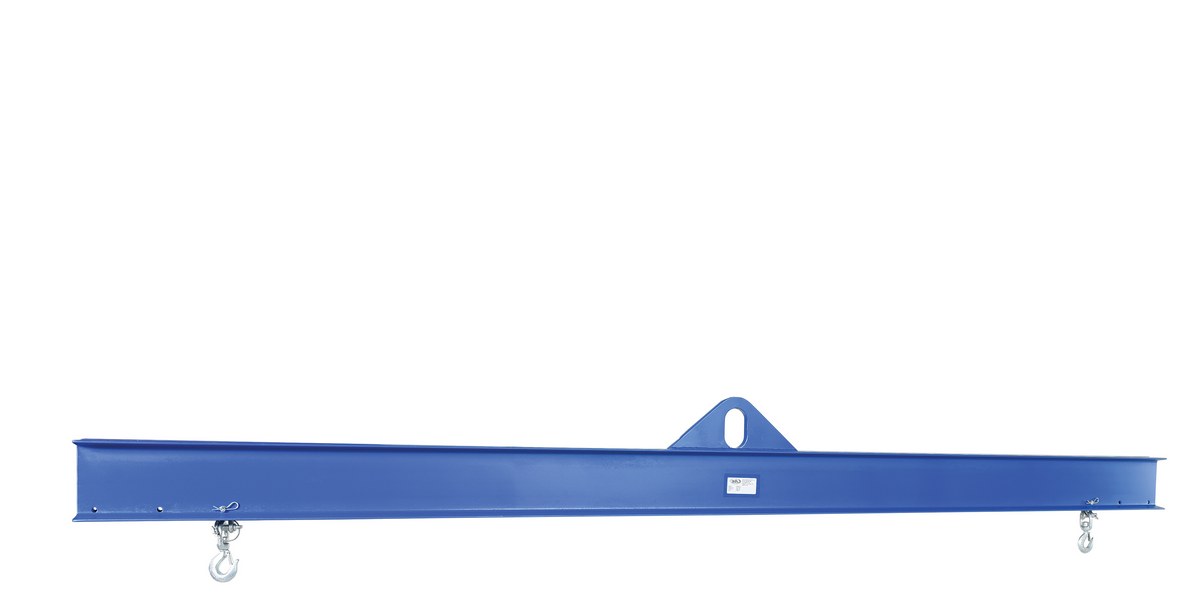

SBM-60-12		Steel Economy Spreader Beam 144 In Length 6,000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Headroom (in.): 18-11/16	498
SBM-60-3		Steel Economy Spreader Beam 36 In Length 6,000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Headroom (in.): 15-11/16	104
SBM-60-4		Steel Economy Spreader Beam 48 In Length 6,000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Headroom (in.): 15-11/16	134

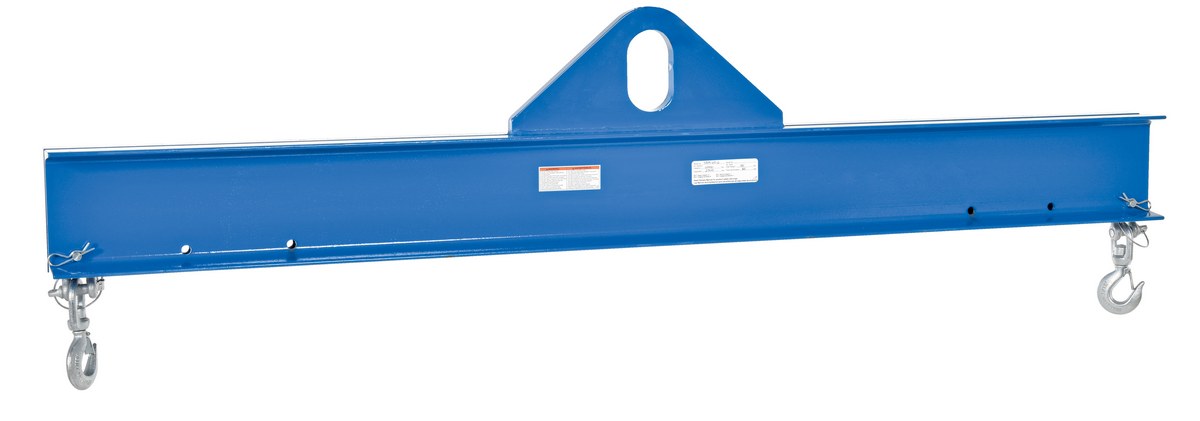

SBM-60-6		Steel Economy Spreader Beam 72 In Length 6,000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Headroom (in.): 18-11/16	224

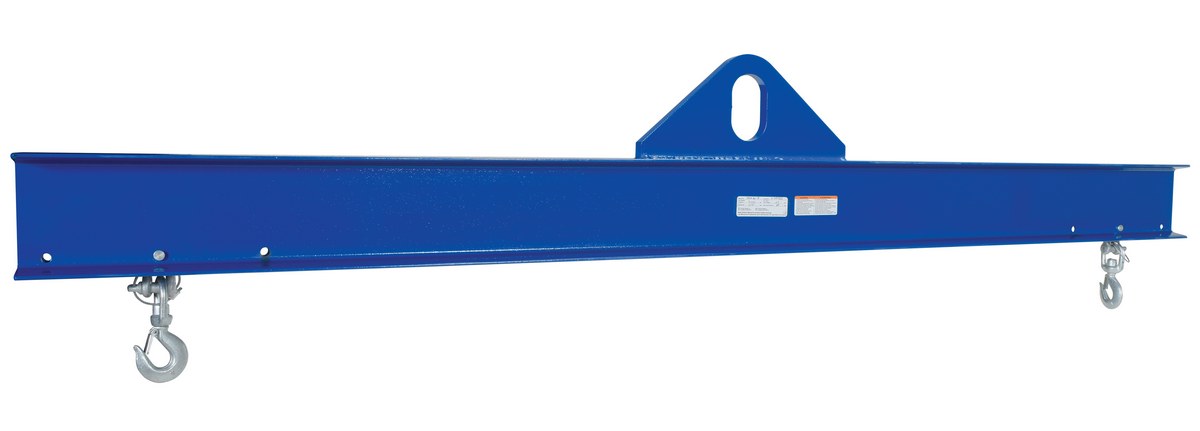

SBM-60-8		Steel Economy Spreader Beam 96 In Length 6,000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Headroom (in.): 18-11/16	254
