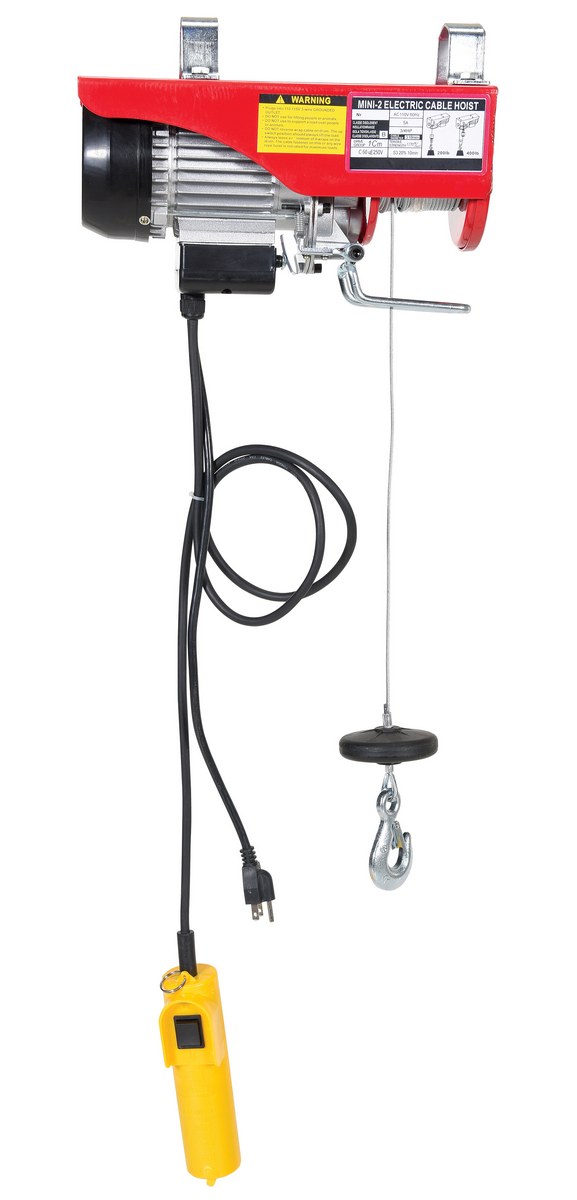

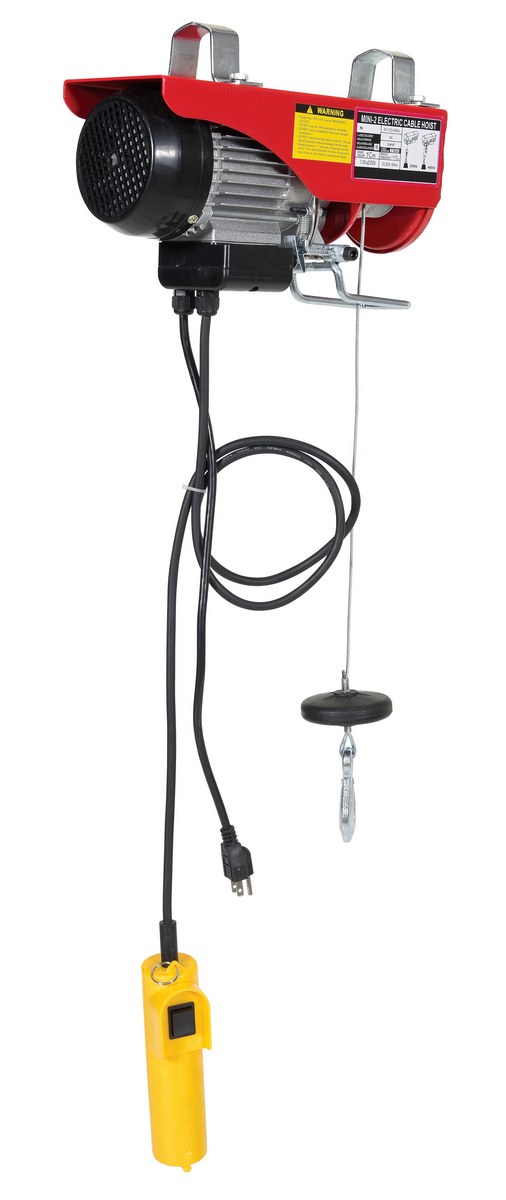

Mini Cable Hoists

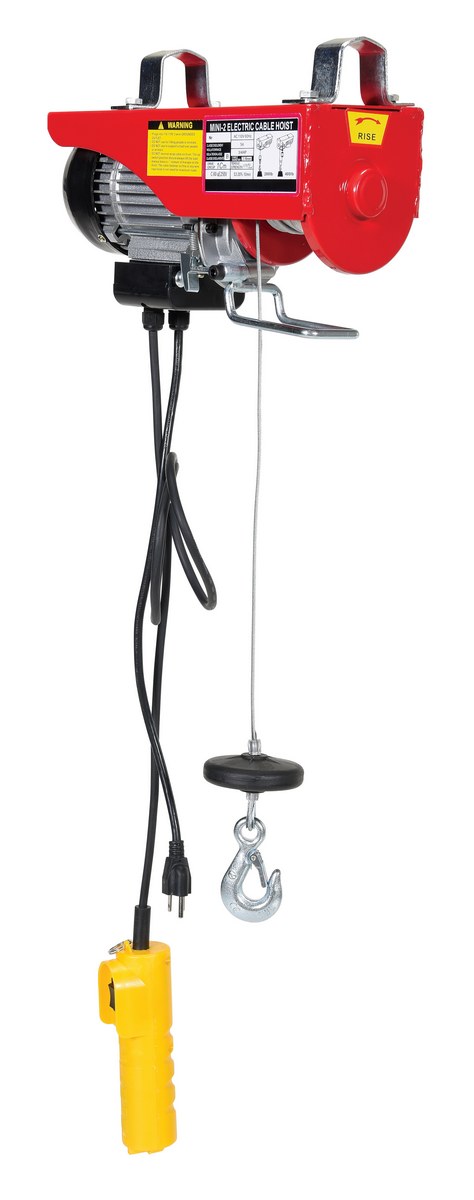

model: MINI-2

Mini Cable Hoists

SERIES: MINI

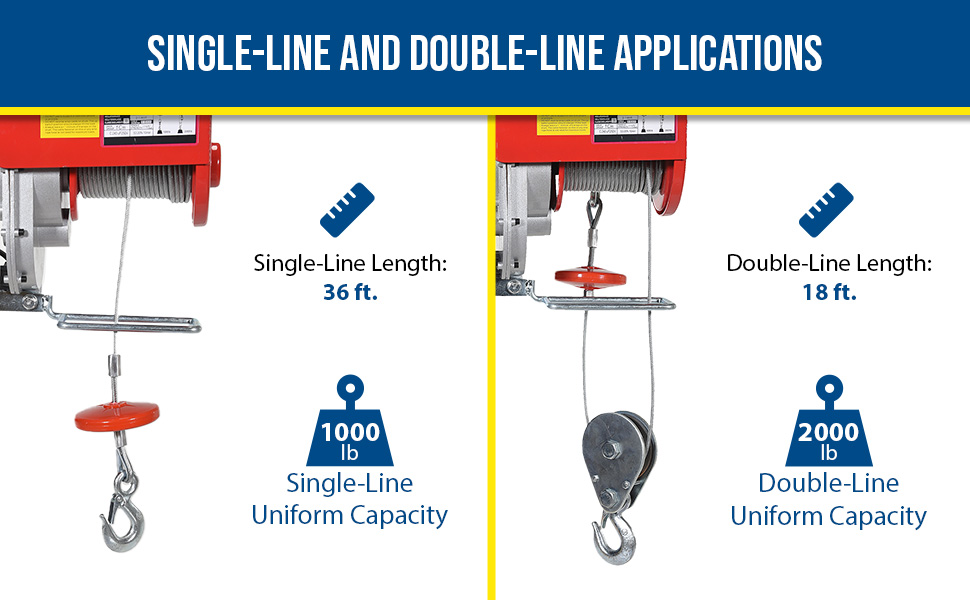

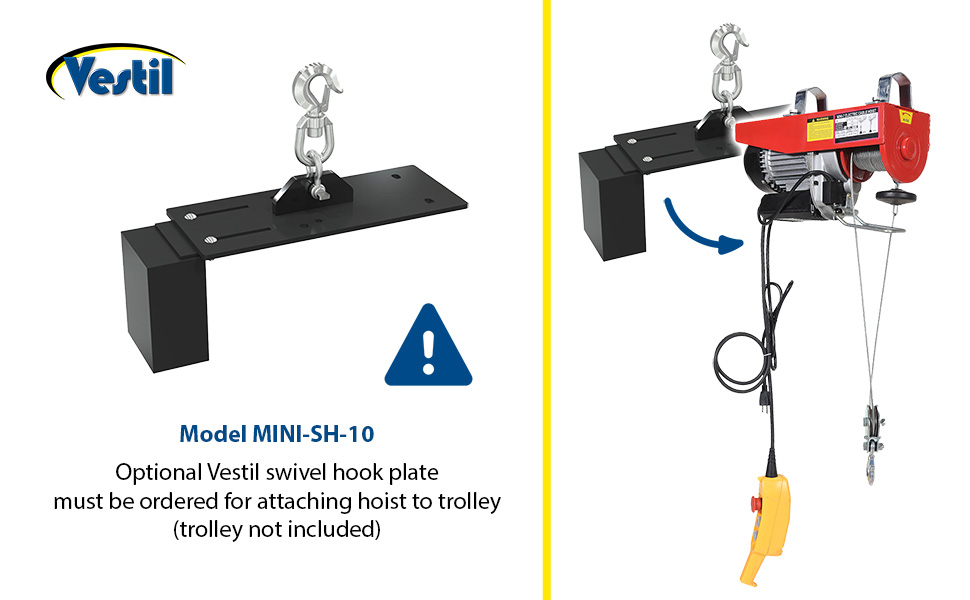

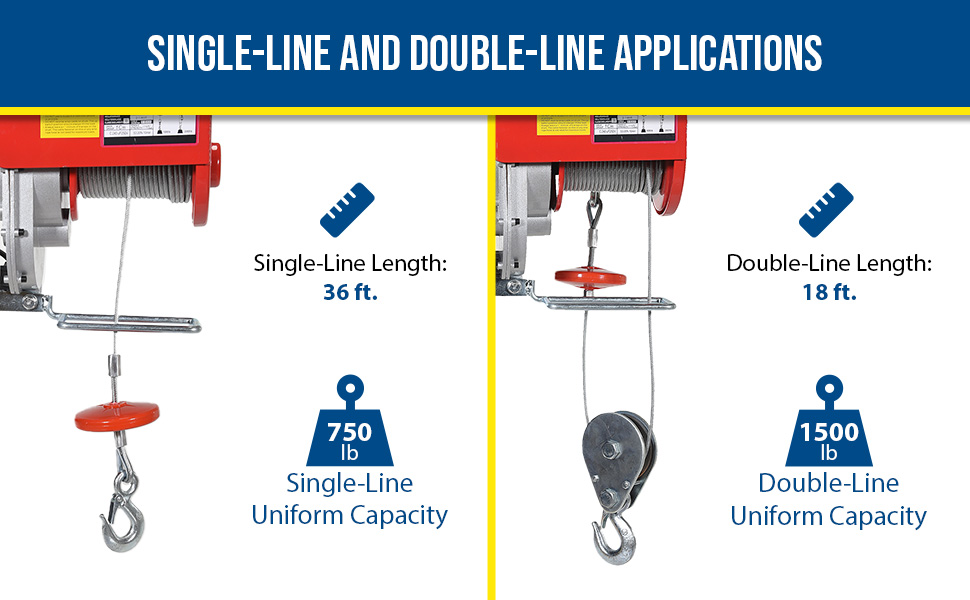

Use in single-line and double-line lifting applications. Cable length is 36' when used as a single-line - 18' when used as a double-line. Includes electric motor and hand-held push button controls. Installation bracket will fit on 1-5/8" round pipe or 1-5/8" square tubing. Optional Swivel Hook Plate must be ordered for attaching hoist to a trolley (trolley not included).

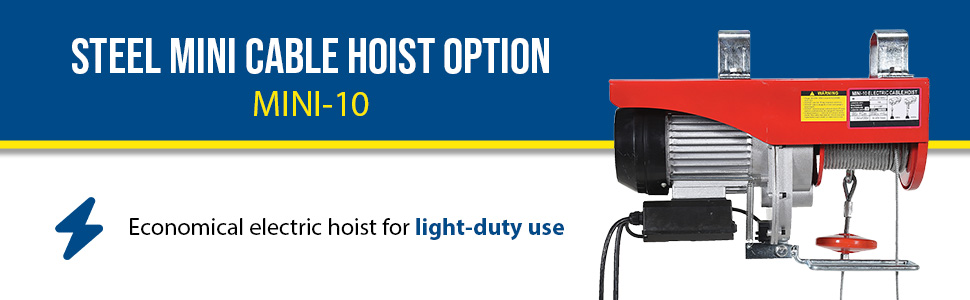

Economical electric hoist for light-duty use
Both single and double-line lifting applications are easy to configure

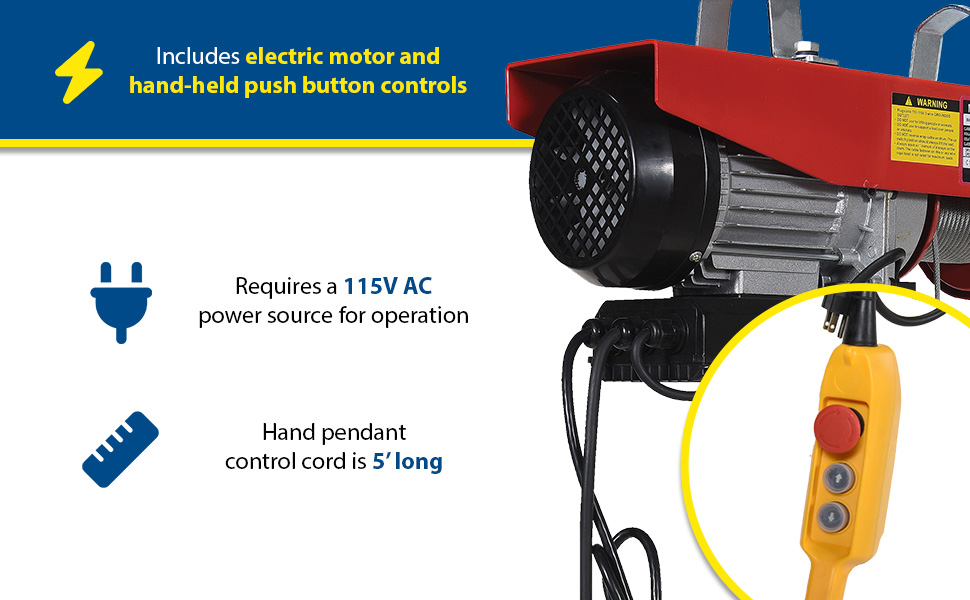

Hand pendant control cord is 5' long.
Requires 115V AC power source for operation

Mini Cable Hoists

model: MINI-2

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

For More Details of the Option Click the Red Model Button

Model	Image	Details	Icons	Wt.

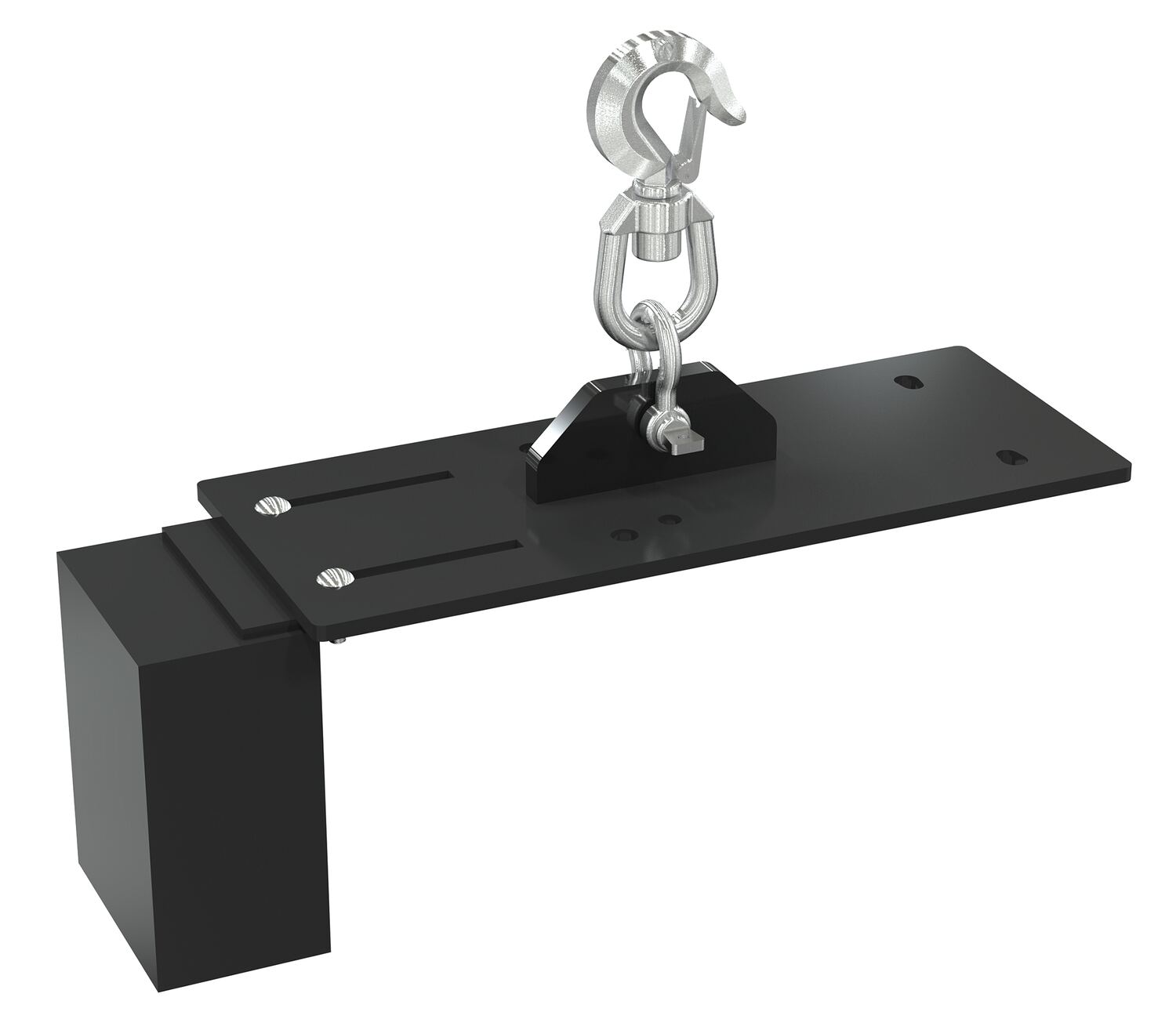

MINI-SH-10		Swivel Hook Plate 23-9/16 In. x 8 In. x 19-1/8 In. 2000 Lb. …		78
MINI-SH-2		Swivel Hook Plate 15-7/8 In. x 6 In. x 19-1/8 In. 440 Lb. Ca…		42

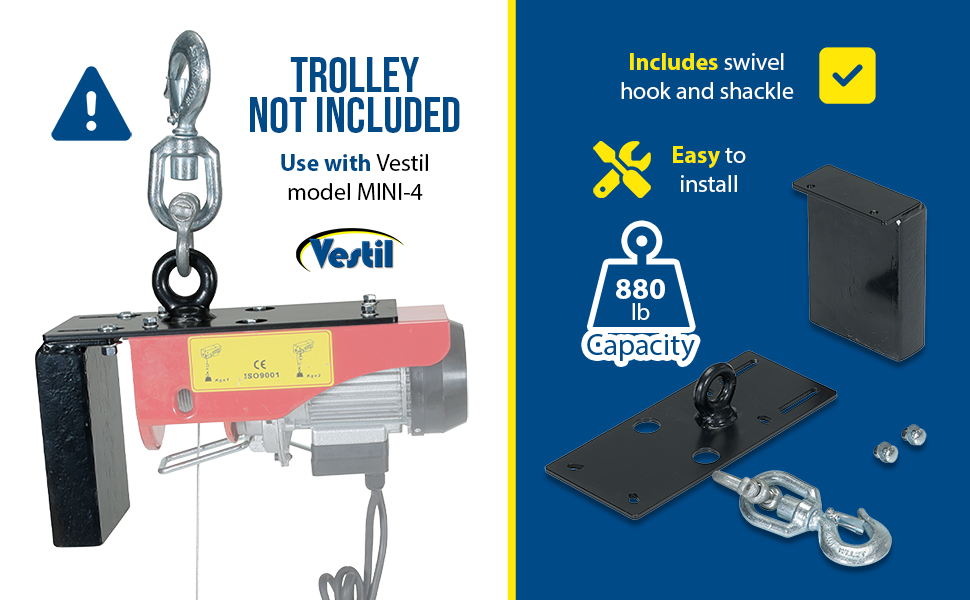

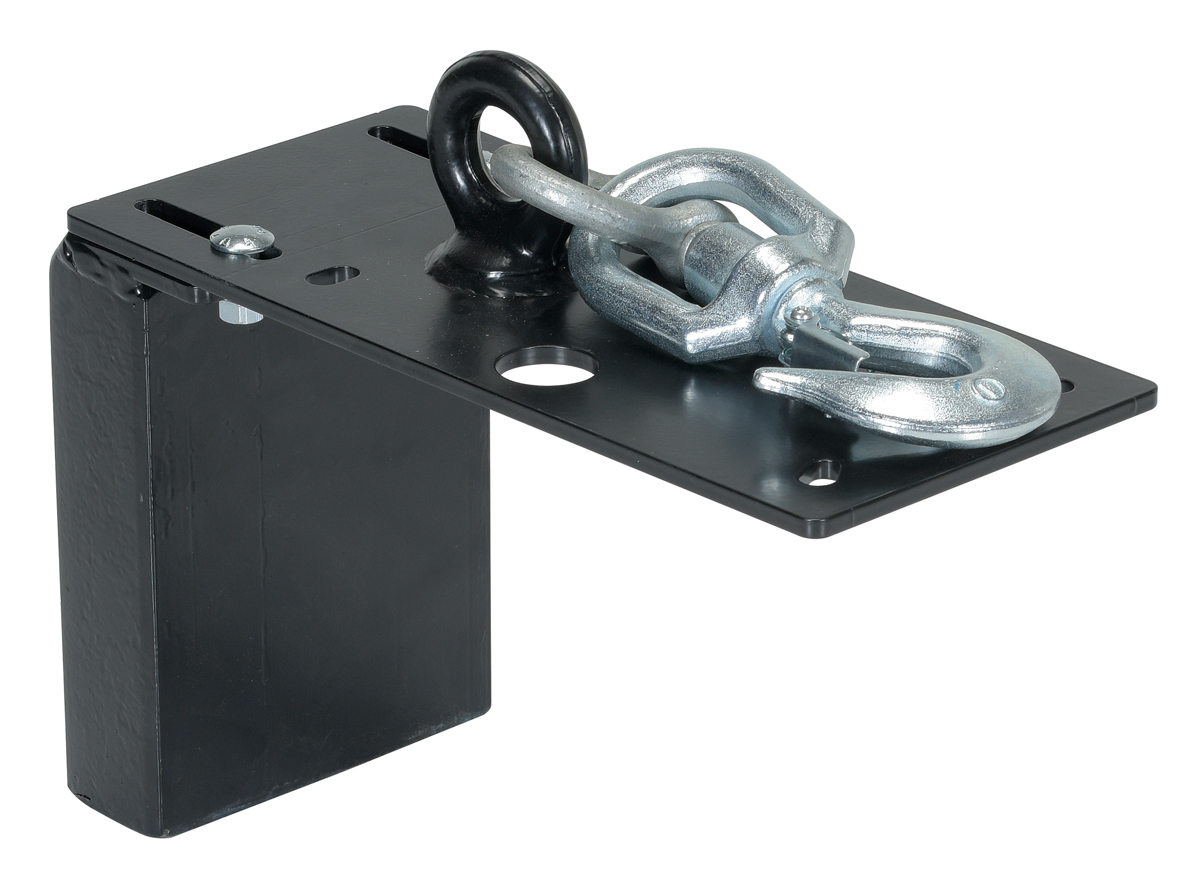

MINI-SH-4		Swivel Hook Plate 15-7/8 In. x 6 In. x 19-1/8 In. 880 Lb. Ca…		42

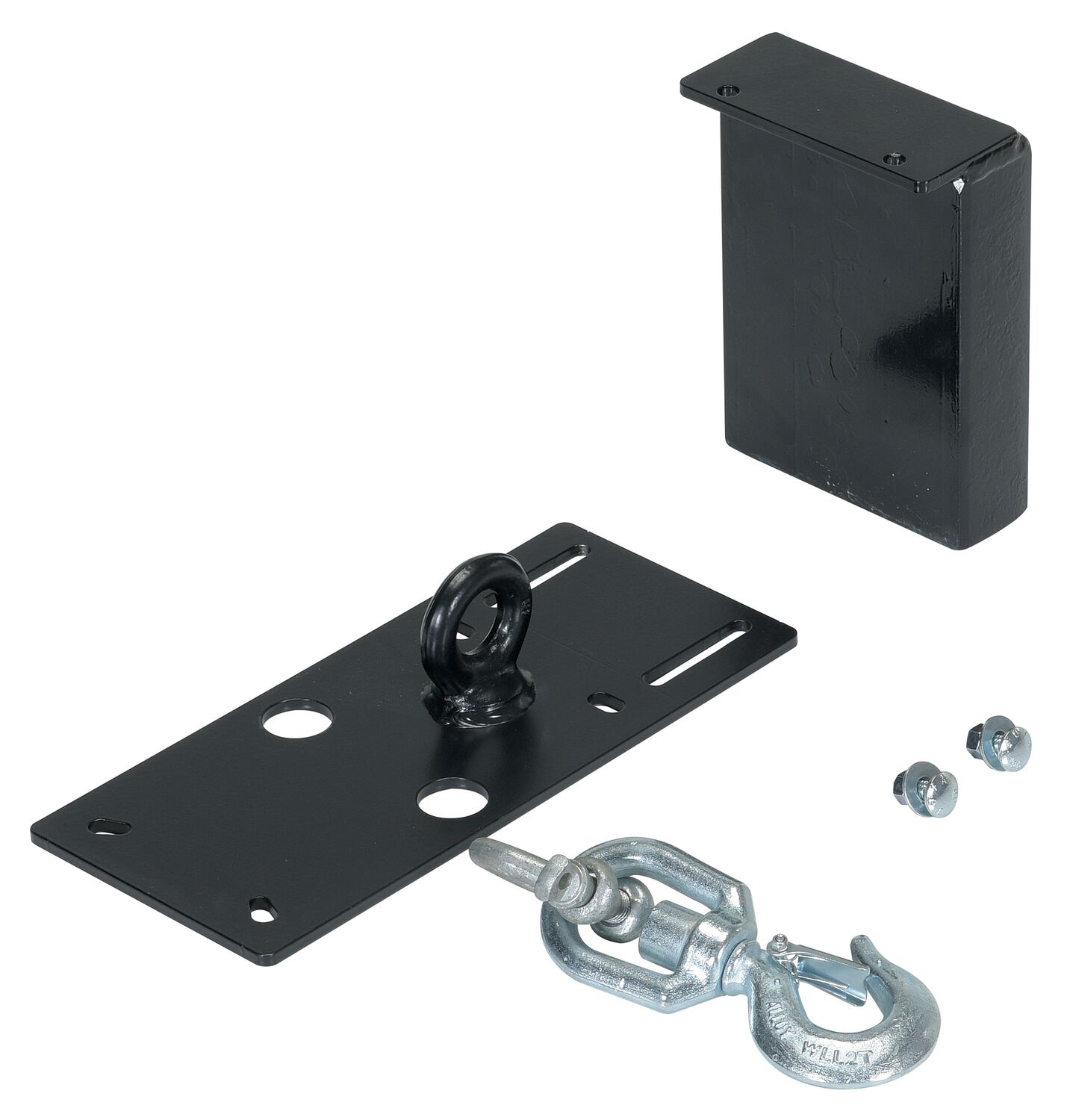

MINI-SH-7		Swivel Hook Plate 21-9/16 In. x 8 In. x 19-1/8 In. 1500 Lb. …		50

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

PDFs will open in a new window when clicked.

Manuals

MINI-2

MINI-SH

MINI-7

MINI-4

MINI-10

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

MINI-2

MINI-4

MINI-SH-2

MINI-SH-4

MINI-SH-7

MINI-SH-10

Testing Certificates

MINI-10

MINI-2

MINI-4

MINI-7

MINI-SH-10

MINI-SH-2

MINI-SH-4

MINI-SH-7

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product

Enhanced Product Content

MINI-10

MINI-10 A+ Content - 1

MINI-10 A+ Content - 2

MINI-10 A+ Content - 4

MINI-10 A+ Content - 3

What is the tubing for the SUPPORT POLE/SQUARE of the MINI-2? 5/8" or 1-5/8" for this hoist?

The measurement of the collar on the MINI-2 is 1-7/8" wide X 1-1/2" high.

What is the voltage of the hoist?

The hoists are 115V single phase power.

Print Friendly

Related or Similar Products:

More From Hoists & Trollies

Economy Chain Hoists with Chain Container

Economy Chain Hoists with Chain Container

Beam Clamps

Hand Chain Hoists

Hand Chain Hoists

Low Headroom Combination Chain Hoist/Trolley

Low Headroom Combination Chain Hoist/Trolley

Compact & Lightweight Lever Hoist (disc brake)

Compact & Lightweight Lever Hoist (disc brake)

Manipulator Style Control Electric Chain Hoist

Manipulator Style Control Electric Chain Hoist

Mini Cable Hoists

Use in single-line and double-line lifting applications. Cable length is 36' when used as a single-line - 18' when used as a double-line. Includes electric motor and hand-held push button controls. Installation bracket will fit on 1-5/8" round pipe or 1-5/8" square tubing. Optional Swivel Hook Plate must be ordered for attaching hoist to a trolley (trolley not included).

Economical electric hoist for light-duty use
Both single and double-line lifting applications are easy to configure
Hand pendant control cord is 5' long.
Requires 115V AC power source for operation

Model #		Description	Attributes	Net Wt. (lbs)

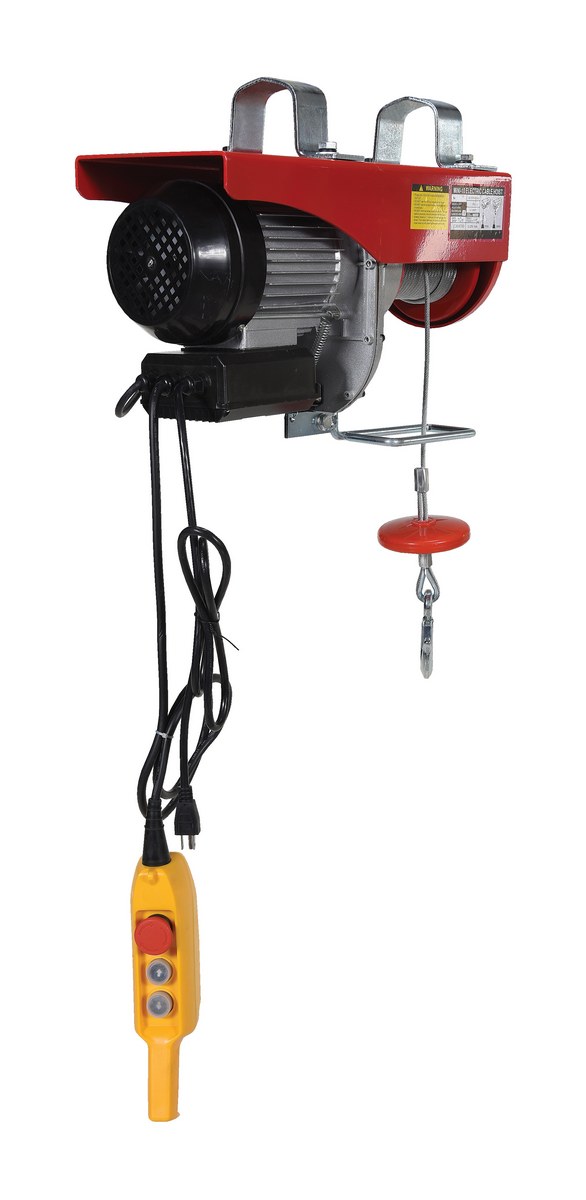

MINI-10		Steel Mini Cable Hoist Option 19-1/4 In. x 8 In. x 11-3/4 In. 1000 Lb. Capacity Red	Single-Line Uniform Capacity (lb.): 1000 Double-Line Uniform Capacity (lb.): 2000	83
MINI-2		Steel Mini Cable Hoist Option 15-3/16 In. x 5-7/8 In. x 8-13/16 In. 200 Lb. Capacity Red	Single-Line Uniform Capacity (lb.): 200 Double-Line Uniform Capacity (lb.): 400	26

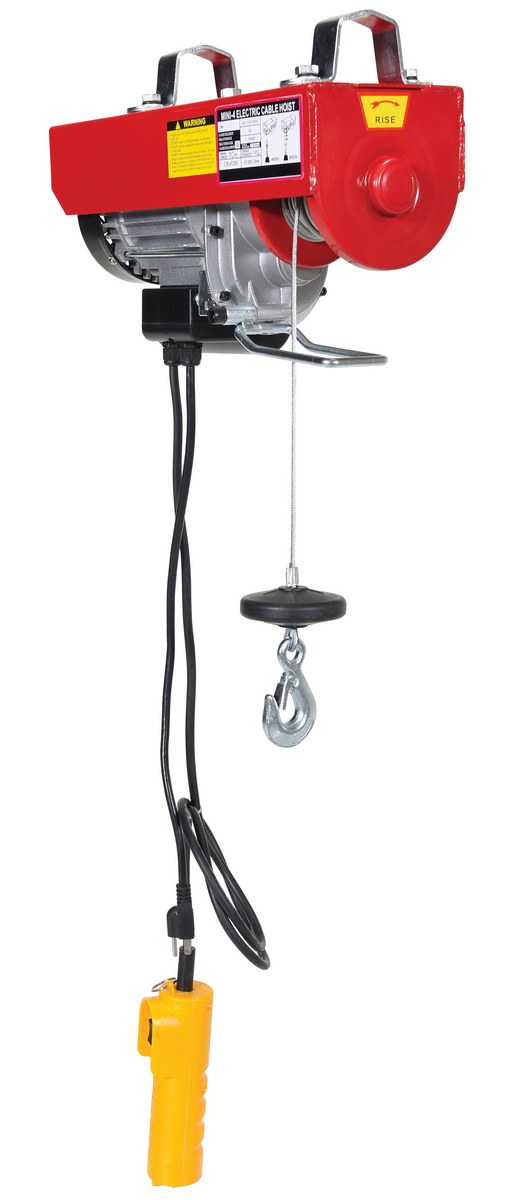

MINI-4		Steel Mini Cable Hoist Option 15-1/8 In. x 5-3/4 In. x 8-7/8 In. 400 Lb. Capacity Red	Single-Line Uniform Capacity (lb.): 400 Double-Line Uniform Capacity (lb.): 800	38

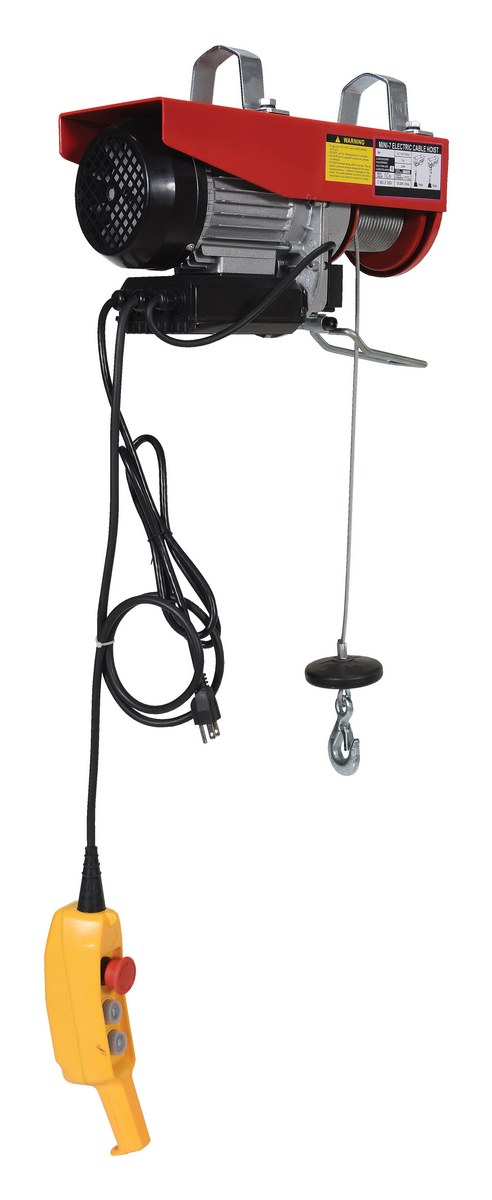

MINI-7		Steel Mini Cable Hoist Option 16 In. x 6-1/4 In. x 10 In. 750 Lb. Capacity Red	Single-Line Uniform Capacity (lb.): 750 Double-Line Uniform Capacity (lb.): 1500	47
