Hand Chain Hoists

Print Friendly

Related Items
Model Chart
PDF's
Image Gallery

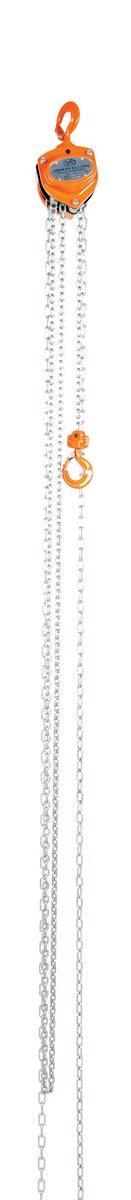

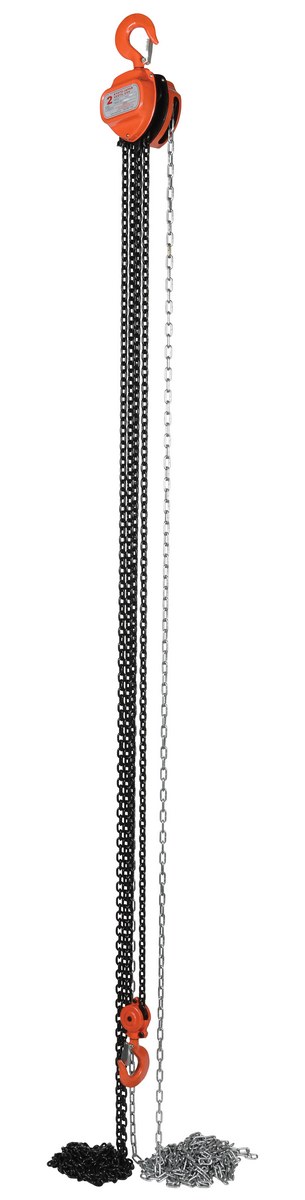

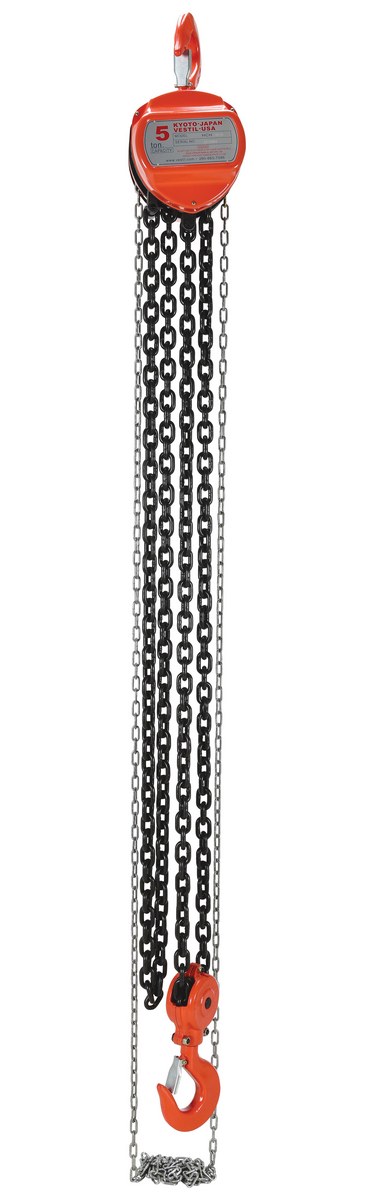

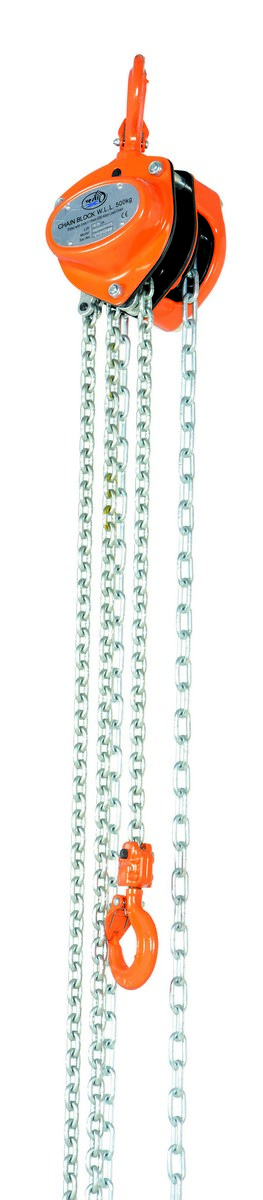

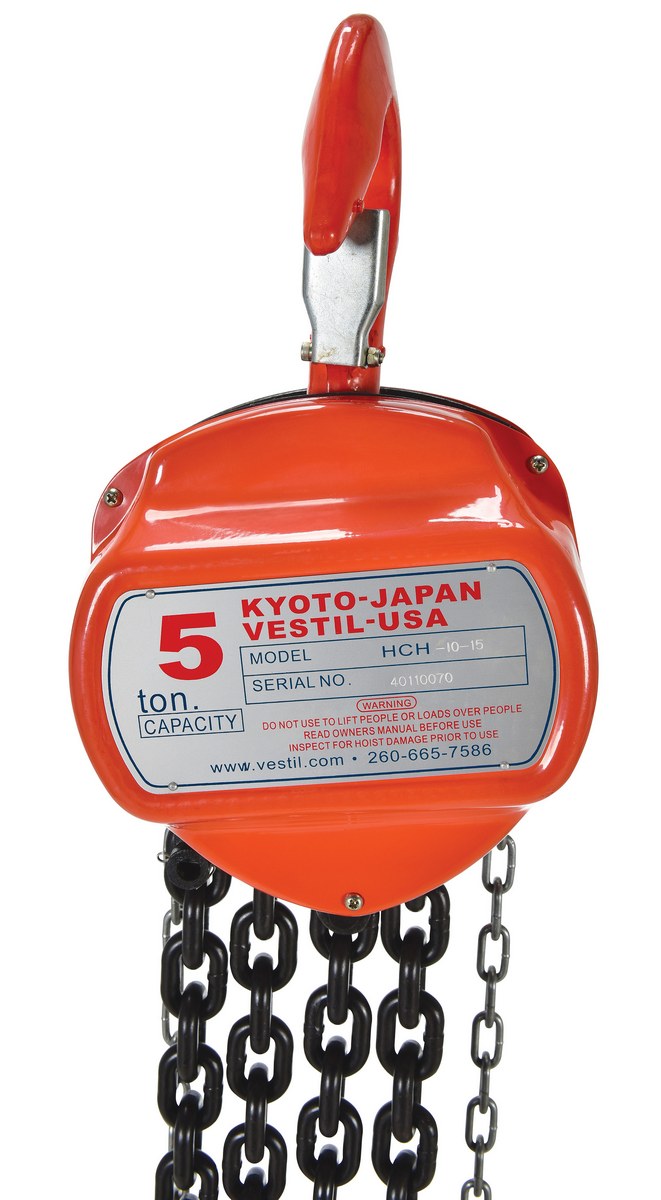

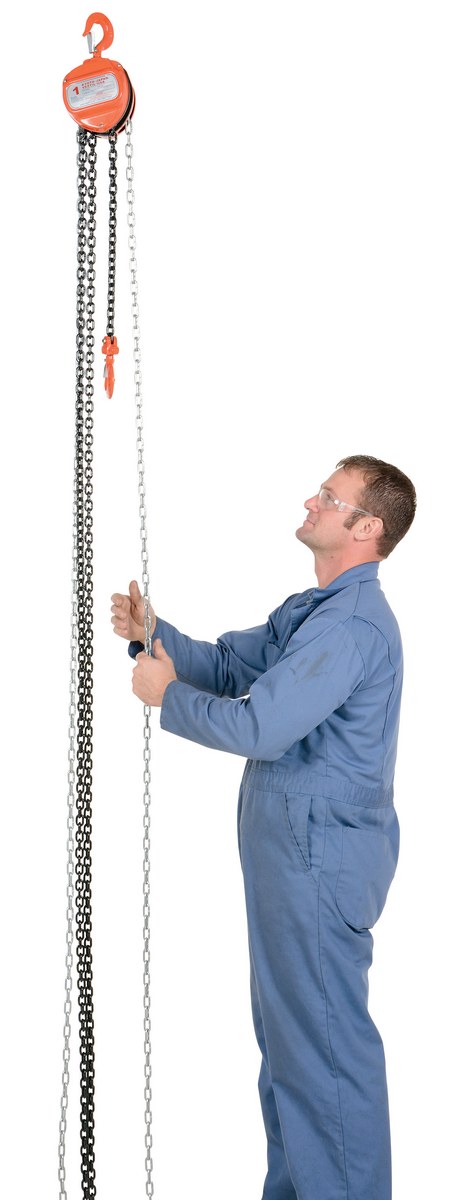

Hand Chain Hoists

model: HCH-1-20

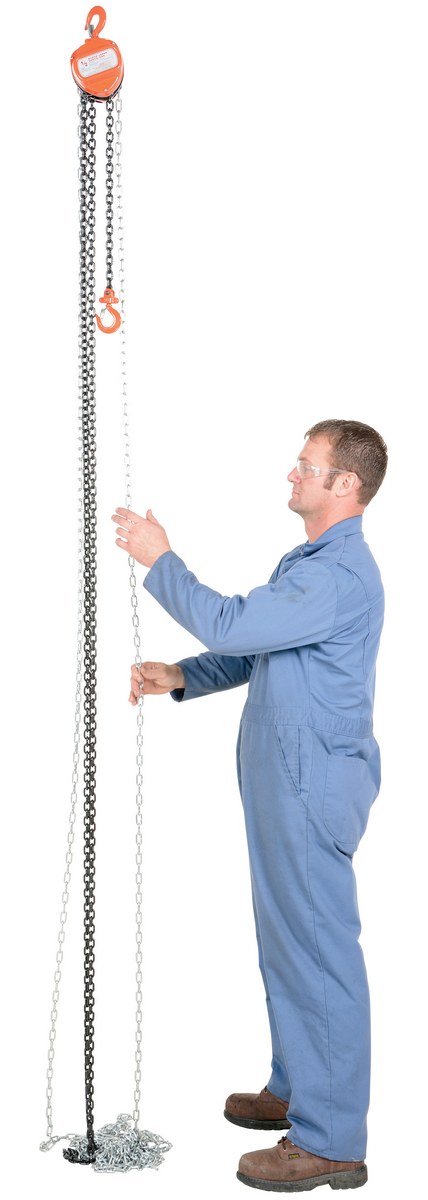

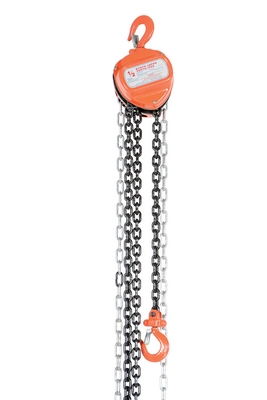

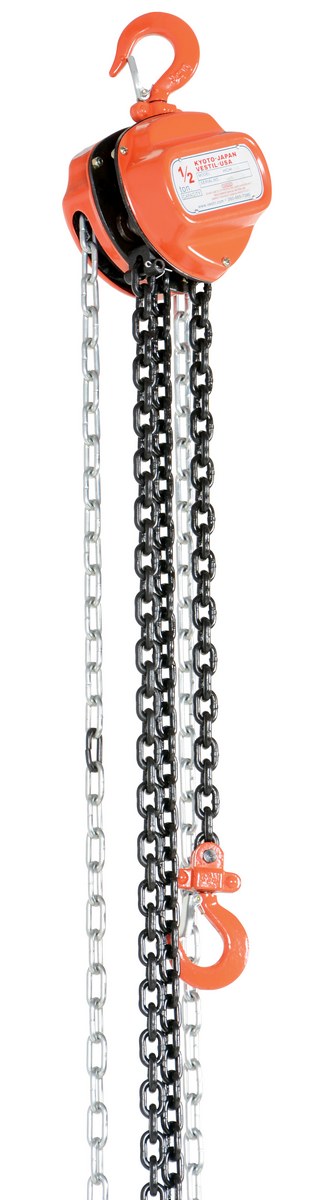

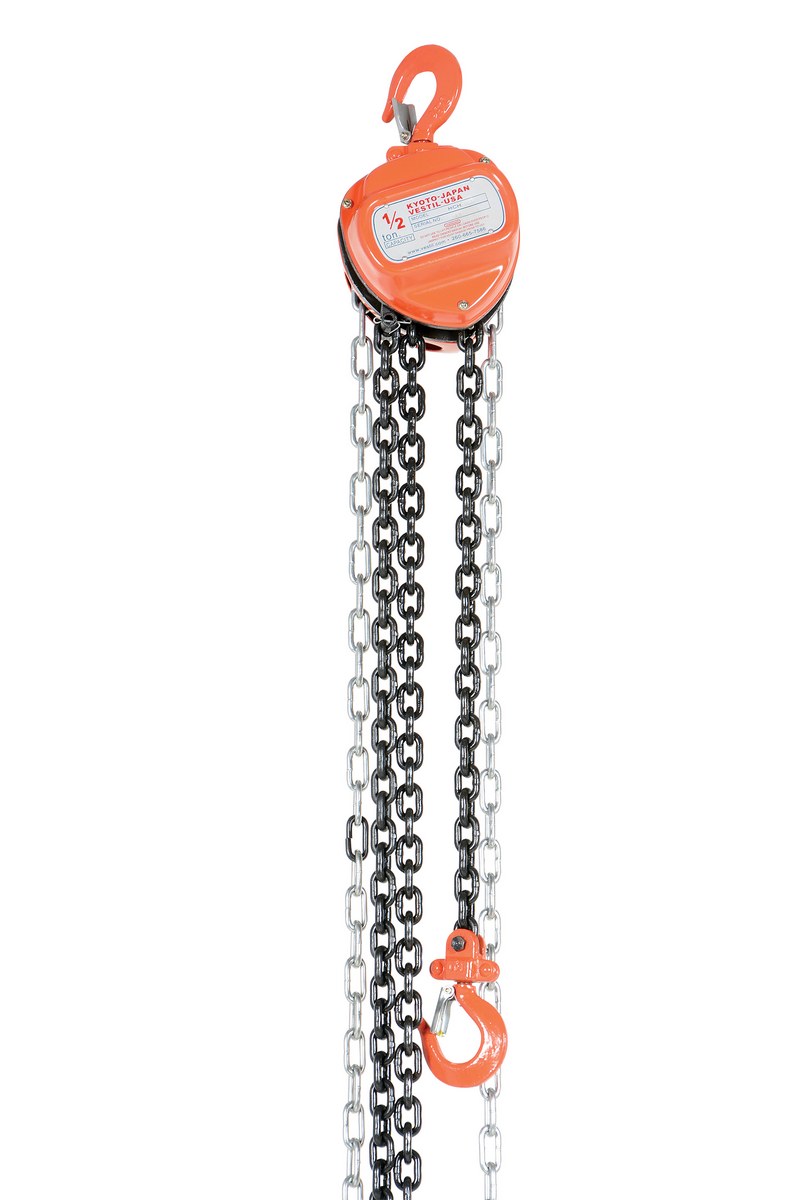

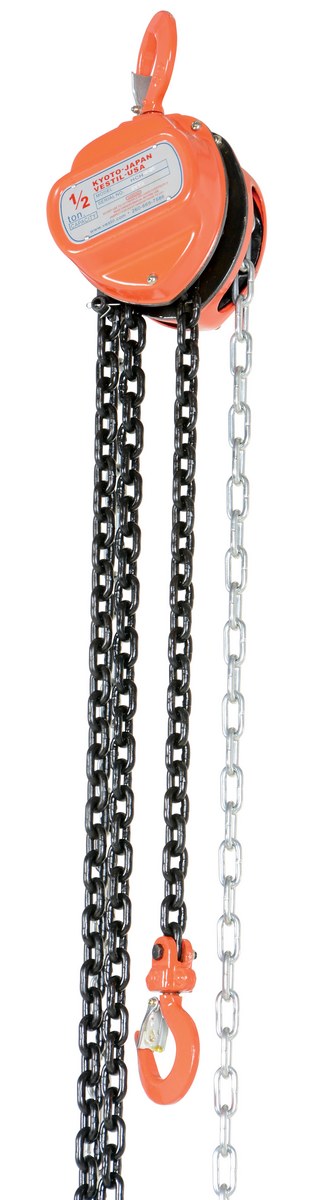

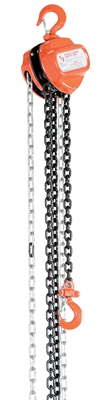

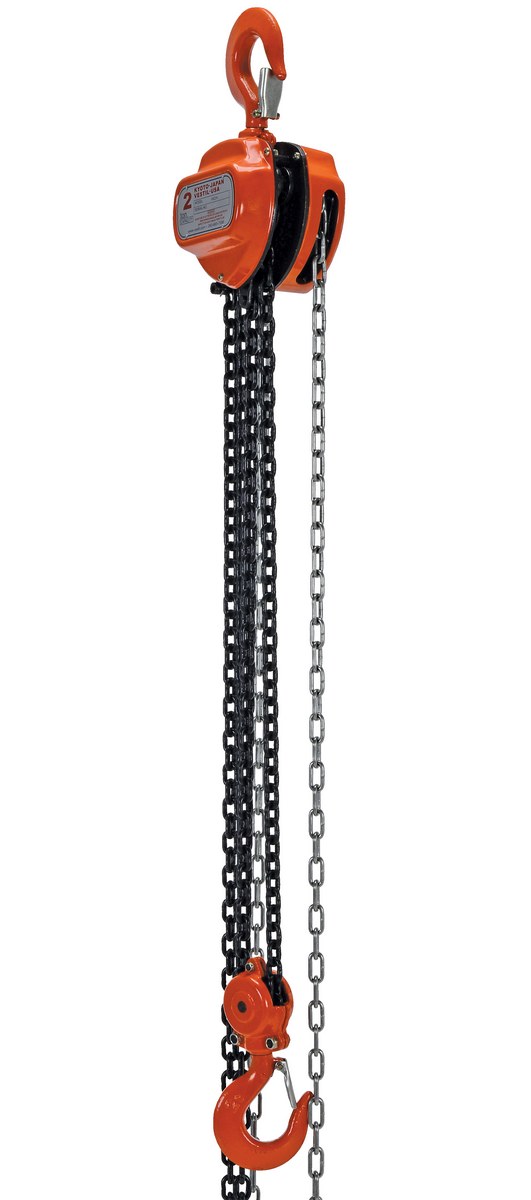

HCH-1-20_D.jpg HCH-1-20_A.jpg HCH-1-20_B.jpg HCH-1-20_C.jpg More Images +
Hand Chain Hoists
SERIES: HCH

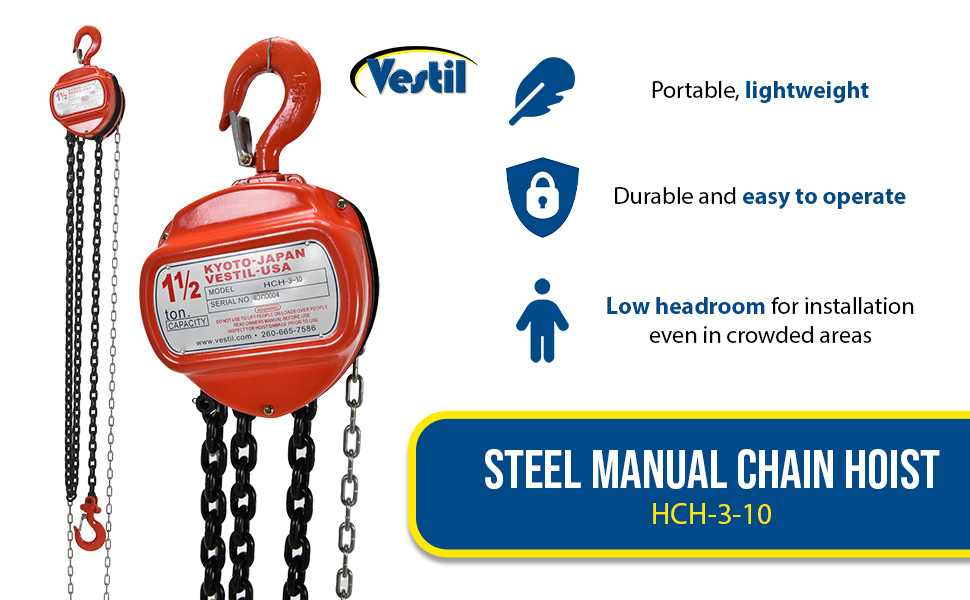

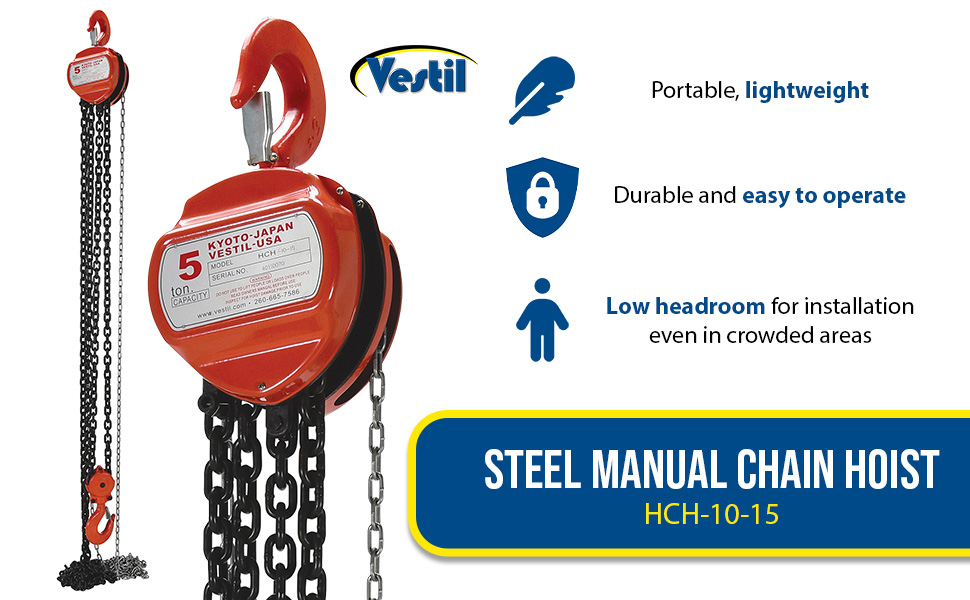

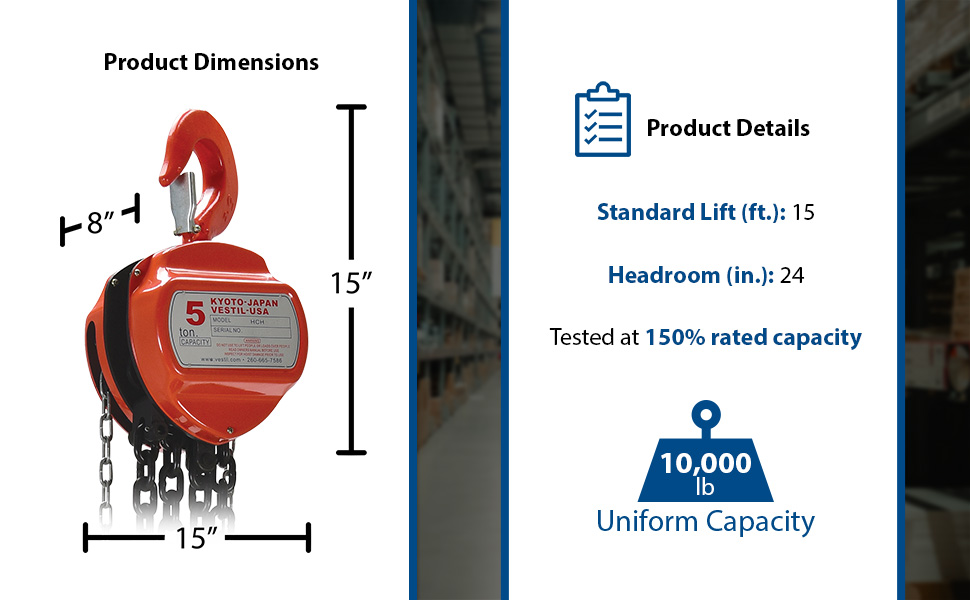

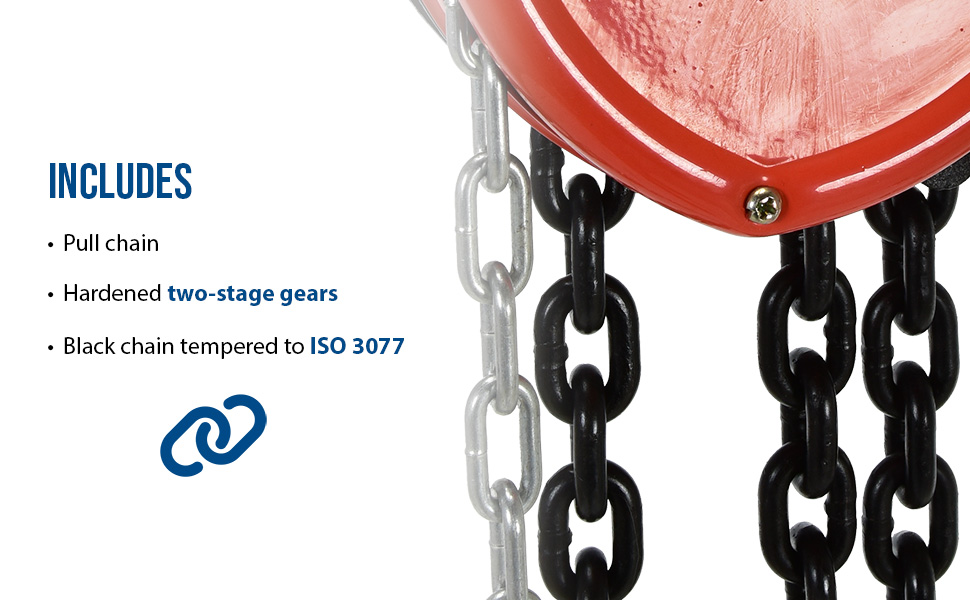

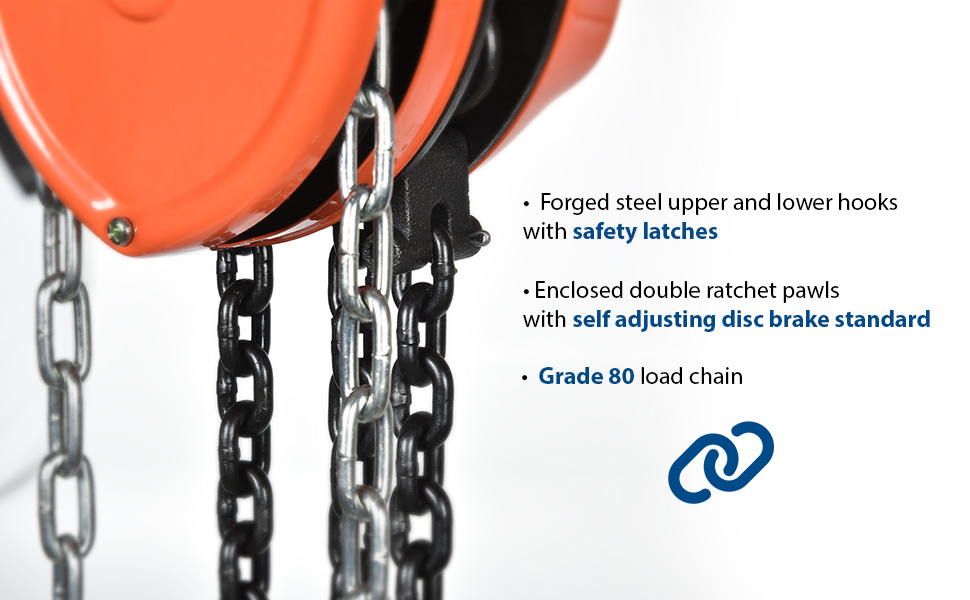

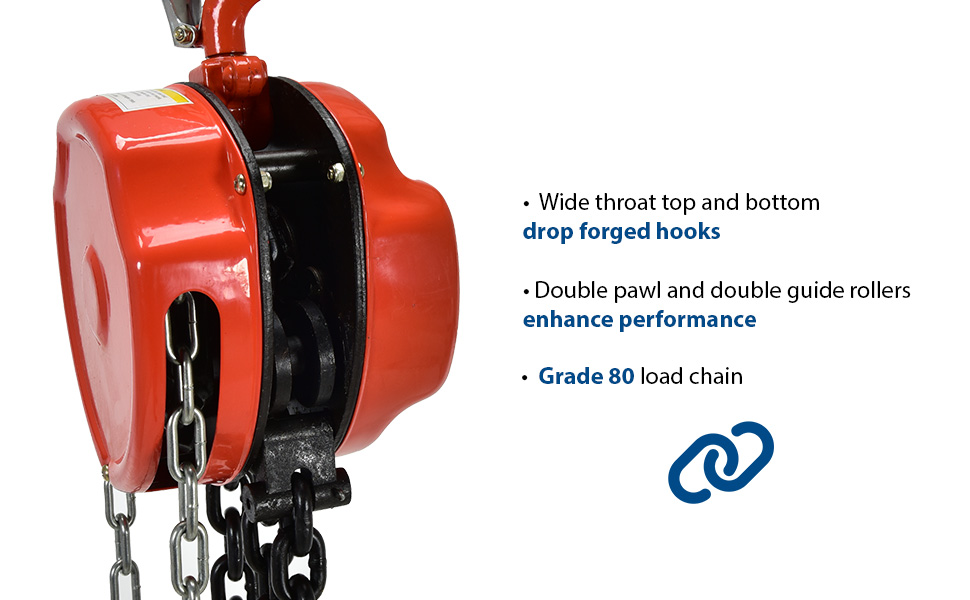

These portable, lightweight hoists are durable and easy to operate. Compact design and low headroom allow installation in confined areas. Enclosed double ratchet pawls with self adjusting disc brake standard. Designed with a safety factory 4 times rated capacity. Individually tested at 150% rated capacity. Features grade 80 black chain tempered to ISO 3077, pull chain, hardened two-stage gears and forged steel upper and lower hooks with safety latches. Constructed of high quality steel components ideal for industrial applications. Meets ANSI B30.16-2003 requirements.

Hand Chain Hoists

model: HCH-1-20

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

HCH-1-10
HCH-1-15
HCH-1-20
HCH-10-10
HCH-10-15
HCH-10-20
HCH-2-10
HCH-2-15
HCH-2-20
HCH-3-10
HCH-3-15
HCH-3-20
HCH-4-10
HCH-4-15
HCH-4-20
HCH-6-10
HCH-6-15
HCH-6-20
PDFs will open in a new window when clicked.

Manuals

HCH

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

HCH-4-10

Testing Certificates

HCH-1-10

HCH-1-15

HCH-1-20

HCH-10-10

HCH-10-15

HCH-10-20

HCH-2-10

HCH-2-15

HCH-2-20

HCH-3-10

HCH-3-15

HCH-3-20

HCH-4-10

HCH-4-15

HCH-4-20

HCH-6-10

HCH-6-15

HCH-6-20

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product

Enhanced Product Content

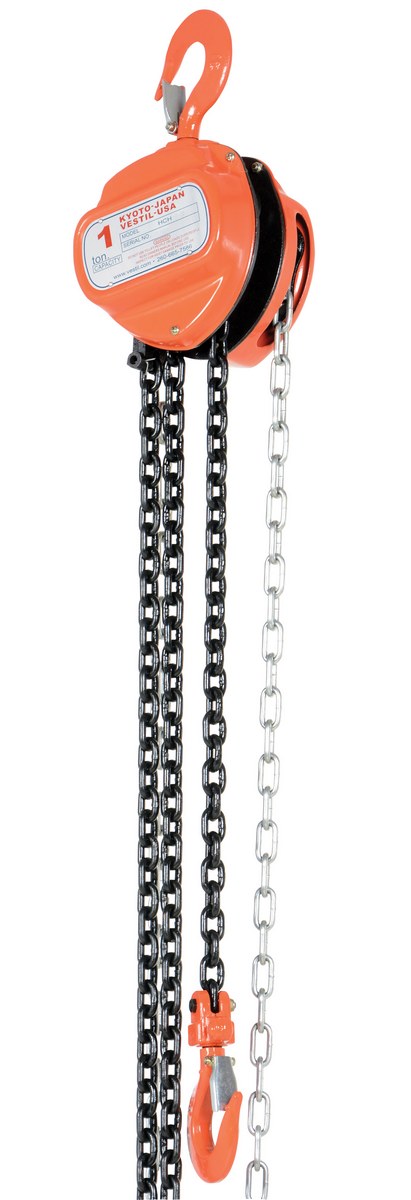

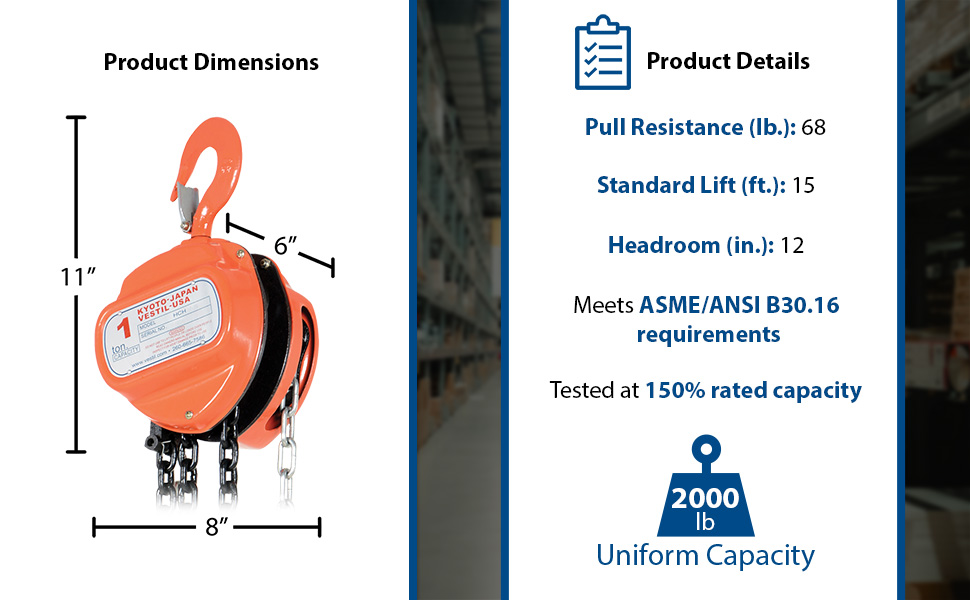

HCH-2-15

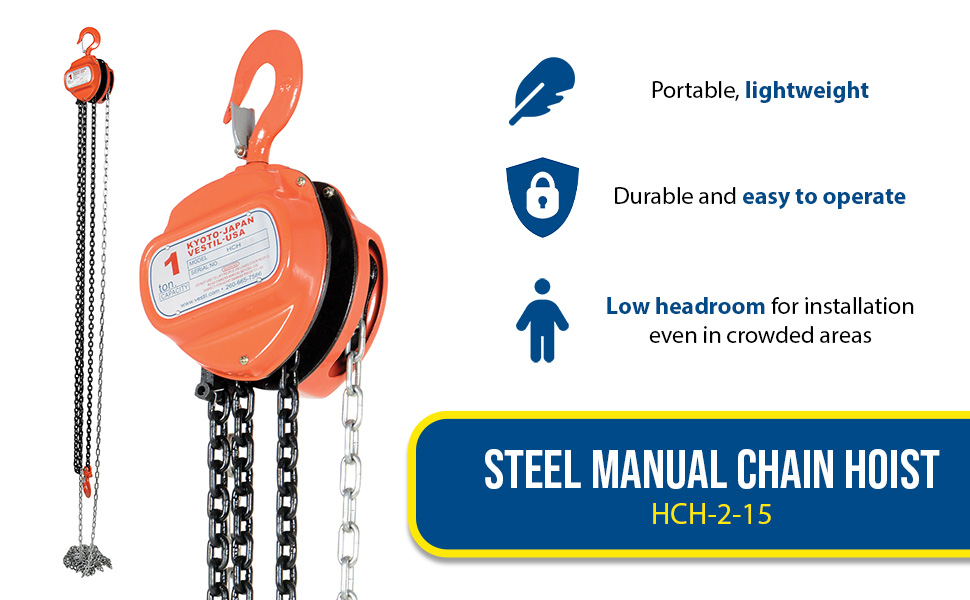

HCH-2-15 HCH-2-15 A+ Content - 2
HCH-2-15 HCH-2-15 A+ Content - 1
HCH-2-15 HCH-2-15 A+ Content - 4
HCH-2-15 HCH-2-15 A+ Content - 3
What is the length of the pull chain?
The pull chain on the HCH-2-10 is 105".

Related or Similar Products:

More From Hoists & Trollies





Hand Chain Hoists




These portable, lightweight hoists are durable and easy to operate. Compact design and low headroom allow installation in confined areas. Enclosed double ratchet pawls with self adjusting disc brake standard. Designed with a safety factory 4 times rated capacity. Individually tested at 150% rated capacity. Features grade 80 black chain tempered to ISO 3077, pull chain, hardened two-stage gears and forged steel upper and lower hooks with safety latches. Constructed of high quality steel components ideal for industrial applications. Meets ANSI B30.16-2003 requirements.


Model # Description Attributes Net Wt.
(lbs)
HCH-1-10 HCH-1-10Steel Manual Chain Hoist 10 Ft. Lift 1,000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Standard Lift (ft.): 10		24
HCH-1-15 HCH-1-15Steel Manual Chain Hoist 15 Ft. Lift 1,000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Standard Lift (ft.): 15		28
HCH-1-20 HCH-1-20Steel Manual Chain Hoist 20 Ft. Lift 1,000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Standard Lift (ft.): 20		32
HCH-10-10 HCH-10-10Steel Manual Chain Hoist 10 Ft. Lift 10,000 Lb. Capacity OrangeUniform Capacity (lb.): 10000
Standard Lift (ft.): 10		111

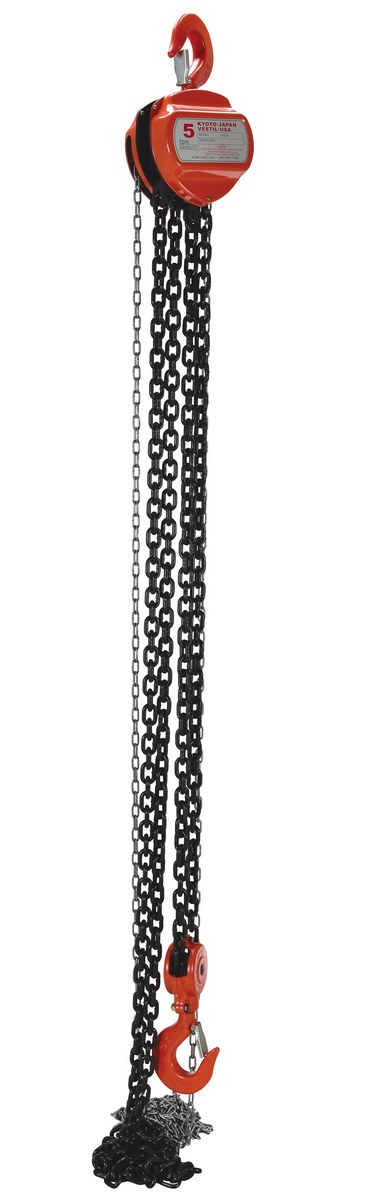

HCH-10-15 HCH-10-15Steel Manual Chain Hoist 15 Ft. Lift 10,000 Lb. Capacity OrangeUniform Capacity (lb.): 10000
Standard Lift (ft.): 15		117

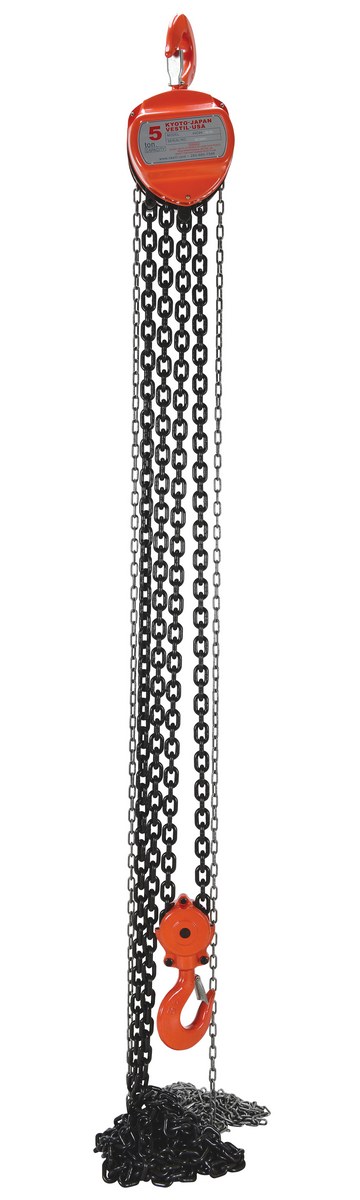

HCH-10-20 HCH-10-20Steel Manual Chain Hoist 20 Ft. Lift 10,000 Lb. Capacity OrangeUniform Capacity (lb.): 10000
Standard Lift (ft.): 20		176
HCH-2-10 HCH-2-10Steel Manual Chain Hoist 10 Ft. Lift 2,000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Standard Lift (ft.): 10		26
HCH-2-15 HCH-2-15Steel Manual Chain Hoist 15 Ft. Lift 2,000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Standard Lift (ft.): 15		32
HCH-2-20 HCH-2-20Steel Manual Chain Hoist 20 Ft. Lift 2,000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Standard Lift (ft.): 20		37
HCH-3-10 HCH-3-10Steel Manual Chain Hoist 10 Ft. Lift 3,000 Lb. Capacity OrangeUniform Capacity (lb.): 3,000
Standard Lift (ft.): 10		43
HCH-3-15 HCH-3-15Steel Manual Chain Hoist 15 Ft. Lift 3,000 Lb. Capacity OrangeUniform Capacity (lb.): 3,000
Standard Lift (ft.): 15		49

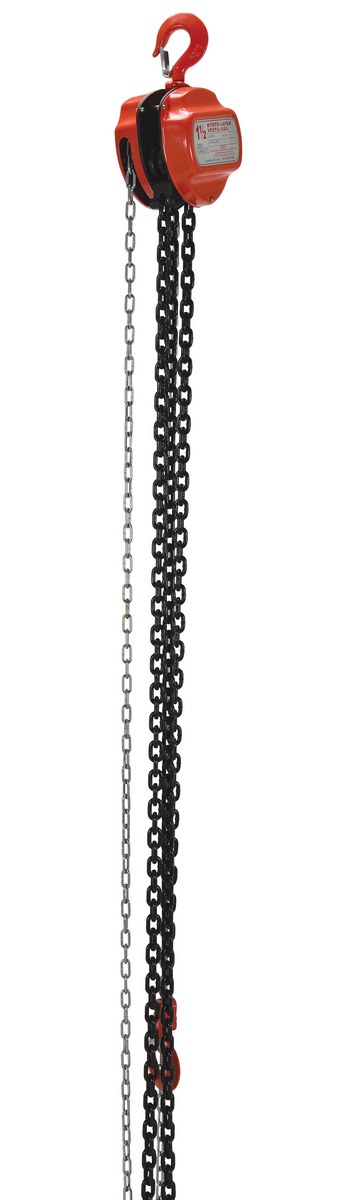

HCH-3-20 HCH-3-20Steel Manual Chain Hoist 20 Ft. Lift 3,000 Lb. Capacity OrangeUniform Capacity (lb.): 3,000
Standard Lift (ft.): 20		53
HCH-4-10 HCH-4-10Steel Manual Chain Hoist 10 Ft. Lift 4,000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Standard Lift (ft.): 10		33
HCH-4-15 HCH-4-15Steel Manual Chain Hoist 15 Ft. Lift 4,000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Standard Lift (ft.): 15		41
HCH-4-20 HCH-4-20Steel Manual Chain Hoist 20 Ft. Lift 4,000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Standard Lift (ft.): 20		50

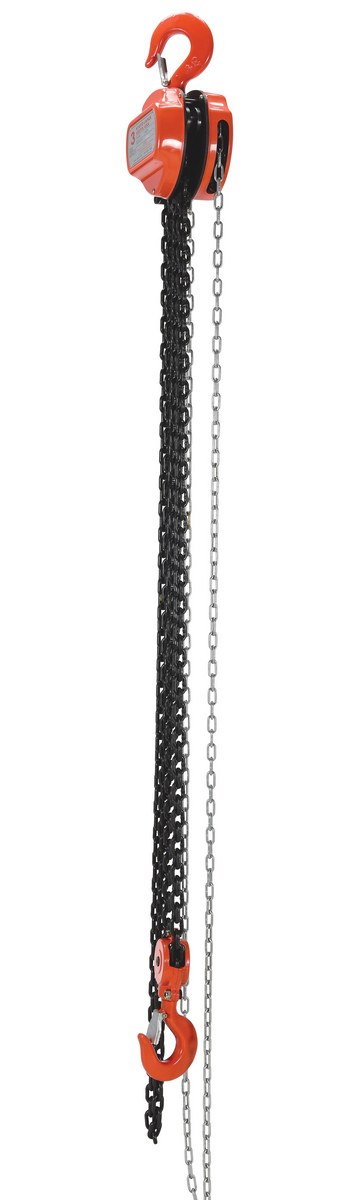

HCH-6-10 HCH-6-10Steel Manual Chain Hoist 10 Ft. Lift 6,000 Lb. Capacity OrangeUniform Capacity (lb.): 6,000
Standard Lift (ft.): 10		59
HCH-6-15 HCH-6-15Steel Manual Chain Hoist 15 Ft. Lift 6,000 Lb. Capacity OrangeUniform Capacity (lb.): 6,000
Standard Lift (ft.): 15		64

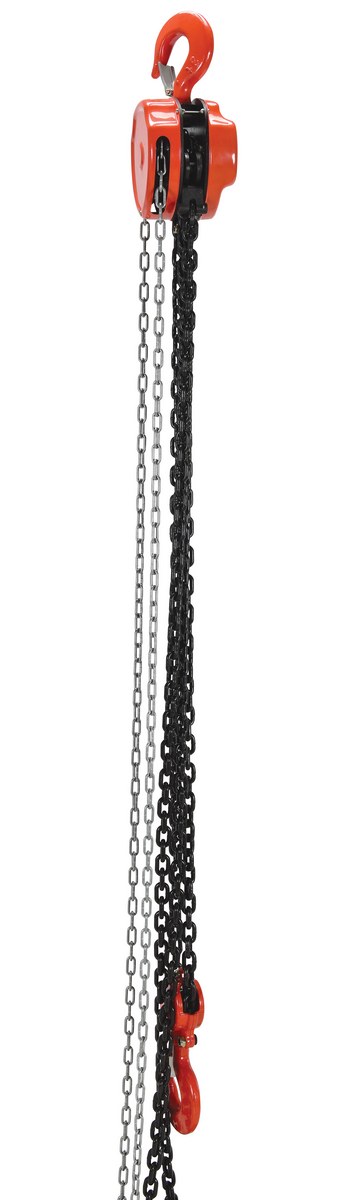

HCH-6-20 HCH-6-20Steel Manual Chain Hoist 20 Ft. Lift 6,000 Lb. Capacity OrangeUniform Capacity (lb.): 6,000
Standard Lift (ft.): 20		132
