Portable Offset Jib Cranes

model: JIB-CBX-25-8-10

JIB-CBX-25-8-10_A.jpg JIB-CBX-25-8-10-BC_A.jpg More Images +
Portable Offset Jib Cranes
SERIES: JIB-CBX

Offset base design allows for larger usable work area beneath I-beam. Allows for easy transportation of jib crane with fork truck. Fixed length I-beam will pivot 360 degrees for complete access. Empty base models include instructions for proper filling with concrete. Base size is 42-3/16" W x 42-3/16" L x 18"H or 36"H. Built-in fork tubes, measuring 7-1/2"W x 2-1/2"H usable on 24" centers, for transportation with fork truck. Steel construction with blue painted finish. Units ship knocked down. Not for use as a fork truck attachment. 10' under I-beam. Hoists & Trollies can be ordered seperately.

  • Design allows for larger usable work area beneath I-beam
  • Concrete filled base for immediate use
  • Upright vertical column bolts to base for optimal efficiency
  • Steel construction for strength and durability
Portable Offset Jib Cranes

model: JIB-CBX-25-8-10

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
JIB-CBX-100-8-10
JIB-CBX-100-8-10-BC
JIB-CBX-18-B
JIB-CBX-18-BC
JIB-CBX-25-10-10
JIB-CBX-25-10-10-BC
JIB-CBX-25-8-10
JIB-CBX-25-8-10-BC
JIB-CBX-36-B
JIB-CBX-36-BC
JIB-CBX-50-10-10
JIB-CBX-50-10-10-BC
JIB-CBX-50-8-10
JIB-CBX-50-8-10-BC
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

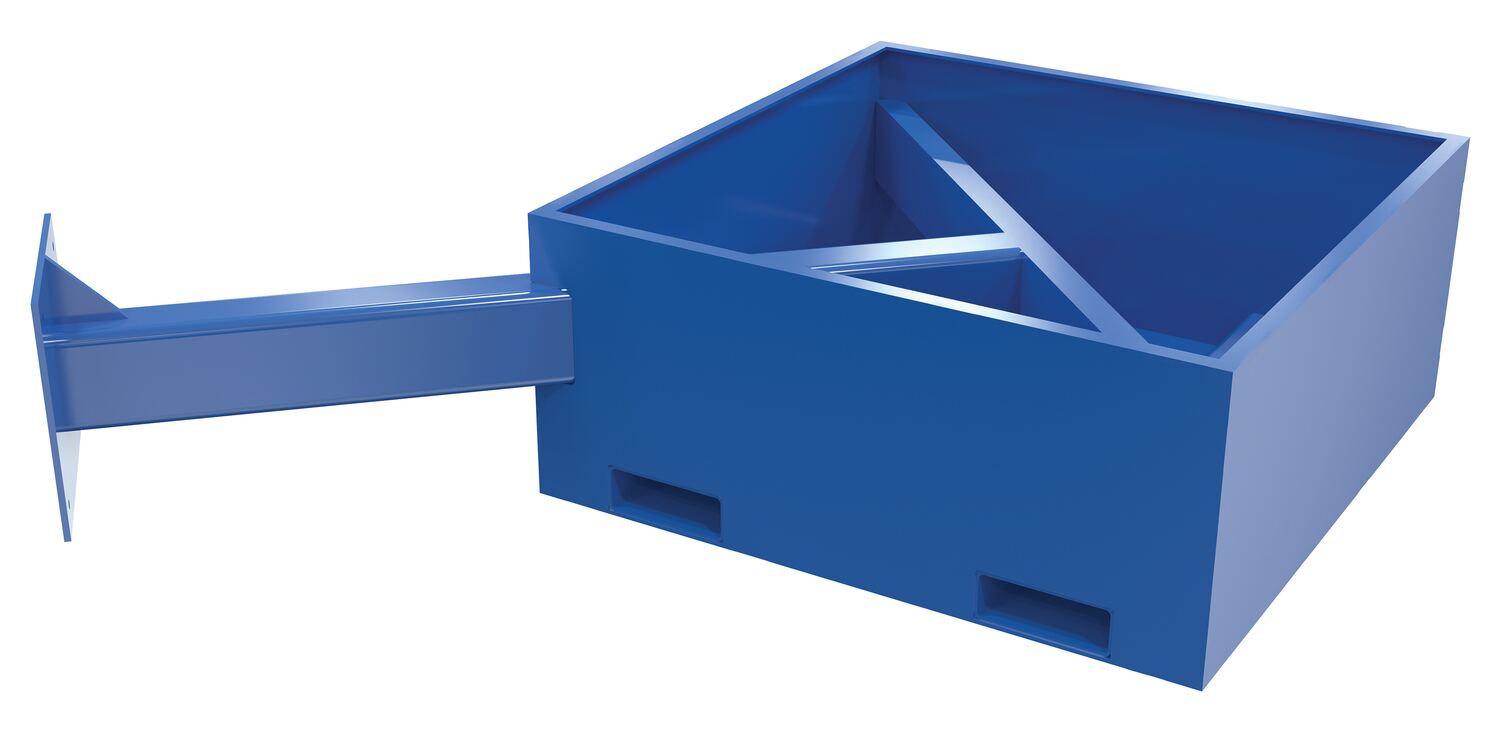

JIB-CBX-18-B JIB-CBX-18-BSteel Offset Empty Concrete Base 18 In. Height For JIB Crane…532

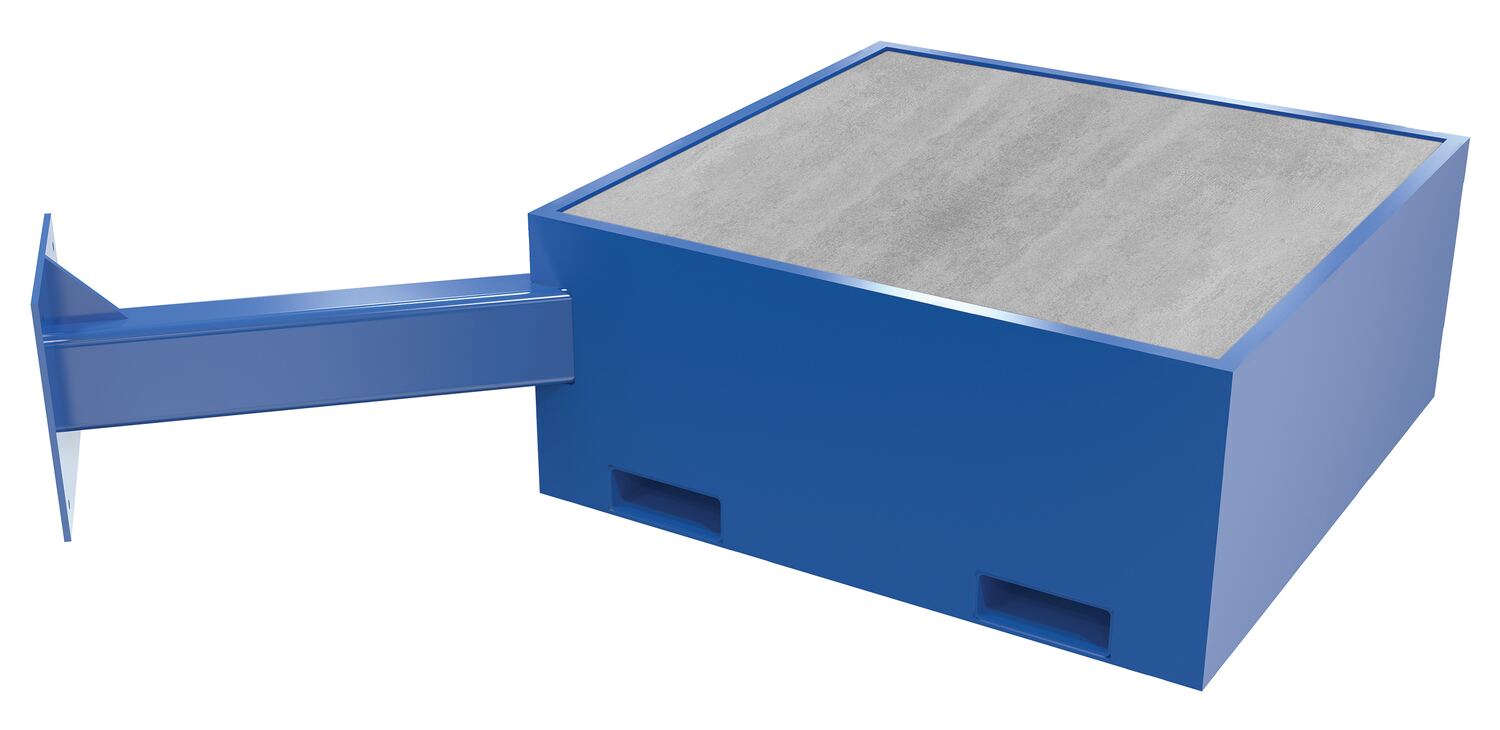

JIB-CBX-18-BC JIB-CBX-18-BCSteel Offset Concrete Filled Base 18 In. Height For JIB Cran…2870

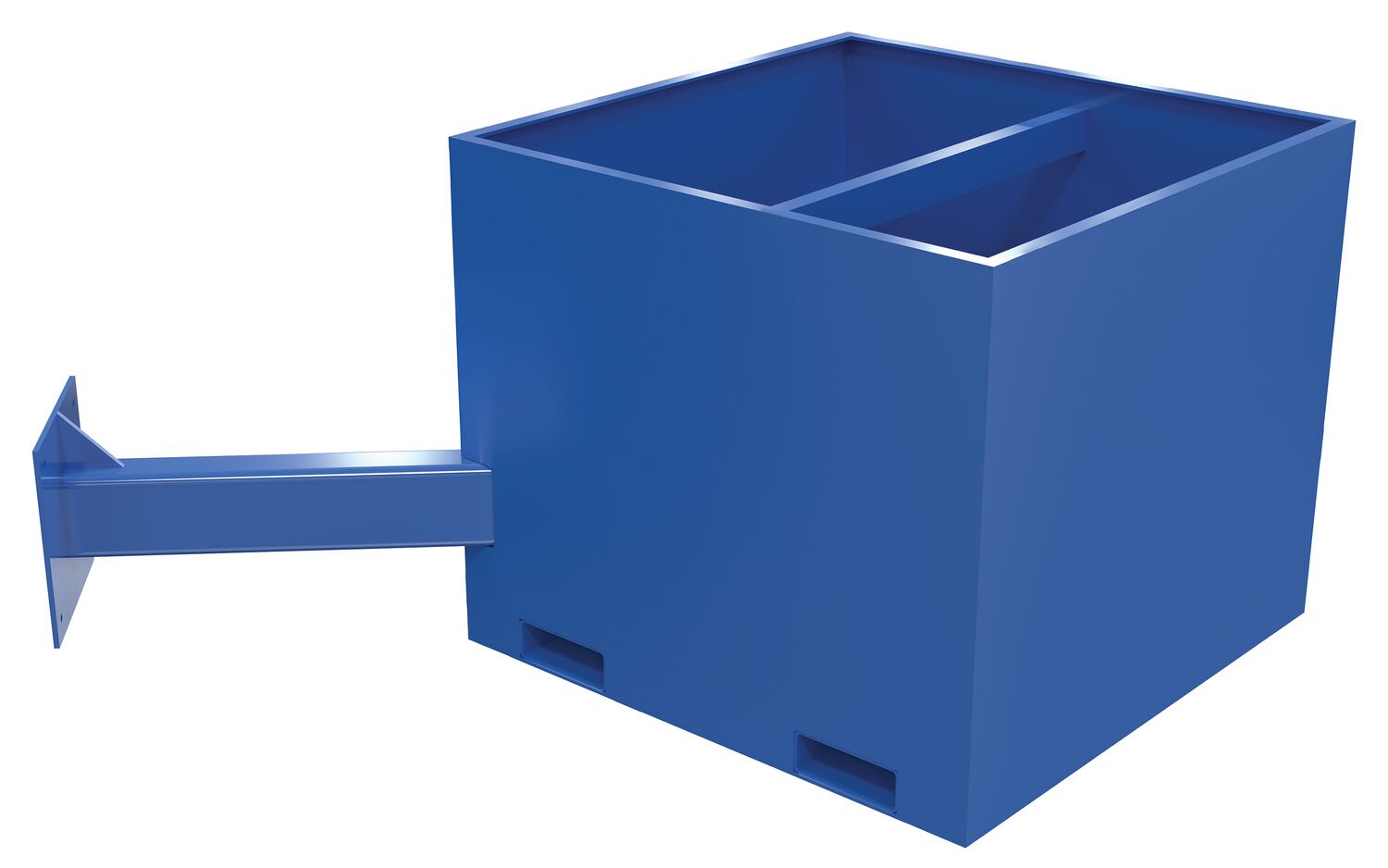

JIB-CBX-36-B JIB-CBX-36-BSteel Offset Empty Concrete Base 36 In. Height For JIB Crane…655

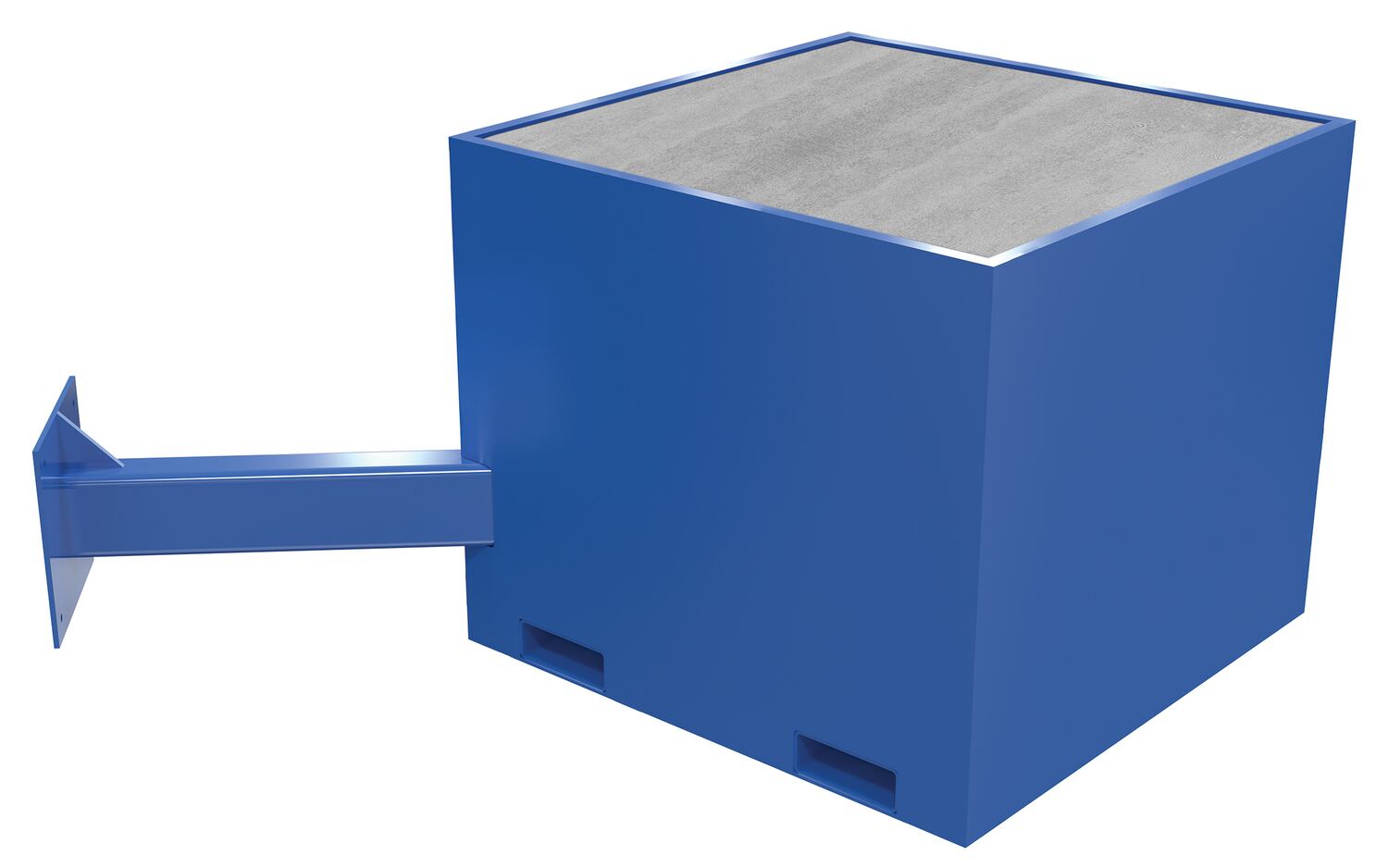

JIB-CBX-36-BC JIB-CBX-36-BCSteel Offset Concrete Filled Base 36 In. Height For JIB Cran…5449

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

JIB-CBX

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

JIB-CBX-18-B

JIB-CBX-18-BC

JIB-CBX-25-8-10

JIB-CBX-25-8-10-BC

JIB-CBX-25-10-10

JIB-CBX-25-10-10-BC

JIB-CBX-36-B

JIB-CBX-36-BC

JIB-CBX-50-8-10

JIB-CBX-50-8-10-BC

JIB-CBX-50-10-10

JIB-CBX-50-10-10-BC

JIB-CBX-100-8-10

JIB-CBX-100-8-10-BC

Testing Certificates

JIB-CBX-100-8-10

JIB-CBX-100-8-10-BC

JIB-CBX-18-B

JIB-CBX-18-BC

JIB-CBX-25-10-10

JIB-CBX-25-10-10-BC

JIB-CBX-25-8-10

JIB-CBX-25-8-10-BC

JIB-CBX-36-B

JIB-CBX-36-BC

JIB-CBX-50-10-10

JIB-CBX-50-10-10-BC

JIB-CBX-50-8-10

JIB-CBX-50-8-10-BC

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product

Related or Similar Products:

More From Jib Cranes





Portable Offset Jib Cranes




Offset base design allows for larger usable work area beneath I-beam. Allows for easy transportation of jib crane with fork truck. Fixed length I-beam will pivot 360 degrees for complete access. Empty base models include instructions for proper filling with concrete. Base size is 42-3/16" W x 42-3/16" L x 18"H or 36"H. Built-in fork tubes, measuring 7-1/2"W x 2-1/2"H usable on 24" centers, for transportation with fork truck. Steel construction with blue painted finish. Units ship knocked down. Not for use as a fork truck attachment. 10' under I-beam. Hoists & Trollies can be ordered seperately.

  • Design allows for larger usable work area beneath I-beam
  • Concrete filled base for immediate use
  • Upright vertical column bolts to base for optimal efficiency
  • Steel construction for strength and durability

Model # Description Attributes Net Wt.
(lbs)

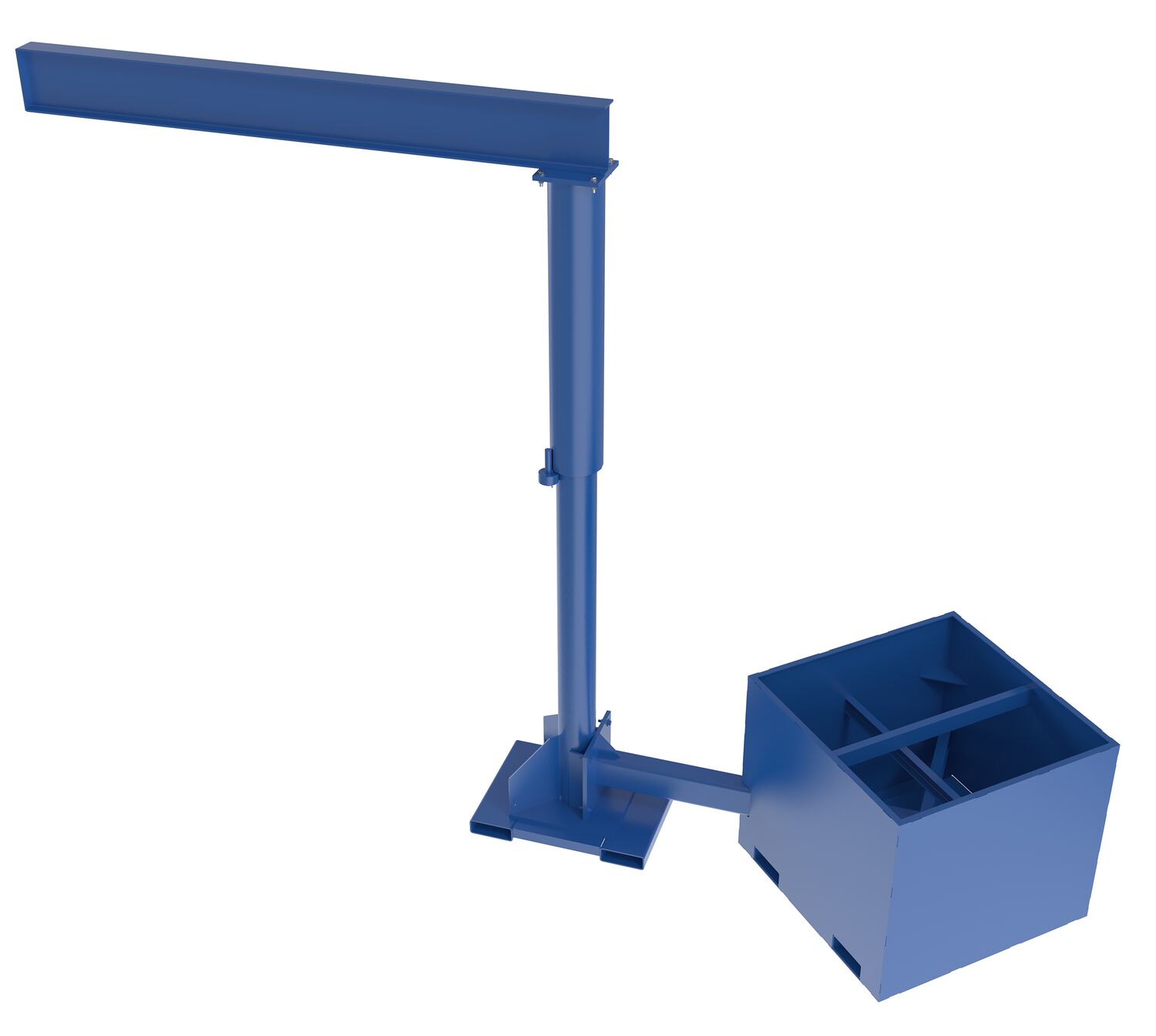

JIB-CBX-100-8-10 JIB-CBX-100-8-10Steel Portable Offset Jib Crane with Empty Base 8 Ft. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Length (in): 96		756

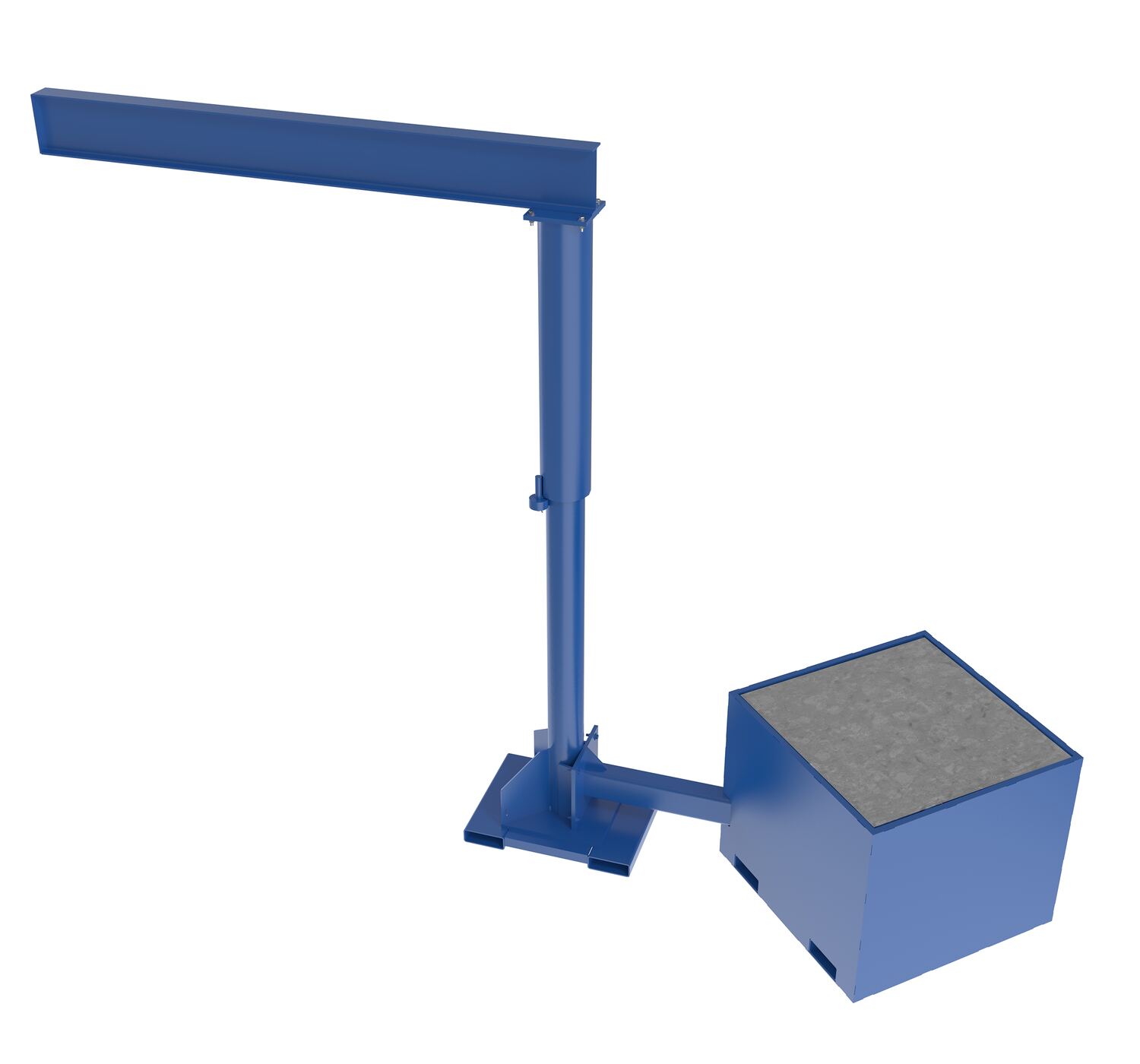

JIB-CBX-100-8-10-BC JIB-CBX-100-8-10-BCSteel Portable Offset Jib Crane with Filled Base 8 Ft. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Length (in): 96		734

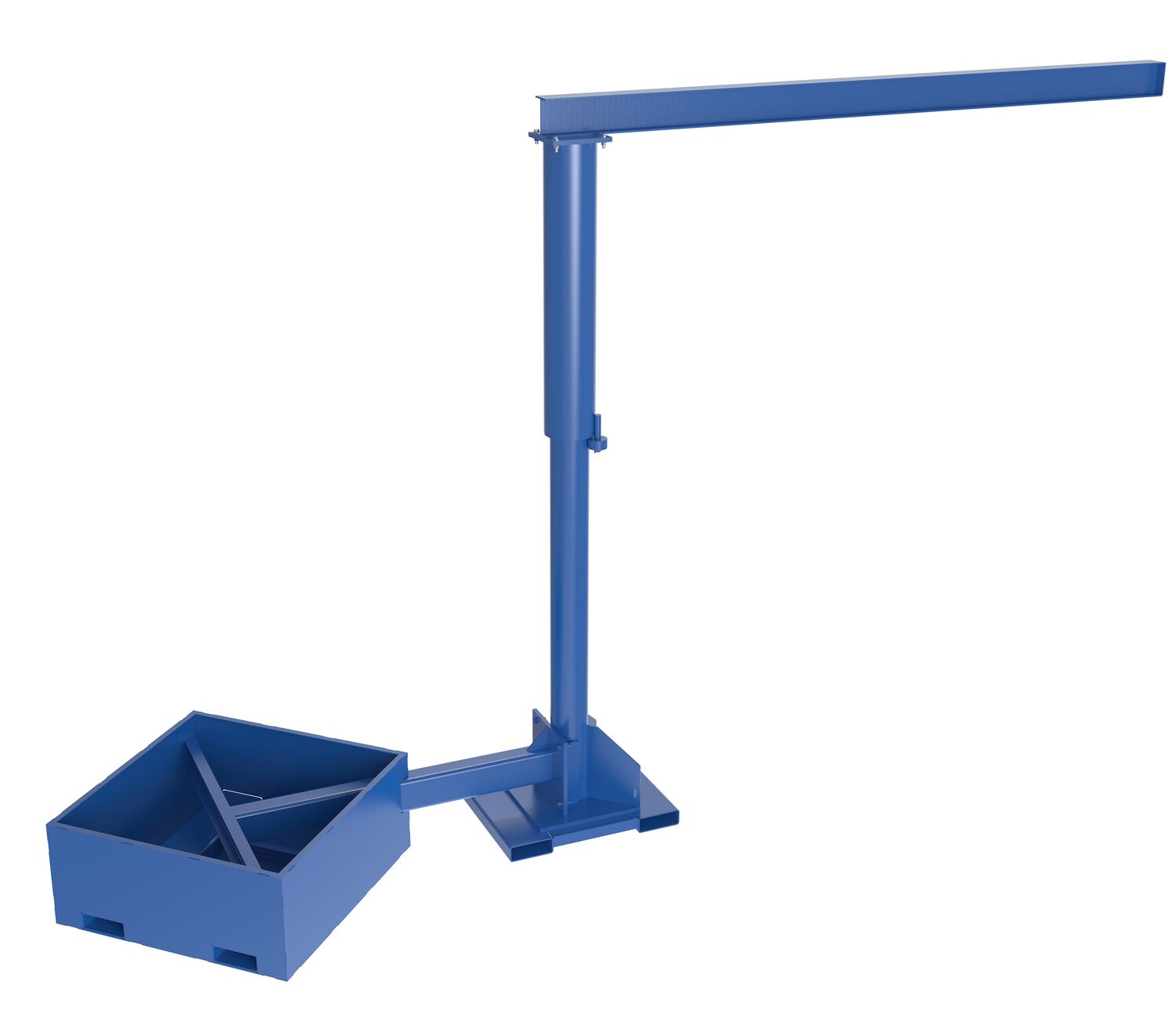

JIB-CBX-25-10-10 JIB-CBX-25-10-10Steel Portable Offset Jib Crane with Empty Base 10 Ft. I-Beam 250 Lb. Capacity BlueUniform Capacity (lb.): 250
Overall I-Beam Length (in): 120		2318

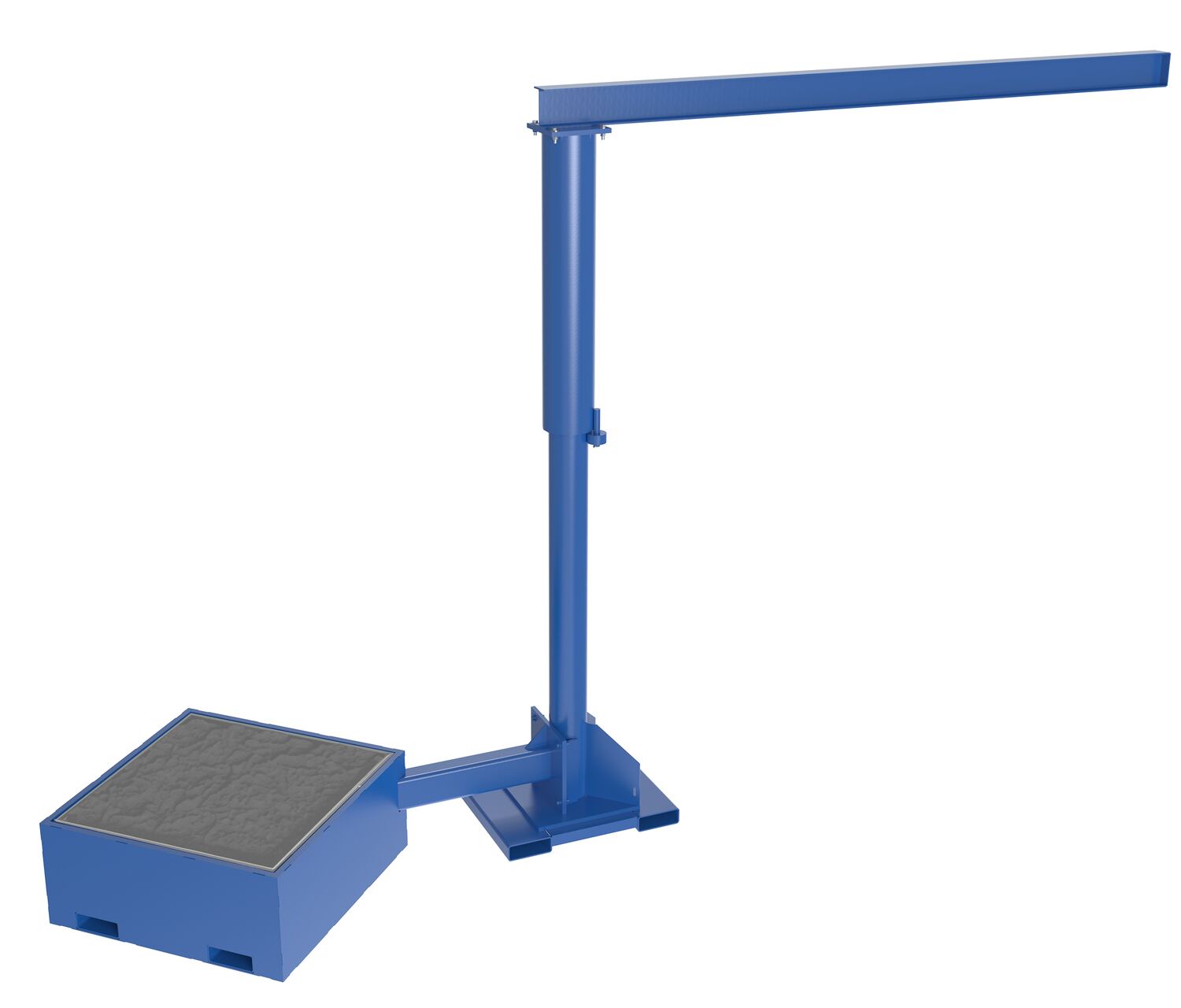

JIB-CBX-25-10-10-BC JIB-CBX-25-10-10-BCSteel Portable Offset Jib Crane with Filled Base 10 Ft. I-Beam 250 Lb. Capacity BlueUniform Capacity (lb.): 250
Overall I-Beam Length (in): 120		700

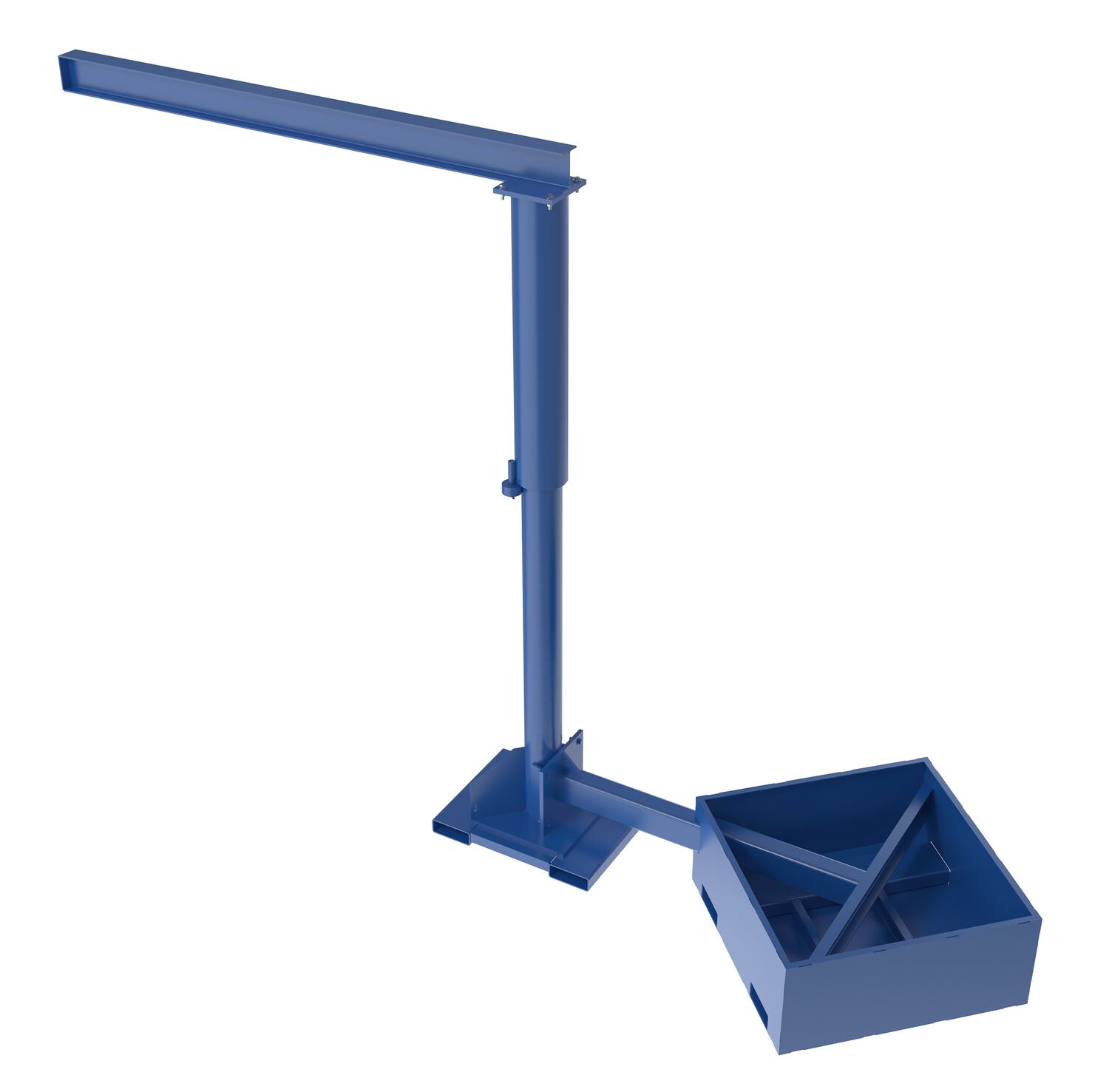

JIB-CBX-25-8-10 JIB-CBX-25-8-10Steel Portable Offset Jib Crane with Empty Base 8 Ft. I-Beam 250 Lb. Capacity BlueUniform Capacity (lb.): 250
Overall I-Beam Length (in): 96		700

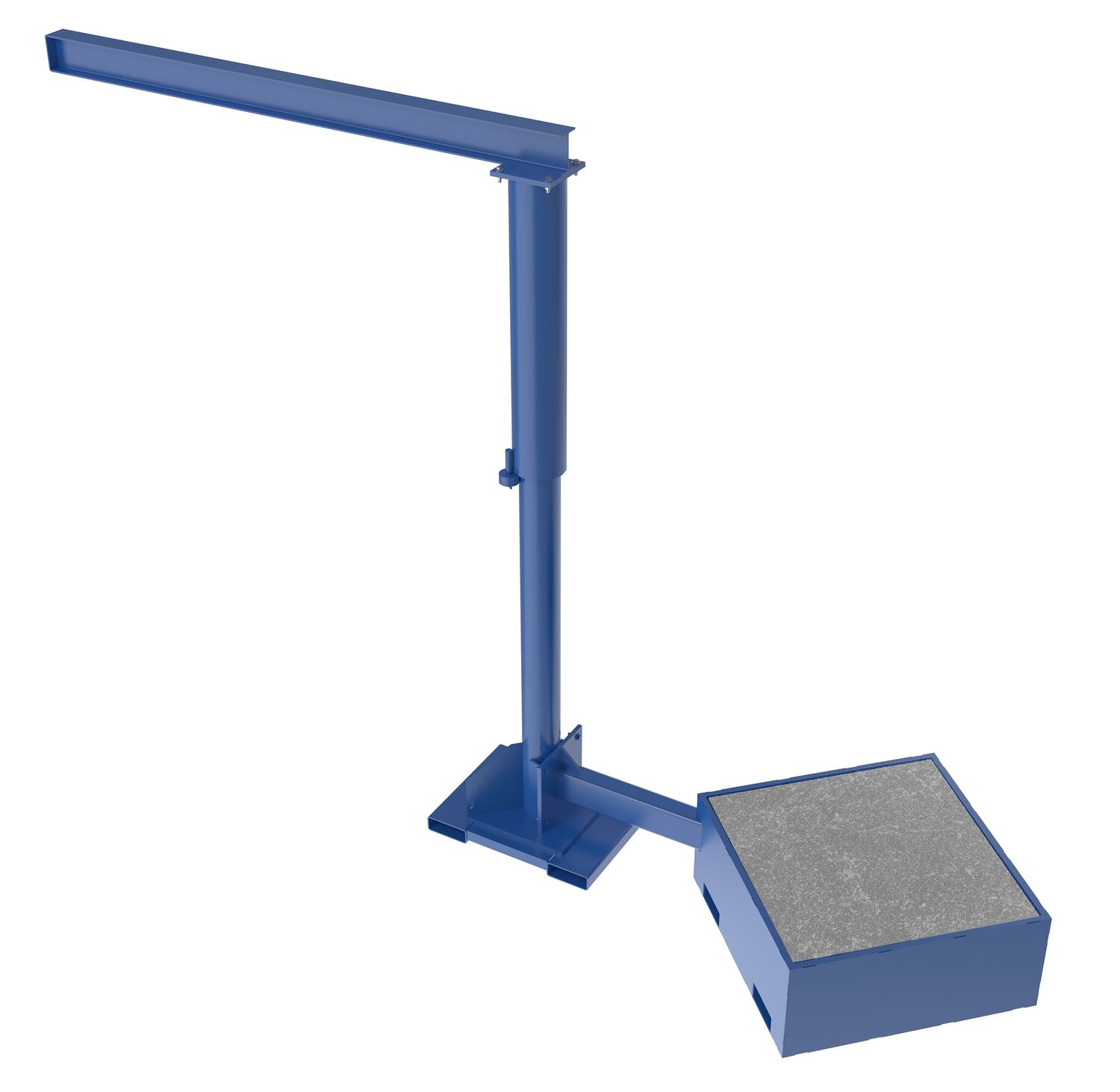

JIB-CBX-25-8-10-BC JIB-CBX-25-8-10-BCSteel Portable Offset Jib Crane with Filled Base 8 Ft. I-Beam 250 Lb. Capacity BlueUniform Capacity (lb.): 250
Overall I-Beam Length (in): 96		679

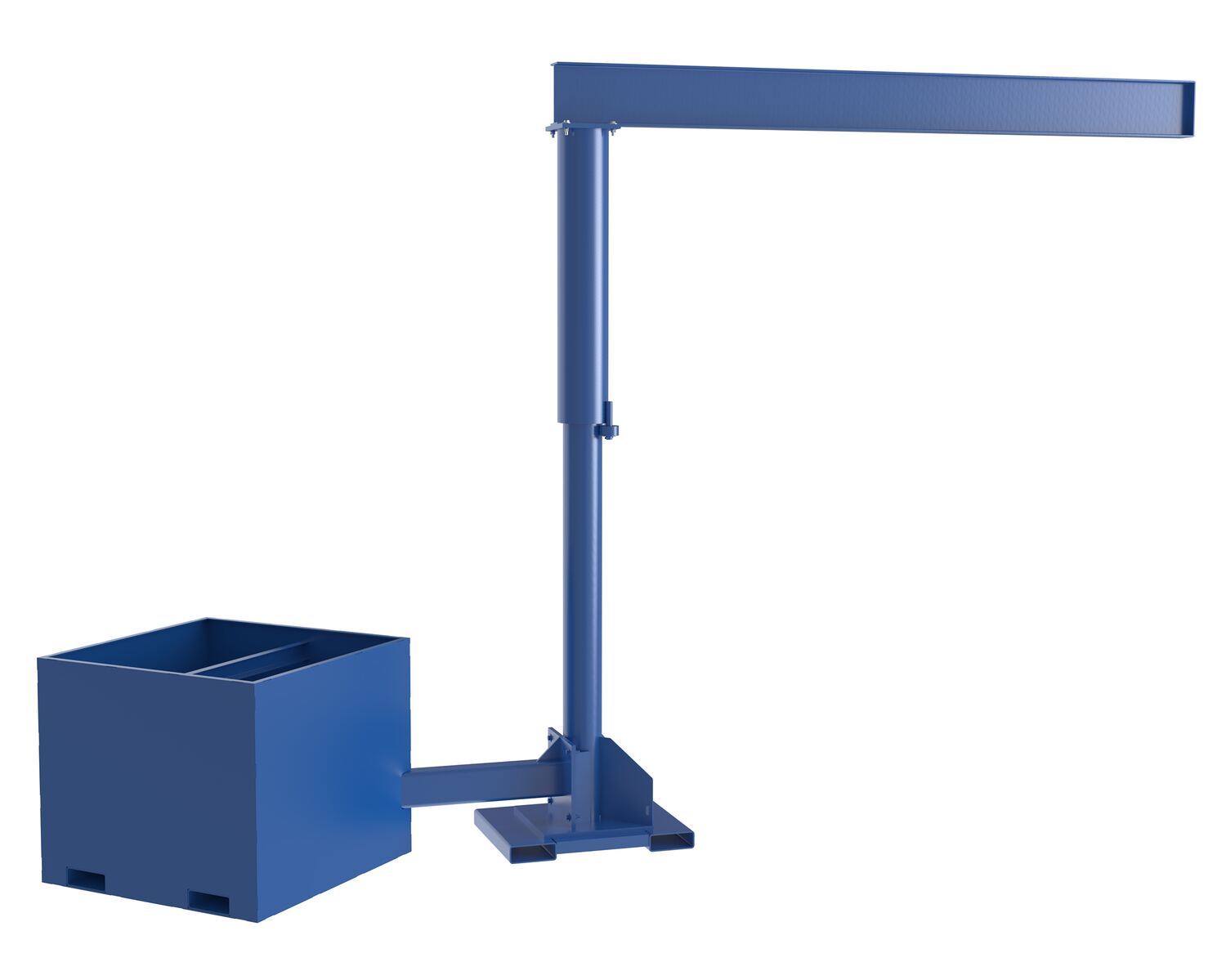

JIB-CBX-50-10-10 JIB-CBX-50-10-10Steel Portable Offset Jib Crane with Empty Base 10 Ft. I-Beam 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Overall I-Beam Length (in): 120		2102

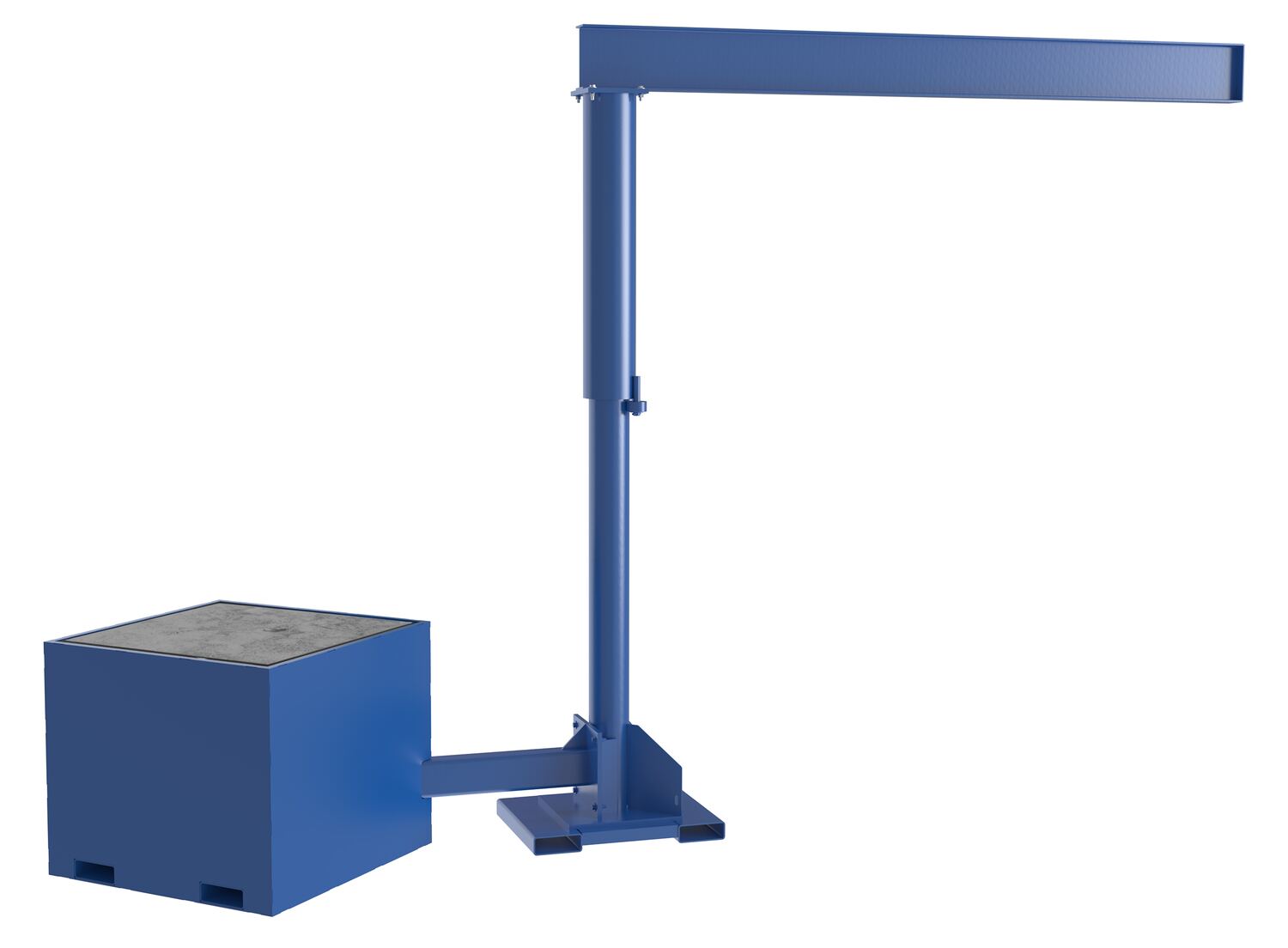

JIB-CBX-50-10-10-BC JIB-CBX-50-10-10-BCSteel Portable Offset Jib Crane with Filled Base 10 Ft. I-Beam 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Overall I-Beam Length (in): 120		775

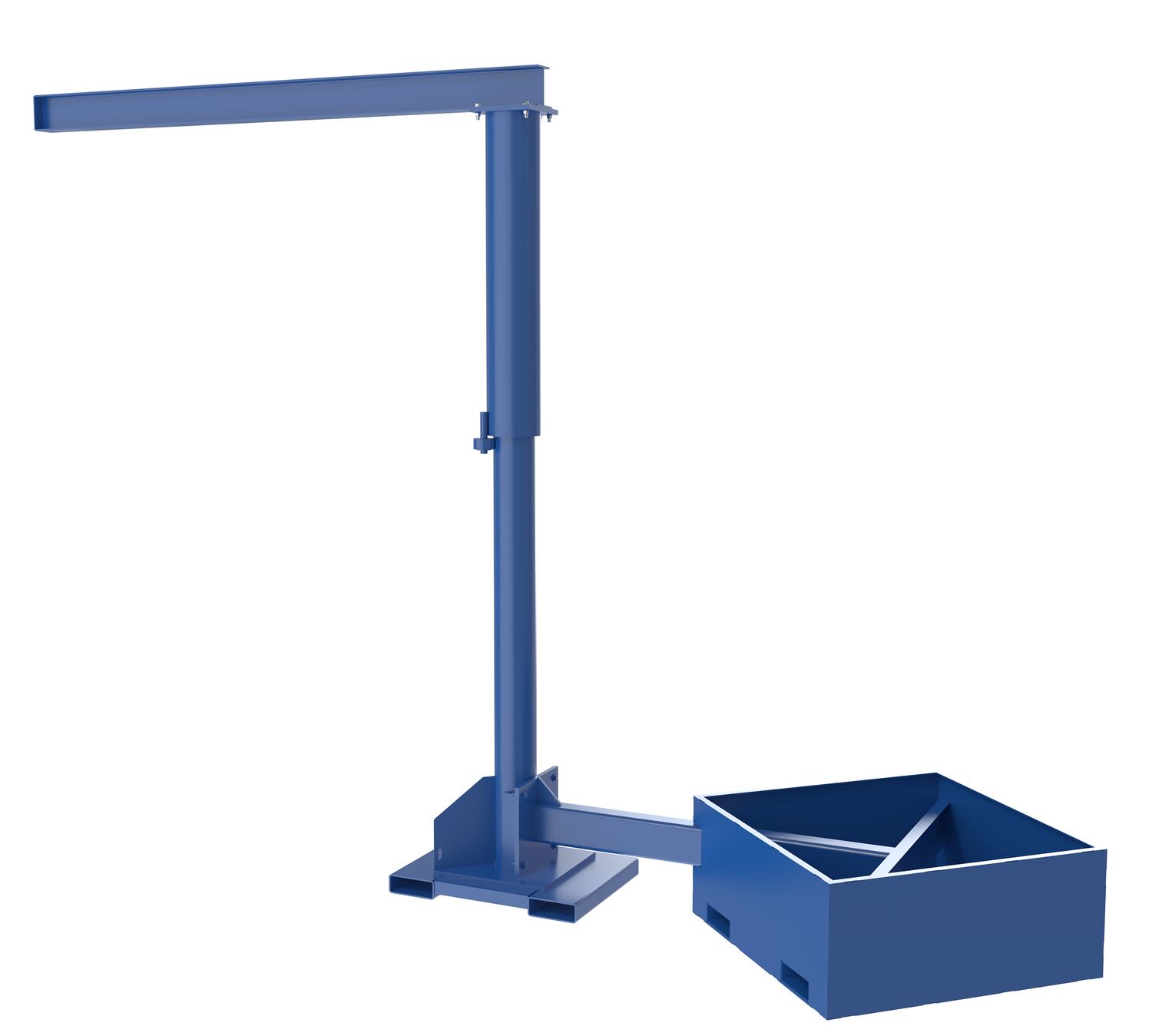

JIB-CBX-50-8-10 JIB-CBX-50-8-10Steel Portable Offset Jib Crane with Empty Base 8 Ft. I-Beam 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Overall I-Beam Length (in): 96		296

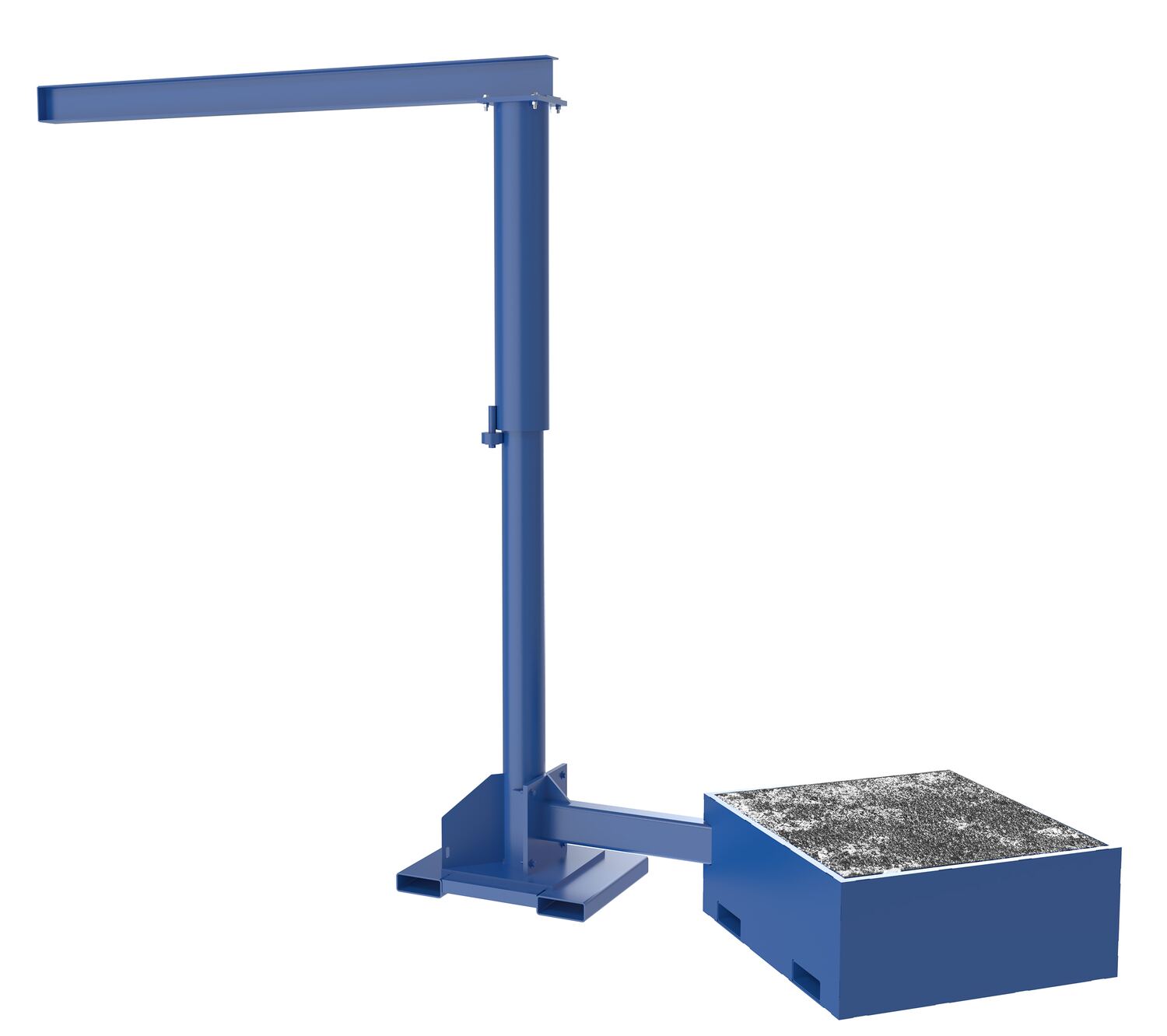

JIB-CBX-50-8-10-BC JIB-CBX-50-8-10-BCSteel Portable Offset Jib Crane with Filled Base 8 Ft. I-Beam 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Overall I-Beam Length (in): 96		709
