Aluminum Pallets & Skids

model: AP-4824

AP-4824_F.jpg AP-4824_A.jpg AP-4824_B.jpg AP-4824_C.jpg AP-4824_D.jpg AP-4824_E.jpg More Images +
Aluminum Pallets & Skids
SERIES: AP, SKID

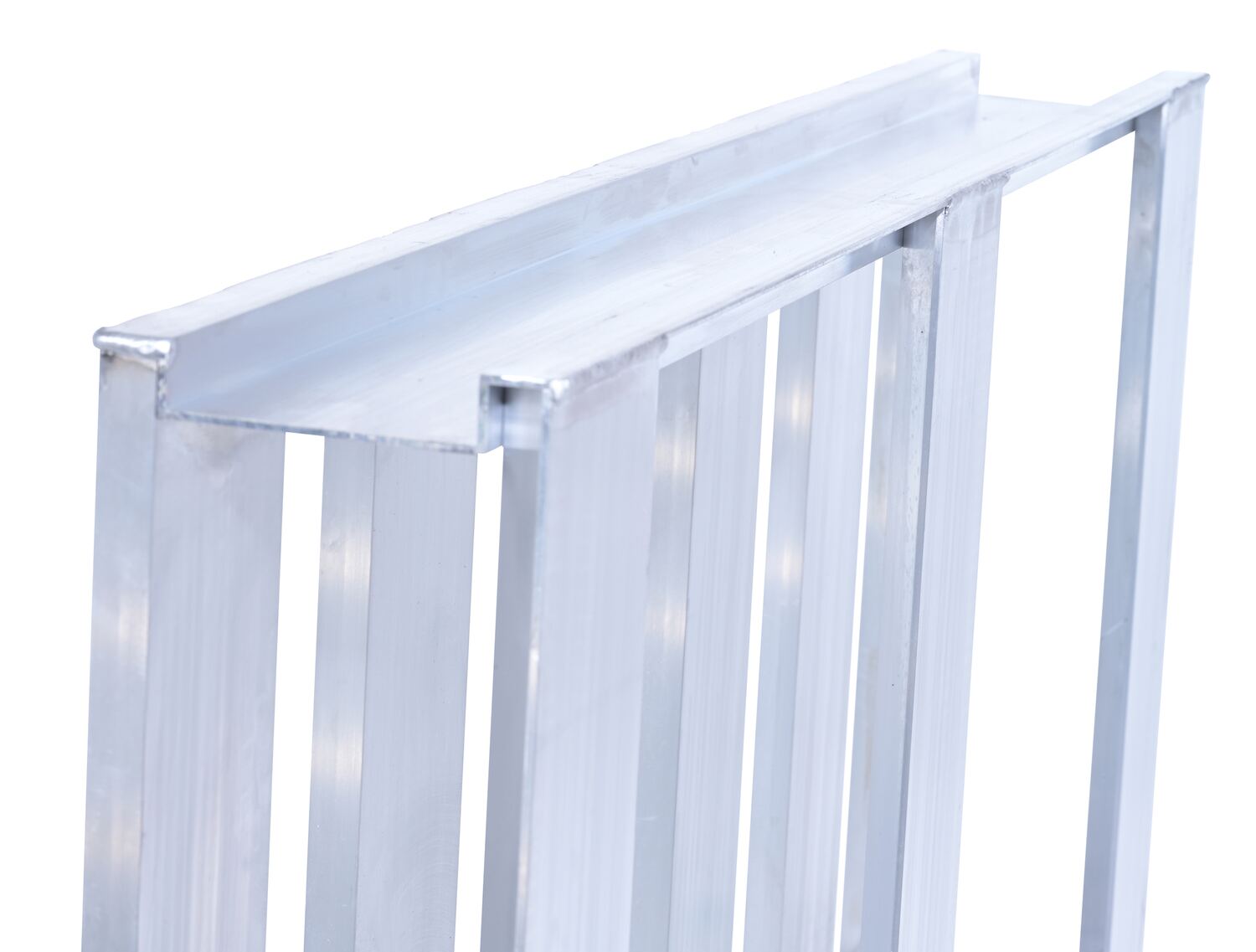

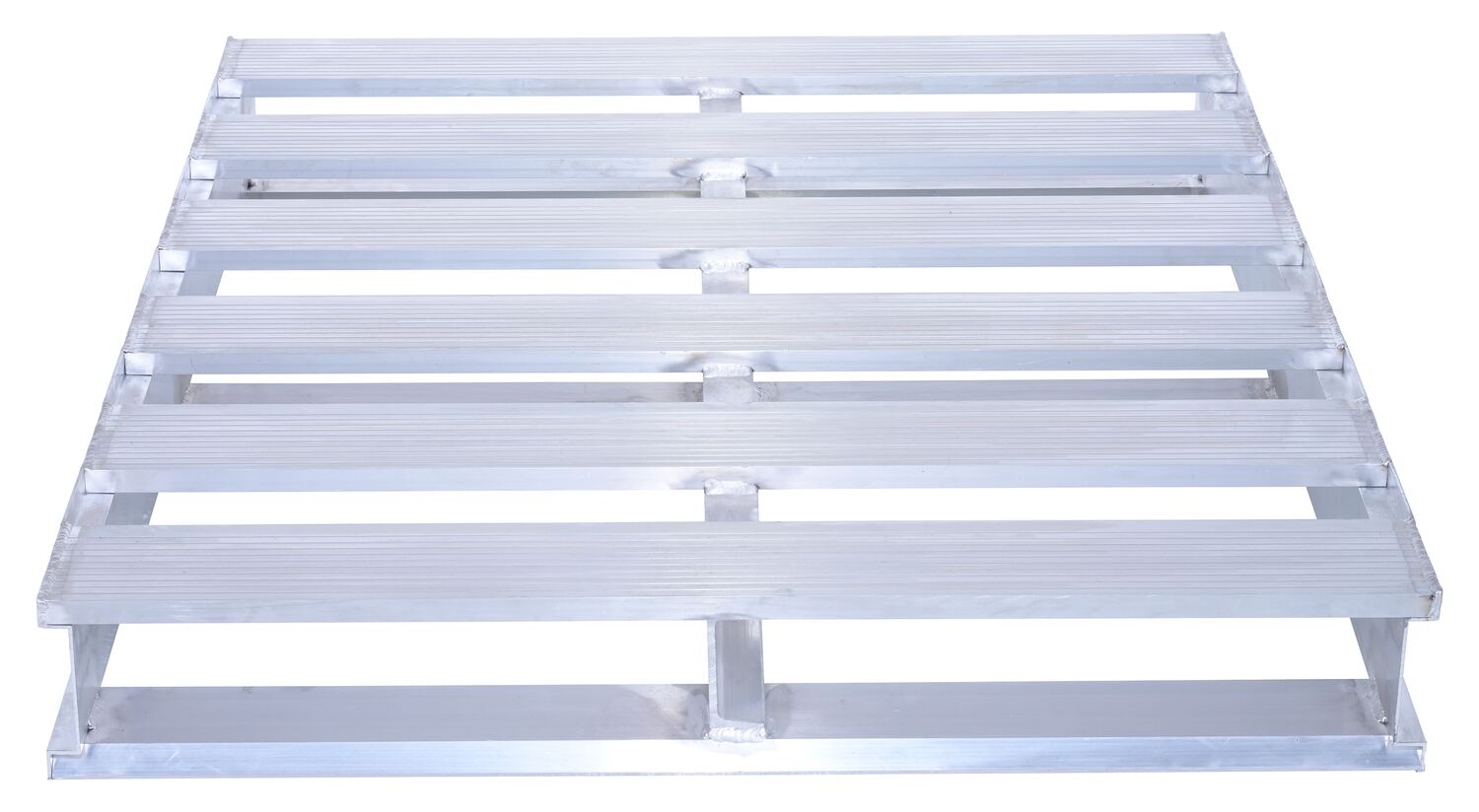

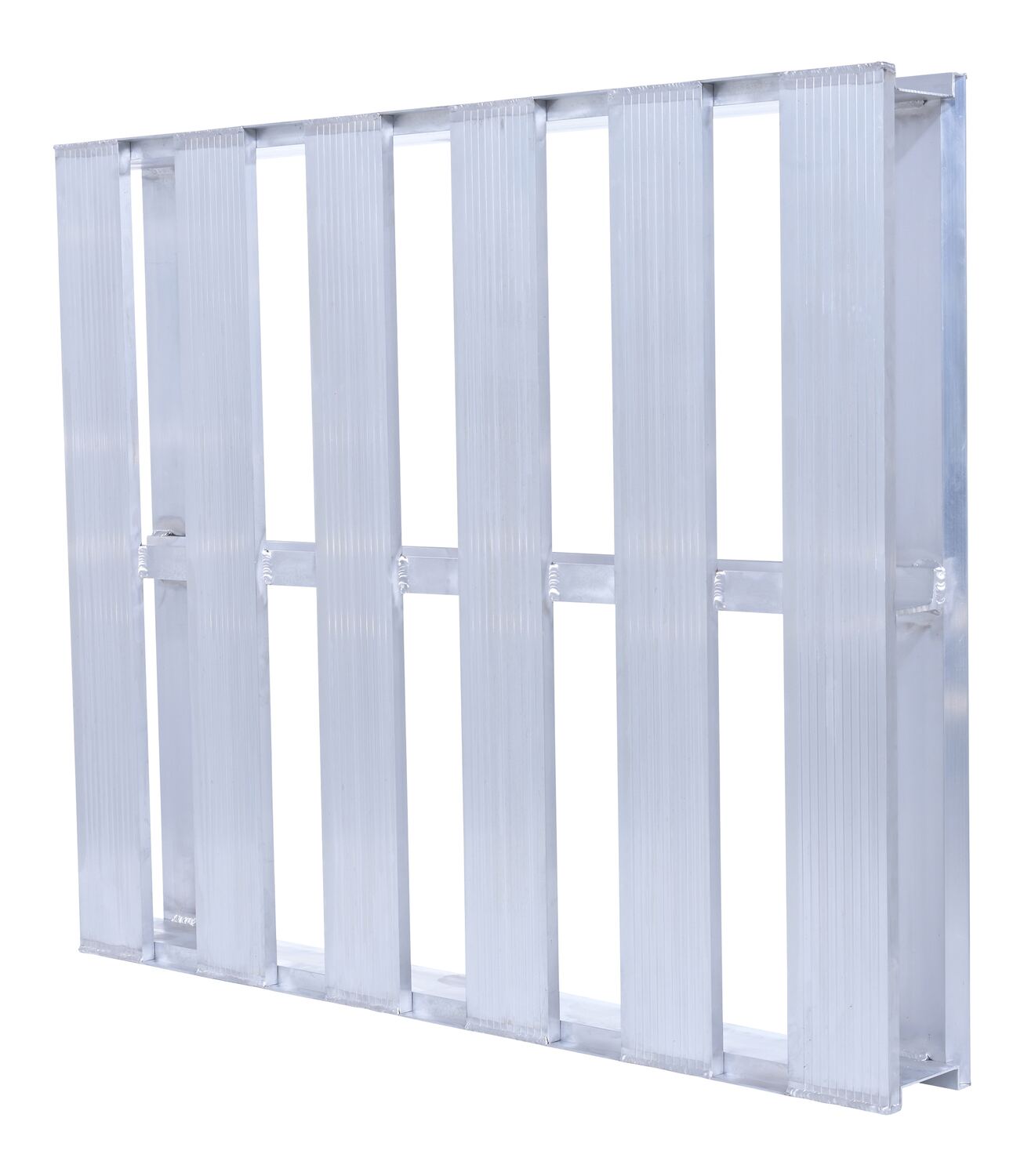

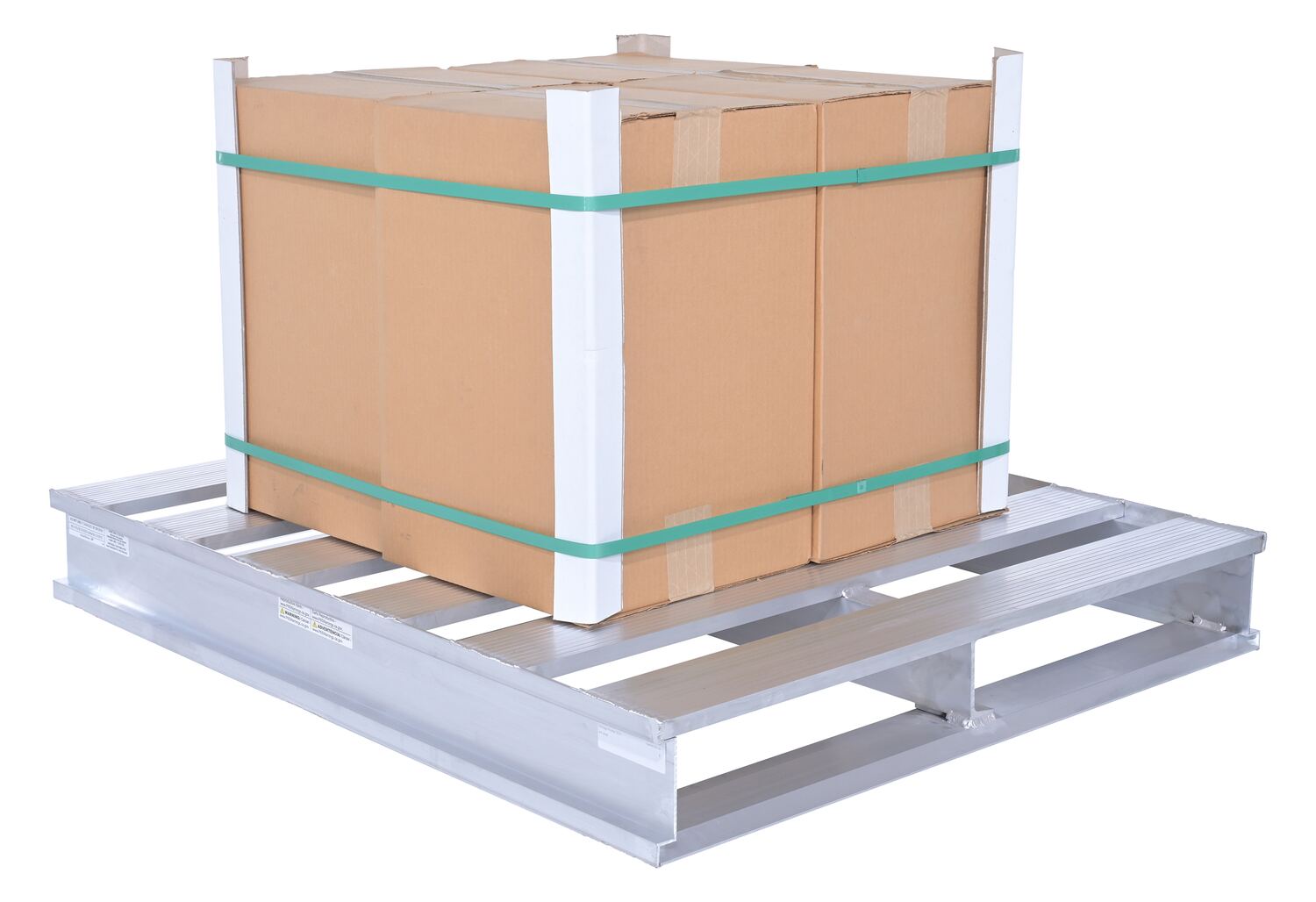

A welded Aluminum Pallet is a great asset for a variety of industries. The open design enables quick and simple cleaning. This pallet is durable and re-usable with a two-way entry for pallet and fork truck use. Large static capacity allows for load both big and small.

  • Solid top surface provides easy transportation of products
  • Simple access points for quick lifting
  • Sleek surface limits abrasions
  • Compact design for minimal storage

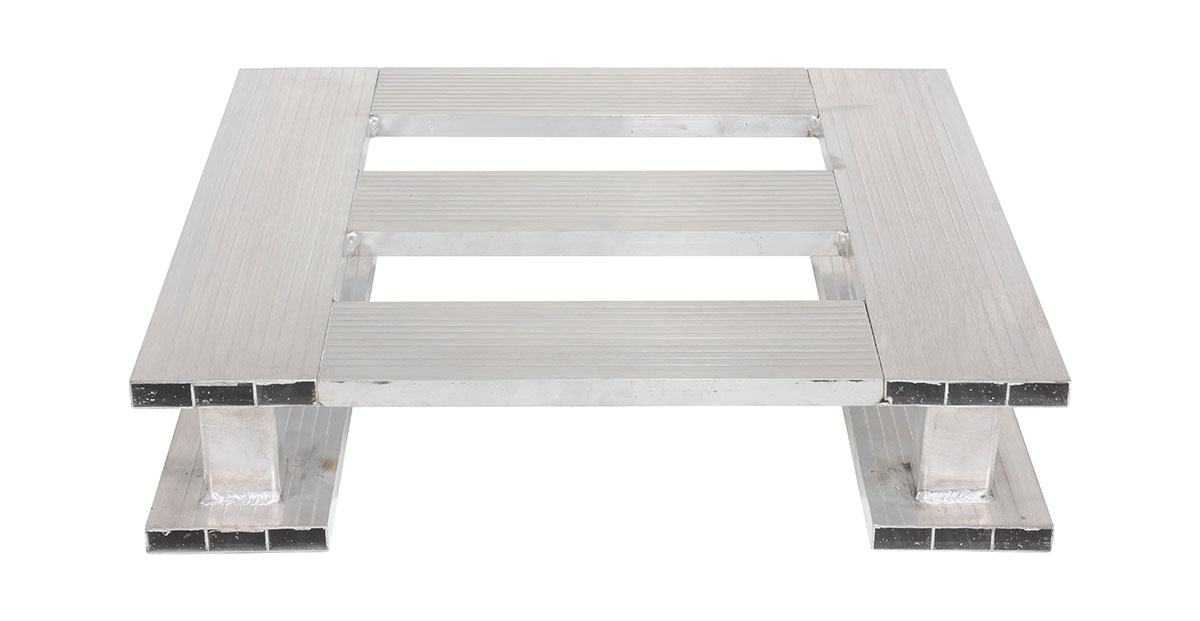

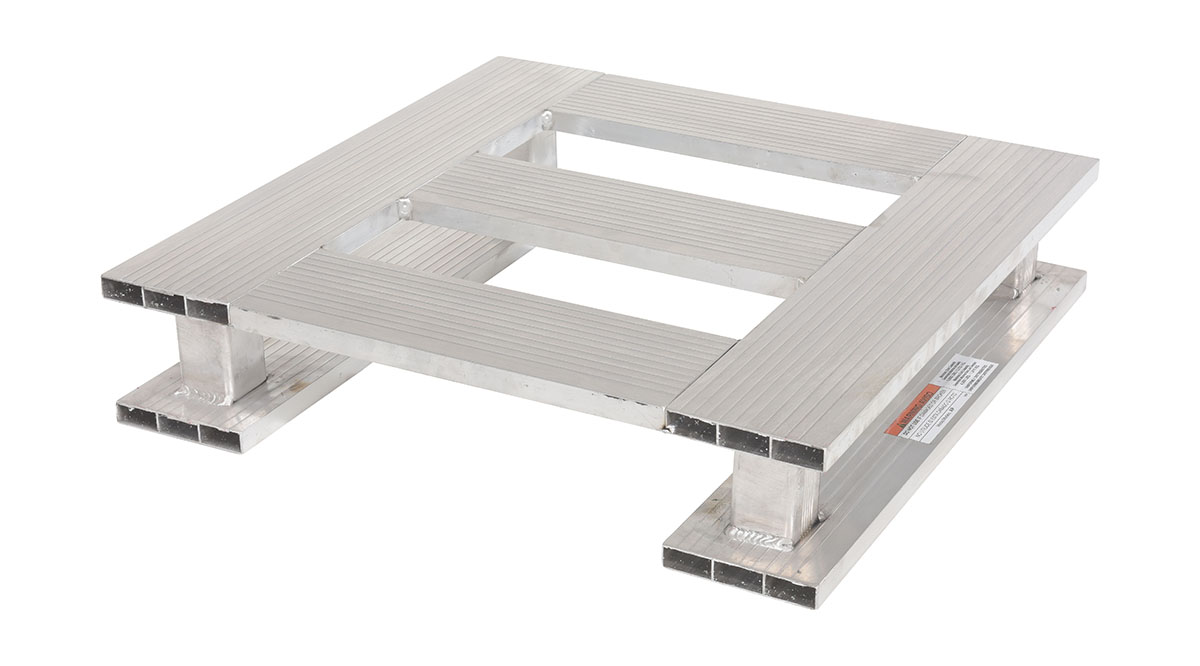

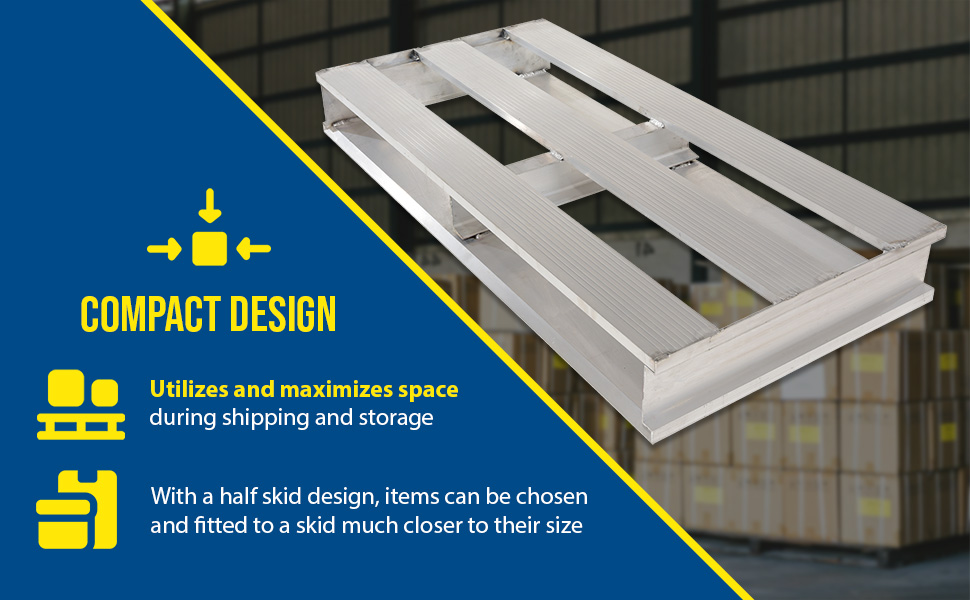

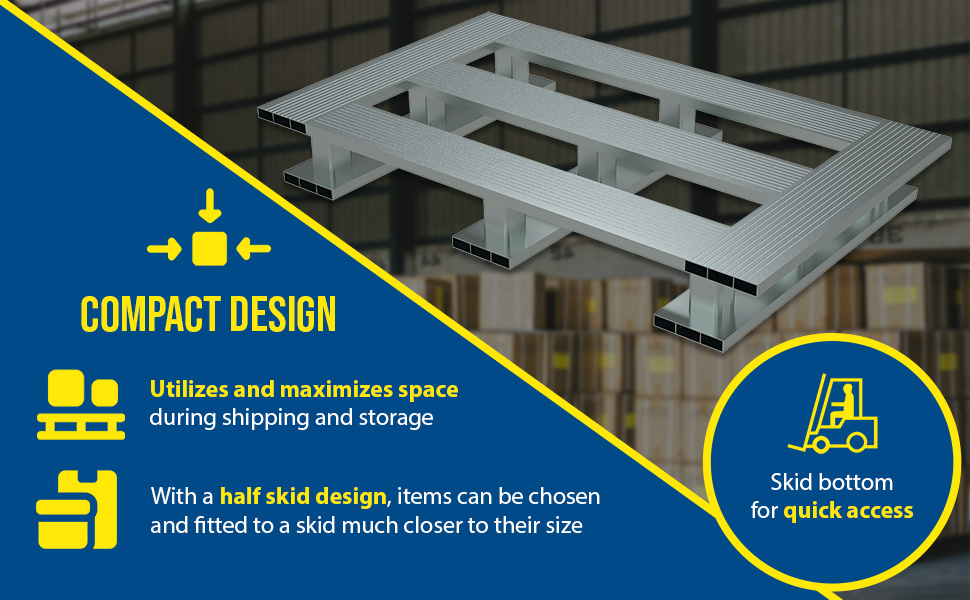

An Aluminum Half Pallet is a great asset for a variety of industries. With the half pallet design, items can be chosen and fitted to a pallet much closer to their size. This utilizes and maximizes space during shipping and floor space during any storage. The open design enables quick and simple cleaning.

Aluminum Pallets & Skids

model: AP-4824

Model # Description Attributes Net Wt.
(lbs)

* Click the Comparison Table link above this table, or compare up to 3 products side-by-side by clicking Green +

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

AP-2024
AP-2424
AP-2424-SB
AP-3624
AP-3624-SB
AP-4024
AP-4024-SB
AP-4048
AP-4048-SB
AP-4248
AP-4248-SB
AP-4824
AP-4824-SB
AP-4848
AP-4848-SB
AP-ST-2424
AP-ST-2424-SB
AP-ST-3624
AP-ST-3624-SB
AP-ST-4024
AP-ST-4024-SB
AP-ST-4048
AP-ST-4048-SB
AP-ST-4248
AP-ST-4248-SB
AP-ST-4824
AP-ST-4824-SB
AP-ST-4848
SKID-2024-A
SKID-2424-A
SKID-3624-A
SKID-4024-A
SKID-4048-A
SKID-4248-A
SKID-4824-A
SKID-4848-A
PDFs will open in a new window when clicked.

Manuals

No Owners Manuals For This Product

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

AP-2024

AP-2424

AP-2424-SB

AP-3624

AP-3624-SB

AP-4024

AP-4024-SB

AP-4048

AP-4048-SB

AP-4248

AP-4248-SB

AP-4824

AP-4824-SB

AP-4848

AP-4848-SB

AP-ST-2424

AP-ST-2424-SB

AP-ST-4024

AP-ST-4024-SB

AP-ST-4048

AP-ST-4048-SB

AP-ST-4248

AP-ST-4248-SB

AP-ST-4824

AP-ST-4824-SB

AP-ST-4848

SKID-2024-A

SKID-2424-A

SKID-3624-A

SKID-4024-A

SKID-4048-A

SKID-4248-A

SKID-4824-A

SKID-4848-A

AP-ST-3624

AP-ST-3624-SB

Testing Certificates

AP-2024

AP-2424

AP-2424-SB

AP-3624

AP-3624-SB

AP-4024

AP-4024-SB

AP-4048

AP-4048-SB

AP-4248

AP-4248-SB

AP-4824

AP-4824-SB

AP-4848

AP-4848-SB

AP-ST-2424

AP-ST-2424-SB

AP-ST-3624

AP-ST-3624-SB

AP-ST-4024

AP-ST-4024-SB

AP-ST-4048

AP-ST-4048-SB

AP-ST-4248

AP-ST-4248-SB

AP-ST-4824

AP-ST-4824-SB

AP-ST-4848

SKID-2024-A

SKID-2424-A

SKID-3624-A

SKID-4024-A

SKID-4048-A

SKID-4248-A

SKID-4824-A

SKID-4848-A

SDS Sheets

No SDS Sheets For This Product

Other PDFs


Aluminum Half Pallets Mailing Brochure







Visit Our Youtube Channel For All Available Videos For All Products
What material is used for the solid top pallet?
The top plate on the solid top units is aluminum tread plate with the tread pattern facing down. It is 3003-H22 aluminum.
The frame cross members are extruded aluminum - 6063-T6
The riser tubes in the middle are extruded aluminum - 6105-T5

Related or Similar Products:

More From Pallets





Aluminum Pallets & Skids




A welded Aluminum Pallet is a great asset for a variety of industries. The open design enables quick and simple cleaning. This pallet is durable and re-usable with a two-way entry for pallet and fork truck use. Large static capacity allows for load both big and small.

  • Solid top surface provides easy transportation of products
  • Simple access points for quick lifting
  • Sleek surface limits abrasions
  • Compact design for minimal storage

An Aluminum Half Pallet is a great asset for a variety of industries. With the half pallet design, items can be chosen and fitted to a pallet much closer to their size. This utilizes and maximizes space during shipping and floor space during any storage. The open design enables quick and simple cleaning.


Model # Description Attributes Net Wt.
(lbs)

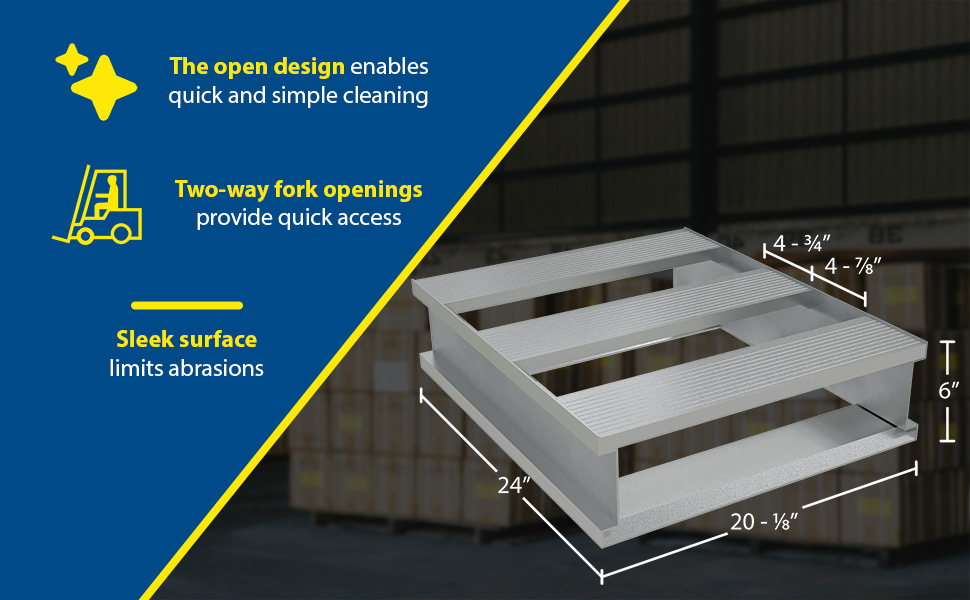

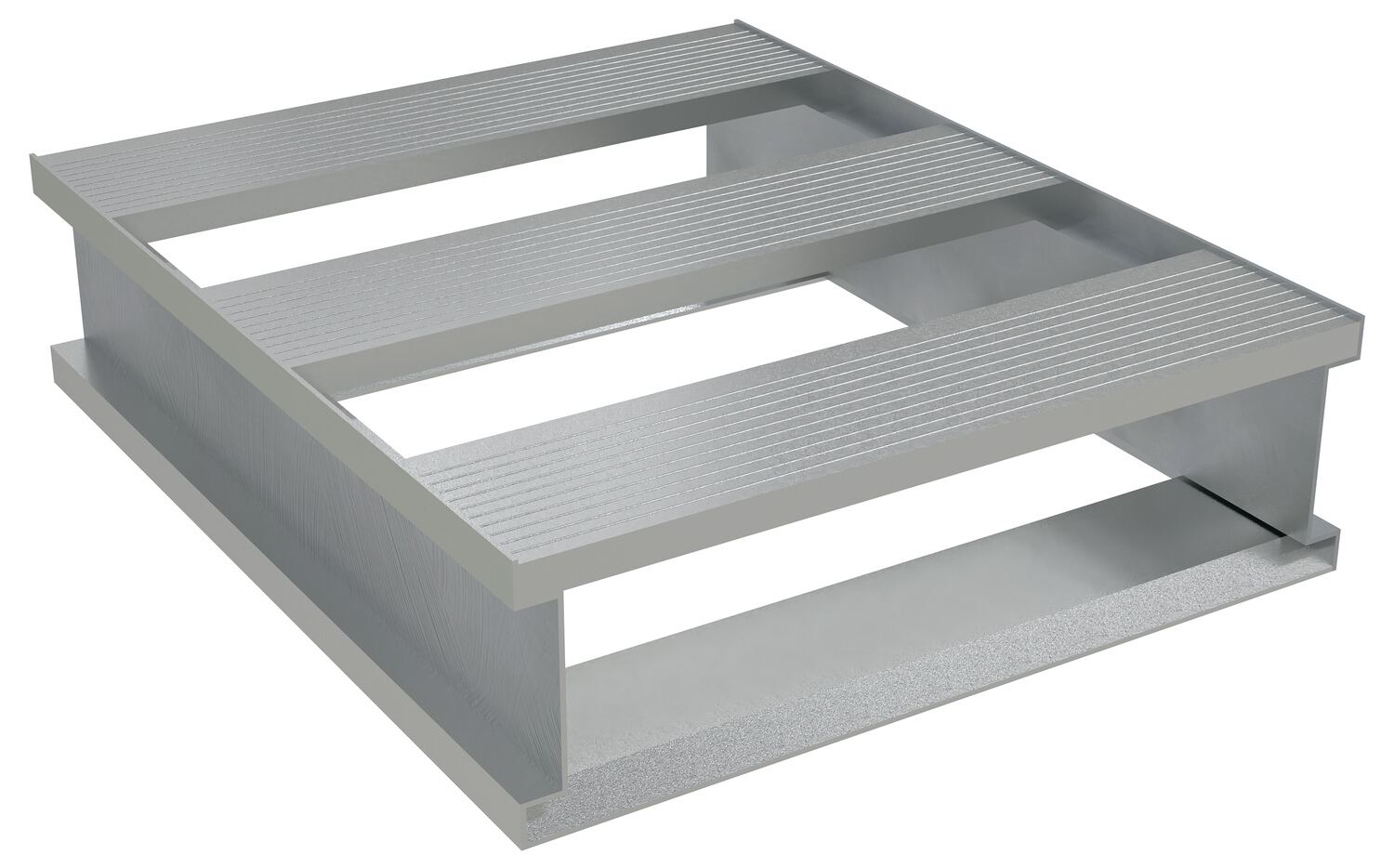

AP-2024 AP-2024Aluminum Heavy Duty Half Pallet 20 In x 24 In x 6 In 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 22.5625		12

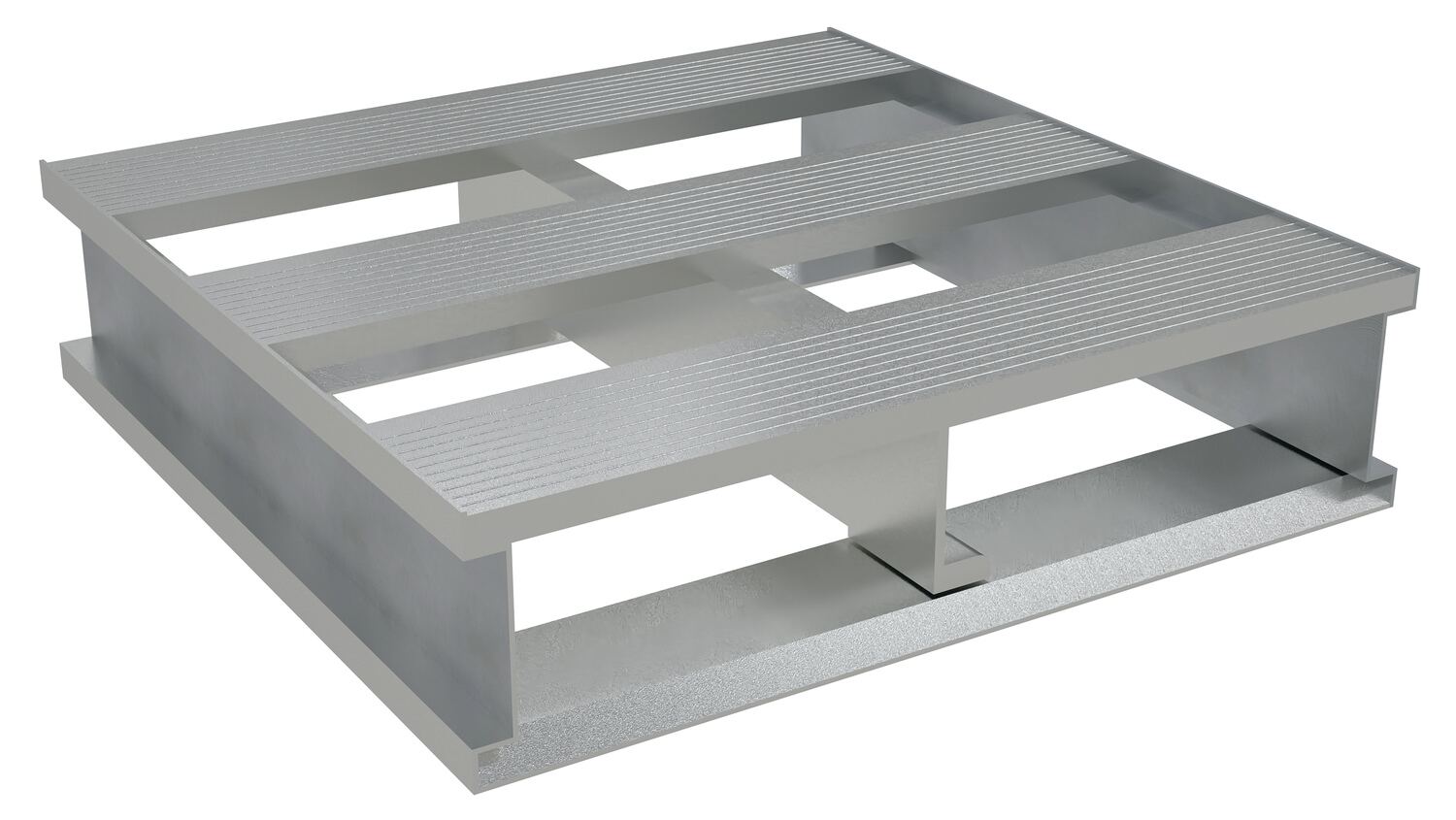

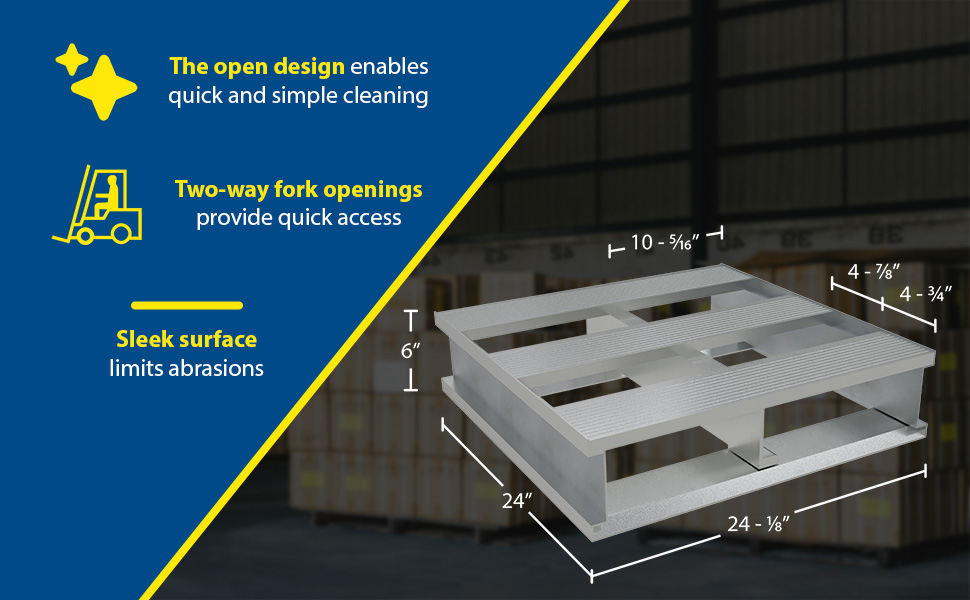

AP-2424 AP-2424Aluminum Heavy Duty Half Pallet 24 In. x 24 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 22.5625		13

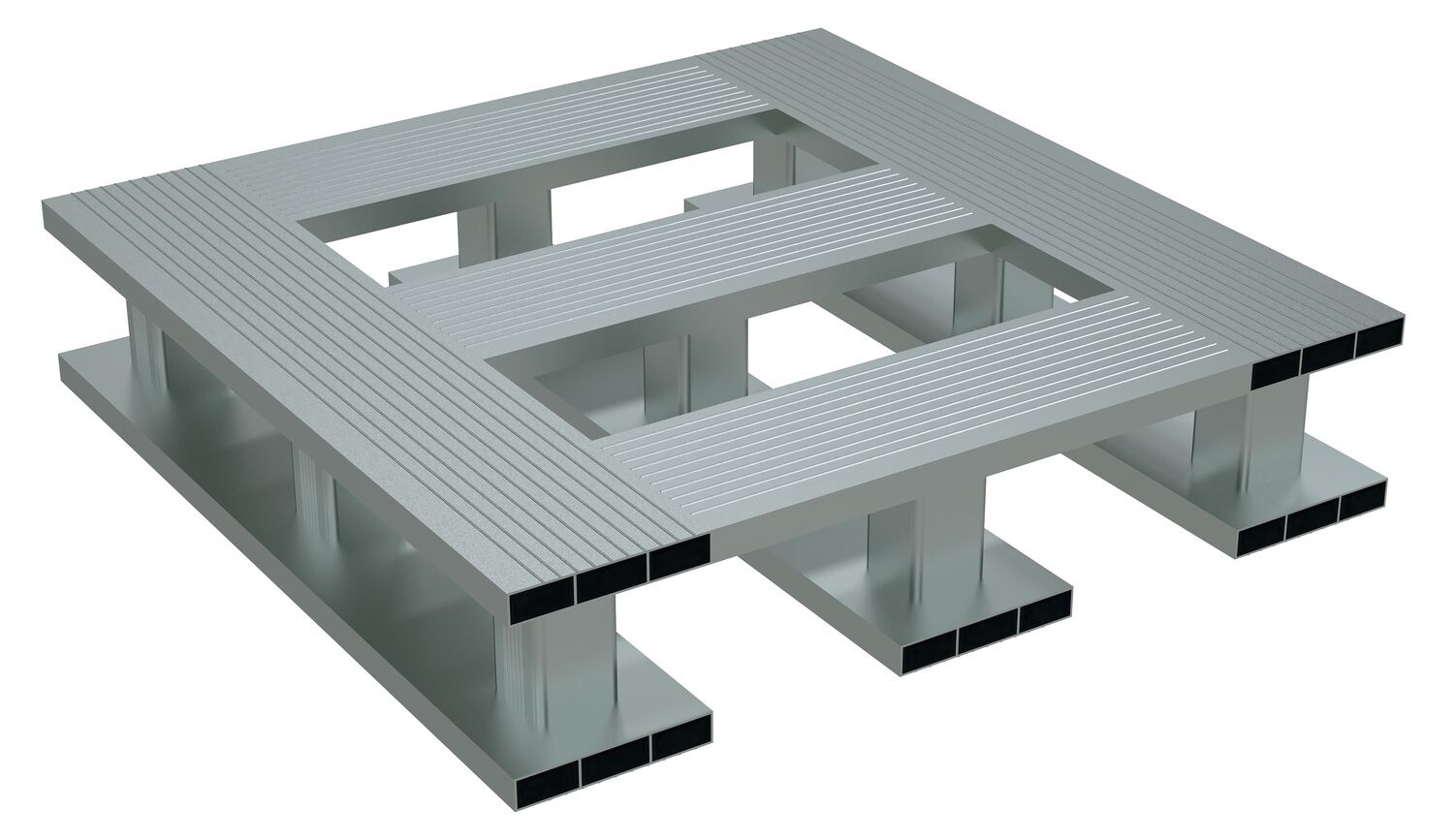

AP-2424-SB AP-2424-SBAluminum Half Skid Bottom Pallet 24 In. x 24 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 19.5625		12

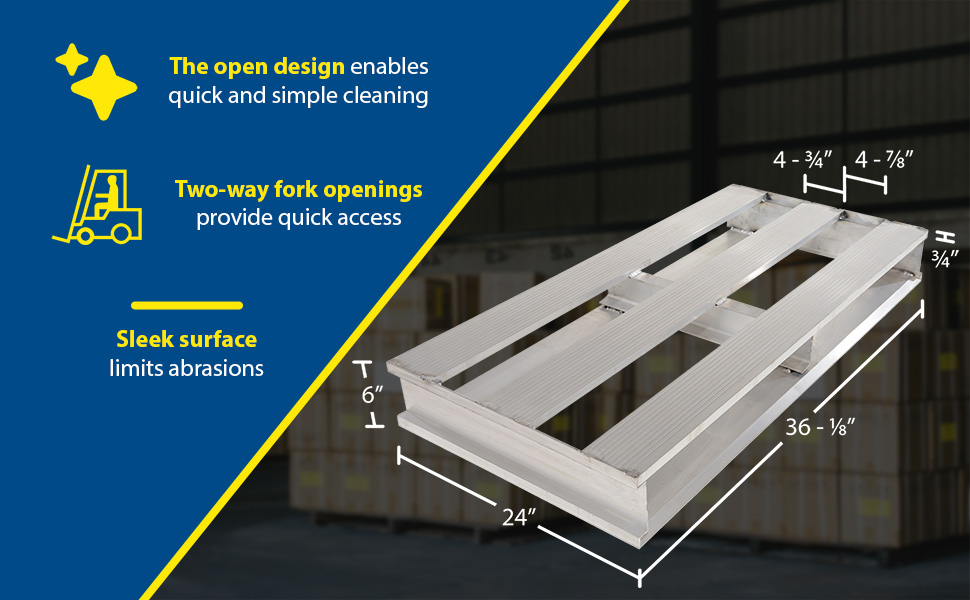

AP-3624 AP-3624Aluminum Heavy Duty Half Pallet 24 In. x 36 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 8.3125		17
AP-3624-SB AP-3624-SBAluminum Half Skid Bottom Pallet 24 In. x 36 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 11.625		16
AP-4024 AP-4024Aluminum Heavy Duty Half Pallet 24 In. x 40 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 16.5625		21

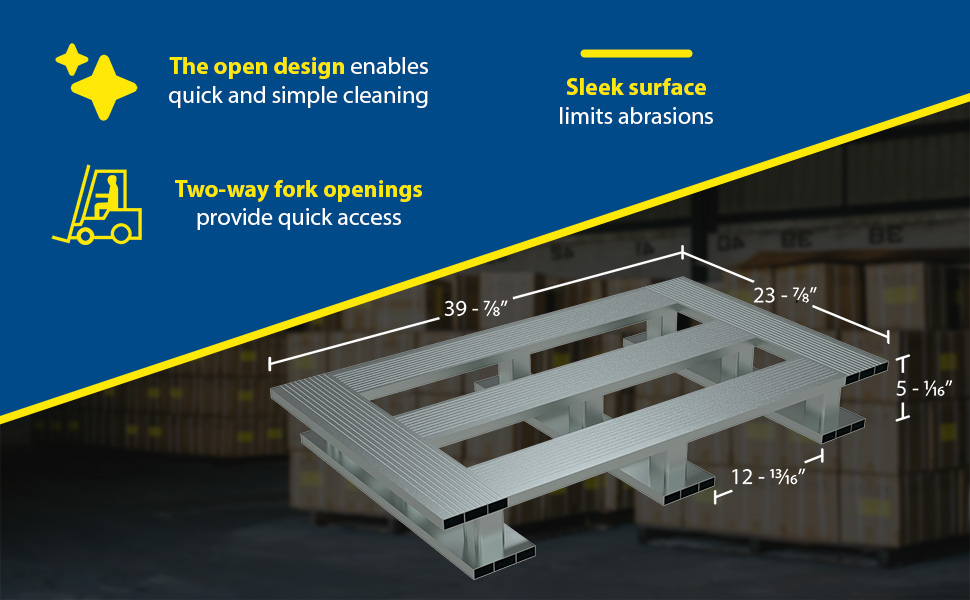

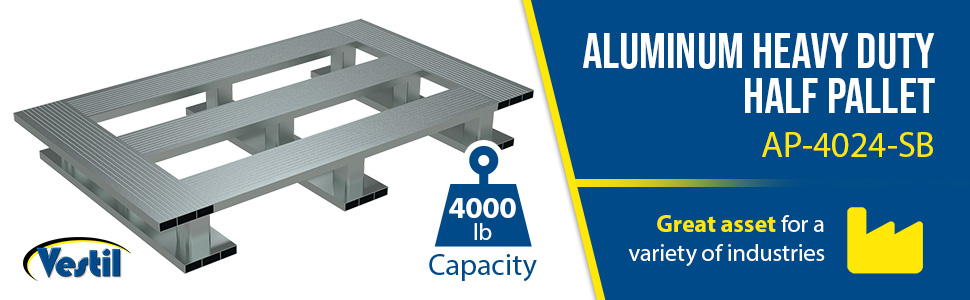

AP-4024-SB AP-4024-SBAluminum Skid Bottom Half Pallet 24 In. x 40 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 15.625		19

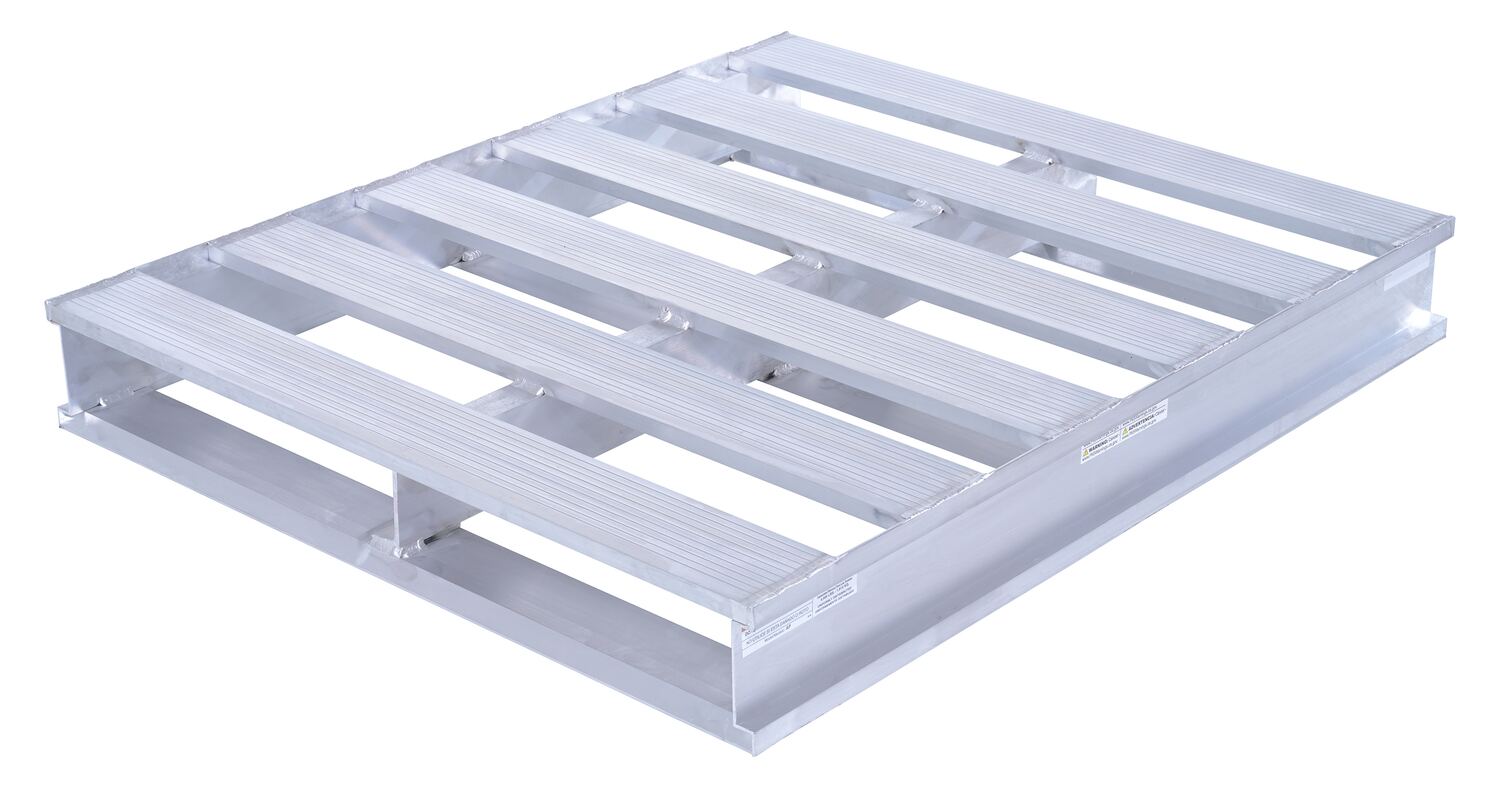

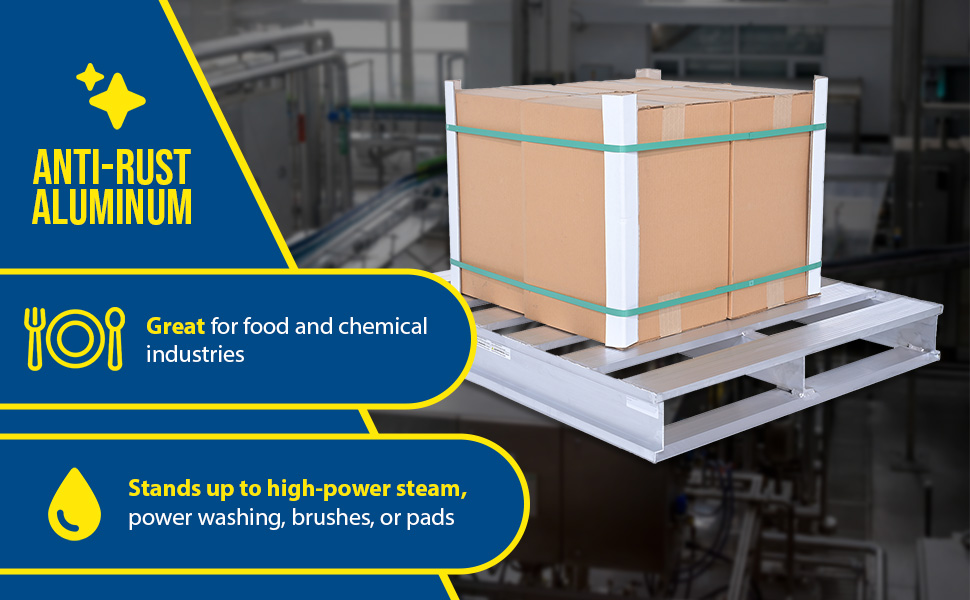

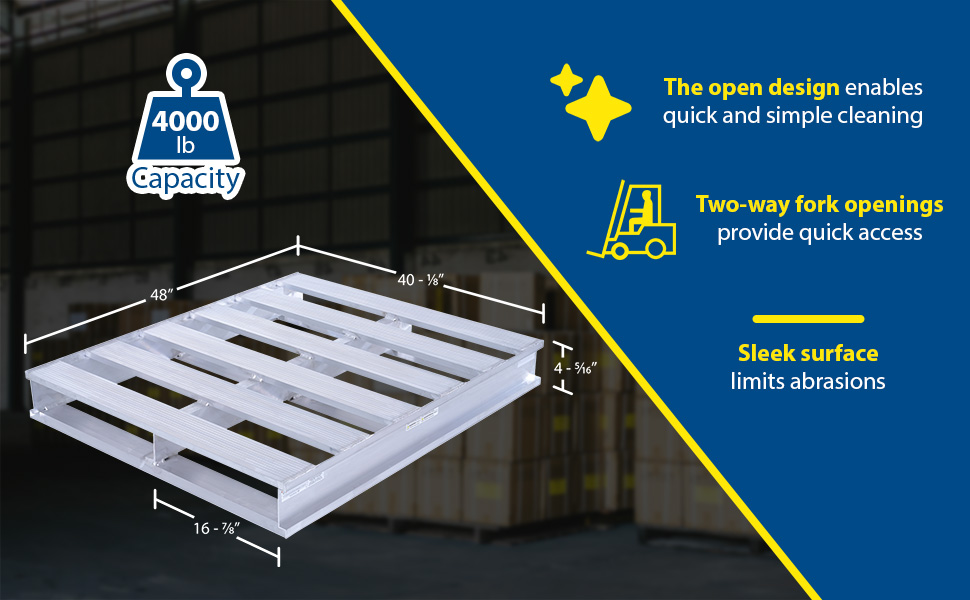

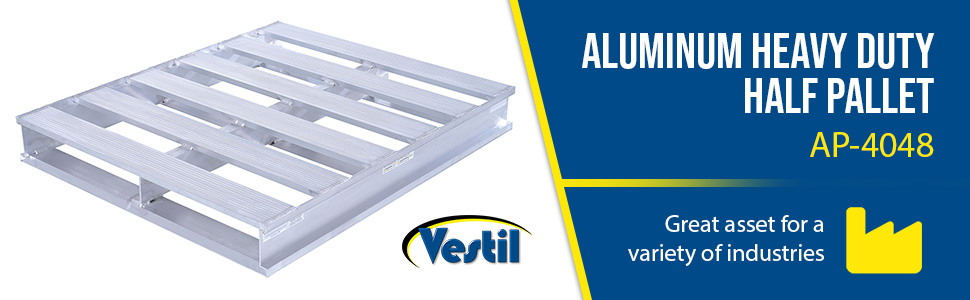

AP-4048 AP-4048Aluminum Heavy Duty Pallet 48 In. x 40-1/8 In. x 6 In. 6000 Lb. Capacity SilverTop Board Width (in.): 4-3/4
Fork Opening Width (in.): 18-5/16		85

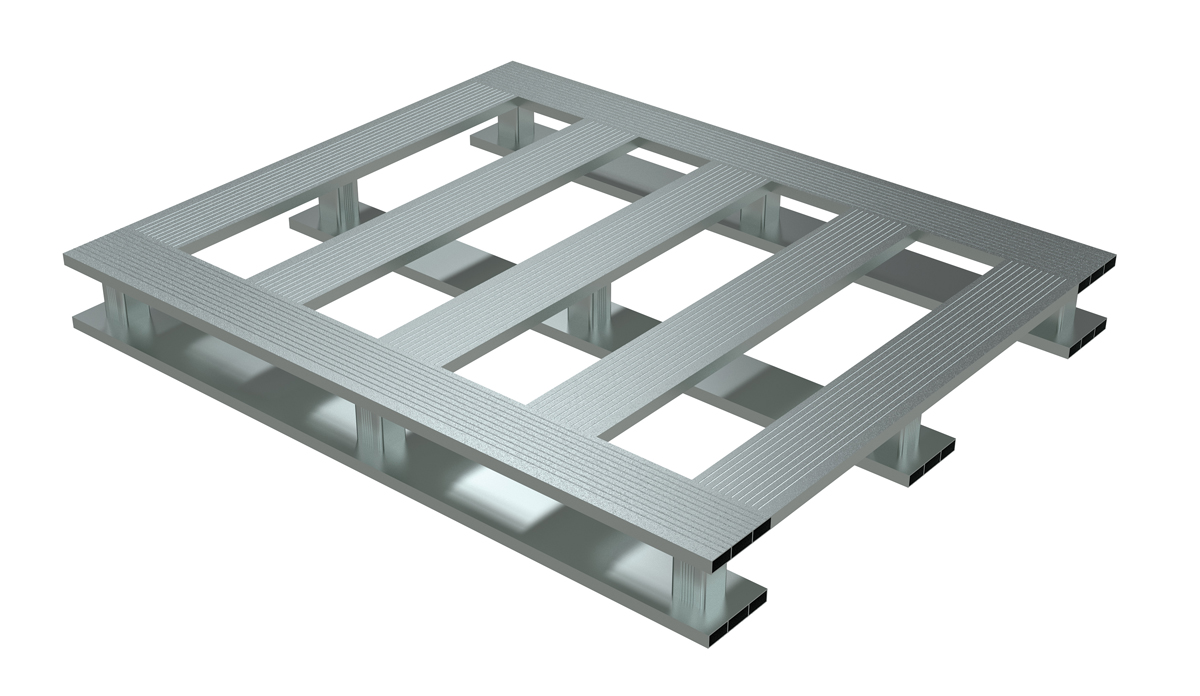

AP-4048-SB AP-4048-SBAluminum Skid Bottom Pallet 47-7/8 In. x 40 In. x 5-1/16 In. 6000 Lb. Capacity SilverTop Board Width (in.): 4-3/4
Fork Opening Widths (in.): 19-9/16, 15-5/8		85

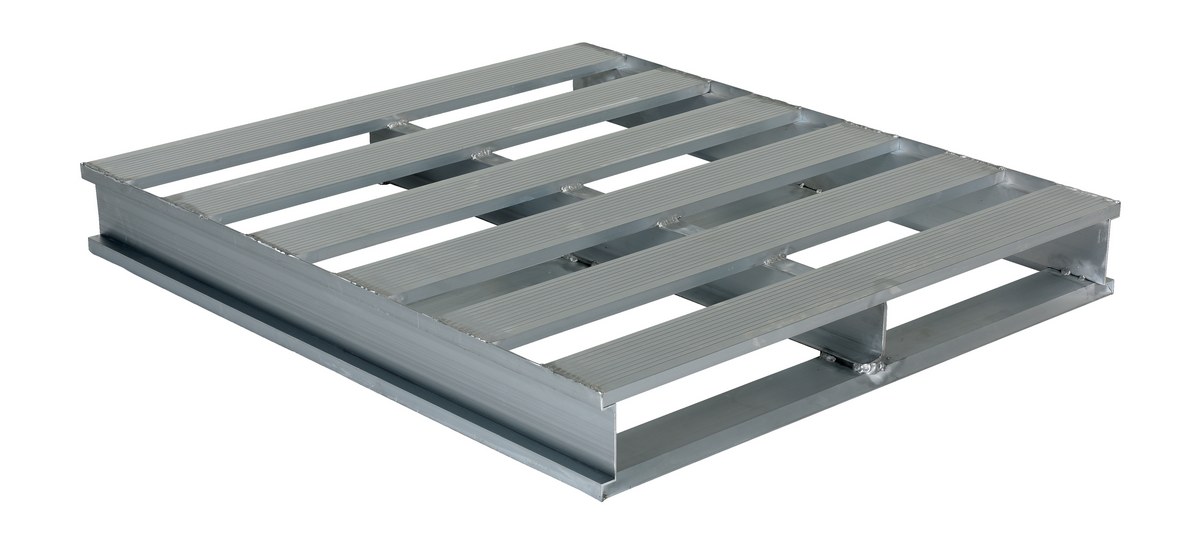

AP-4248 AP-4248Aluminum Heavy Duty Pallet 48 In. x 42-1/8 In. x 6 In. 6000 Lb. Capacity SilverTop Board Width (in.): 4-3/4
Fork Opening Width (in.): 19-5/16		86

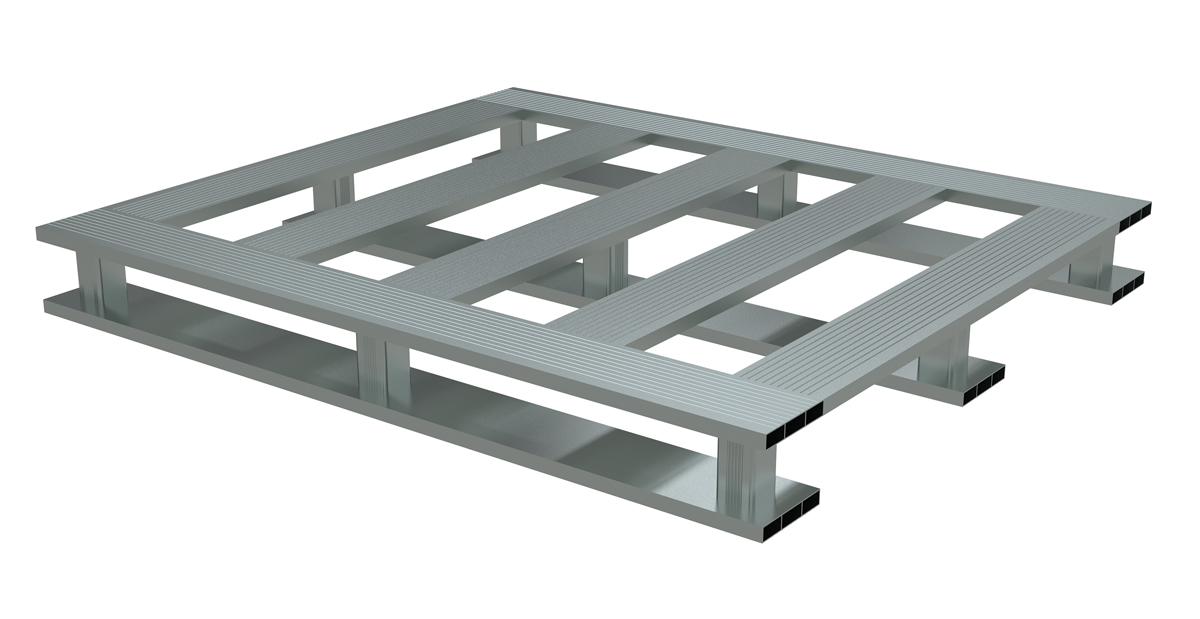

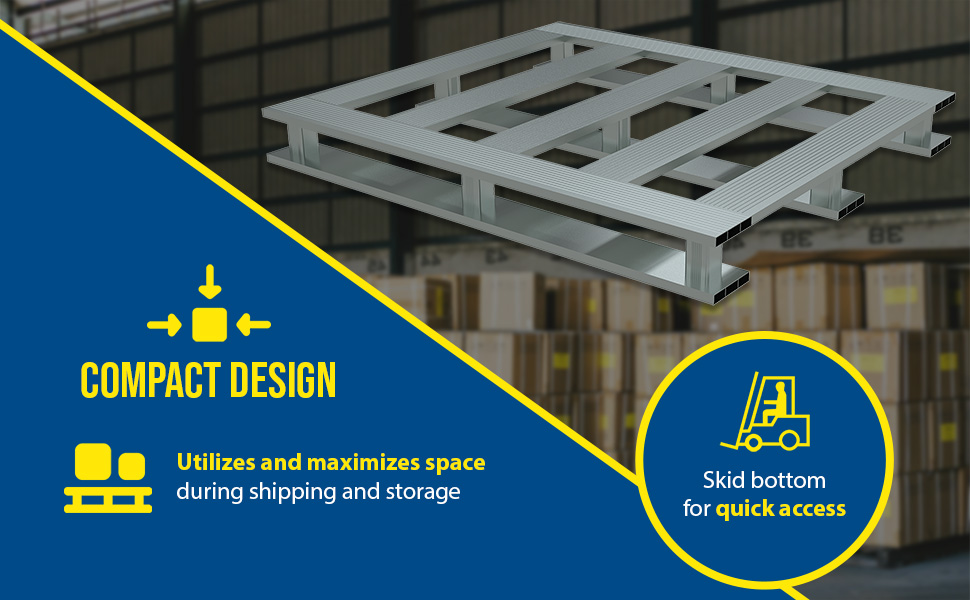

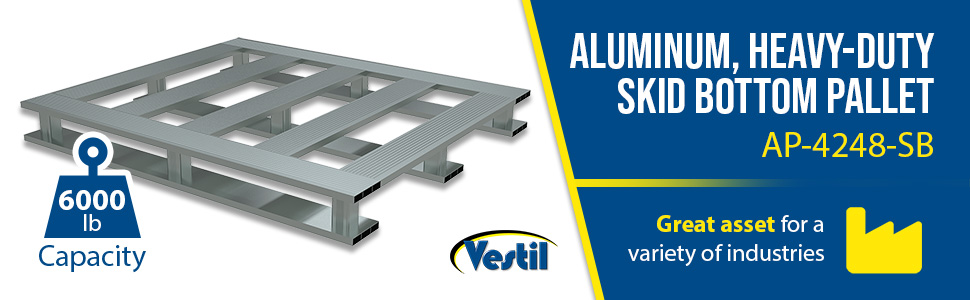

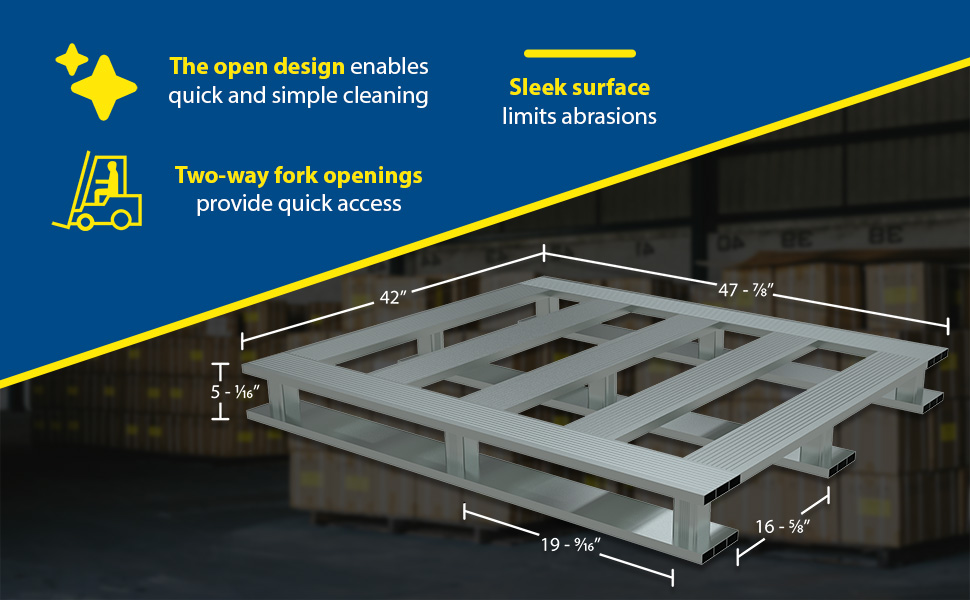

AP-4248-SB AP-4248-SBAluminum Skid Bottom Pallet 47-7/8 In. x 42 In. x 5-1/16 In. 6000 Lb. Capacity SilverTop Board Width (in.): 4-3/4
Fork Opening Widths (in.): 19-9/16, 15-5/8		87

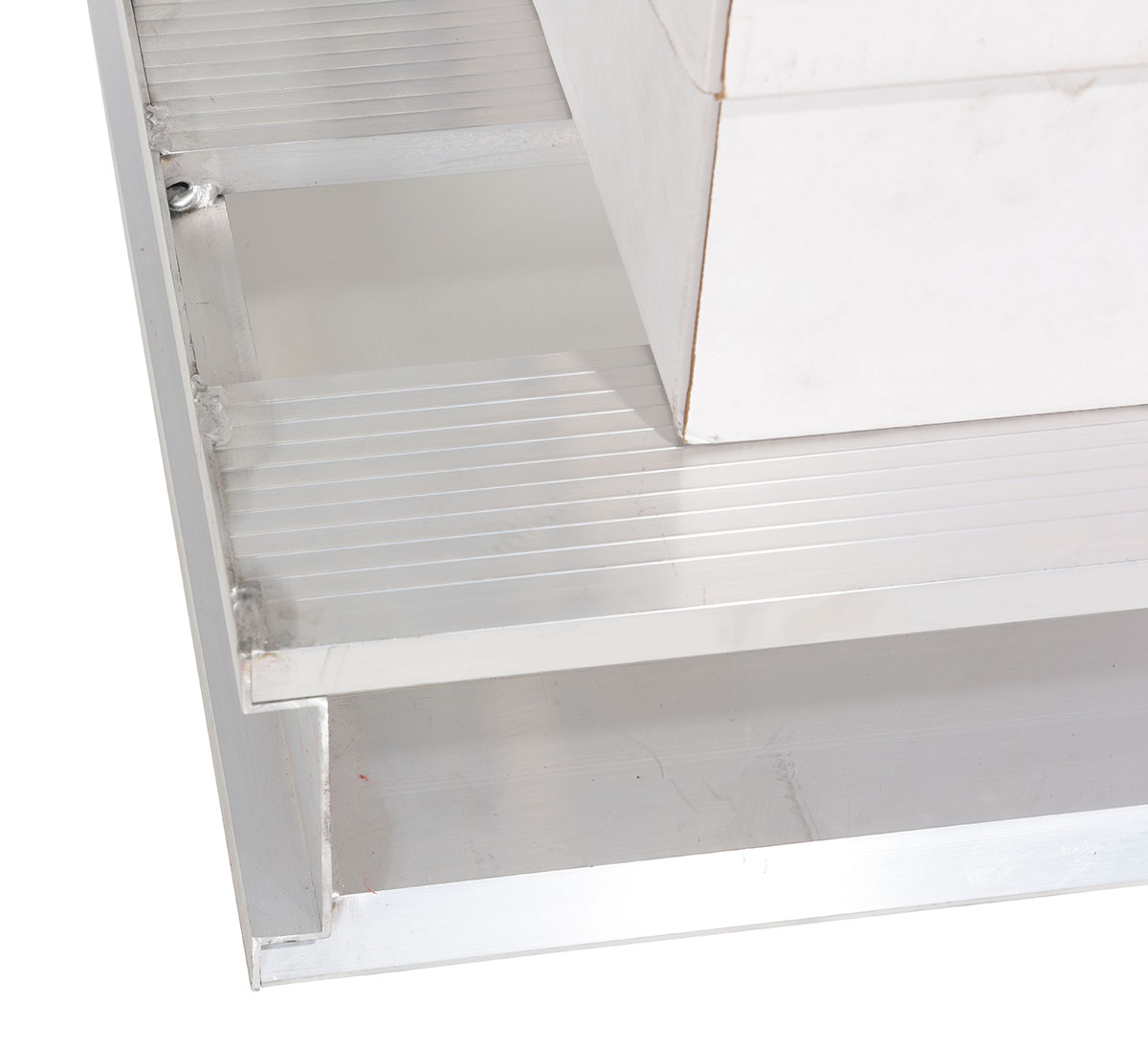

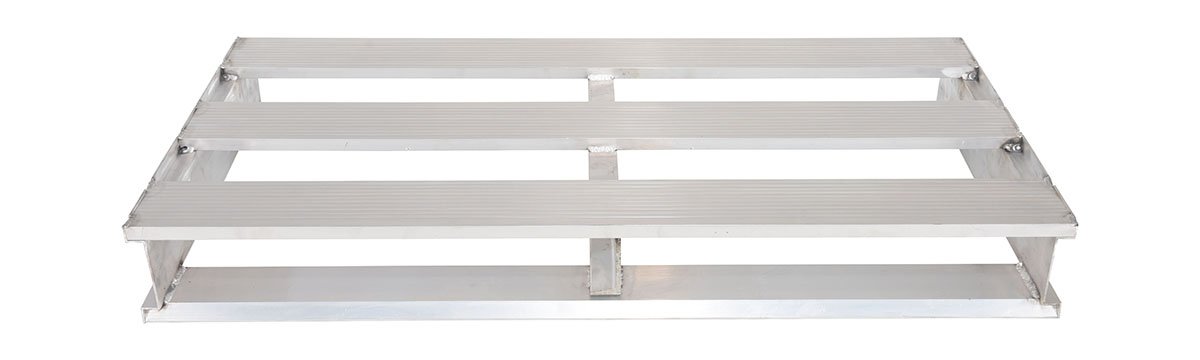

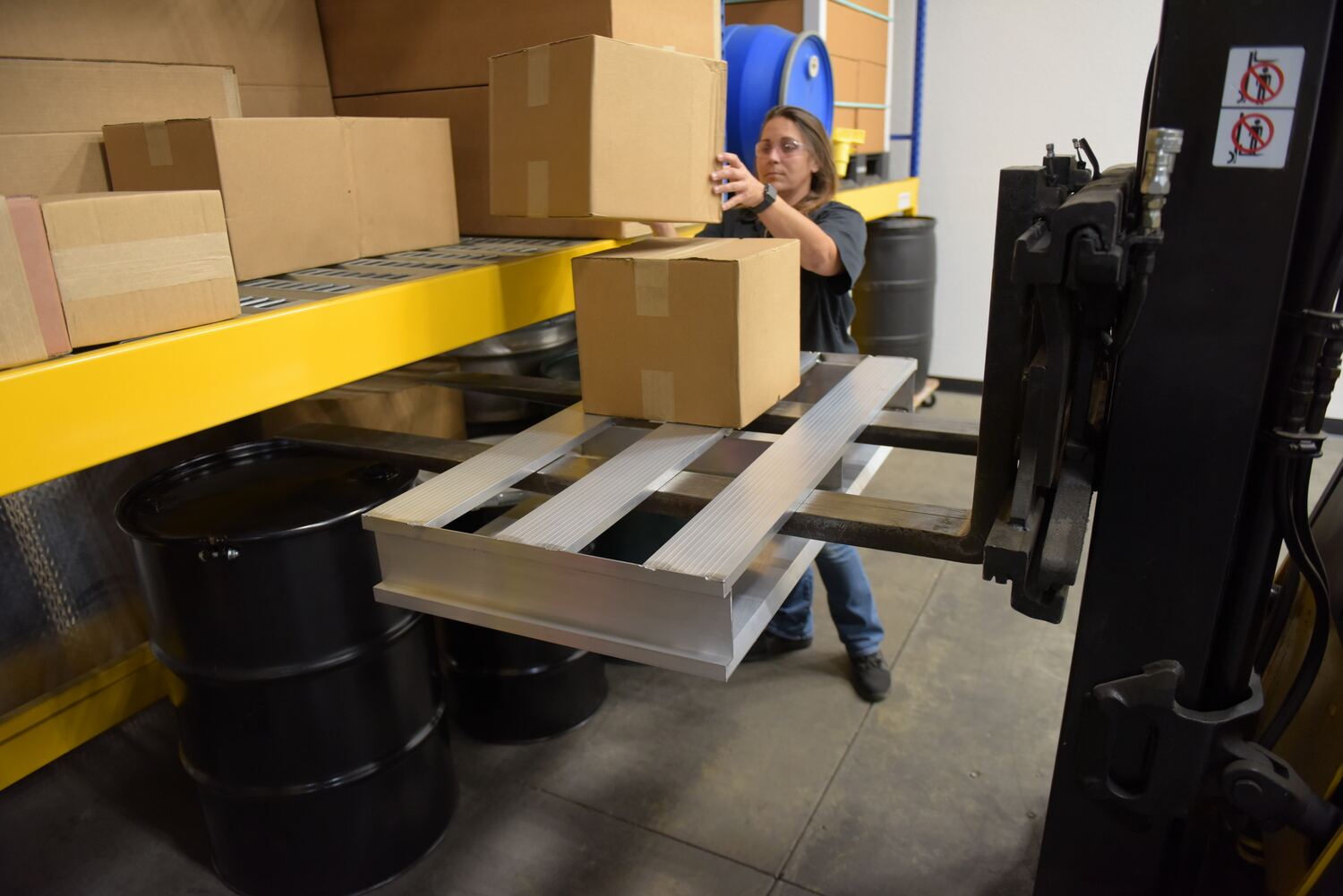

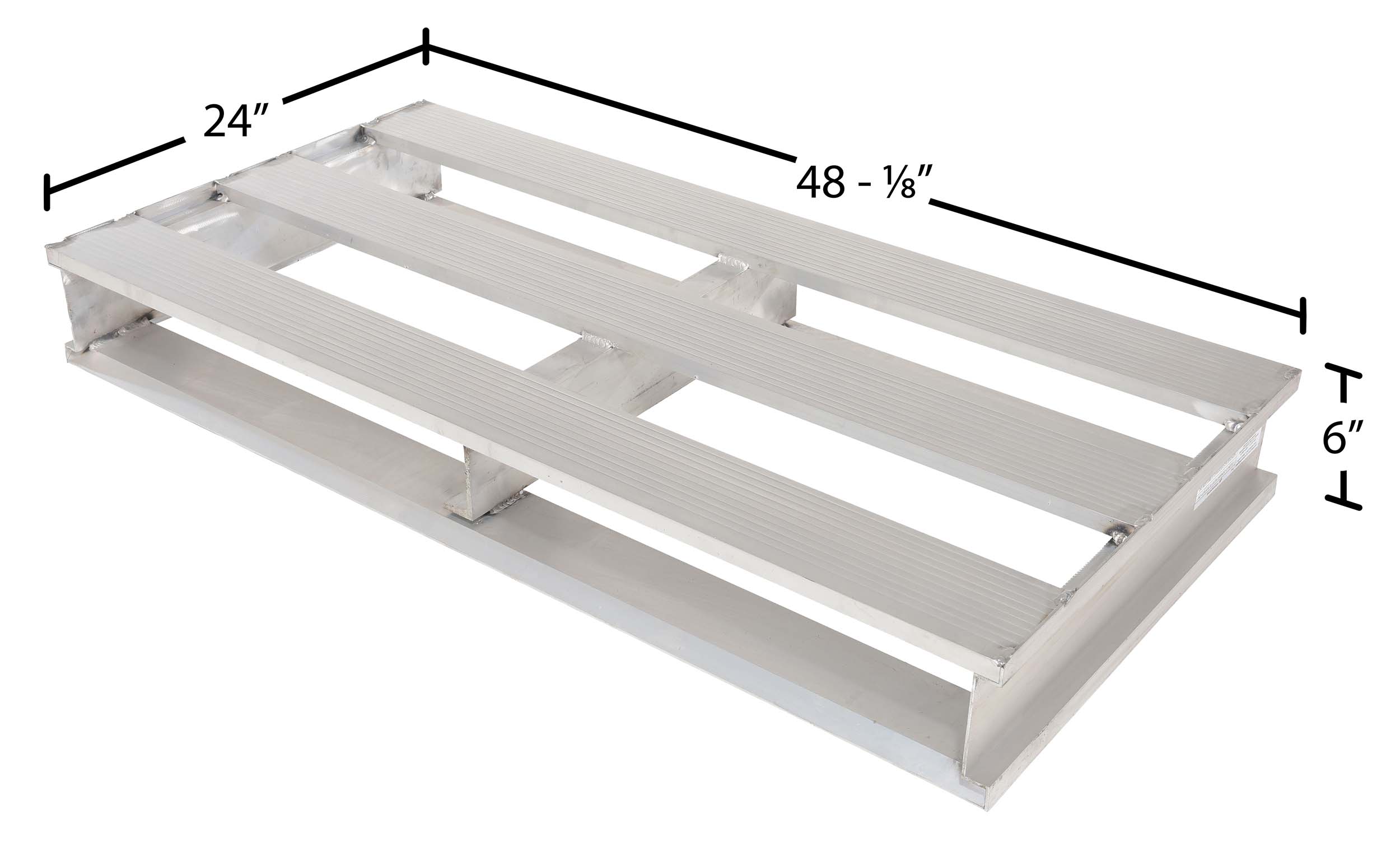

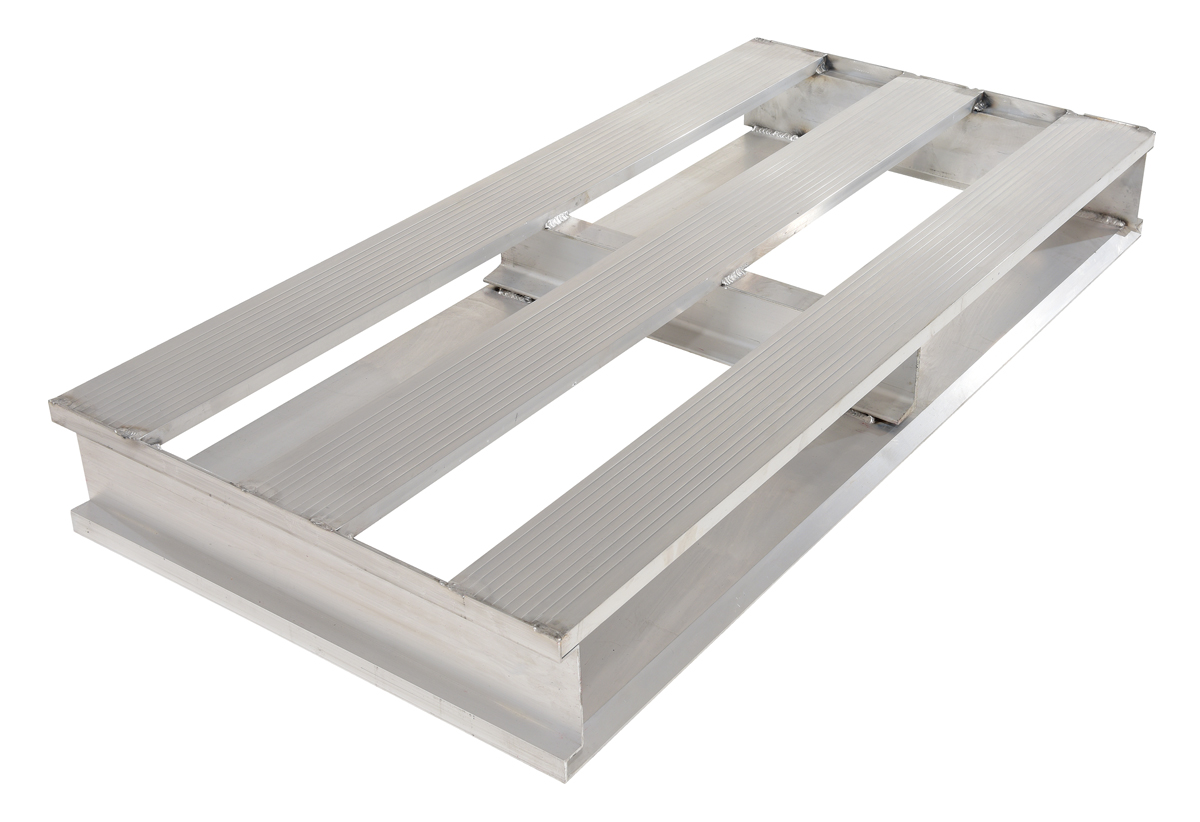

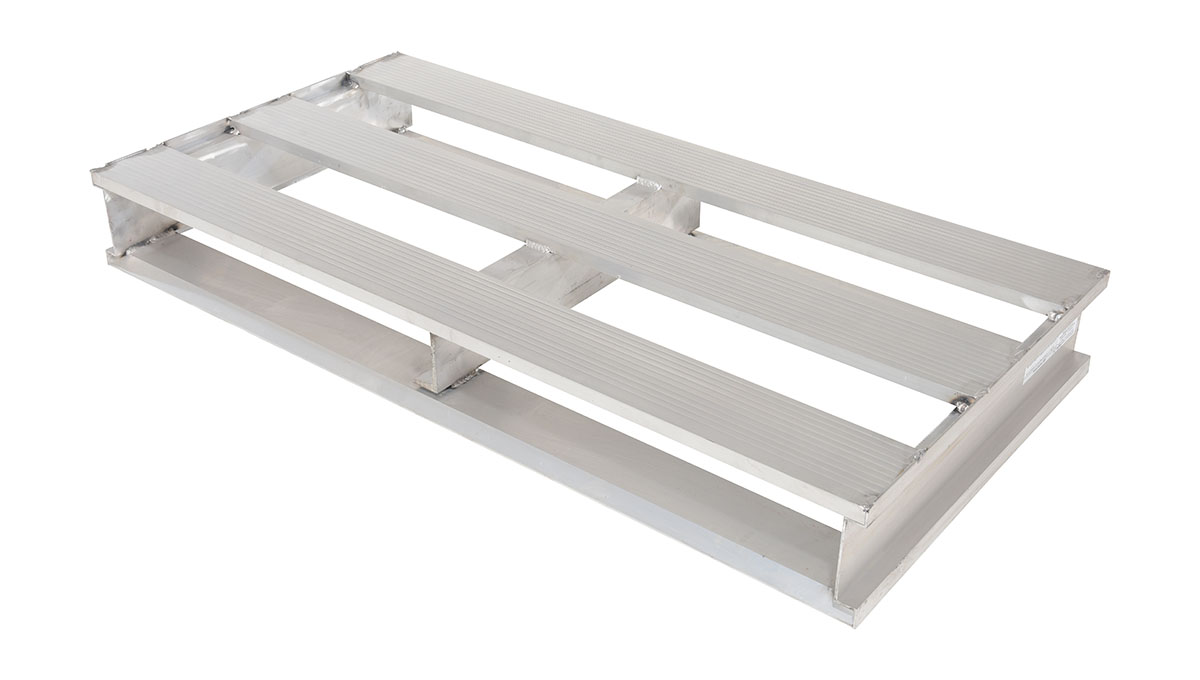

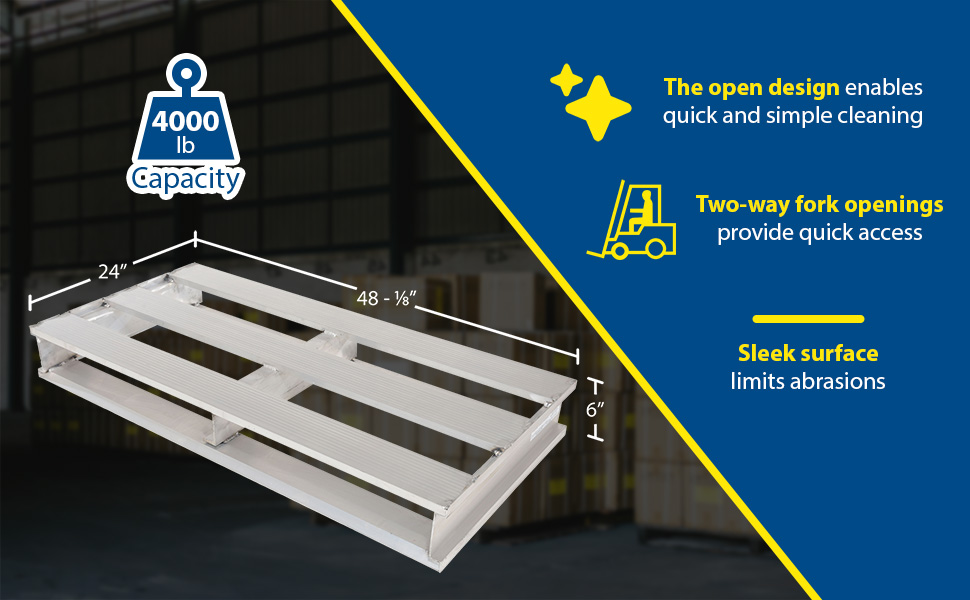

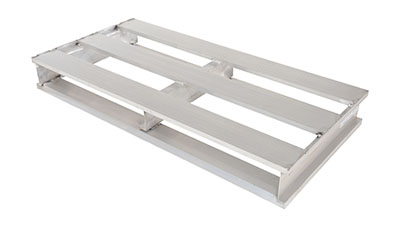

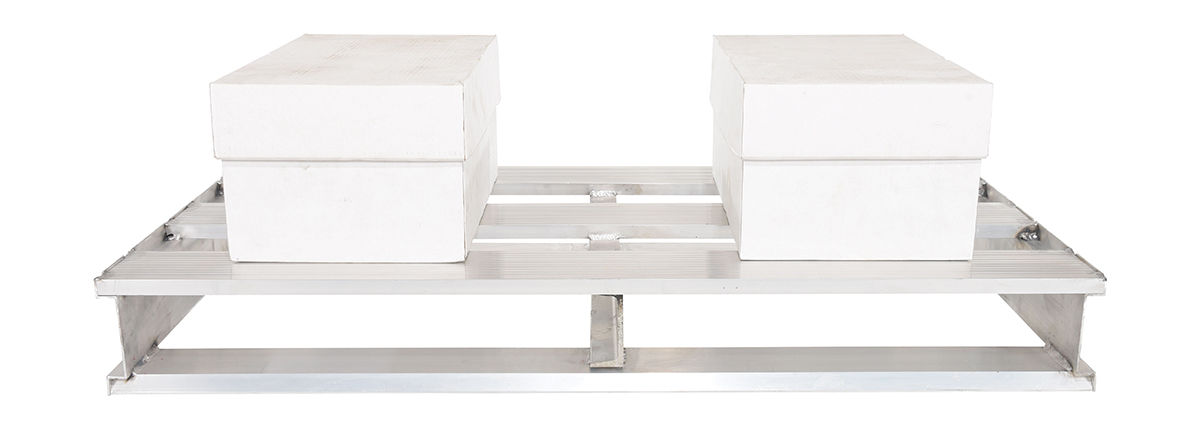

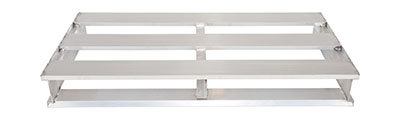

AP-4824 AP-4824Aluminum Heavy Duty Half Pallet 24 In. x 48 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 22.5625		26

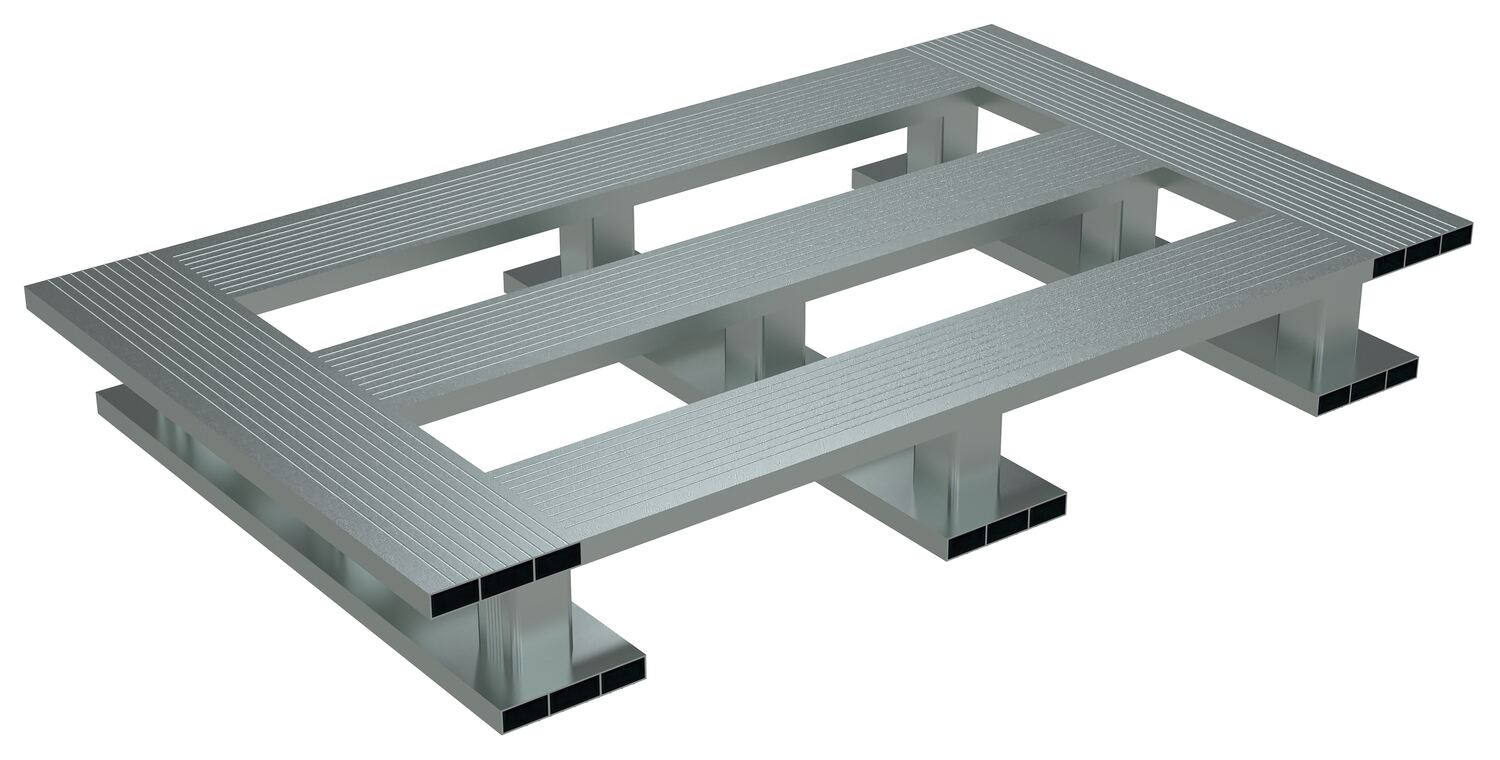

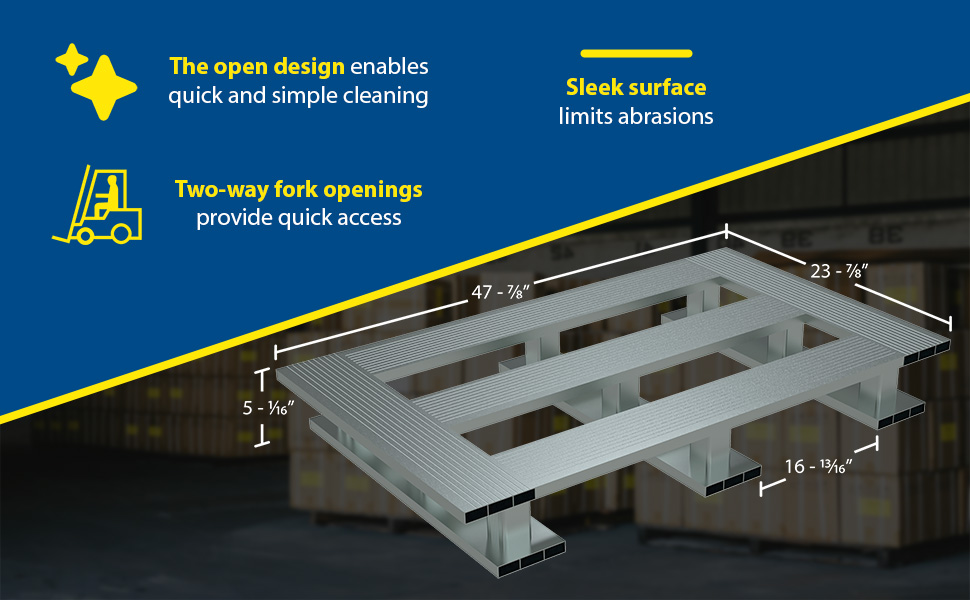

AP-4824-SB AP-4824-SBAluminum Skid Bottom Half Pallet 24 In. x 48 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 19.5625		23

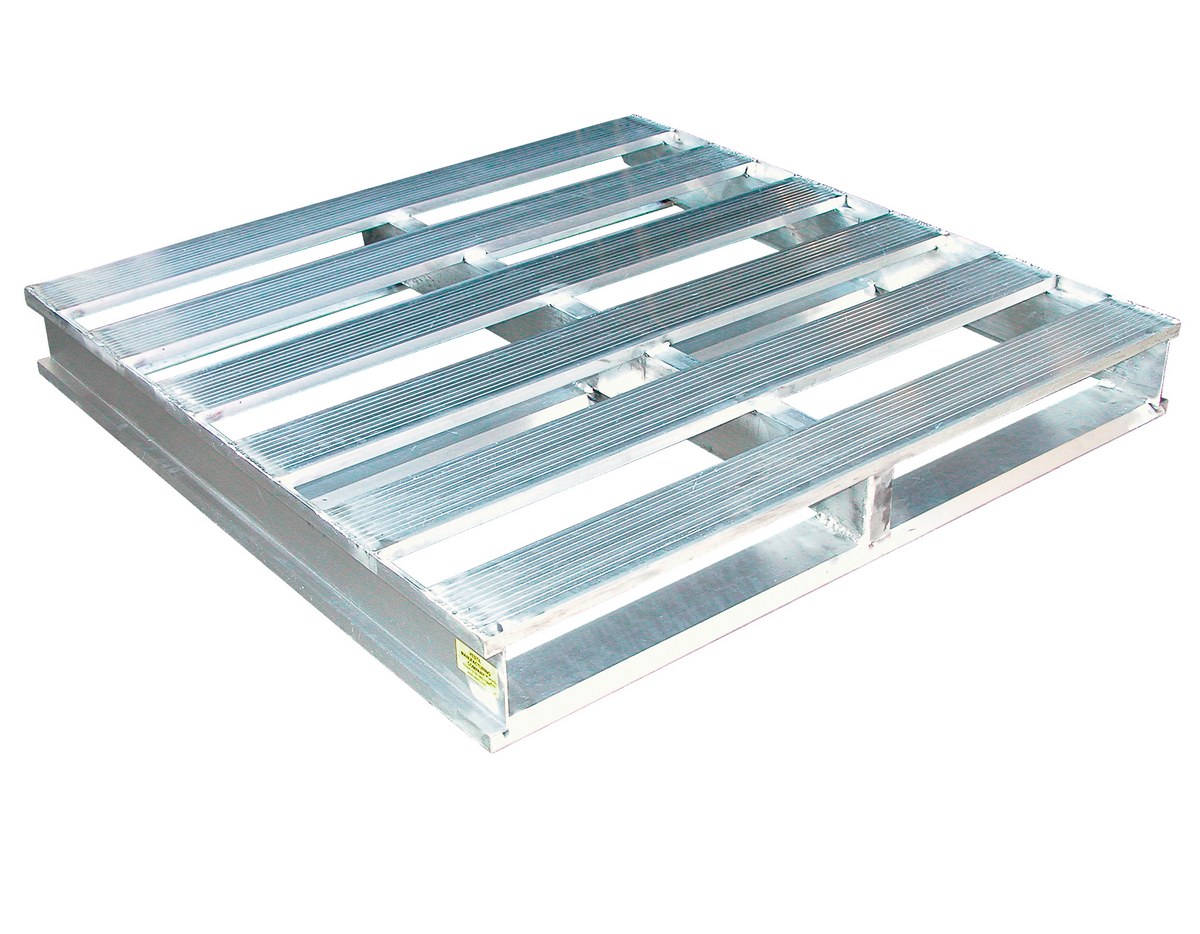

AP-4848 AP-4848Aluminum Heavy Duty Pallet 48 In. x 48-1/8 In. x 6 In. 6000 Lb. Capacity SilverTop Board Width (in.): 4-3/4
Fork Opening Width (in.): 22-5/16		89

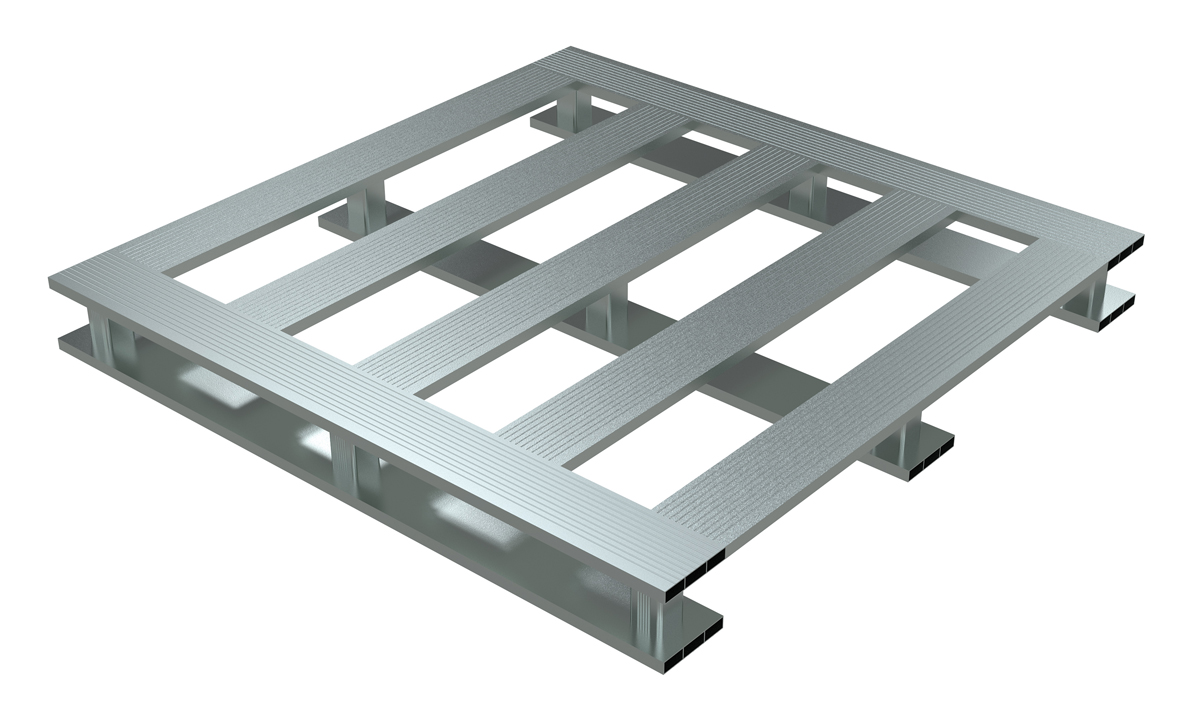

AP-4848-SB AP-4848-SBAluminum Skid Bottom Pallet 47-7/8 In. x 47-7/8 In. x 5-1/16 In. 6000 Lb. Capacity SilverTop Board Width (in.): 4-3/4
Fork Opening Widths (in.): 19-9/16, 19-9/16		89

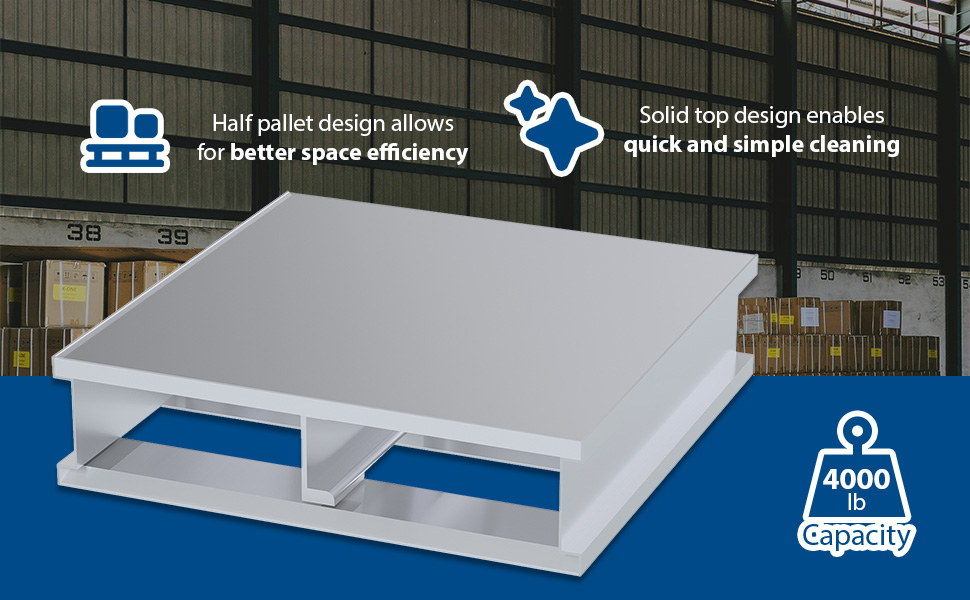

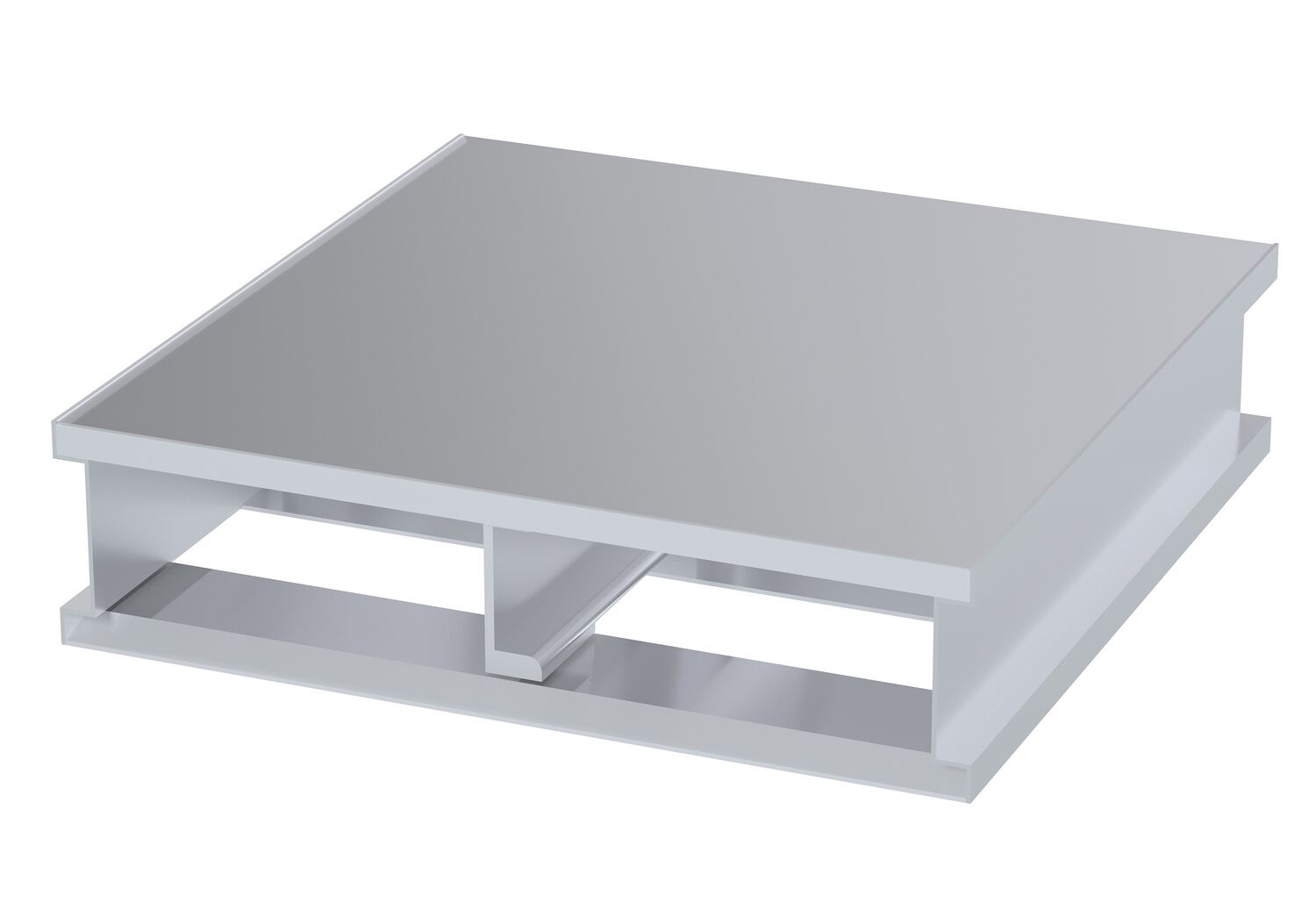

AP-ST-2424 AP-ST-2424Aluminum Heavy Duty Solid Top Half Pallet 24 In. x 24 In. x 6 In. 4000 Lb. SilverUniform Capacity: 4000
Fork Pocket Width(in.): 22.5625		18

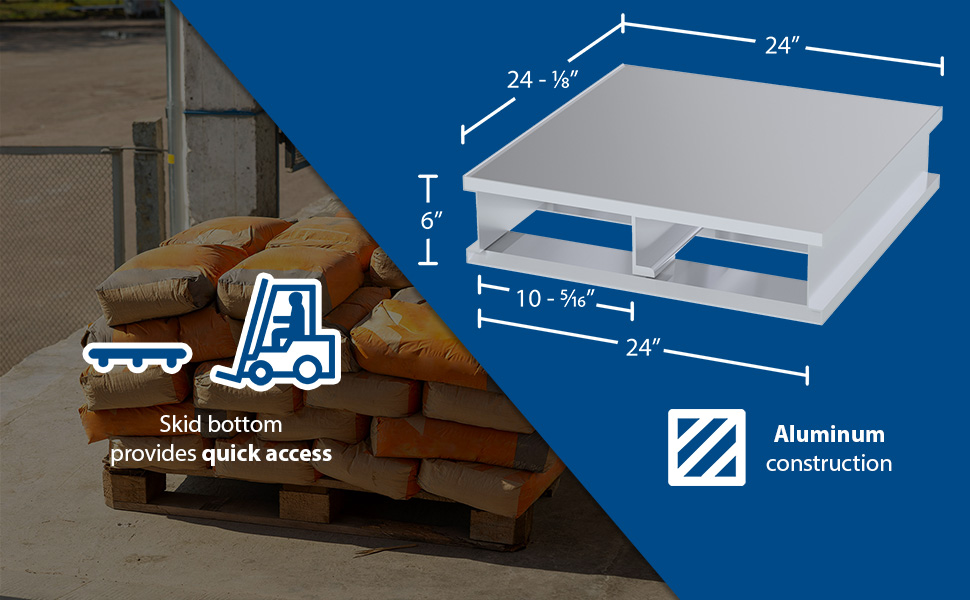

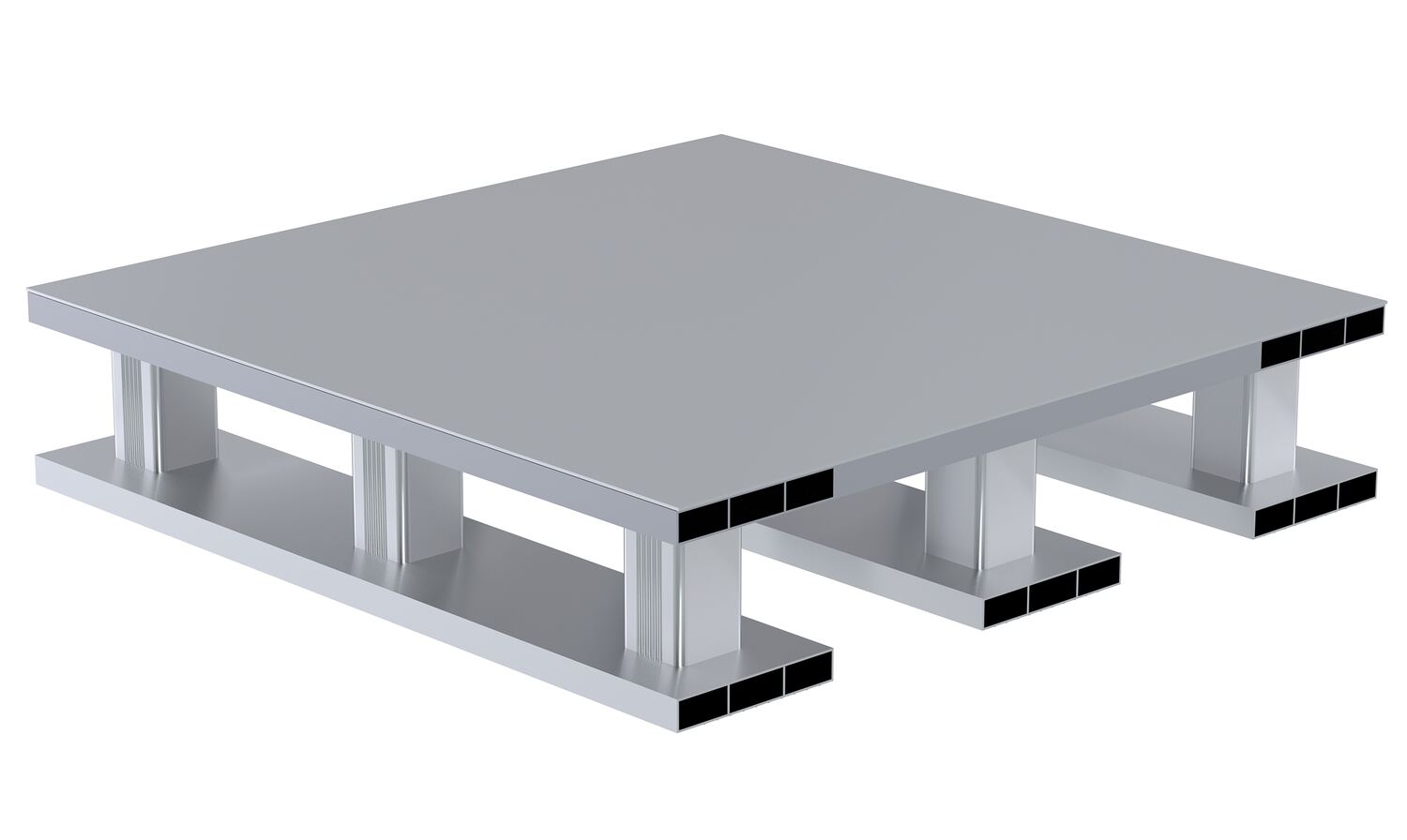

AP-ST-2424-SB AP-ST-2424-SBAluminum Half Solid Top with Skid Bottom 24 In. x 24 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 19.5625		17

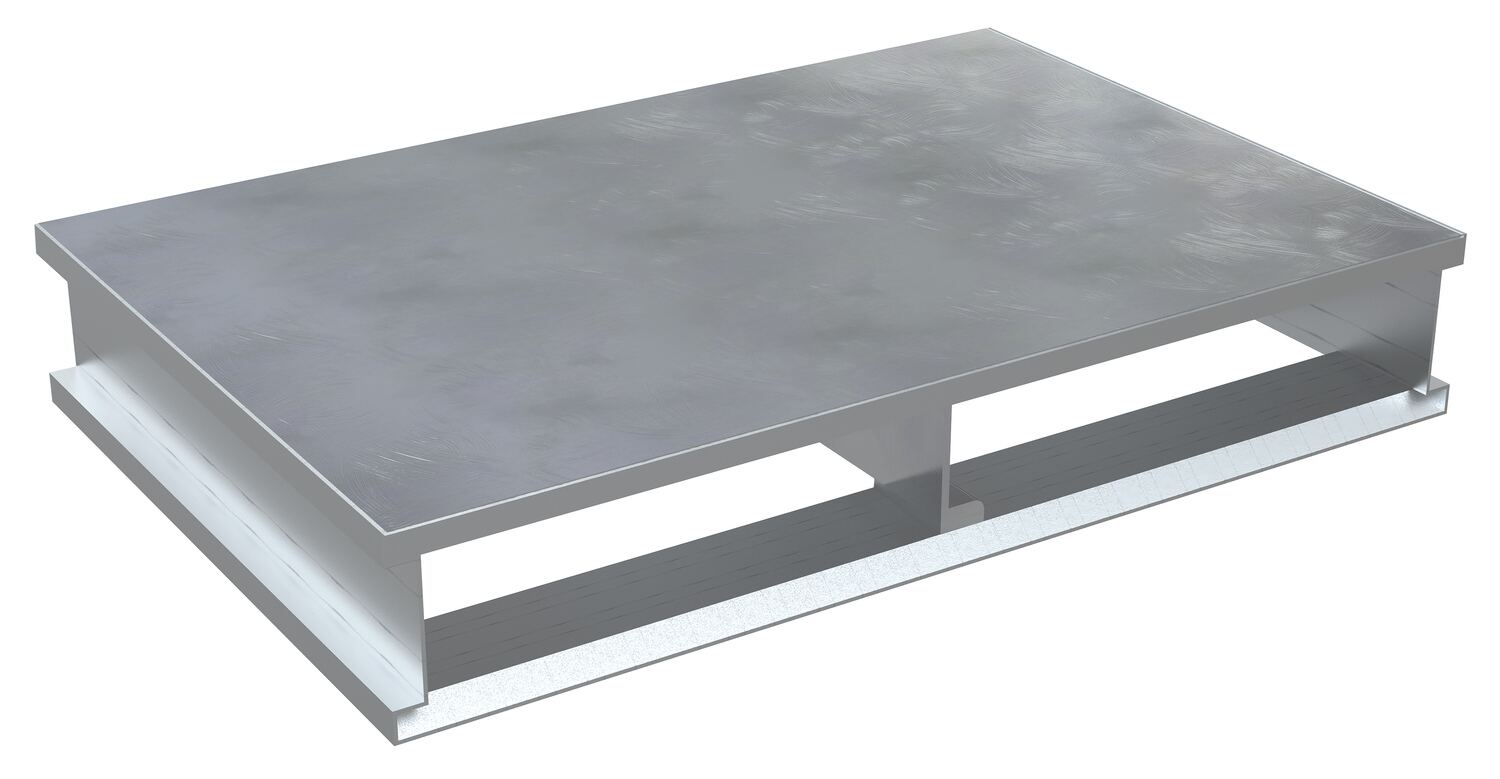

AP-ST-3624 AP-ST-3624Aluminum Heavy Duty Solid Top Half Pallet 36 In. x 24 In. x 6 In. 4000 Lb. SilverUniform Capacity: 4000
Fork Pocket Width (in.): 16-5/16		26

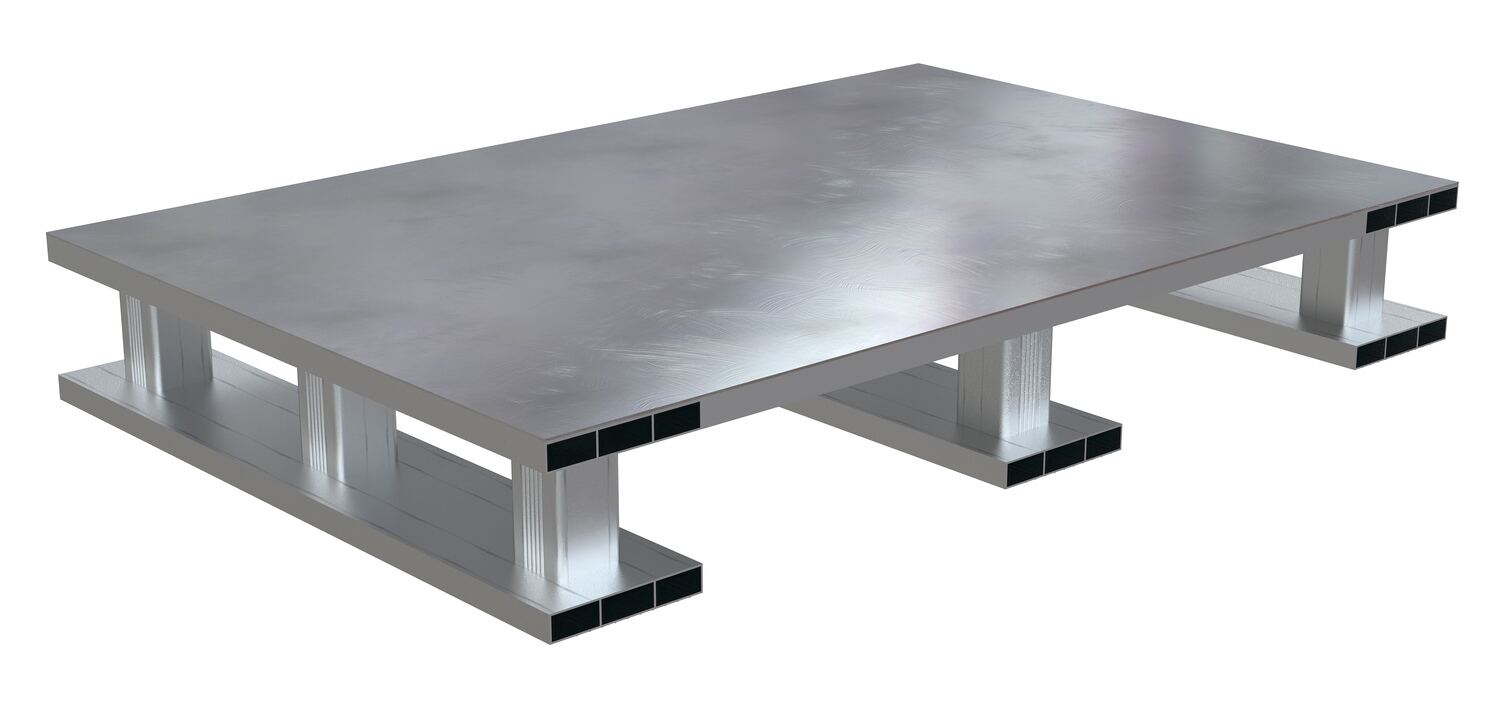

AP-ST-3624-SB AP-ST-3624-SBAluminum Solid Top Skid Bottom Half Pallet 36 In. x 24 In. x 6 In. 4000 Lb. SilverUniform Capacity (lbs.): 4,000
Fork Pocket Width (in.): 10-13/16		24

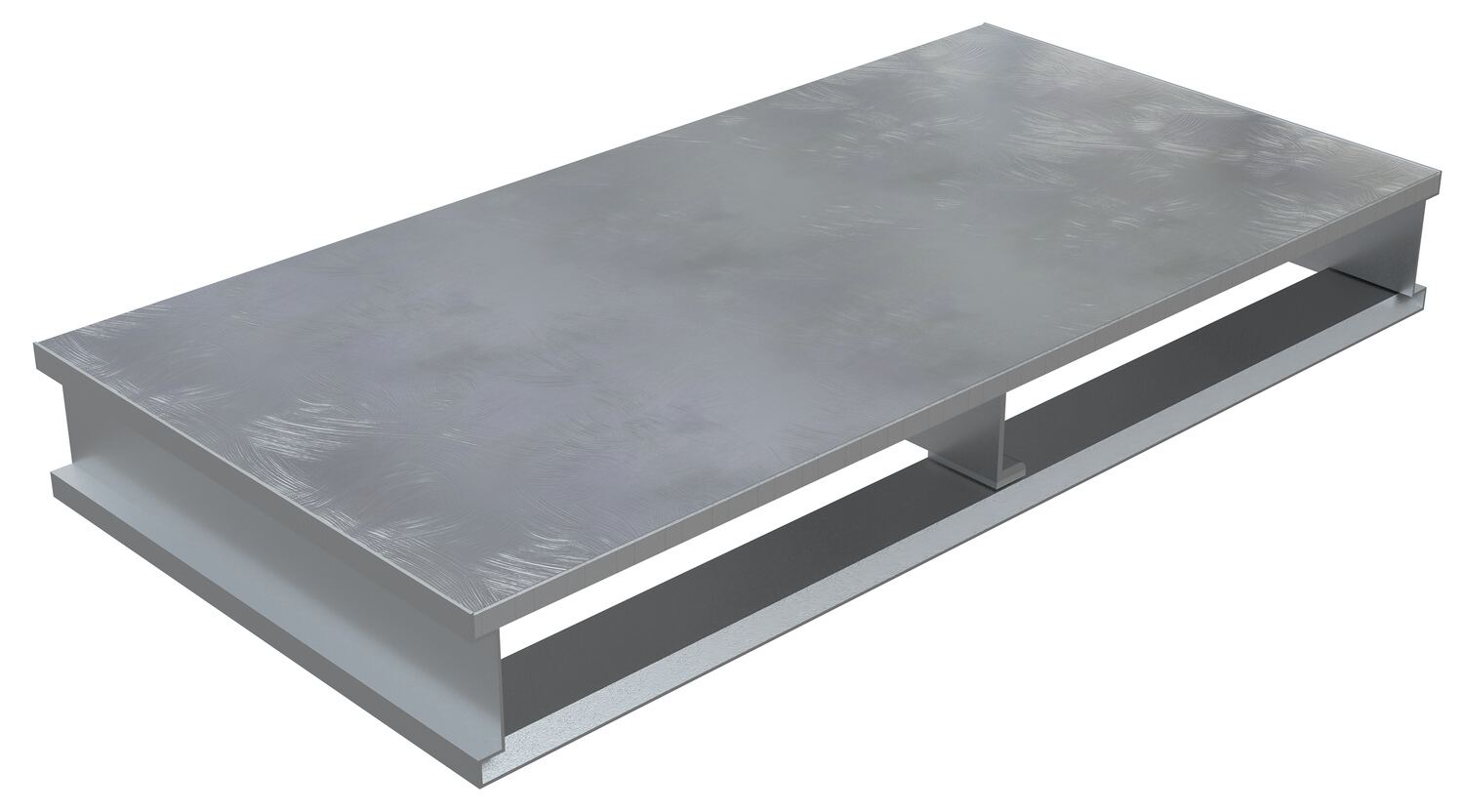

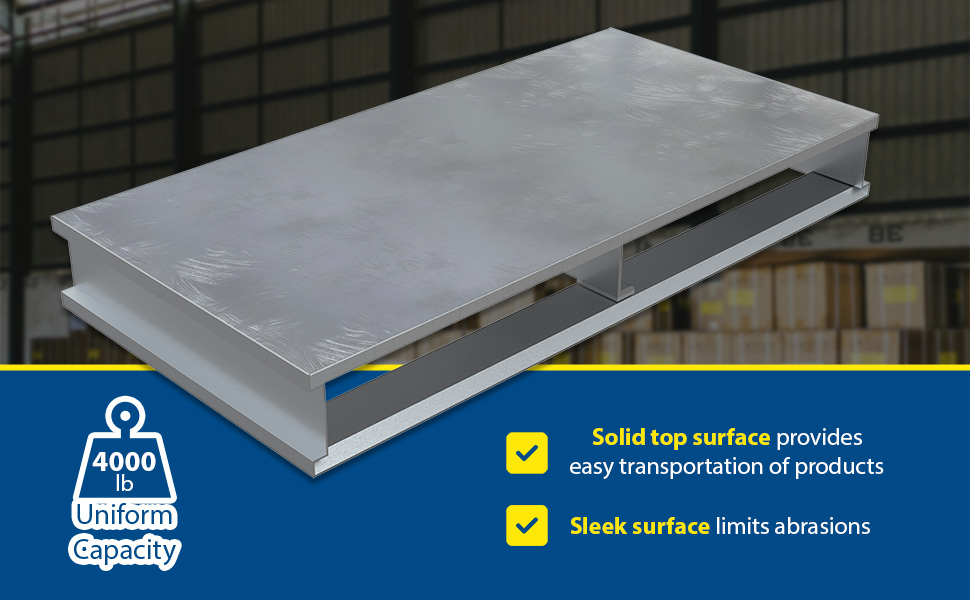

AP-ST-4024 AP-ST-4024Aluminum Heavy Duty Solid Top Half Pallet 24 In. x 40 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 18.312		33

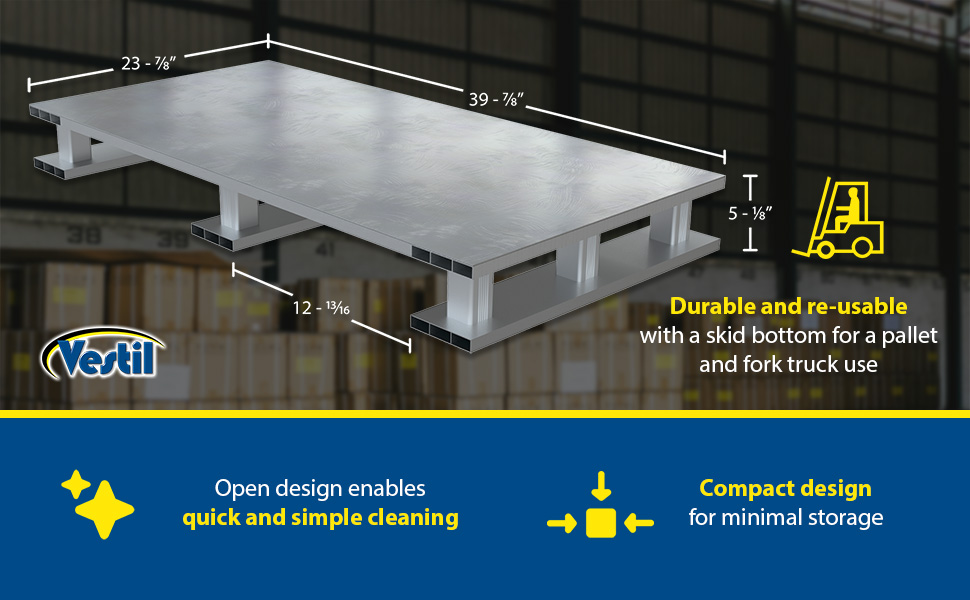

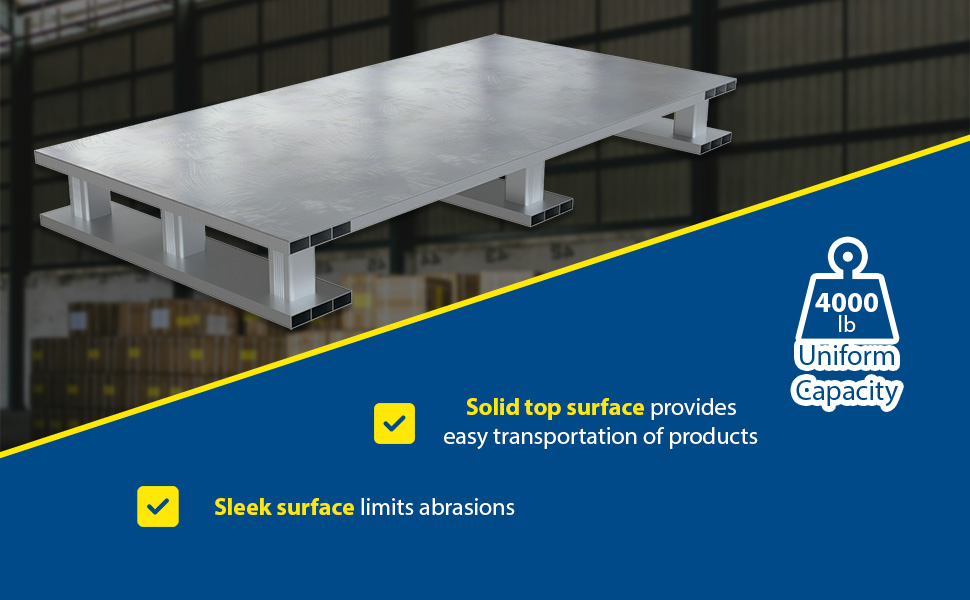

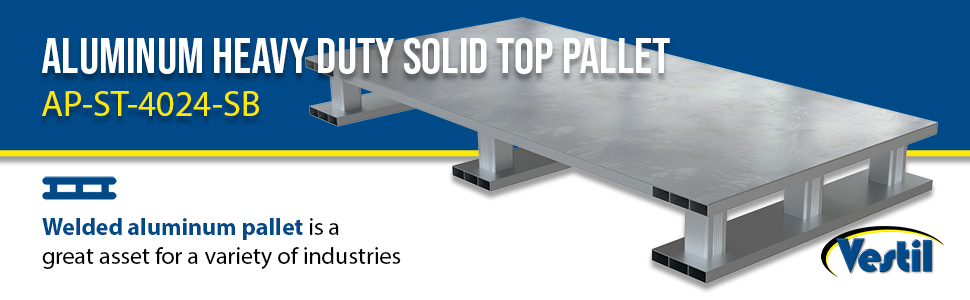

AP-ST-4024-SB AP-ST-4024-SBAluminum Half Solid Top with Skid Bottom 24 In. x 40 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 15.625		28

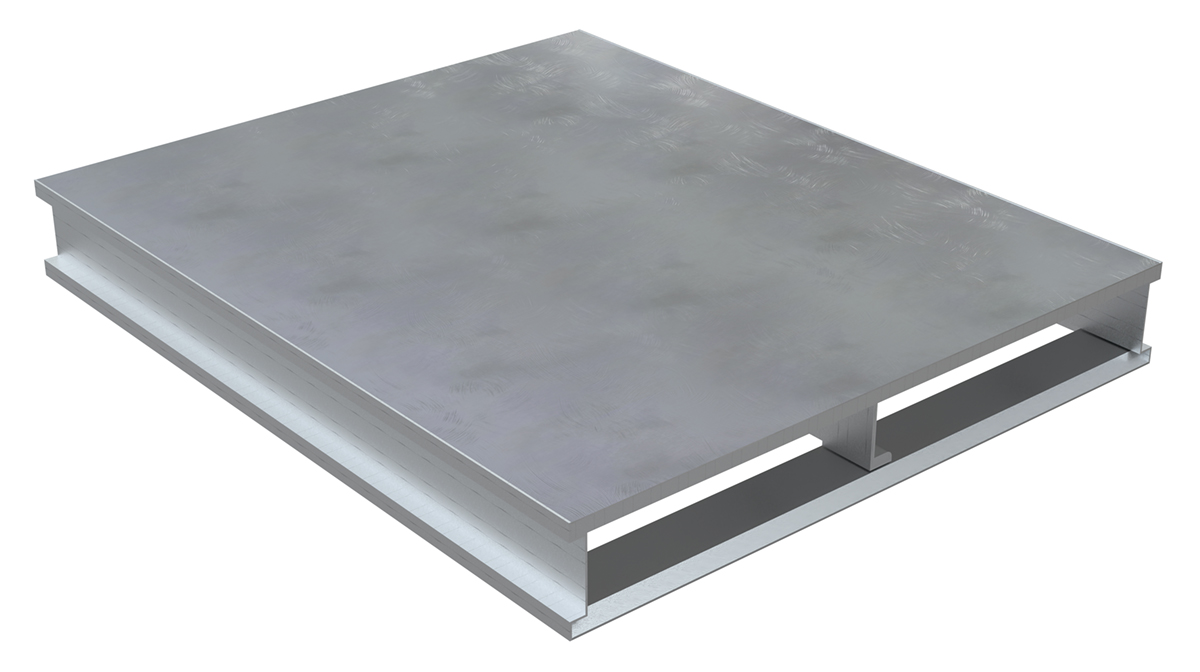

AP-ST-4048 AP-ST-4048Aluminum Heavy Duty Solid Top Pallet 48 In. x 40-1/8 In. x 6 In. 6000 Lb. Capacity SilverEntry: 2-Way
Fork Opening Width (in.): 18-5/16		113

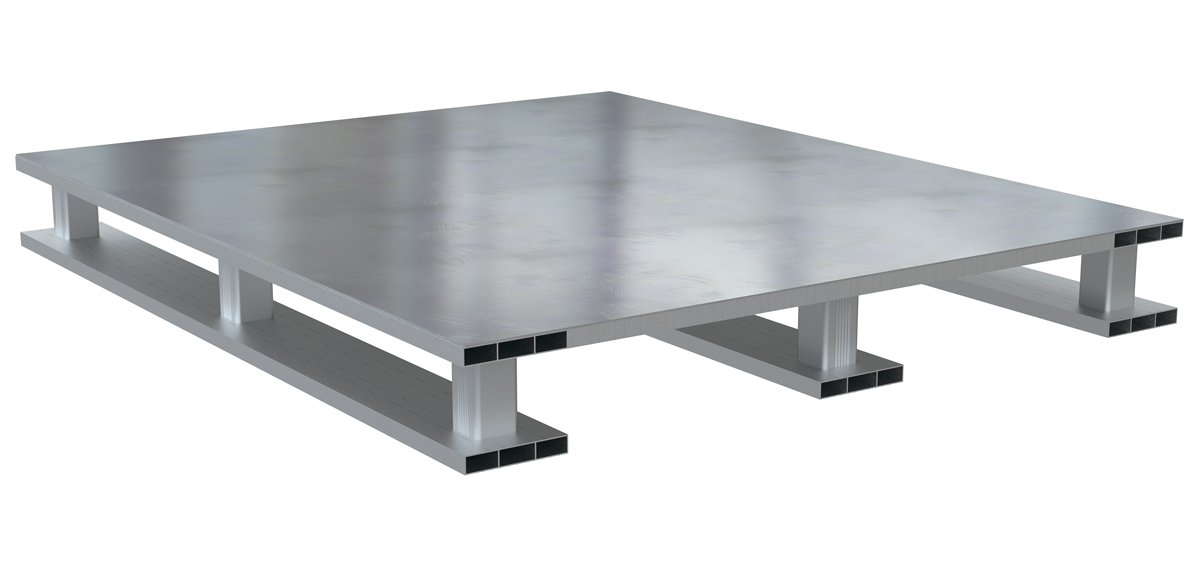

AP-ST-4048-SB AP-ST-4048-SBAluminum Solid Top with Skid Bottom 47-7/8 In. x 40 In. x 5-1/16 In. 6000 Lb. Capacity SilverEntry: Skid Bottom
Fork Opening Widths (in.): 19-9/16, 15-5/8		113

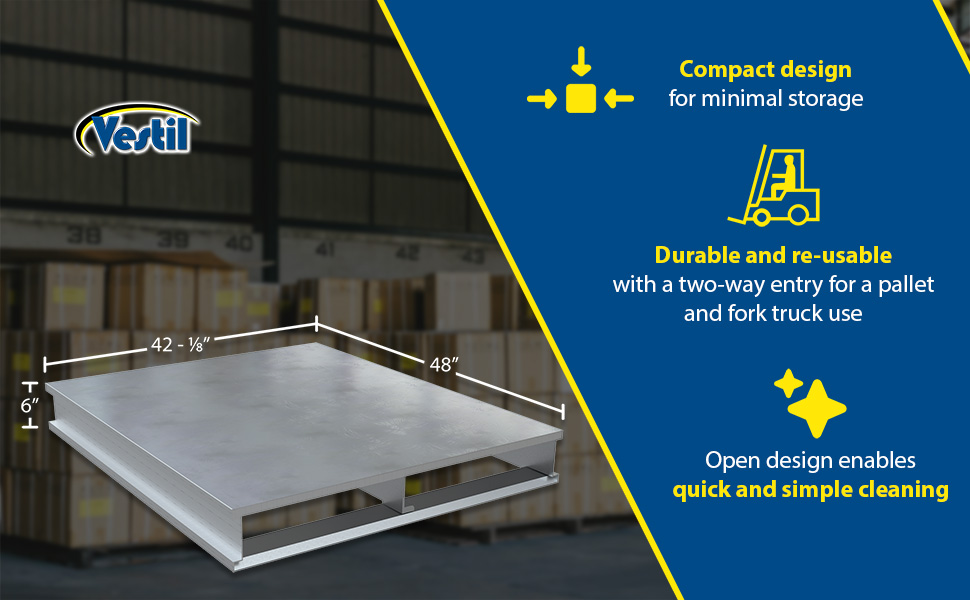

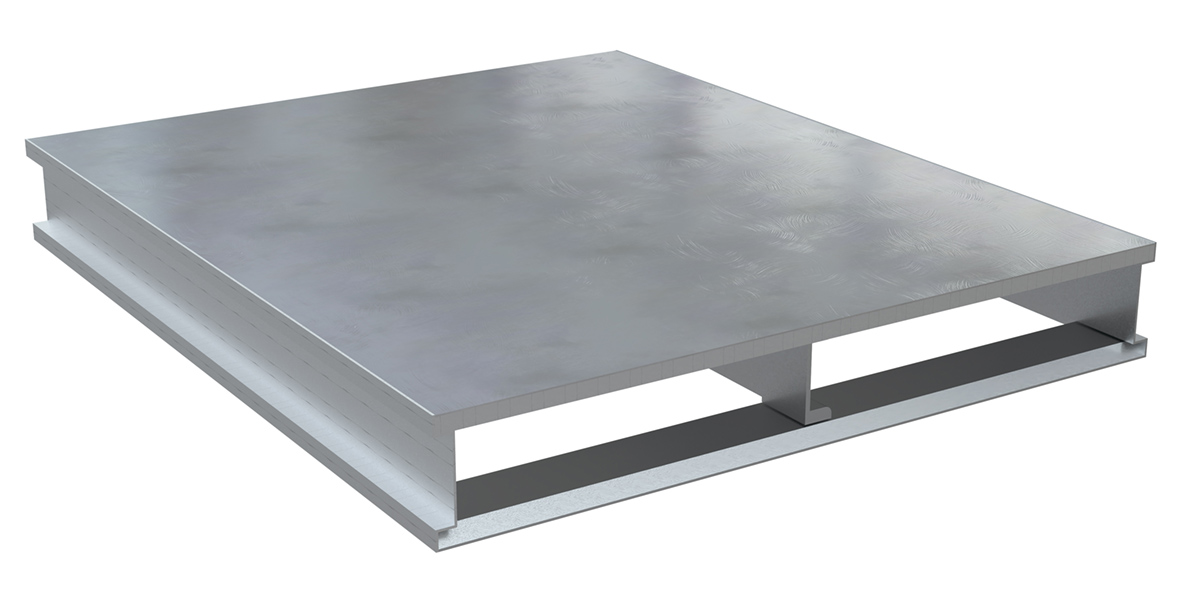

AP-ST-4248 AP-ST-4248Aluminum Heavy Duty Solid Top Pallet 48 In. x 42-1/8 In. x 6 In. 6000 Lb. Capacity SilverEntry: 2-Way
Fork Opening Width (in.): 19-5/16		114

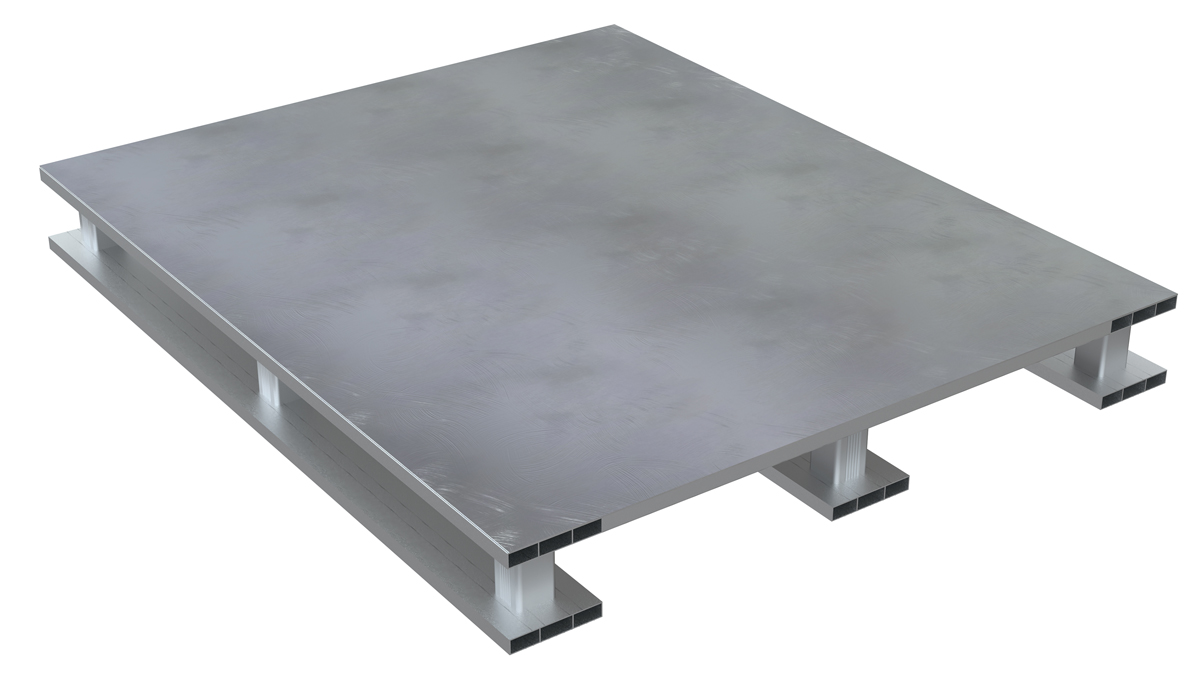

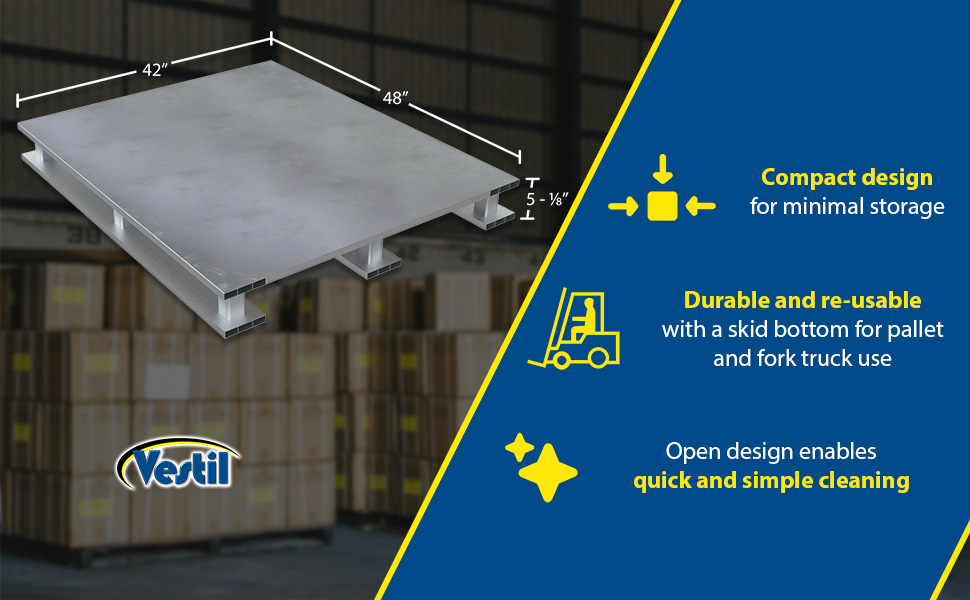

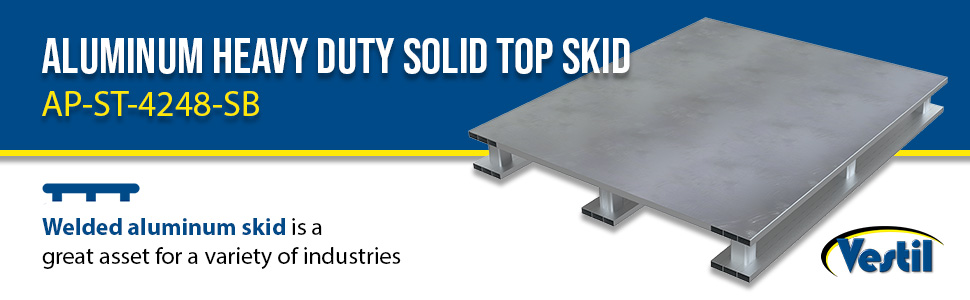

AP-ST-4248-SB AP-ST-4248-SBAluminum Solid Top with Skid Bottom 47-7/8 In. x 42 In. x 5-1/16 In. 6000 Lb. Capacity SilverEntry: Skid Bottom
Fork Opening Widths (in.): 19-9/16, 15-5/8		115

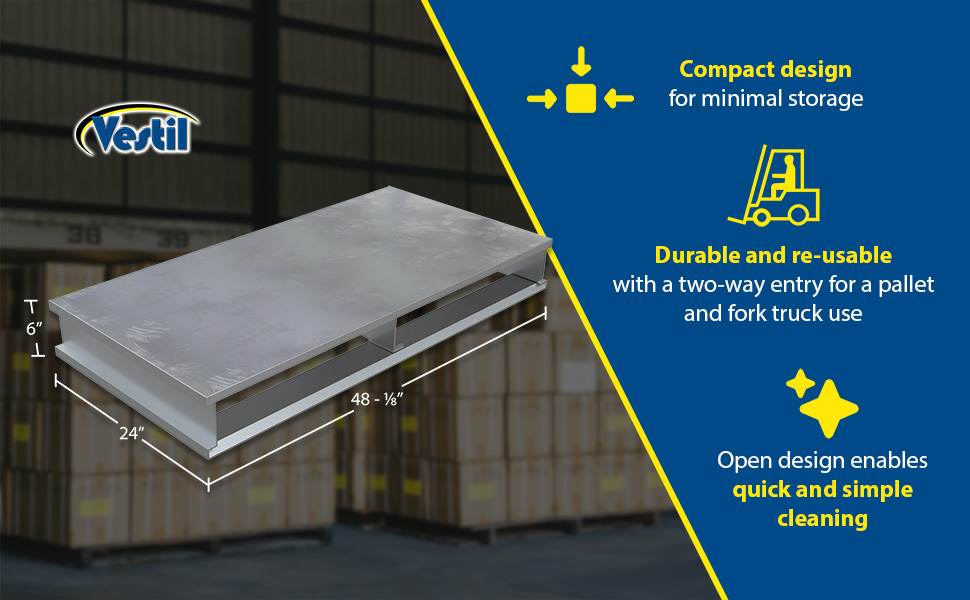

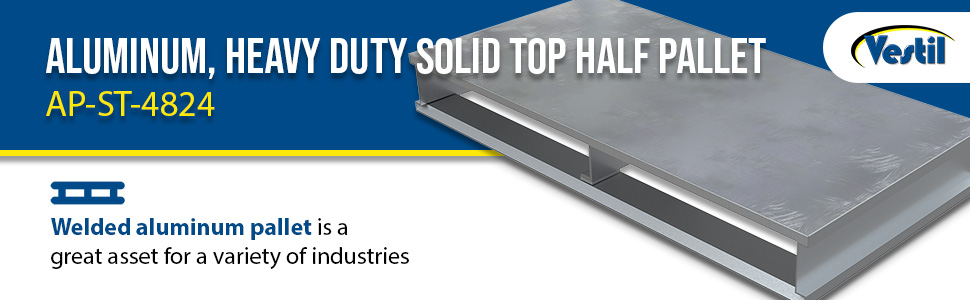

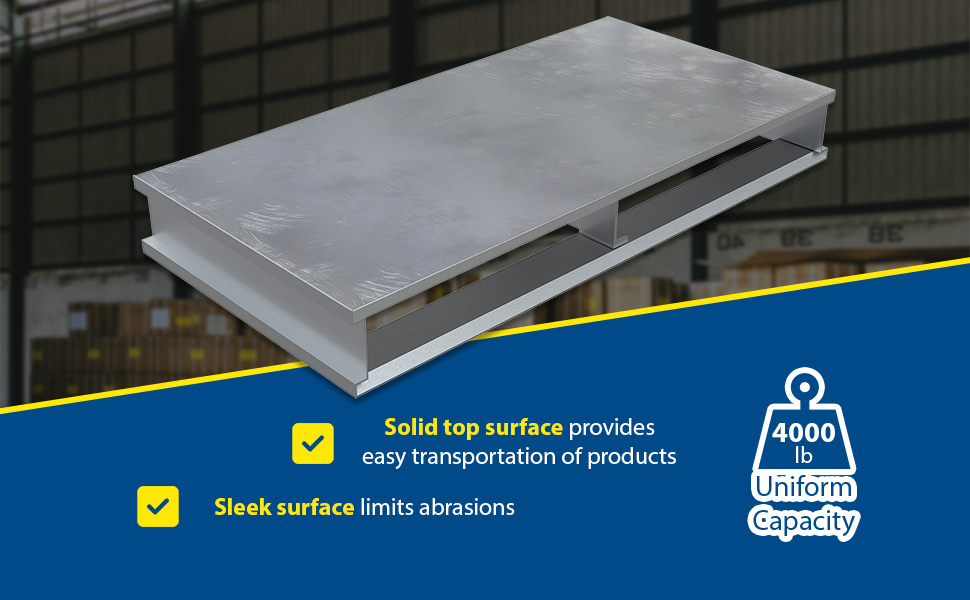

AP-ST-4824 AP-ST-4824Aluminum Heavy Duty Solid Top Half Pallet 24 In. x 48 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 22.5625		36

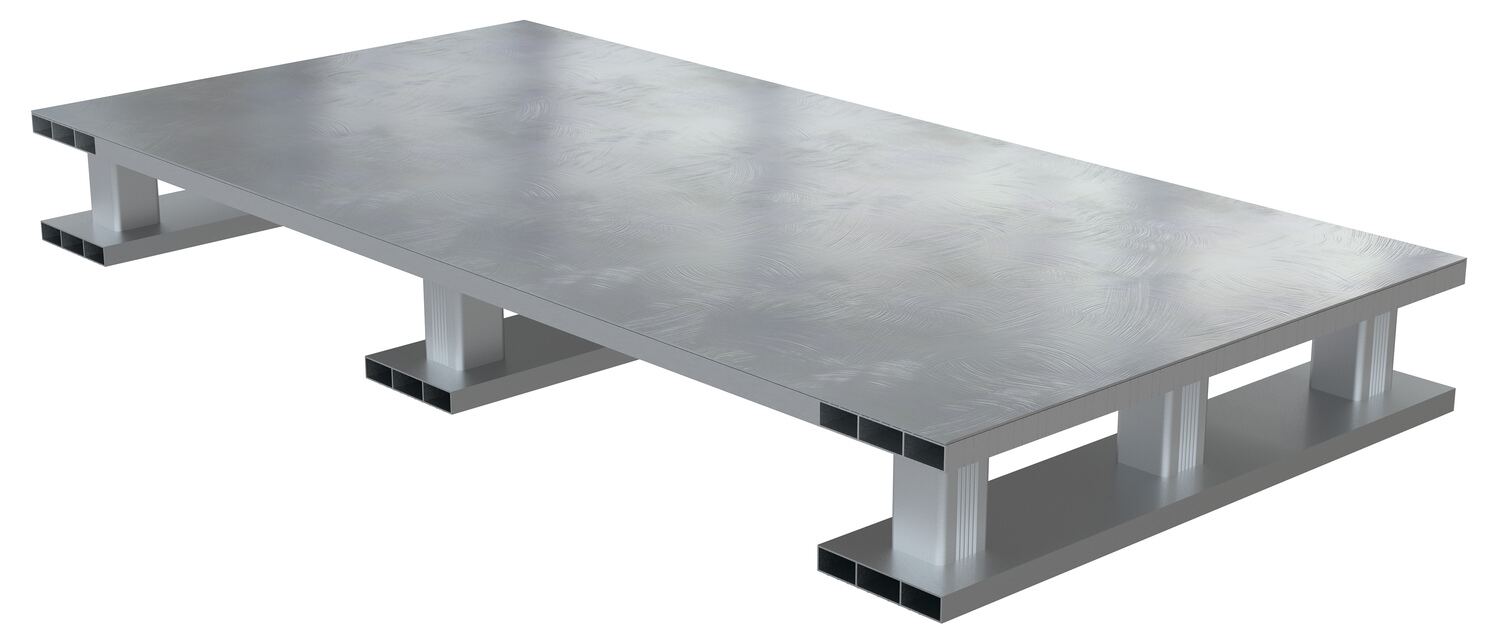

AP-ST-4824-SB AP-ST-4824-SBAluminum Half Solid Top with Skid Bottom 24 In. x 48 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 19.5625		32

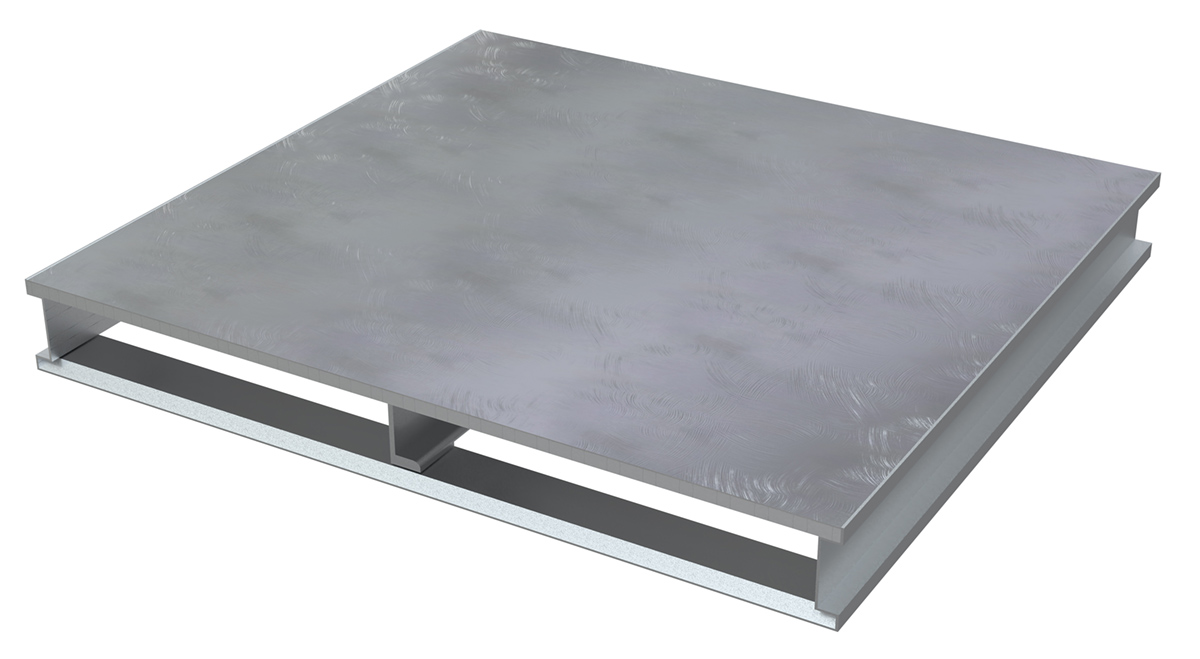

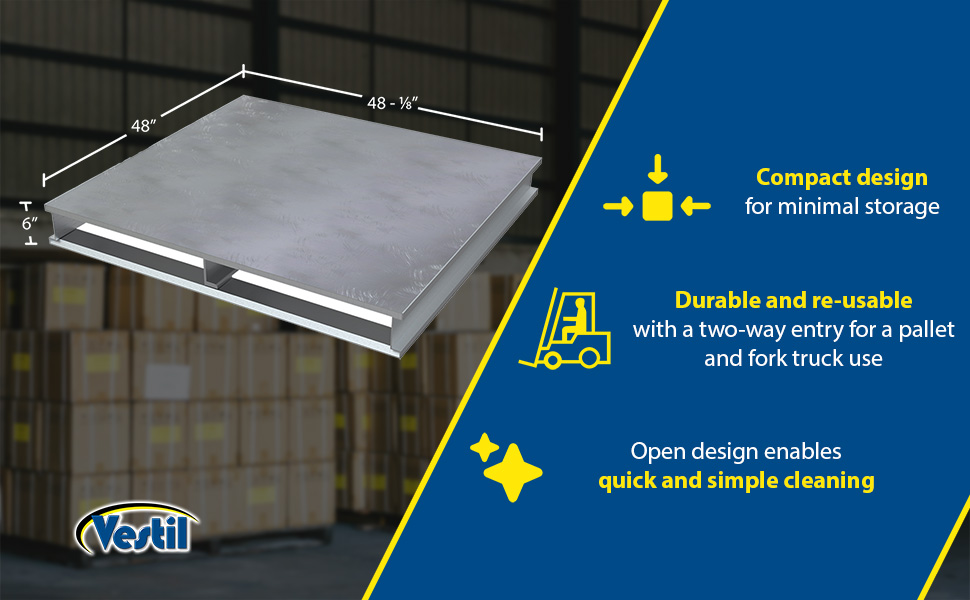

AP-ST-4848 AP-ST-4848Aluminum Heavy Duty Solid Top Pallet 48 In. x 48-1/8 In. x 6 In. 6000 Lb. Capacity SilverUniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000		117

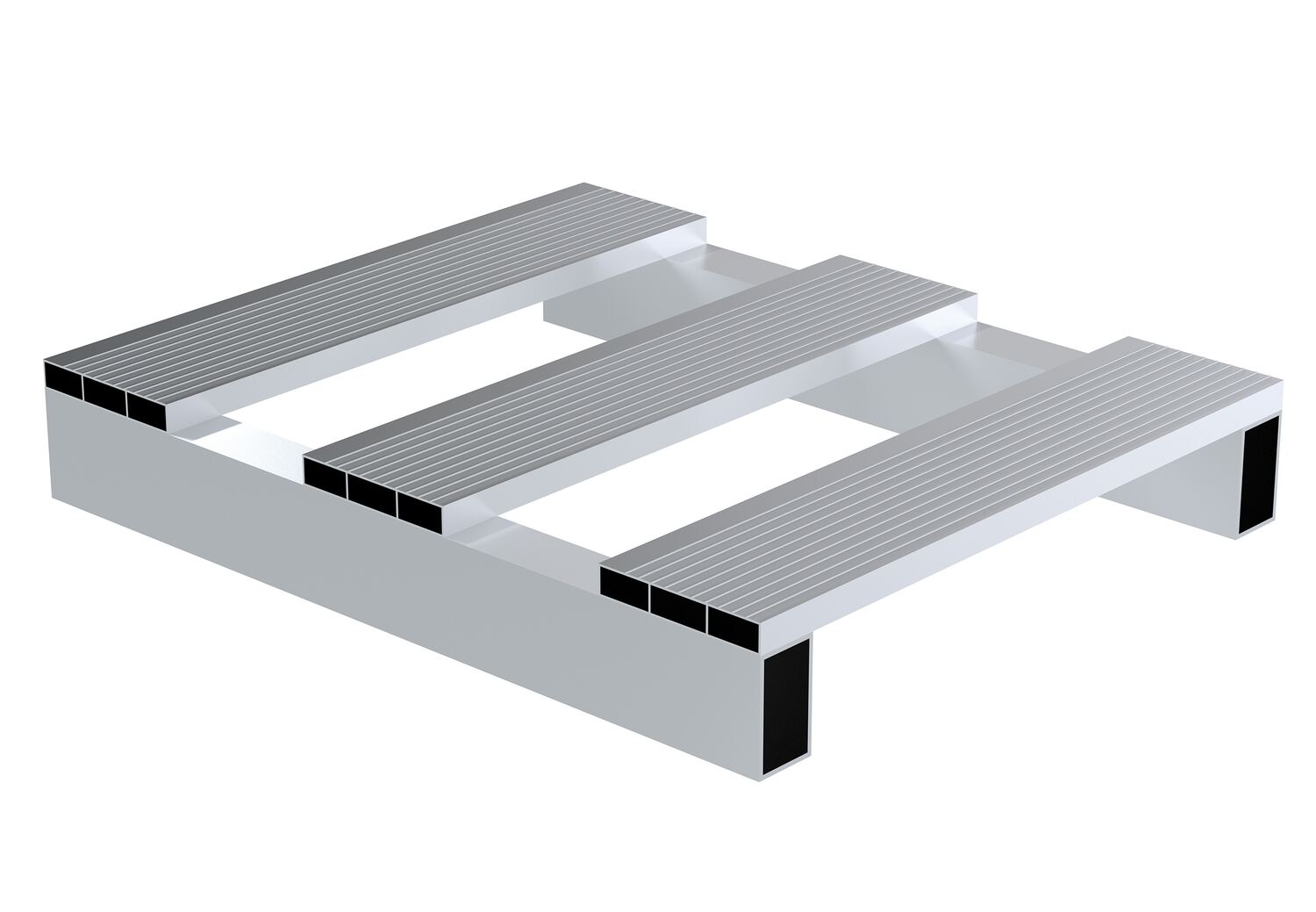

SKID-2024-A SKID-2024-AAluminum Half Skid 20 In x 24 In 4,000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 12.375		7

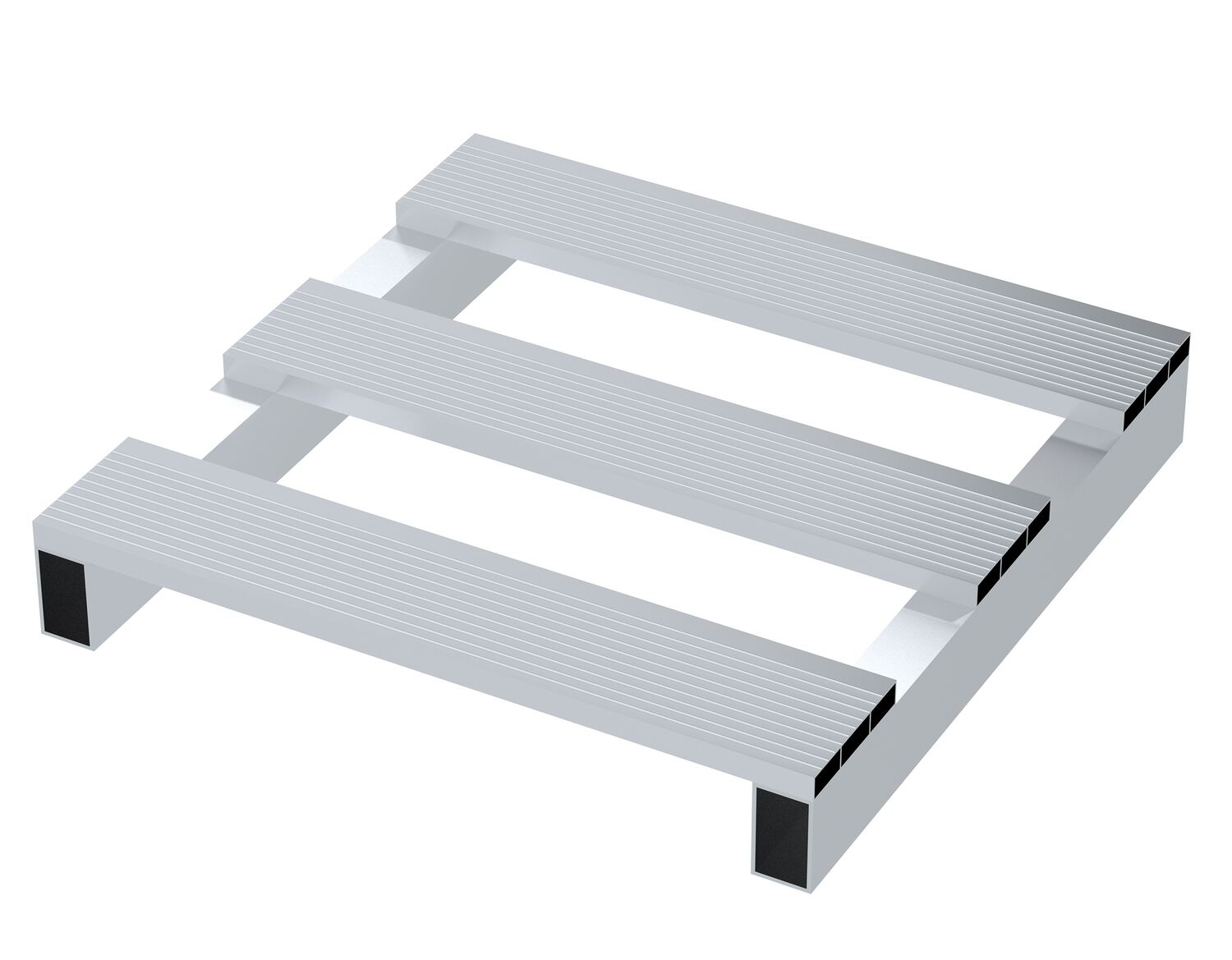

SKID-2424-A SKID-2424-AAluminum Half Skid 24 In. x 24 In. x 3-3/4 In. 4,000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 12.375		8

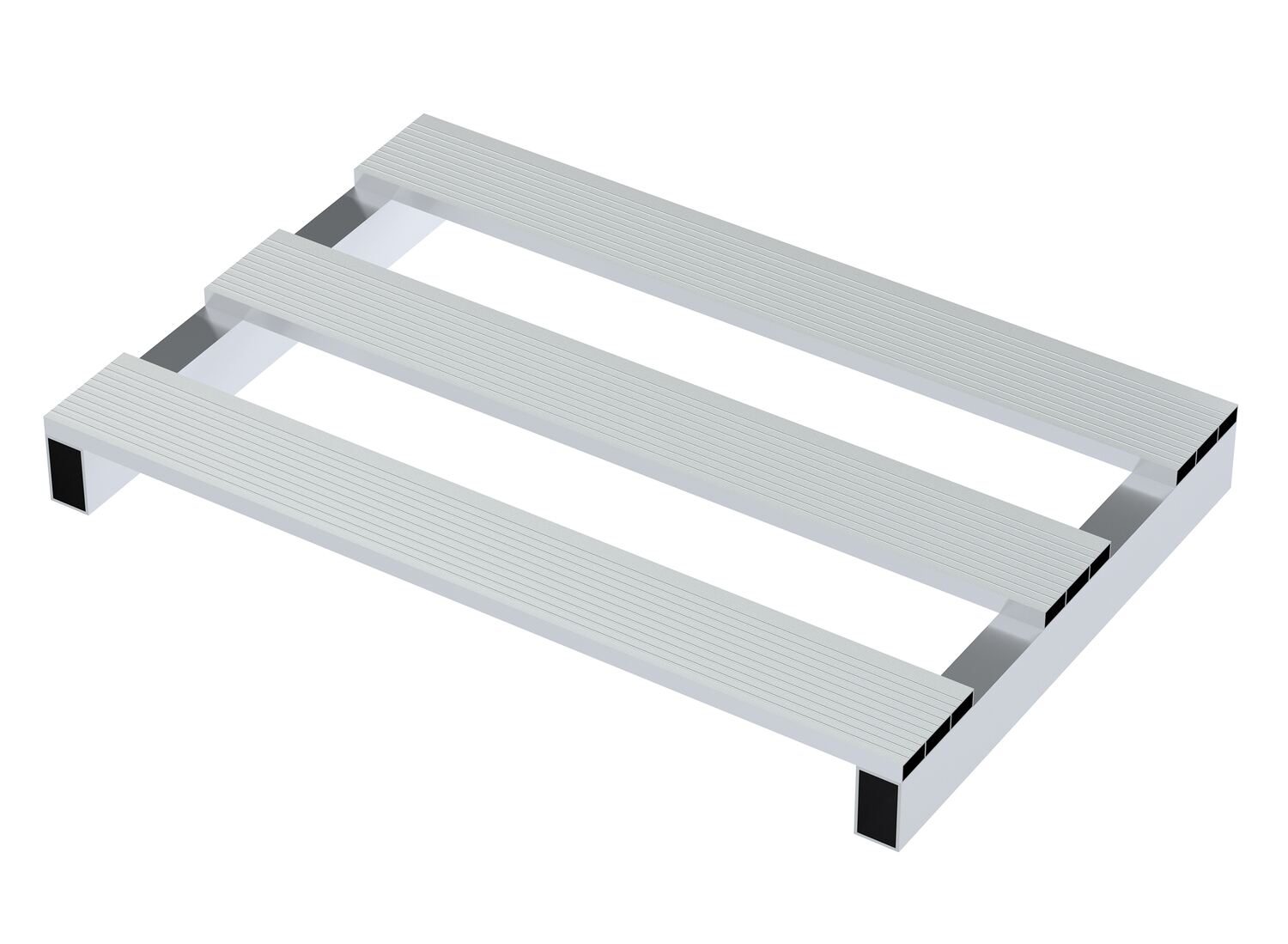

SKID-3624-A SKID-3624-AAluminum Half Skid 24 In. x 36 In. x 3-3/4 In. 4,000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 24.375		11

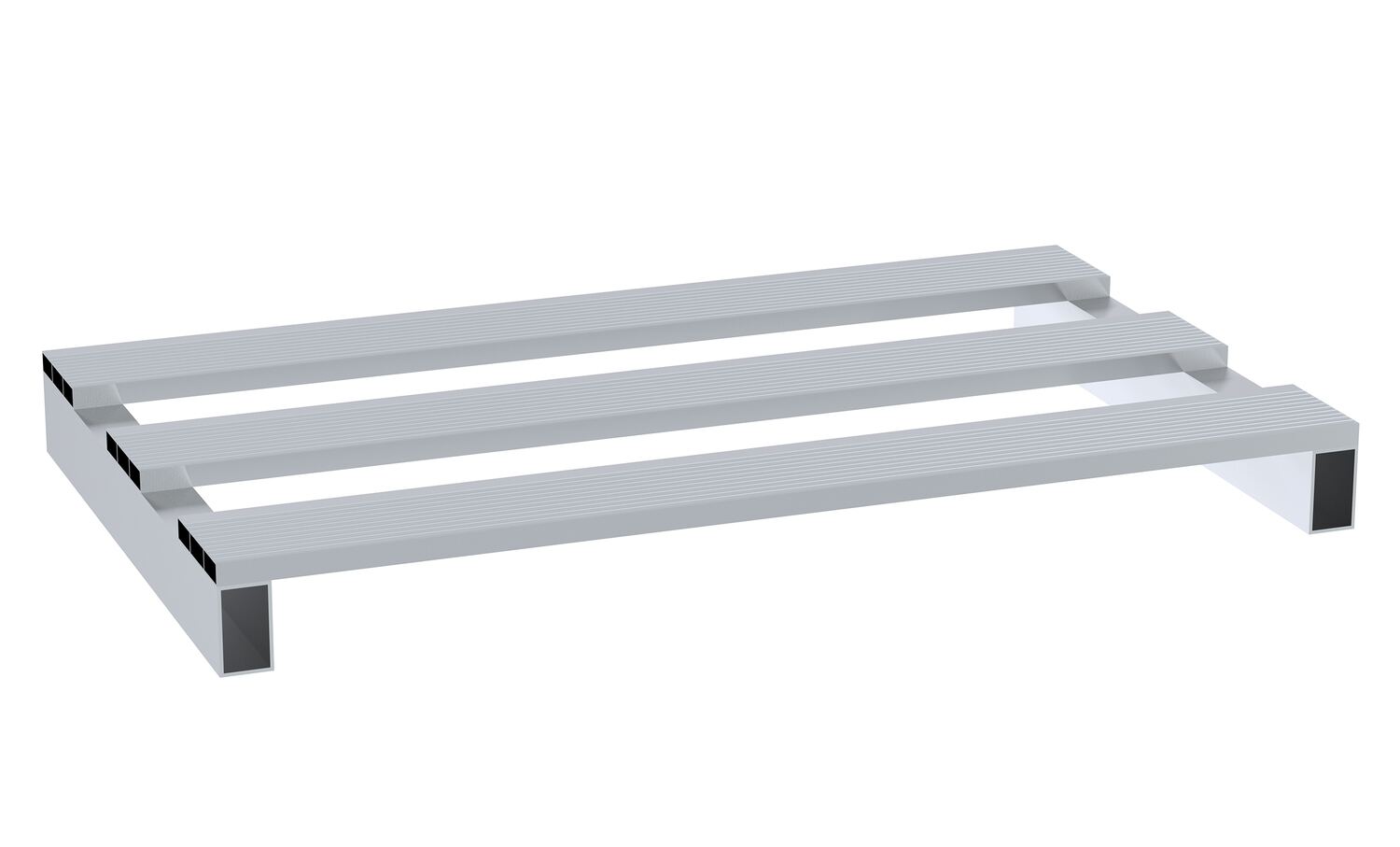

SKID-4024-A SKID-4024-AAluminum Half Skid 24 In. x 40 In. x 3-3/4 In. 4,000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 28.375		13
SKID-4048-A SKID-4048-AAluminum Half Skid 48 In. x 39-7/8 In. x 4 In. 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4000
Fork Pocket Width (in.): 28 3/8		28

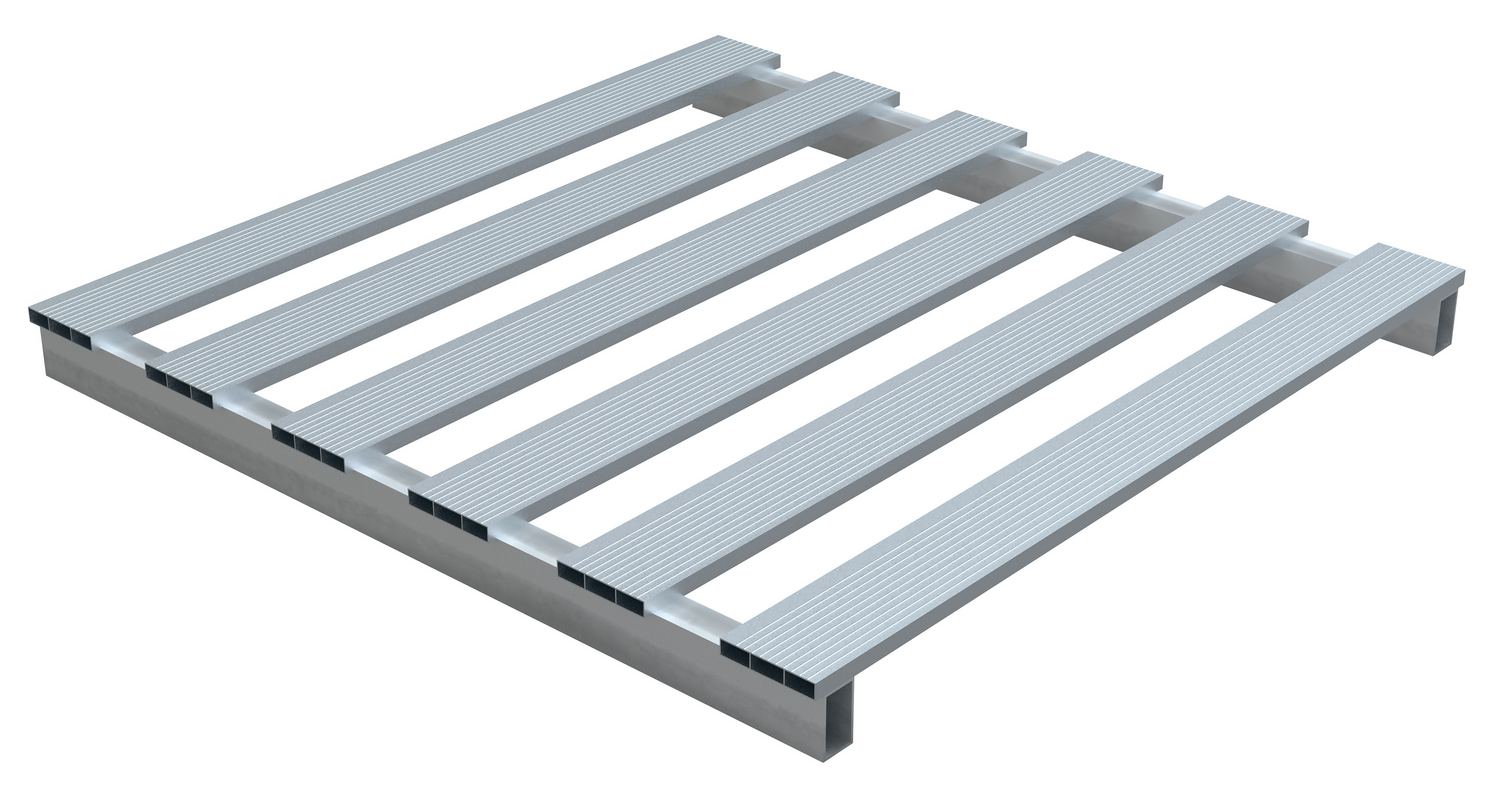

SKID-4248-A SKID-4248-AAluminum Half Skid 48 In. x 41-7/8 In. x 4 In. 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4000
Fork Pocket Width (in.): 30 3/8		29

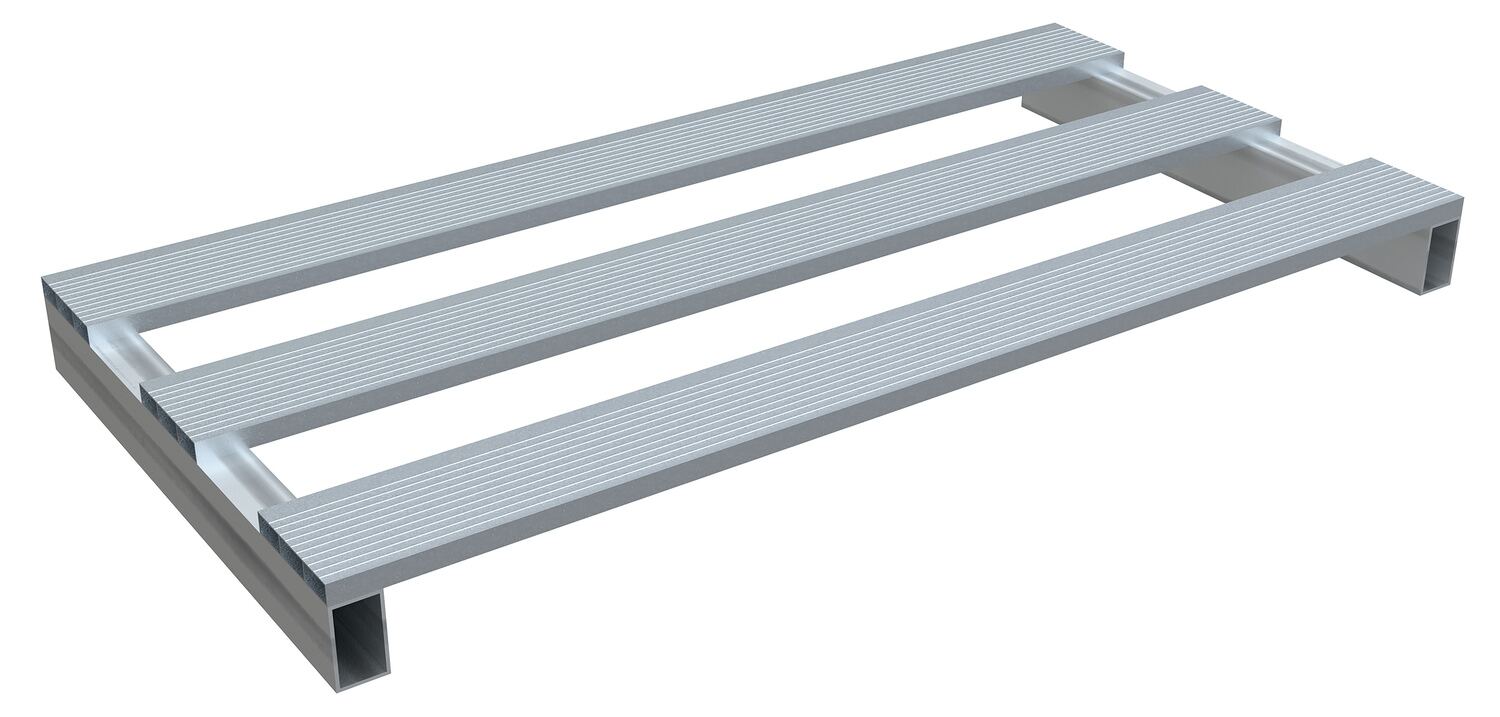

SKID-4824-A SKID-4824-AAluminum Half Skid 24 In. x 48 In. x 3-3/4 In. 4,000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 36.375		15

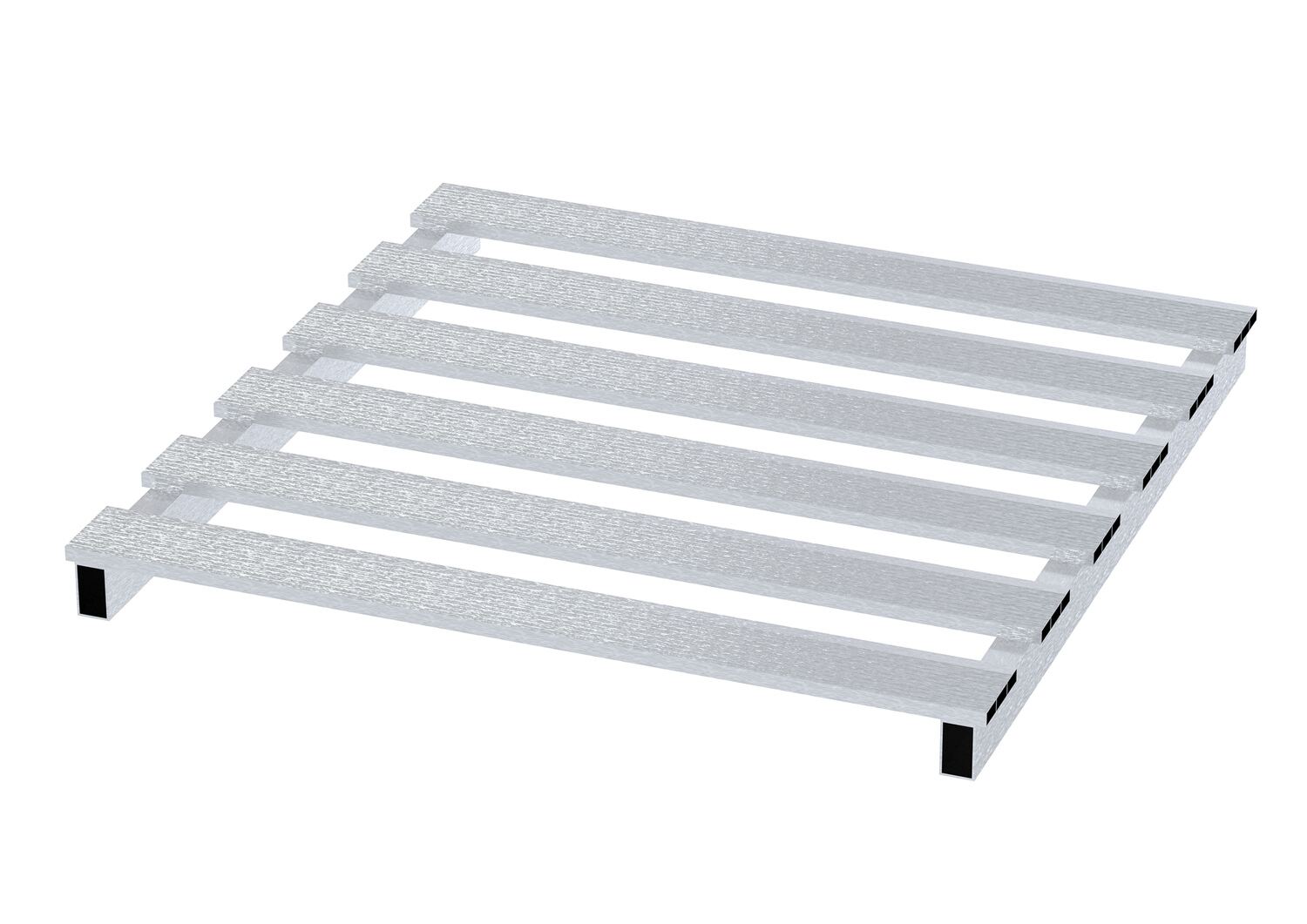

SKID-4848-A SKID-4848-AAluminum Half Skid 48 In. x 47-7/8 In. x 4 In. 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4000
Fork Pocket Width (in.): 36 3/8		31
