Medium Duty Powered Stretch Wrap Machines

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
SWA-54_A.jpg SWA-54_B.jpg SWA-54_C.jpg SWA-54_D.jpg

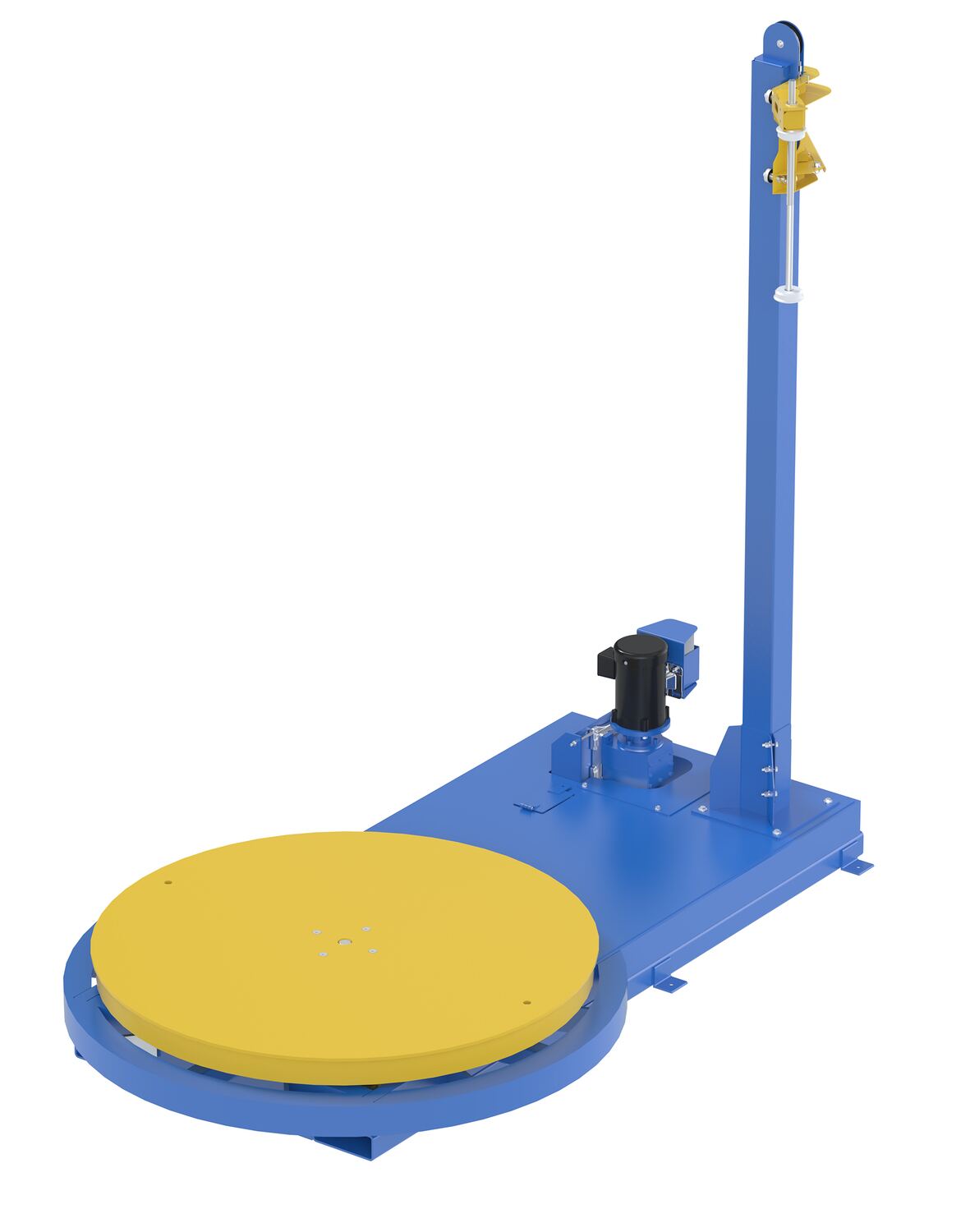

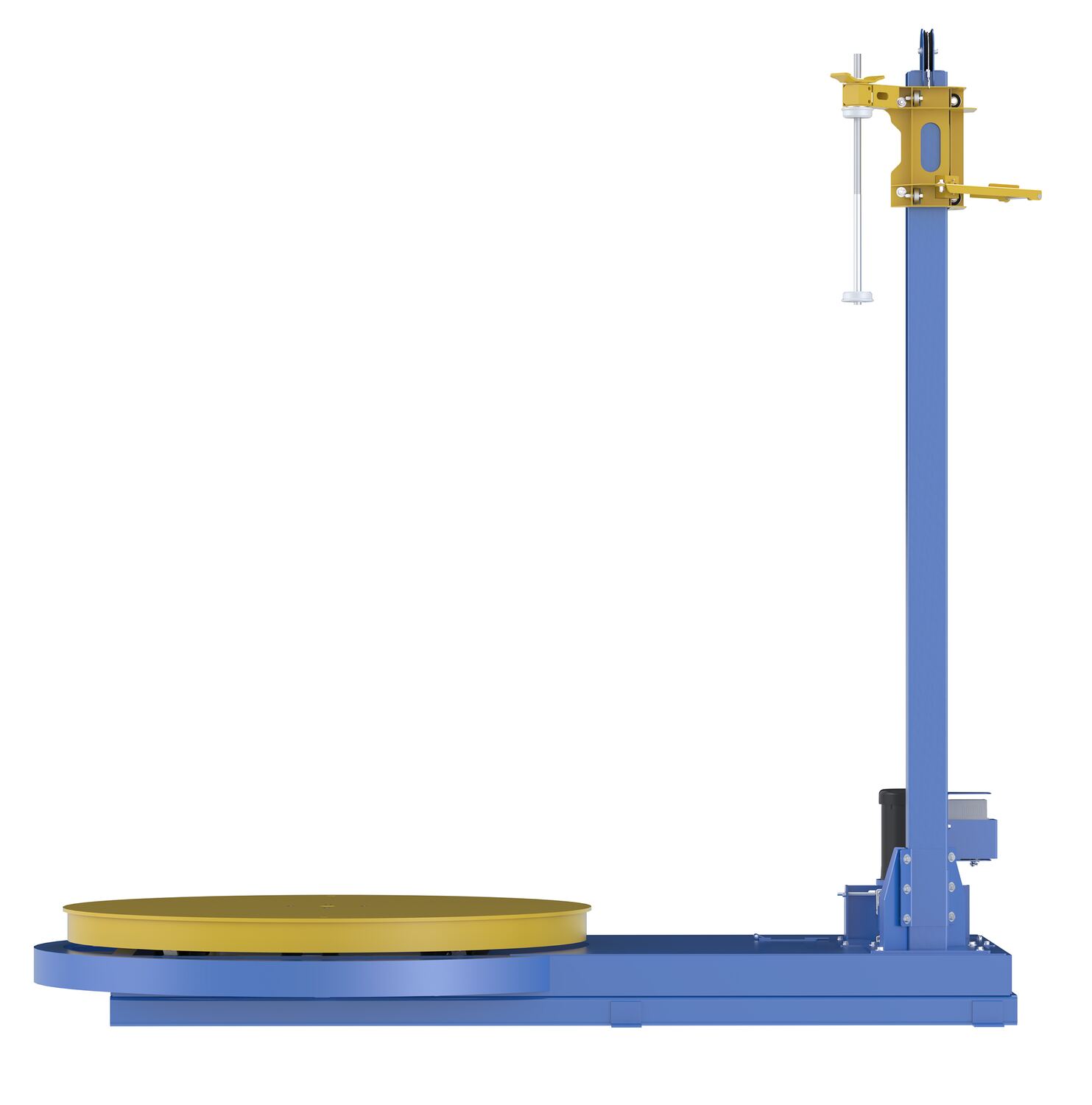

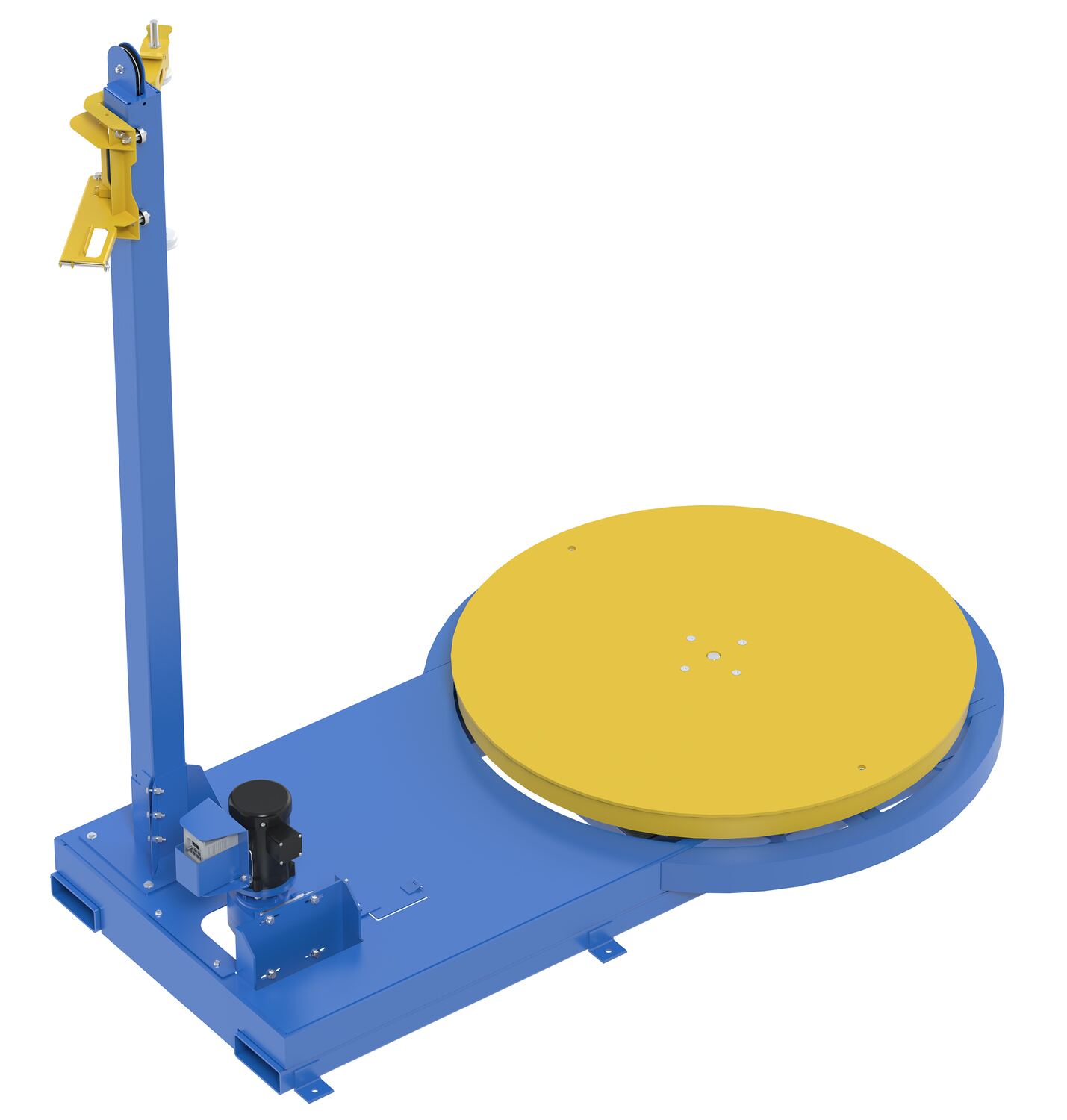

Medium Duty Powered Stretch Wrap Machines

model: SWA-54



Featured Packaging Equipment


Label Dispensers
Pneumatic Strap Sealer
Stainless Steel Bench Scales - Legal for Trade
Hook & Loop Straps
Aluminum Pallets & Skids
Multi-Purpose Packaging Bench
Pallets
Pallet Washing Cabinet & Optional Pressure Washer
Pallet Wand
model chart

Product Family Overview

Print Friendly
Medium Duty Powered Stretch Wrap Machines
SERIES: SWA

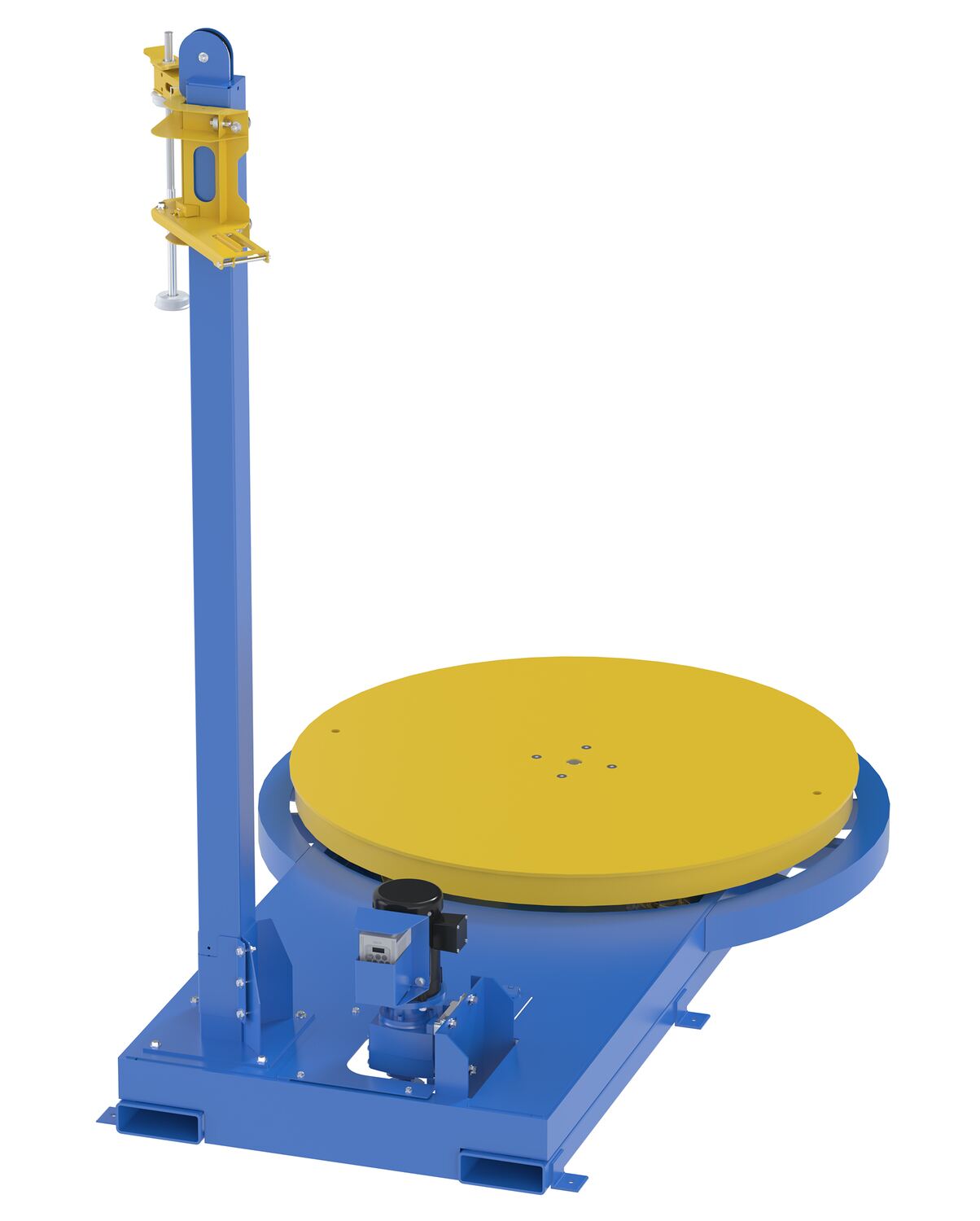

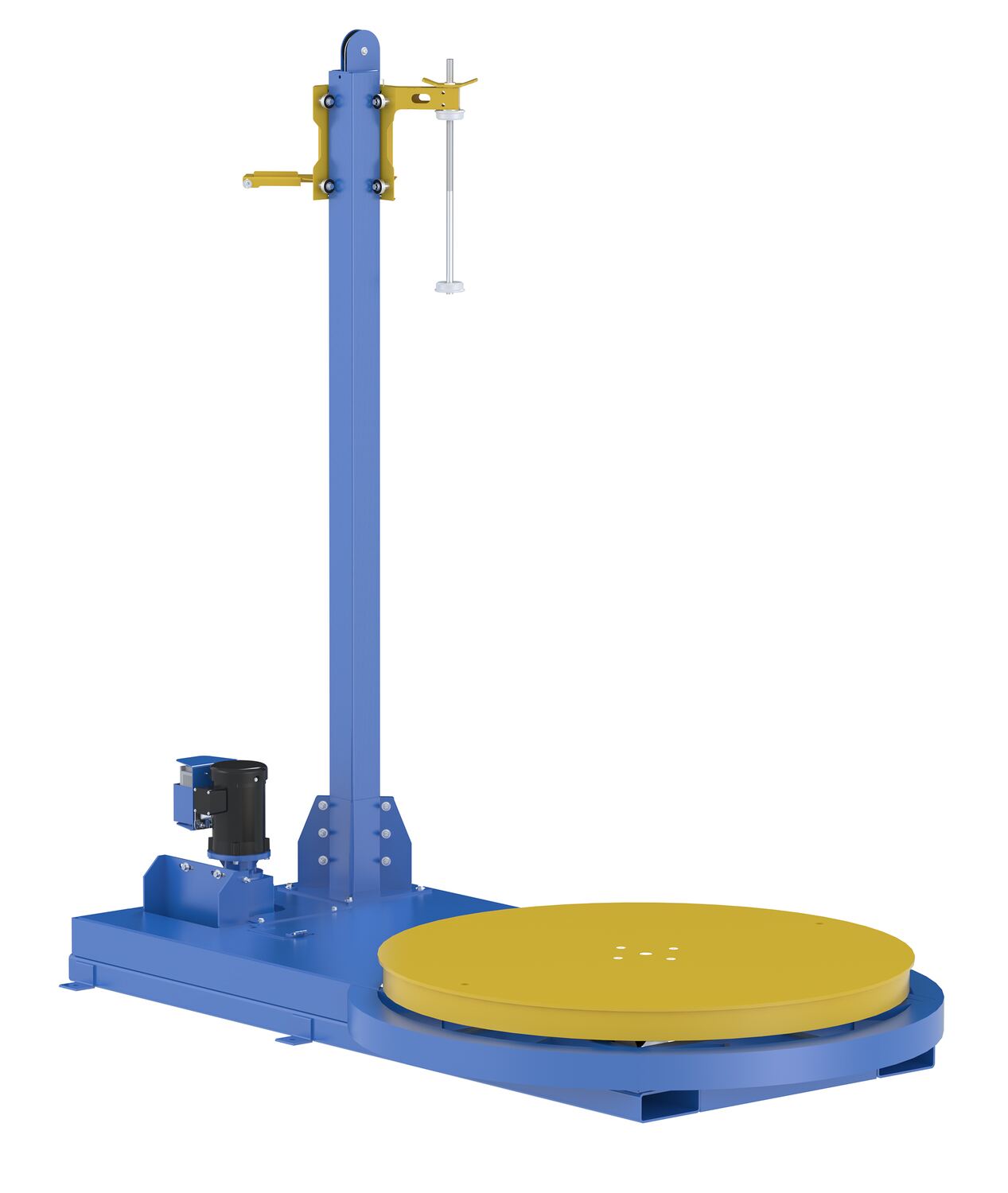

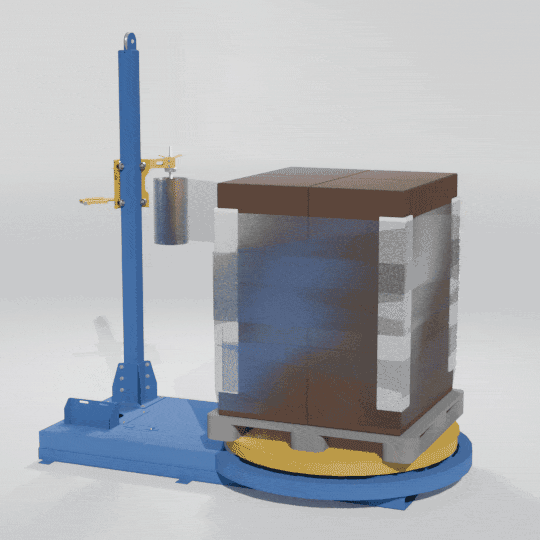

Vestil's Medium Duty Powered Stretch Wrap Machines offer the same great features as our standard duty machines in a 5,000-lb capacity unit. Complete with a powered turntable (RPM is vairable from 3 and 12) and counter-balanced stretch film mast. To operate, depress the foot pedal and manually move the mast up and down. The film-wrap tension is controlled with an adjustable, friction-brake assembly. Film placement is controlled manually by moving the carriage assembly up and down on the vertical mast. A hand operated carriage-brake allows the carriage to move freely making film application fast and simple. The system will accept 10 (in.) to 20 (in.) material. The unit ships with mast disconnected-simply raise mast and clamp into place.

The standard manual film wrap delivery can be upgraded to 115V 1-phase AC powered mast option (PMO). The hand held control is used to raise/lower the film while the foot control is used to operate the turntable. Please contact factory for Approach Ramp options on these models.

  • Stretch wrap design increases shipping productivity
  • Simple depress foot pedal powers turntable
  • Manual mast allows user to wrap the needed areas
  • Steel construction provides a long lasting rugged use

Vestil's Medium Duty Powered Stretch Wrap Machines offer the same great features as our standard duty machines in a 5,000-lb capacity unit. Complete with a powered turntable (RPM is vairable from 3 and 12) and counter-balanced stretch film mast. To operate, depress the foot pedal and manually move the mast up and down. The film-wrap tension is controlled with an adjustable, friction-brake assembly. Film placement is controlled manually by moving the carriage assembly up and down on the vertical mast. A hand operated carriage-brake allows the carriage to move freely making film application fast and simple. The system will accept 10 (in.) to 20 (in.) material. The unit ships with mast disconnected-simply raise mast and clamp into place.

The standard manual film wrap delivery can be upgraded to 115V 1-phase AC powered mast option (PMO). The hand held control is used to raise/lower the film while the foot control is used to operate the turntable. Please contact factory for Approach Ramp options on these models.

  • Stretch wrap design increases shipping productivity
  • Simple depress foot pedal powers turntable
  • Manual mast allows user to wrap the needed areas
  • Steel construction provides a long lasting rugged use

Other Stretch Wrap Machines

 Low Profile Stretch Wrap Machine Medium Duty High Performance Auto-Wrap Stretch Wrap Machine Powered Stretch Wrap Machines Material Pallet Stretch Wrap Machines

Additional Models In This Family
view entire Image Gallery

SWA-60

model SWA-60

SWA-5460-PMO

model SWA-5460-PMO

SWA-COUNT

model SWA-COUNT

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
SWA-54 SWA-541 Year Limited WarrantySteel Semi-Automatic Stretch Wrap Machine 54 In. Turntable Diameter 5,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 5,000
Turntable Diameter (in.): 54		1365

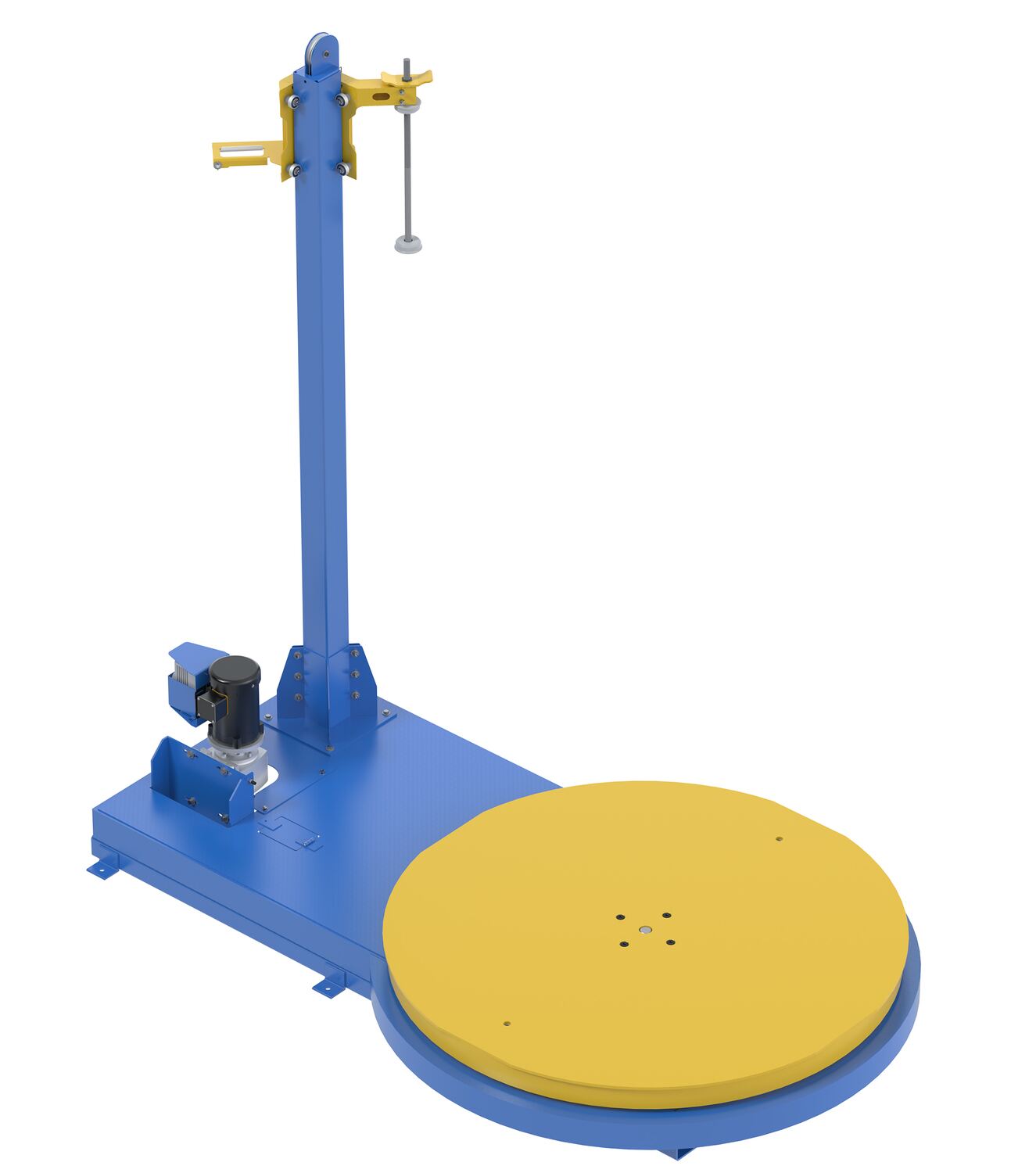

SWA-60 SWA-601 Year Limited WarrantySteel Semi-Automatic Stretch Wrap Machine 60 In. Turntable Diameter 5,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 5,000
Turntable Diameter (in.): 60		1393

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

SWA-54
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Turntable Diameter (in.): 54
Uniform Capacity (lb.): 5,000
Turntable Diameter (in.): 54

SWA-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Turntable Diameter (in.): 60
Uniform Capacity (lb.): 5,000
Turntable Diameter (in.): 60
For More Details of the Option Click the Red Model Button

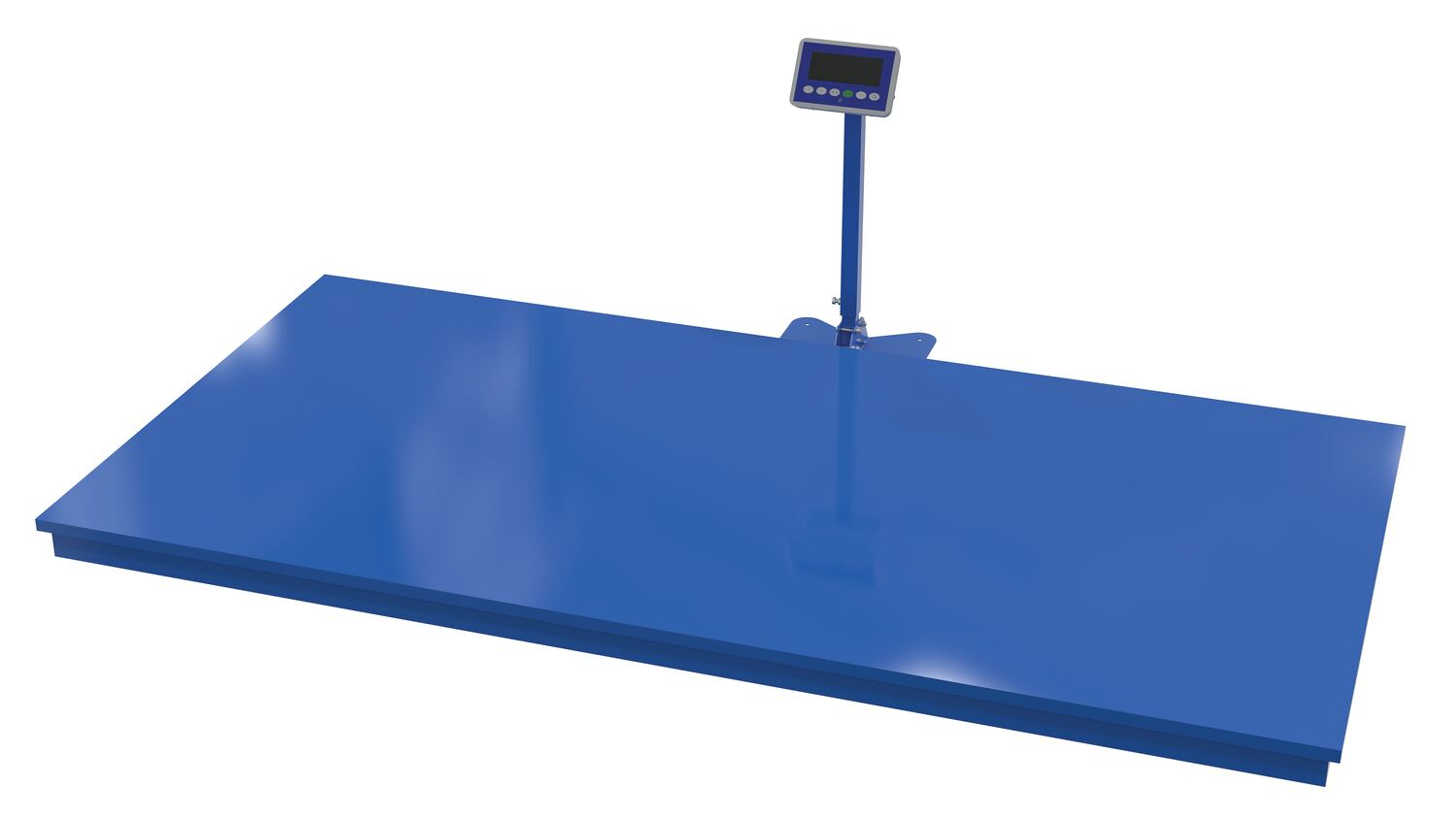

SWA-54-SCALE SWA-54-SCALE1 Year Limited WarrantyFactory Installed Digital Stretch Wrap Scale For Use With SWA-54Uniform Capacity (lb.): 10,000
Scale Height (in.): 3-1/2		838

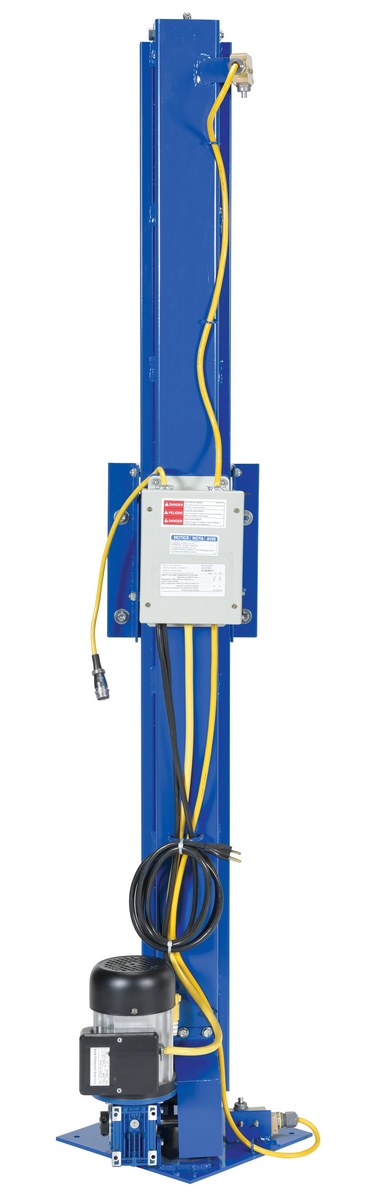

SWA-5460-PMO SWA-5460-PMO1 Year Limited WarrantyFactory Installed AC Powered 115 Volt Single Phase Unit For Stretch Wrap Machine SWA-54 And SWA-60Wrap Height (in.): 80-13/16
Motor Voltage/Phase: 115/1		1044

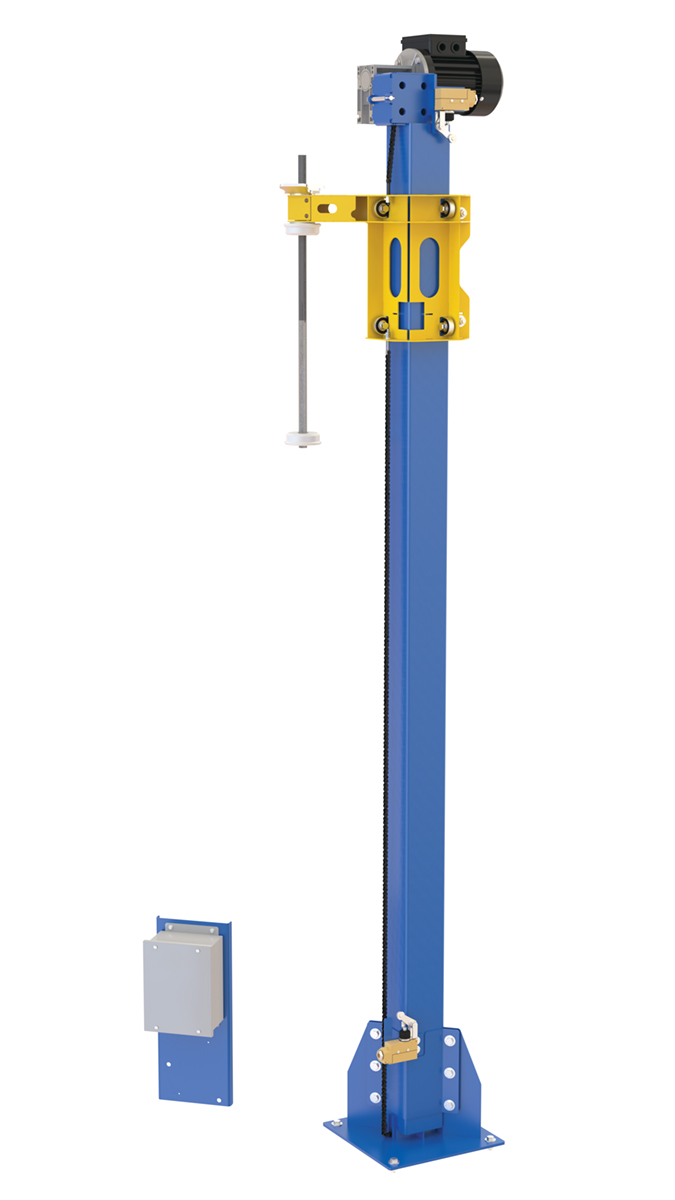

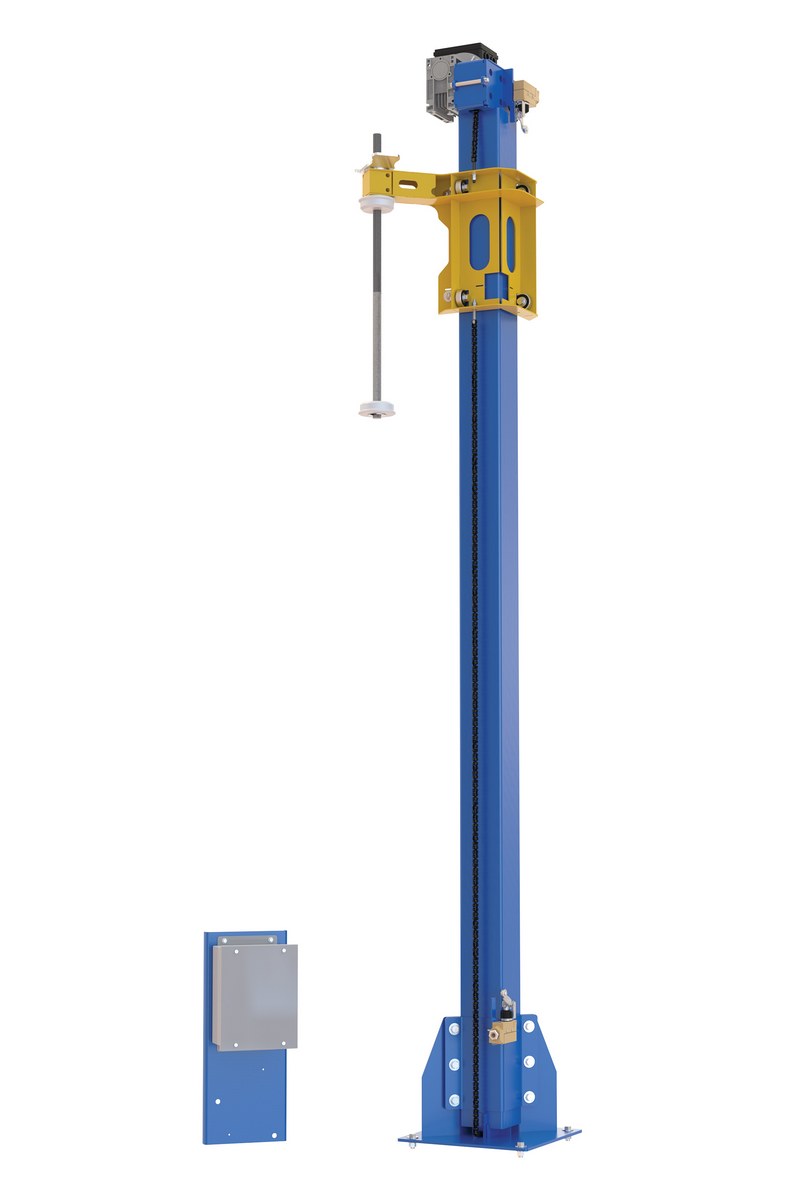

SWA-5460-PMO-RF SWA-5460-PMO-RF1 Year Limited WarrantySteel Retrofit Power Mast Wrap Machine 80-13/16 In. Wrap Height Blue / Yellow For Use With SWA-54 And SWA-60Wrap Height (in.): 80-13/16
Motor Voltage/Phase: 115/1		621

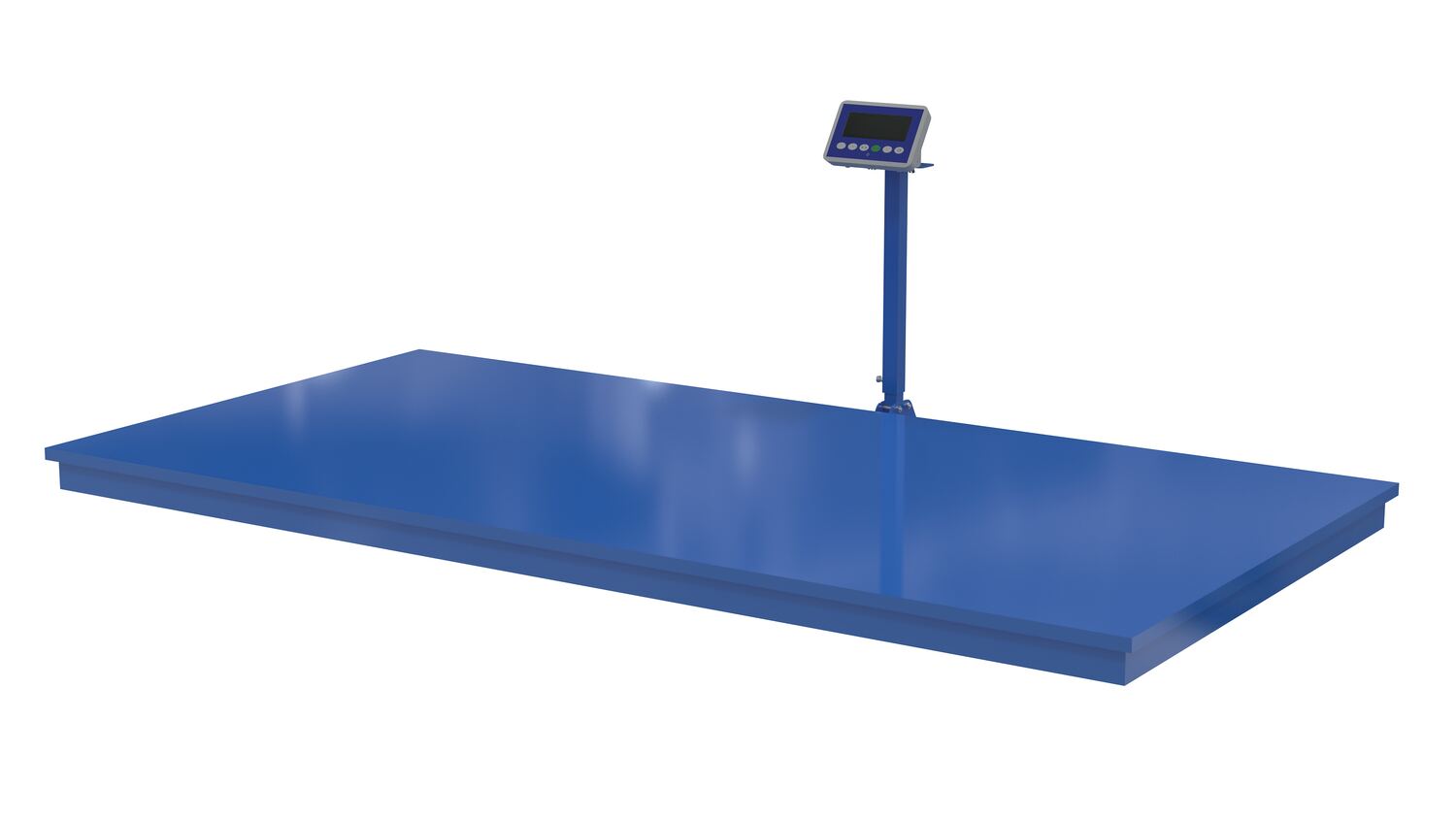

SWA-60-SCALE SWA-60-SCALE1 Year Limited WarrantyFactory Installed Digital Stretch Wrap Scale For Use With SWA-60Uniform Capacity (lb.): 10,000
Scale Height (in.): 3-1/2		838
SWA-INDEX 30 Days Limited WarrantyFactory Installed Auto Indexing For Stretch Wrap MachinesCable Length (ft): 8
Brand / Model Compatibility: SWA-54, SWA-60		1
Model Image PDFs Details Wt.
(lbs)
SWA-COUNT - Counter option 1
SWA-NRTL-COMP - UL Approved components --
SWA-FILM - 20"H x 80 ga. x 6,000' x 3" Core (one Roll) 42
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Medium Duty Powered Stretch Wrap Machines PDF's will open in a new window when clicked.

Manuals


SWA-54
Owners Manual

SWA-60
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


SWA-54

SWA-54-SCALE

SWA-5460-PMO

SWA-5460-PMO-RF

SWA-60

SWA-60-SCALE

Testing Certificates


SWA-54

SWA-54-SCALE

SWA-5460-PMO

SWA-5460-PMO-RF

SWA-60

SWA-60-SCALE

SWA-INDEX

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: Does this stretch wrap machine have fork pockets so it can be moved?

A: Yes, the SWA-54 and the SWA-60 have fork pockets.
