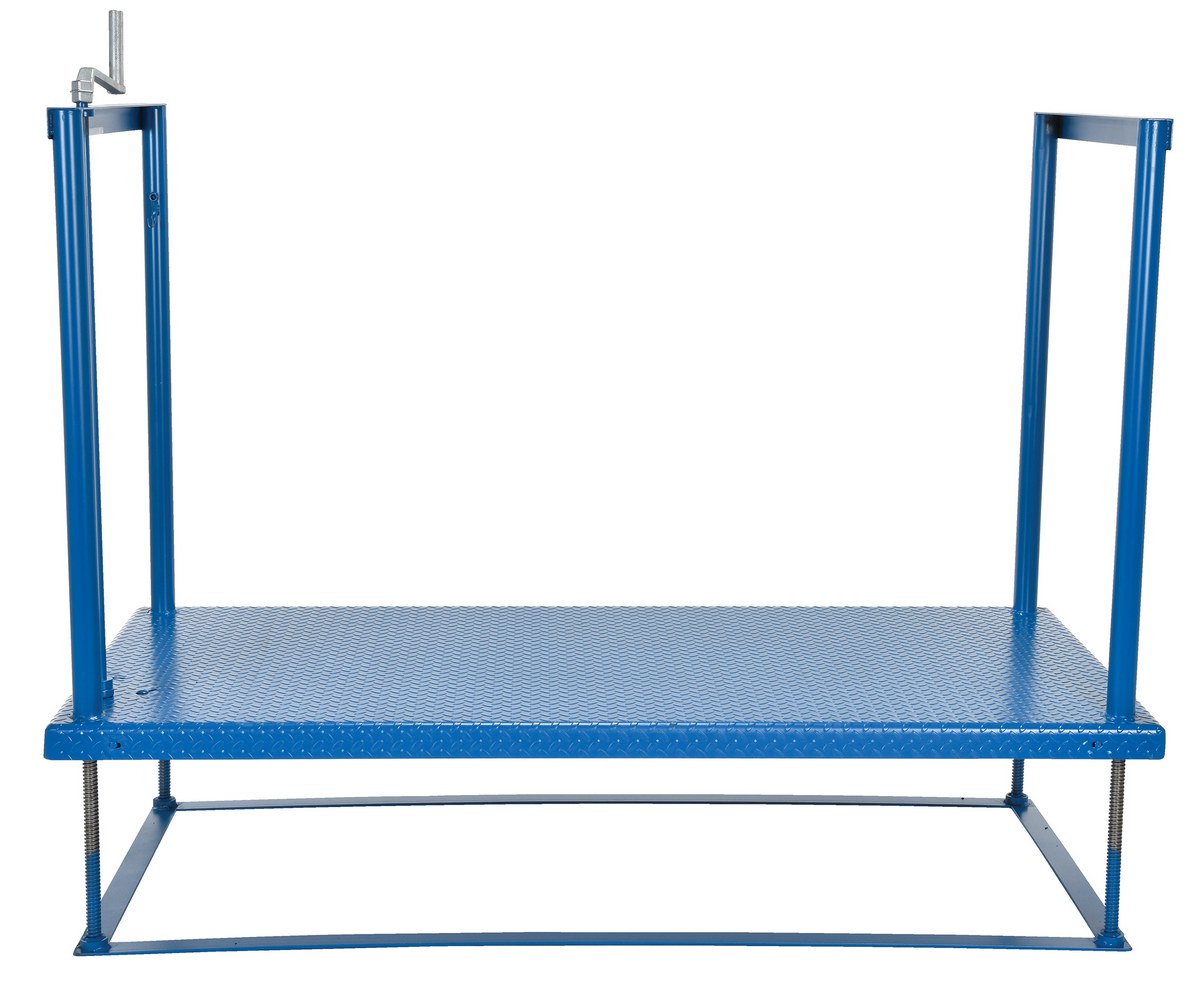

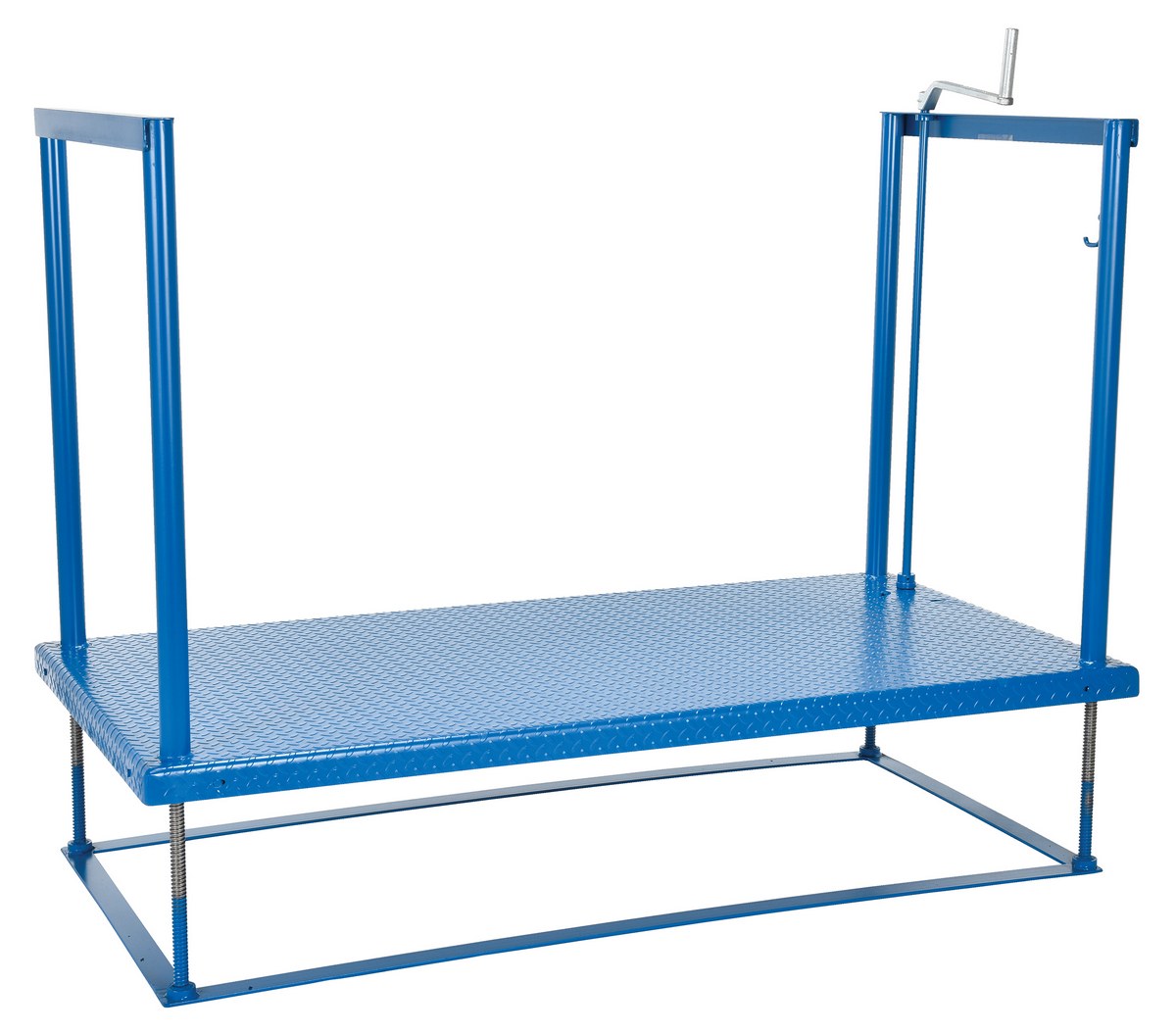

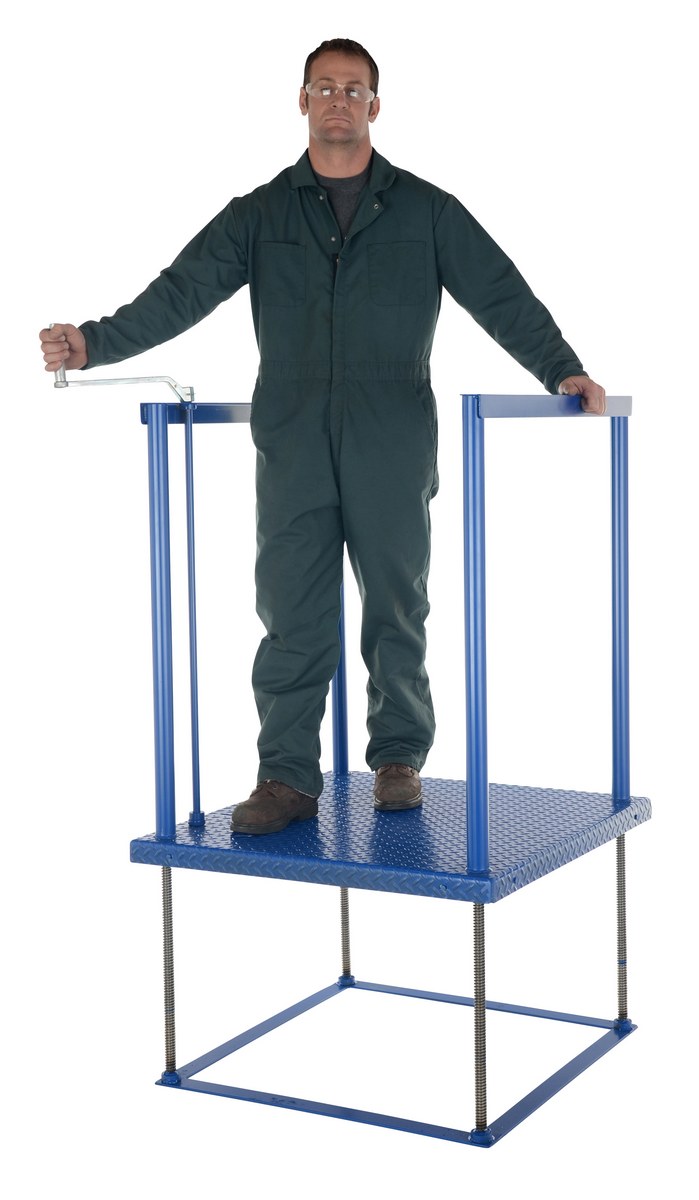

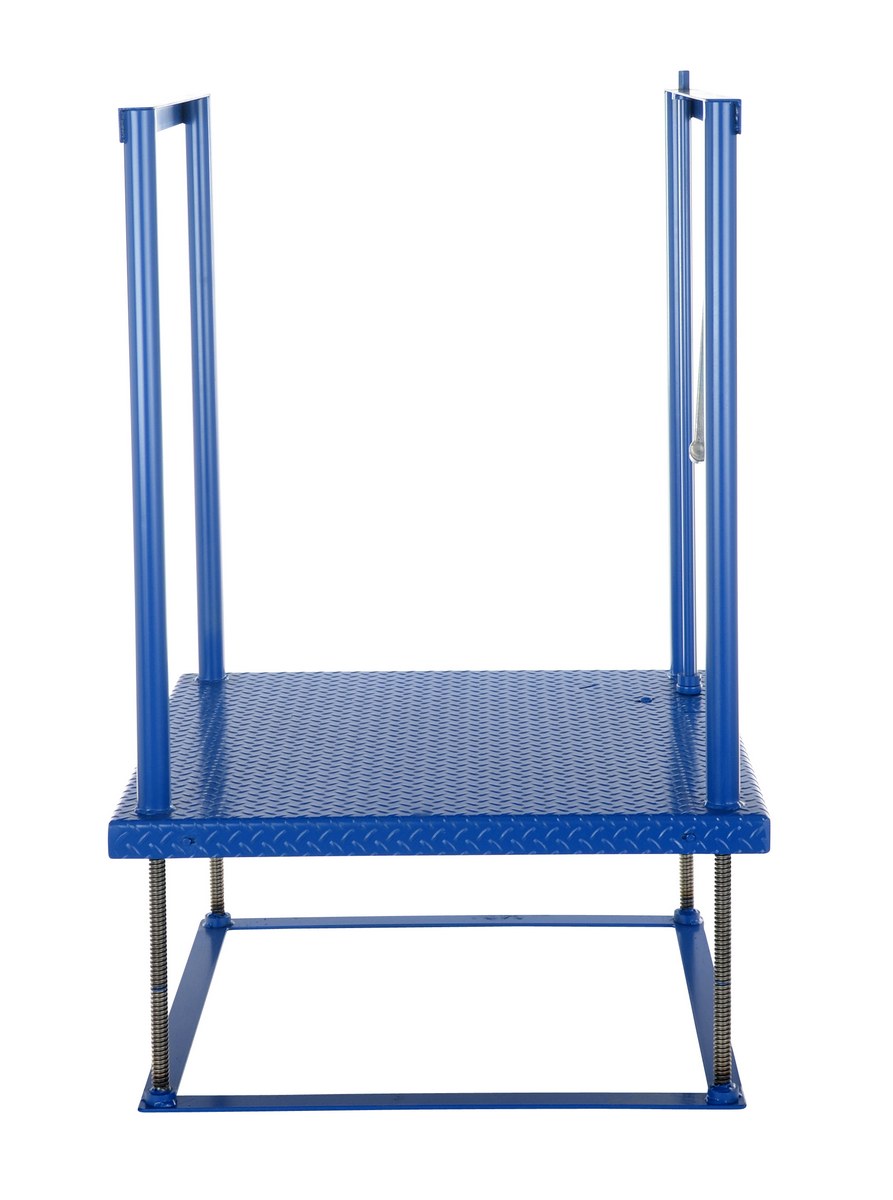

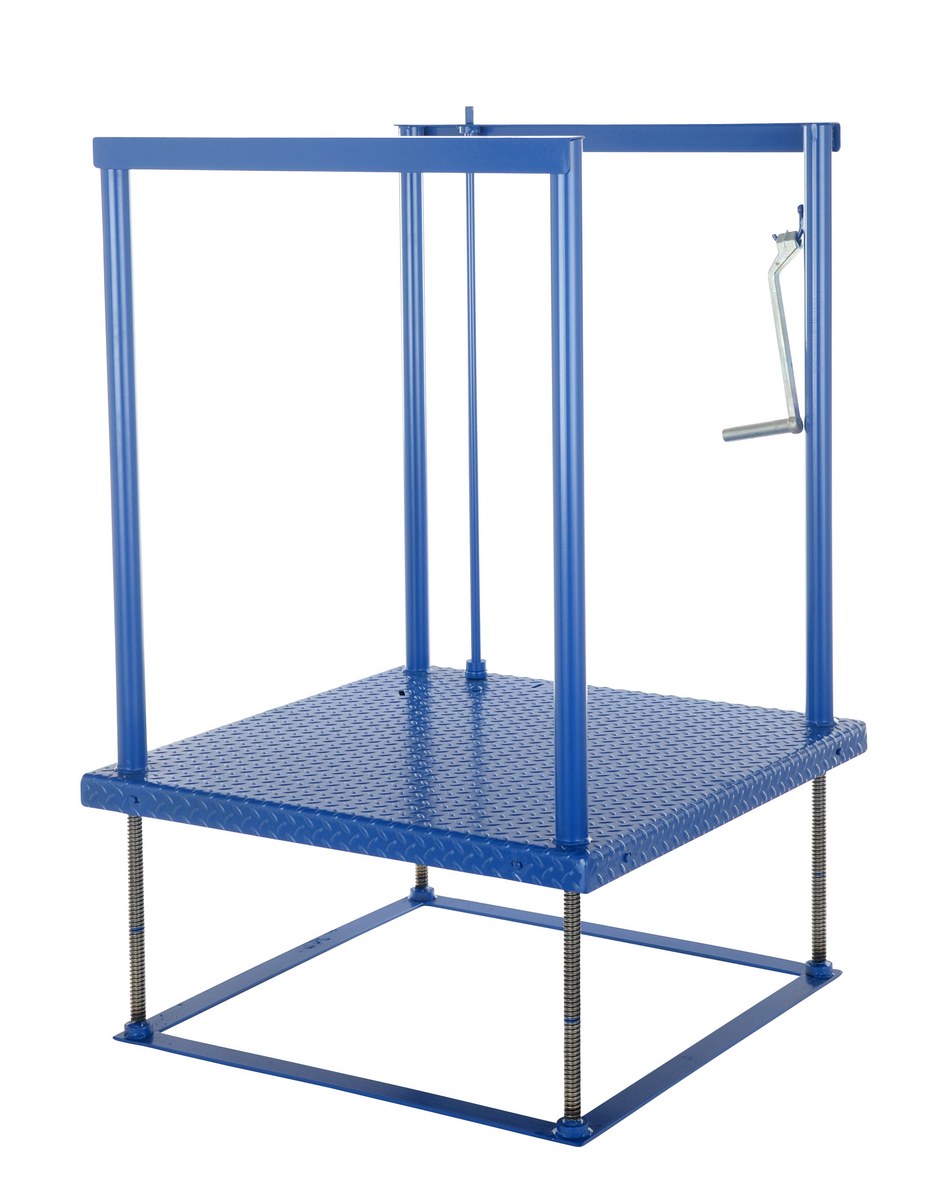

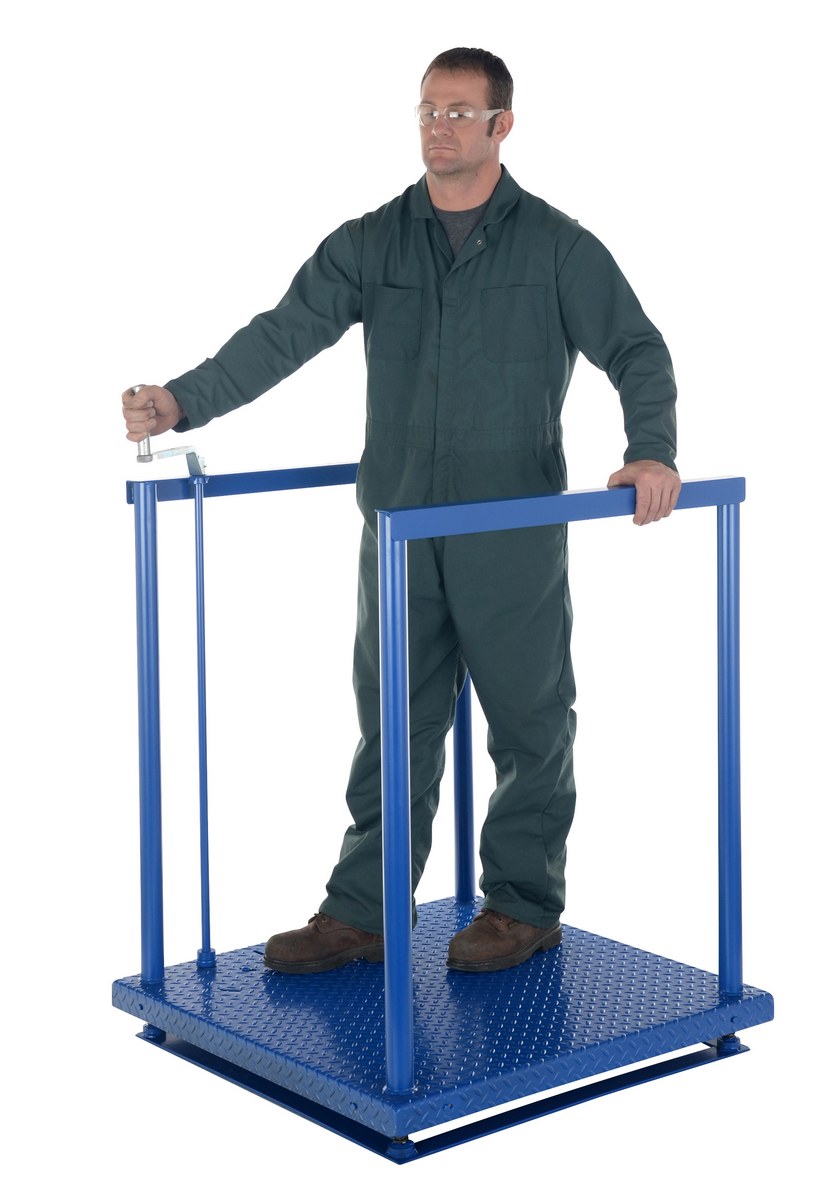

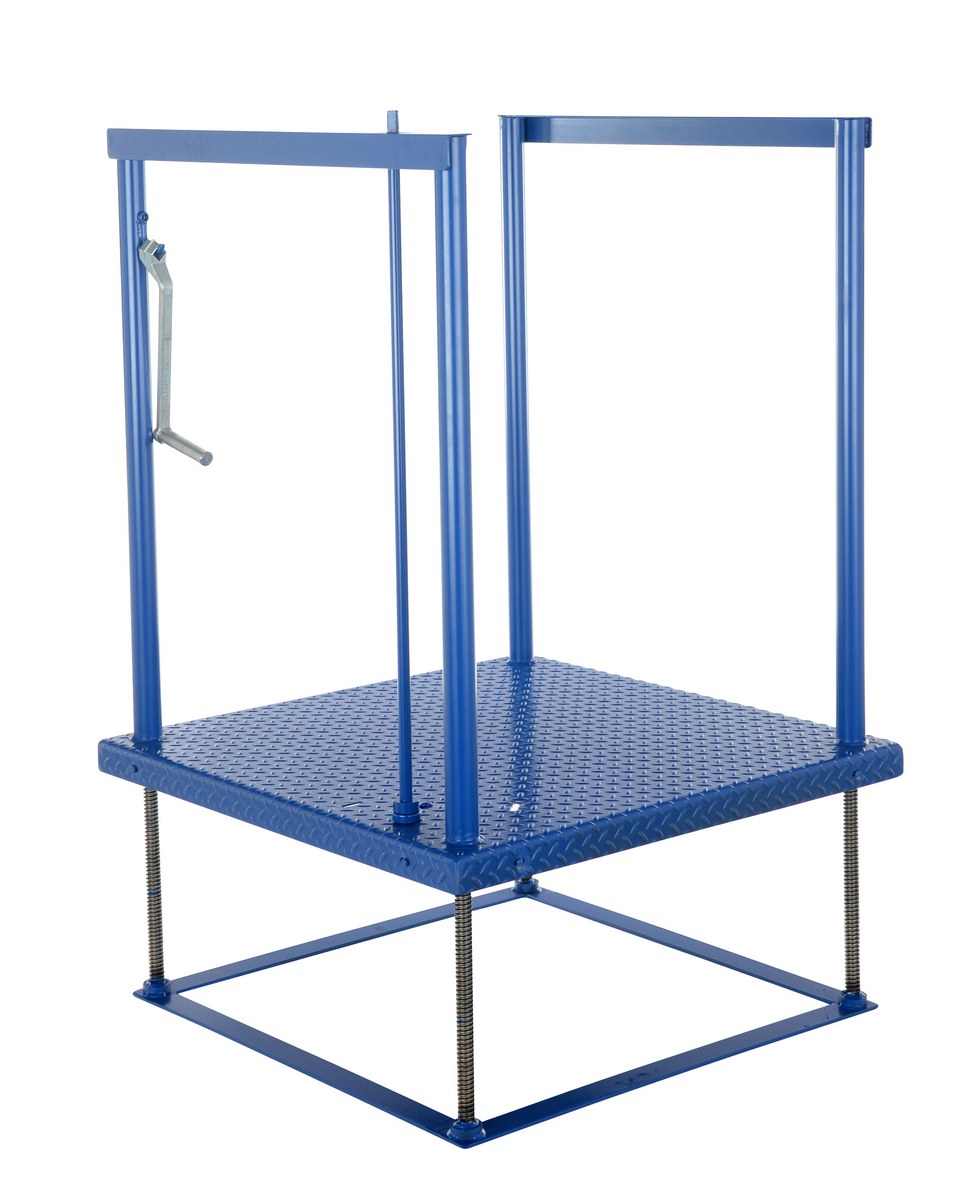

Posi-Crank Worker PlatformsThe Posi-Crank ergonomic work station is an economical variable height worker positioner. With a simple turn of a crank, the platform height may be adjusted to the optimum ergonomic level suitable for each operator. Benefits of the Posi-Crank include minimizing the risk of cumulative trauma injuries, back injuries and fatigue while maximizing efficiency and operator morale.

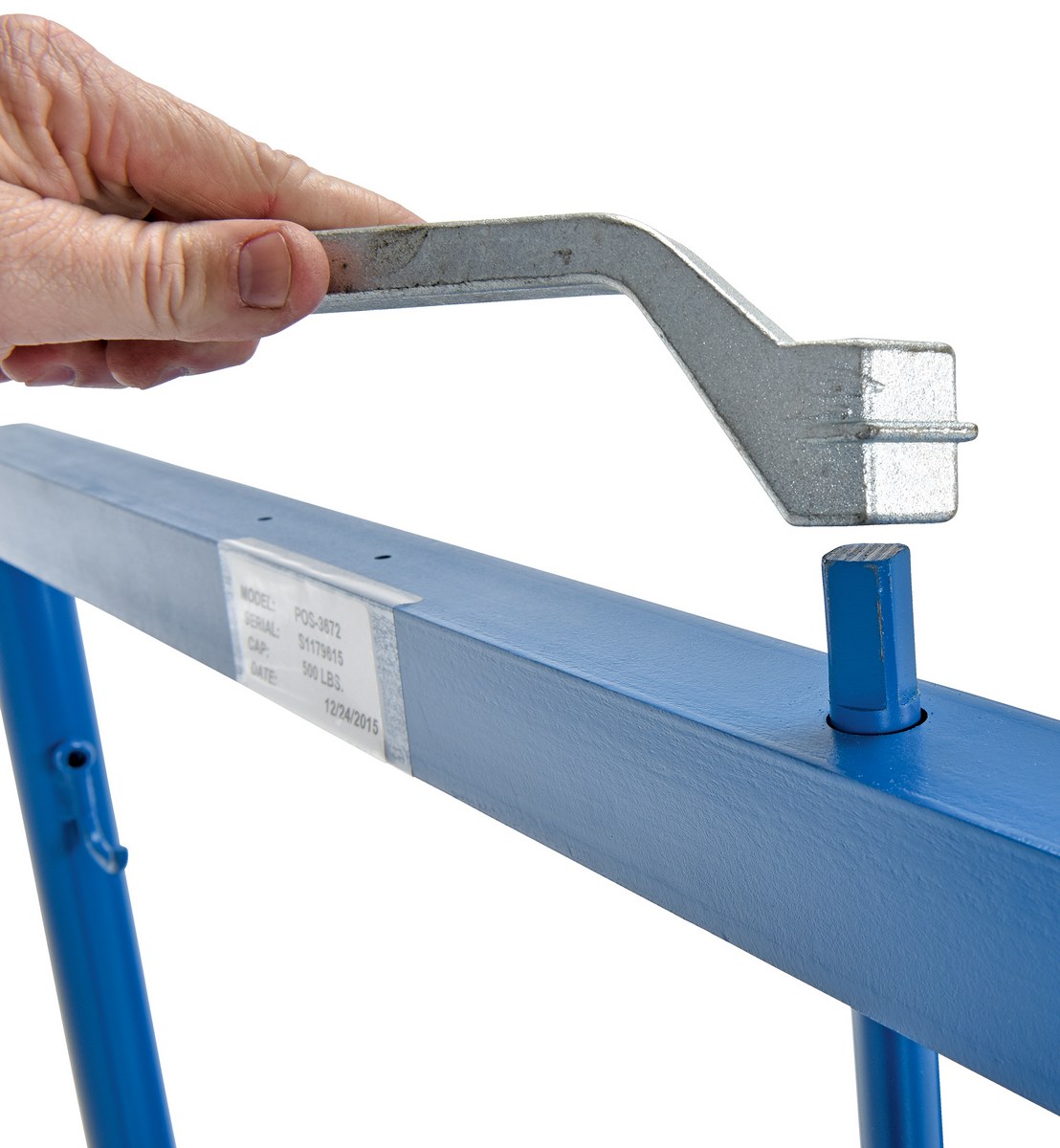

The Posi-Crank incorporates the use of acme threaded rods and a series of gears for simple yet effective height adjustment. A heavy duty chain is used in lieu of a belt to ensure a positive working height without risk of slippage. The crank handle may be removed and placed on the handle holder for maximizing the operating space. The deck is constructed of 1/8" steel tread plate for strength and the best traction. Maximum capacity is 500 pounds. Vertical travel range is 3" lowered to 19" raised. The Posi-Crank is constructed of steel to provide for years of service. The unit is painted blue, while the ergonomic anti-fatigue matting is also blue.

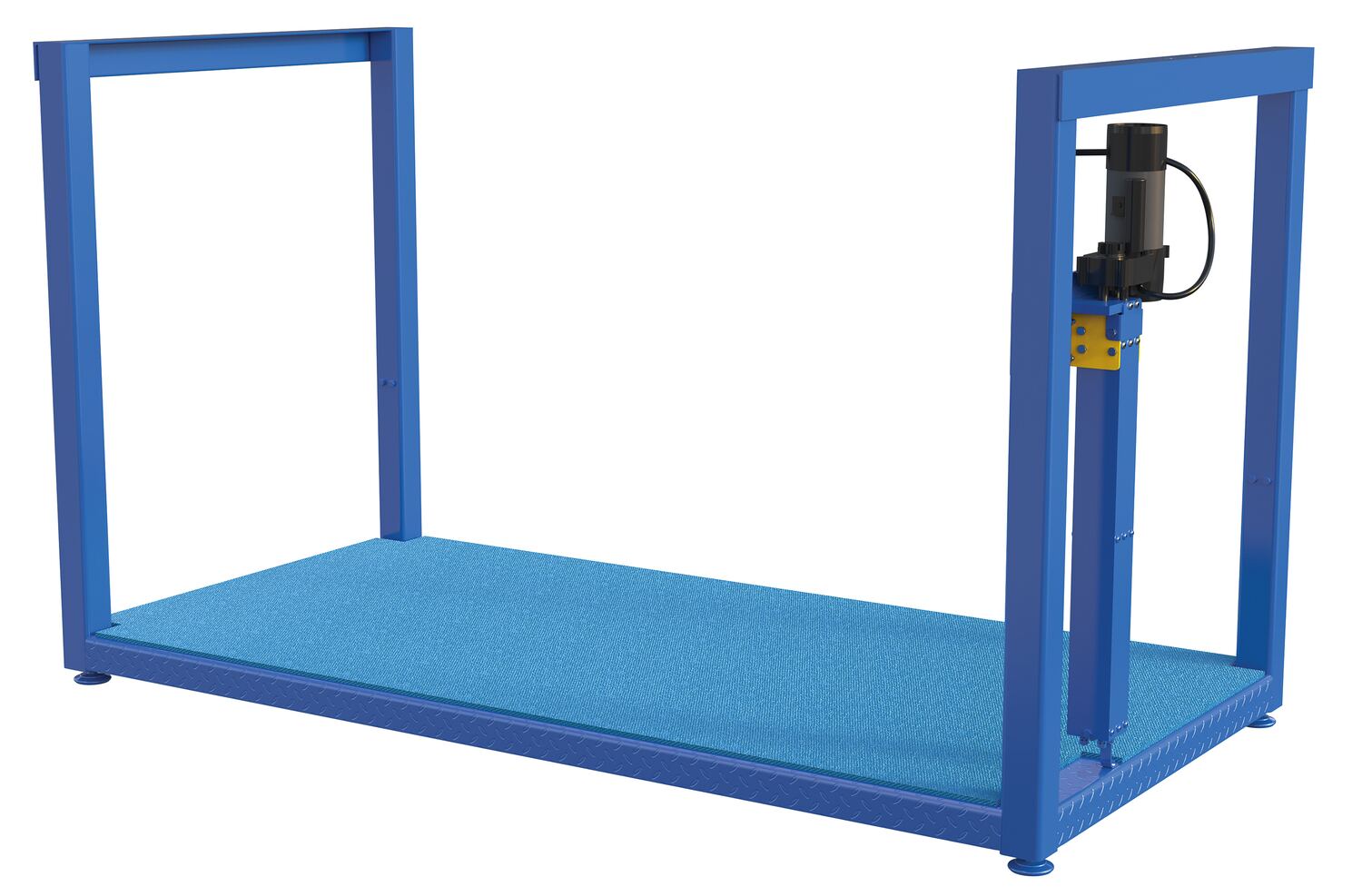

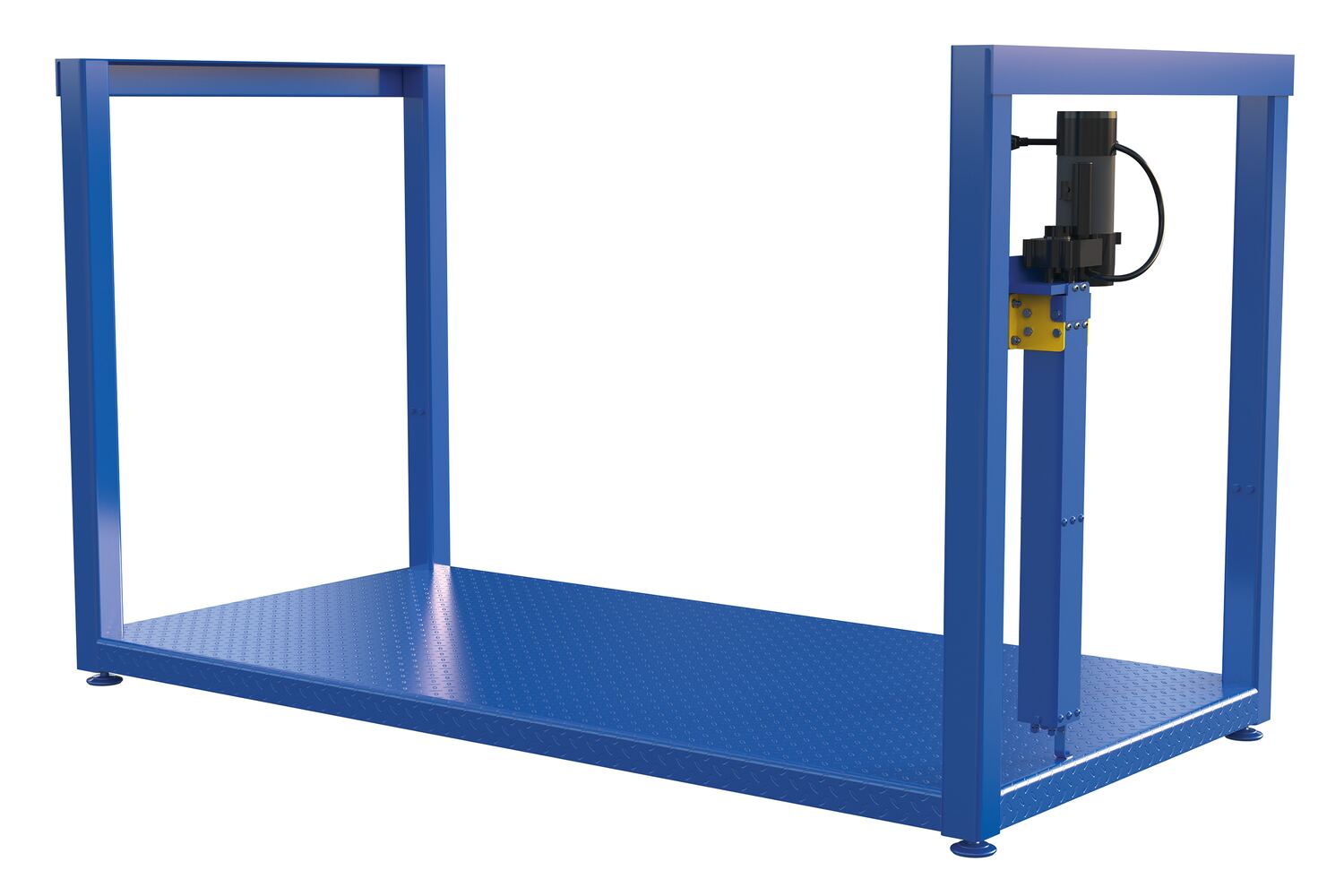

The electric hydraulic platform maintains the performance of the original manual crank version, but with increased user functionality. An electric version creates a more work friendly environment by minimizing manual labor. Raising and lowering personnel quickly and in a safe manner.
Ergonomic Lumbar Support Stand
Linearizer Electric Worker Platforms
Ergonomic Matting
Plastic Floor GridAdditional Models In This Family
POS-3672
POS-3636
POS-3636-EH-MAT
POS-3672-EH
POS-3672-EH
POS-3672-MAT
POS-3672
POS-3636-EH
POS-3636
POS-3648-EH
POS-3672-EH-MAT
POS-3672-EH-MAT
POS-3672
POS-3636-MAT
POS-3648
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

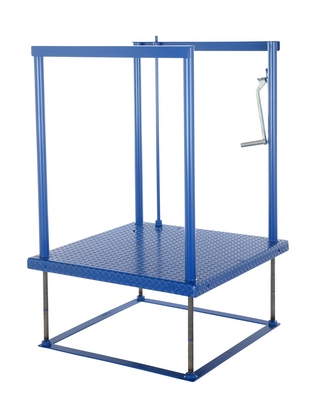

| POS-3636 | |  | 90 Days Limited Warranty | Steel Ergonomic Post-Crank Worker Platform 36 In. x 36 In. x 65-5/8 In. 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Platform Width (in.): 36 | 192 | |

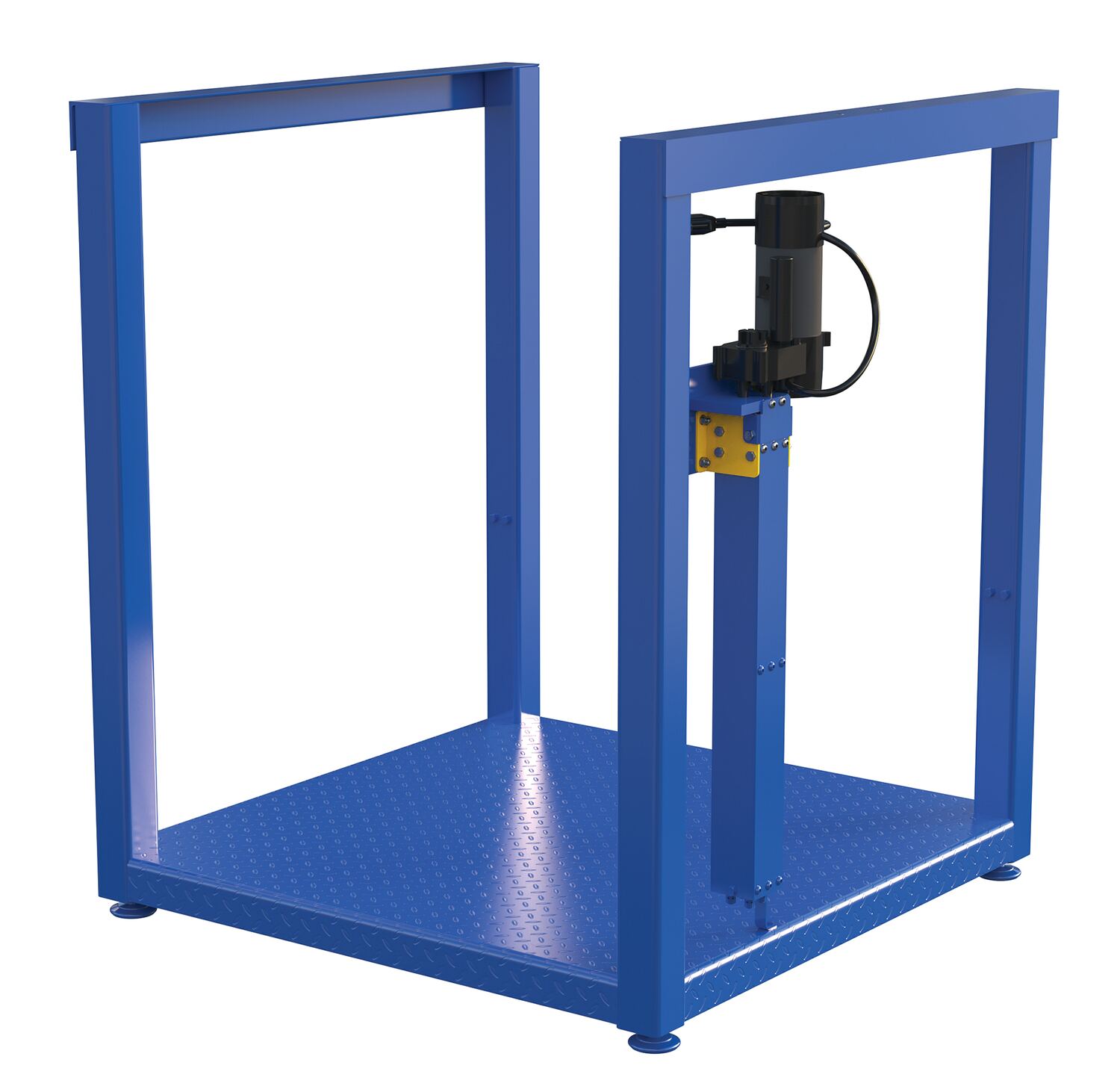

| POS-3636-EH | |  | 1 Year Limited Warranty | Steel Ergonomic Electric/Hydraulic Post-Crank Worker Platform 36-1/4 In. x 37-3/16 In. x 42-5/8 In. 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Platform Width (in.): 31 | 429 | |

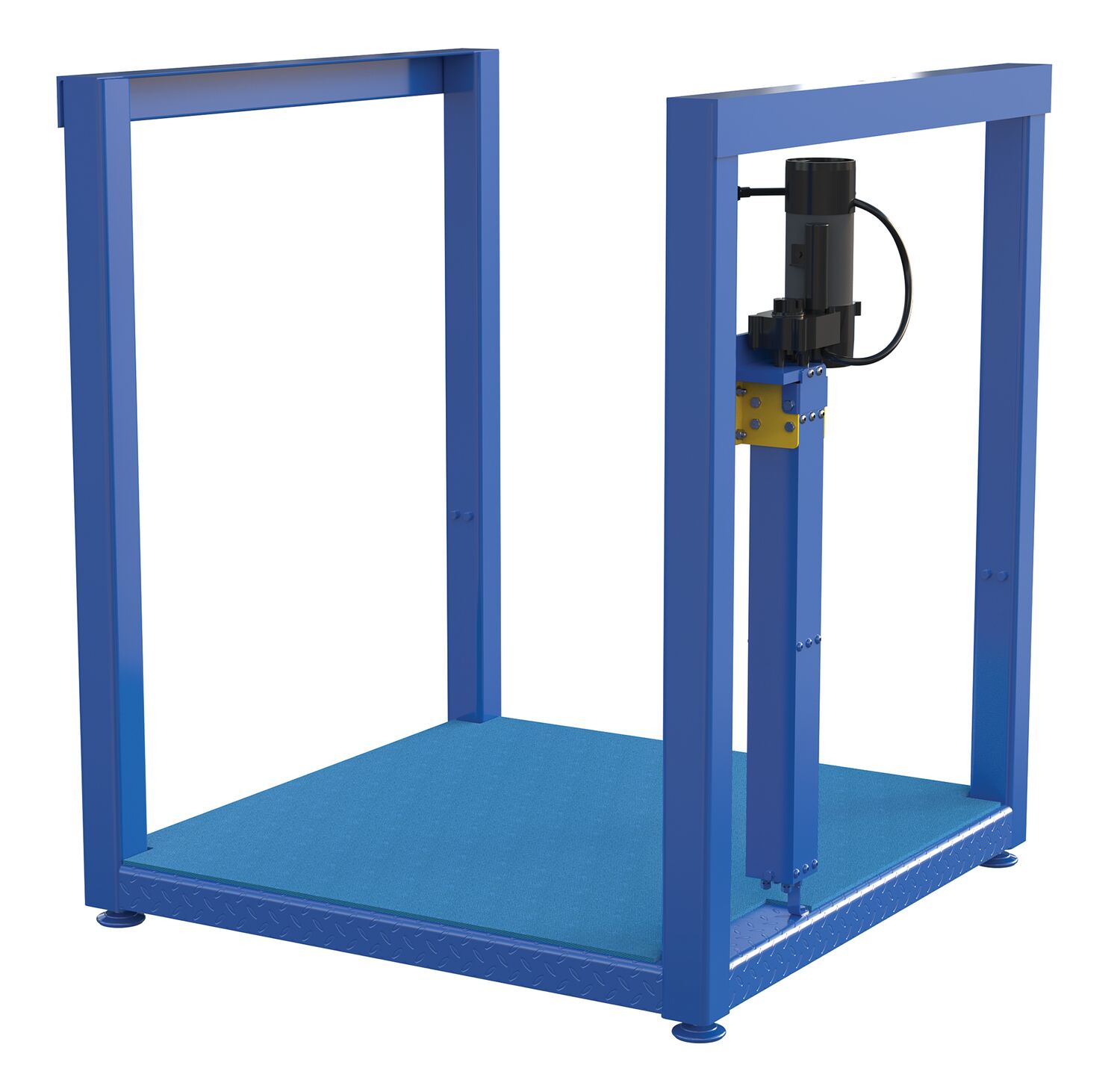

| POS-3636-EH-MAT | | | 1 Year Limited Warranty | Steel Ergonomic Electric/Hydraulic Post-Crank Worker Platform With Mat 36-1/4 In. x 37-3/16 In. x 42-5/8 In. 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Platform Width (in.): 31 | 431 | |

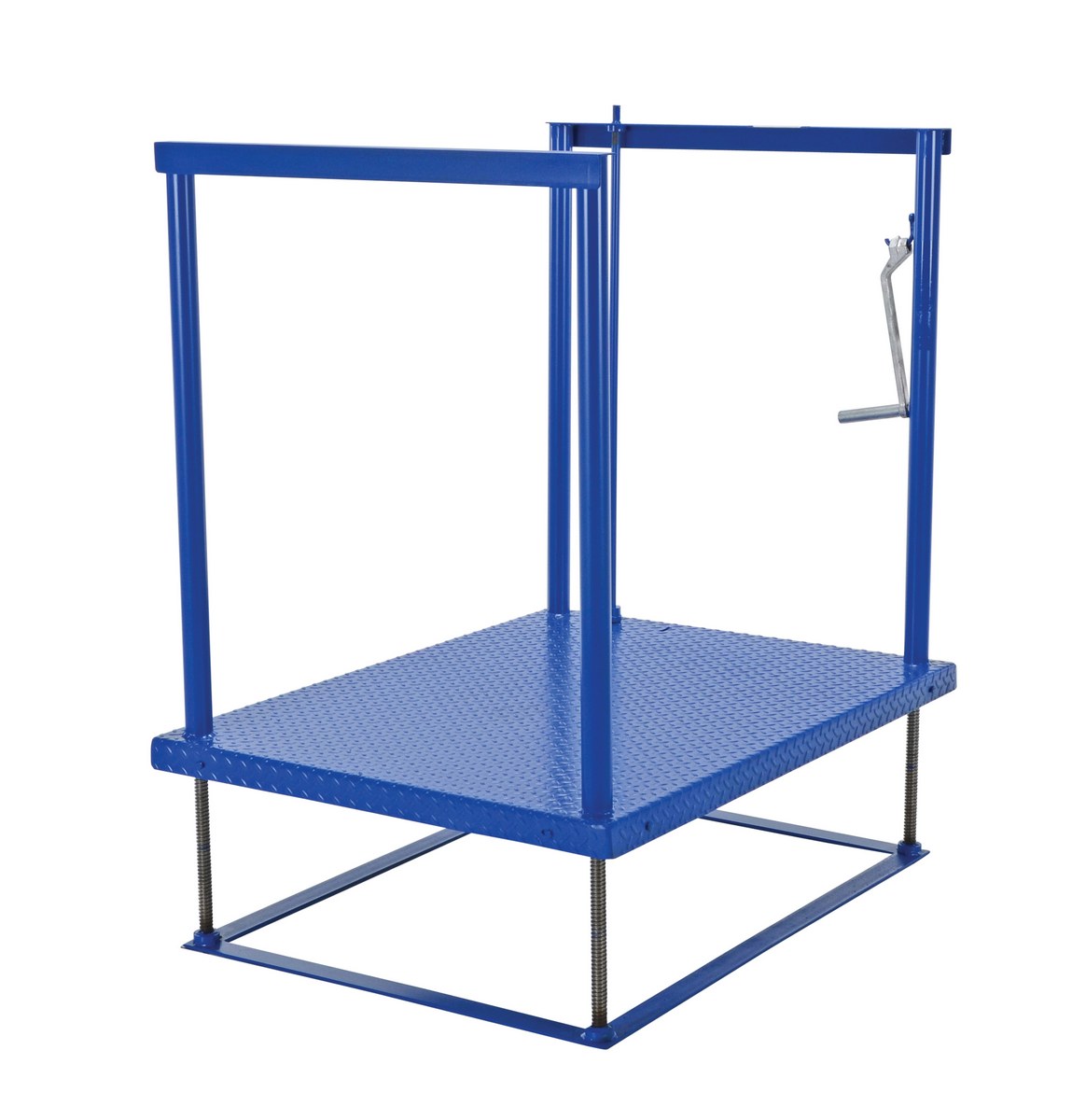

| POS-3648 | |  | 90 Days Limited Warranty | Steel Ergonomic Post-Crank Worker Platform 48 In. x 36 In. x 65-5/8 In. 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Platform Width (in.): 36 | 215 | |

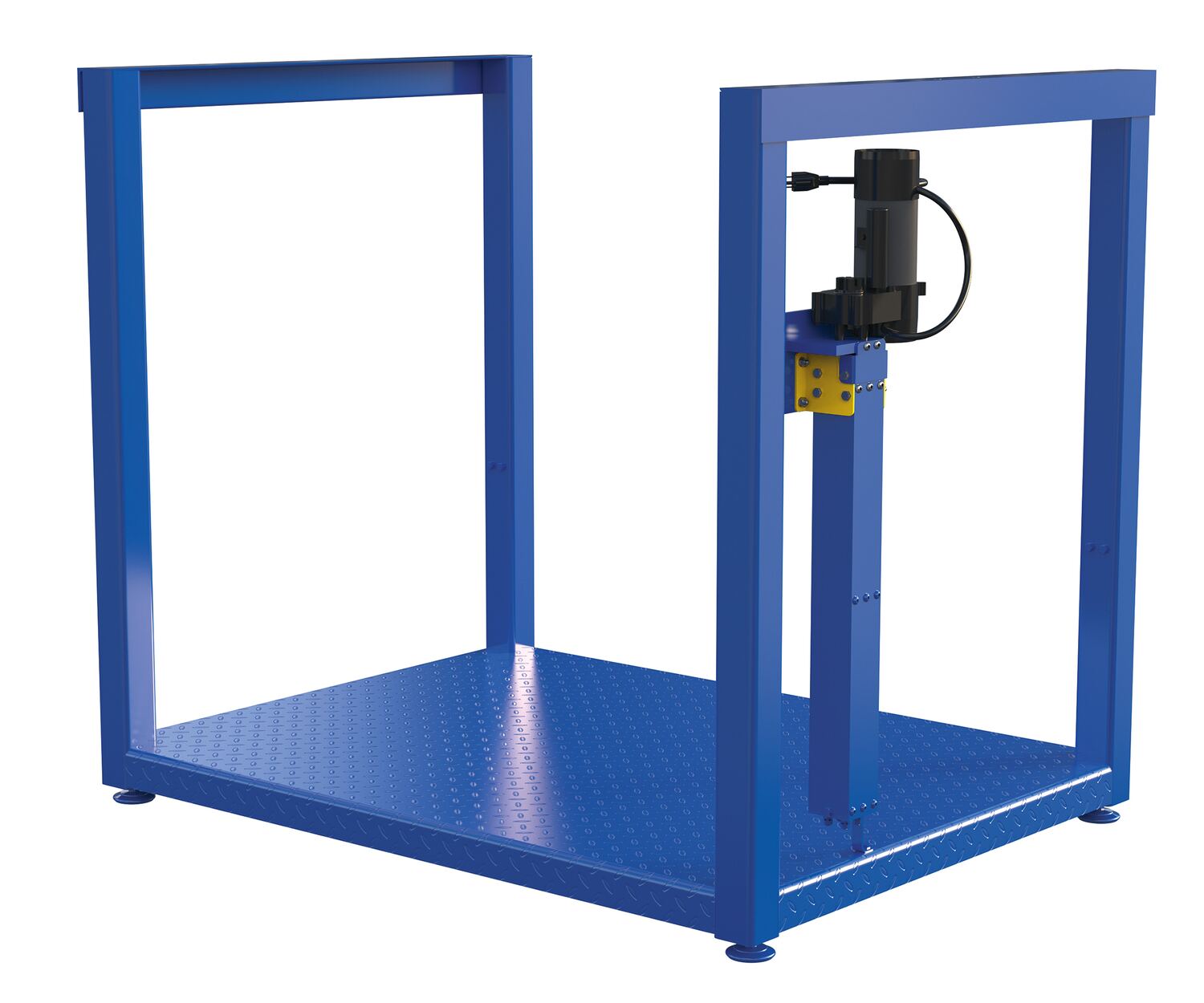

| POS-3648-EH | | | 1 Year Limited Warranty | Steel Ergonomic Electric/Hydraulic Post-Crank Worker Platform 36-1/4 In. x 49-3/16 In. x 42-5/8 In. 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Platform Width (in.): 43 | 472 | |

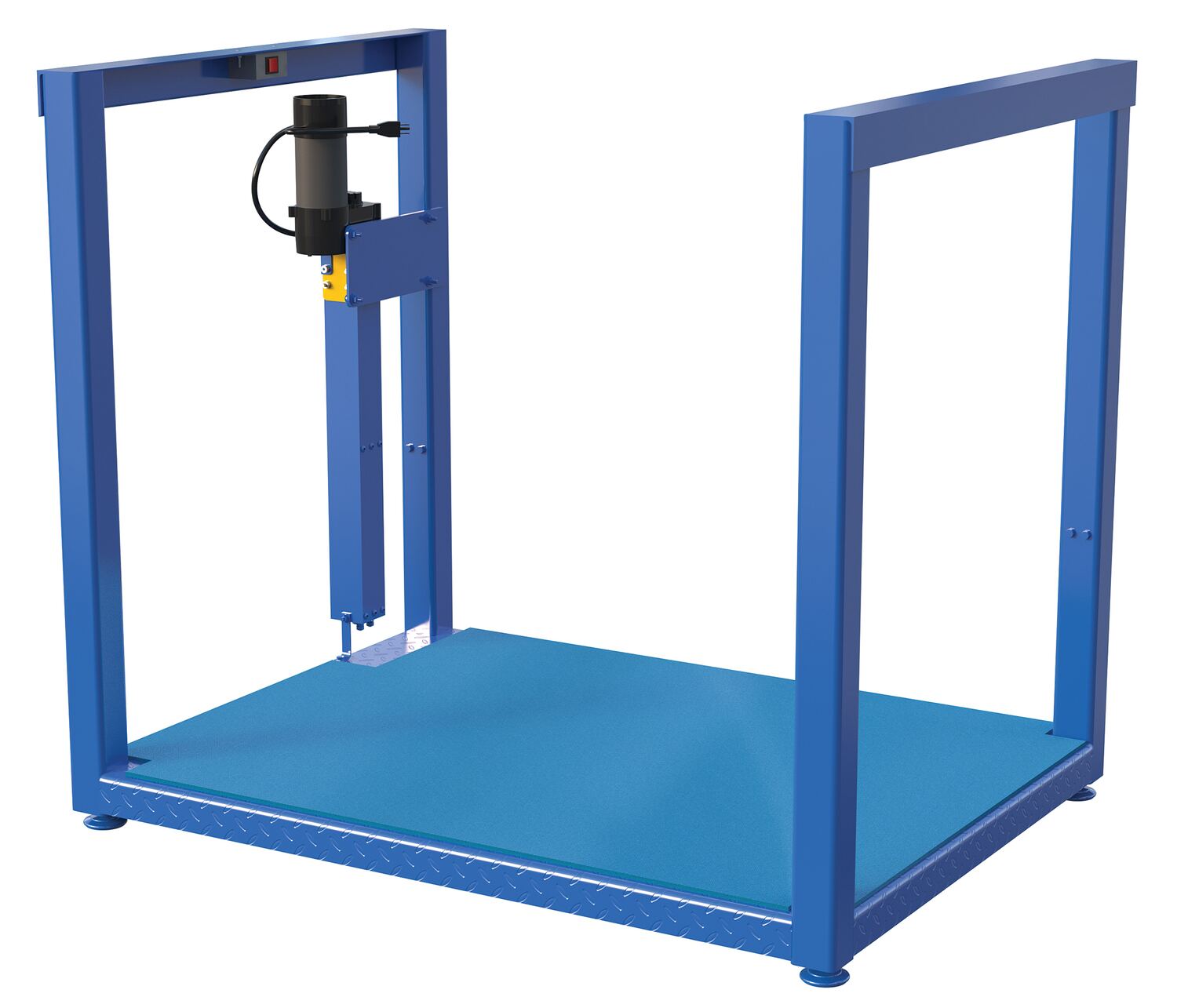

| POS-3648-EH-MAT | |  | 1 Year Limited Warranty | Steel Ergonomic Electric/Hydraulic Post-Crank Worker Platform With Mat 36-1/4 In. x 49-3/16 In. x 42-5/8 In. 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Platform Width (in.): 43 | 464 | |
| POS-3672 | |  | 90 Days Limited Warranty | Steel Ergonomic Post-Crank Worker Platform 72 In. x 36 In. x 65-5/8 In. 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Platform Width (in.): 36 | 403 | |
| POS-3672-EH | | | 1 Year Limited Warranty | Steel Ergonomic Electric/Hydraulic Post-Crank Worker Platform 36-1/4 In. x 73-3/16 In. x 39-1/4 In. 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Platform Width (in.): 67 | 528 | |
| POS-3672-EH-MAT | | | 1 Year Limited Warranty | Steel Ergonomic Electric/Hydraulic Post-Crank Worker Platform With Mat 36-1/4 In. x 73-3/16 In. x 39-1/4 In. 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Platform Width (in.): 67 | 540 | |

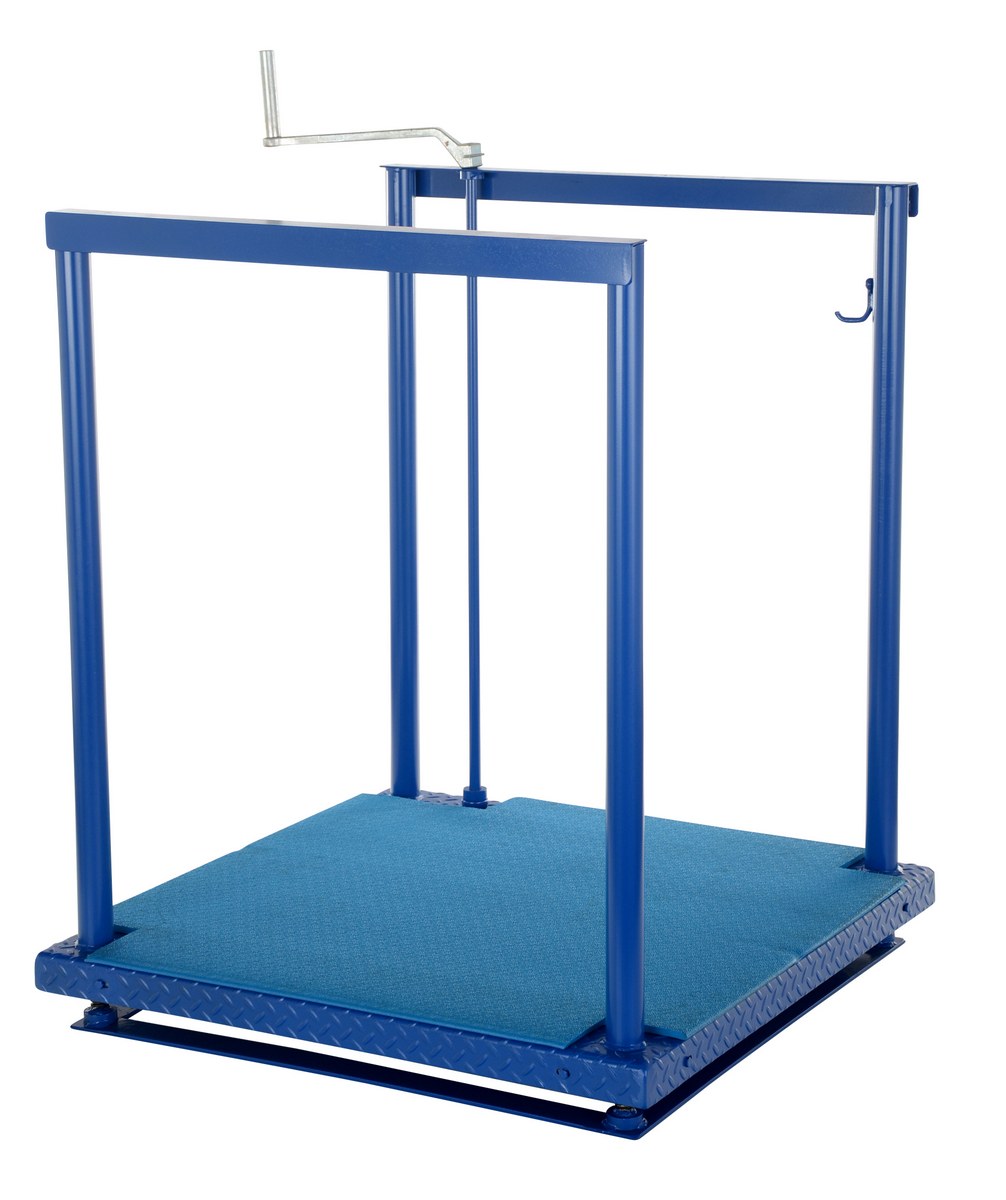

| POS-3636-MAT | | | 90 Days Limited Warranty | Steel Ergonomic Post-Crank Worker Platform With Mat 36 In. x 36 In. x 65-5/8 In. 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Platform Width (in.): 36 | 196 | |
| POS-3648-MAT | |  | 90 Days Limited Warranty | Steel Ergonomic Post-Crank Worker Platform With Mat 48 In. x 36 In. x 65-5/8 In. 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Platform Width (in.): 36 | 219 | |
| POS-3672-MAT | | | 90 Days Limited Warranty | Steel Ergonomic Post-Crank Worker Platform With Mat 72 In. x 36 In. x 65-5/8 In. 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Platform Width (in.): 36 | 432 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 36
Uniform Capacity (lb.): 500
Platform Width (in.): 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 31
Uniform Capacity (lb.): 500
Platform Width (in.): 31
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 31
Uniform Capacity (lb.): 500
Platform Width (in.): 31
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 36
Uniform Capacity (lb.): 500
Platform Width (in.): 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 43
Uniform Capacity (lb.): 500
Platform Width (in.): 43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 43
Uniform Capacity (lb.): 500
Platform Width (in.): 43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 36
Uniform Capacity (lb.): 500
Platform Width (in.): 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 67
Uniform Capacity (lb.): 500
Platform Width (in.): 67
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 67
Uniform Capacity (lb.): 500
Platform Width (in.): 67
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 36
Uniform Capacity (lb.): 500
Platform Width (in.): 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 36
Uniform Capacity (lb.): 500
Platform Width (in.): 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 36
Uniform Capacity (lb.): 500
Platform Width (in.): 36
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: How fast does model POS-3636-EH raise and lower?
A: Speed is approximately 3.5 seconds per inch, 55 seconds for 16"
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
