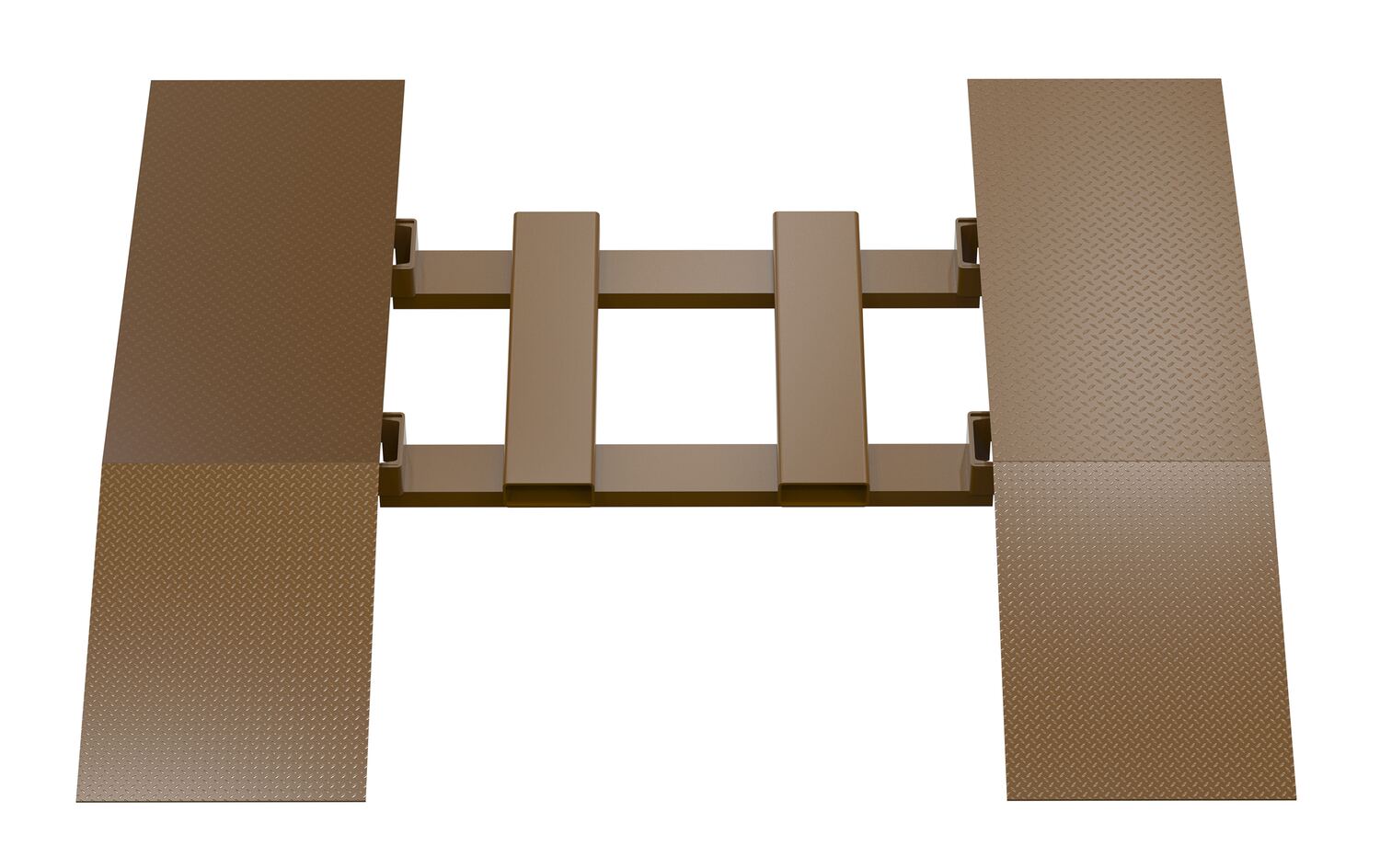

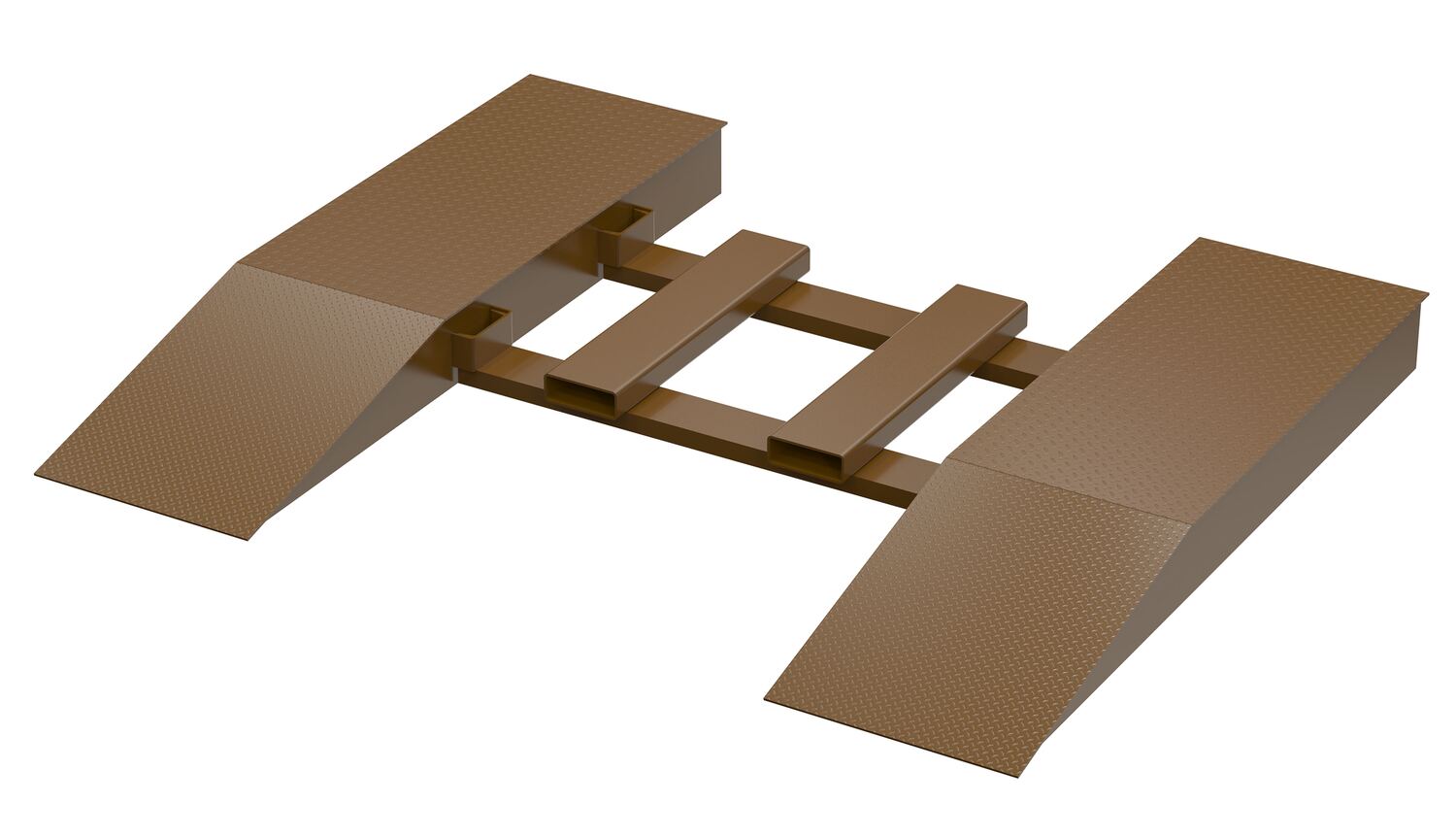

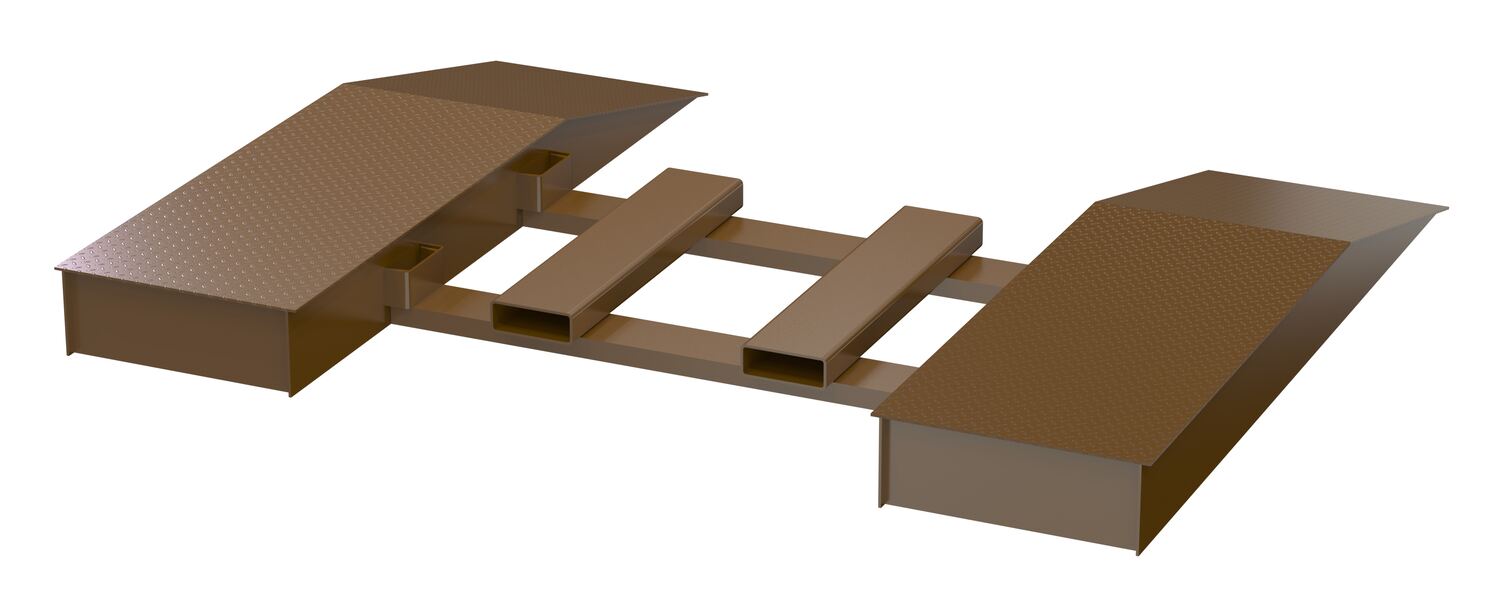

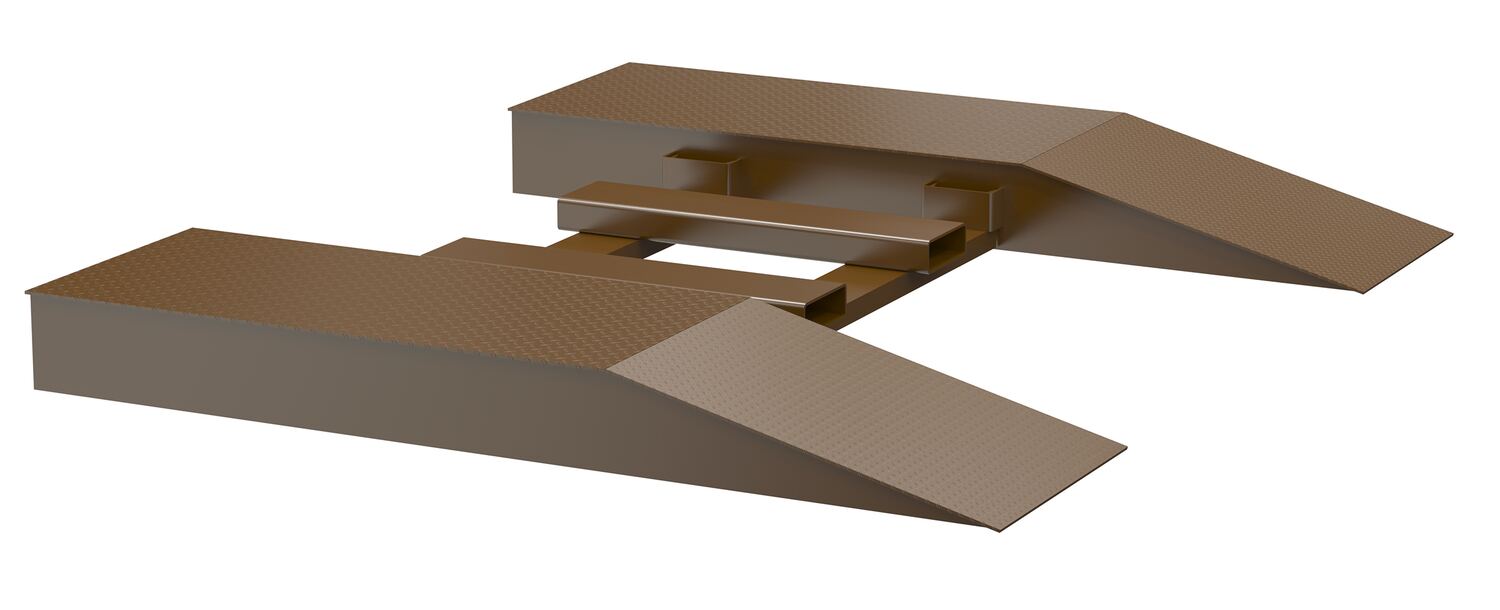

Steel Wheel Riser with Central Fork Pocket

model: SWR-CPL-24-8-84

More Images +

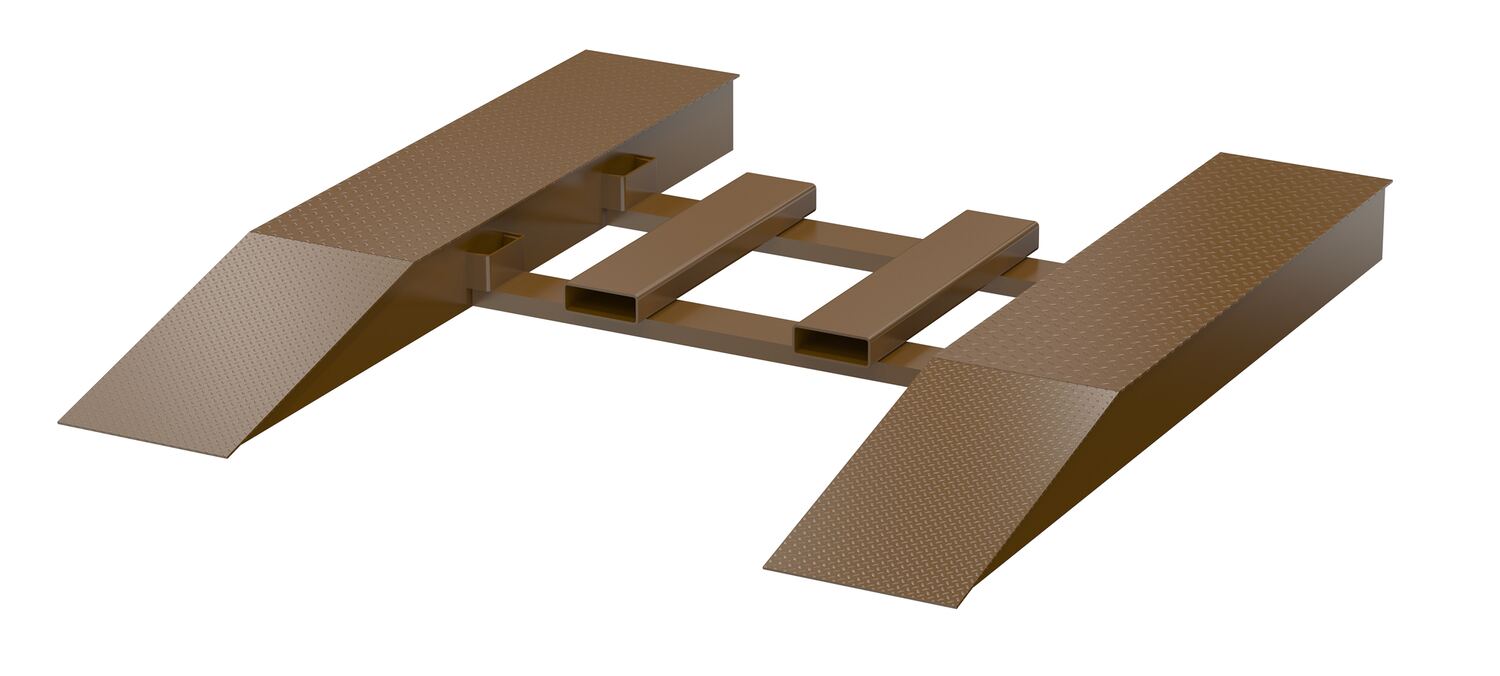

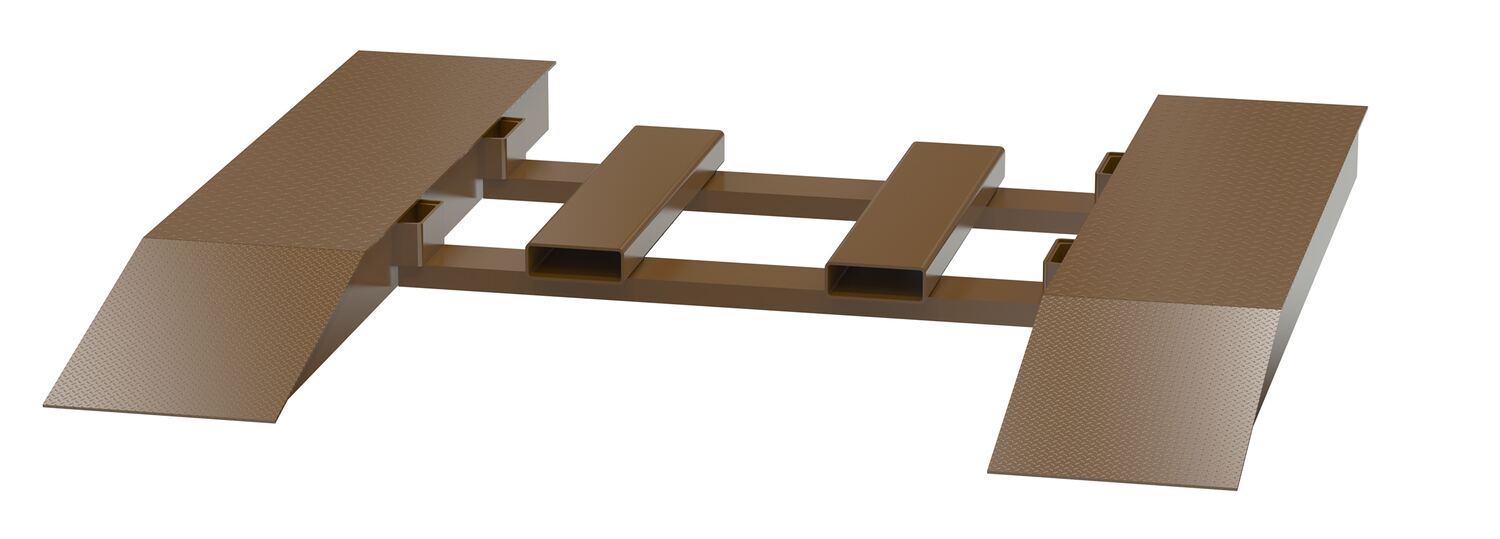

Steel Wheel Riser with Central Fork Pocket

SERIES: SWR-CPL

The Steel Wheel Riser with Central Fork Pocket is equipped with fork slots for ease in fork truck transporting. Wheel Risers are designed to raise the trailer for loading and unloading to facilitate compliance with OSHA/ANSI B56.1 part 3 sec 7 requirements for maximum grade of ascending or descending loaded fork trucks. Made of heavy-duty welded steel with a uniform capacity per pair is 40,000 lbs. Ramps may be stacked for compact storage when not in use.

Built-in fork pocket loop
Raised diamond tread plate surface provides a non-slip grip
24" fork pocket center
1/4" thick material

See our Aluminum Wheel Risers

See Our Standard Steel Wheel Risers

Steel Wheel Riser with Central Fork Pocket

model: SWR-CPL-24-8-84

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

PDFs will open in a new window when clicked.

Manuals

No Owners Manuals For This Product

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

SWR-CPL-24-12-108

SWR-CPL-24-12-96

SWR-CPL-24-12-84

SWR-CPL-24-12-72

SWR-CPL-24-10-96

SWR-CPL-24-10-84

SWR-CPL-24-10-72

SWR-CPL-24-10-60

SWR-CPL-24-8-96

SWR-CPL-24-8-84

SWR-CPL-24-8-72

SWR-CPL-24-8-60

SWR-CPL-24-6-84

SWR-CPL-24-6-72

SWR-CPL-24-6-60

SWR-CPL-24-6-48

SWR-CPL-18-6-48

SWR-CPL-18-6-60

SWR-CPL-18-6-72

SWR-CPL-18-6-84

SWR-CPL-18-8-60

SWR-CPL-18-8-72

SWR-CPL-18-8-84

SWR-CPL-18-8-96

SWR-CPL-18-10-60

SWR-CPL-18-10-72

SWR-CPL-18-10-84

SWR-CPL-18-10-96

SWR-CPL-18-12-72

SWR-CPL-18-12-84

SWR-CPL-18-12-96

SWR-CPL-18-12-108

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDFs

Steel Wheel Riser w/ Central Fork Pocket Mailing Brochure

Applications

Trucking Companies

Moving Companies

Cold Environments

Farming and Agriculture

Municipalities

Print Friendly

Related or Similar Products:

Steel Wheel Riser with Central...

Built-in fork pocket loop
Raised diamond tread plate surface provides a non-slip grip
24" fork pocket center
1/4" thick material

See our Aluminum Wheel Risers

See Our Standard Steel Wheel Risers

Model #	Description	Attributes	Net Wt. (lbs)

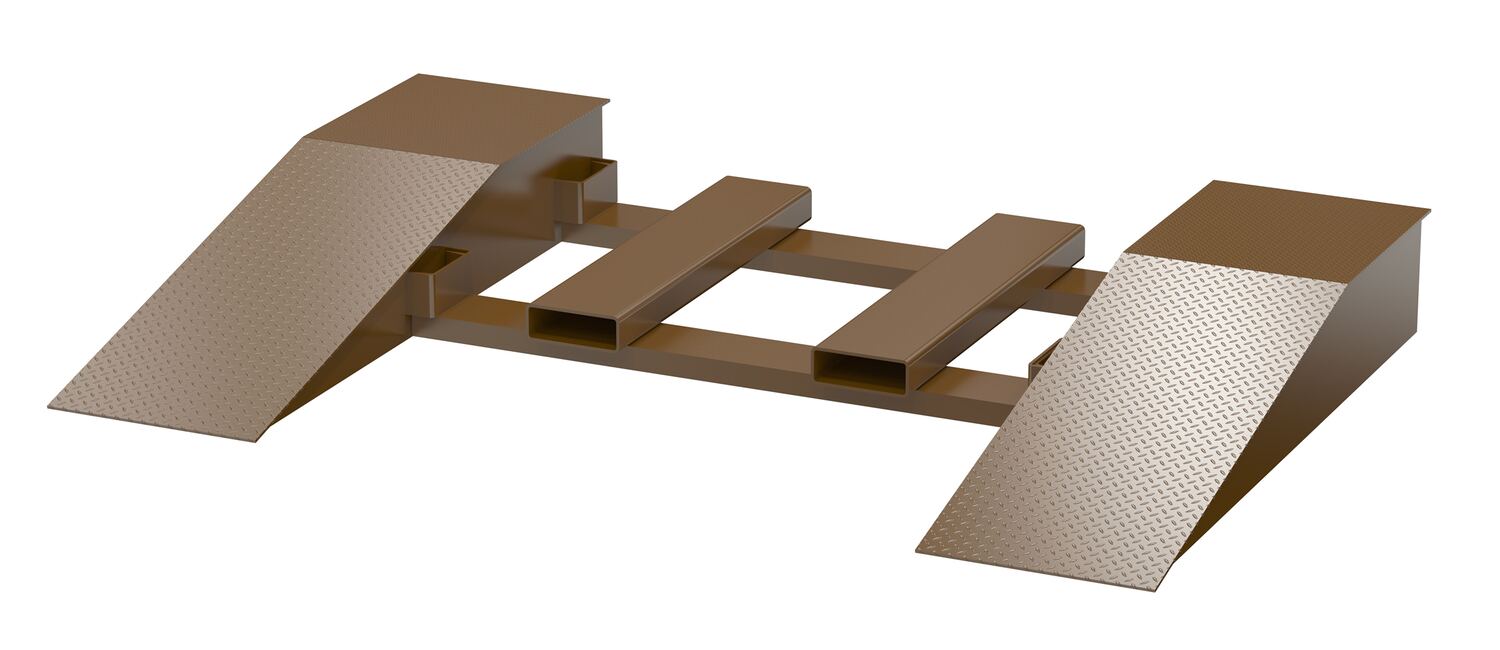

SWR-CPL-18-10-60	Steel Wheel Risers With Pick-Up Loop 60 In. x 18 In. x 10-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 60.0625	576

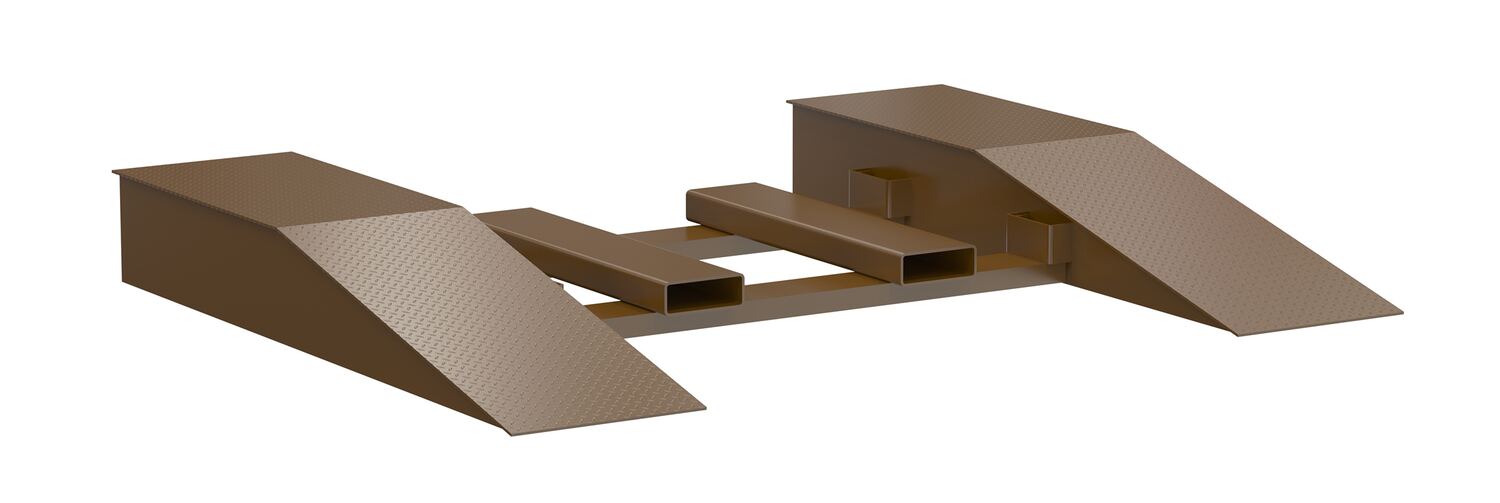

SWR-CPL-18-10-72	Steel Wheel Risers With Pick-Up Loop 72 In. x 18 In. x 10-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 72.0625	663

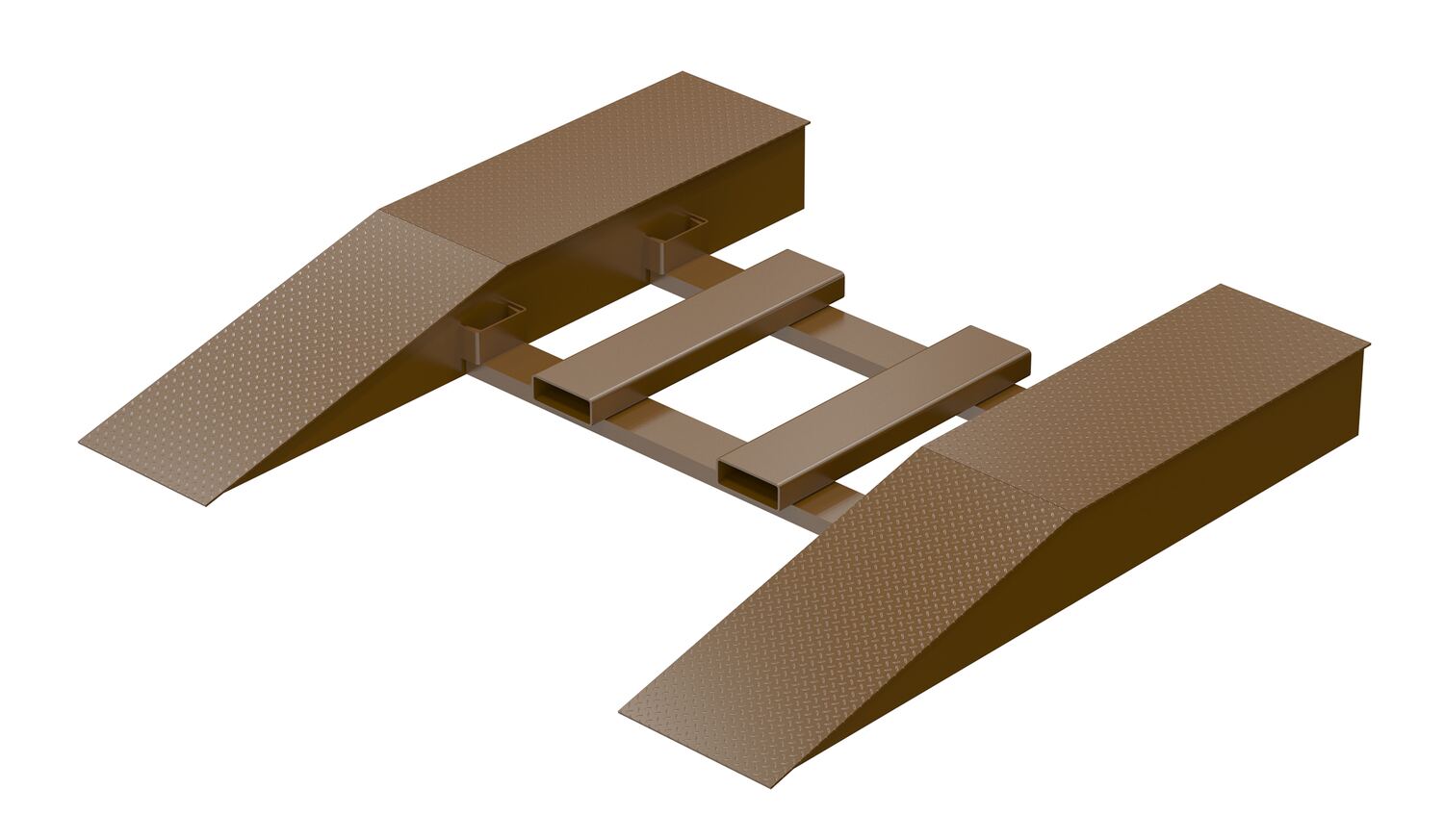

SWR-CPL-18-10-84	Steel Wheel Risers With Pick-Up Loop 84 In. x 18 In. x 10-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 84.0625	728
SWR-CPL-18-10-96	Steel Wheel Risers With Pick-Up Loop 96 In. x 18 In. x 10-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 96.0625	830

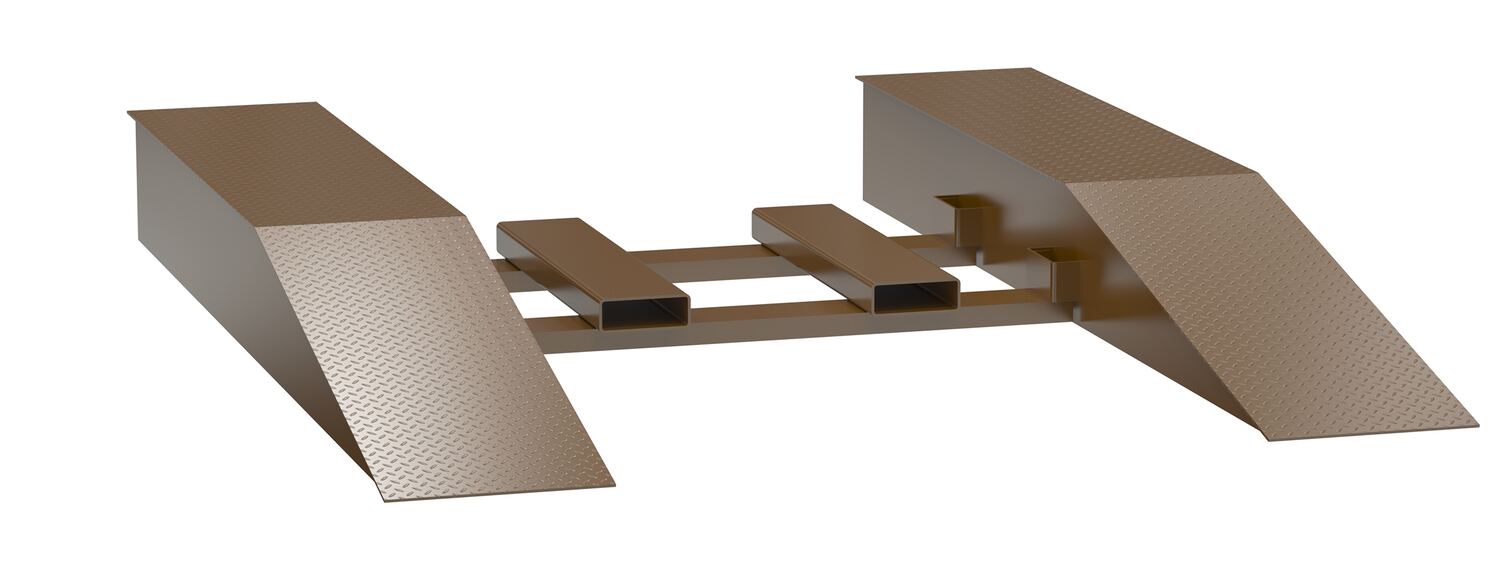

SWR-CPL-18-12-108	Steel Wheel Risers With Pick-Up Loop 108 In. x 18 In. x 12-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 108.0625	958

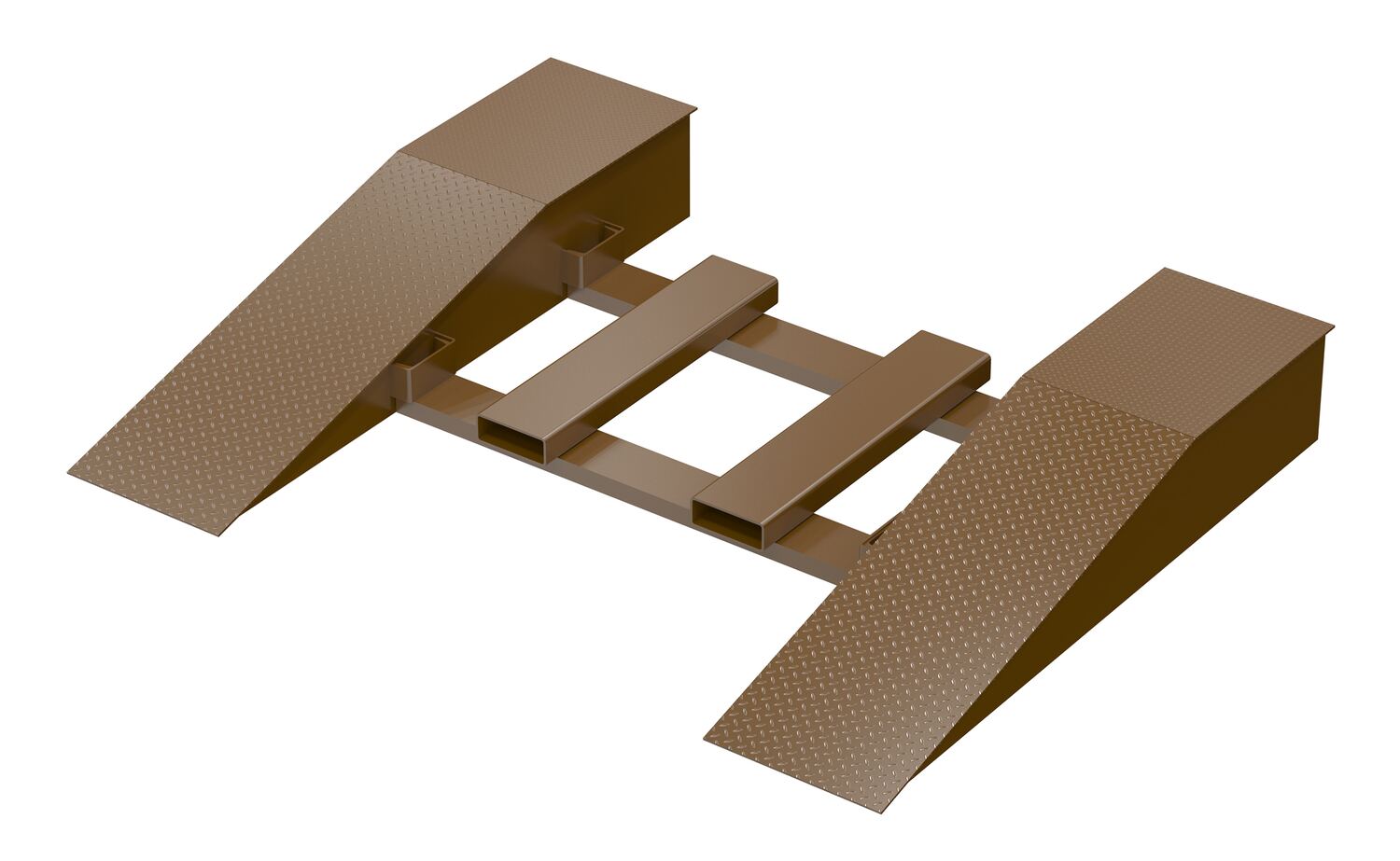

SWR-CPL-18-12-72	Steel Wheel Risers With Pick-Up Loop 72 In. x 18 In. x 12-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 72.0625	675

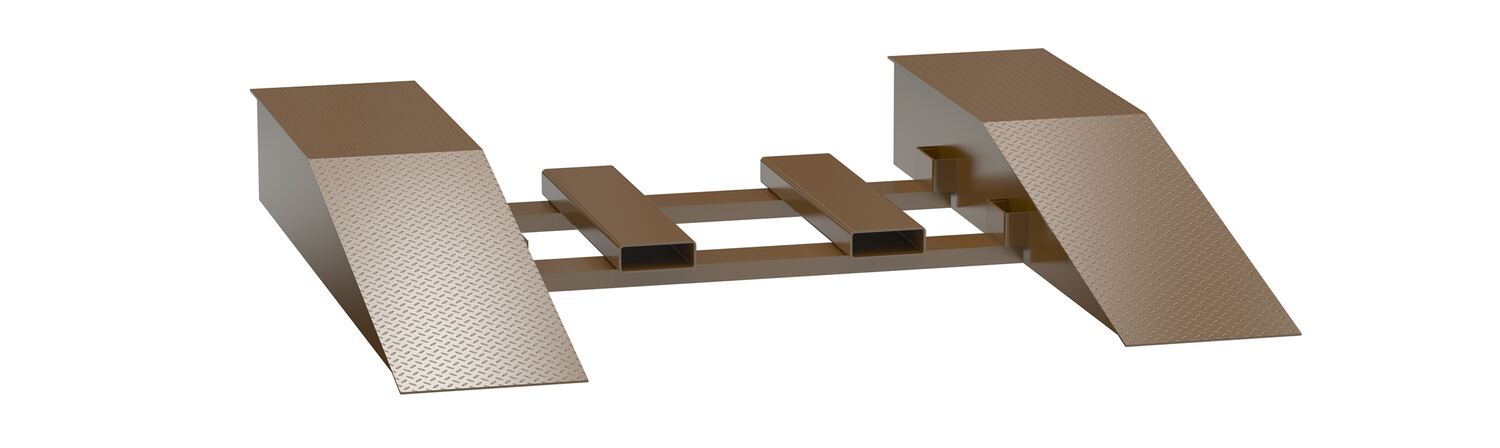

SWR-CPL-18-12-84	Steel Wheel Risers With Pick-Up Loop 84 In. x 18 In. x 12-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 84.0625	774

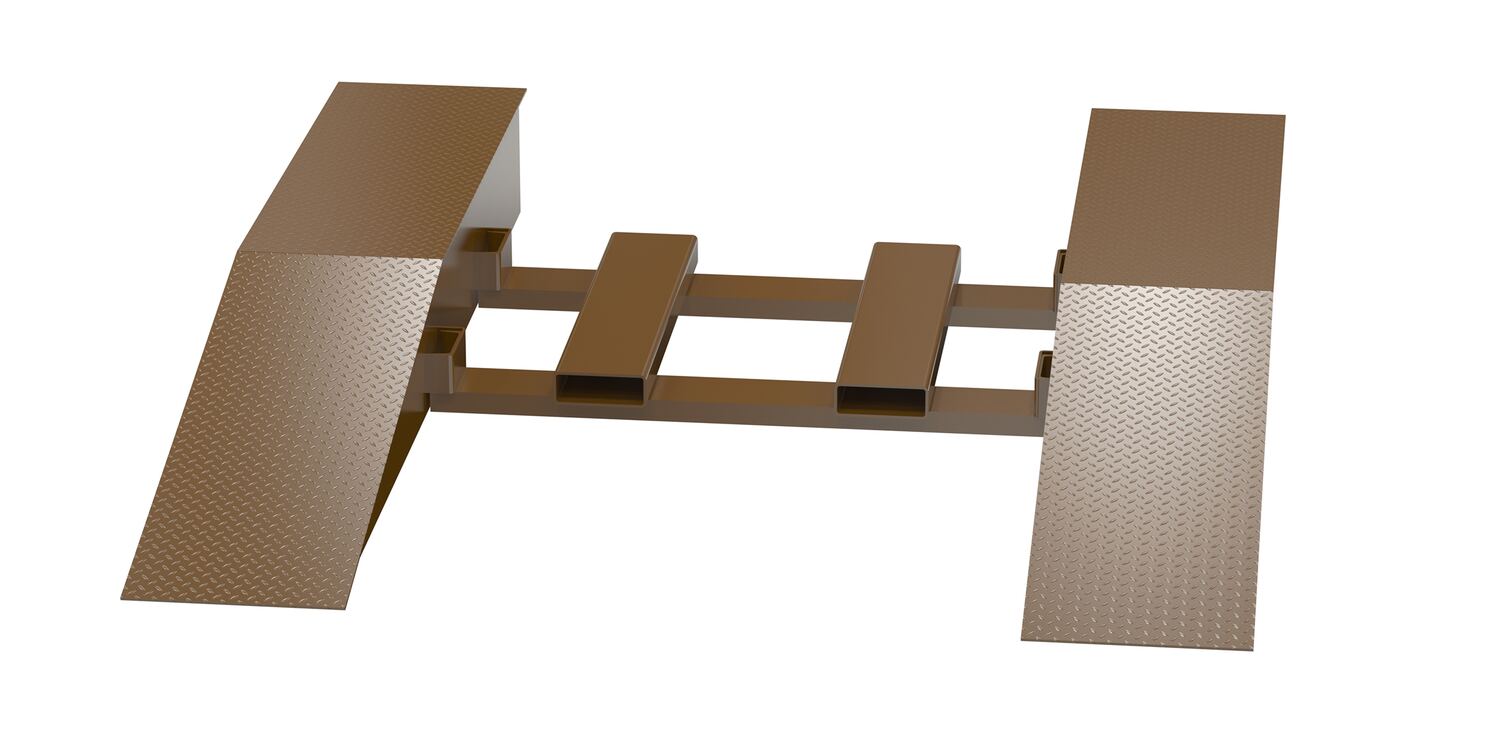

SWR-CPL-18-12-96	Steel Wheel Risers With Pick-Up Loop 96 In. x 18 In. x 12-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 96.0625	855

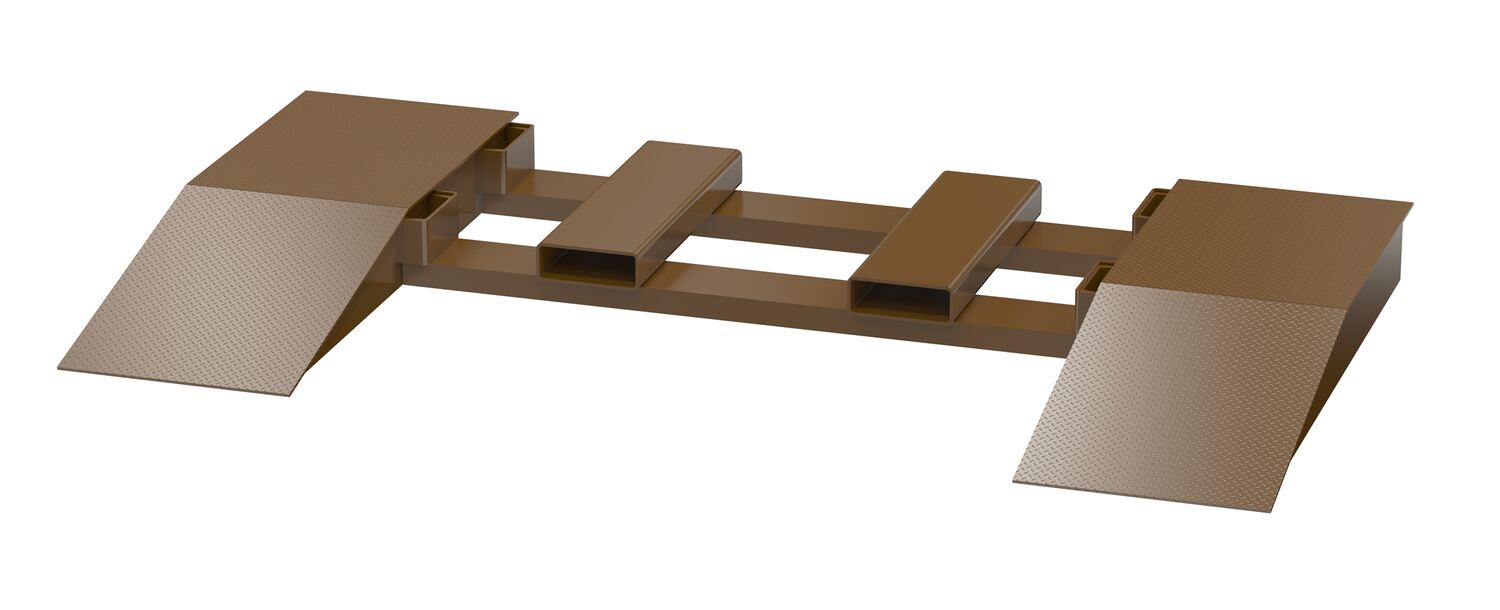

SWR-CPL-18-6-48	Steel Wheel Risers With Pick-Up Loop 48 In. x 18 In. x 6-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 48.0625	428

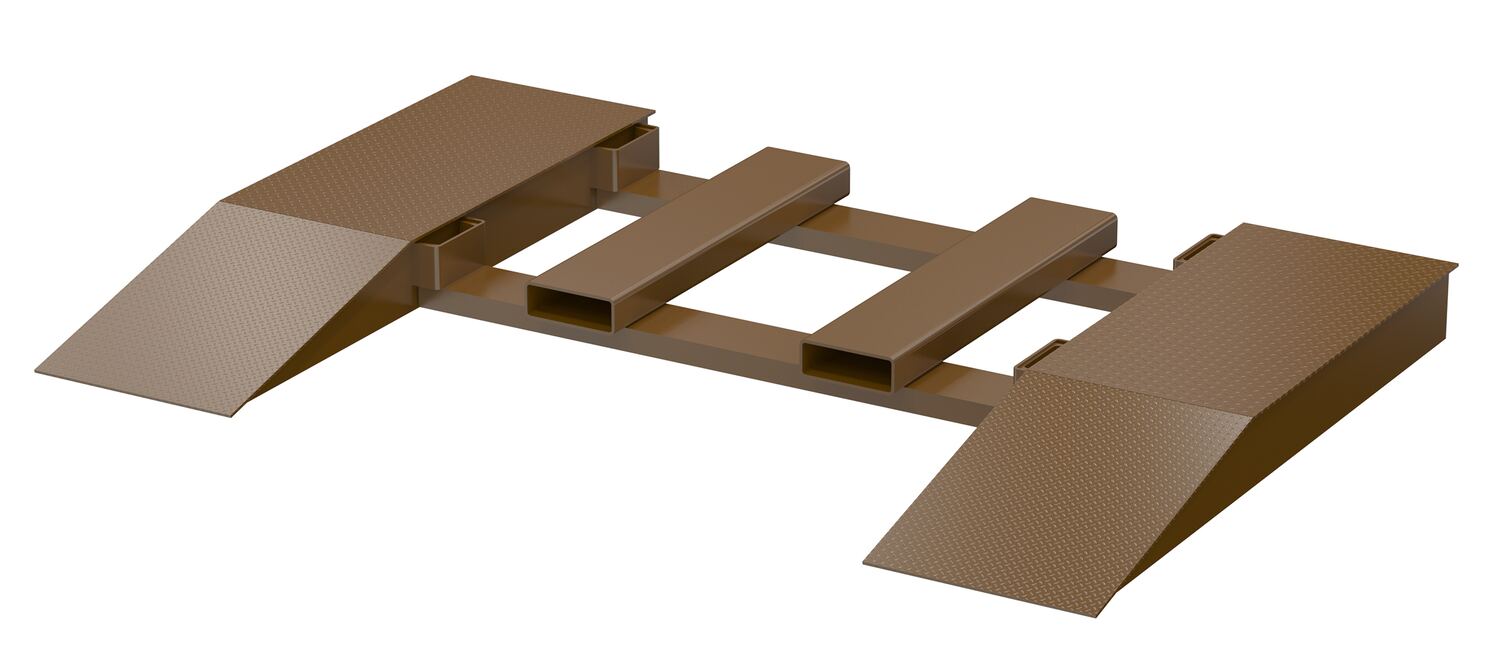

SWR-CPL-18-6-60	Steel Wheel Risers With Pick-Up Loop 60 In. x 18 In. x 6-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 60.0625	525

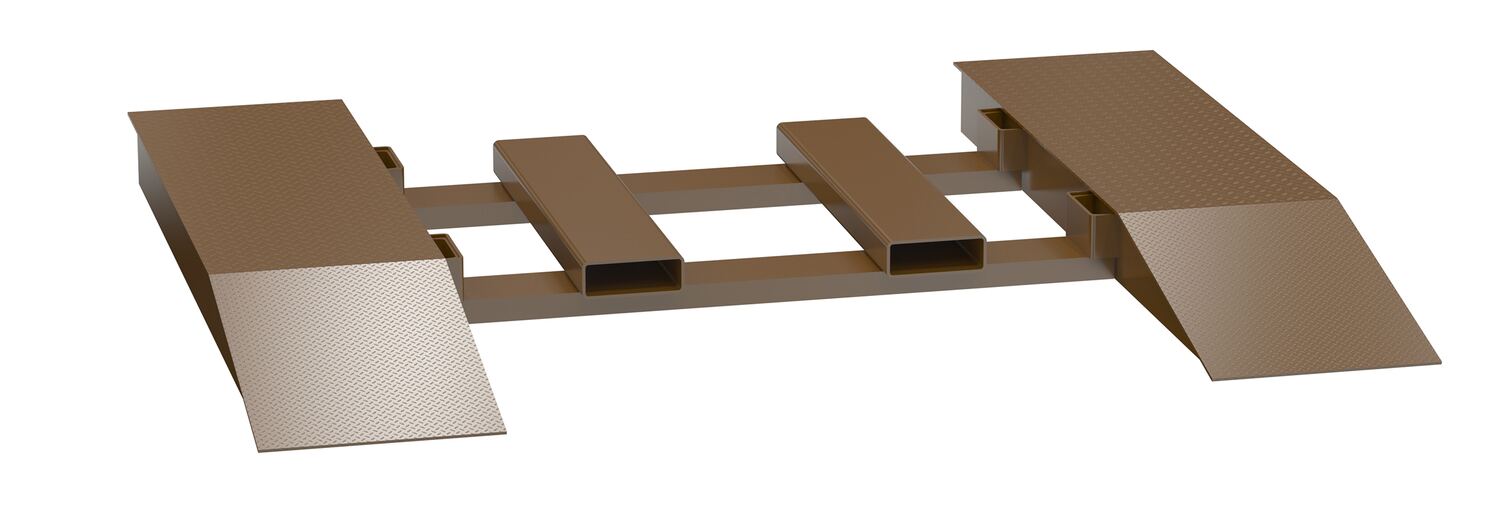

SWR-CPL-18-6-72	Steel Wheel Risers With Pick-Up Loop 72 In. x 18 In. x 6-1/2 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 72.0625	576
SWR-CPL-18-6-84	Steel Wheel Risers With Pick-Up Loop 84 In. x 18 In. x 6-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 84.0625	645

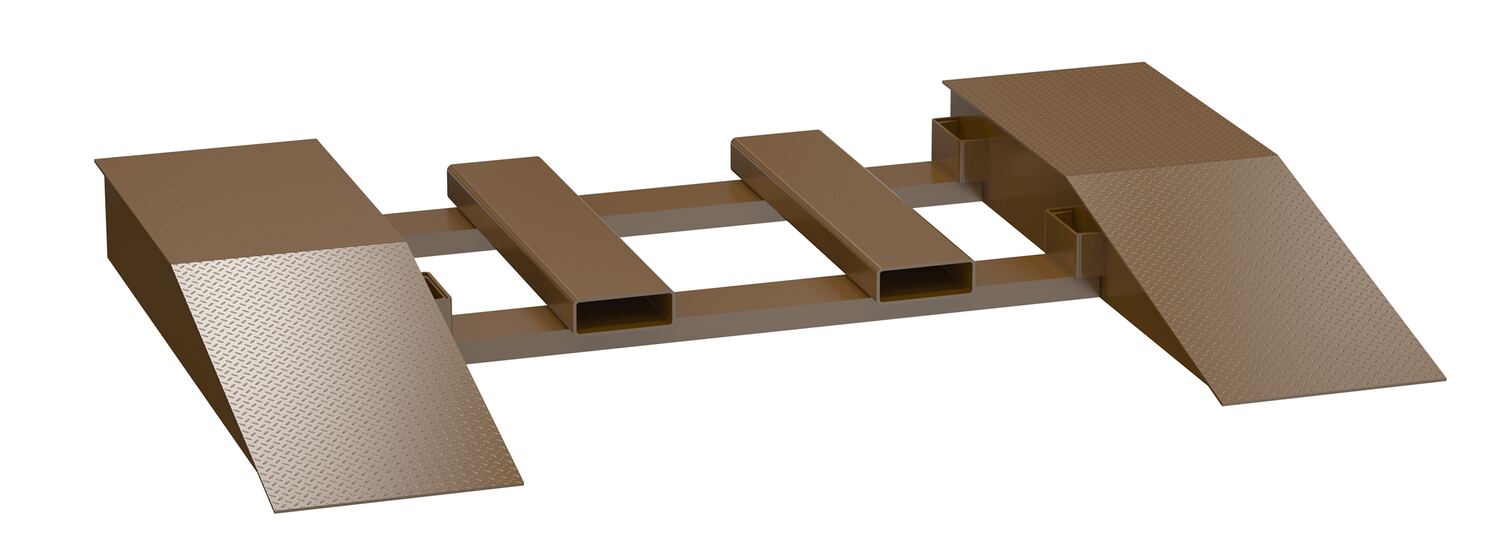

SWR-CPL-18-8-60	Steel Wheel Risers With Pick-Up Loop 60 In. x 18 In. x 8-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 60.0625	557

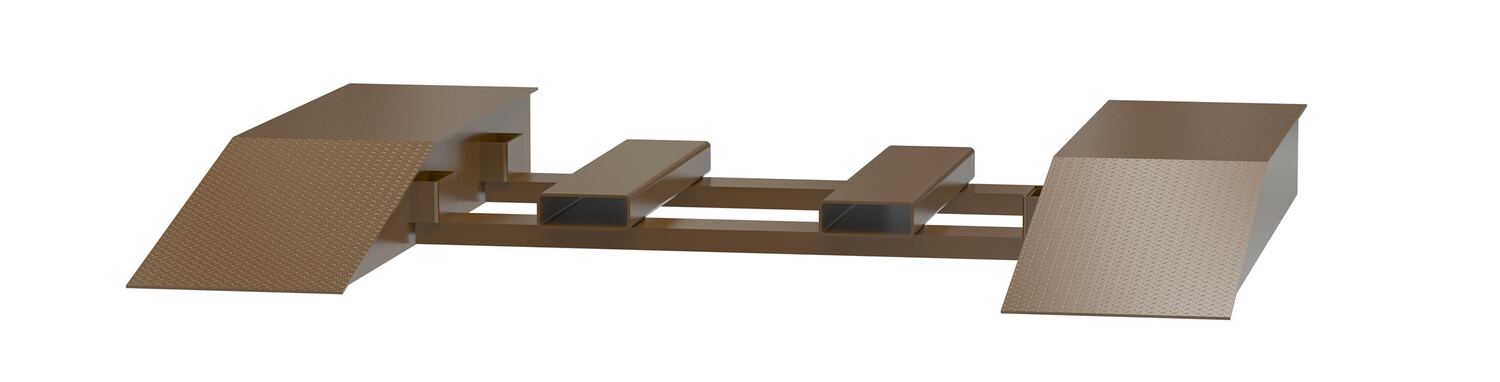

SWR-CPL-18-8-72	Steel Wheel Risers With Pick-Up Loop 72 In. x 18 In. x 8-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 72.0625	615

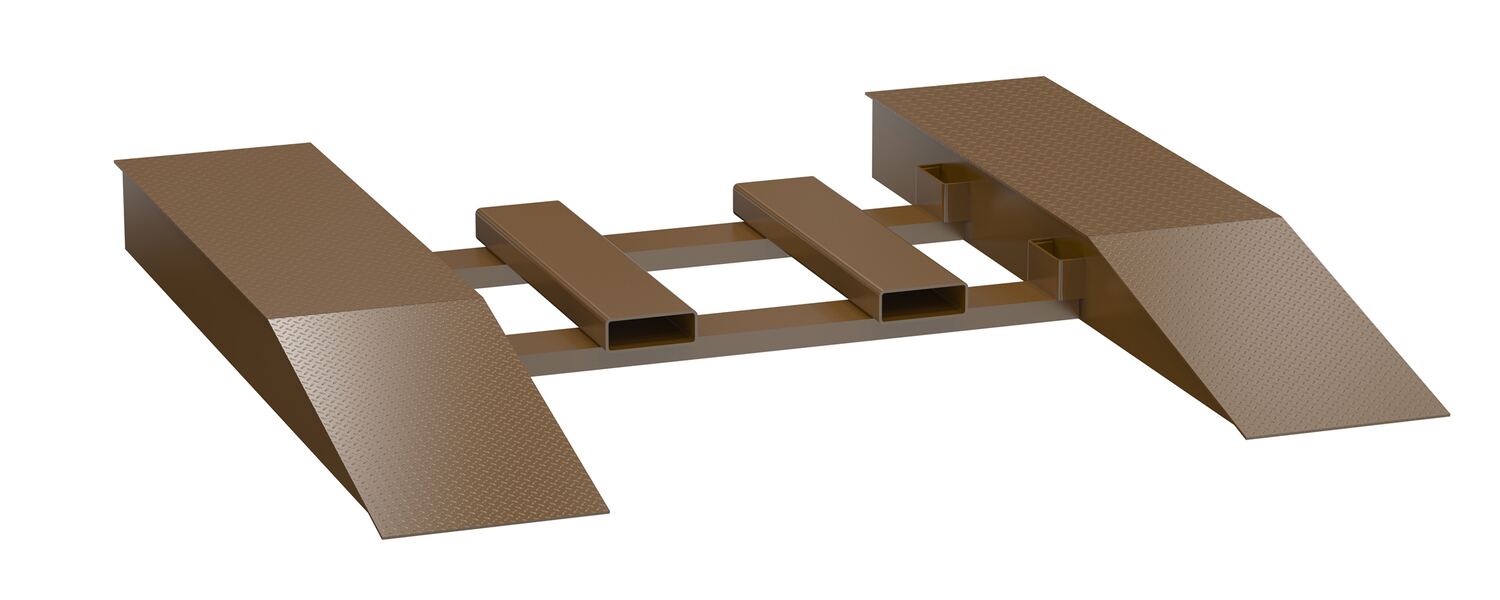

SWR-CPL-18-8-84	Steel Wheel Risers With Pick-Up Loop 84 In. x 18 In. x 8-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 84.0625	696
SWR-CPL-18-8-96	Steel Wheel Risers With Pick-Up Loop 96 In. x 18 In. x 8-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 96.0625	764

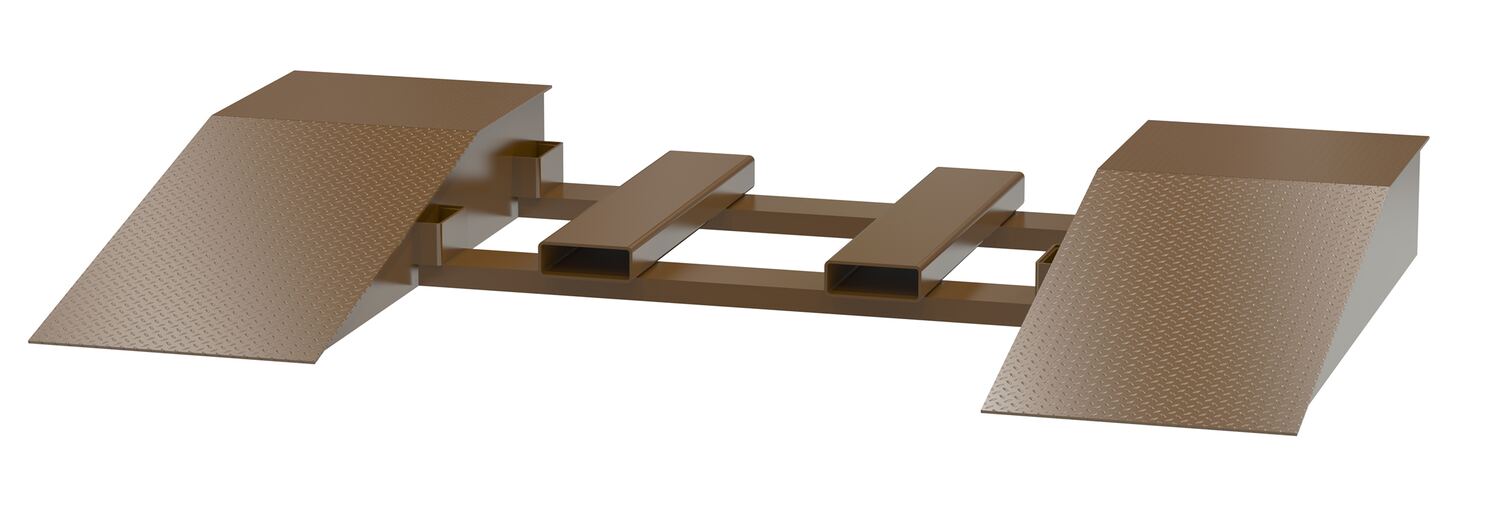

SWR-CPL-24-10-60	Steel Wheel Risers With Pick-Up Loop 60 In. x 24 In. x 10-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 60.0625	654

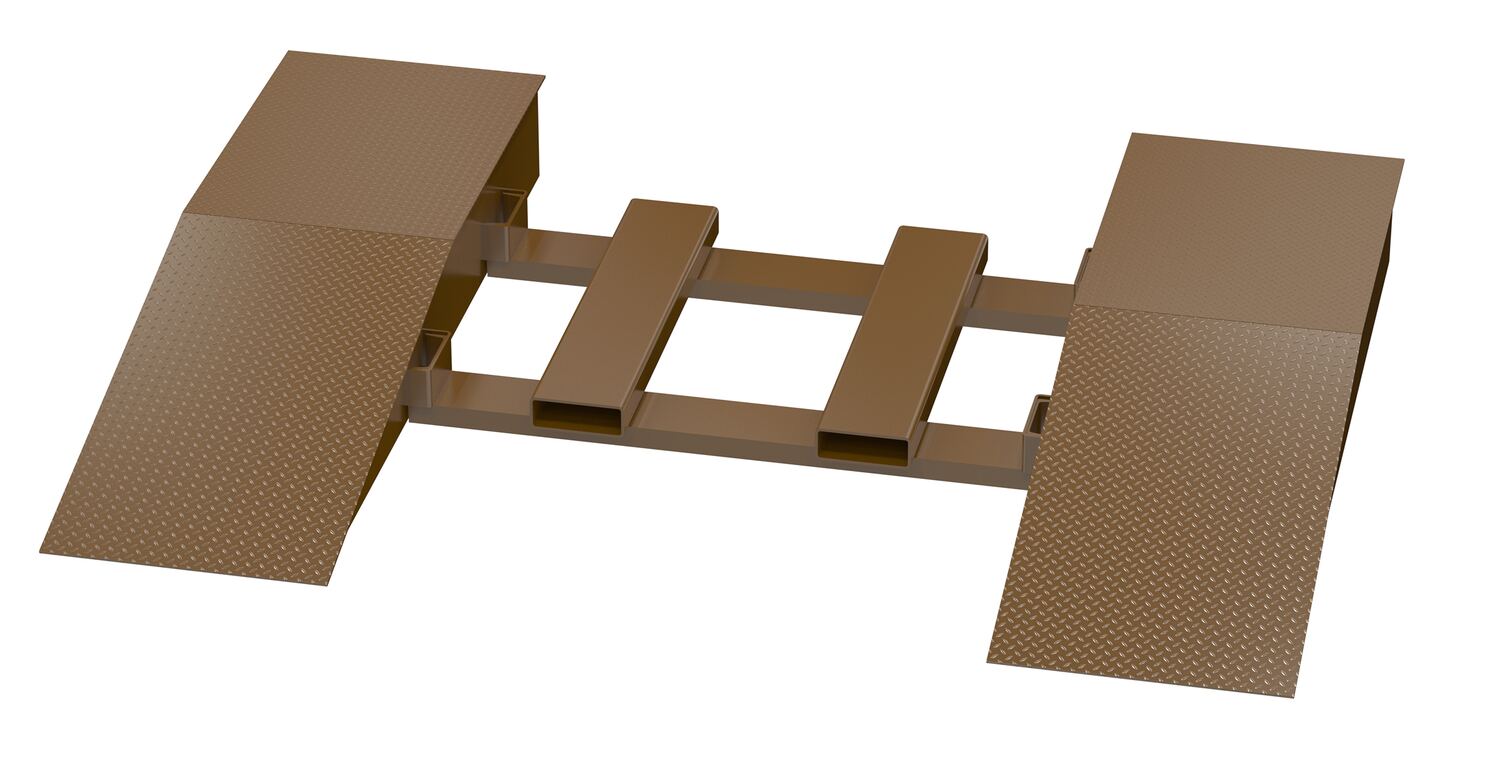

SWR-CPL-24-10-72	Steel Wheel Risers With Pick-Up Loop 72 In. x 24 In. x 10-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 72.0625	760

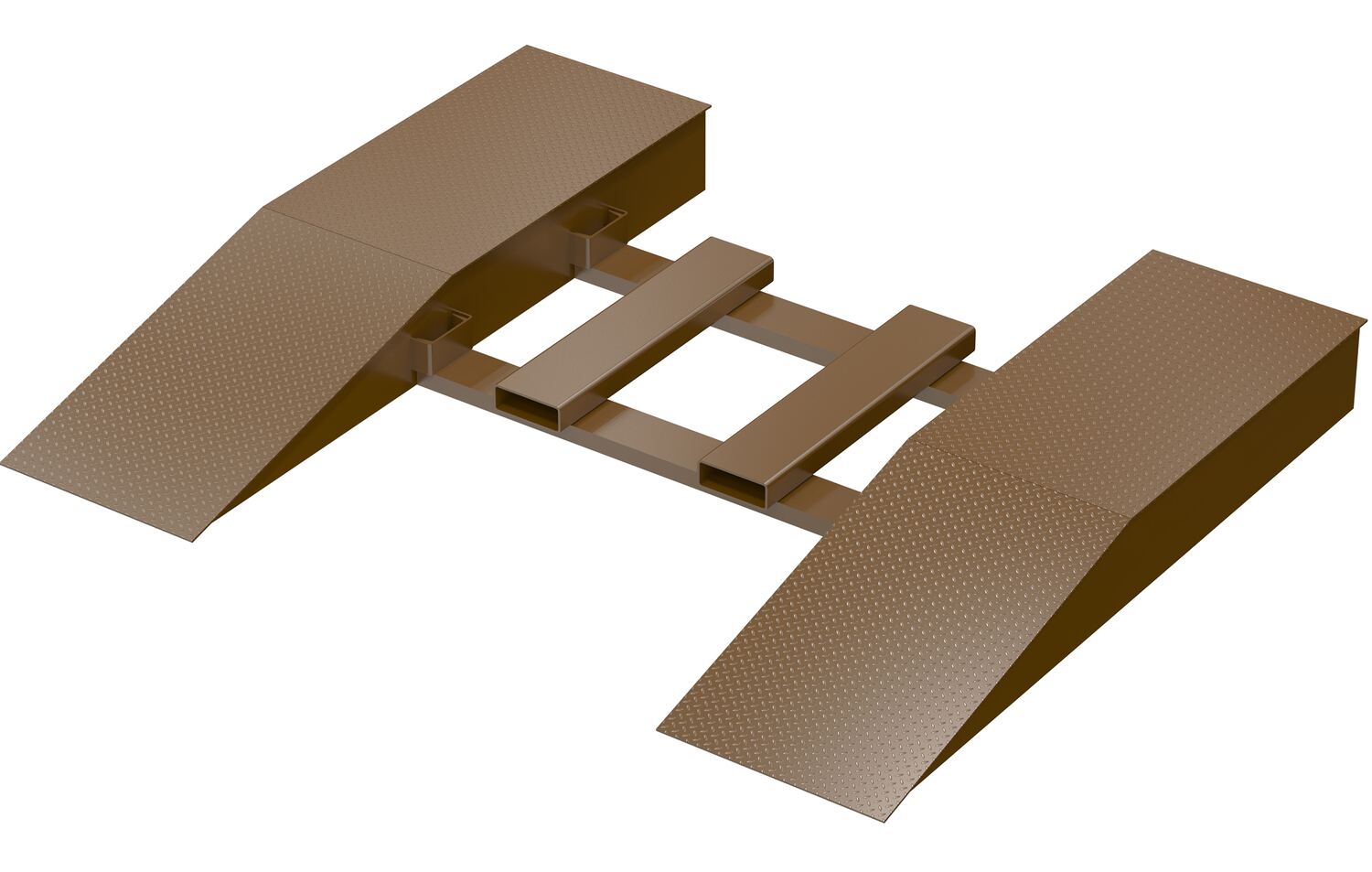

SWR-CPL-24-10-84	Steel Wheel Risers With Pick-Up Loop 84 In. x 24 In. x 10-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 84.0625	835

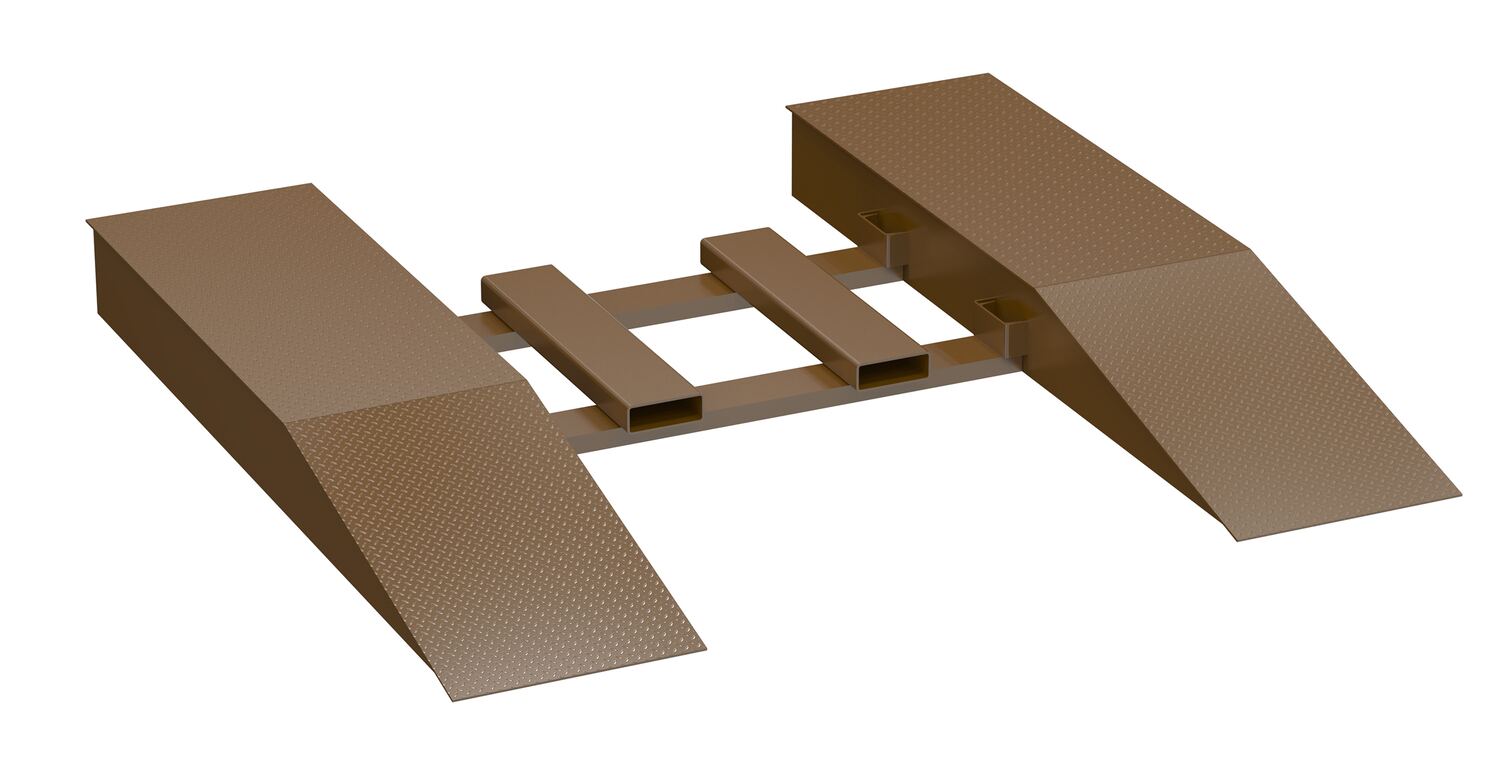

SWR-CPL-24-10-96	Steel Wheel Risers With Pick-Up Loop 96 In. x 24 In. x 10-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 96.0625	957

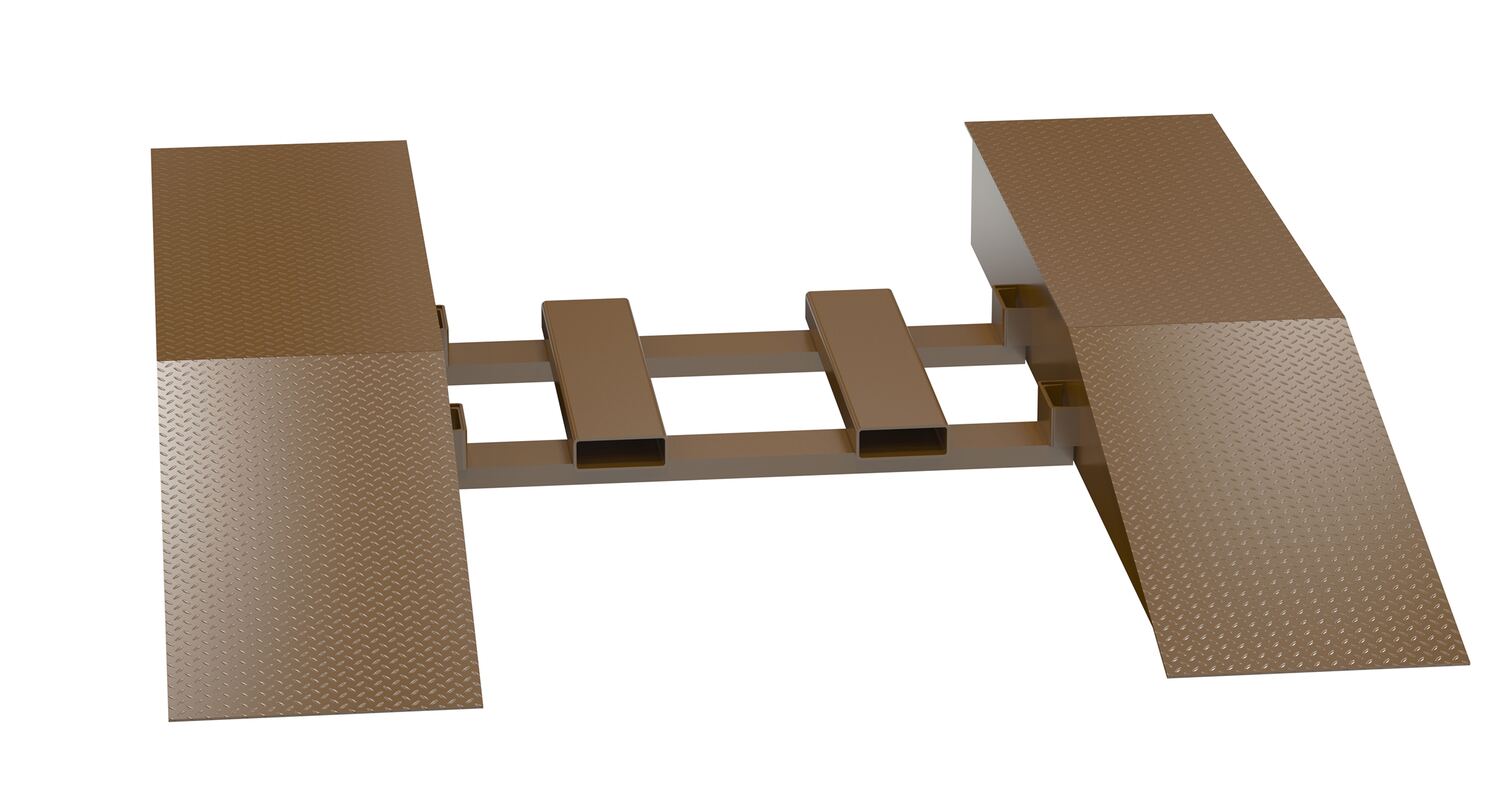

SWR-CPL-24-12-108	Steel Wheel Risers With Pick-Up Loop 108 In. x 24 In. x 12-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 108.0625	1149

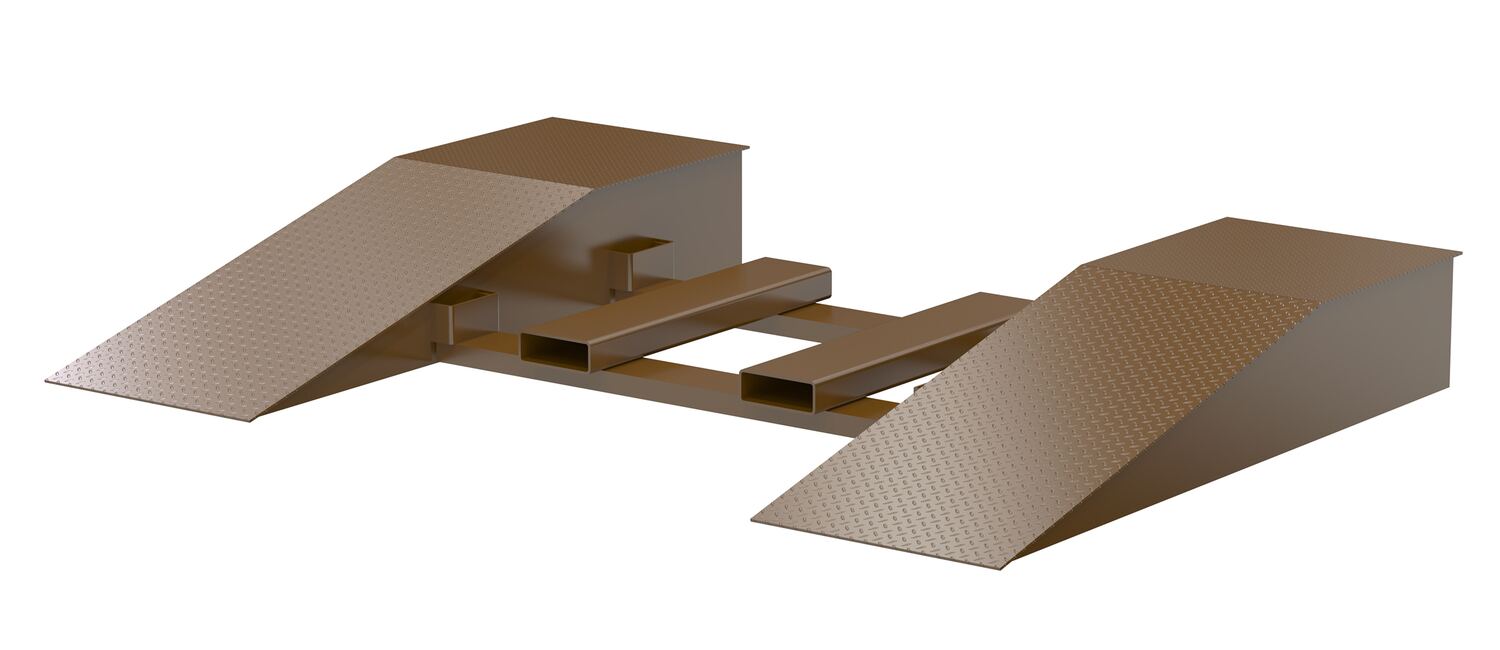

SWR-CPL-24-12-72	Steel Wheel Risers With Pick-Up Loop 72 In. x 24 In. x 12-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 72.0625	769

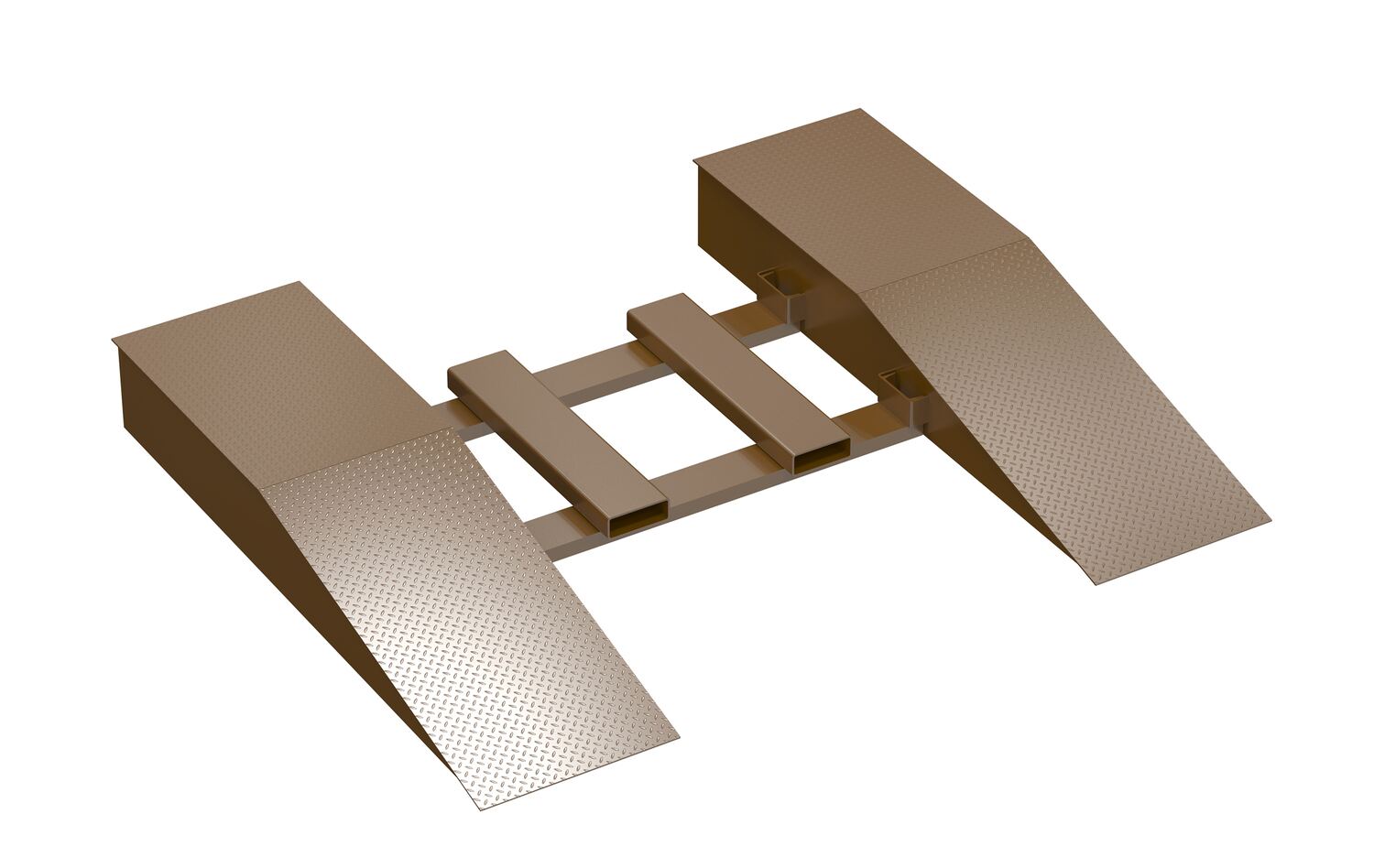

SWR-CPL-24-12-84	Steel Wheel Risers With Pick-Up Loop 84 In. x 24 In. x 12-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 84.0625	889

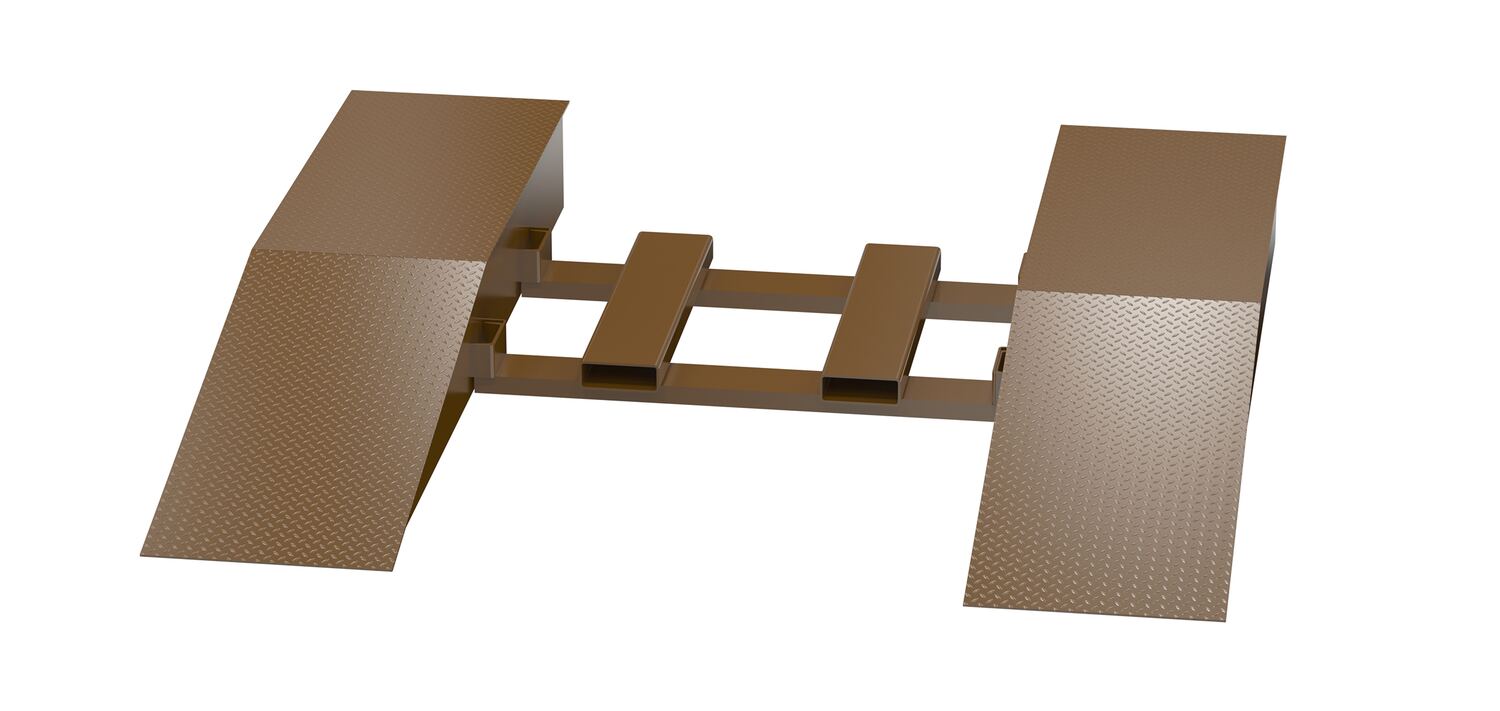

SWR-CPL-24-12-96	Steel Wheel Risers With Pick-Up Loop 96 In. x 24 In. x 12-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 96.0625	980

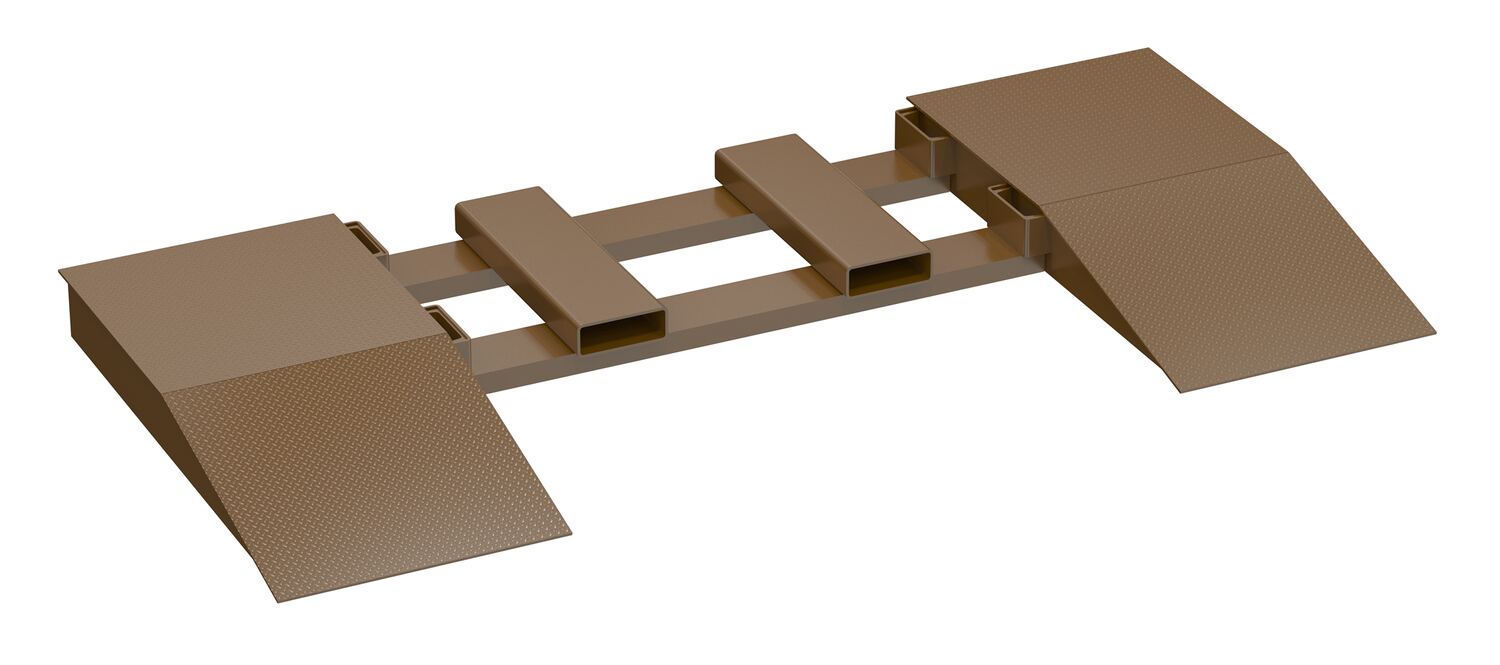

SWR-CPL-24-6-48	Steel Wheel Risers With Pick-Up Loop 48 In. x 24 In. x 6-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 48.0625	484

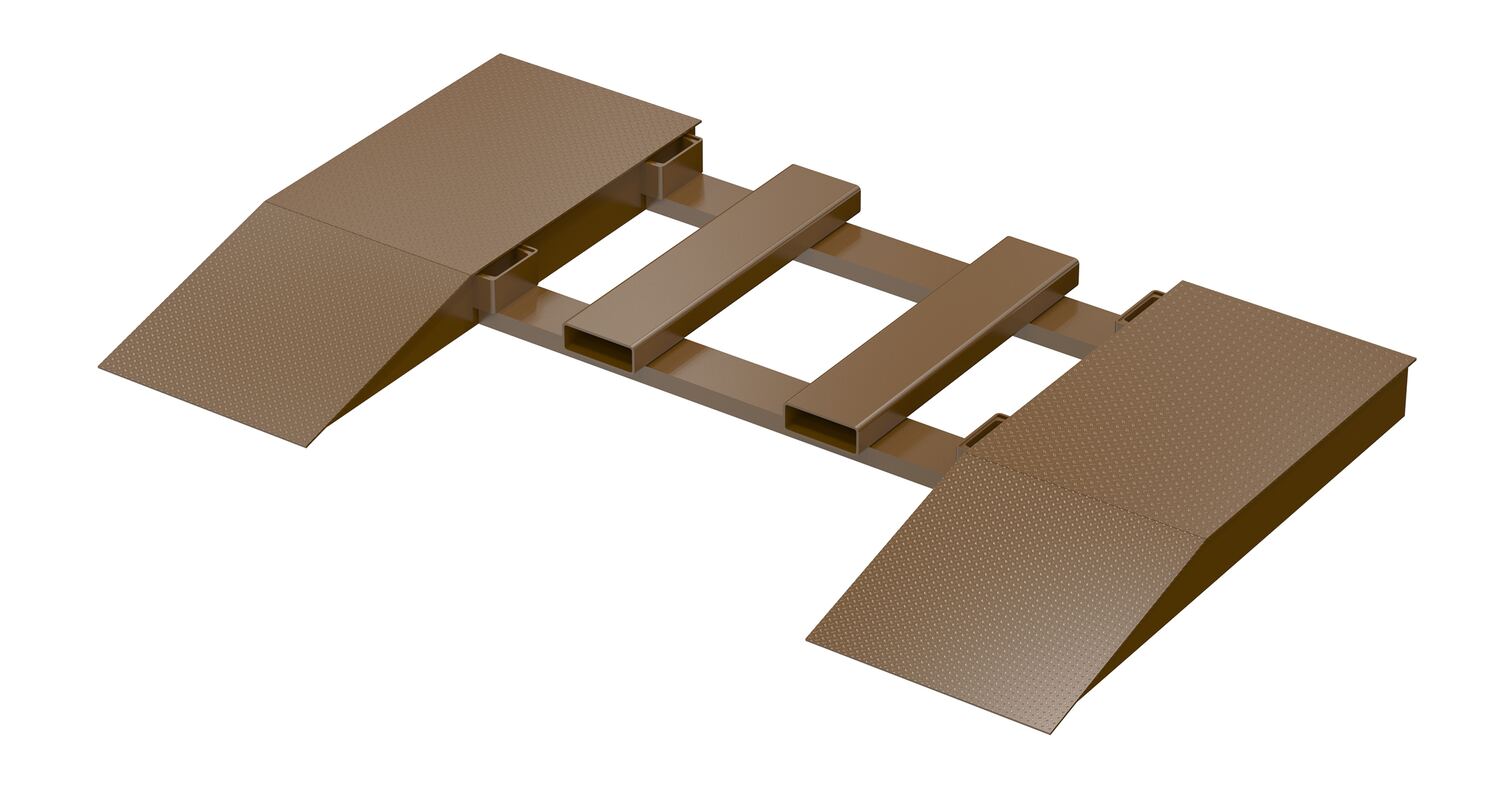

SWR-CPL-24-6-60	Steel Wheel Risers With Pick-Up Loop 60 In. x 24 In. x 6-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 60.0625	595

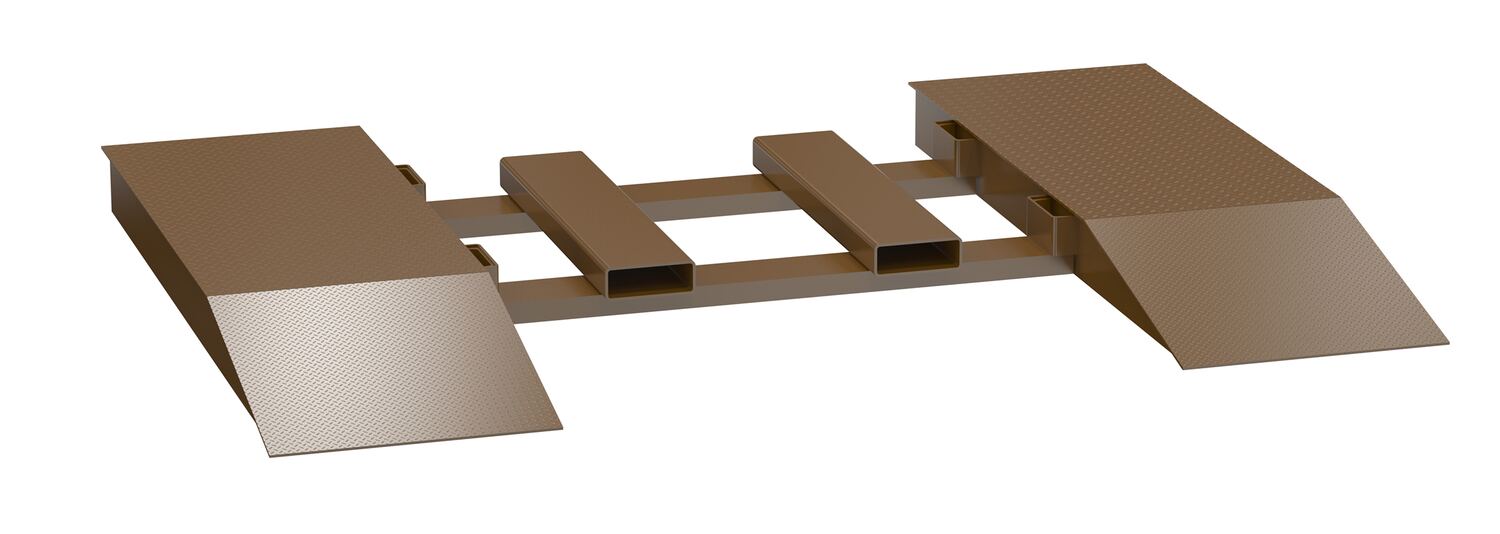

SWR-CPL-24-6-72	Steel Wheel Risers With Pick-Up Loop 72 In. x 24 In. x 6-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 72.0625	657

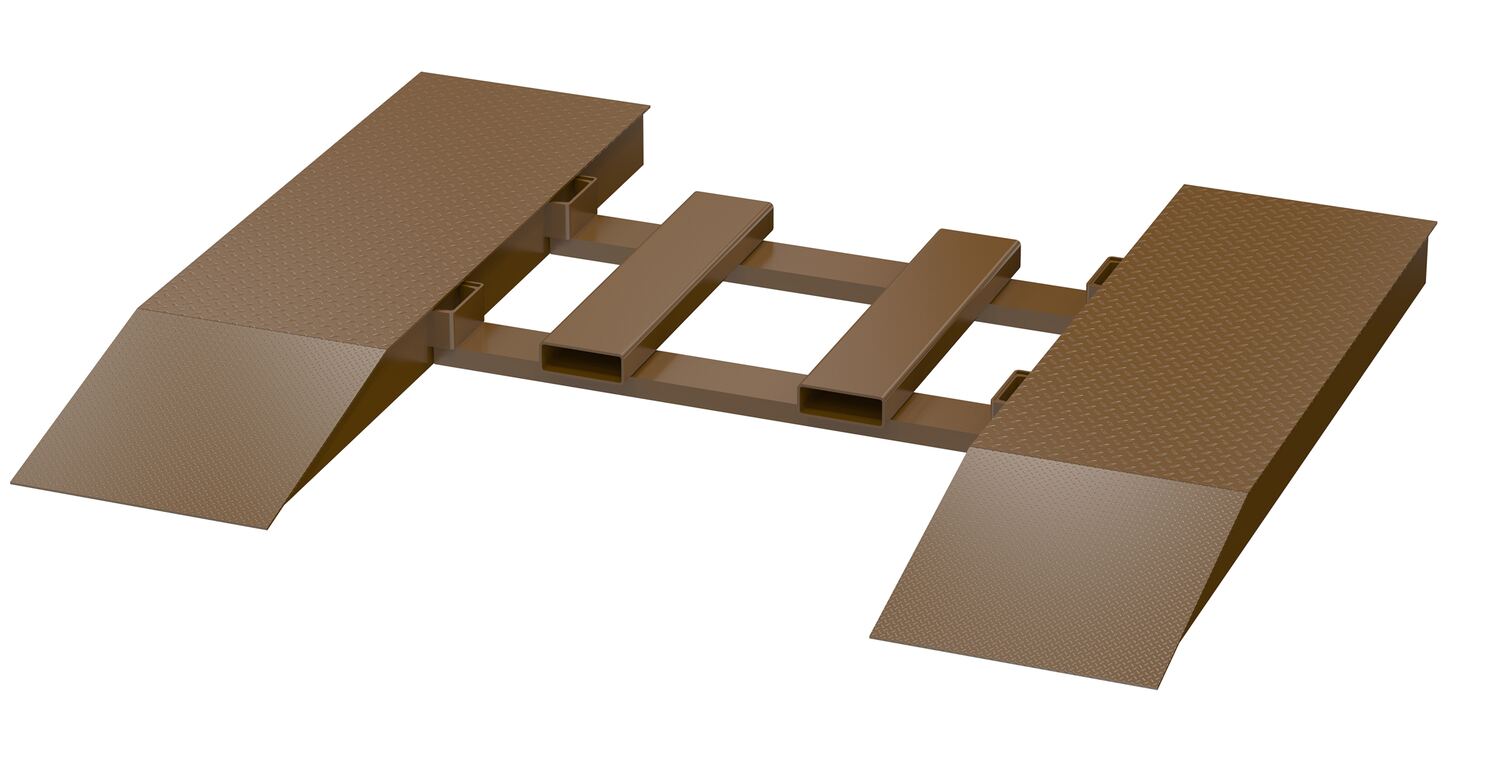

SWR-CPL-24-6-84	Steel Wheel Risers With Pick-Up Loop 84 In. x 24 In. x 6-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 84.0625	743

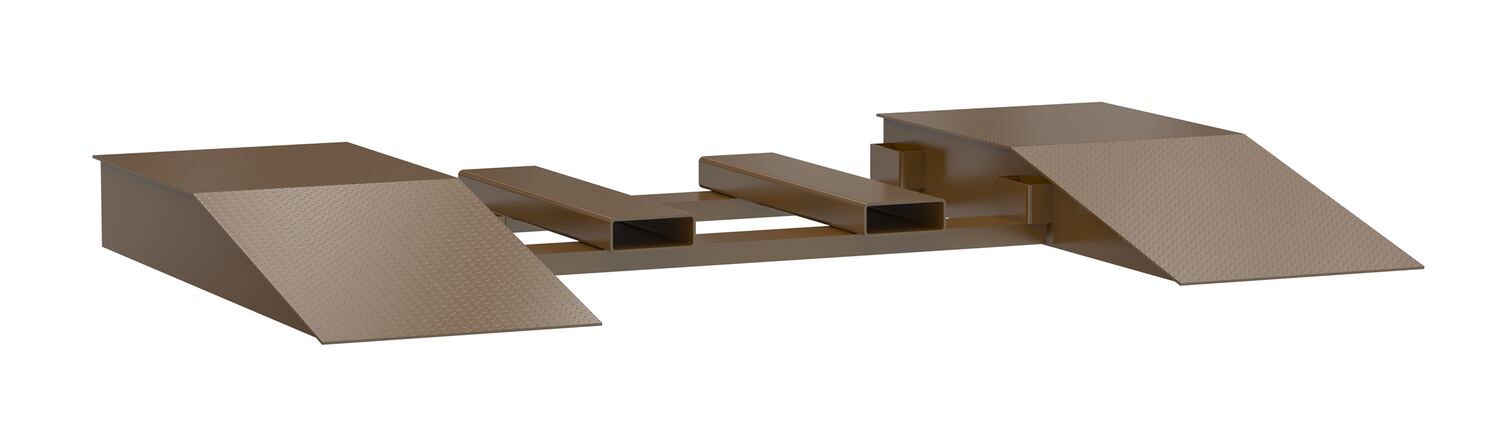

SWR-CPL-24-8-60	Steel Wheel Risers With Pick-Up Loop 60 In. x 24 In. x 8-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 60.0625	633

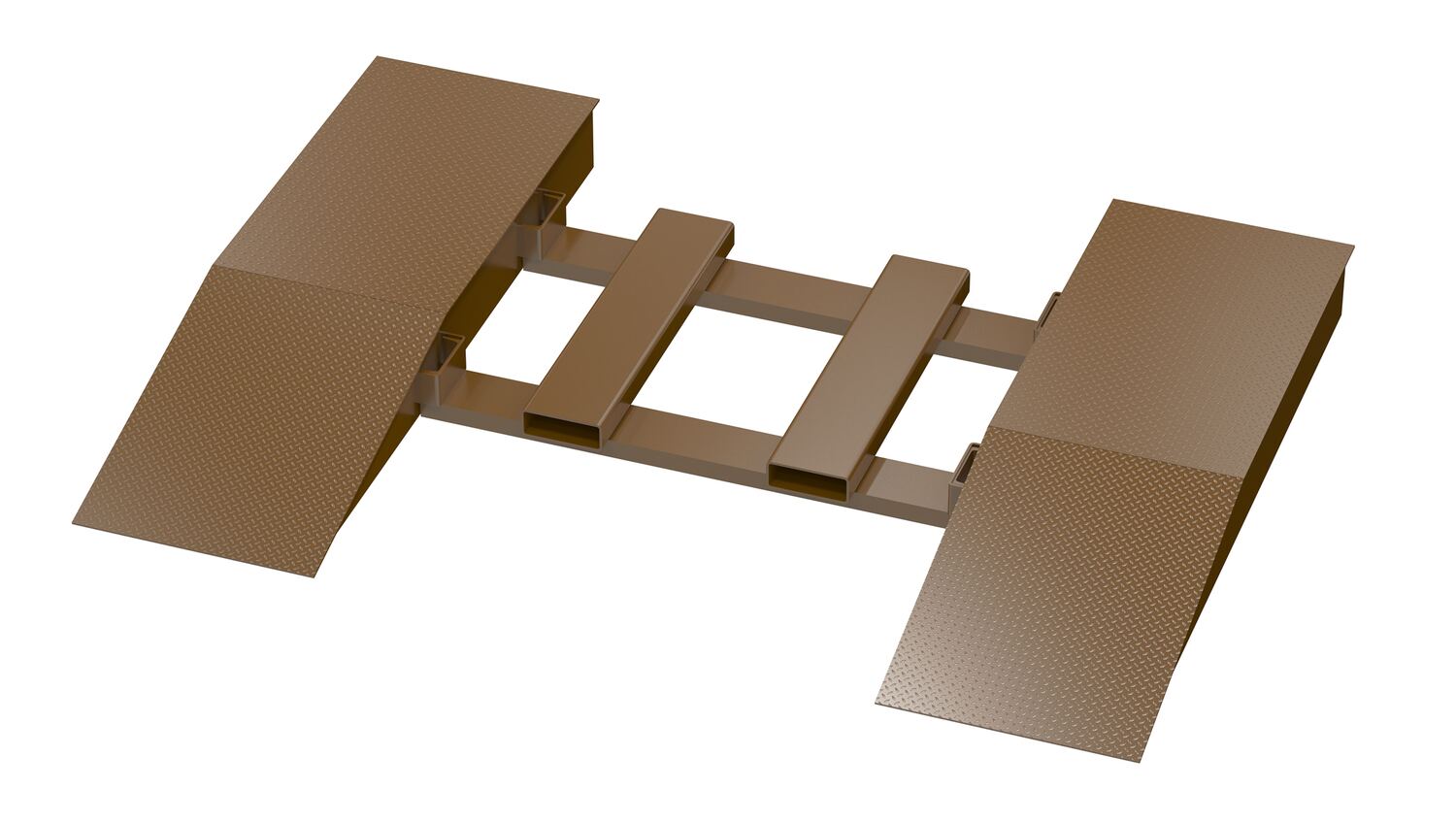

SWR-CPL-24-8-72	Steel Wheel Risers With Pick-Up Loop 72 In. x 24 In. x 8-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 72.0625	701
SWR-CPL-24-8-84	Steel Wheel Risers With Pick-Up Loop 84 In. x 24 In. x 8-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 84.0625	800

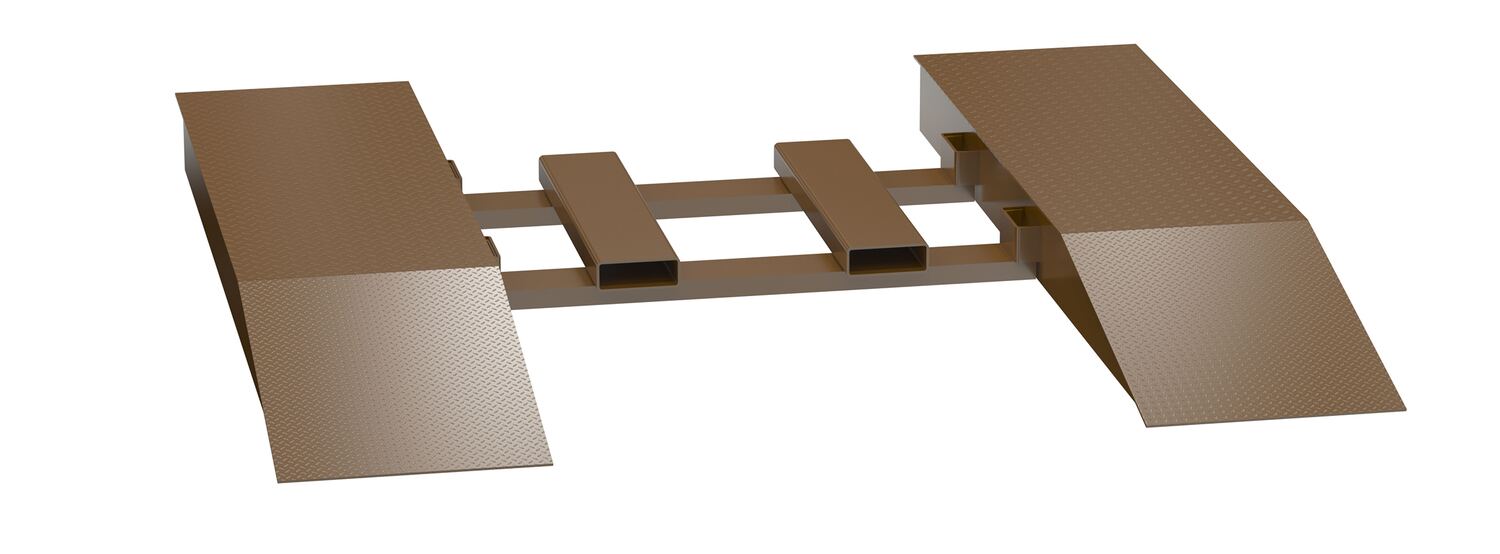

SWR-CPL-24-8-96	Steel Wheel Risers With Pick-Up Loop 96 In. x 24 In. x 8-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 96.0625	878
