Heavy-Duty Cantilever Racking

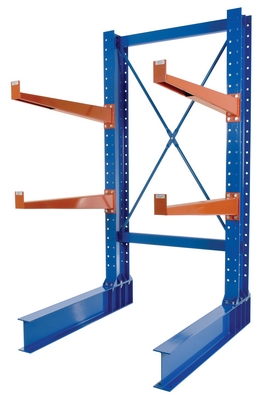

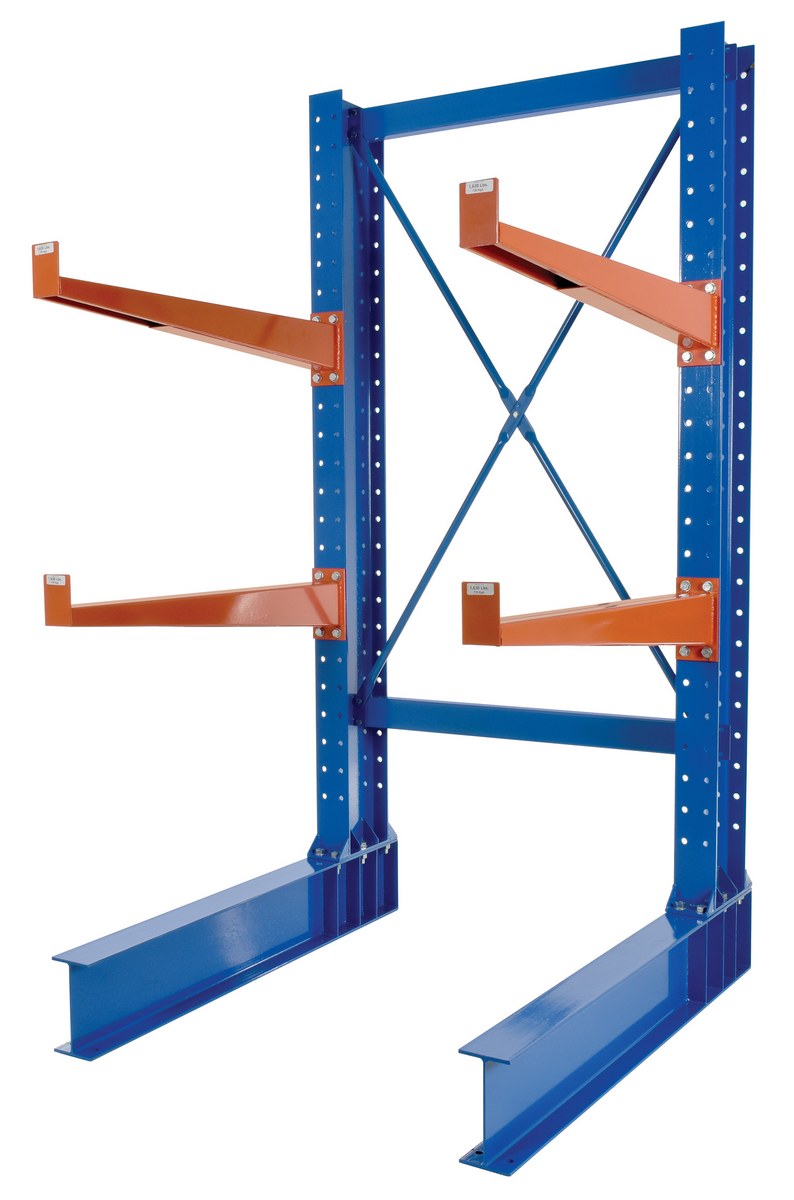

model: HU-C-8-36-SET

Heavy-Duty Cantilever Racking

SERIES: HU,HDU

Heavy-Duty Cantilever Racks are completely adjustable for application specific design flexibility. Long, unwelded stock is handled quickly and efficiently by forklift; instant accessibility to one piece or a full load. Arms are adjustable up and down the length of the upright. Pre-drilled holes on the uprights are spaced every 3-1/2" for bolt-on arm placement (hardware included). All arms feature lips to prevent product from falling off. Standard arms have a 3-1/8" lip. Heavy-duty and extra heavy-duty have a 3-1/4" lip. Uprights and arms are sold each, not in pairs. Custom rack systems can be designed for your special application. *Capacity listed is per upright.

Check Out Vestil's Other Cantilever Racking:

Standard-Duty Cantilever Racking

Medium-Duty Cantilever Racking

Cantilever Rack Kits

Heavy-Duty Cantilever Racking

model: HU-C-8-36-SET

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

PDFs will open in a new window when clicked.

Manuals

HU-C

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

HSA-C-24

Testing Certificates

HB-C-14-3

HB-C-14-4

HB-C-14-5

HB-C-14-6

HB-C-14-7

HB-C-14-8

HB-C-8-3

HB-C-8-4

HB-C-8-5

HB-C-8-6

HB-C-8-7

HB-C-8-8

HDSA-C-36

HDSA-C-42

HDSA-C-48

HDSA-C-48M

HDU-C-10-18

HDU-C-10-24

HDU-C-10-36

HDU-C-10-48

HDU-C-12-18

HDU-C-12-24

HDU-C-12-36

HDU-C-12-48

HDU-C-14-18

HDU-C-14-24

HDU-C-14-36

HDU-C-14-48

HDU-C-8-18

HDU-C-8-24

HDU-C-8-36

HDU-C-8-48

HIA-C-18

HIA-C-24

HIA-C-30

HIA-C-36

HIA-C-42

HIA-C-48

HSA-C-18

HSA-C-24

HSA-C-30

HSA-C-36

HSA-C-42

HSA-C-48

HU-C-10-18

HU-C-10-24

HU-C-10-36

HU-C-10-48

HU-C-12-18

HU-C-12-24

HU-C-12-36

HU-C-12-48

HU-C-14-18

HU-C-14-24

HU-C-14-36

HU-C-14-48

HU-C-8-18

HU-C-8-24

HU-C-8-36

HU-C-8-48

XHDSA-C-36

XHDSA-C-42

XHDSA-C-48

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product

What type of paint is used on the racking? We'd like to use it outdoors

The powder used for the cantilever racking is not suitable for outdoor use.

Is the hardware for the cantilever racking metric?

Yes, the hardware for the cantilever racking is metric.

What is the lip height for HSA?

The lip height is 3-1/8" usable height.

What is the lip height for XHDSA and HDSA?

The lip height is 3-1/8" usable height

Can you store product on the base of the upright?

Yes, you can store product on the base of the upright.

What is the length of the base for HU-C-8-36?

The base is 36"

What is the height of the base leg for this HU-C-8-36 upright please?

9.5"H

Print Friendly

Related or Similar Products:

More From Cantilever Racking

Galvanized Cantilever Rack Kits

Galvanized Cantilever Rack Kits

Heavy-Duty Cantilever Racking

Heavy-Duty Cantilever Racks are completely adjustable for application specific design flexibility. Long, unwelded stock is handled quickly and efficiently by forklift; instant accessibility to one piece or a full load. Arms are adjustable up and down the length of the upright. Pre-drilled holes on the uprights are spaced every 3-1/2" for bolt-on arm placement (hardware included). All arms feature lips to prevent product from falling off. Standard arms have a 3-1/8" lip. Heavy-duty and extra heavy-duty have a 3-1/4" lip. Uprights and arms are sold each, not in pairs. Custom rack systems can be designed for your special application. *Capacity listed is per upright.

Check Out Vestil's Other Cantilever Racking:

Standard-Duty Cantilever Racking

Medium-Duty Cantilever Racking

Cantilever Rack Kits

Model #		Description	Attributes	Net Wt. (lbs)

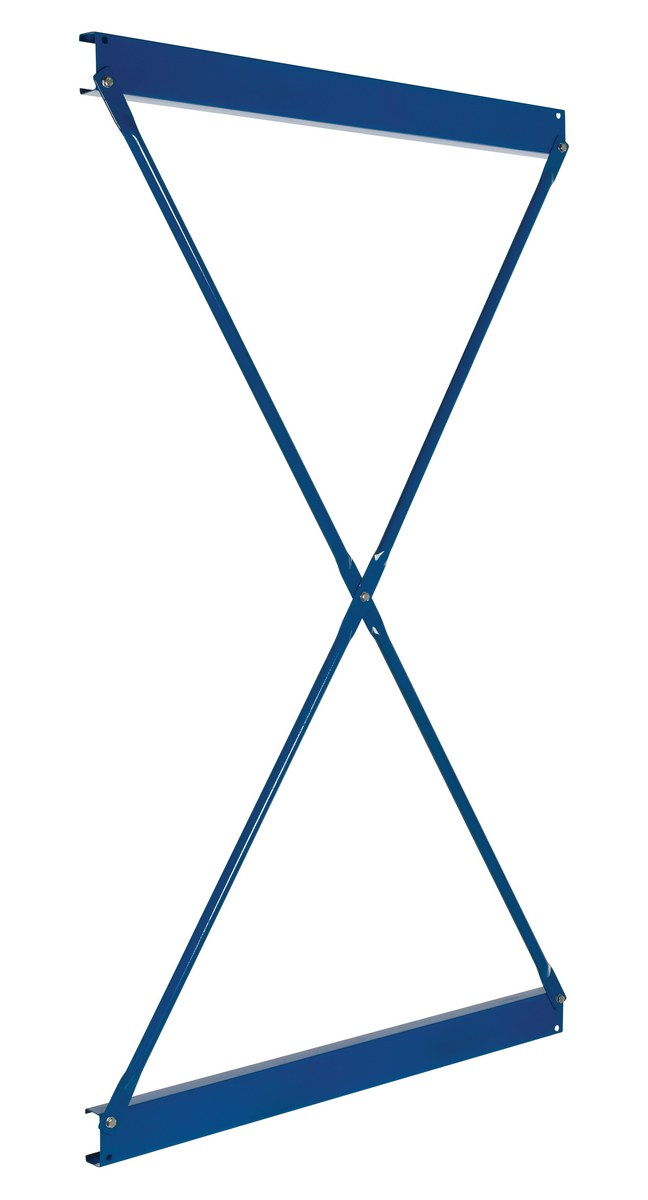

HB-C-14-3		Steel Heavy Duty Cantilever Brace Set 144 In. x 36 In. Blue	Component: Brace Set Fits Upright (in.): 144 and 168	44
HB-C-14-4		Steel Heavy Duty Cantilever Brace Set 144 In. x 48 In. Blue	Component: Brace Set Fits Upright (in.): 144 and 168	54

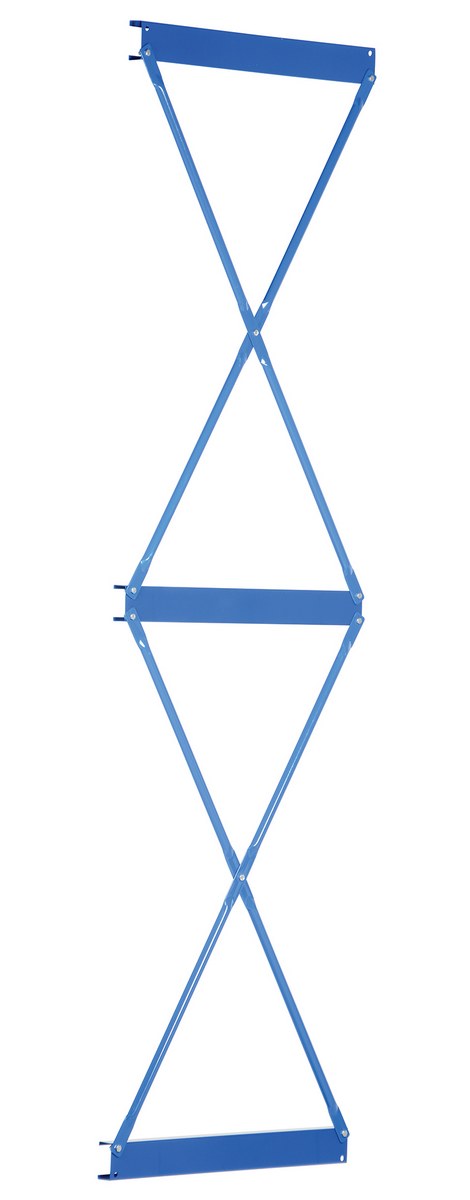

HB-C-14-5		Steel Heavy Duty Cantilever Brace Set 144 In. x 60 In. Blue	Component: Brace Set Fits Upright (in.): 144 and 168	56
HB-C-14-6		Steel Heavy Duty Cantilever Brace Set 144 In. x 72 In. Blue	Component: Brace Set Fits Upright (in.): 144 and 168	66

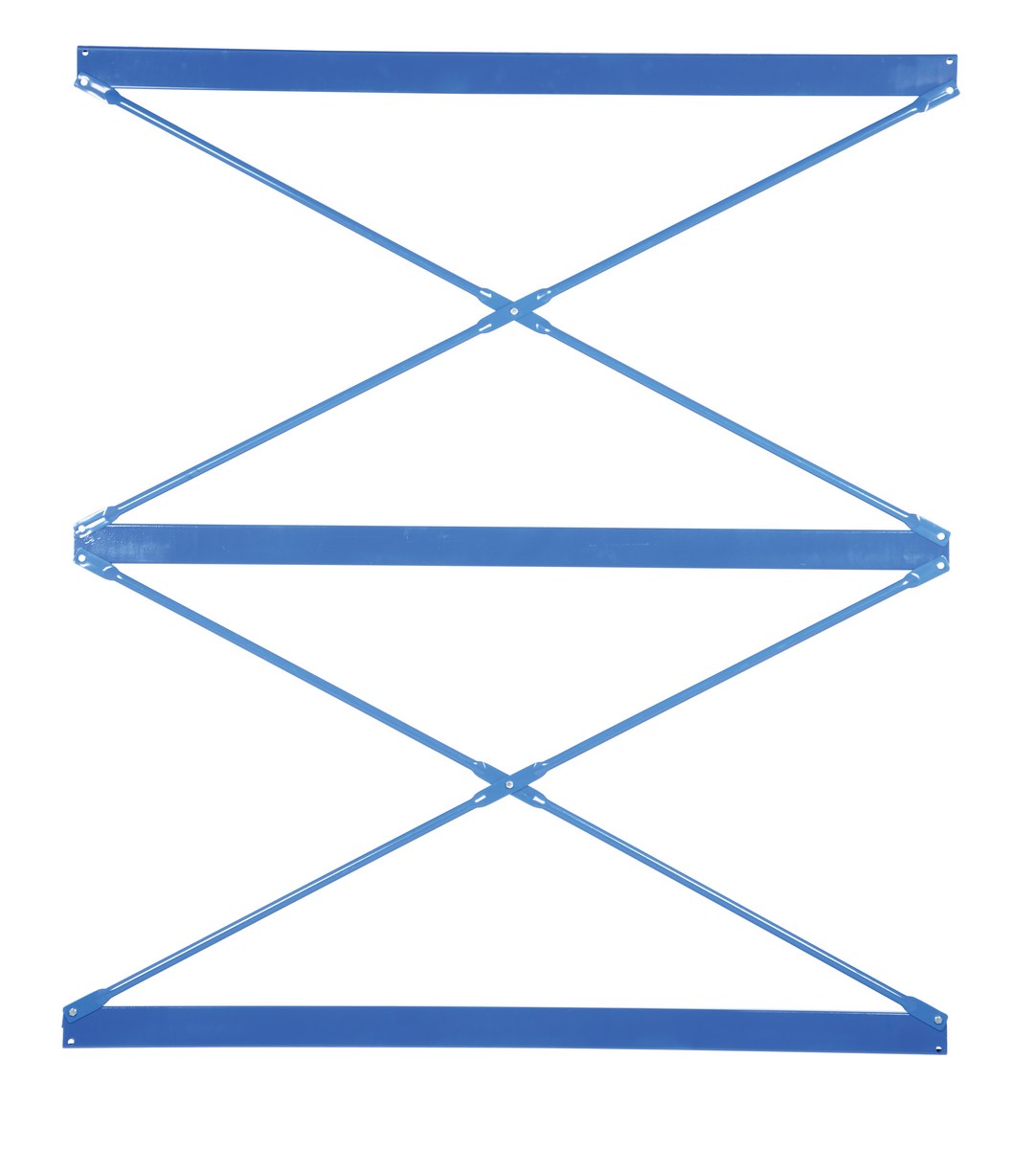

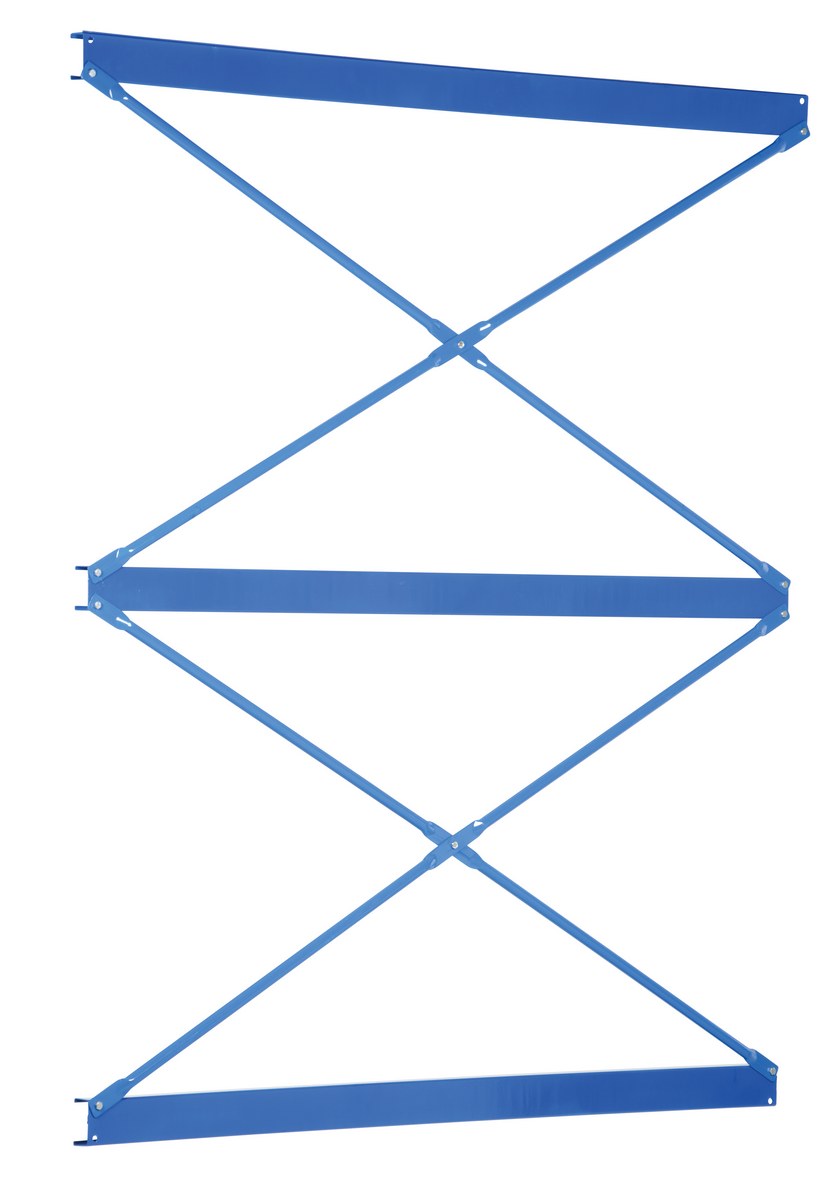

HB-C-14-7		Steel Heavy Duty Cantilever Brace Set 144 In. x 84 In. Blue	Component: Brace Set Fits Upright (in.): 144 and 168	78

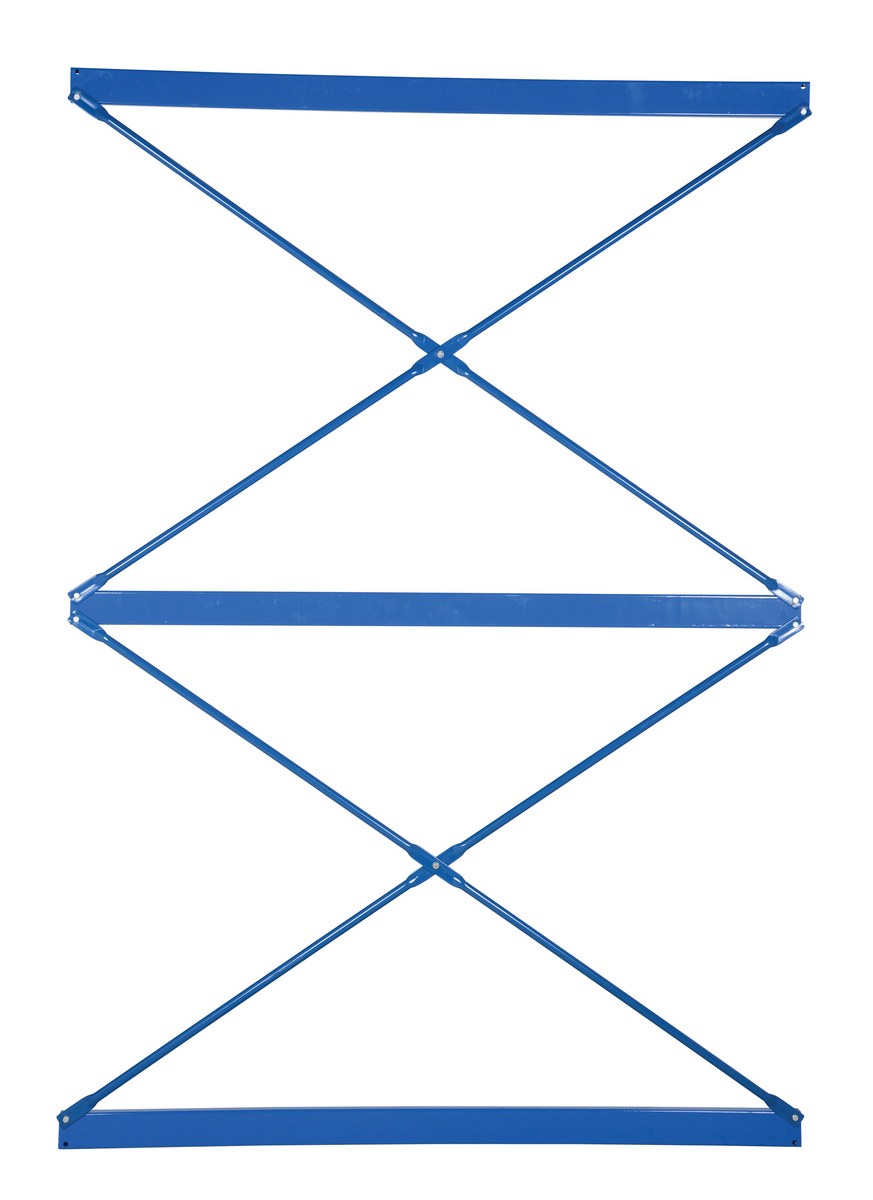

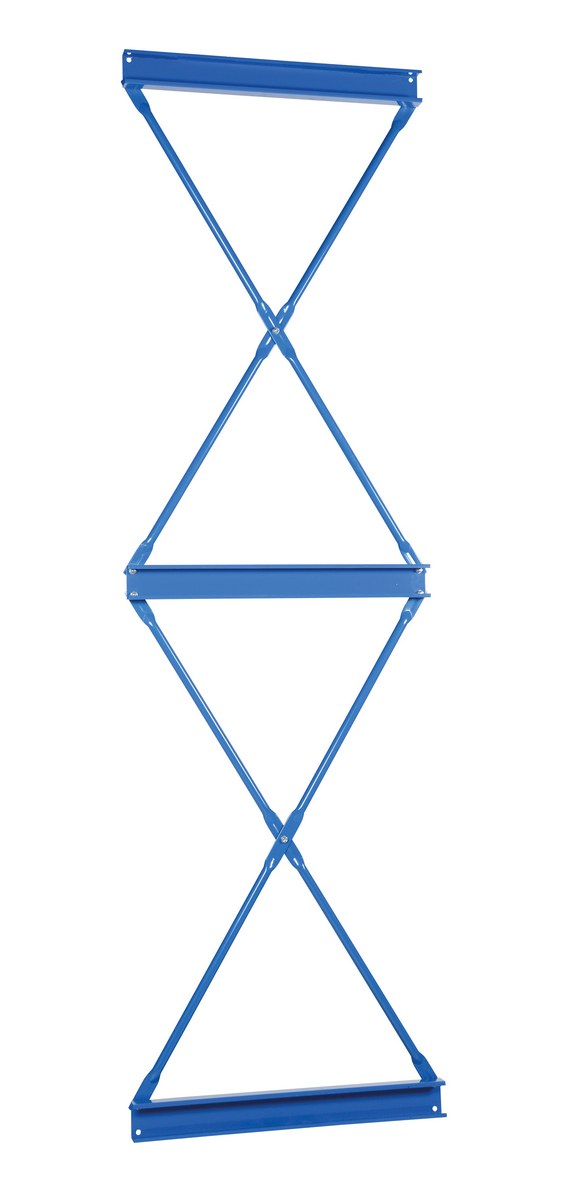

HB-C-14-8		Steel Heavy Duty Cantilever Brace Set 144 In. x 96 In. Blue	Component: Brace Set Fits Upright (in.): 144 and 168	123
HB-C-8-3		Steel Heavy Duty Cantilever Brace Set 96 In. x 36 In. Blue	Component: Brace Set Fits Upright (in.): 96 and 120	28
HB-C-8-4		Steel Heavy Duty Cantilever Brace Set 96 In. x 48 In. Blue	Component: Brace Set Fits Upright (in.): 96 and 120	31
HB-C-8-5		Steel Heavy Duty Cantilever Brace Set 96 In. x 60 In. Blue	Component: Brace Set Fits Upright (in.): 96 and 120	38
HB-C-8-6		Steel Heavy Duty Cantilever Brace Set 96 In. x 72 In. Blue	Component: Brace Set Fits Upright (in.): 96 and 120	43
HB-C-8-7		Steel Heavy Duty Cantilever Brace Set 96 In. x 84 In. Blue	Component: Brace Set Fits Upright (in.): 96 and 120	98
HB-C-8-8		Steel Heavy Duty Cantilever Brace Set 96 In. x 96 In. Blue	Component: Brace Set Fits Upright (in.): 96 and 120	107

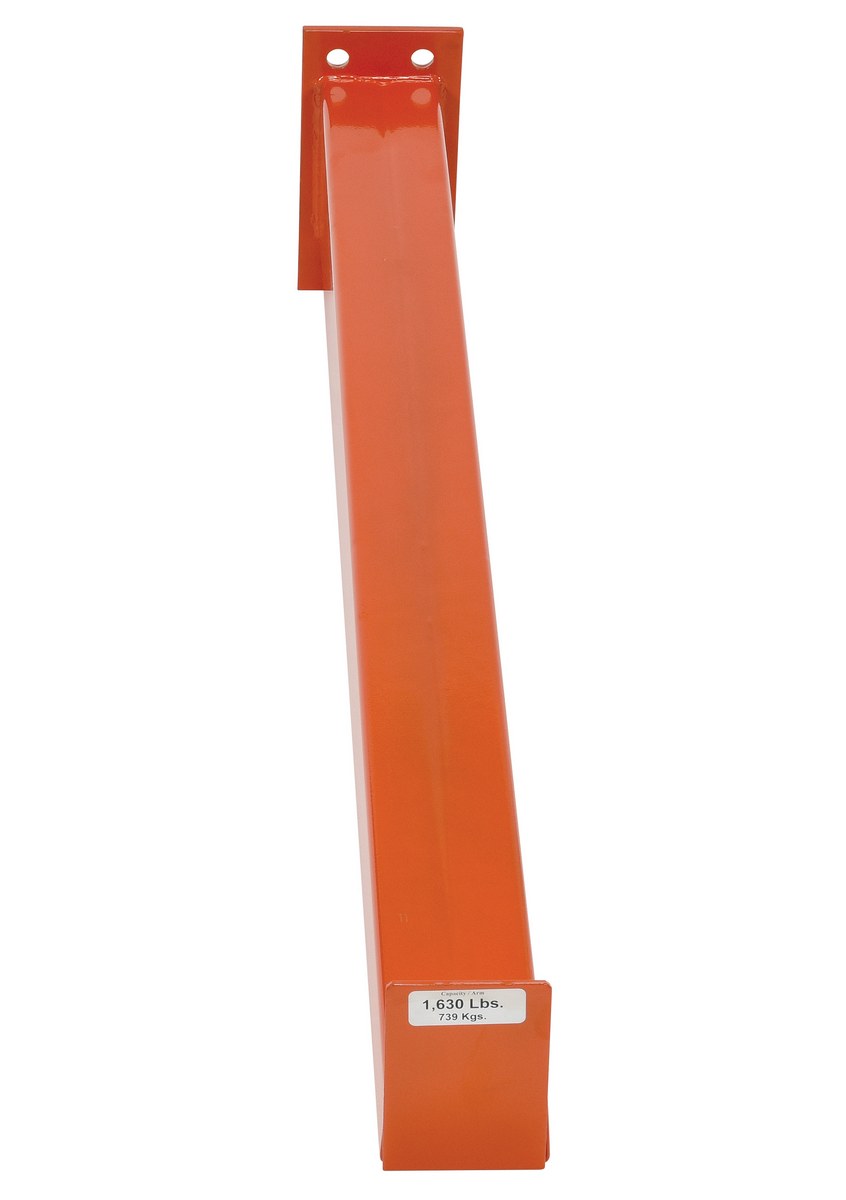

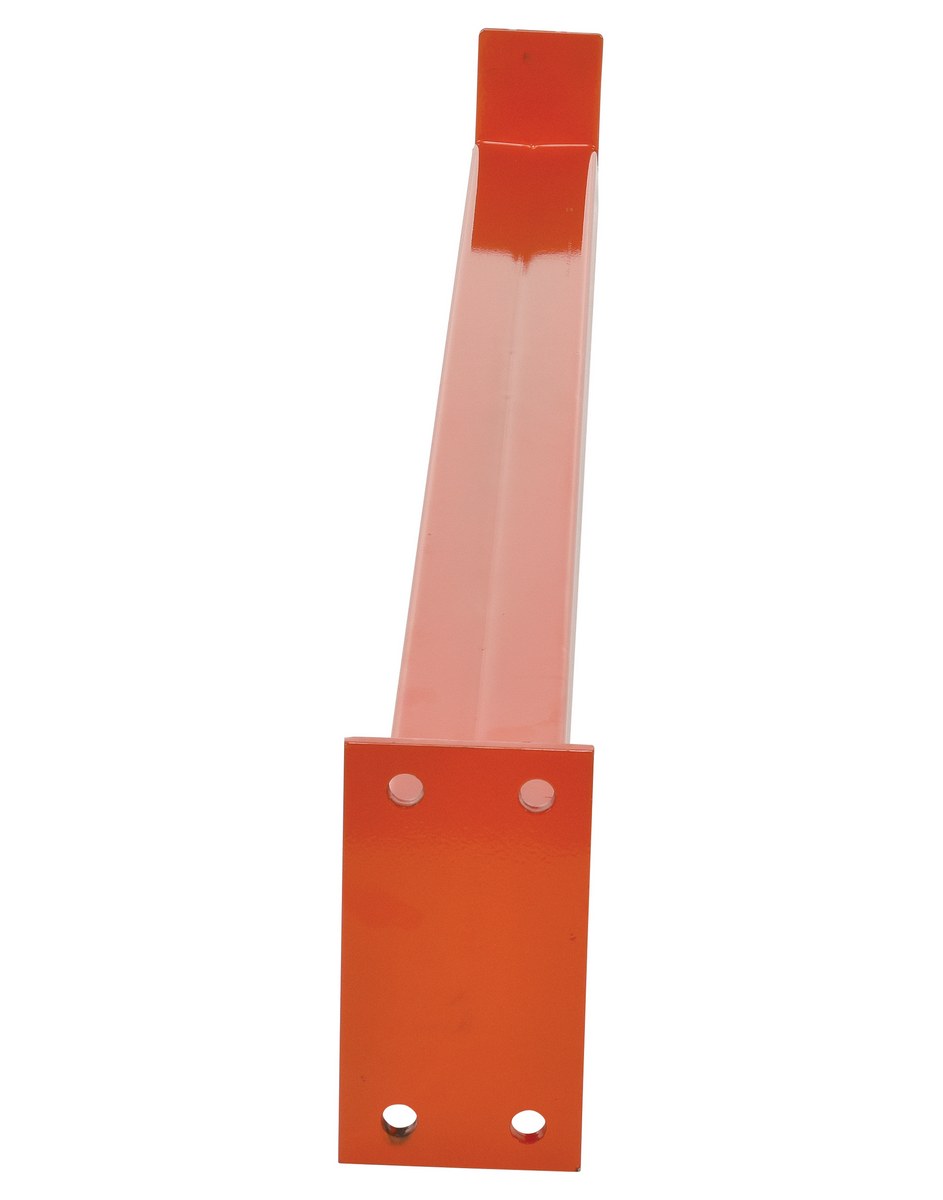

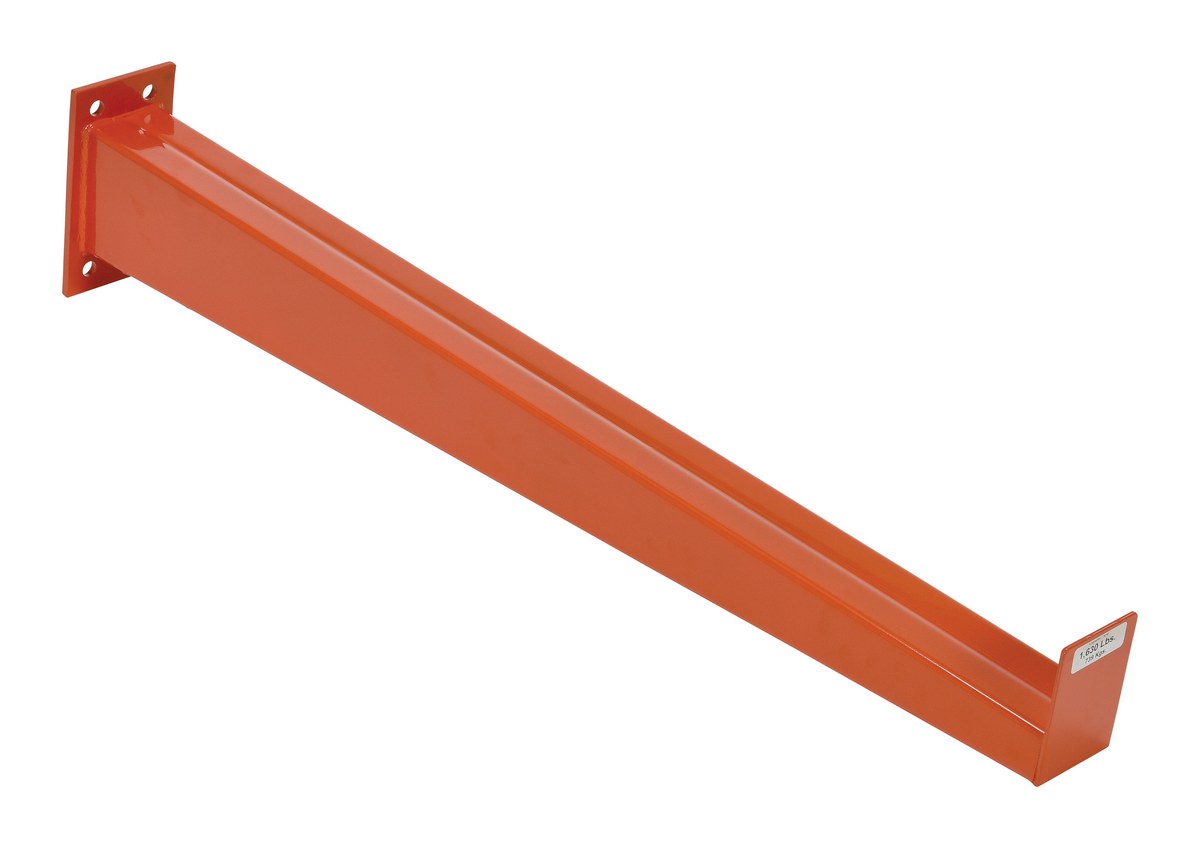

HDSA-C-36		Steel Heavy-Duty Cantilever Straight Arm 36 In. Length 2,175 Lb. Capacity Orange	Uniform Capacity Per Arm (lb.): 2,175 Component: Heavy-Duty Arm	26
HDSA-C-42		Steel Heavy-Duty Cantilever Straight Arm 42 In. Length 1,865 Lb. Capacity Orange	Uniform Capacity Per Arm (lb.): 1,865 Component: Heavy-Duty Arm	29
HDSA-C-48		Steel Heavy-Duty Cantilever Straight Arm 48 In. Length 1,630 Lb. Capacity Orange	Uniform Capacity Per Arm (lb.): 1,630 Component: Heavy-Duty Arm	31

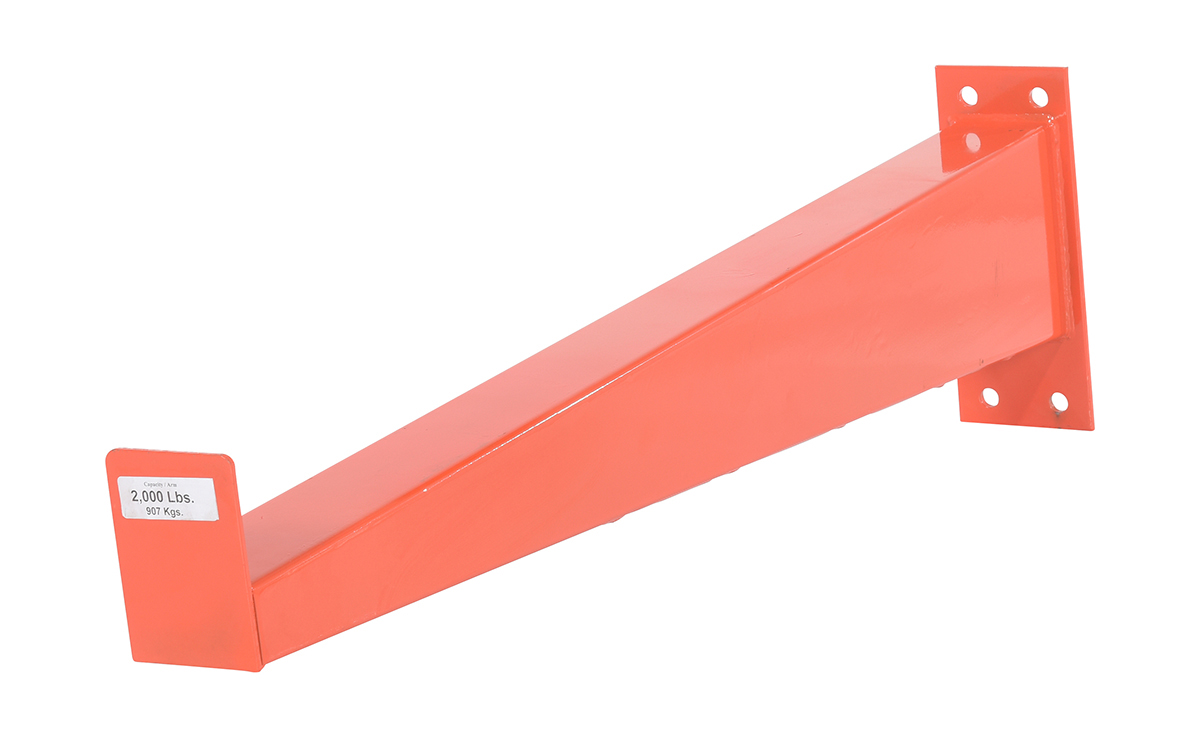

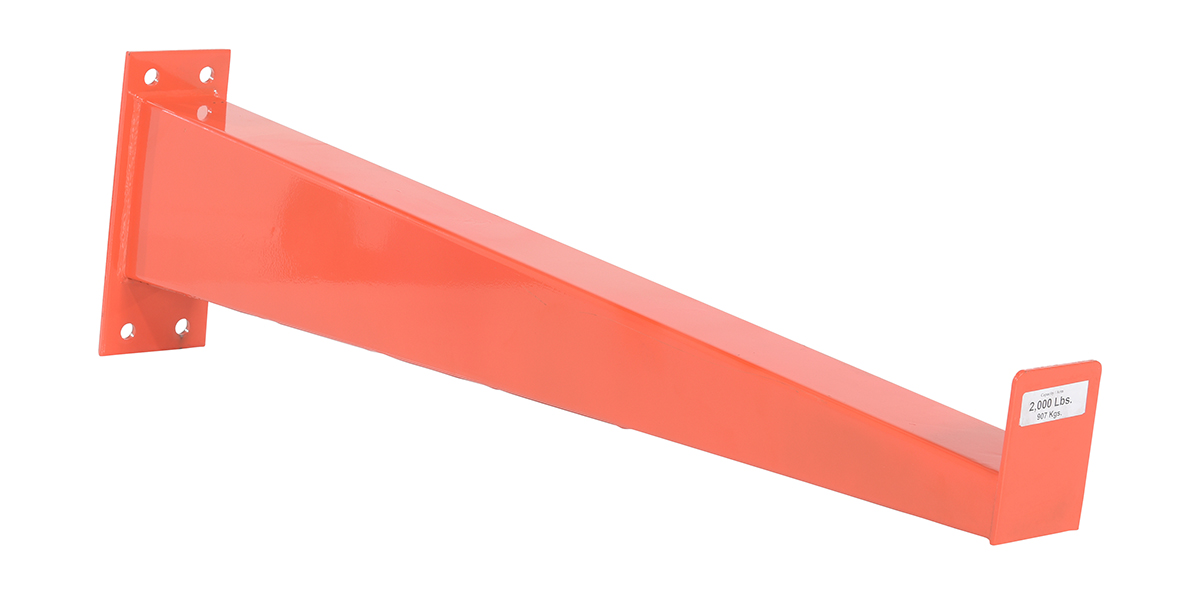

HDSA-C-48M		Steel Heavy-Duty Cantilever Straight Arm 48 In. Length 2,000 Lb. Capacity Orange	Uniform Capacity Per Arm (lb.): 2,000 Component: Heavy-Duty Arm	33

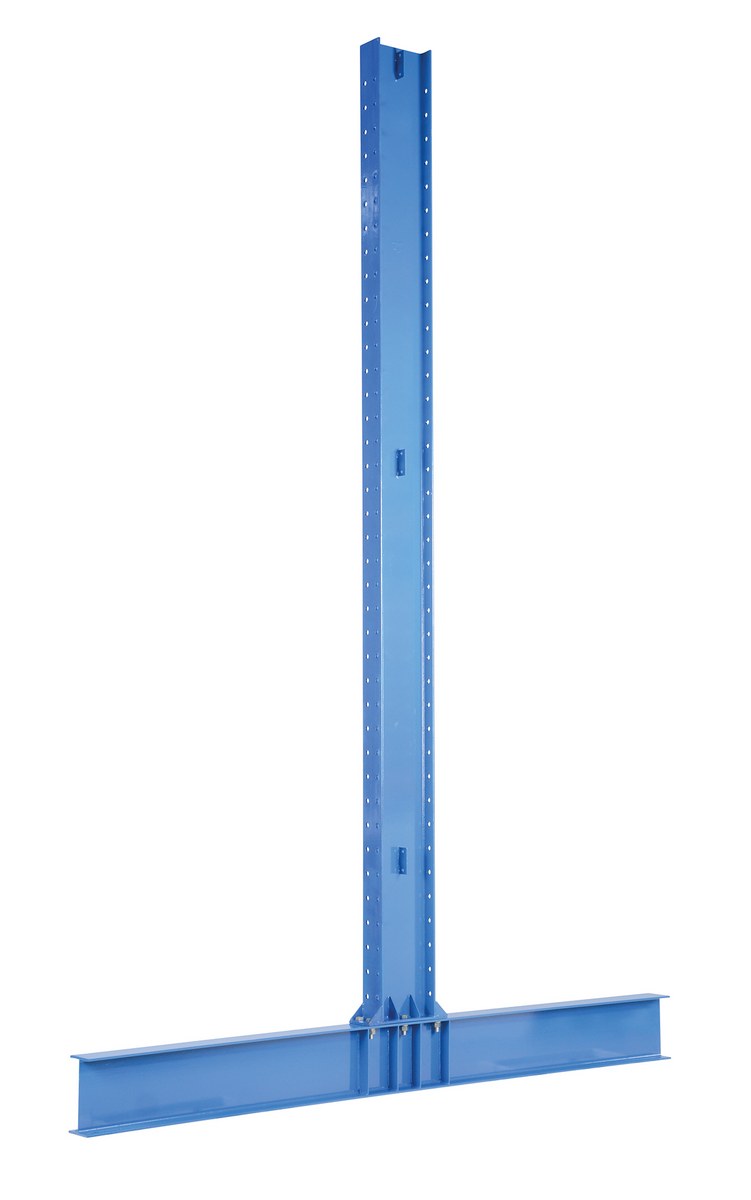

HDU-C-10-18		Steel Heavy Duty Double Cantilever Uprights 10 Ft. 49,200 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 49,200 Component: Double-Sided Upright	336
HDU-C-10-24		Steel Heavy Duty Double Cantilever Uprights 10 Ft. 42,600 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 42,600 Component: Double-Sided Upright	355
HDU-C-10-36		Steel Heavy Duty Double Cantilever Uprights 10 Ft. 36,400 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 36,400 or 31,600 Component: Double-Sided Upright	391
HDU-C-10-48		Steel Heavy Duty Double Sided Cantilever Uprights for 42 In. and 48 In. Arms 10 Ft. 28,200 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 28,200 or 25,200 Component: Double-Sided Upright	427
HDU-C-12-18		Steel Heavy Duty Double Sided Cantilever Uprights for 18 In. Arms 12 Ft. 48,800 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 48,800 Component: Double-Sided Upright	374
HDU-C-12-24		Steel Heavy Duty Double Sided Cantilever Uprights for 24 In. Arms 12 Ft. 41,800 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 41,800 Component: Double-Sided Upright	393
HDU-C-12-36		Steel Heavy Duty Double Sided Cantilever Uprights for 30 and 36 In. Arms 12 Ft. 35,600 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 35,600 or 31,200 Component: Double-Sided Upright	429

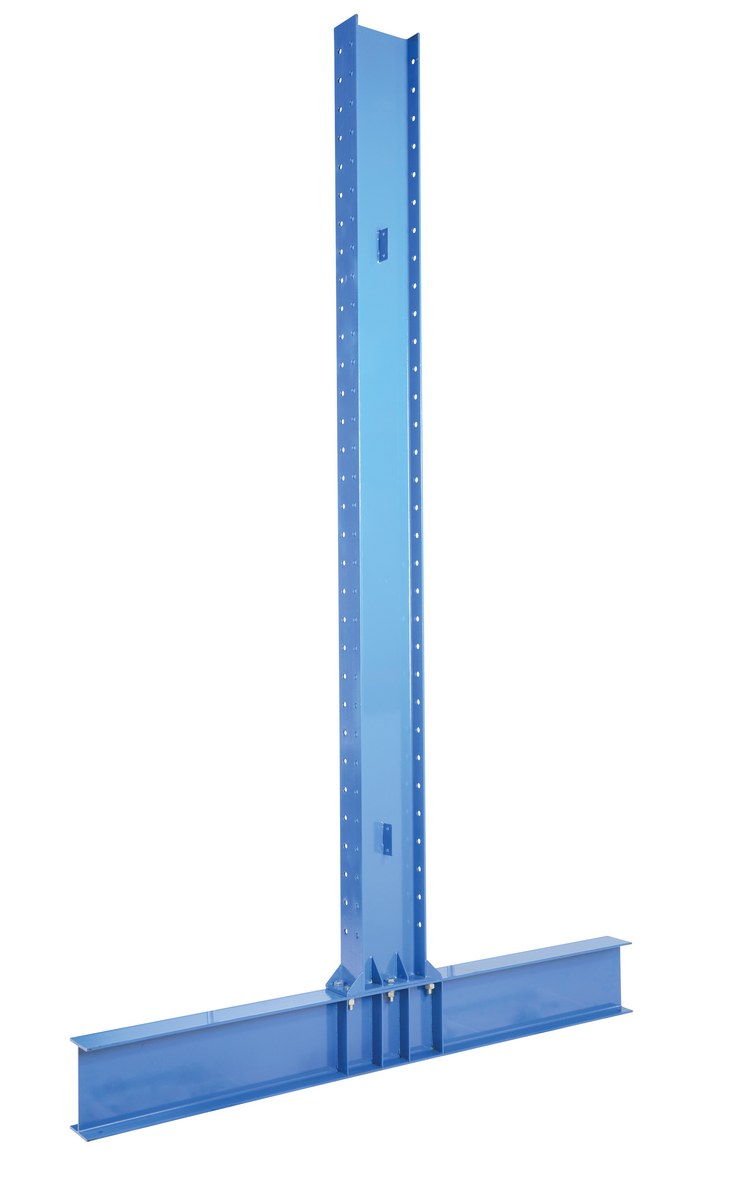

HDU-C-12-48		Steel Heavy Duty Double Sided Cantilever Uprights for 42 and 48 In. Arms 12 Ft. 27,800 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 27,800 or 25,000 Component: Double-Sided Upright	465

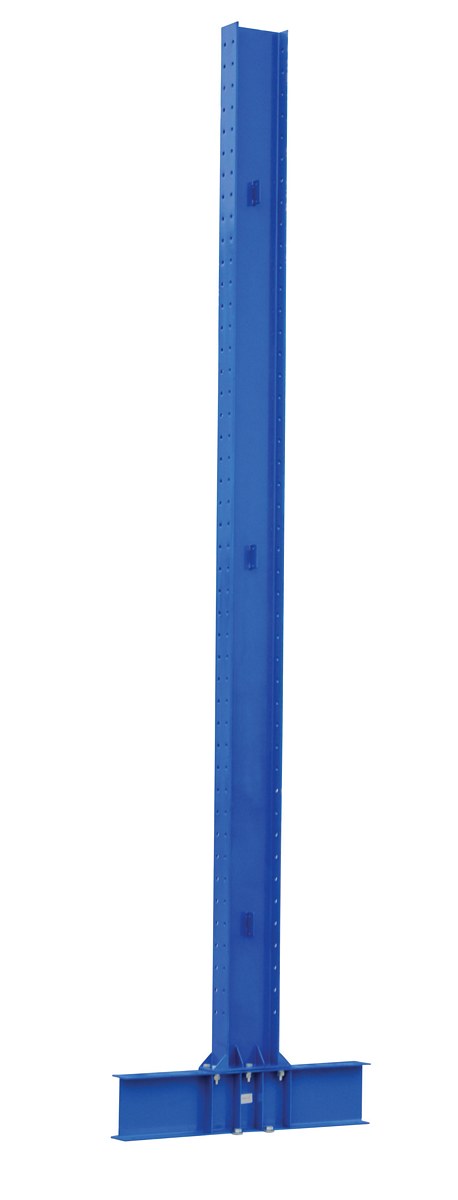

HDU-C-14-18		Steel Heavy Duty Double Sided Cantilever Uprights for 18 In. Arms 14 Ft. 46,800 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 46,800 Component: Double-Sided Upright	413
HDU-C-14-24		Steel Heavy Duty Double Sided Cantilever Uprights for 24 In. Arms 14 Ft. 40,400 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 40,400 Component: Double-Sided Upright	432

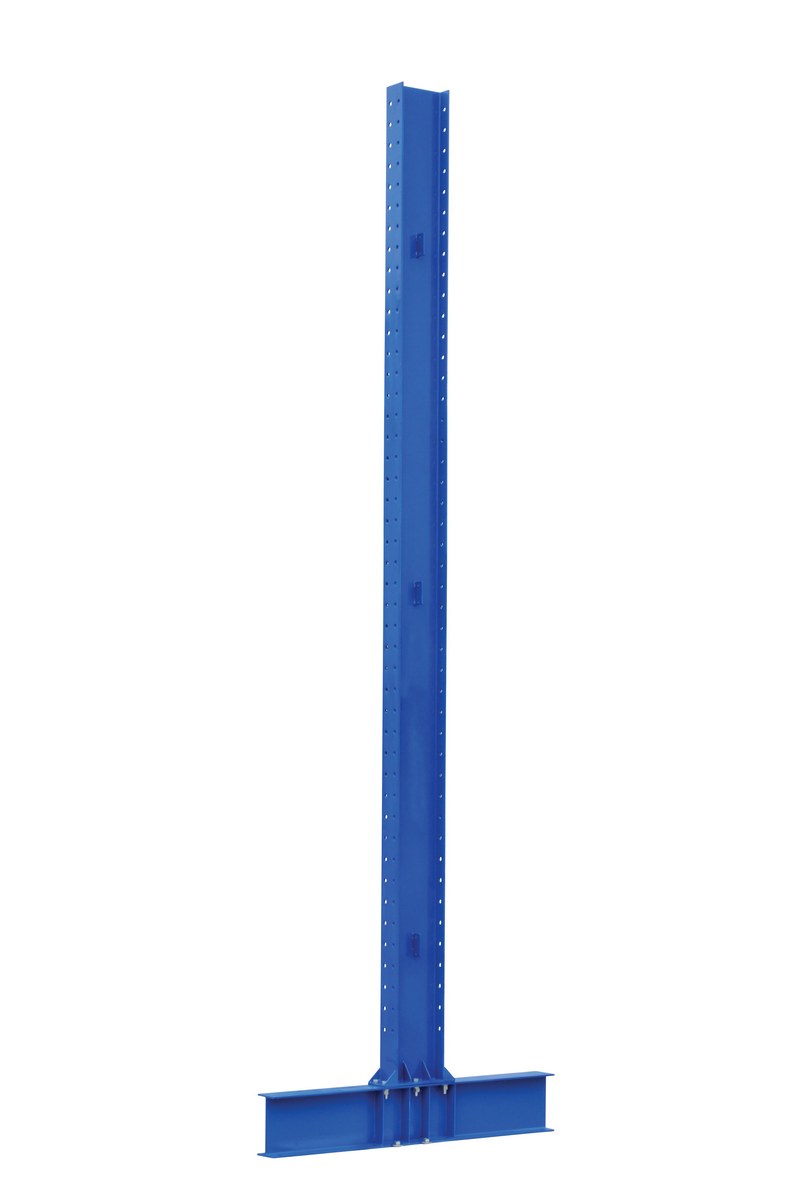

HDU-C-14-36		Steel Heavy Duty Double Sided Cantilever Uprights for 30 In. and 36 In. Arms 14 Ft. 35,200 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 35,200 or 30,800 Component: Double-Sided Upright	467
HDU-C-14-48		Steel Heavy Duty Double Sided Cantilever Uprights for 42 In. and 48 In. Arms 14 Ft. 27,400 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 27,400 or 24,800 Component: Double-Sided Upright	507
HDU-C-8-18		Steel Heavy Duty Double Sided Cantilever Uprights for 18 In. Arms 8 Ft. 49,900 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 49,400 Component: Double-Sided Upright	288
HDU-C-8-24		Steel Heavy Duty Double Sided Cantilever Uprights for 18 In. Arms 8 Ft. 43,000 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 43,000 Component: Double-Sided Upright	307
HDU-C-8-36		Steel Heavy Duty Double Sided Cantilever Uprights for 30 In. and 36 In. Arms 8 Ft. 36,600 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 36,600 or 32,000 Component: Double-Sided Upright	342
HDU-C-8-48		Steel Heavy Duty Double Sided Cantilever Uprights for 42 In. and 48 In. Arms 8 Ft. 27,400 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 28,400 or 25,600 Component: Double-Sided Upright	378

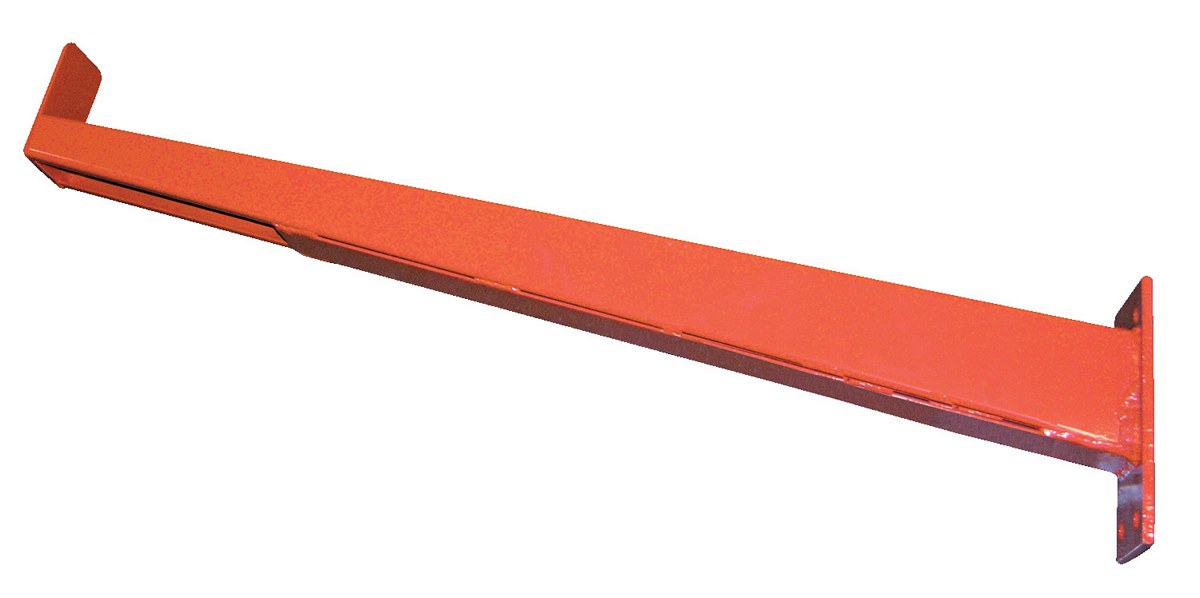

HIA-C-18		Steel Heavy Duty Cantilever 10 Degree Incline Arm 18 In. Length 2,500 Lb. Capacity Orange	Uniform Capacity Per Arm (lb.): 2,500 Component: Incline Arm	16
HIA-C-24		Steel Heavy Duty Cantilever 10 Degree Incline Arm 24 In. Length 2,500 Lb. Capacity Orange	Uniform Capacity Per Arm (lb.): 2,000 Component: Incline Arm	21
HIA-C-30		Steel Heavy Duty Cantilever 10 Degree Incline Arm 30 In. Length 1,500 Lb. Capacity Orange	Uniform Capacity Per Arm (lb.): 1,500 Component: Incline Arm	22
HIA-C-36		Steel Heavy Duty Cantilever 10 Degree Incline Arm 36 In. Length 1,200 Lb. Capacity Orange	Uniform Capacity Per Arm (lb.): 1,200 Component: Incline Arm	26
HIA-C-42		Steel Heavy Duty Cantilever 10 Degree Incline Arm 42 In. Length 1,100 Lb. Capacity Orange	Uniform Capacity Per Arm (lb.): 1,100 Component: Incline Arm	29
HIA-C-48		Steel Heavy Duty Cantilever 10 Degree Incline Arm 48 In. Length 1,000 Lb. Capacity Orange	Uniform Capacity Per Arm (lb.): 1,000 Component: Incline Arm	32

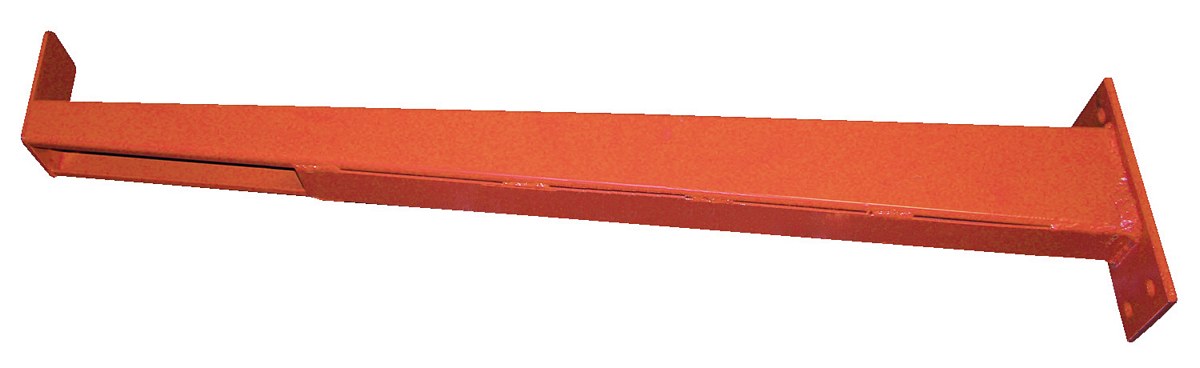

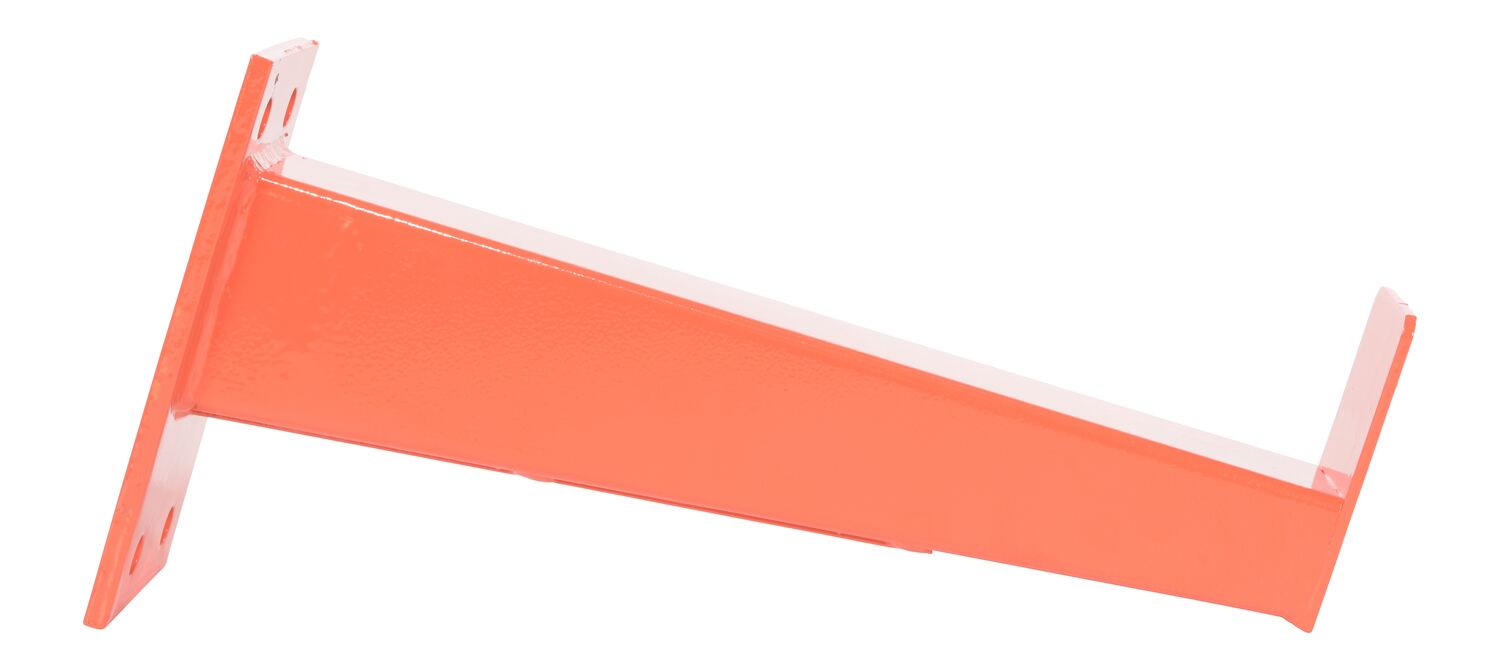

HSA-C-18		Steel Heavy Duty Cantilever Straight Arm 18 In. 2,500 Lb. Capacity Orange	Uniform Capacity Per Arm (lb.): 2,500 Component: Straight Arm	16
HSA-C-24		Steel Heavy Duty Cantilever Straight Arm 24 In. 2,000 Lb. Capacity Orange	Uniform Capacity Per Arm (lb.): 2,000 Component: Straight Arm	21
HSA-C-30		Steel Heavy Duty Cantilever Straight Arm 30 In. 1,500 Lb. Capacity Orange	Uniform Capacity Per Arm (lb.): 1,500 Component: Straight Arm	22
HSA-C-36		Steel Heavy Duty Cantilever Straight Arm 36 In. 1,200 Lb. Capacity Orange	Uniform Capacity Per Arm (lb.): 1,200 Component: Straight Arm	26
HSA-C-42		Steel Heavy Duty Cantilever Straight Arm 42 In. 1,100 Lb. Capacity Orange	Uniform Capacity Per Arm (lb.): 1,100 Component: Straight Arm	29
HSA-C-48		Steel Heavy Duty Cantilever Straight Arm 48 In. 1,000 Lb. Capacity Orange	Uniform Capacity Per Arm (lb.): 1,000 Component: Straight Arm	32
HU-C-10-18		Steel Single Sided Cantilever Upright with 18 In. Arms 10 Ft. 24,700 Lb. Capacity Blue	Uniform Upright Capacity (lb.): 24,700 Component: Single-Sided Upright	313
HU-C-10-24		Steel Single Sided Cantilever Upright with 24 In. Arms 10 Ft. 21,500 Lb. Capacity Blue	Uniform Upright Capacity (lb.): 21,500 Base Length (in.): 36-1/2	323
HU-C-10-36		Steel Single Sided Cantilever Upright with 30 In. and 36 In. Arms 10 Ft. 18,300 Lb. Capacity Blue	Uniform Upright Capacity 30"/36" Arm (lb.): 18,300 or 16,000 Base Length (in.): 48-1/2	340
HU-C-10-48		Steel Single Sided Cantilever Upright with 42 In. and 48 In. Arms 10 Ft. 14,200 Lb. Capacity Blue	Uniform Upright Capacity 42"/48" Arm(lb.): 14,200 or 12,800 Base Length (in.): 60-1/2	357
HU-C-12-18		Steel Single Sided Cantilever Upright with 18 In. Arms 12 Ft. 24,400 Lb. Capacity Blue	Uniform Upright Capacity (lb.): 24,400 Component: Single-Sided Upright	351
HU-C-12-24		Steel Single Sided Cantilever Upright with 24 In. Arms 12 Ft. 20,900 Lb. Capacity Blue	Uniform Upright Capacity (lb.): 20,900 Base Length (in.): 36-1/2	362
HU-C-12-36		Steel Single Sided Cantilever Upright with 30 In. and 36 In. Arms 12 Ft. 17,800 Lb. Capacity Blue	Uniform Upright Capacity 30"/36" Arm (lb.): 17,800 or 15,600 Base Length (in.): 48-1/2	378
HU-C-12-48		Steel Single Sided Cantilever Upright with 42 In. and 48 In. Arms 12 Ft. 13,900 Lb. Capacity Blue	Uniform Upright Capacity 42"/48" Arm(lb.): 13,900 or 12,500 Base Length (in.): 60-1/2	396
HU-C-14-18		Single Sided Cantilever Upright with 18 In. Arms 14 Ft. 23,400 Lb. Capacity Blue	Uniform Upright Capacity (lb.): 23,400 Component: Single-Sided Upright	390
HU-C-14-24		Single Sided Cantilever Upright with 24 In. Arms 14 Ft. 20,200 Lb. Capacity Blue	Uniform Upright Capacity (lb.): 20,200 Component: Single-Sided Upright	401
HU-C-14-36		Single Sided Cantilever Upright with 30 In. and 36 In. Arms 14 Ft. 17,600 Lb. Capacity Blue	Uniform Upright Capacity 30"/36" Arm (lb.): 17,600 or 15,400 Component: Single-Sided Upright	417
HU-C-14-48		Single Sided Cantilever Upright with 42 In. and 48 In. Arms 14 Ft. 13,700 Lb. Capacity Blue	Uniform Upright Capacity 42"/48" Arm(lb.): 13,700 or 12,400 Component: Single-Sided Upright	435

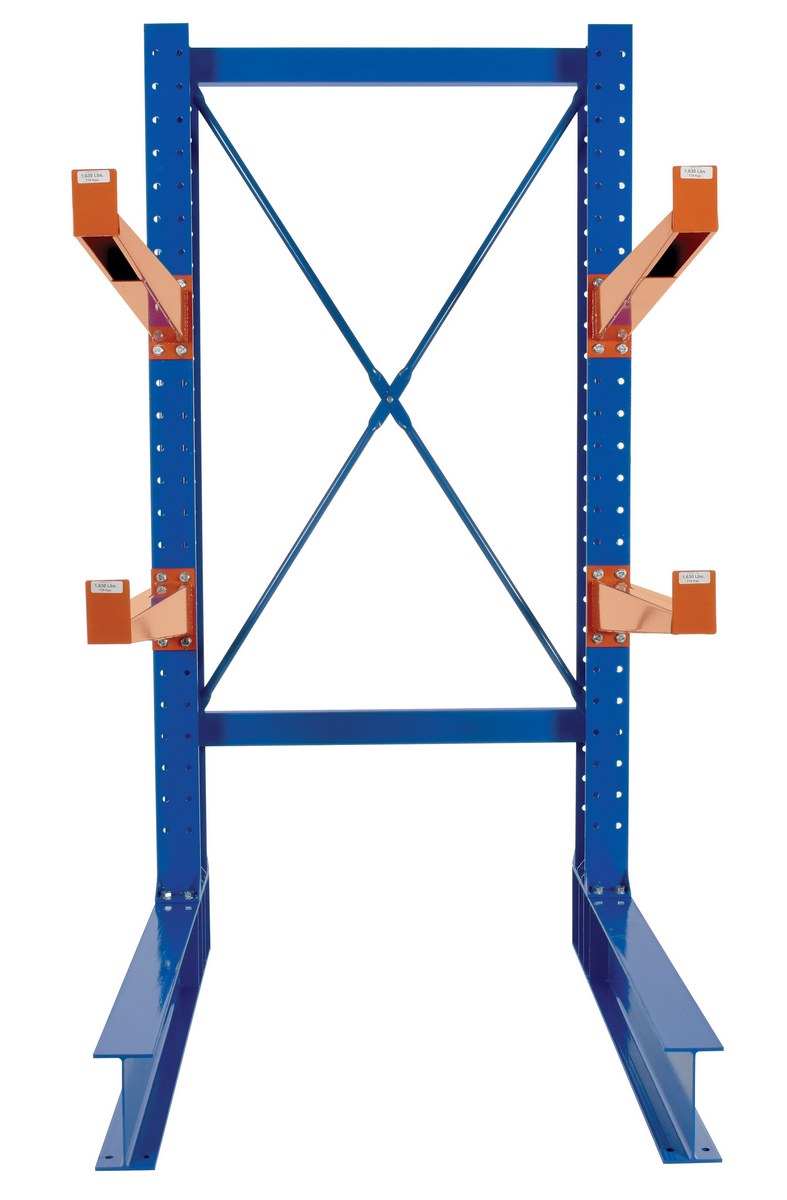

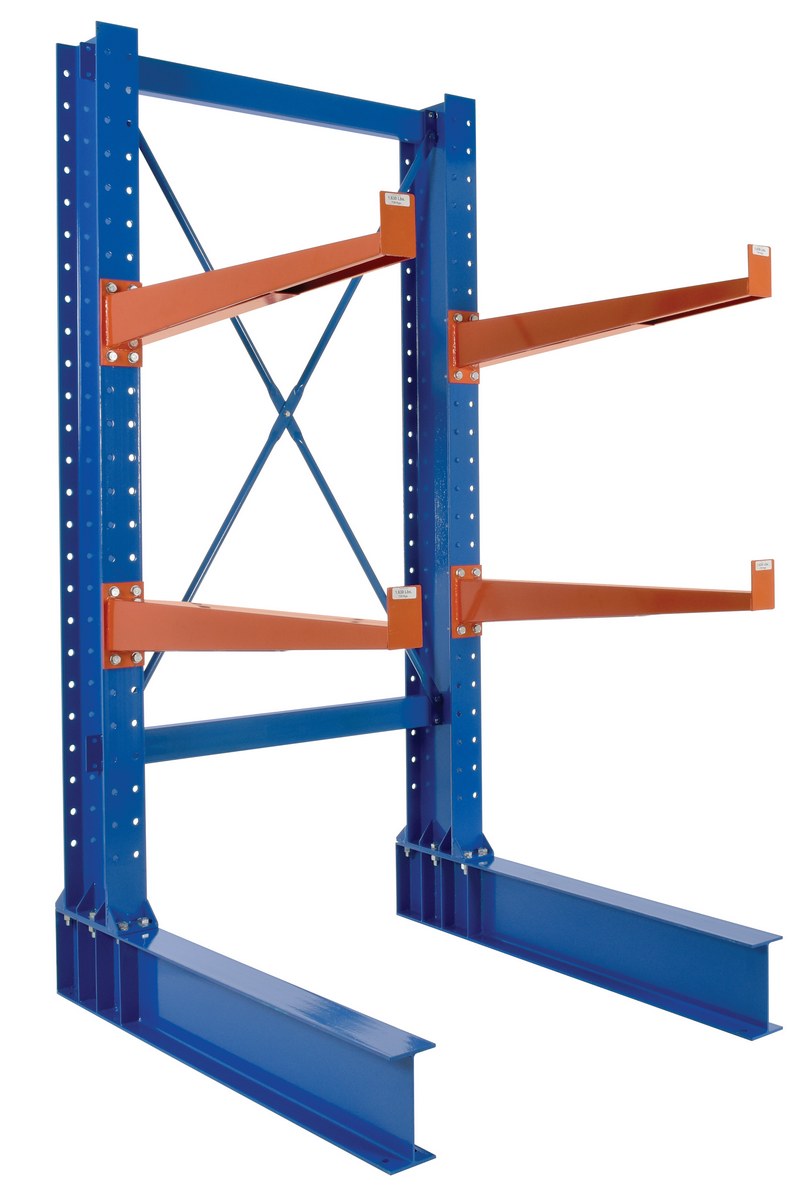

HU-C-8-18		Steel Heavy Duty Single Sided Cantilever Upright 18 In. Arms 8 Ft. 24,700 Lb. Capacity Blue	Uniform Upright Capacity (lb.): 24,700 Component: Single-Sided Upright	265

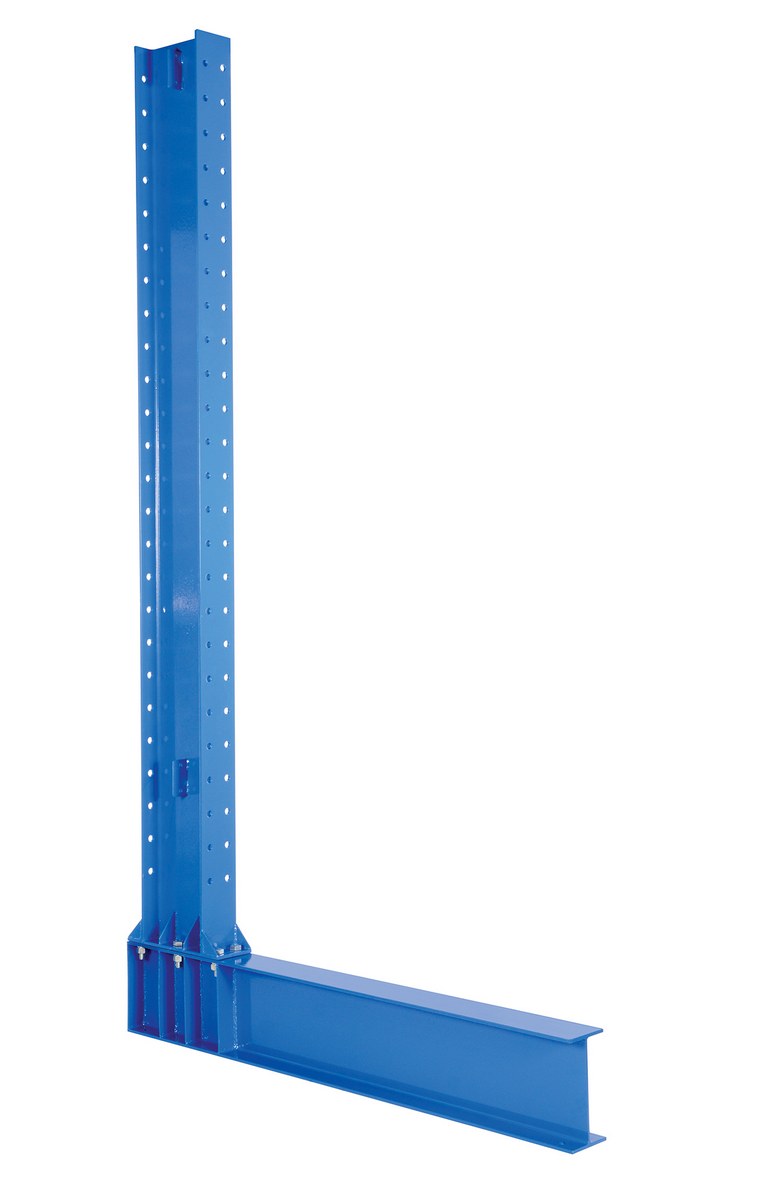

HU-C-8-24		Steel Heavy Duty Single Sided Cantilever Upright 24 In. Arms 8 Ft. 21,500 Lb. Capacity Blue	Uniform Upright Capacity (lb.): 21,500 Component: Single-Sided Upright	275
HU-C-8-36		Steel Heavy Duty Single Sided Cantilever Upright 30 In. and 36 In. Arms 8 Ft. 18,300-16,000 Lb. Capacity Blue	Uniform Upright Capacity 30"/36" Arm (lb.): 18,300 or 16,000 Component: Single-Sided Upright	292
HU-C-8-48		Steel Heavy Duty Single Sided Cantilever Upright with 42 In. and 48 In. Arms 8 Ft. 14,200-12,800 Lb. Capacity Blue	Uniform Upright Capacity 42"/48" Arm(lb.): 14,200 or 12,800 Component: Single-Sided Upright	310

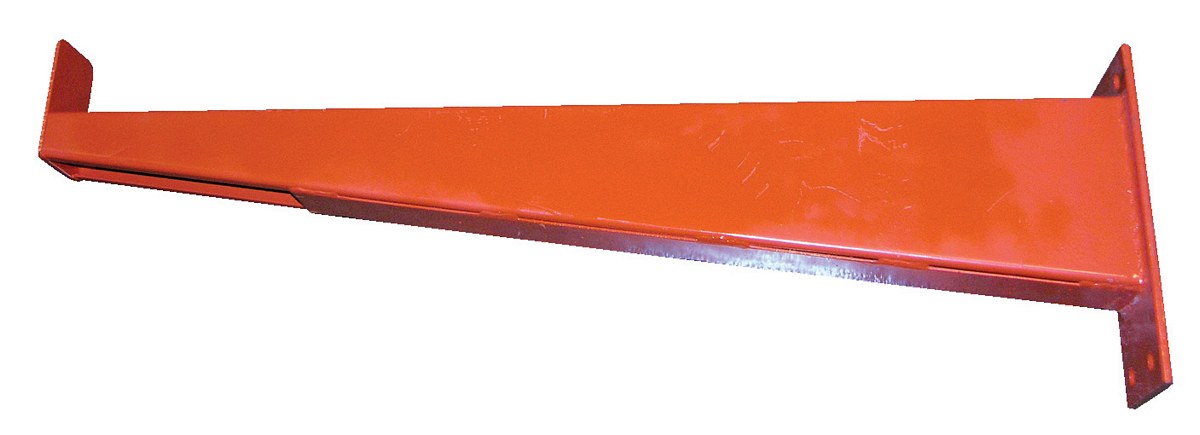

XHDSA-C-36		Steel Extra Heavy Duty Cantilever Straight Arm 36 In. Length 2,500 lb. Capacity Orange	Uniform Capacity Per Arm (lb.): 3,400 Component: Extra Heavy-Duty Arm	30
