Pallet Racking

model: PRTD

Pallet Racking

SERIES: PRTD,BEAM,FSR

Scratch and Rust Resistance
Surface Features Powder Coat Finish
Structural Uniformity and Integrity

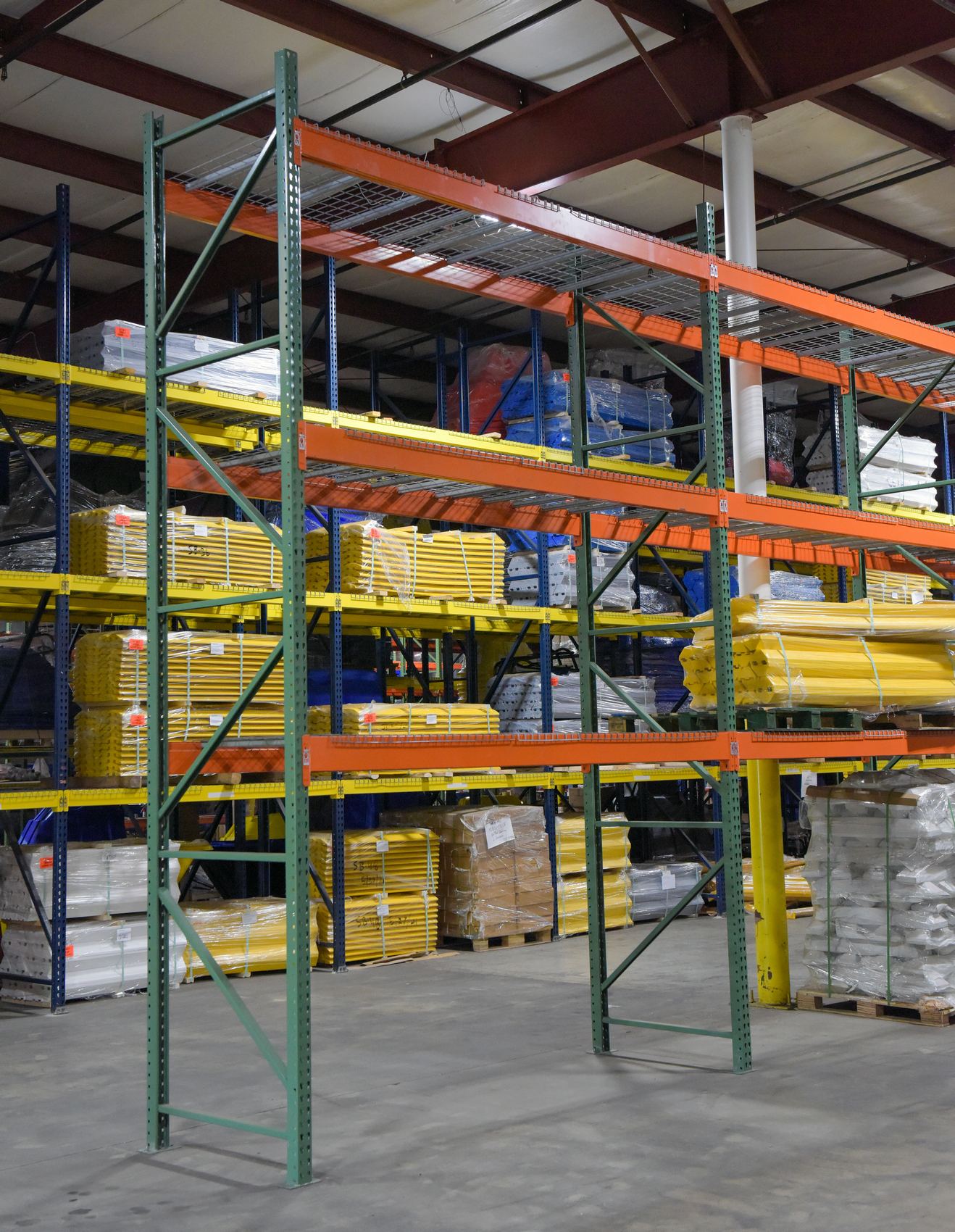

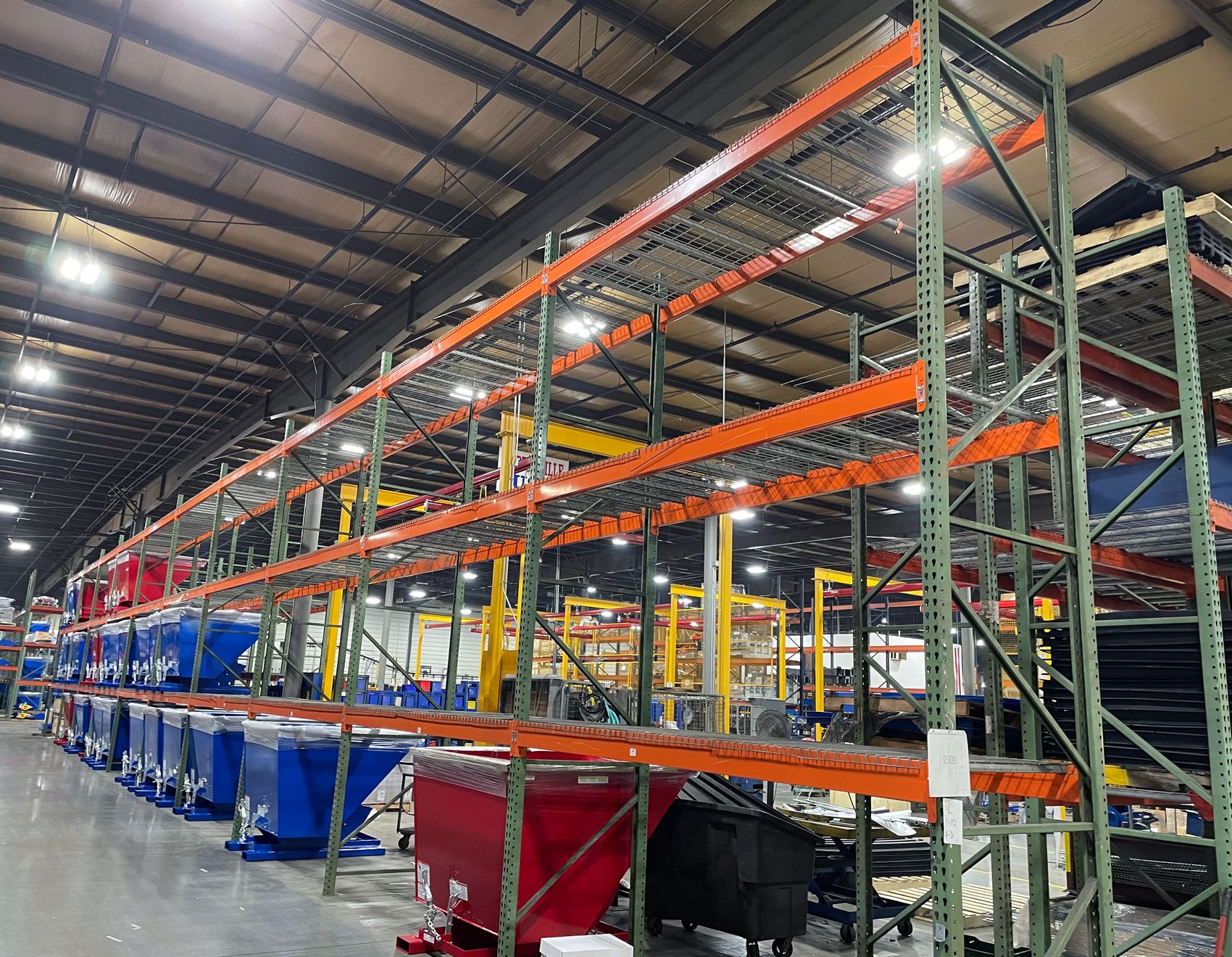

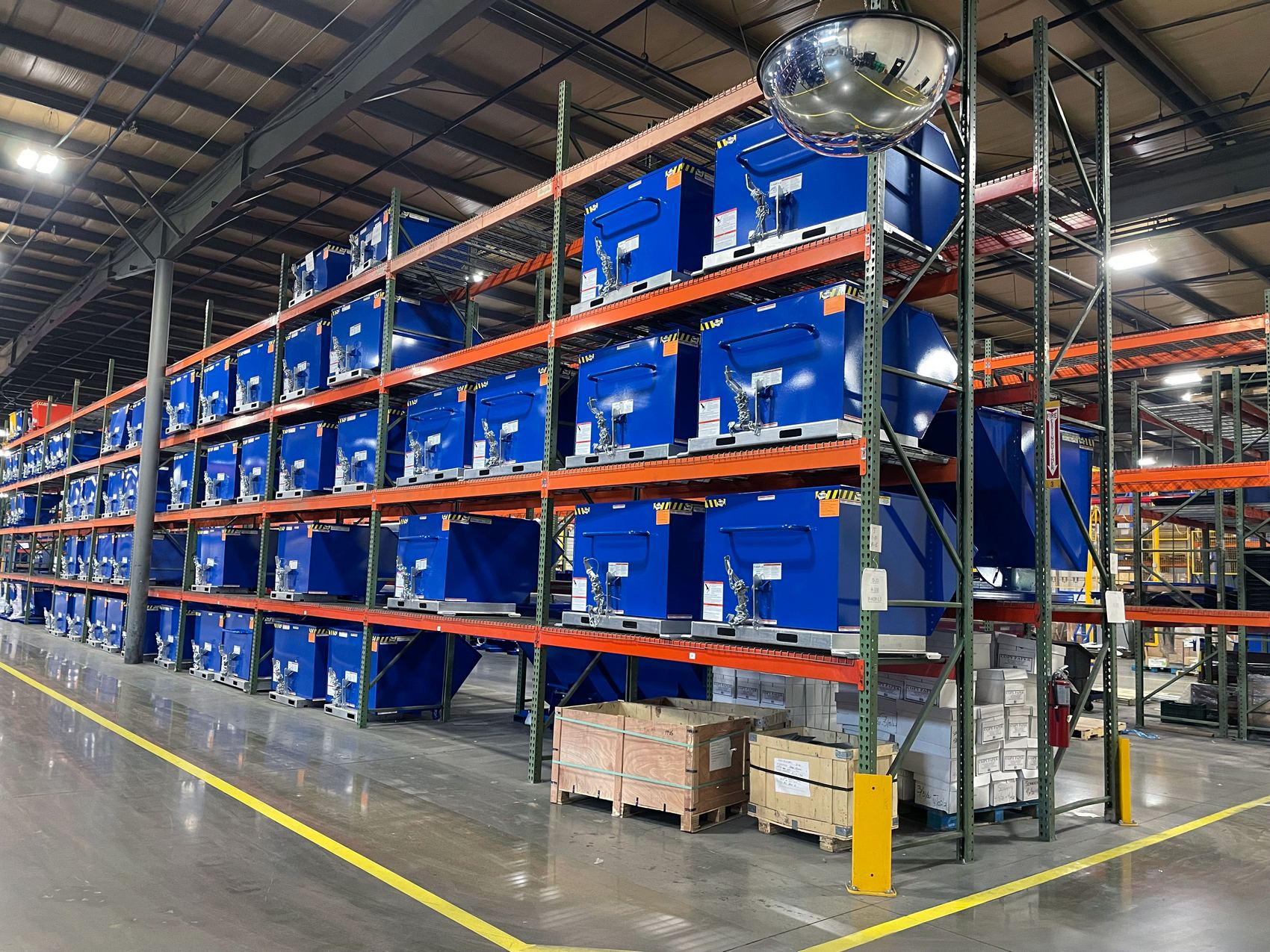

Pallet Racking solves the storage and retrieval needs faced by most industries today. Adaptability to specific layout installations is just one added feature. Units are sold 'Each'.

Pallet Racking

model: PRTD

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

PDFs will open in a new window when clicked.

Manuals

PRT

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

BEAM-S-850

BEAM-S-870

BEAM-S-960

BEAM-S-970

BEAM-S-1050

BEAM-S-1070

FSR-6

FSR-12

Testing Certificates

BEAM-S-1050

BEAM-S-1070

BEAM-S-1250

BEAM-S-1260

BEAM-S-850

BEAM-S-870

BEAM-S-960

BEAM-S-970

FSR-12

FSR-6

PRTD-10-42-19

PRTD-10-42-24

PRTD-12-42-19

PRTD-12-42-24

PRTD-14-42-19

PRTD-14-42-24

PRTD-16-42-19

PRTD-16-42-24

PRTD-18-42-24

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product

We are going to do two "runs" on the pallet racking. How many uprights do we need?

For two continuous "runs" on the pallet racking you will need 3 frames (PRTD-XX-XX-XX)

Is the frame on the PRTD series welded or bolted together?

The frame is welded together.

Print Friendly

Related or Similar Products:

More From Pallet Racking & Accessories

Rack Shields

High Impact Plastic Upright Rack Guard

High Impact Plastic Upright Rack Guard

Pallet Rack Shelf Divider

Pallet Rack Shelf Divider

Foam Edge Guards

Foam Edge Guards

Polyethylene Rack Protector

Polyethylene Rack Protector

Pallet Guide Stop

Pallet Guide Stop

Pallet Racking

Scratch and Rust Resistance
Surface Features Powder Coat Finish
Structural Uniformity and Integrity

Pallet Racking solves the storage and retrieval needs faced by most industries today. Adaptability to specific layout installations is just one added feature. Units are sold 'Each'.

Model #		Description	Attributes	Net Wt. (lbs)
BEAM-S-1050		Steel Pallet Racking Step Beam 10 Ft. 5000 Lb. Capacity Orange	Uniform Capacity per Pair (lb.): 5,000 Component: Step Beam	75
BEAM-S-1070		Steel Pallet Racking Step Beam 10 Ft. 7000 Lb. Capacity Orange	Uniform Capacity per Pair (lb.): 7,000 Component: Step Beam	82
BEAM-S-1250		Steel Pallet Racking Step Beam 12 Ft. 5000 Lb. Capacity Orange	Uniform Capacity per Pair (lb.): 5,000 Component: Step Beam	105
BEAM-S-1260		Steel Pallet Racking Step Beam 12 Ft. 6000 Lb. Capacity Orange	Uniform Capacity per Pair (lb.): 6,000 Component: Step Beam	115

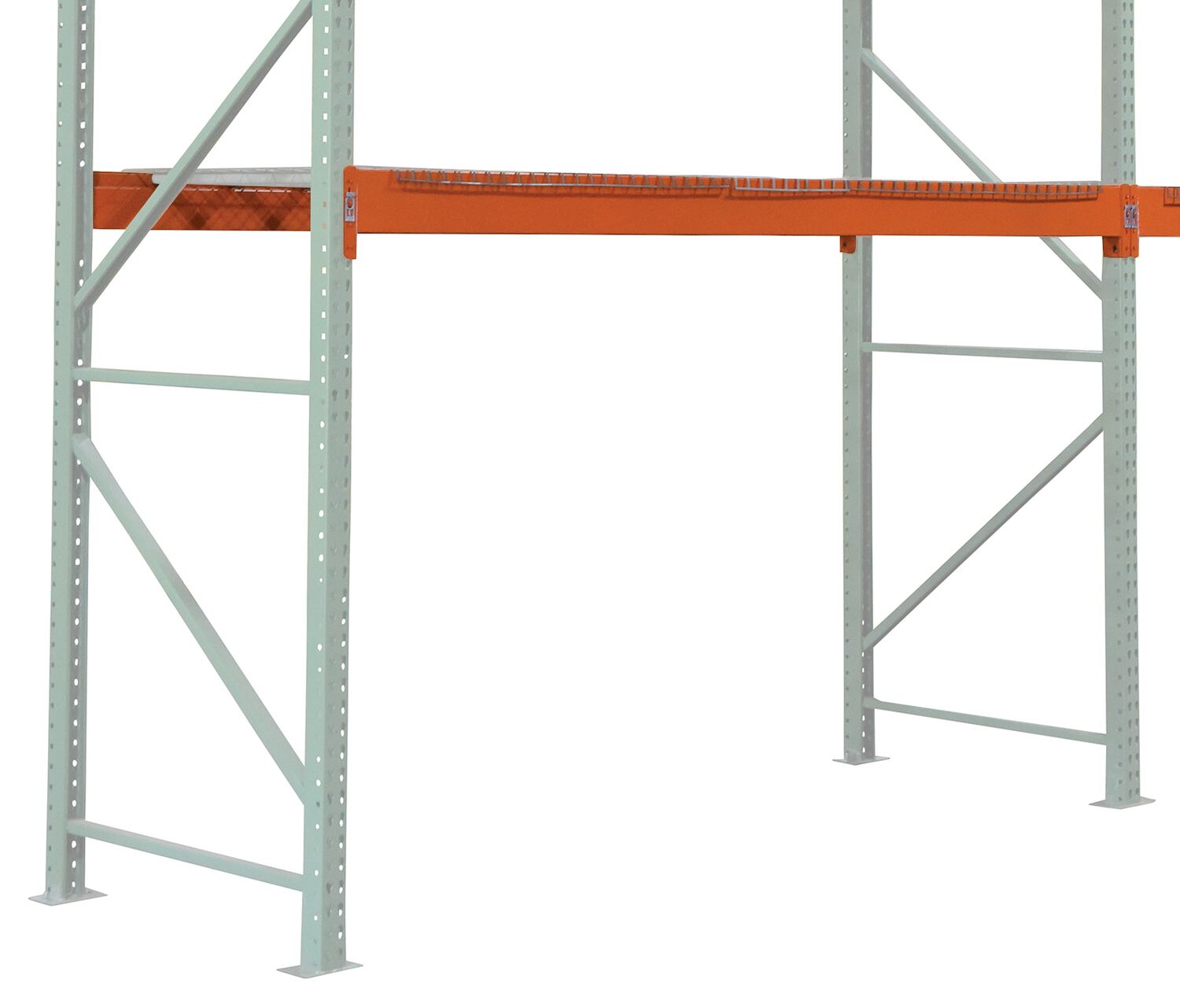

BEAM-S-850		Steel Pallet Racking Step Beam 8 Ft. 5000 Lb. Capacity Orange	Uniform Capacity per Pair (lb.): 5,000 Component: Step Beam	66
BEAM-S-870		Steel Pallet Racking Step Beam 8 Ft. 7000 Lb. Capacity Orange	Uniform Capacity per Pair (lb.): 7,000 Component: Step Beam	70
BEAM-S-960		Steel Pallet Racking Step Beam 9 Ft. 6000 Lb. Capacity Orange	Uniform Capacity per Pair (lb.): 6,000 Component: Step Beam	78
BEAM-S-970		Steel Pallet Racking Step Beam 9 Ft. 7000 Lb. Capacity Orange	Uniform Capacity per Pair (lb.): 7,000 Component: Step Beam	82

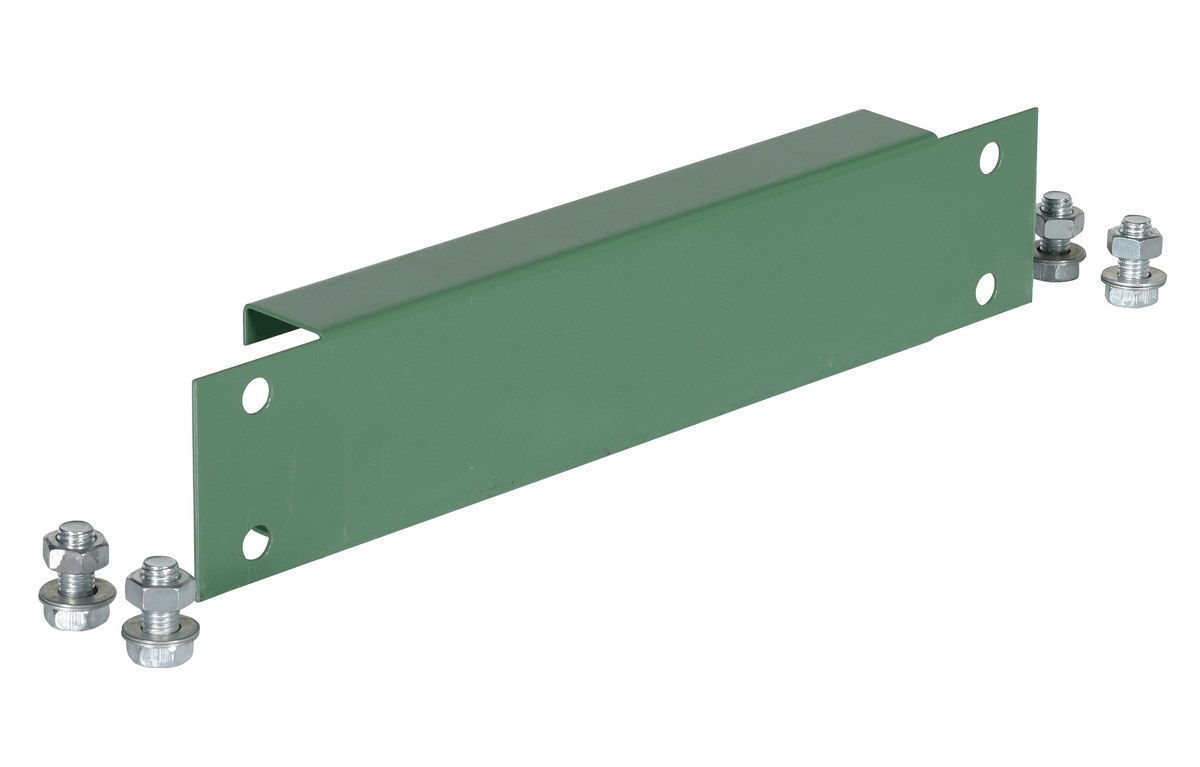

FSR-12		Steel Pallet Racking Frame Spacer 12 In. Usable Length Green	Usable Length (in.): 12 Component: Frame Spacer	2

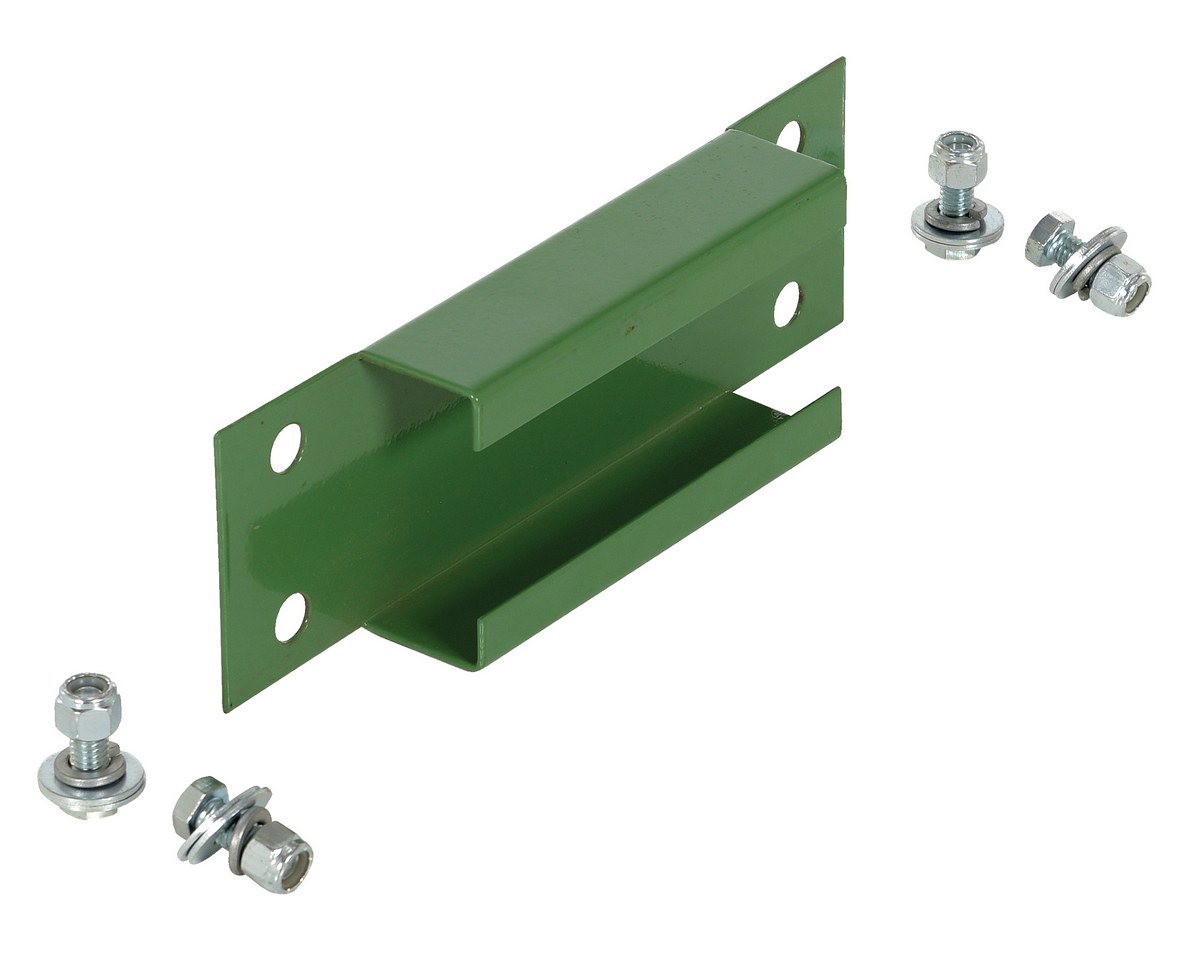

FSR-6		Steel Pallet Racking Frame Spacer 6 In. Usable Length Green	Usable Length (in.): 6 Component: Frame Spacer	2
PRTD-10-42-19		Steel Pallet Racking Frame 10 Ft. x 42 In. 19,380 Lb. Capacity Blue	Uniform Capacity (lb.): 19,380 Component: Frame	139
PRTD-10-42-24		Steel Pallet Racking Frame 10 Ft. x 42 In. 24,000 Lb. Capacity Green	Uniform Capacity (lb.): 24,000 Component: Frame	171
PRTD-12-42-19		Steel Pallet Racking Frame 12 Ft. x 42 In. 19,380 Lb. Capacity Blue	Uniform Capacity (lb.): 19,380 Component: Frame	162
PRTD-12-42-24		Steel Pallet Racking Frame 12 Ft. x 42 In. 24,000 Lb. Capacity Green	Uniform Capacity (lb.): 24,000 Component: Frame	165

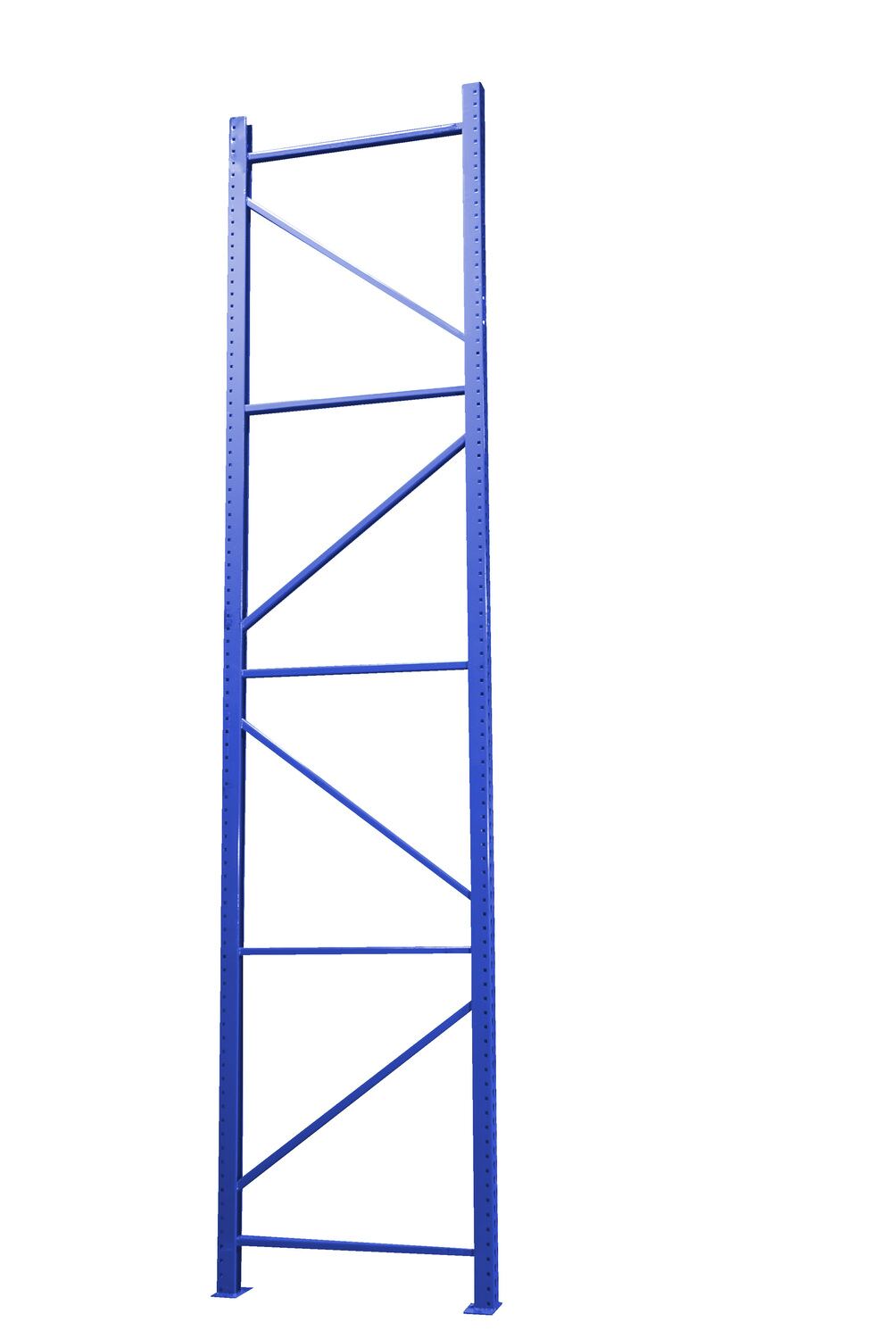

PRTD-14-42-19		Steel Pallet Racking Frame 14 Ft. x 42 In. 19,380 Lb. Capacity Blue	Uniform Capacity (lb.): 19,380 Component: Frame	173
PRTD-14-42-24		Steel Pallet Racking Frame 14 Ft. x 42 In. 24,000 Lb. Capacity Green	Uniform Capacity (lb.): 24,000 Component: Frame	187
PRTD-16-42-19		Steel Pallet Racking Frame 16 Ft. x 42 In. 19,380 Lb. Capacity Blue	Uniform Capacity (lb.): 19,380 Component: Frame	183
PRTD-16-42-24		Steel Pallet Racking Frame 16 Ft. x 42 In. 24,000 Lb. Capacity Green	Uniform Capacity (lb.): 24,000 Component: Frame	226
PRTD-18-42-24		Steel Pallet Racking Frame 18 Ft. x 42 In. 24,000 Lb. Capacity Green	Uniform Capacity (lb.): 24,000 Component: Frame	180
