Model Details

PI-P-SL-3276-PRSR

Printer Friendly
PI-P-SL-3276-PRSR

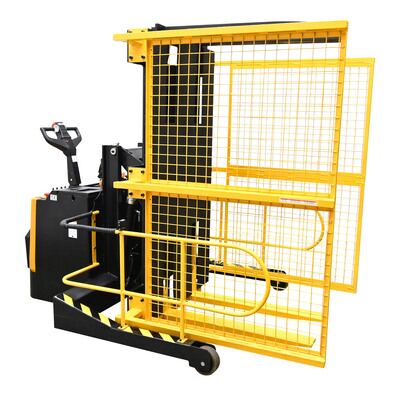

Steel Portable Pallet Inverter With Cage 32 In. to 76 In Fork Opening 3,000 Lb. Capacity Yellow/Black

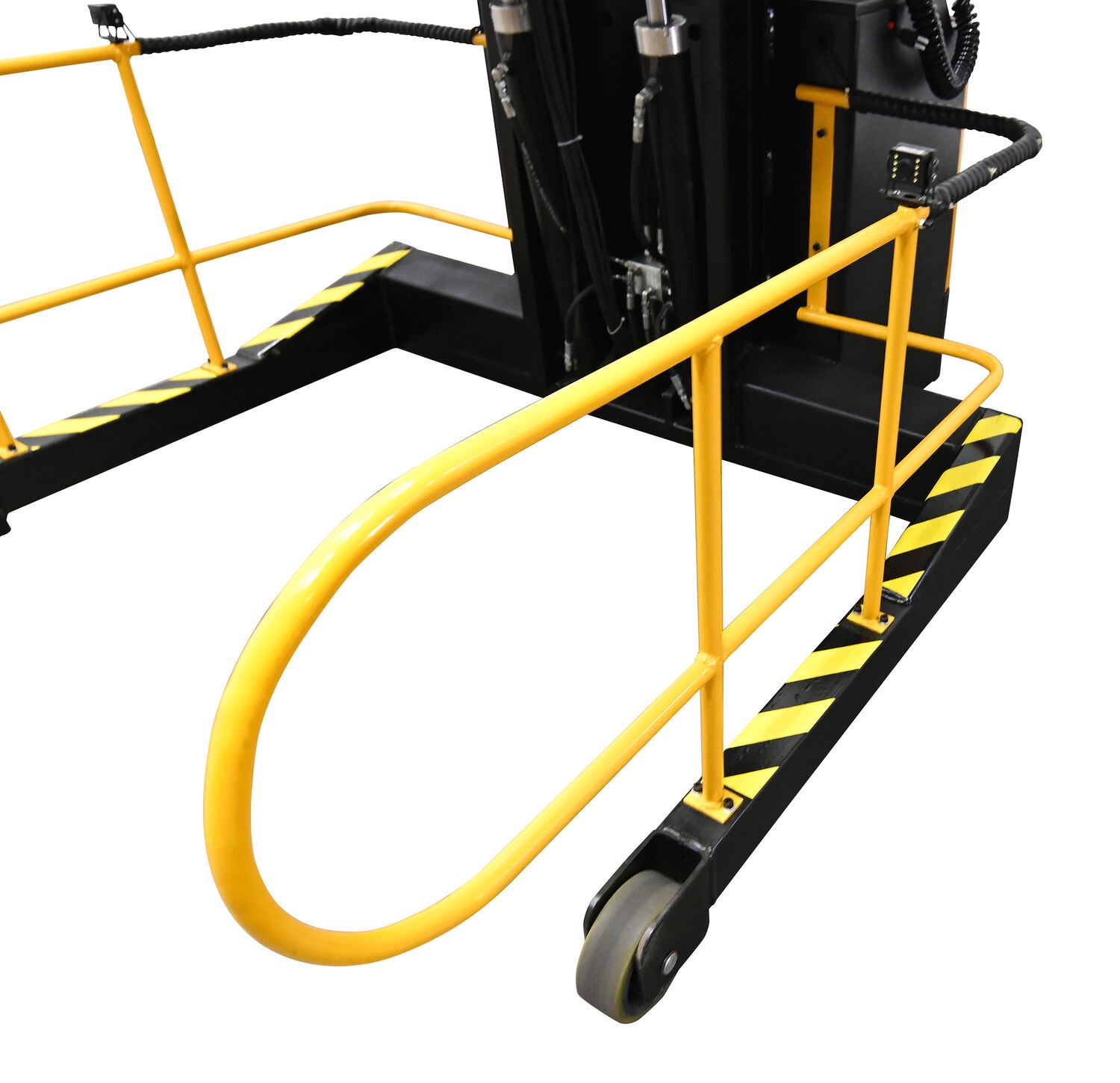

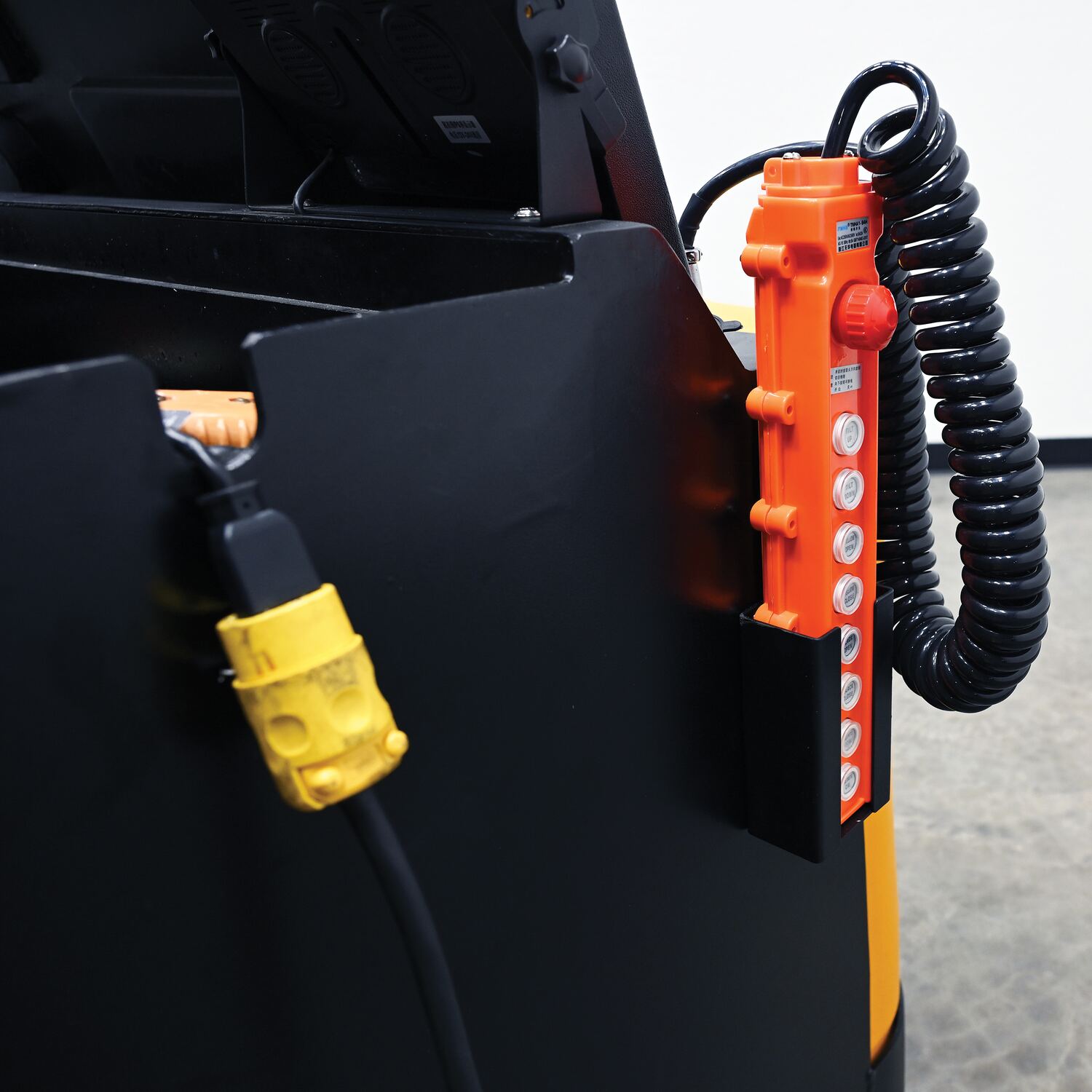

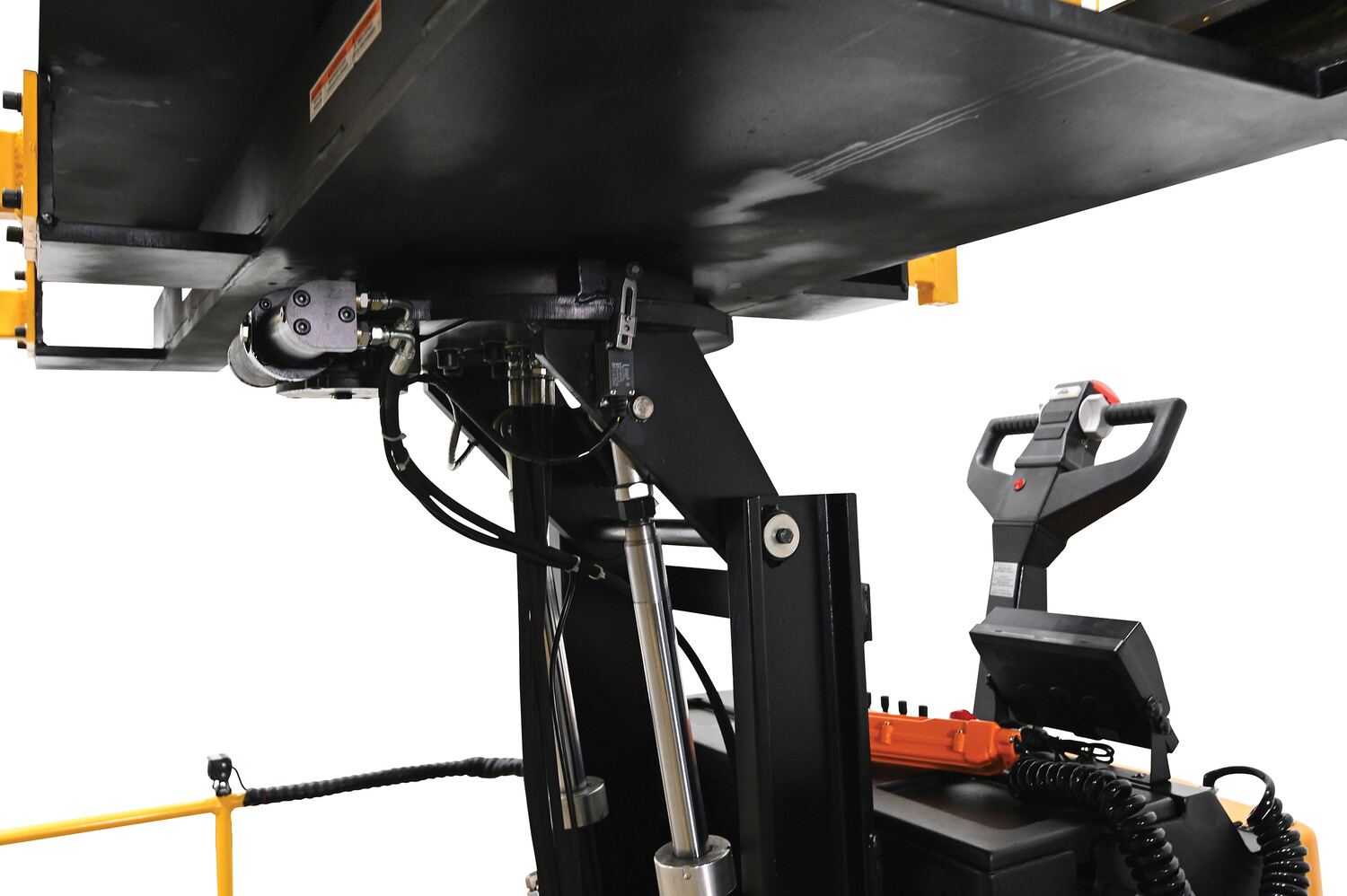

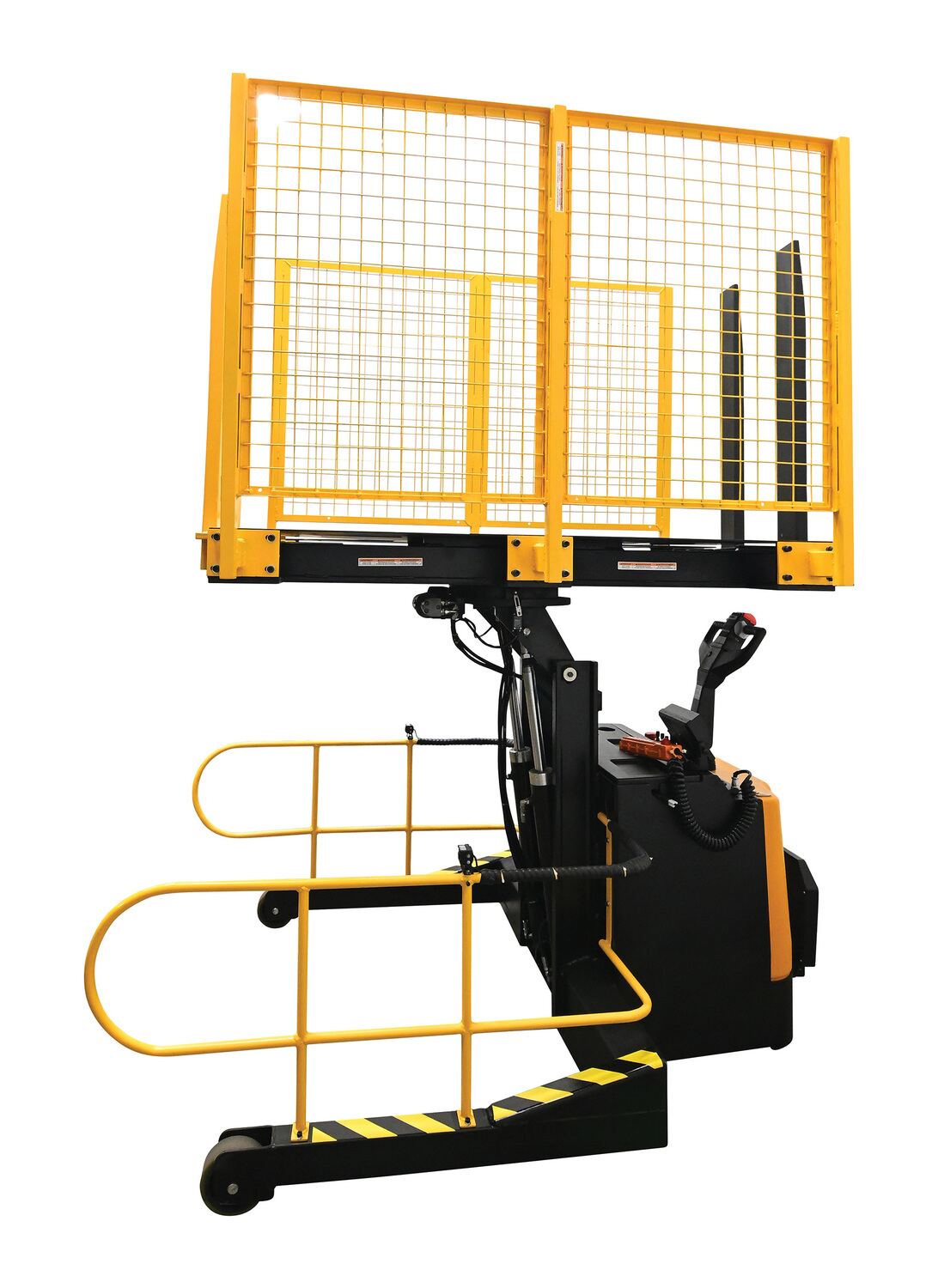

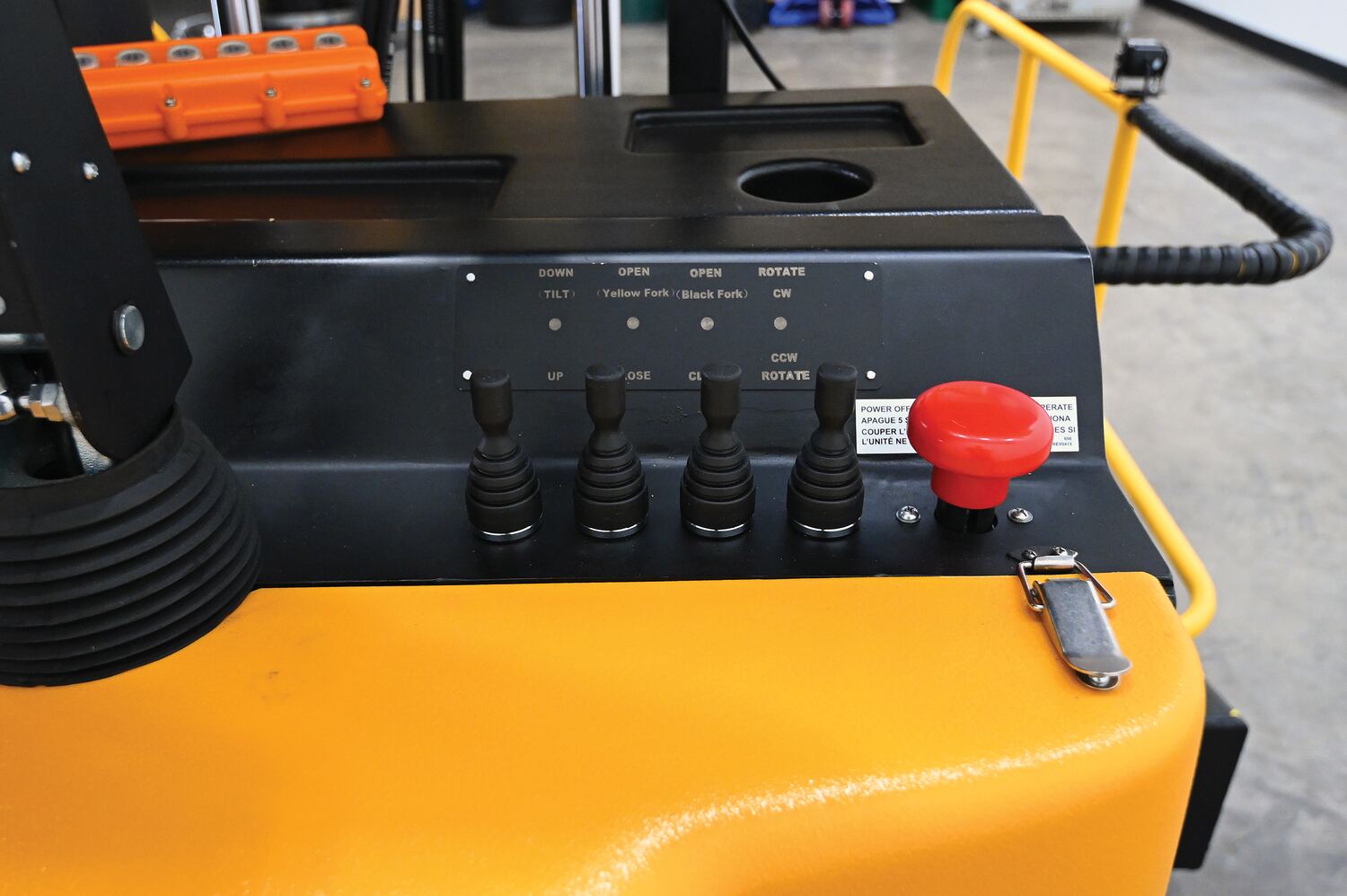

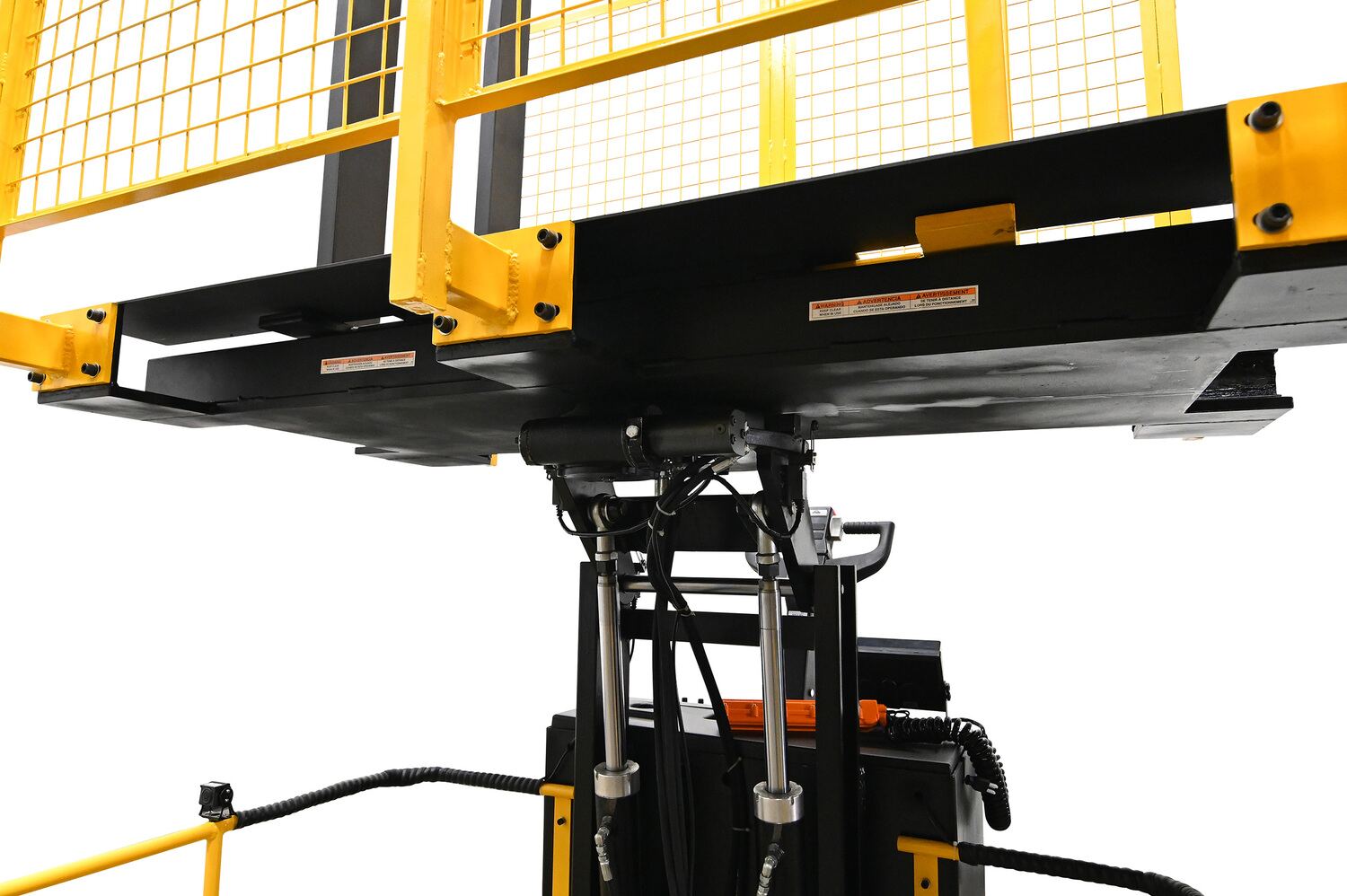

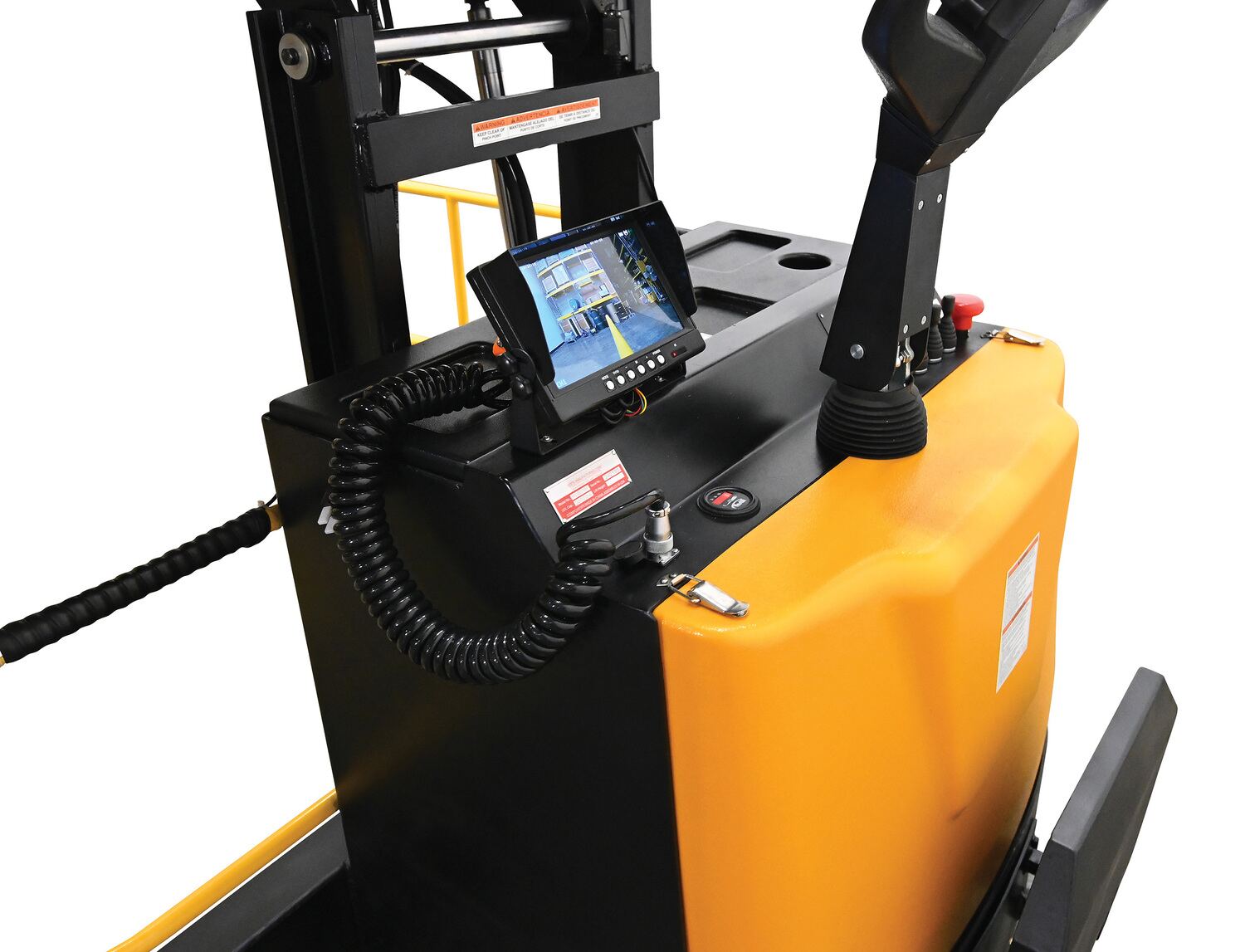

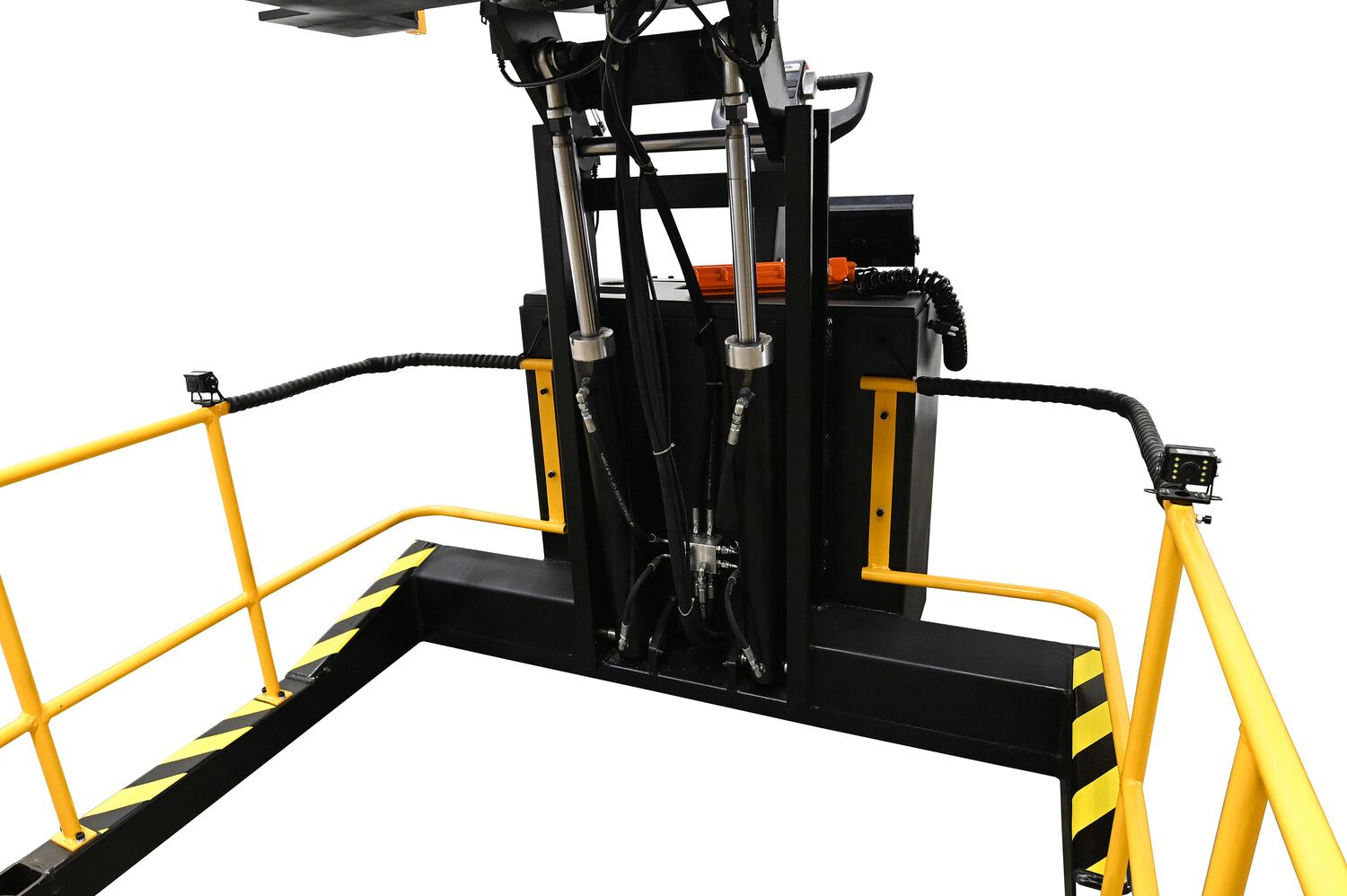

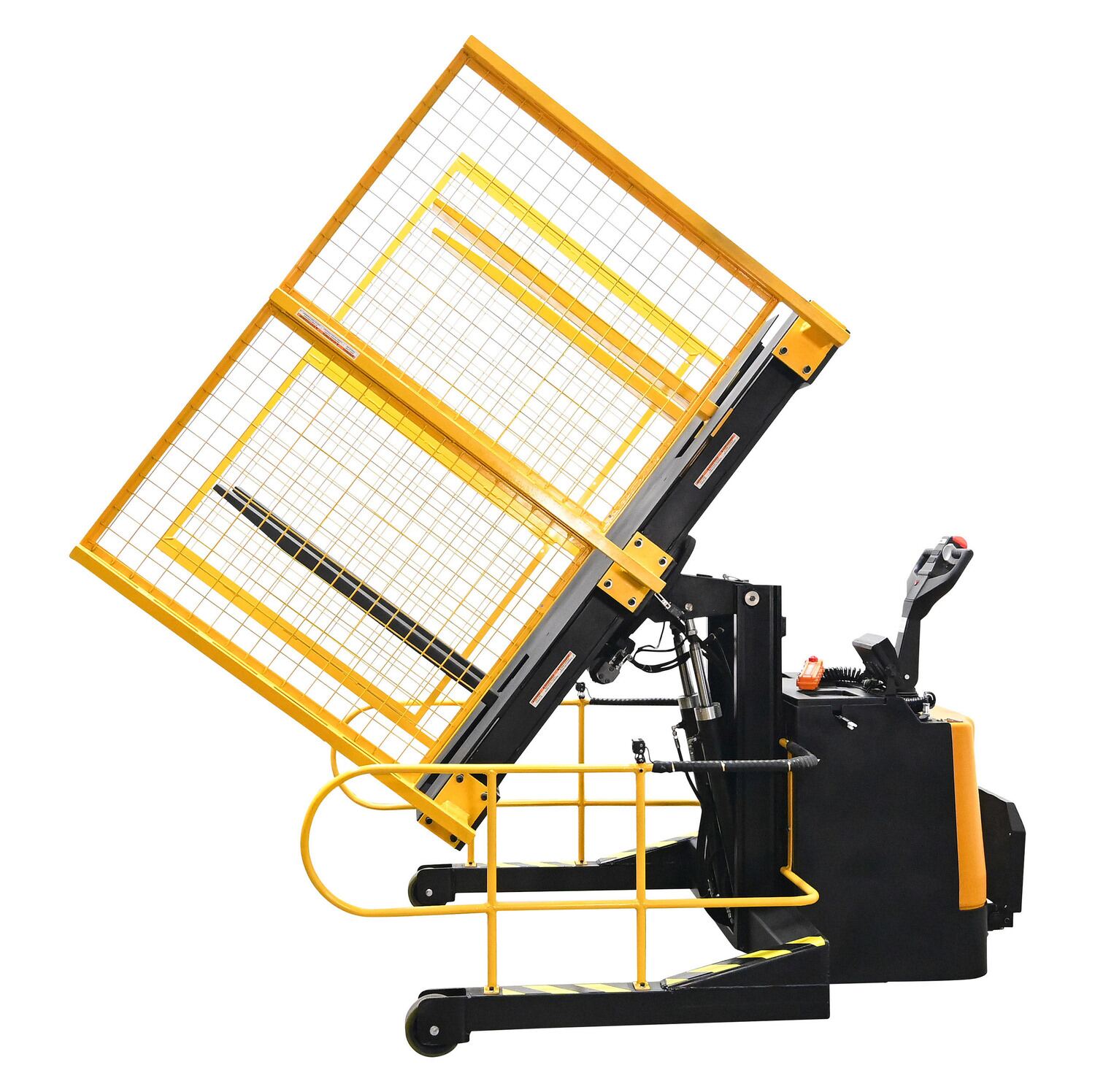

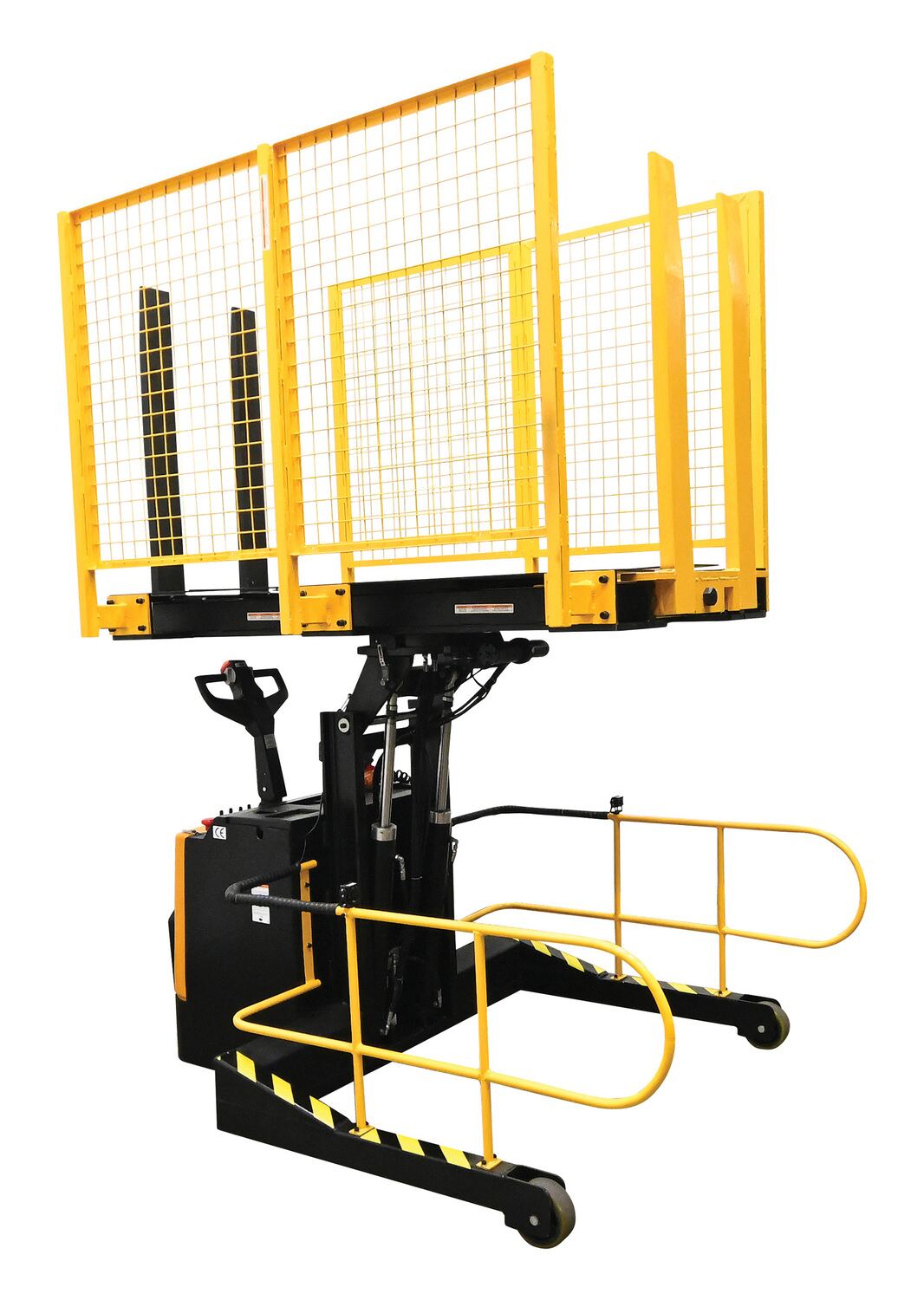

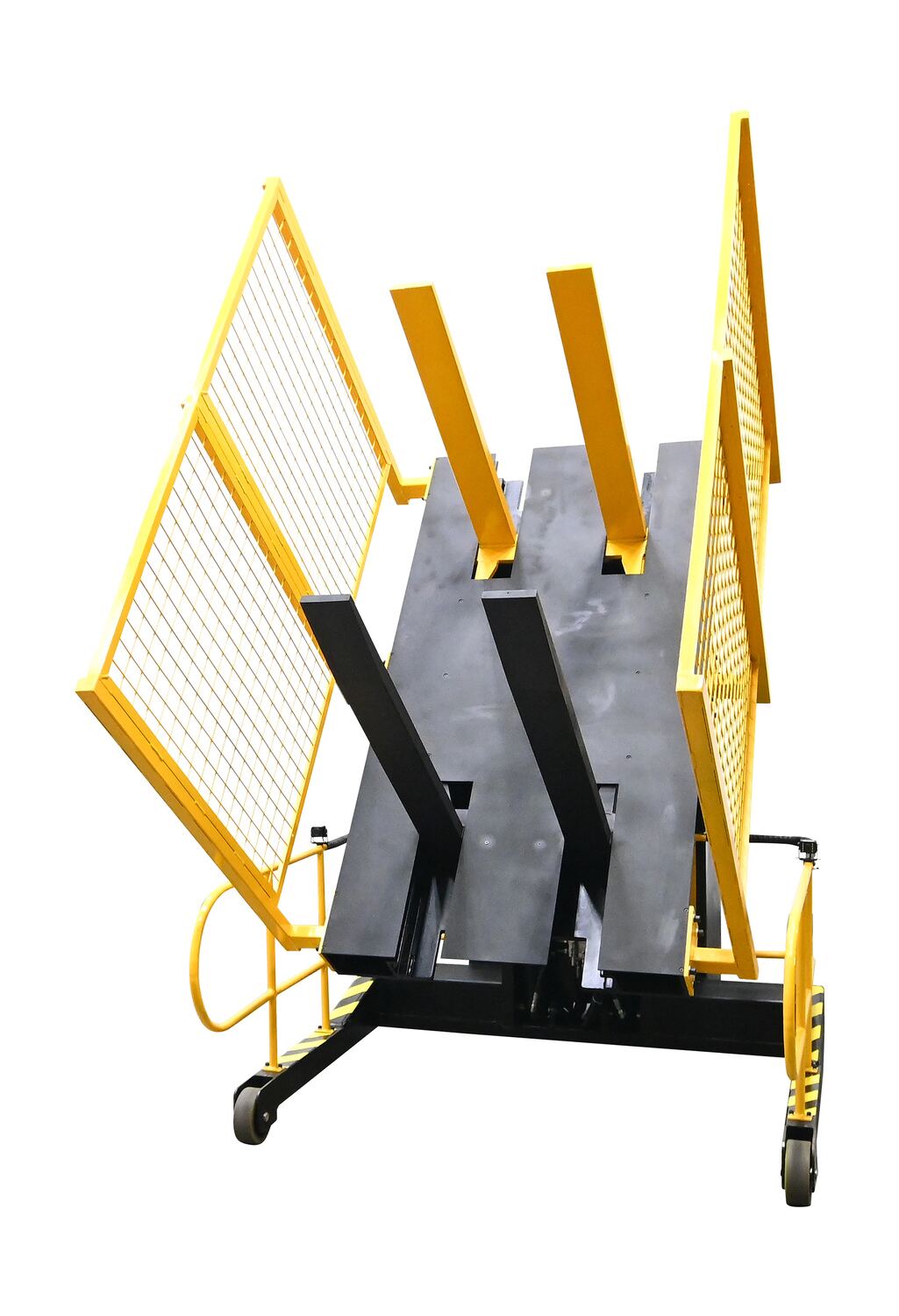

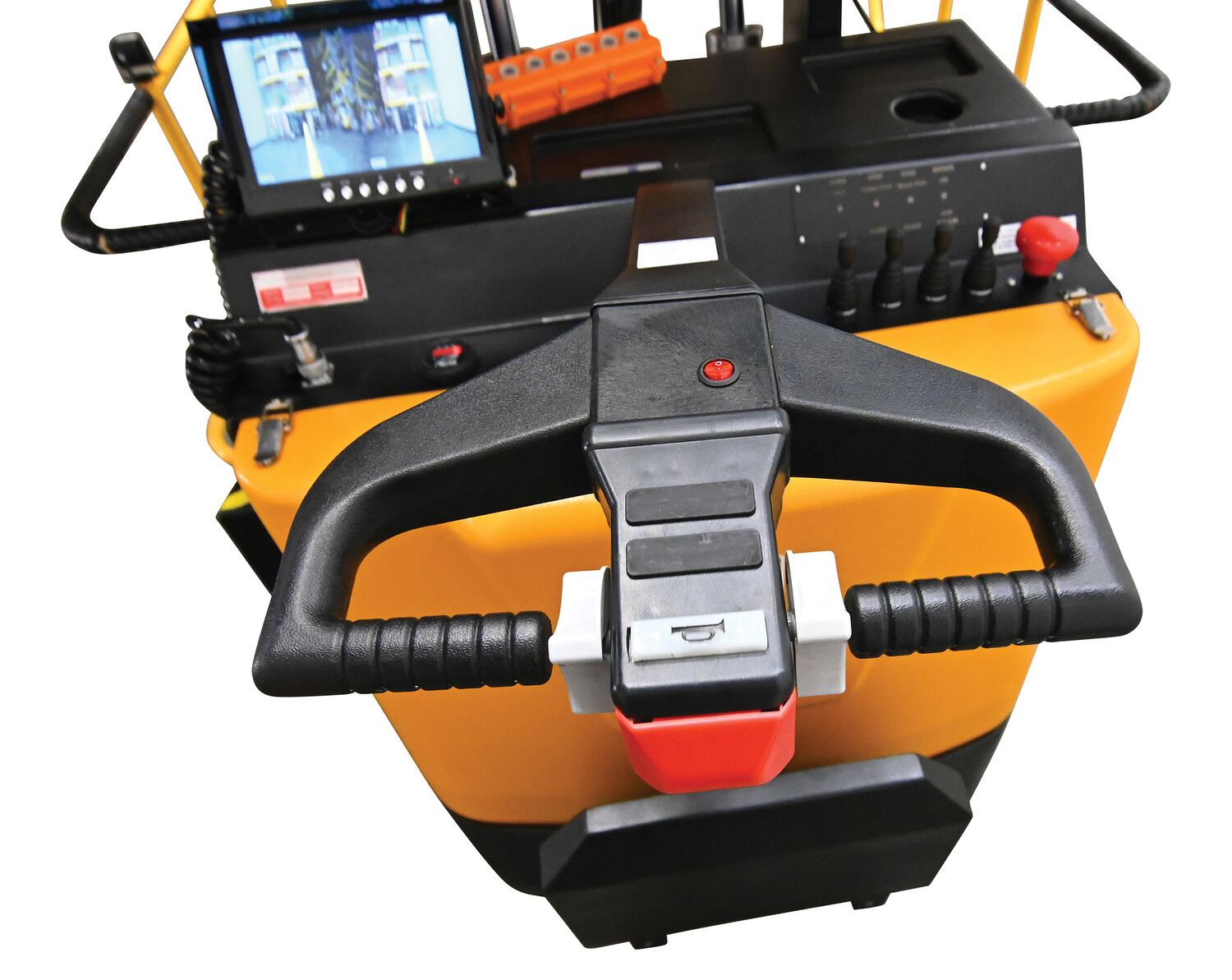

Tilt (powered) and rotate (manual) loads with our durable pallet inverter. Low profile design allows the operator to stand on the rider platform and steer the load from workstation to workstation quickly and easily. DC power lift and drive makes operation safe and efficient. The ergonomic handle features easy to operate throttle and tilt/lower controls. Features an electromagnetic disc brake with automatic dead-man feature that activates when user releases handle. Includes (4) 6V batteries, emergency battery disconnect, and horn. Ideal in loading dock areas as a powered pallet truck, powered pallet tilter, or as a manual turntable. Rolls smoothly on polyurethane steer and load wheels.

  • Safety belly reverse button
  • On-board battery charger and level gauge

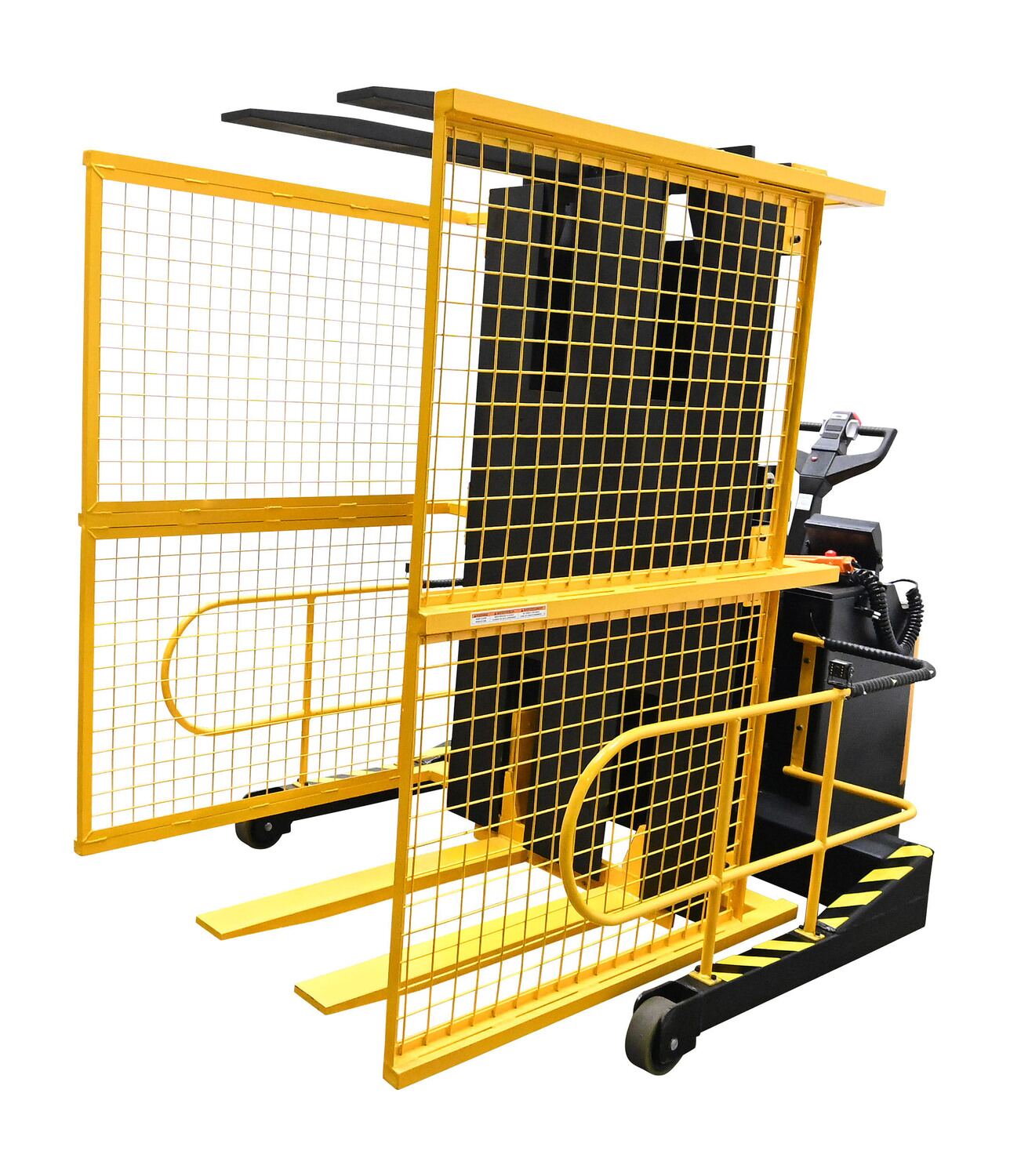

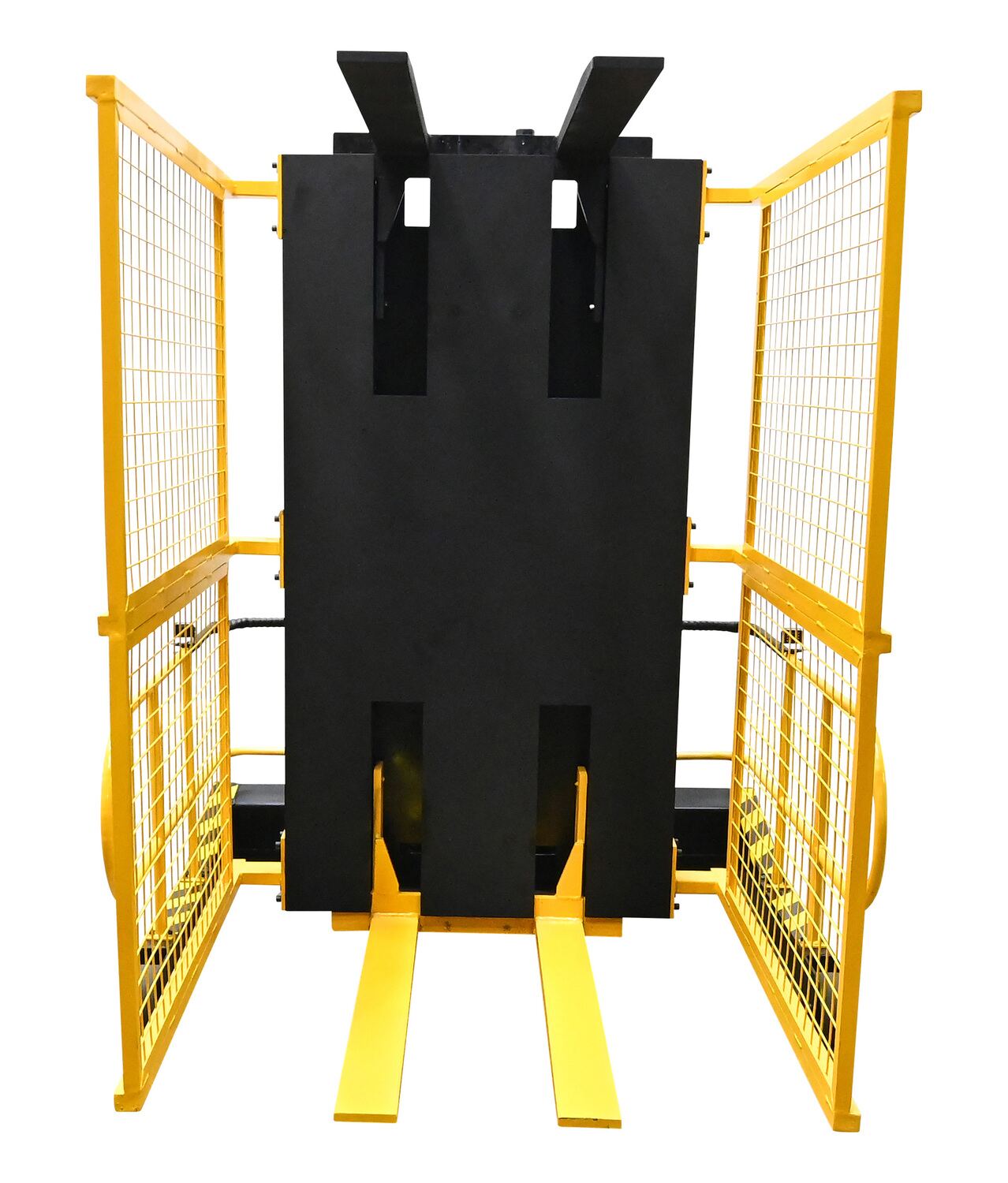

  • Steel mesh sides for safe enclosure
  • Infinite forward and reverse speeds
Total Ship Wt.(lbs.): 3275 (only 1 package) Size: 56.625"W x 113"L x 108.25"H Color: Yellow / Black Non-Returnable

Uniform Capacity (lb.): 3000 Usable Fork Opening (in.): 32 to 76 Fork Width (in.): 6
Fork Length (in.): 48 Lowered Height (in.): 3-1/4 Fork Size (in.): 22 x 42 1/8
Fork Opening (in.): 31 1/2 x 76 Turn Radius: 84 1/2 Fork Center (in.): 17-9/16
Overall Length (in.): 113 Overall Width (in.): 56-5/8 Overall Height (in.): 108-1/4
Caster Material: Poly on Steel Caster Color: Yellow Stabilizer Caster Quantity: 2
Stabilizer Caster Diameter (in.): 5 Stabilizer Caster Width (in.): 2 Driver Caster Quantity: 1
Driver Caster Diameter (in.): 9-7/8 Driver Caster Width (in.): 3-1/8 Load Roller Quantity: 2
Load Roller Diameter (in.): 6-1/4 Load Roller Width (in.): 2-3/8 Handle Height (in.): 5-3/16
Handle Diameter (in.): 1-1/8 Hardware Included: No For Use With: Pallets & Skids

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: PI-P-SL-3276-PRSR
PI-P-SL-3276-PRSR

Steel Portable Pallet Inverter With Cage 32 In. to 76 In Fork Opening 3,000 Lb. Capacity Yellow/Black

Tilt (powered) and rotate (manual) loads with our durable pallet inverter. Low profile design allows the operator to stand on the rider platform and steer the load from workstation to workstation quickly and easily. DC power lift and drive makes operation safe and efficient. The ergonomic handle features easy to operate throttle and tilt/lower controls. Features an electromagnetic disc brake with automatic dead-man feature that activates when user releases handle. Includes (4) 6V batteries, emergency battery disconnect, and horn. Ideal in loading dock areas as a powered pallet truck, powered pallet tilter, or as a manual turntable. Rolls smoothly on polyurethane steer and load wheels.

  • Safety belly reverse button
  • On-board battery charger and level gauge
  • Steel mesh sides for safe enclosure
  • Infinite forward and reverse speeds
Dimensions: 56.625"W x 113"L x 108.25"H Sell UOM: EA-Each Color: Yellow / Black
Material: Steel UPC: 691215378673 GTIN: 00691215378673
Warranty: -- Shipping Weight: 3275 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 3000 Usable Fork Opening (in.): 32 to 76 Fork Width (in.): 6
Fork Length (in.): 48 Lowered Height (in.): 3-1/4 Fork Size (in.): 22 x 42 1/8
Fork Opening (in.): 31 1/2 x 76 Turn Radius: 84 1/2 Fork Center (in.): 17-9/16
Overall Length (in.): 113 Overall Width (in.): 56-5/8 Overall Height (in.): 108-1/4
Caster Material: Poly on Steel Caster Color: Yellow Stabilizer Caster Quantity: 2
Stabilizer Caster Diameter (in.): 5 Stabilizer Caster Width (in.): 2 Driver Caster Quantity: 1
Driver Caster Diameter (in.): 9-7/8 Driver Caster Width (in.): 3-1/8 Load Roller Quantity: 2
Load Roller Diameter (in.): 6-1/4 Load Roller Width (in.): 2-3/8 Handle Height (in.): 5-3/16
Handle Diameter (in.): 1-1/8 Hardware Included: No For Use With: Pallets & Skids
