GR-F3R-BO-TP72-YL

Steel Rigid Tube Post Bolt On Style 72 In. For 3 Ribbed Bolt On Style Guard Rails Yellow

Protecting equipment, inventory, and most importantly individuals from damage or injury is always a concern. But, with a structurally strong guard rail those worries can be eased. Rails have 3 ribs for impact resistance both indoors and out. A bolt-on style rail design allows the user to fasten the rails securely in place. Powder coated finish for built in added toughness. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.
Contact Vestil QuickShip
Key Features
  • 3 Ribbed design for added strength
  • Yellow baked-in powder-coated finish for added toughness
  • Bolt-on style rail for secure positioning
  • Pre drilled surface mounting holes

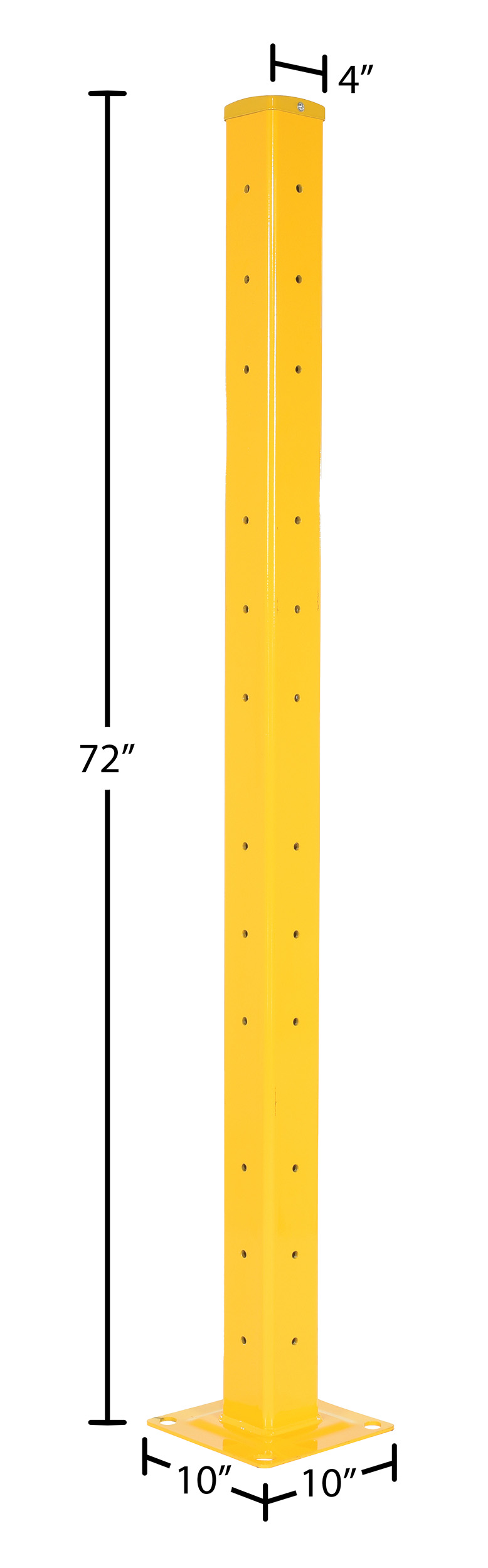

Product Image

Visual Reference

GR-F3R-BO-TP72-YL
GR-F3R-BO-TP72-YL
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 95 lbs
Assembled Size 10"W x 10"L x 72"H
Total Ship Weight 135 lbs
Package 1 Size 12"W x 96"D x 14"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Impact Capacity (Lbs.) 10,000
Base Plate Width (in.) 10
Base Plate Length (in.) 10
Base Plate Mounting Holes 4
Base Plate Mounting Slots (in.) 7/8 x 1-1/4
Base Plate Thickness 3/16
Post Dimensions (in.) 4 x 4 x 72
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: GR-F3R-BO-TP72-YL

GR-F3R-BO-TP72-YL

Steel Rigid Tube Post Bolt On Style 72 In. For 3 Ribbed Bolt On Style Guard Rails Yellow

Protecting equipment, inventory, and most importantly individuals from damage or injury is always a concern. But, with a structurally strong guard rail those worries can be eased. Rails have 3 ribs for impact resistance both indoors and out. A bolt-on style rail design allows the user to fasten the rails securely in place. Powder coated finish for built in added toughness. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.

  • 3 Ribbed design for added strength
  • Yellow baked-in powder-coated finish for added toughness
  • Bolt-on style rail for secure positioning
  • Pre drilled surface mounting holes

Core Data

Assembled Weight: 95 Assembled Size: 10"W x 10"L x 72"H Color: Yellow
Total Ship Weight: 135 Package 1 Size: 12"W x 96"D x 14"H Freight: LTL Palletized

Specifications

Impact Capacity (Lbs.): 10,000
Base Plate Width (in.): 10
Base Plate Length (in.): 10
Base Plate Mounting Holes: 4
Base Plate Mounting Slots (in.): 7/8 x 1-1/4
Base Plate Thickness: 3/16
Post Dimensions (in.): 4 x 4 x 72
