D-200-MD-NB

Steel Medium Duty No Bump & Dump Hopper 2 Cubic Yard 4000 Lb. Capacity Blue

This steel Hopper is the perfect resolution for loading and unloading large amounts of items. With a steel construction, the hopper maintains a structural strength that endures the strain of consistent daily use. The manual release feature with a 60" steel cable gives the forklift driver the ability to never leave the driving position, which allows personnel to stay at a safe distance throughout the dumping process. In addition to the smooth surface, the contoured edges let items flow freely out of the hopper for a complete clearing of loaded goods. A magnet is attached to the pull cable handle for quick attachment to the side of the hopper chute.
Out of Stock QuickShip
Key Features
  • Pull chain release for quick dumping
  • Powder coated finish for added baked in toughness
  • Fork pockets provide a solid lifting foundation
  • Safety restraint secures the hopper to the fork truck
Product Image

Visual Reference

D-200-MD-NB
D-200-MD-NB
D-200-MD-NB
D-200-MD-NB
D-200-MD-NB
D-200-MD-NB
Quick Actions

Product Resources

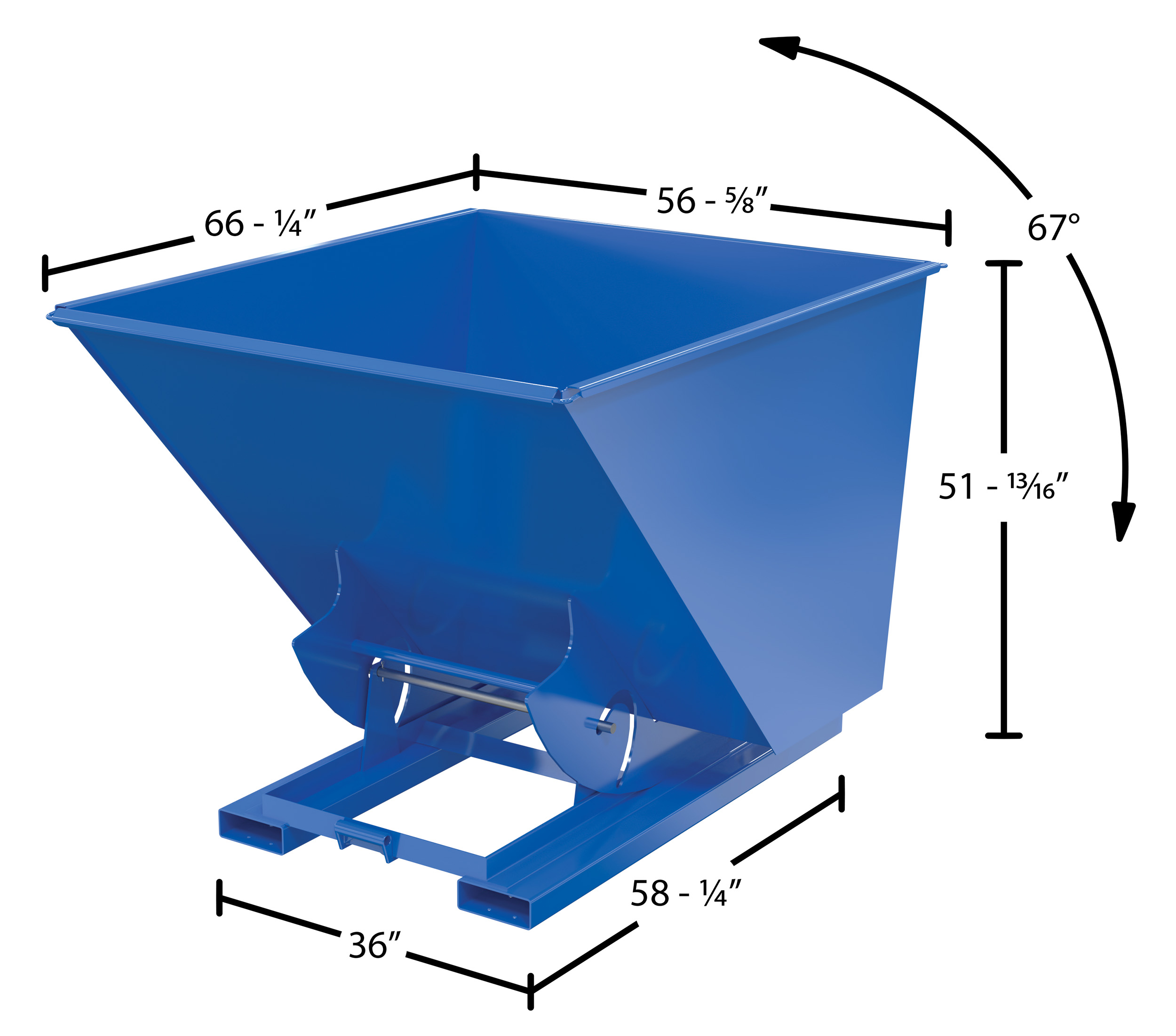

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 702.29 lbs
Assembled Size 56.625"W x 68.3125"L x 51.8125"H
Total Ship Weight 703 lbs
Package 1 Size 57"W x 69"D x 52"H
Color / Finish Blue
Freight Type LTL Loose

Additional Attributes

Uniform Capacity (lb.) 4000
Fork Pocket Center (in.) 28
Fork Pocket WxH (in.) 7-1/2x2-1/2
Steel Gauge/Thickness 10
Cable Length (in.) 60
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: D-200-MD-NB

D-200-MD-NB

Steel Medium Duty No Bump & Dump Hopper 2 Cubic Yard 4000 Lb. Capacity Blue

This steel Hopper is the perfect resolution for loading and unloading large amounts of items. With a steel construction, the hopper maintains a structural strength that endures the strain of consistent daily use. The manual release feature with a 60" steel cable gives the forklift driver the ability to never leave the driving position, which allows personnel to stay at a safe distance throughout the dumping process. In addition to the smooth surface, the contoured edges let items flow freely out of the hopper for a complete clearing of loaded goods. A magnet is attached to the pull cable handle for quick attachment to the side of the hopper chute.

  • Pull chain release for quick dumping
  • Powder coated finish for added baked in toughness
  • Fork pockets provide a solid lifting foundation
  • Safety restraint secures the hopper to the fork truck

Core Data

Assembled Weight: 702.29 Assembled Size: 56.625"W x 68.3125"L x 51.8125"H Color: Blue
Total Ship Weight: 703 Package 1 Size: 57"W x 69"D x 52"H Freight: LTL Loose

Specifications

Uniform Capacity (lb.): 4000
Fork Pocket Center (in.): 28
Fork Pocket WxH (in.): 7-1/2x2-1/2
Steel Gauge/Thickness: 10
Cable Length (in.): 60
