PMPS-50-AC

Printer Friendly
Available
PMPS-50-AC
PMPS-50-AC PMPS-50-AC PMPS-50-AC PMPS-50-AC

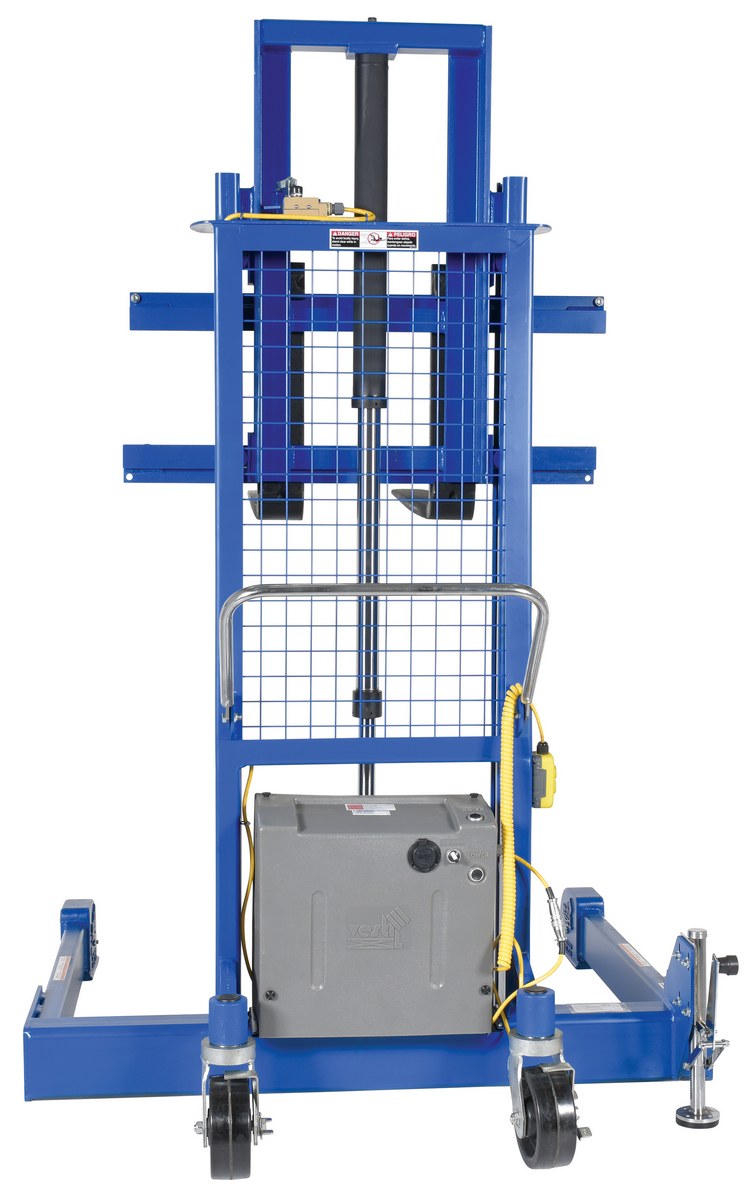

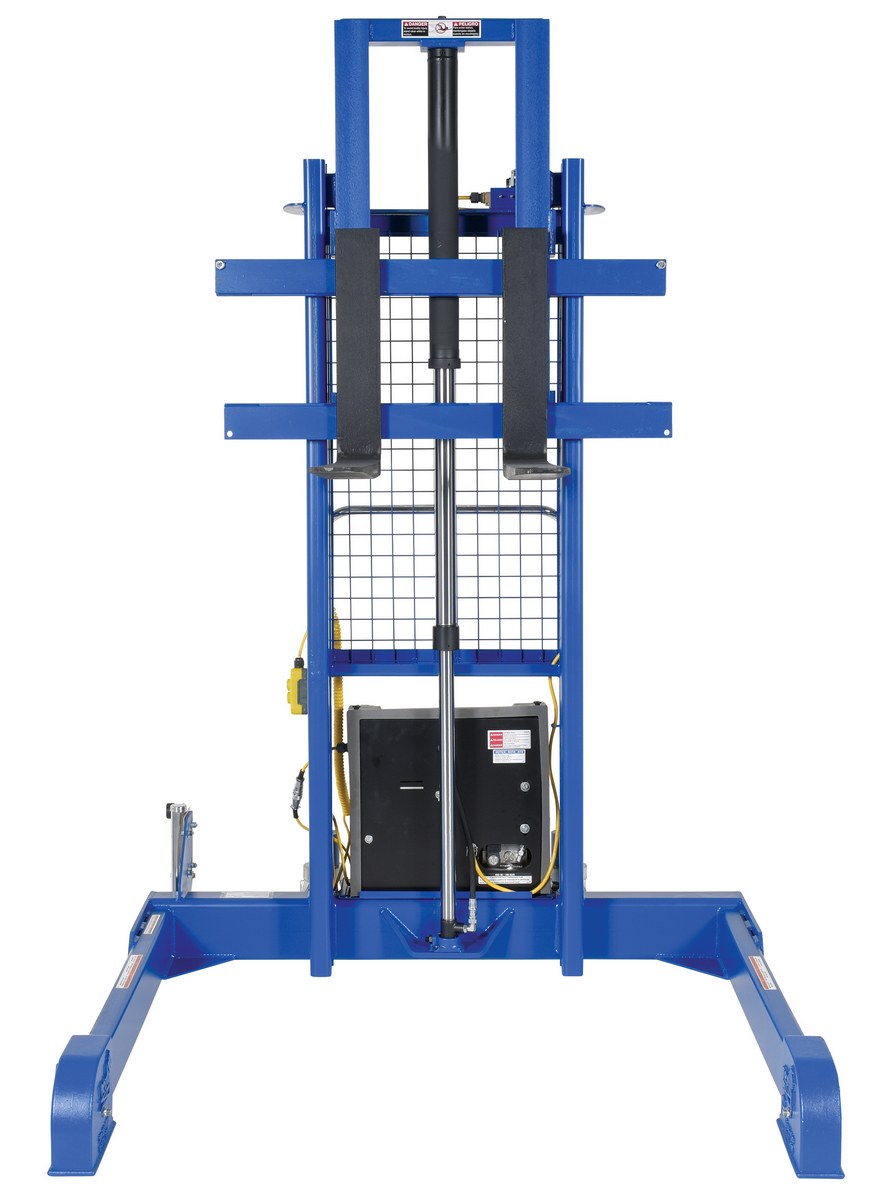

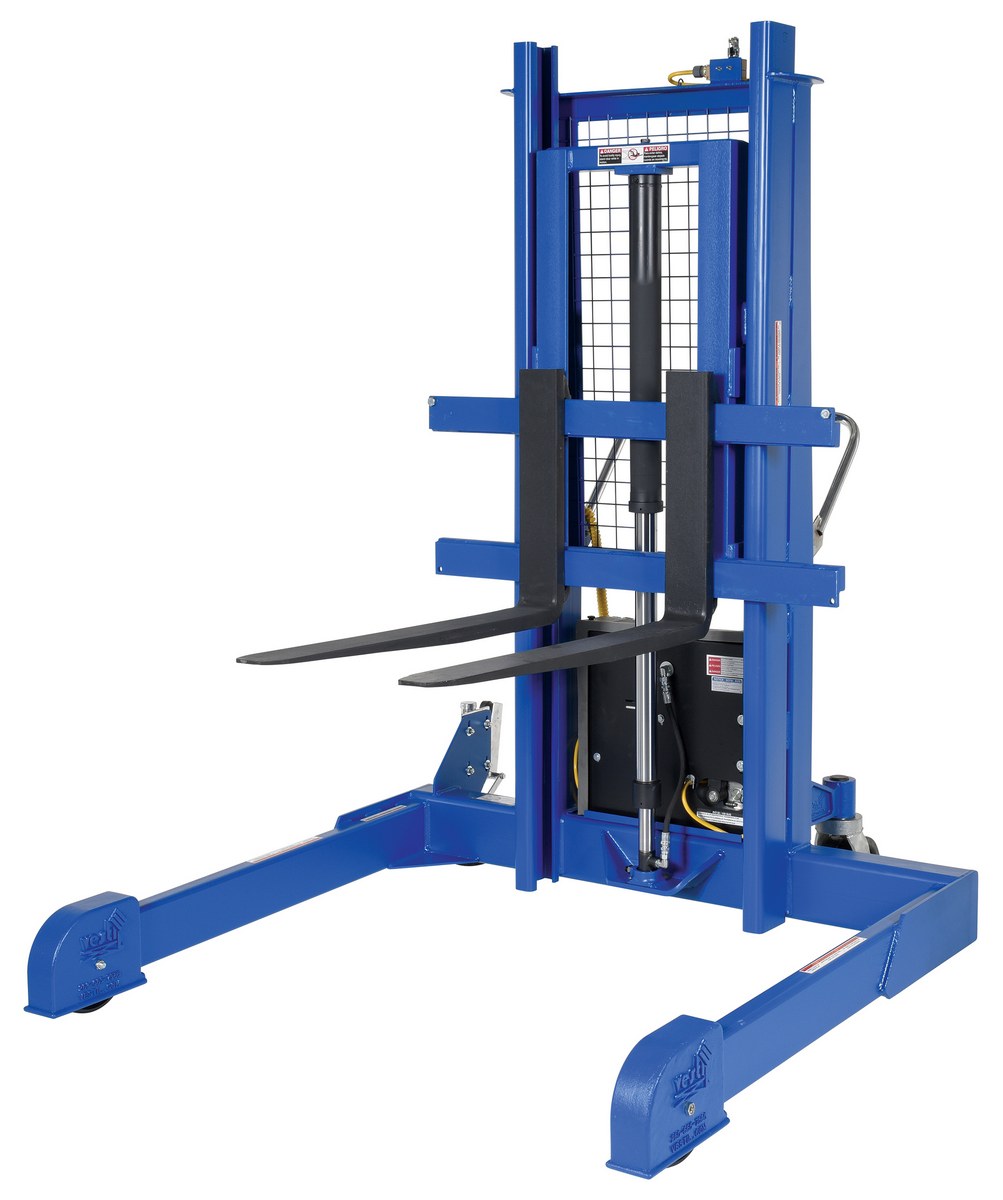

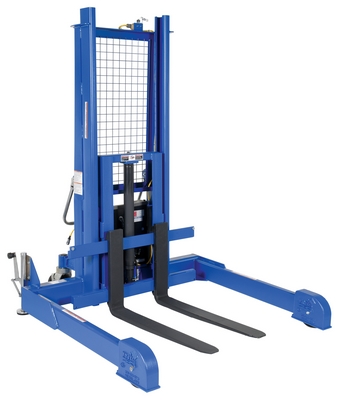

Steel Pallet Master/Server Stacker 115 Volt AC Powered 50 In. Raised Height 4,000 Lb. Capacity Blue

The pallet master/server enables one person to easily move fully loaded pallets without the use of a fork truck. The unique straddle design works well with pallets and skids with and without an understructure. The unit is ideal for loading and unloading semi-trailers. Hand pendant control on an eight (8) foot coil cord standard. Floor lock standard. All welded steel construction.

  • Easily move fully loaded pallets enabled by one person
  • Straddle design works pallets and skids with or without an understructure
  • Ideal for loading and unloading semi-trailers without strenuous work
  • Hand pendant control on an eight (8) foot coil cord standard
Assembled Wt.(lbs.): 984 Assembled Size: 58"W x 66"L x 77"H

Total Ship Wt.(lbs.): 1055 (only 1 package) Package 1 Size: 64"W x 64"D x 83"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 4,000 Operation: 115V AC Fork Width/Length (in.): 4 x 36
Service Range (in.): 3 to 50 Adjustable Fork Spacing (in.): 8 to 37 Leg Spacing (in.): 49-1/2
Handle Height (in.): 36 Coil Cord Length (in.): 96 Rear Swivel Caster Quantity/Diameter/Width (in.): (2) 8 x 3
Rear Caster Material: Phenolic Front Wheel Quantity/Diameter/Width (in.): (2) 8 x 2 Front Wheel Material: Glass Filled Nylon
Overall Width (in.): 58 Overall Length (in.): 66 Overall Raised Height (in.): 91
Overall Lowered Height (in.): 77 Maximum Fork Height Before Carriage Exceeds Height of Mast (in.): 36-1/2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: PMPS-50-AC
Available
PMPS-50-AC

Steel Pallet Master/Server Stacker 115 Volt AC Powered 50 In. Raised Height 4,000 Lb. Capacity Blue

The pallet master/server enables one person to easily move fully loaded pallets without the use of a fork truck. The unique straddle design works well with pallets and skids with and without an understructure. The unit is ideal for loading and unloading semi-trailers. Hand pendant control on an eight (8) foot coil cord standard. Floor lock standard. All welded steel construction.

  • Easily move fully loaded pallets enabled by one person
  • Straddle design works pallets and skids with or without an understructure
  • Ideal for loading and unloading semi-trailers without strenuous work
  • Hand pendant control on an eight (8) foot coil cord standard
Dimensions: 58"W x 66"L x 77"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 1055 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 4,000 Operation: 115V AC Fork Width/Length (in.): 4 x 36
Service Range (in.): 3 to 50 Adjustable Fork Spacing (in.): 8 to 37 Leg Spacing (in.): 49-1/2
Handle Height (in.): 36 Coil Cord Length (in.): 96 Rear Swivel Caster Quantity/Diameter/Width (in.): (2) 8 x 3
Rear Caster Material: Phenolic Front Wheel Quantity/Diameter/Width (in.): (2) 8 x 2 Front Wheel Material: Glass Filled Nylon
Overall Width (in.): 58 Overall Length (in.): 66 Overall Raised Height (in.): 91
Overall Lowered Height (in.): 77 Maximum Fork Height Before Carriage Exceeds Height of Mast (in.): 36-1/2
