LAD-FM-96-PSO

Printer Friendly
Available
LAD-FM-96-PSO
LAD-FM-96-PSO

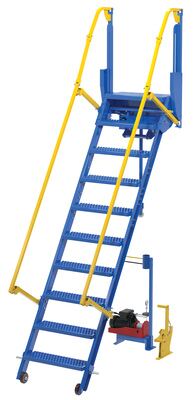

Steel Folding Mezzanine Ladder with 115V Power Storage 96 In. Mezzanine Height 23-5/8 In. Step Width 350 Lb. Capacity Blue & Yellow

The powered mezzanine ladders are used for infrequent usage to access mezzanines. They are quickly powered into climbing angle and back into stored position. The wheels roll on the ground when ratcheted, and the handrails mechanically rise into climb position when the ladder locks into position. Quickly extend and retract the ladder with the handheld pendant. The mezzanine ladder allows for quick installation. The unit keeps a small distance from the wall for compact storage. Customer must provide their mezzanine height at the time of purchase. Baked in powder coat blue and yellow finish for added toughness.

  • Great for condensed work areas
  • Treaded step design for sure footing
  • Attached casters provide simple maneuvering
  • Collapsible handrail
Assembled Wt.(lbs.): 466.64 Assembled Size: 34.125"W x 66.625"L x 128.125"H

Total Ship Wt.(lbs.): 465 (only 1 package) Package 1 Size: 36"W x 85"D x 25"H Color: Blue and Yellow Non-Returnable

Base Length (in): 66.625 Base Width (in): 34.125 ANSI Ladder Rating: Type IA
Climbing Angle (degree): 58 Steps: 10 Distance Between Rung/Steps (in): 9.625
Rung/Step Width (in): 23.625 Rung/Step Depth (in): 7 Top Step Height From Ground (in): 96
Rung/Step Material: Serrated Steel Number of Casters / Wheels: 2 Caster / Wheel Material: Poly on Poly
Front Wheel Width (in): 1.25 Front Wheel Diameter (in): 4 Handrail Included: Yes
Handrail Height (in): 32.125 Spring Loaded: No OSHA Approved: Yes
ANSI Approved: Yes Additional Contents: AC Powered Mezzanine Ladder 115 Volts Extended Height (in.): 128.125
Retracted Height (in.): 144.875 Max Capacity (lb.): 350

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: LAD-FM-96-PSO
Available
LAD-FM-96-PSO

Steel Folding Mezzanine Ladder with 115V Power Storage 96 In. Mezzanine Height 23-5/8 In. Step Width 350 Lb. Capacity Blue & Yellow

The powered mezzanine ladders are used for infrequent usage to access mezzanines. They are quickly powered into climbing angle and back into stored position. The wheels roll on the ground when ratcheted, and the handrails mechanically rise into climb position when the ladder locks into position. Quickly extend and retract the ladder with the handheld pendant. The mezzanine ladder allows for quick installation. The unit keeps a small distance from the wall for compact storage. Customer must provide their mezzanine height at the time of purchase. Baked in powder coat blue and yellow finish for added toughness.

  • Great for condensed work areas
  • Treaded step design for sure footing
  • Attached casters provide simple maneuvering
  • Collapsible handrail
Dimensions: 34.125"W x 66.625"L x 128.125"H Sell UOM: EA-Each Color: Blue and Yellow
Material: Steel UPC: 691215336789 GTIN: 00691215336789
Warranty: -- Shipping Weight: 465 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: US
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Base Length (in): 66.625 Base Width (in): 34.125 ANSI Ladder Rating: Type IA
Climbing Angle (degree): 58 Steps: 10 Distance Between Rung/Steps (in): 9.625
Rung/Step Width (in): 23.625 Rung/Step Depth (in): 7 Top Step Height From Ground (in): 96
Rung/Step Material: Serrated Steel Number of Casters / Wheels: 2 Caster / Wheel Material: Poly on Poly
Front Wheel Width (in): 1.25 Front Wheel Diameter (in): 4 Handrail Included: Yes
Handrail Height (in): 32.125 Spring Loaded: No OSHA Approved: Yes
ANSI Approved: Yes Additional Contents: AC Powered Mezzanine Ladder 115 Volts Extended Height (in.): 128.125
Retracted Height (in.): 144.875 Max Capacity (lb.): 350
