JIB-P-10-10-10

Printer Friendly
Out of Stock - Please Contact Sales
JIB-P-10-10-10
JIB-P-10-10-10 JIB-P-10-10-10 JIB-P-10-10-10 JIB-P-10-10-10

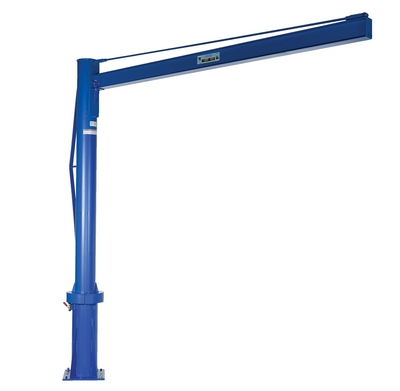

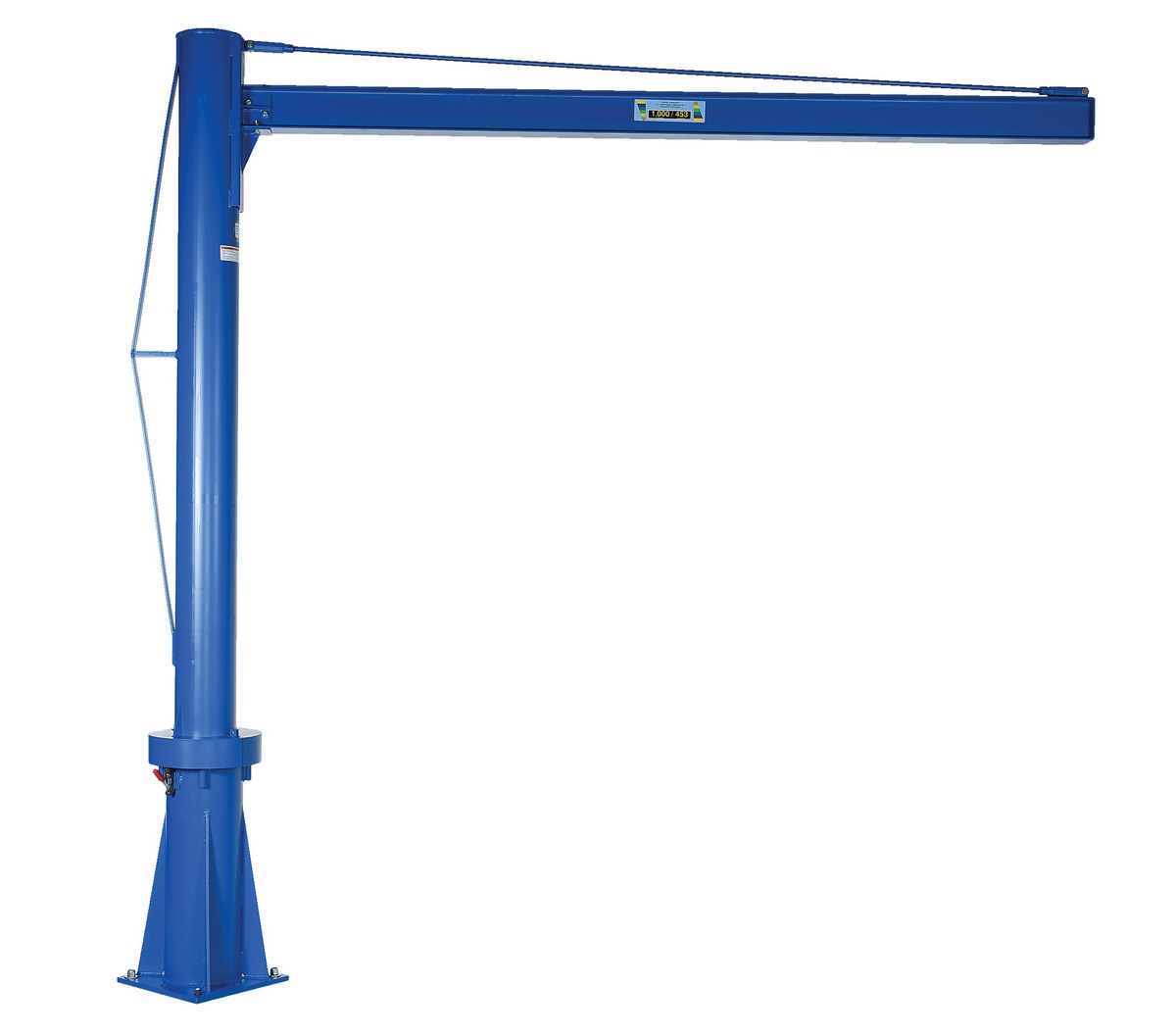

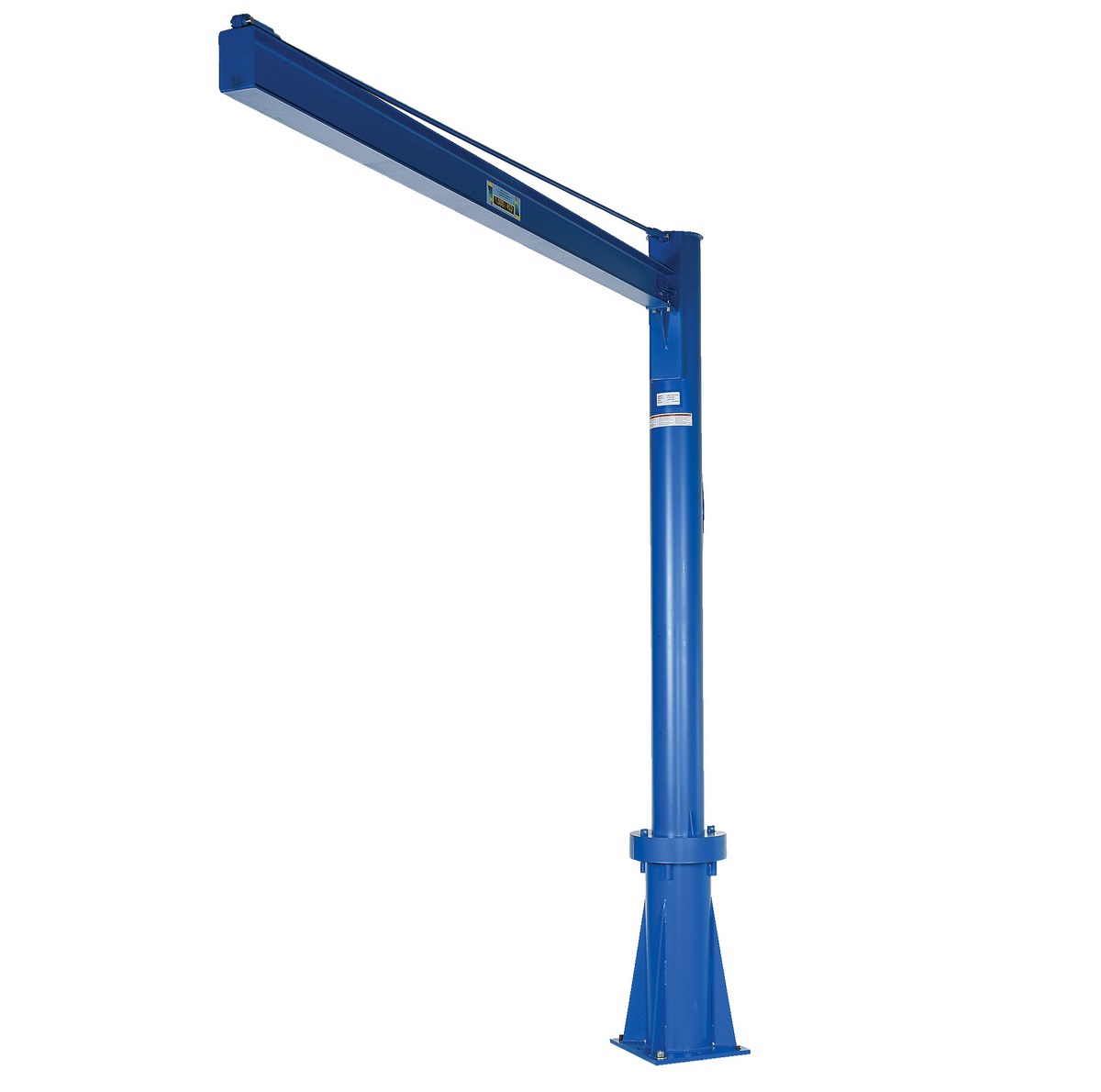

Steel Multi Station Jib Crane 120 In. I-Beam 1000 Lb. Capacity Blue

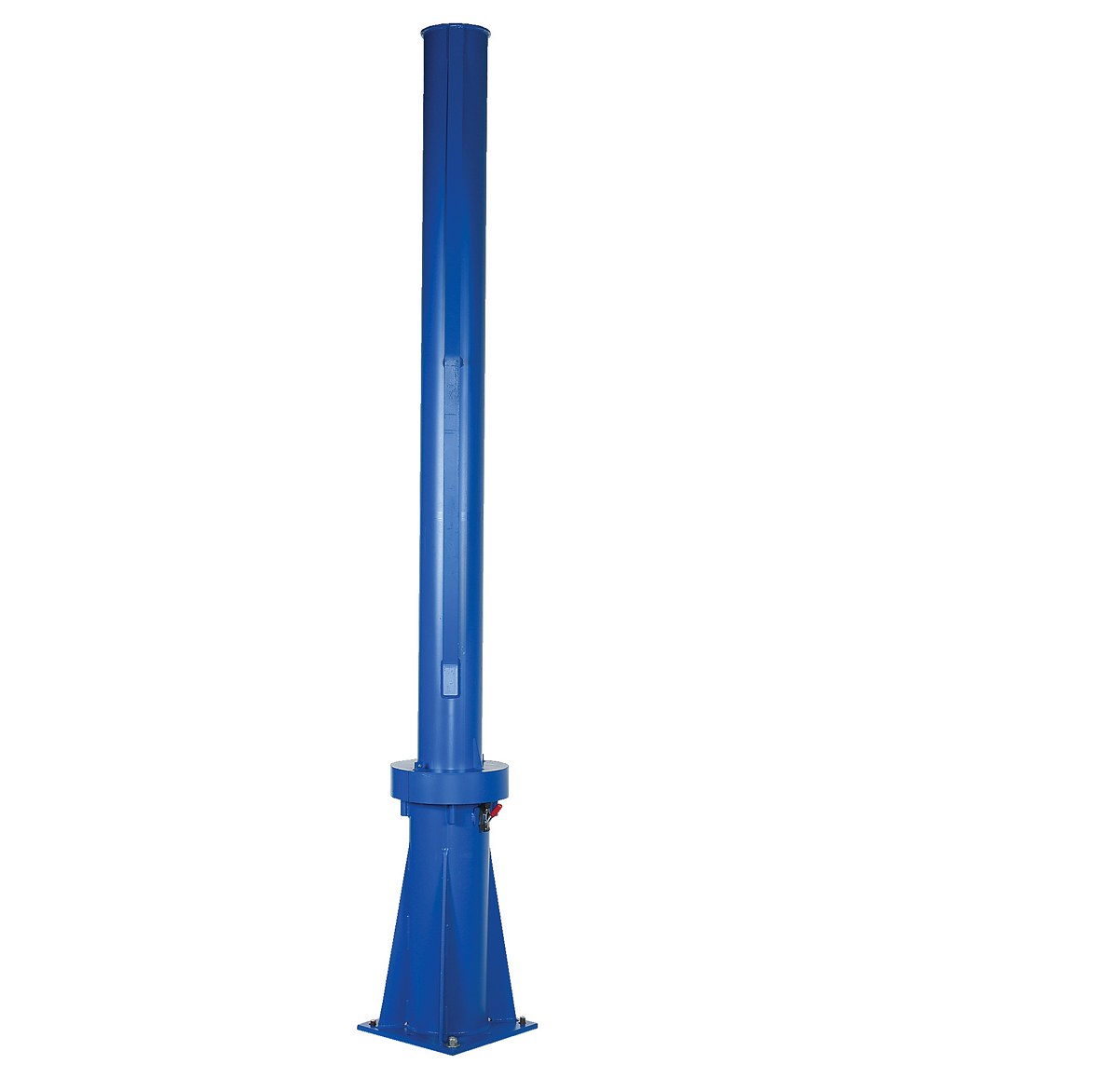

A multi-station transportable Jib crane is designed for use in multiple locations, includes jib crane and one base socket. Extra base sockets may be purchased for use in other locations. Friction brake design allows positive locking and controlled rotation of heavy loads. Standard six (6) inch high I-beam with three (4) inch flange width. Rugged welded steel construction. Requires reinforced concrete pad for installation. Hoist and trolley sold separately.

  • Six (6) inch high I-beam with four (4) inch flange width
  • Hand operated manual brake
  • Arm manually rotates 360 degrees for maximum versatility
  • Rugged welded steel construction provides long lasting use
Total Ship Wt.(lbs.): 640 (only 1 package) Size: 17"W x 135.375"L x 132.6875"H Color: Blue

Uniform Capacity (lb.): 1,000 Overall I-Beam Span (in.): 120 I-Beam (Flange x Height) (in.): 4 x 6
Rotation Degree: 360 Mounting Plate Width/Length (in.): 17 x 17 Boom Reach (in.): 115-3/4
Usable Boom Height (in.): 119-13/16 Nominal Pipe Size [NPS] (in.): 8 Pipe Outside Diameter [OD] (in.): 8-5/8
Pipe Wall Thickness (in.): 21/64 Pipe Inside Diameter [ID] (in.): 7-31/32 Pipe Material: ASTM A53 Steel
Pipe Material Schedule: 40

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: JIB-P-10-10-10
Out of Stock - Please Contact Sales
JIB-P-10-10-10

Steel Multi Station Jib Crane 120 In. I-Beam 1000 Lb. Capacity Blue

A multi-station transportable Jib crane is designed for use in multiple locations, includes jib crane and one base socket. Extra base sockets may be purchased for use in other locations. Friction brake design allows positive locking and controlled rotation of heavy loads. Standard six (6) inch high I-beam with three (4) inch flange width. Rugged welded steel construction. Requires reinforced concrete pad for installation. Hoist and trolley sold separately.

  • Six (6) inch high I-beam with four (4) inch flange width
  • Hand operated manual brake
  • Arm manually rotates 360 degrees for maximum versatility
  • Rugged welded steel construction provides long lasting use
Dimensions: 17"W x 135.375"L x 132.6875"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215024846 GTIN: 00691215024846
Warranty: -- Shipping Weight: 640 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,000 Overall I-Beam Span (in.): 120 I-Beam (Flange x Height) (in.): 4 x 6
Rotation Degree: 360 Mounting Plate Width/Length (in.): 17 x 17 Boom Reach (in.): 115-3/4
Usable Boom Height (in.): 119-13/16 Nominal Pipe Size [NPS] (in.): 8 Pipe Outside Diameter [OD] (in.): 8-5/8
Pipe Wall Thickness (in.): 21/64 Pipe Inside Diameter [ID] (in.): 7-31/32 Pipe Material: ASTM A53 Steel
Pipe Material Schedule: 40
