GR-H2R-BG

Printer Friendly
Available
GR-H2R-BG
GR-H2R-BG GR-H2R-BG GR-H2R-BG

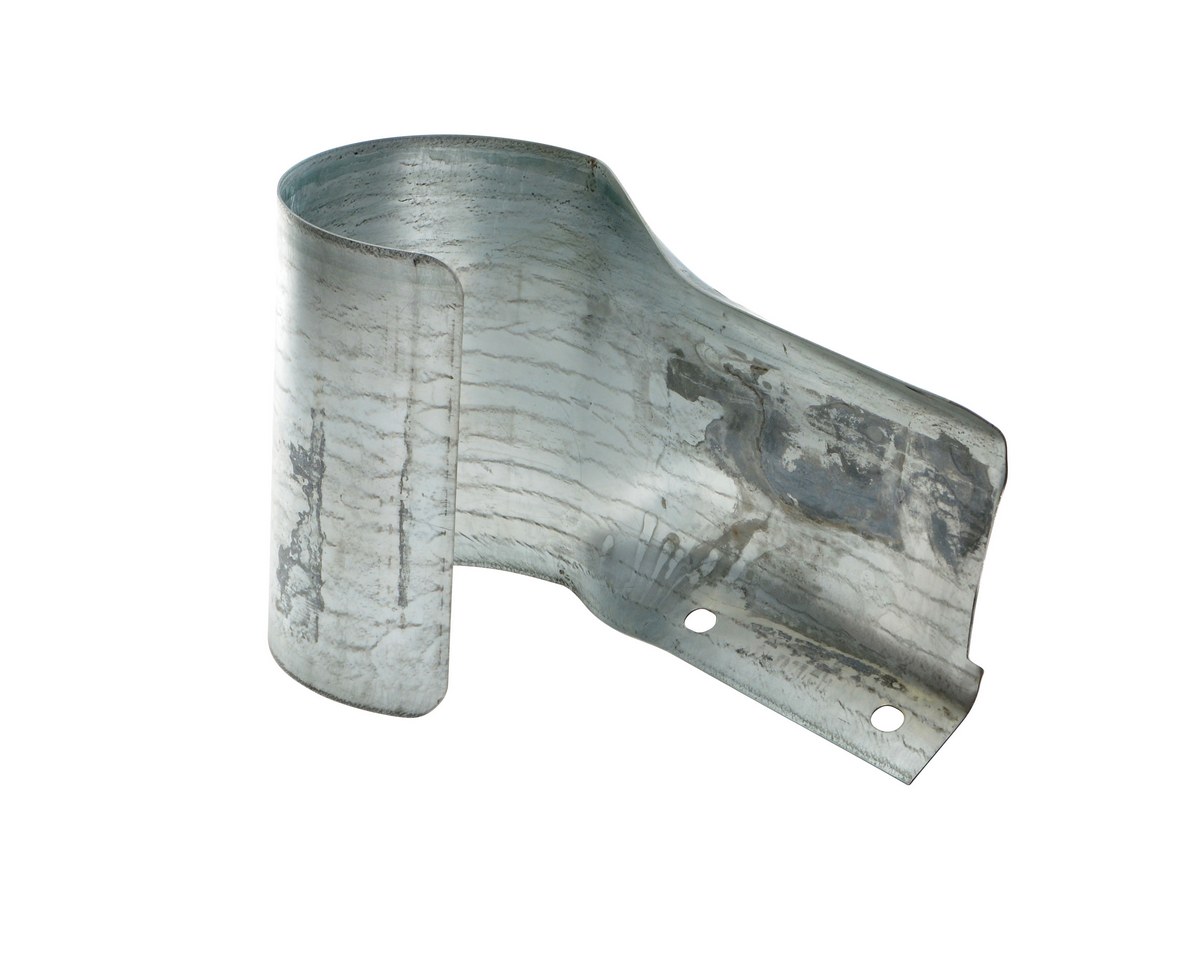

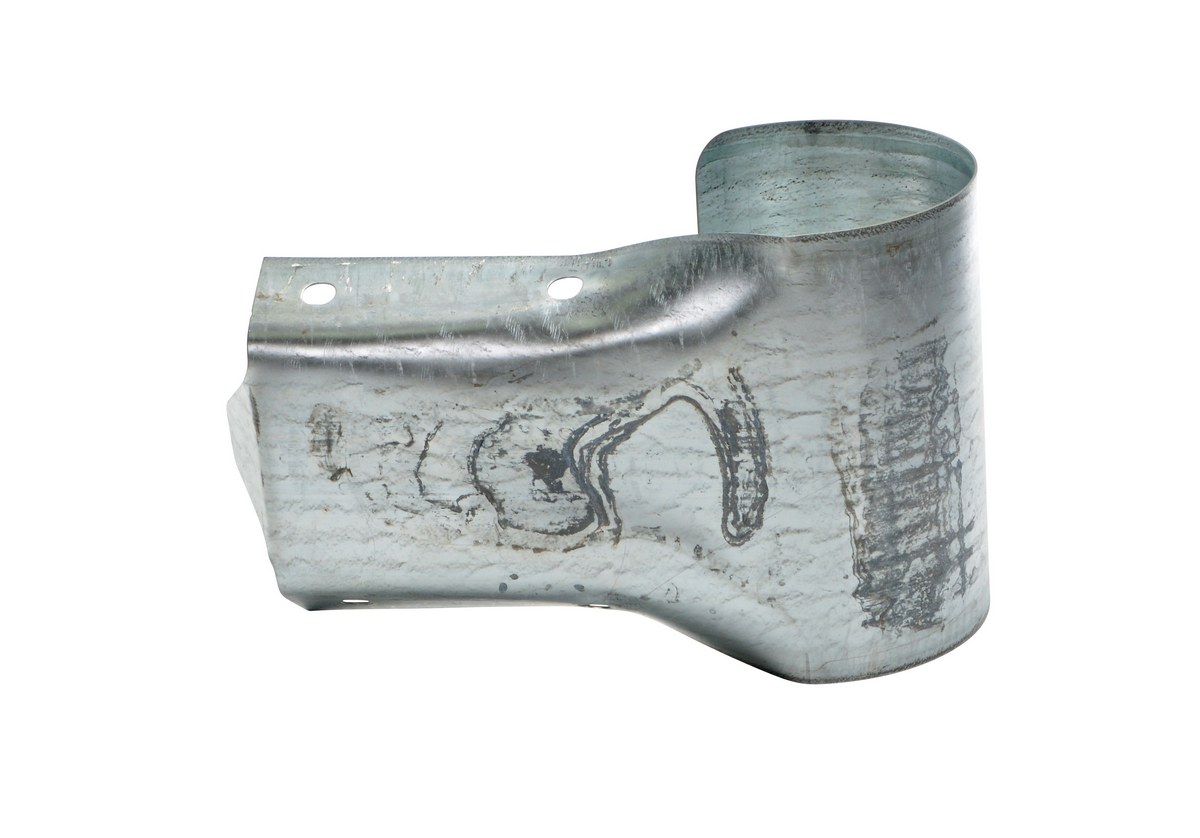

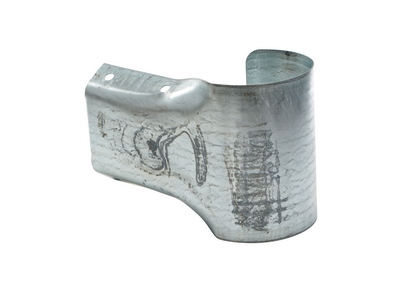

Steel Buffer End Guard For Guard Rail System Silver

The buffer end guard is an addition to the guard rail system. The steel construction allows for constant use in harsh conditions. The hardware to mount the unit is included.

  • Simple installation for immediate use
  • Strong construction for added strength
  • Creates a smooth edge for safety
  • Lightweight for one person handling

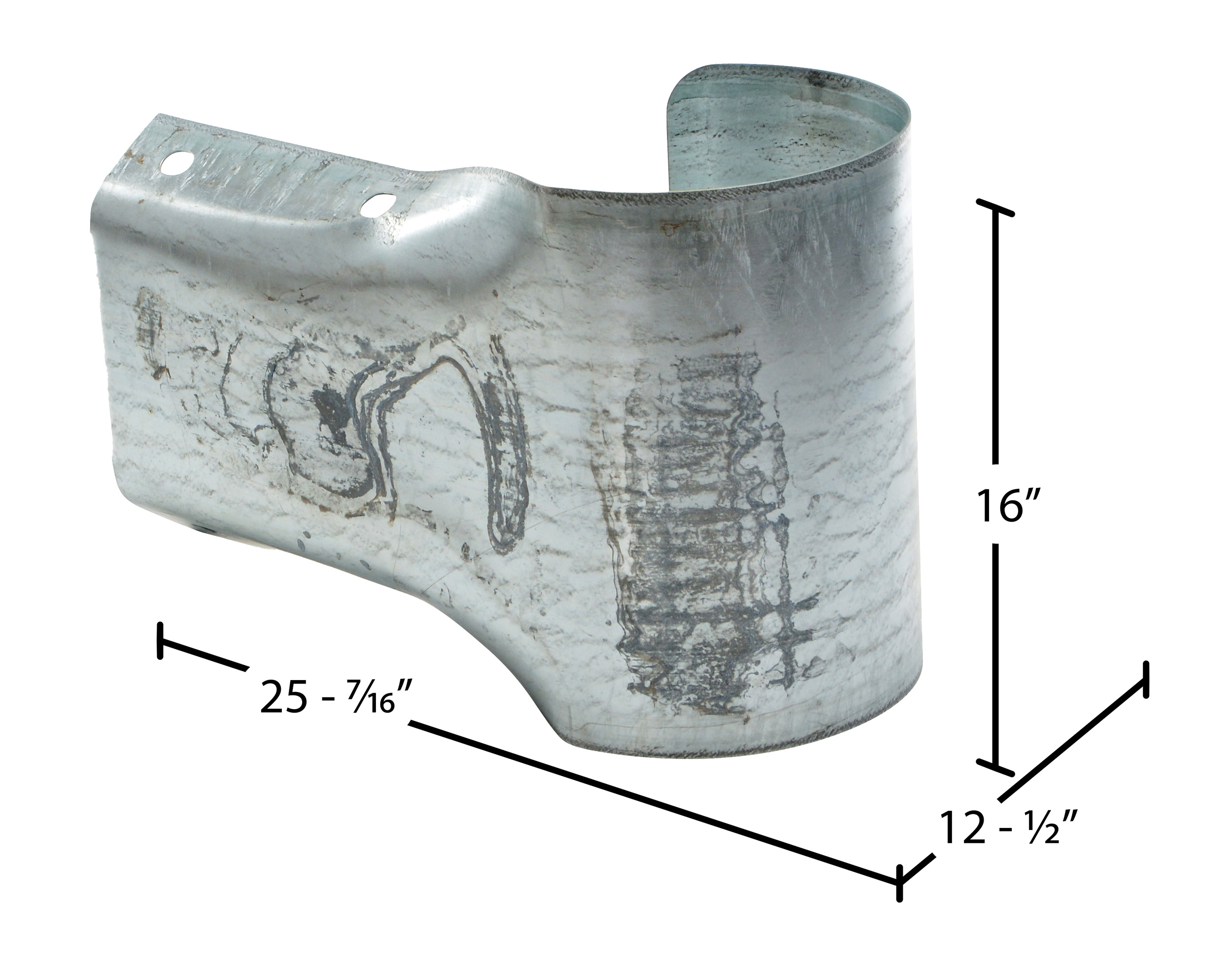

Assembled Wt.(lbs.): 20 Assembled Size: 12.5"W x 25.4375"L x 16"H

Total Ship Wt.(lbs.): 24 (only 1 package) Package 1 Size: 17"W x 25"D x 27"H Color: Silver

Adds to Length (in.): 11-7/8 Hardware: (4) bolts, (4) washers, (4) nuts Overall Depth (in.): 12-1/2
Overall Length (in.): 25-7/16 Overall Height (in.): 16

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: GR-H2R-BG
Available
GR-H2R-BG

Steel Buffer End Guard For Guard Rail System Silver

The buffer end guard is an addition to the guard rail system. The steel construction allows for constant use in harsh conditions. The hardware to mount the unit is included.

  • Simple installation for immediate use
  • Strong construction for added strength
  • Creates a smooth edge for safety
  • Lightweight for one person handling
Dimensions: 12.5"W x 25.4375"L x 16"H Sell UOM: -- Color: Silver
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 24 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Adds to Length (in.): 11-7/8 Hardware: (4) bolts, (4) washers, (4) nuts Overall Depth (in.): 12-1/2
Overall Length (in.): 25-7/16 Overall Height (in.): 16
