D-200-HS

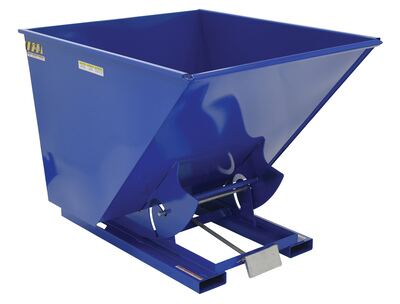

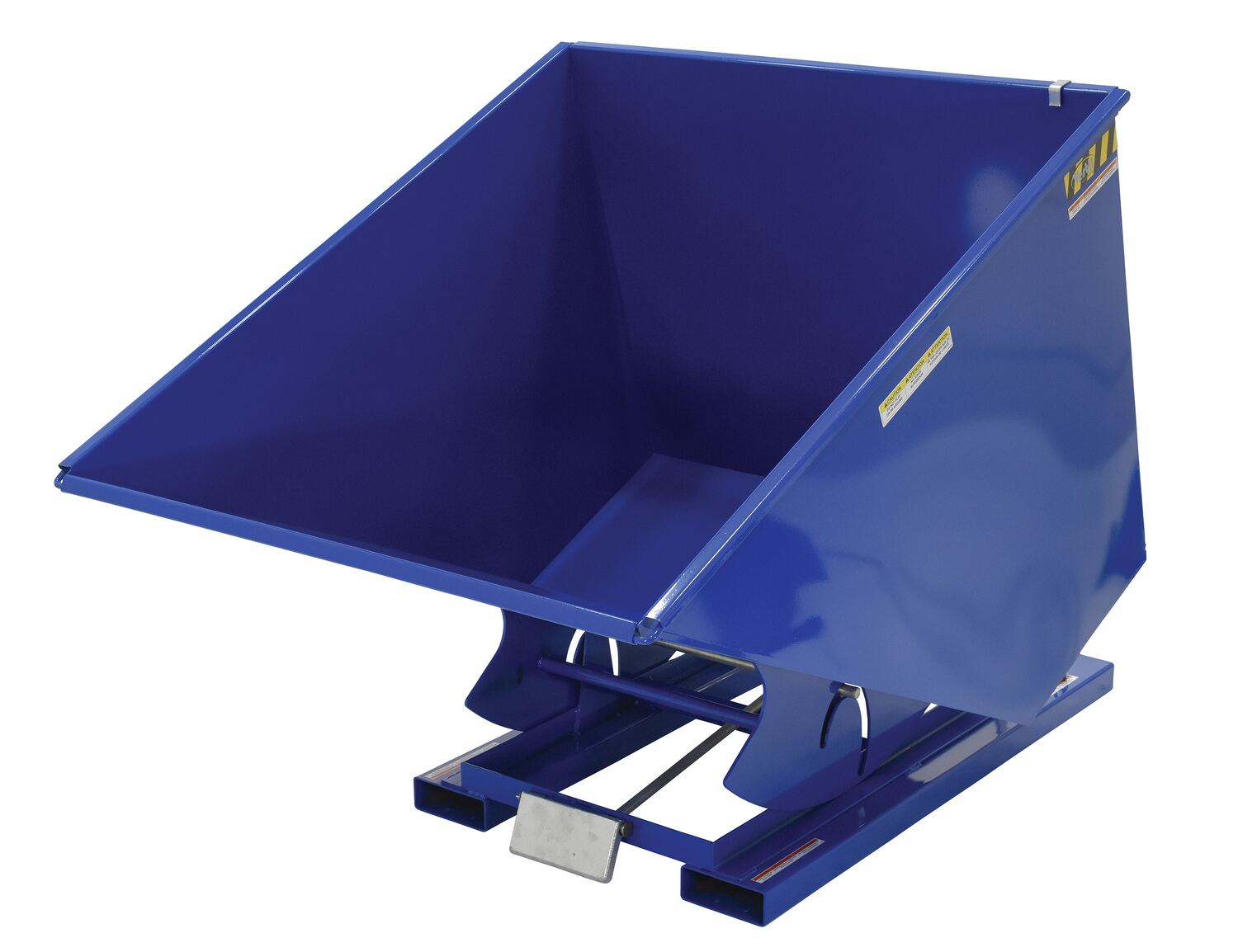

Steel High Strength Self Dumping Hopper 2 Cubic Yard 4000 Lb. Capacity Blue

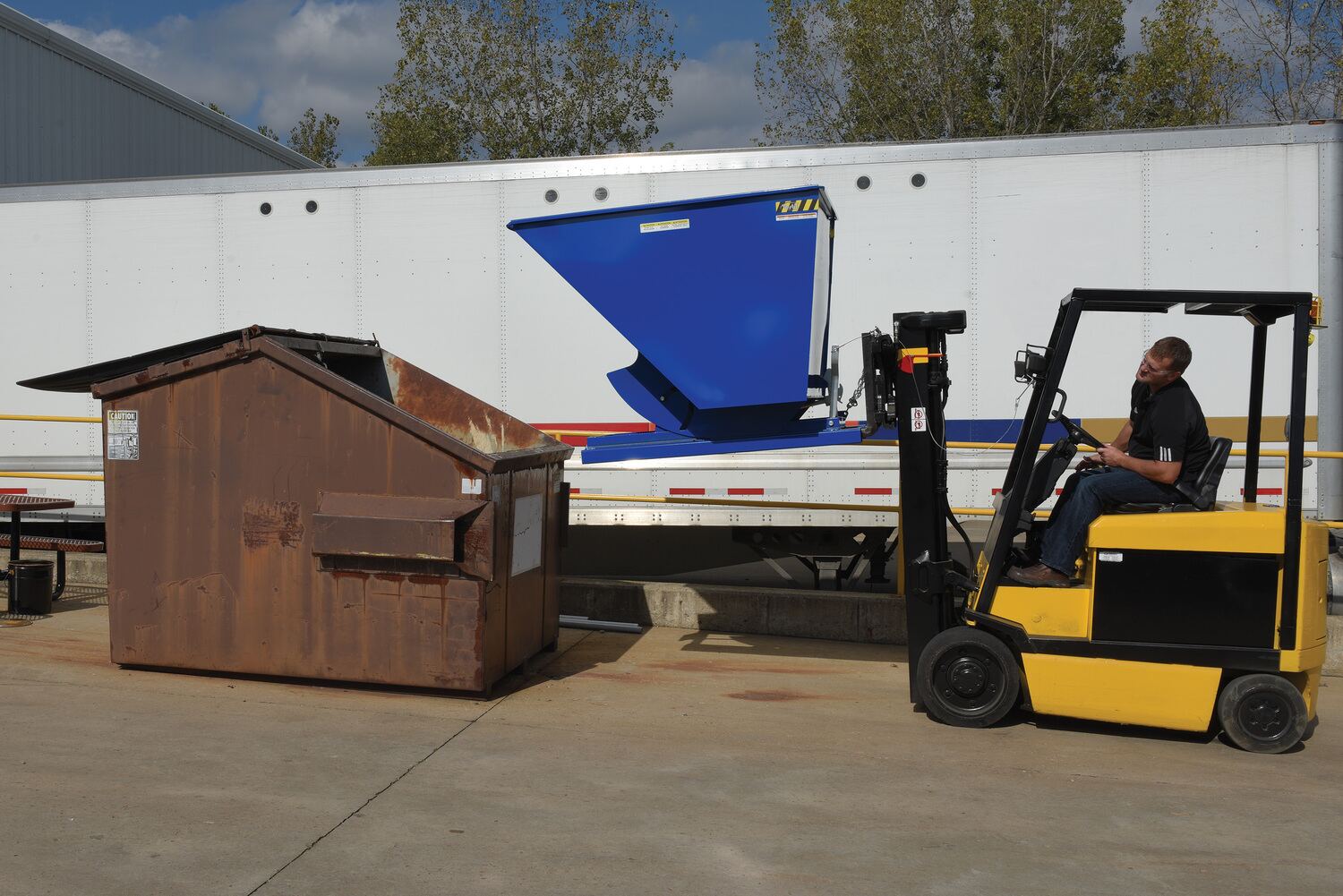

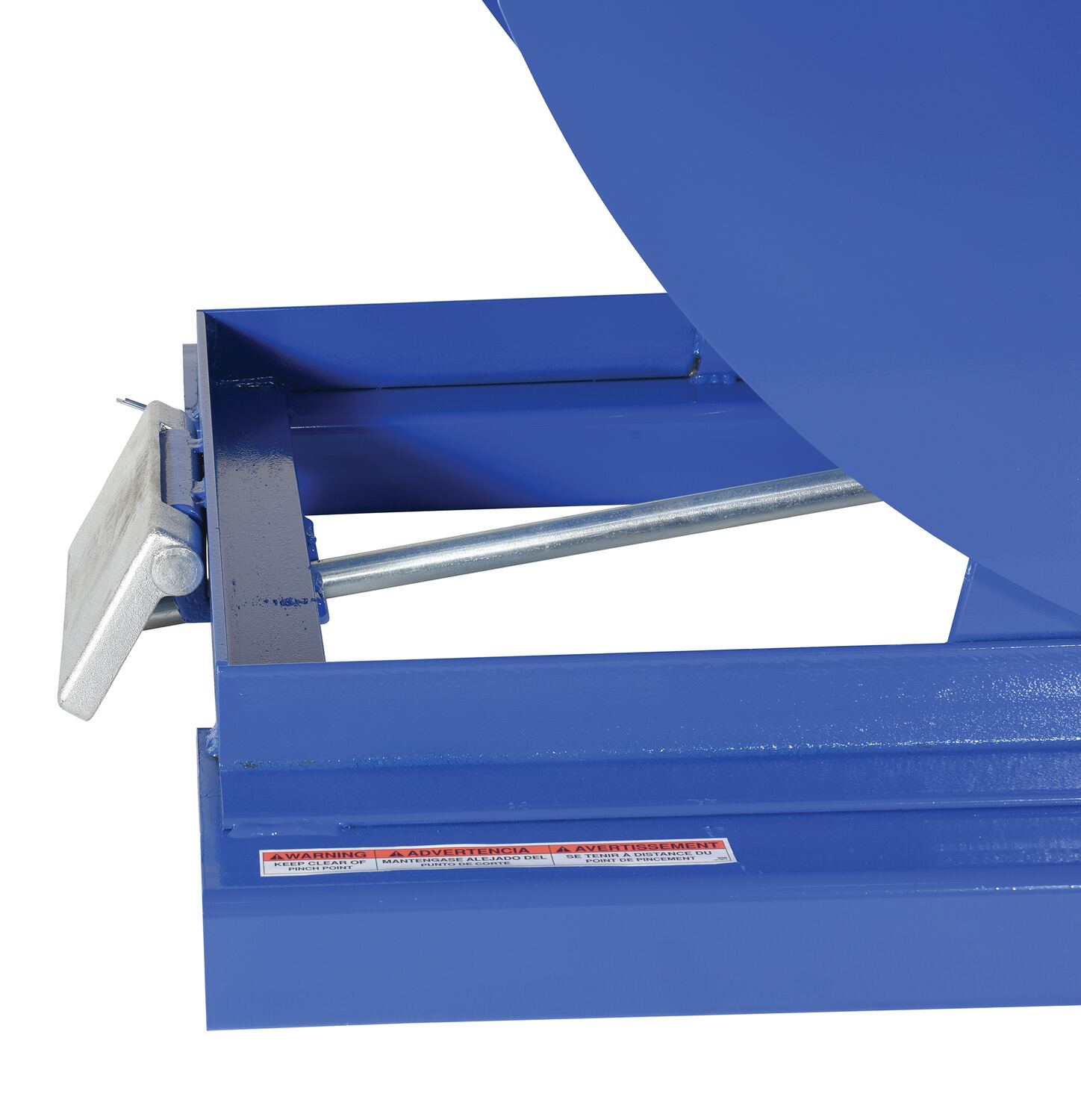

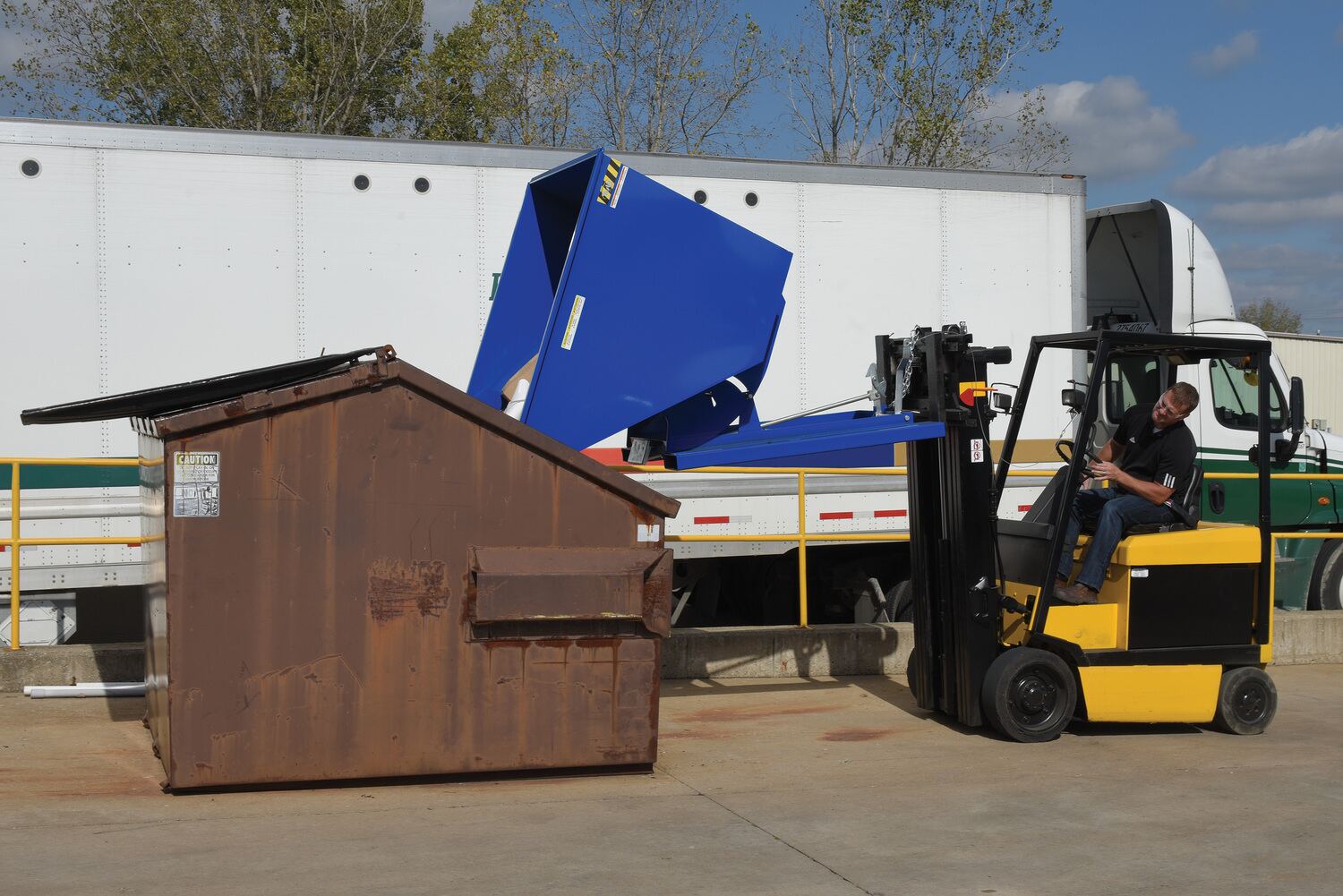

This high strength self-dumping steel Hopper with bumper release automatically dumps when bumper release contacts the front of the dumpster. Also includes a cable that may be operated from the seat of the fork truck to manually dump the hopper. Hopper is stackable if you stack the top hopper turned ninety (90) degrees from the bottom. Self-dumping hoppers facilitate compliance with OSHA general industry rule 29 CFR 1910.178(m)(5)(iii) by allowing lift truck operators to remain at the controls of their truck throughout the dumping process. Length dimension is measured at top of chute.

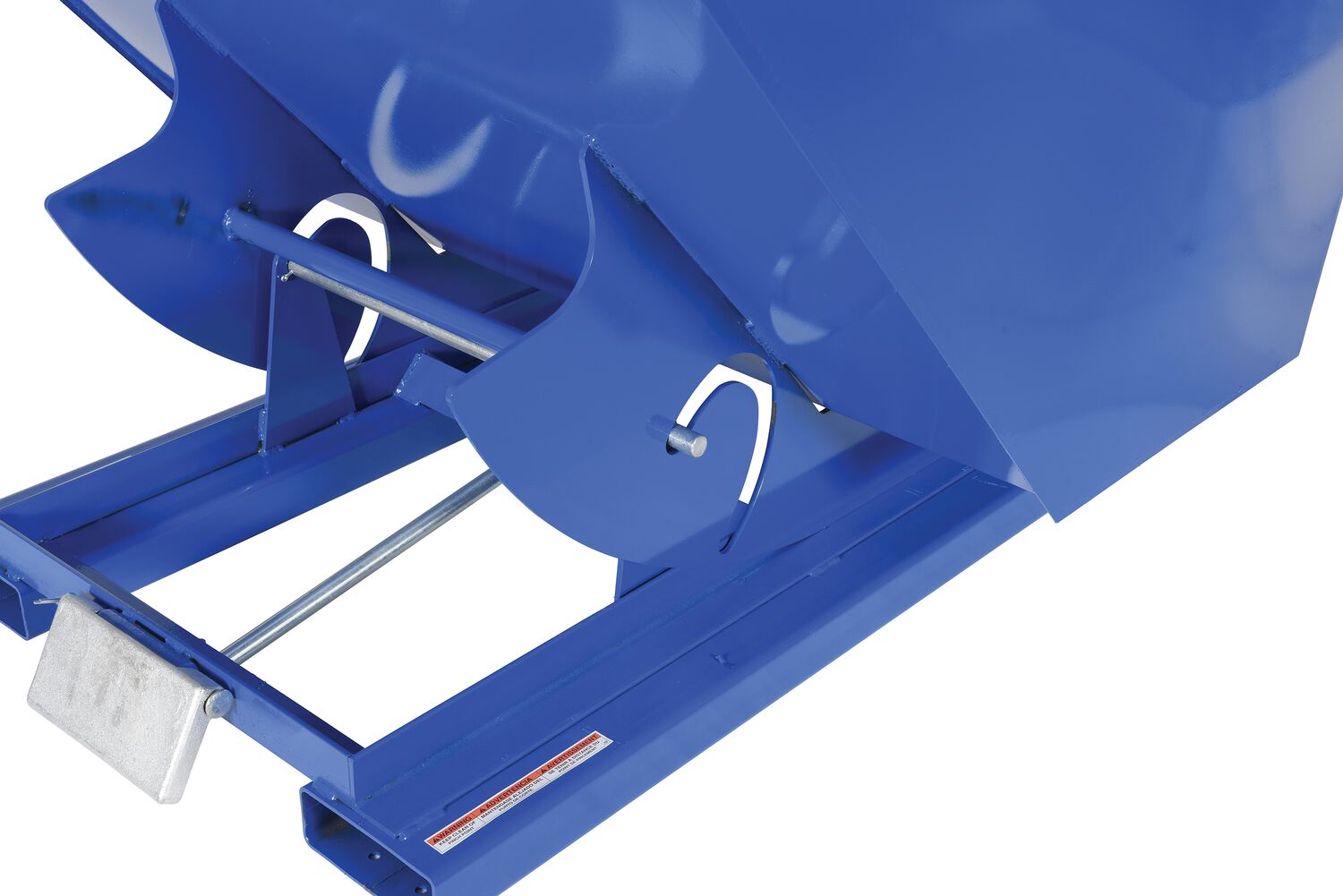

  • Returns to upright and locked position automatically

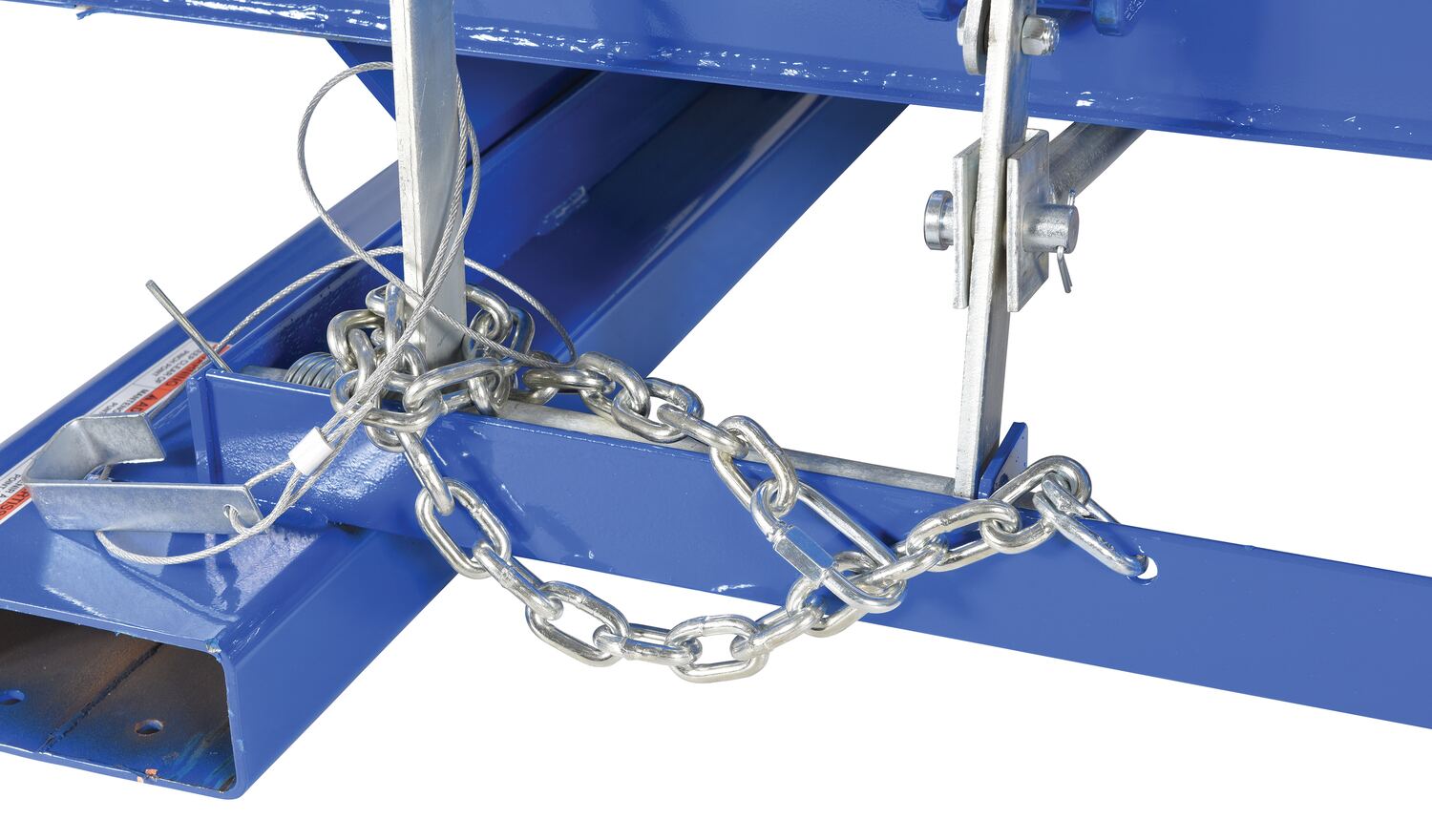

  • Safety restraint secures the hopper to the fork truck

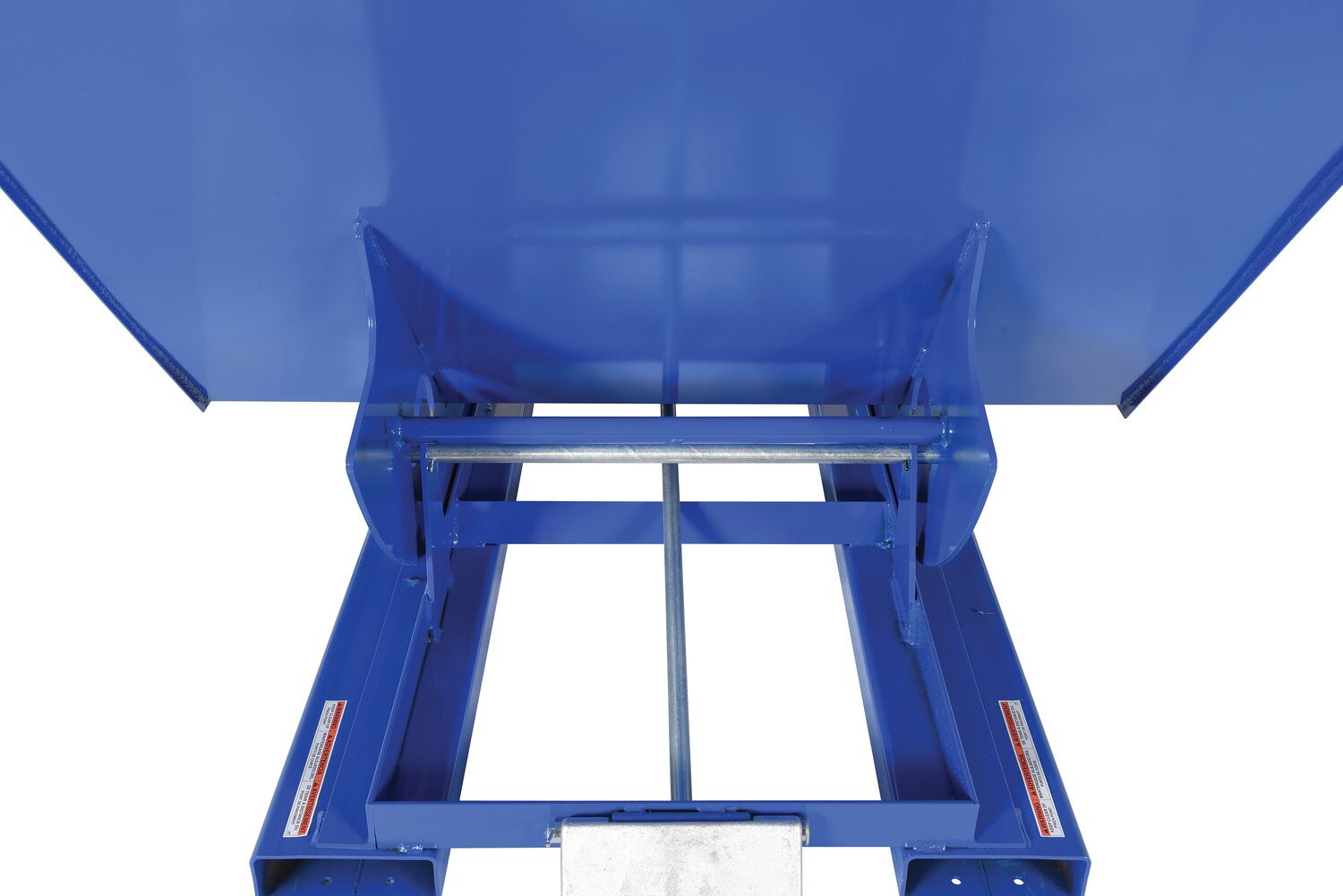

  • Full-length fork pocket
  • Chute and sides of hopper made out of 10 GA high strength steel
Total Ship Wt.(lbs.): 708 (only 1 package) Size: 56.5625"W x 68.3125"L x 51.8125"H Color: Blue

Uniform Capacity (lb.): 4,000 Steel: High Strength Volume (cu. yrd.): 2
Fork Pocket Center (in.): 28 Pull Cable Length (ft.): 4 Usable Fork Pocket Width (in.): 7-1/2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: D-200-HS
D-200-HS

Steel High Strength Self Dumping Hopper 2 Cubic Yard 4000 Lb. Capacity Blue

This high strength self-dumping steel Hopper with bumper release automatically dumps when bumper release contacts the front of the dumpster. Also includes a cable that may be operated from the seat of the fork truck to manually dump the hopper. Hopper is stackable if you stack the top hopper turned ninety (90) degrees from the bottom. Self-dumping hoppers facilitate compliance with OSHA general industry rule 29 CFR 1910.178(m)(5)(iii) by allowing lift truck operators to remain at the controls of their truck throughout the dumping process. Length dimension is measured at top of chute.

  • Returns to upright and locked position automatically
  • Safety restraint secures the hopper to the fork truck
  • Full-length fork pocket
  • Chute and sides of hopper made out of 10 GA high strength steel
Dimensions: 56.5625"W x 68.3125"L x 51.8125"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215378161 GTIN: 00691215378161
Warranty: -- Shipping Weight: 708 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: USA
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4,000 Steel: High Strength Volume (cu. yrd.): 2
Fork Pocket Center (in.): 28 Pull Cable Length (ft.): 4 Usable Fork Pocket Width (in.): 7-1/2
