CART-550-SS

Printer Friendly
Available
CART-550-SS
CART-550-SS CART-550-SS CART-550-SS CART-550-SS CART-550-SS CART-550-SS CART-550-SS CART-550-SS CART-550-SS CART-550-SS

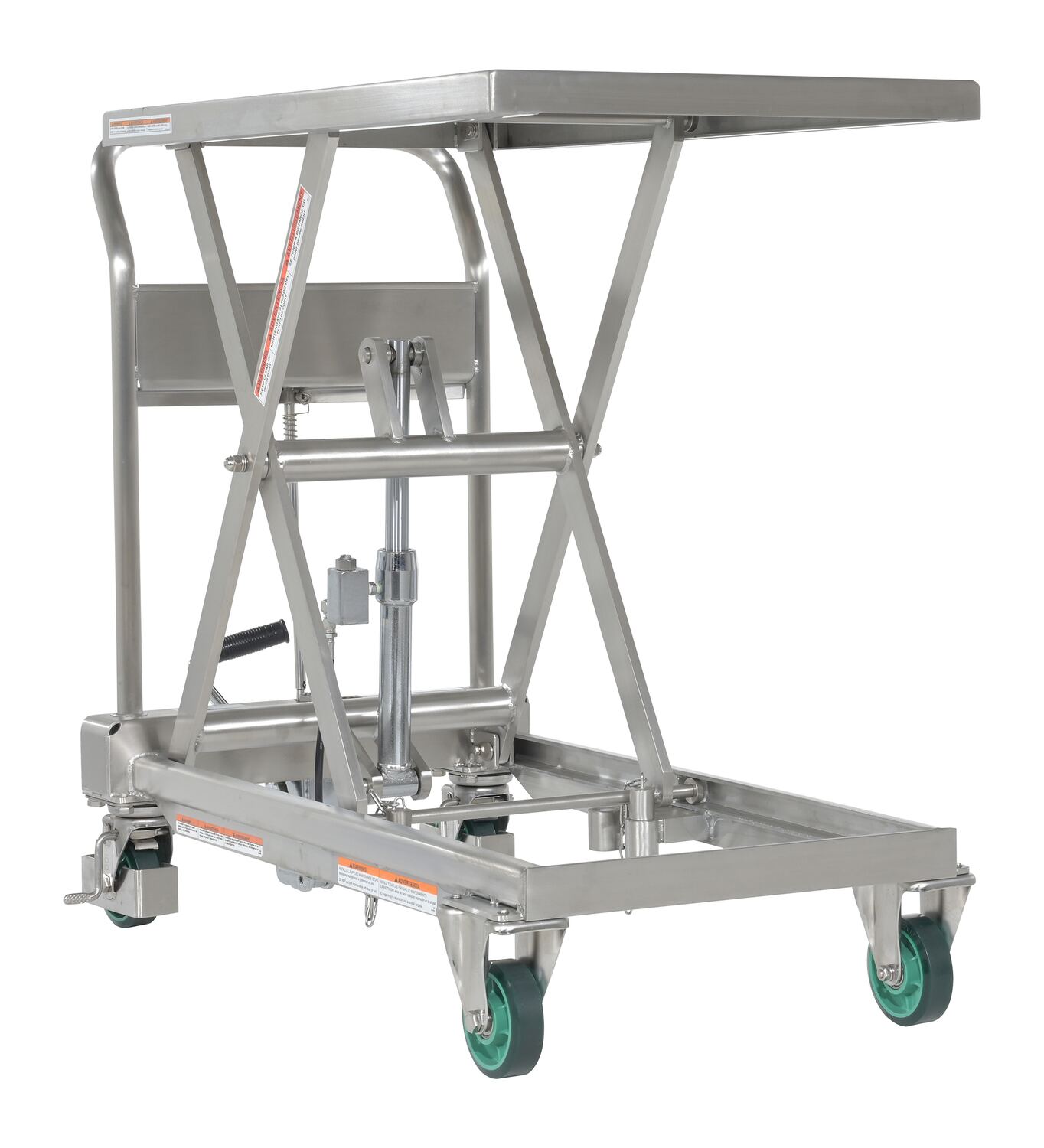

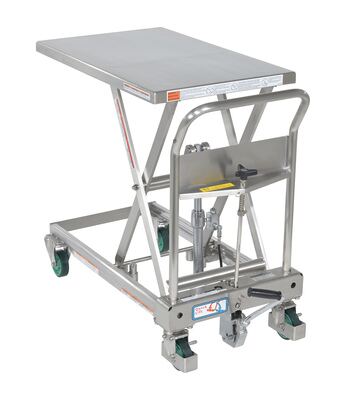

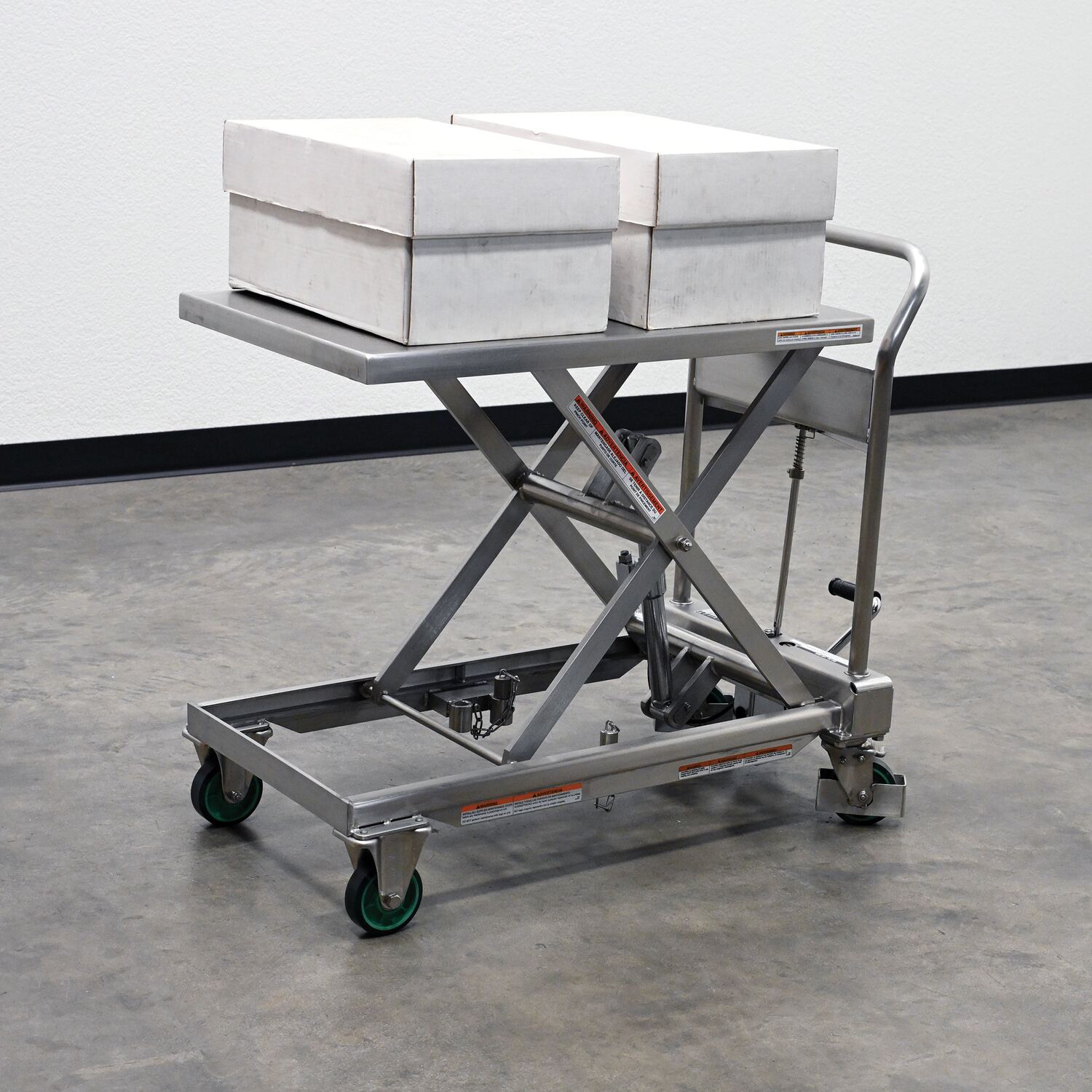

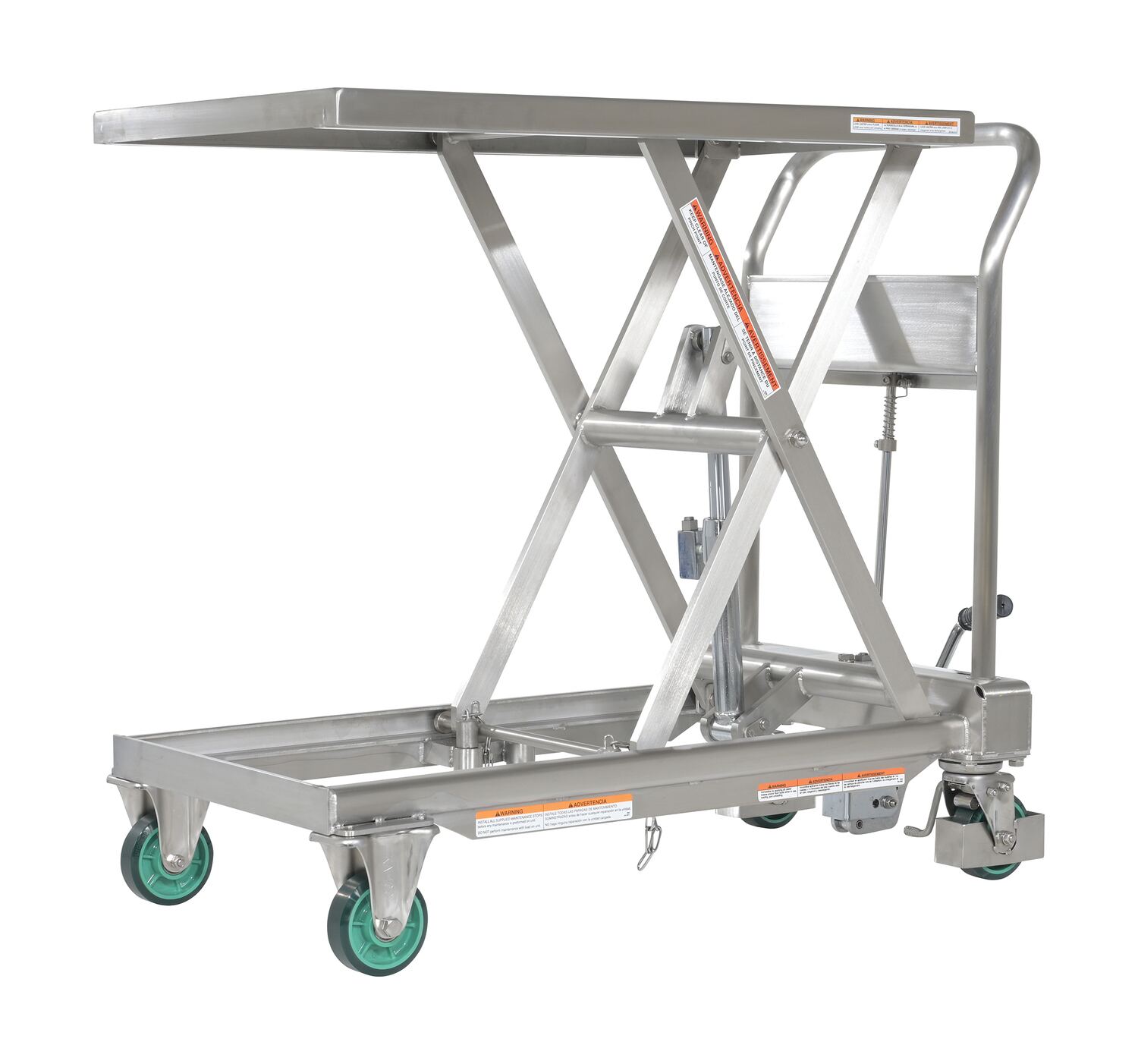

Stainless Steel Hydraulic Cart 19-1/2 In. x 31-1/2 In. 550 Lb. Capacity Silver

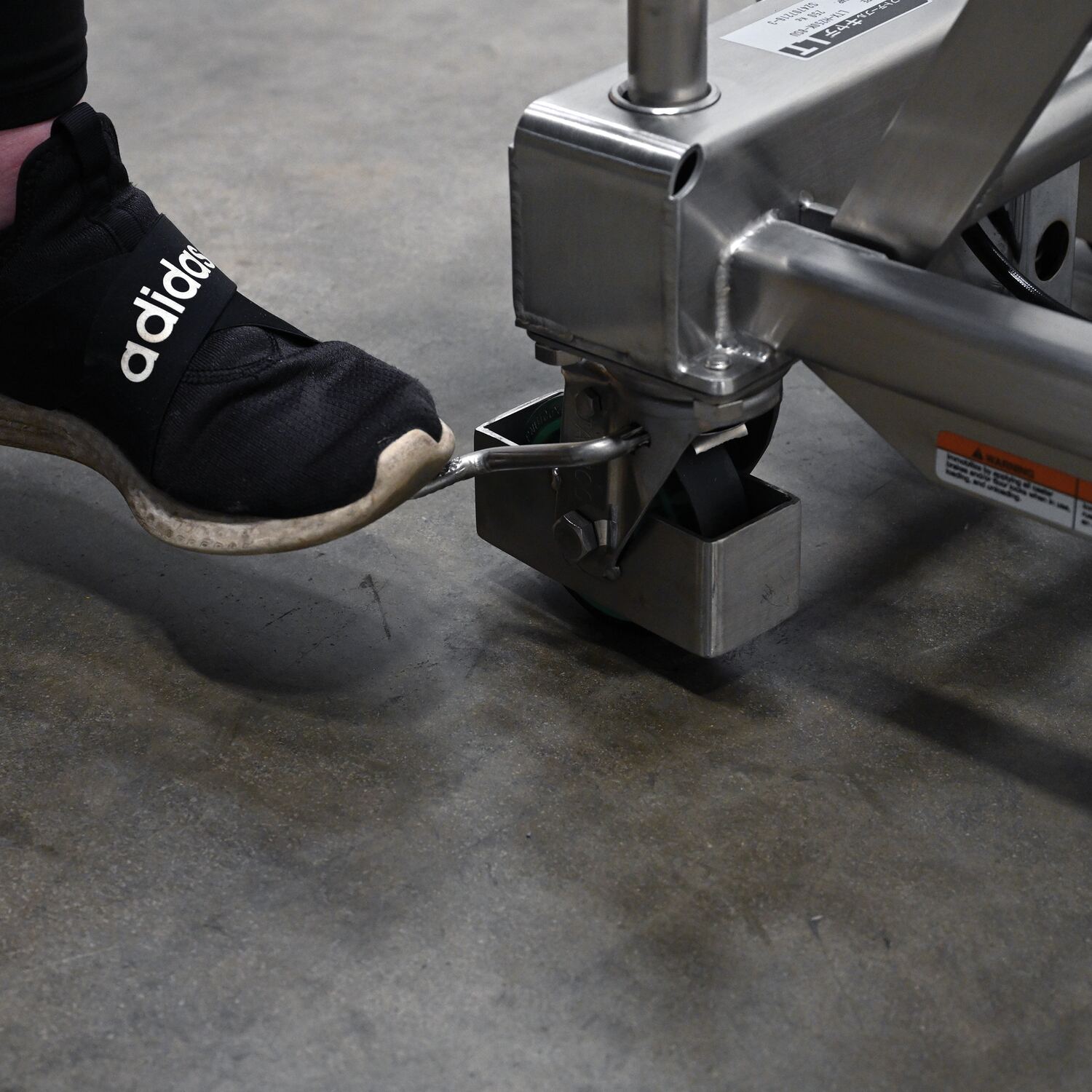

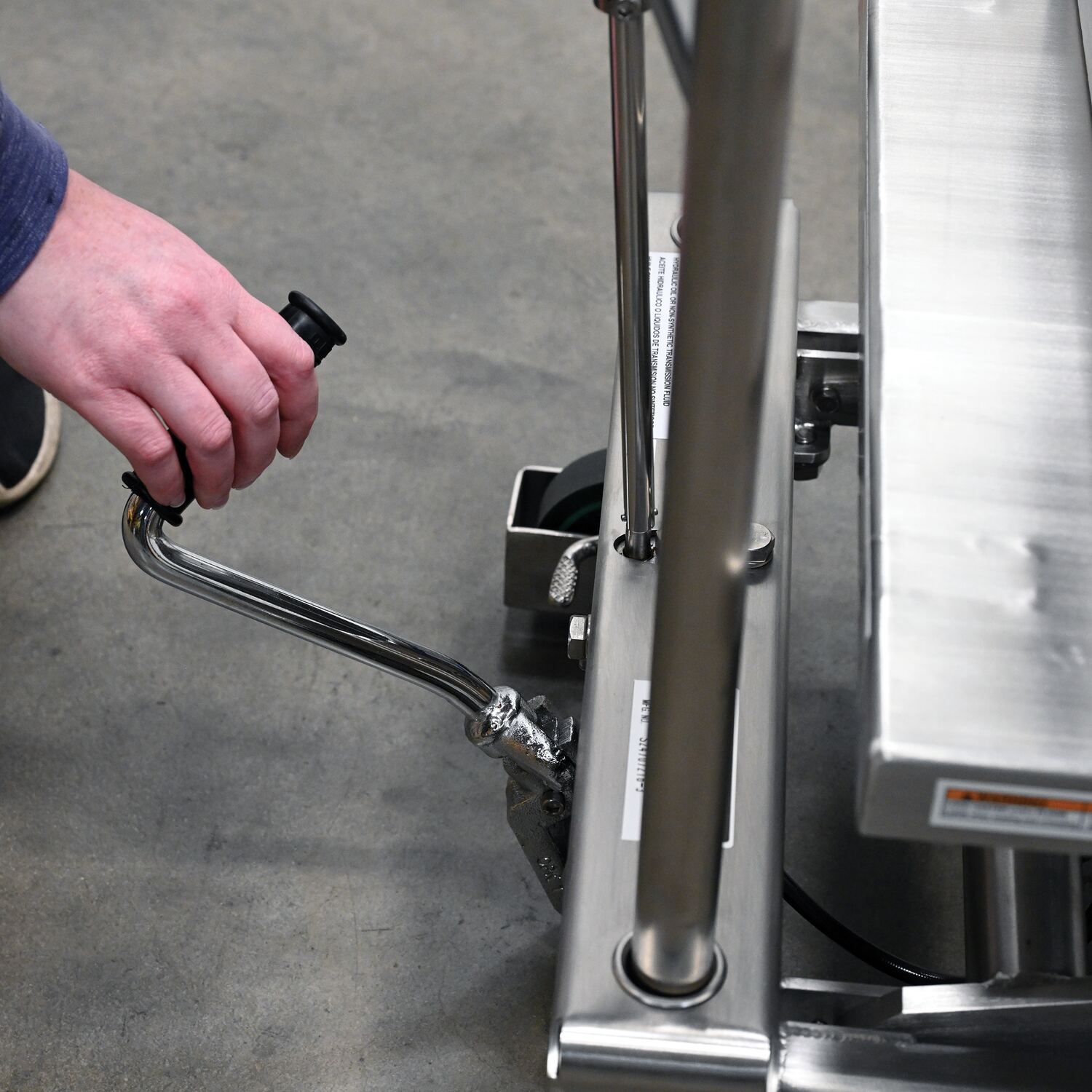

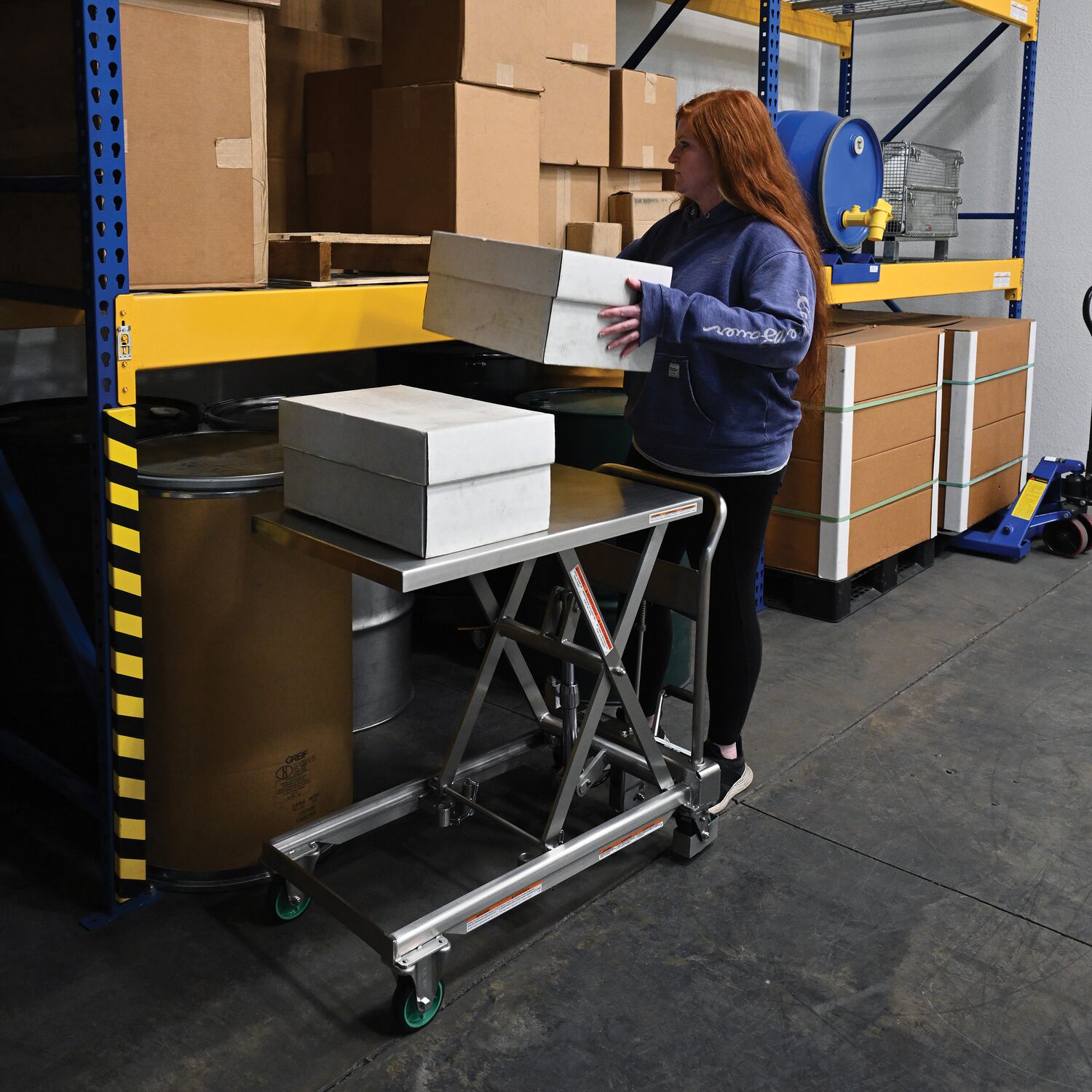

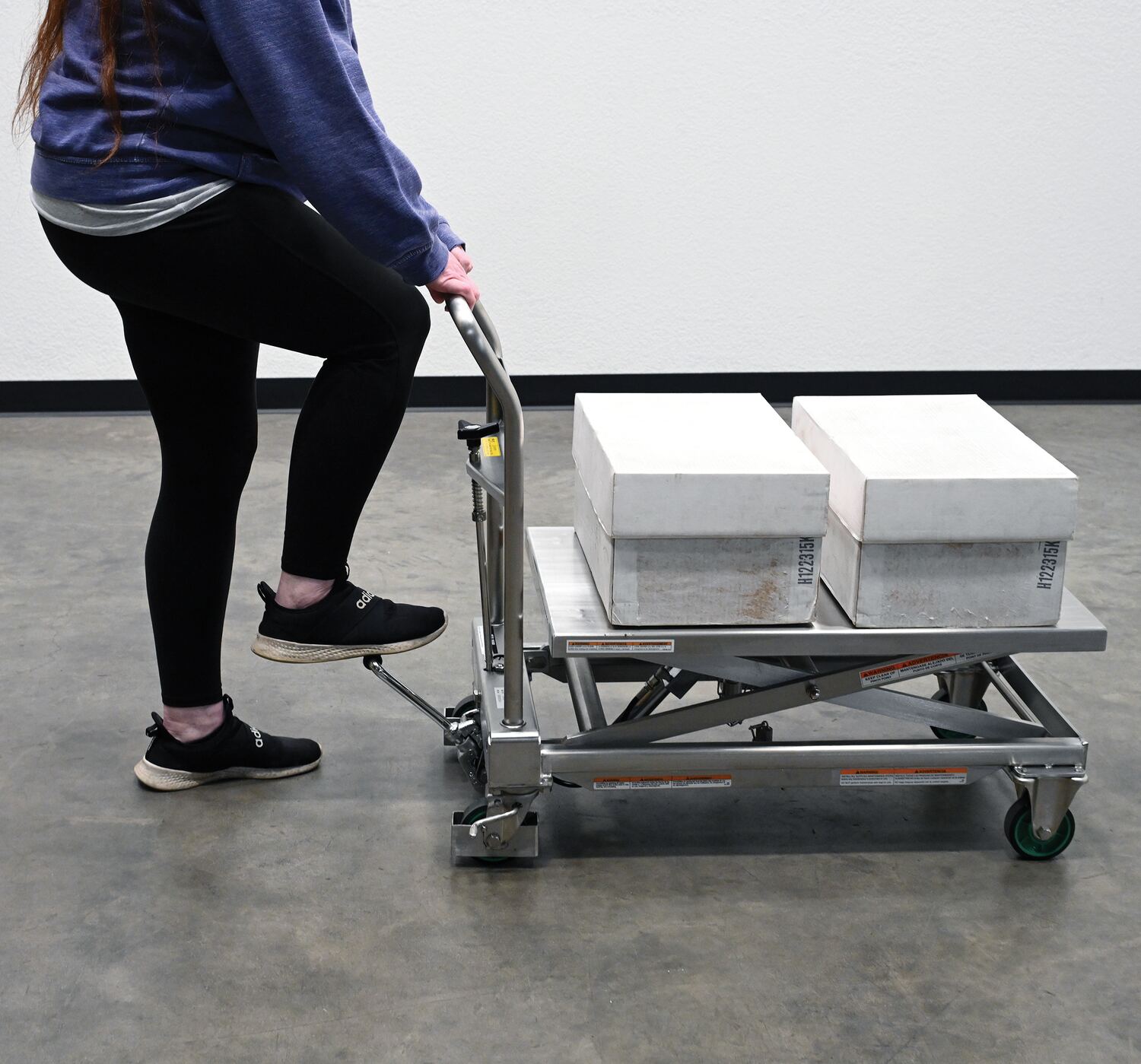

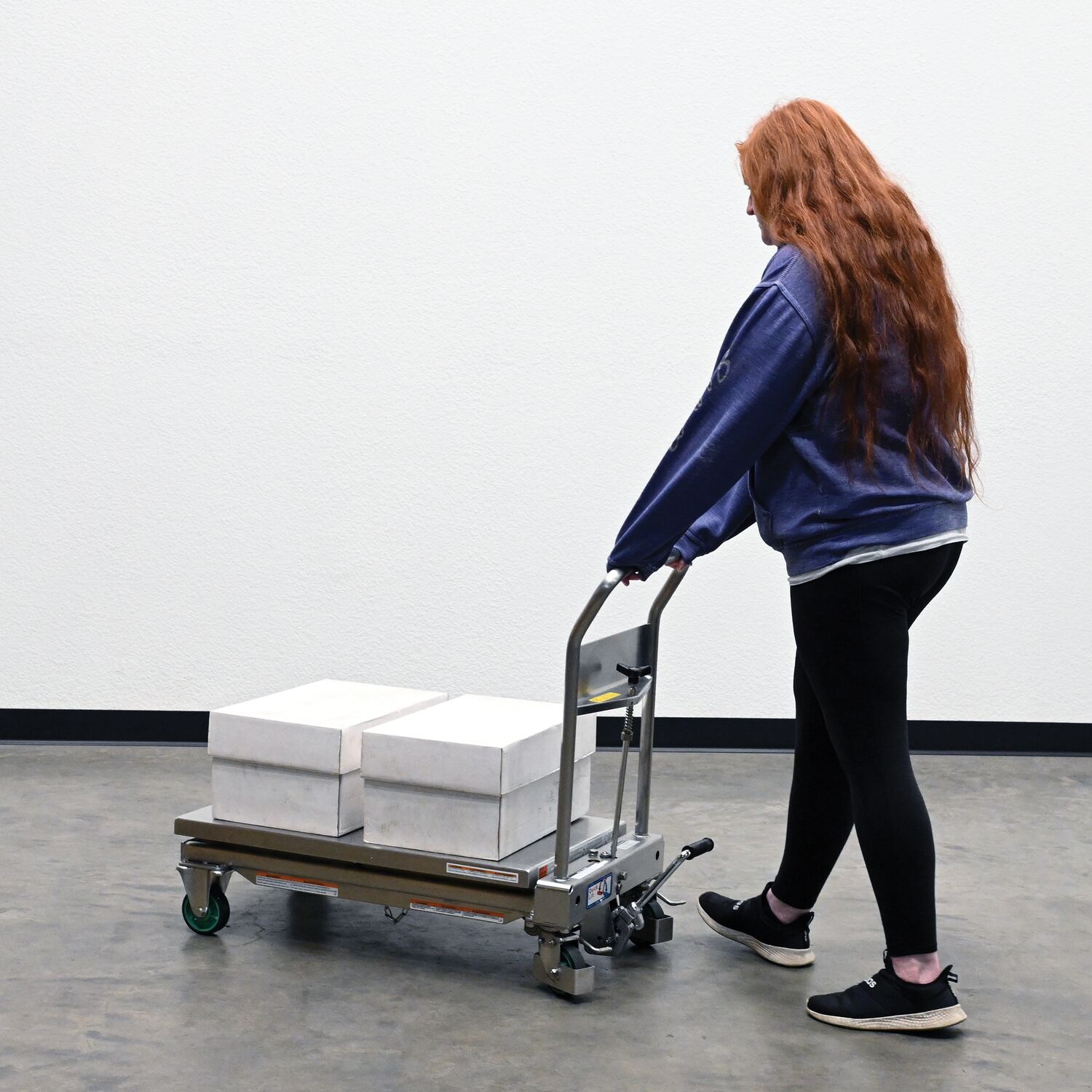

The Hydraulic elevating cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Features a two-speed foot pump. Foot pump pedal, pump assembly and hydraulic cylinder are chrome plated. Rest of the unit is fully stainless construction. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Stainless Steel construction offers long lasting rugged use
Assembled Wt.(lbs.): 134 Assembled Size: 21.2656"W x 41.3125"L x 33.2656"H

Total Ship Wt.(lbs.): 179 (only 1 package) Package 1 Size: 40"W x 48"D x 16"H Color: Silver Non-Returnable

Uniform Capacity (lb.): 550 Service Range (in.): 9-3/4 to 33-1/2 Platform Width (in.): 19-1/2
Platform Length (in.): 31-1/2 Foot Pump Speed: Two Caster Diameter/Width (in.): 4 x 1-1/4
Caster Qty./Type: (2) Rigid, (2) Swivel with Brakes Caster Material: Polyurethane # of Pumps to Raise Platform on Low Speed while Unloaded: 24
# of Pumps to Raise Platform on Low Speed while Loaded: 27 # of Pumps to Raise Platform on High Speed while Unloaded: 12 # of Pumps to Raise Platform on High Speed while Loaded: Can Not Pump at High Speed while Loaded

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: CART-550-SS
Available
CART-550-SS

Stainless Steel Hydraulic Cart 19-1/2 In. x 31-1/2 In. 550 Lb. Capacity Silver

The Hydraulic elevating cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Features a two-speed foot pump. Foot pump pedal, pump assembly and hydraulic cylinder are chrome plated. Rest of the unit is fully stainless construction. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Stainless Steel construction offers long lasting rugged use
Dimensions: 21.2656"W x 41.3125"L x 33.2656"H Sell UOM: -- Color: Silver
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 179 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 550 Service Range (in.): 9-3/4 to 33-1/2 Platform Width (in.): 19-1/2
Platform Length (in.): 31-1/2 Foot Pump Speed: Two Caster Diameter/Width (in.): 4 x 1-1/4
Caster Qty./Type: (2) Rigid, (2) Swivel with Brakes Caster Material: Polyurethane # of Pumps to Raise Platform on Low Speed while Unloaded: 24
# of Pumps to Raise Platform on Low Speed while Loaded: 27 # of Pumps to Raise Platform on High Speed while Unloaded: 12 # of Pumps to Raise Platform on High Speed while Loaded: Can Not Pump at High Speed while Loaded
